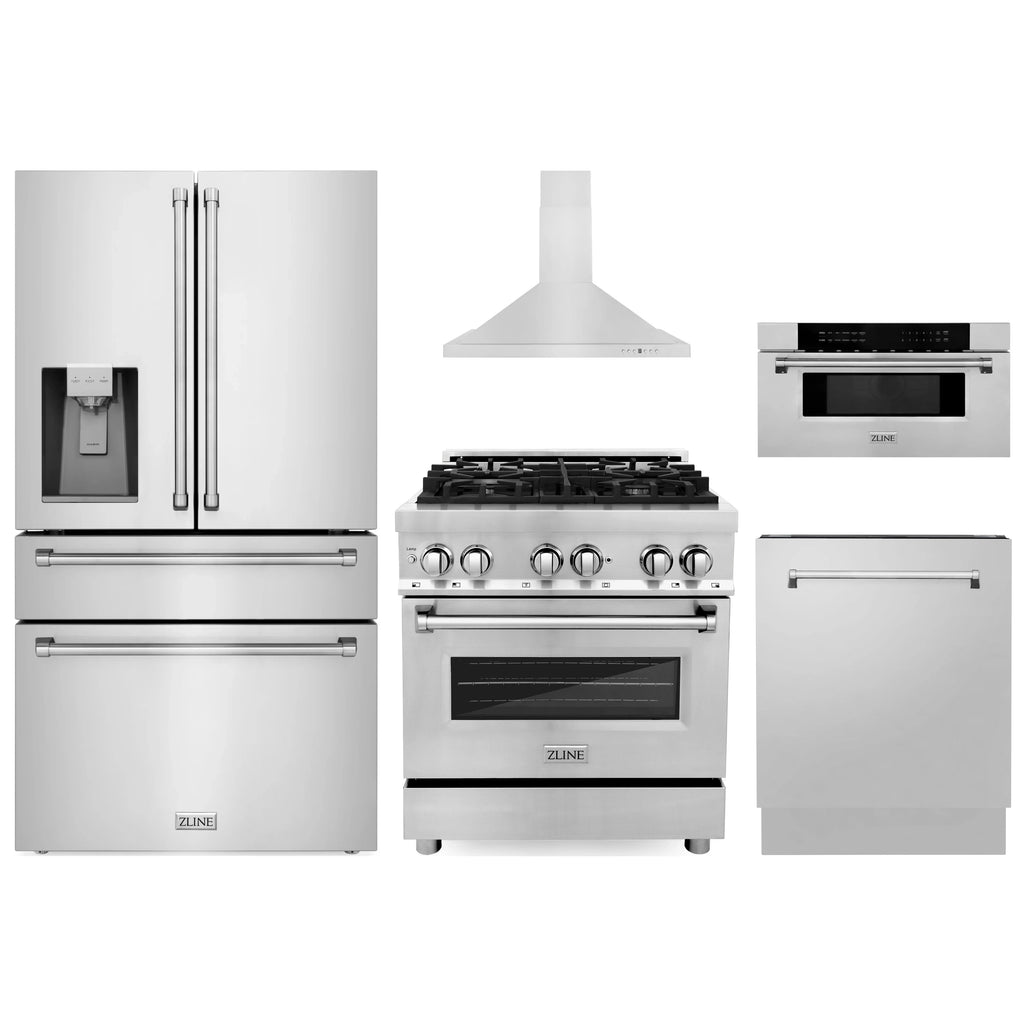

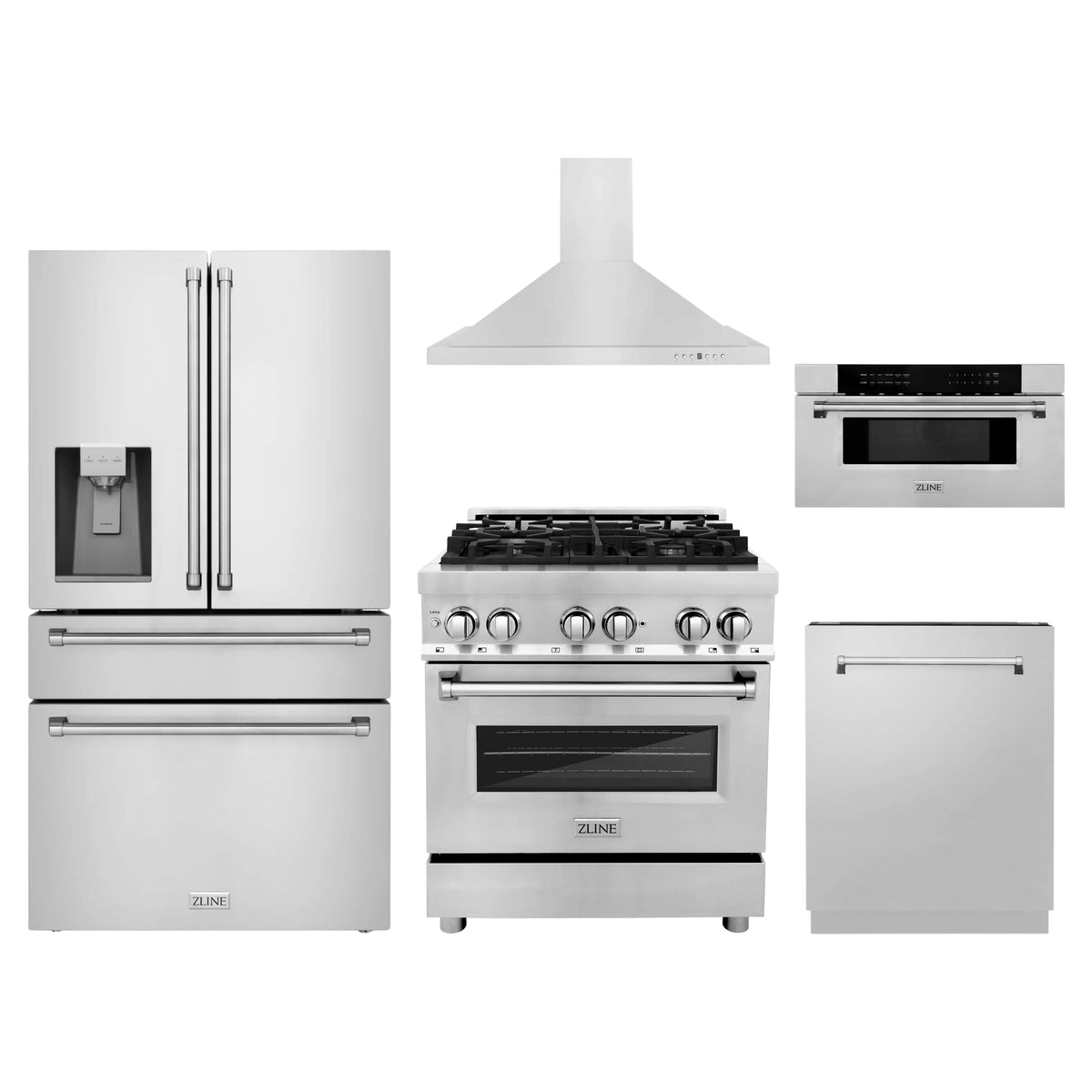

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

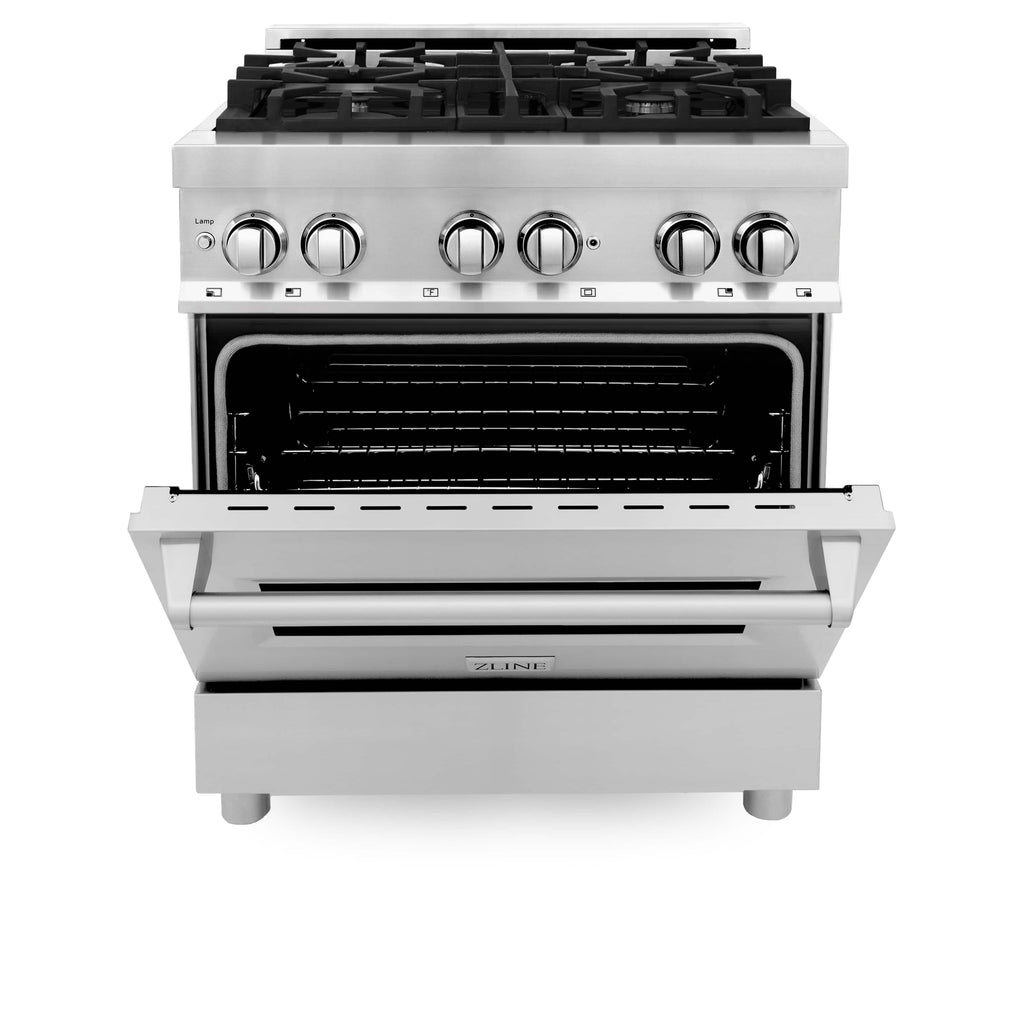

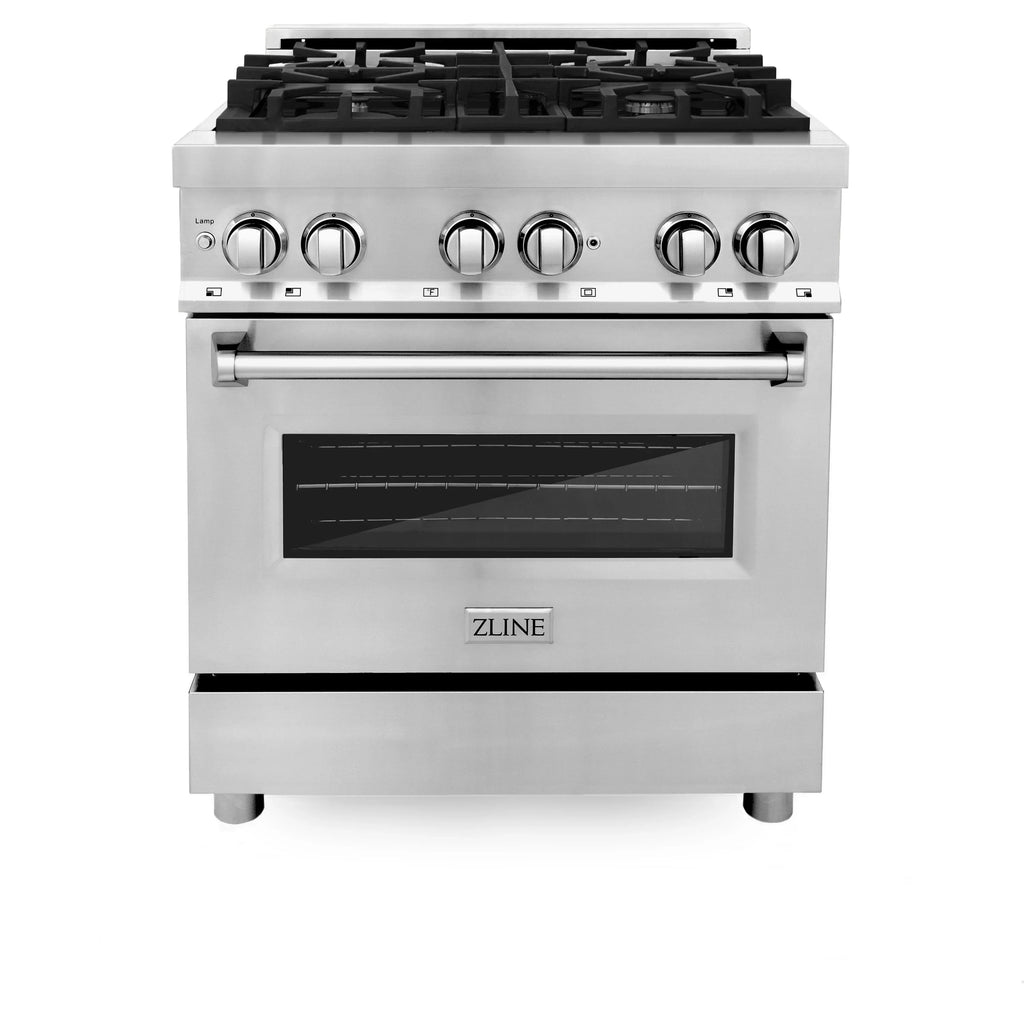

Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 30" 4.0 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Stainless Steel (RA30) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen’s capability.
Features

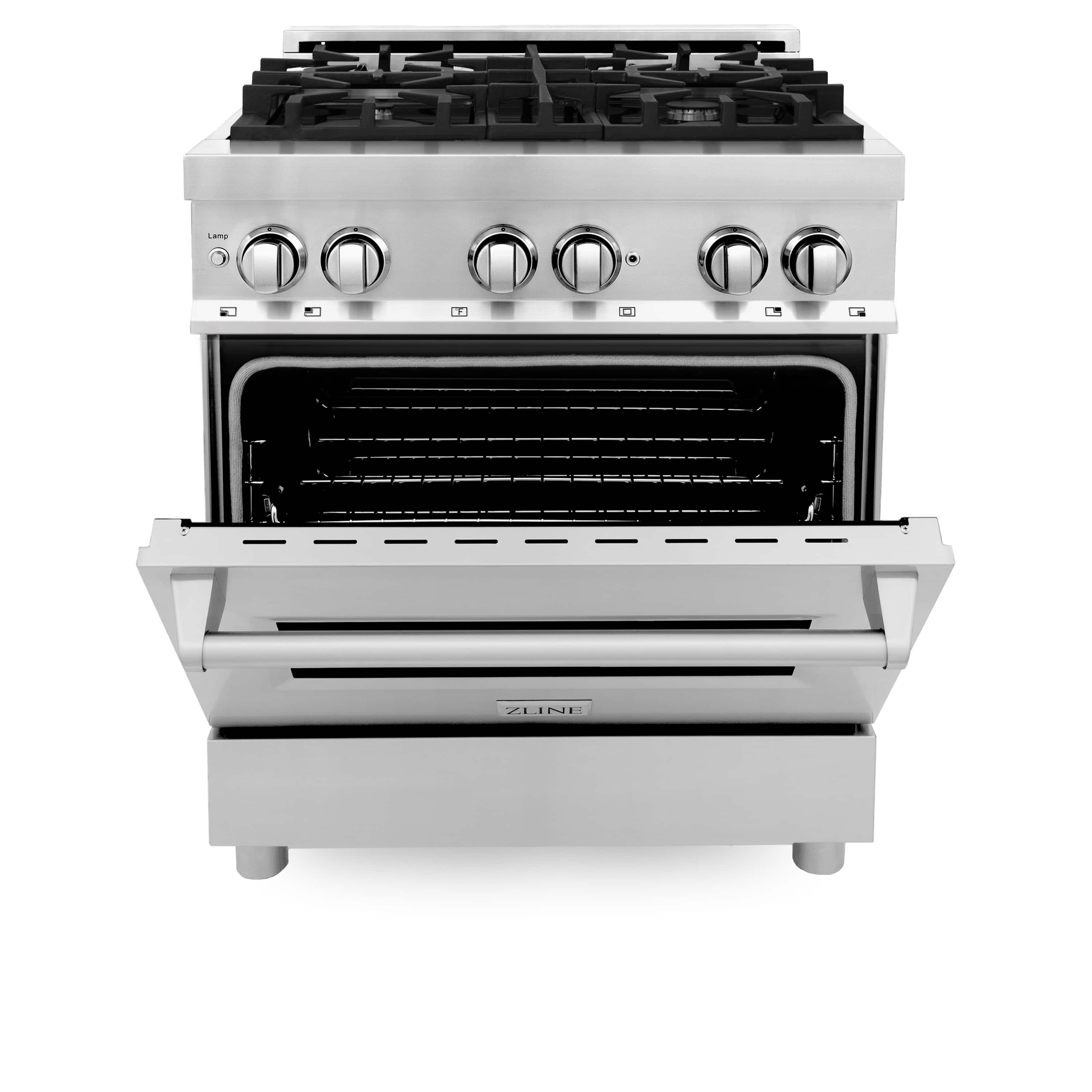

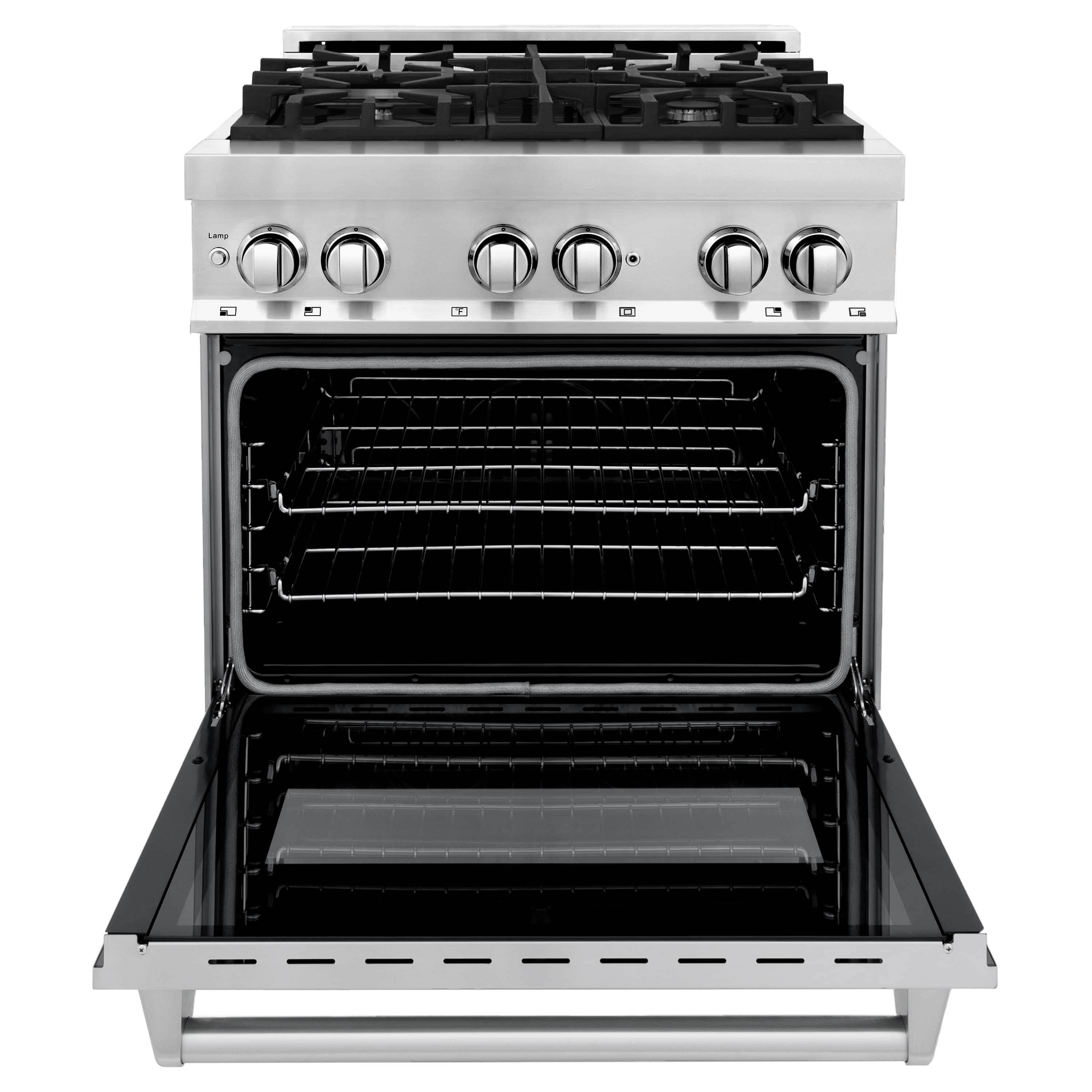

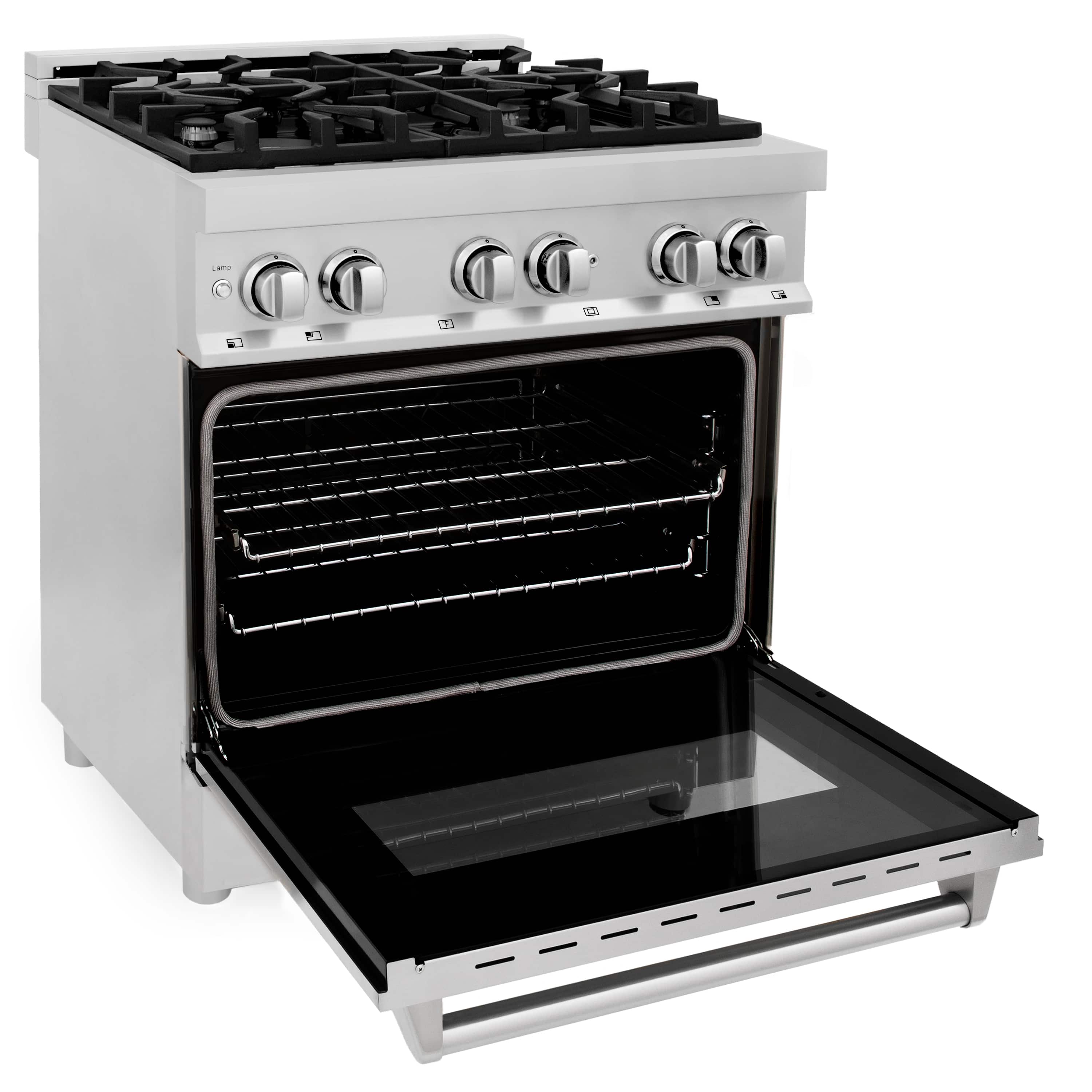

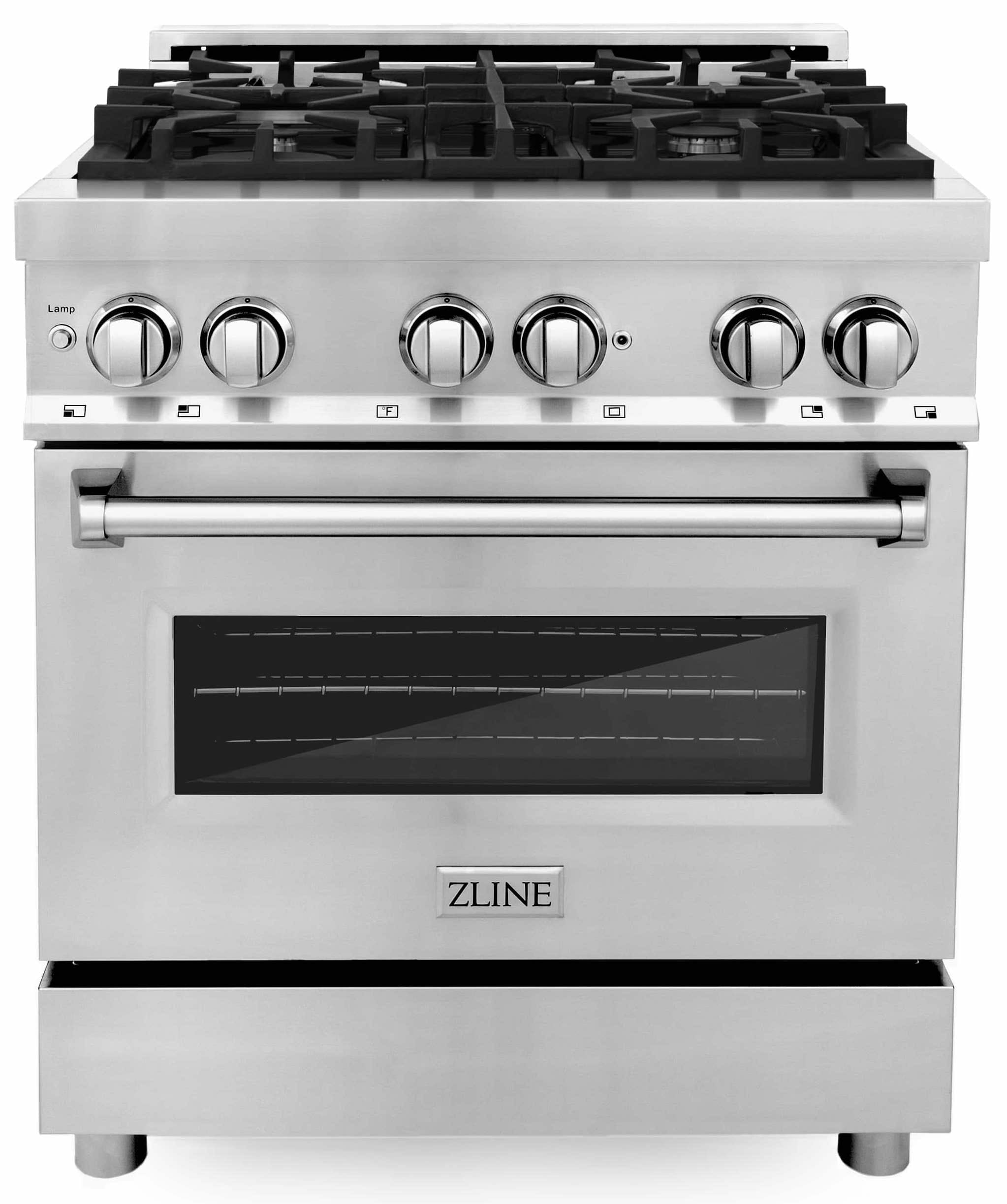

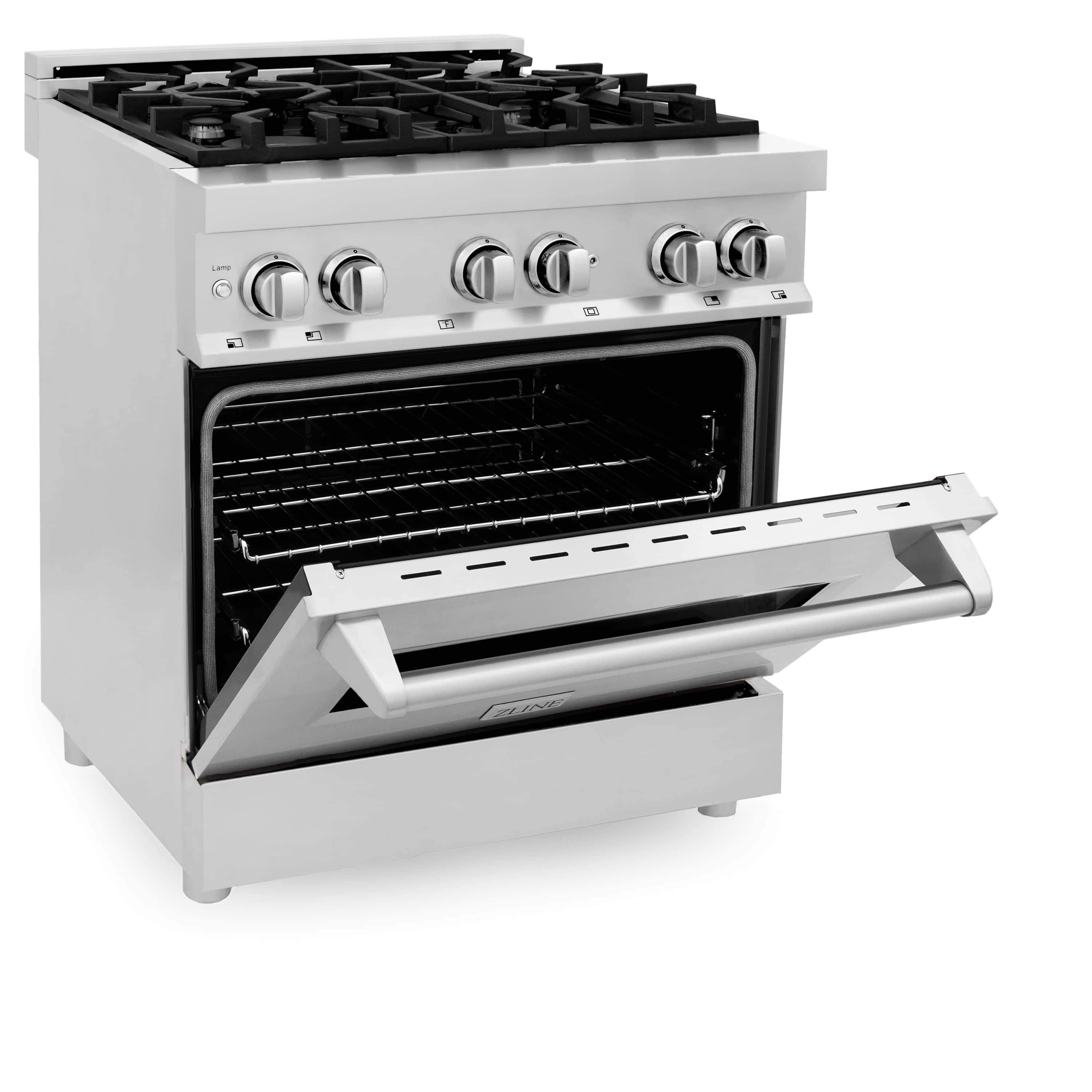

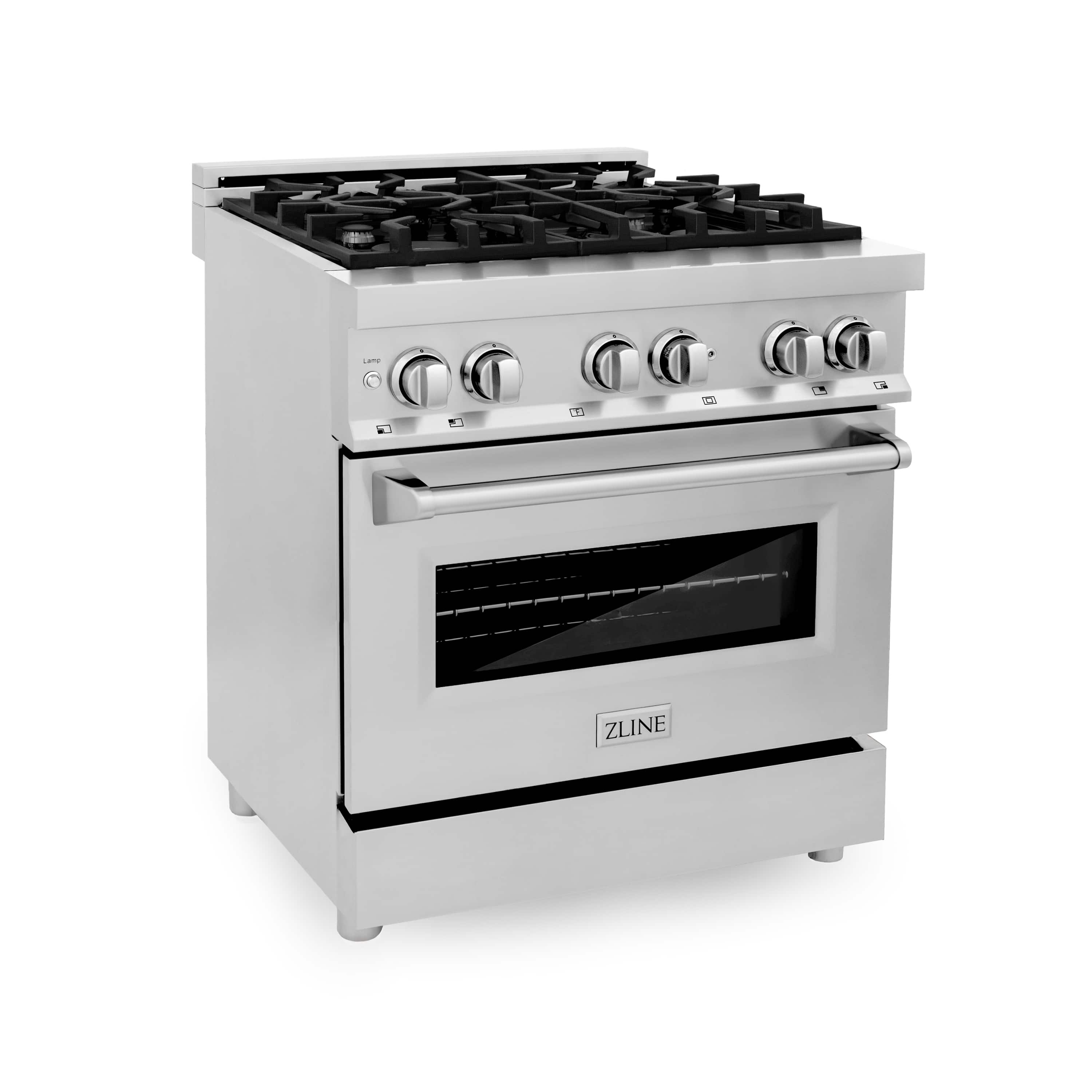

- Professional Dual Fuel Range Cooking - Blends high-performance technology of a gas cooktop and an electric convection oven

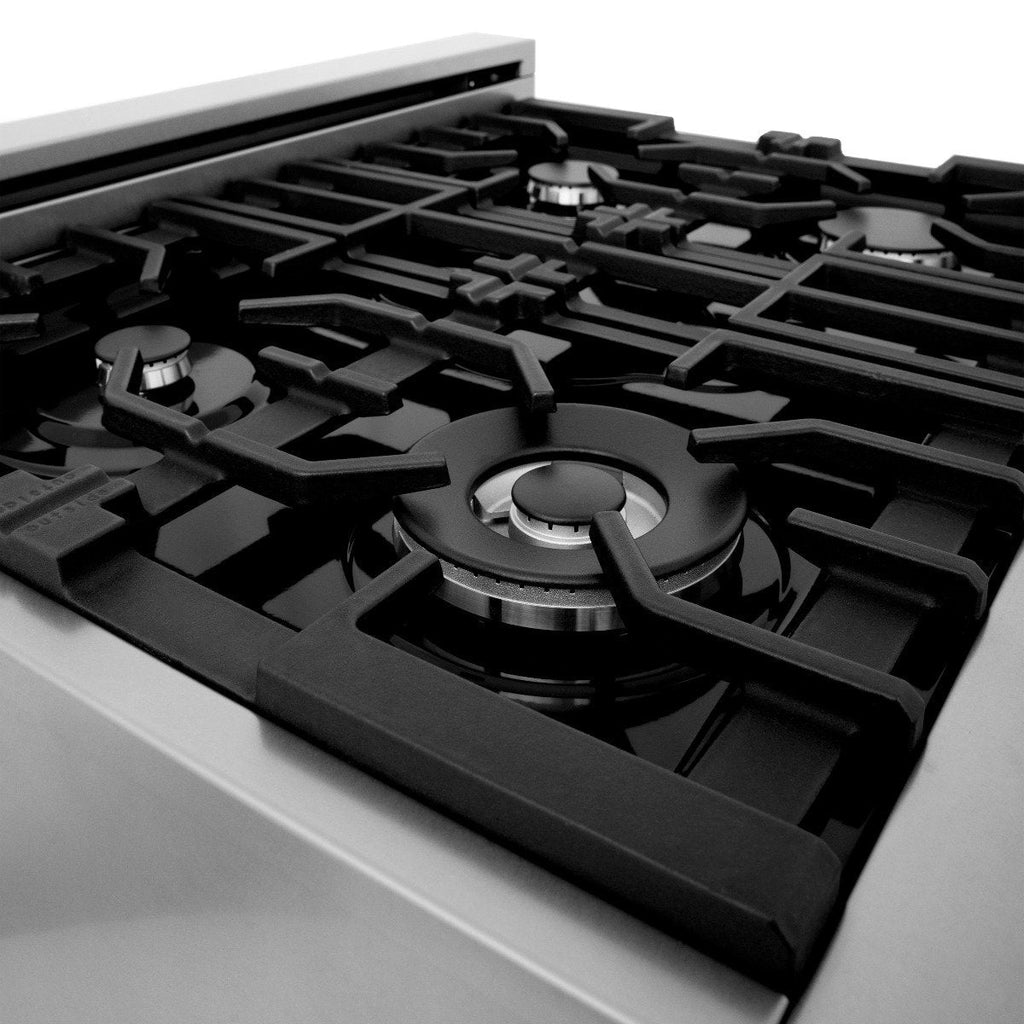

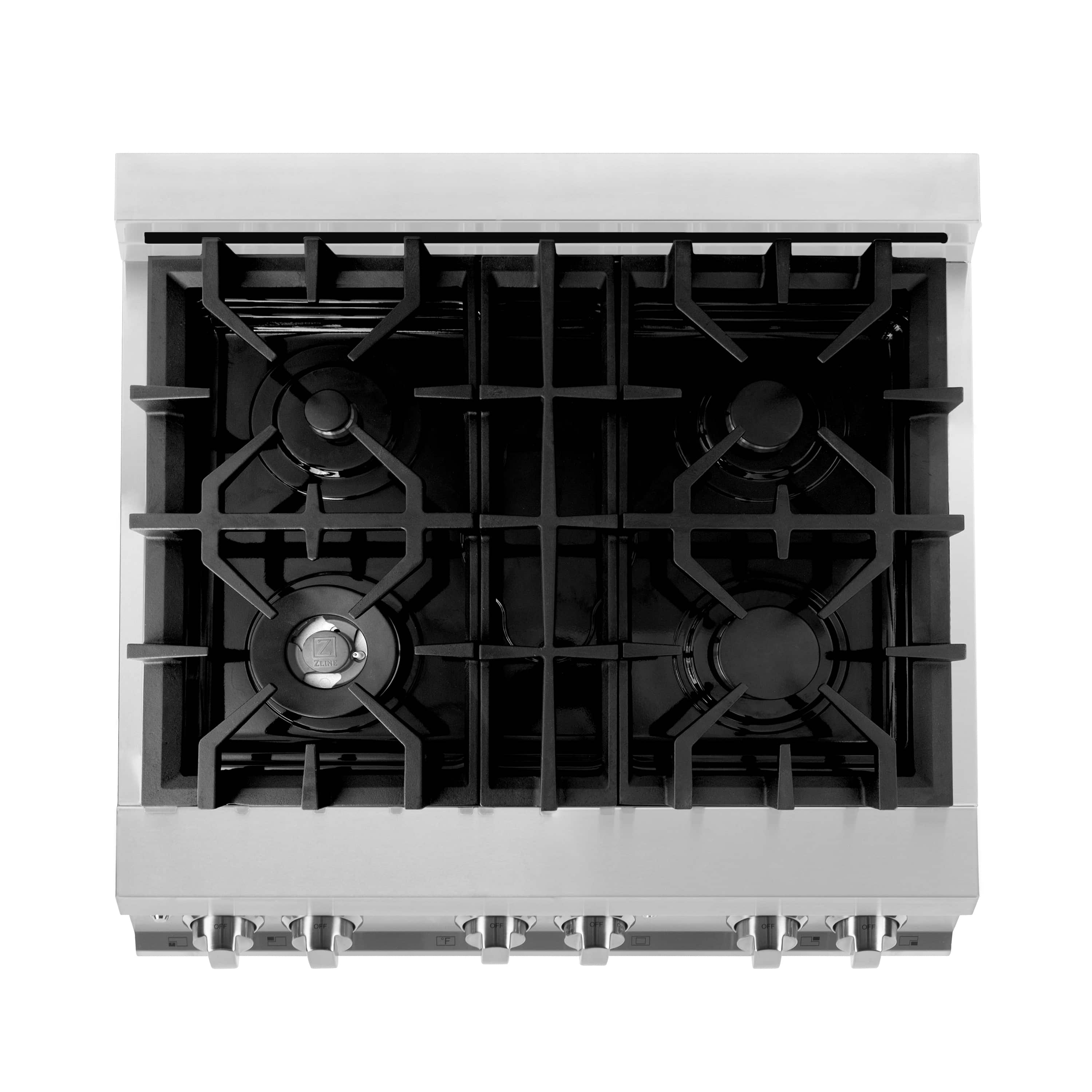

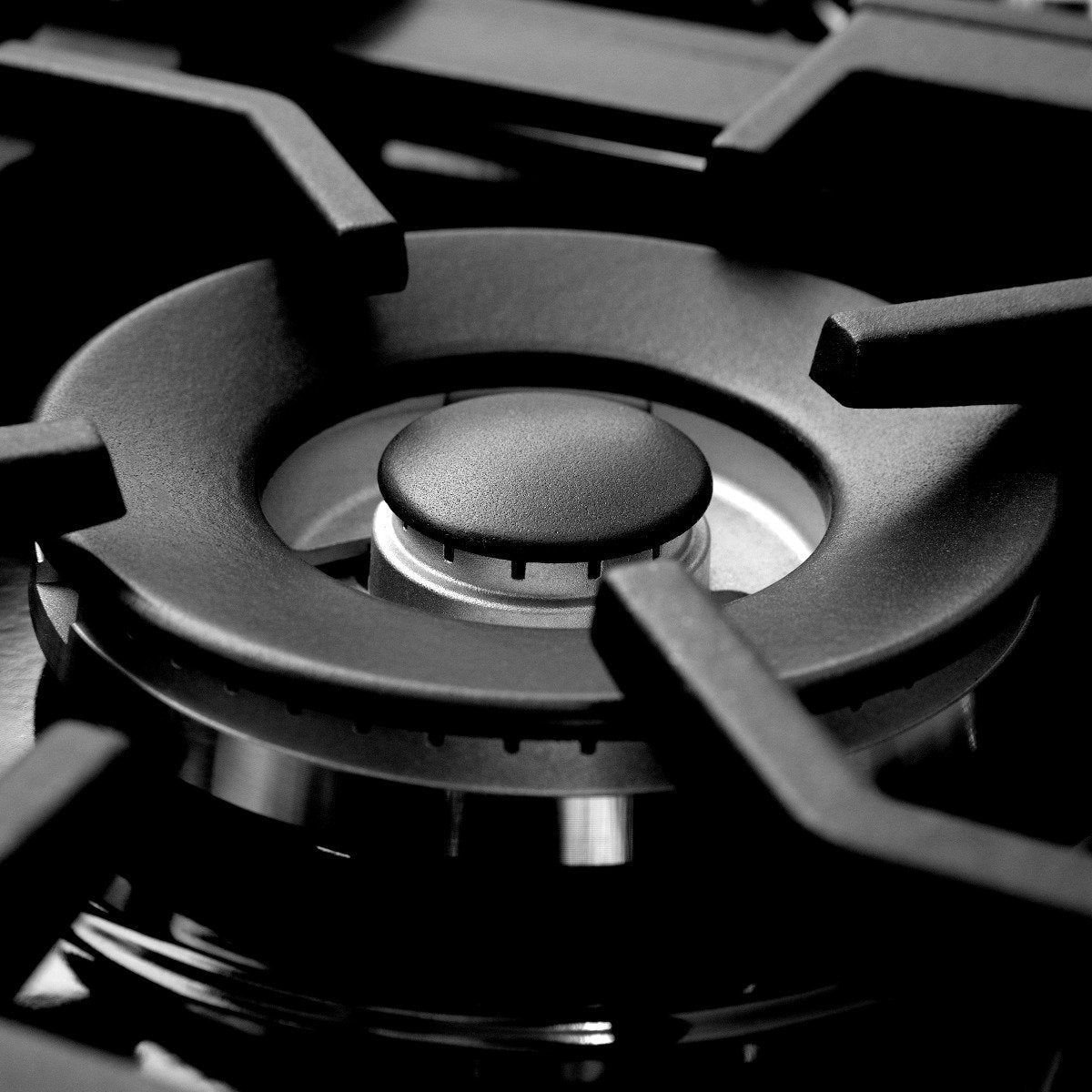

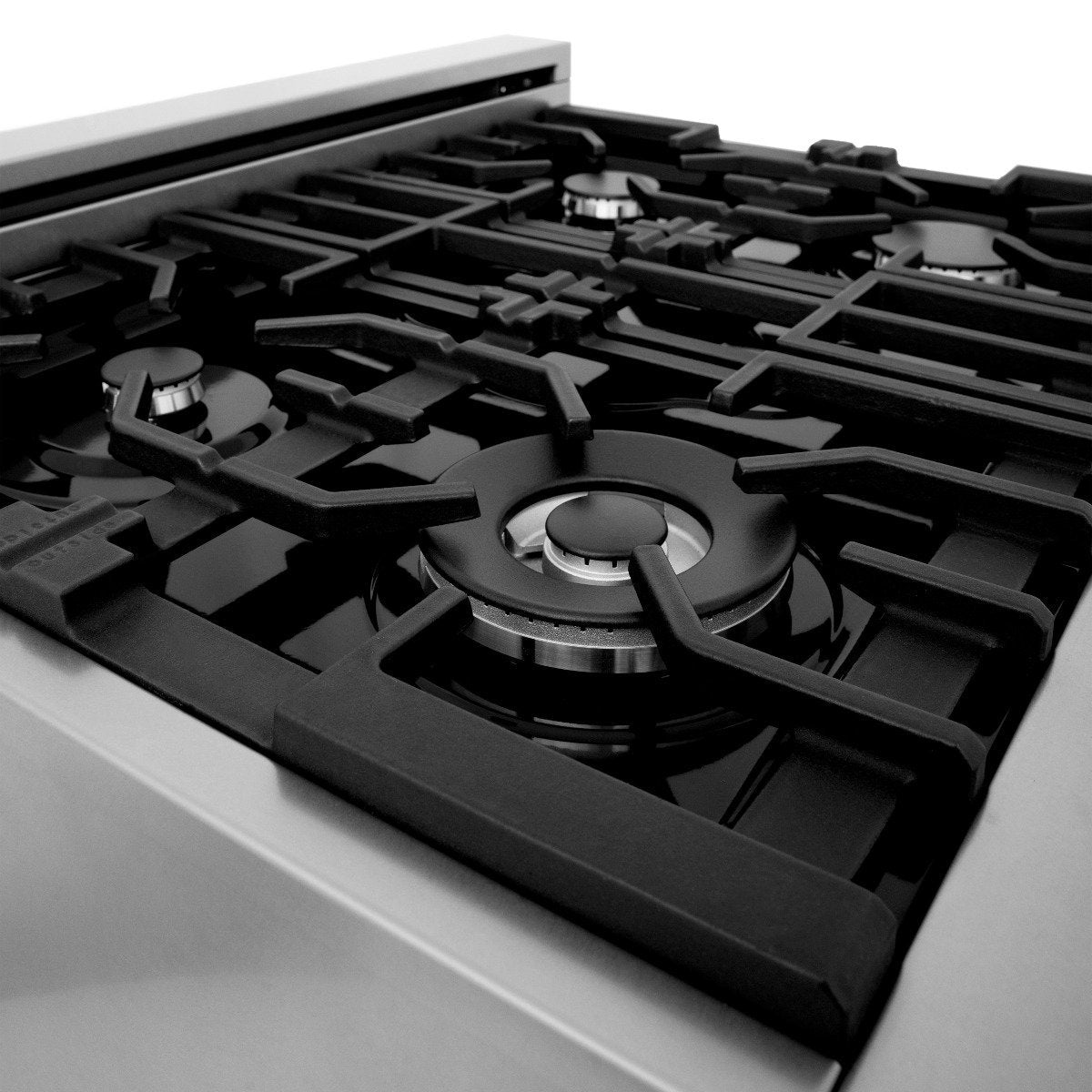

- Italian-Made Sealed Burners - Industry-leading gas cooktop includes 4 Hand-cast burners with cooking power ranging from 1,000 - 18,000 BTUs to optimize every meal with a powerful and even heat distribution
- Minimal Cleaning - Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance of gas cooktop
- Large Oven Capacity - 4.0 cu. ft oven capacity that fits up pans up to 23 in. wide for maximum space and convenience with everyday cooking
- Premium Oven Insulation - 3 layered glass and aluminum mesh seal offers superior heat retention and a consistent temperature, that creates perfect dishes every time

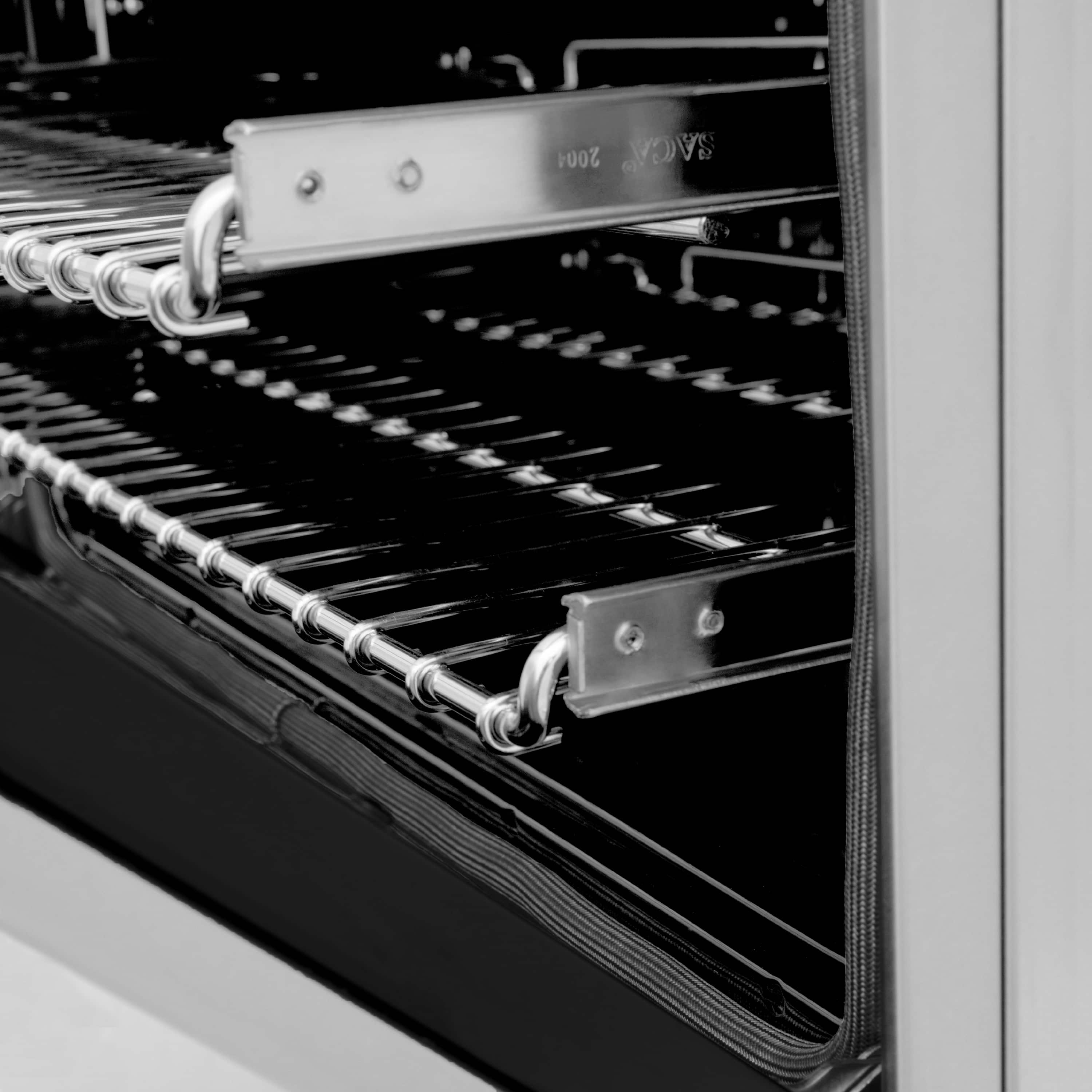

- Smooth Glide Ball-Bearing Oven Racks - Durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes

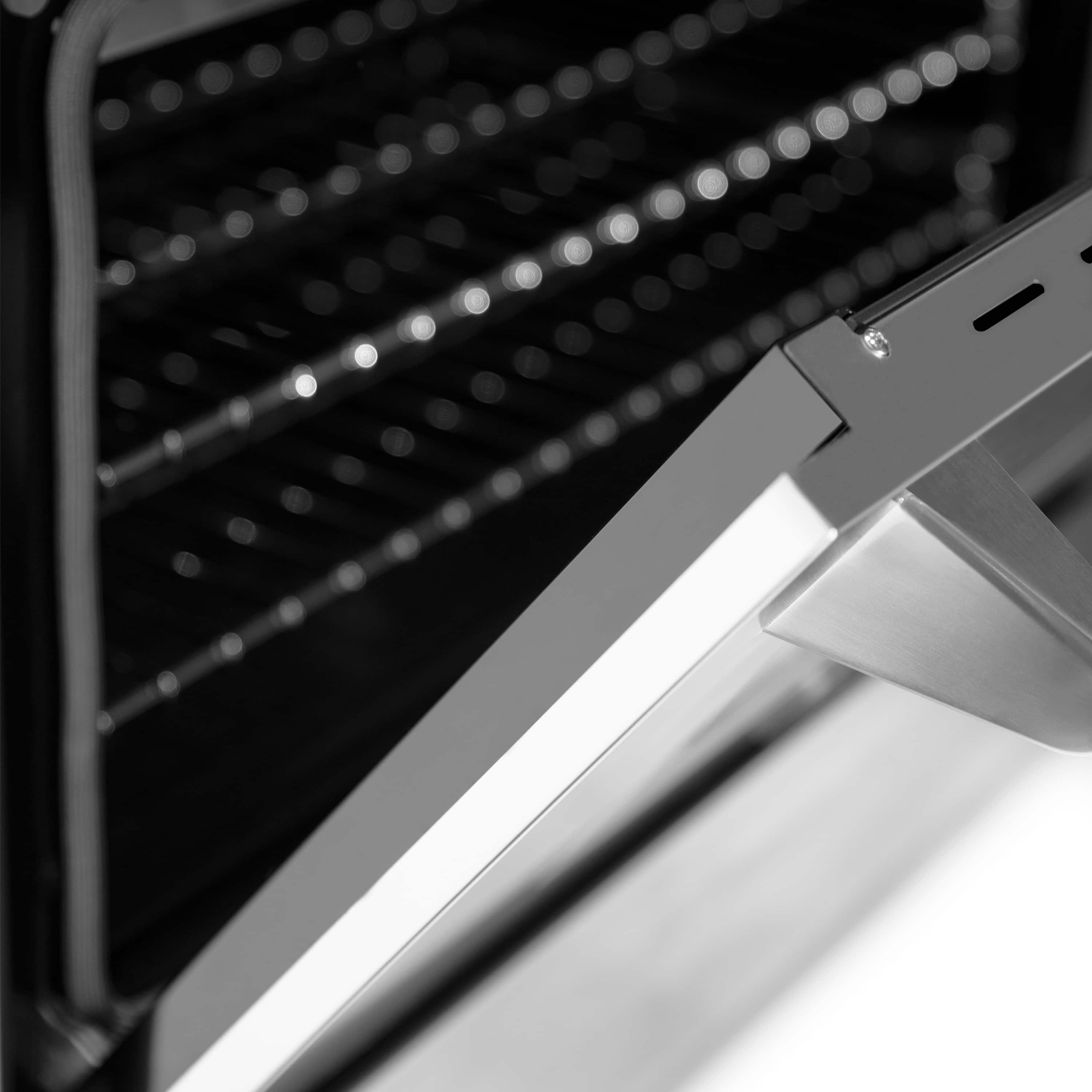

- StayPut Oven Door Hinges - Designed to support the full weight of the oven door, offering additional convenience and safety
- Dual Oven Lights - Illuminate your oven space with dual lighting, controlled by a switch located on the front control panel
- LP Conversion Kit - Comes equipped with an LP conversion kit to convert from natural gas to liquid propane (must be done by a professional). Which offers versatility with your cooking preference
- Professional Look and Feel - Featuring high grade 304 grade stainless steel with durable cast iron grates
- Adjustable Oven Height - Easy adjustable legs allow you to adjust the total range height anywhere from 36 inches to 38.5 inches
- Industry First Lifetime Burner Warranty - Limited lifetime warranty on ZLINE Italian burners. Which includes part replacements for burners and burner caps and parts and labor for the spark tip if parts prove to be defective in materials or workmanship
- Manufacturer Warranty - 1 year parts and service warranty on ZLINE Dual Fuel Ranges

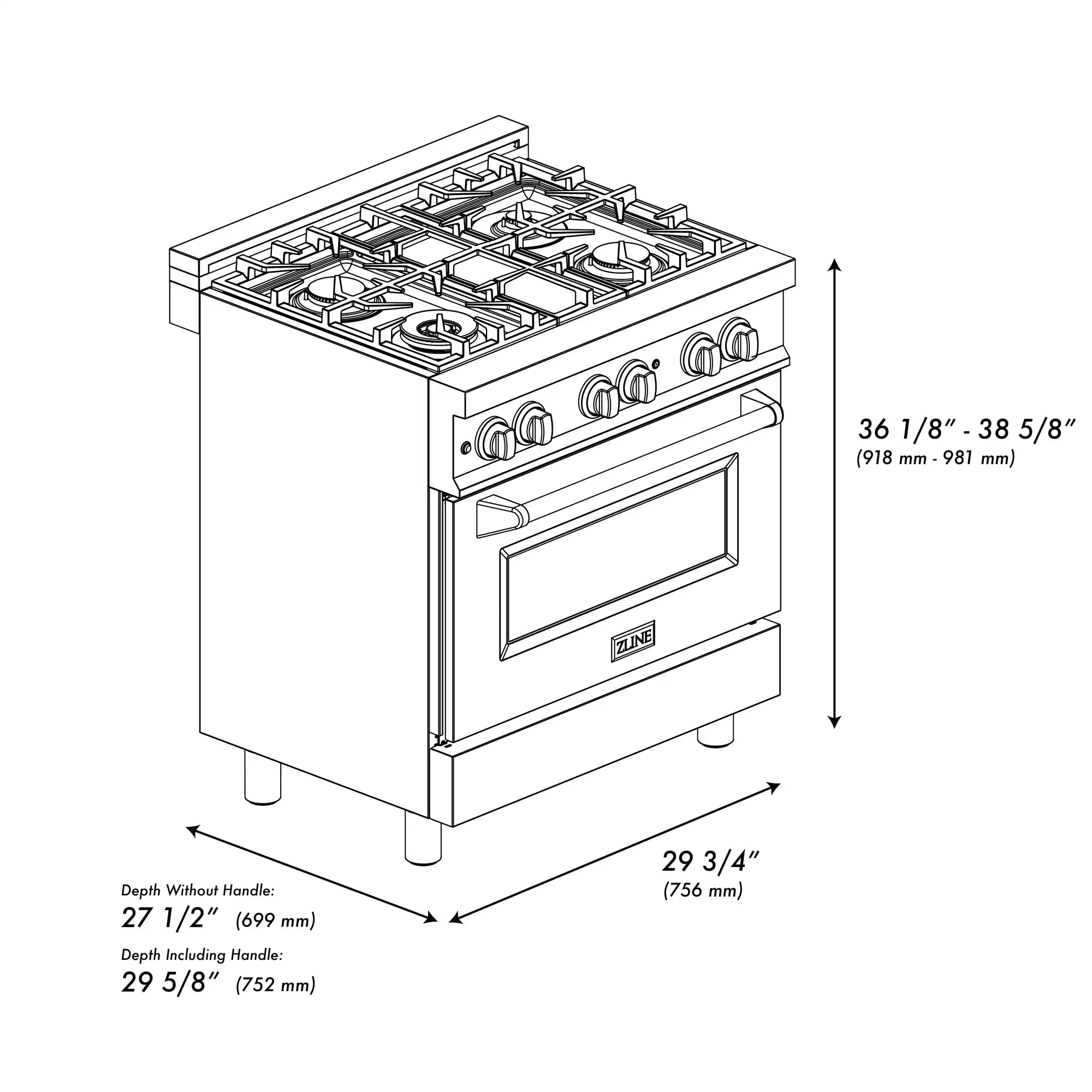

DIMENSIONS
- Dimensions
- 29.75 in. W x 27.75 in. D x 36.13 in. H
- Cut-Out Dimensions
- 30 in. W x 24 in. D x 36 in. H
- Adjustable Height
- 36.13 - 38.63 in. H
- Product Depth with Handle
- 29.63 in. D
- Open Door Depth
- 41.8 in. D
- Interior Oven Dimensions
- 24.88 in. W x 17.75 in. D x 16 in. H
- Weight
- 256 lbs
GENERAL INFORMATION
- Brand
- ZLINE Kitchen and Bath
- Number of Burners
- 4
- Number of Racks
- 2
DESIGN & FINISH
- Material
- Stainless Steel
- Lighting
- Halogen Lights
TECHNICAL DETAILS
- Burner Fuel
- Natural Gas and Liquid Propane Convertible
- Oven Fuel
- Electric
- Electrical Requirements
- Dedicated 240V, 60Hz, 15-amp circuit with a NEMA 14-50 4-wire plug system
- Cooktop BTUs
- Back Left: 4,200 BTU, Front Left: 18,000 BTU, Back Right: 8,500 BTU, Front Right: 13,000 BTU
- Oven BTUs
- Total BTUs: 45000 BTU
FEATURES
- Oven Capacity (cu.ft)
- 4 cu. ft.
- Oven Features
- Bake, Broil, Convection Bake
- Convection Fan
- Yes
- Self Clean (Y/N)
- No
- Timer (Y/N)
- No
- Additional Features
- Italian Burners: Lifetime Burner Warranty, Stay-Put Hinges, Full Extension Telescoping Glide Racks, LED Accent Lighting, 3-Layered Glass on Oven Door
WARRANTY & CERTIFICATIONS
- Certifications
- CSA Listed
- Warranty
- 1-Year Parts and Service, Lifetime Burner Warranty

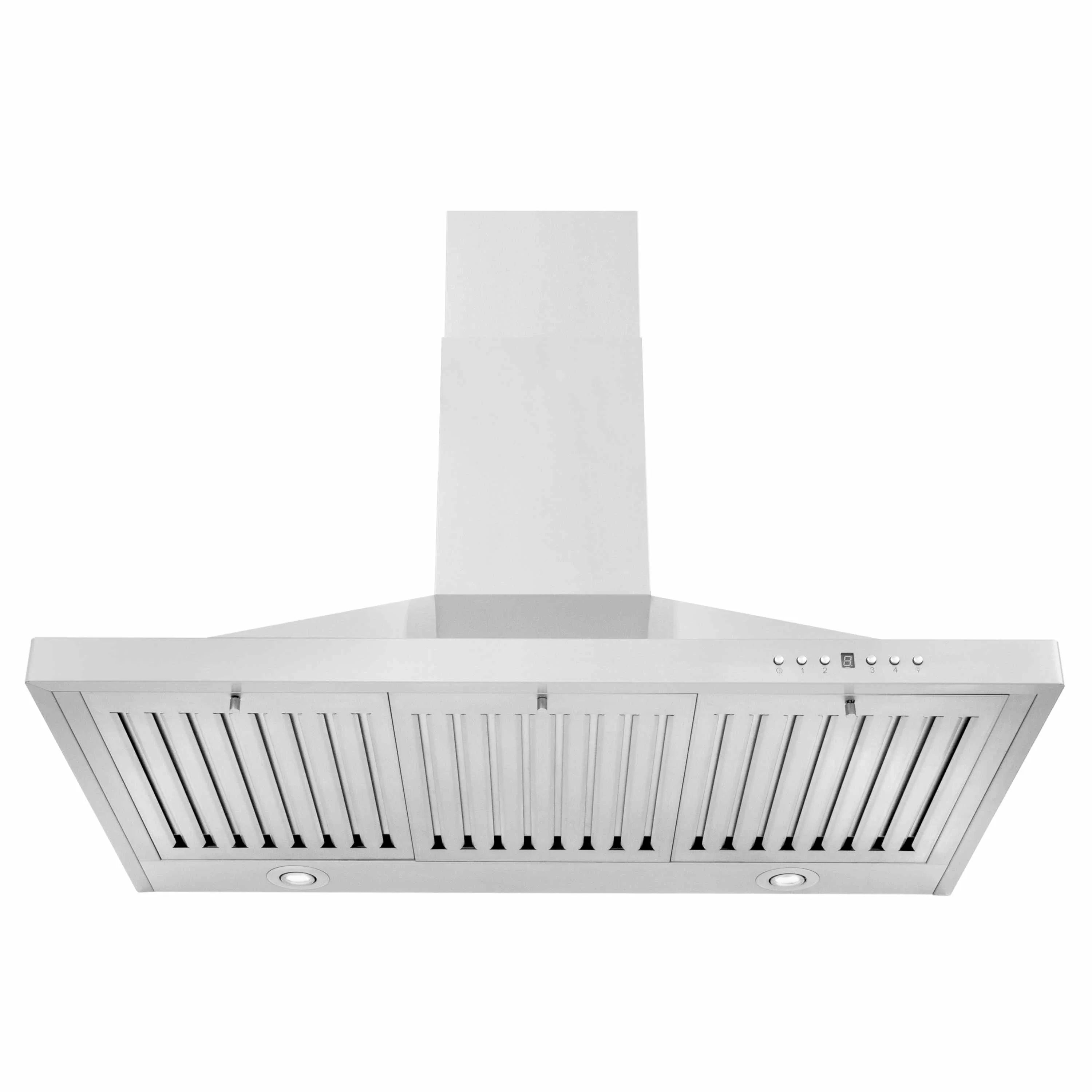

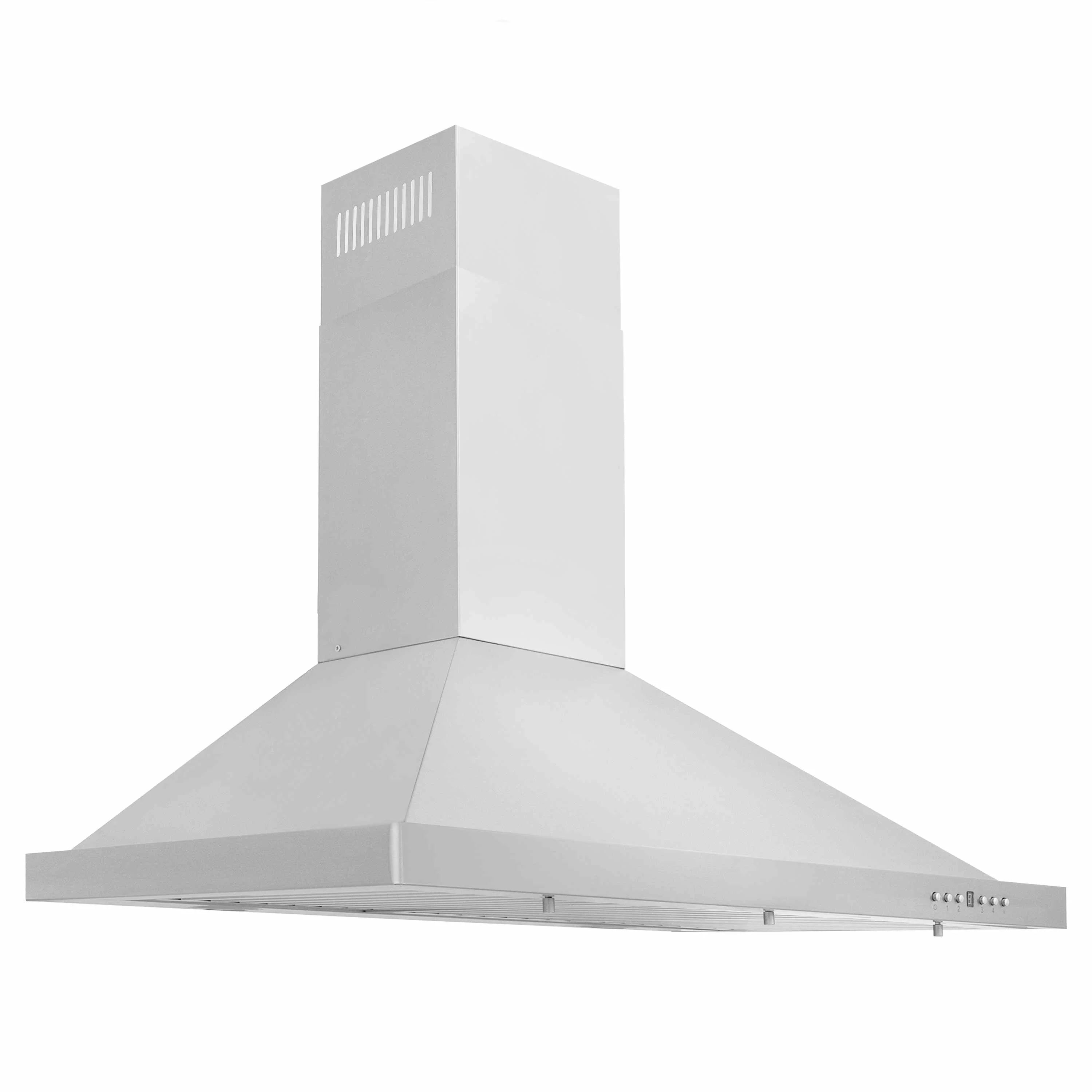

Piece 2 of 5 — RANGE HOOD

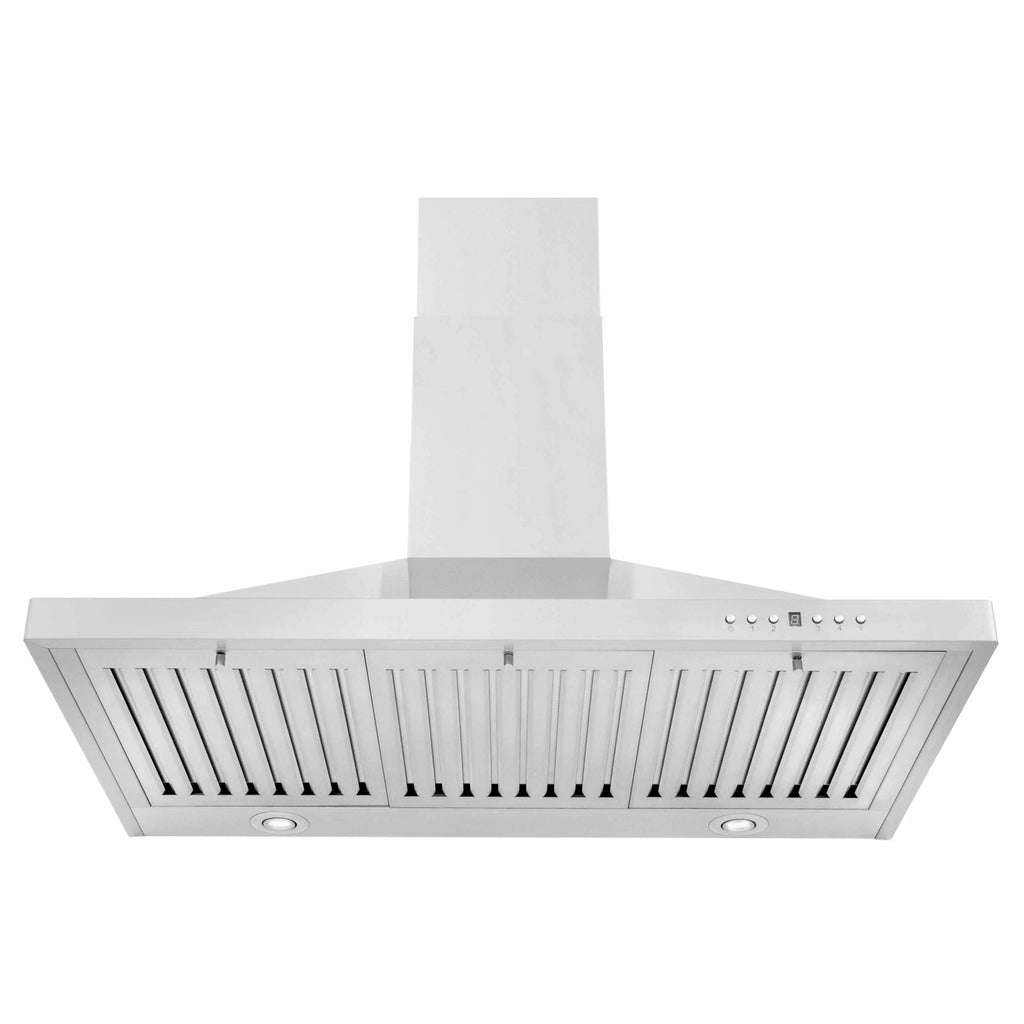

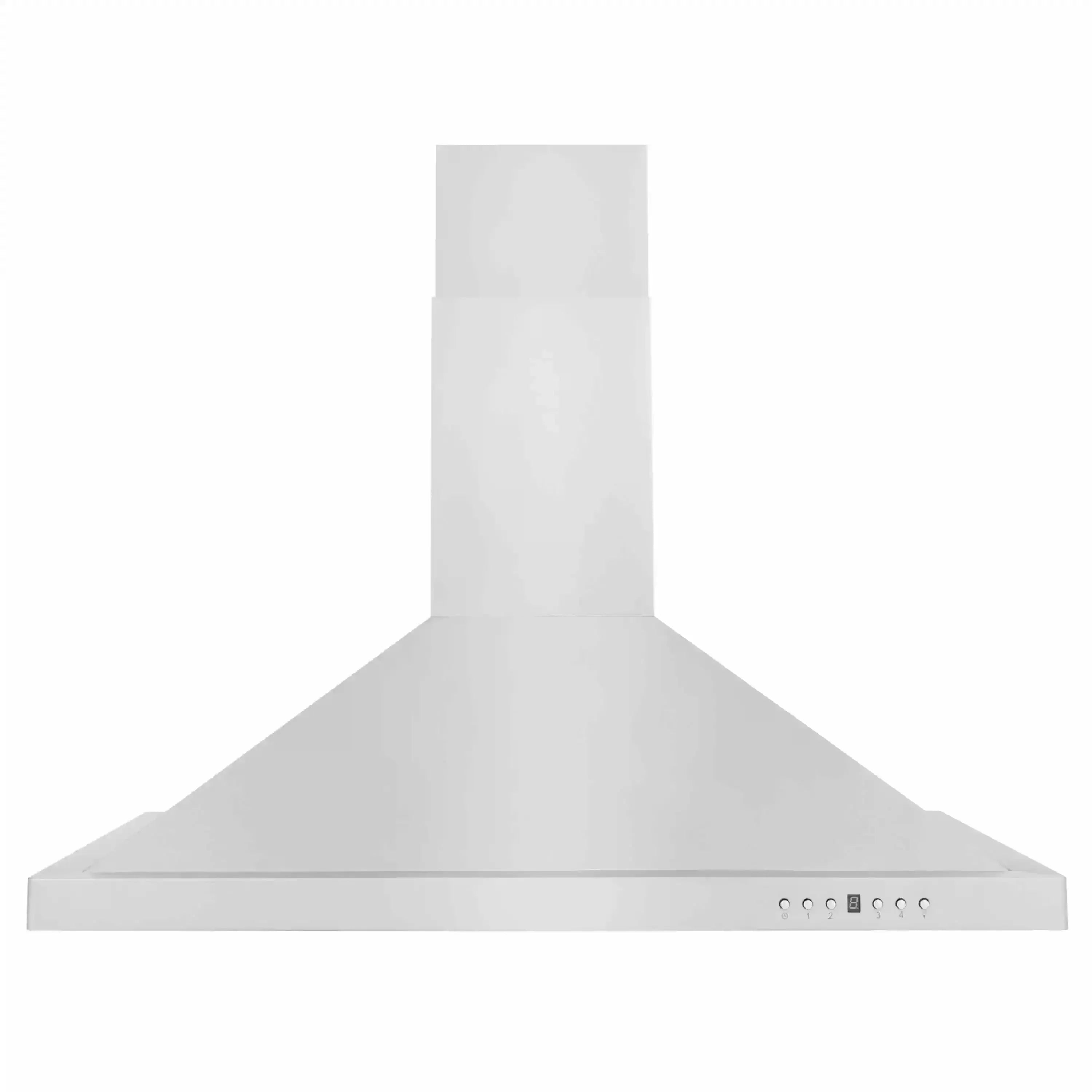

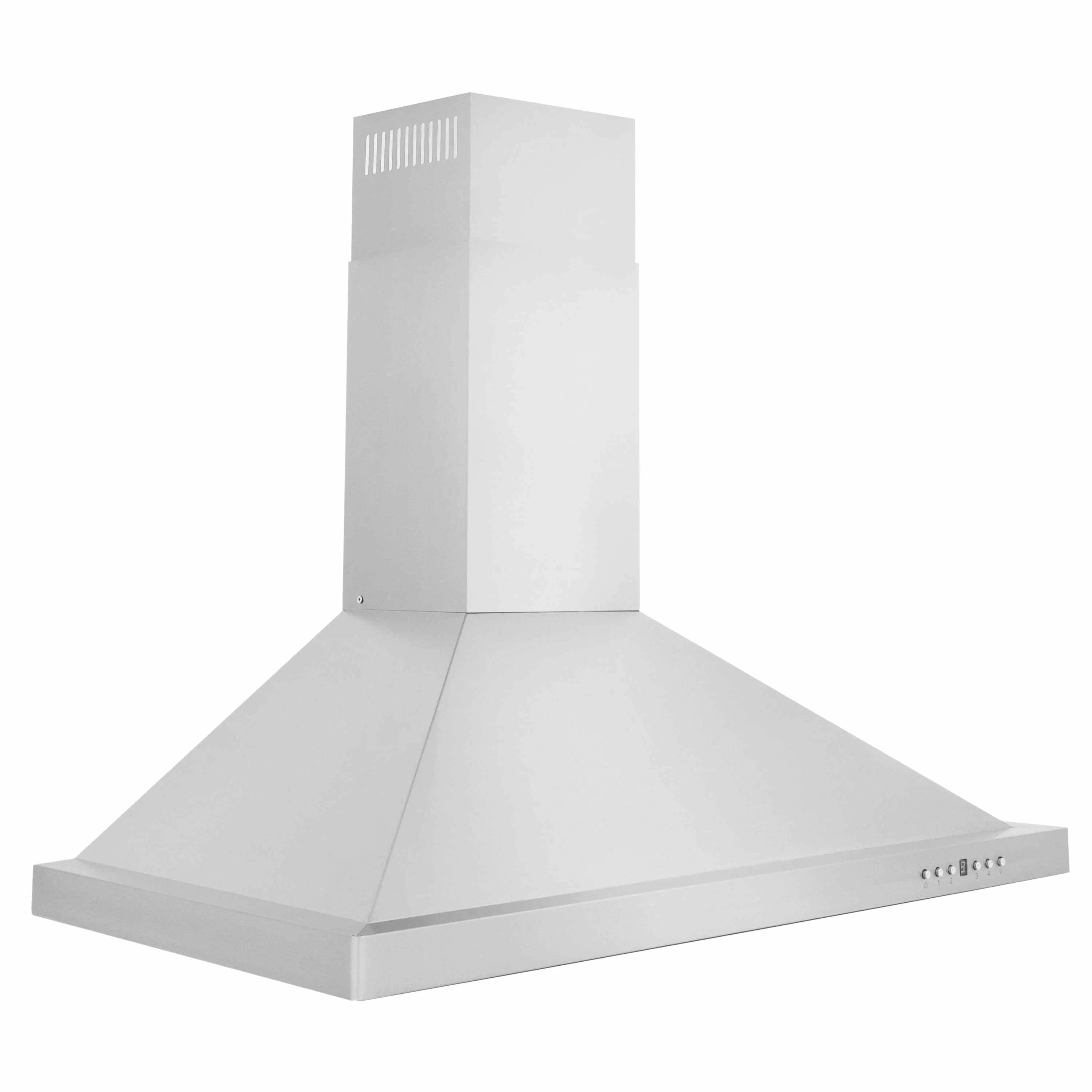

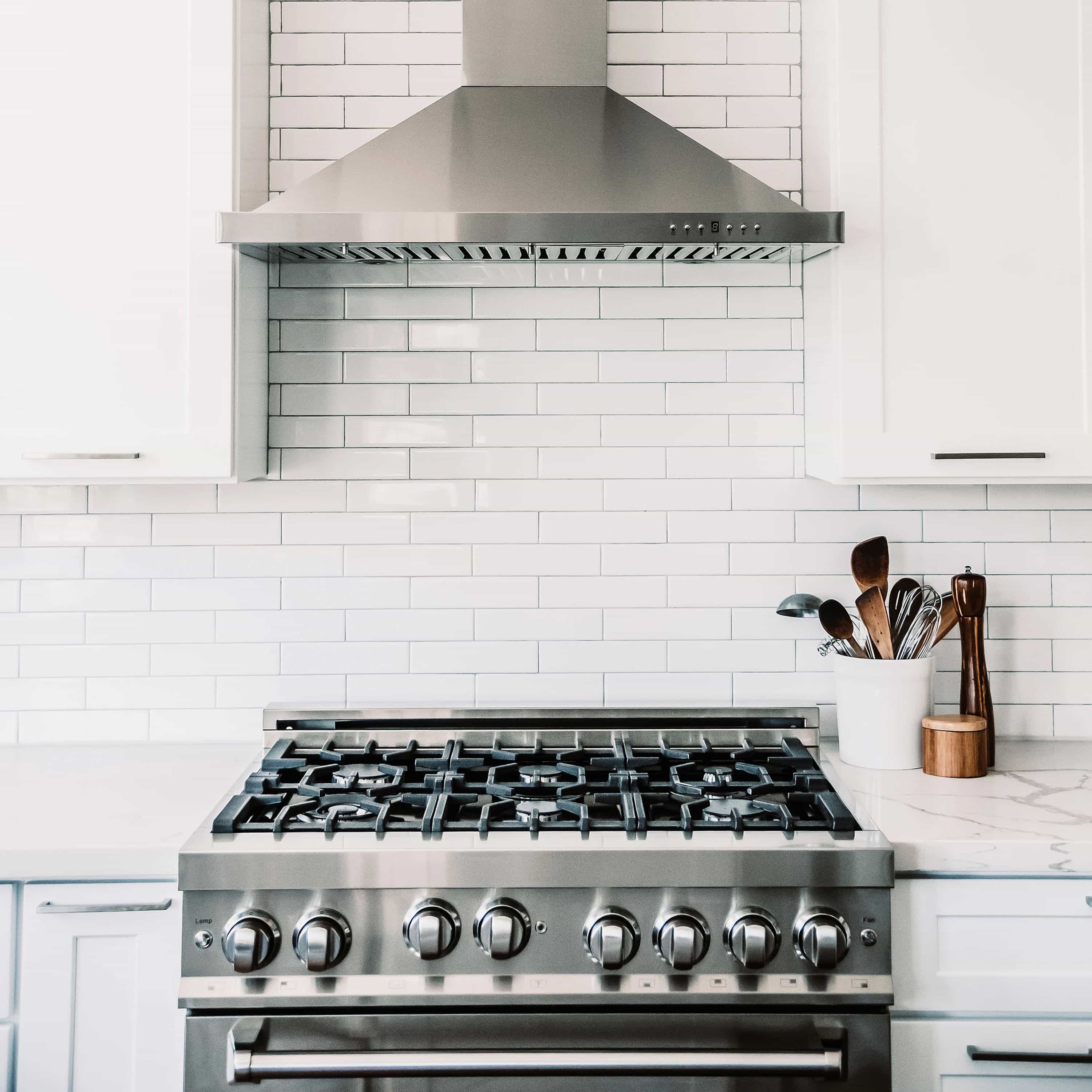

The ZLINE 30 in. Convertible Vent Wall Mount Range Hood in Stainless Steel (KB-30) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.
Features
- Wall Mount Design - This chimney-style range hood is designed to install seamlessly into custom-built cabinetry set-ups by mounting directly to the wall above your cooktop
- Stainless Steel Finish - A brushed 430 grade stainless steel exterior finish contains rust and corrosion-resistant properties to ensure a durable range hood that will last for years to come
- Convertible Range Hood - This unit can be externally vented or recirculated (ductless) with charcoal filters (not included, model number CF1) to reduce harmful odors

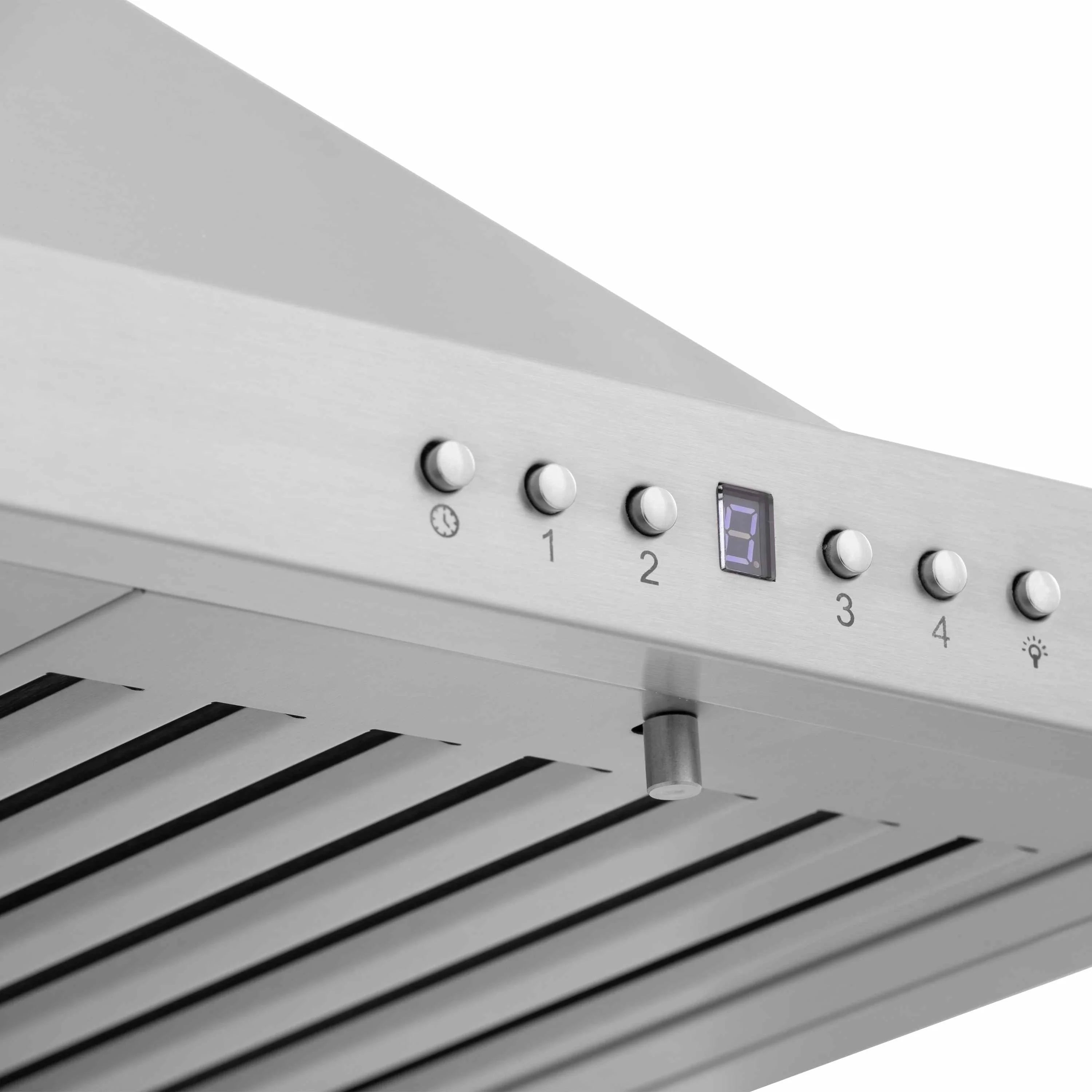

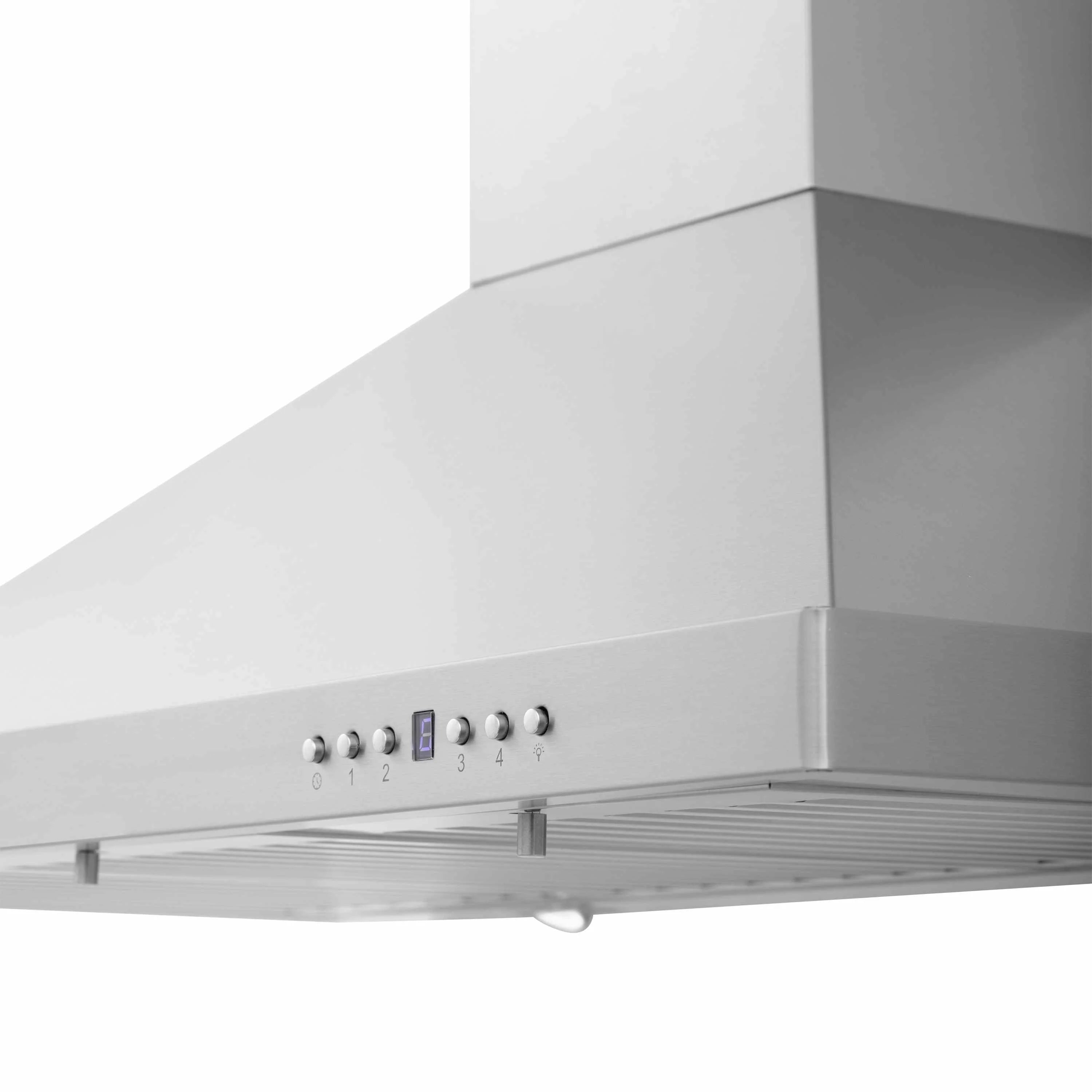

- Convenient Control Panel - Easy-to-use push button controls let you easily adjust fan speeds and lighting options
- 4-Speed Fan Control - Choose the appropriate air flow among 120/240/320/400 CFM for your cooking situation
- Powerful Ventilation - The highest speed setting of 400 CFM air flow efficiently moves large amounts of air away from your cooking area
- Minimal Cleaning - This range hood includes dishwasher-safe stainless steel baffle filters that are easy to remove for regular cleaning

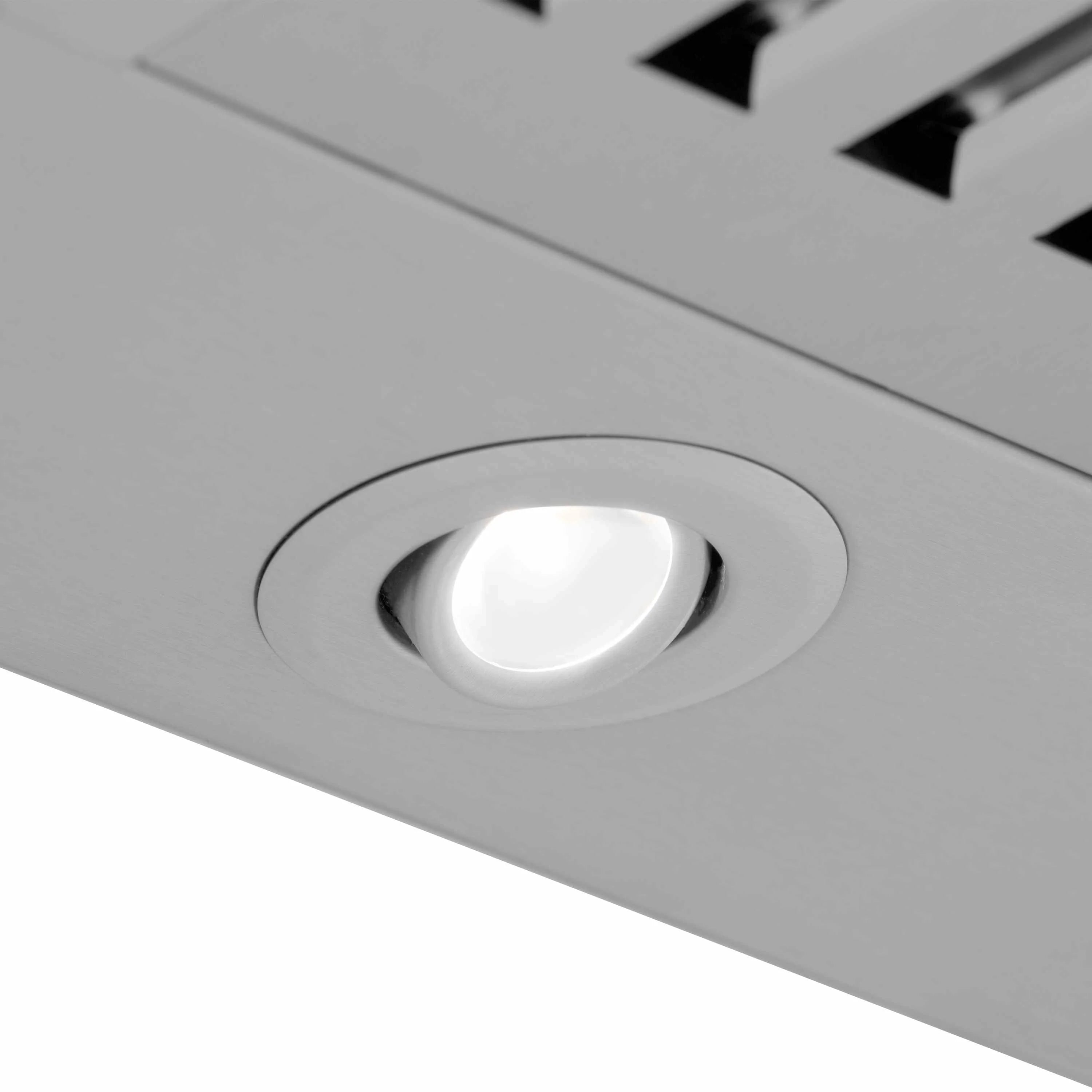

- LED Lighting - ZLINE range hoods come equipped with energy-efficient LED lights to illuminate the cooking surface below
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Standard Ductwork - ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 6 in. diameter ducting
- Warranty - ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty

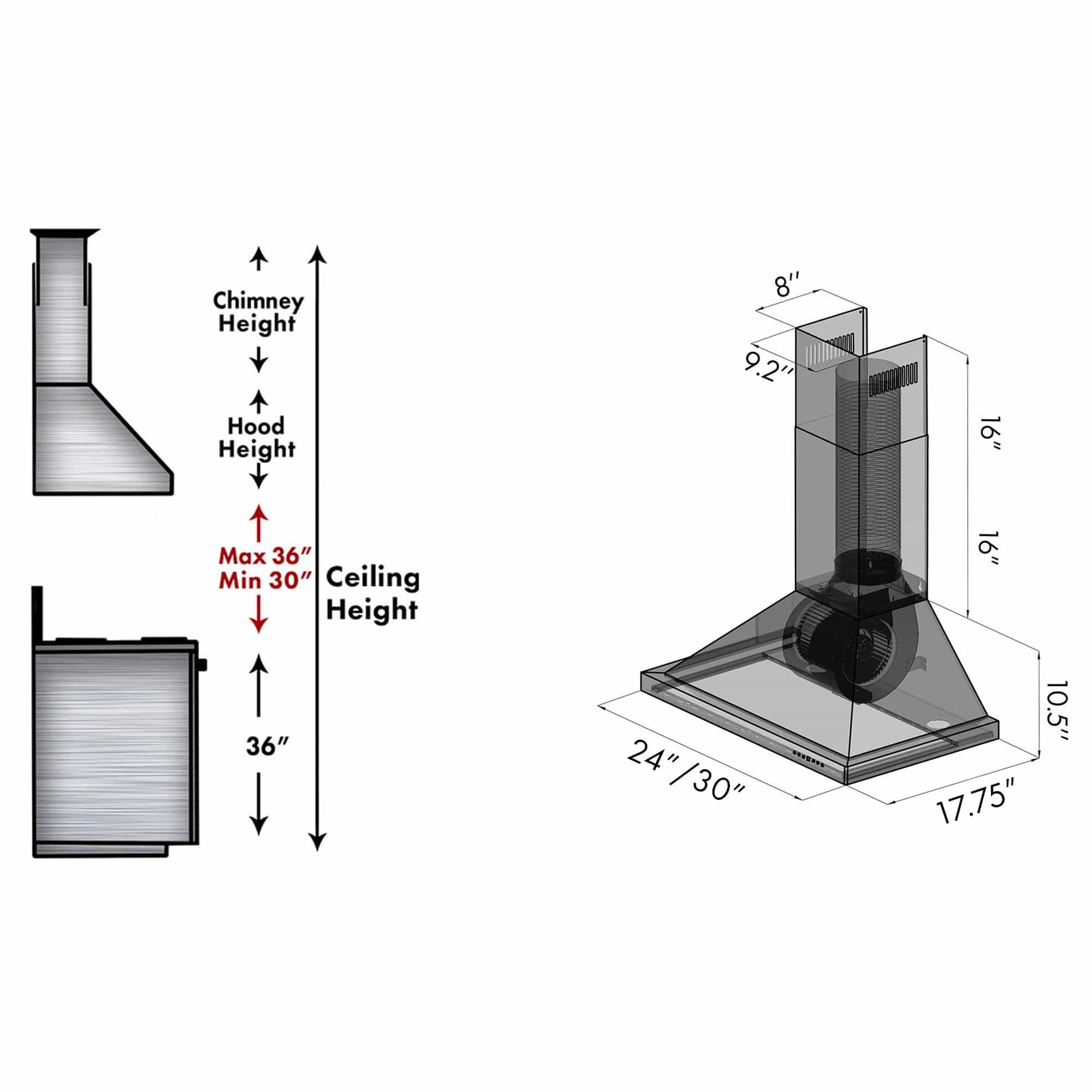

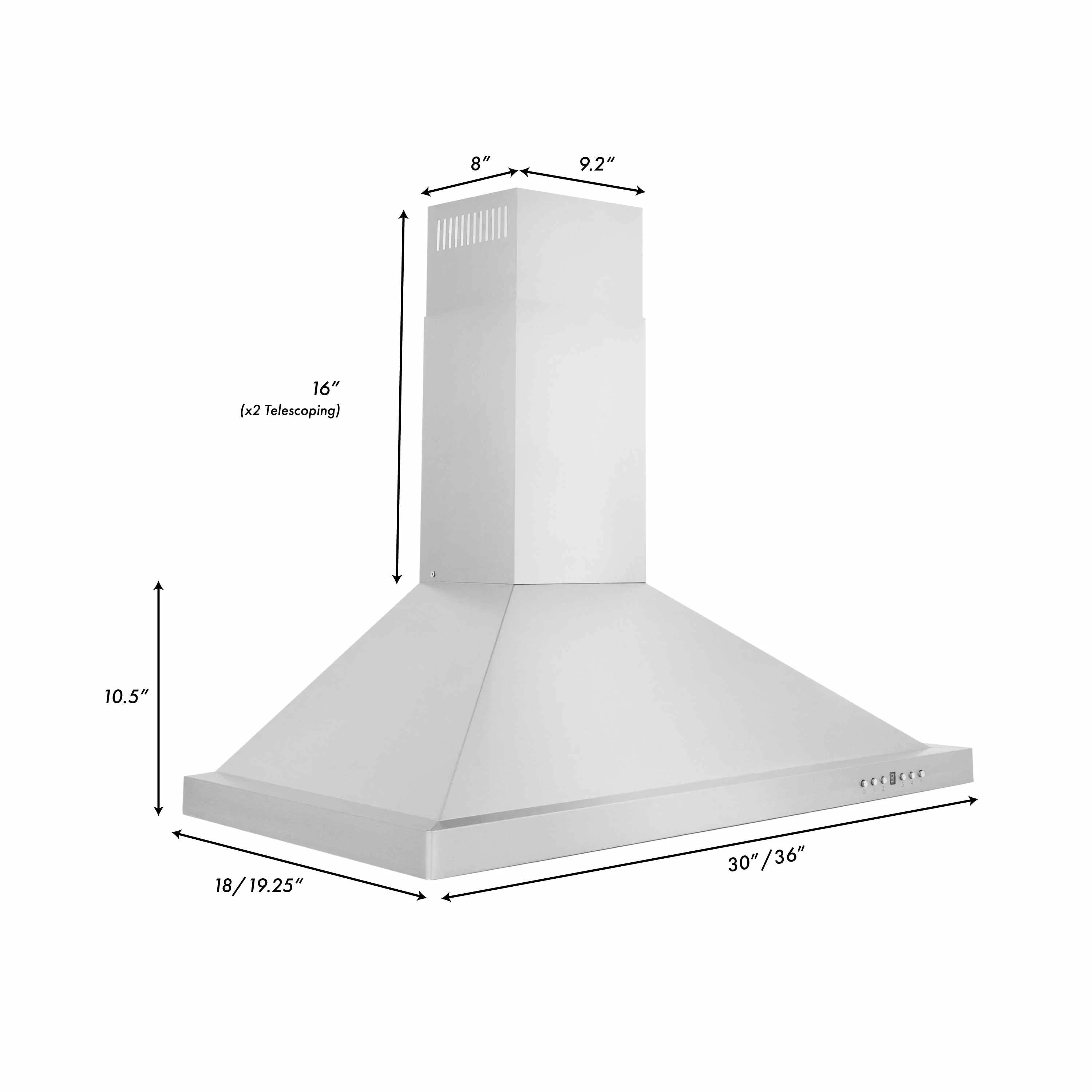

DIMENSIONS
- Dimensions
- 30" W x 17.7" D x 10.5" H
- Chimney Dimensions
- 9.2 in. W x 8 in. D x 16 H (x2) (Telescoping)
GENERAL INFORMATION
- Brand
- ZLINE Kitchen and Bath
- Mount Type
- Wall Mount
DESIGN & FINISH
- Lighting
- LED
- Material
- Stainless Steel
TECHNICAL DETAILS
- Venting Size
- 6 in. Outlet, Charcoal filters (not included) are available for ductless/ recirculating options.
- Airflow (Q/L/M/H)
- 120/240/320/400CFM
- Voltage
- 110V/60HZ
- Motor
- High Performance 400 CFM/4-Speed Motor
- Speeds
- 4
- Filters
- Stainless Steel Baffle Filters (Dishwasher Safe)
- Control Type
- Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
WARRANTY & CERTIFICATIONS
- Certifications
- ETL Listed
- Warranty
- 3 Year Parts and Lifetime Motor Warranty

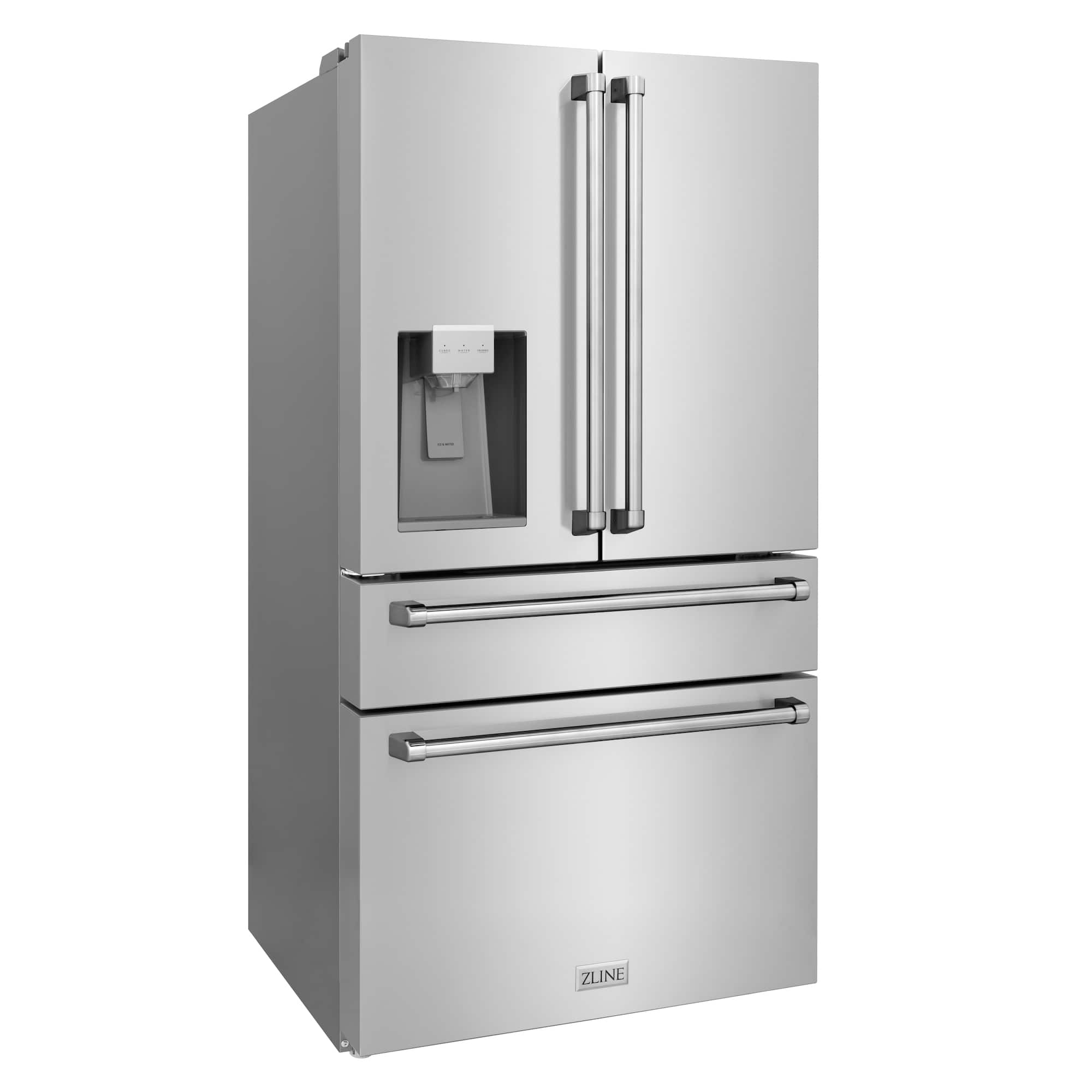

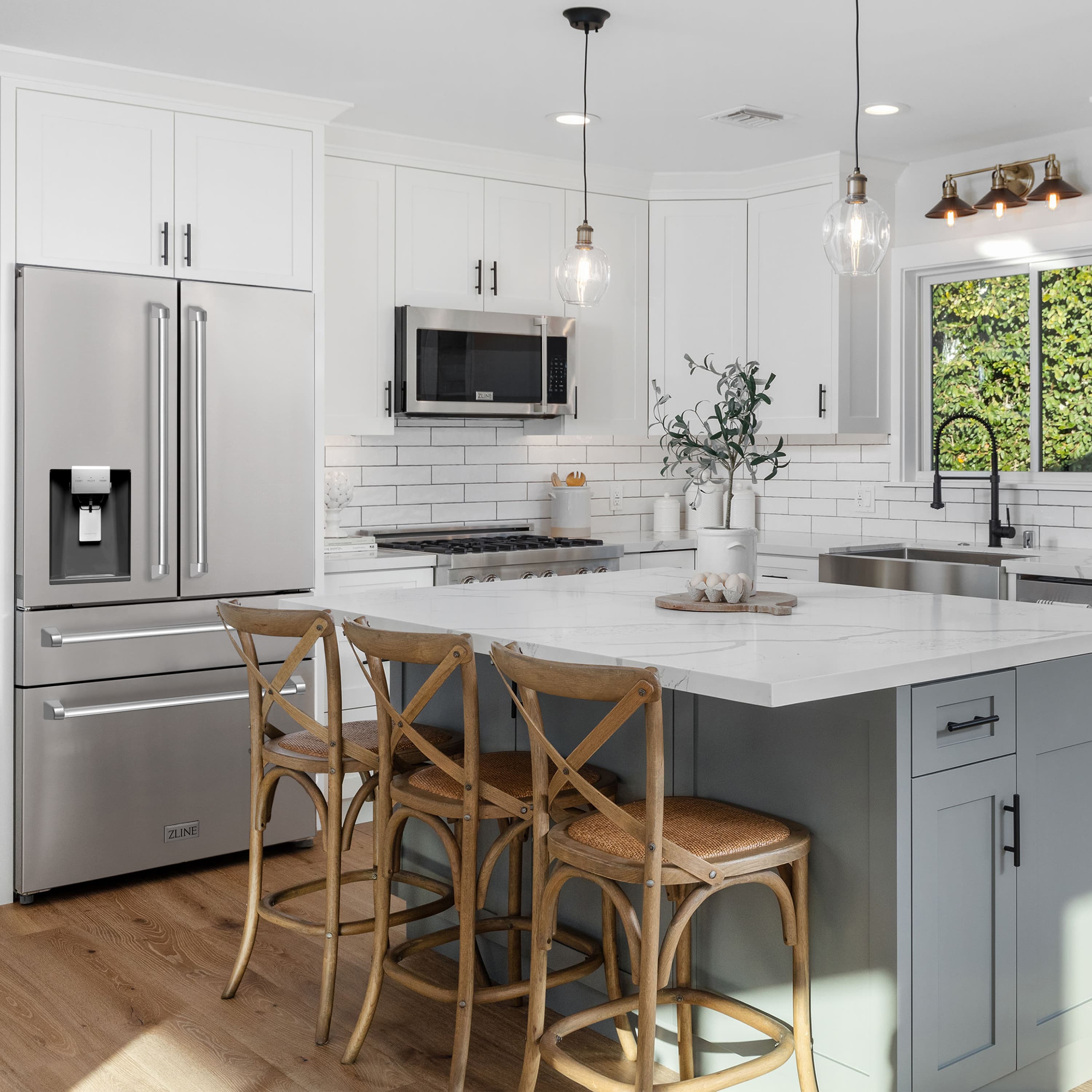

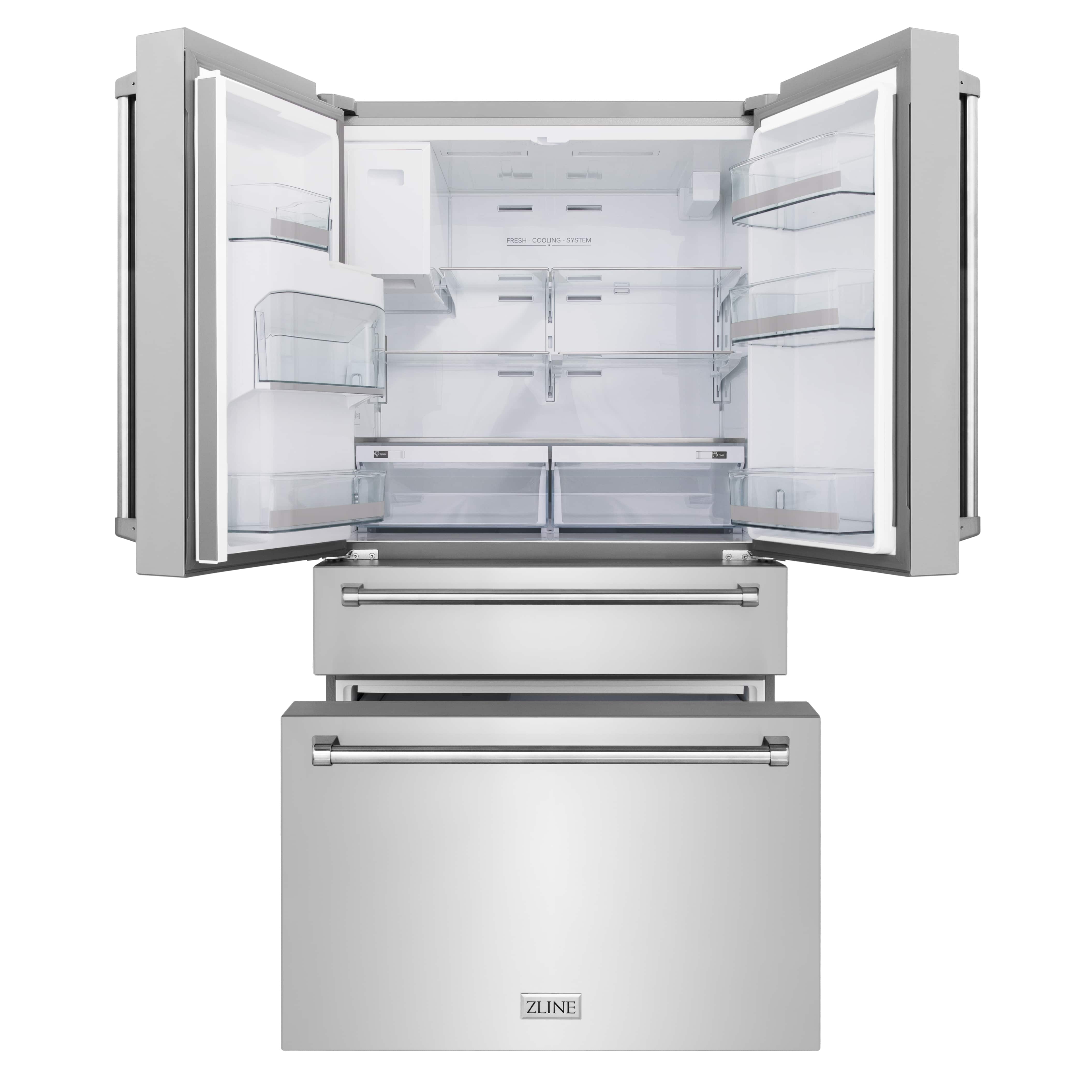

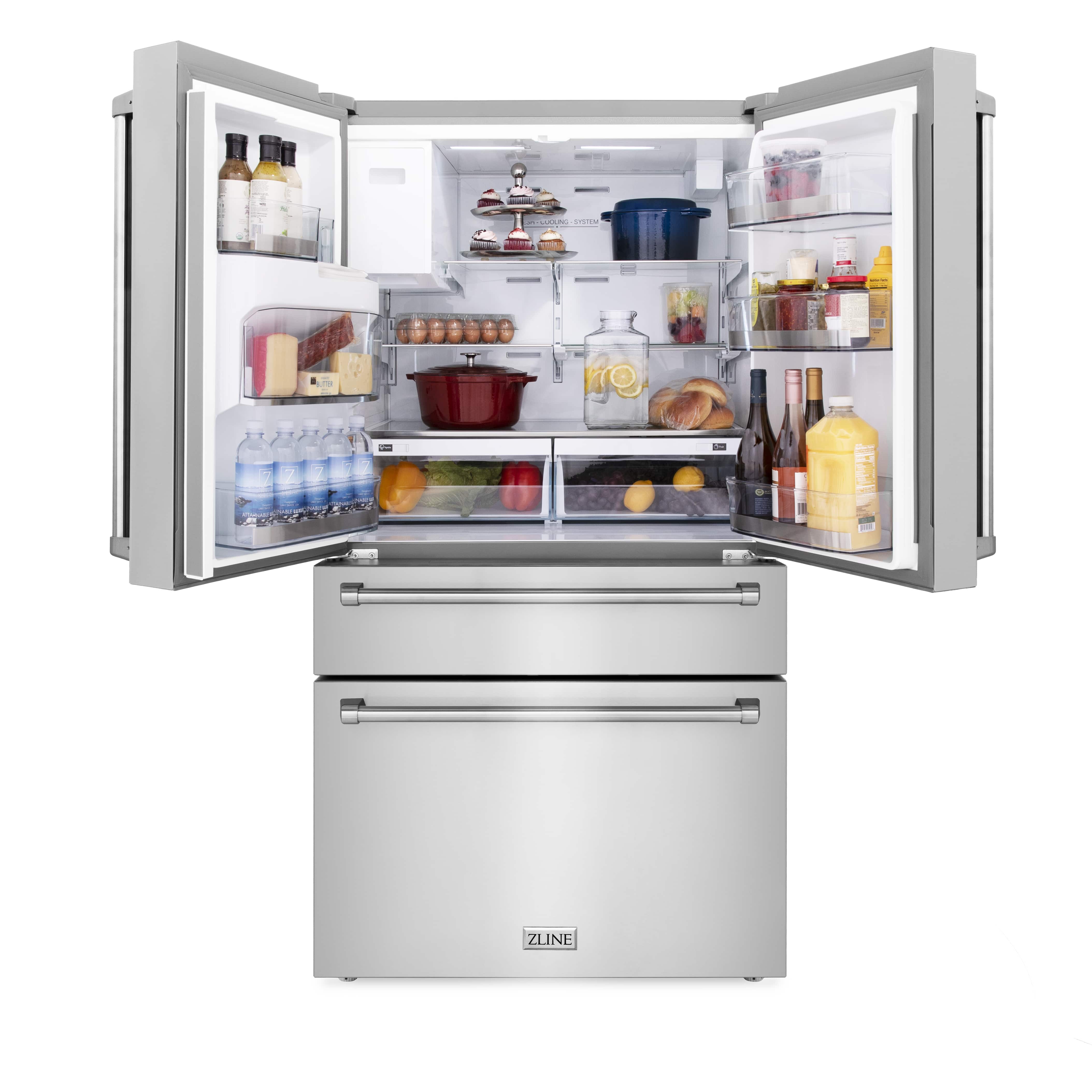

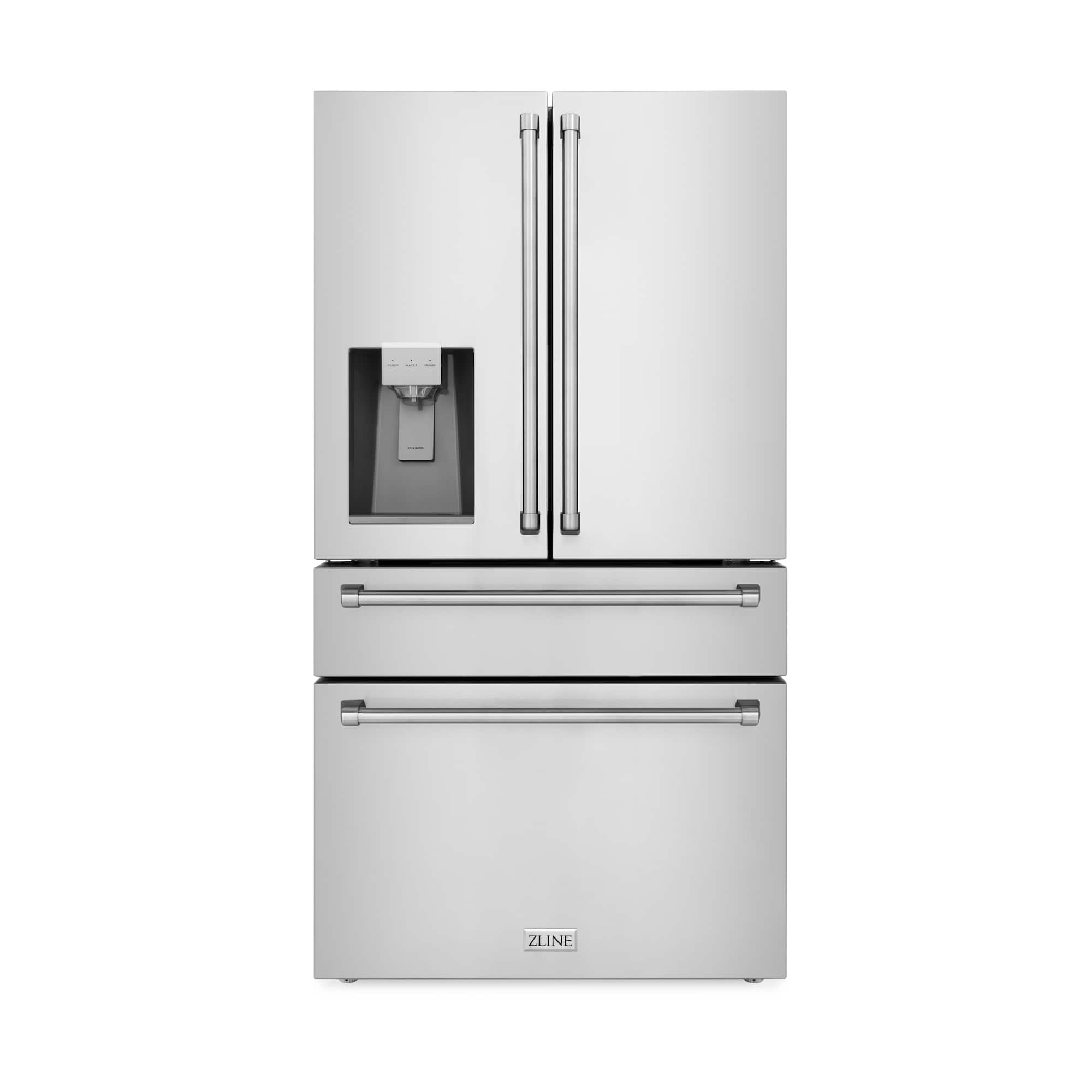

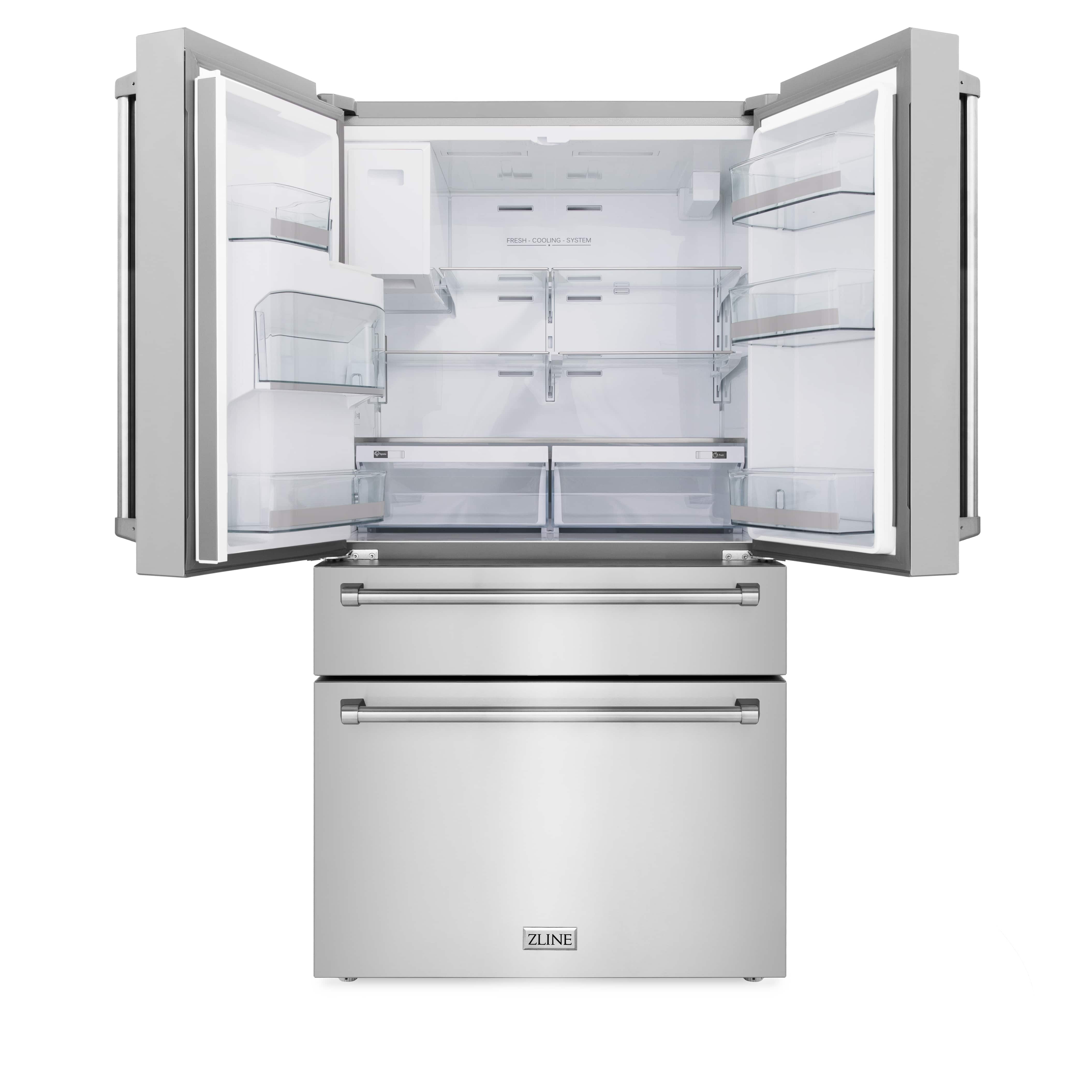

The ZLINE 36 in. 21.6 cu. ft. Counter-Depth French Door Refrigerator with Water and Ice Dispenser in Fingerprint-Resistant Stainless Steel (RFM-W-36) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and an external water dispenser and ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.
Features
- Counter-Depth Design - Create a modern look in your kitchen with a professional counter-depth refrigerator designed to be flush with your countertops
- Large Capacity - Easily organize items with a 15.0 cu. ft. refrigeration compartment, a 4.0 cu. ft. freezer compartment and a 2.6 cu. ft. flex drawer—totaling 21.6 cu. ft. of storage capability
- Flex Drawer - A specialty full-width flex drawer features 4 set temperature options between 30°F and 41°F, perfect for chilling wines, specialty meats, and other items for any occasion
- Adjustable Temperatures - Create the perfect cooling environment with fridge temperatures ranging from 34°F to 44°F and freezer temperatures ranging from -7°F to 7°F
- Super Cool and Super Freeze Modes - Save time and quickly chill food with unique functions that automatically set the fridge temperature to 34°F and freezer to -7°F

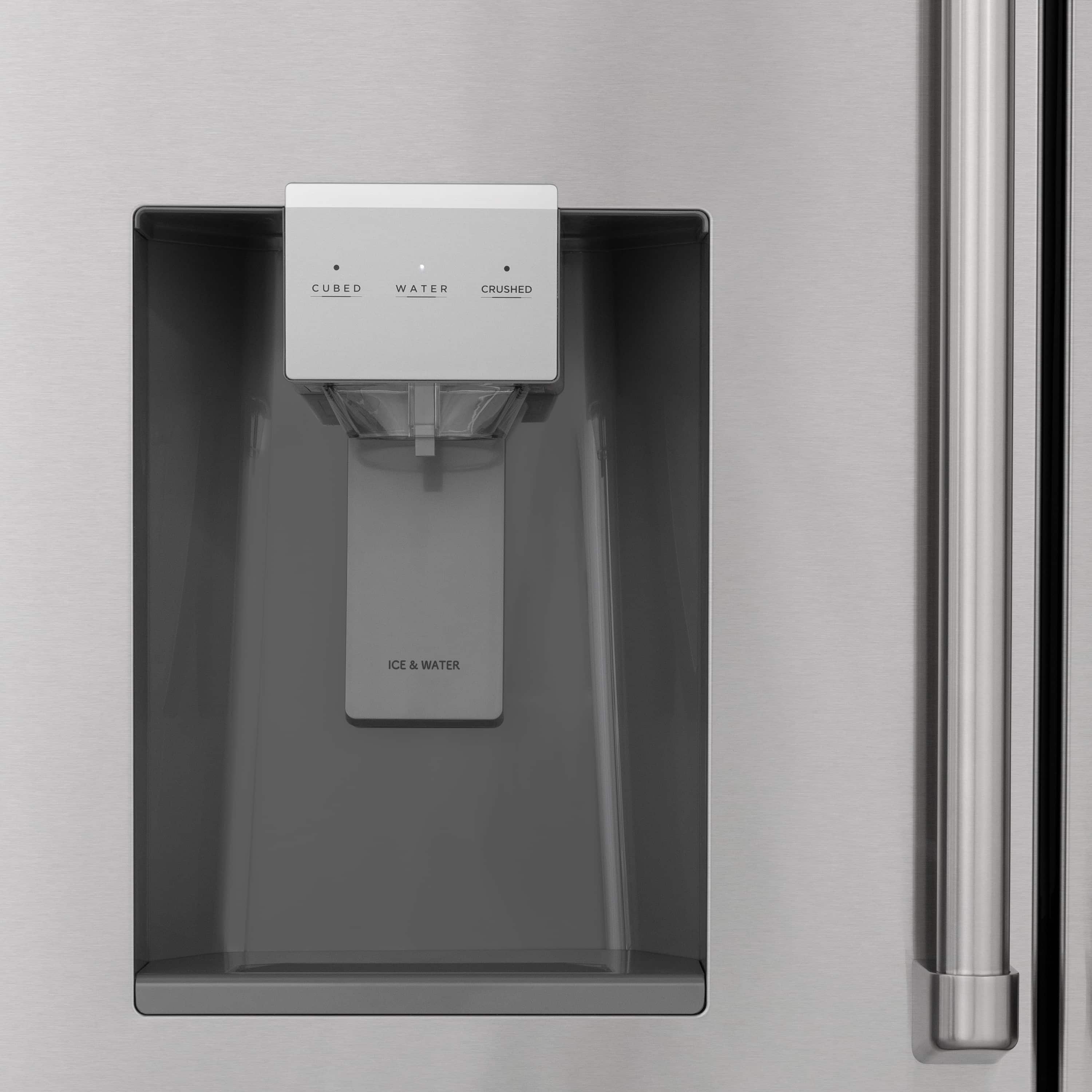

- External Water Dispenser and Ice Maker - Deliver fresh, filtered water discreetly from a sleek fridge door dispenser and up to 5 pounds of crushed or cubed ice per day with an automatic ice maker
- Bright White Interior - Achieve ZLINE Attainable Luxury® excellence by pairing best-in-class freshness with Bright White interior counter-depth units

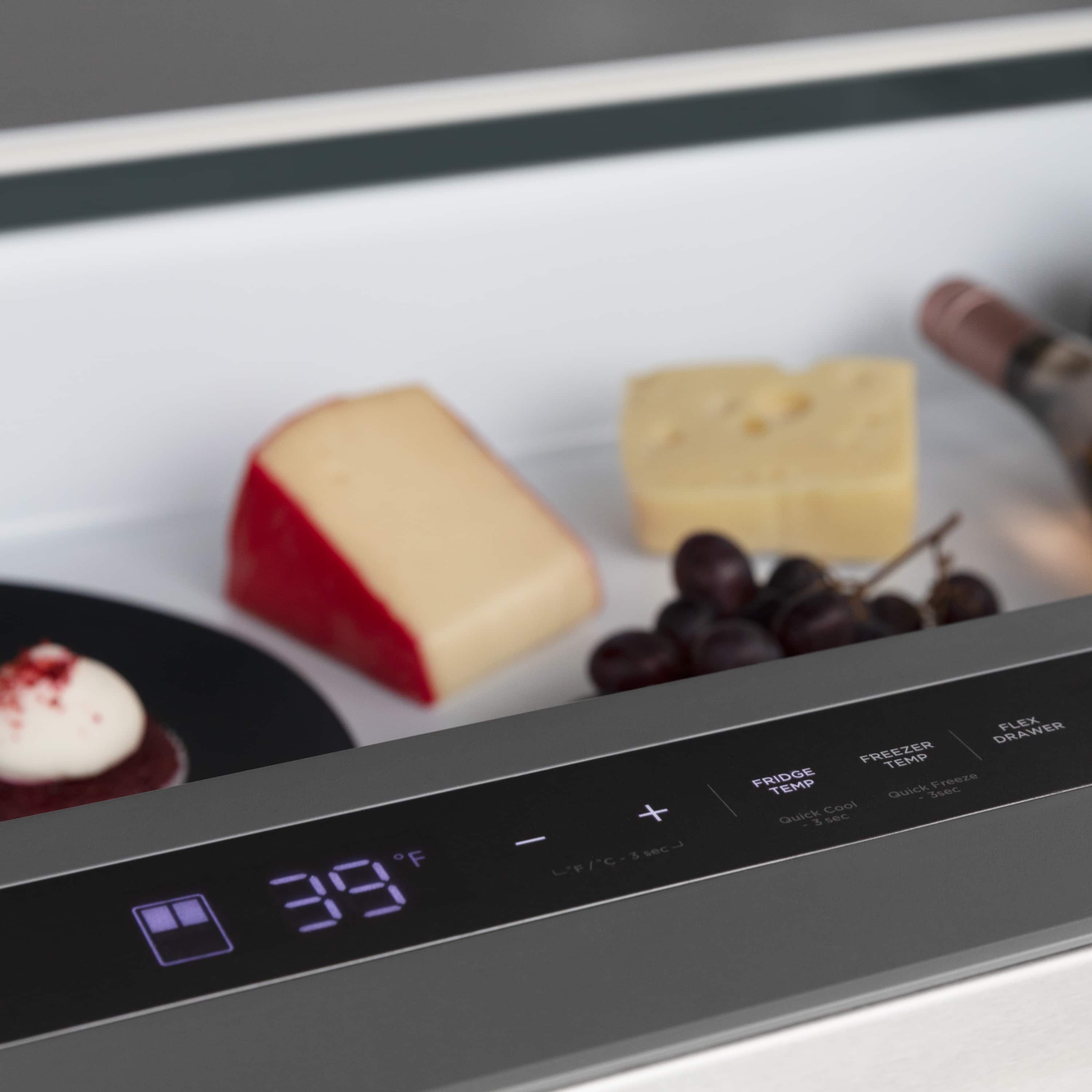

- Digital ChillControl - An ergonomic LED display allows you to quickly set temperatures, change from Fahrenheit to Celsius, and navigate menu options
- Fingerprint-Resistant Stainless Steel - Minimize cleaning with ZLINE’s smudge-proof and fingerprint-resistant 430-grade stainless steel finish
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system

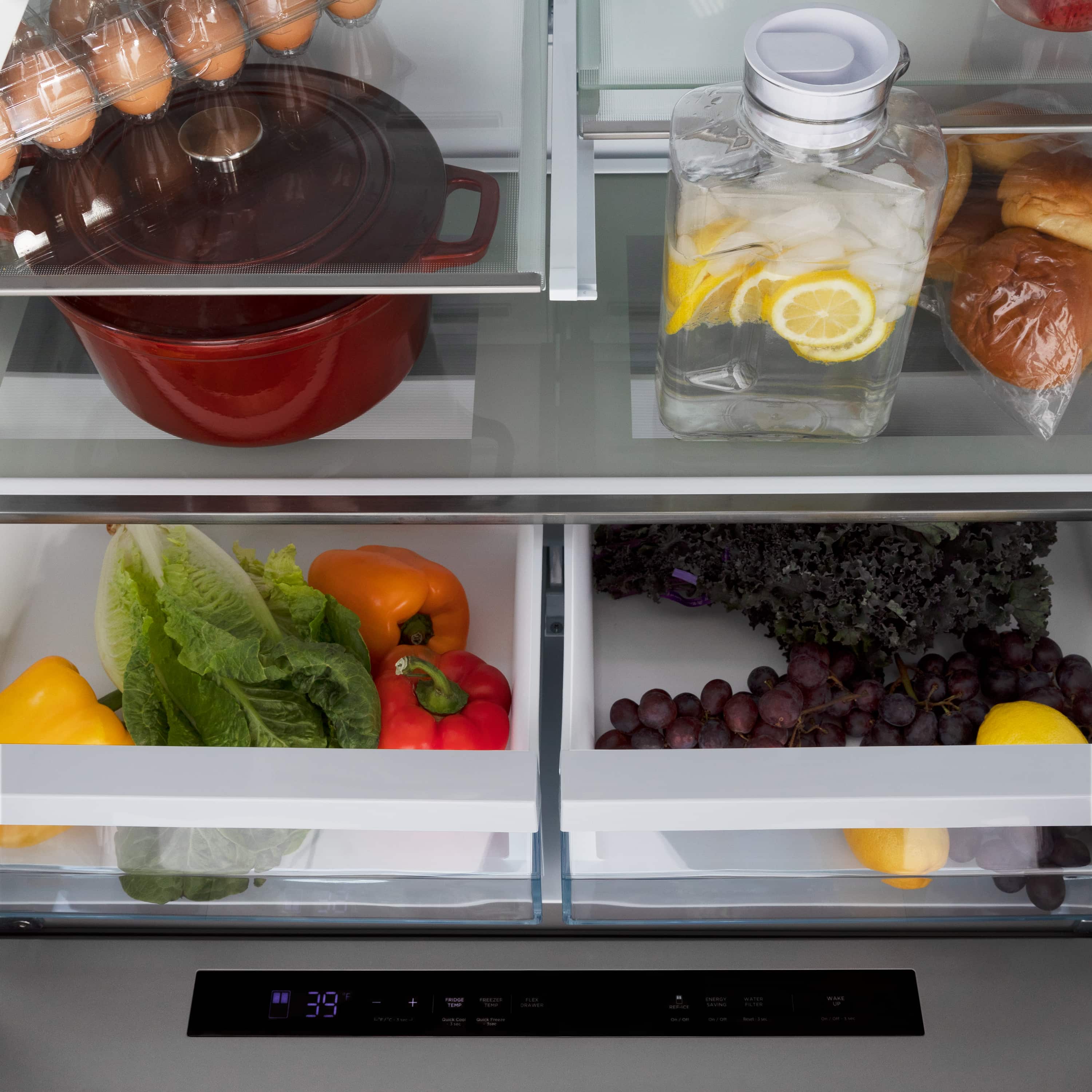

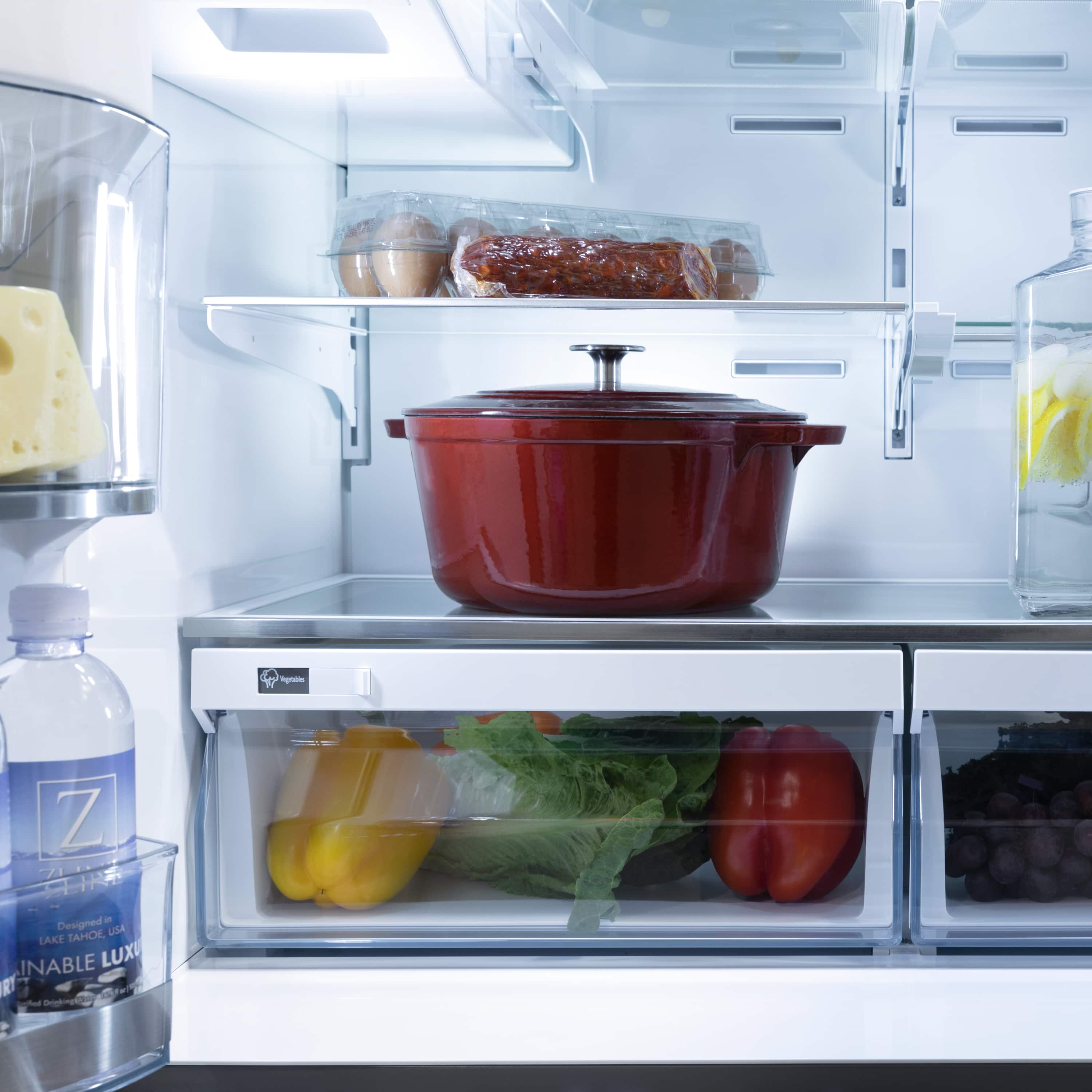

- Dual Crisper Drawers - Enjoy best-in-class freshness for fruits and vegetables with a pair of half-width humidity-controlled crisper drawers
- Dual Cooling - Separate refrigerator and freezer cooling systems ensure air and odors are not mixed between compartments and provide fast and efficient cooling
- Spacious Door Bins - Store condiments, beverages, and other taller items inside 6 durable plastic bins, with 3 on each door
- Full-Extension Freezer - Enjoy expansive storage capacity with a spacious freezer featuring 2 full-extension bins, including an ice tray that can store up to 4 pounds of ice
- 6 LED Lights - Fully illuminate your appliance with 4 bright built-in LED lights in the fridge compartment, 1 in the freezer, and 1 in the water and ice dispenser
- Spill-Resistant Glass Shelves - Comfortably organize items in the fridge on 4 spill-resistant adjustable glass shelves, 1 of which is foldable for more flexibility
- Quiet Noise Level - Enjoy peace of mind day or night with an ultra-low average noise rating of 43 decibels
- ENERGY STAR® Rated - Enjoy energy savings while maintaining professional power with superior insulation and an energy-reducing cooling system
- Manufacturer Warranty - 1-year parts and labor, and a 5-year parts-only warranty on the sealed cooling system, including compressor, evaporator coil, condenser coil, and filter drier
- Additional Assembly Required - This refrigerator and its door handles will ship in multiple boxes, requiring assembly upon installation

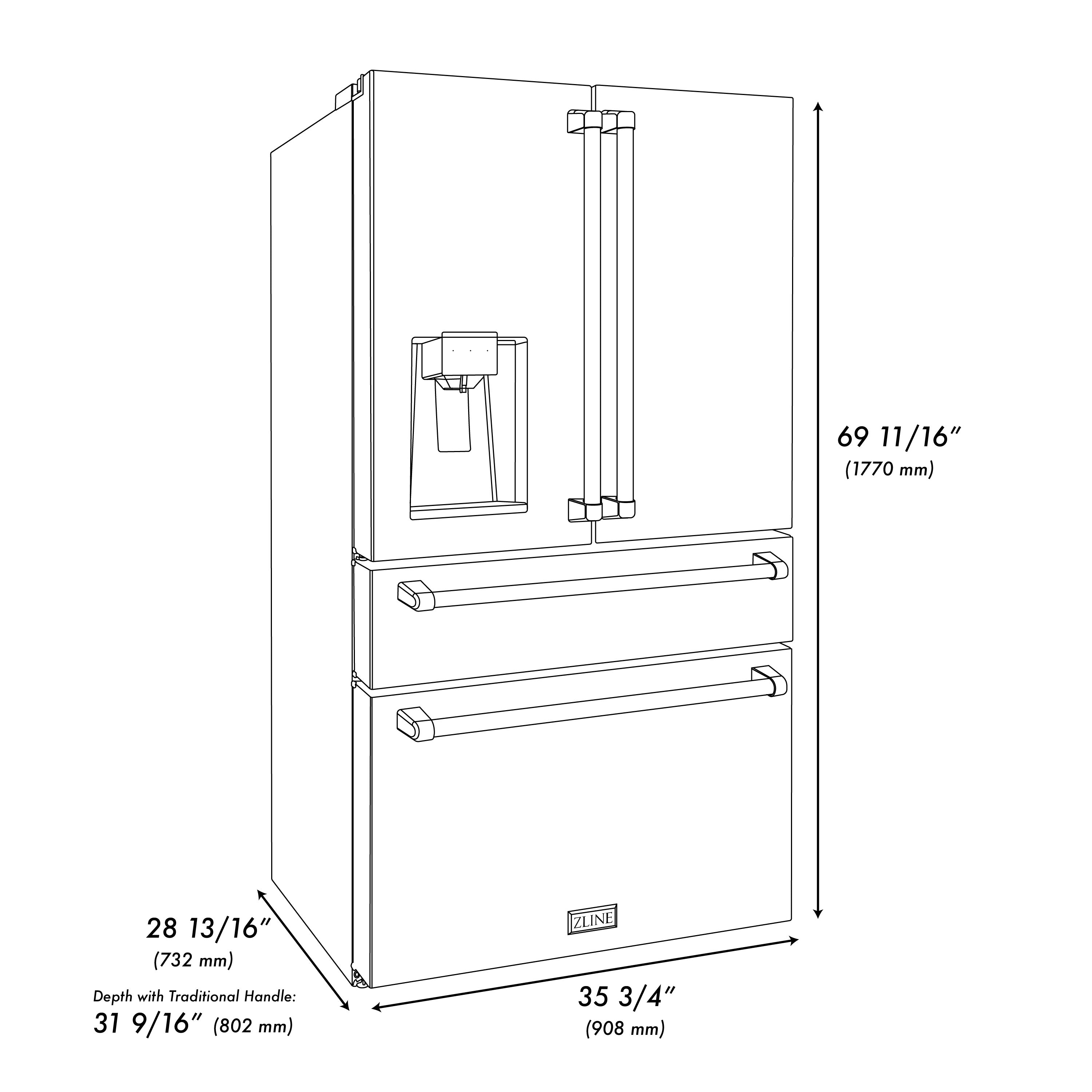

DIMENSIONS
- Dimensions
- 35.75 in. W x 28.8125 in. D x 69.6875 in. H
- Total Capacity
- 21.6 cu. ft
- Installation Depth
- 29 in. D
- Depth with Door Open
- 43 in.
- Weight
- 284.4 lbs
GENERAL INFORMATION
- Mount Type
- Freestanding
DESIGN & FINISH
- Material
- Stainless Steel
TECHNICAL DETAILS

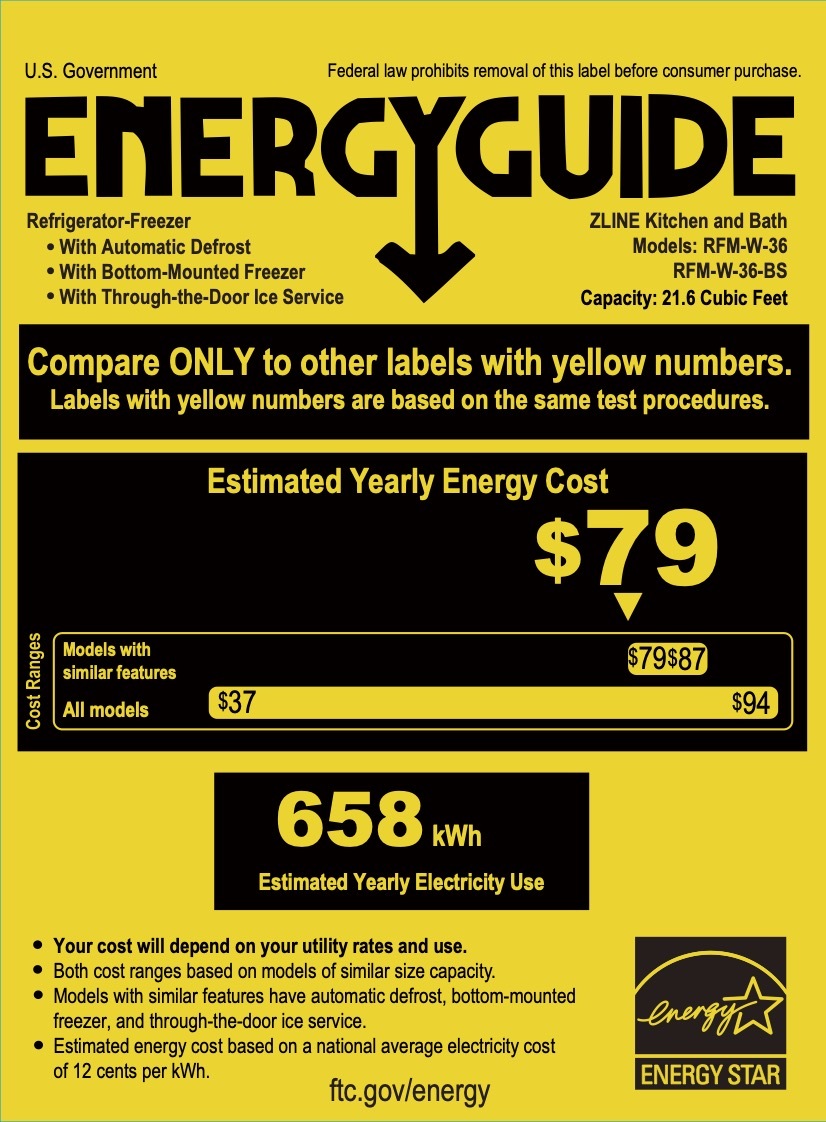

- Energy Consumption (kWh/year)
- 658
- Voltage
- 120V/60Hz
- Amps
- 3
- Noise Level
- 43 Decibels
REFRIGERATOR FEATURES
- Fridge Capacity
- 15.04 cu. ft
- Flex Drawer Capacity
- 2.6
- Flex Drawer Temp Controls
- Meat (30 degrees), Beverage (34 degrees), Deli (37 degrees), and Wine (41 degrees)
- Ice Maker
- Yes
- Ice Maker Types
- Single Ice Maker
- Ice Amount Per Day
- 4.85 lbs
- Ice Tray Storage
- N/A
- Water Dispenser
- Yes
- Flow rate for Water Dispenser
- .5 GPM
- Fridge Lights
- 4
- Humidity-Controlled Crispers
- 2
- Door Shelves
- 4
- Number of Fridge Shelves
- 4
FREEZER FEATURES
- Freezer Capacity
- 6.6 cu. ft
- Freezer Drawer Bins
- 2- Pull Out Drawers
WARRANTY & CERTIFICATIONS
- Energy Star
- Yes
- Certifications
- ETL Listed, ENERGY STAR certified
- Warranty
- 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System

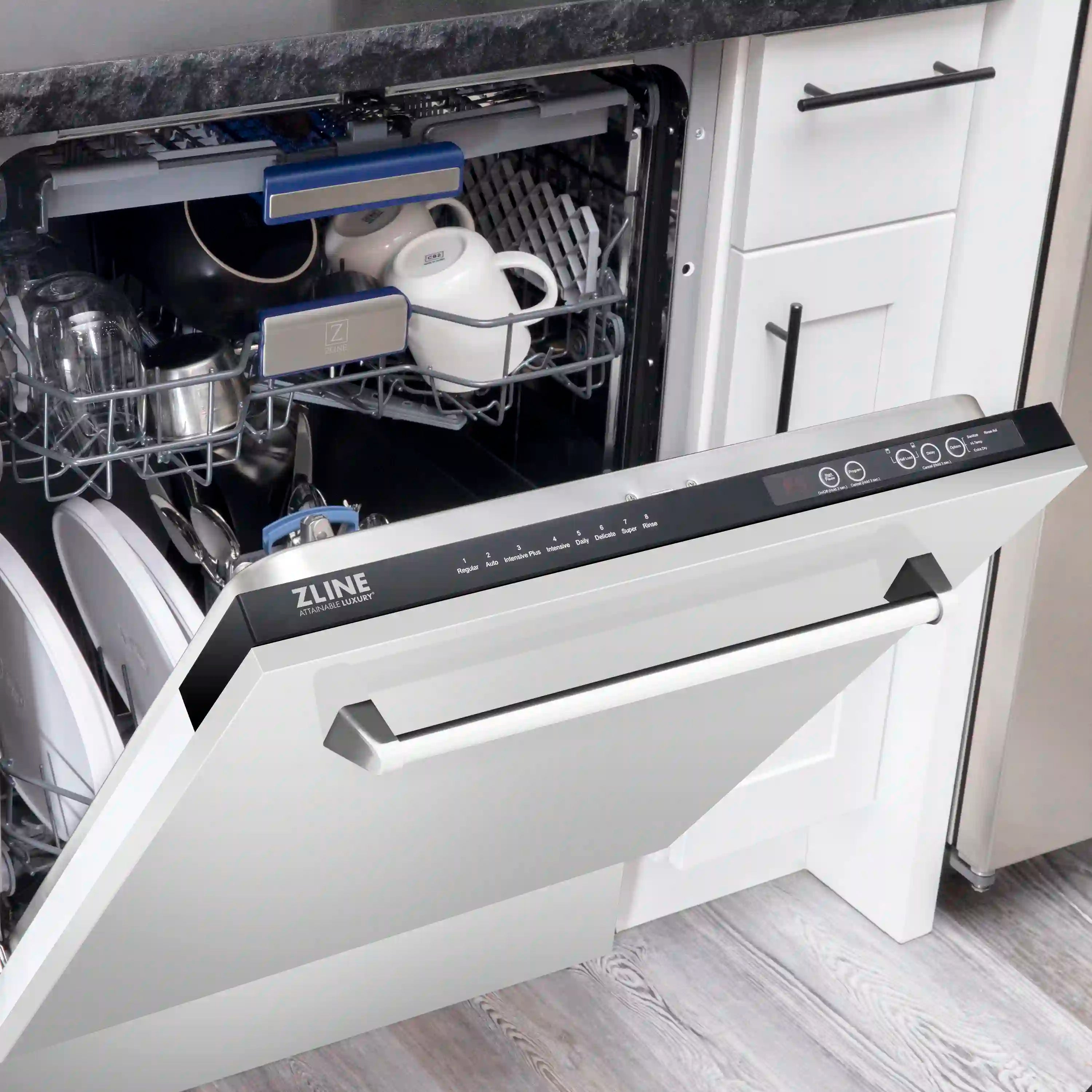

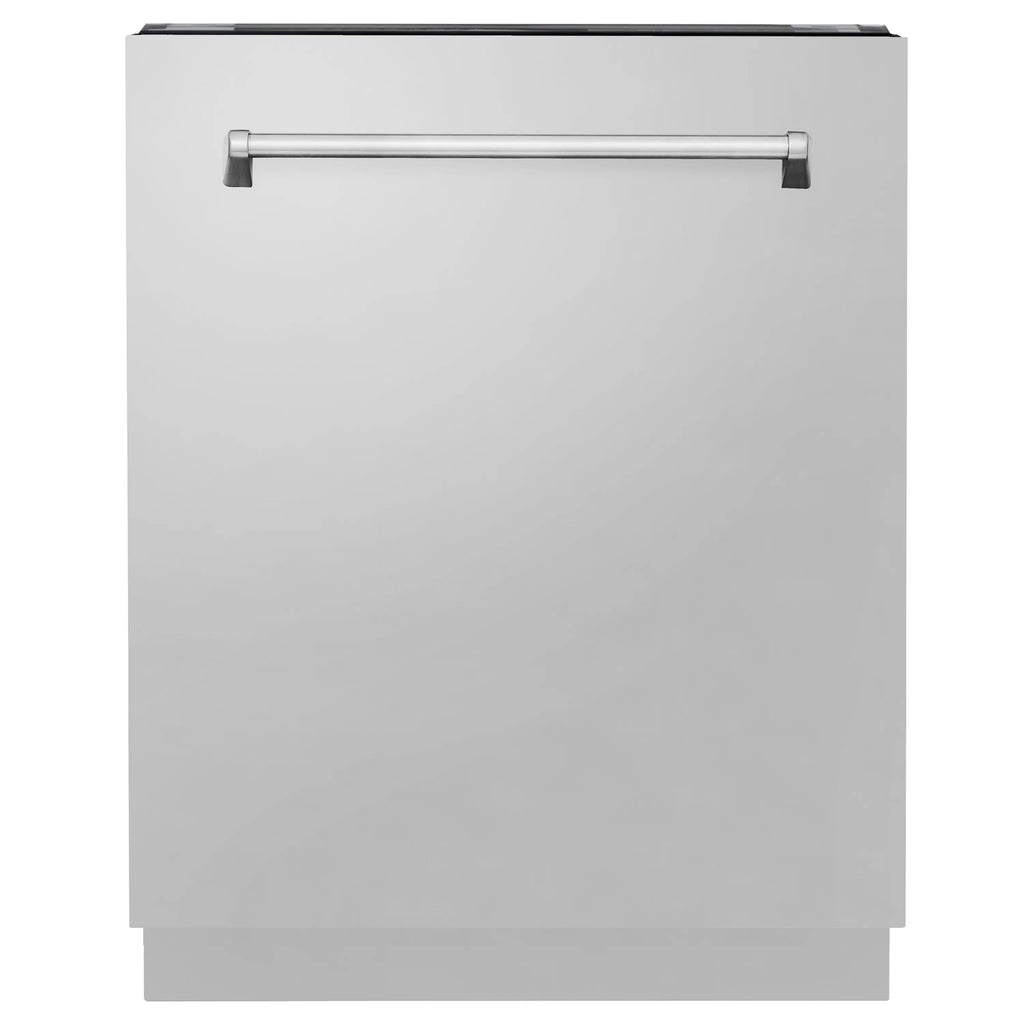

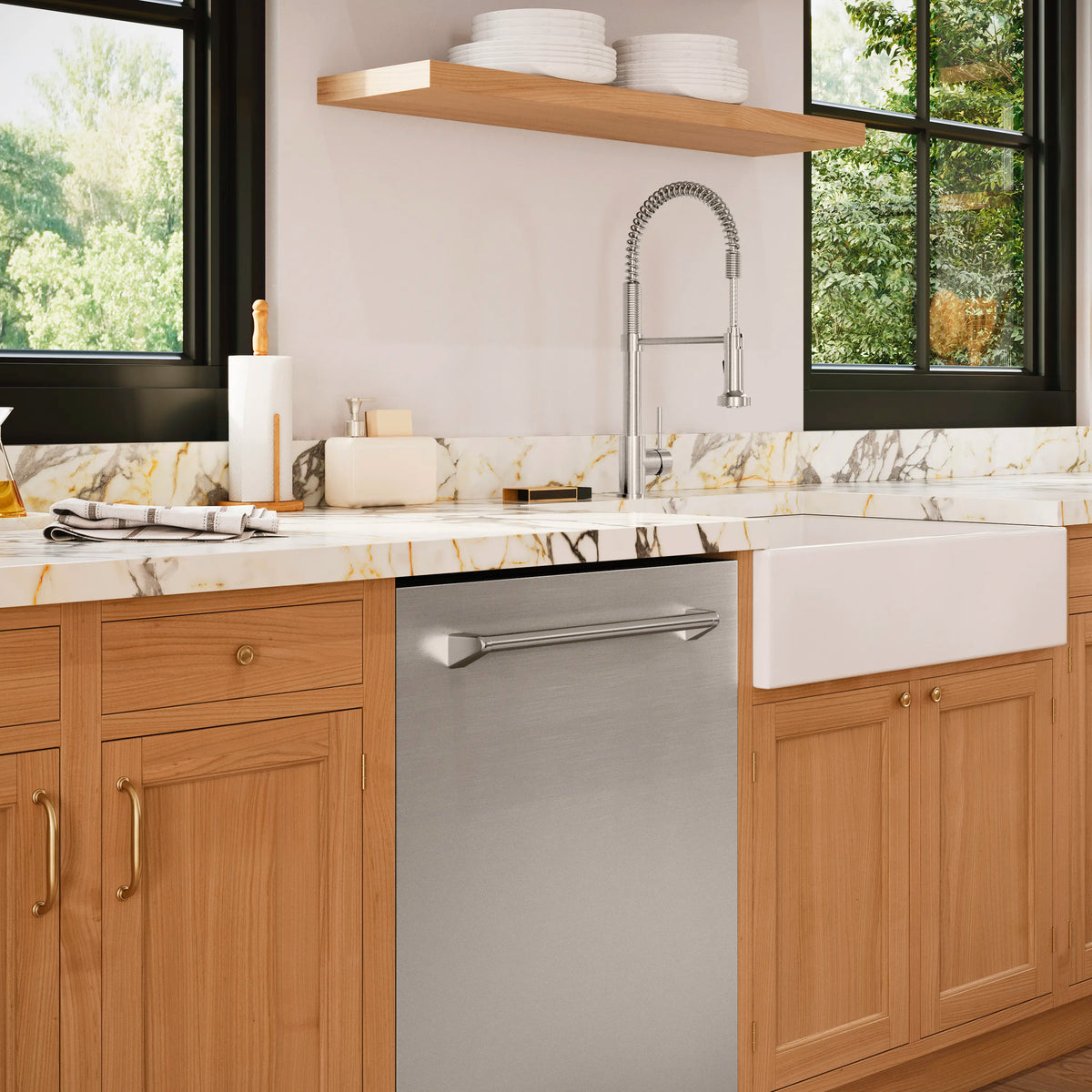

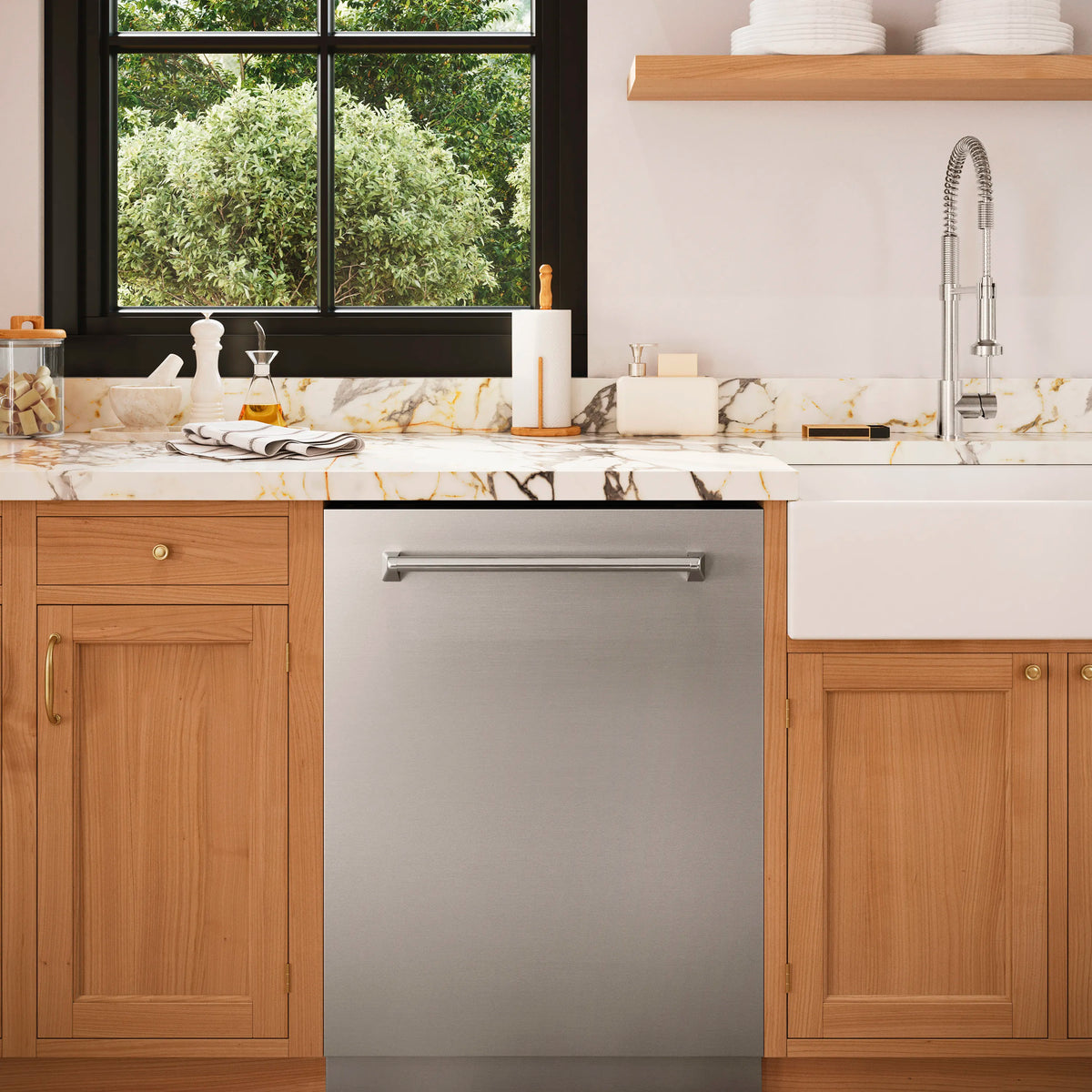

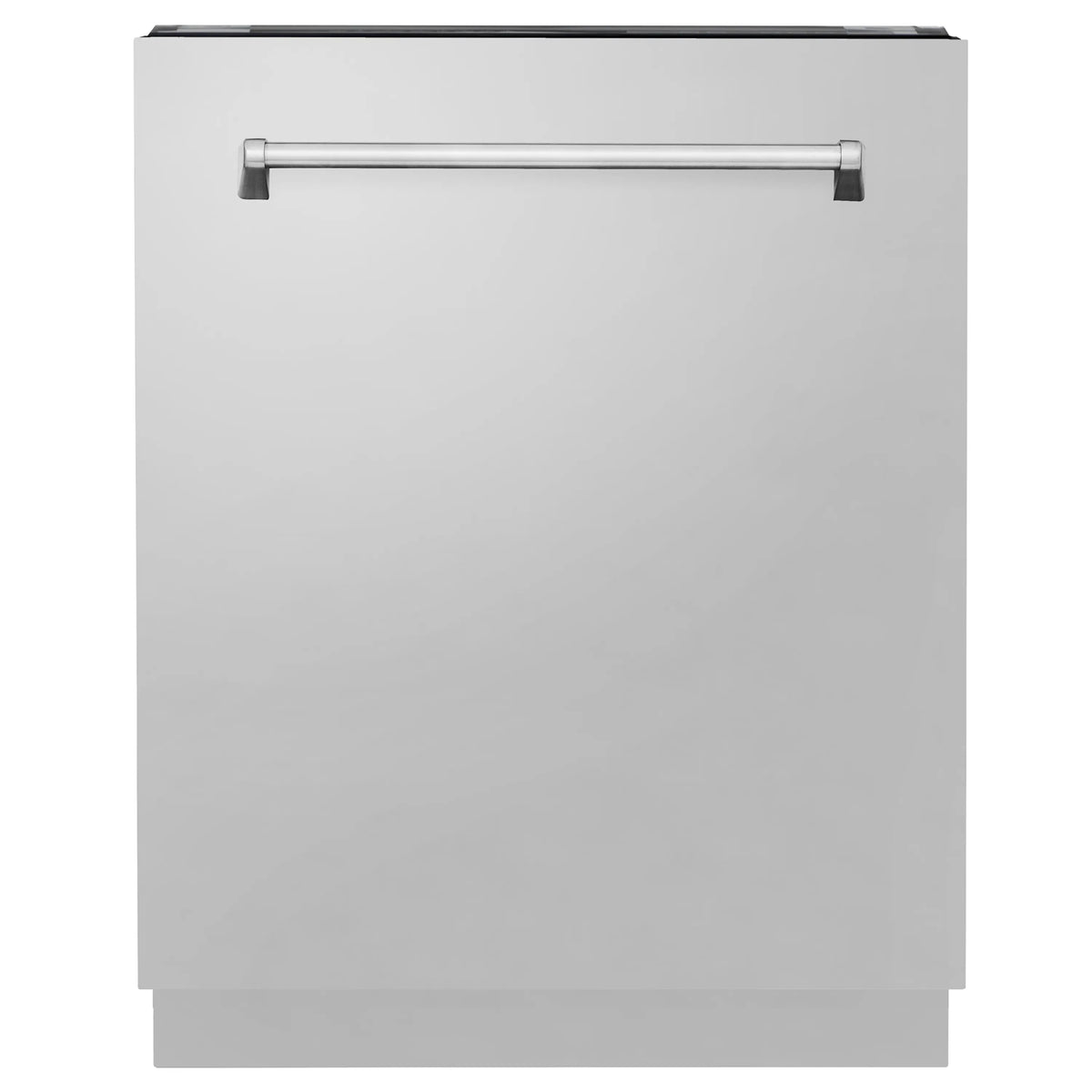

Piece 4 of 5 — DISHWASHER

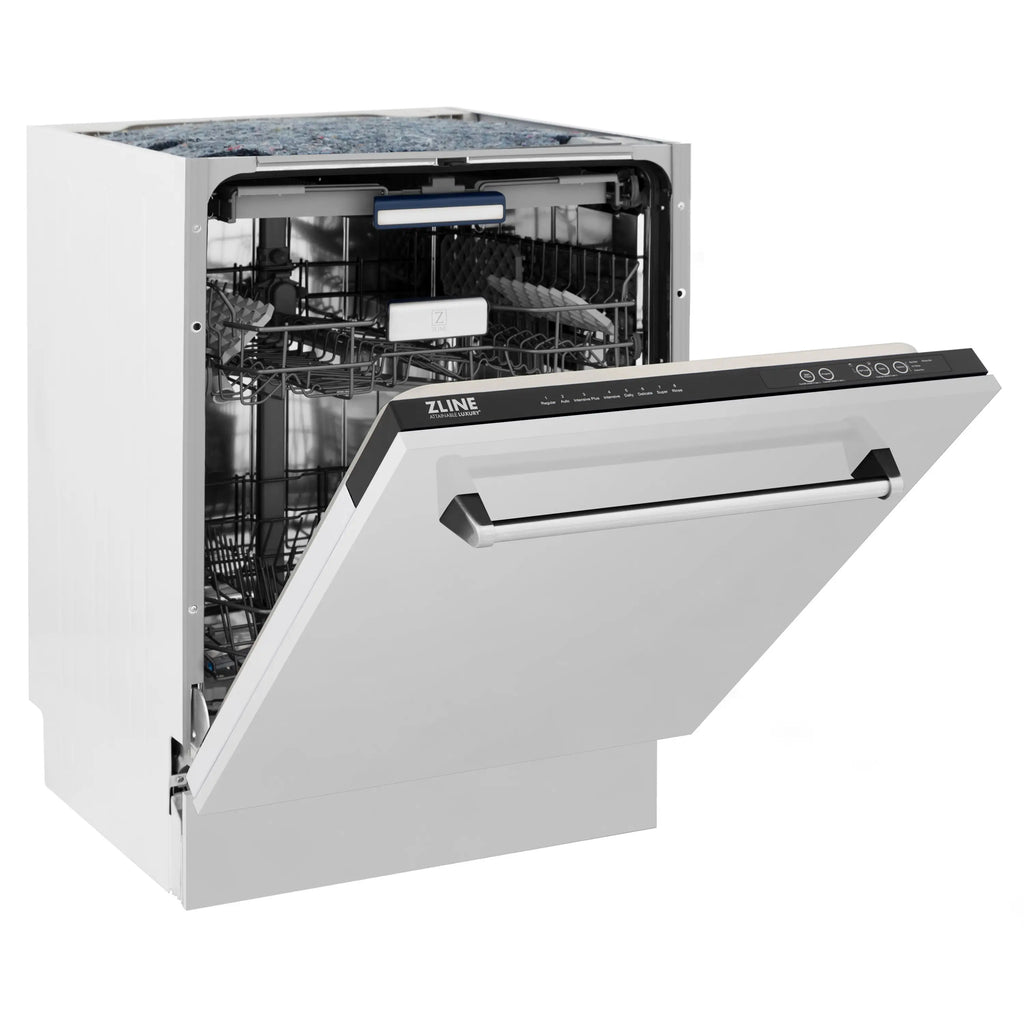

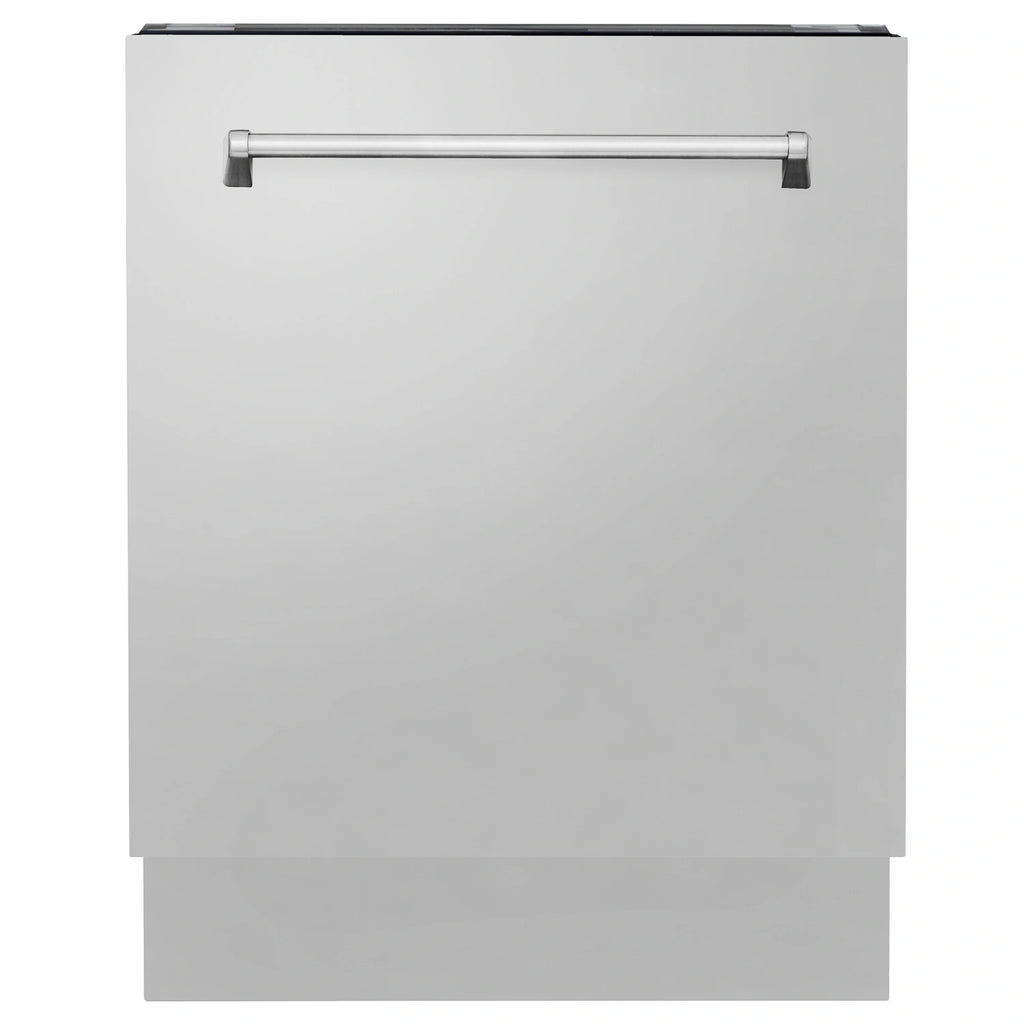

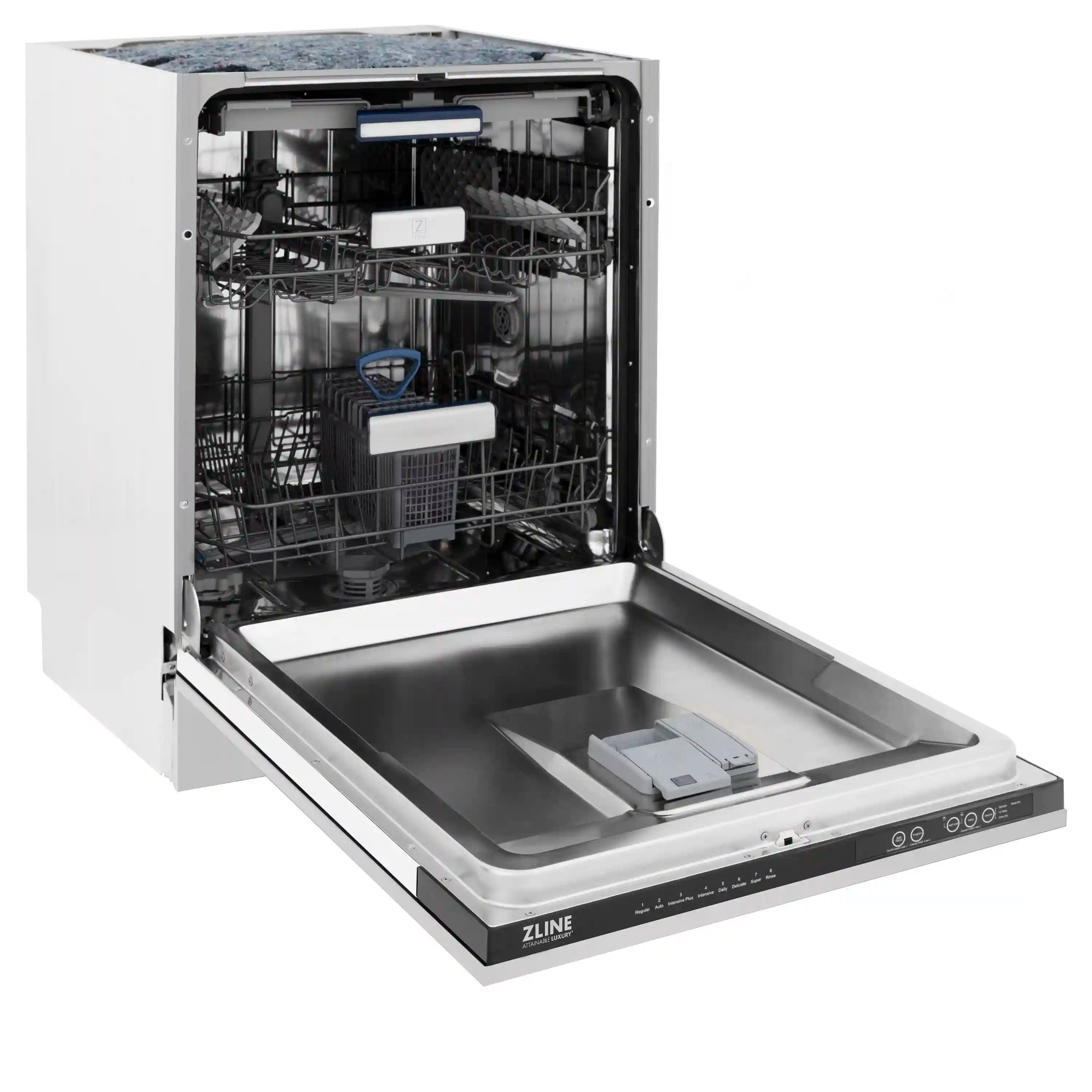

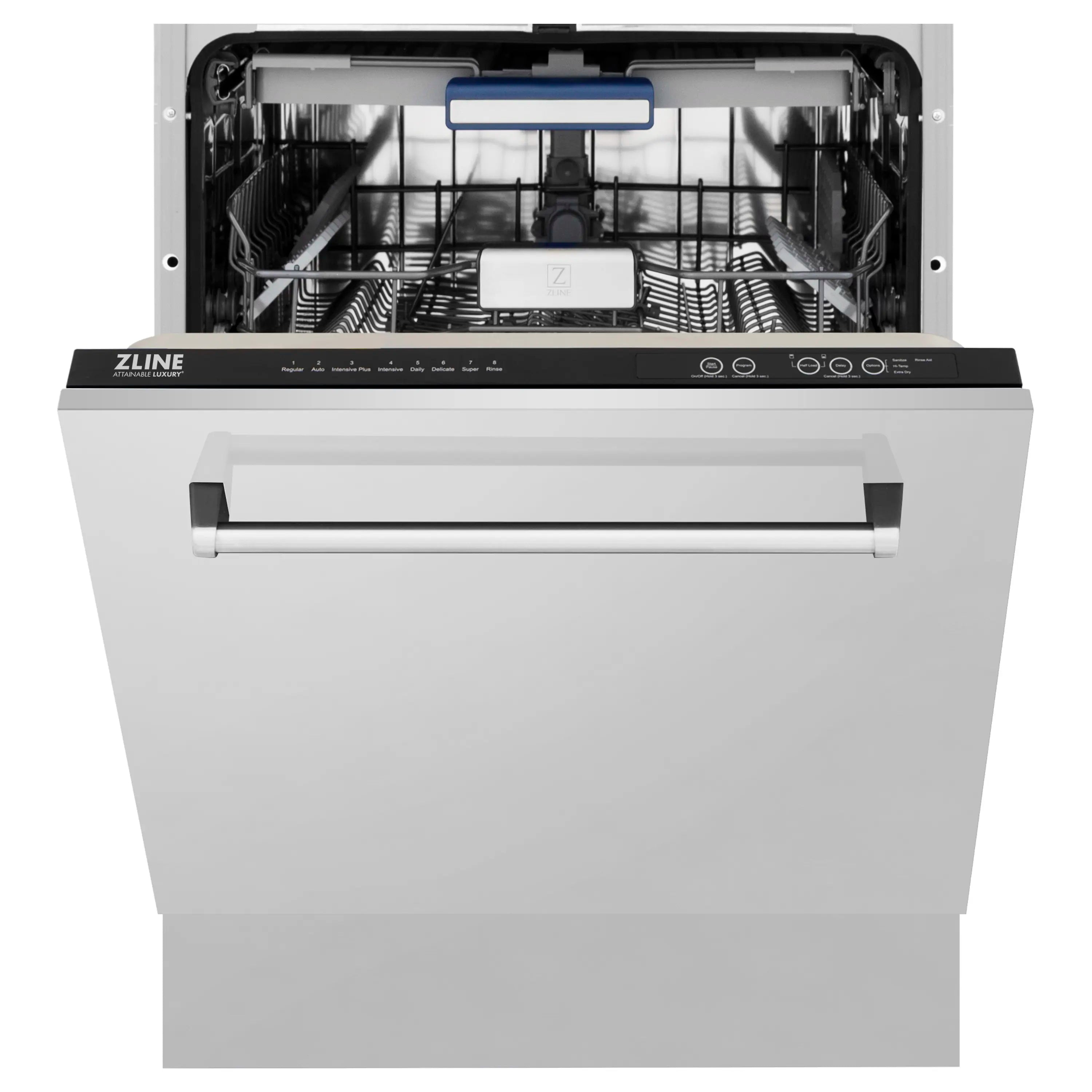

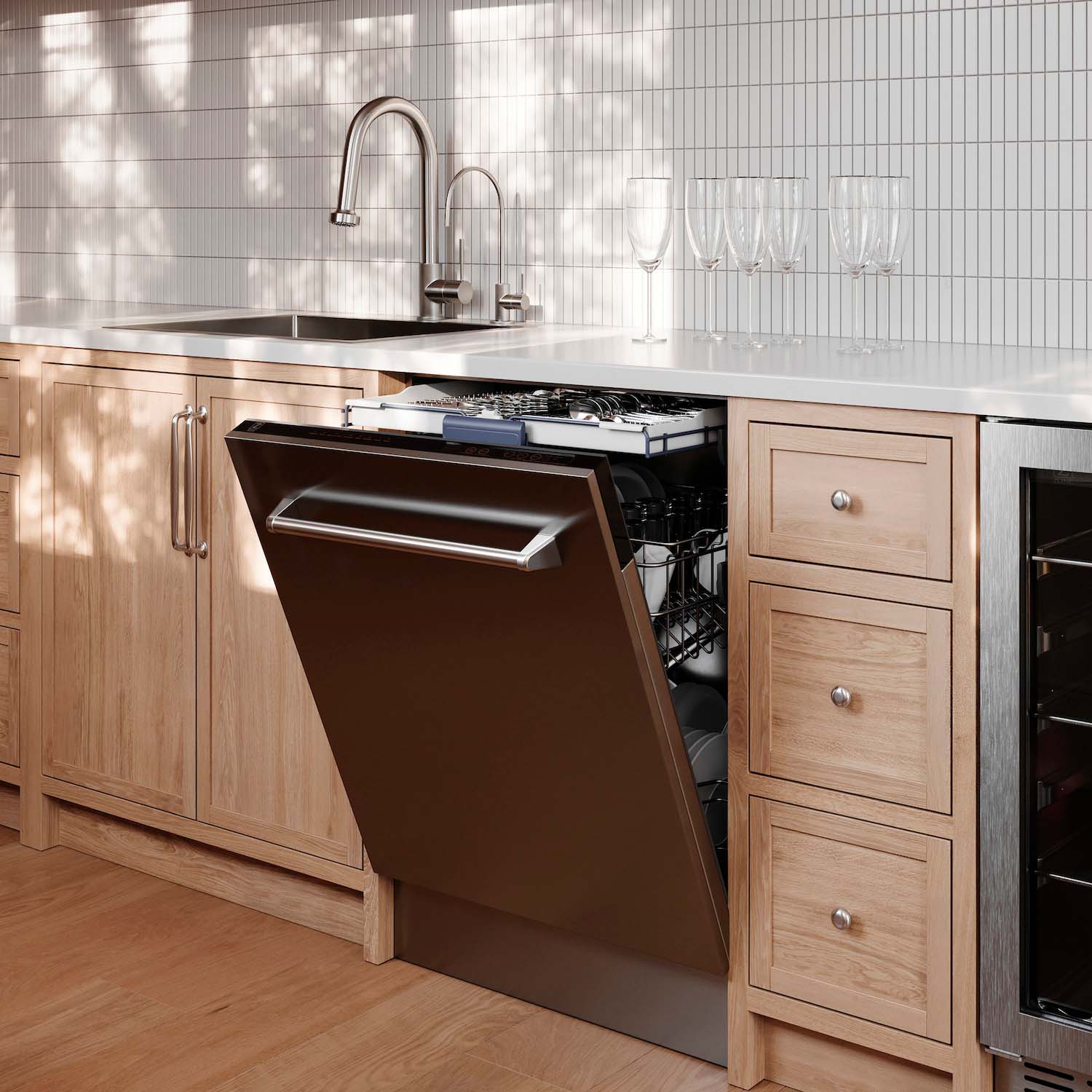

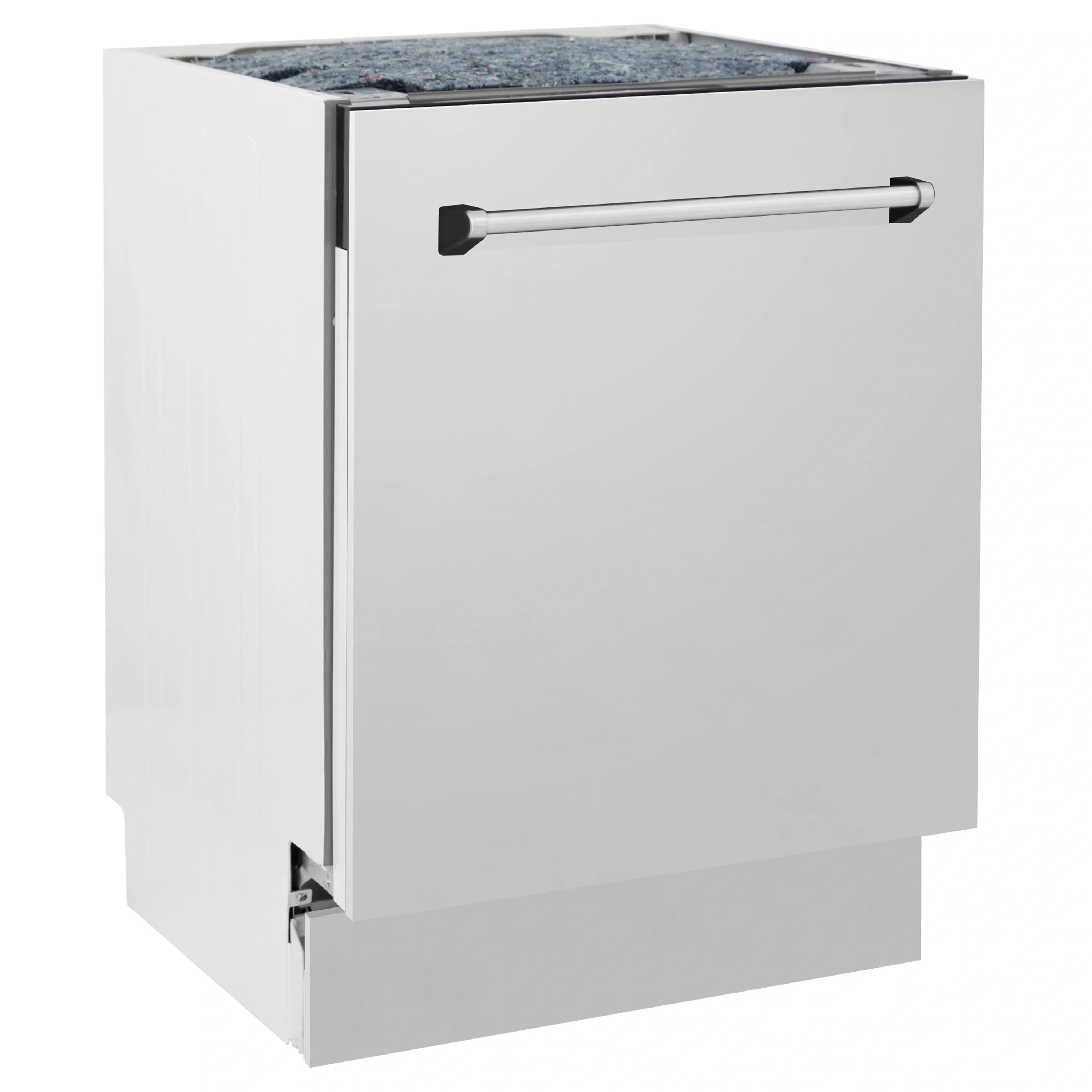

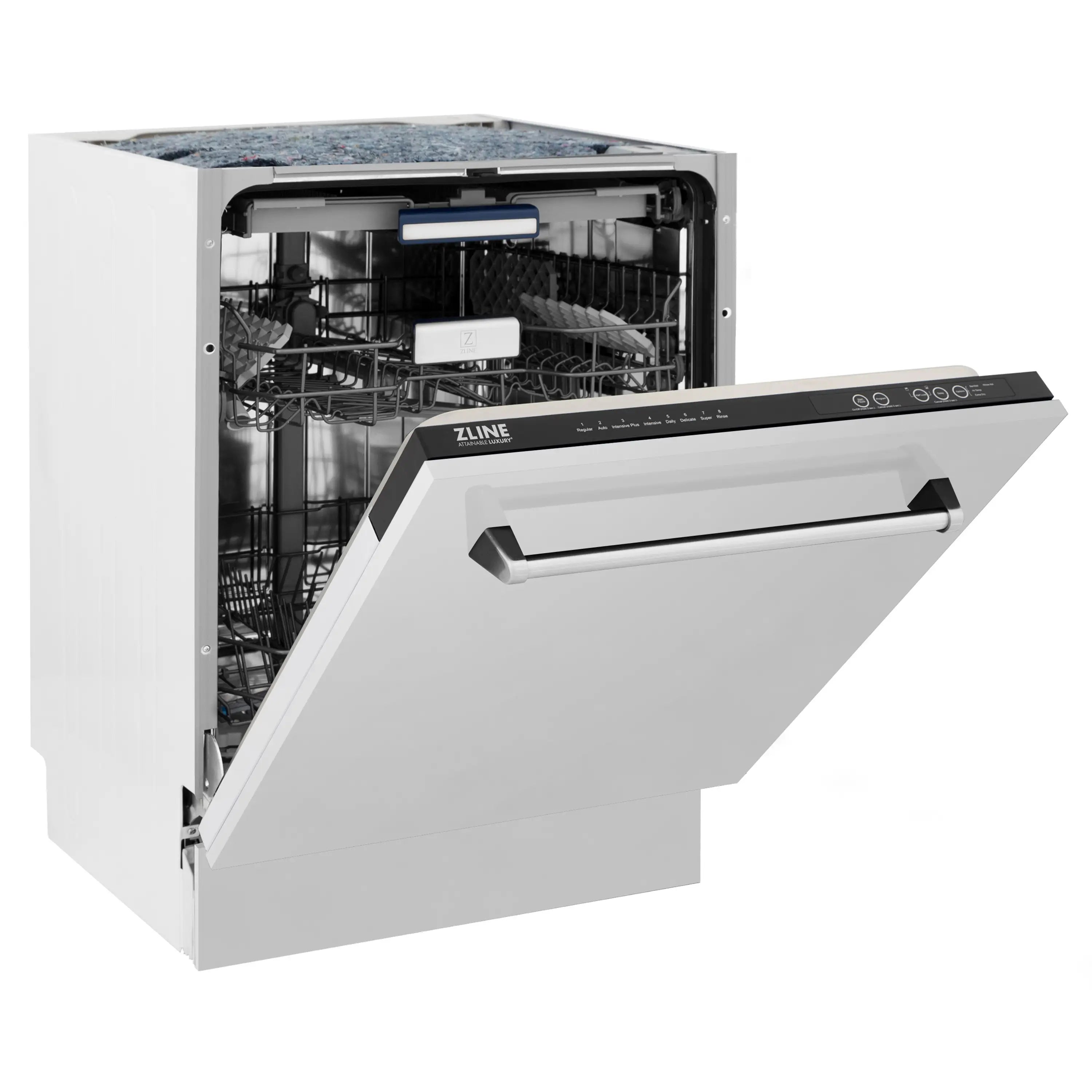

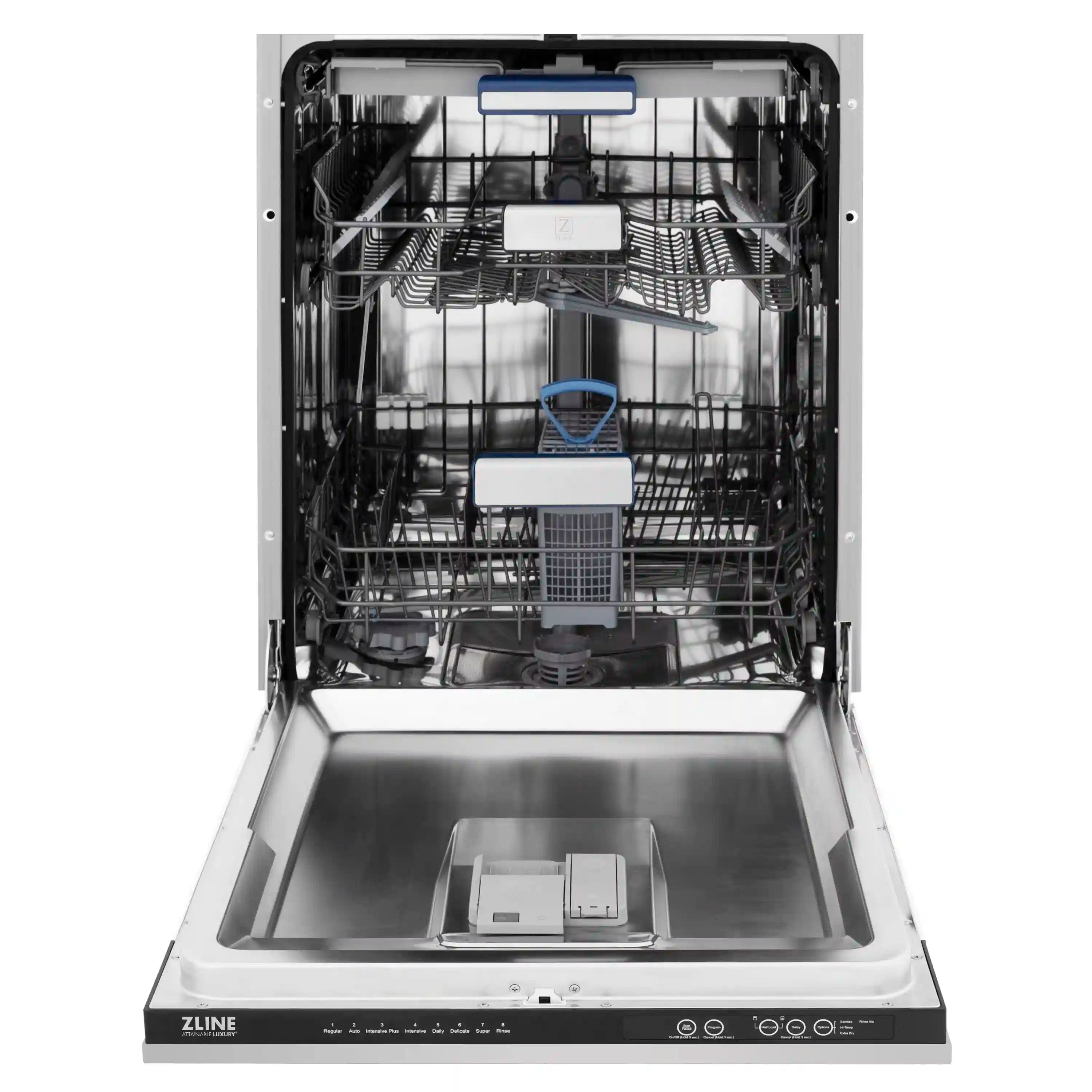

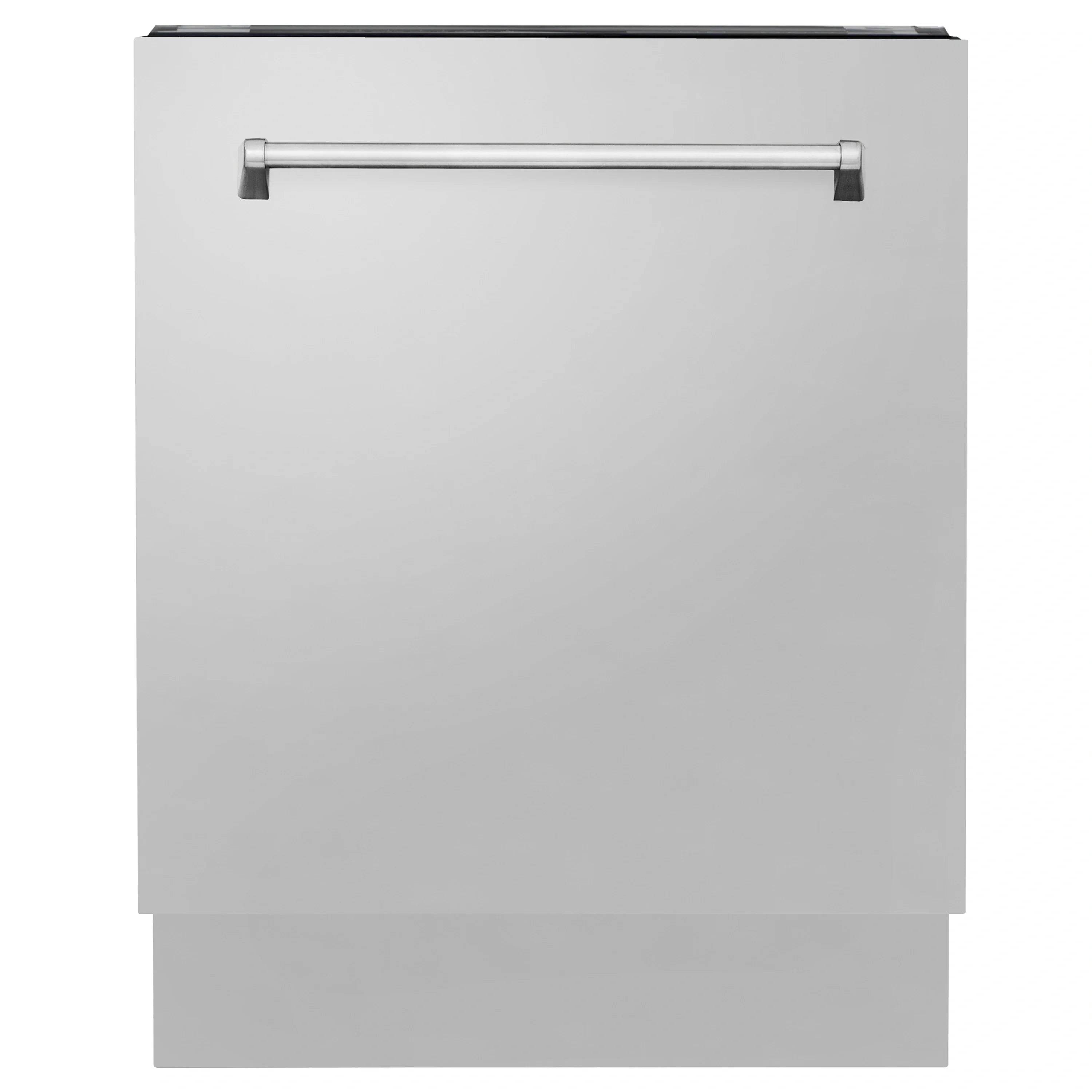

The ZLINE 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Stainless Steel Panel (DWV-304-24) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.
Features
- Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air
- Engineering Excellence - Achieve a spotless wash with a professional 304-grade stainless steel 3-rack dishwasher designed to be energy-conscious and sleek
- Multiple Wash Cycles - Choose from several different wash cycles, including a 50-minute Super Mode that cleans soiled dishes quicker while remaining energy-efficient

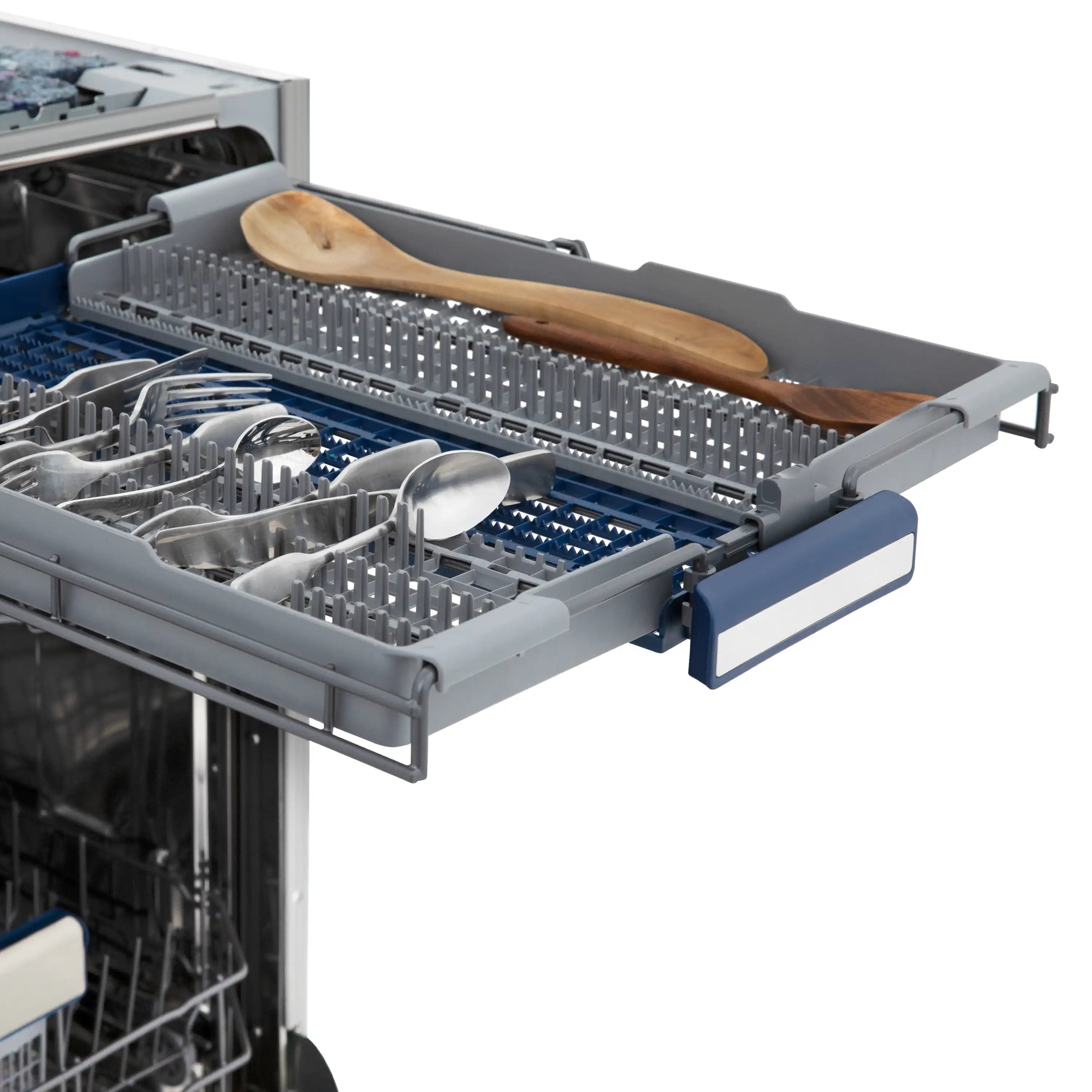

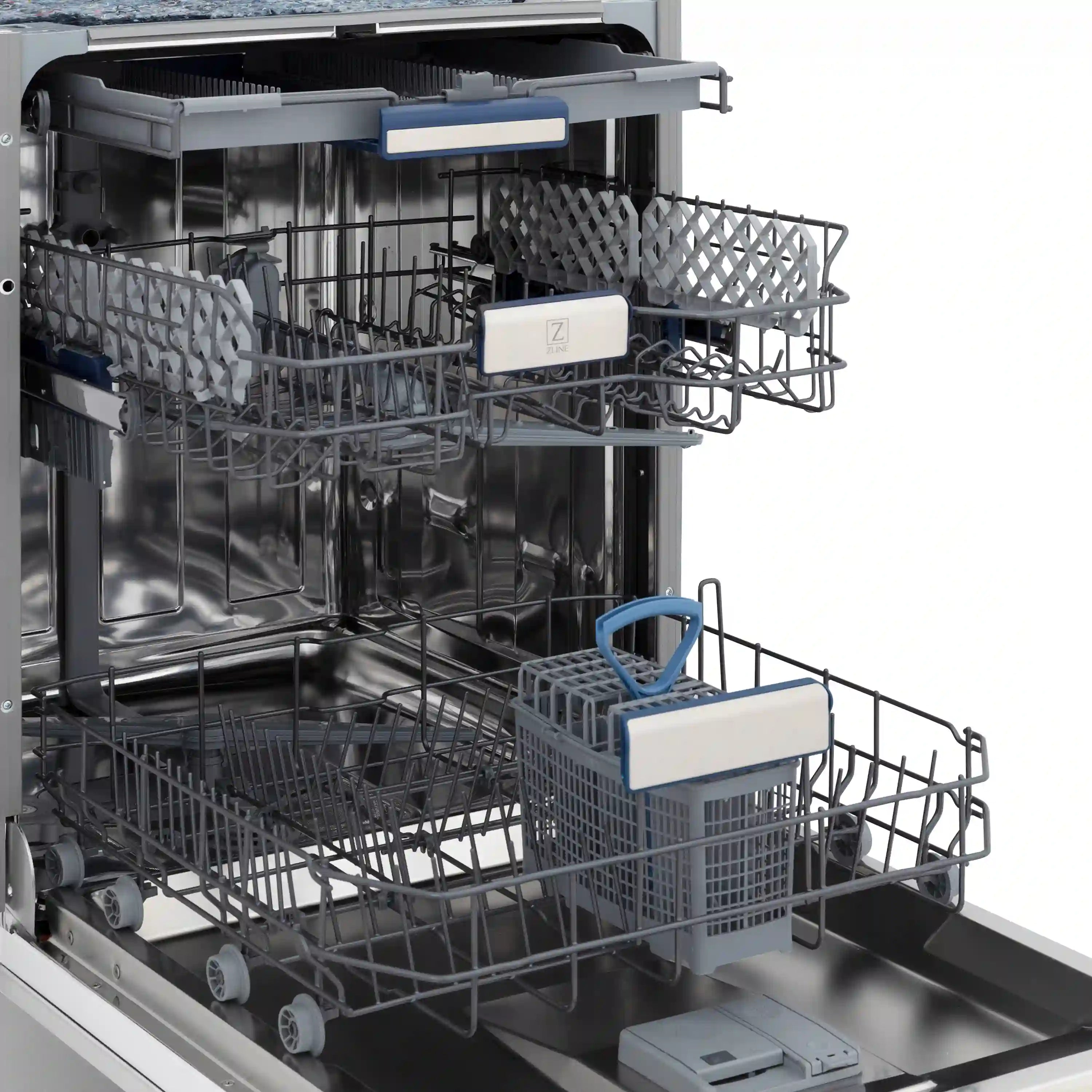

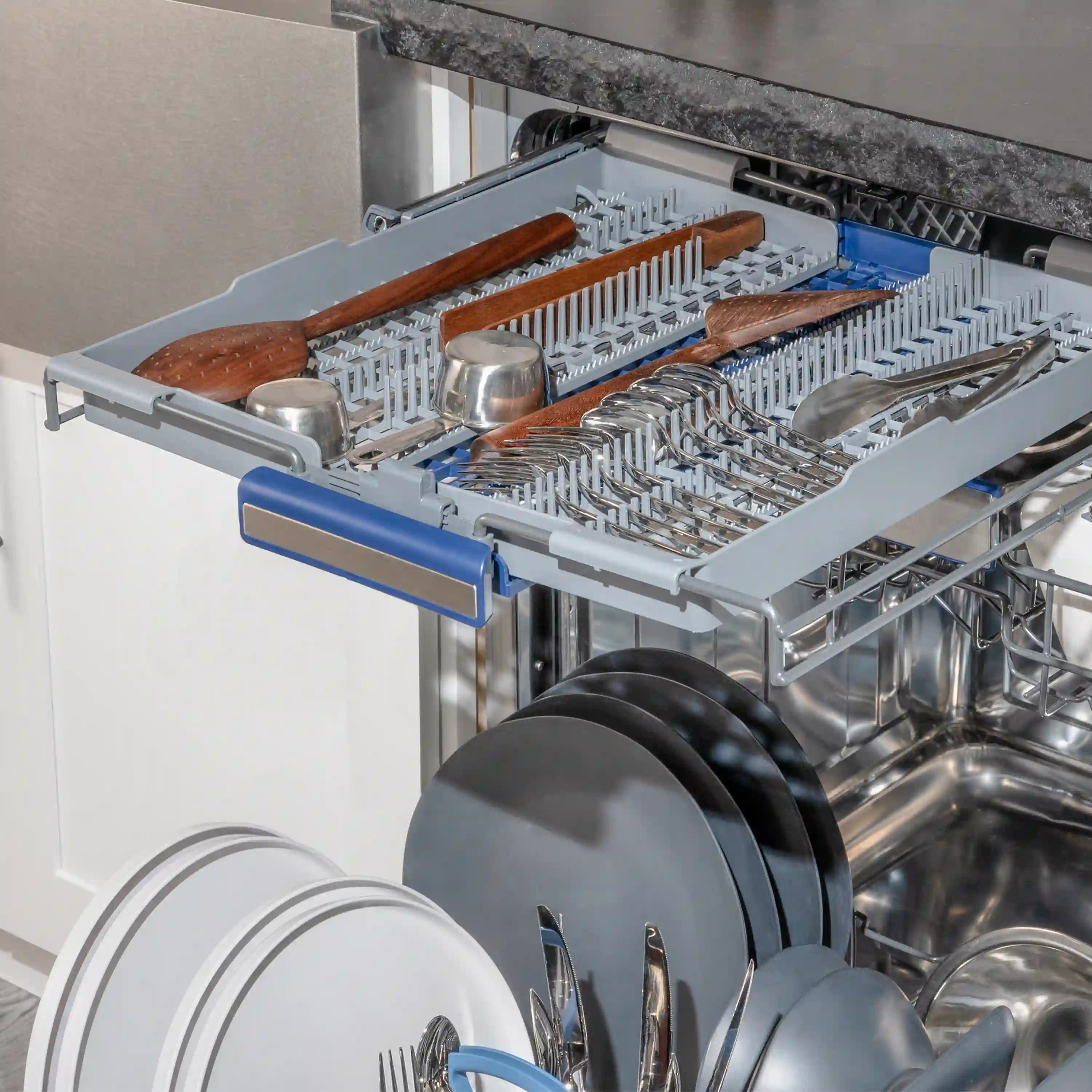

- Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
- Extra-Strength Cleaning - Specialty Intensive and Intensive Plus modes take care of heavily soiled items by adding extra time to each wash cycle
- Smart Wash Technology - An auto-sensing system determines the type of cycle and pressure required, limiting water usage to an energy-efficient 3.4 gallons per load
- Turbo Fan Drying - Tallac Dishwashers feature Turbo Fan Drying, which quickly removes excess humidity after each cycle, resulting in cleaner, drier dishes
- Minimal Noise - Enjoy peace in the kitchen while getting a spotless wash every time, thanks to a low 51 dBa decibel level during operation

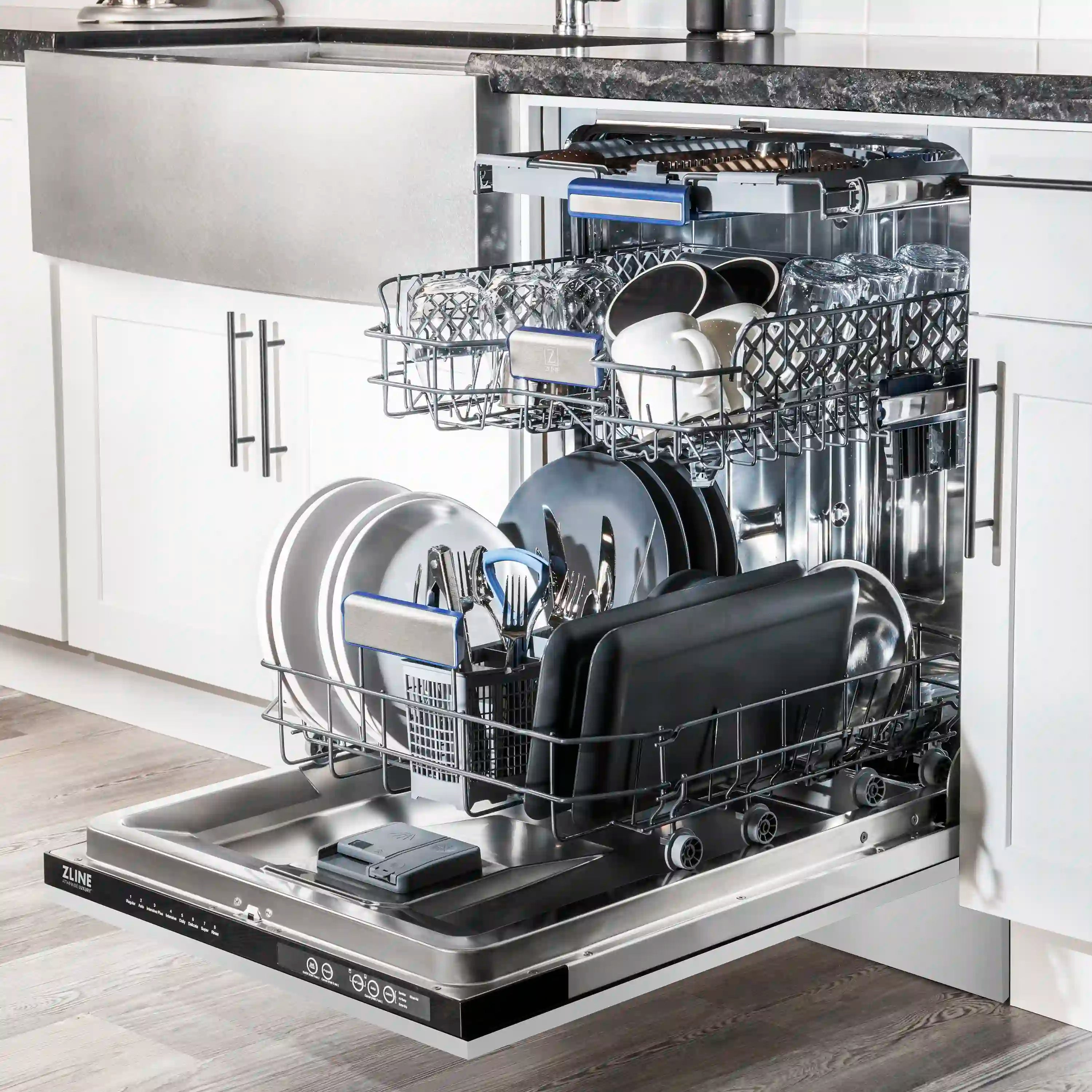

- Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 13 inches tall, while collapsible prongs on the upper and lower levels maximize spacing for bulkier items
- Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 15 place settings

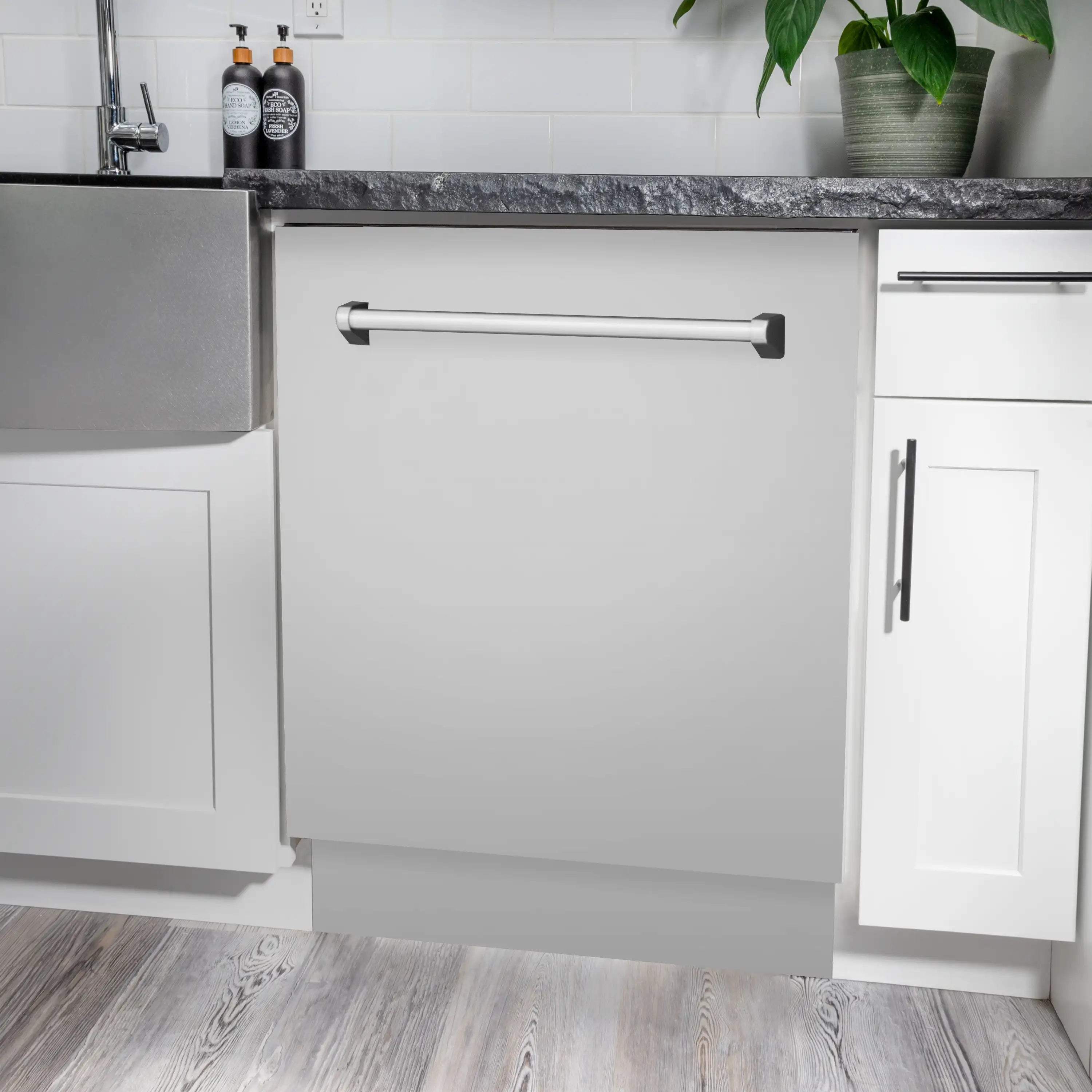

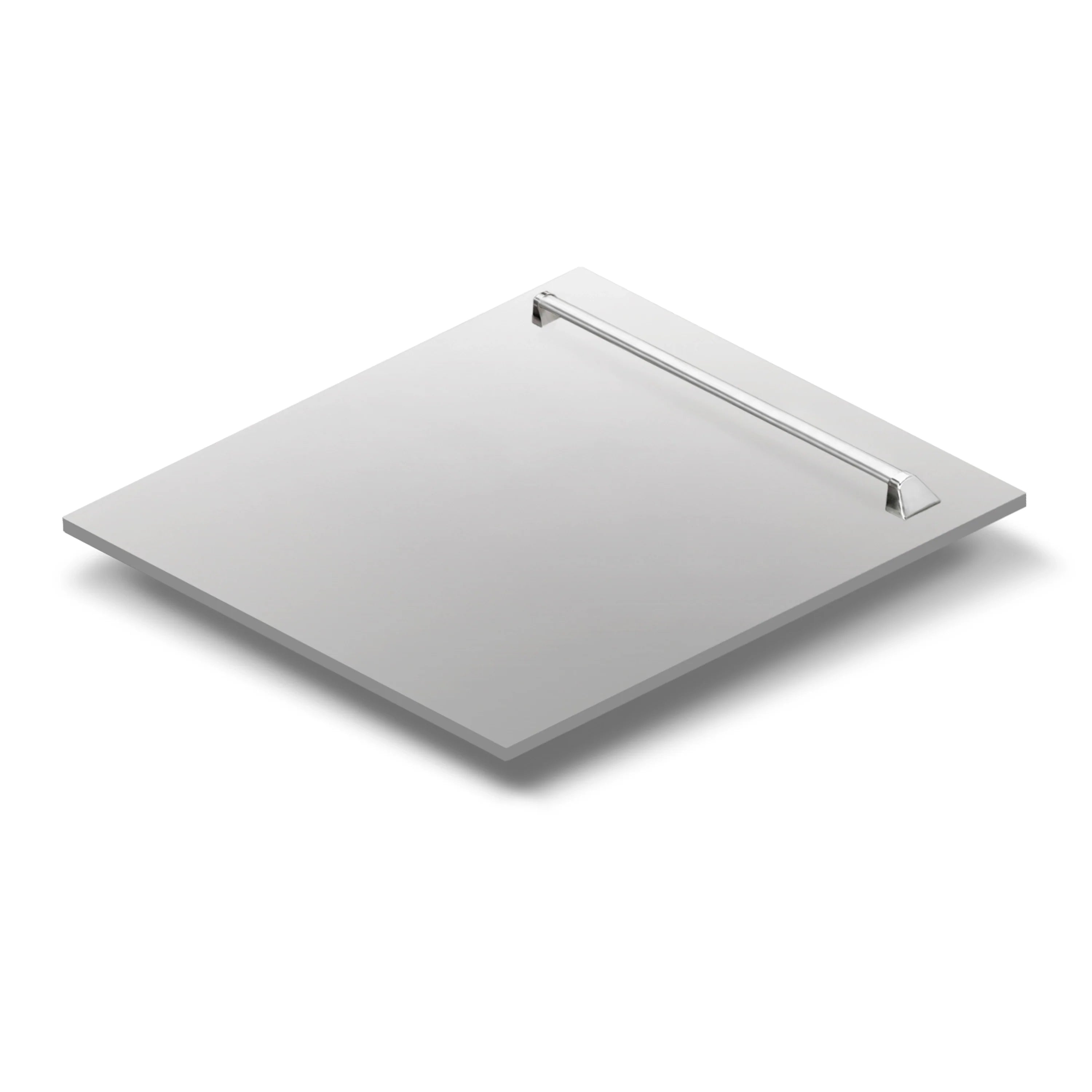

- Custom Panel Finish - Customize your Tallac Series dishwasher with a beautiful 304-grade stainless steel door panel and stainless steel handle

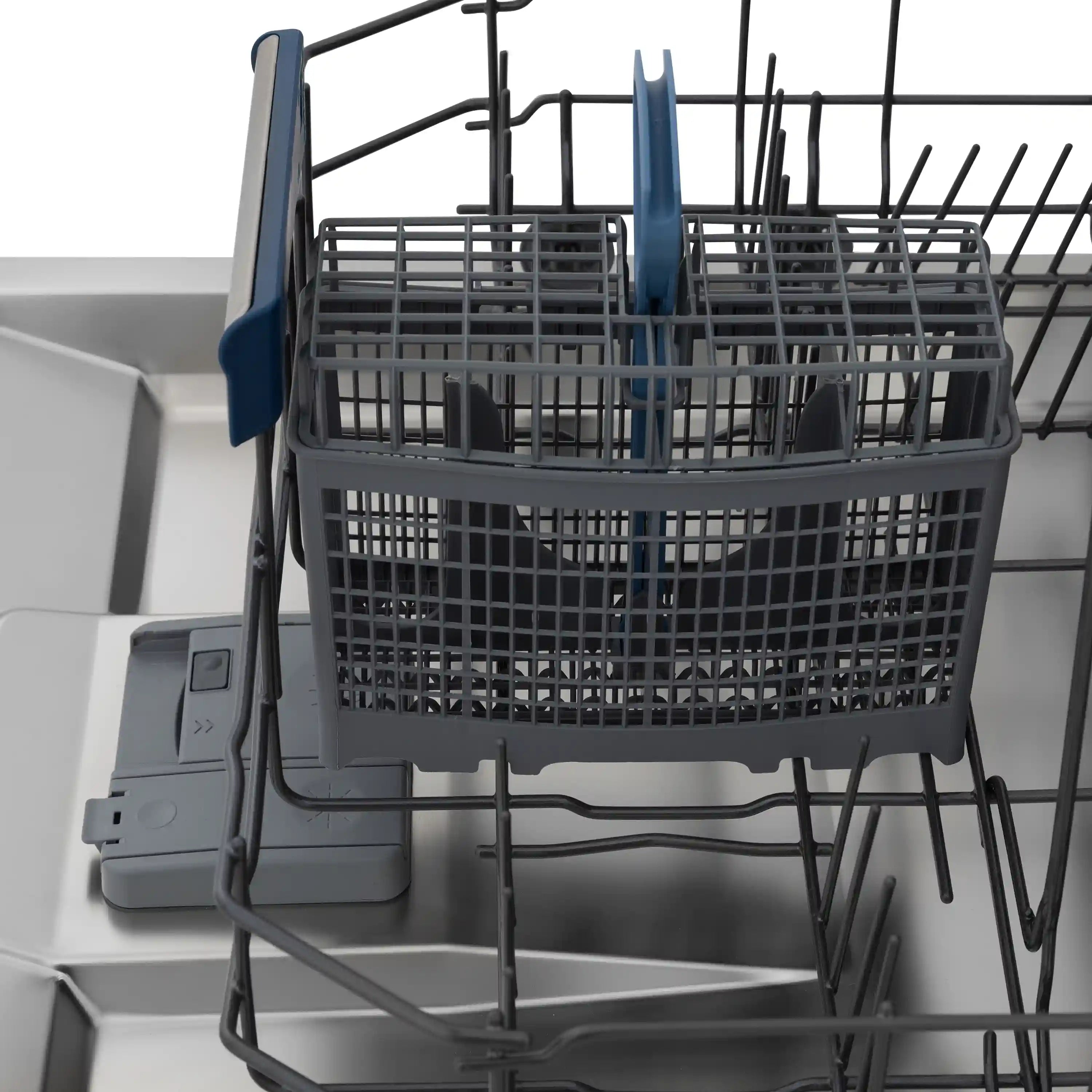

- Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments in the lower rack
- Delay Timer - Control when to schedule your heaviest washes with a convenient Delay Timer function that sets programs up to 19 hours in advance
- Integrated Controls - Select wash cycles and other functions with a gentle touch, thanks to a concealed, sleekly designed top control digital panel

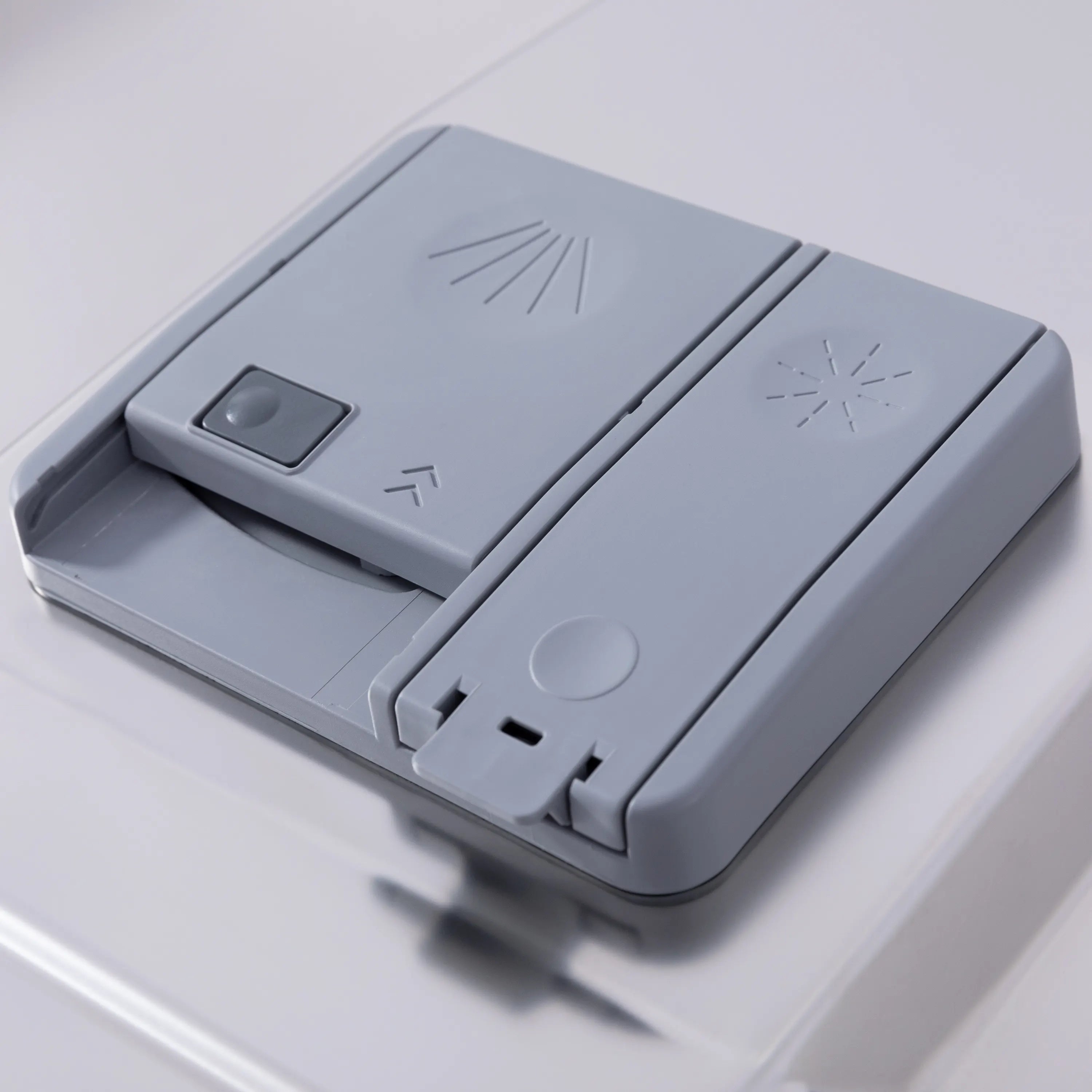

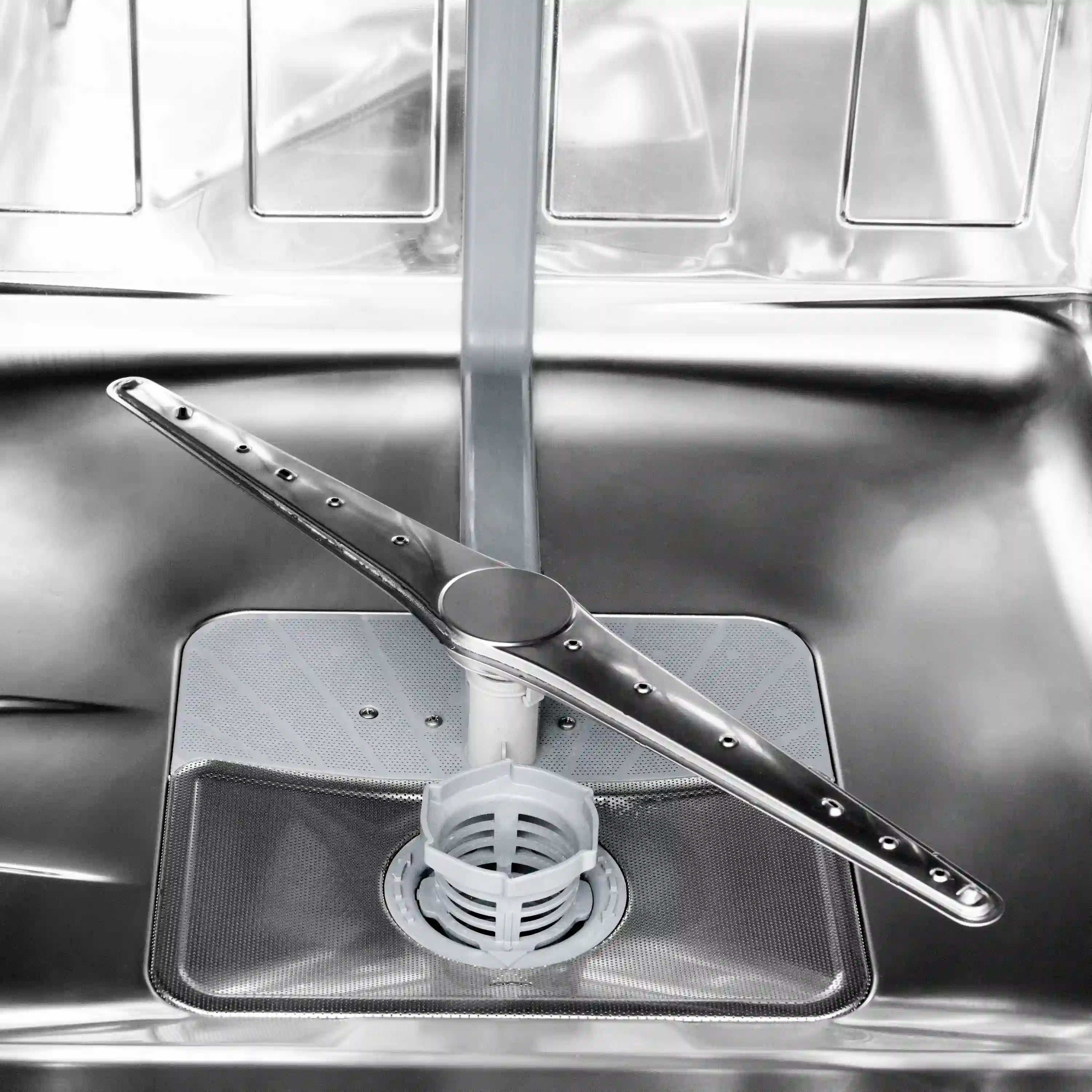

- Triple-Filter Cleaning - A triple-filter system easily separates soiled water and clean water in different chambers to achieve better performance

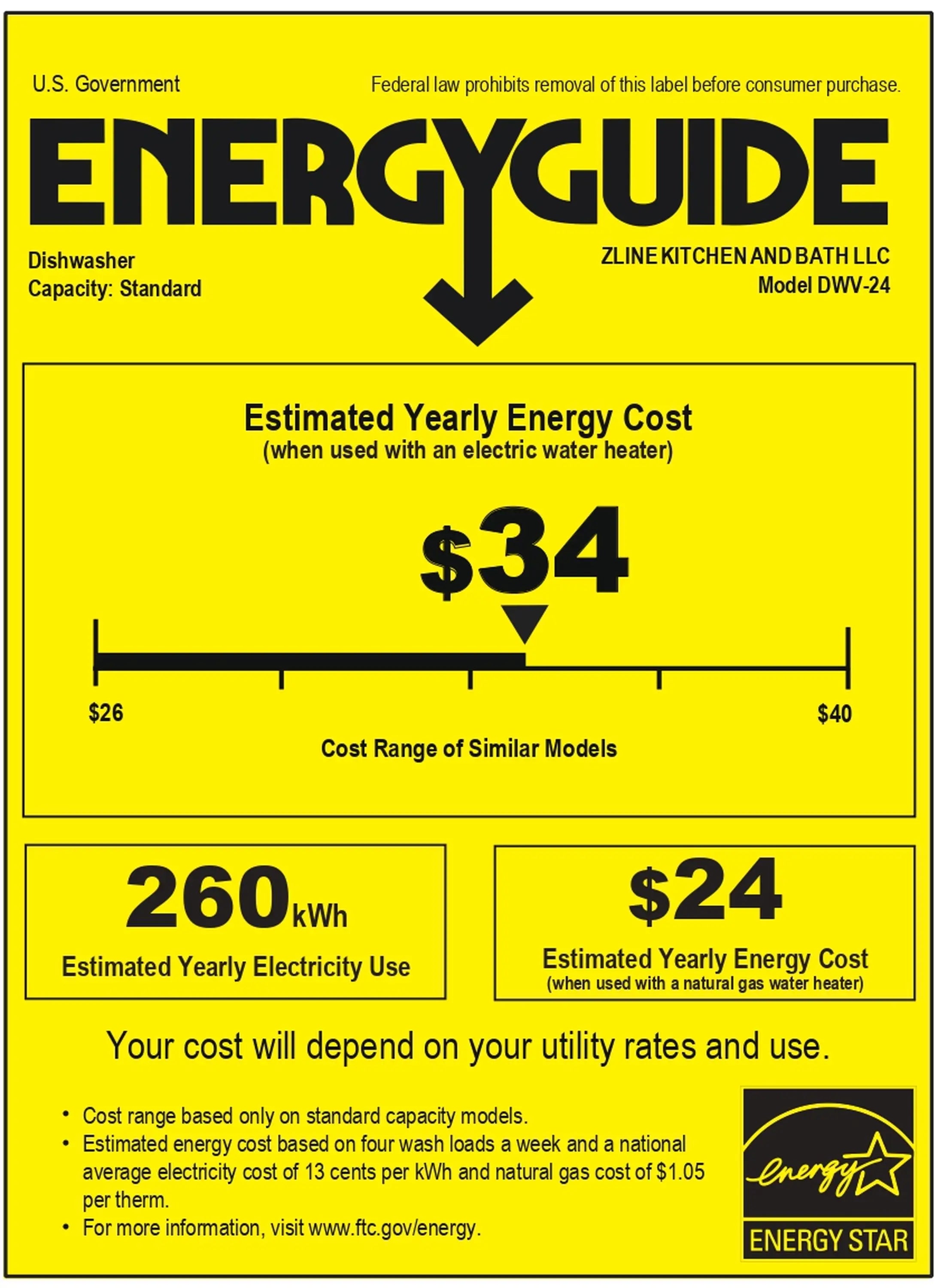

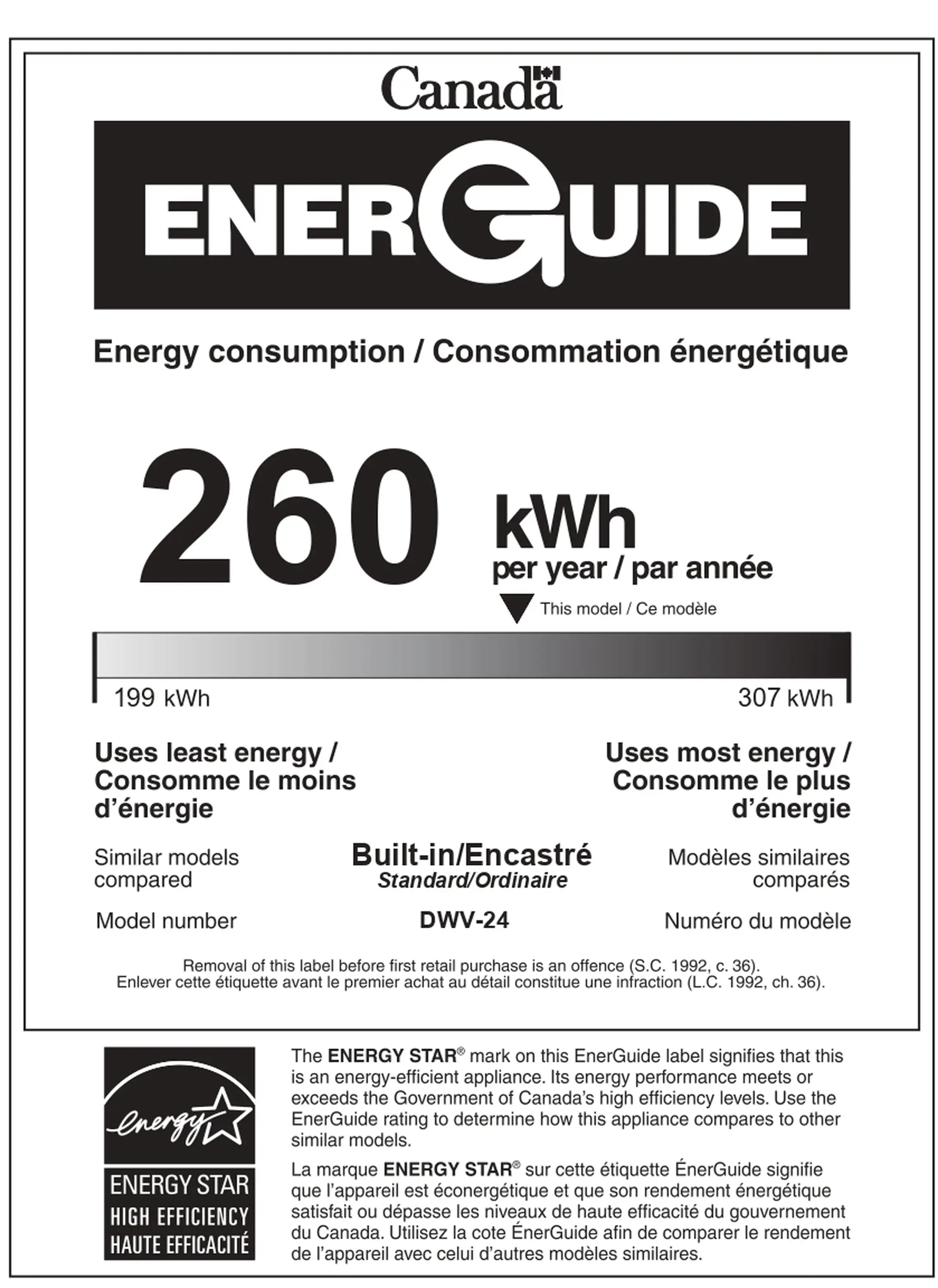

- Environmentally Conscious - CEE Tier 1 ENERGY STAR certification ensures maximum water and energy efficiency by using an advanced eco-wash mode
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Professional Installation Required - This product requires professional installation to ensure optimal plumbing and electrical performance and a seamless built-in look
DIMENSIONS
- Product Dimensions
- 23.5 in. W x 21.75 in. D x 33.75 in. H
- Cutout Dimensions
- 23.63 in. W x 24 in. D x 34 in. H
- Product Weight
- 116.4 lbs
- Max Plate Height
- 13 in.
- Adjustable Legs
- Min Height: 33.75 in., Max Height: 35.75 in.
GENERAL INFORMATION
- Brand
- ZLINE
- Number of Cycles
- 8
- Number of Place Settings
- 15
DESIGN & FINISH

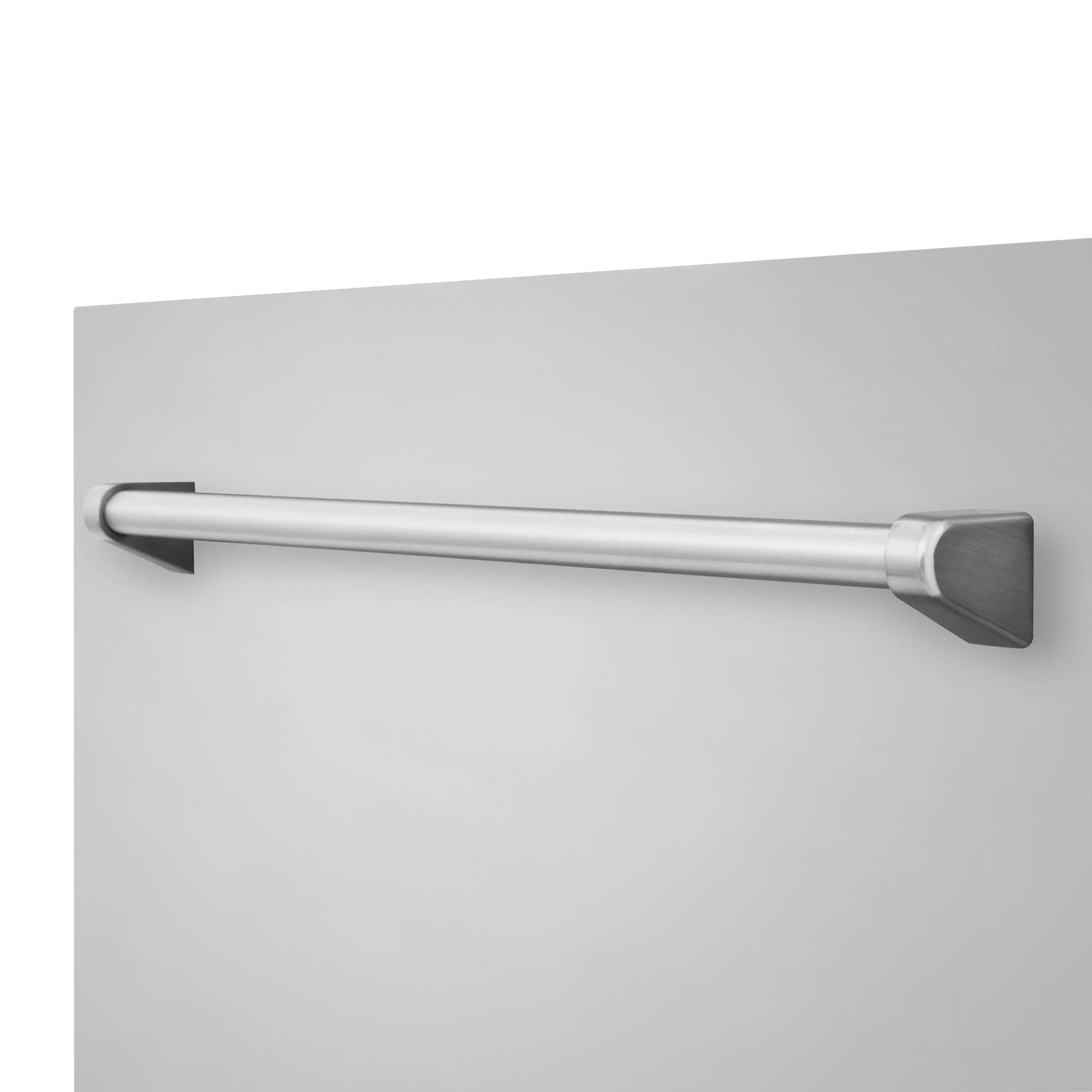

- Handle Type
- Traditional Handle
- Rack Material
- Nylon
- Panel Finish
- Stainless Steel
- Material
- Stainless Steel Tub
TECHNICAL DETAILS
- Electrical Requirement
- 120-Volt/60 Hz/15 Amp
- Motor Wattage
- 108W
- Control Location
- Top Control
- Noise Level
- 51 dBa
WARRANTY & CERTIFICATIONS
- Warranty
- 1 Year Parts and Service Warranty
- Certifications
- ETL and UL Certified

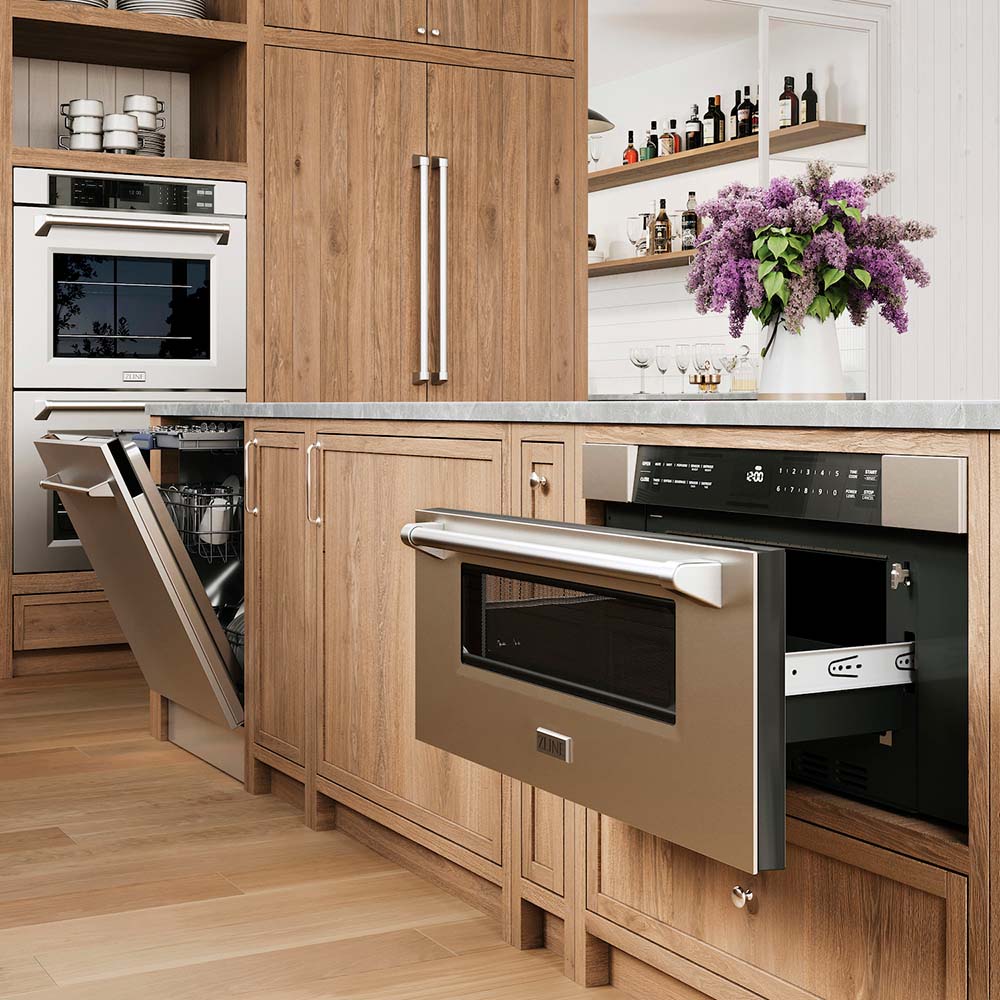

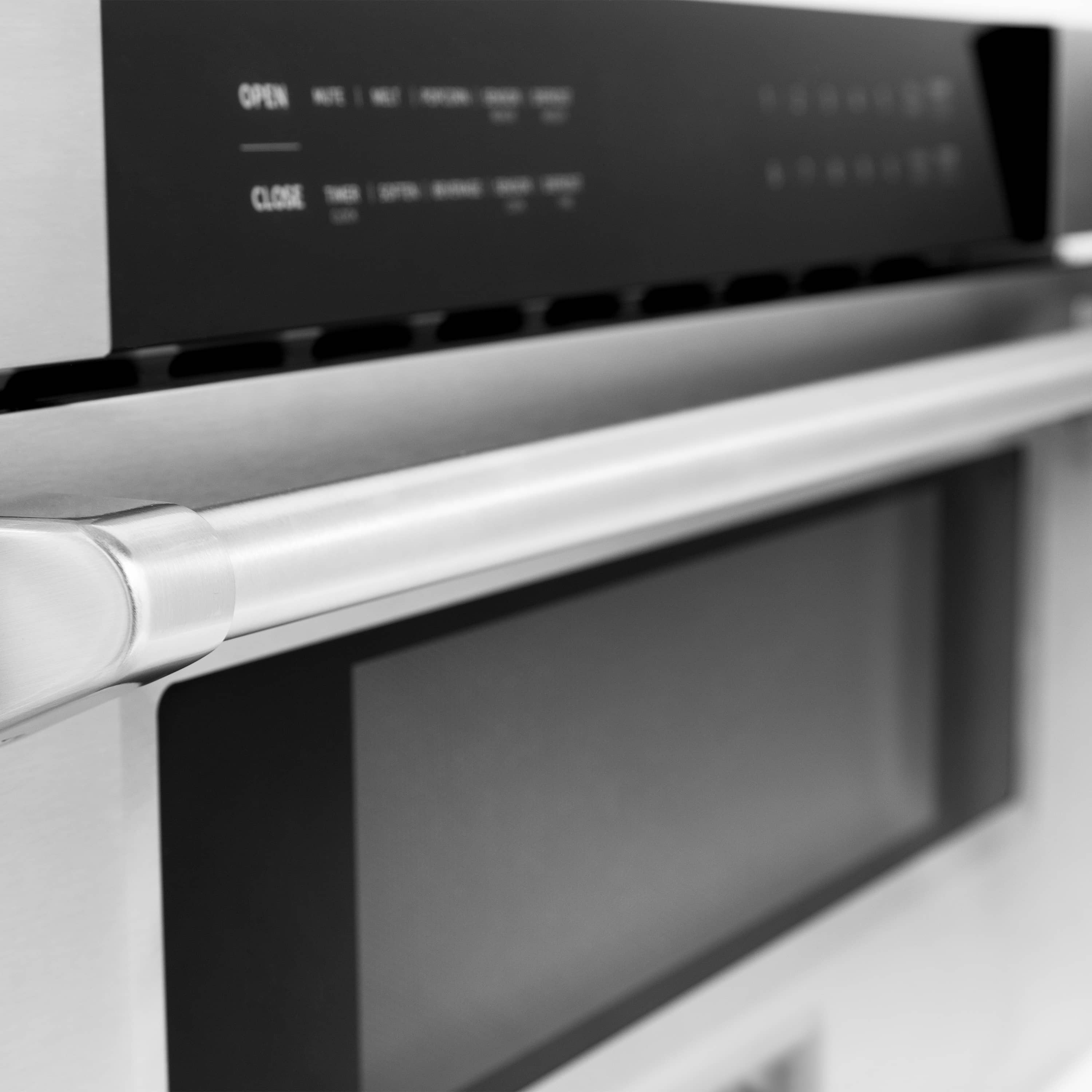

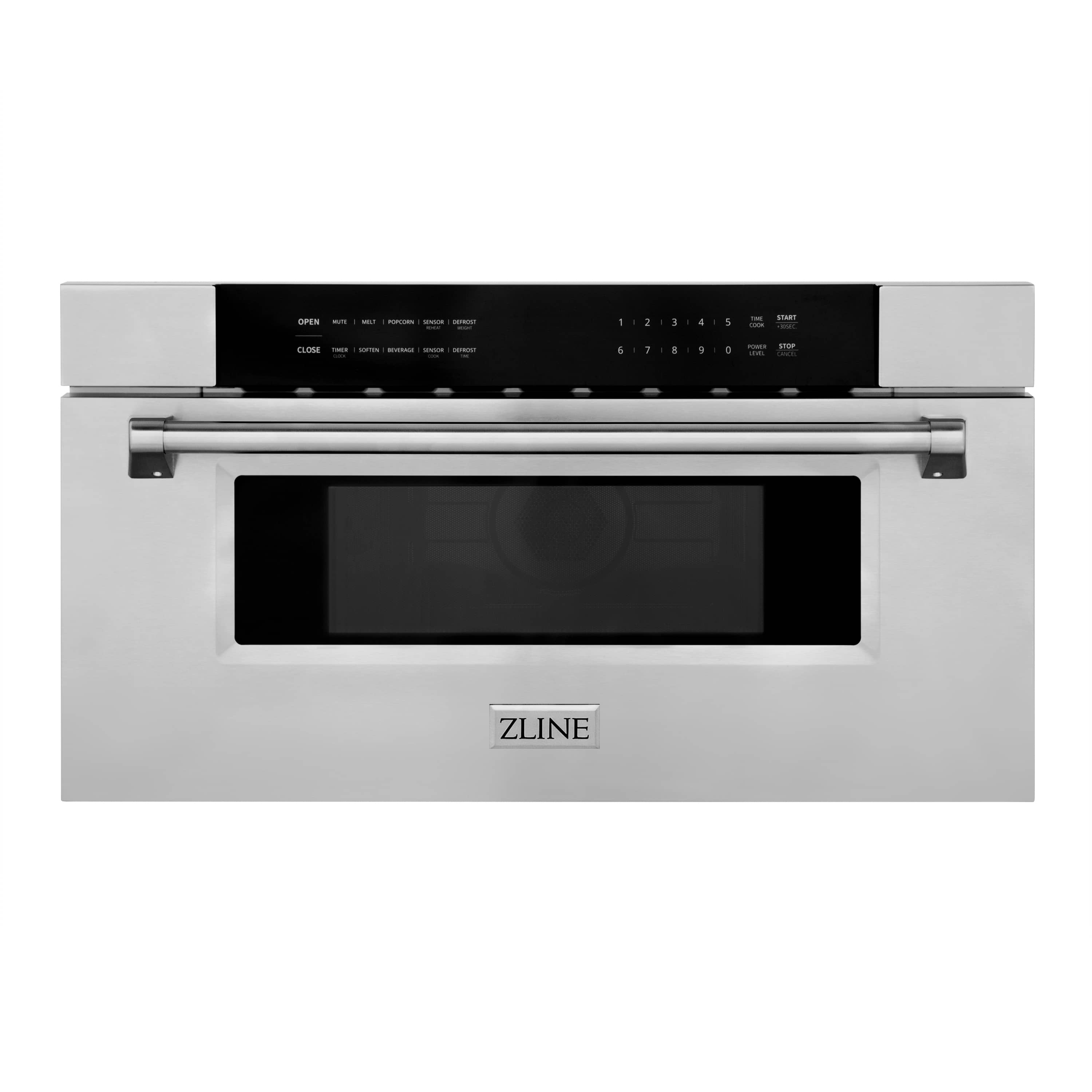

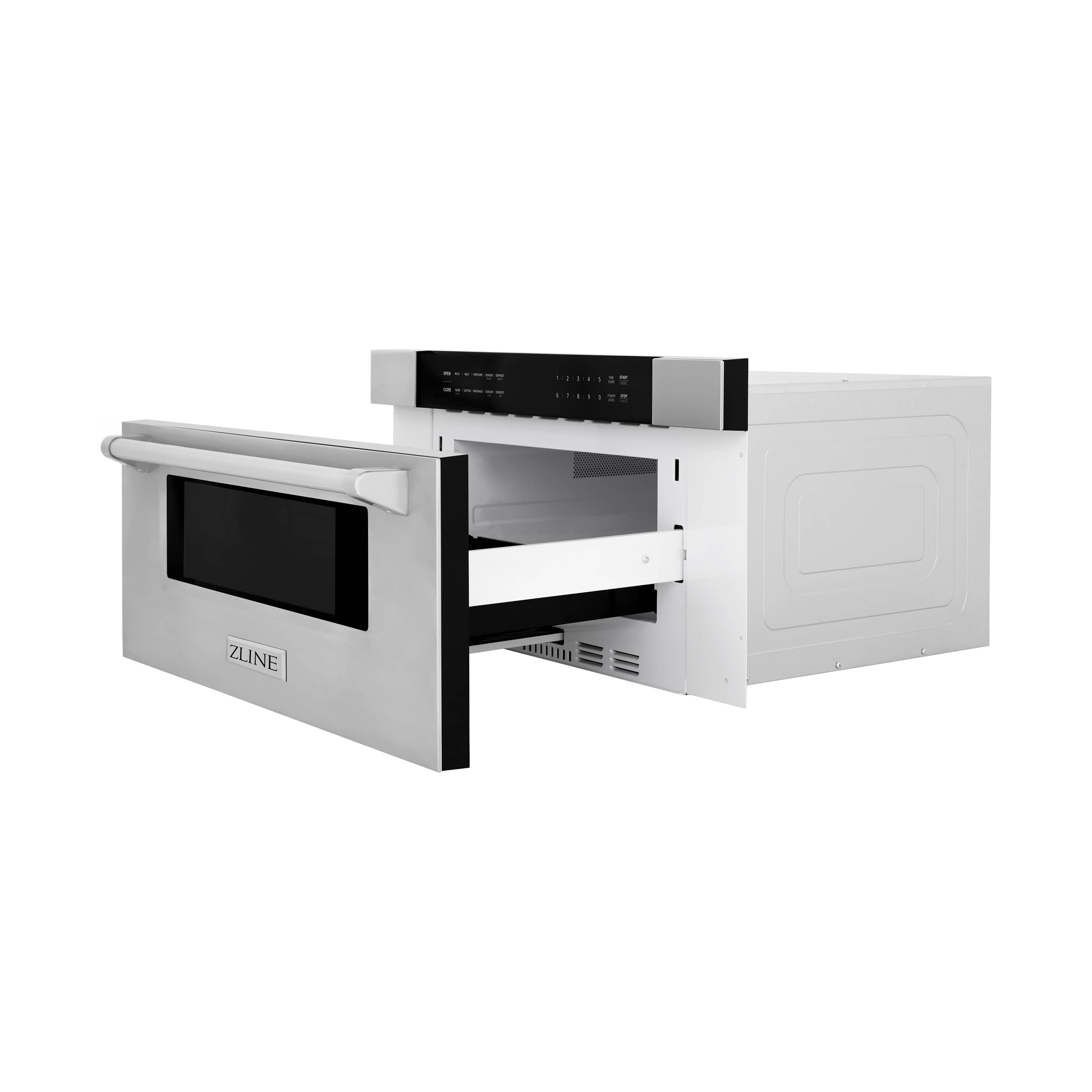

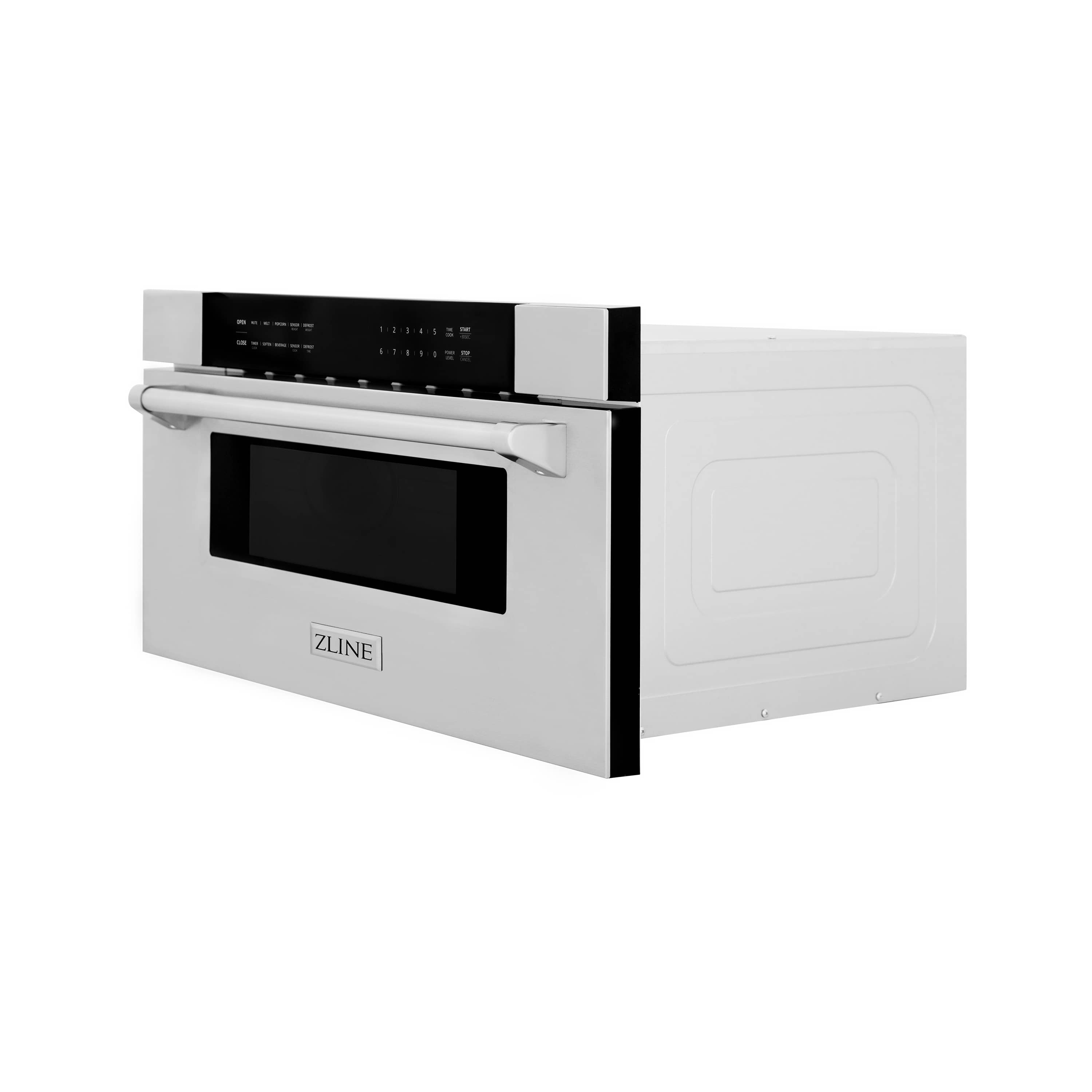

Piece 5 of 5 — MICROWAVE

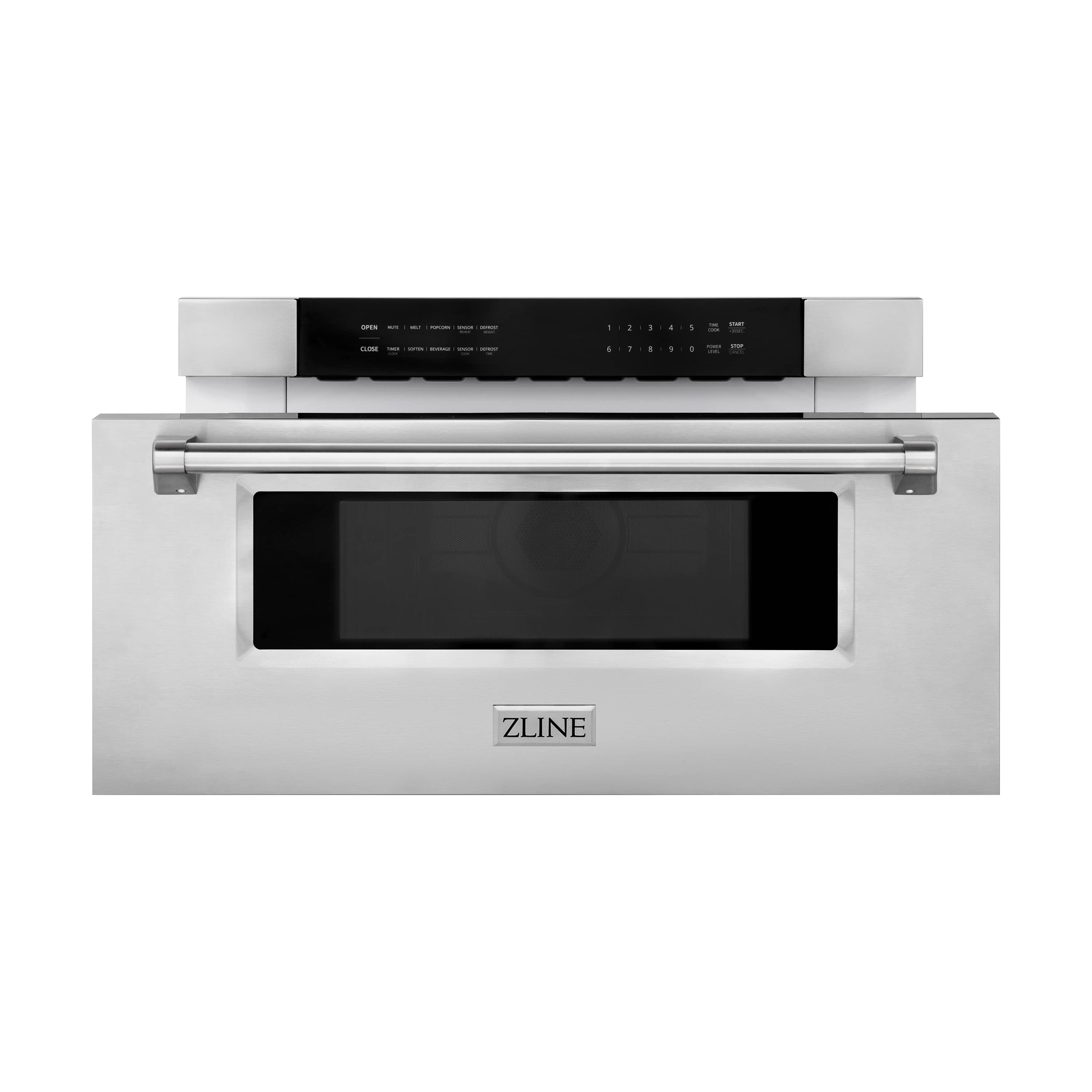

Luxury isn't meant to be desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 30" 1.2 cu. ft. Built-In Microwave Drawer in Stainless Steel (MWD-30) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen's capability.
Features:
- Space-Saving - Free up your countertop space with an undercounter modern design with installation location flexibility to best fit your lifestyle
- Top Access Design - Easily transport hot dishes and prevent spills with an accessible top-loading design
- Convenient Microwave Modes - Achieve optimal results for every dish with sensor cooking, defrost, popcorn, and beverage settings
- Auto-touch Open and Close - Effortlessly open and close the microwave drawer with just the touch of a button
- Intuitive Control Panel - Enjoy an easy-to-use control panel that provides maximum convenience with a 45 degree angled design
- High-Powered Performance - Get the results you need with 10 different power levels and a powerful 1000 watt cooking power
- 1.2 cu. ft. Capacity - A large cooking area will easily fit your items, such as coffee mugs up to 7 in. tall and dishes up to 16 x 16 in.
- Reheat and Defrost - Minimize cooking time with convenient reheat and defrost functions
- Stainless Steel Finish - Brushed 430 grade stainless steel exterior provides an easy clean up and a timeless look in your kitchen
- Manufacturer Warranty - 2 year parts warranty
- ADA Compliant - Easy-to-use front touch controls with a 45 degree angle design provides ADA compliance

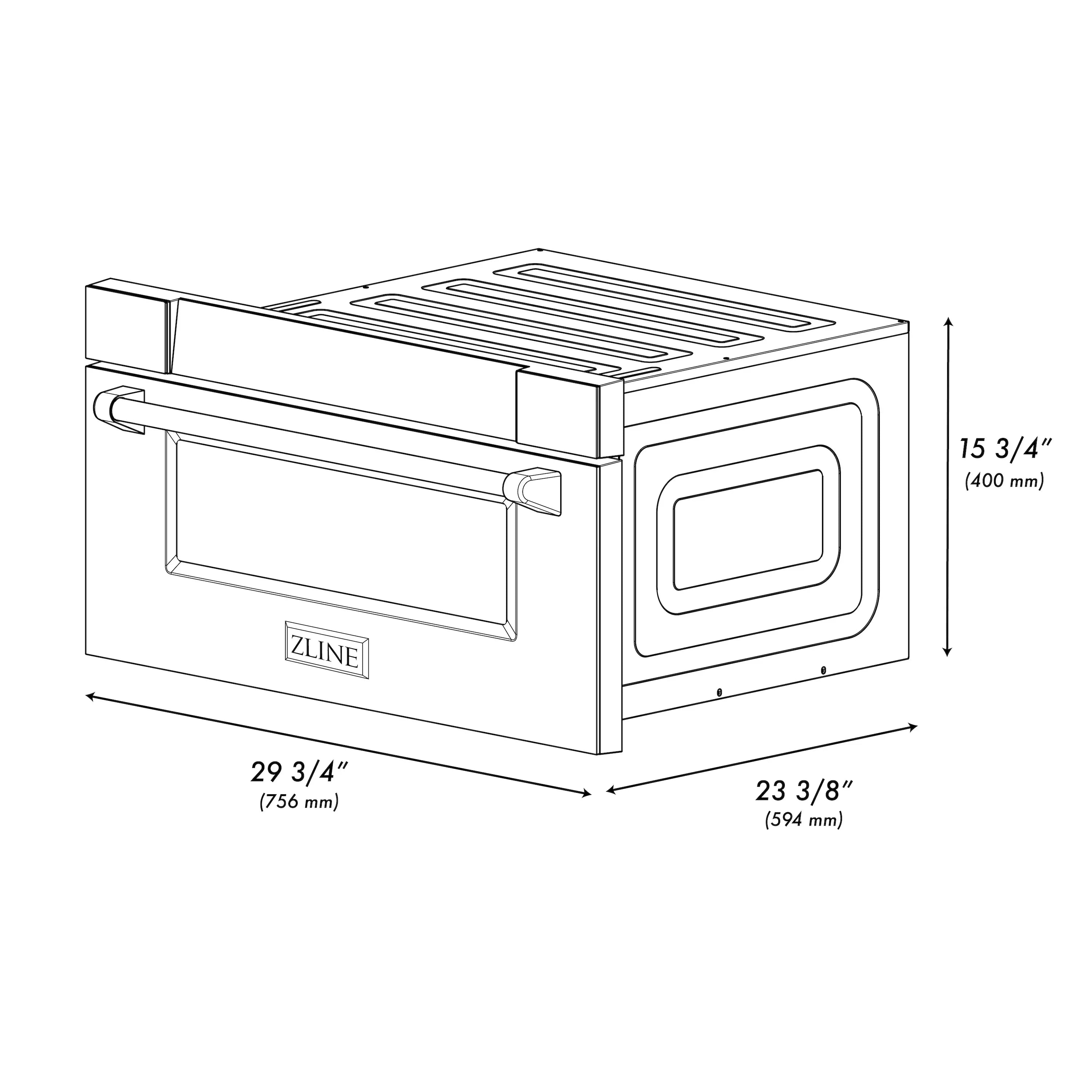

DIMENSIONS
- Dimensions
- 29.75 in W x 23.38 in D x 15.75 in H
- Cut Out Dimensions
- 22.38 in W x 23.5 in D x 15 in H
- Depth with Door Open
- 38.75" without handle/ 40" with handle
- Weight
- 76.2 lbs
GENERAL INFORMATION
- Mount Type
- Drawer
DESIGN & FINISH
- Cavity Material
- Painted
- Control Type
- Touch Screen
- Color
- Stainless Steel, Satin Stainless Steel®
TECHNICAL DETAILS
- Voltage
- 120vac
- Frequency
- 60 Hz
- Amps
- 13A
- Plug Type
- 5-15 Nema
FEATURES
- Oven Capacity
- 1.2 Cu. Ft.
- Input Power
- 1500W
- Output Power
- 1000W
- Noise Level
- 45 Decibels
- Display
- LED
- Packaging Standard
- ISTA 3A
WARRANTY & CERTIFICATIONS
- Certifications
- UL, DOE, Title 20 Compliant, NRCan
- Warranty
- 2 Year Parts
Get Inspired by ZLINEShop this look
Autograph Edition
3 products
ZLINE 48" Range
$5,919.99$7,399.99
SAVE 20%
ZLINE 48" Range Hood
$2,039.99$2,399.99
SAVE 15%
ZLINE 24" Dishwasher
$1,319.99$1,649.99
SAVE 20%
Shop all Autograph EditionCustomer Reviews
Based on 297 reviews
91%
(270)
6%
(19)
2%
(5)
0%
(1)
1%
(2)
p
The Zline package is a great value for the money. Professionally grade appliances. I’ve had that in my primary residence for 6 years and counting. I use them in all my remodels as well.
P

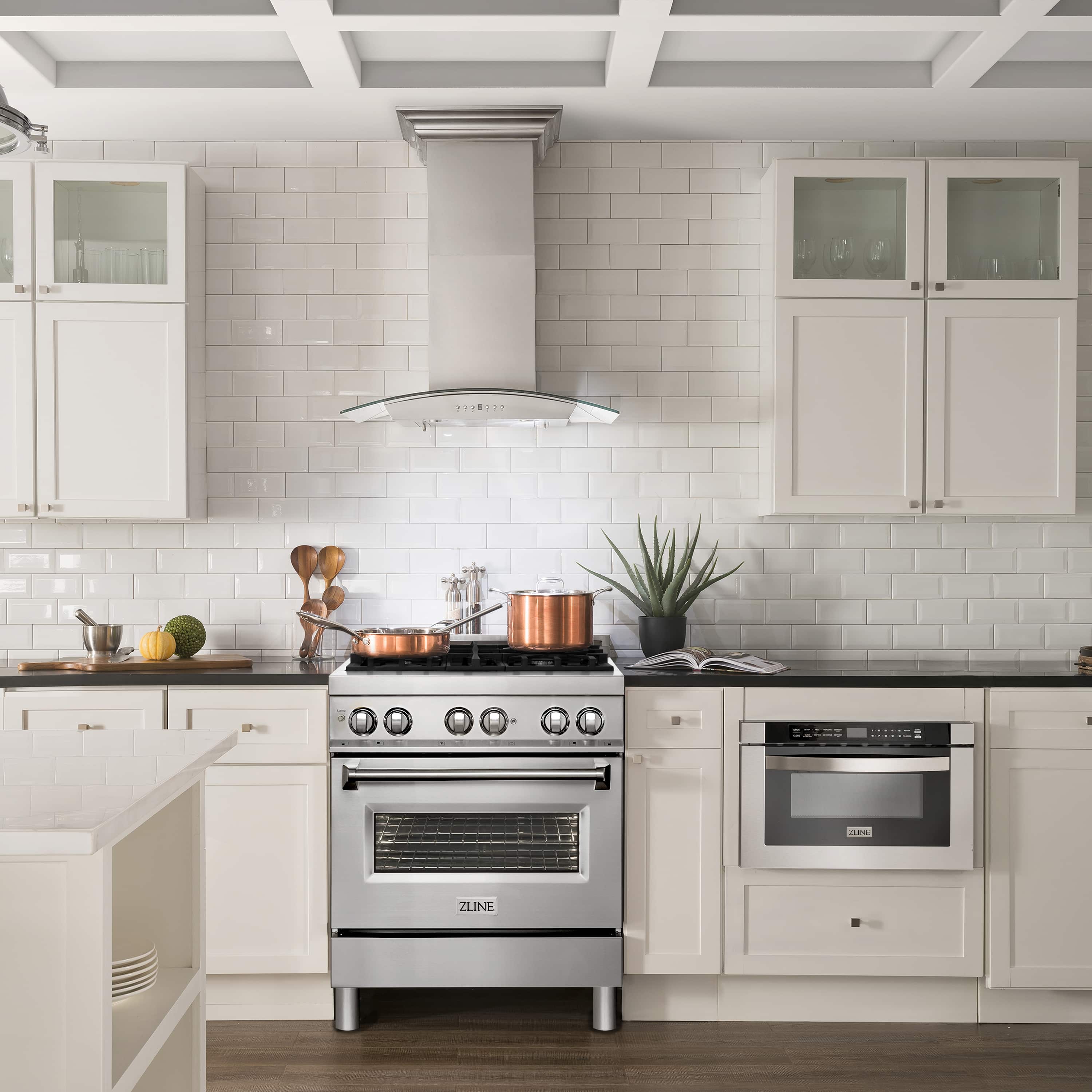

Such a great upgrade from our builder grade vent. Great air flow. Looks so professional.
M
So far we love it! We have been using it for a month now and it has been working great!
C
My new Zline range looks like a piece of art in ny kitchen. It works beautifully and everyone I bring into my home loves it. It brings me such joy and happiness to own this beautiful appliance!
S
I couldn't be happier with my ZLINE Autograph Edition 48-Inch Paramount Dual Fuel Range. From the moment it was installed, it completely transformed my kitchen. The polished accents give it a beautiful, high-end look, and everyone who visits compliments it.
Performance-wise, this range has exceeded my expectations. The gas burners heat up quickly and give me excellent control whether I'm simmering sauces or cooking at high heat. The electric convection ovens bake evenly, and having two ovens has made meal prep and holiday cooking so much easier.

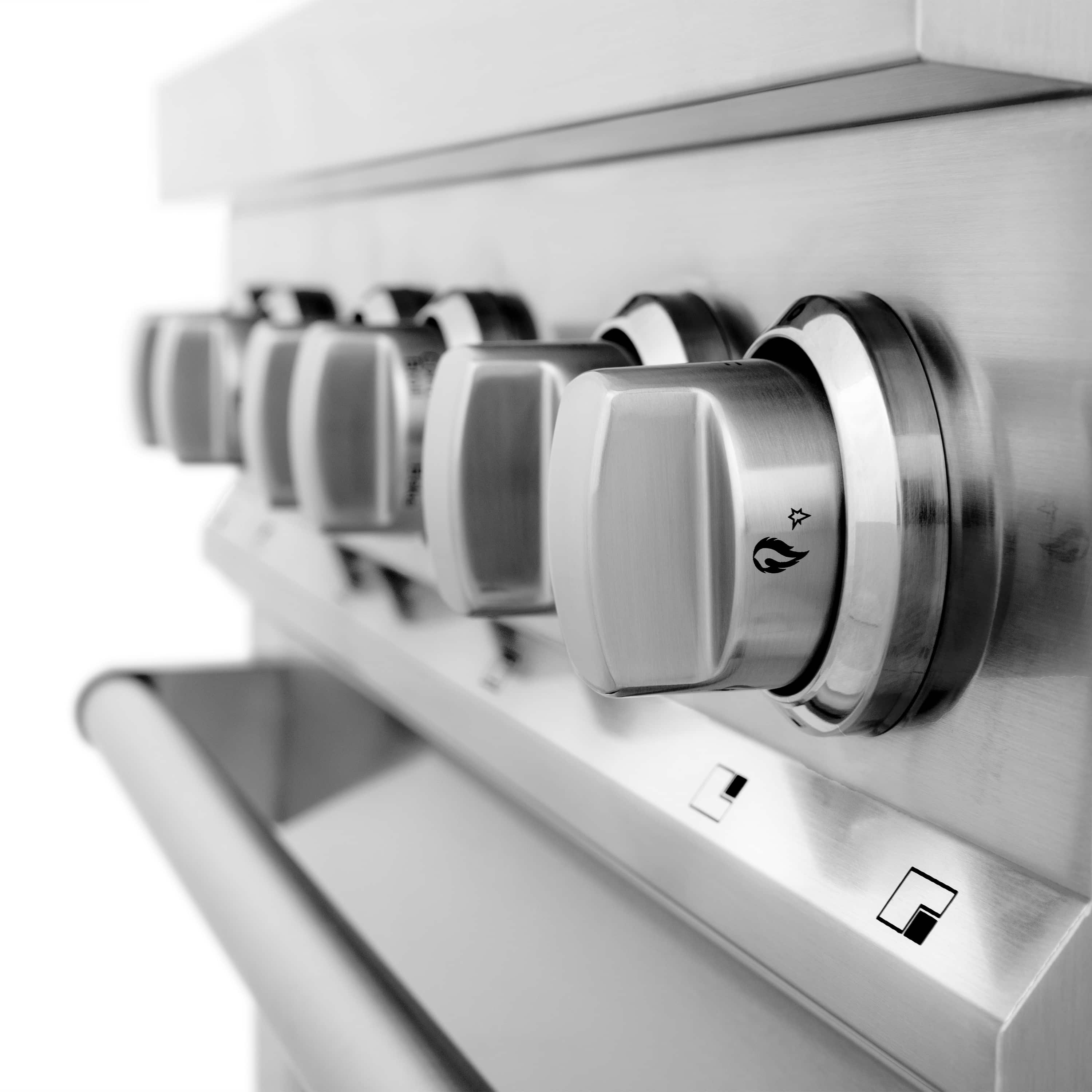

The build quality is outstanding. Everything feels sturdy and well-made, from the heavy cast iron grates to the smooth-turning knobs. It definitely feels like a professional-grade appliance designed to last.
While it's a significant investment, I truly believe it's worth every penny. If you're looking for a range that combines exceptional performance with luxury styling, I highly recommend the ZLINE Autograph Edition. It has made cooking more enjoyable and has become my favorite appliance in the house.
