Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 48" 6.0 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Black Stainless Steel (RAB-48) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen’s capability.

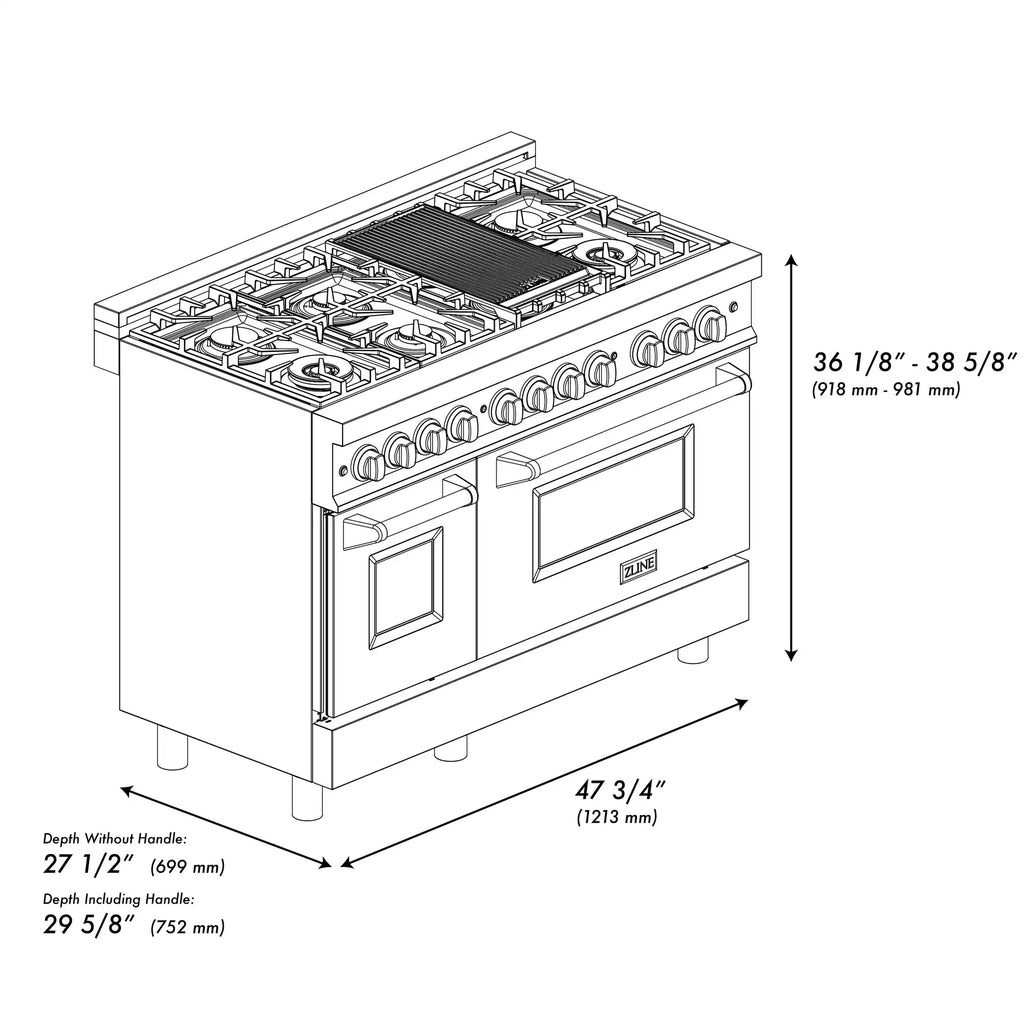

| DIMENSIONS | |
|---|---|
| Dimension | 47.75" W x 27.5" D x 36.13" H |
| Dimensions with Handle | 47.75" W x 29.63 " D x 36.13" H |
| Open Door Depth | 41.8" |
| Interior Dimensions | 24.875" W x 17.75" D x 16" H |
| Product Weight | 270 lbs. |
| GENERAL INFORMATION | |
| Brand | ZLINE Kitchen and Bath |
| Features | Model No. RA48 |
| DESIGN & FINISH | |
| Color | Black |
| Finish | Black Stainless Steel |
| Lighting | Dual Lighting, controlled by light switch on front control panel |
| Control Type | Front Control |
| Material |
|
| TECHNICAL DETAILS | |
| Voltage | Requires a minimum of 220V-240V/60HZ/50A |
| Mount Type | Free Standing |
| Gas Type | Natural Gas or Liquid Propane via conversion kit |
| Liquid Propane | LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional |
| Fuel | All ZLINE Ranges come set to work with natural gas by default. All Ranges can also work with propane. A propane adapter is included in the box and will require an extra step to convert. |
| Fuel Type | Convection Oven - Gas Cooktop |
| COOKTOP FEATURES | |
| Cooktop | (7) Burners with Porcelain Cook Top with electronic spark ignition for all burners |
| BTU Rating | Dual Burner(x2) - 18,000 BTU Griddle Burner - 13,000 Rapid Burner - 13,000 BTU Semi-Rapid Burner (x2) - 8,500 BTU Auxiliary Burner - 4,200 BTU |
| OVEN FEATURES | |
| Oven |
|
| WARRANTY & CERTIFICATIONS | |
| Warranty | 1 Year Warranty |
| Certifications | ETL Certified |
Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE 36 in. 22.5 cu. ft. Counter-Depth French Door Refrigerator with Ice Maker in Fingerprint-Resistant Black Stainless Steel (RFM-36-BS) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and a high-capacity built-in ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.
| DIMENSIONS | |
|---|---|
| Dimensions | 35.75 in. W x 29.125 in. D x 69.6875 in. H |
| Total Capacity | 22.5 cu. ft |
| Installation Depth | 29 in. D |
| Depth with Door Open | 43.5 in. |
| Weight | 284.4 lbs |
| GENERAL INFORMATION | |
| Mount Type | Freestanding |
| DESIGN & FINISH | |
| Material | Black Stainless Steel |
| TECHNICAL DETAILS | |
| Energy Consumption (kWh/year) | 588 |
| Voltage | 120V/60Hz |
| Amps | 3 |
| Noise Level | 45 Decibels |
| REFRIGERATOR FEATURES | |
| Fridge Capacity | 15.9 cu. ft |
| Flex Drawer Capacity | N/A |
| Flex Drawer Temp Controls | N/A |
| Ice Maker | Yes |
| Ice Maker Types | Single Ice Maker |
| Ice Amount Per Day | 4.85 lbs |
| Ice Tray Storage | 1.75 lbs |
| Water Dispenser | No |
| Flowrate for Water Dispenser | N/A |
| Fridge Lights | 3 |
| Humidity-Controlled Crispers | 2 |
| Door Shelves | 6 |
| Number of Fridge Shelves | 4 |
| FREEZER FEATURES | |
| Freezer Capacity | 6.61 cu. ft |
| Freezer Drawer Bins | 2- Pull Out Drawers |
| WARRANTY & CERTIFICATIONS | |
| Energy Star | Yes |
| Certifications | ETL Listed, ENERGY STAR certified |
| Warranty | 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System |

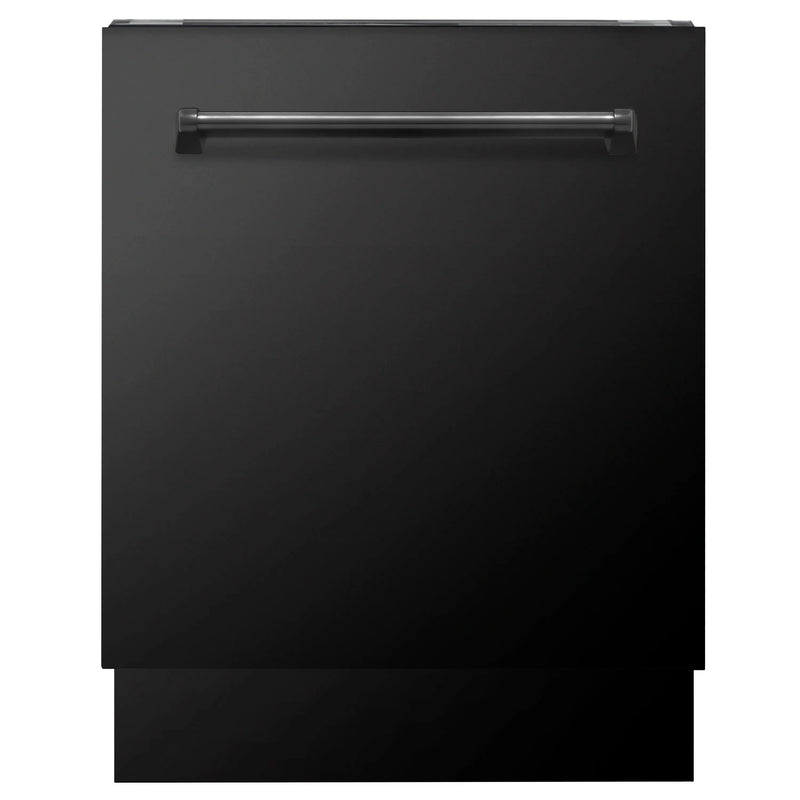

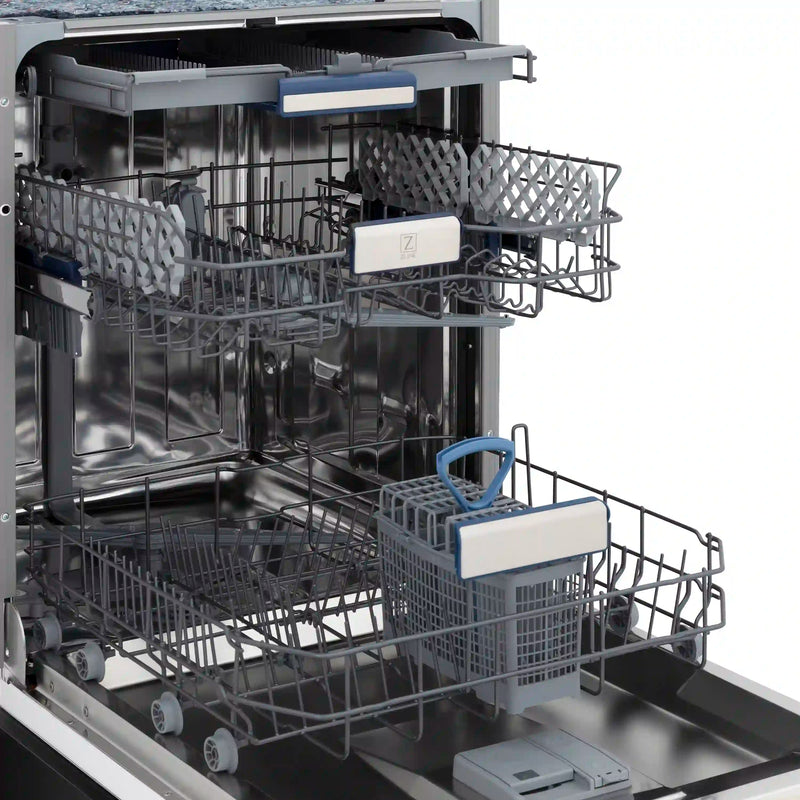

The ZLINE 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Black Stainless Steel Panel (DWV-BS-24) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.

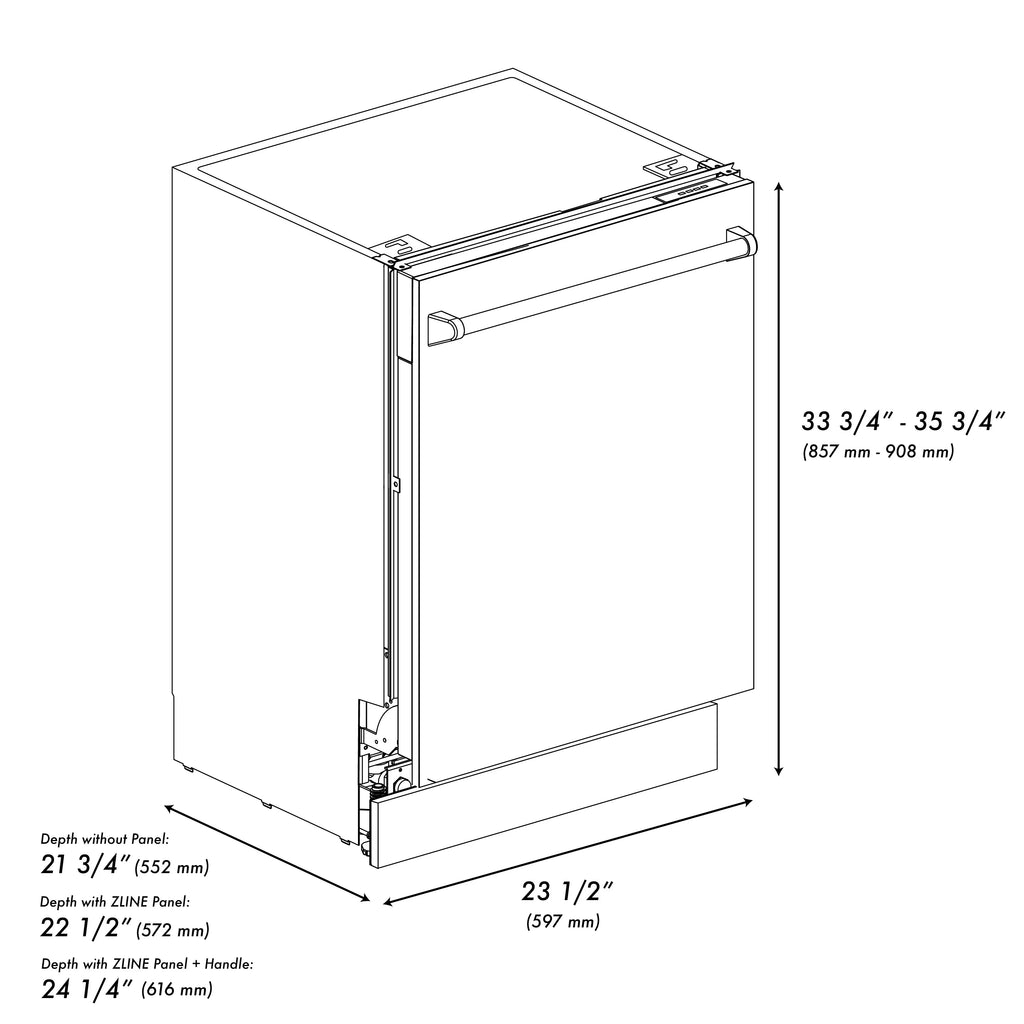

| DIMENSIONS | |
|---|---|
| Size | 24 in. |
| Dimensions | 23.6" W x 22.4" D x 33.9" H |
| Product Weight | 106.8 lbs |
| Cut-Out Height | 34.13 in. |
| Cut-Out Width | 24 in. |
| Interior Dimensions | 20.95" W x 20.5" D x 24.17"H |
| Max Plate Height | 13 in. |
| GENERAL INFORMATION | |
| Installation Type | Plug In - Nema 5-15 |
| Panel Ready | N |
| DESIGN & FINISH | |
| Panel Finish | Black Stainless Steel |
| Handle Finish | Black Stainless Steel |
| Handle Type | Traditional Style |
| Control Location | Top Control |
| Control Type | Button Control |
| Silverware Basket Location | Bottom Rack Center |
| TECHNICAL DETAILS | |
| Voltage | 120vac |
| Frequency | 60Hz |
| Dedicated Circuit | 15A |
| Rated Current | 12A |
| Motor Wattage | 100W |
| Heater Wattage | 1100W |
| Motor Amperage | 0.84A |
| Heater Amperage | 10A |
| Energy Consumption Per Year | 239 kWh |
| Water Consumption Per Cycle (Liters) | 11.73 L |
| Water Consumption Per Cycle (Gallons) | 3.1 gal |
| Decibels | 51 dBa |
| Extended Hose Length | 56 in. |
| FEATURES | |
| Drying System | Turbo Fan Drying + Auto Door |
| Steam Function | Without Steam |
| Features |
|
| WARRANTY & CERTIFICATIONS | |
| Certifications | Energy Star, CEC, UL |
Luxury isn't meant to be desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 24" Built-in Convection Microwave Oven in Black Stainless Steel with Speed and Sensor Cooking with Speed and Sensor Cooking provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen's capability.

| DIMENSIONS | |
|---|---|
| Dimensions | 23.5 in W x 22.31 in D x 17.88 in H |
| Cut Out Dimensions | 22.38 in W x 23.25 in D x 17.75 in H |
| Weight | 81.8 lbs |
| GENERAL INFORMATION | |
| Mount Type | Built-in |
| Installation Type | Built-in |
| Fuel Type | Electric |
| DESIGN & FINISH | |
| Control Type | Touch Screen |
| Material | Stainless Steel |
| Color | Black Stainless Steel |
| TECHNICAL DETAILS | |
| Voltage | 120V/ 60HZ/15.5A |
| FEATURES | |
| Noise Level | 45 Decibels |
| Motor | 1000W |
| WARRANTY & CERTIFICATIONS | |
| Warranty | 2 Year Parts |
| Certifications | UL Listed & Title 20 Compliant |
