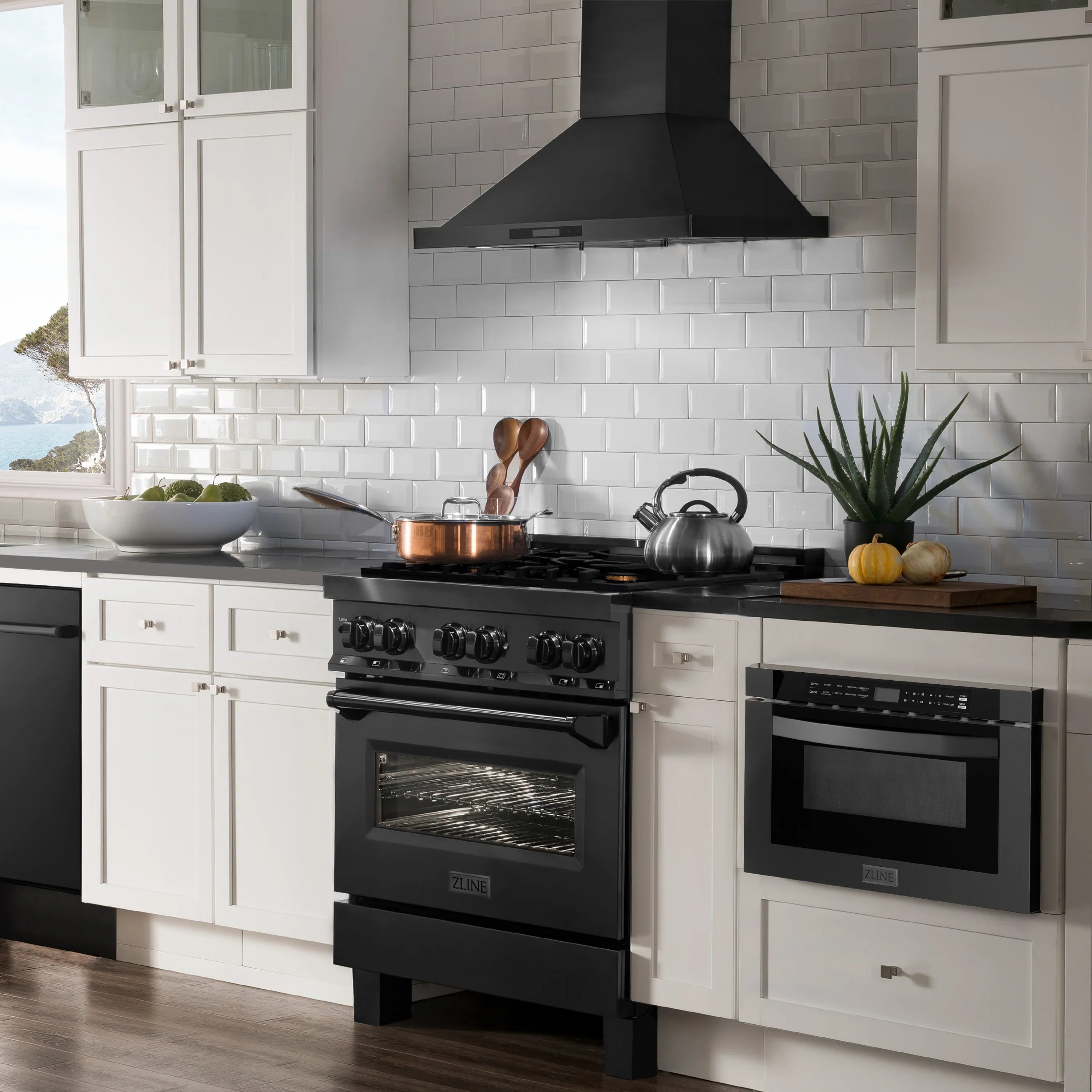

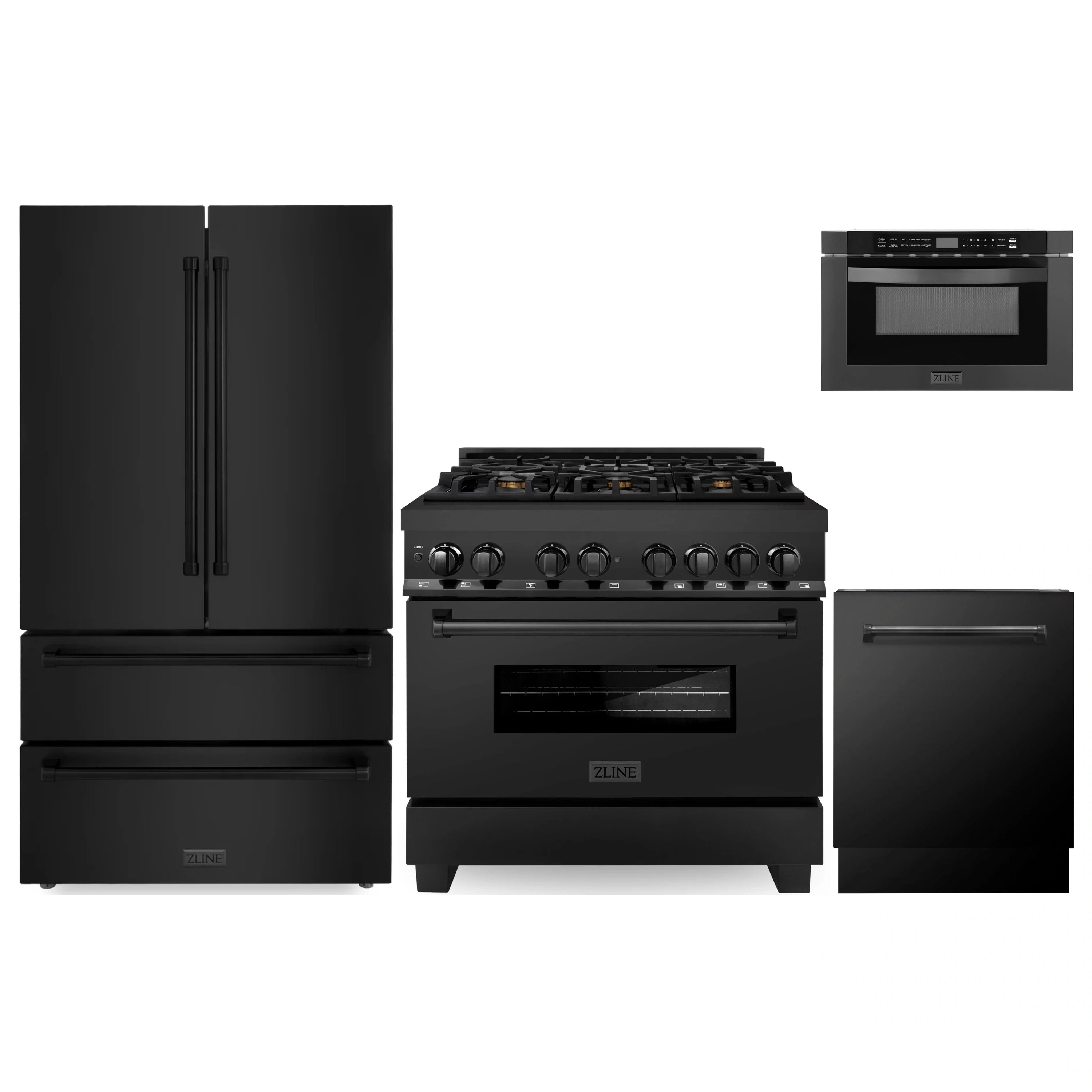

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

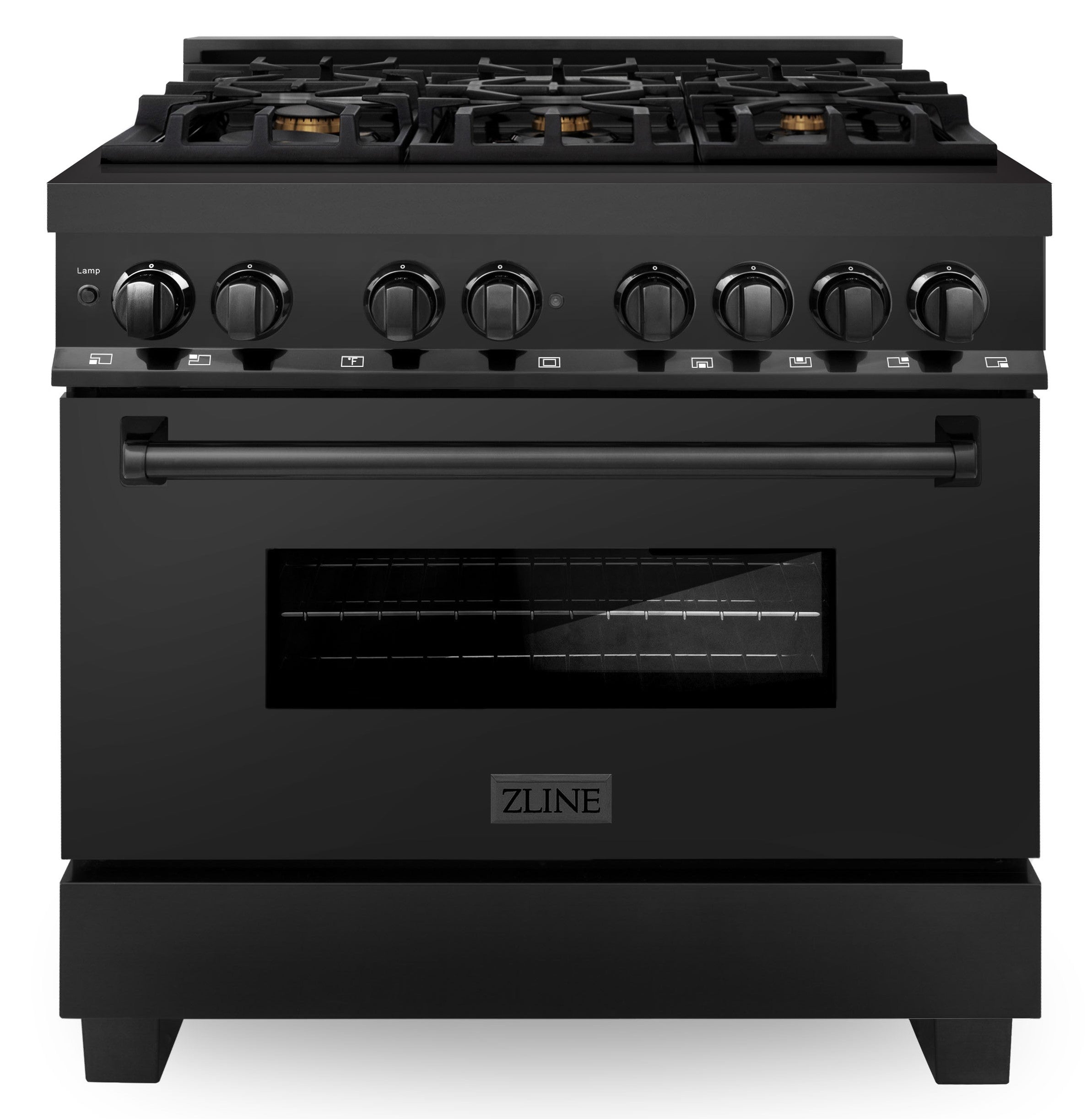

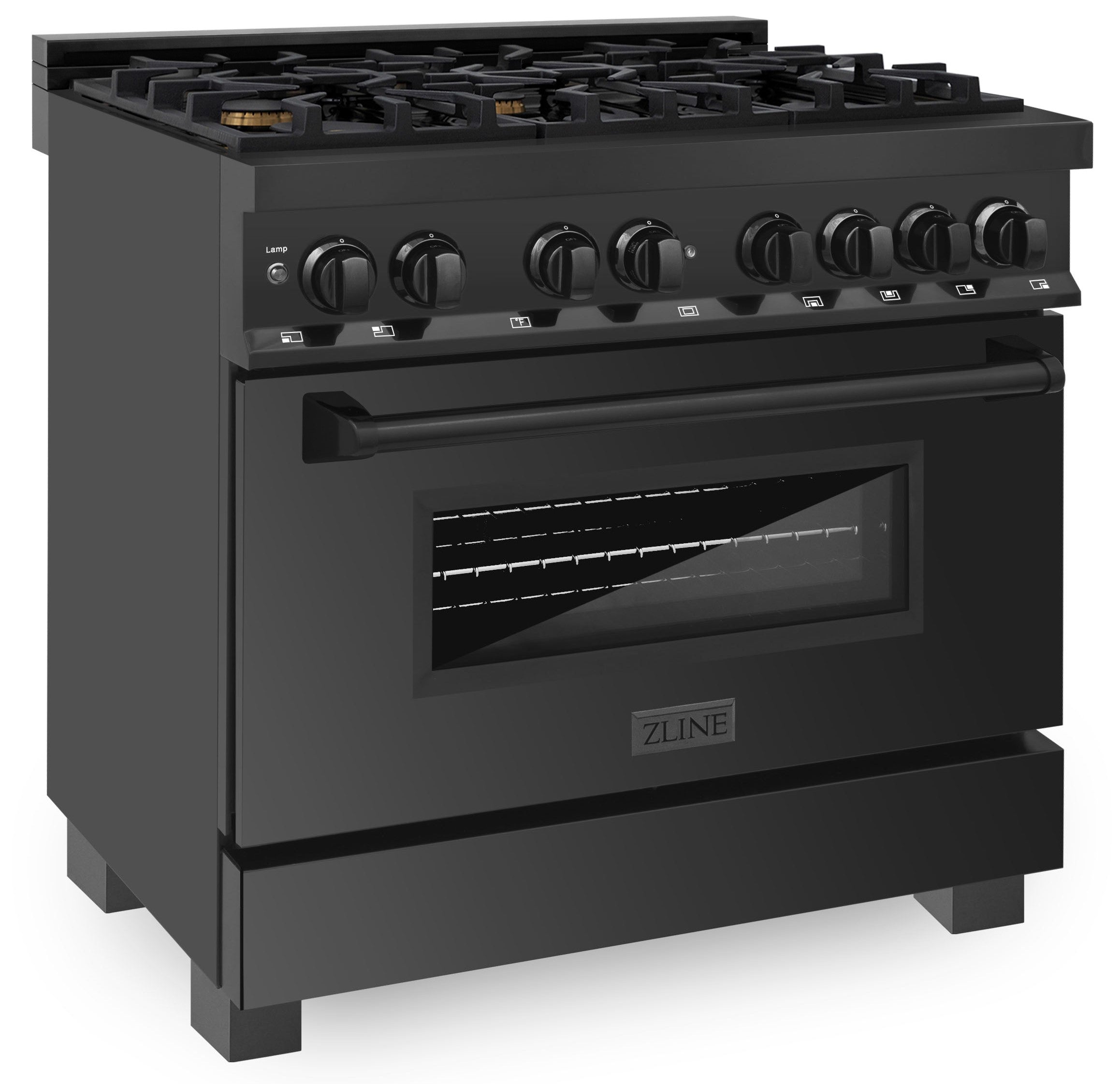

ZLINE’s professional black stainless steel is truly unique in the industry. Each piece is hand-cut and crafted utilizing 304-grade stainless steel which accomplishes its sophisticated, “piano black” finish through a technique called bluing. The technique of bluing has been used historically to change the finish of gun barrels. The proprietary black stainless steel finish is hand soaked in a specific ratio which depicts the final and exact result of the black stainless hue. The industrial design of the RAB-36 is executed through precise lines and detailing done with a precision laser. Each model includes Italian burners delivering over 65,000 BTU’s and also includes a durable, solid-piece Cast Iron Grill finalizing its industrial look.

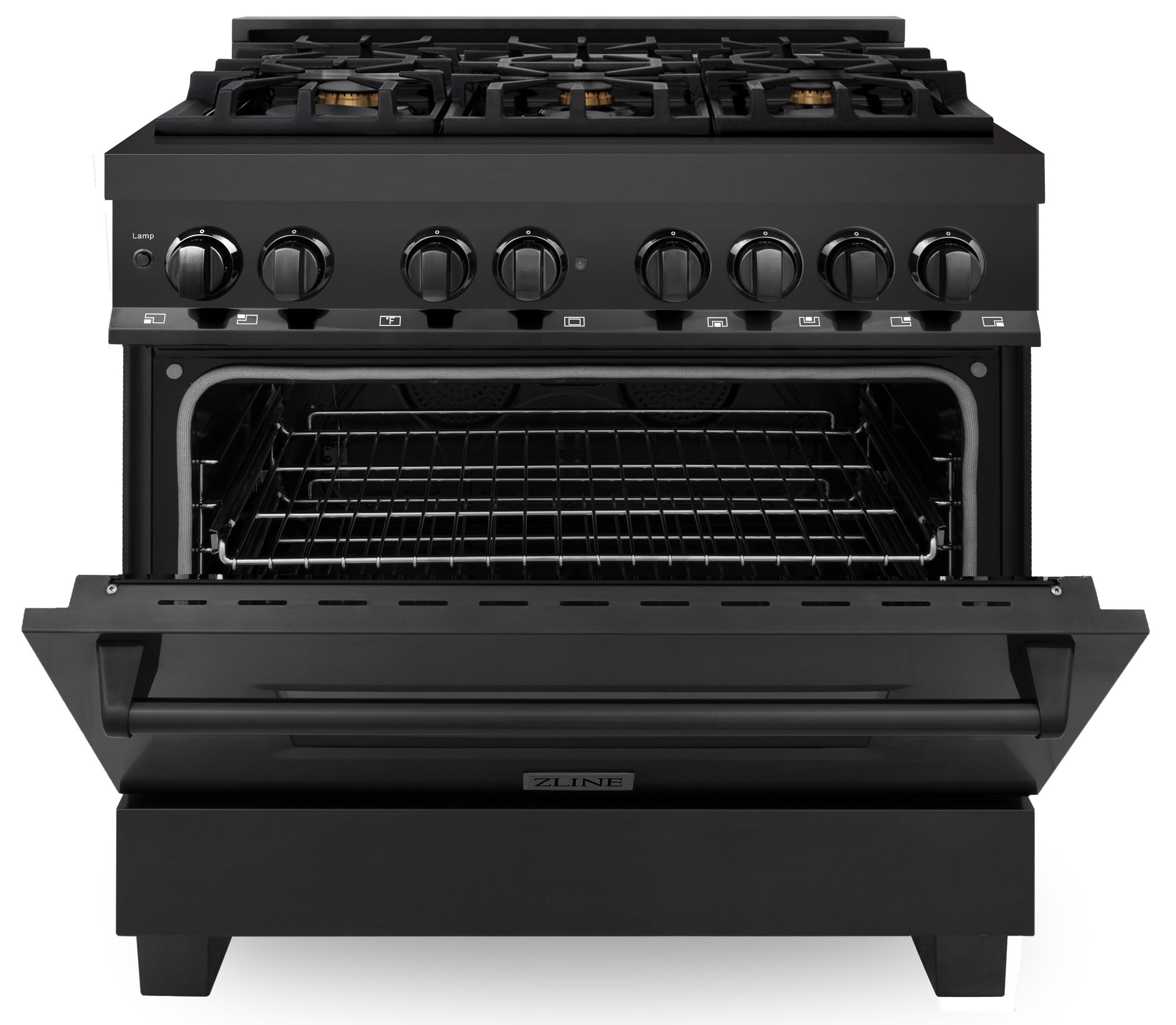

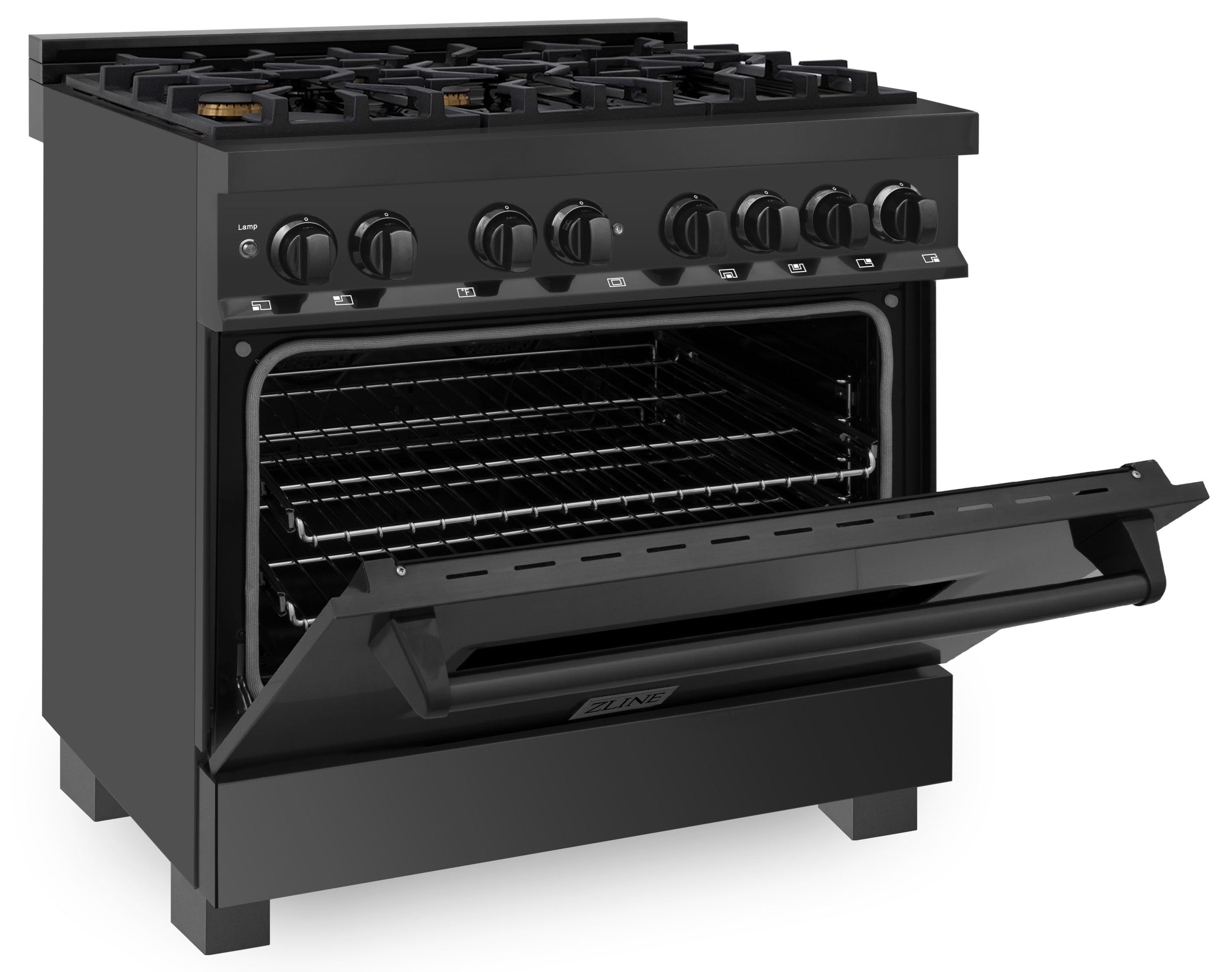

ZLINE is synonymous with quality and craftsmanship. The RAB is equipped with:
- Italian StayPut Hinges

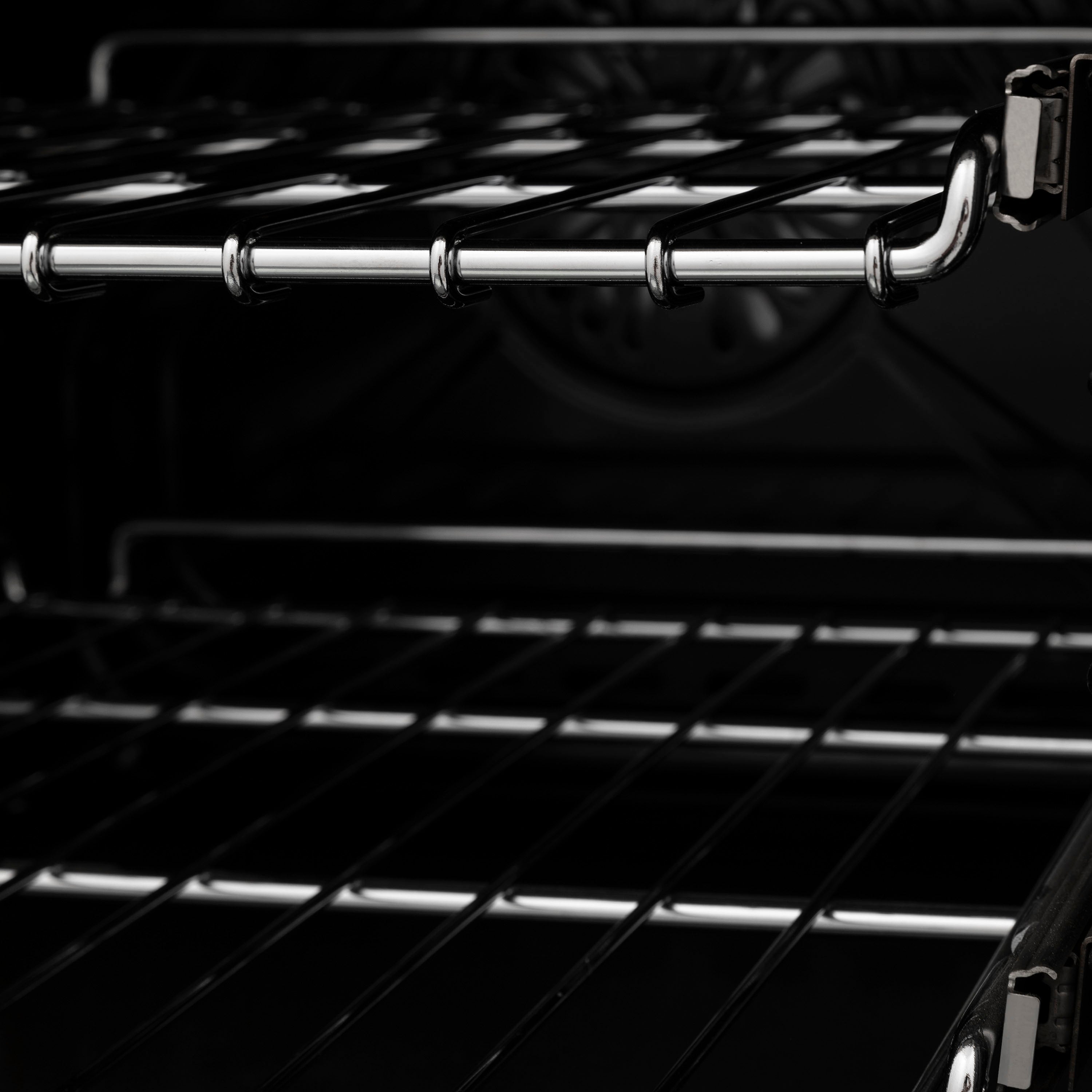

- SmoothSlide ball bearing oven racks
- Triple-layer insulated glass panel door
The triple layer insulated glass paneling is engineered to encapsulate heat and utilize up to 30% less energy compared to competitors’ products. ZLINE engineers have made sure that our manufacturing regulations meet some of the highest environmental standards in the industry; We care about our products, our people and our planet. The RAB-36 ships next business day when in stock!
- An Industry First - Limited lifetime warranty on the Italian burners includes parts replacements for burners and burner caps, and parts and labor for the spark tip if parts prove to be defective in materials or workmanship.

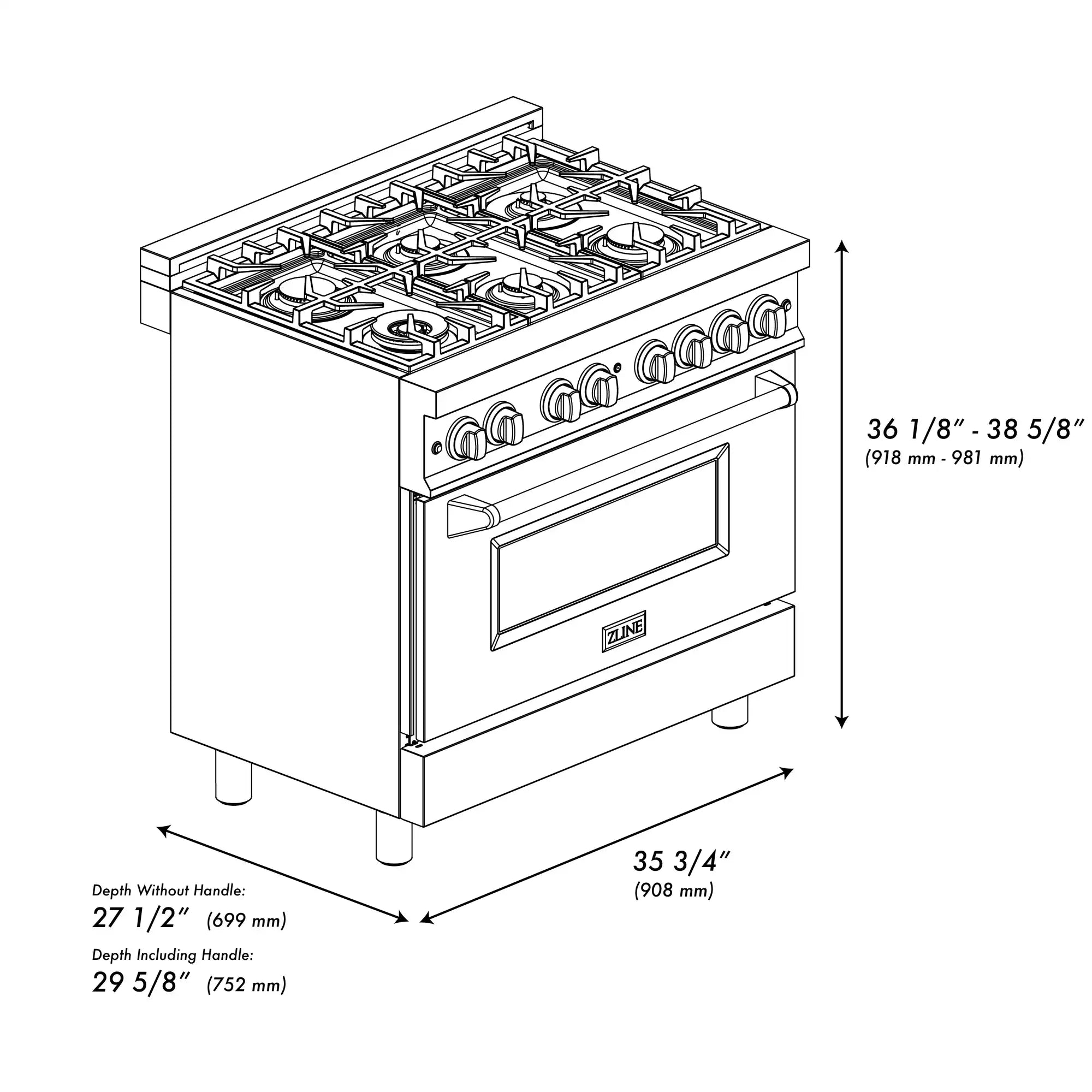

- Dimension
- 35.75" W x 27.5" D x 36.13" H
- Dimensions with Handle
- 35.75" W x 29.63" D x 36.13" H
- Open Door Depth
- 41.8"
- Interior Oven Dimension
- 24.875" W x 17.75" D x 16" H
- Product Weight
- 253lbs
- Features
- Manufactured by ZLINE Kitchen & Bath Model No. RAB-BR-36
- Color
- Black
- Finish
- Black Stainless Steel
- Lighting
- Dual Lighting, controlled by light switch on front control panel
- Control Type

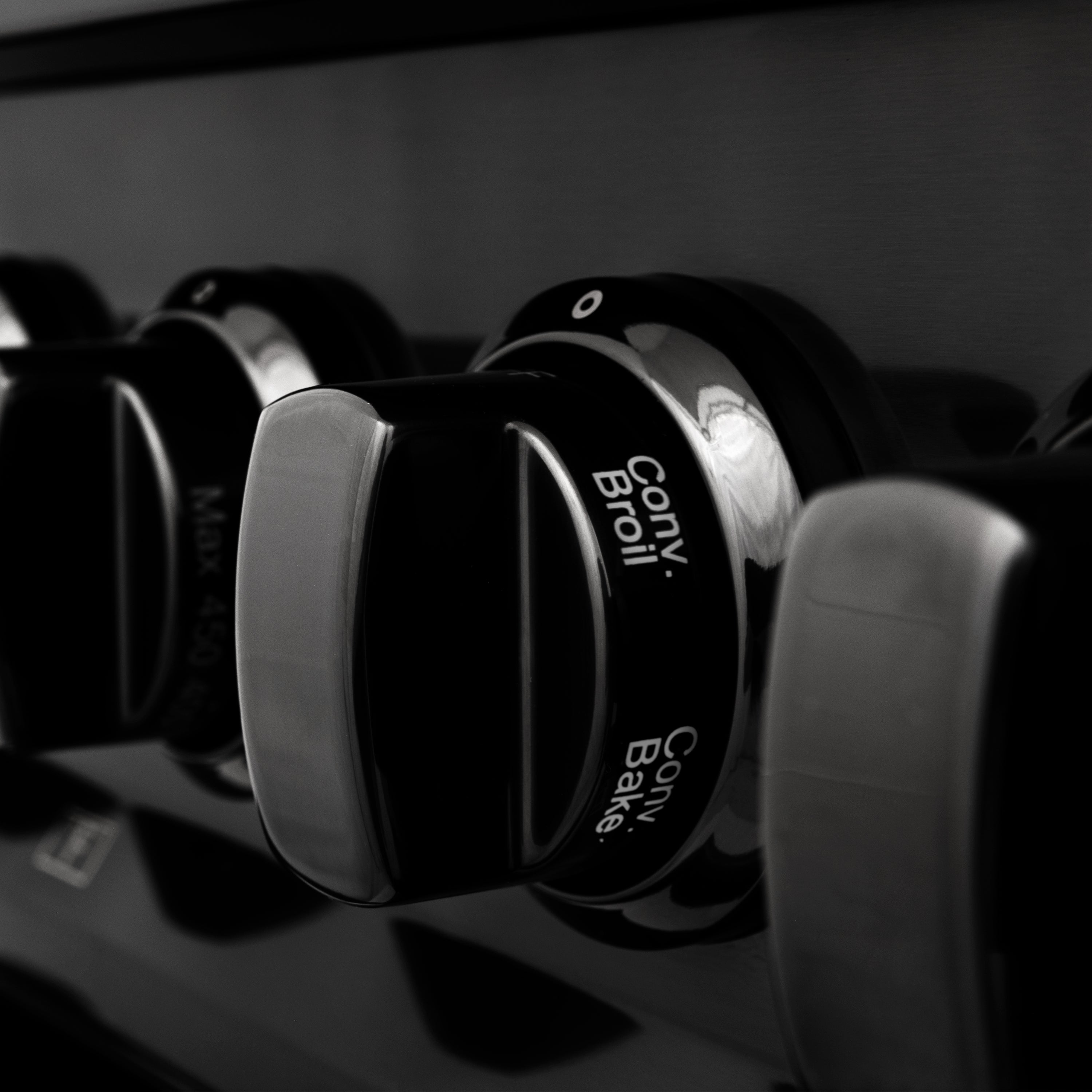

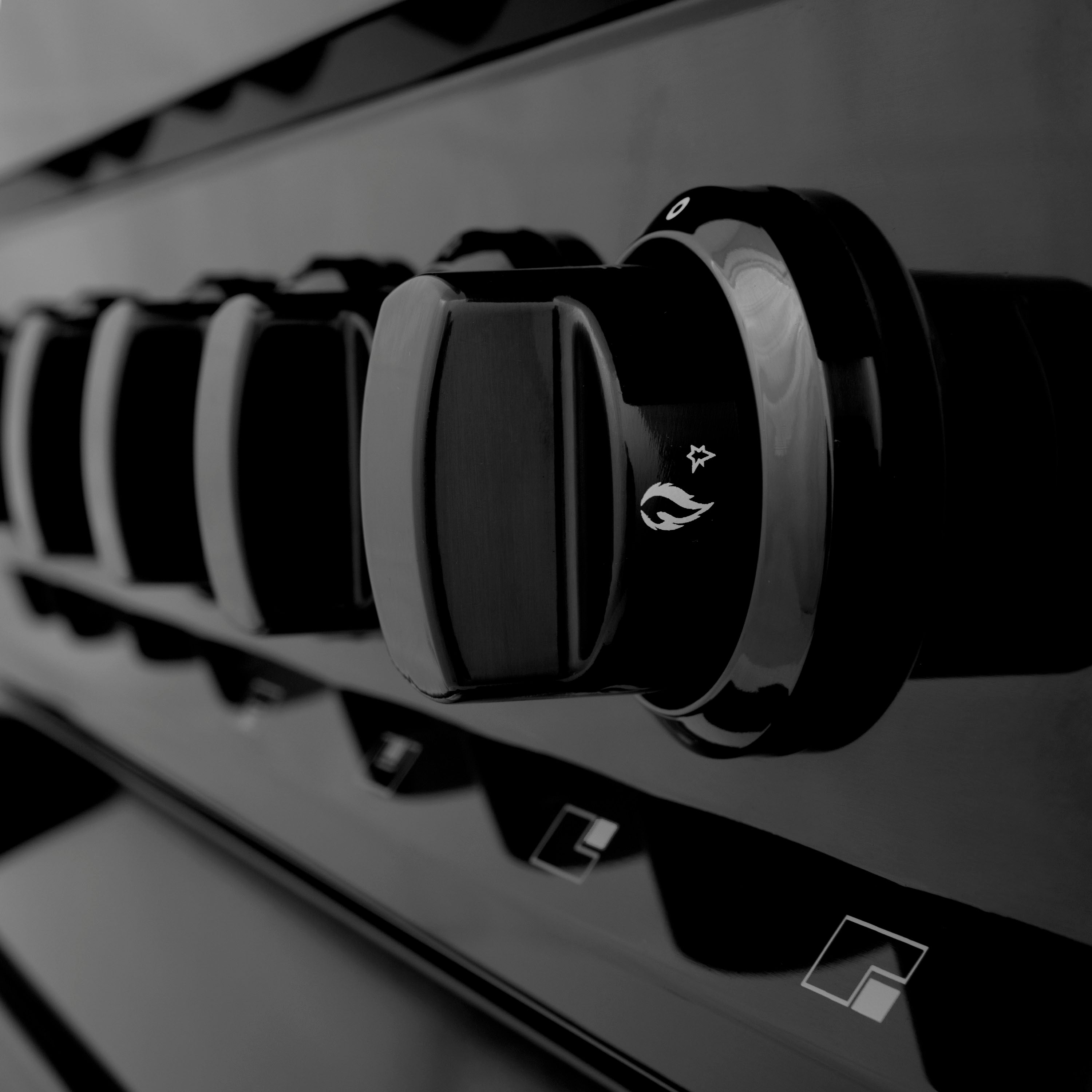

- Durable Front Control
- Material
- Black Stainless Steel frame with Porcelain Top
- Italian made hinges and burners
- Voltage
- Requires a minimum of 220V-240V/60HZ/50A
- Mount Type
- Free Standing
- Gas Type
- Natural Gas or Liquid Propane via conversion kit
- Liquid Propane
- LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional
- Fuel
- All ZLINE Ranges come set to work with natural gas by default. All Ranges can also work with propane. A propane adapter is included in the box and will require an extra step to convert.
- Fuel Type
- Convection Oven - Gas Cooktop
- Cooktop

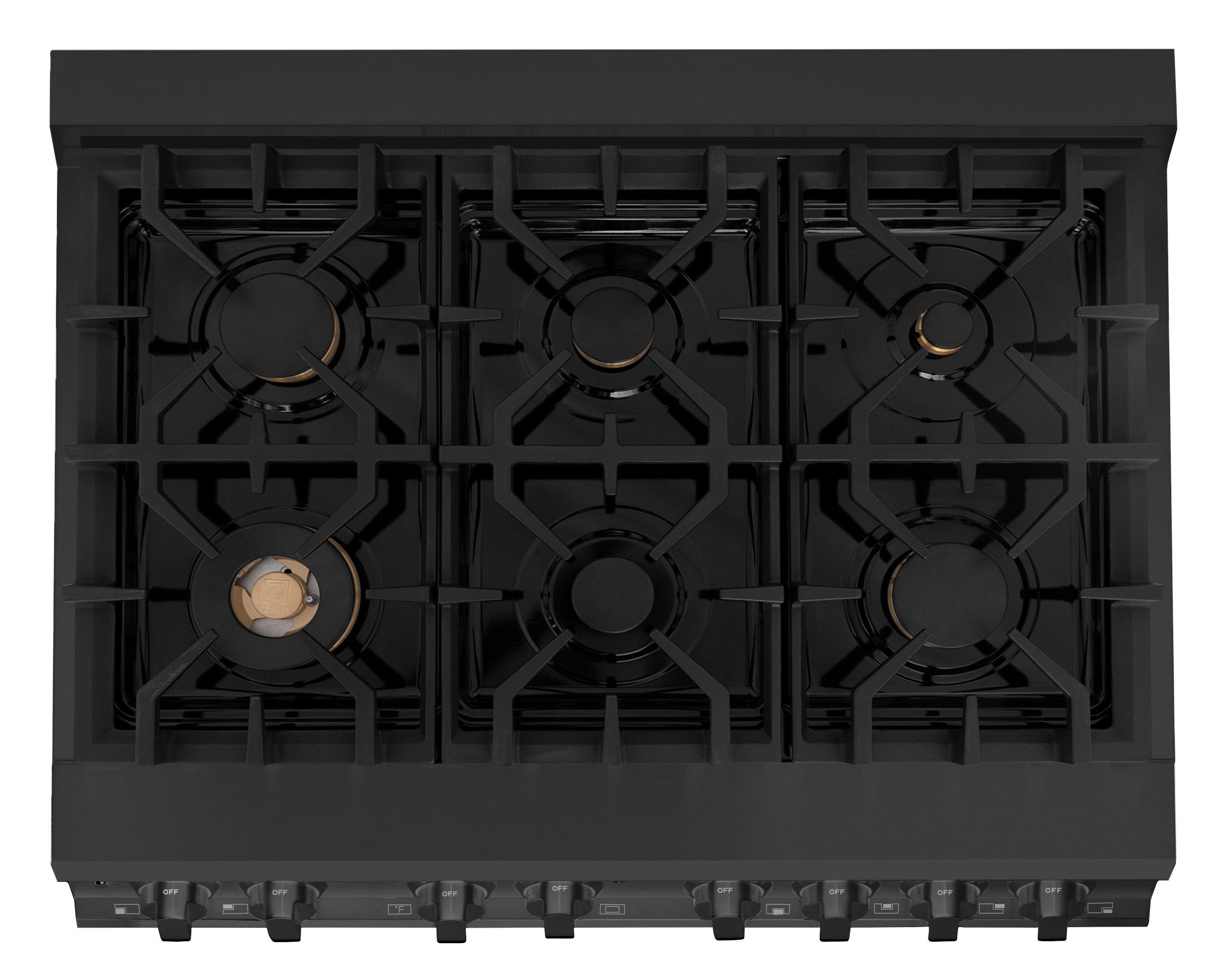

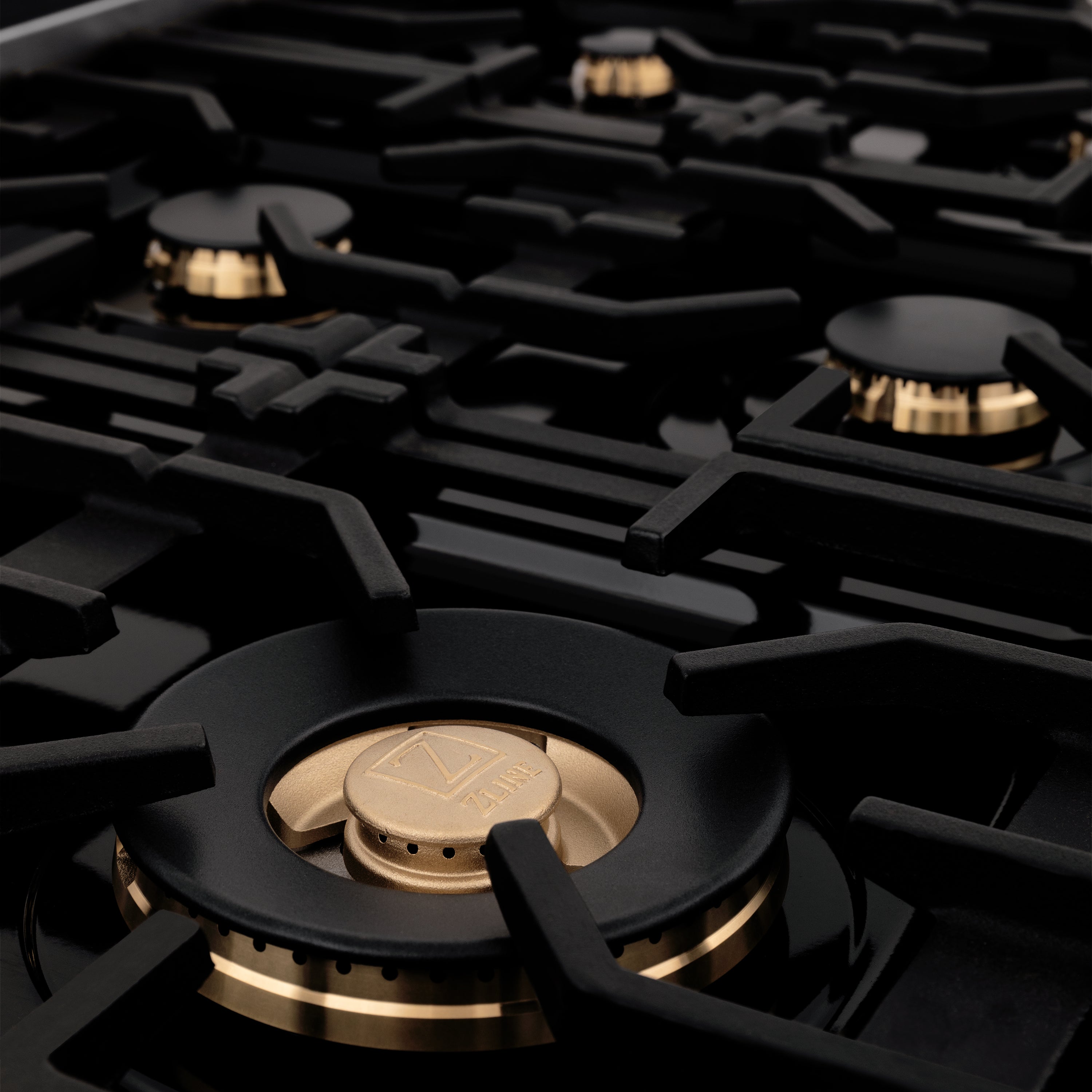

- (6) Burners with Porcelain Cook Top with electronic spark ignition for all burners
- BTU Rating
- Dual Burner
- 18,000 BTU Rapid Burner (x2) - 13,000 BTU Semi-Rapid Burner (x2) - 8,500 BTU Auxiliary Burner - 4,200 BTU

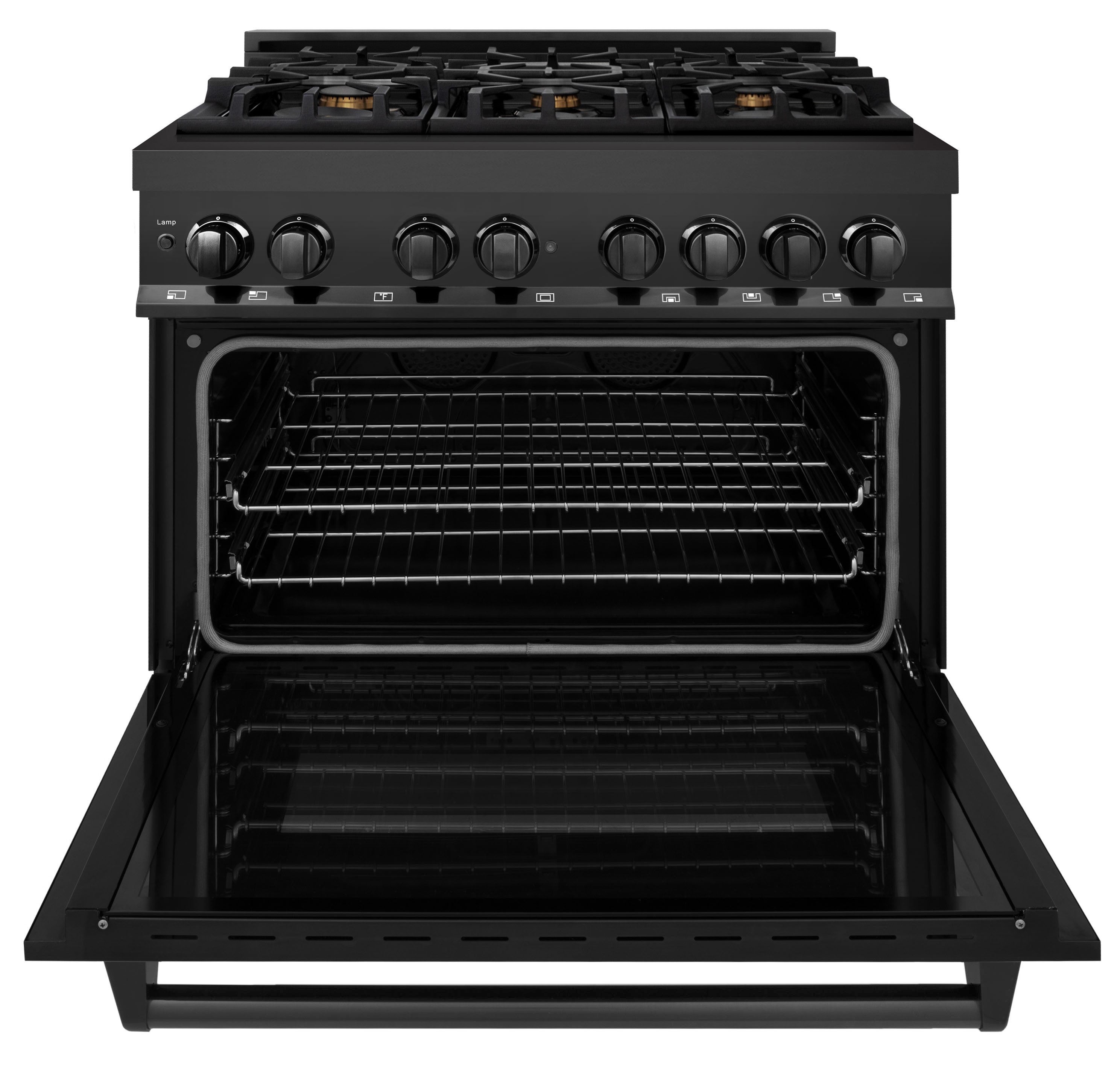

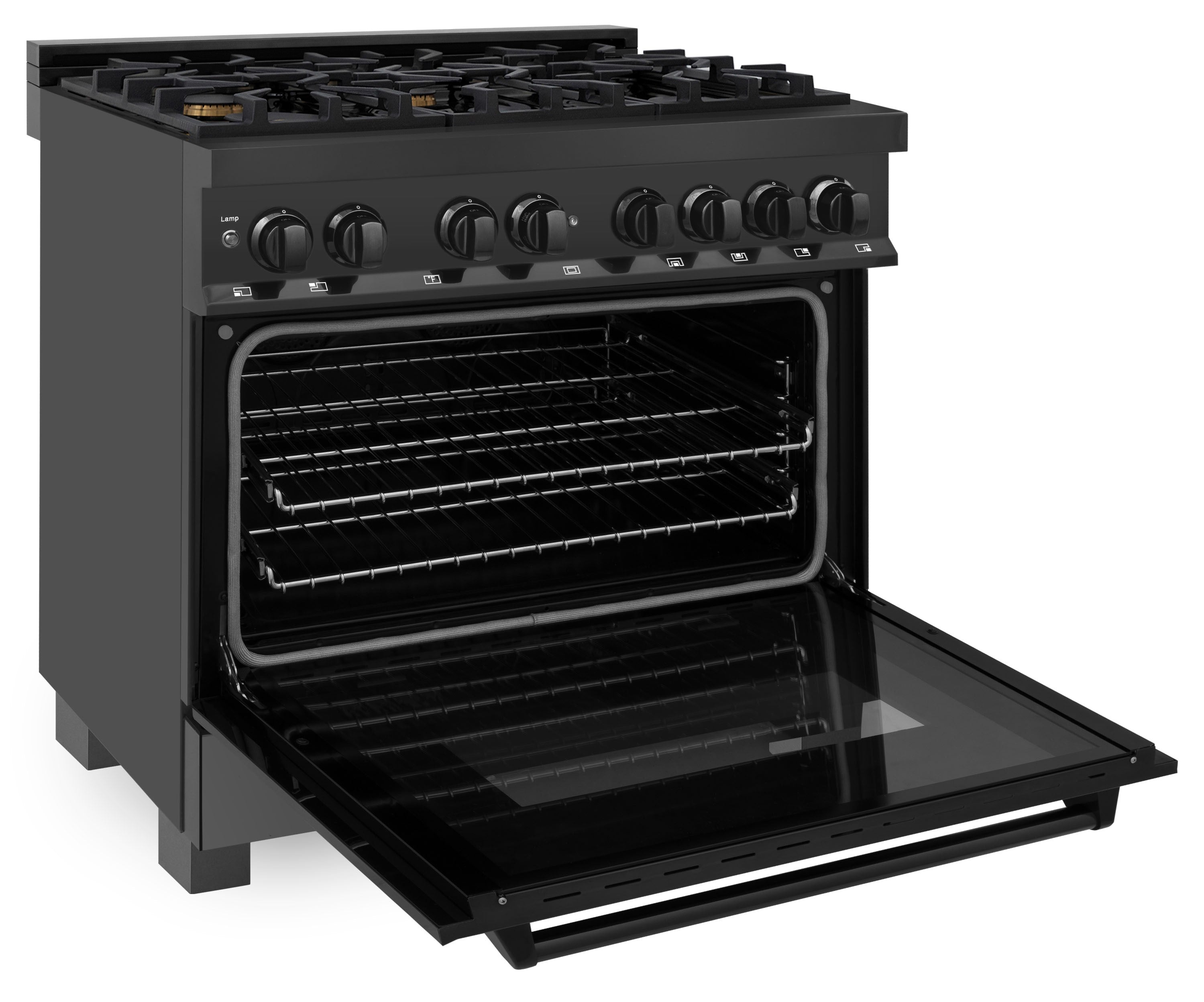

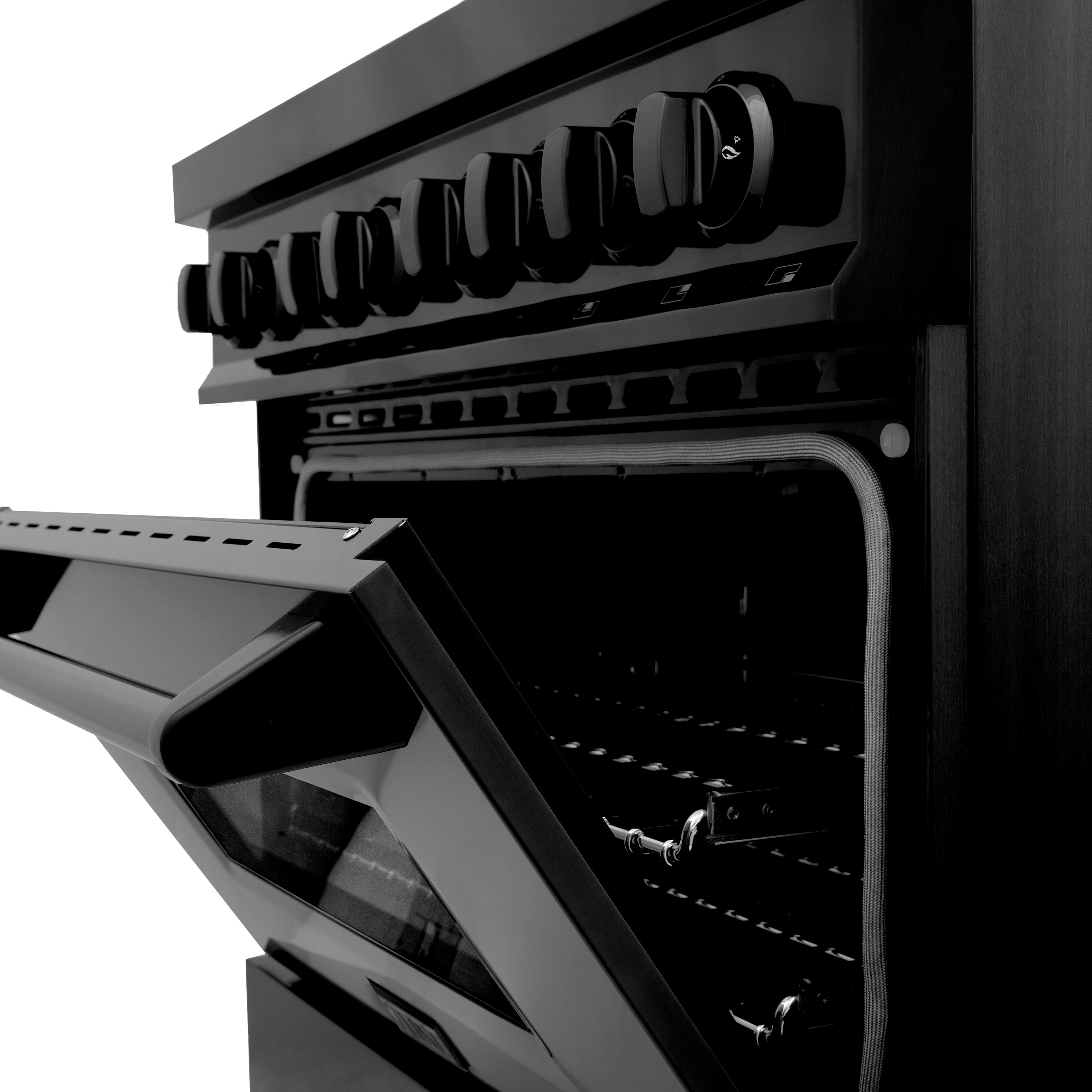

- Oven
- Manual Clean
- Convection Electric
- 4.6 cu.ft. deep oven
- Triple Glass Window
- Dual Lighting
- Professional Aluminum Mesh Seal Blue indicator light shuts off to let you know when oven has reached set temperature
- Warranty
- 1 Year Warranty
- Certifications
- ETL Certified

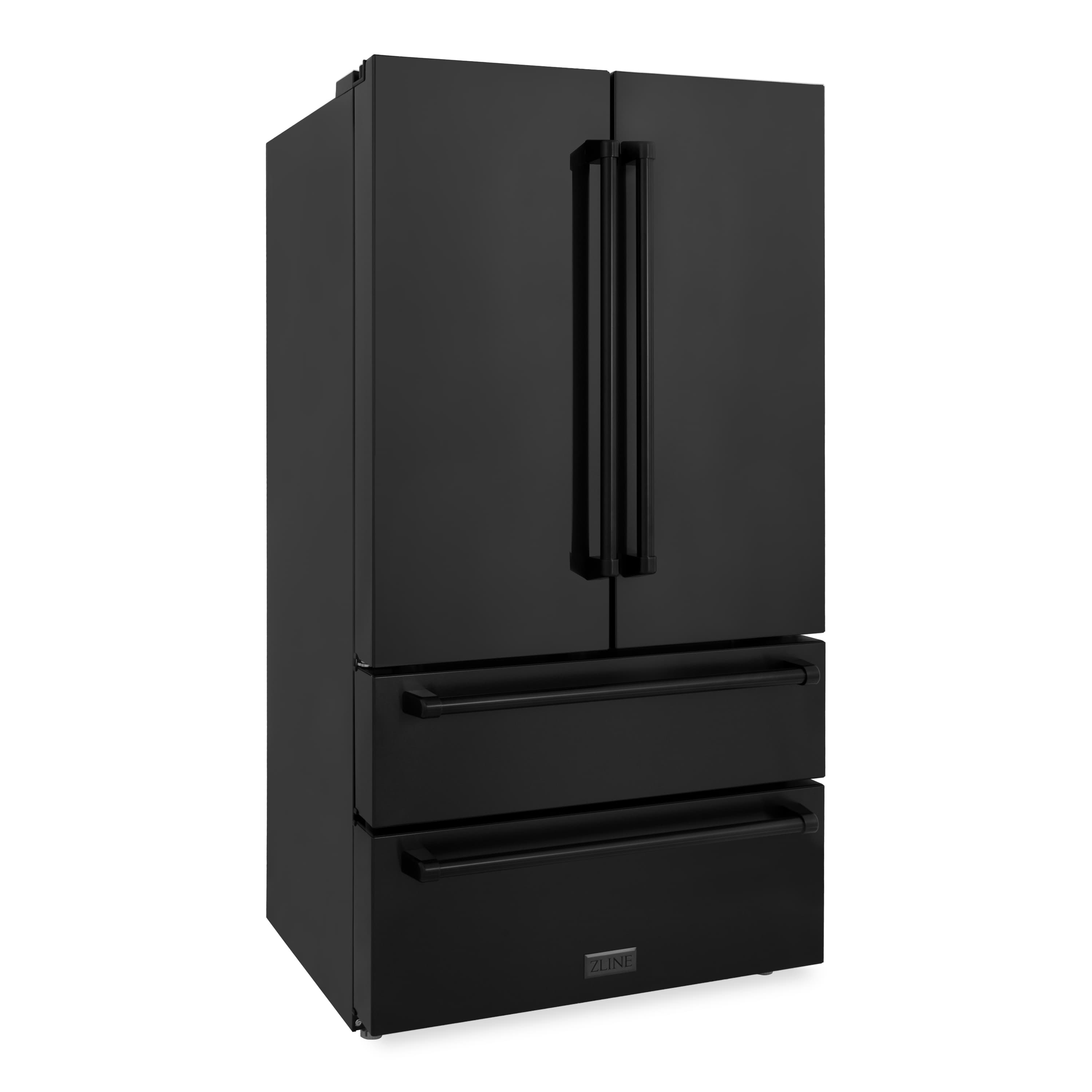

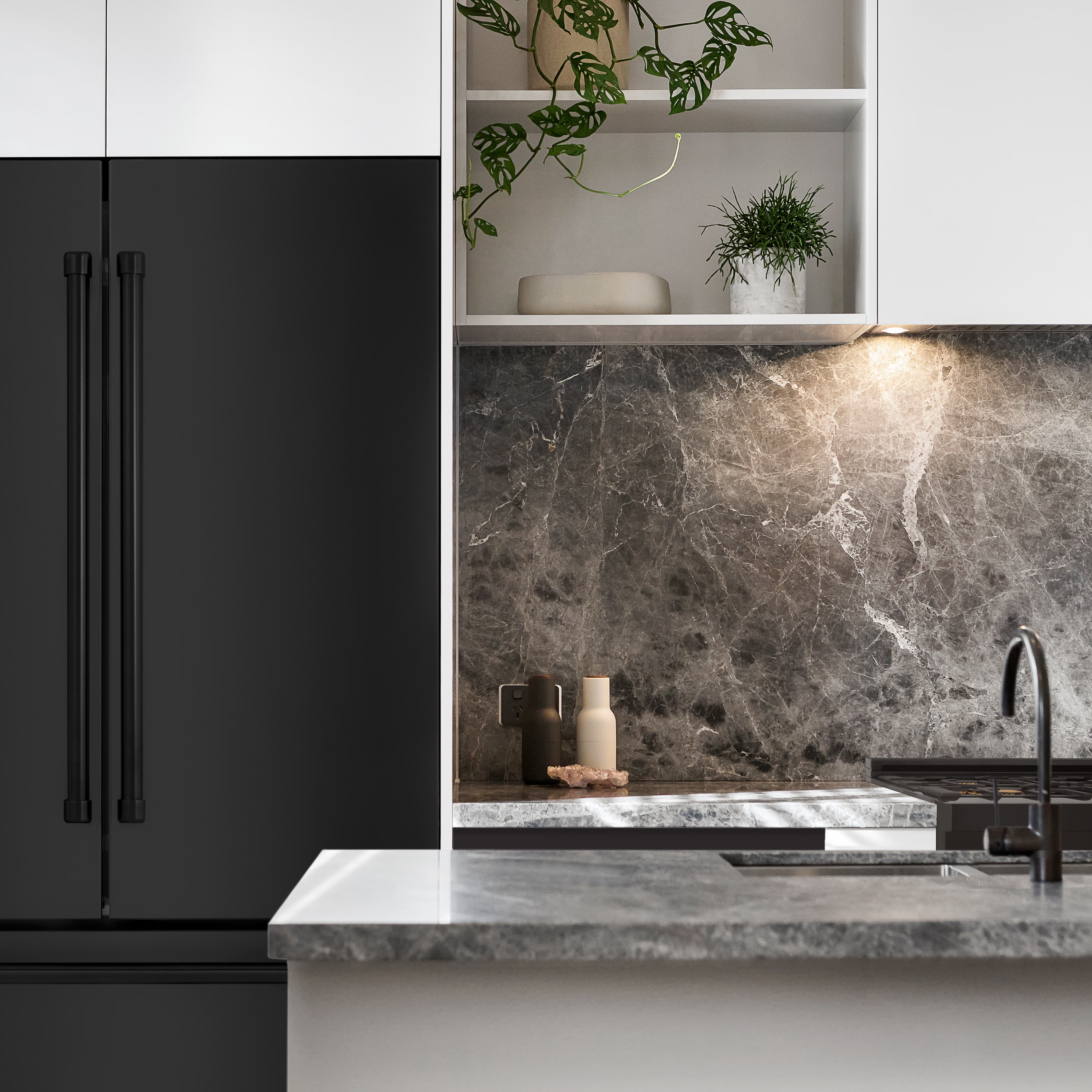

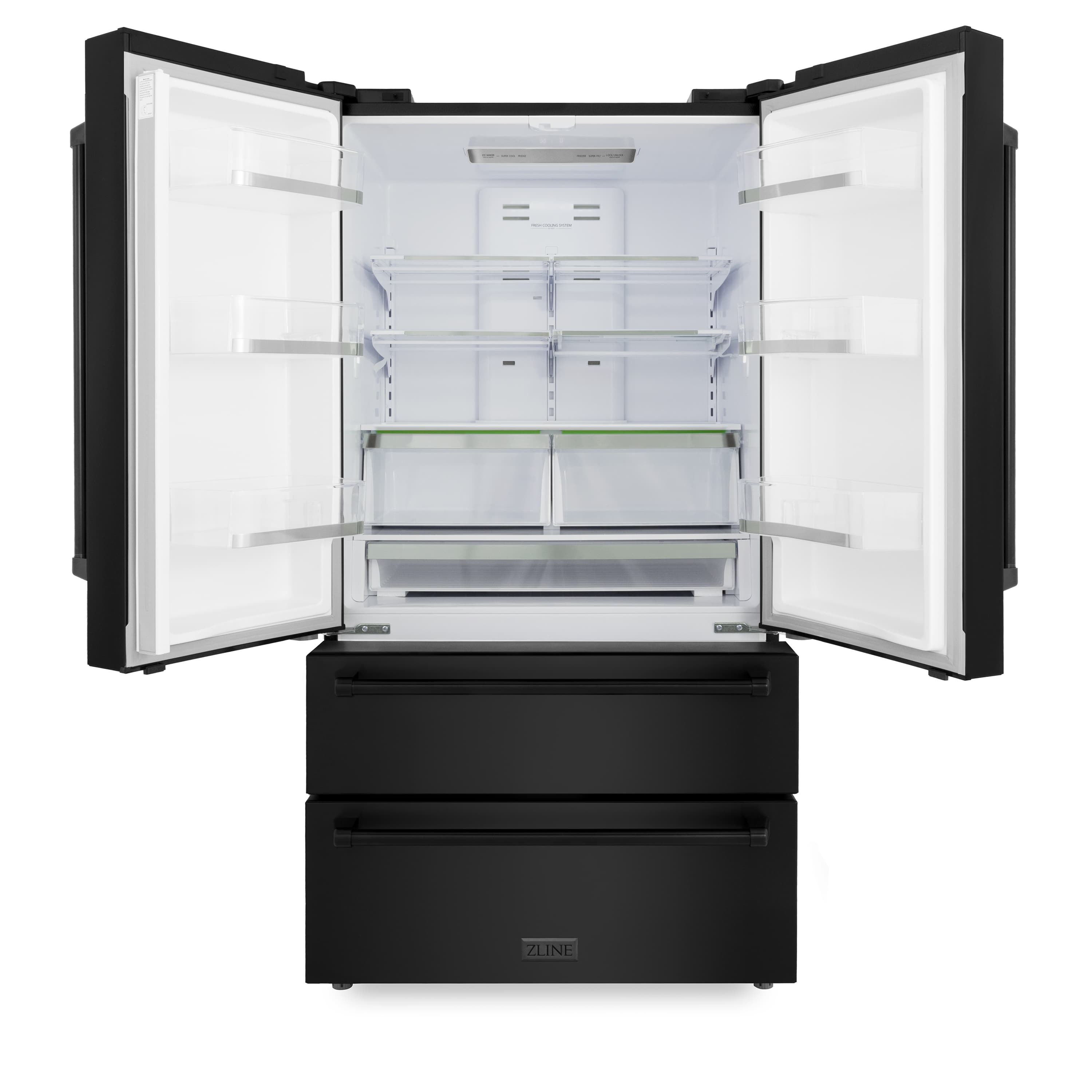

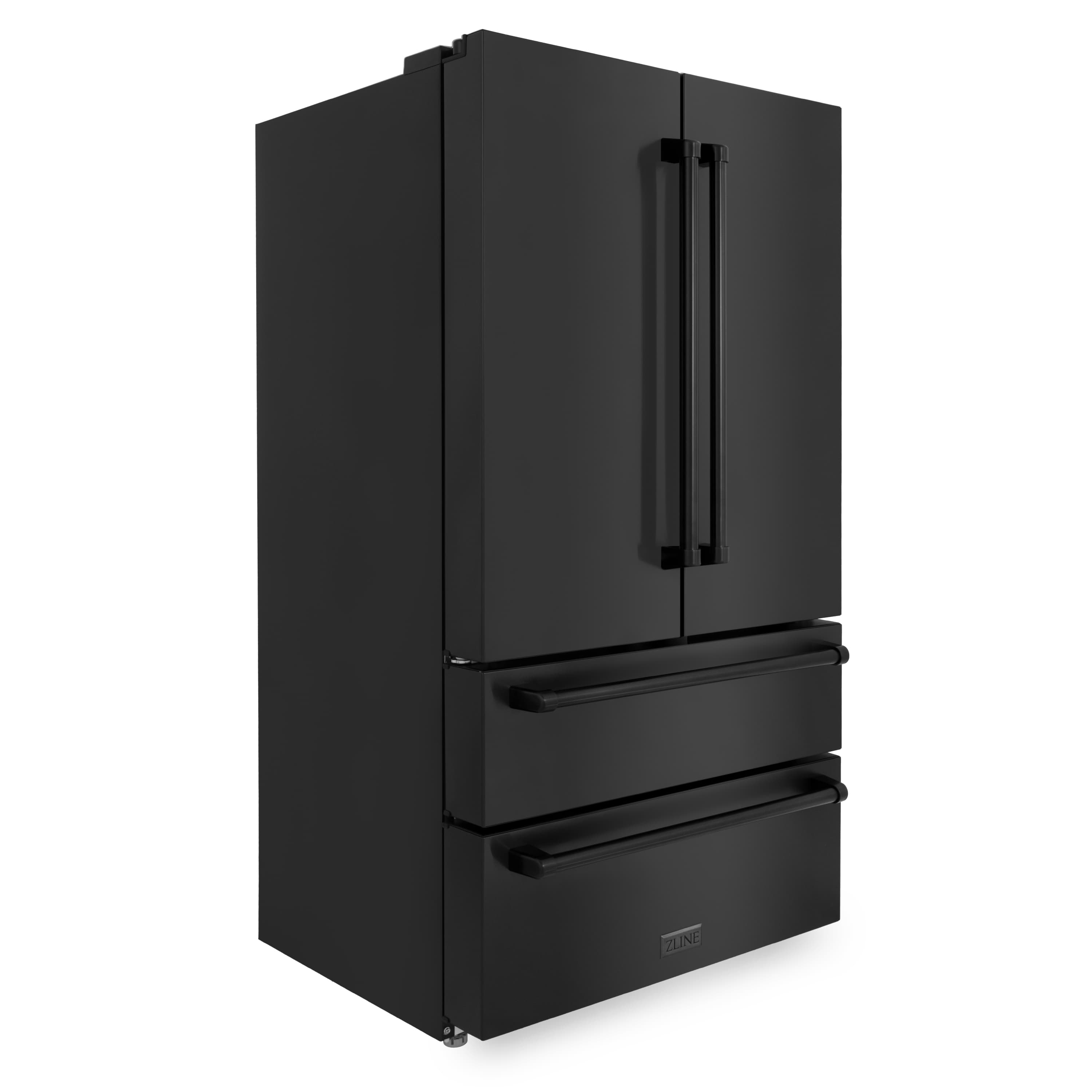

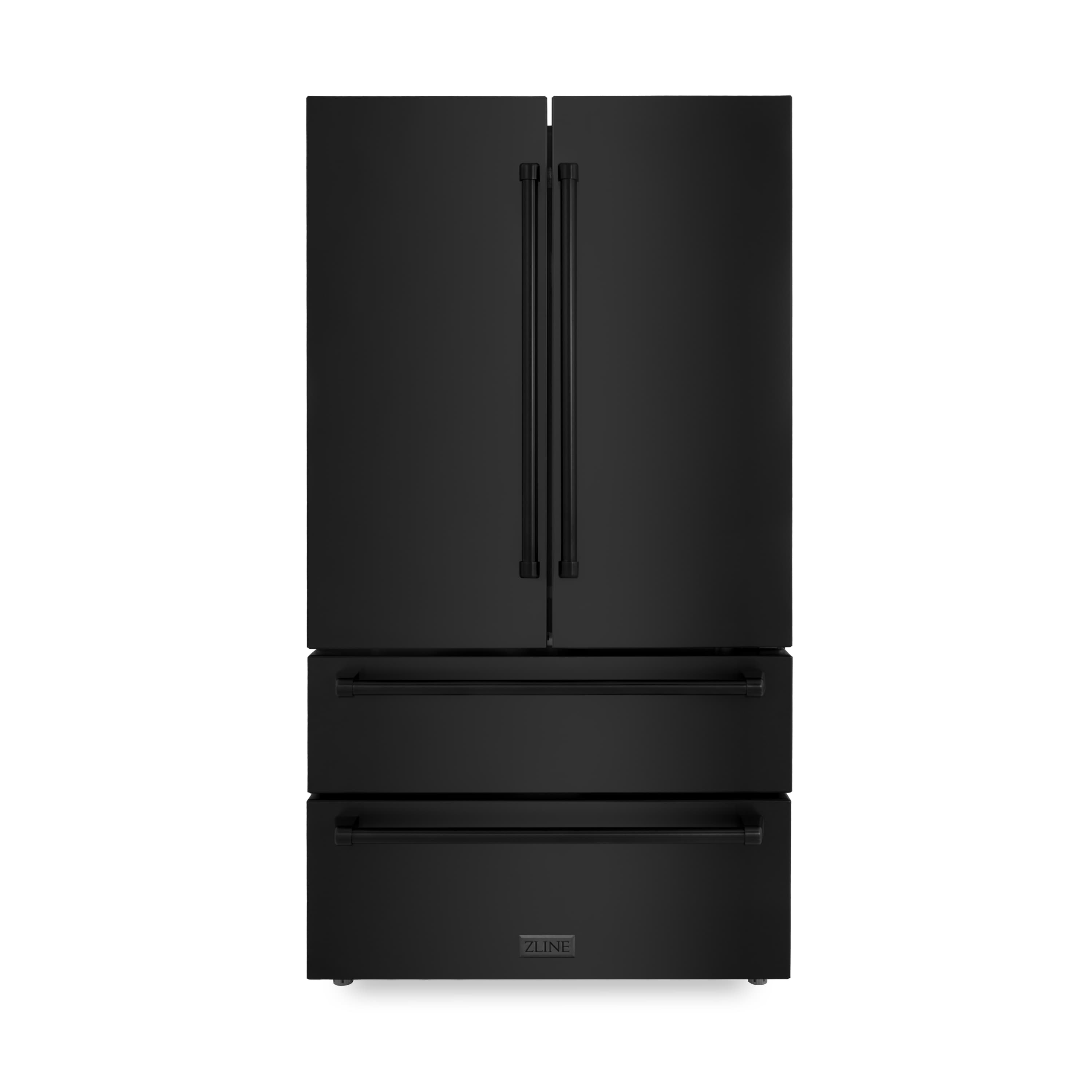

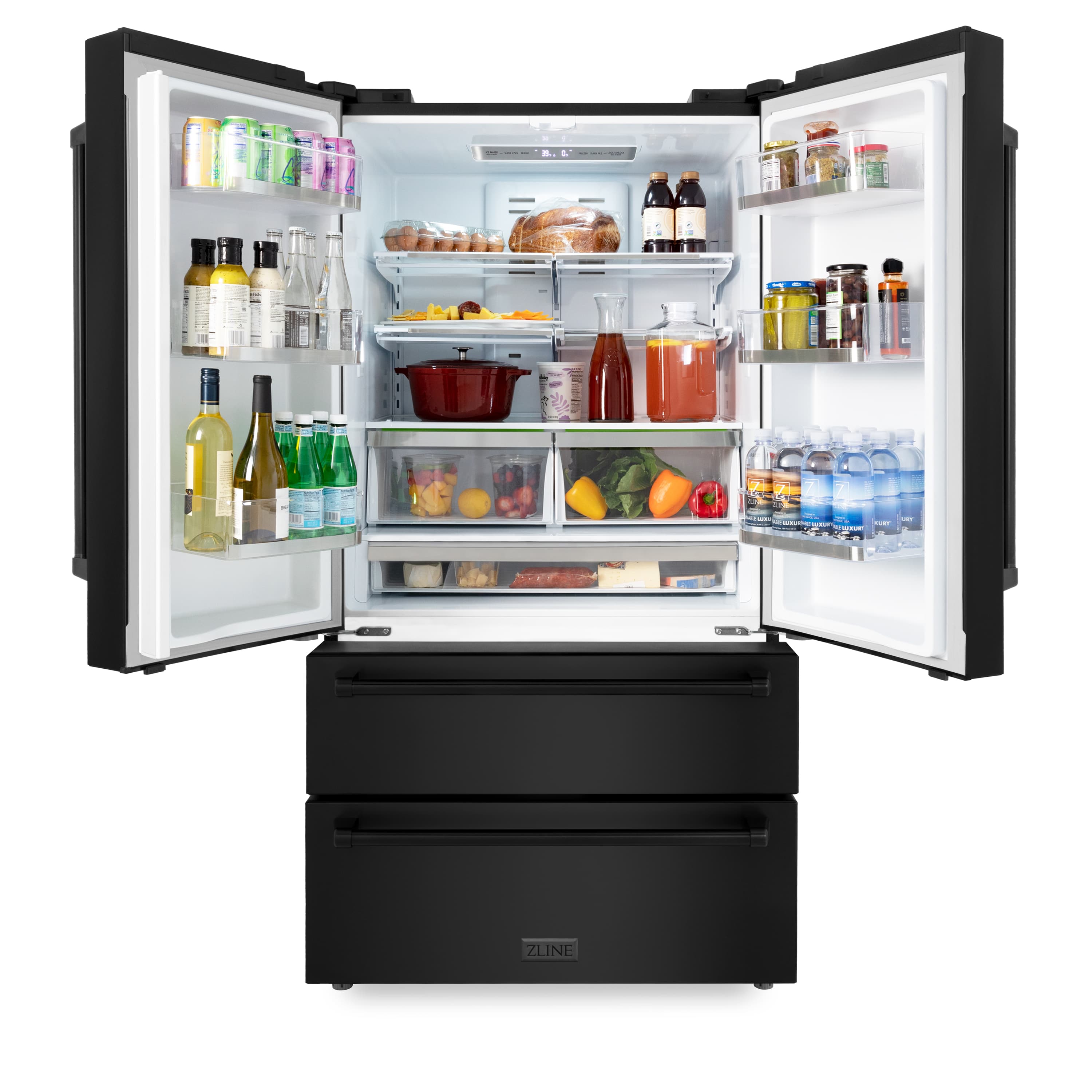

The ZLINE 36 in. 22.5 cu. ft. Counter-Depth French Door Refrigerator with Ice Maker in Fingerprint-Resistant Black Stainless Steel (RFM-36-BS) delivers an elevated experience by pairing innovative dual cooling technology with a spacious counter-depth design and a high-capacity built-in ice maker. Achieve ZLINE Attainable Luxury® excellence with timeless features designed to enhance your kitchen’s capability.
Features
- Counter-Depth Design - Create a modern look in your kitchen with a professional counter-depth refrigerator designed to be flush with your countertops
- Large Capacity - Easily organize items with a 15.9 cu. ft. refrigeration compartment and 6.6 cu. ft. freezer compartment—totaling 22.5 cu. ft. of storage capability
- Adjustable Temperatures - Create the perfect cooling environment with fridge temperatures ranging from 34°F to 44°F and freezer temperatures ranging from -7°F to 7°F
- Super Cool and Super Freeze Modes - Save time and quickly chill food with unique functions that automatically set the fridge temperature to 34°F and freezer to -7°F
- Bright White Interior - Achieve ZLINE Attainable Luxury® excellence by pairing best-in-class freshness with Bright White interior counter-depth units
- Dual Freezer Compartments - Store frozen items of multiple sizes and shapes inside two separate freezer compartments, each with full-extension drawers
- Built-in Ice Maker - Easily access the automatic ice maker in the freezer, which stores up to 1.75 pounds of ice and creates up to 4.85 pounds of ice daily

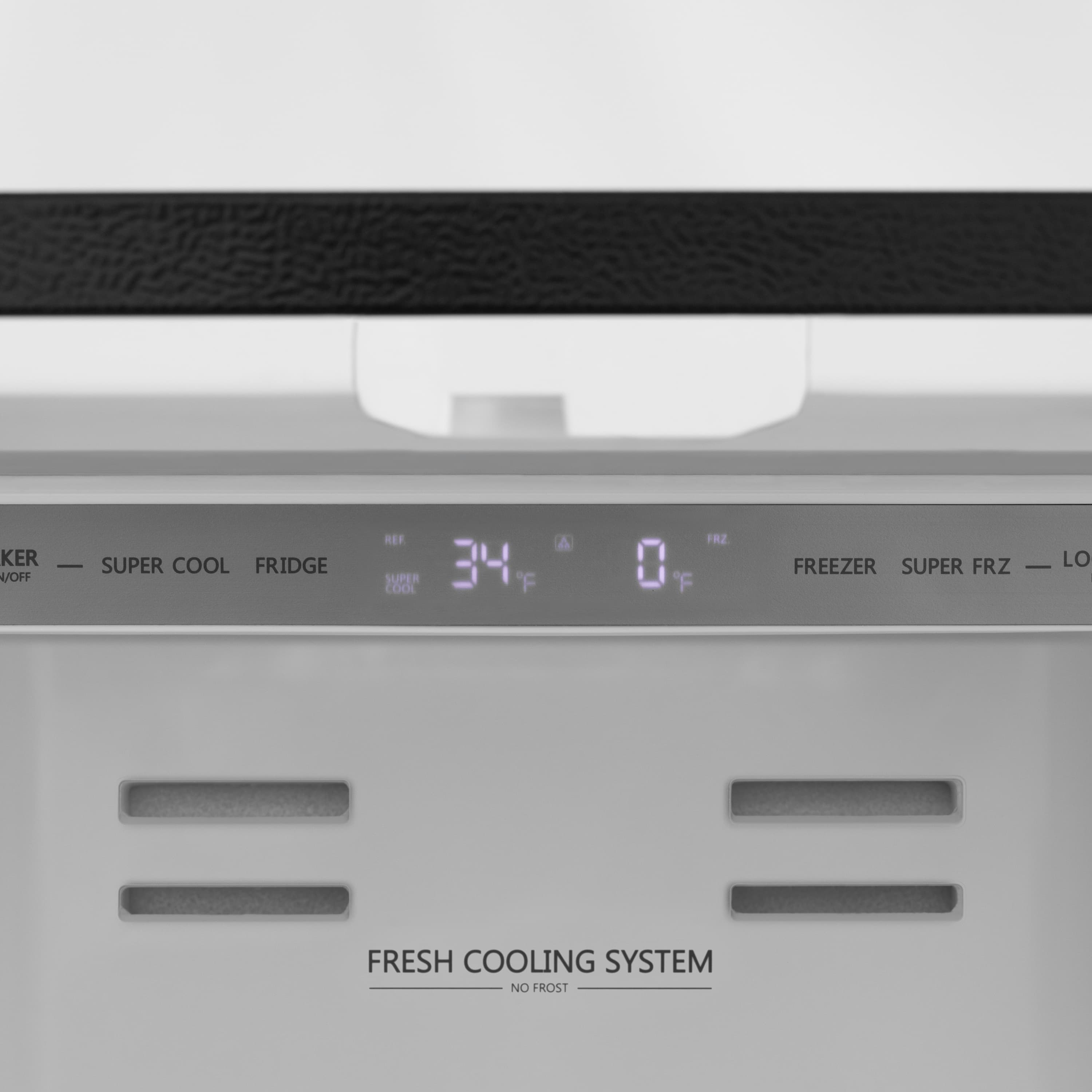

- Digital ChillControl - An ergonomic LED display allows you to quickly set temperatures, change from Fahrenheit to Celsius, and navigate menu options
- Fingerprint-Resistant Black Stainless Steel - Minimize cleaning with ZLINE’s smudge-proof and fingerprint-resistant black stainless steel finish
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system

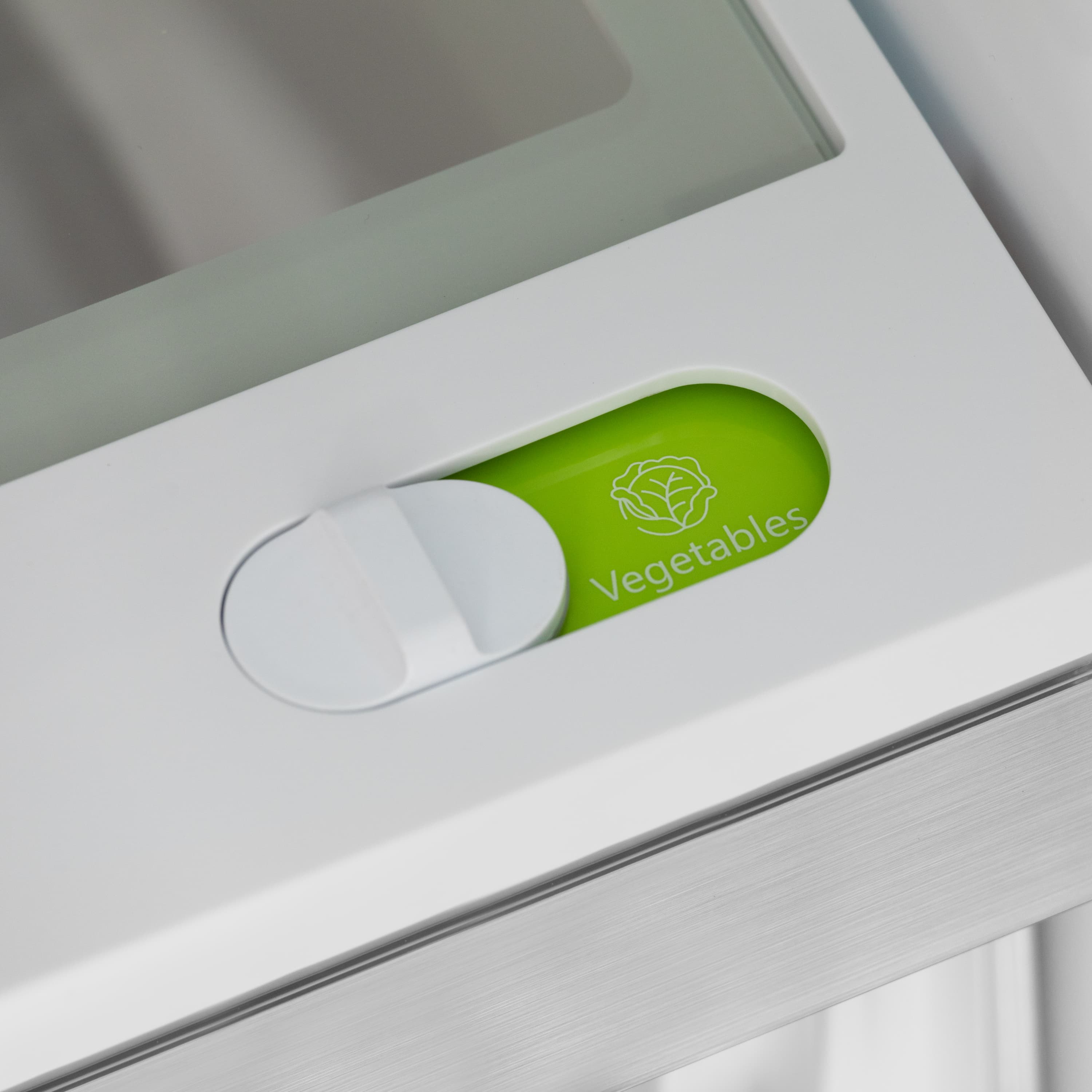

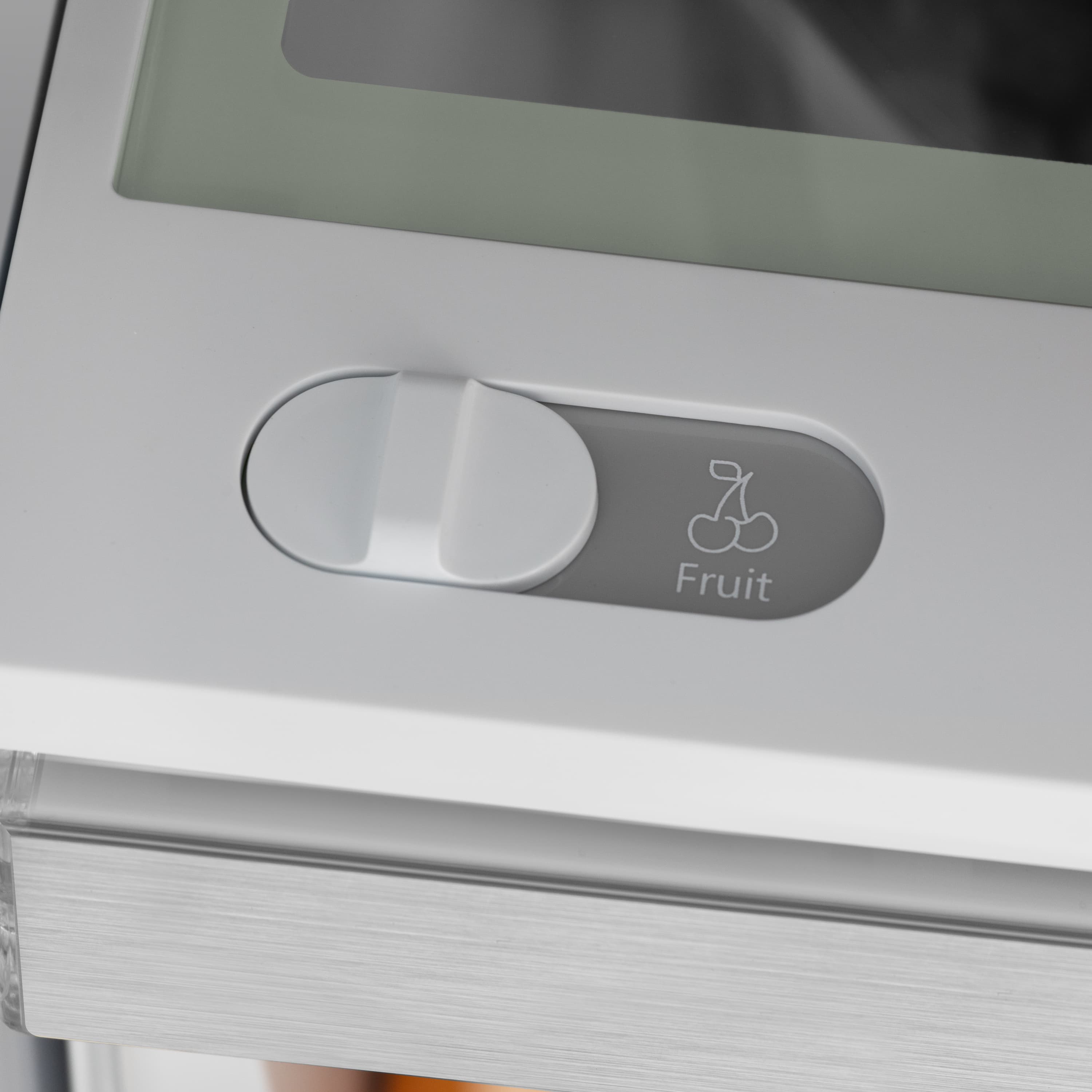

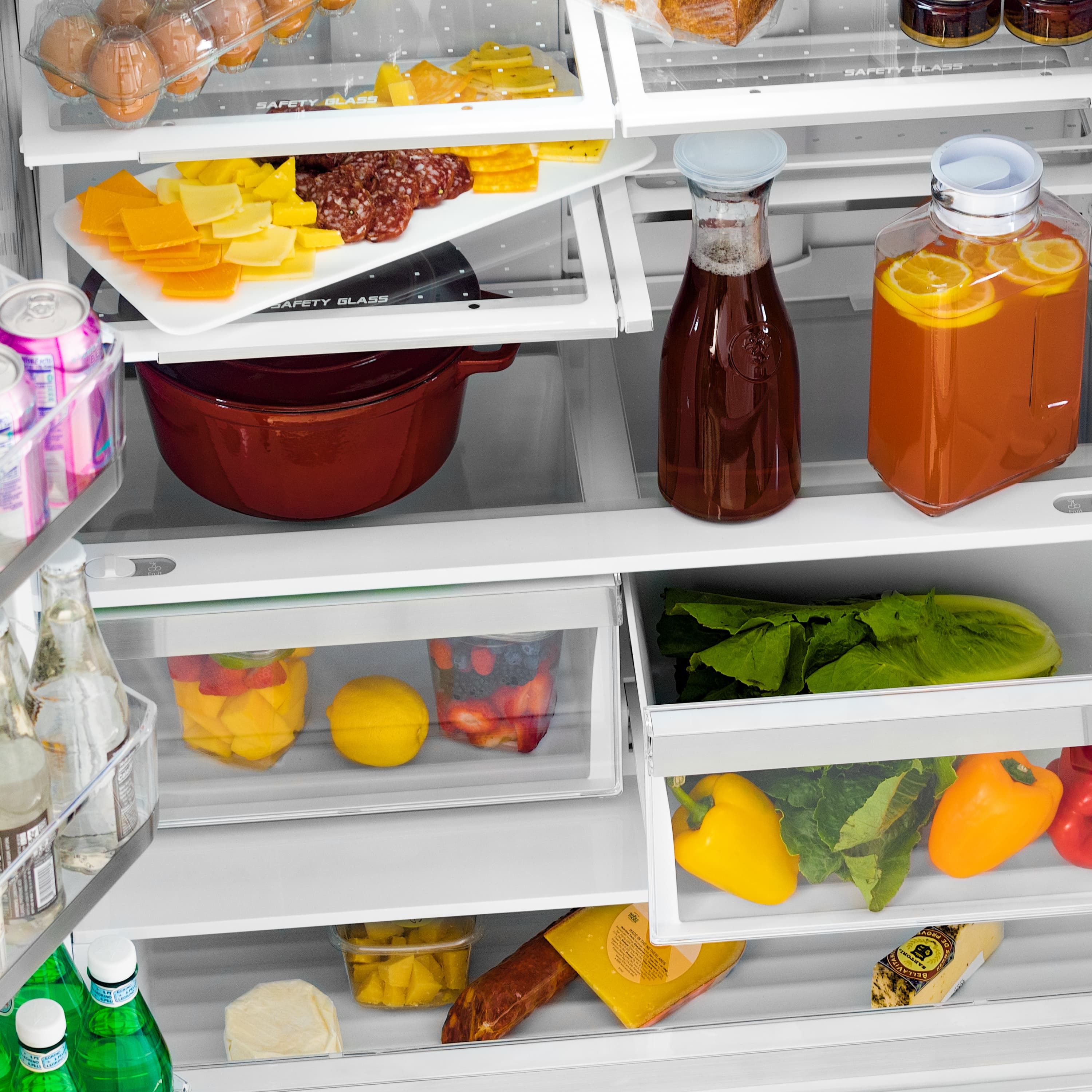

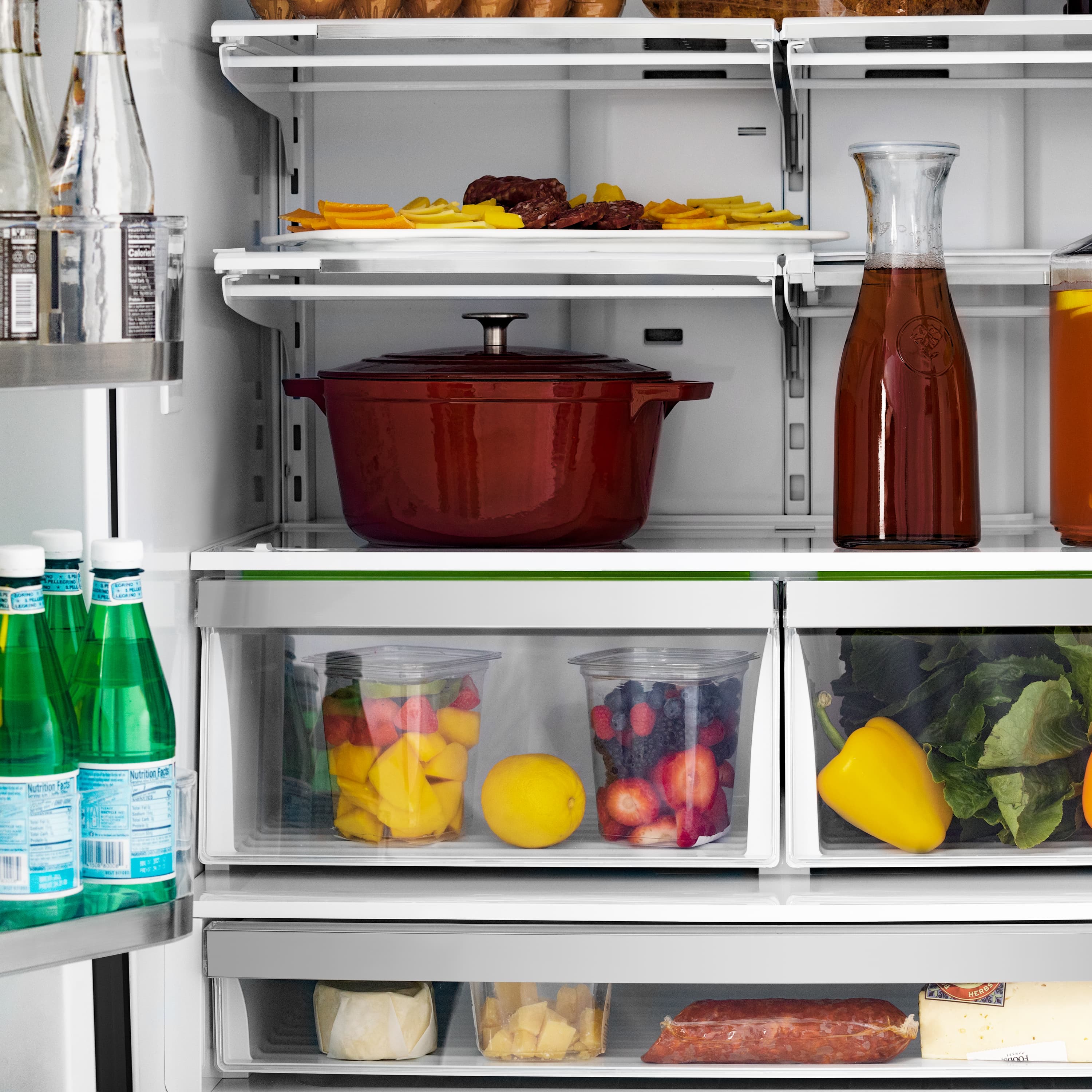

- Dual Crisper Drawers - Enjoy best-in-class freshness for fruits and vegetables with a pair of half-width humidity-controlled crisper drawers
- Full-Width Pantry Drawer - A full-width pantry drawer provides additional space for deli meats, cheeses, and other food items for optimal storage
- Spacious Door Bins - Store condiments, beverages, and other taller items inside 6 durable plastic bins, with 3 on each door
- Dual Cooling - Separate refrigerator and freezer cooling systems ensure air and odors are not mixed between compartments and provide fast and efficient cooling
- 4 LED Lights - Fully illuminate your appliance with 3 bright built-in LED lights in the fridge compartment and 1 in the freezer
- Spill-Resistant Glass Shelves - Comfortably organize items in the fridge on 4 spill-resistant adjustable glass shelves, 1 of which is foldable for more flexibility
- Quiet Noise Level - Enjoy peace of mind day or night with an ultra-low average noise rating of 45 decibels
- ENERGY STAR® Rated - Enjoy energy savings while maintaining professional power with superior insulation and an energy-reducing cooling system
- Manufacturer Warranty - 1-year parts and labor, and a 5-year parts-only warranty on the sealed cooling system, including compressor, evaporator coil, condenser coil, and filter drier
- Additional Assembly Required - This refrigerator and its door handles will ship in multiple boxes, requiring assembly upon installation

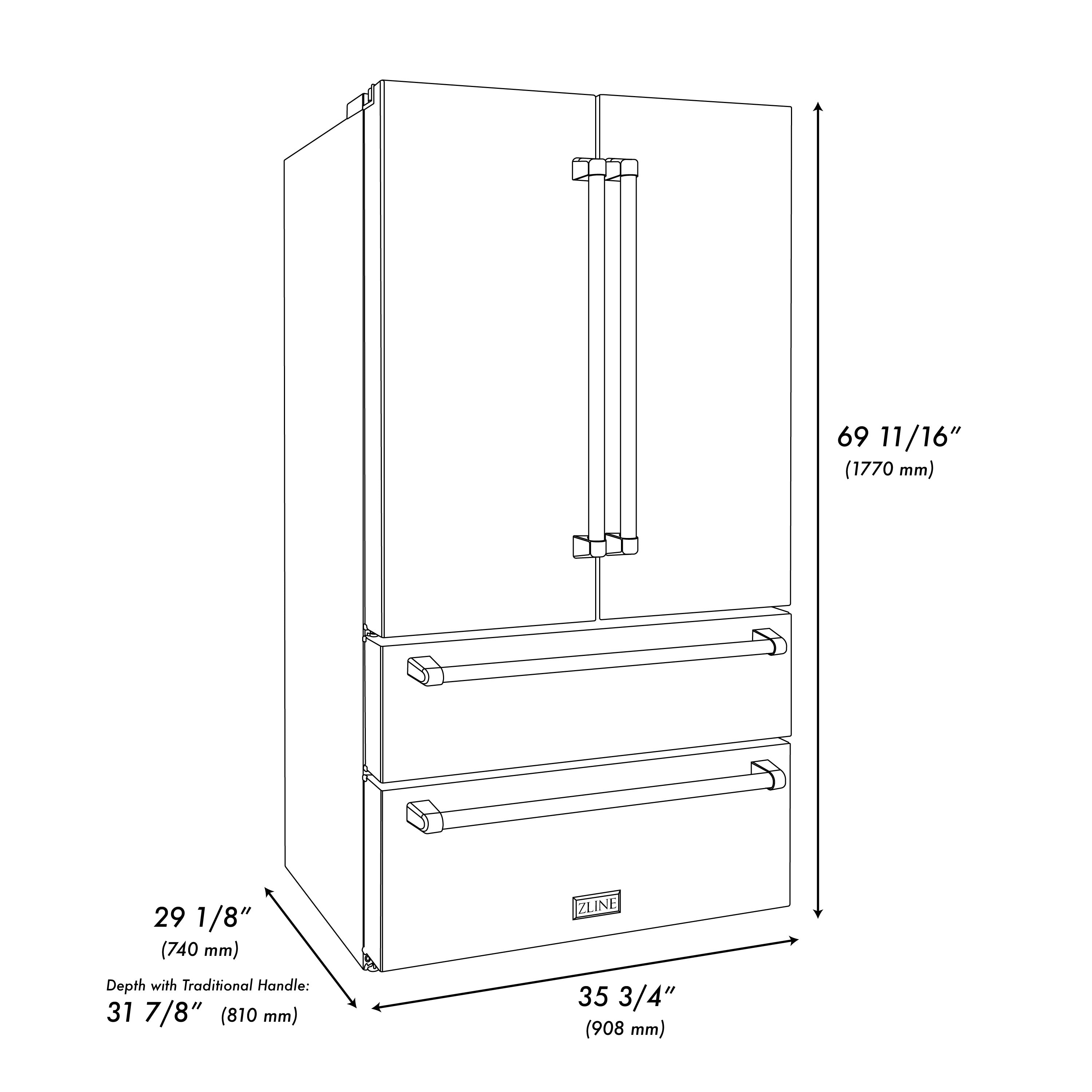

- Dimensions
- 35.75 in. W x 29.125 in. D x 69.6875 in. H
- Total Capacity
- 22.5 cu. ft
- Installation Depth
- 29 in. D
- Depth with Door Open
- 43.5 in.
- Weight
- 284.4 lbs
- Mount Type
- Freestanding
- Material
- Black Stainless Steel

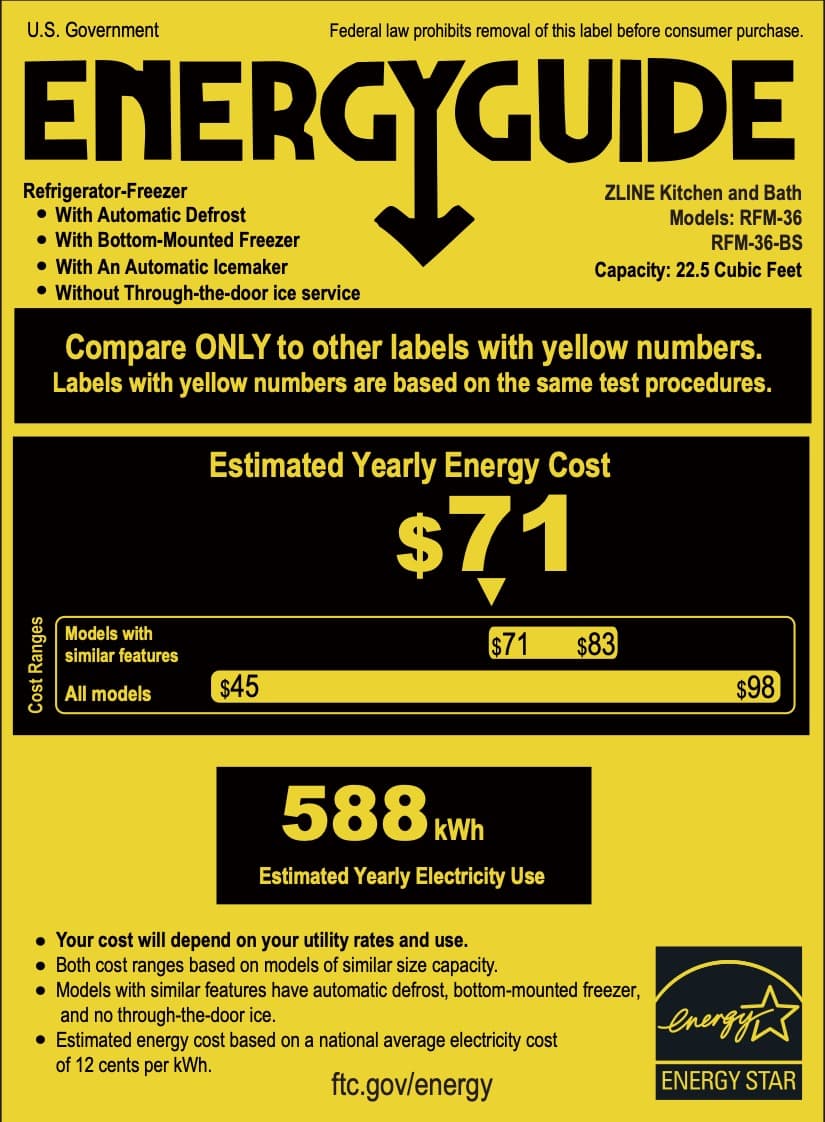

- Energy Consumption (kWh/year)
- 588
- Voltage
- 120V/60Hz
- Amps
- 3
- Noise Level
- 45 Decibels
- Fridge Capacity
- 15.9 cu. ft
- Flex Drawer Capacity
- N/A
- Flex Drawer Temp Controls
- N/A

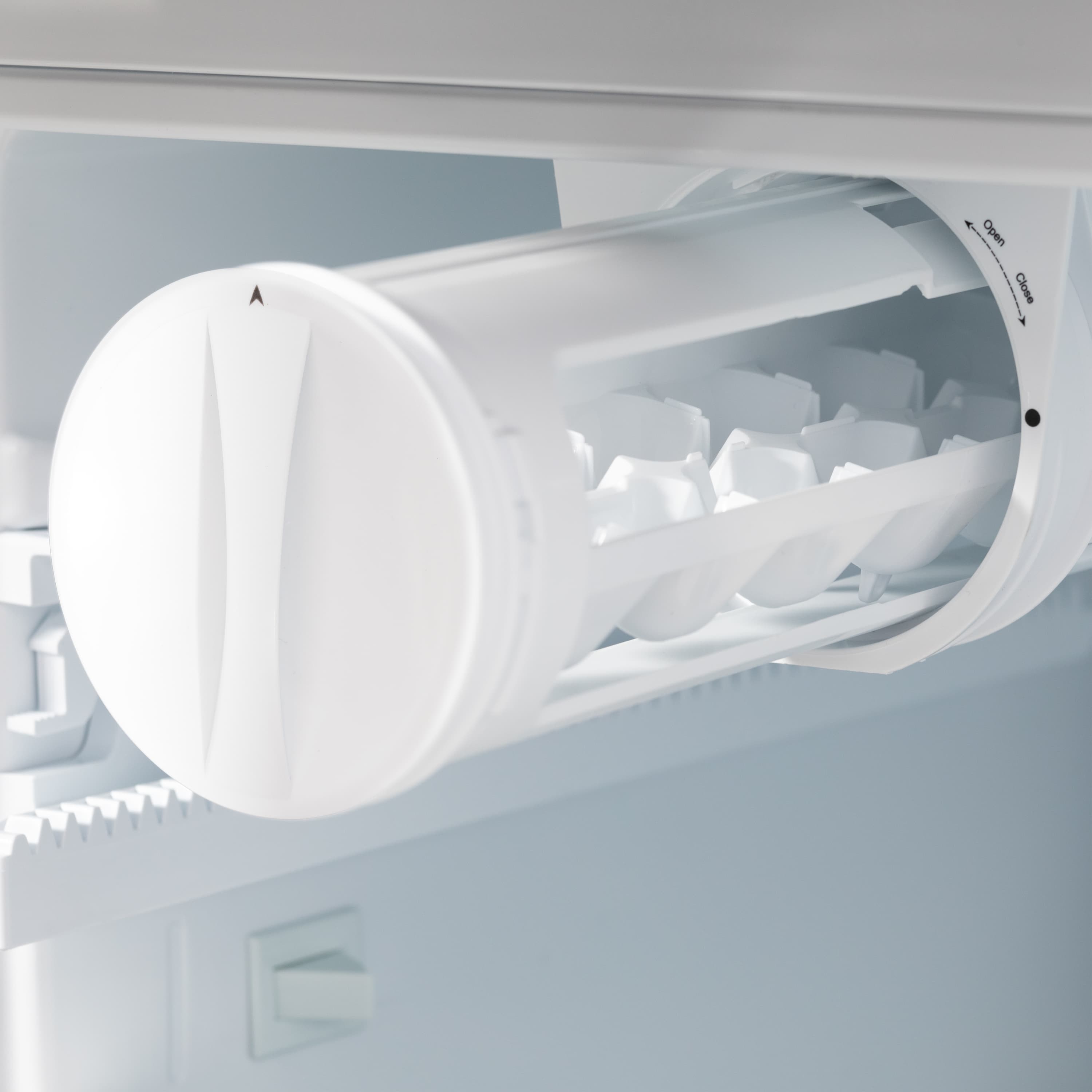

- Ice Maker
- Yes
- Ice Maker Types
- Single Ice Maker
- Ice Amount Per Day
- 4.85 lbs
- Ice Tray Storage
- 1.75 lbs
- Water Dispenser
- No
- Flowrate for Water Dispenser
- N/A
- Fridge Lights
- 3
- Humidity-Controlled Crispers
- 2
- Door Shelves
- 6
- Number of Fridge Shelves
- 4
- Freezer Capacity
- 6.61 cu. ft
- Freezer Drawer Bins
- 2- Pull Out Drawers
- Energy Star
- Yes
- Certifications
- ETL Listed, ENERGY STAR certified
- Warranty
- 1-Year Parts and Labor Warranty 5-year parts-only for Sealed System

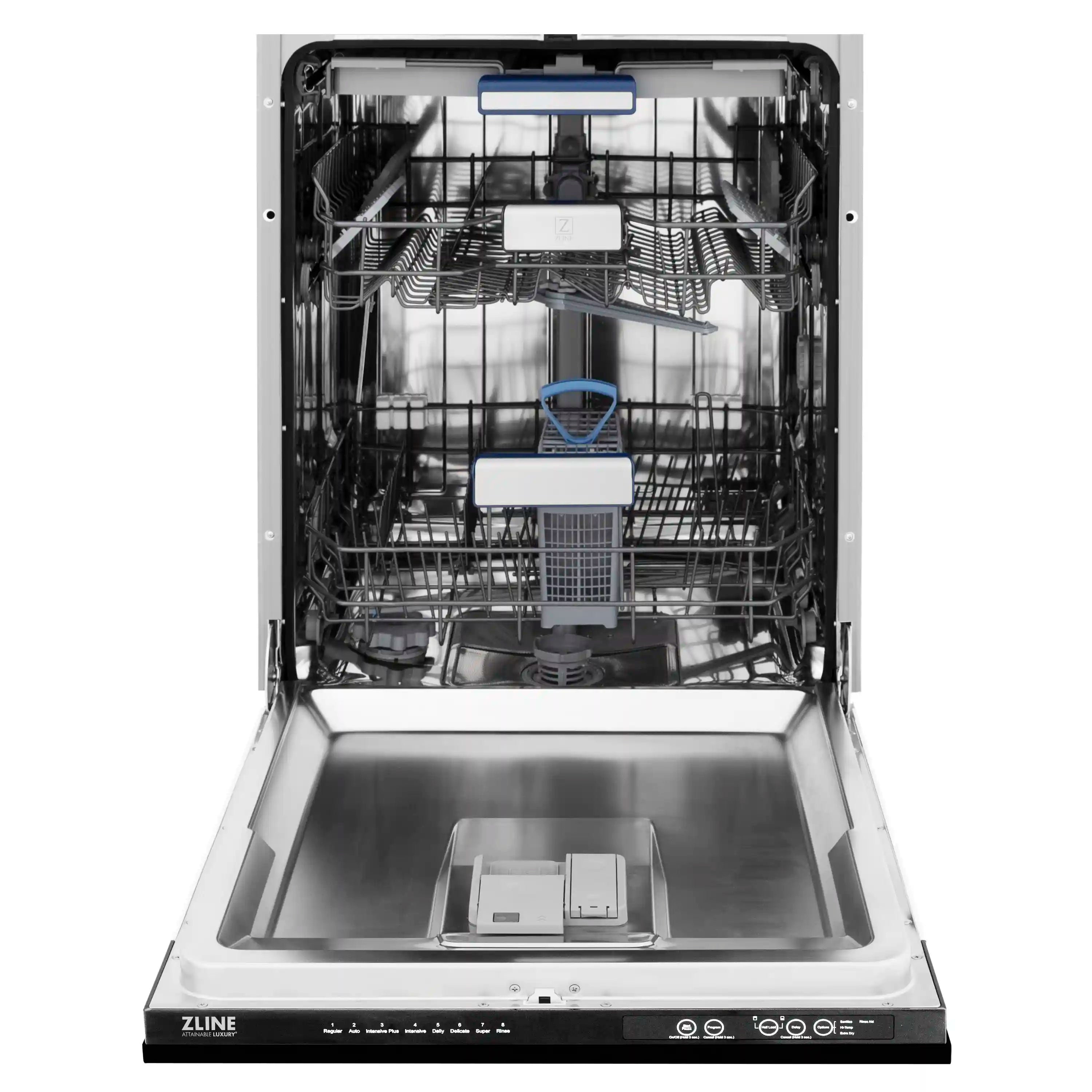

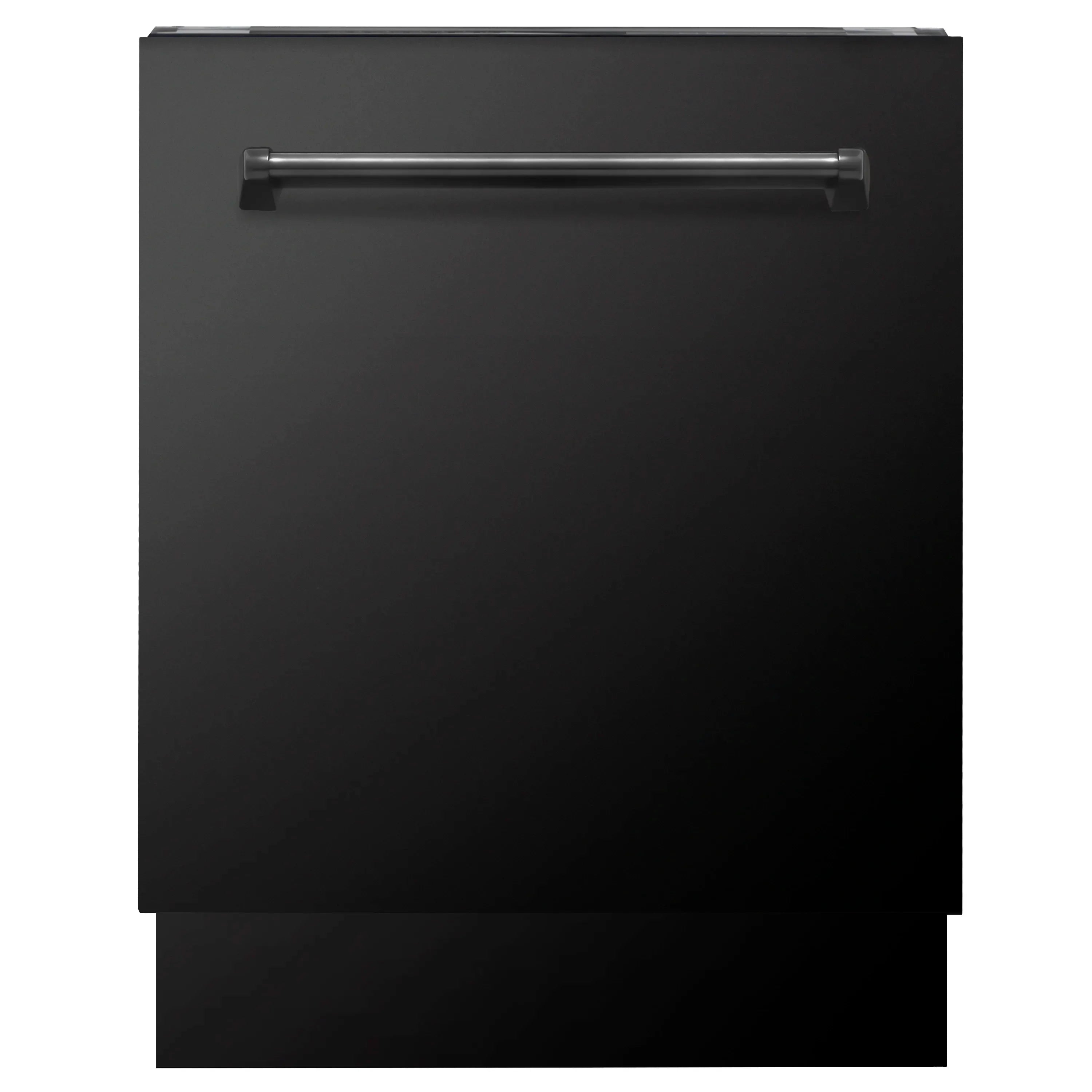

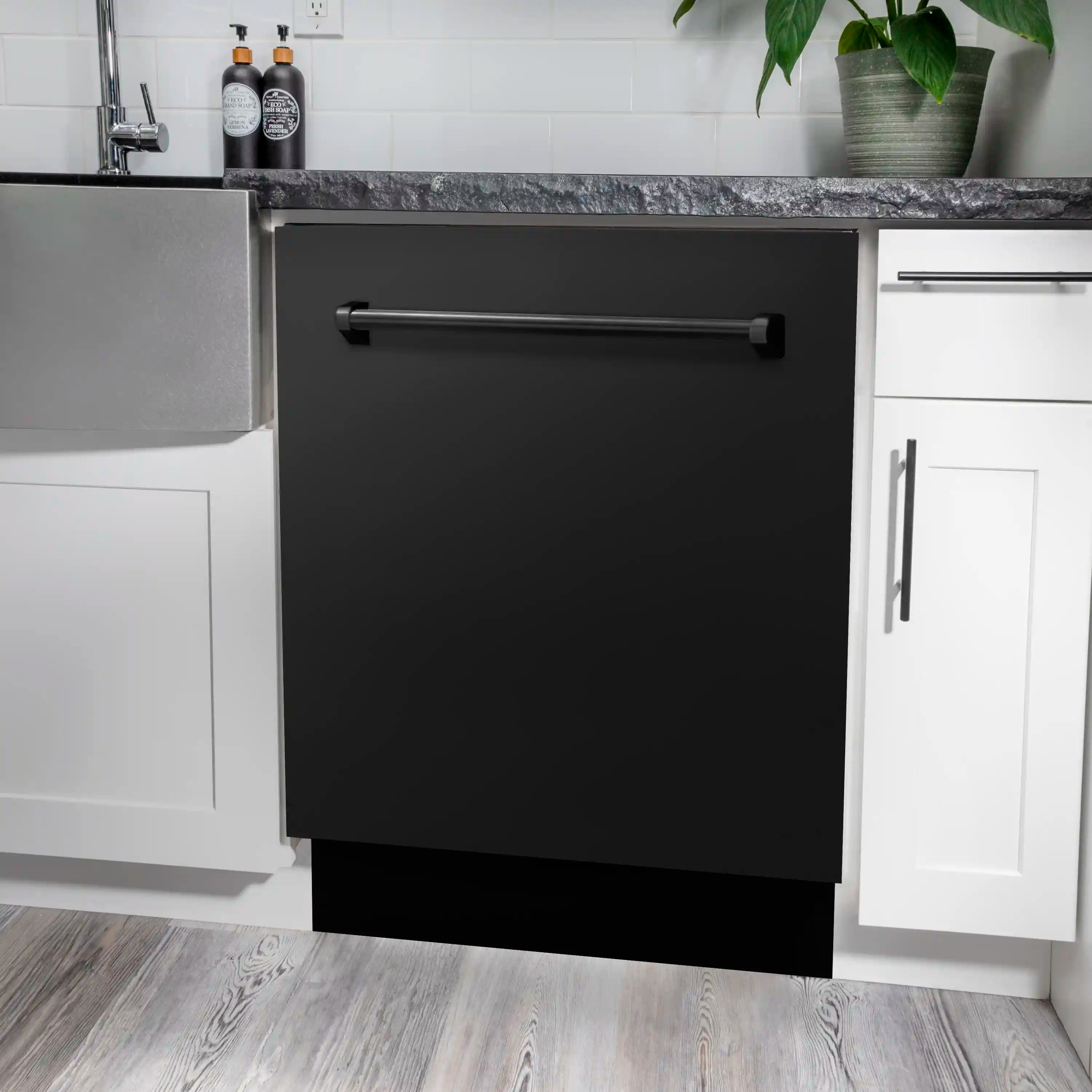

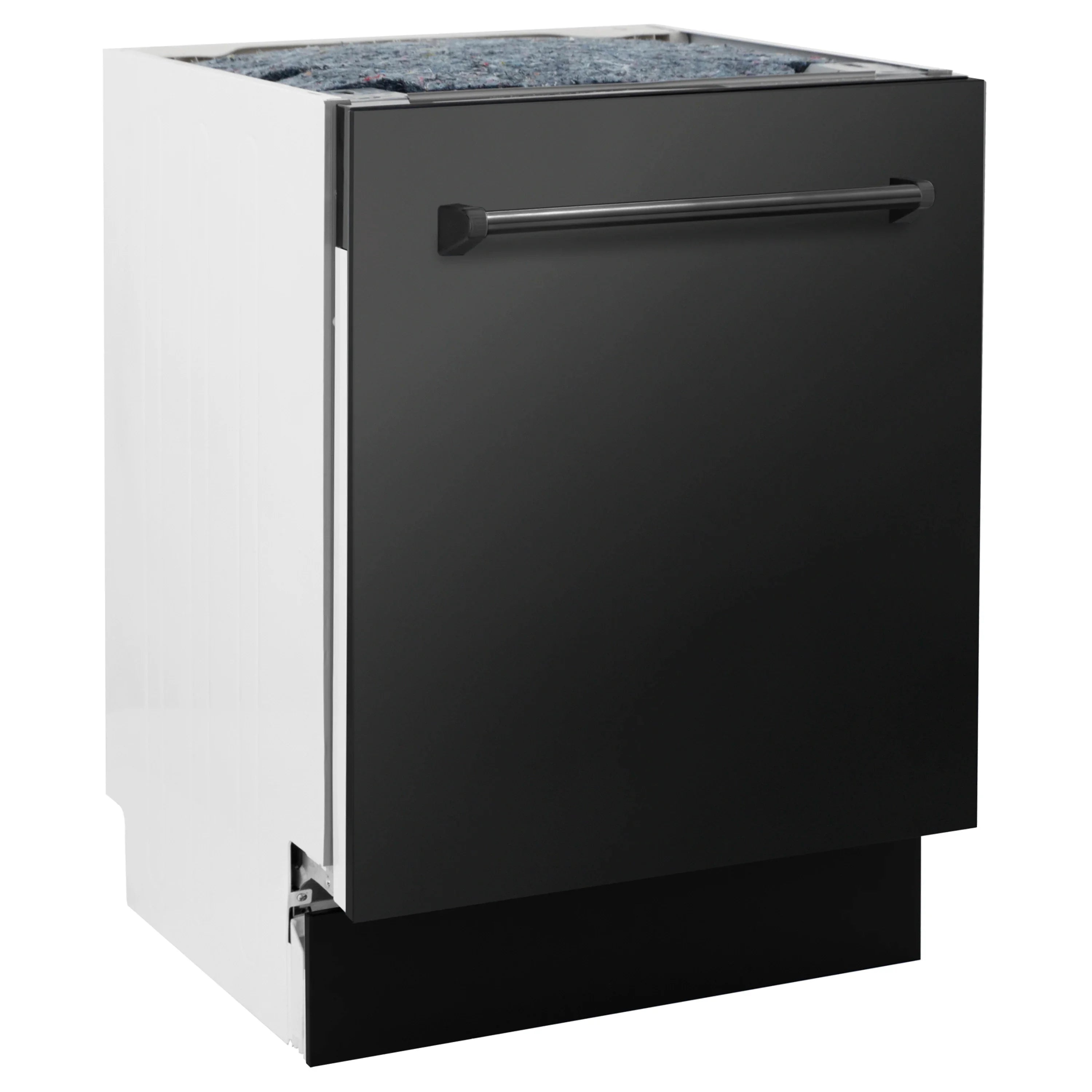

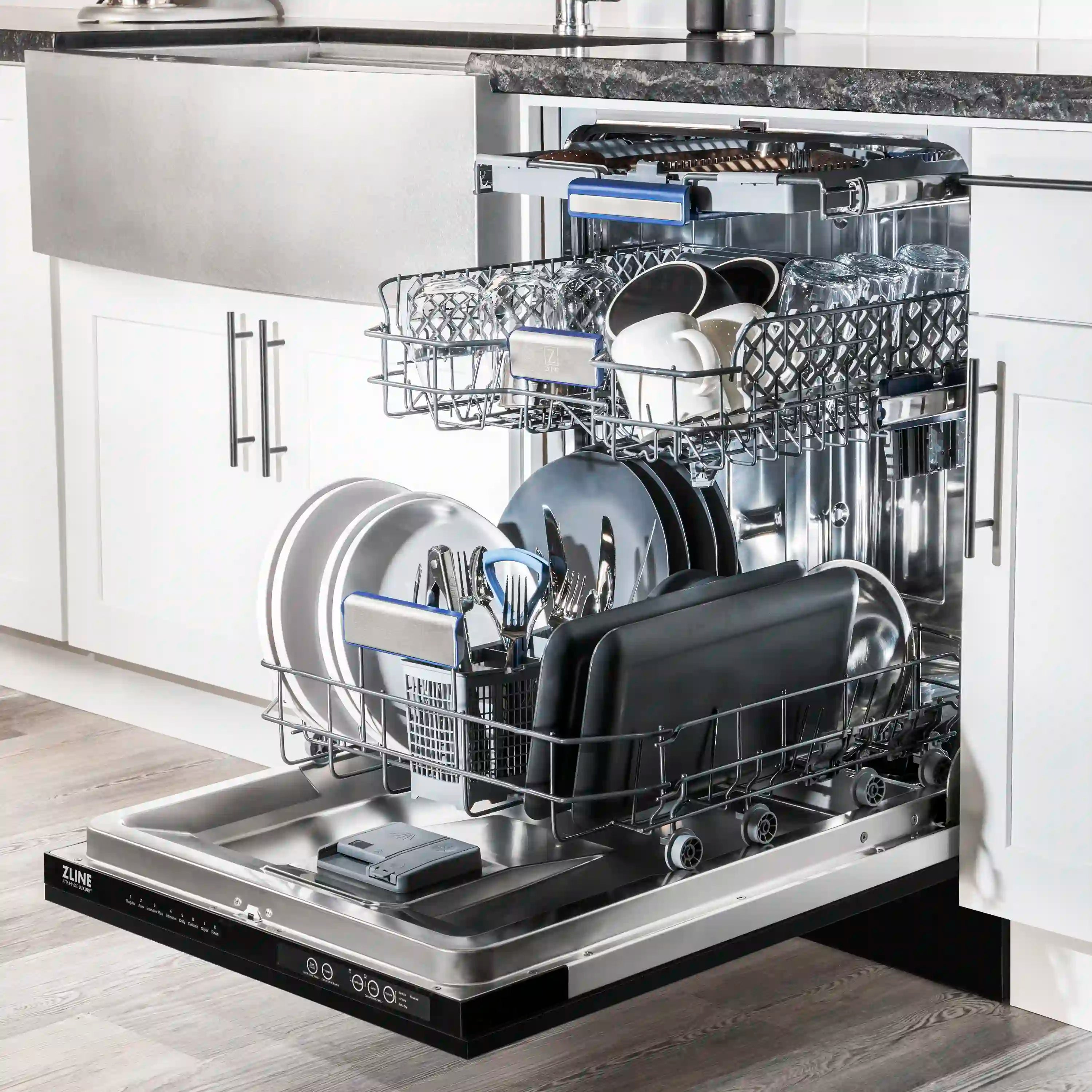

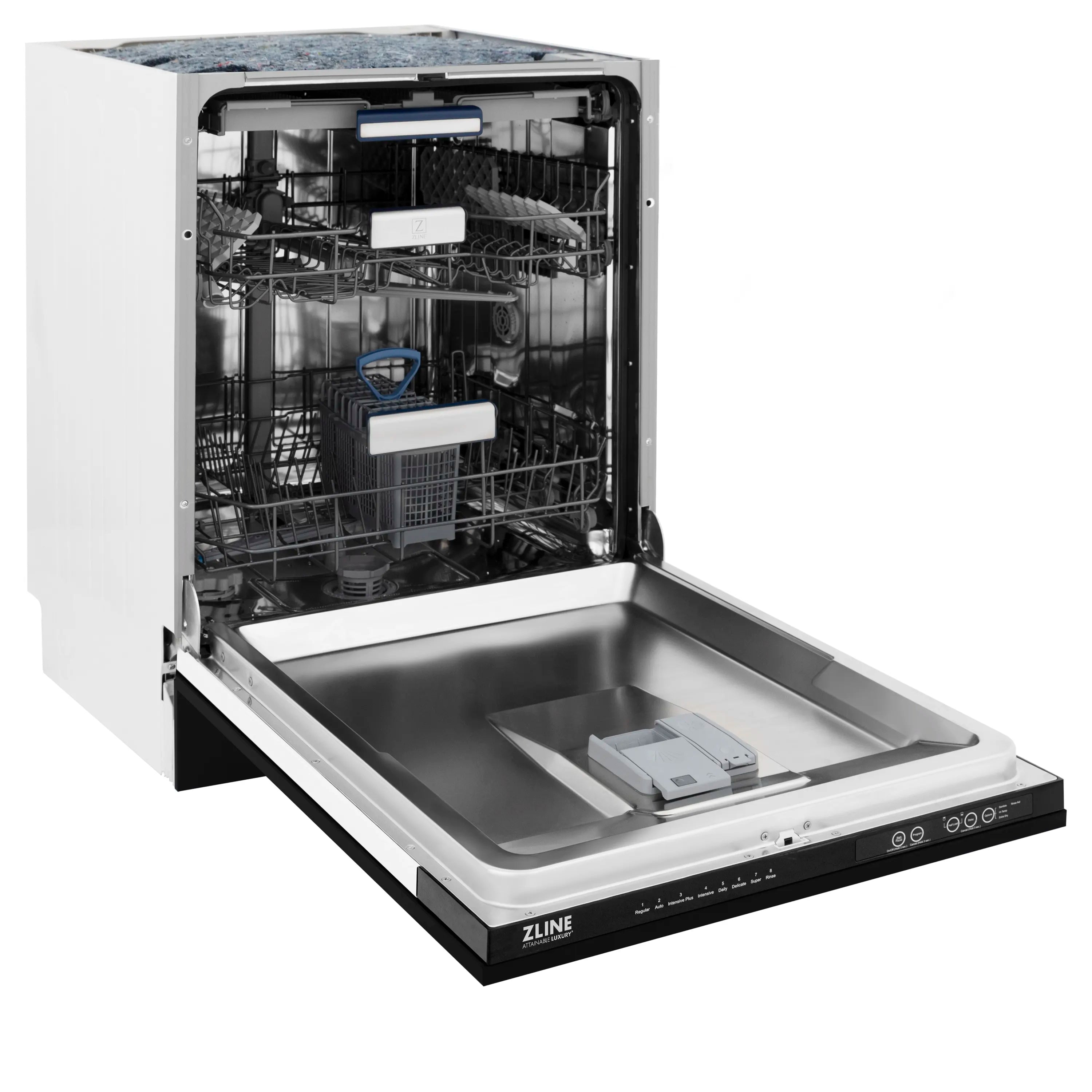

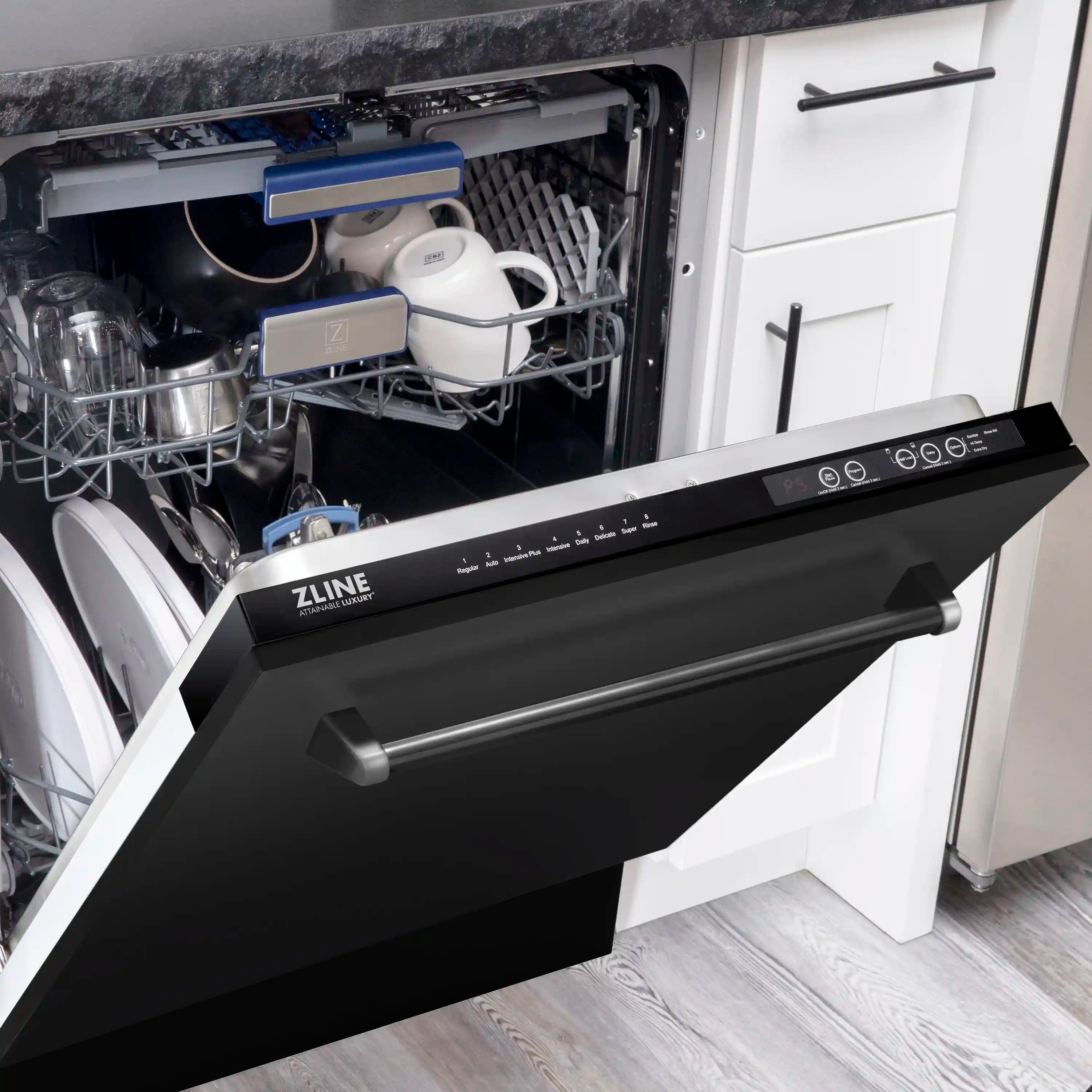

The ZLINE 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Black Stainless Steel Panel (DWV-BS-24) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.
Features
- Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air
- Engineering Excellence - Achieve a spotless wash with a professional 304-grade stainless steel 3-rack dishwasher designed to be energy-conscious and sleek
- Multiple Wash Cycles - Choose from several different wash cycles, including a 50-minute Super Mode that cleans soiled dishes quicker while remaining energy-efficient

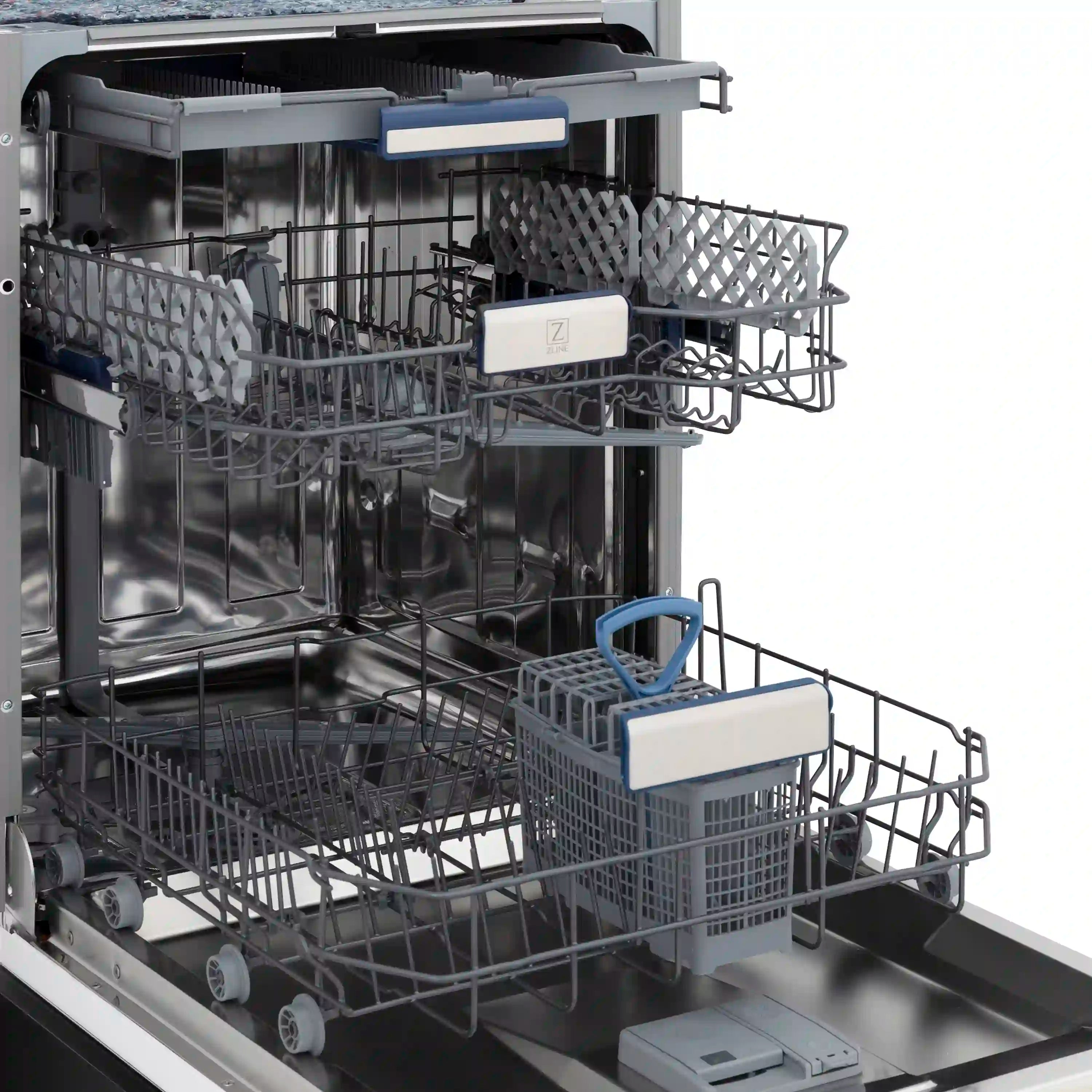

- Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
- Extra-Strength Cleaning - Specialty Intensive and Intensive Plus modes take care of heavily soiled items by adding extra time to each wash cycle
- Smart Wash Technology - An auto-sensing system determines the type of cycle and pressure required, limiting water usage to an energy-efficient 3.4 gallons per load
- Turbo Fan Drying - Tallac Dishwashers feature Turbo Fan Drying, which quickly removes excess humidity after each cycle, resulting in cleaner, drier dishes
- Minimal Noise - Enjoy peace in the kitchen while getting a spotless wash every time, thanks to a low 51 dBa decibel level during operation
- Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 13 inches tall, while collapsible prongs on the upper and lower levels maximize spacing for bulkier items
- Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 15 place settings
- Custom Panel Finish - Customize your Tallac Series dishwasher with a beautiful black stainless steel door panel and black stainless steel handle

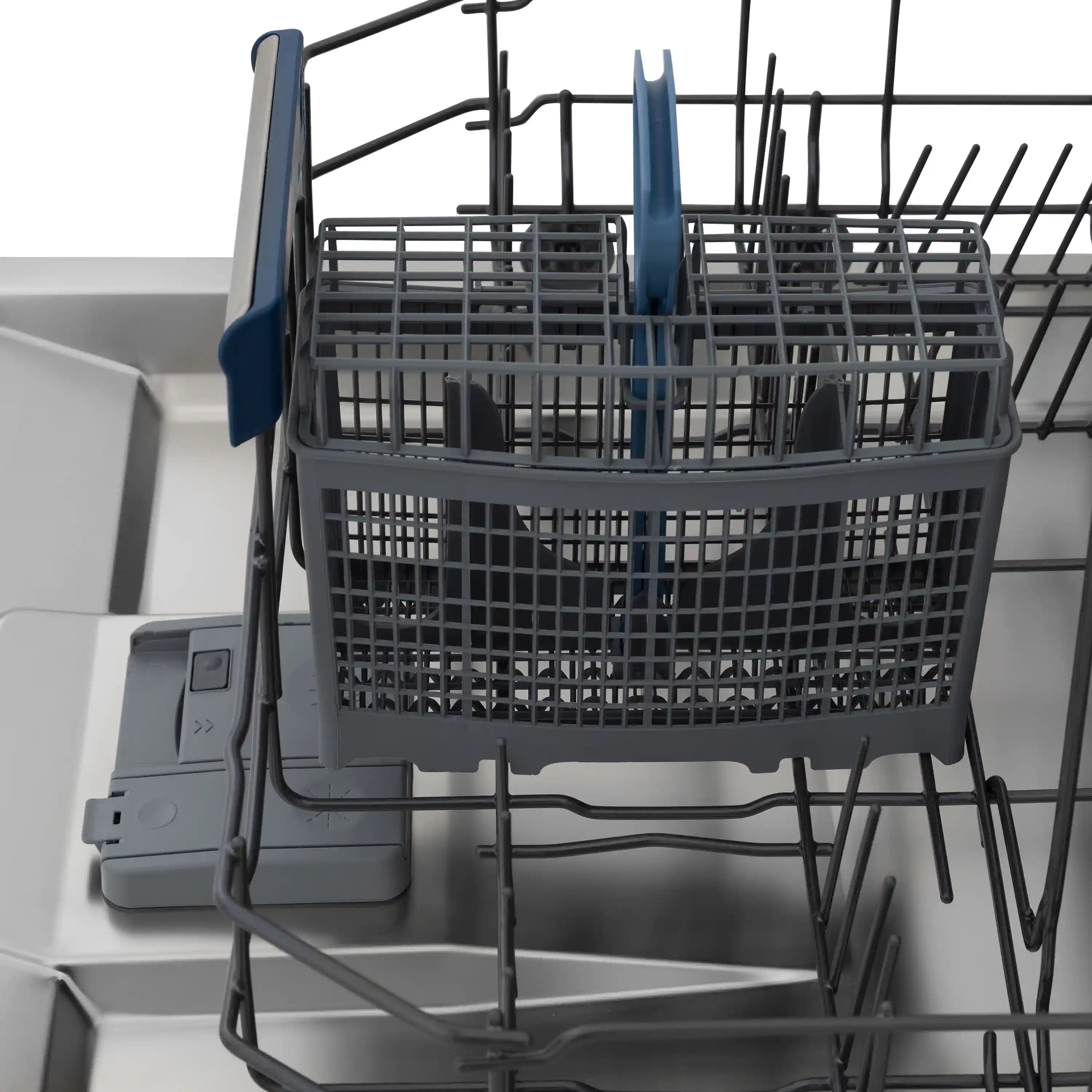

- Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments in the lower rack
- Delay Timer - Control when to schedule your heaviest washes with a convenient Delay Timer function that sets programs up to 19 hours in advance
- Integrated Controls - Select wash cycles and other functions with a gentle touch, thanks to a concealed, sleekly designed top control digital panel

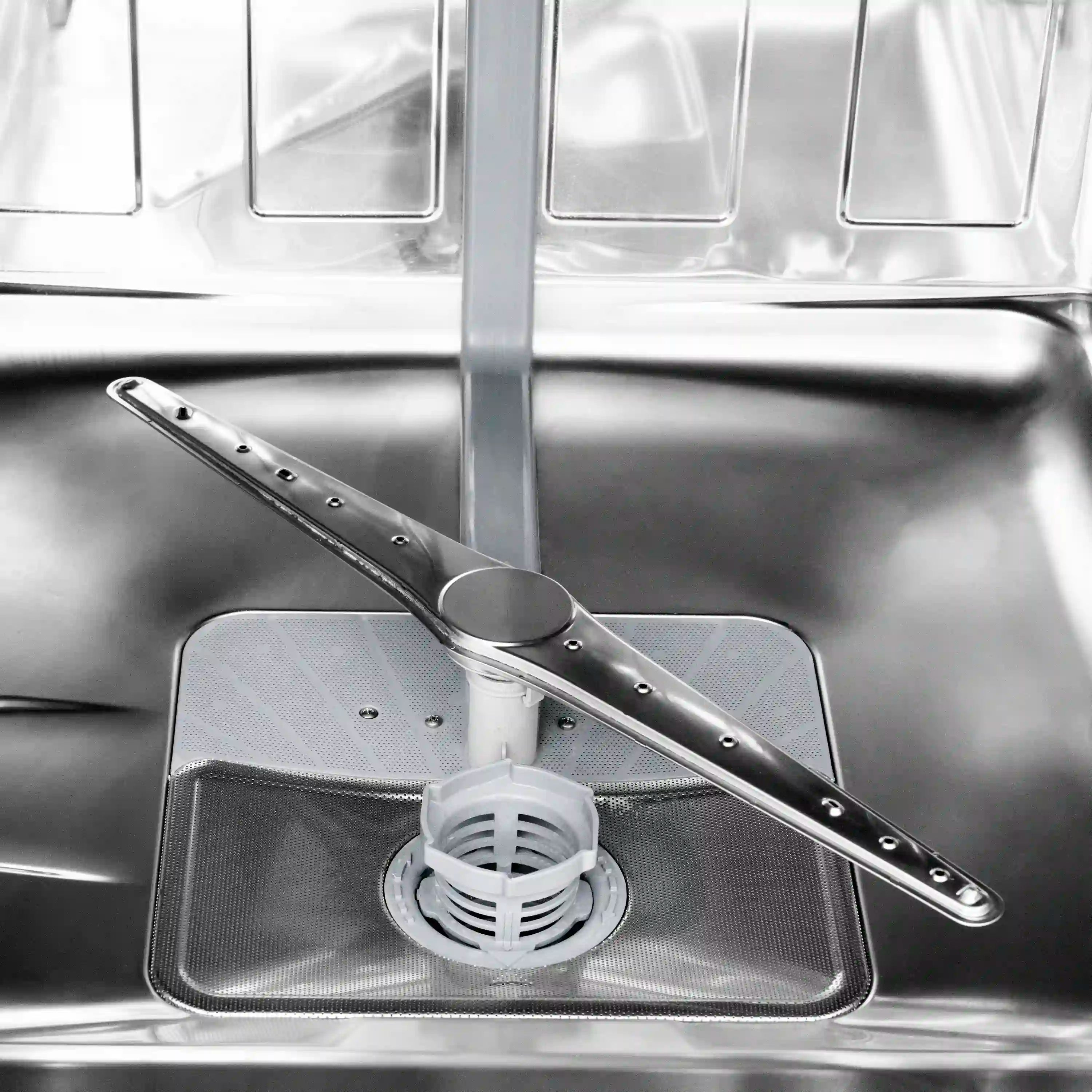

- Triple-Filter Cleaning - A triple-filter system easily separates soiled water and clean water in different chambers to achieve better performance
- Environmentally Conscious - CEE Tier 1 ENERGY STAR certification ensures maximum water and energy efficiency by using an advanced eco-wash mode
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Professional Installation Required - This product requires professional installation to ensure optimal plumbing and electrical performance and a seamless built-in look
- Size
- 24 in.

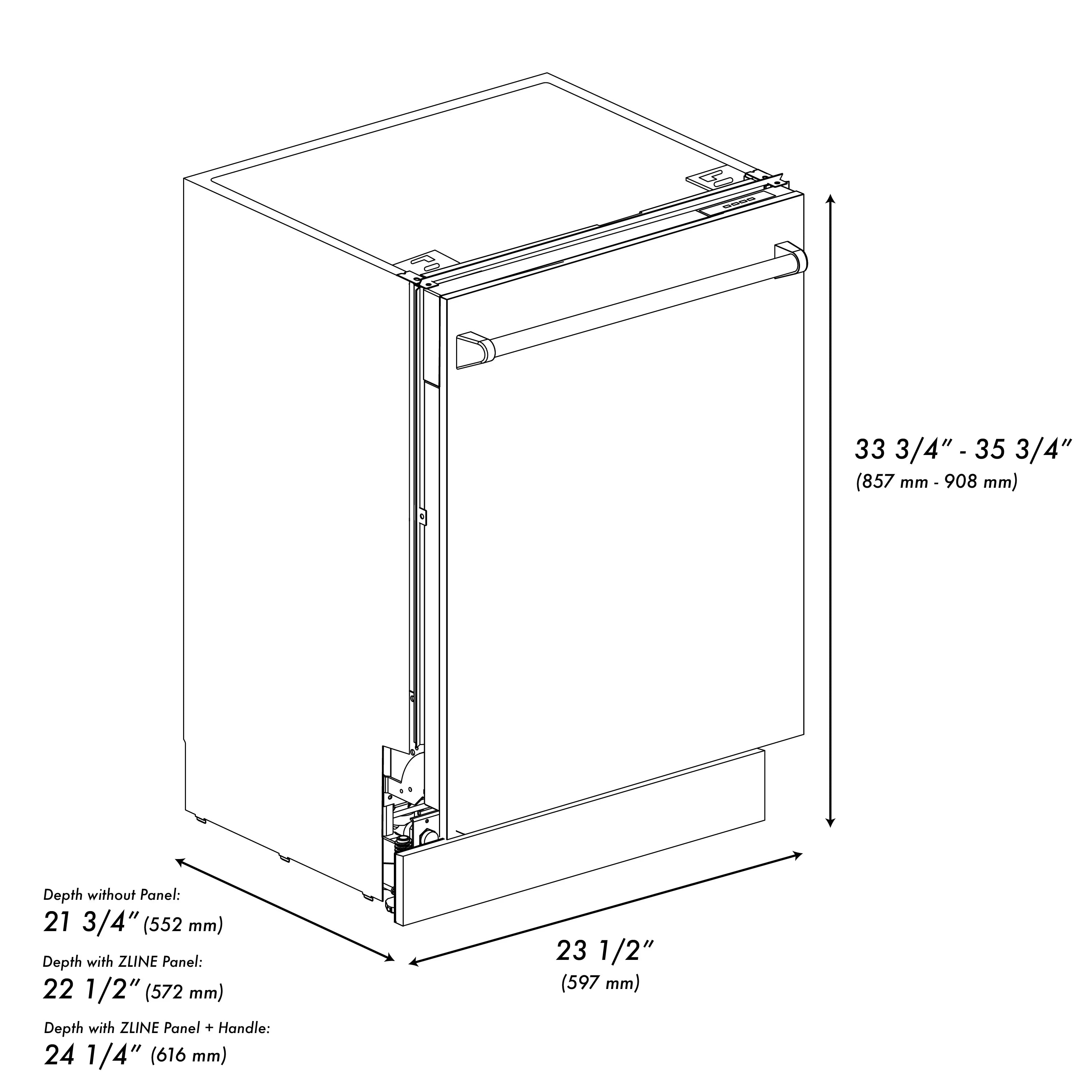

- Dimensions
- 23.6" W x 22.4" D x 33.9" H
- Product Weight
- 106.8 lbs
- Cut-Out Height
- 34.13 in.
- Cut-Out Width
- 24 in.
- Interior Dimensions
- 20.95" W x 20.5" D x 24.17"H
- Max Plate Height
- 13 in.
- Installation Type
- Plug In - Nema 5-15
- Panel Ready
- N
- Panel Finish
- Black Stainless Steel
- Handle Finish
- Black Stainless Steel
- Handle Type
- Traditional Style
- Control Location
- Top Control
- Control Type
- Button Control
- Silverware Basket Location
- Bottom Rack Center
- Voltage
- 120vac
- Frequency
- 60Hz
- Dedicated Circuit
- 15A
- Rated Current
- 12A
- Motor Wattage
- 100W
- Heater Wattage
- 1100W
- Motor Amperage
- 0.84A
- Heater Amperage
- 10A
- Energy Consumption Per Year
- 239 kWh
- Water Consumption Per Cycle (Liters)
- 11.73 L
- Water Consumption Per Cycle (Gallons)
- 3.1 gal
- Decibels
- 51 dBa
- Extended Hose Length
- 56 in.
- Drying System
- Turbo Fan Drying + Auto Door
- Steam Function
- Without Steam
- Features
- Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air
- Engineering Excellence - Achieve a spotless wash with a professional 304-grade stainless steel 3-rack dishwasher designed to be energy-conscious and sleek
- Multiple Wash Cycles - Choose from several different wash cycles, including a 50-minute Super Mode that cleans soiled dishes quicker while remaining energy-efficient
- Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
- Extra-Strength Cleaning - Specialty Intensive and Intensive Plus modes take care of heavily soiled items by adding extra time to each wash cycle
- Smart Wash Technology - An auto-sensing system determines the type of cycle and pressure required, limiting water usage to an energy-efficient 3.4 gallons per load
- Turbo Fan Drying - Tallac Dishwashers feature Turbo Fan Drying, which quickly removes excess humidity after each cycle, resulting in cleaner, drier dishes
- Minimal Noise - Enjoy peace in the kitchen while getting a spotless wash every time, thanks to a low 51 dBa decibel level during operation
- Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 13 inches tall, while collapsible prongs on the upper and lower levels maximize spacing for bulkier items
- Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 15 place settings
- Custom Panel Finish - Customize your Tallac Series dishwasher with a beautiful black stainless steel door panel and black stainless steel handle
- Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments in the lower rack
- Delay Timer - Control when to schedule your heaviest washes with a convenient Delay Timer function that sets programs up to 19 hours in advance
- Integrated Controls - Select wash cycles and other functions with a gentle touch, thanks to a concealed, sleekly designed top control digital panel
- Triple-Filter Cleaning - A triple-filter system easily separates soiled water and clean water in different chambers to achieve better performance
- Environmentally Conscious - CEE Tier 1 ENERGY STAR certification ensures maximum water and energy efficiency by using an advanced eco-wash mode
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Professional Installation Required - This product requires professional installation to ensure optimal plumbing and electrical performance and a seamless built-in look
- Certifications
- Energy Star, CEC, UL

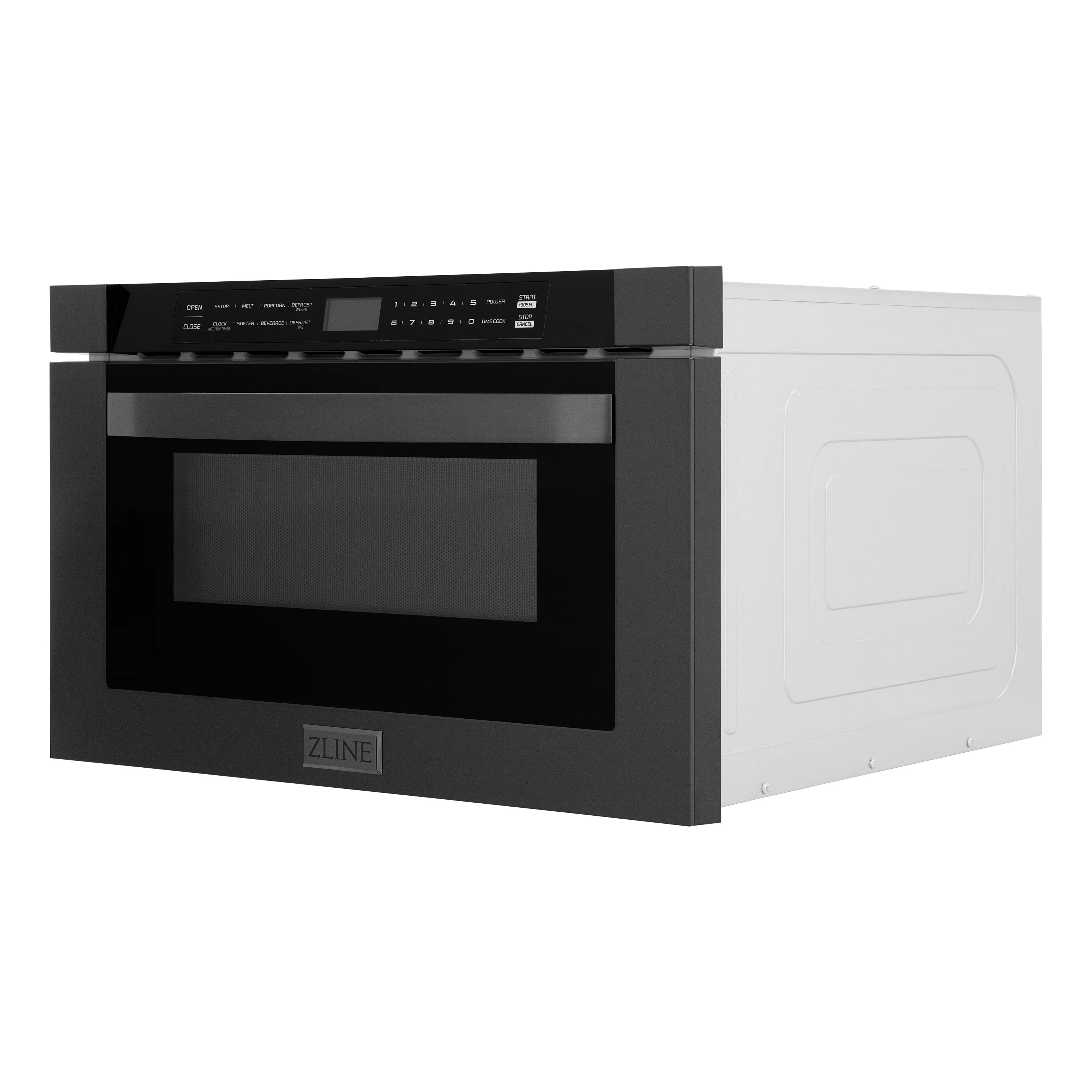

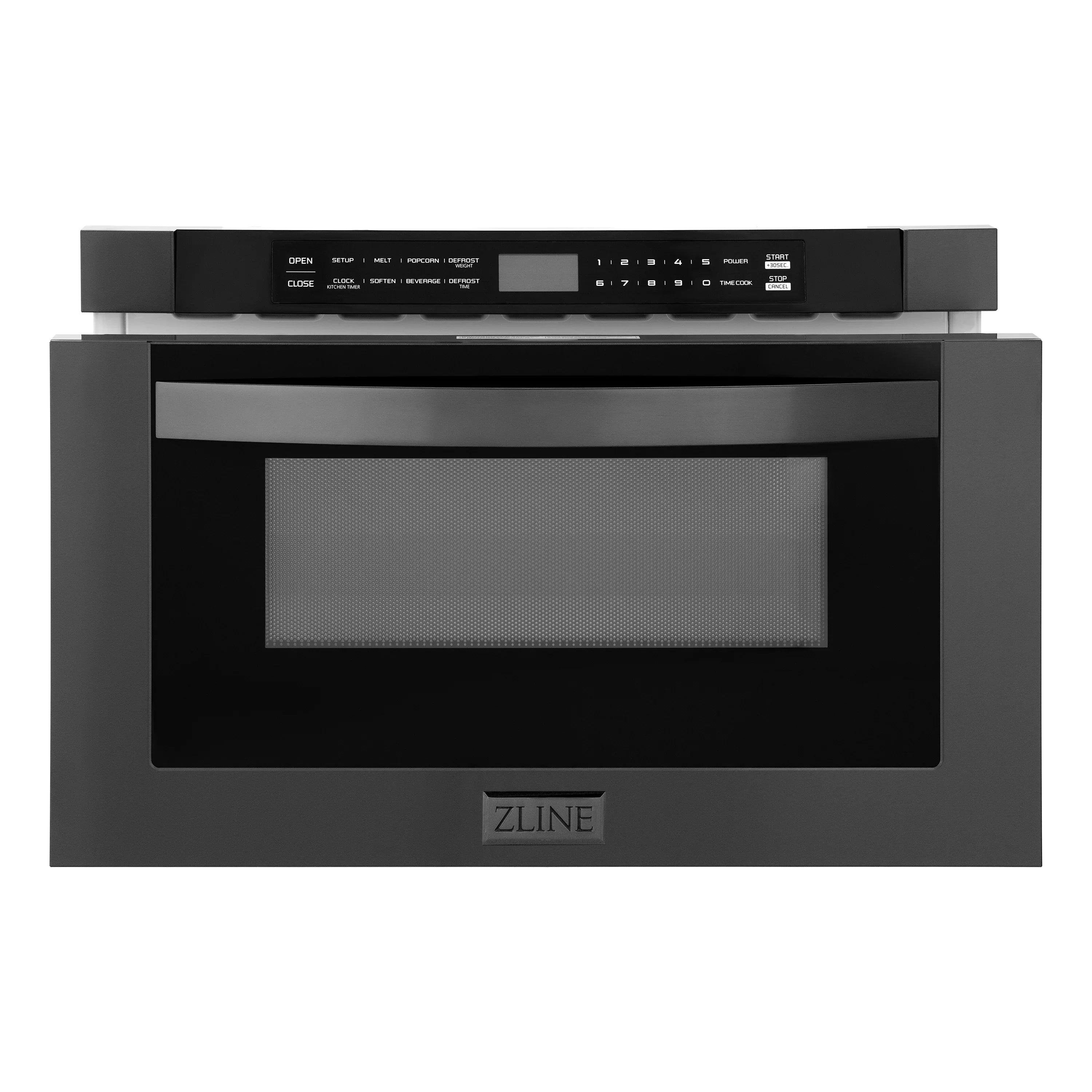

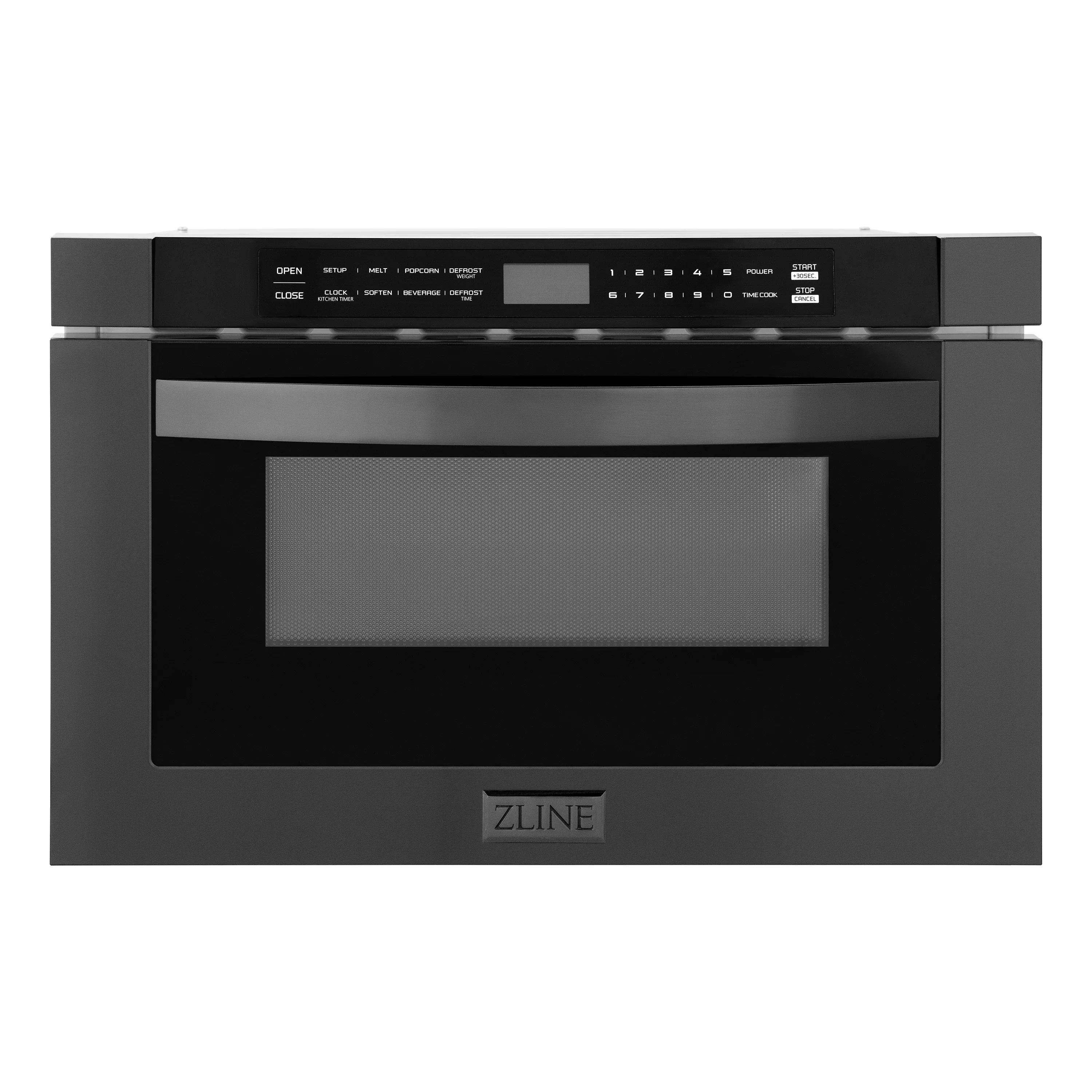

Luxury isn't meant to be desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 24" 1.2 cu. ft. Built-in Microwave Drawer in Black Stainless Steel (MWD-1-BS) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen's capability.
Features

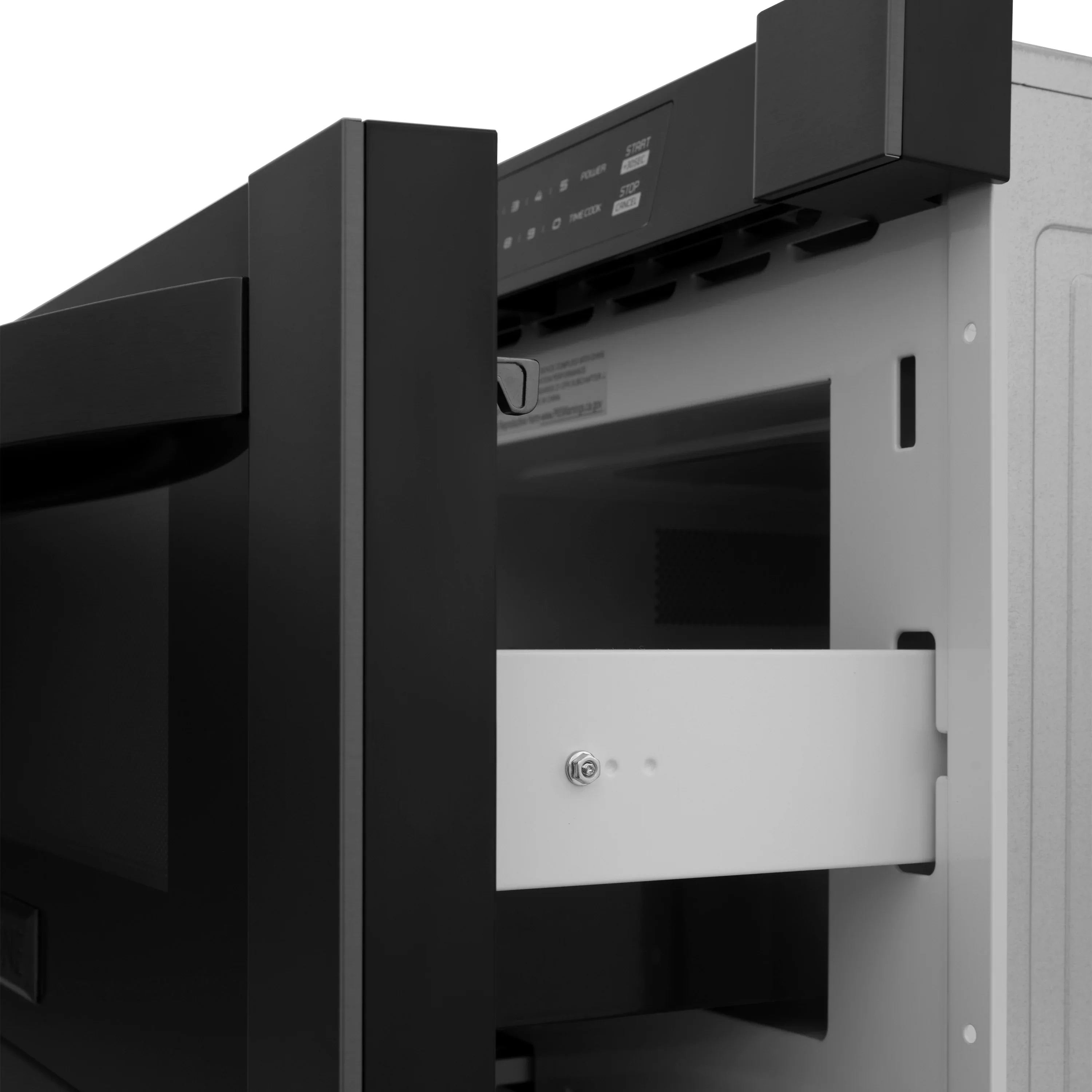

- Space-Saving - Free up your countertop space with an undercounter modern design with installation location flexibility to best fit your lifestyle
- Top Access Design - Easily transport hot dishes and prevent spills with an accessible top-loading design
- Convenient Microwave Modes - Achieve optimal results for every dish with sensor cooking, defrost, popcorn, and beverage settings
- Auto-touch Open and Close - Effortlessly open and close the microwave drawer with just the touch of a button

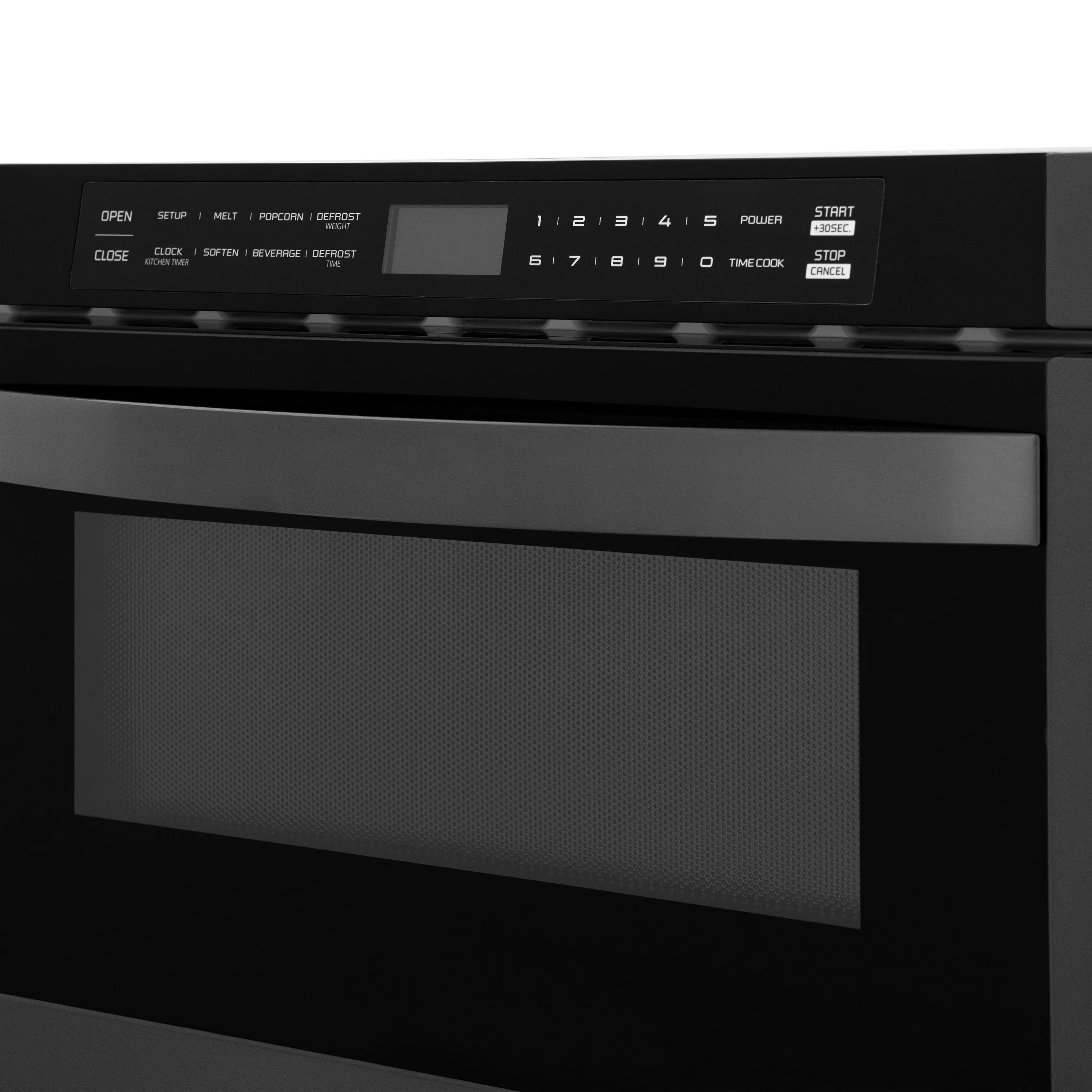

- Intuitive Control Panel - Enjoy an easy-to-use control panel that provides maximum convenience with a 45 degree angled design
- High-Powered Performance - Get the results you need with 11 different power levels and a powerful 1000 watt cooking power
- 1.2 cu. ft. Capacity - A large cooking area will easily fit your items, such as coffee mugs up to 7 in. tall and dishes up to 16 x 16 in.
- Reheat and Defrost - Minimize cooking time with convenient reheat and defrost functions
- Stainless Steel Finish - Brushed 430 grade stainless steel exterior provides an easy clean up and a timeless look in your kitchen
- Manufacturer Warranty - 2 year parts warranty
- ADA Compliant - Easy-to-use front touch controls with a 45 degree angle design provides ADA compliance

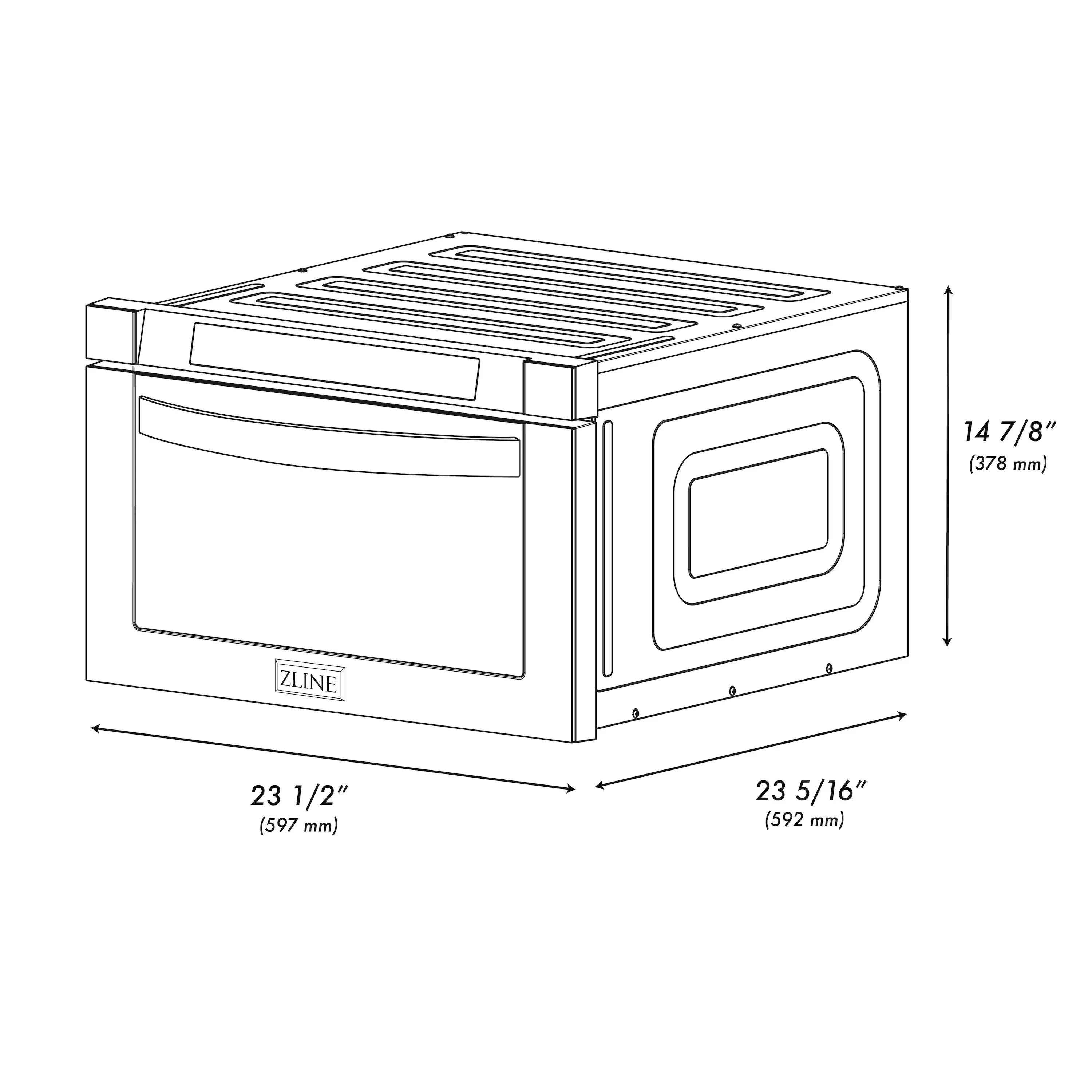

- Dimensions
- 23.5 in W x 23.31 in D x 14.88 in H
- Cut Out Dimensions
- 22.13 in W x 23.5 in D x 15 in H
- Nominal Width
- 25
- Product weight
- 69.9 lbs
- Total capacity
- 1.20
- Mount Type
- Drawer
- Control Type
- Touch Screen
- Voltage
- 120V/ 60HZ/15A
- Power Specs
- Amperage 13 / Frequency 60 / Voltage 120 Watts
- Exhaust fan speed
- 1
- Motor
- 1,000 Watts
- Auto Shut Off
- No
- Noise Level
- 45 dB Max
- Number of racks
- 1
- Temperature settings
- 11
- Certification
- ADA / Not Approved for Commercial use / UL Listed: yes
- Warranty
- 2 Year Parts
