What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

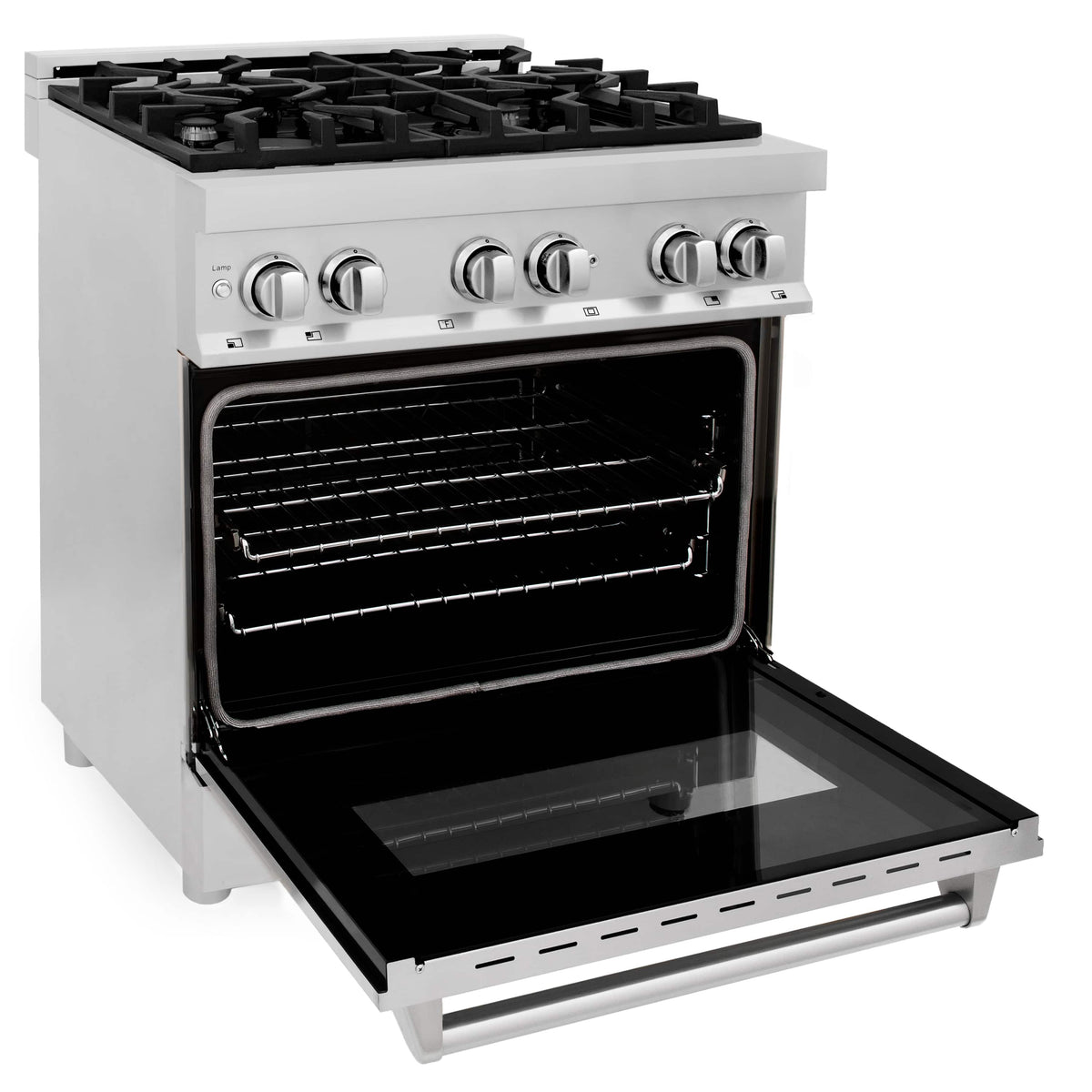

Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 30" 4.0 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Stainless Steel (RA30) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen’s capability.
Features
- Professional Dual Fuel Range Cooking - Blends high-performance technology of a gas cooktop and an electric convection oven

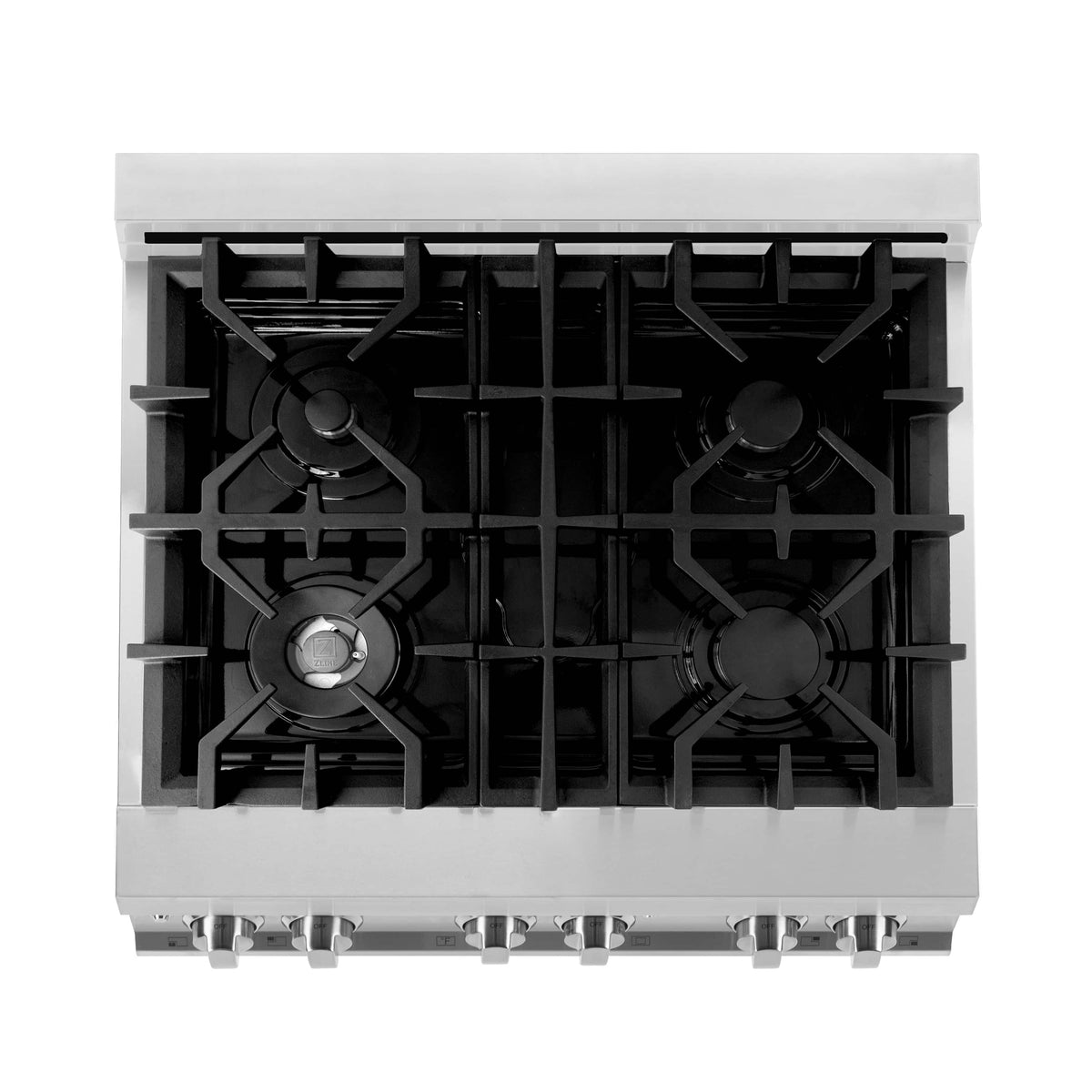

- Italian-Made Sealed Burners - Industry-leading gas cooktop includes 4 Hand-cast burners with cooking power ranging from 1,000 - 18,000 BTUs to optimize every meal with a powerful and even heat distribution
- Minimal Cleaning - Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance of gas cooktop

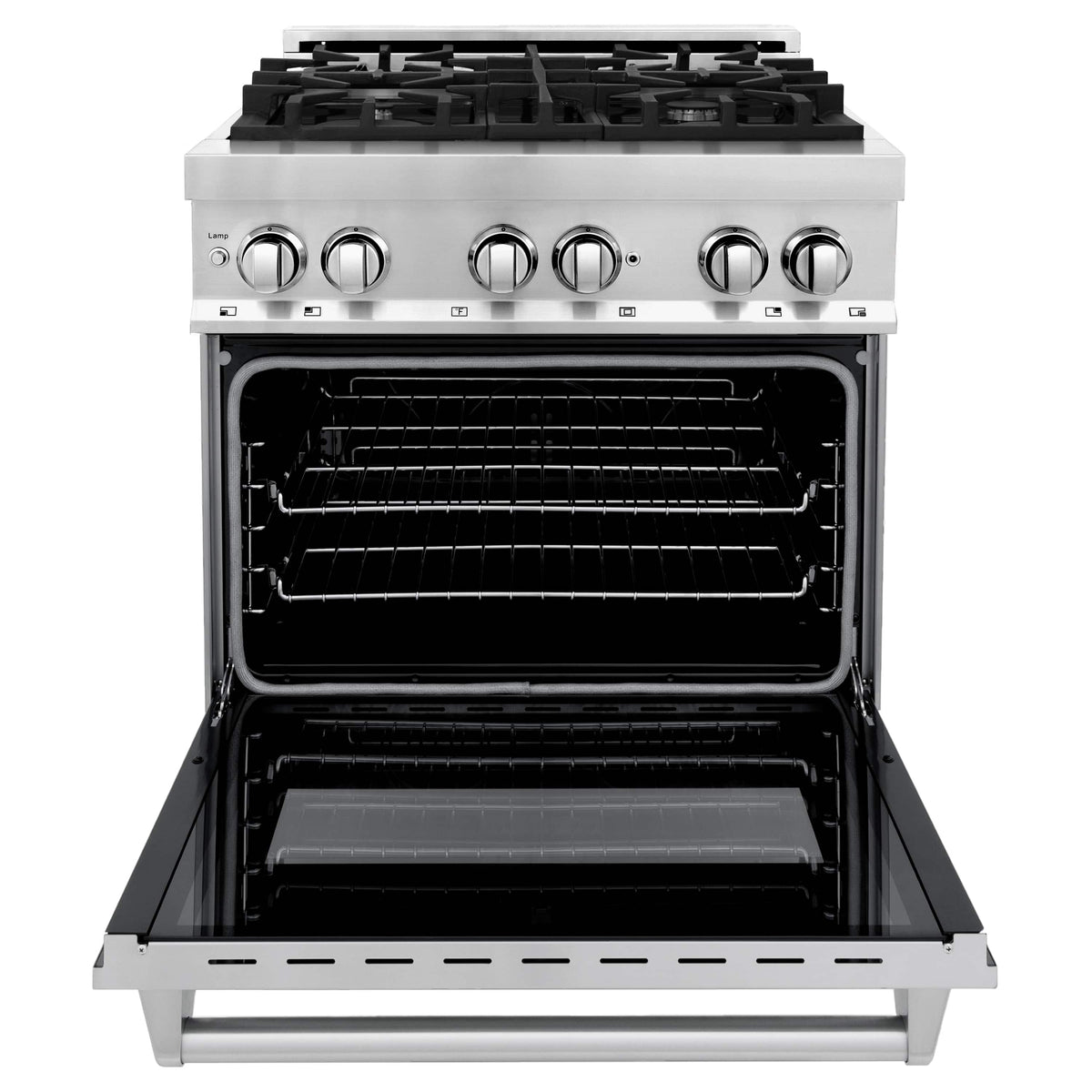

- Large Oven Capacity - 4.0 cu. ft oven capacity that fits up pans up to 23 in. wide for maximum space and convenience with everyday cooking
- Premium Oven Insulation - 3 layered glass and aluminum mesh seal offers superior heat retention and a consistent temperature, that creates perfect dishes every time

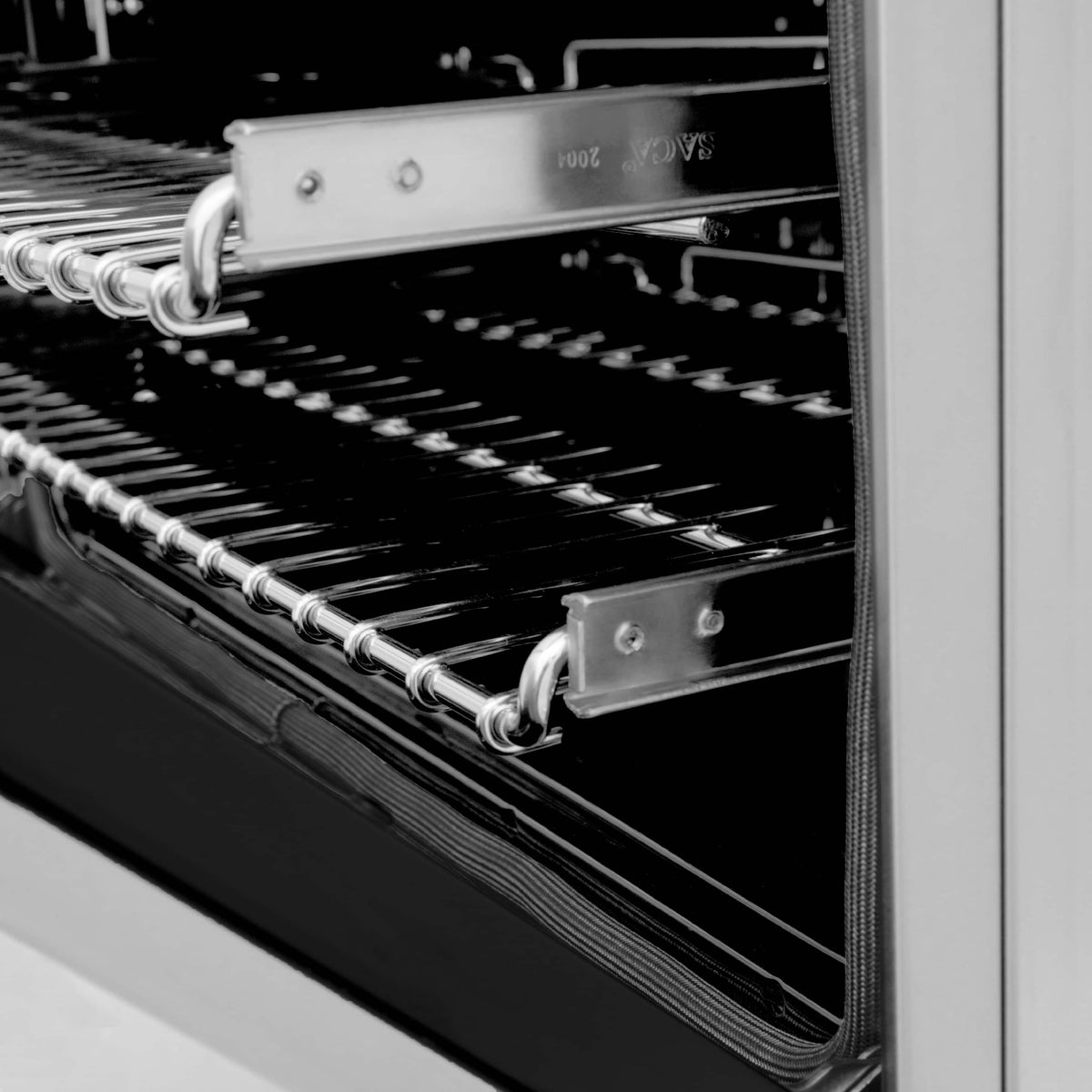

- Smooth Glide Ball-Bearing Oven Racks - Durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
- StayPut Oven Door Hinges - Designed to support the full weight of the oven door, offering additional convenience and safety
- Dual Oven Lights - Illuminate your oven space with dual lighting, controlled by a switch located on the front control panel
- LP Conversion Kit - Comes equipped with an LP conversion kit to convert from natural gas to liquid propane (must be done by a professional). Which offers versatility with your cooking preference
- Professional Look and Feel - Featuring high grade 304 grade stainless steel with durable cast iron grates
- Adjustable Oven Height - Easy adjustable legs allow you to adjust the total range height anywhere from 36 inches to 38.5 inches
- Industry First Lifetime Burner Warranty - Limited lifetime warranty on ZLINE Italian burners. Which includes part replacements for burners and burner caps and parts and labor for the spark tip if parts prove to be defective in materials or workmanship
- Manufacturer Warranty - 1 year parts and service warranty on ZLINE Dual Fuel Ranges

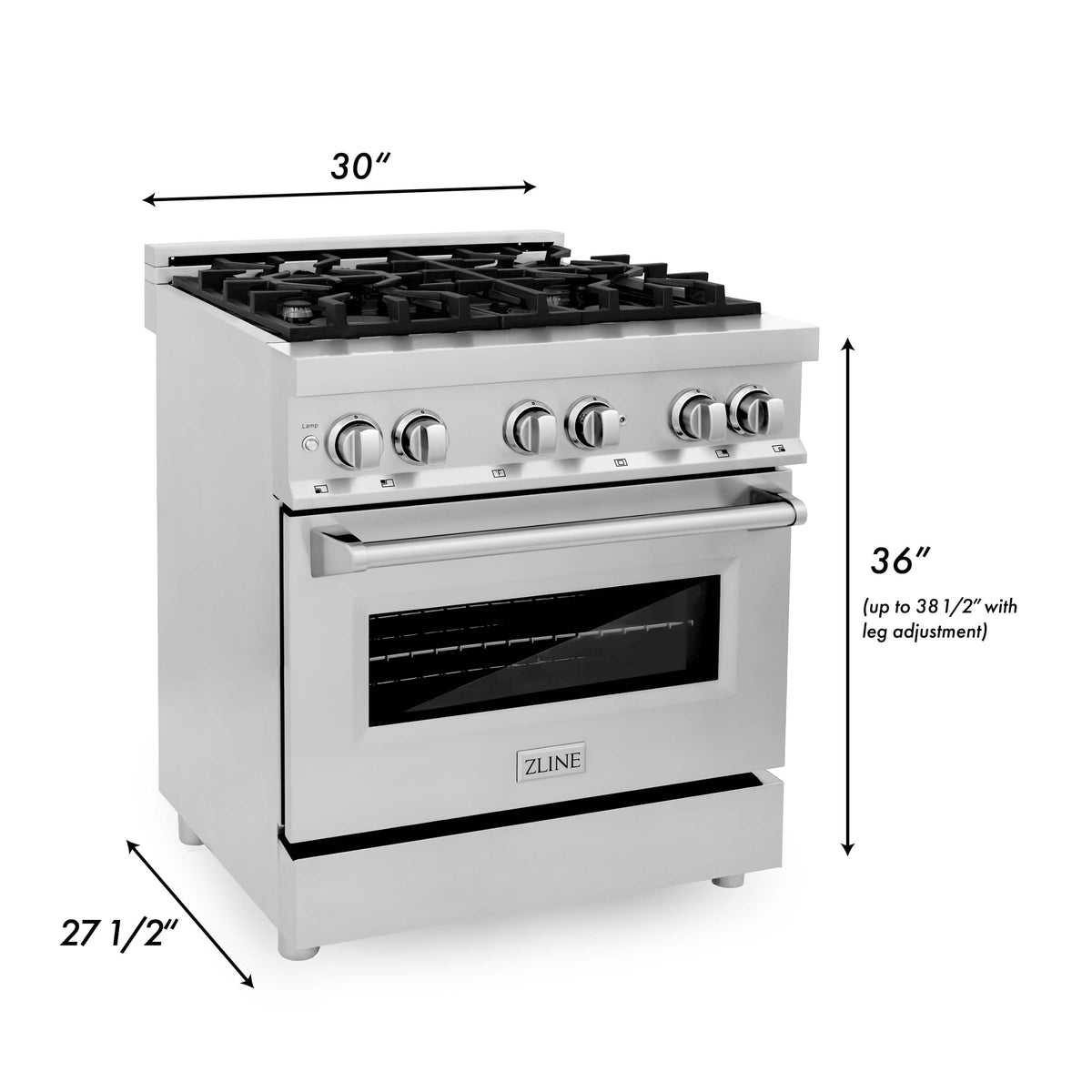

DIMENSIONS
- Dimensions
- 29.75 in. W x 27.75 in. D x 36.13 in. H
- Cut-Out Dimensions
- 30 in. W x 24 in. D x 36 in. H
- Adjustable Height
- 36.13 - 38.63 in. H
- Product Depth with Handle
- 29.63 in. D
- Open Door Depth
- 41.8 in. D
- Interior Oven Dimensions
- 24.88 in. W x 17.75 in. D x 16 in. H
- Weight
- 256 lbs
GENERAL INFORMATION
- Brand
- ZLINE Kitchen and Bath
- Number of Burners
- 4
- Number of Racks
- 2
DESIGN & FINISH
- Material
- Stainless Steel
- Lighting
- Halogen Lights
TECHNICAL DETAILS
- Burner Fuel
- Natural Gas and Liquid Propane Convertible
- Oven Fuel
- Electric
- Electrical Requirements
- Dedicated 240V, 60Hz, 15-amp circuit with a NEMA 14-50 4-wire plug system
- Cooktop BTUs
- Back Left: 4,200 BTU, Front Left: 18,000 BTU, Back Right: 8,500 BTU, Front Right: 13,000 BTU
- Oven BTUs
- Total BTUs: 45000 BTU
FEATURES
- Oven Capacity (cu.ft)
- 4 cu. ft.
- Oven Features
- Bake, Broil, Convection Bake
- Convection Fan
- Yes
- Self Clean (Y/N)
- No
- Timer (Y/N)
- No
- Additional Features
- Italian Burners: Lifetime Burner Warranty, Stay-Put Hinges, Full Extension Telescoping Glide Racks, LED Accent Lighting, 3-Layered Glass on Oven Door
WARRANTY & CERTIFICATIONS
- Certifications
- CSA Listed
- Warranty
- 1-Year Parts and Service, Lifetime Burner Warranty
Piece 2 of 3 — DISHWASHER

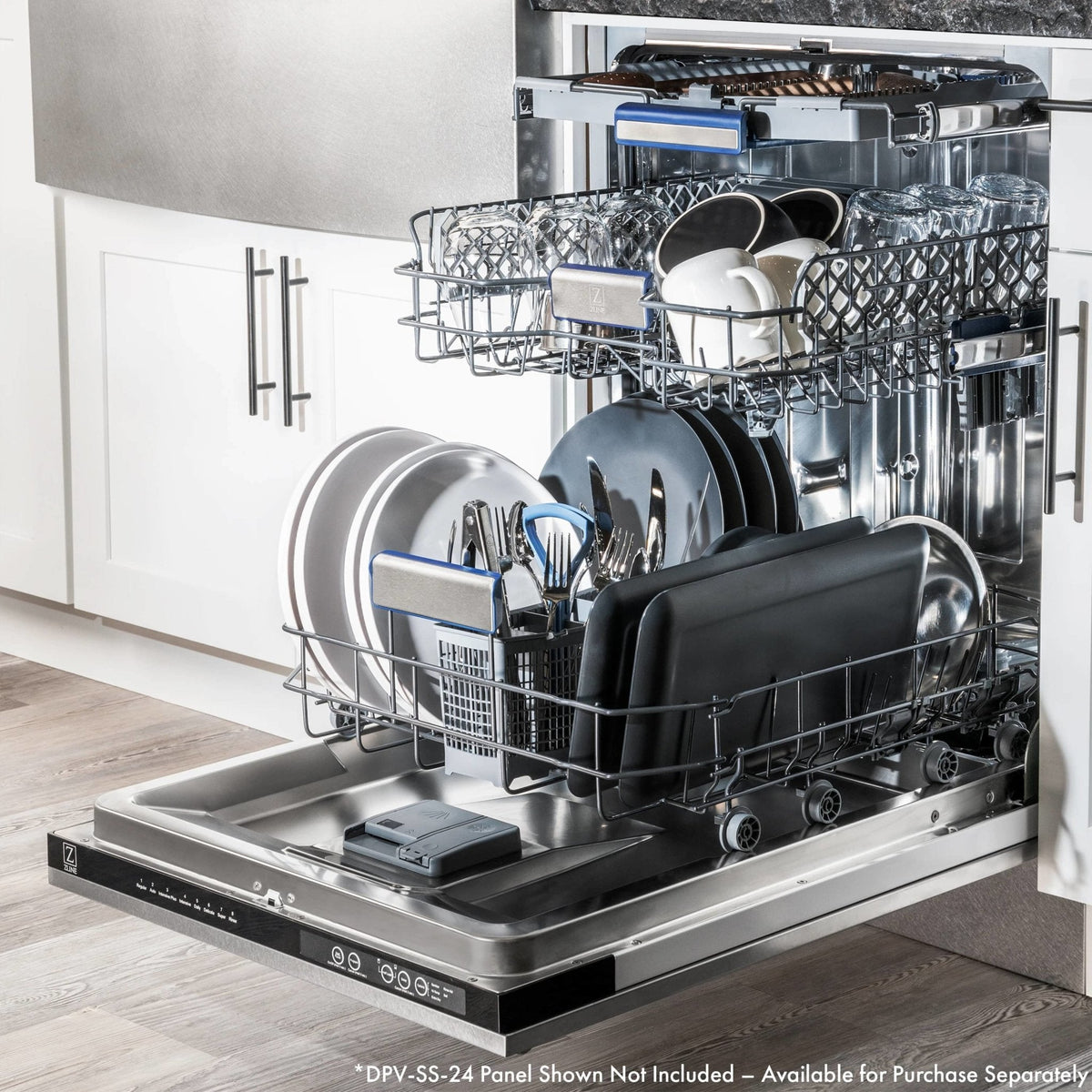

The ZLINE 24 in. Tallac Series 3rd Rack Dishwasher with Auto Door Open Drying, 51dBa, Stainless Steel Panel (DWV-304-24) features multiple wash cycles, a multi-filter cleaning system, and advanced Auto Door Open technology purposefully designed to deliver sparkling clean and dry dishes. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability with timeless style.
Features
- Auto Door Open Drying - Efficiently dry coffee mugs and deep-bottom items with a door that automatically opens at the end of the cycle to release steam and circulate fresh air
- Engineering Excellence - Achieve a spotless wash with a professional 304-grade stainless steel 3-rack dishwasher designed to be energy-conscious and sleek
- Multiple Wash Cycles - Choose from several different wash cycles, including a 50-minute Super Mode that cleans soiled dishes quicker while remaining energy-efficient

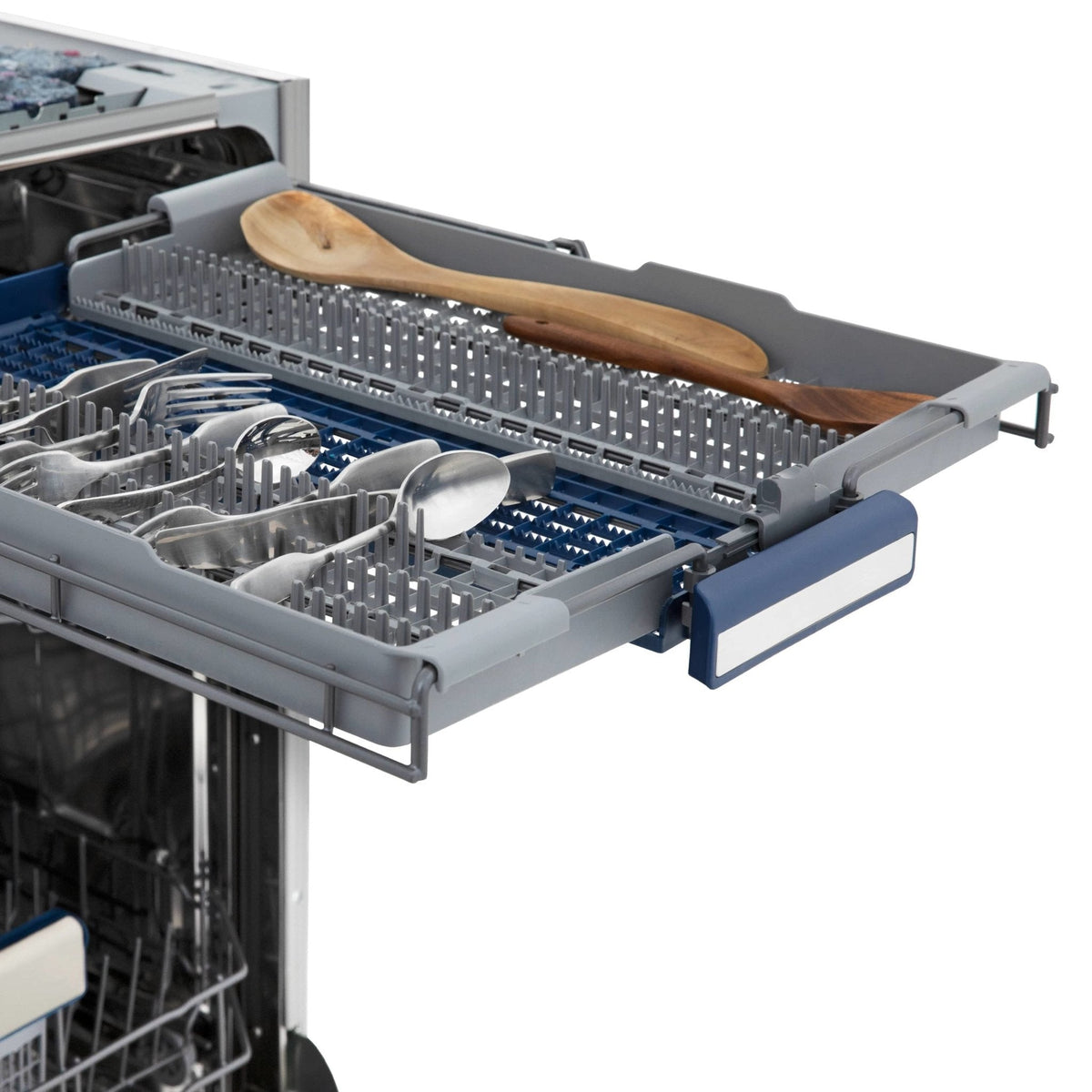

- Customizable 3rd Rack - Organize flatware and silverware on a slim third rack with a versatile sliding design that can be retracted to make room for taller glasses below
- Extra-Strength Cleaning - Specialty Intensive and Intensive Plus modes take care of heavily soiled items by adding extra time to each wash cycle
- Smart Wash Technology - An auto-sensing system determines the type of cycle and pressure required, limiting water usage to an energy-efficient 3.4 gallons per load
- Turbo Fan Drying - Tallac Dishwashers feature Turbo Fan Drying, which quickly removes excess humidity after each cycle, resulting in cleaner, drier dishes
- Minimal Noise - Enjoy peace in the kitchen while getting a spotless wash every time, thanks to a low 51 dBa decibel level during operation

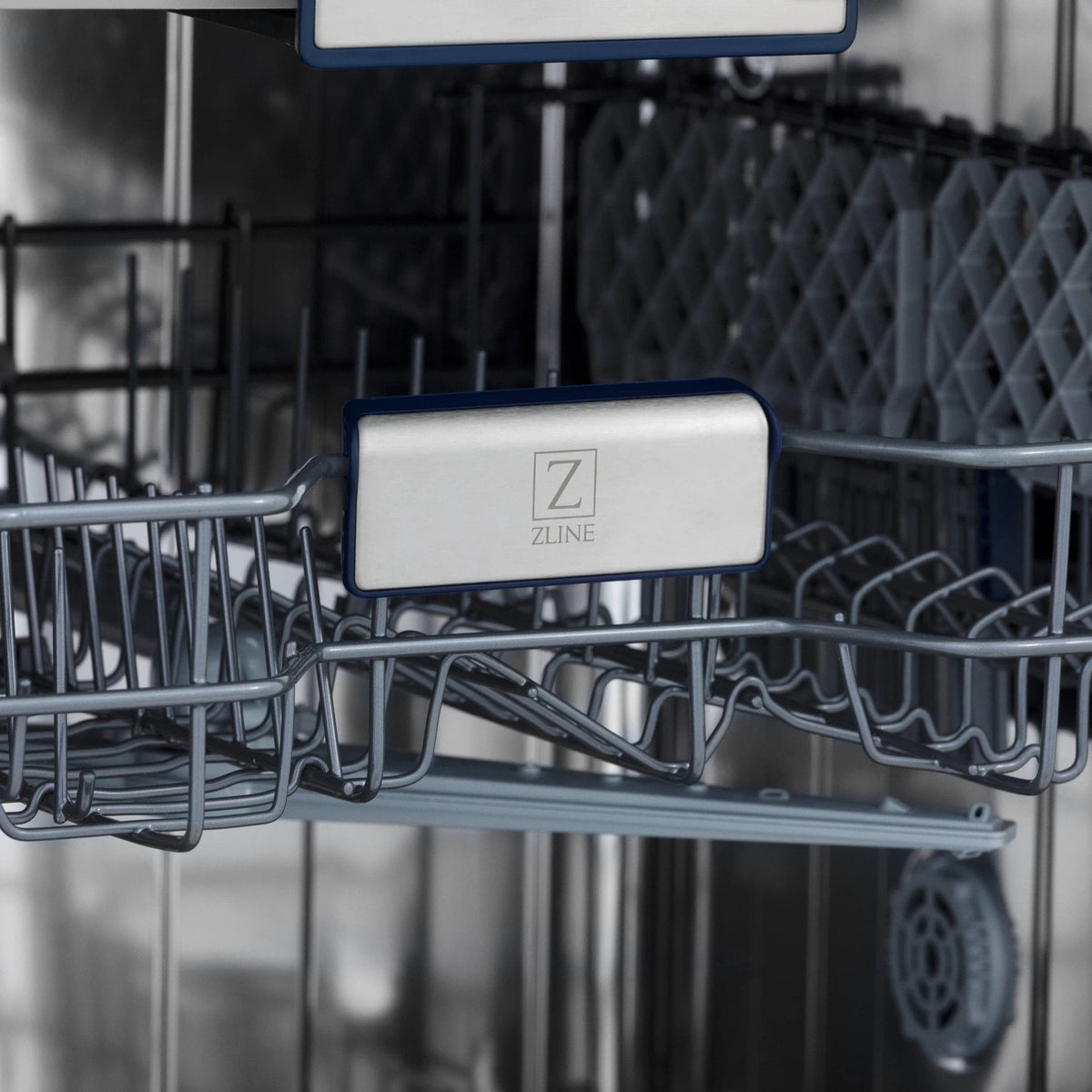

- Adaptable Racks and Tines - Adjust the upper rack to fit dishware up to 13 inches tall, while collapsible prongs on the upper and lower levels maximize spacing for bulkier items

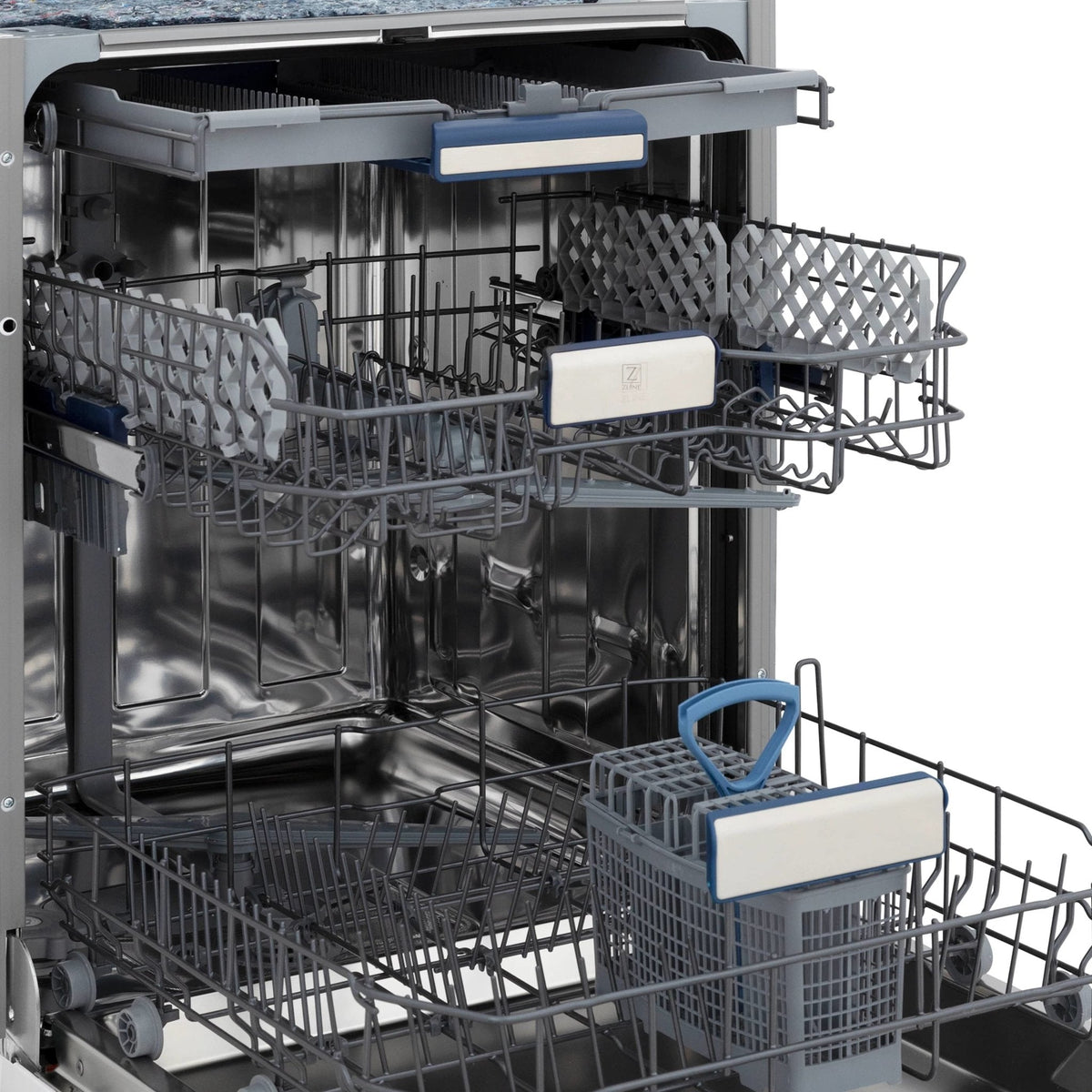

- Stainless Steel Tub - Achieve a spotless wash inside a durable stainless steel interior with adjustable racks that accommodate up to 15 place settings

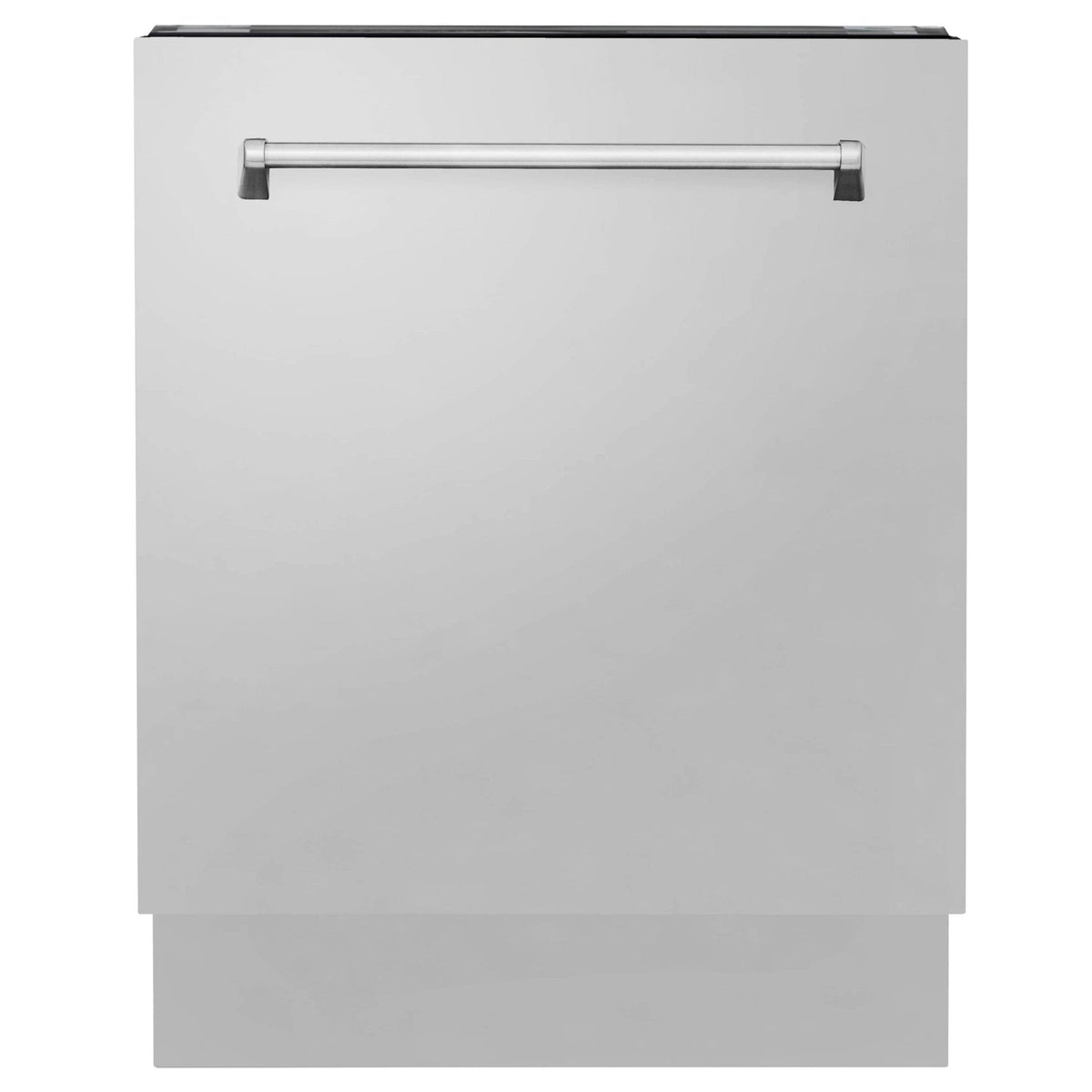

- Custom Panel Finish - Customize your Tallac Series dishwasher with a beautiful 304-grade stainless steel door panel and stainless steel handle
- Cutlery Basket - Enjoy even more space for washing utensils with a cutlery basket designed to fit in multiple compartments in the lower rack
- Delay Timer - Control when to schedule your heaviest washes with a convenient Delay Timer function that sets programs up to 19 hours in advance
- Integrated Controls - Select wash cycles and other functions with a gentle touch, thanks to a concealed, sleekly designed top control digital panel
- Triple-Filter Cleaning - A triple-filter system easily separates soiled water and clean water in different chambers to achieve better performance
- Environmentally Conscious - CEE Tier 1 ENERGY STAR certification ensures maximum water and energy efficiency by using an advanced eco-wash mode
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Professional Installation Required - This product requires professional installation to ensure optimal plumbing and electrical performance and a seamless built-in look
DIMENSIONS
- Product Dimensions
- 23.5 in. W x 21.75 in. D x 33.75 in. H
- Cutout Dimensions
- 23.63 in. W x 24 in. D x 34 in. H
- Product Weight
- 116.4 lbs
- Max Plate Height
- 13 in.
- Adjustable Legs
- Min Height: 33.75 in., Max Height: 35.75 in.
GENERAL INFORMATION
- Brand
- ZLINE
- Number of Cycles
- 8
- Number of Place Settings
- 15
DESIGN & FINISH
- Handle Type
- Traditional Handle
- Rack Material
- Nylon
- Panel Finish
- Stainless Steel
- Material
- Stainless Steel Tub
TECHNICAL DETAILS
- Electrical Requirement
- 120-Volt/60 Hz/15 Amp
- Motor Wattage
- 108W
- Control Location
- Top Control
- Noise Level
- 51 dBa
WARRANTY & CERTIFICATIONS
- Warranty
- 1 Year Parts and Service Warranty
- Certifications
- ETL and UL Certified
Piece 3 of 3 — RANGE HOOD

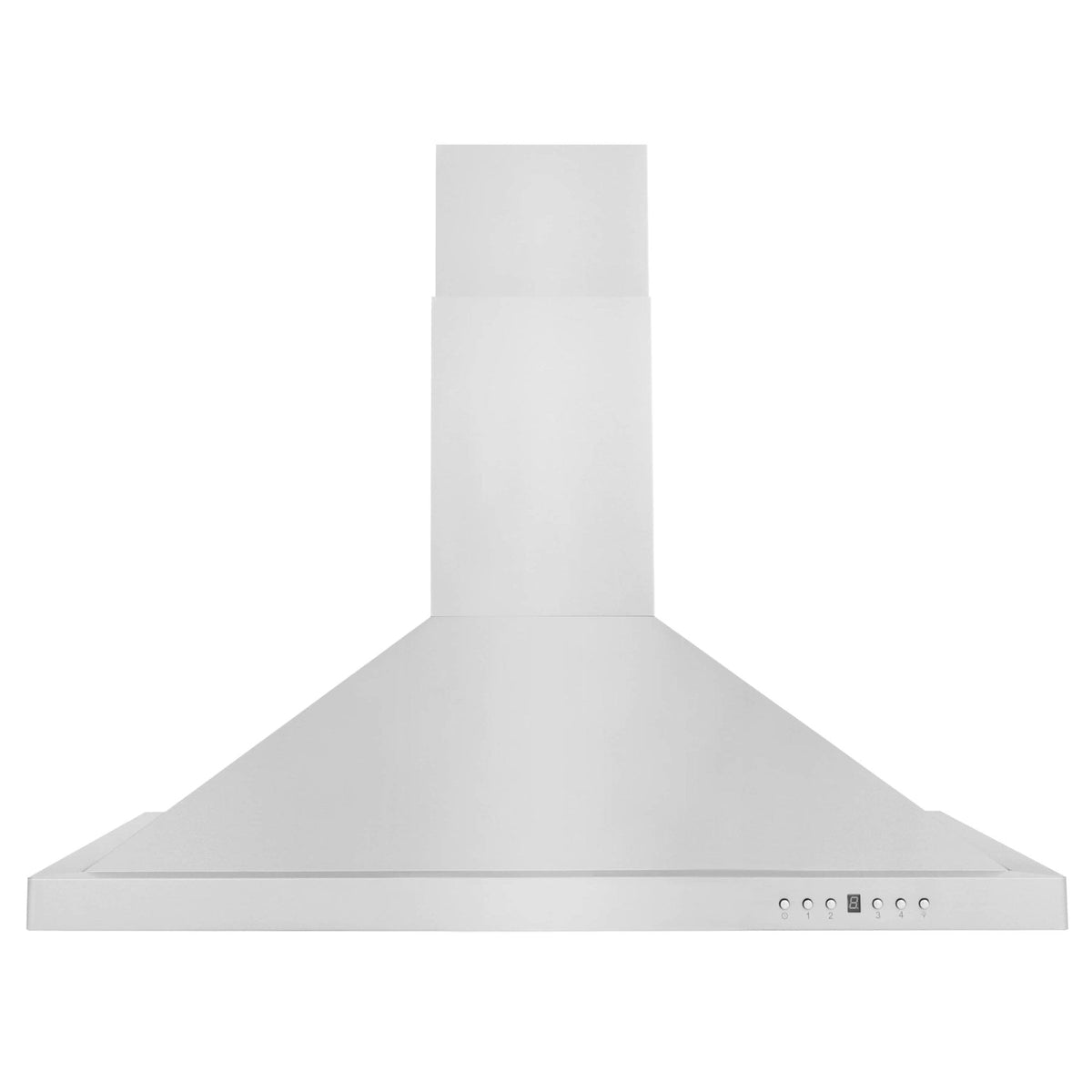

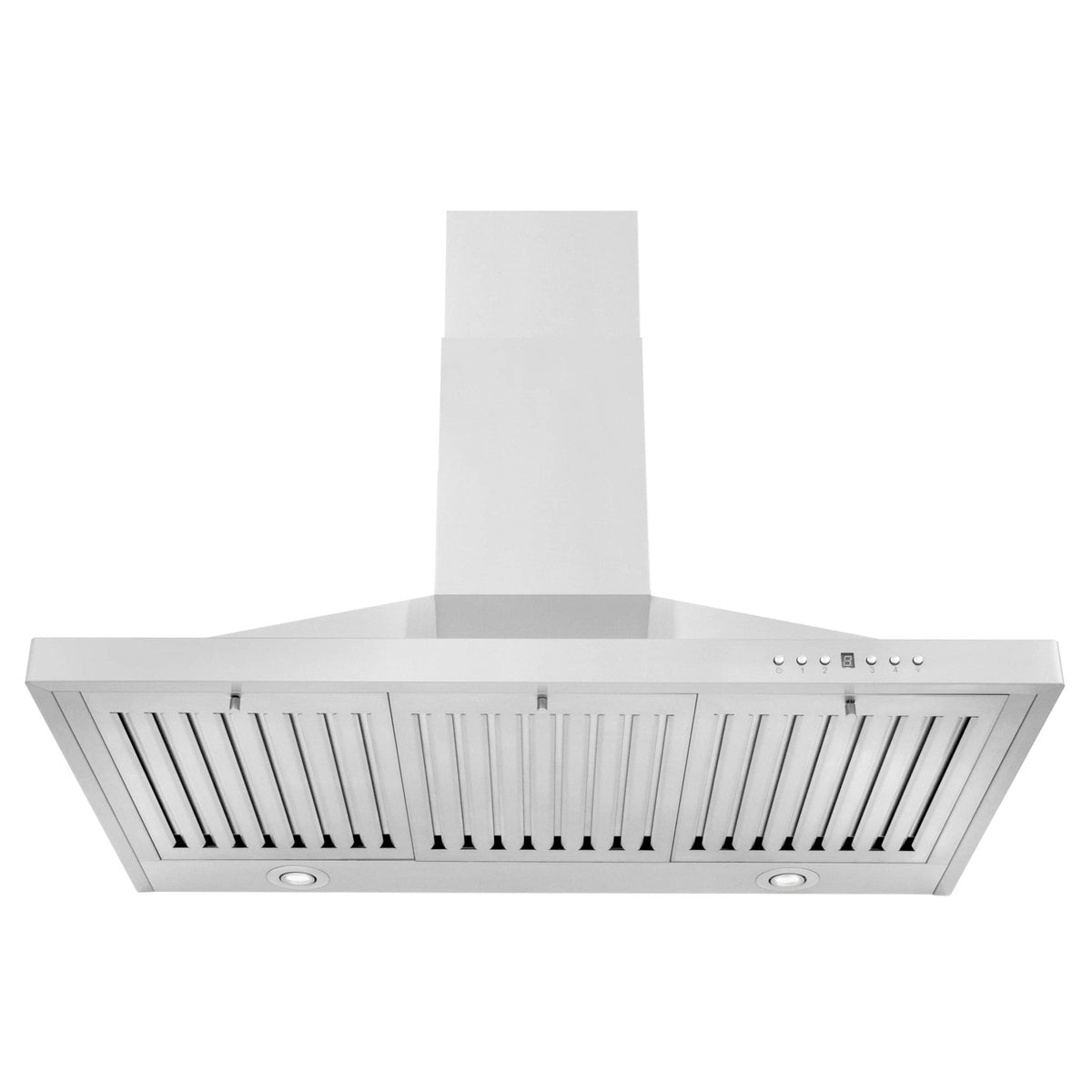

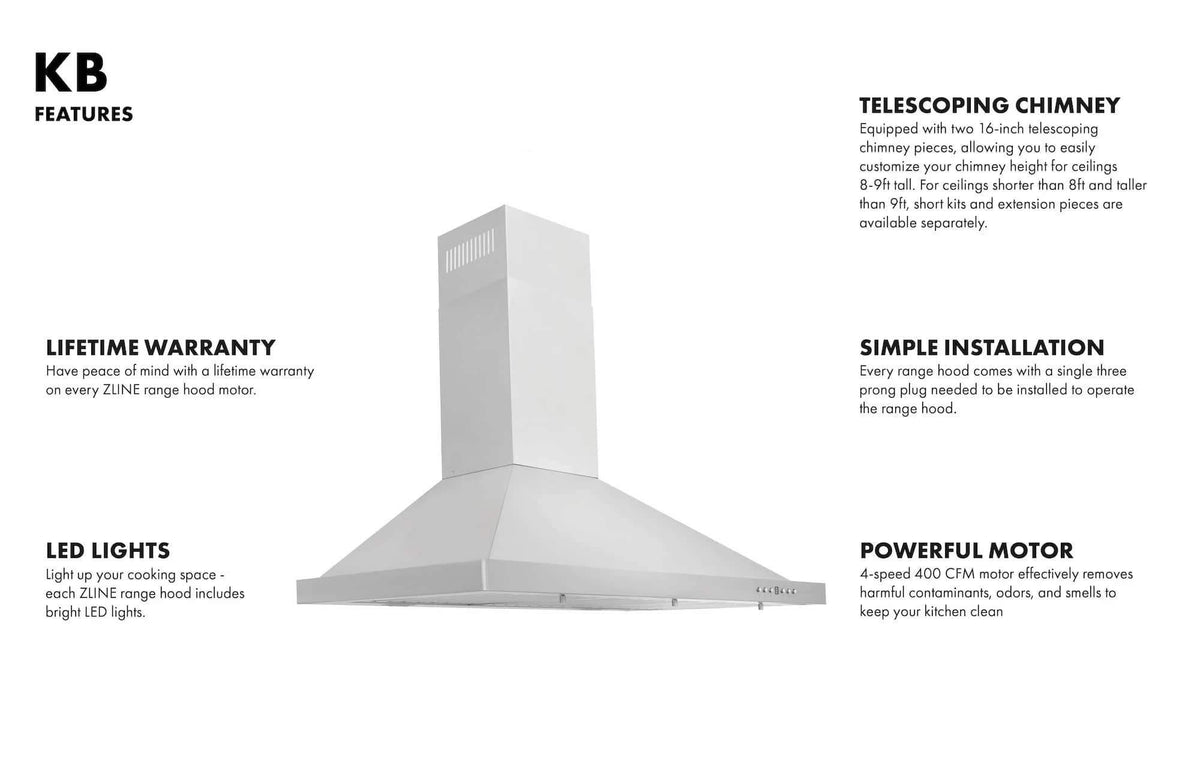

The ZLINE 30 in. Convertible Vent Wall Mount Range Hood in Stainless Steel (KB-30) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.
Features
- Wall Mount Design - This chimney-style range hood is designed to install seamlessly into custom-built cabinetry set-ups by mounting directly to the wall above your cooktop
- Stainless Steel Finish - A brushed 430 grade stainless steel exterior finish contains rust and corrosion-resistant properties to ensure a durable range hood that will last for years to come
- Convertible Range Hood - This unit can be externally vented or recirculated (ductless) with charcoal filters (not included, model number CF1) to reduce harmful odors

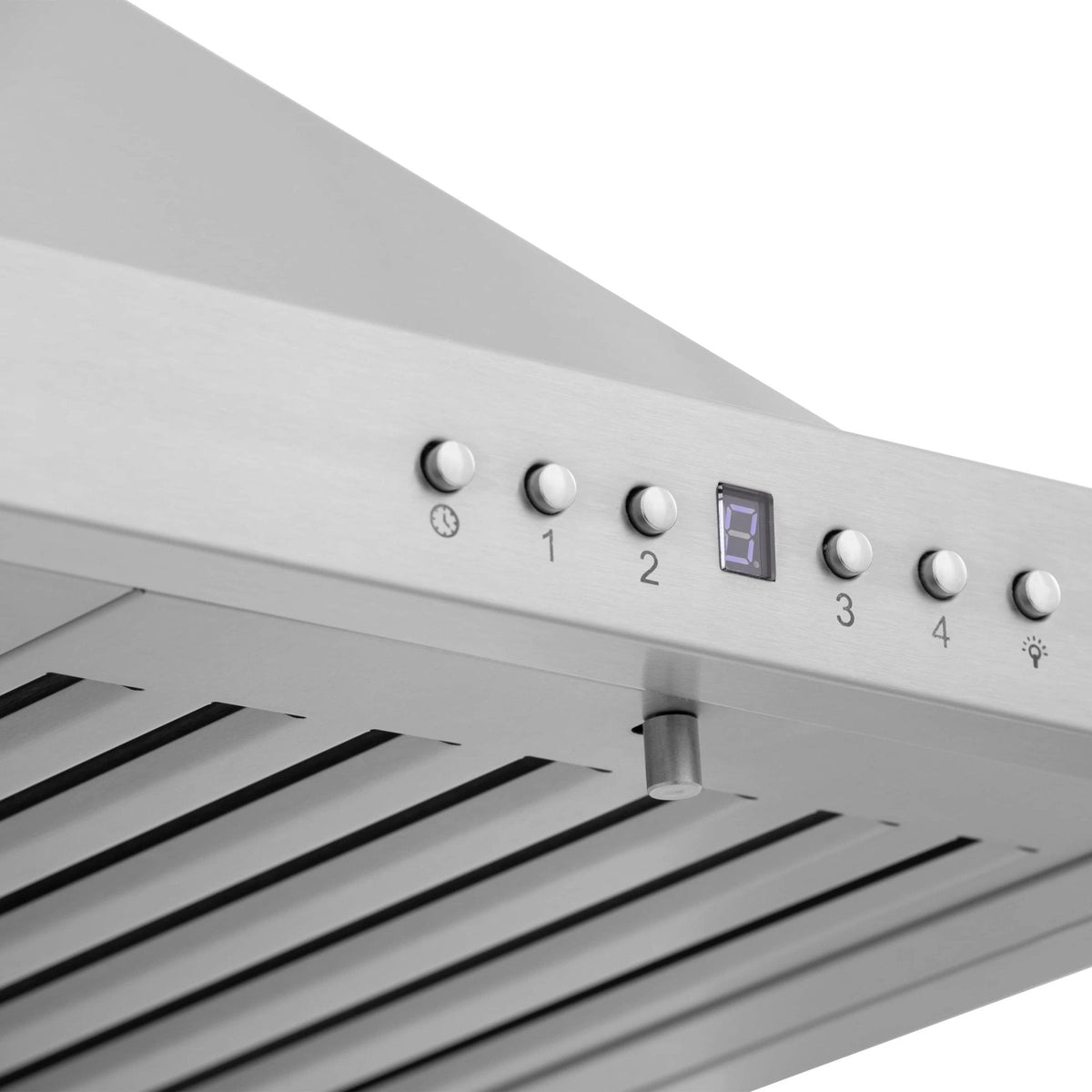

- Convenient Control Panel - Easy-to-use push button controls let you easily adjust fan speeds and lighting options
- 4-Speed Fan Control - Choose the appropriate air flow among 120/240/320/400 CFM for your cooking situation
- Powerful Ventilation - The highest speed setting of 400 CFM air flow efficiently moves large amounts of air away from your cooking area
- Minimal Cleaning - This range hood includes dishwasher-safe stainless steel baffle filters that are easy to remove for regular cleaning

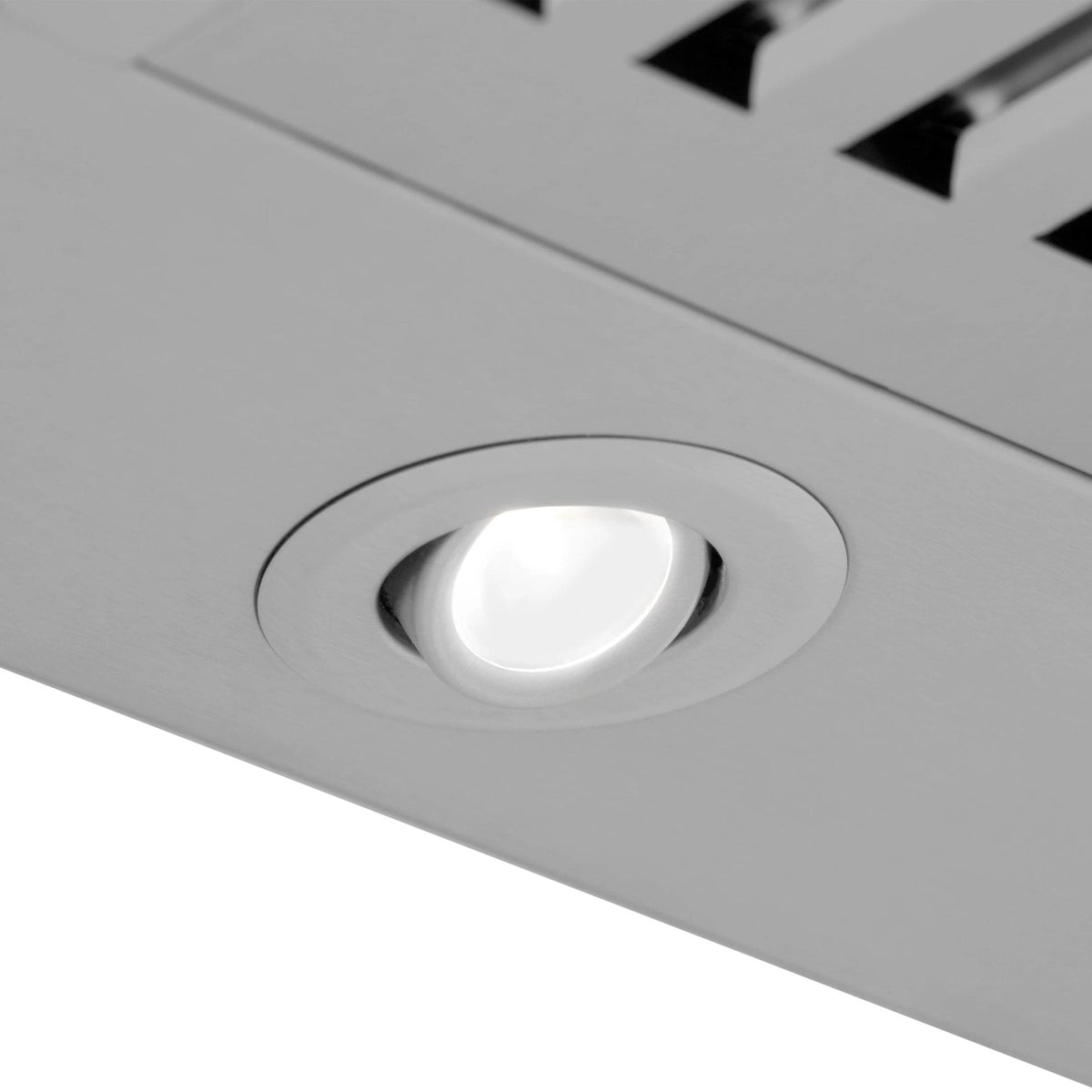

- LED Lighting - ZLINE range hoods come equipped with energy-efficient LED lights to illuminate the cooking surface below
- Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
- Standard Ductwork - ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 6 in. diameter ducting
- Warranty - ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty
DIMENSIONS
- Dimensions
- 30" W x 17.7" D x 10.5" H
- Chimney Dimensions
- 9.2 in. W x 8 in. D x 16 H (x2) (Telescoping)
GENERAL INFORMATION
- Brand
- ZLINE Kitchen and Bath
- Mount Type
- Wall Mount
DESIGN & FINISH
- Lighting
- LED
- Material
- Stainless Steel
TECHNICAL DETAILS
- Venting Size
- 6 in. Outlet, Charcoal filters (not included) are available for ductless/ recirculating options.
- Airflow (Q/L/M/H)
- 120/240/320/400CFM
- Voltage
- 110V/60HZ
- Motor
- High Performance 400 CFM/4-Speed Motor
- Speeds
- 4
- Filters
- Stainless Steel Baffle Filters (Dishwasher Safe)
- Control Type
- Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
WARRANTY & CERTIFICATIONS
- Certifications
- ETL Listed
- Warranty
- 3 Year Parts and Lifetime Motor Warranty
