Luxury isn’t meant to be desired - it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 30" 4.0 cu. ft. Dual Fuel Range with Gas Stove and Electric Oven in Stainless Steel (RA30) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen’s capability.
| Dimension: | 29.75" W x 27.5" D x 36.13" |
| Dimensions with Handle: | 29.75" W x 29.63" D x 36.13" |
| Open Door Depth: | 41.8" |
|
Dimension:
|
30" W x 27.38" D (29" with handle) x 36" H
|
| Lighting: | Dual Lighting, controlled by light switch on front control panel |
|
Voltage:
|
Requires a minimum of 220V-240V/60HZ/50A
|
|
Mount Type:
|
Free Standing
|
|

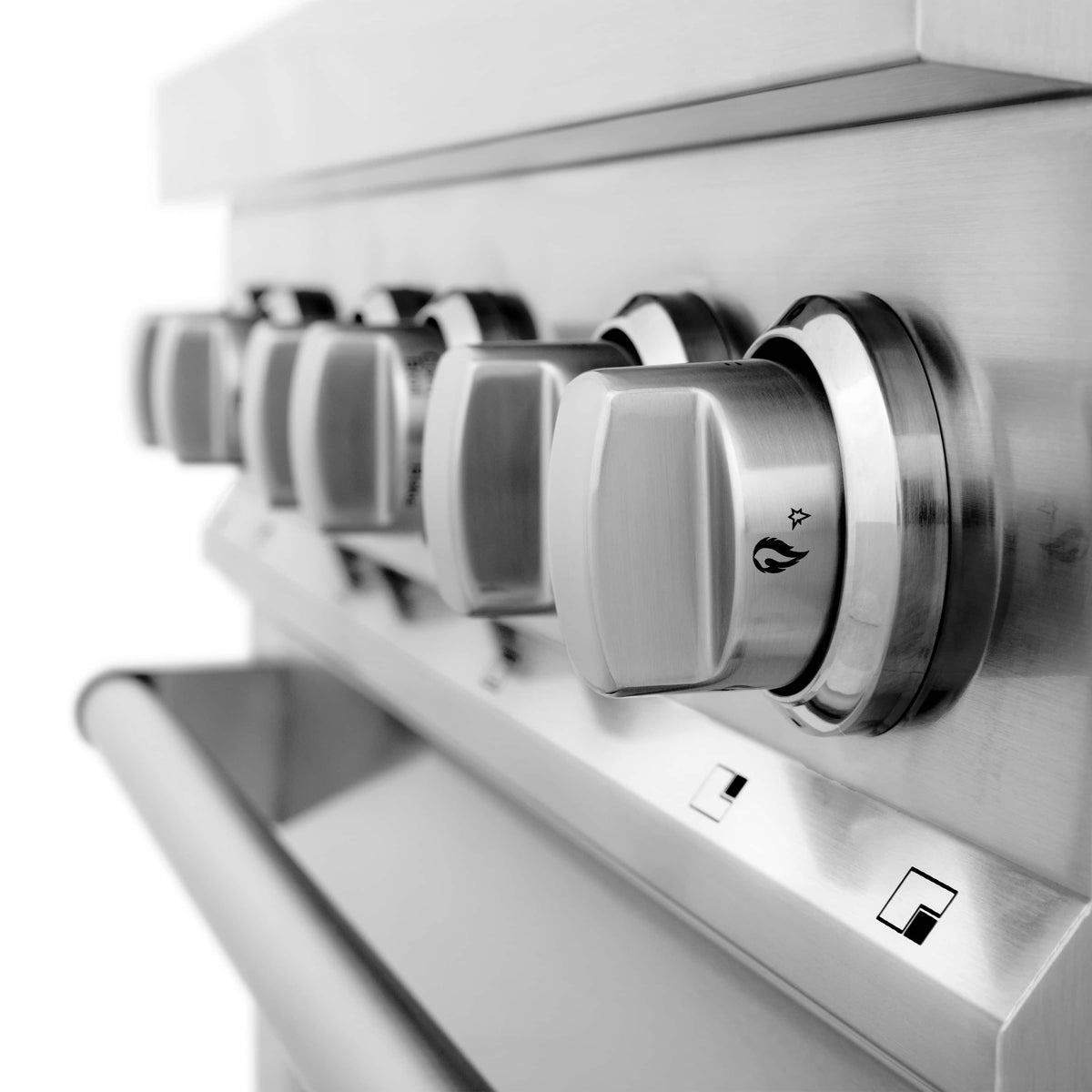

Control Type:
|
Durable Front Control
|
|
Material:
|
Stainless Steel frame with 1 Piece Enamel Top- Italian made hinges and burners
|
|
Warranty:
|
1 Year Warranty
|
|
Features
|
Manufactured by ZLINE Kitchen and Bath
Model No. RA30 ETL and UL Listed CSA Approved |
|
Product Weight:
|
230lbs
|
|
Cooktop:
|
(4) Burners with Enamel Cook Top with electronic spark ignition for all burners
|
| Gas Type: | Natural Gas or Liquid Propane via conversion kit |
| Liquid Propane | LP Conversion Kit Included - All ZLINE ranges and rangetops can be used with liquid propane. A LP conversion kit is included - this conversion process must be done by a professional |

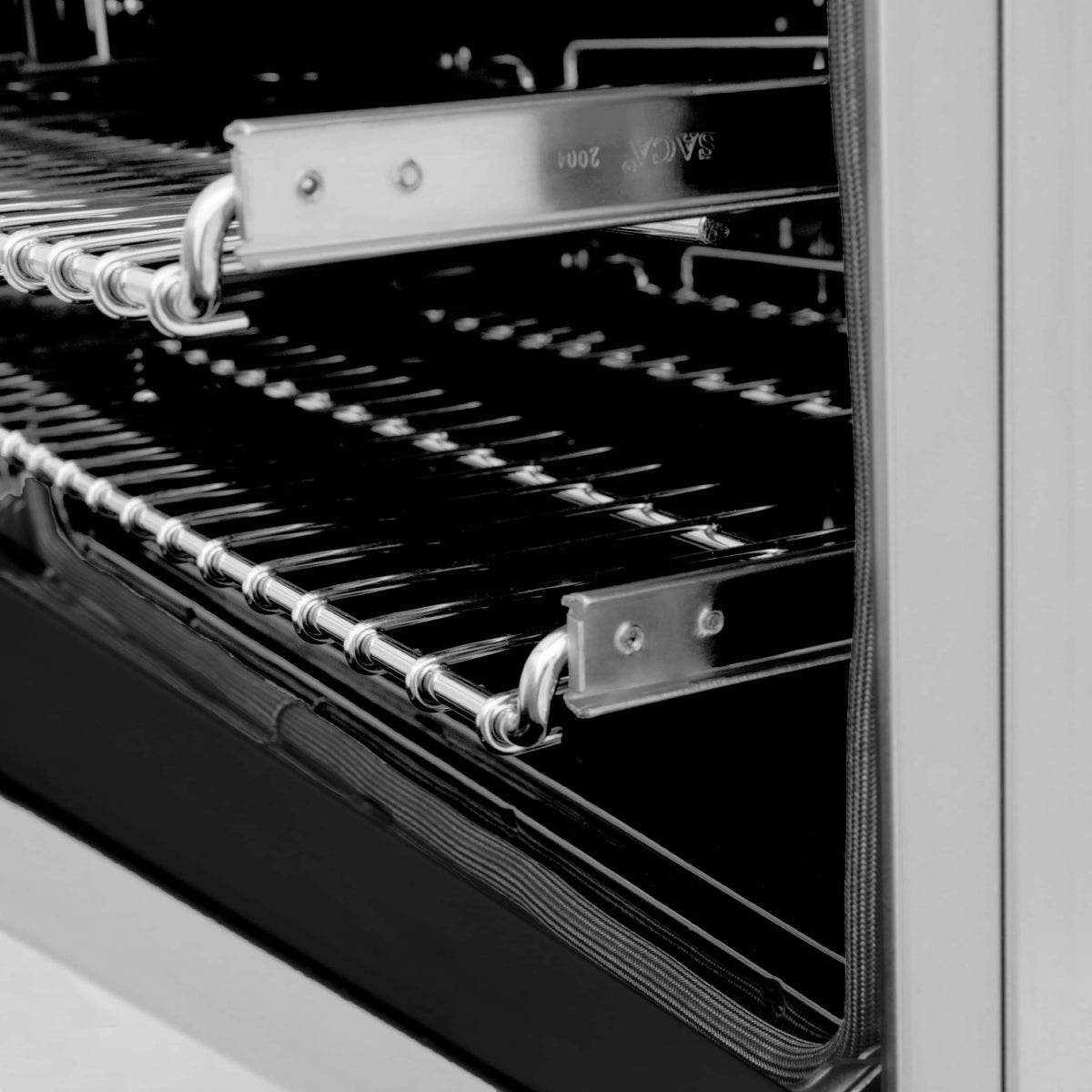

| Oven: | Manual Clean - Convection Electric - 4.6 cu.ft. deep oven - Triple Glass Window - Dual Lighting - Professional Aluminum Mesh Seal |
|
BTU Rating:
|
Dual Burner - 18,000 BTU
Rapid Burner - 13,000 BTU Semi-Rapid Burner - 8,500 BTU Auxiliary Burner - 4,200 BTU |
| Fuel | All ZLINE Ranges come set to work with natural gas by default. All Ranges can also work with liquid propane. Every range comes equipped with an LP conversion kit to convert from natural gas to propane; this conversion process must be done by a professional |
|
Fuel Type:
|
Convection Electric Oven - Gas Cooktop
|
Luxury isn’t meant to be desired - it’s meant to be attainable.

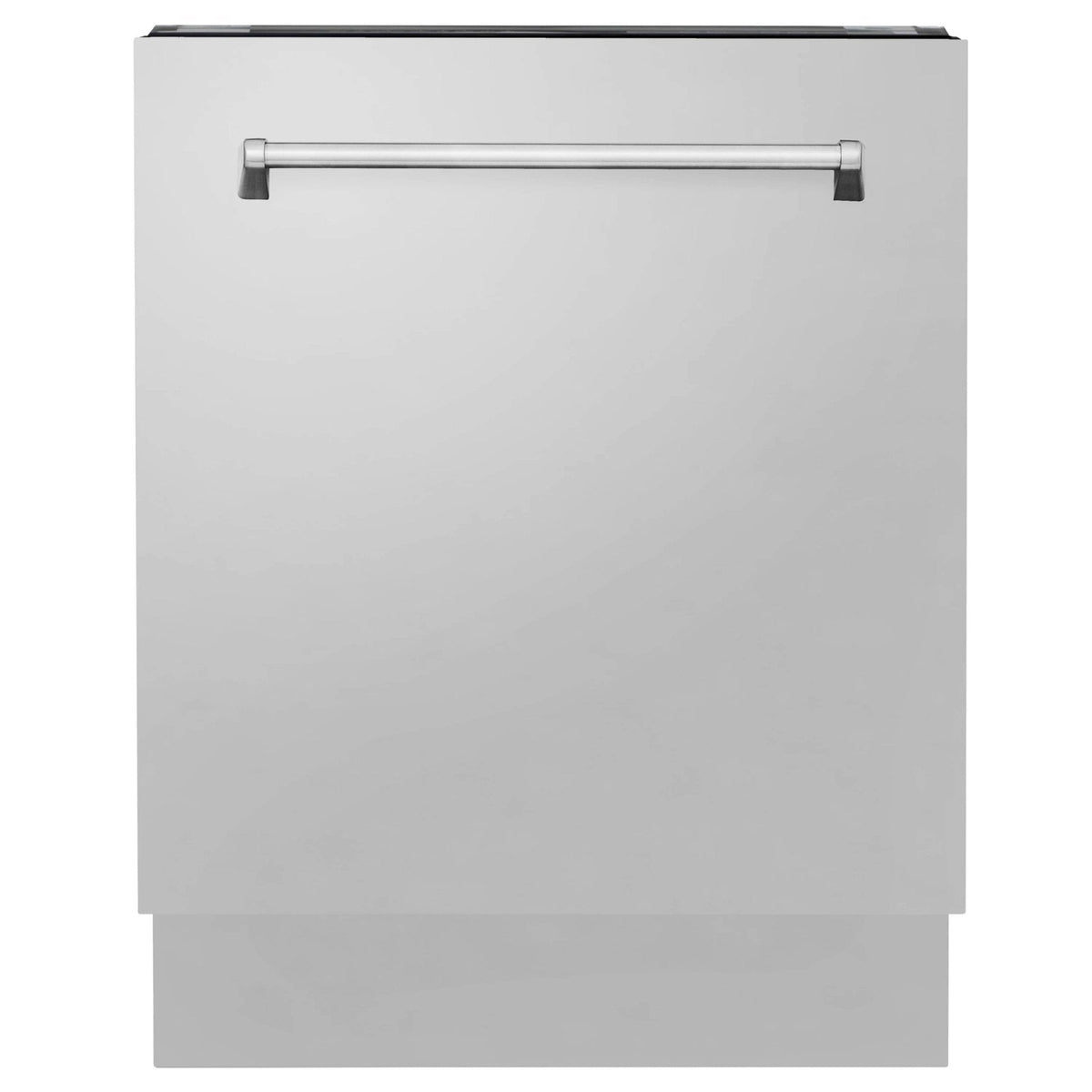

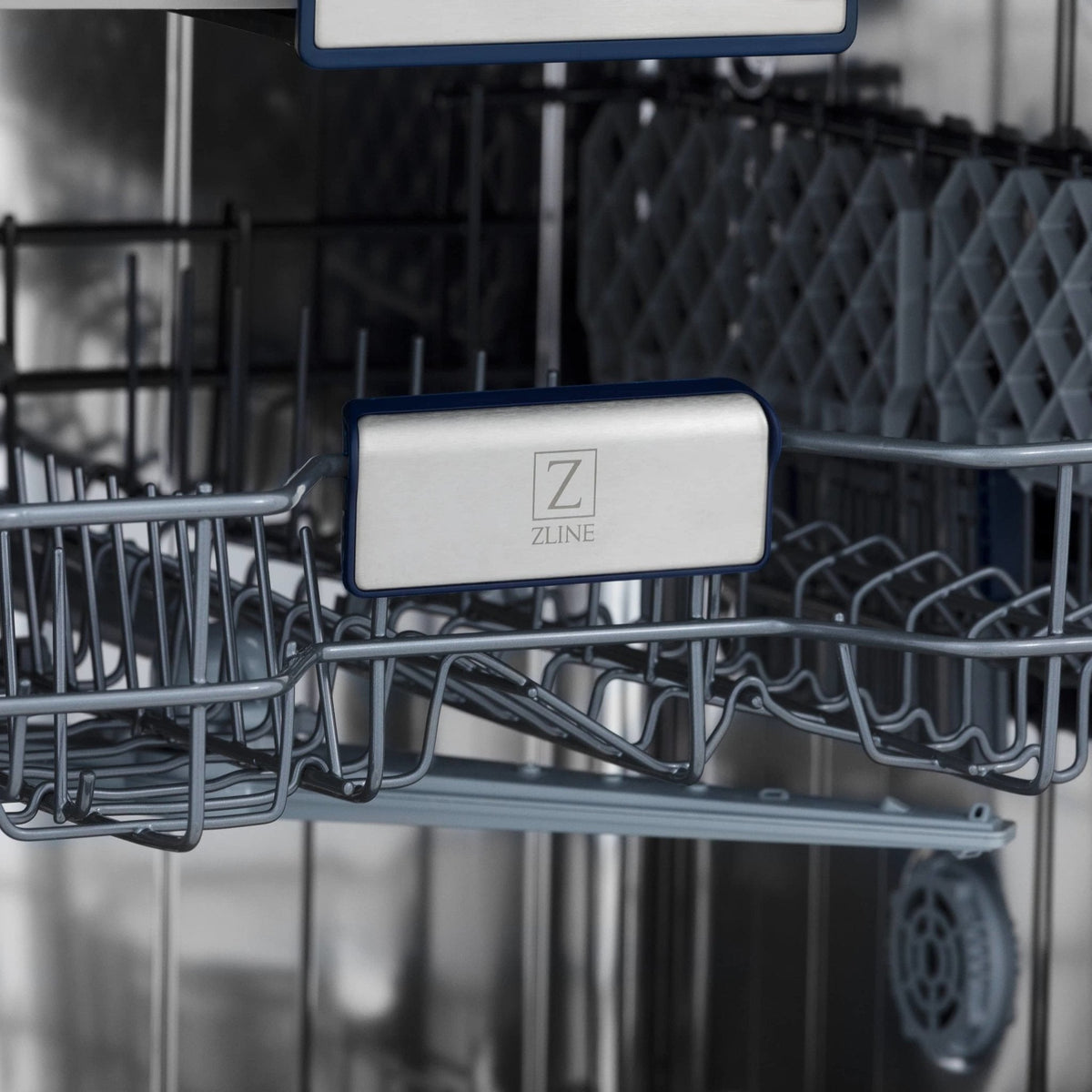

Designed in Lake Tahoe, USA, the ZLINE 24" Tallac Series 3rd Rack Tall Tub Dishwasher in Stainless Steel, 51dBa provides a professional culinary experience by pairing unmatched performance with timeless style.
Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen’s capability.
| Brand |
ZLINE Kitchen and Bath
|
| Product Type |
Tall Tub Style Dishwasher
|
|
Product Dimensions Minimum Height |
23.5 in. W x24.25 in. D x 33.75 in. H |
| Product Dimensions Maximum Height | 23.5 in. W x24.25 in. D x 35.75 in. H |
|
Cut Out Dimensions
|
23.63 in. W x 24 in. D x 34 in. H |
|
Interior Dimensions (in.)
|
20.95" W x 20.5" D x 24.17"H
|
| Weight | 116.4 lbs |
|
Voltage
|
120vac
|
| Frequency (Hz) | 60Hz |
| Dedicated Circuit | 15A |
| Rated Current (Amps) | 12A |
|
Motor Wattage
|
108
|
|
Heater Wattage
|
1200
|
| Motor Amperage |
0.9A
|
| Heater Amperage |
10A
|
| Energy Consumption Per Year (kWh) |
260
|
| Water Consumption Per Cycle (Liters/Cycle) |
12.9
|
| Water Consumption Per Cycle (Gallons) |
3.4
|
| Hose Length (in.) |
56
|
| Panel Ready? Y/N | N |
| Panel Finish | 304 Grade Stainless Steel |
| Handle Finish | Stainless Steel |
| Drying System | Turbo Fan Drying |
| Control Location | Top Control |
| Control Type | Button Control |
| Decibels | 51 |
| Power Cord | Power Cord Included |
| Installation Type | Plug In - 3 Prong - Nema5-15 |
| Handle Type | Bar Handle- Traditional Style |
| Number of Cycles | 8 |
| Number of Place Settings | 15 |
| Max Plate Height (in.) | 13 |

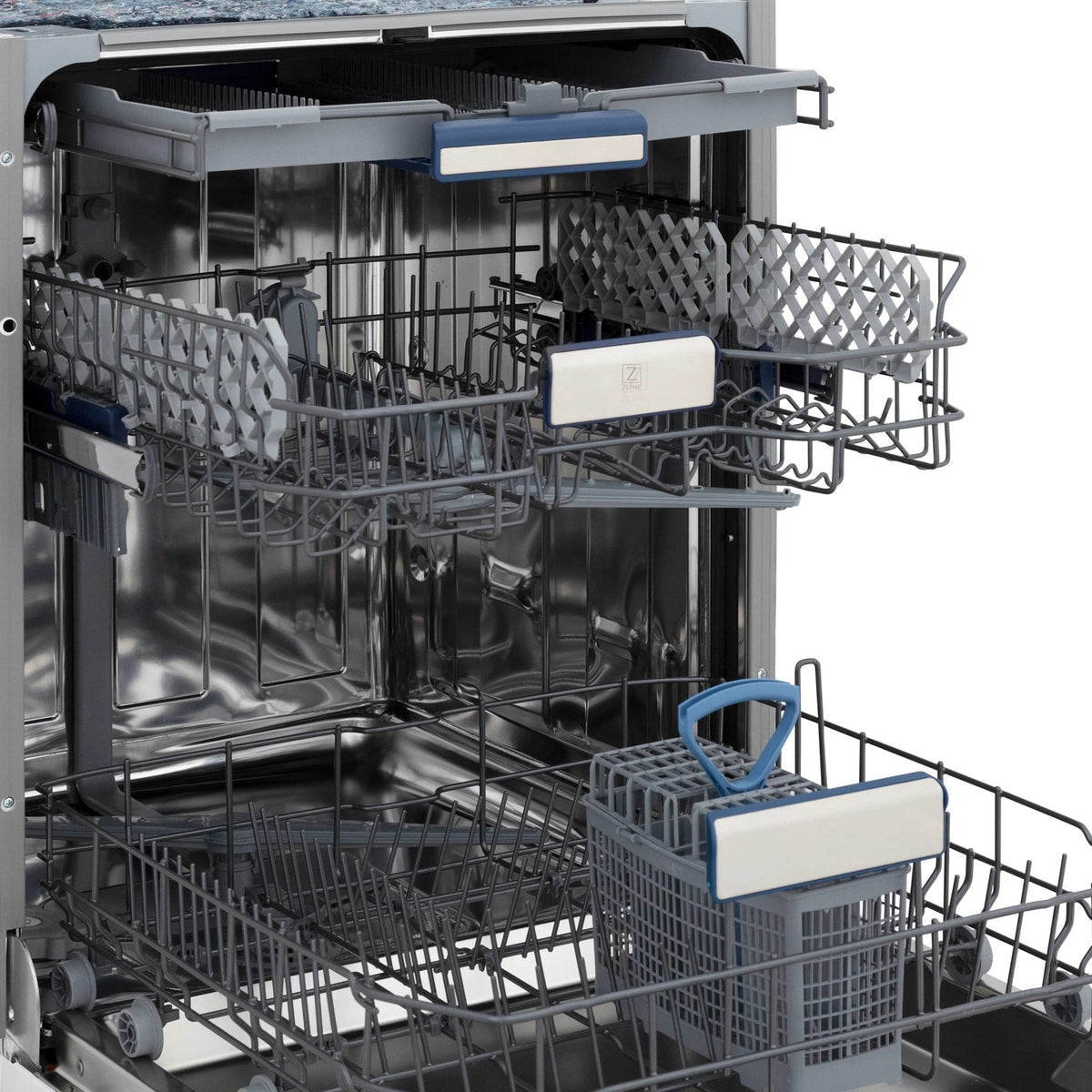

| Rack Material | Nylon |
| Silverware Basket Location | Bottom Rack Center |
| Steam Function | Without Steam |
| Tub Material | Stainless Steel Tub |
| Certifications | Energy Star, CEC, UL |

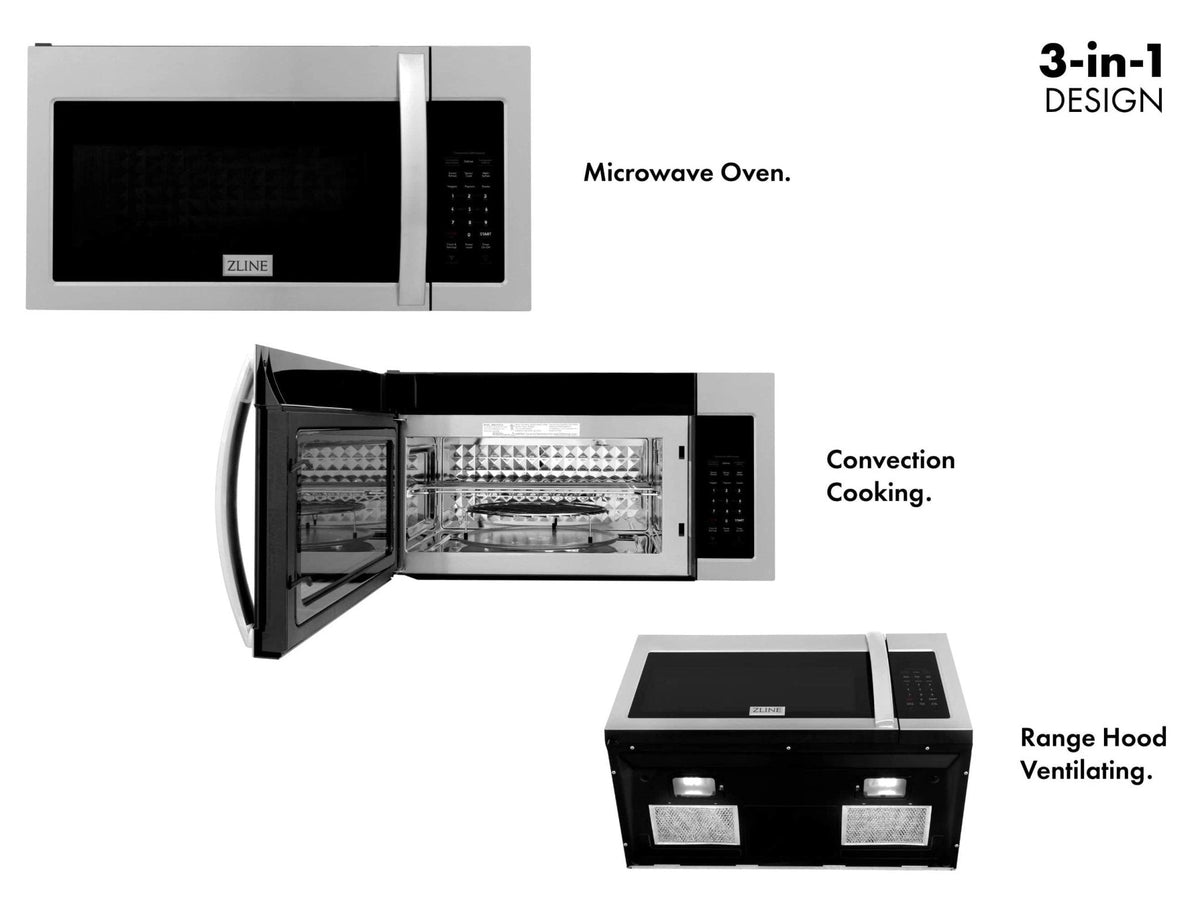

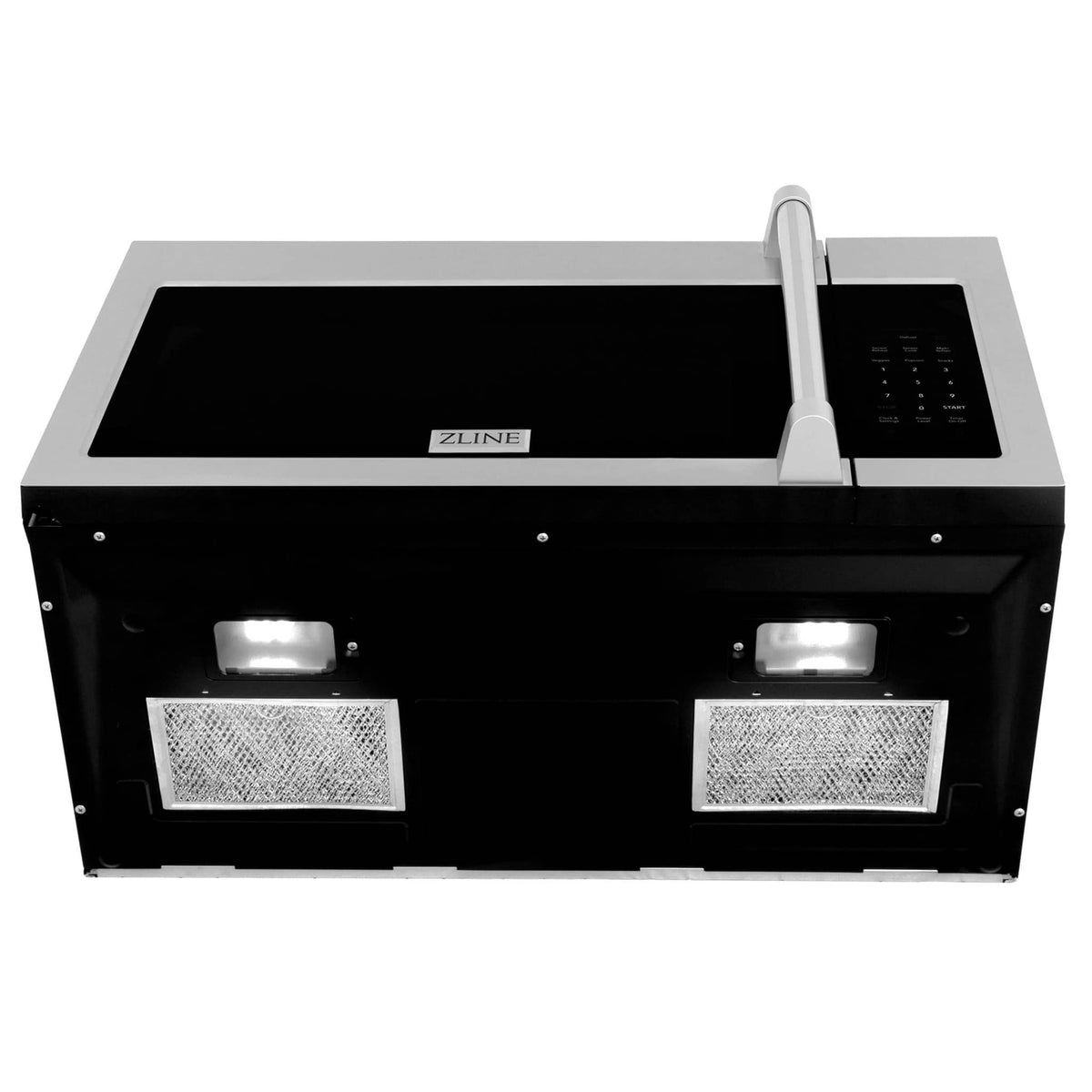

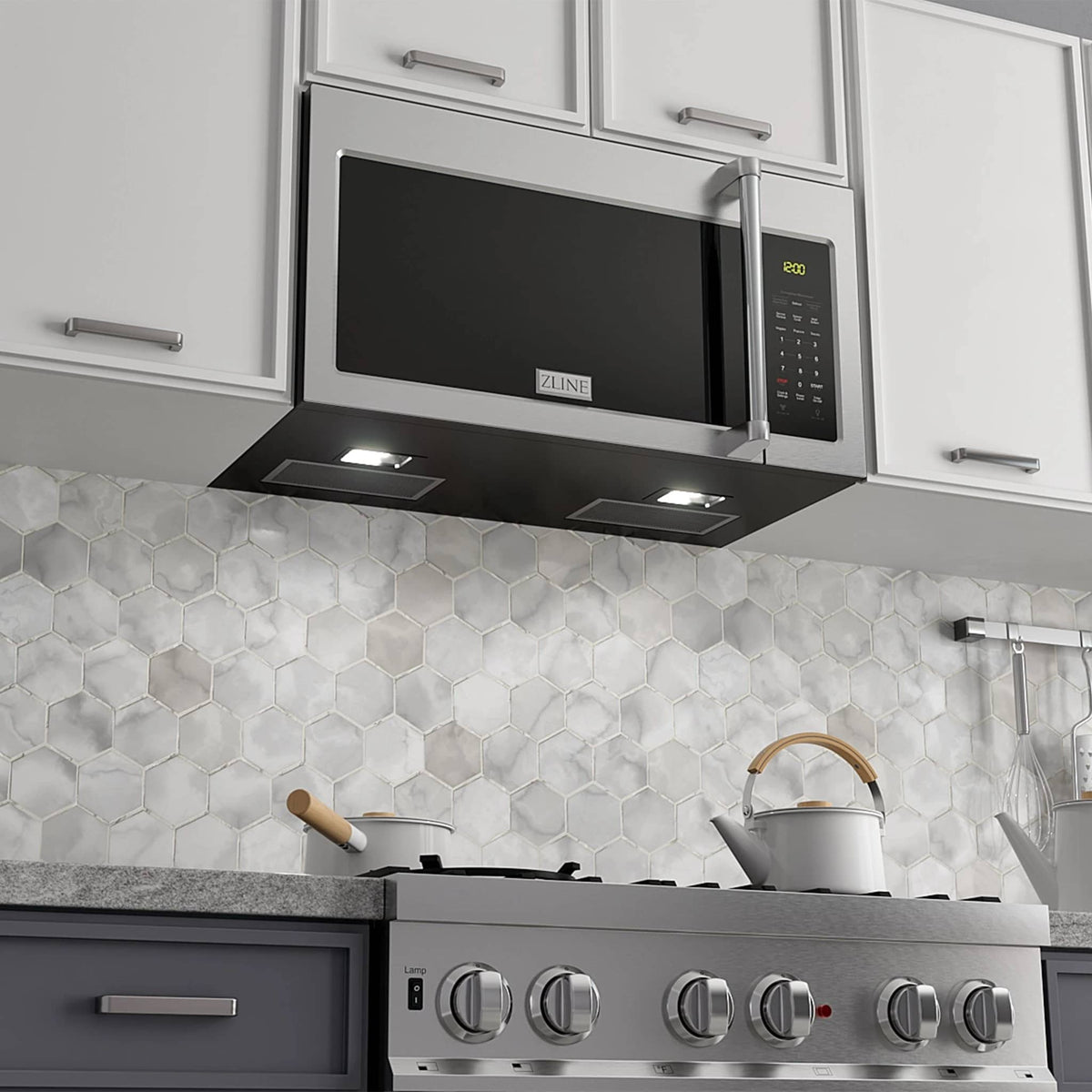

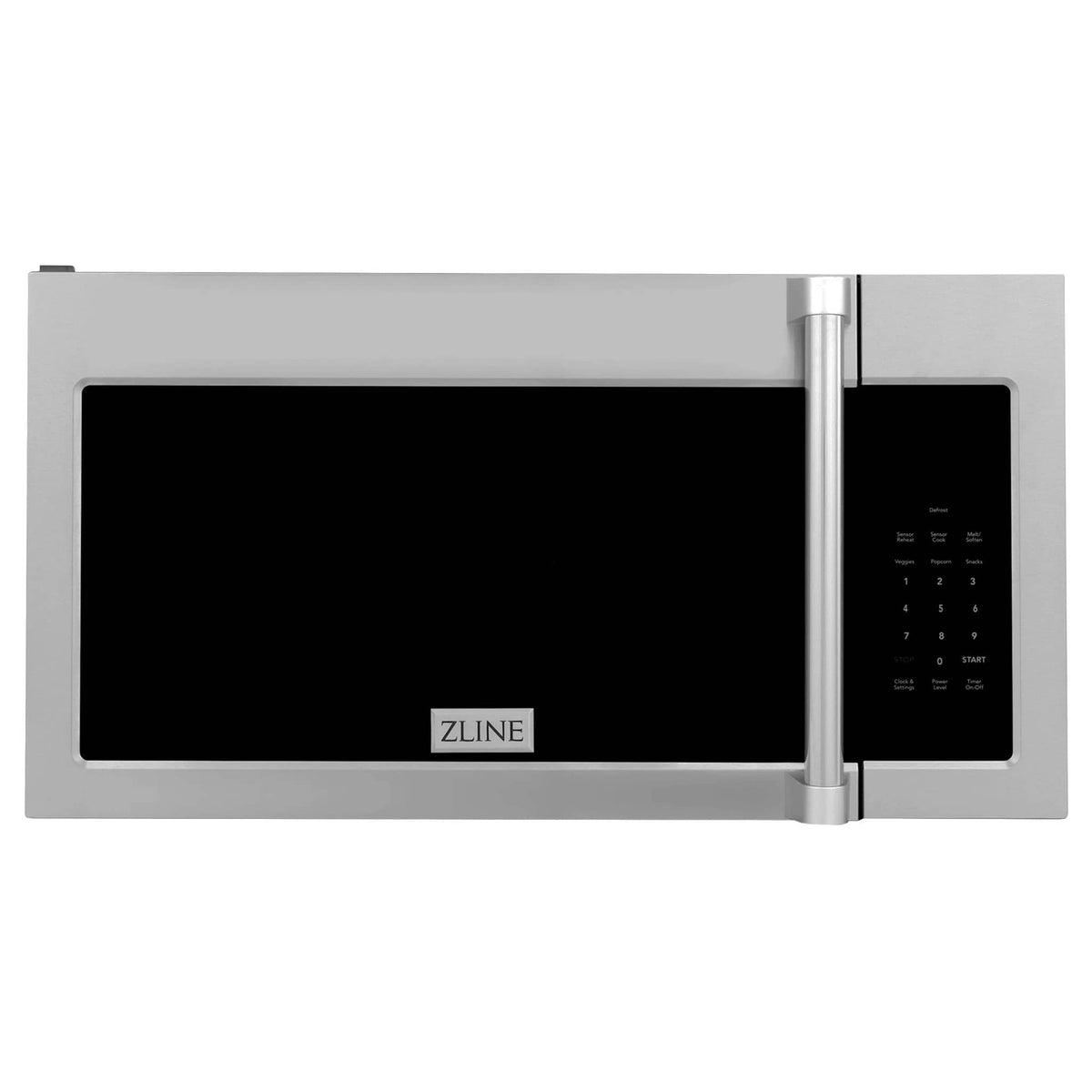

Luxury isn't meant to be desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE Over the Range Convection Microwave Oven in Stainless Steel with Traditional Handle and Sensor Cooking provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury® excellence with innovative features designed to enhance your kitchen's capability.
| Dimensions | 29.75 in W x 15.25 in D x 16.5 in H |
| Cut Out Dimensions | 30 in W x 13 in D x 16.5 in H |
| Depth with Door Open | 37.5 in. |
| Oven Capacity | 1.5 Cu. Ft |
| Voltage | 120V/ 60HZ |
|
Noise Level |
46 Decibels |
|
Voltage |
120V/ 60HZ/15A |
| Input Power | 1500W |
|
Output Power |
900W |
|

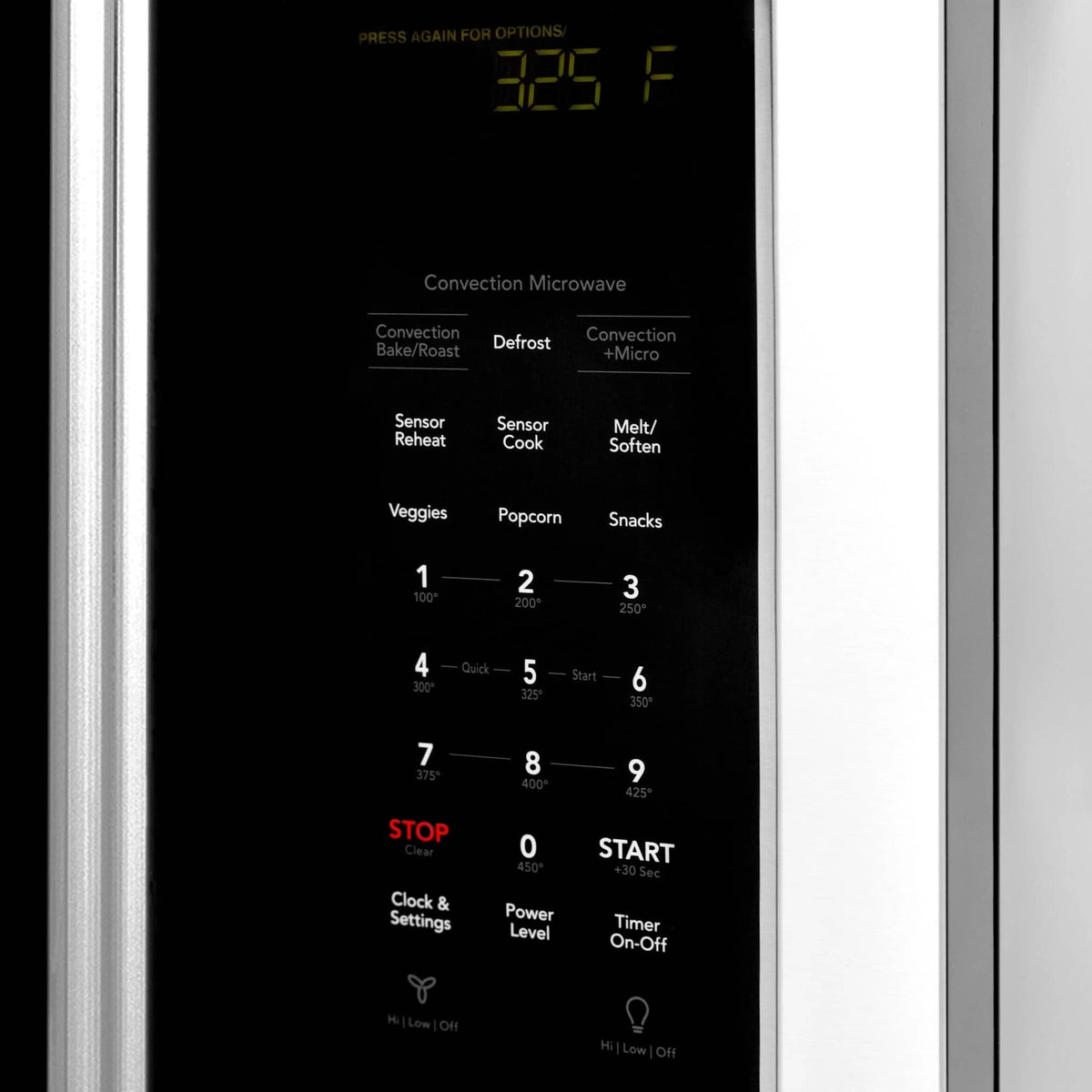

Control Type |
Touch Screen |
| Mount Type | Built-In |
| Material | Stainless Steel |
| Convection Fan | Yes |
|
Warranty |
2 Years |
| Certifications |
UL Listed & ETL Listed |
|
Product Weight |
63.9 lbs |
|
Fuel Type |
Electric |
| Ductless / Recirculating | Yes |
| Ductless / Recirculating | Requires Charcoal Filter (MWO-CF) |
| Installation and User Manual |
Click Here to Download |
