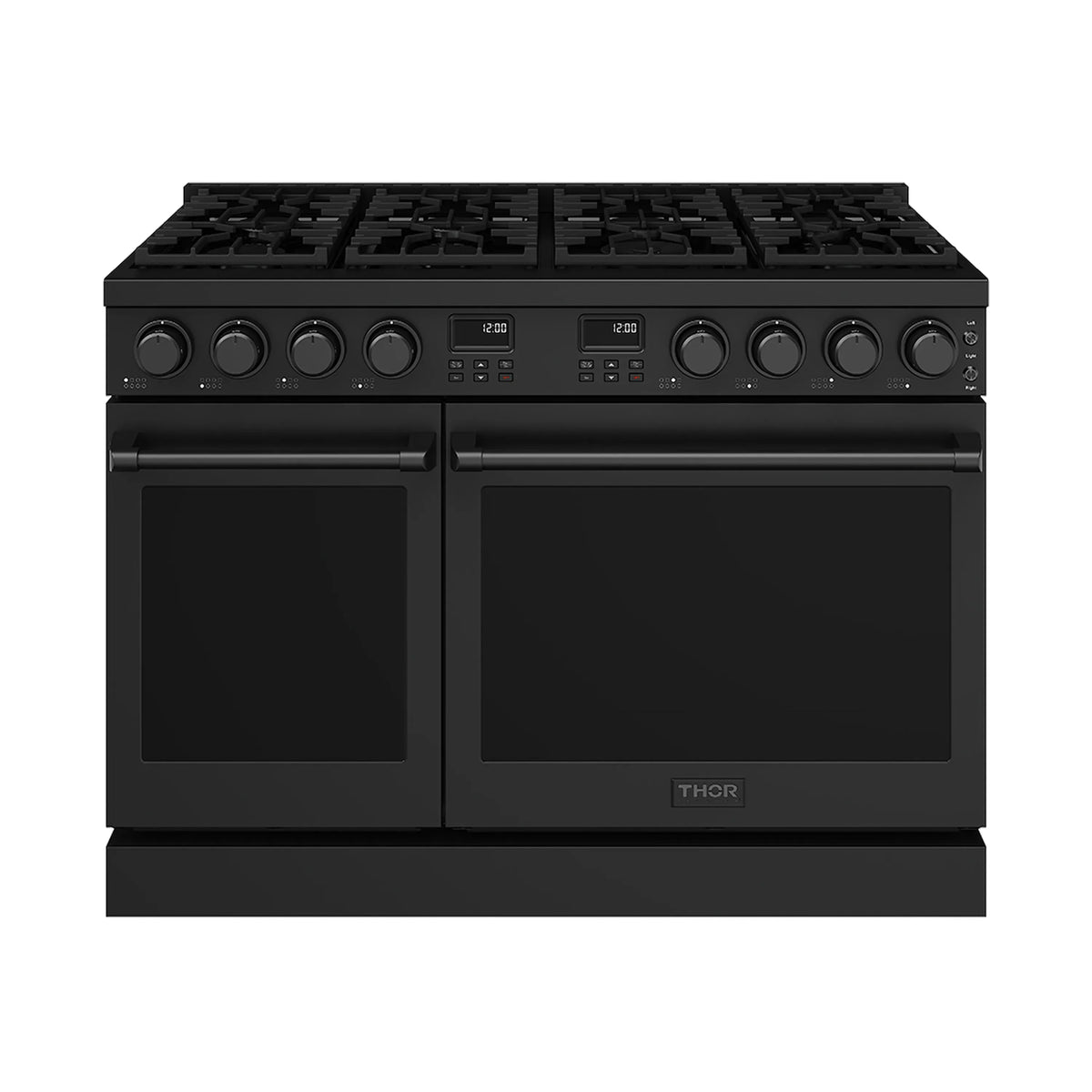

| DIMENSIONS | |
|---|---|
| Product Dimensions | 47-7/8" W x 26-7/8" D x 37-1/8" H |
| Product Height (to top of backsplash) | 34-1/8" - 37-1/8" |
| Product Height (to top of side panel) | 33" - 36" |
| Product Depth (to bullnose) | 26-7/8" |
| Product Depth (to control board) | 26-3/8" |
| Product Depth (to side panel front) | 24" |
| Adjustable Legs | 3" Max |
| Cutout Dimensions | 48" W x 24-3/4" D x 36"-39" H |
| Net Weight | 311 lbs. |
| Gross Weight | 377 lbs. |
| Package Dimensions | 51-3/8" W x 30-1/8" D x 45-2/7" H |

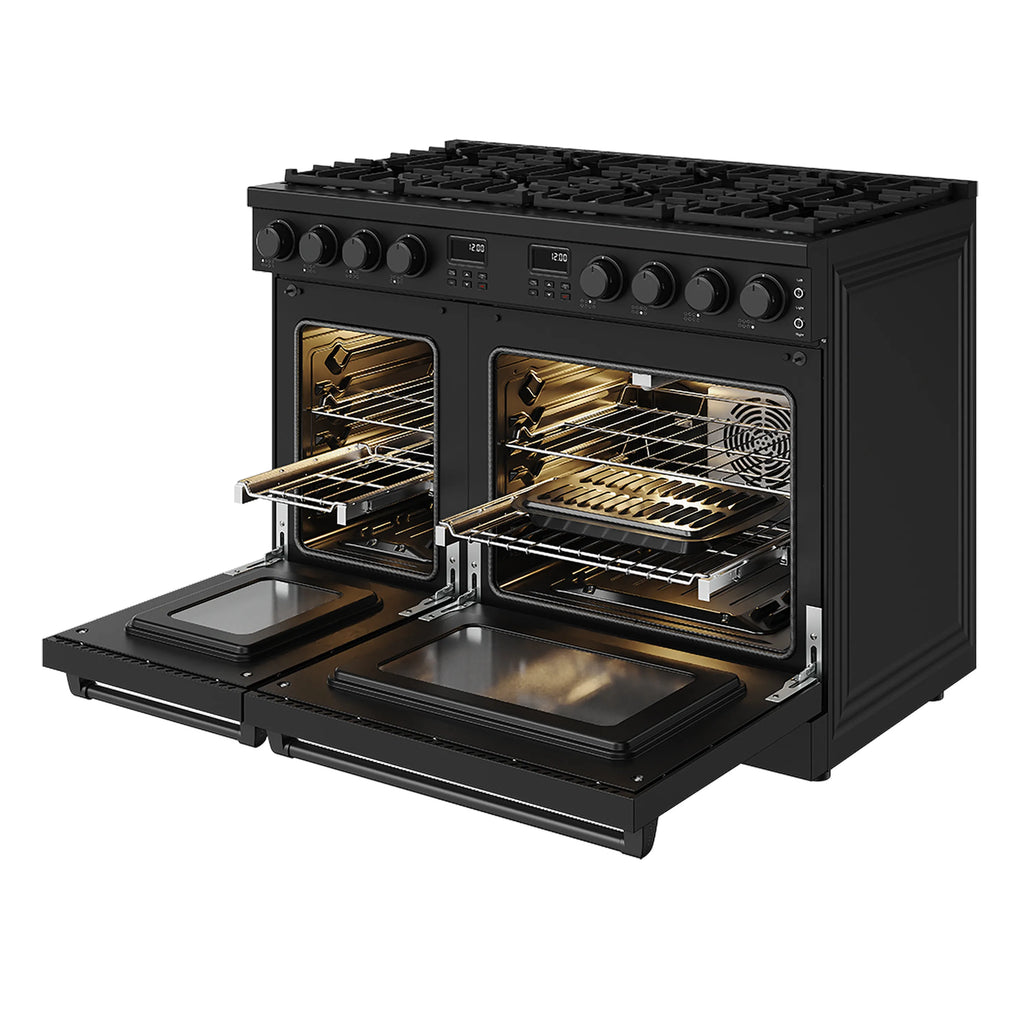

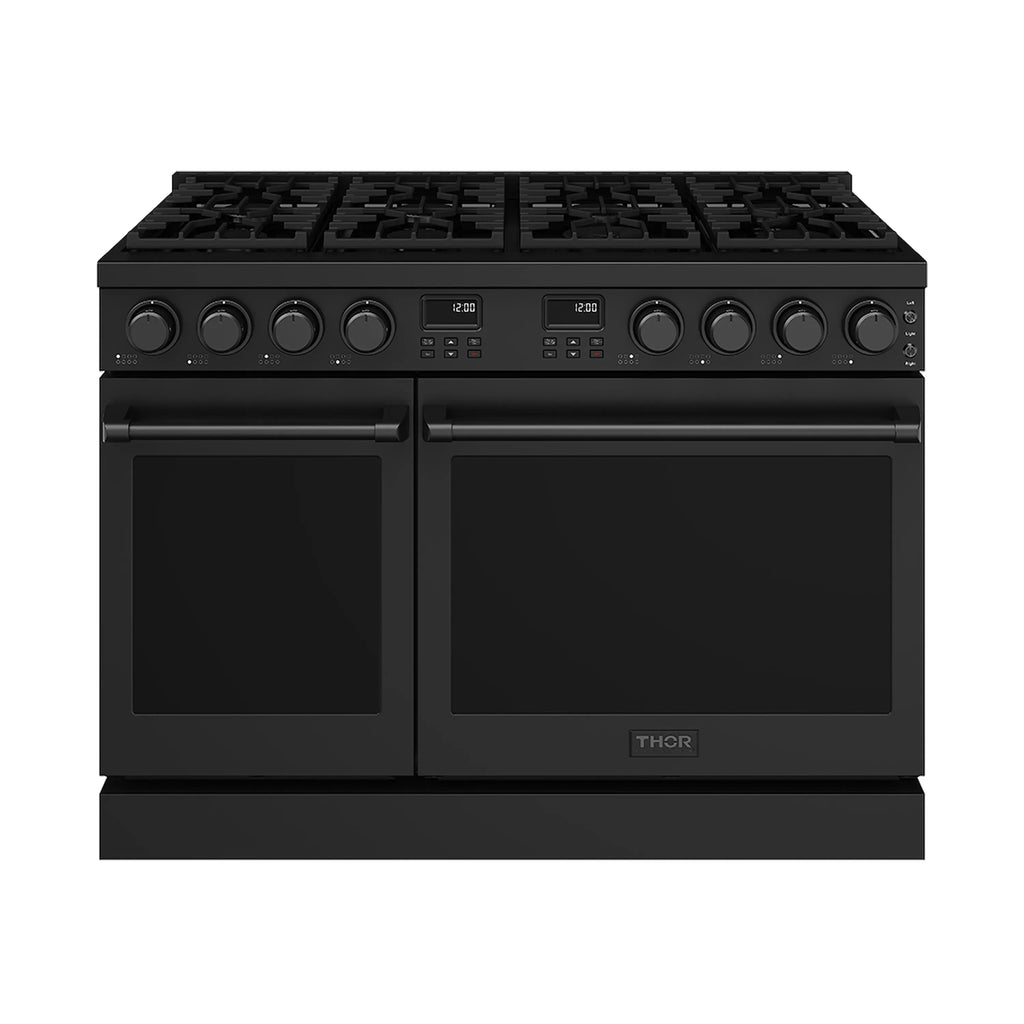

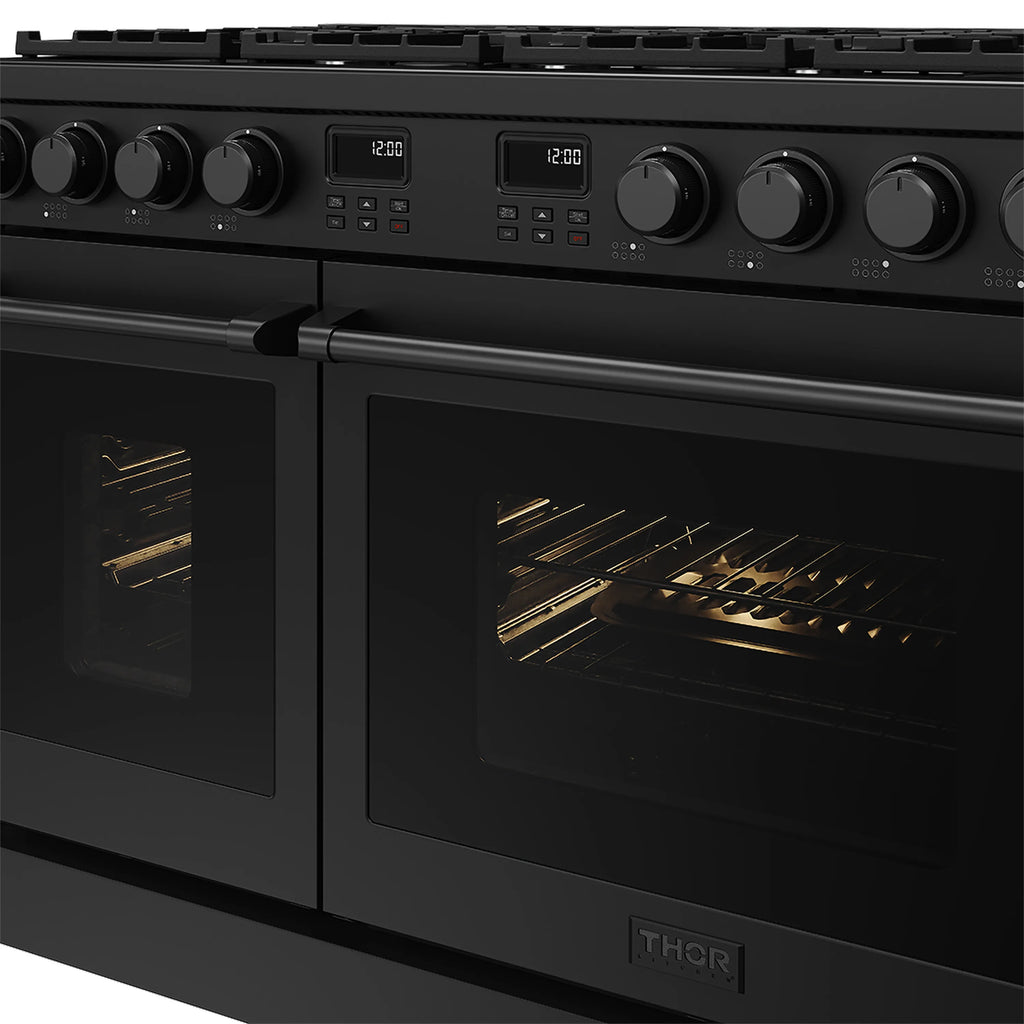

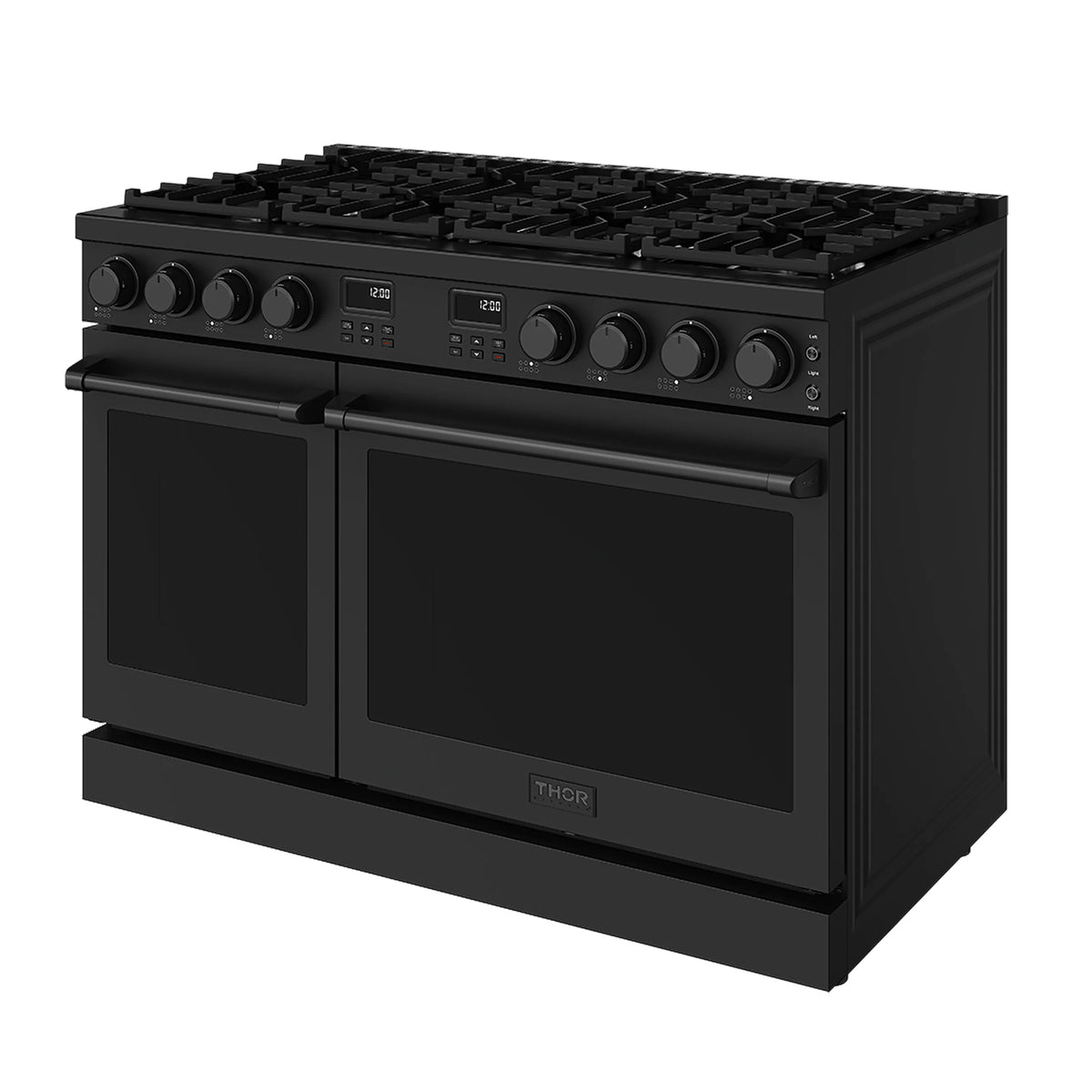

| GENERAL INFORMATION | |

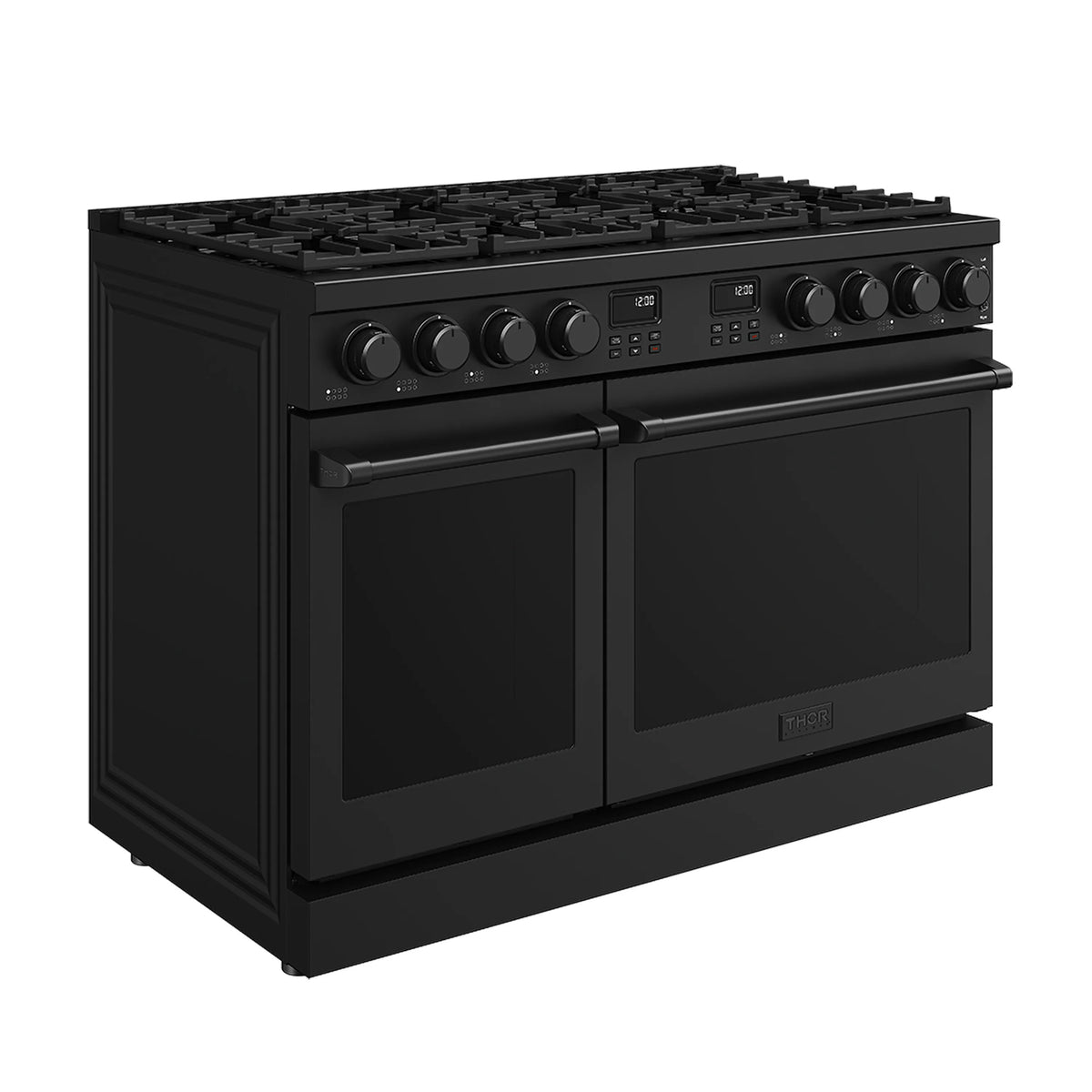

| Brand | THOR Kitchen |
| Model | ARG48B / ARG48BLP |

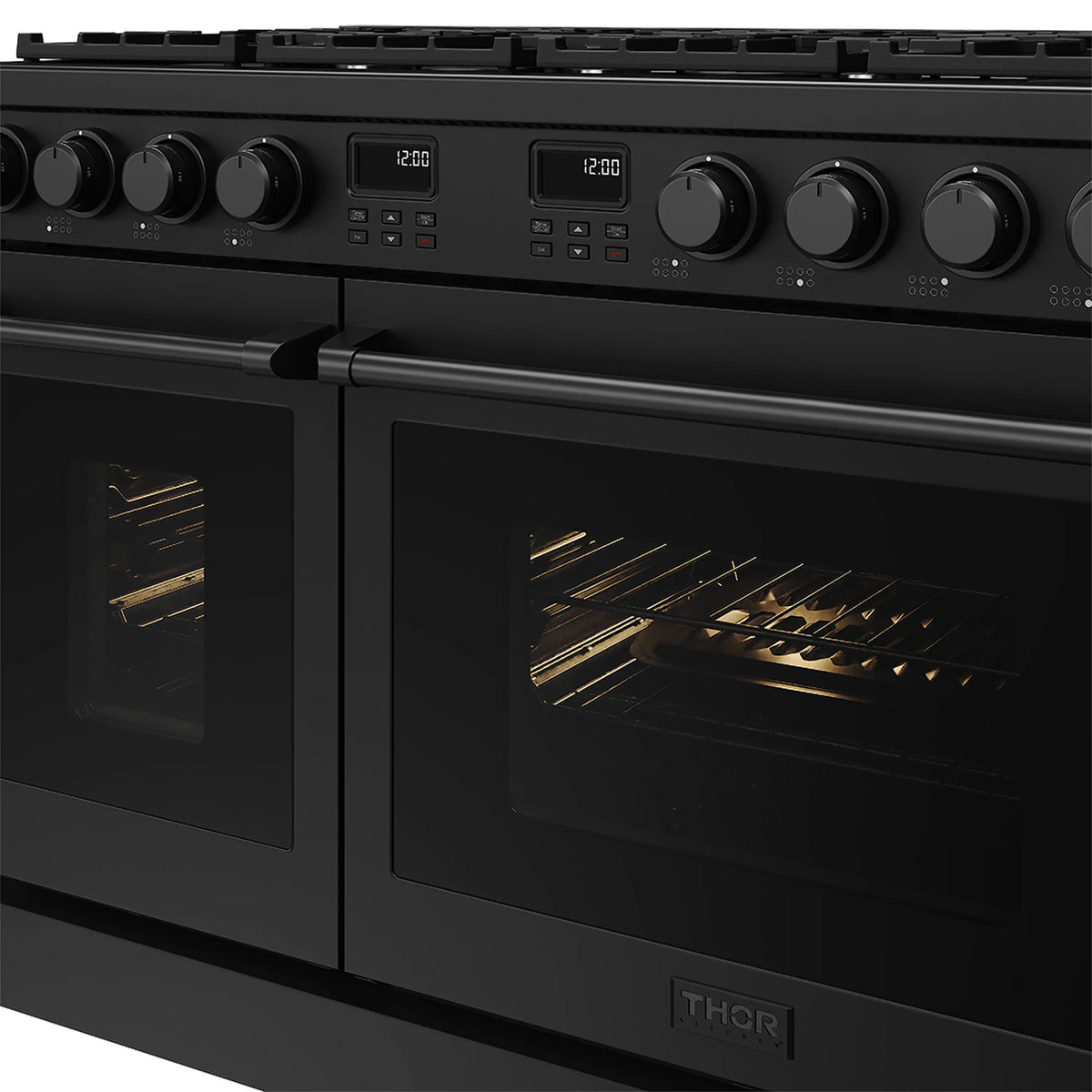

| Product Type | Contemporary Professional Gas Range |
| Configuration | Freestanding |
| Oven Configuration | Double Oven (30" + 18") |
| Fuel Type | Natural Gas (ARG48B) / Liquid Propane (ARG48BLP) |
| Total Oven Capacity | 7.6 cu.ft. |
| Number of Burners | 8 |
| DESIGN & FINISH | |
| Color | Black |
| Spill Tray | One-Piece Porcelain |
| Grate Type | Continuous |
| Oven Cavity | Enamel |
| Oven Rack Material | Chrome Plated |
| TECHNICAL DETAILS | |
| Amperage | 15A |
| Volts | 120V |
| Frequency | 60Hz |

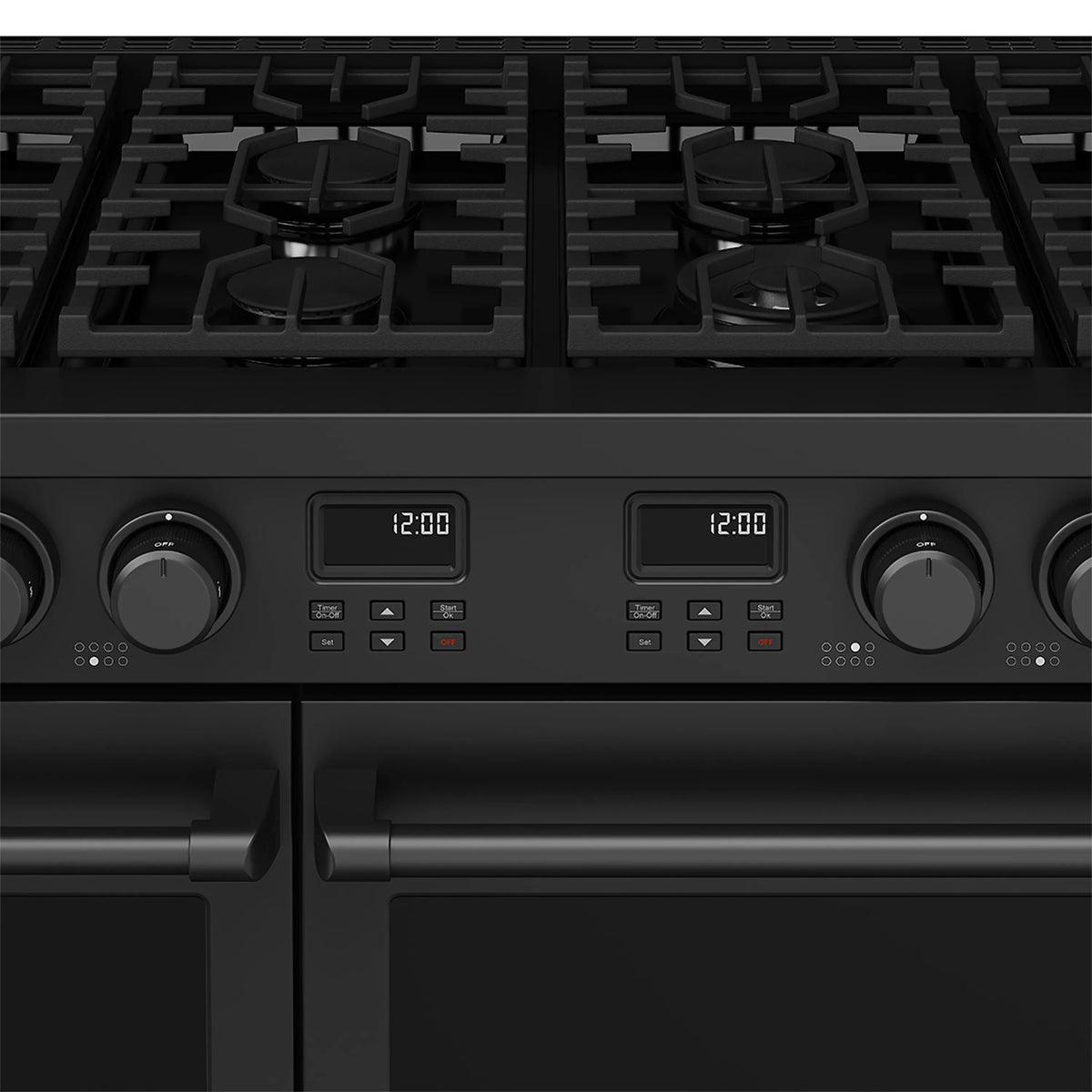

| Control Type | Knob / Button (LED Display Screen) |
| Plug Type | US 3-Prong |
| Cord Length | 59" |

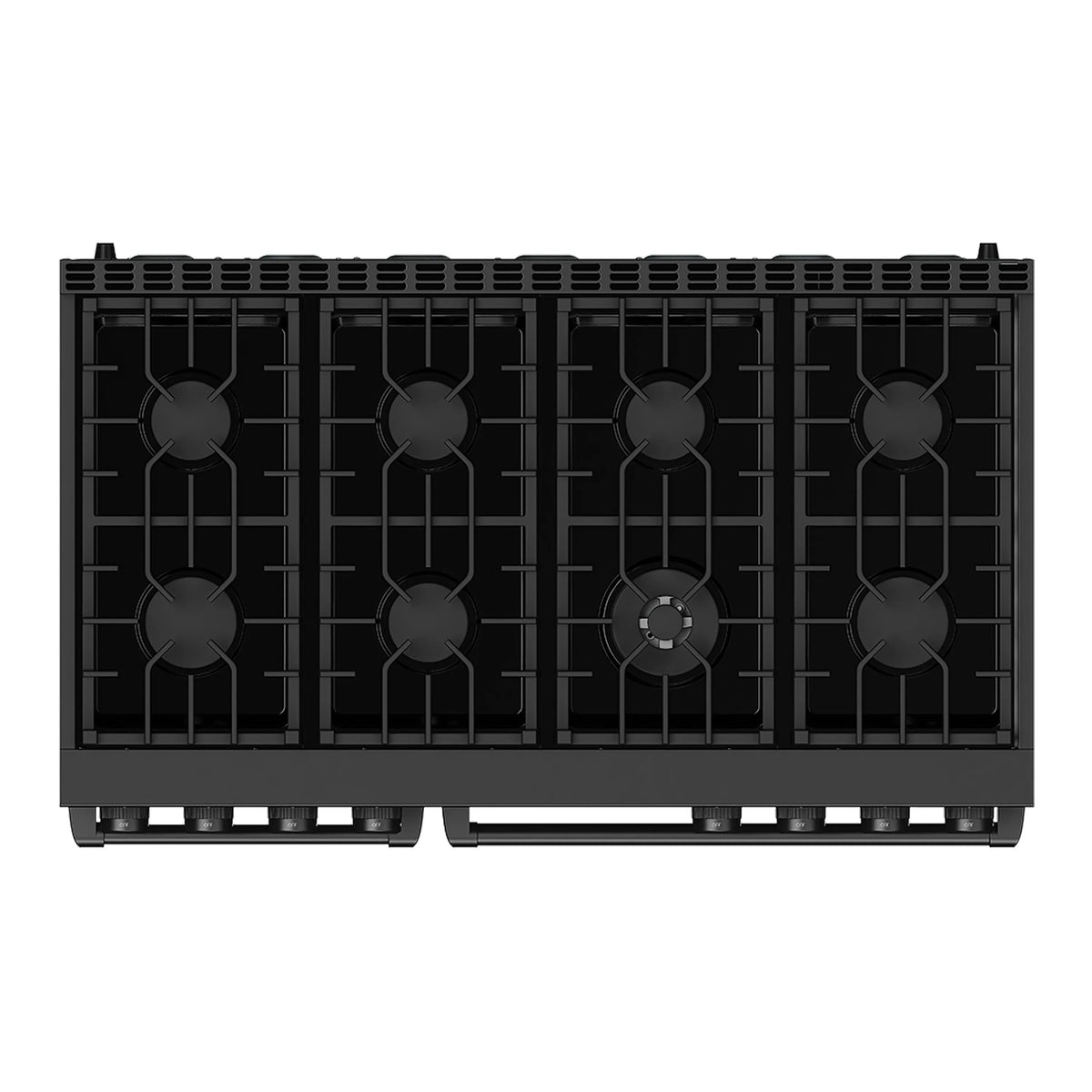

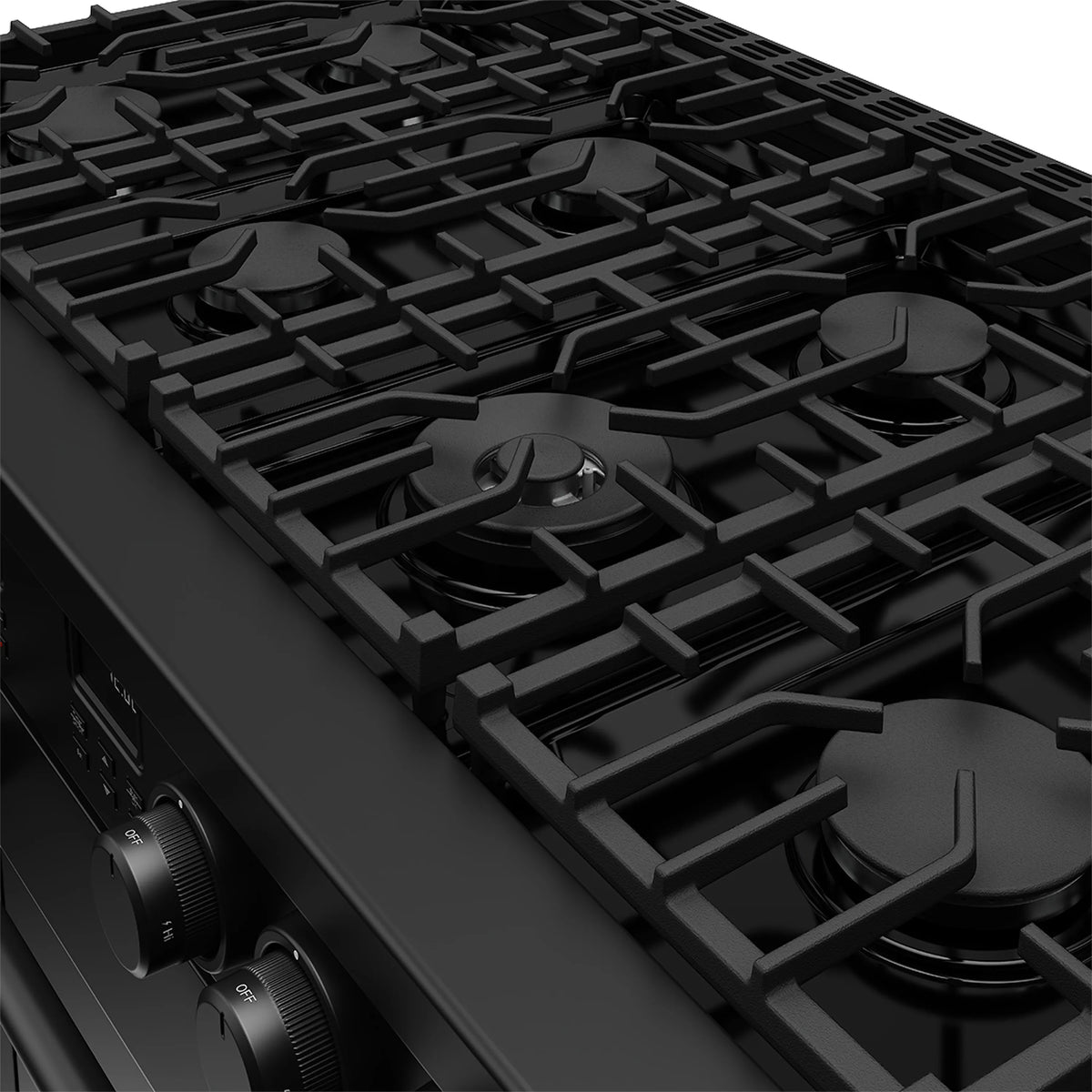

| COOKTOP FEATURES | |
| Cooktop Type | Gas |
| Total Burners | 8 |
| Burner Type | Sealed Burners |
| Grate Type | Continuous |
| Burner BTUs |
|
| Spill Tray | One-Piece Porcelain |

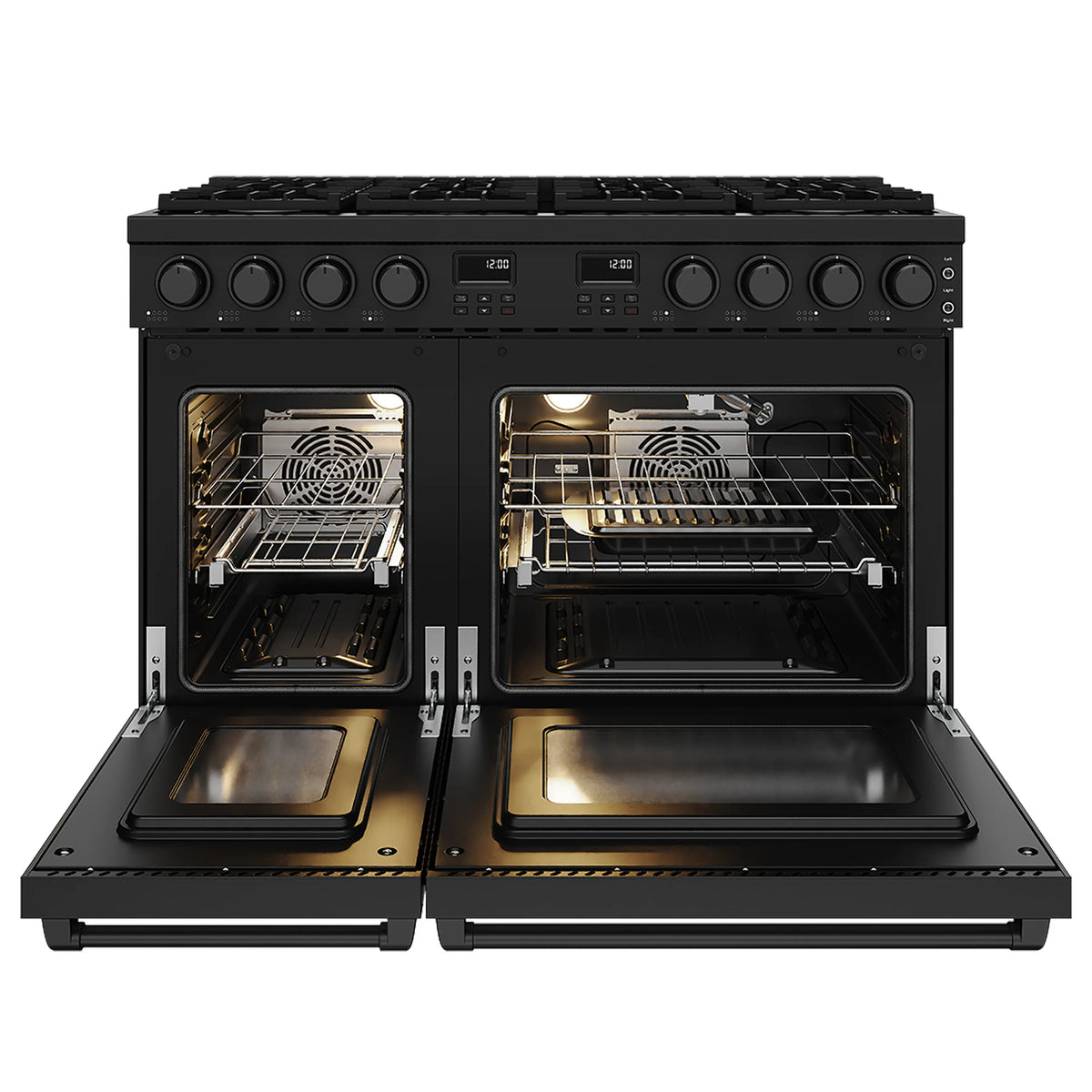

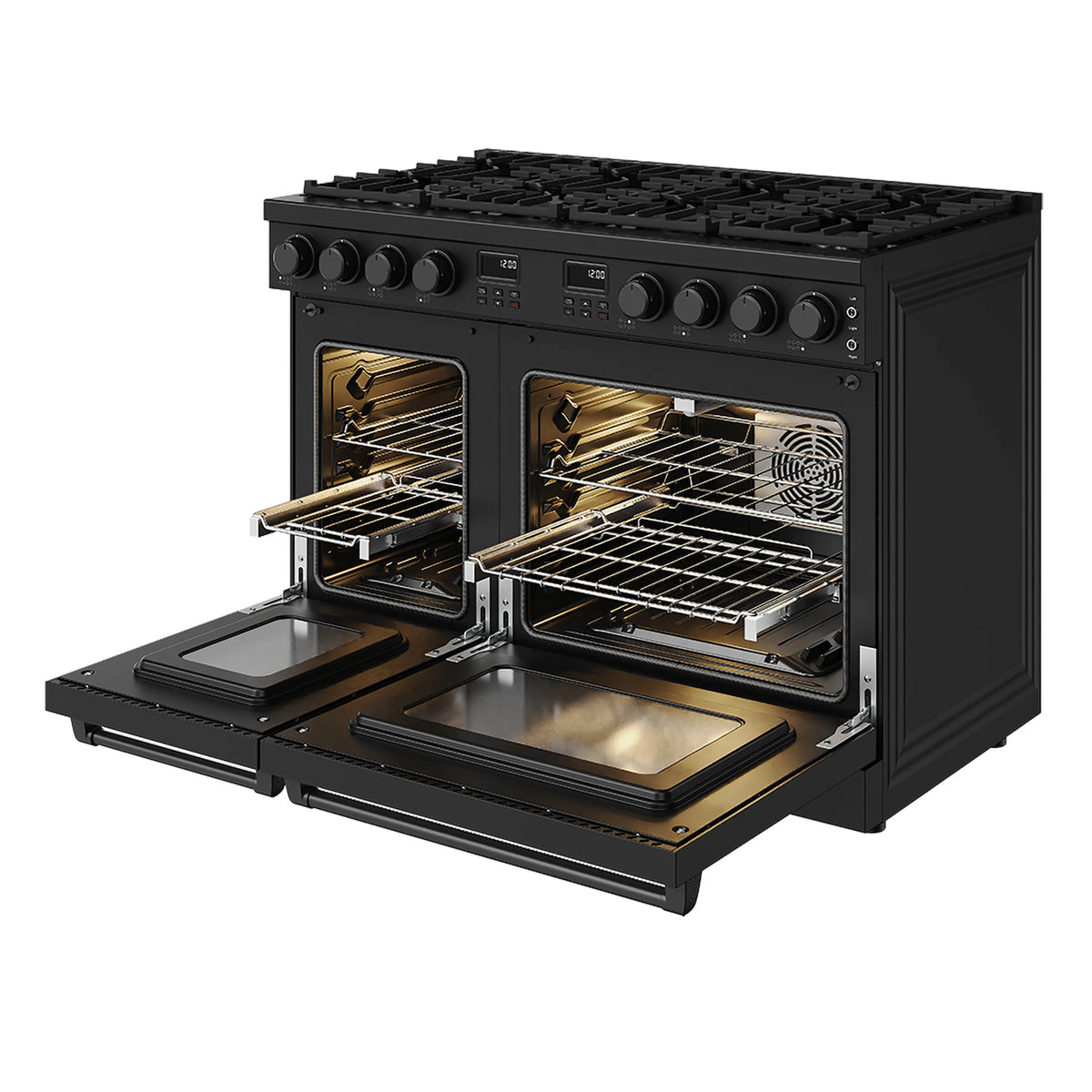

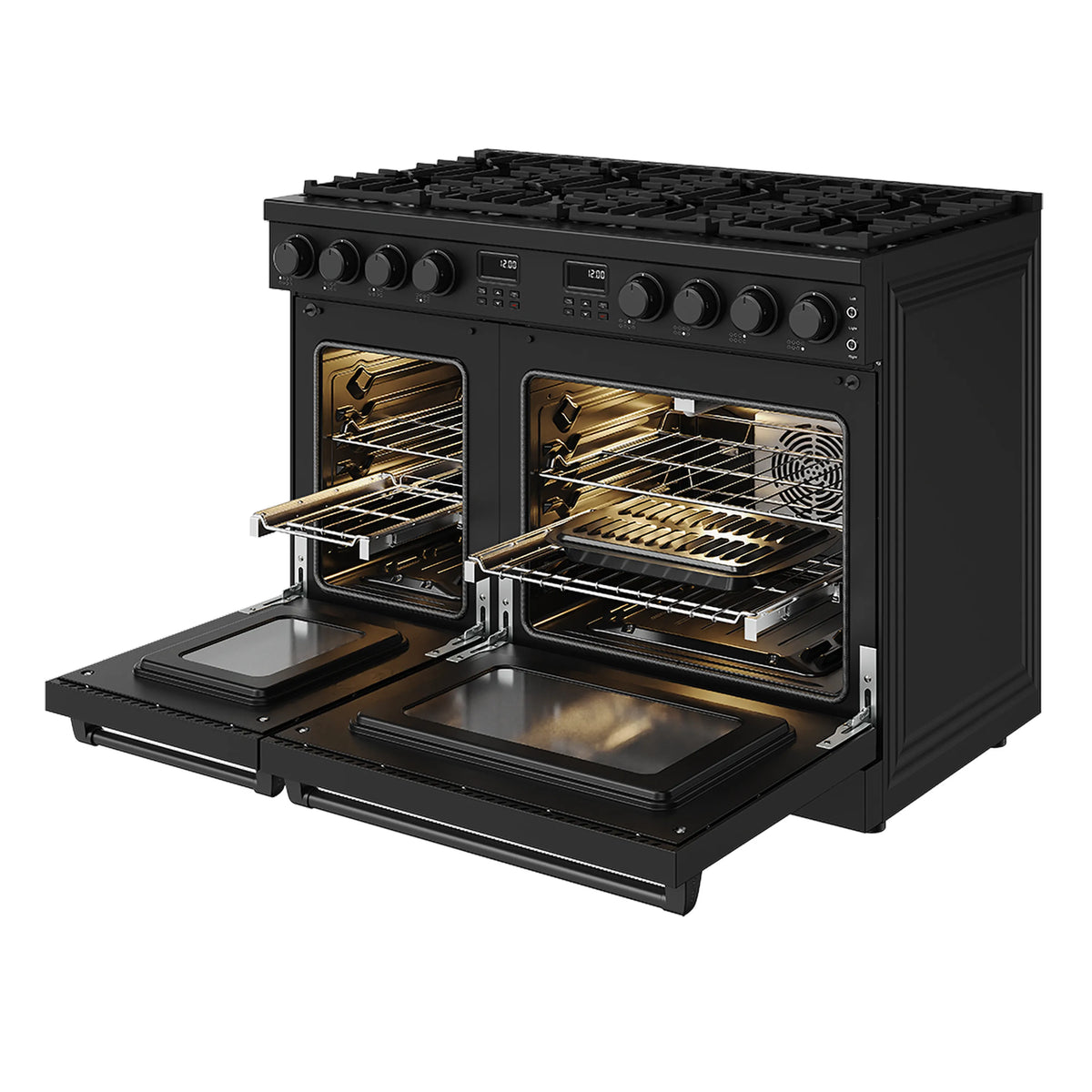

| OVEN FEATURES | |
| Oven Configuration | Double Oven |
| Oven Capacity |
|
| Oven Features |
|
| Bake Burner Power |
|
| Broil Burner Power | 30" Oven: 13,500 BTU |
| Convection | Convection Fan |
| Oven Light | 1 in Each Oven |
| Oven Racks |
|
| Oven Rack Material | Chrome Plated |
| Oven Interior Dimensions |
|
| Baking Sheet |
|
| Other Features | Clock, Timer, Adjust Temperature |
| Self-Clean / Air Fry | No |
| Accessories Included |
|
| WARRANTY & CERTIFICATIONS | |
| Warranty | Two Years Parts and Labor |

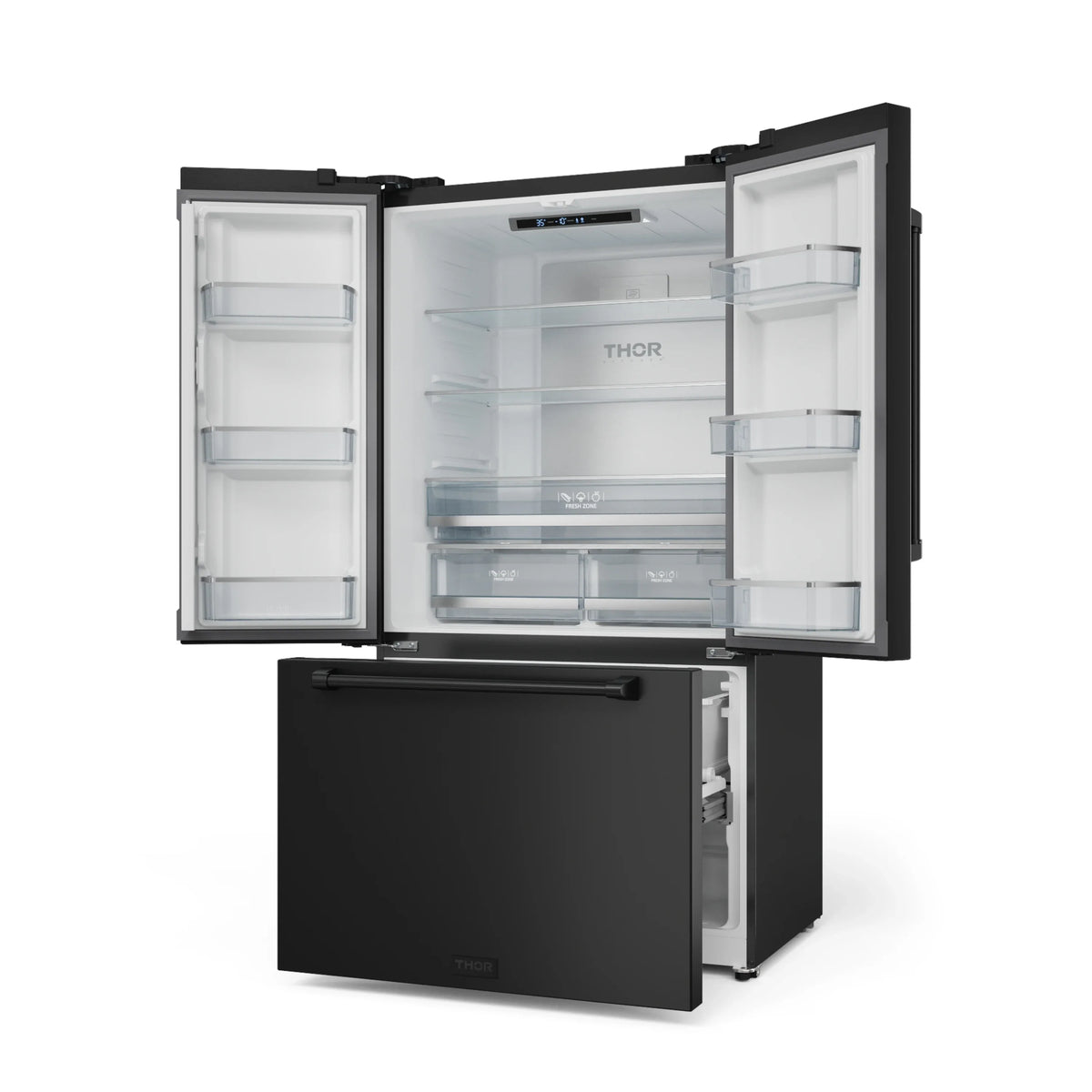

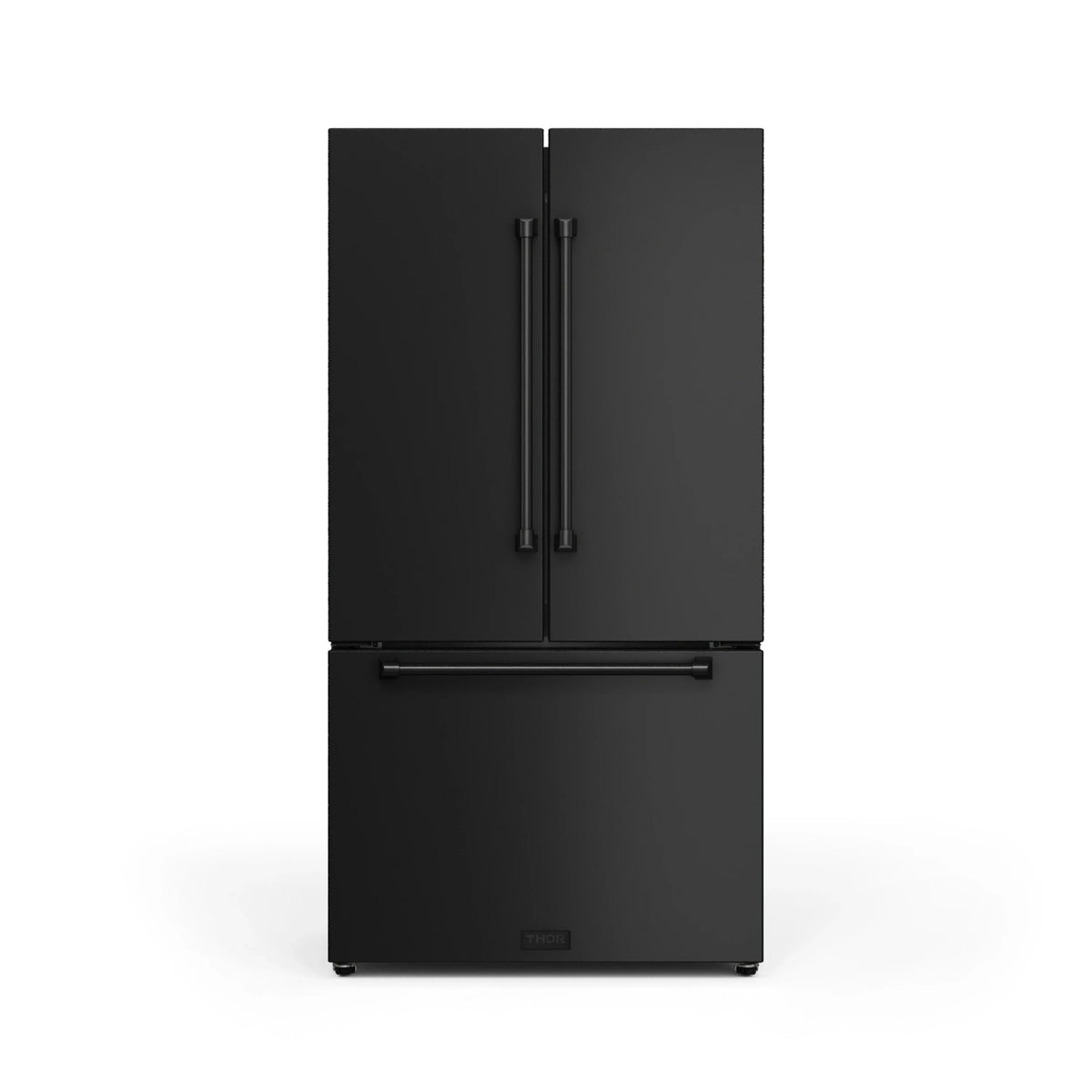

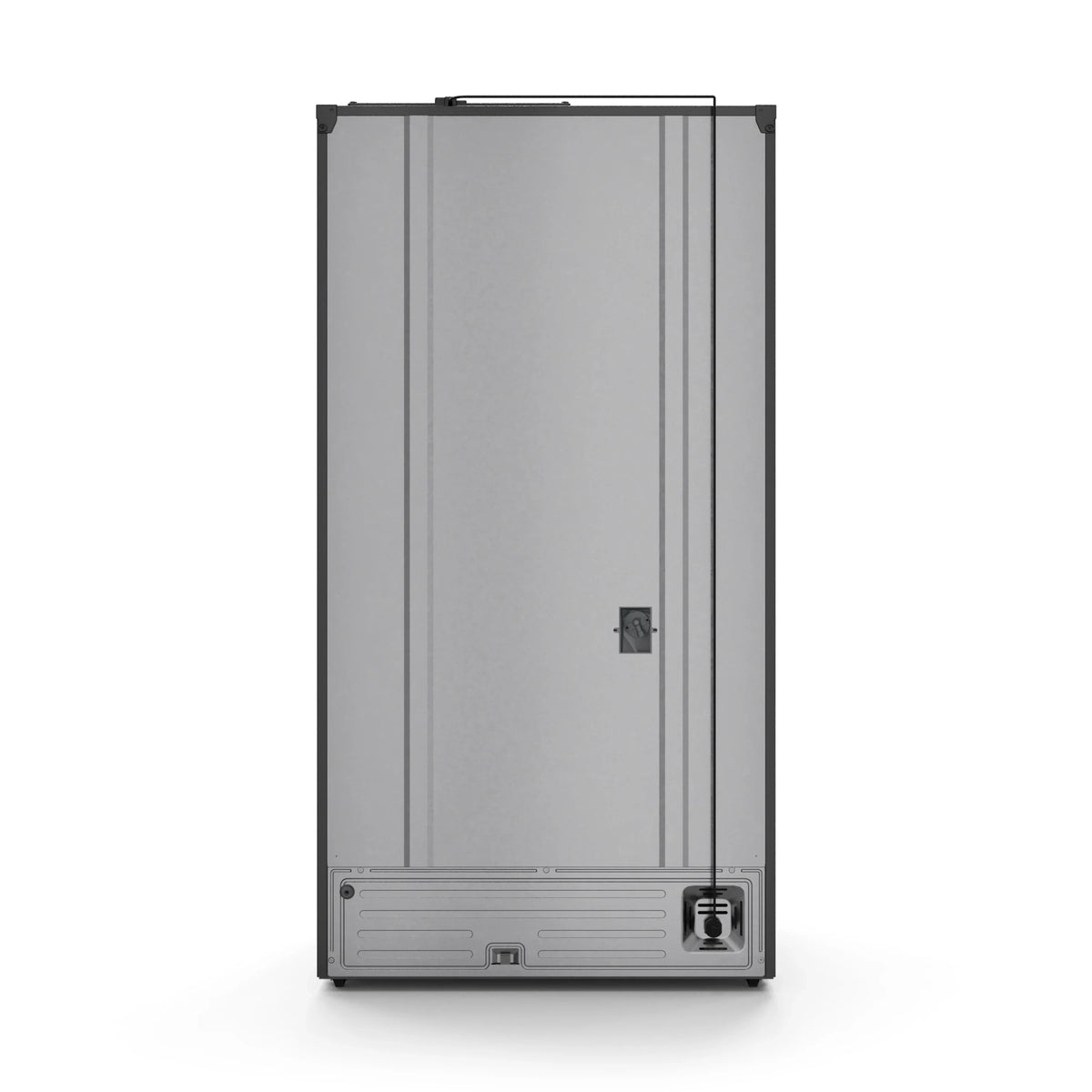

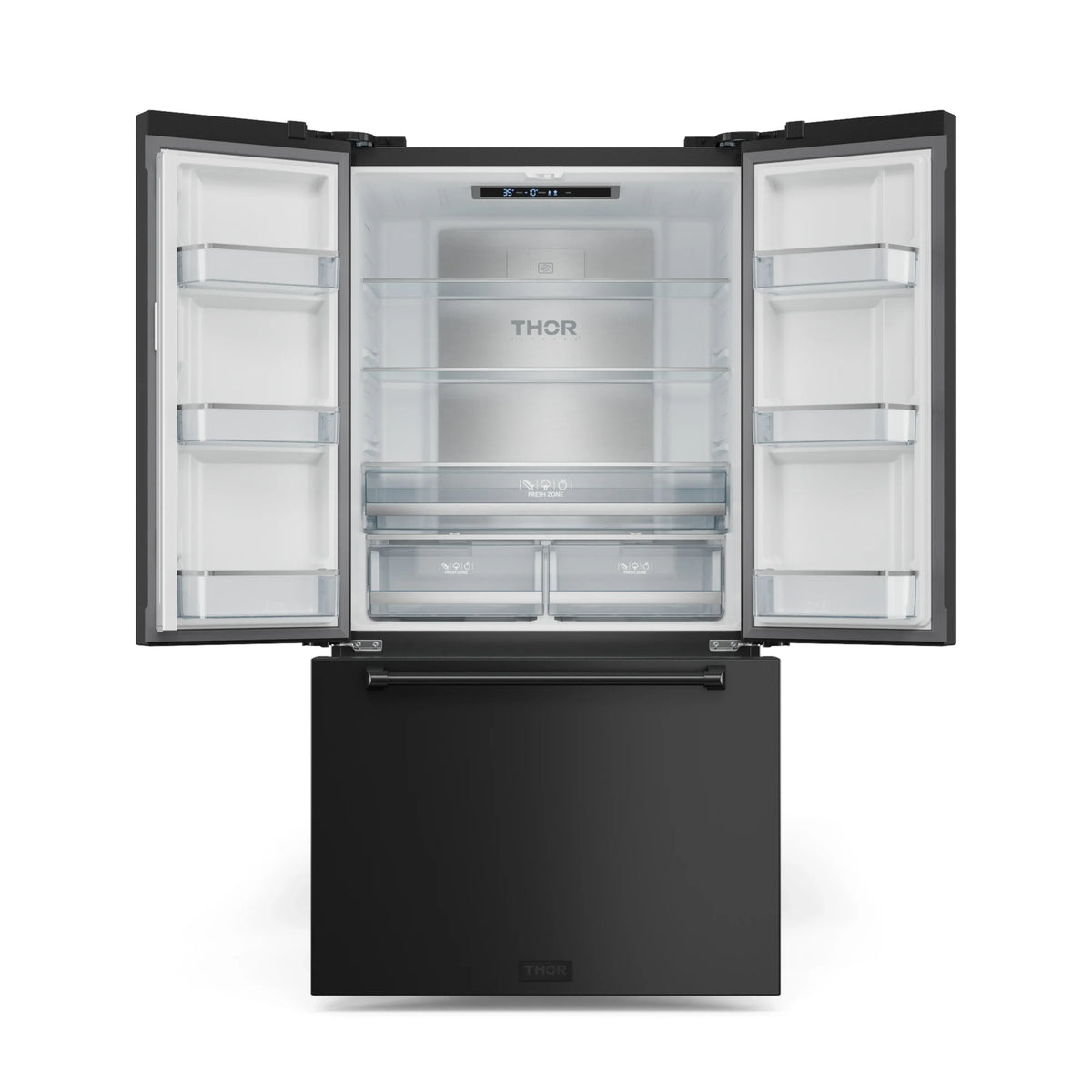

Experience superior freshness with the 36 Inch 20.3 cu ft French Door Counter Depth Refrigerator in Black. With advanced cooling technology, spacious interiors, and customizable features, this refrigerator ensures your ingredients stay at peak freshness. Designed for durability and efficiency, it brings top-tier performance and style to your kitchen.
| DIMENSIONS | |
|---|---|
| Product Dimensions (WxDxH) | 36” x 30 1/8” x 70” |
| Product Depth Excluding Handles | 27 5/8” |
| Product Depth Including Handles | 30 1/8” |
| Product Depth Excluding Door | 24 5/8” |
| Product Depth With Door Open 90 Degrees | 43 1/4” |
| Product Height To Top Of Door Hinge | 70” |
| Product Height To Top Of Refrigerator | 68” |
| Cutout Dimensions (WxDxH) | 39 7/8” x 26” x 72” |
| Net Weight | 231 lbs |
| Package Dimensions (WxDxH) | 38 1/8” x 29 1/2” x 73 7/8” |
| Package Weight | 255 lbs |
| Total Capacity | 20.3 cu. ft. |
| GENERAL INFORMATION | |
| Installation Type | Freestanding |
| Accessories Included | Water Pipe Ice Scoop Ice Storage Box |
| DESIGN & FINISH | |
| Shelf Material | Glass With Stainless Steel Trim |
| Lighting | LED |
| TECHNICAL DETAILS | |
| Watts | 190W |
| Circuit Breaker Amperage | 15A |
| Volts | 115V |
| Frequency | 60Hz |
| Plug Type | 3-Prong Plug |
| Power Cord Length | 94” |

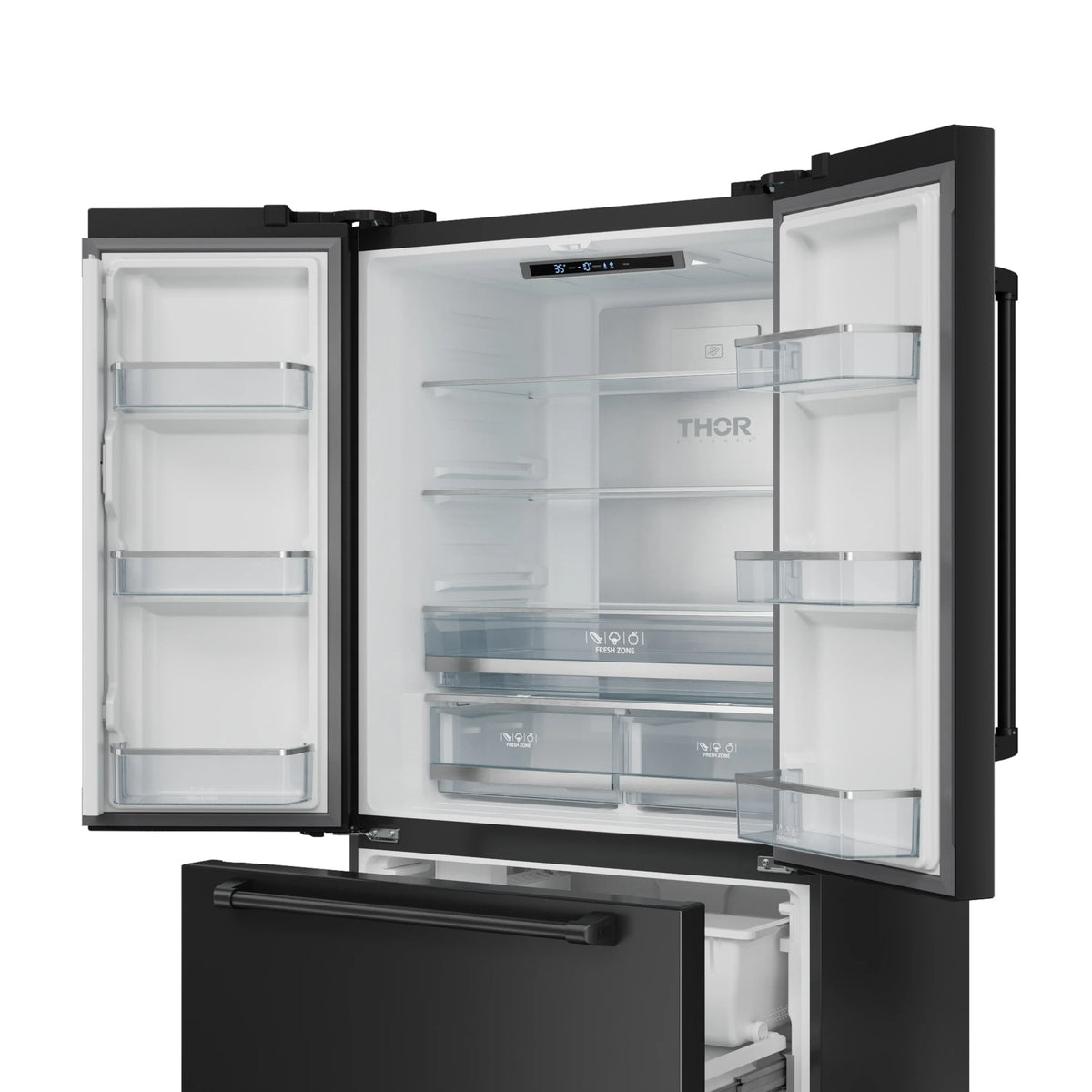

| REFRIGERATOR FEATURES | |
| Refrigerator Capacity | 14.2 cu. ft. |
| Number Of Door Bins | 6 |
| Number Of Shelves | 3 |
| Refrigerator Features | 6 pcs Gallon Bottle Storage Child Lock / Energy Saving & Vacation Mode/ Fast Cooling Humidity Controlled Crispers Fridge Temperature Range: 35~46°F (2~8°C) |

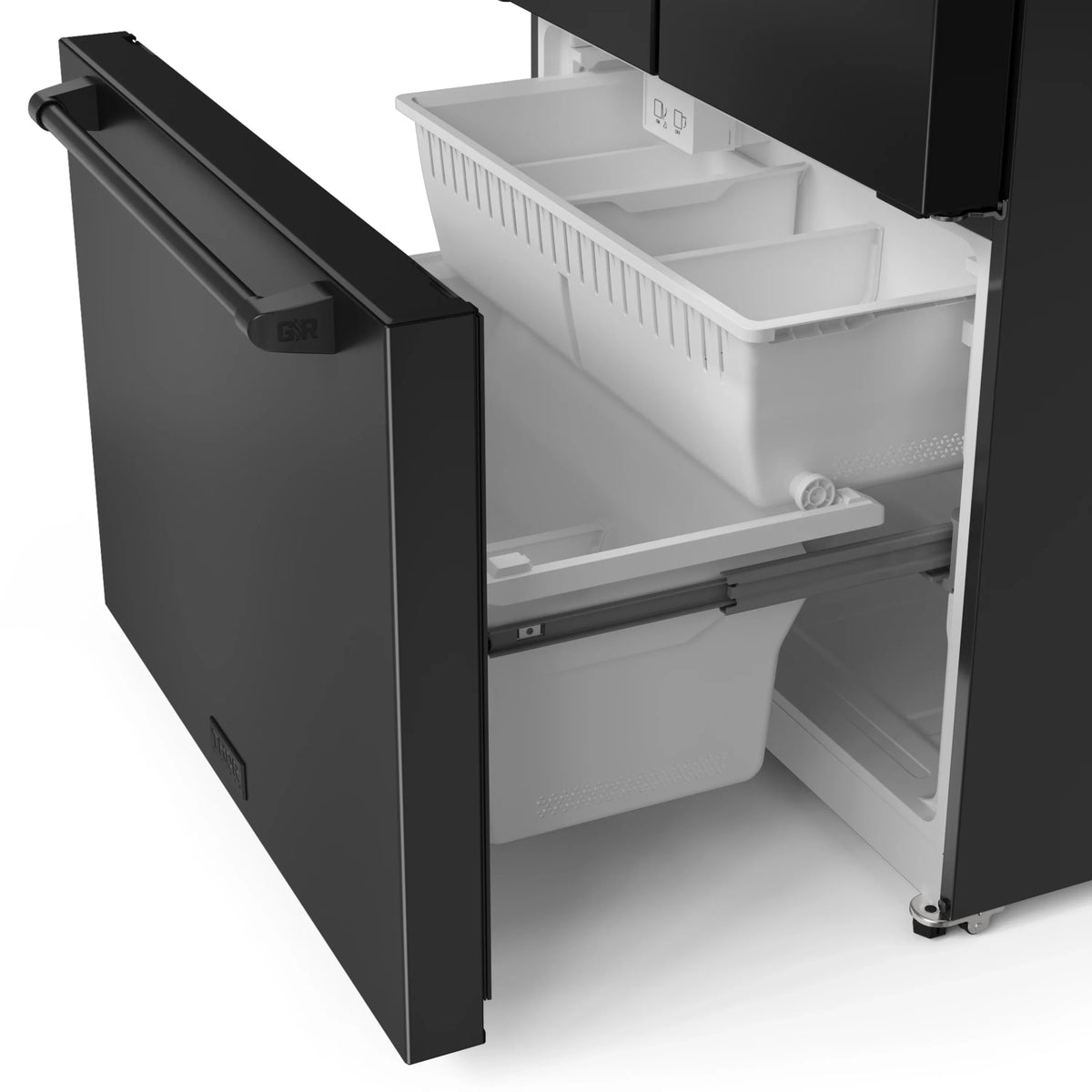

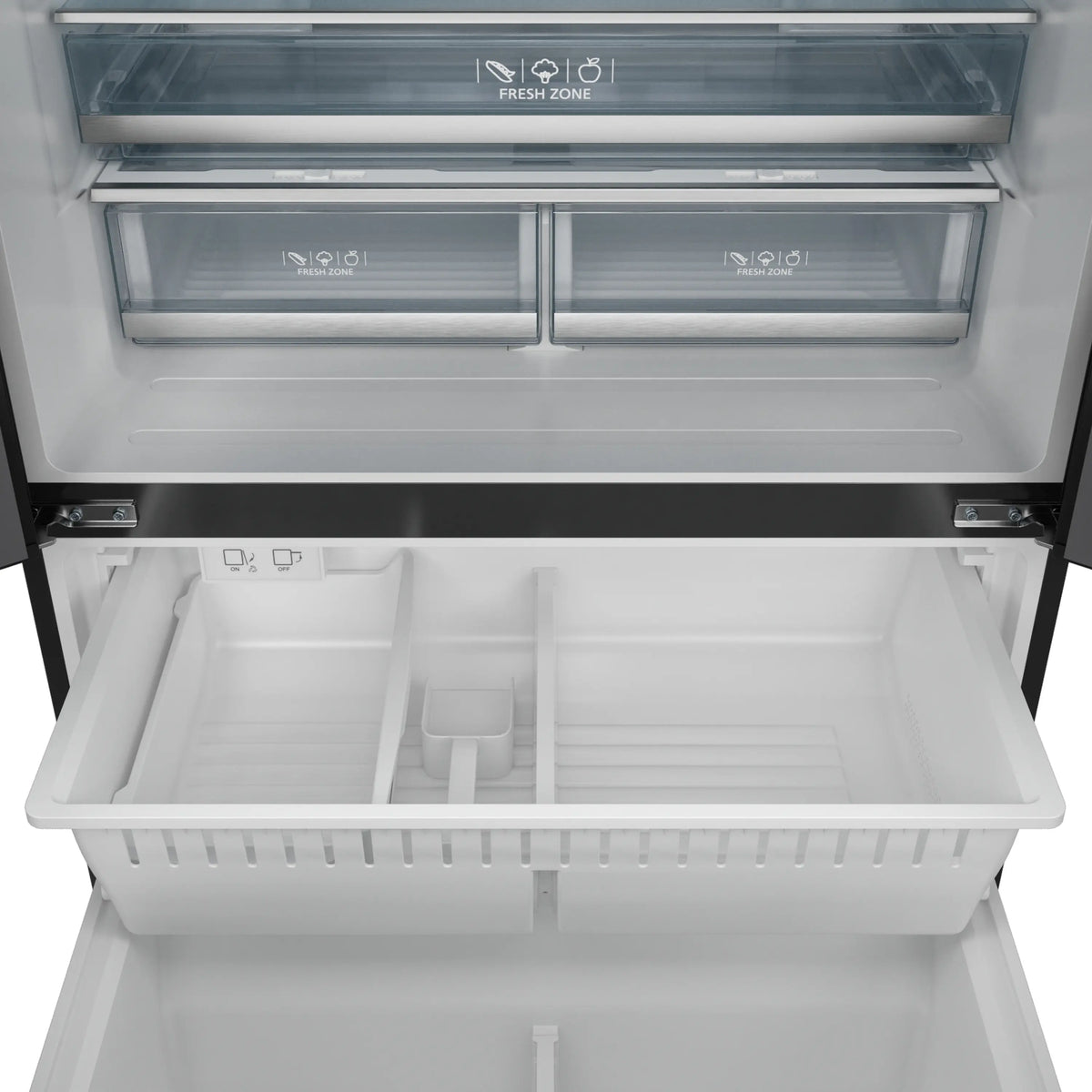

| FREEZER FEATURES | |
| Freezer Capacity | 6.1 cu. ft |
| Number Of Freezer Baskets | 1 |
| Freezer Features | LED Lightening Fast Freezing Freezer Temperature Range: -10~5°F ( -23~ -15°C) No Frost Design |

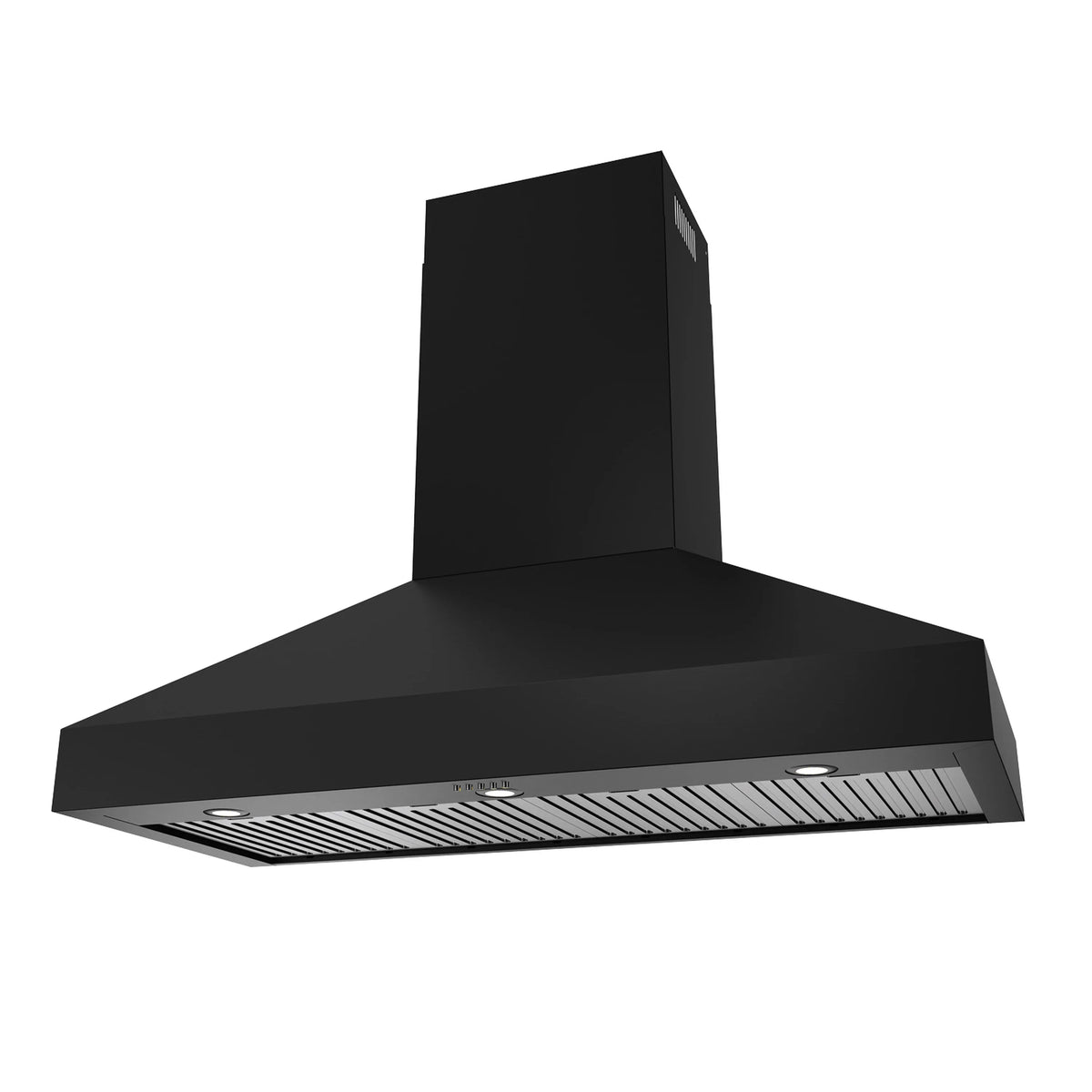

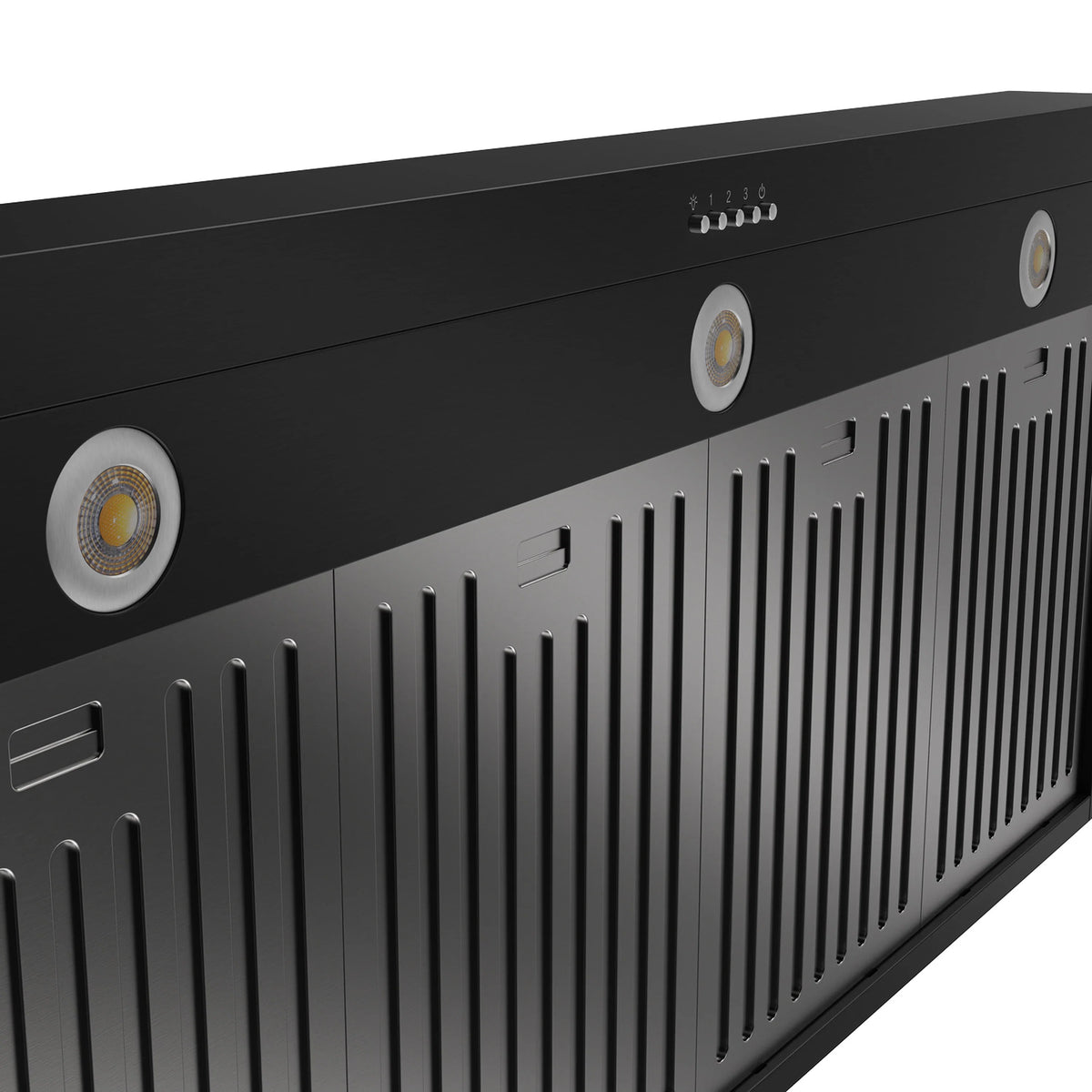

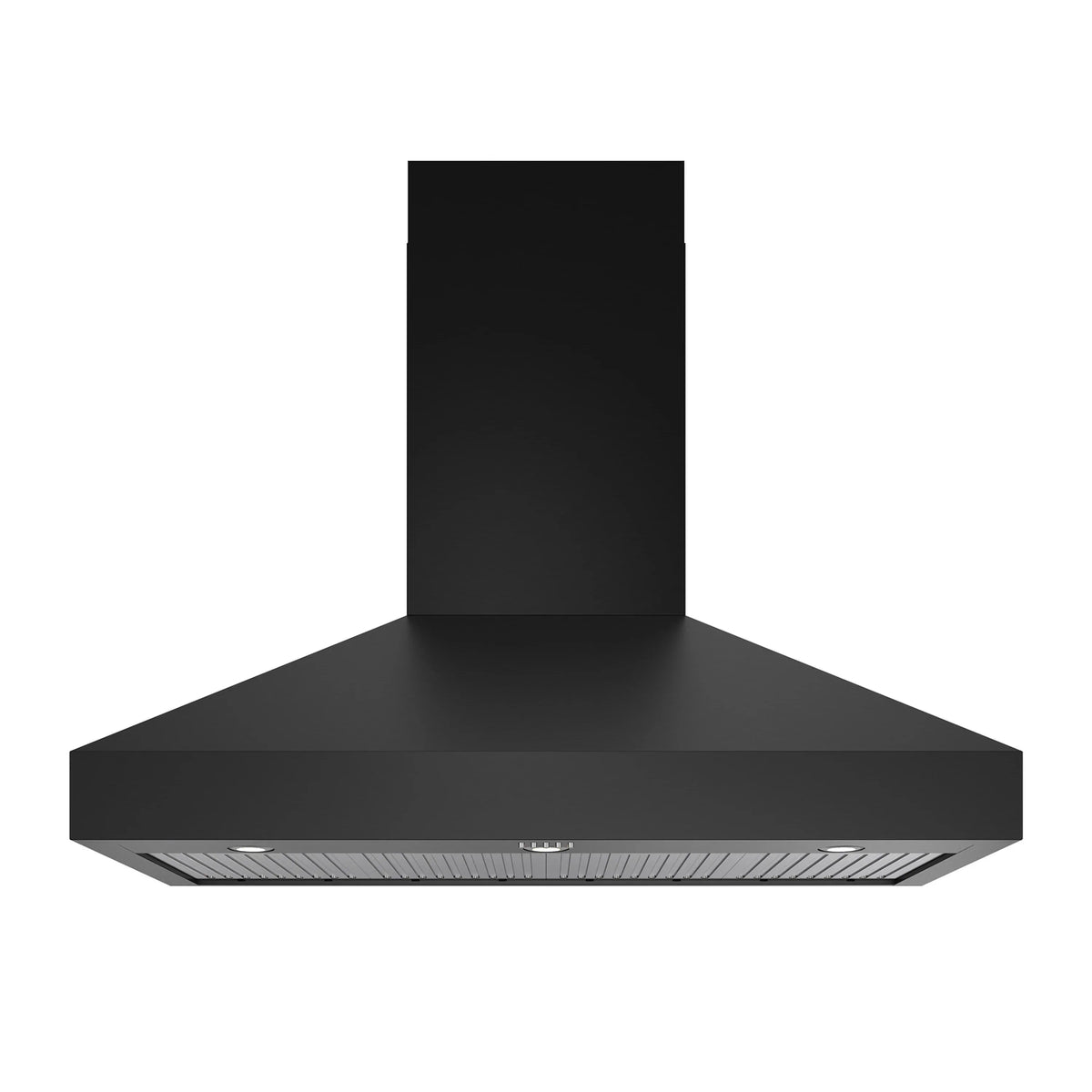

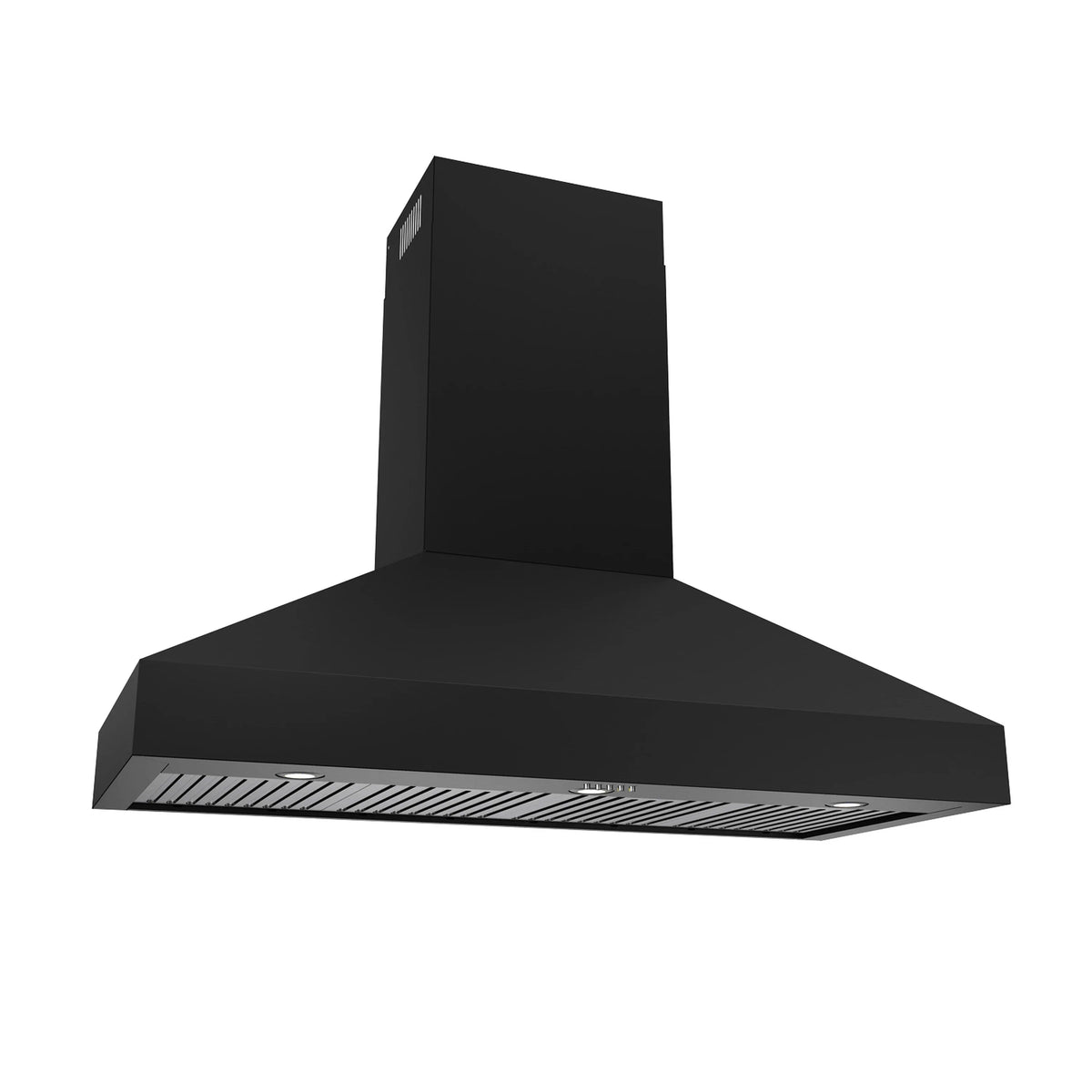

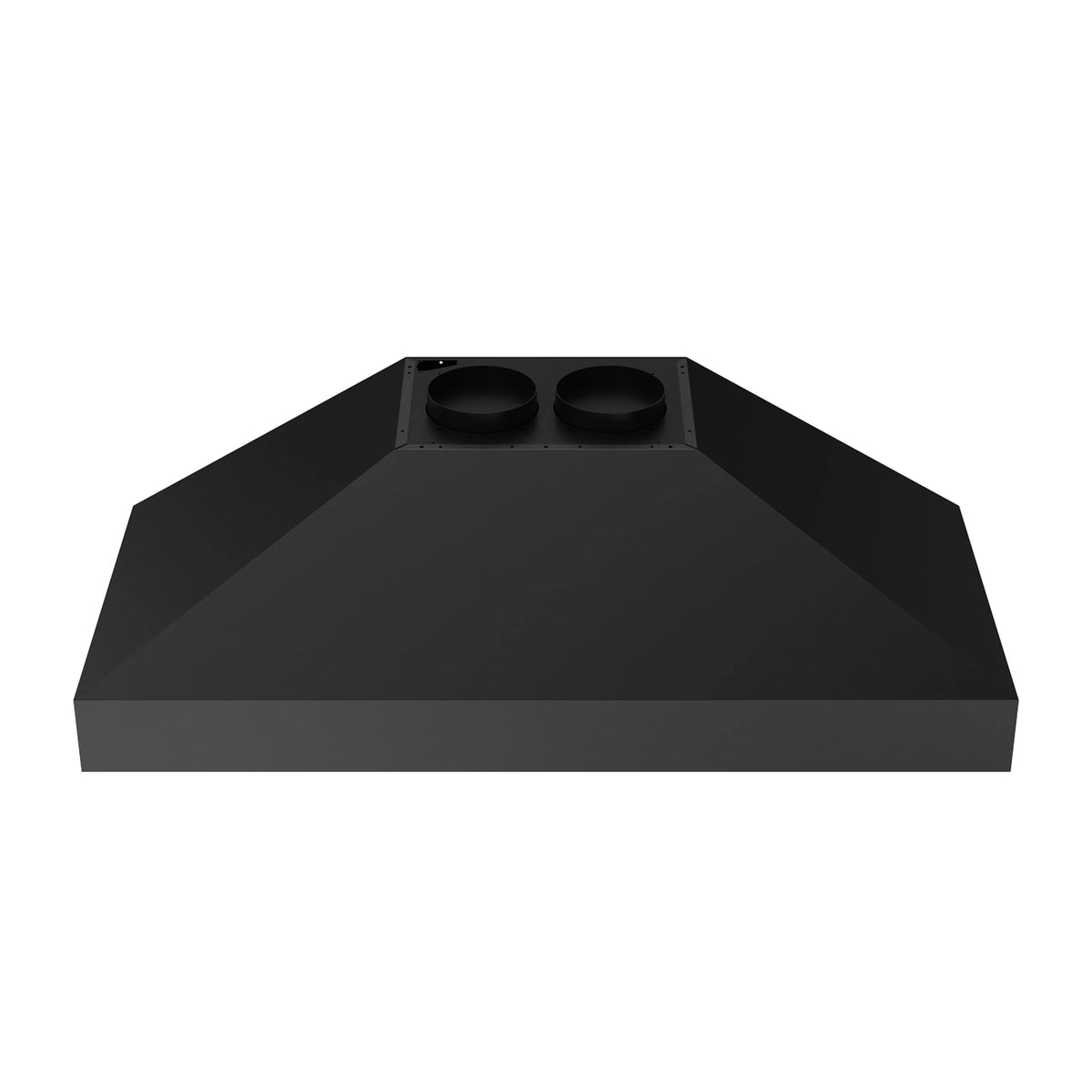

Bring powerful performance and modern style to your kitchen with the Thor Kitchen 48-Inch Wall Mount Range Hood in Black (TRH48PB). This range hood features a robust 800 CFM of suction to efficiently clear smoke, steam, and odors, while its quiet operation keeps noise to a minimum. The durable, commercial-style stainless steel baffle filter maximizes airflow and is easy to clean. Illuminate your cooktop with energy-efficient LED lighting and enjoy seamless control with simple push-button controls. Designed for versatility, this unit offers both ducted and ductless (recirculating) ventilation options to fit your kitchen's needs.
| DIMENSIONS | |
|---|---|
| Product Dimensions | 48” W x 20 1/2” D x 14” H |
| Height of Range Hood/ Extended Duct | 35”/ 55” |
| Duct Width | 8” |
| Gross Weight | 72 lbs |
| GENERAL INFORMATION | |
| Installation Type | Wall Mount |
| DESIGN & FINISH | |

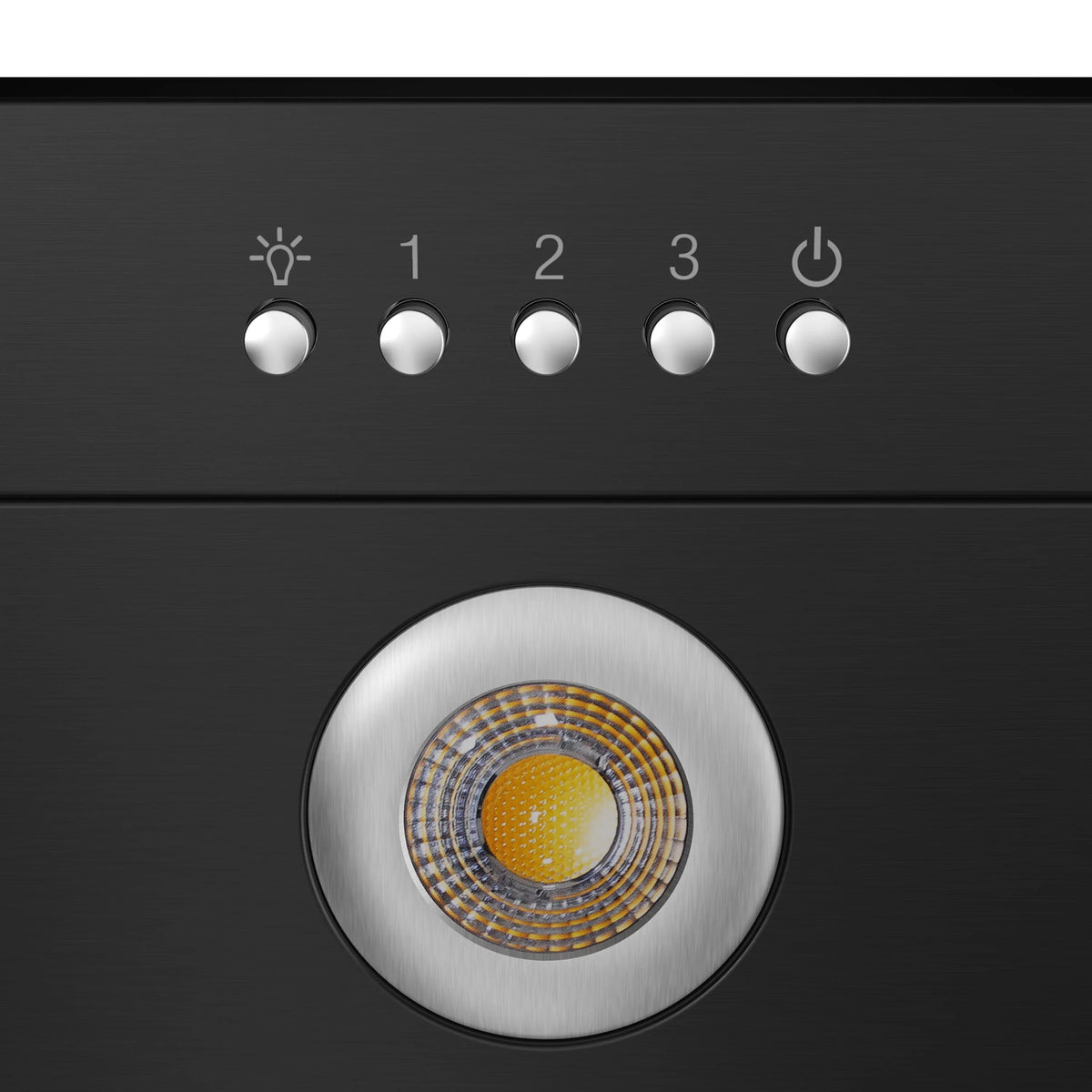

| Control Type | Button, No Auto Shut Off No Delayed Shut Off |
| Color/Finish | Stainless Steel |
| TECHNICAL DETAILS | |

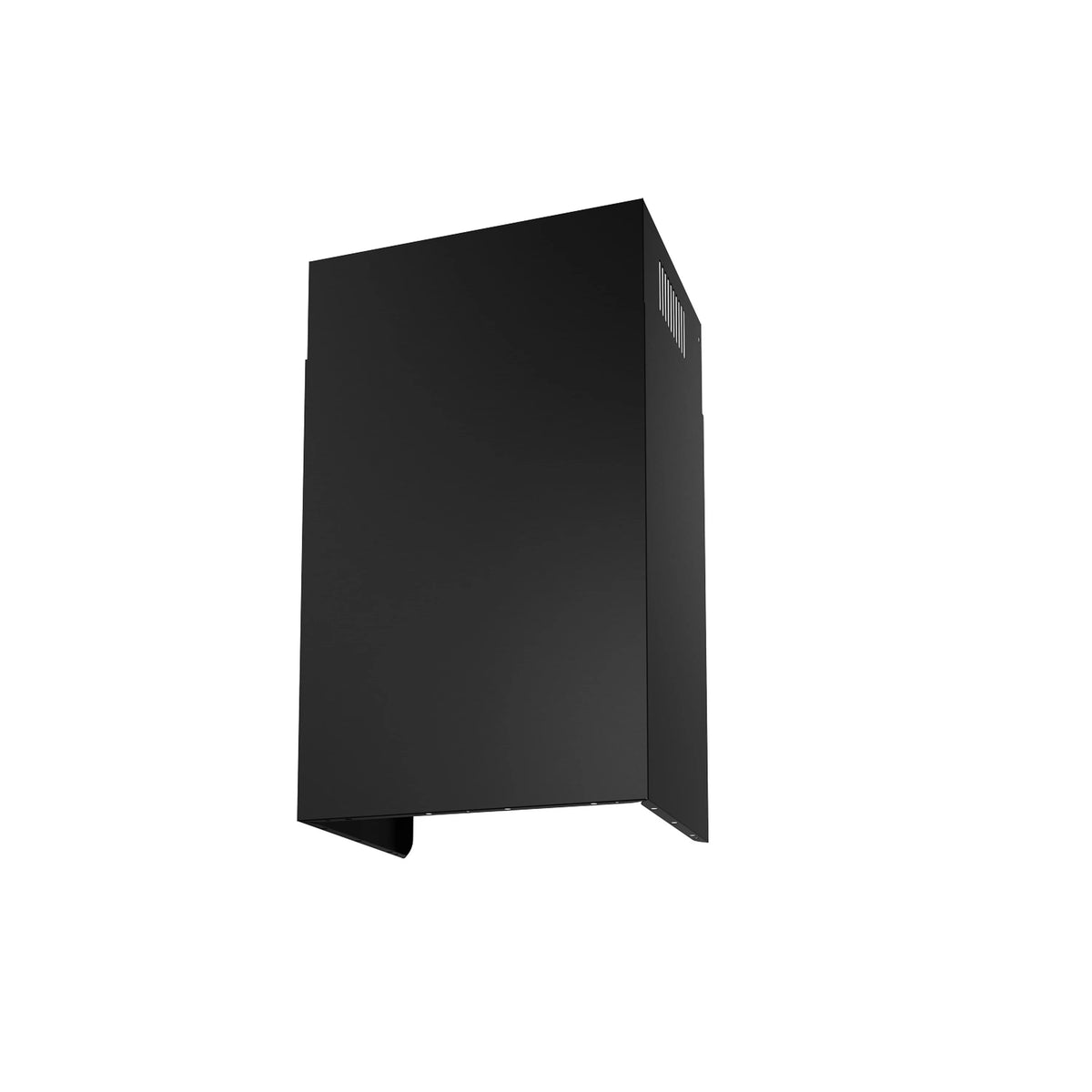

| Duct Length/ Extended | 21”/ 41” |
| Duct Size Diameter | 7” |
| Duct Shape | Round |
| Power | 110V |
| Frequency | 60Hz |
| Amperage | 6A |
| Blower Type | Internal |
| FEATURES | |
| Range Hood Size | 48” |
| Lighting | LED Light x 3 |
| Filter Type | 430SS Baffle Filter x 4 |

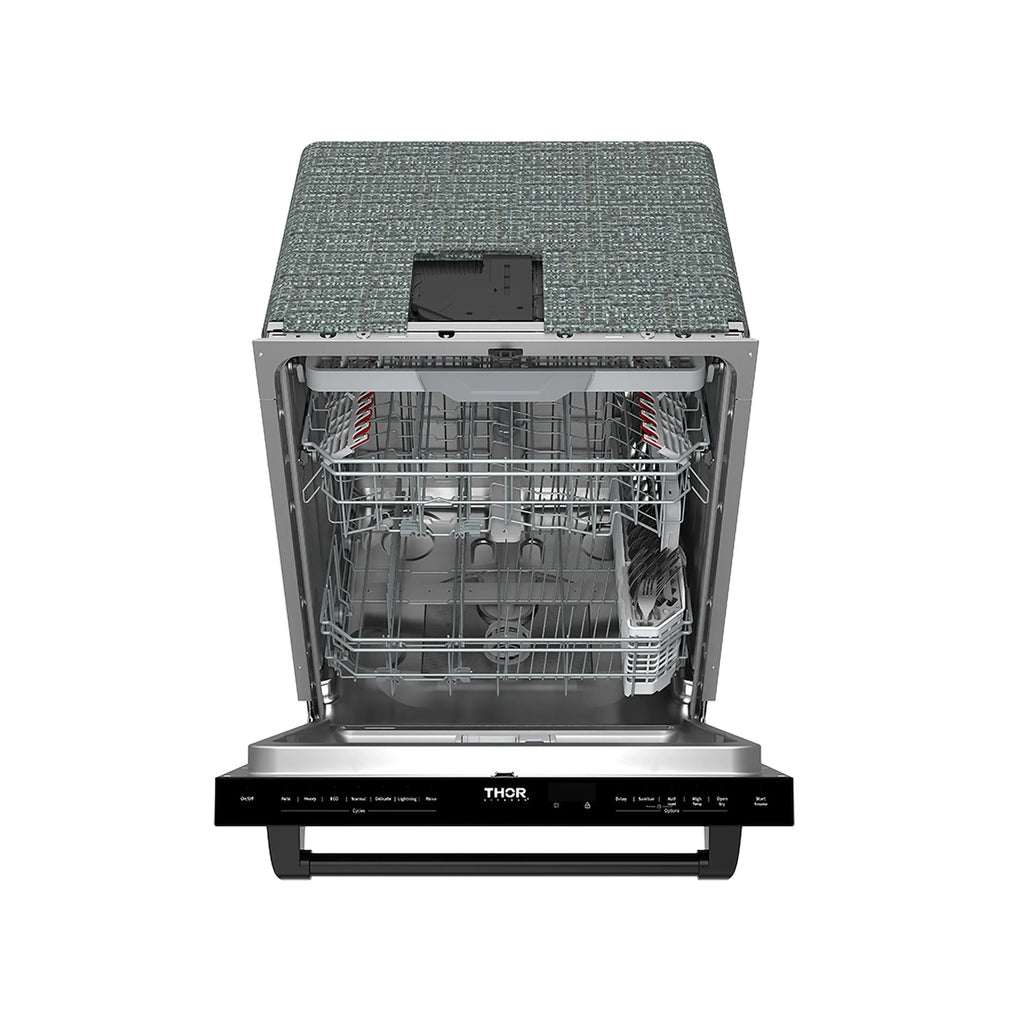

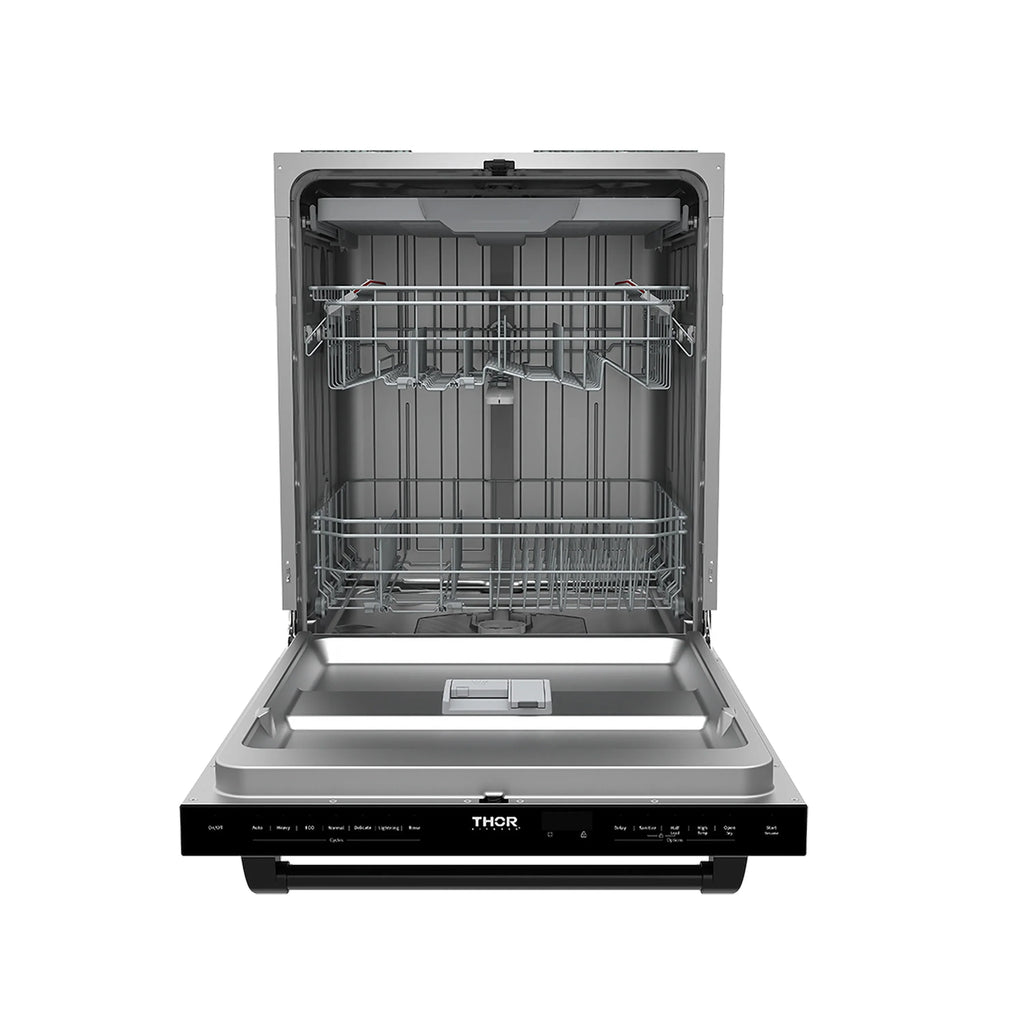

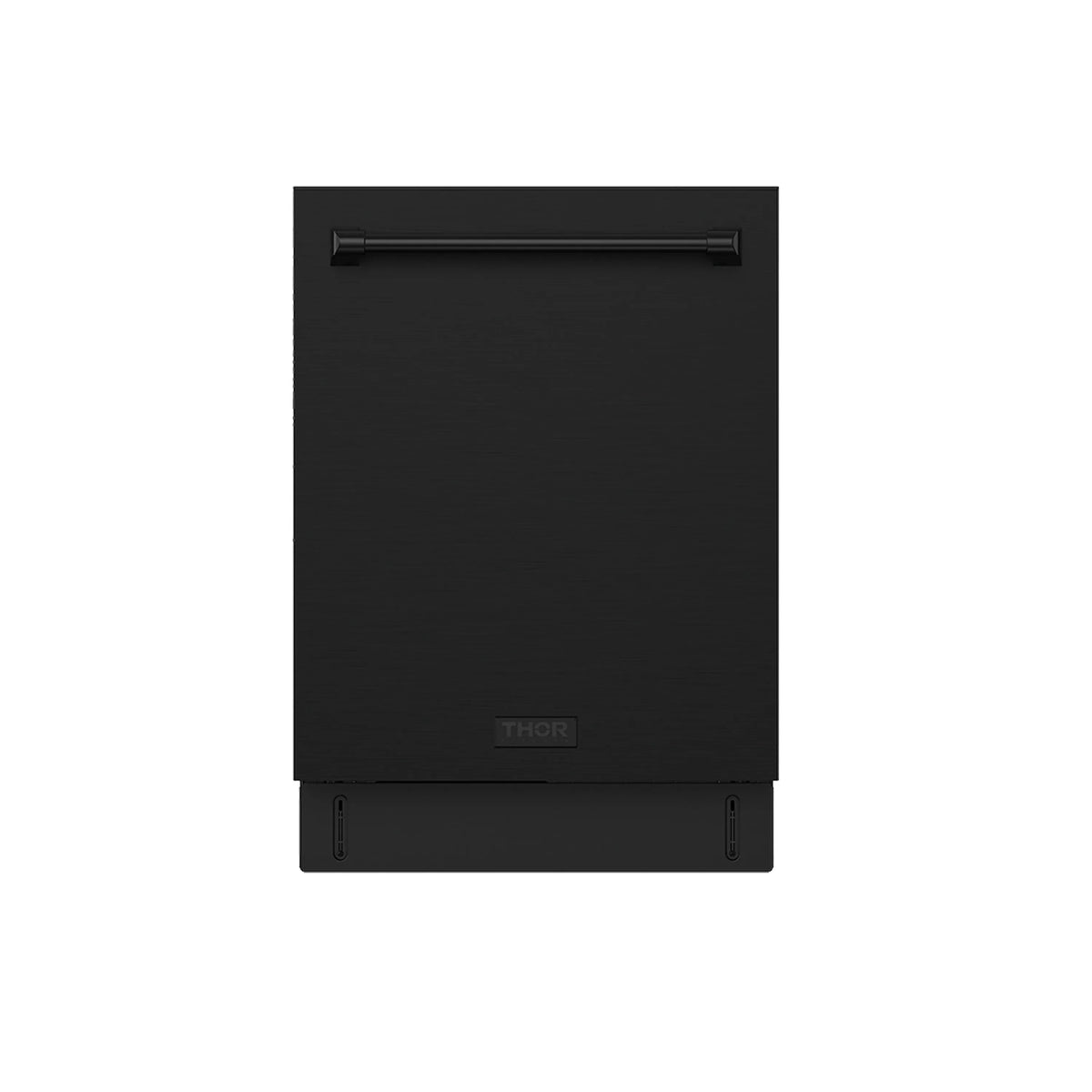

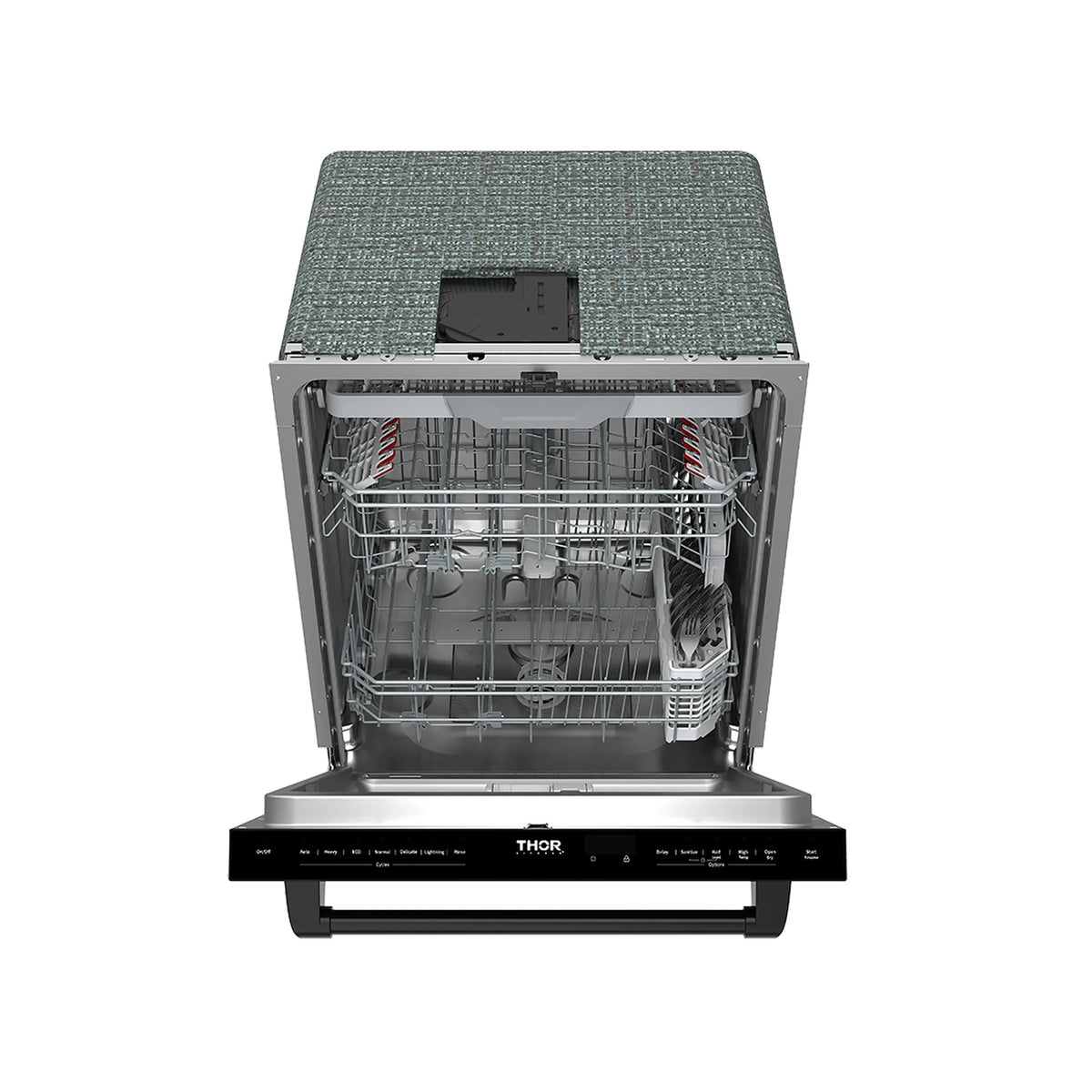

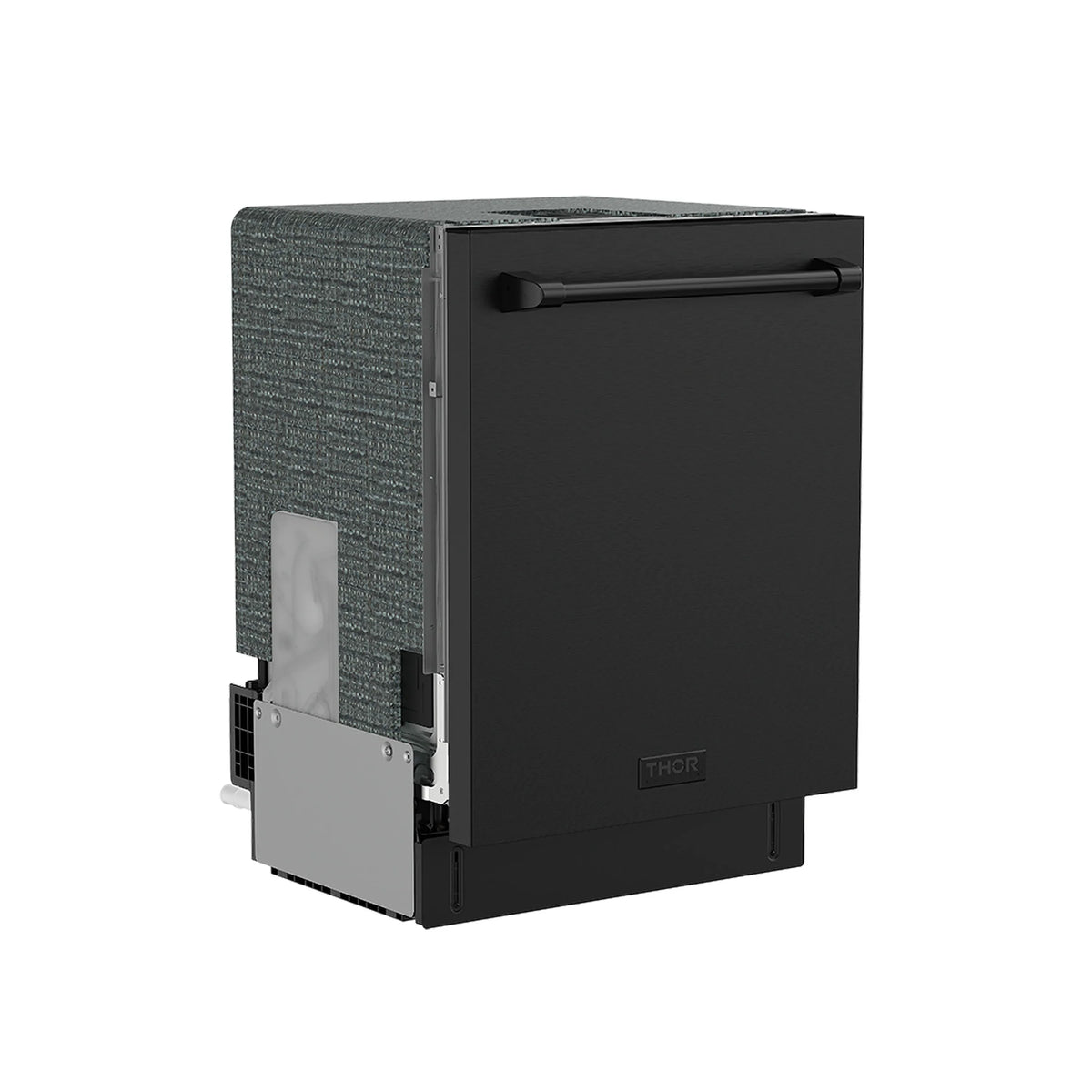

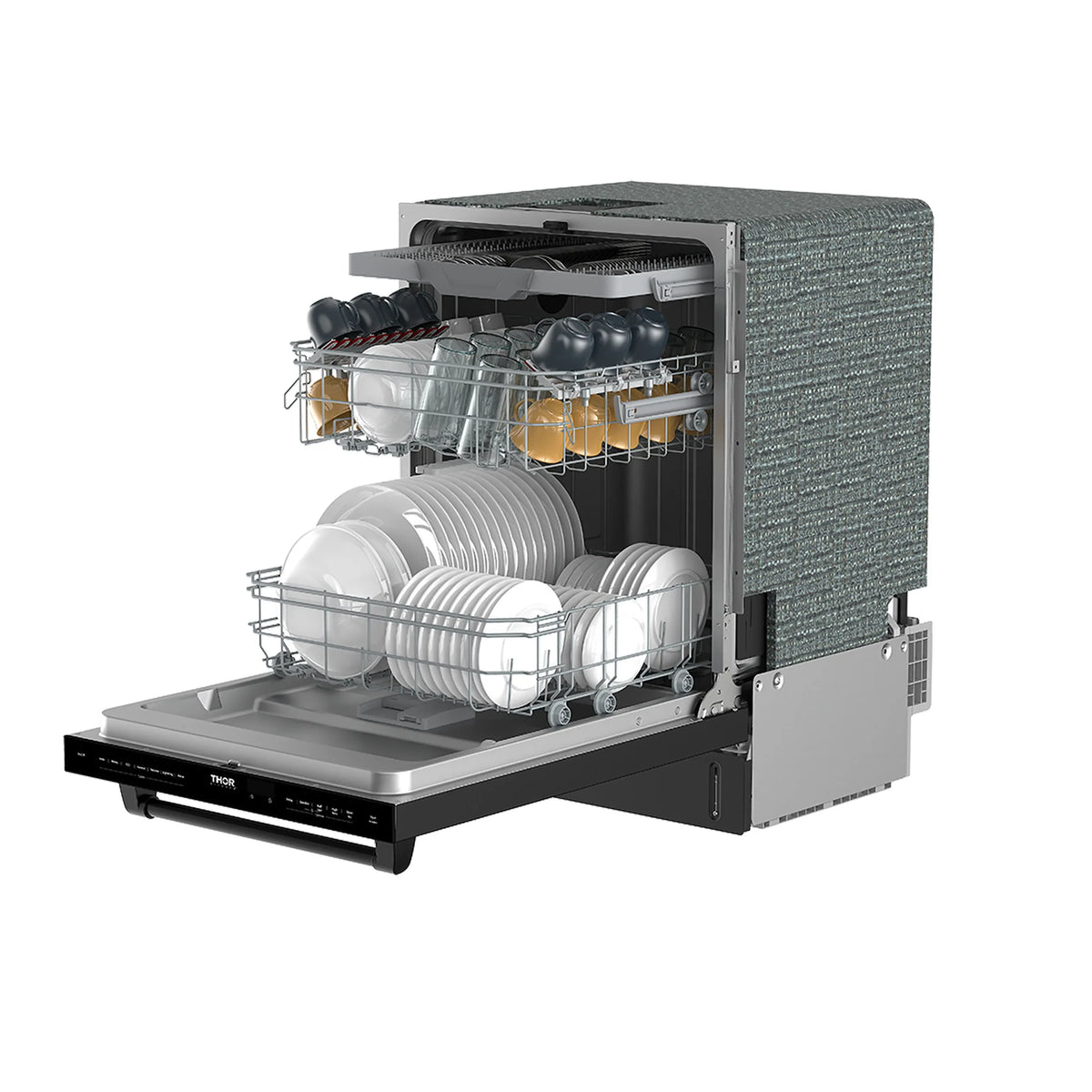

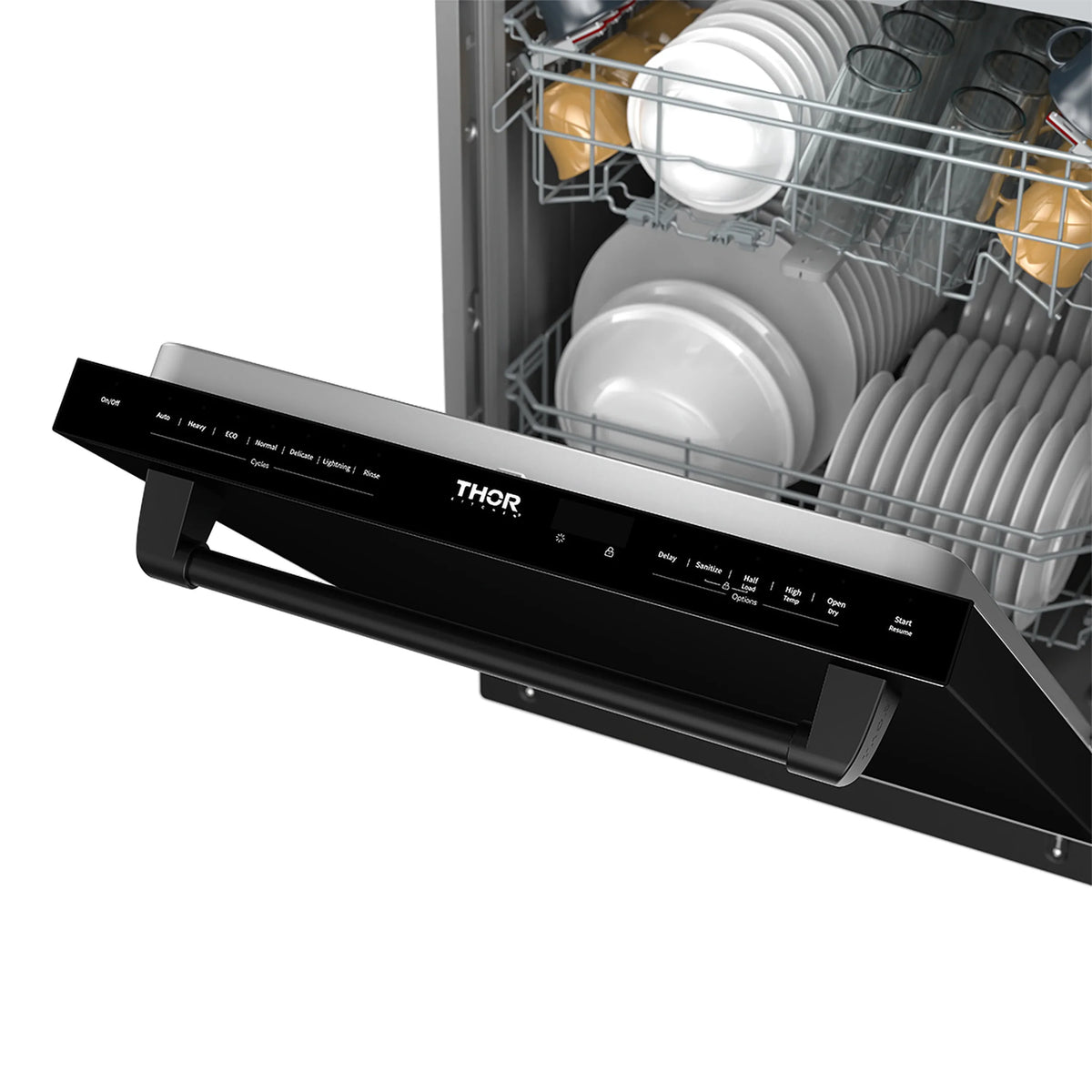

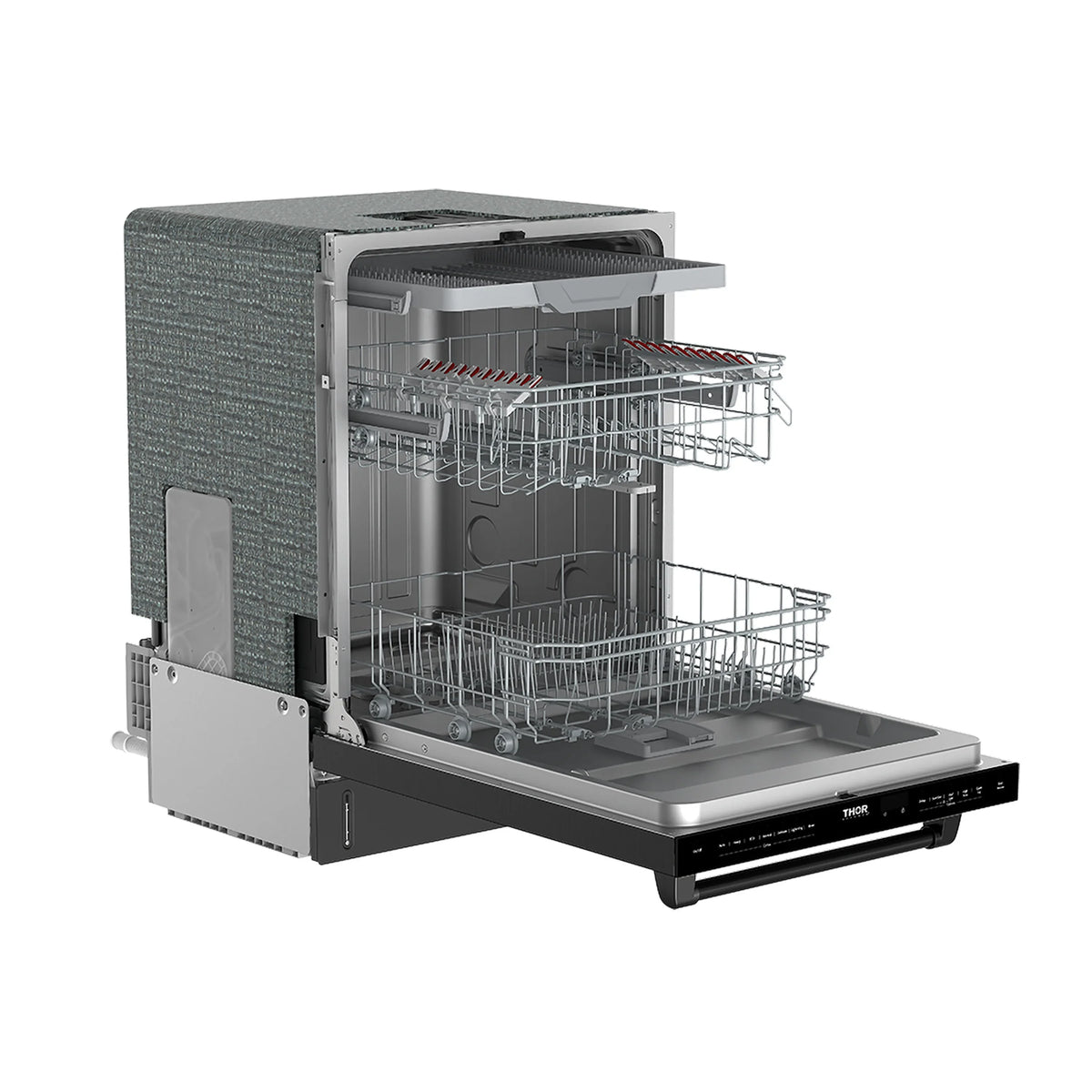

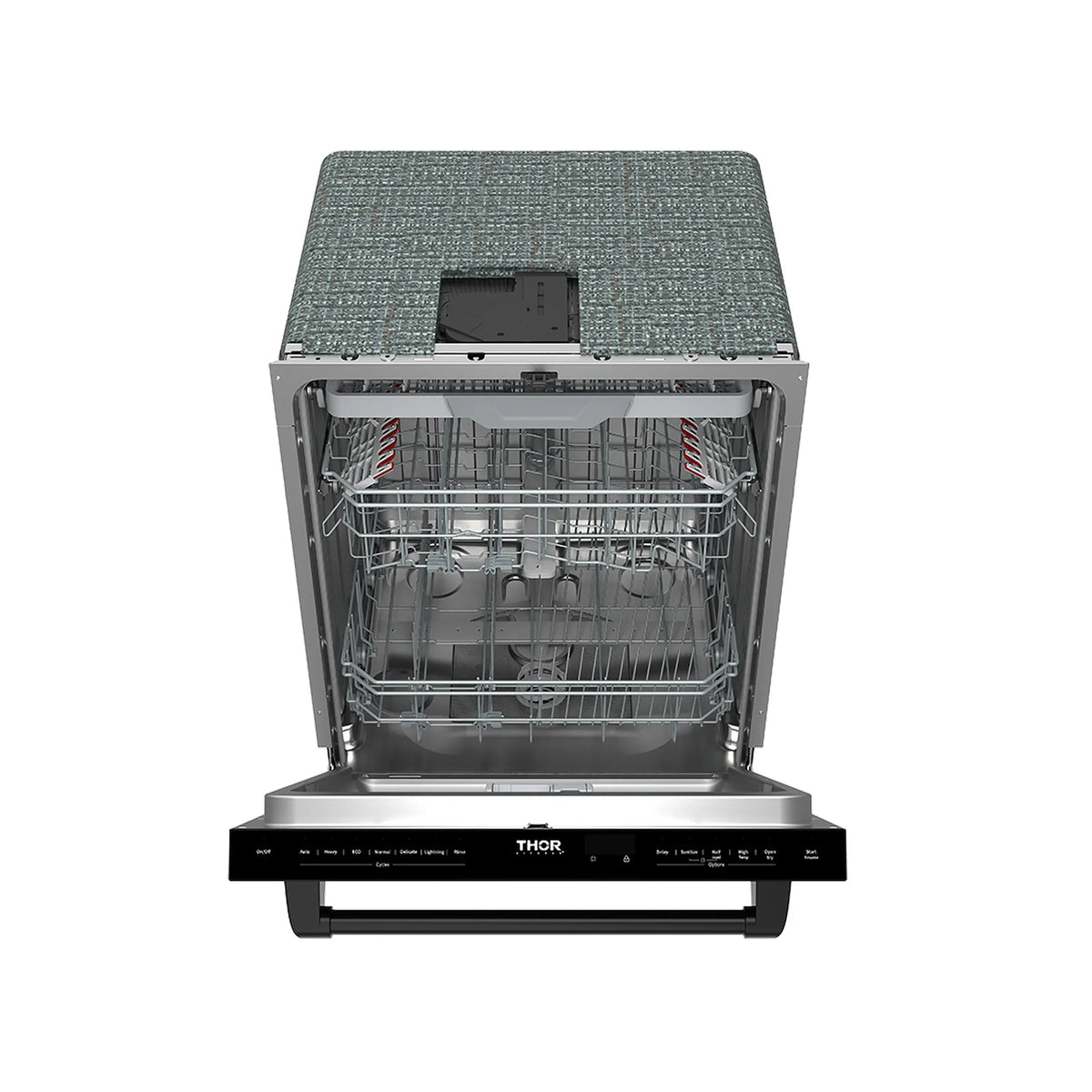

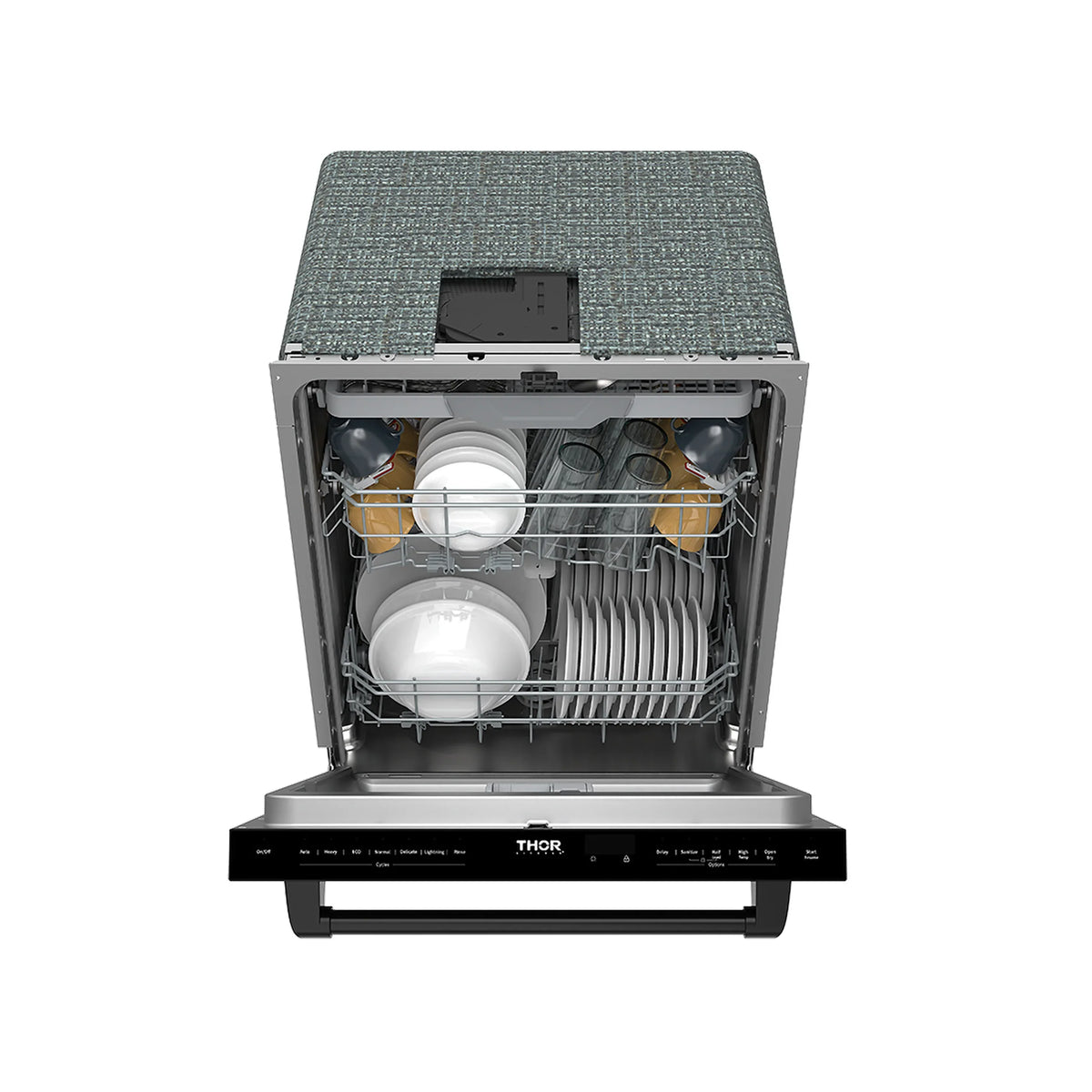

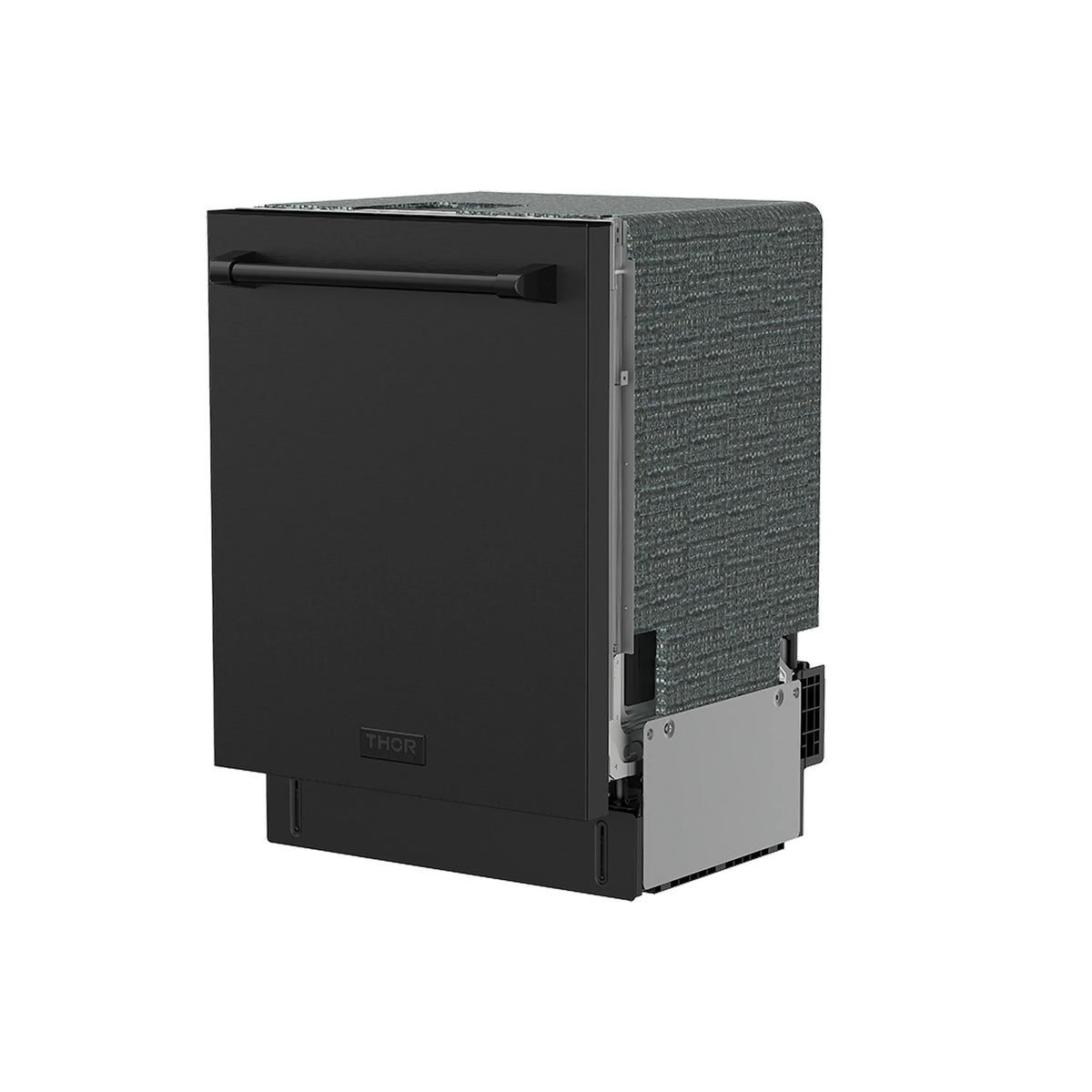

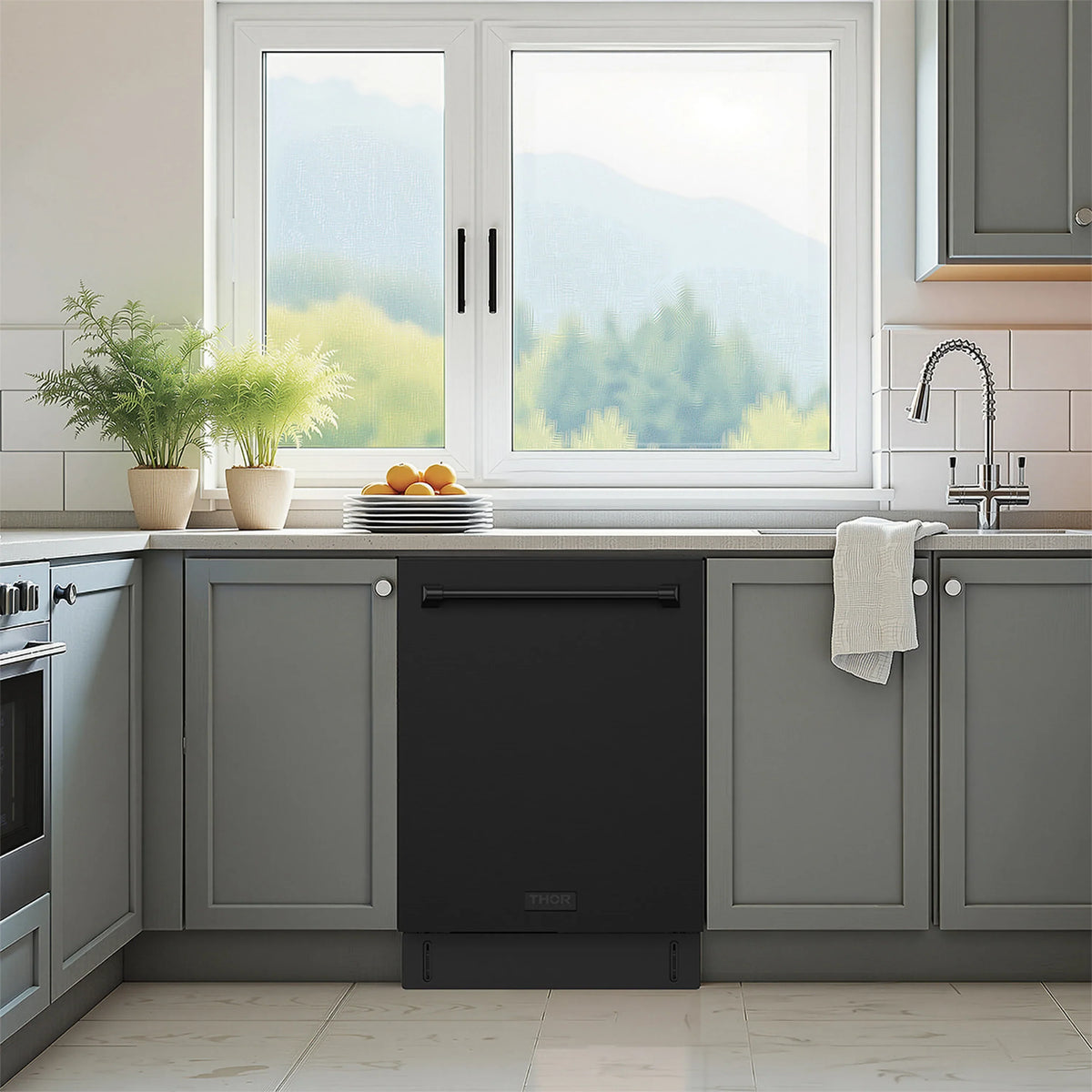

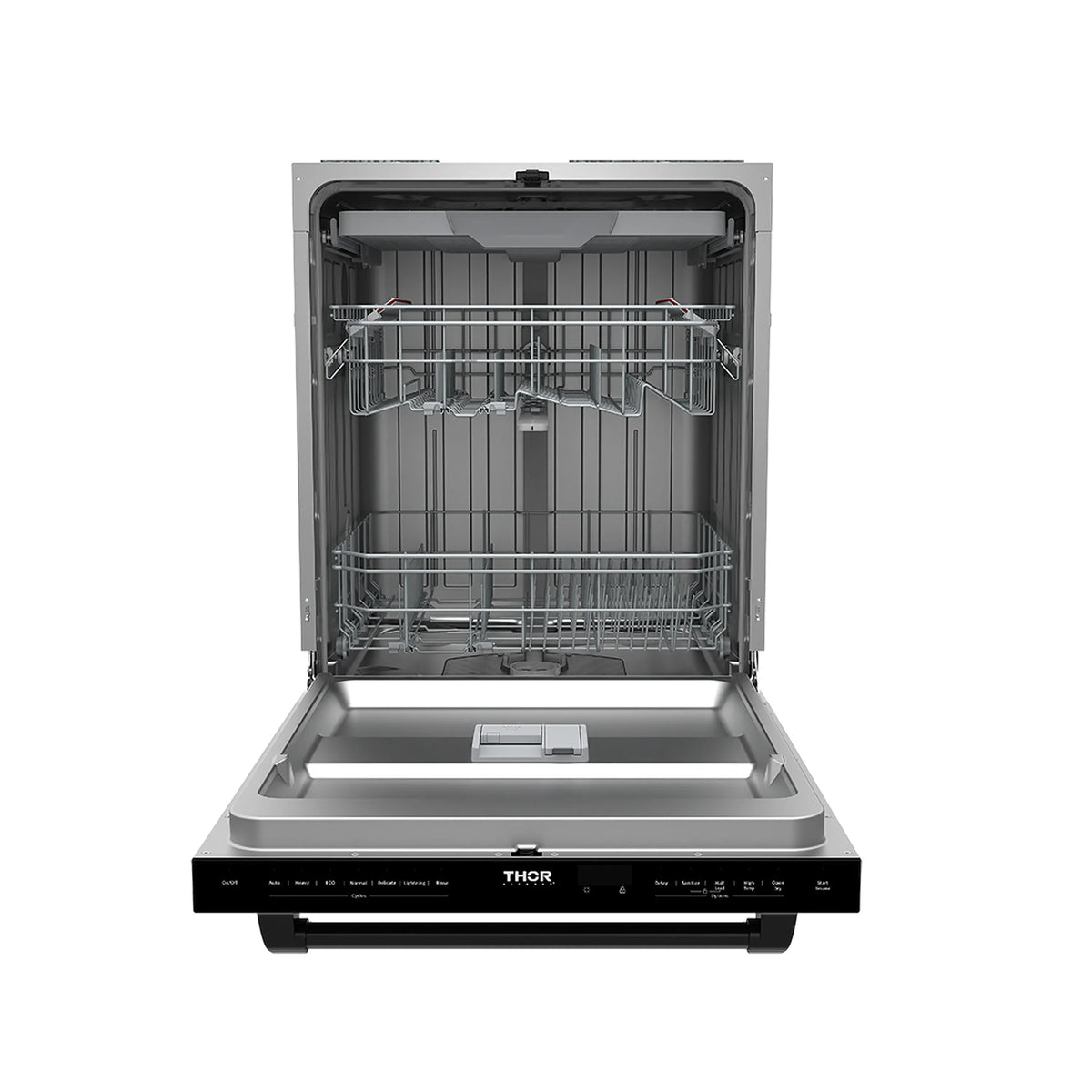

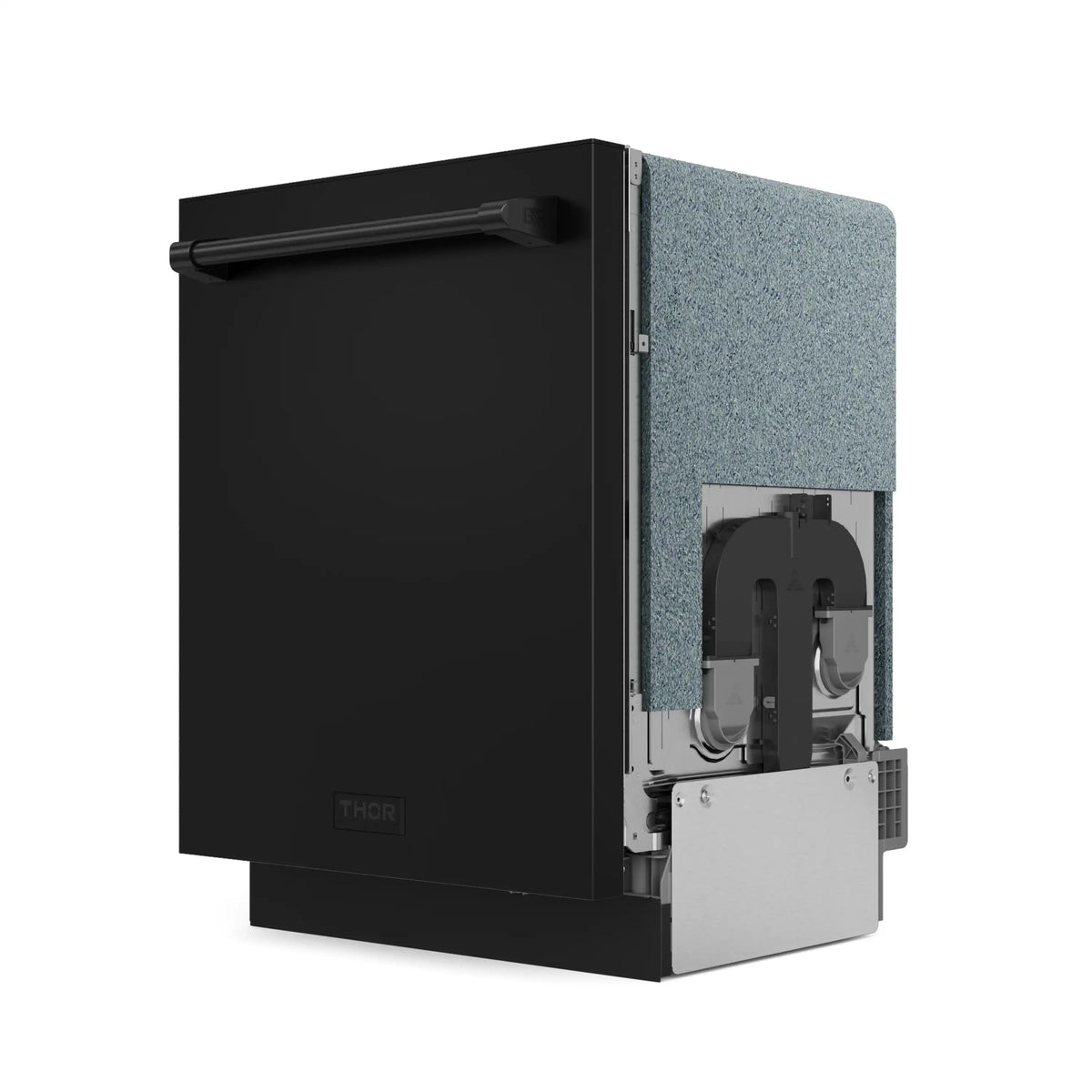

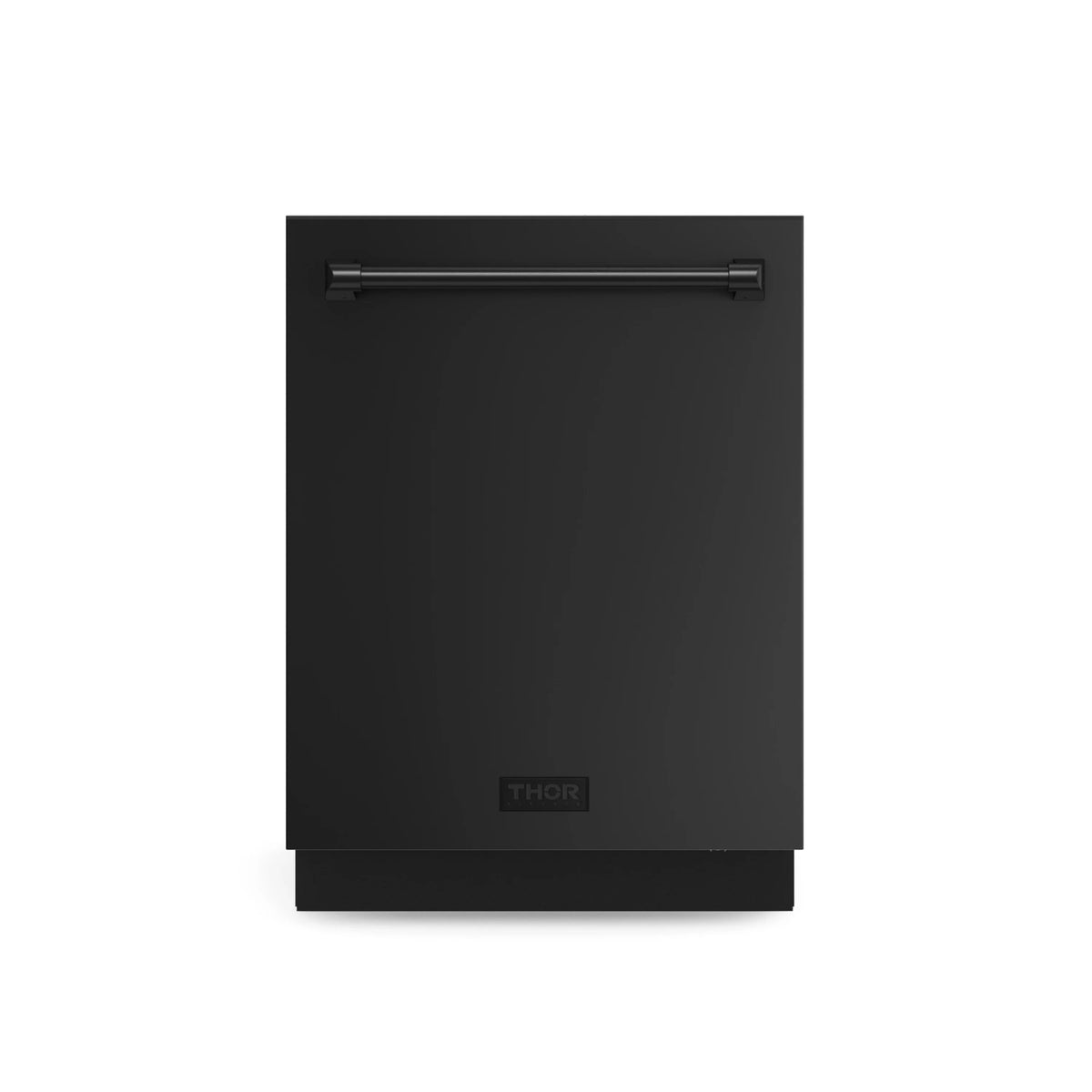

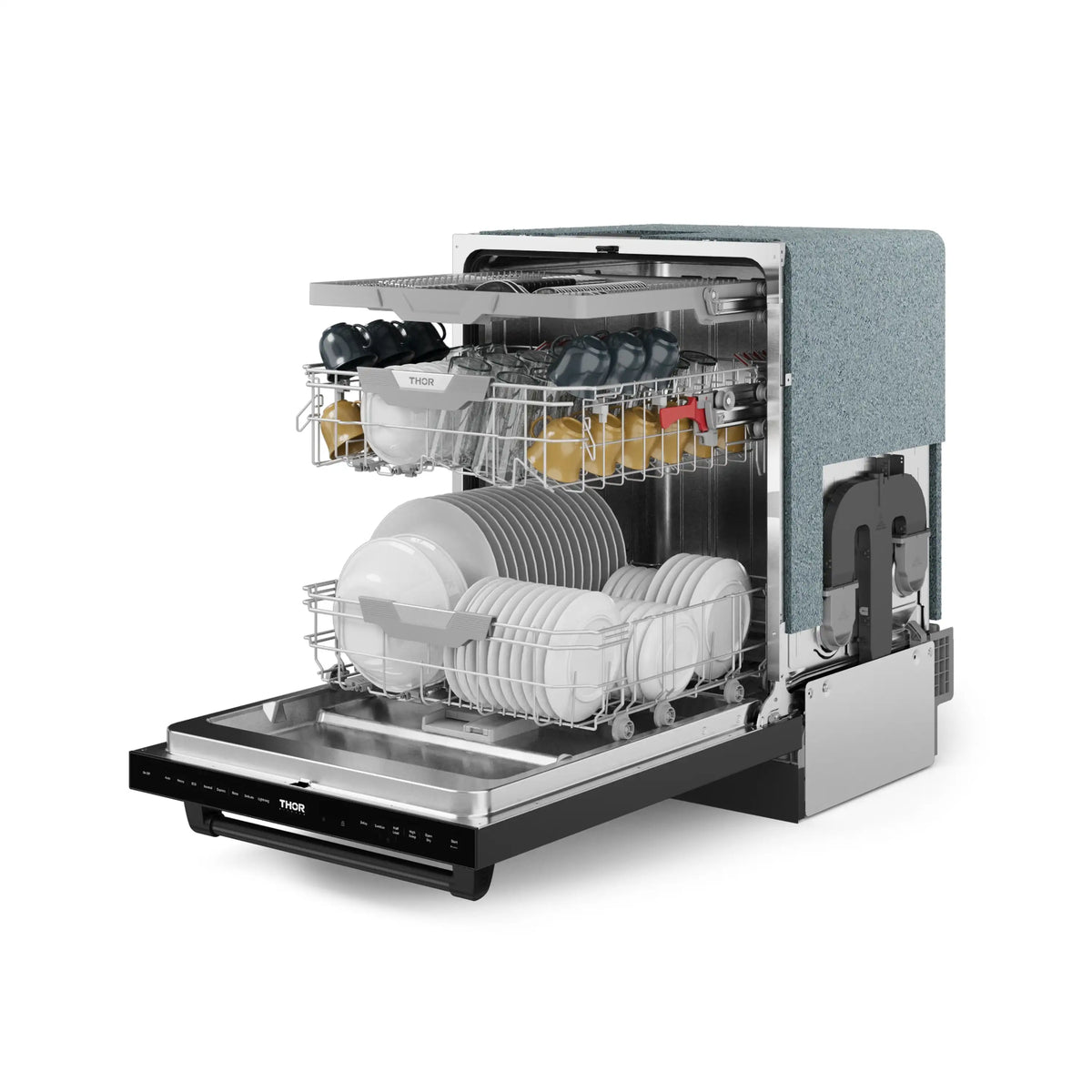

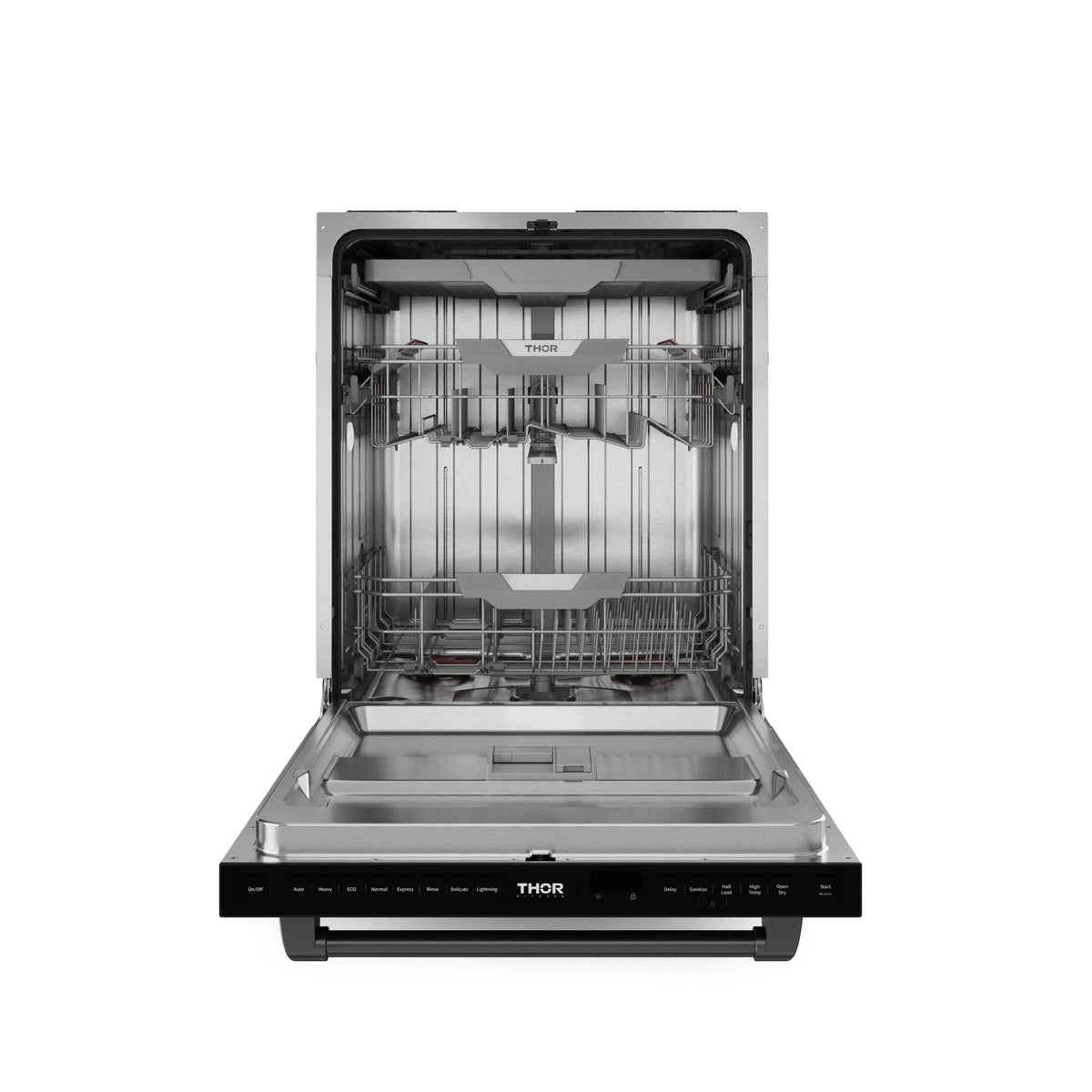

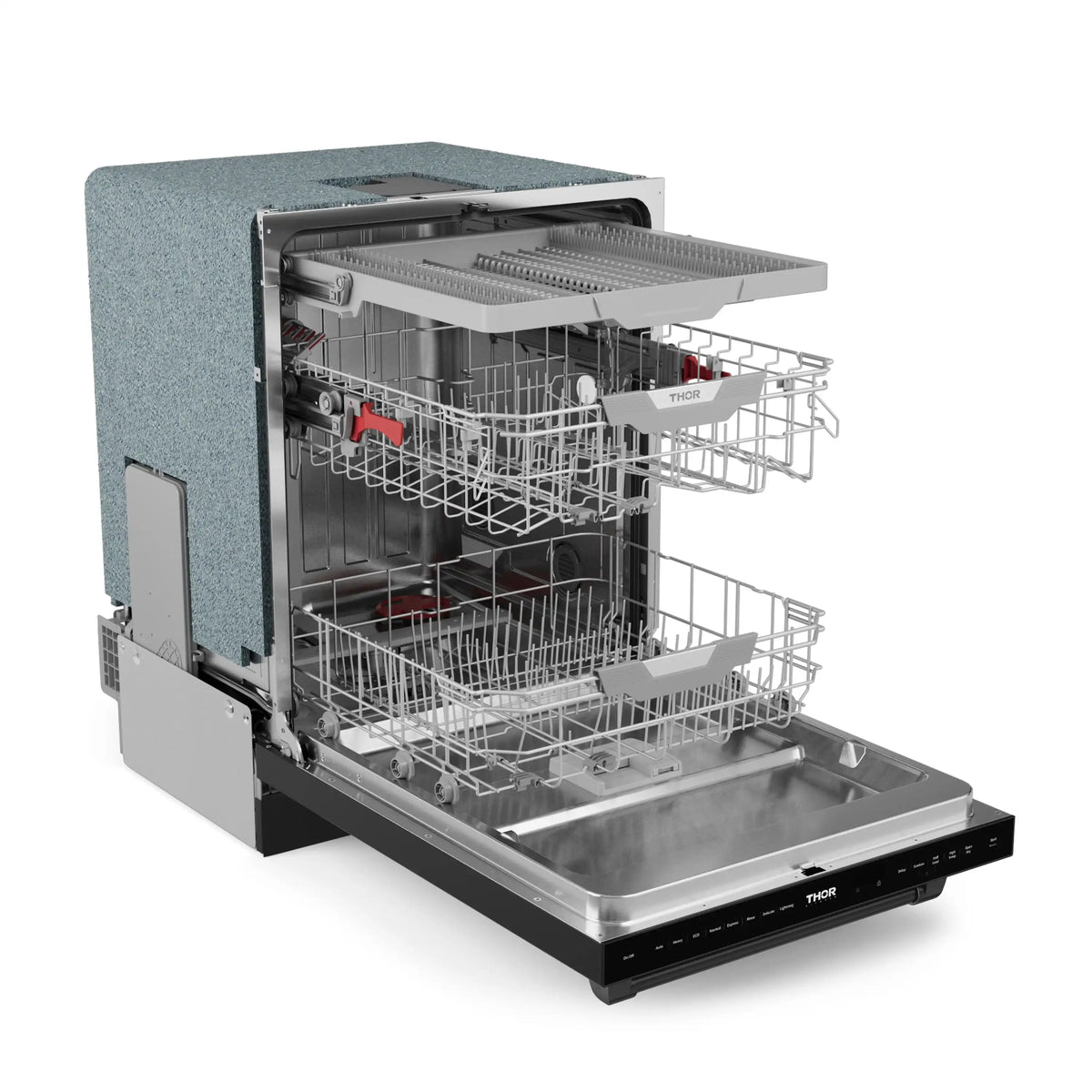

The Thor Kitchen TDW24C7B is a 24-inch top control built-in dishwasher in black, offering 7 wash cycles with 5 options to handle everything from delicate glassware to heavily soiled cookware. Featuring a quiet 47 dBA operation, a 3-rack system with a third-layer cutlery rack, height-adjustable upper basket, and a wine glass bracket, it delivers flexible, organized cleaning for up to 15 place settings. The touchscreen controls, status indicator light, and open dry system round out a feature-rich dishwasher designed for modern kitchens.
| DIMENSIONS | |
|---|---|
| Product Dimensions (WxDxH) (in.) | 23-7/8" x 22-5/8" x 33-7/8" |
| Product Depth with Handles (in.) | 25-1/8" |
| Cutout Dimensions (WxDxH) (in.) | 23-7/8" - 24" x 22-7/8" - 23-5/8" x 34" - 35-1/2" |
| Package Dimensions (WxDxH) (in.) | 28-3/4" x 28-3/4" x 35-1/16" |
| Net Weight (lbs.) | 80.5 |
| Gross Weight (lbs.) | 97.8 |
| GENERAL INFORMATION | |
| Brand | Thor Kitchen |
| Model Number | TDW24C7B |
| Product | 24 Inch Top Control Built-In Dishwasher in Black |

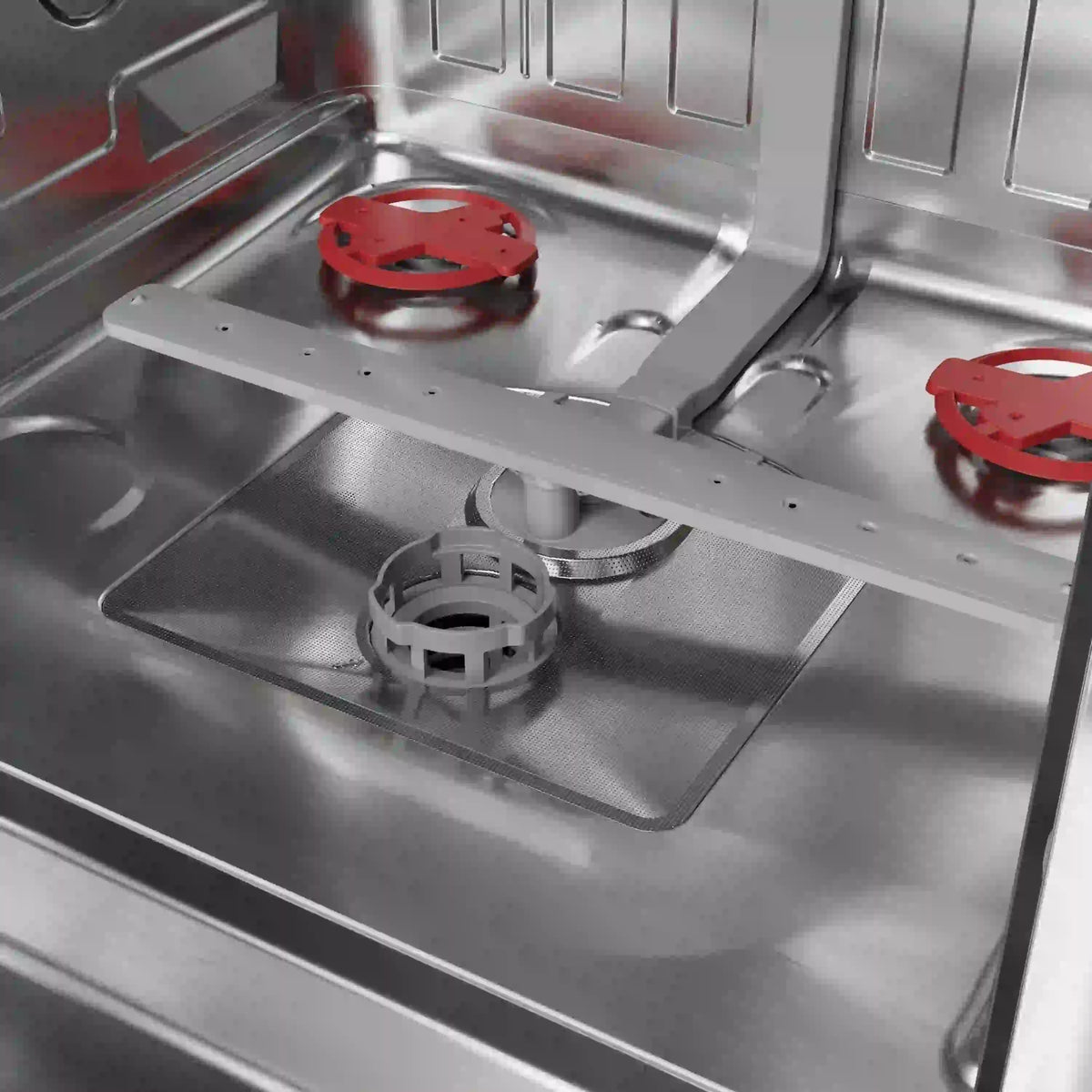

| Spray Arms | 3 (Lower, Upper, and Top) |
| DESIGN & FINISH | |
| Tub Material | Stainless Steel |

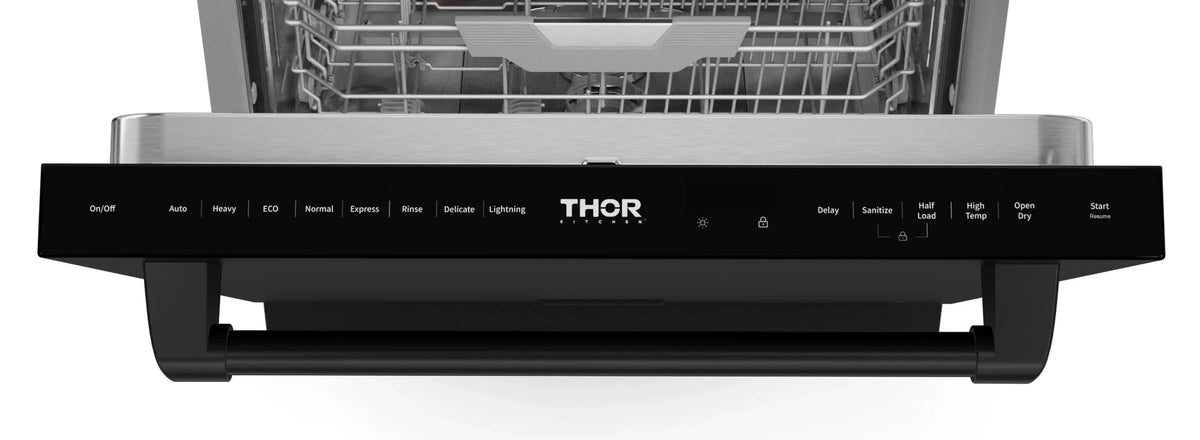

| Control Type | Touch Screen |
| TECHNICAL DETAILS | |
| Watts | 1200W |
| Amperage | 15A (Dedicated) |
| Volts | 120V |
| Frequency | 60Hz |
| Total Annual Energy Consumption | 240 kWh/per year |
| Water Consumption | 3.2 gal |
| Noise Level | 47 dBA |
| Water Feed Pressure | 20-120 psi |
| Inlet Water Temperature | Recommended 120°F (49°C) |
| Outlet Hose Length (in.) | 59" |
| Drain Hose | Yes |
| Water Supply Hose | Required |
| Power Cord | Required |
| FEATURES | |
| Load Capacity (Place Settings) | 15 |
| Number of Wash Cycles | 7 |
| Number of Racks | 3 |
| Adjustable Rack | Yes |
| Water Softener | No |
| Child Lock | Yes |
| Status Indicator | Yes (Red) |
| Tub Light | No |
| Wine Glass Bracket | Yes |
| Third Layer Cutlery Rack | Yes |
| Moisture Barrier | Yes |
| Mounting Hole Cover | 4 (2 Already Installed) |
| WARRANTY & CERTIFICATIONS | |
| Warranty | 2 Years Parts and Labor |
