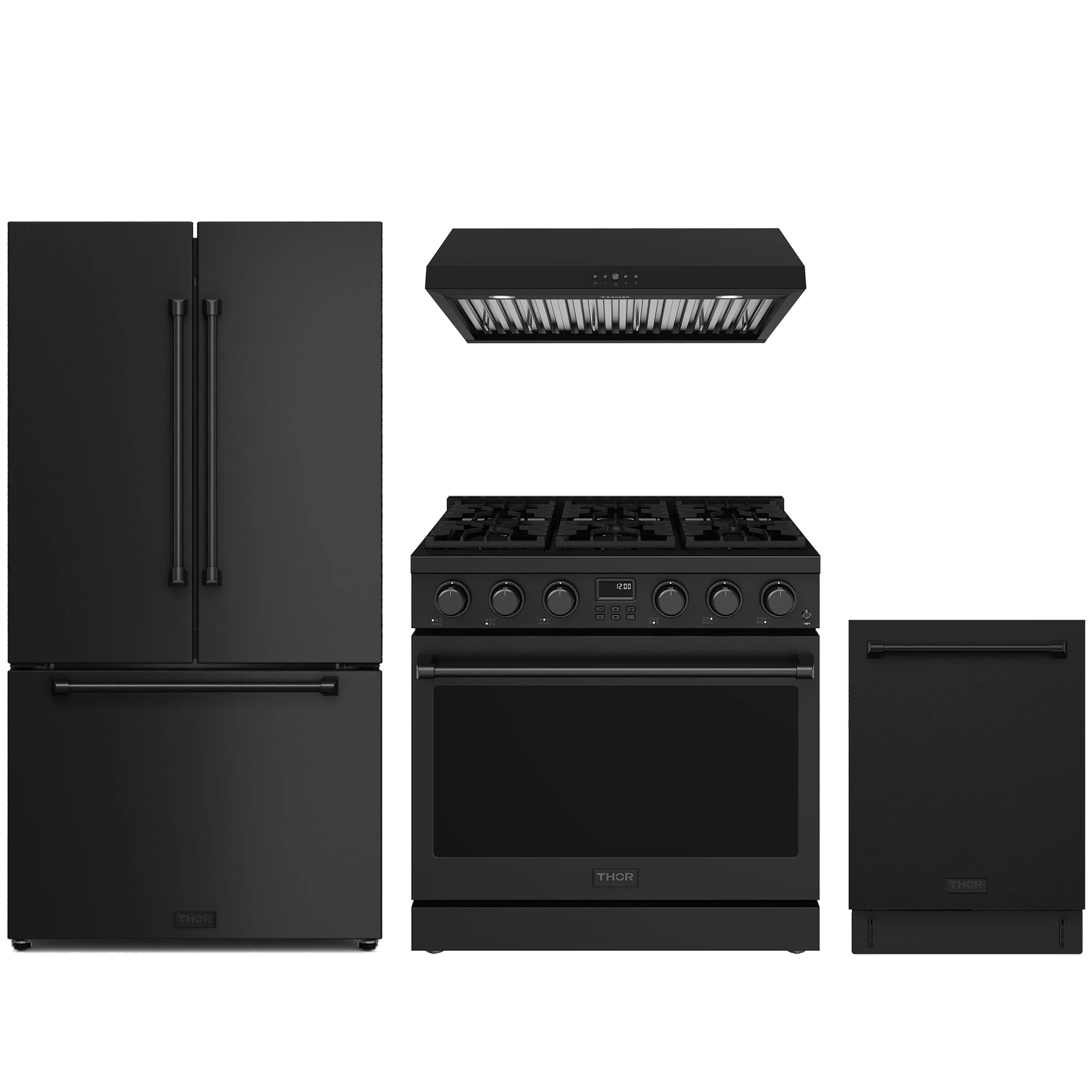

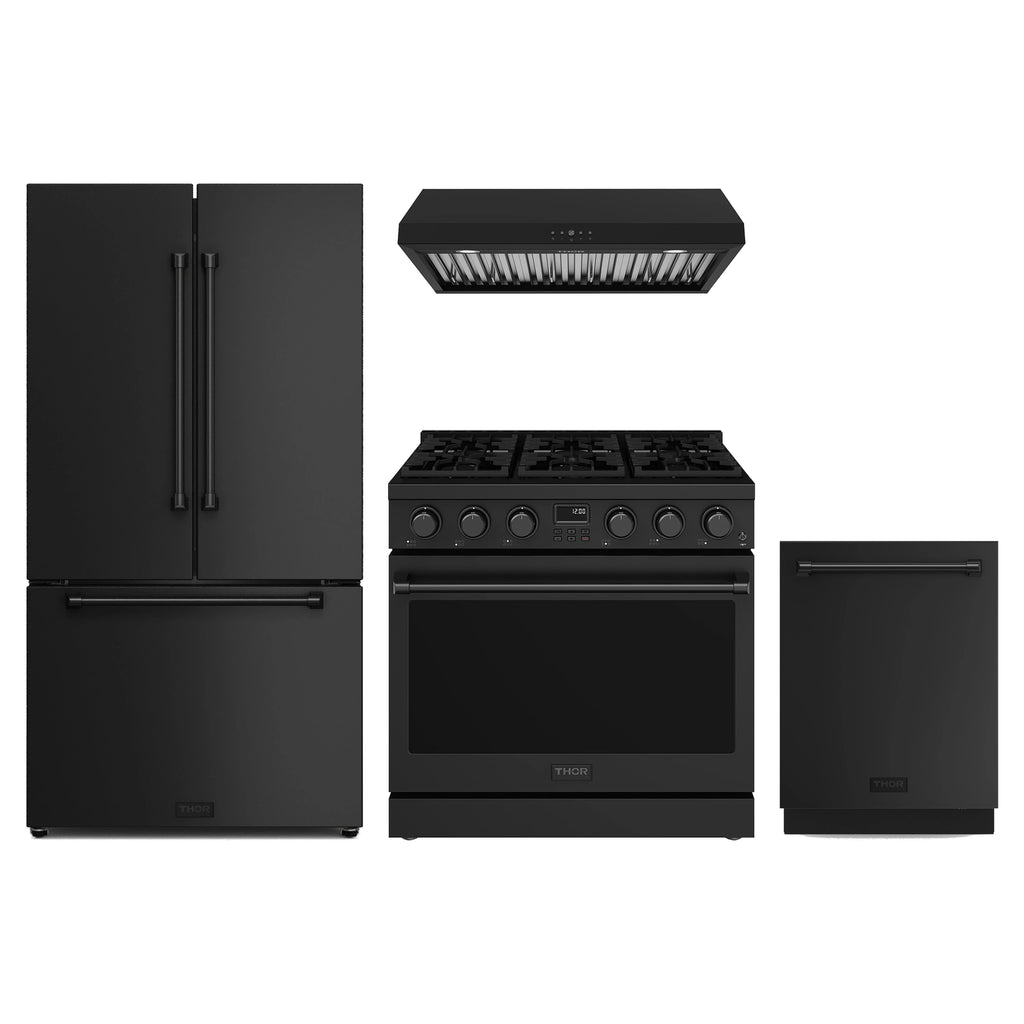

What's in this package
$330 less than buying separatelyEvery piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

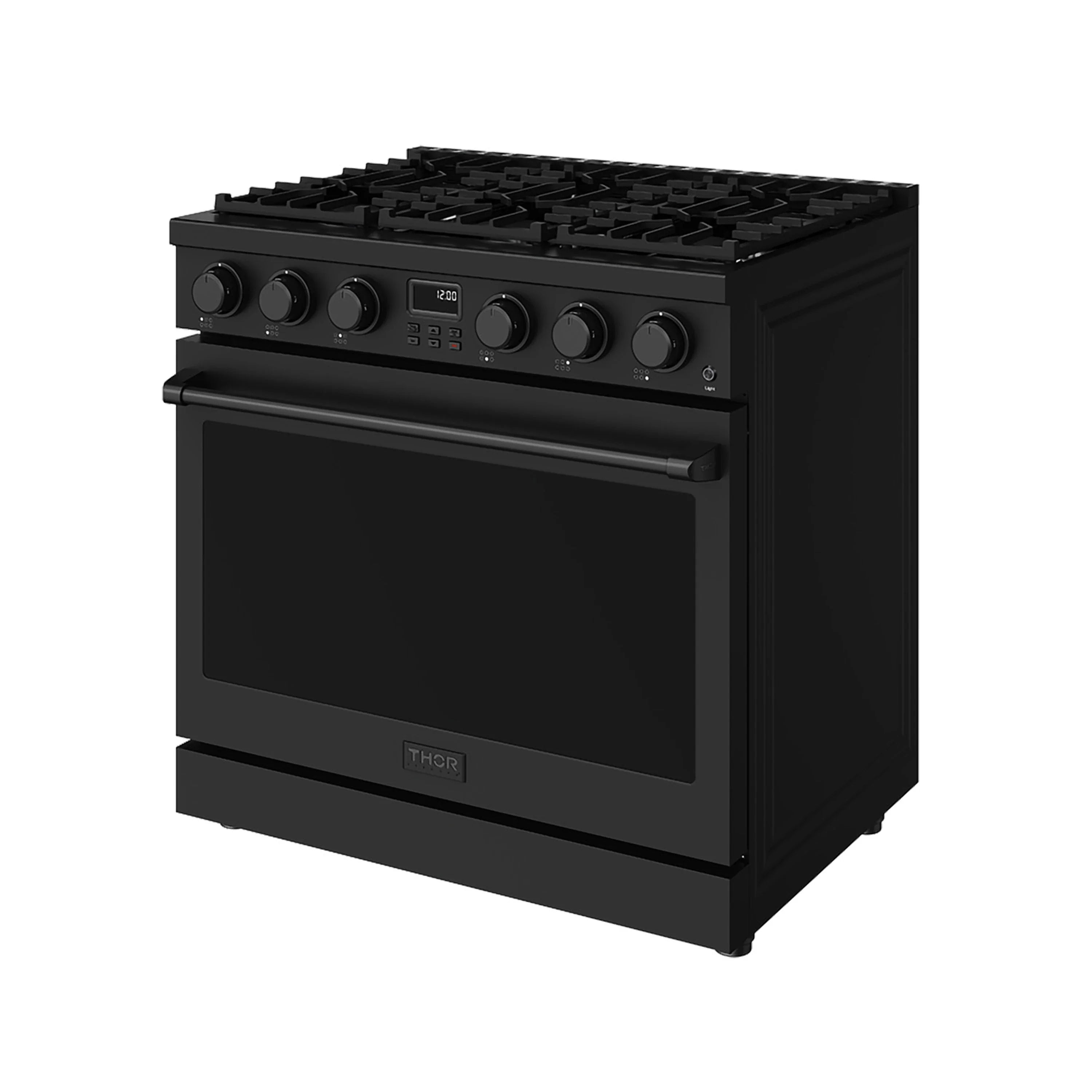

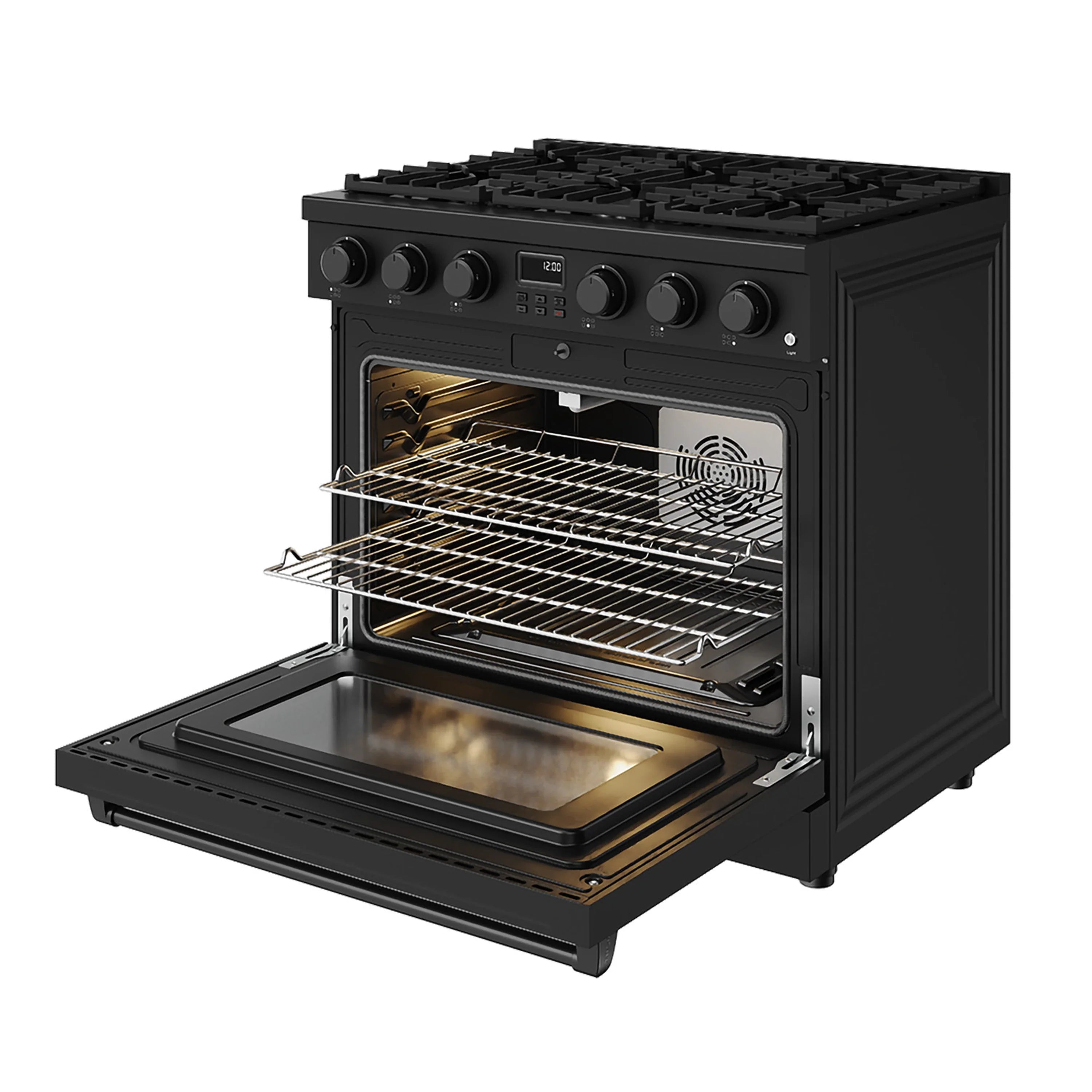

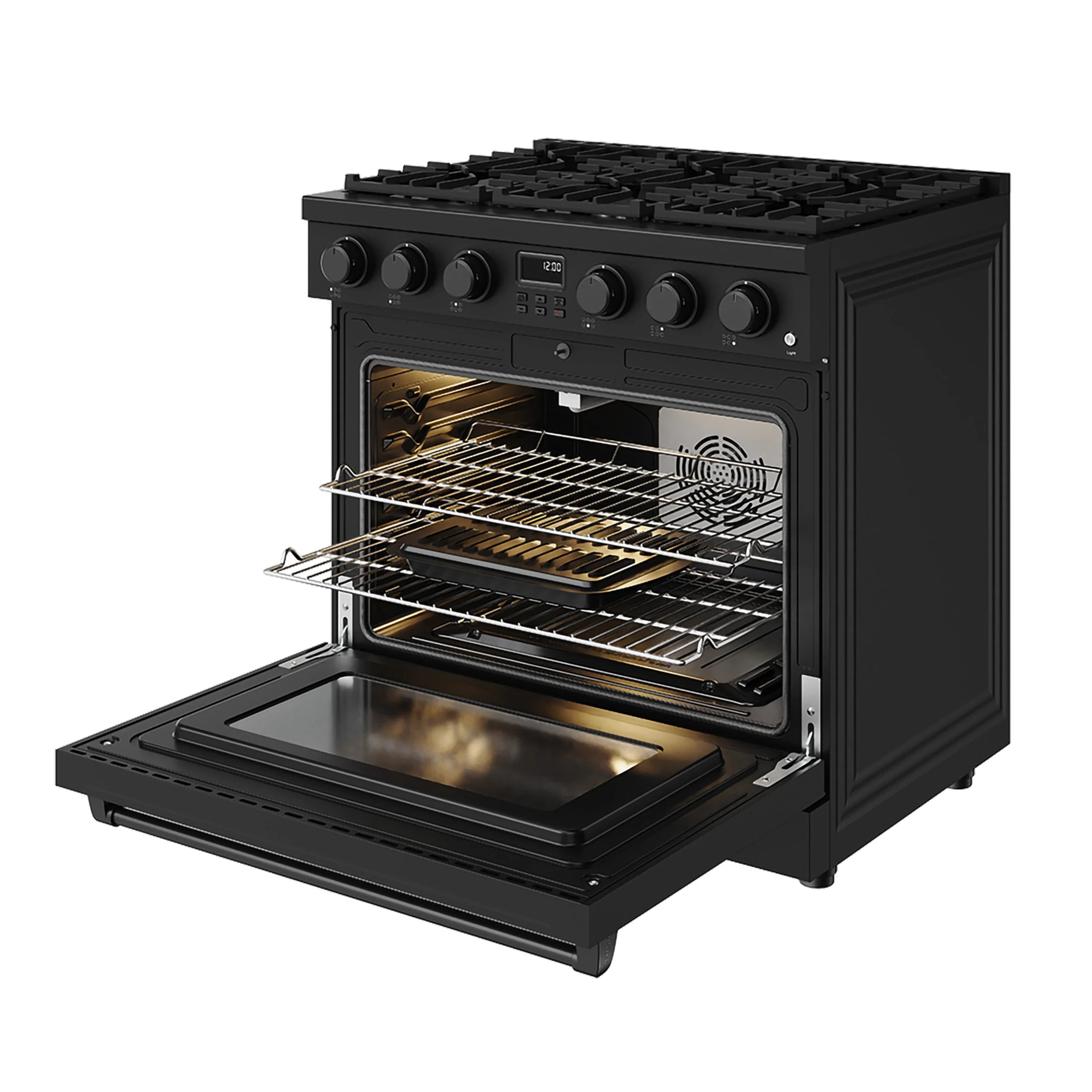

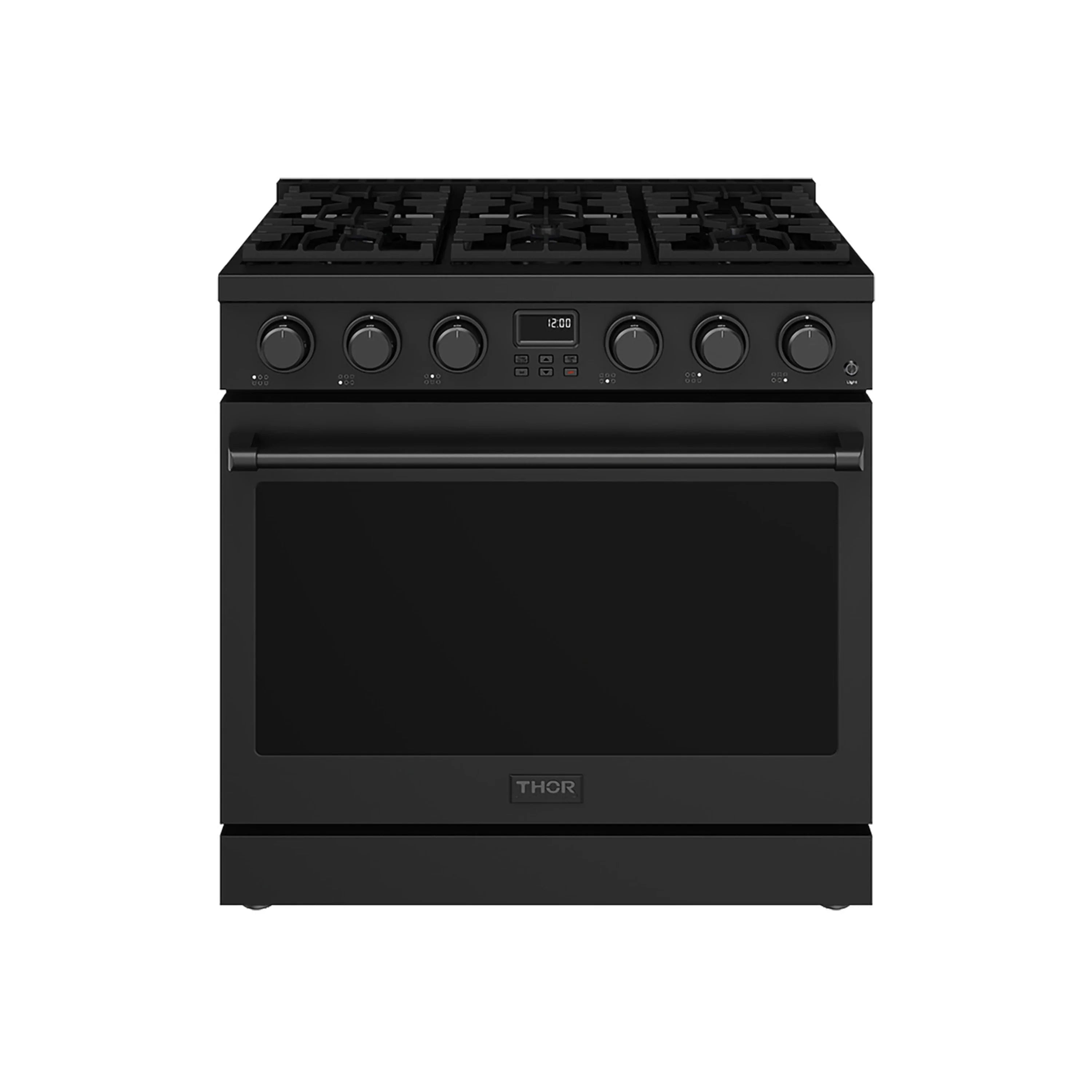

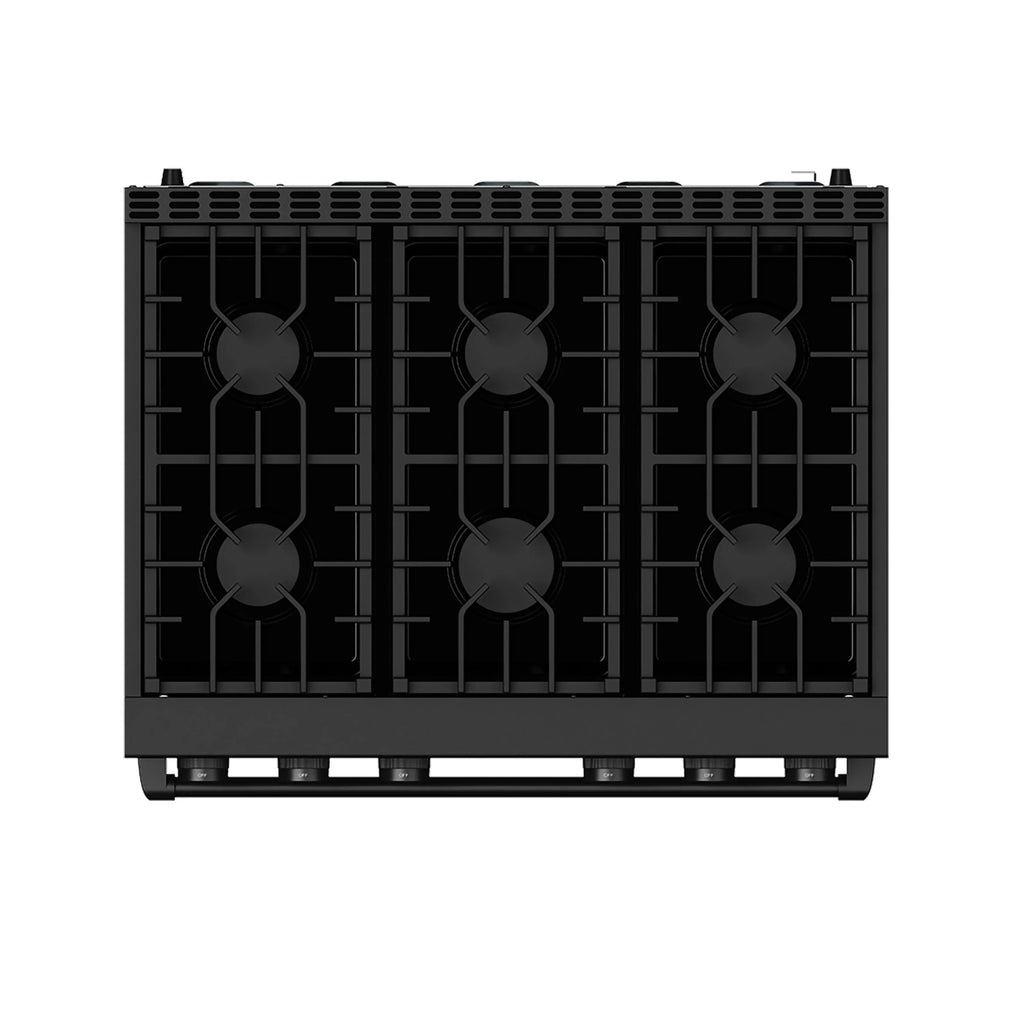

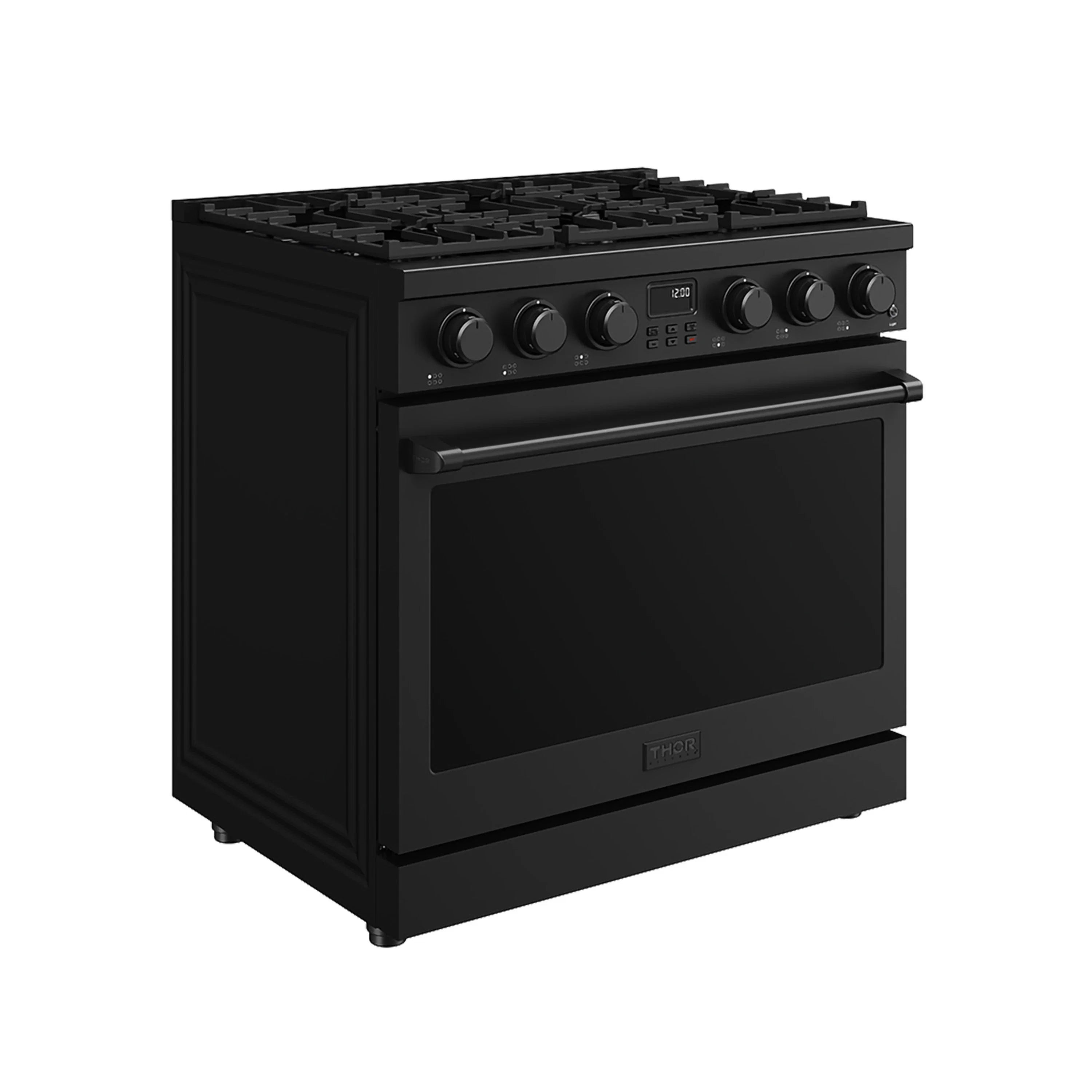

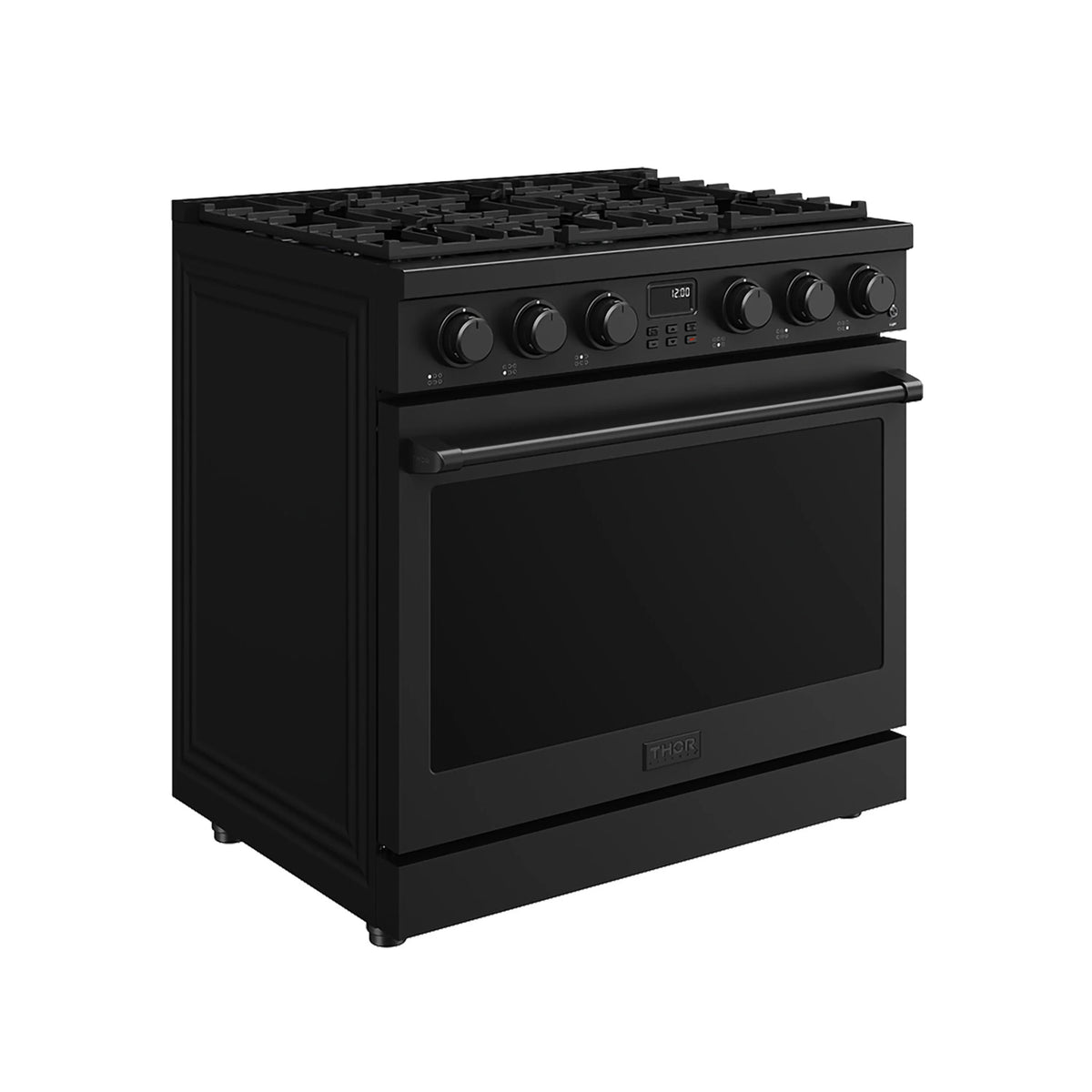

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. The THOR Kitchen 36 Inch Professional Gas Range is a stainless-steel machine designed with professional features and functionality. With easily accessible controls, high-powered burners, continuous grates, and a commercial convection fan, this range takes everything from prime rib to snickerdoodles to the next level.
Features

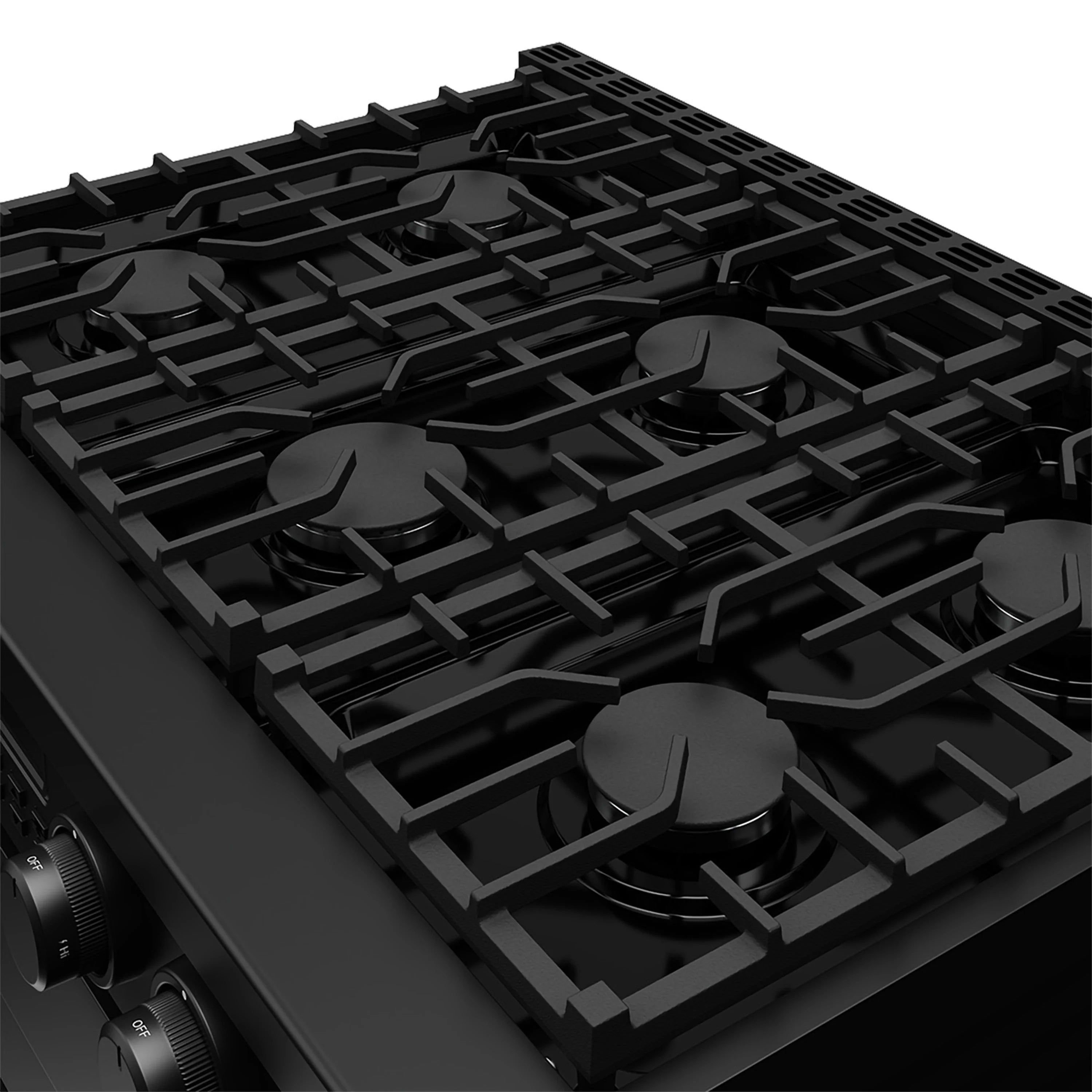

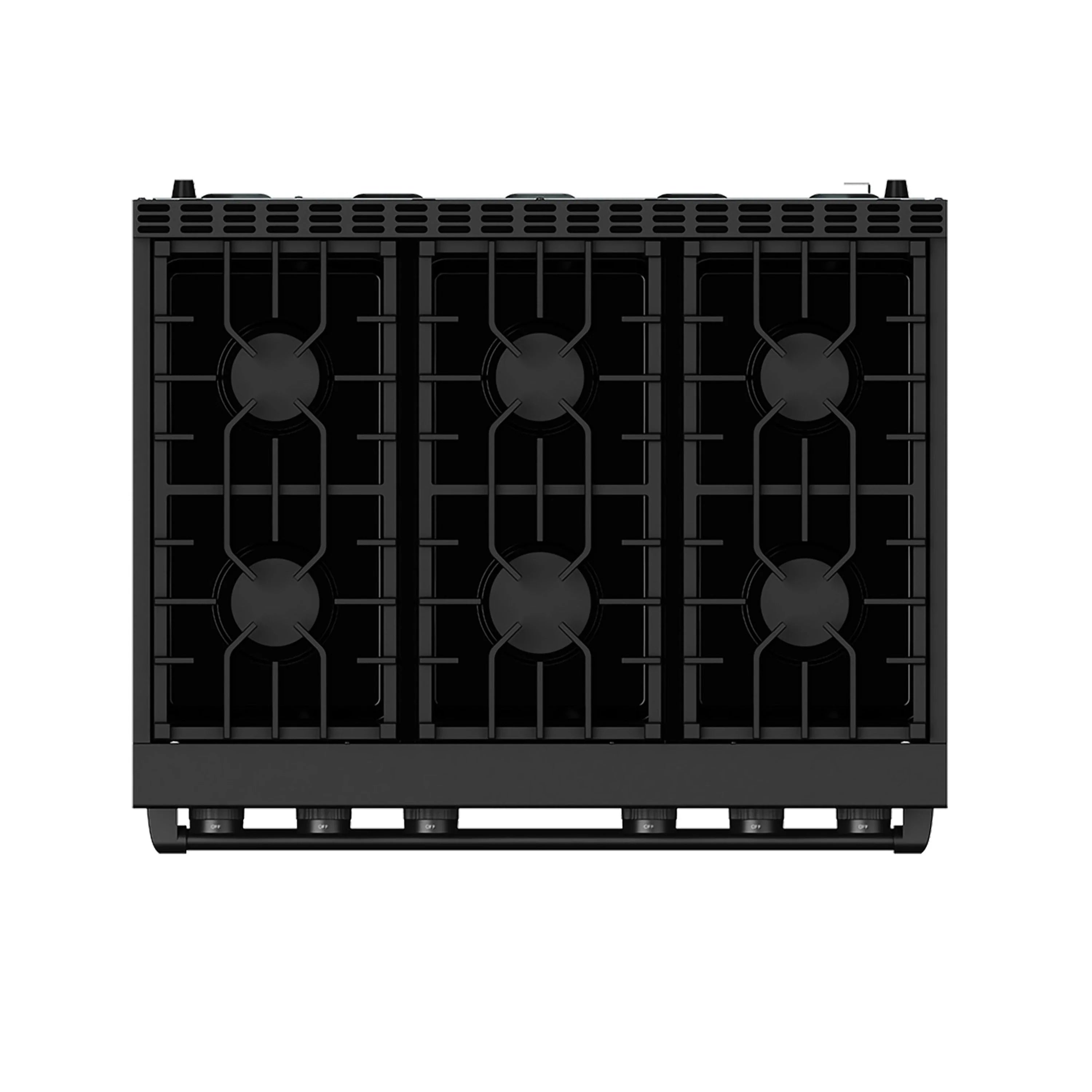

- Six Sealed Burners -From a high-powered 18,000 BTU burner to a steady 9,000 BTU burner, this range gives you the power you need for large family meals.
- Large Oven Capacity - 6.0 cu. ft. oven capacity can accommodate multiple dishes for enhanced cooking.
- One-Piece Porcelain Spill Tray - One-piece porcelain spill tray on cooktop catches the mess and makes cleanup easy.
- Convection Fan - Convection fan provides controlled heat distribution for fast and efficient cooking
DIMENSIONS
- Product Width
- 35 7/8 in.
- Product Height (from bottom to top of back splash)
- 37 1/4 - 40 1/4 in.
- Product Height (from bottom to top of side panel)
- 36 - 39 in.
- Product Depth (from back panel to bullnose)
- 26 7/8 in.
- Product Depth (from back panel to control board)
- 26 1/4 in.
- Product Depth (from back panel to side panel front)
- 24 in.
- Adjustable Leg Sizes
- 3 in. Max.
- Cut Out Dimensions
- 36" W x 24" D x 36" H
- Cord Length
- 60 in.
- Oven (W x D x H)
- 29.7 in. x 19.4 in. x 18 in.
GENERAL INFORMATION
- Baking Sheet Size
- Fits up to 18" x 14" Sheet
- Accessories Included
- 2 Oven Racks
- 1 Broiler Pan
- 1 Bake Pan
- Accessories (Sold Separately)
- LP KIT includes orifices and gas regulator caps
DESIGN & FINISH
- Color
- Black
- Finish
- Stainless Steel

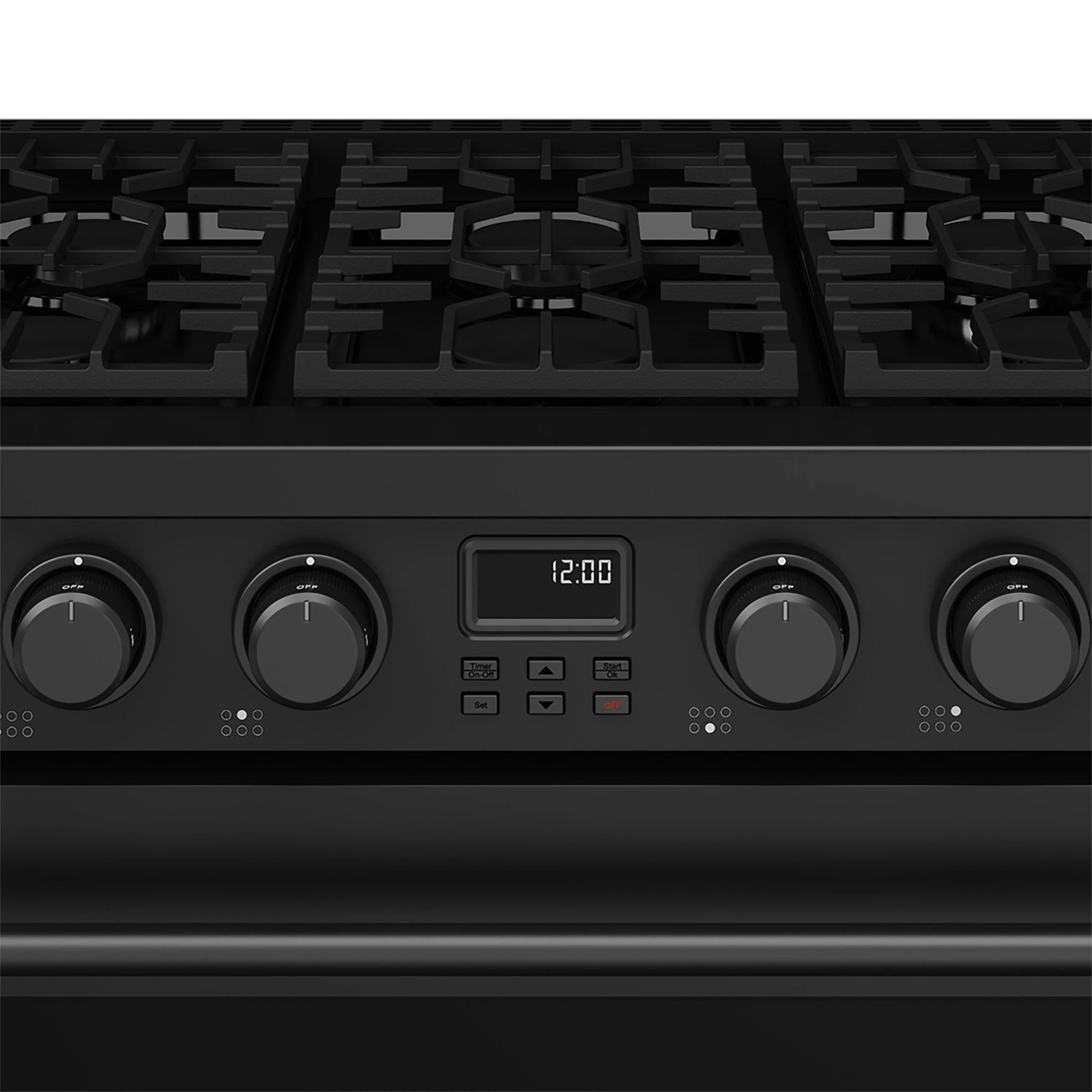

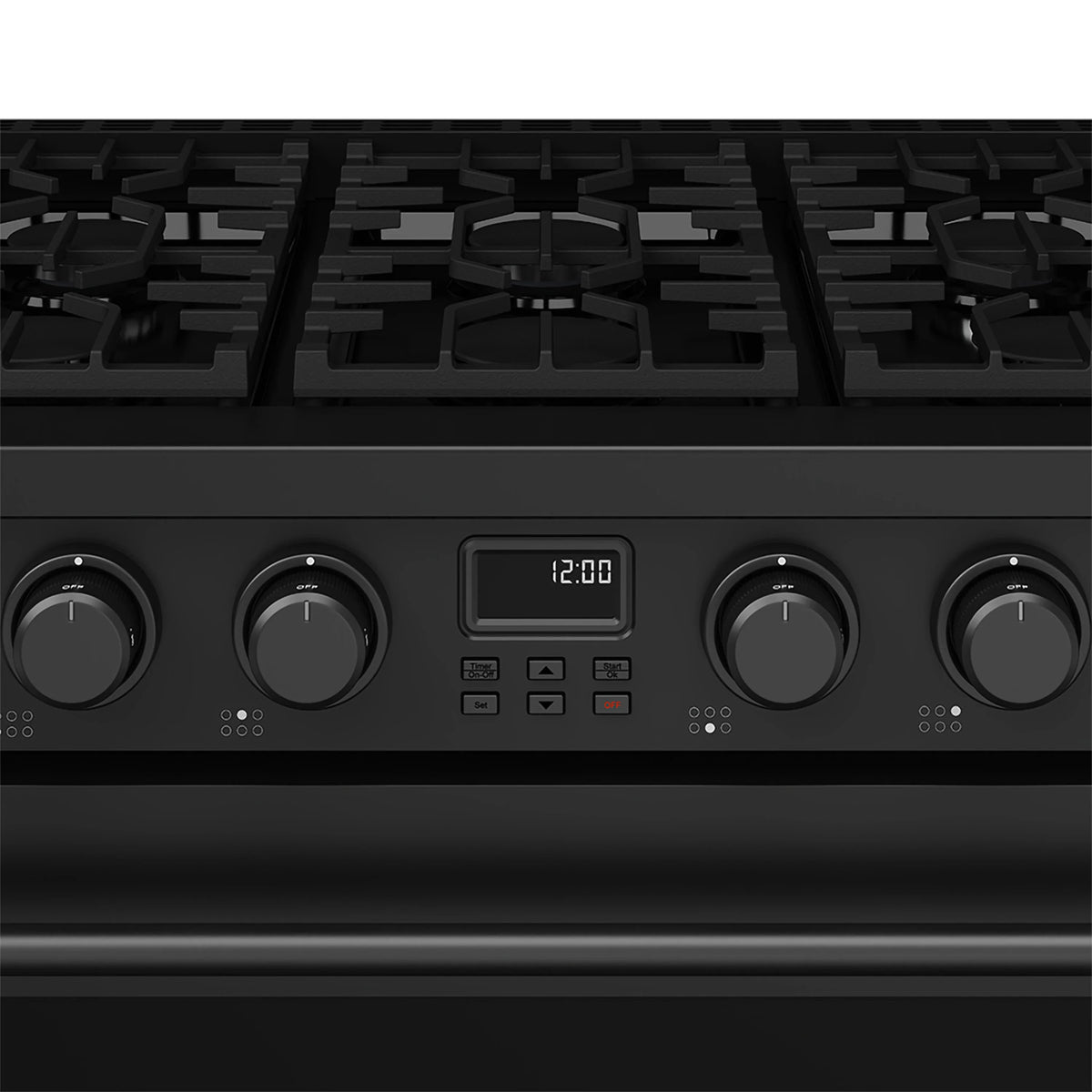

- Control Type
- Oven Function Button, LED Panel Display
TECHNICAL DETAILS
- Fuel Type
- Gas, LP Option Available
- Installation Type
- Freestanding
- Voltage
- 120V 15A
- Frequency (Hz)
- 60Hz
- Gas Line Regulator
- 1/2 in.
- Plug Type
- 3 Prongs included
COOKTOP FEATURES
- Hot Surface Indicator Light
- Front Right Corner Of Cooktop w/Temp at 150°F
- Bake Burner Power
- 18,500 BTU
- Broil Burner Power
- 13,500 BTU

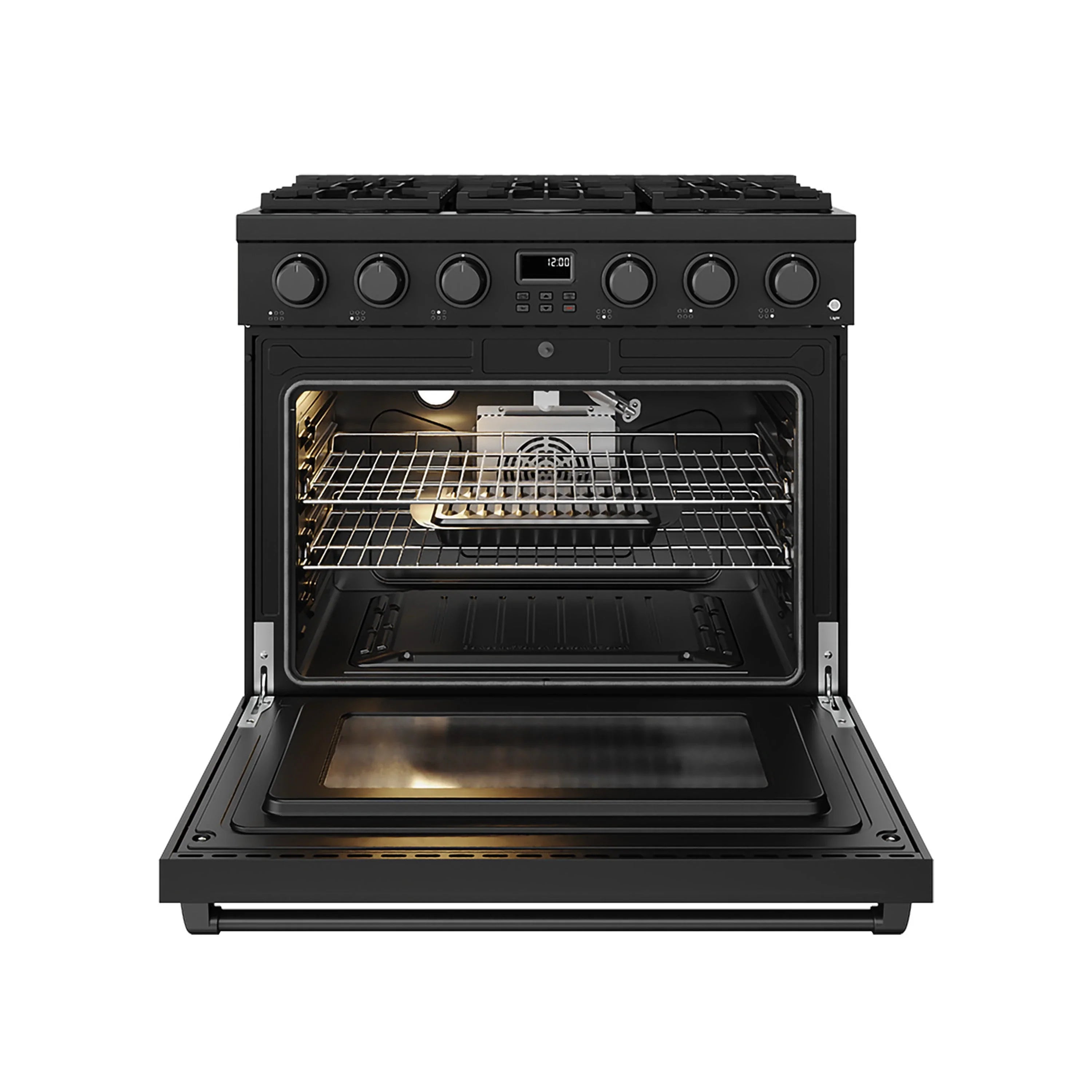

OVEN FEATURES
- Oven Capacity
- 6.0 Cu. Ft.
- Oven Color
- Black
- Oven Features
- Bake
- Broil
- Conv Bake/Roast
- Pizza
- Keep Warm
- Convection
- Convection Fan
- Oven Light
- 1*40W, Rear
- Oven Racks
- 2
- Oven Rack Material
- Chrome Plated

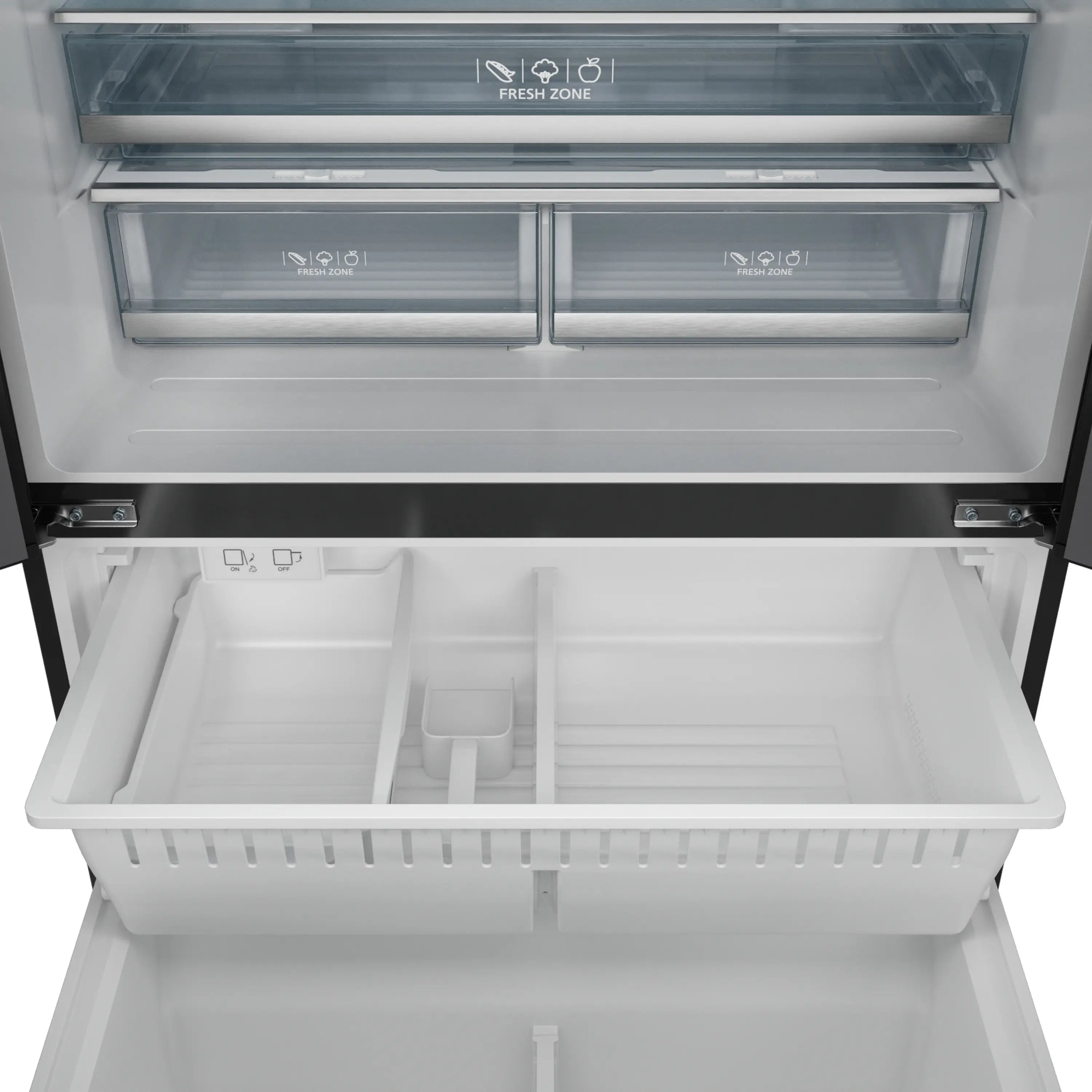

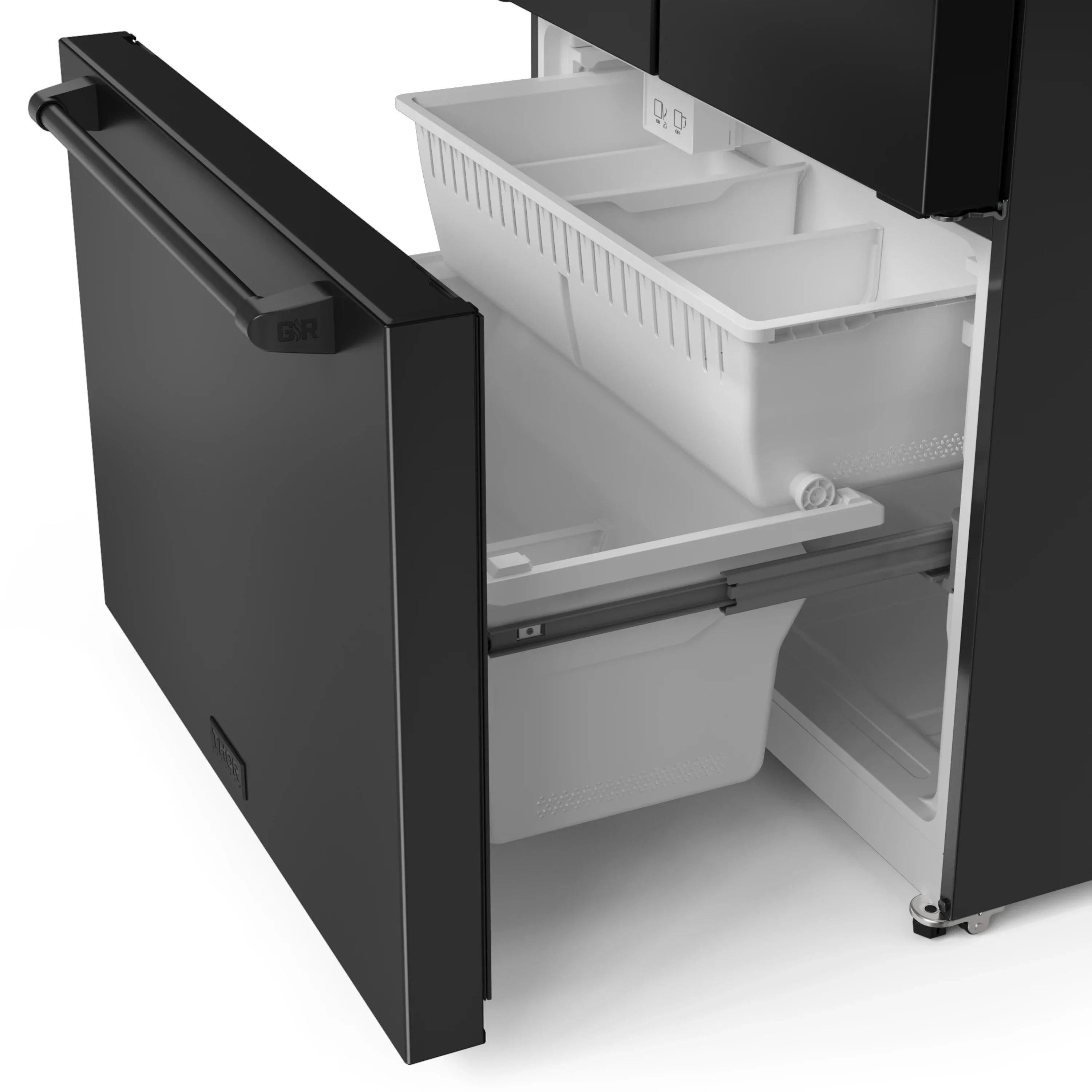

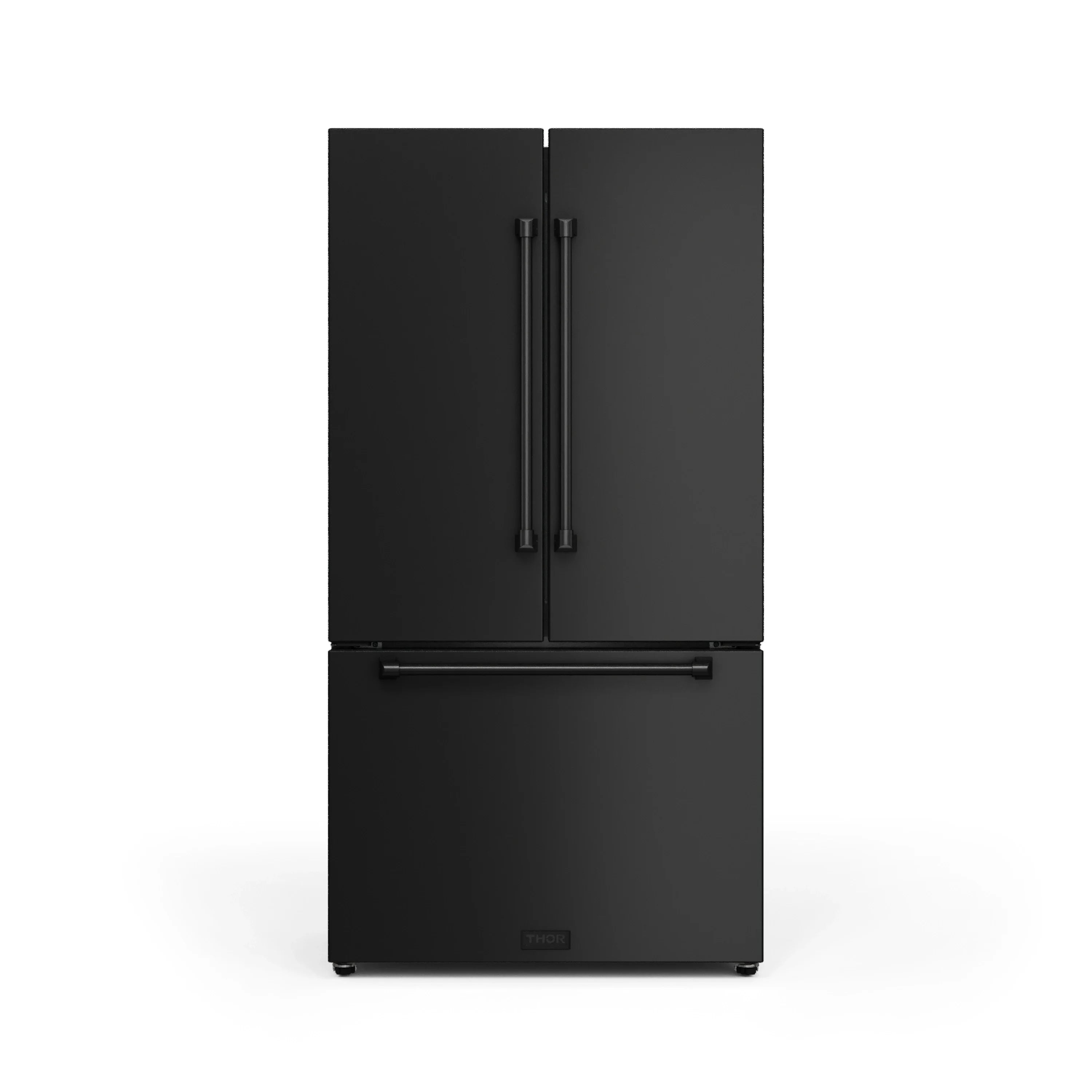

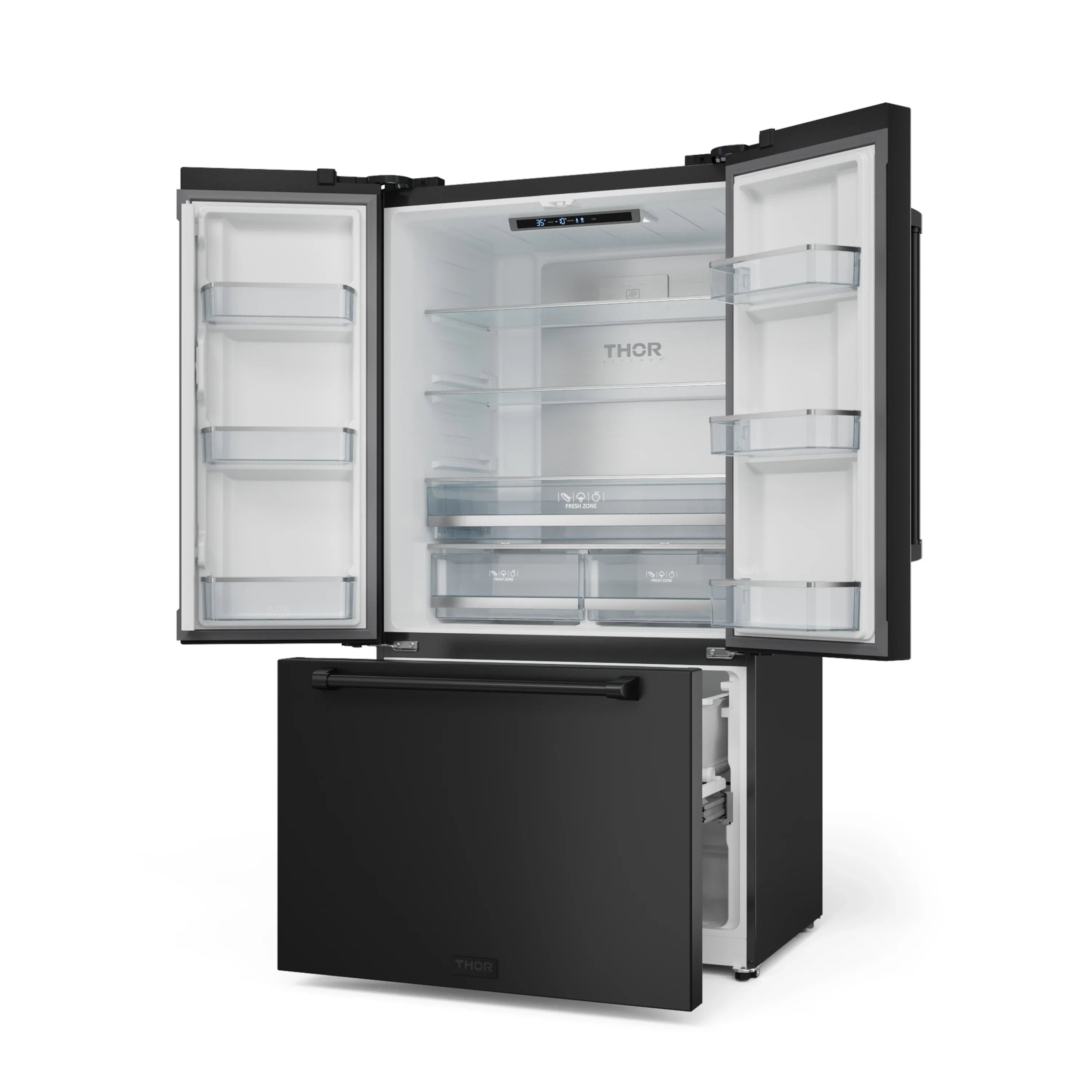

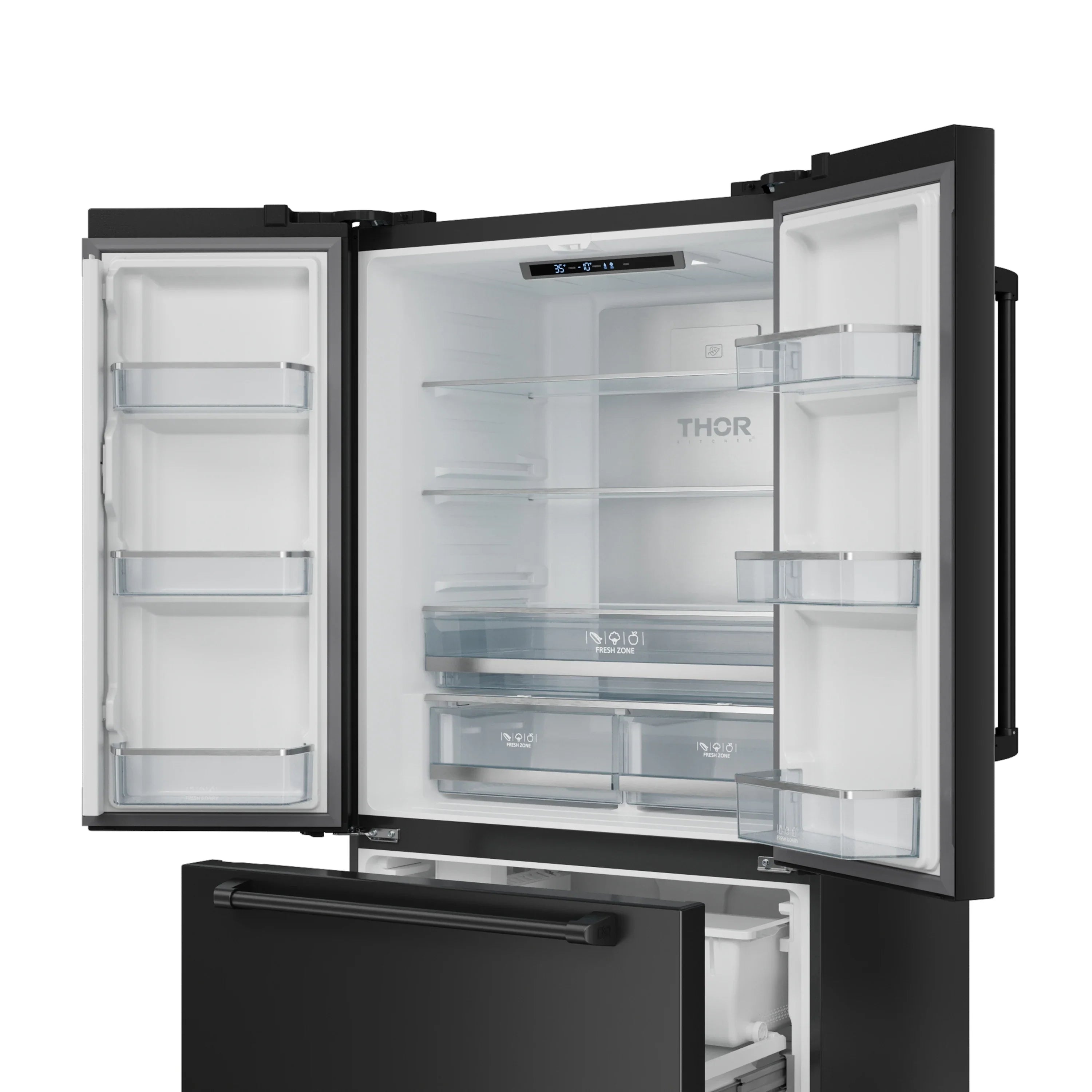

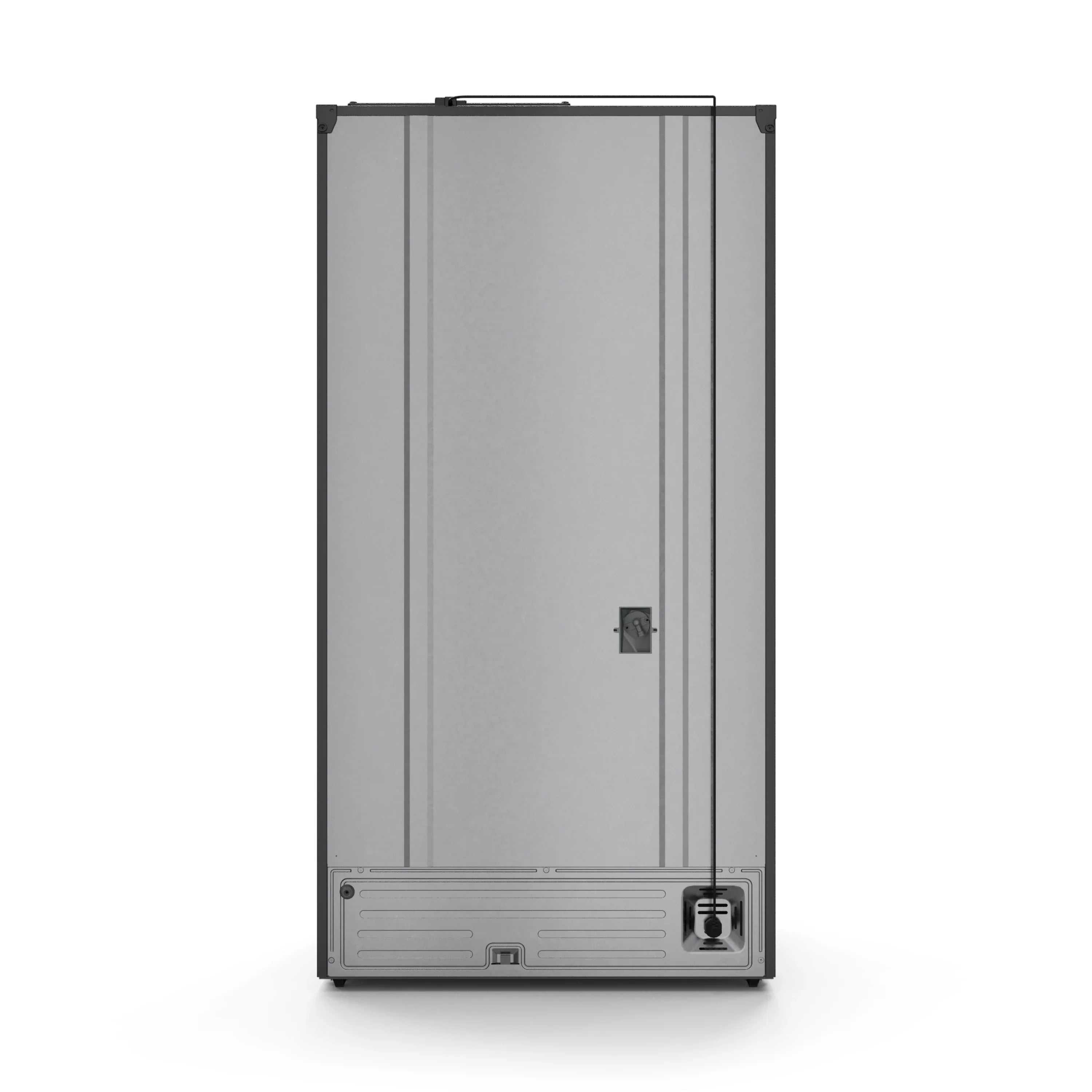

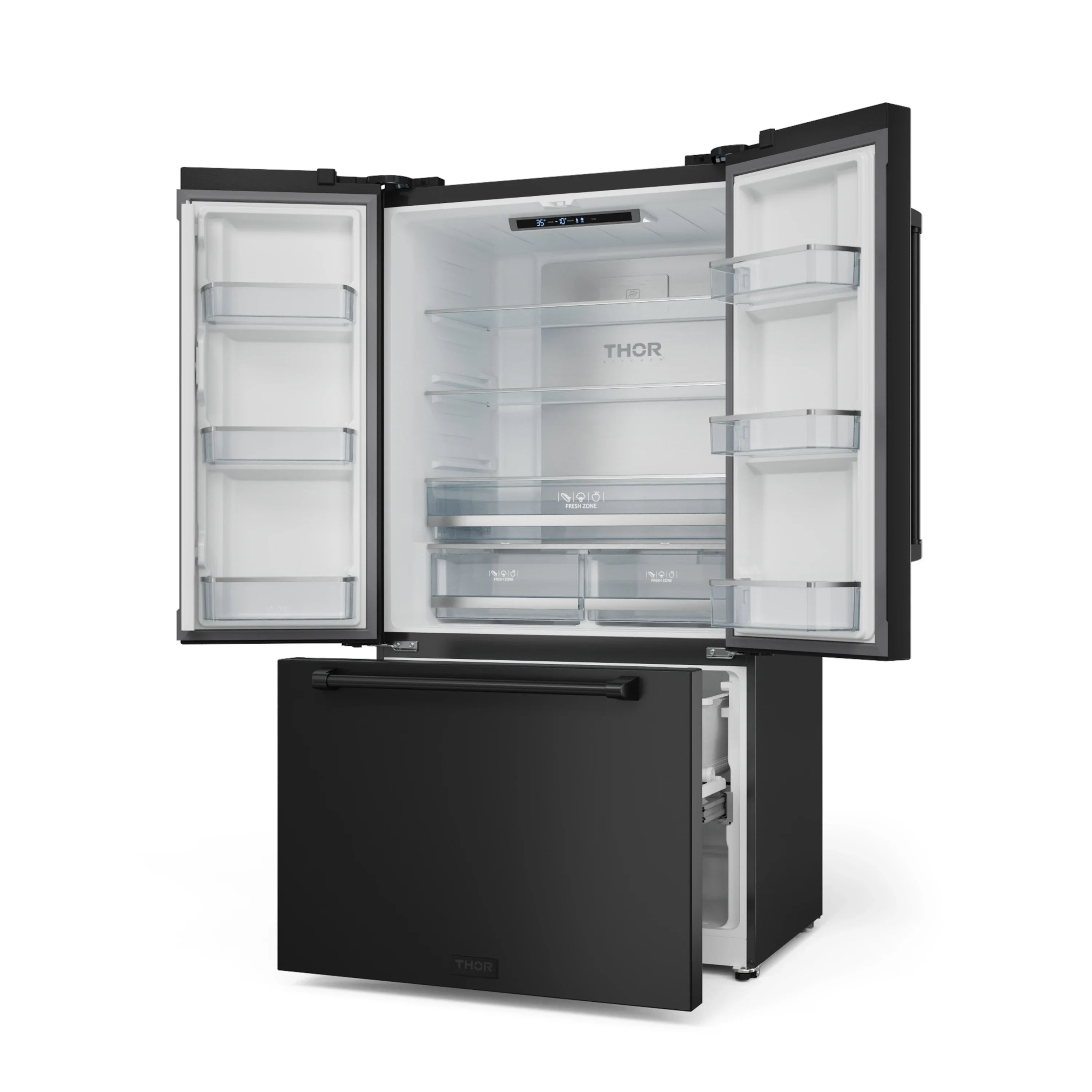

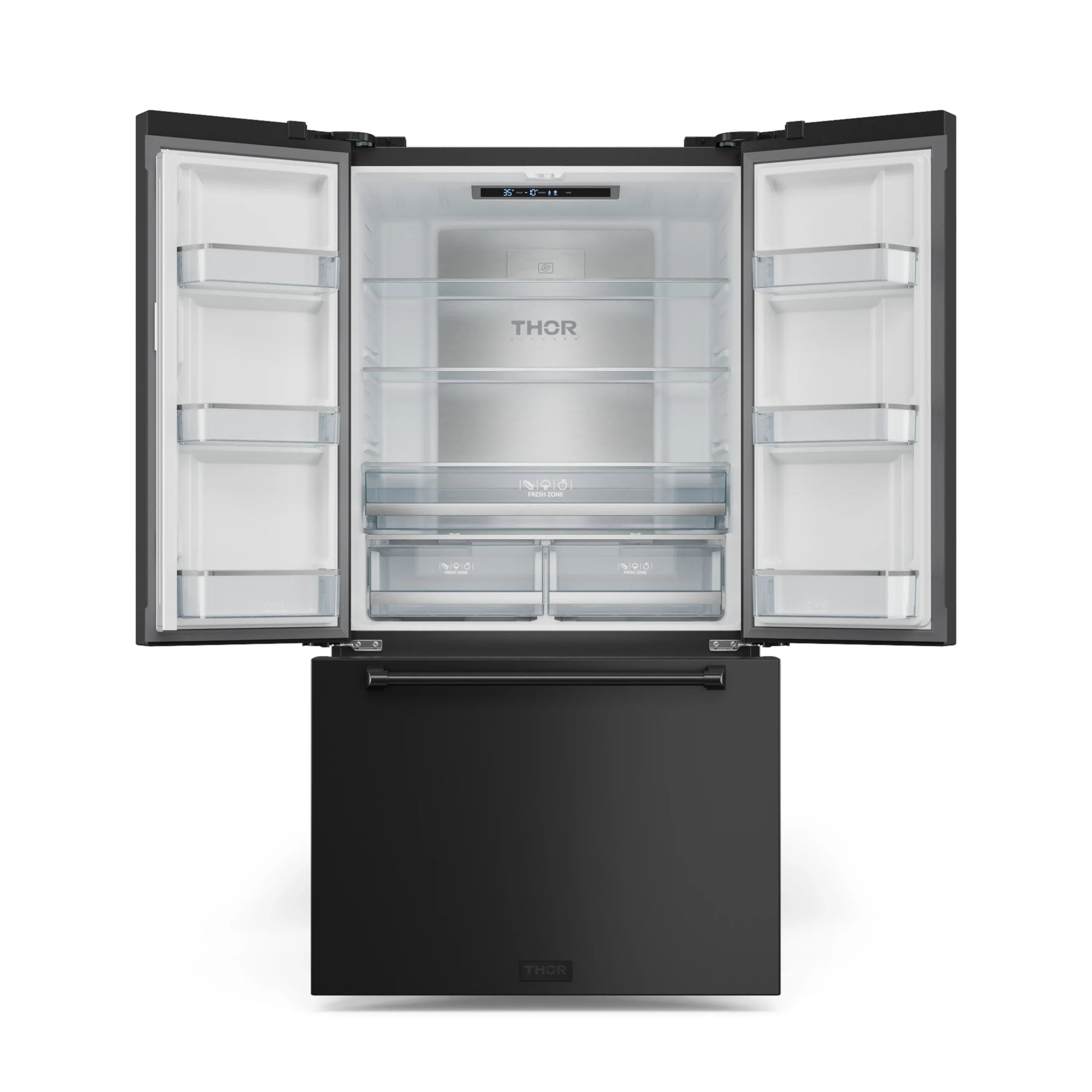

Experience superior freshness with the 36 Inch 20.3 cu ft French Door Counter Depth Refrigerator in Black. With advanced cooling technology, spacious interiors, and customizable features, this refrigerator ensures your ingredients stay at peak freshness. Designed for durability and efficiency, it brings top-tier performance and style to your kitchen.
Features
-
Fast Freezing and Fast Cooling - Quickly freeze and cool your food to maintain optimal freshness and taste.
-
Multi-Flow Air System - Dual vents on every shelf for even air distribution, ensuring long-lasting food freshness throughout the refrigerator.
-
Inverter Compressor - Maintains consistent food freshness with quieter, more efficient operation and less wear than traditional compressors.
-
Electronic Touch Controls - Adjust settings directly on the door for convenience and ease of use
- Control Panel Lock - Prevents unintended changes to settings, providing peace of mind and added safety.
-
Interior LED Lights - Illuminate your refrigerator interior with bright, energy-efficient lighting.
-
Full-Width Adjustable Shelves - Customize your storage space with
fully adjustable shelves to accommodate items of all sizes.
-
Vacation Mode - Automatically adjusts temperatures to 43ºF for the
refrigerator and 5ºF for the freezer to save energy while you’re away.
DIMENSIONS
- Product Dimensions (WxDxH)
- 36” x 30 1/8” x 70”
- Product Depth Excluding Handles
- 27 5/8”
- Product Depth Including Handles
- 30 1/8”
- Product Depth Excluding Door
- 24 5/8”
- Product Depth With Door Open 90 Degrees
- 43 1/4”
- Product Height To Top Of Door Hinge
- 70”
- Product Height To Top Of Refrigerator
- 68”
- Cutout Dimensions (WxDxH)
- 39 7/8” x 26” x 72”
- Net Weight
- 231 lbs
- Package Dimensions (WxDxH)
- 38 1/8” x 29 1/2” x 73 7/8”
- Package Weight
- 255 lbs
- Total Capacity
- 20.3 cu. ft.
GENERAL INFORMATION
- Installation Type
- Freestanding
- Accessories Included
- Water Pipe Ice Scoop Ice Storage Box
DESIGN & FINISH
- Shelf Material
- Glass With Stainless Steel Trim
- Lighting
- LED
TECHNICAL DETAILS
- Watts
- 190W
- Circuit Breaker Amperage
- 15A
- Volts
- 115V
- Frequency
- 60Hz
- Plug Type
- 3-Prong Plug
- Power Cord Length
- 94”
REFRIGERATOR FEATURES
- Refrigerator Capacity
- 14.2 cu. ft.
- Number Of Door Bins
- 6
- Number Of Shelves
- 3
- Refrigerator Features
- 6 pcs Gallon Bottle Storage Child Lock / Energy Saving & Vacation Mode/ Fast Cooling Humidity Controlled Crispers Fridge Temperature Range: 35~46°F (2~8°C)
FREEZER FEATURES
- Freezer Capacity
- 6.1 cu. ft
- Number Of Freezer Baskets
- 1
- Freezer Features
- LED Lightening Fast Freezing Freezer Temperature Range: -10~5°F ( -23~ -15°C) No Frost Design

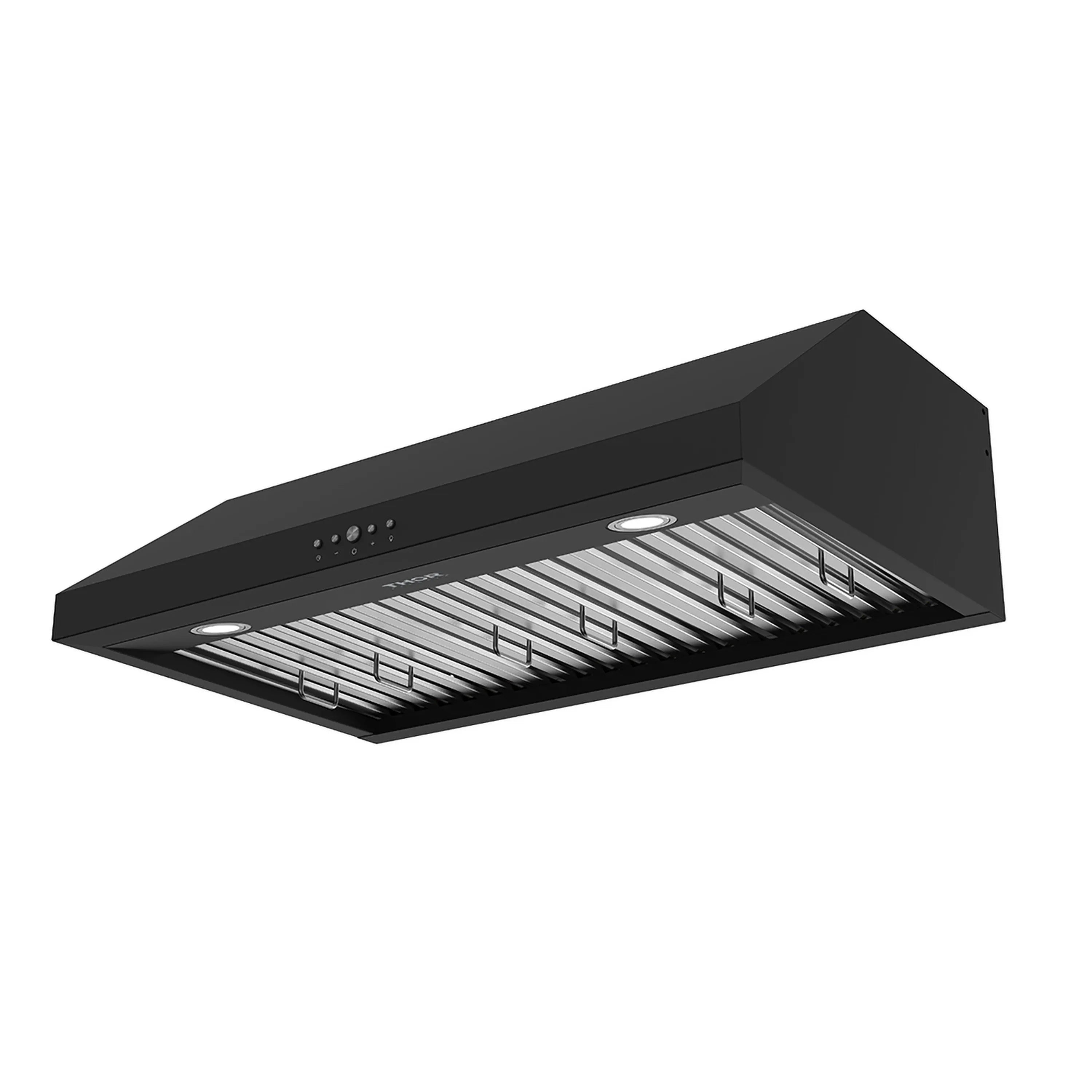

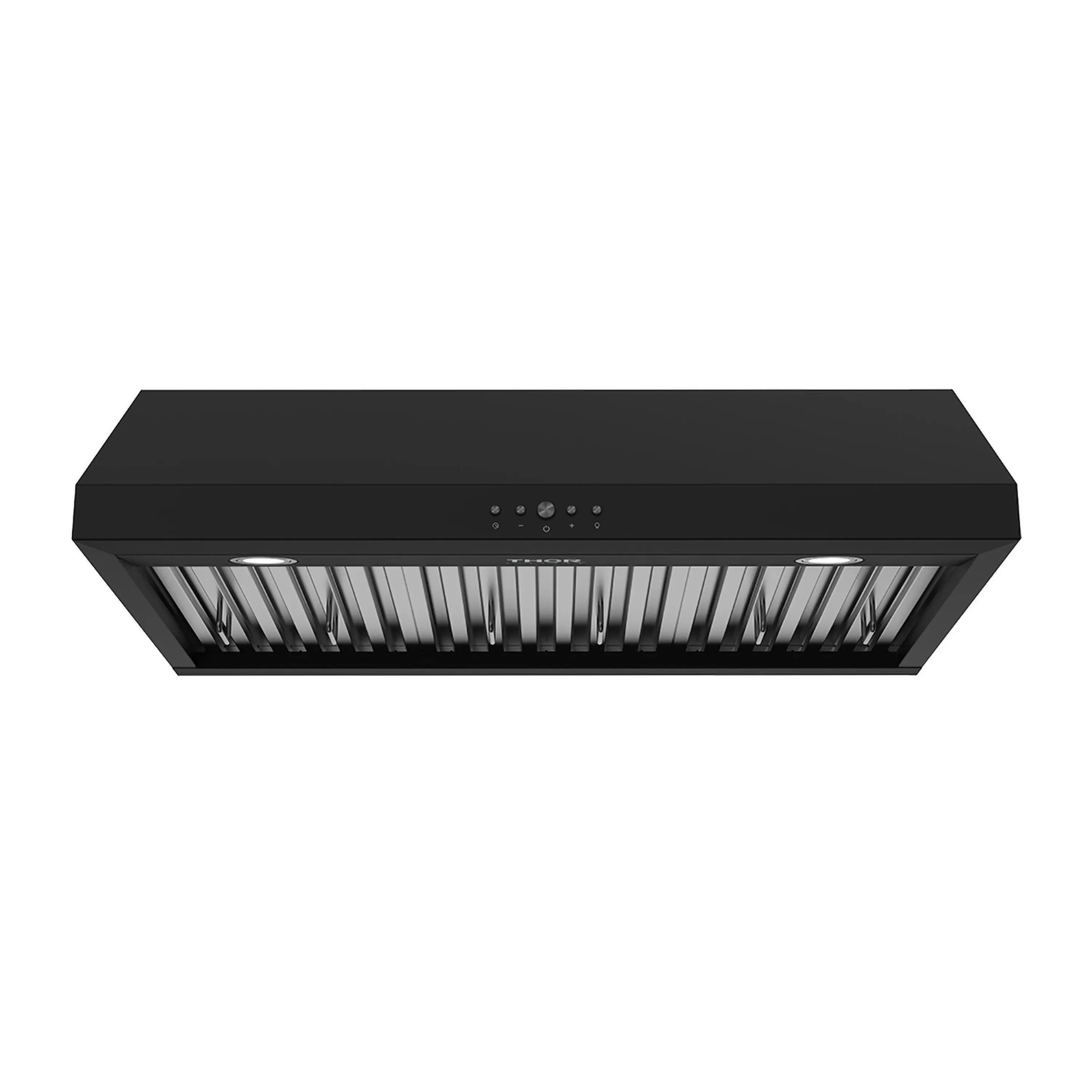

Piece 3 of 4 — RANGE HOOD

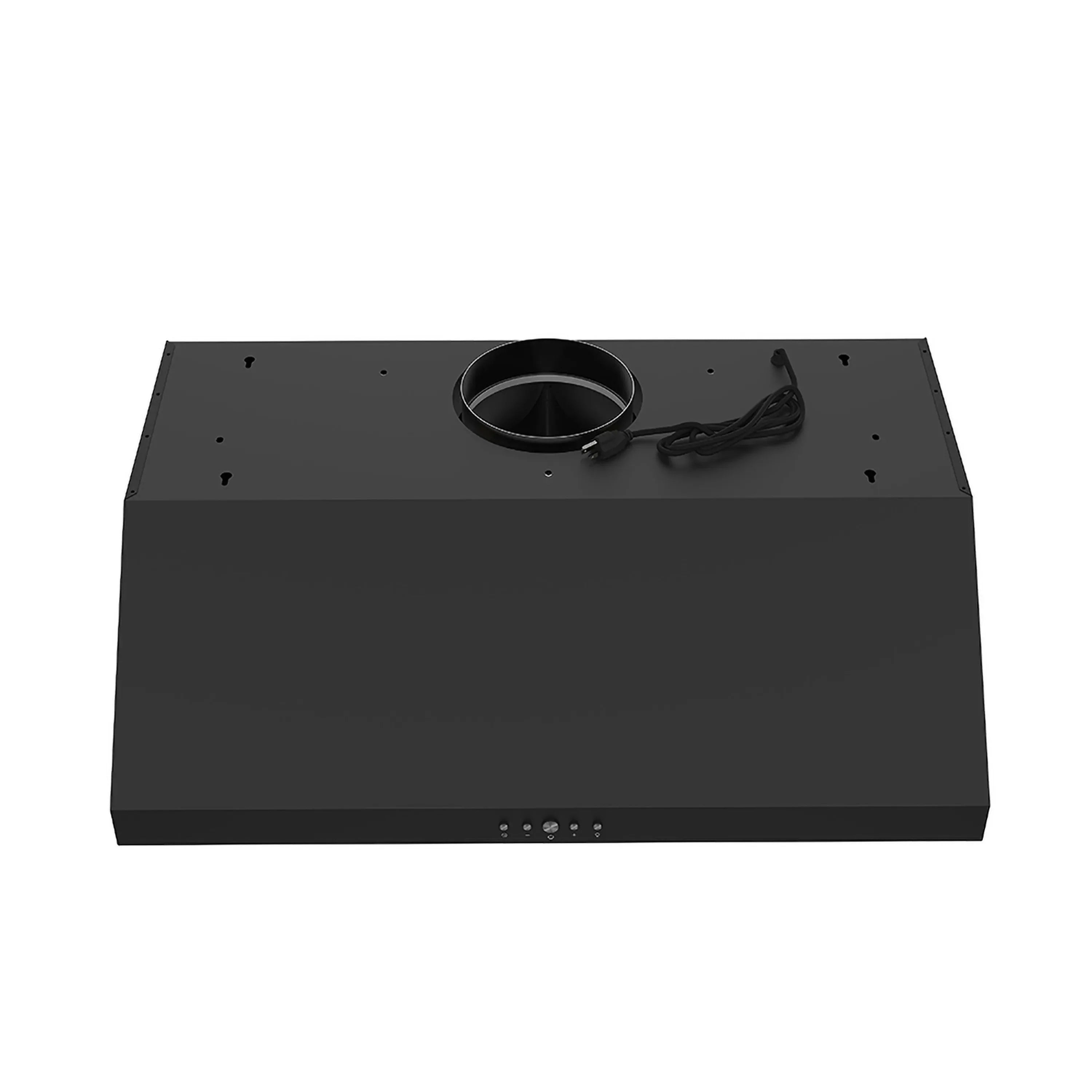

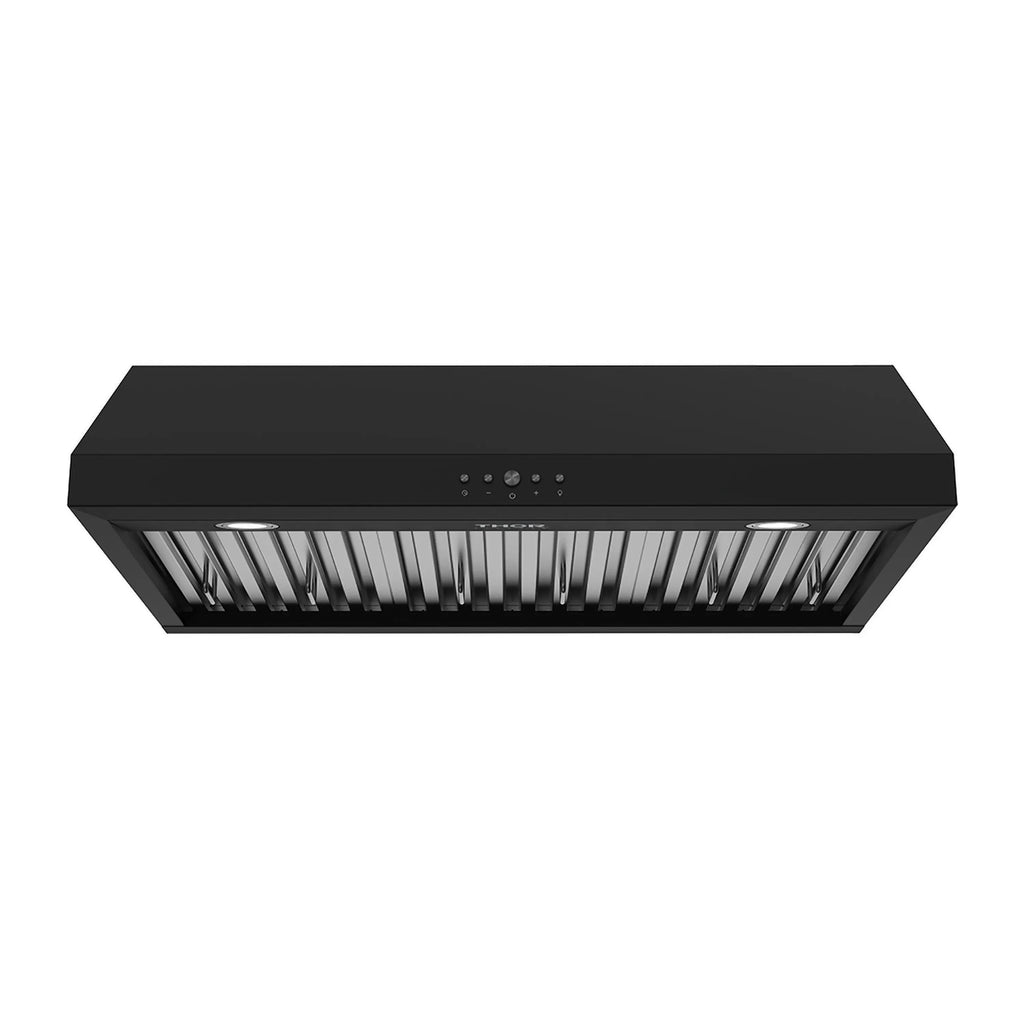

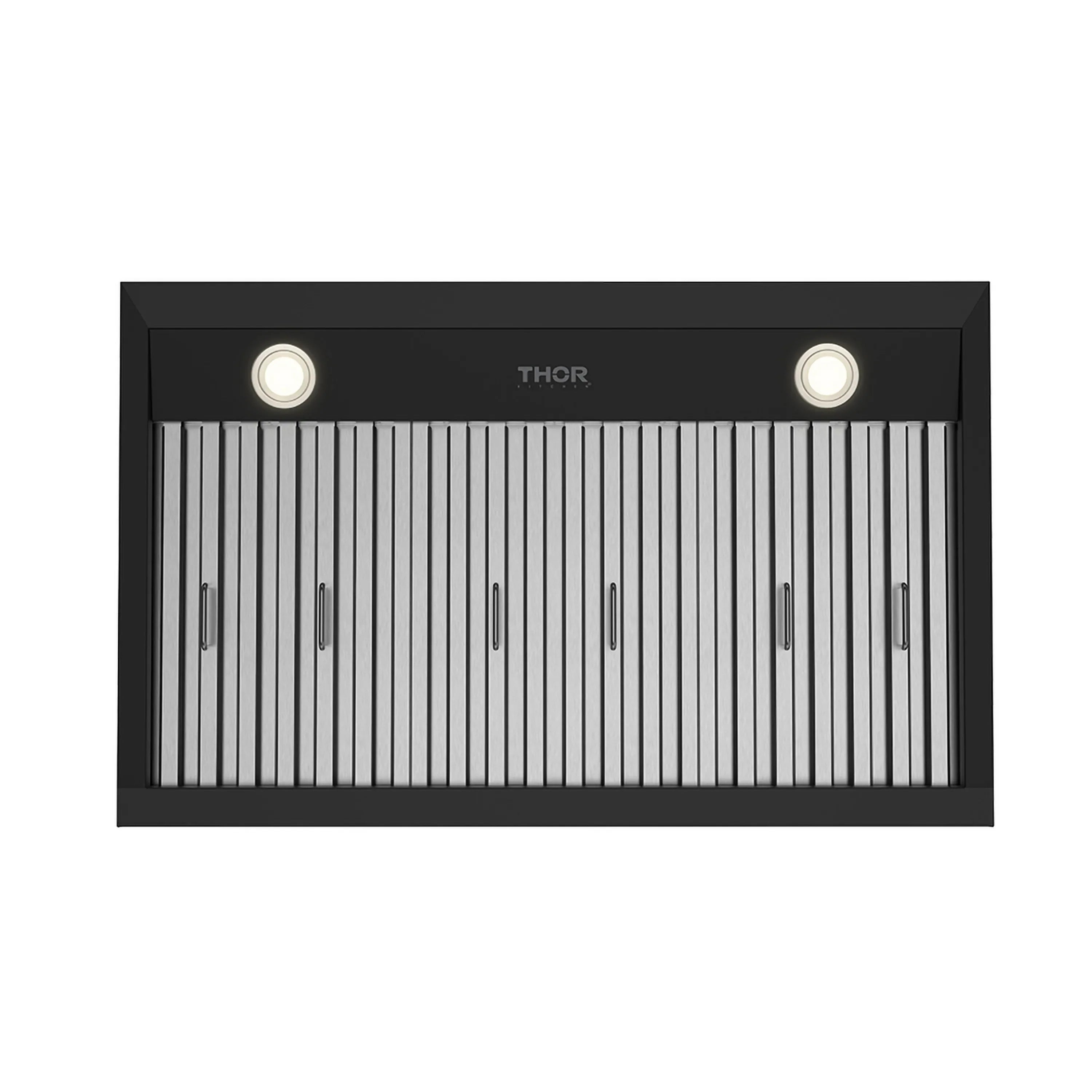

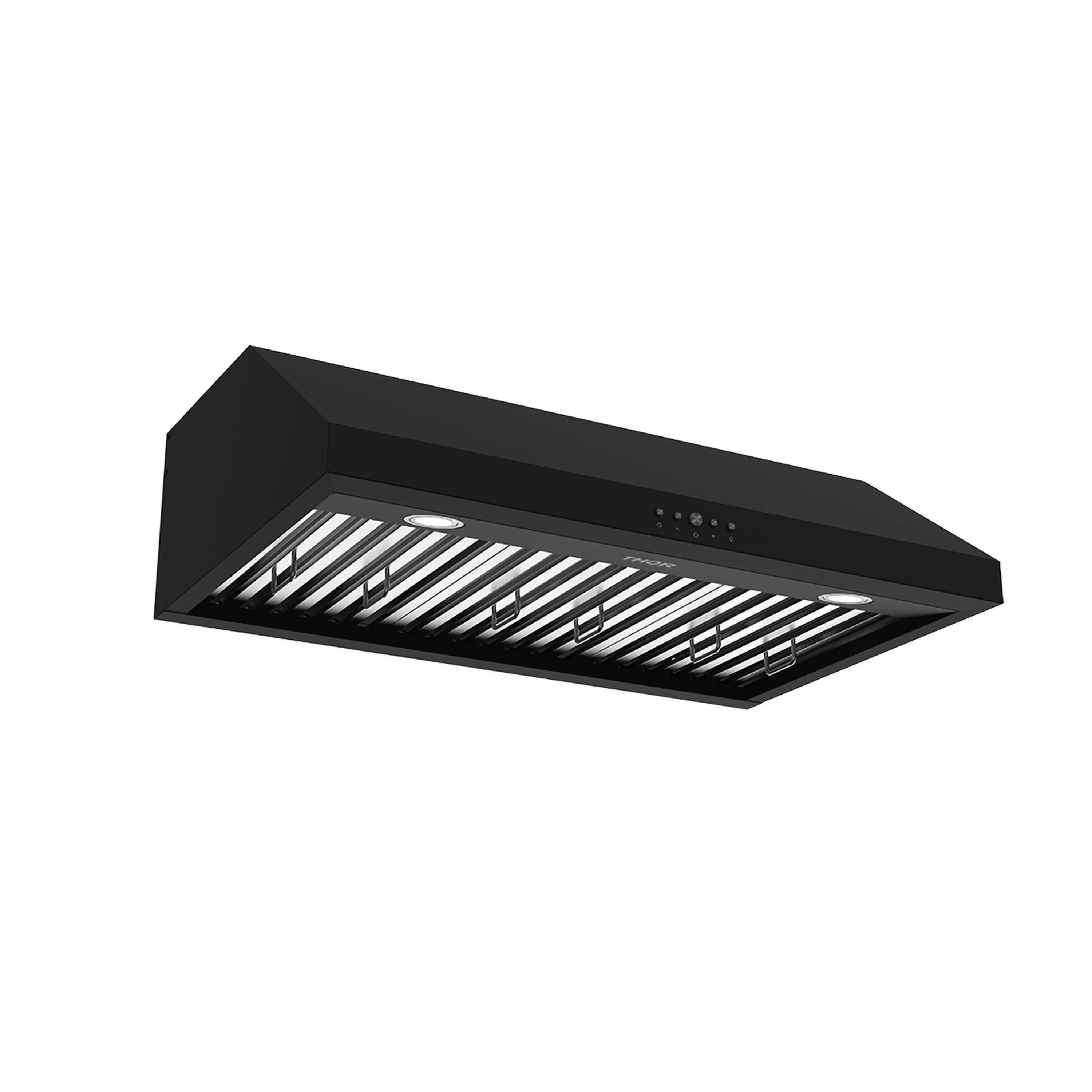

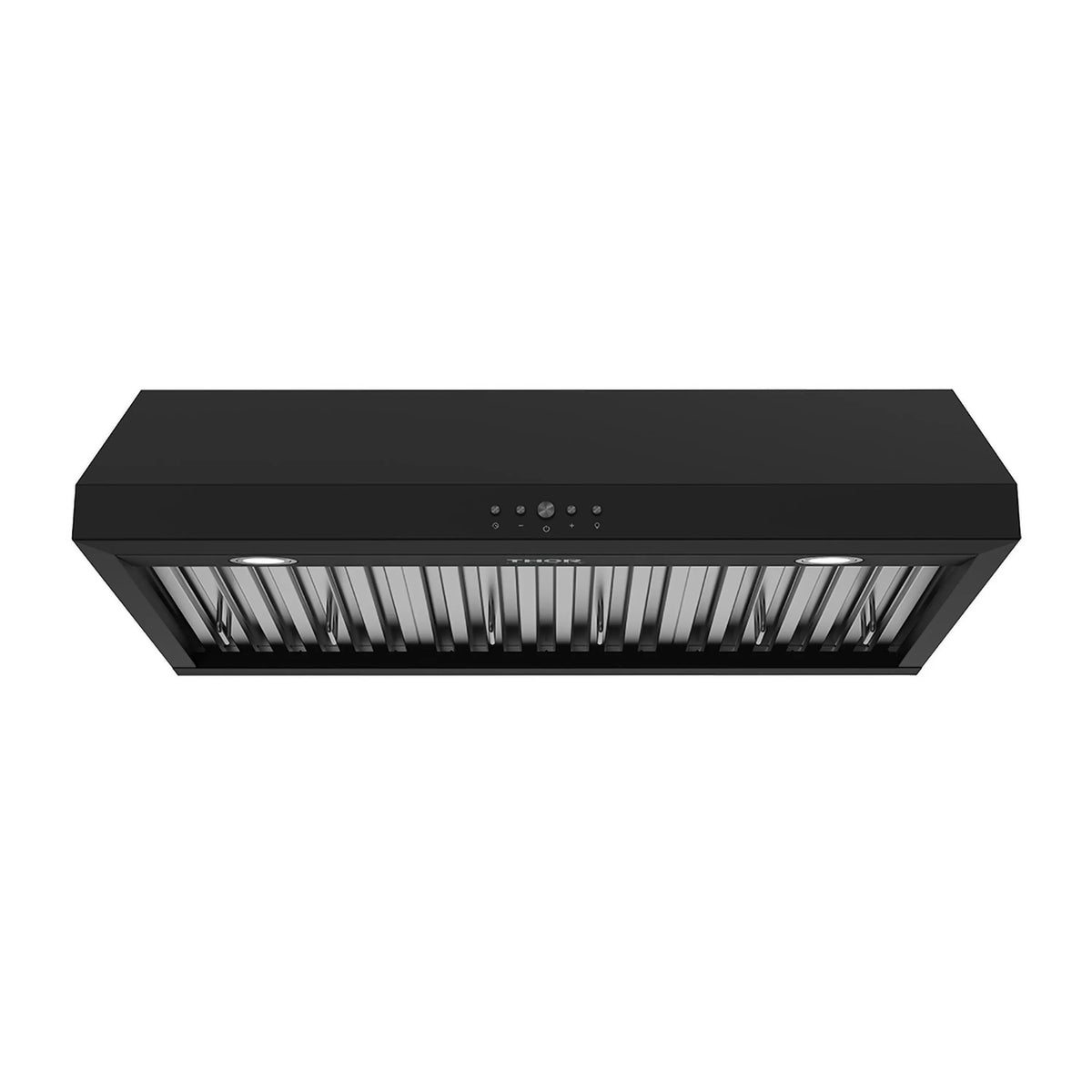

Power through everyday cooking with the Thor Kitchen 36-Inch Under Cabinet Range Hood (TUH3648B). Designed to mount neatly beneath your cabinetry, this convertible hood pulls up to 480 CFM to clear smoke, steam, and odors, with three fan speeds, bright LED lighting, and dishwasher-safe baffle filters for easy upkeep.
Features
- Durable Black Finish: Provides a sleek, modern look that complements any kitchen style while ensuring long-lasting strength and quality.
- Efficient 480 CFM Ventilation: Provides effective airflow to manage everyday cooking smoke, steam, and odors.
- Dual Installation Options (Ducted or Ductless): Convertible ducted or ductless installation for flexible setup.

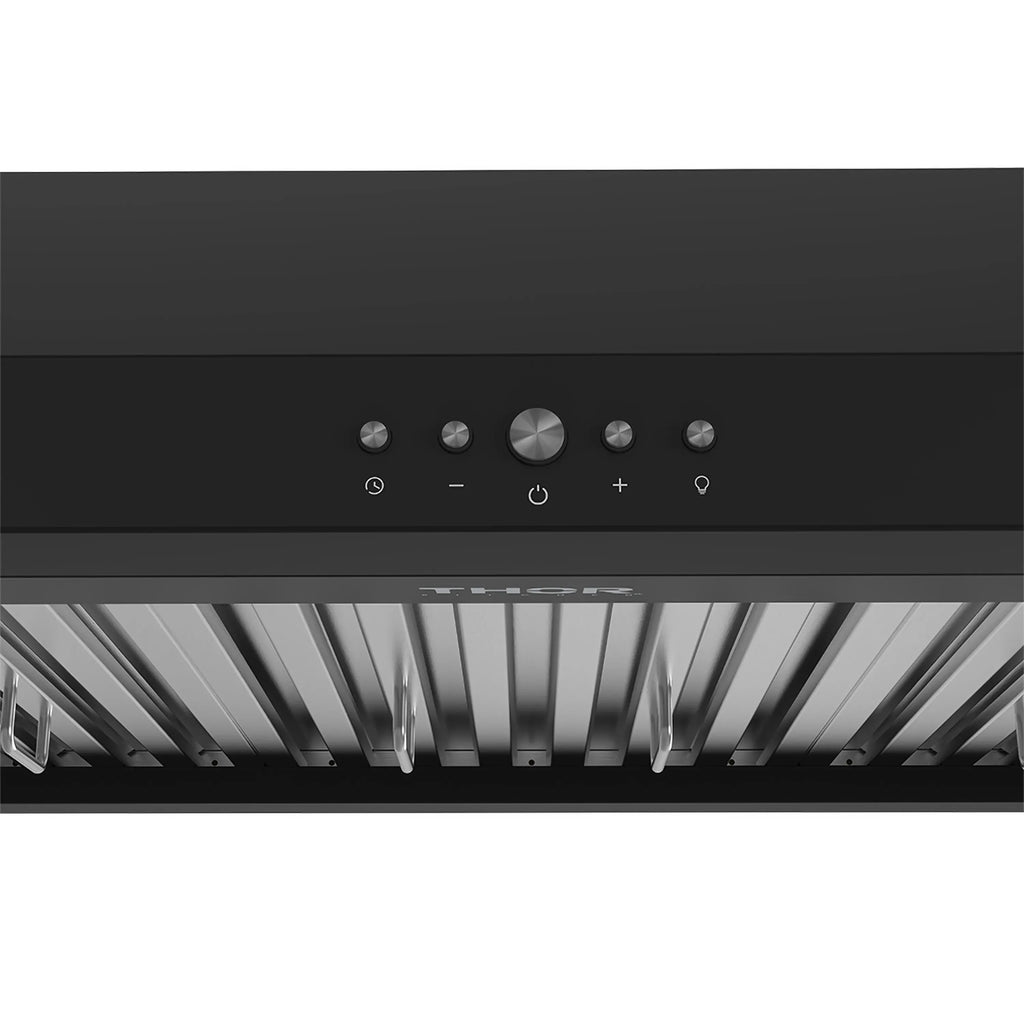

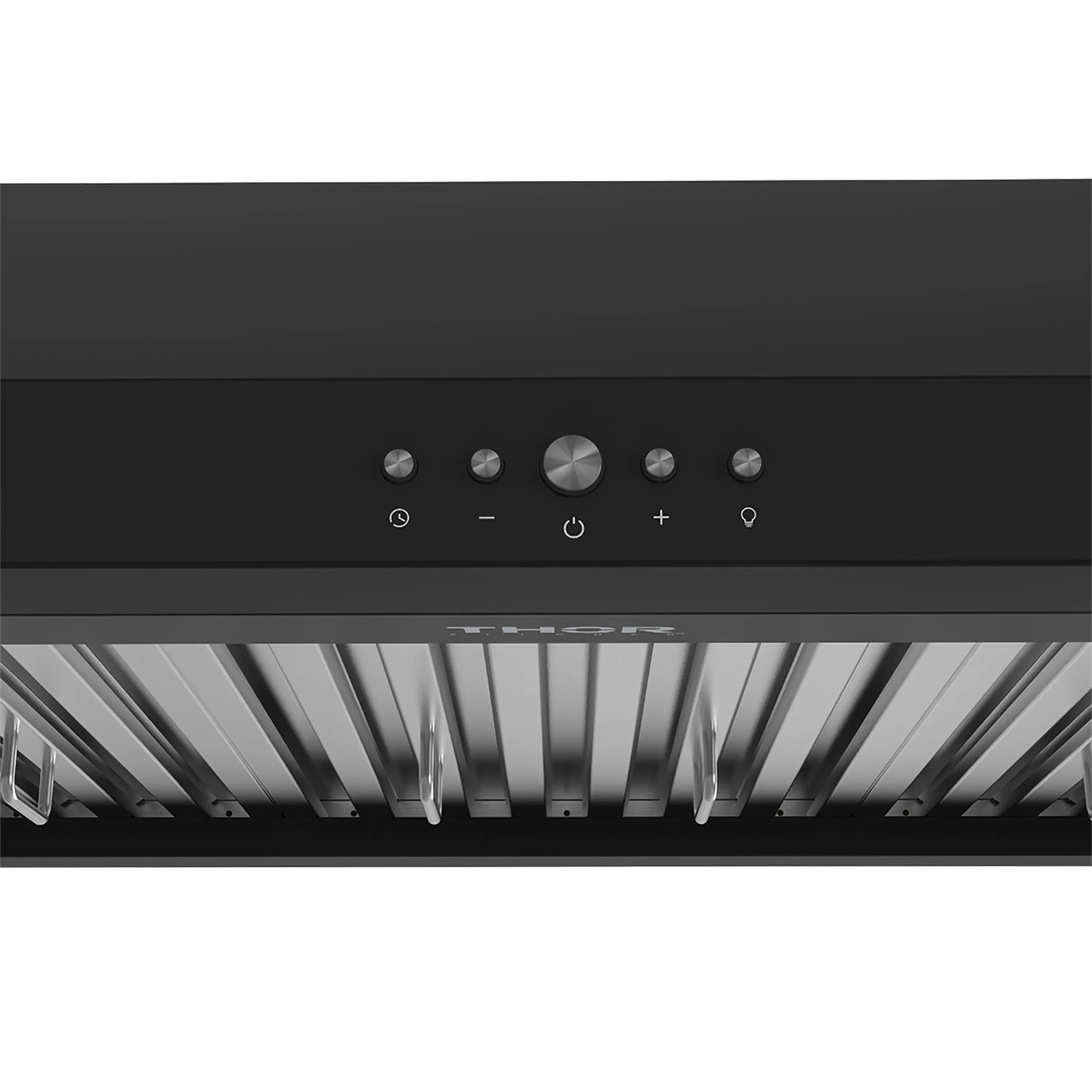

- Easy Push Button Controls: Simple mechanical buttons for hassle-free operation.

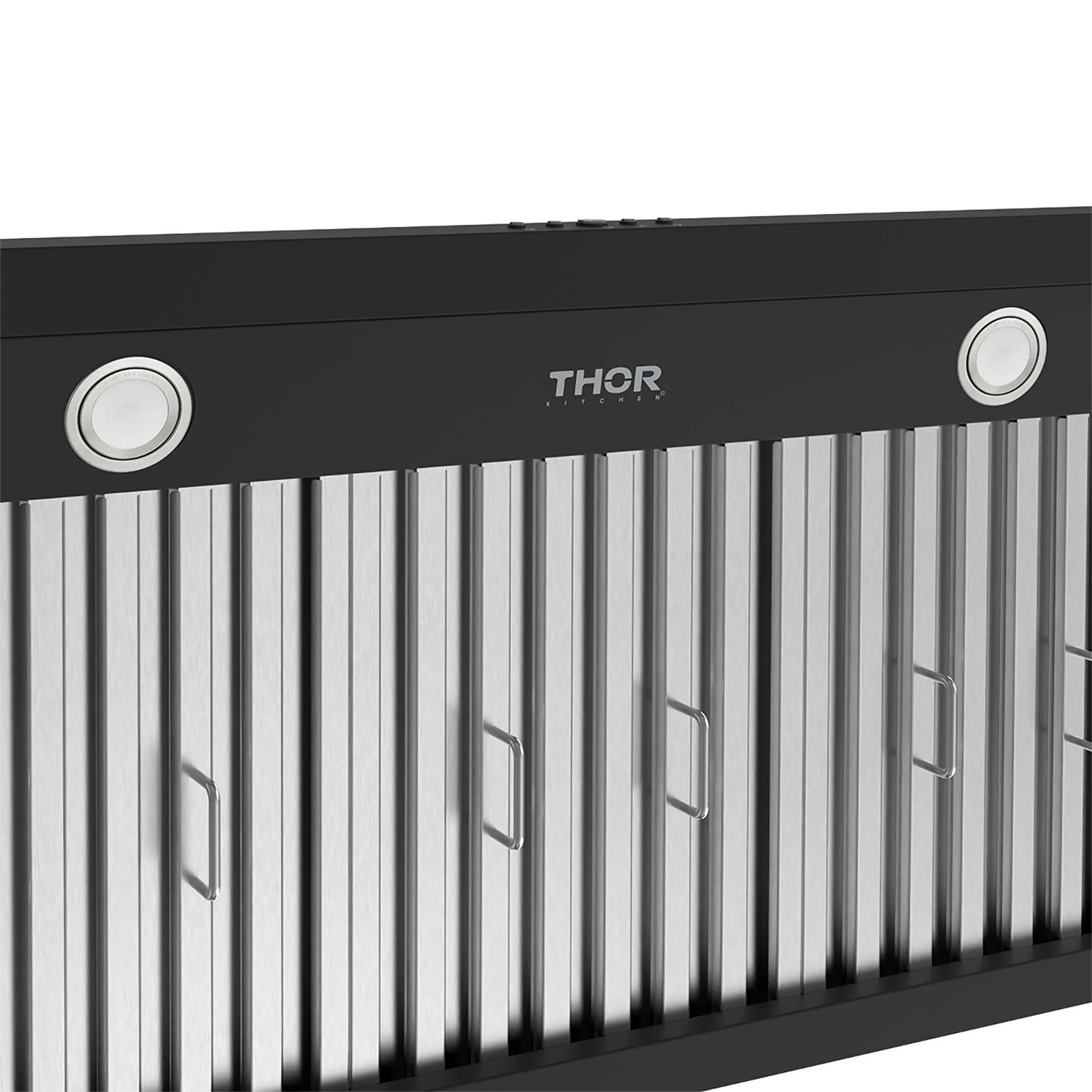

- Bright, Energy-Saving LED Lights: Illuminates the cooking surface clearly while minimizing energy use.
- Dishwasher-Safe Baffle Filters: Removable filters (three included) trap grease and are easy to clean for long-lasting performance.
- Three-Speed Fan Settings: Adjustable airflow to suit light simmering or more intensive cooking.
- Delay Shut-Off Function: Runs for 5 minutes after cooking to clear lingering smoke and odors.
- Under-Cabinet Mounting: Fits neatly beneath standard cabinetry for a clean, space-saving installation.
DIMENSIONS
- Product Dimensions
- 35-1/4" W x 22-1/16" D x 10-1/2" H
- Cutout Dimensions
- 35-3/8" W x 22-1/4" D x 10-11/16" H
- Minimum Distance Above Gas / Electric
- 30" / 28"
- Net Weight
- 51.8 lbs.
- Package Dimensions
- 38-3/16" W x 16-1/8" D x 26" H
GENERAL INFORMATION
- Brand
- THOR Kitchen
- Model
- TUH3648B
- Product Type
- Under-Cabinet Range Hood
- Mounting Type
- Undercabinet
- Airflow
- 480 CFM (max)
- Ducted / Recirculating Convertible
- Yes
DESIGN & FINISH
- Finish
- Black
- Filter Type
- Baffle Filter
- Filter Qty
- 3
- Lighting
- 2 x 1.5W Warm White LED

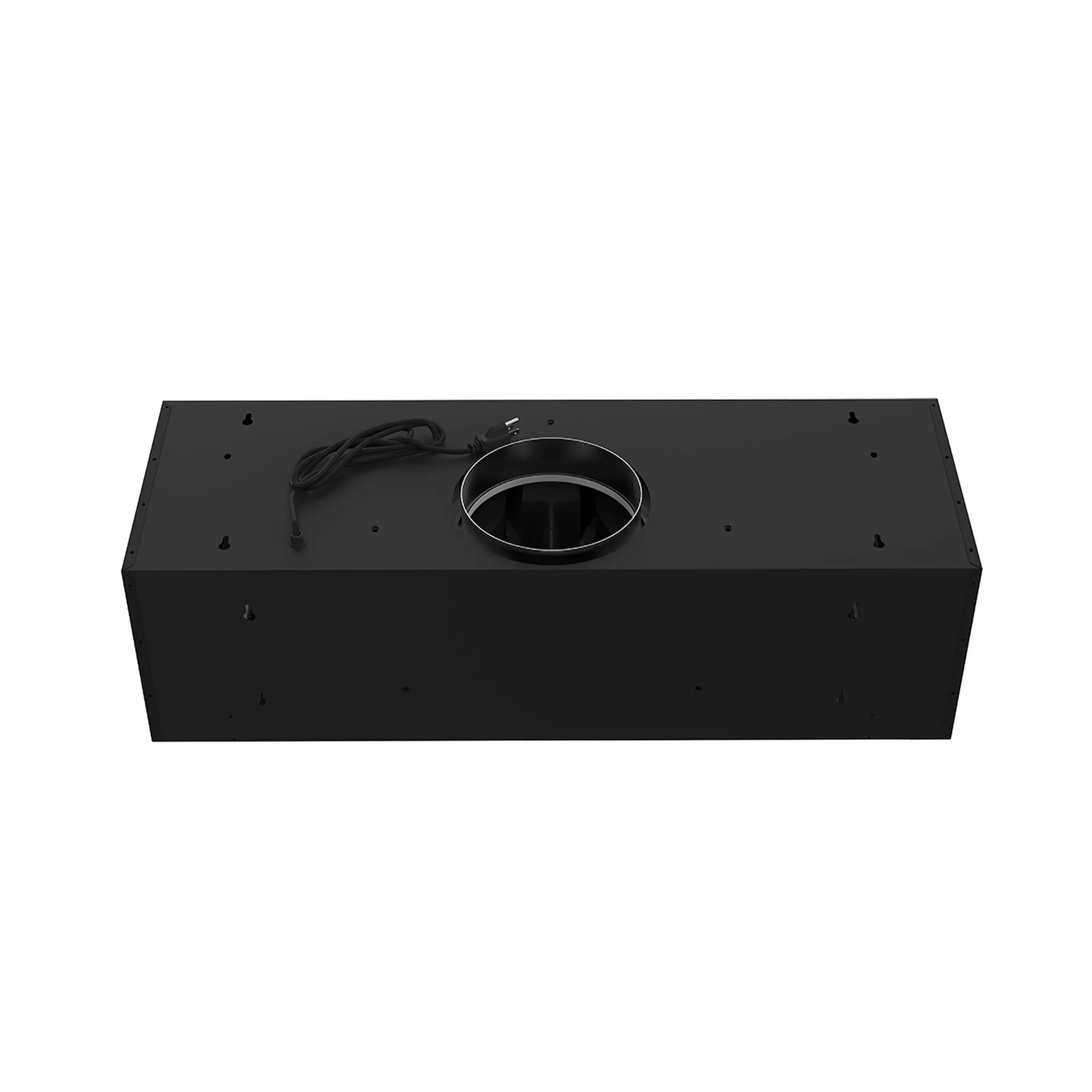

- Duct Size
- 7-11/16"
- Duct Type
- Round
TECHNICAL DETAILS
- Watts
- 263W
- Amperage
- 15A (Dedicated)
- Volts
- 120V
- Frequency
- 60Hz
- Plug Type
- US 3-Prong Plug
- Power Cord Length
- 39-3/8"
FEATURES
- Number of Speeds
- 3
- CFM (Low / Medium / High)
- Low: 331 CFM
- Medium: 387 CFM
- High: 480 CFM
- Noise Rating (Low / Medium / High)
- Low: 58 dB
- Medium: 61 dB
- High: 64 dB

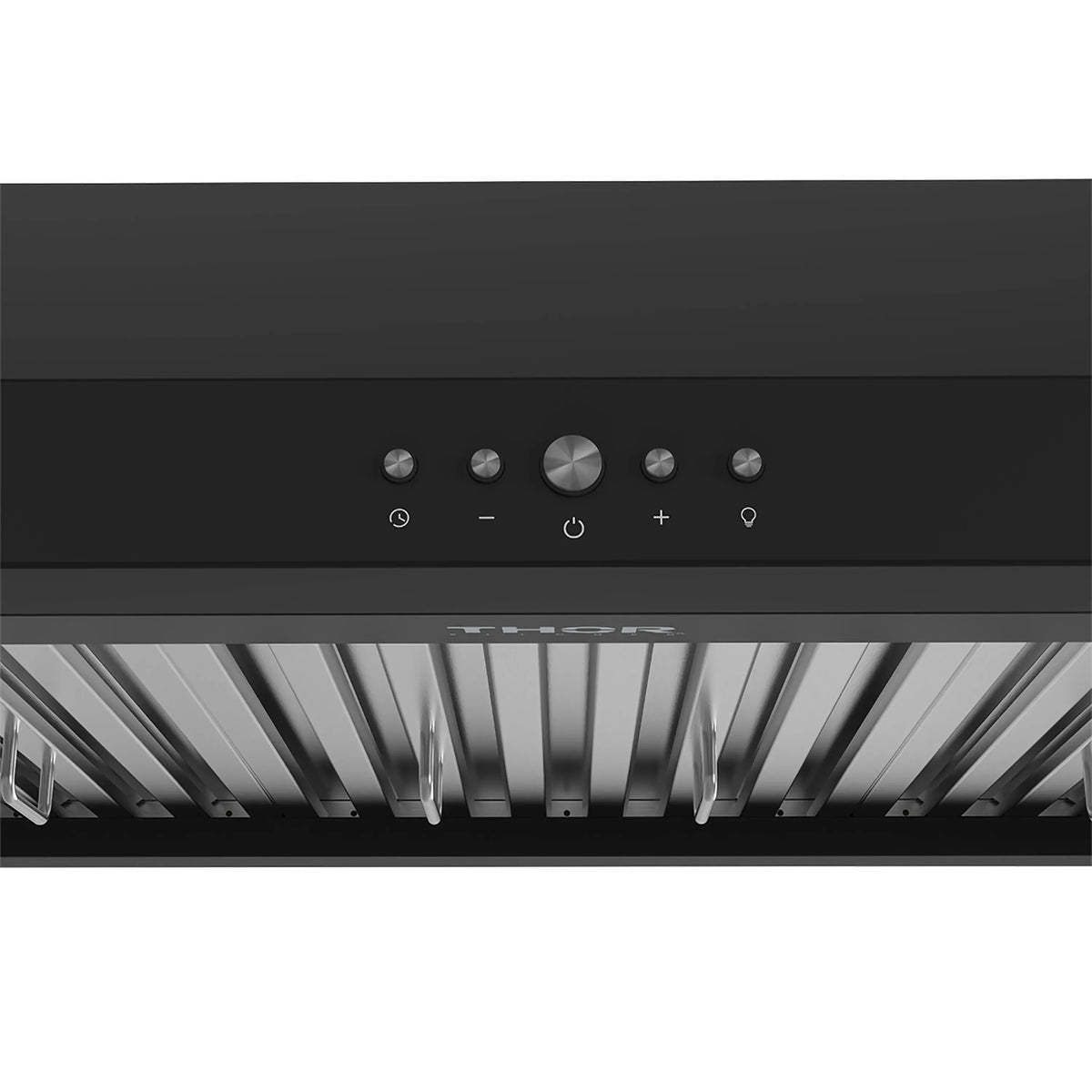

- Control Type
- Push Button
- Delay Function
- Yes (5 mins)
- Installation
- Ducted or Ductless (Convertible)
- Dishwasher-Safe Baffle Filters
- Yes
- Accessories Included
- Mounting Brackets
- Round Damper
WARRANTY & CERTIFICATIONS
- Warranty
- Two Years Parts and Labor

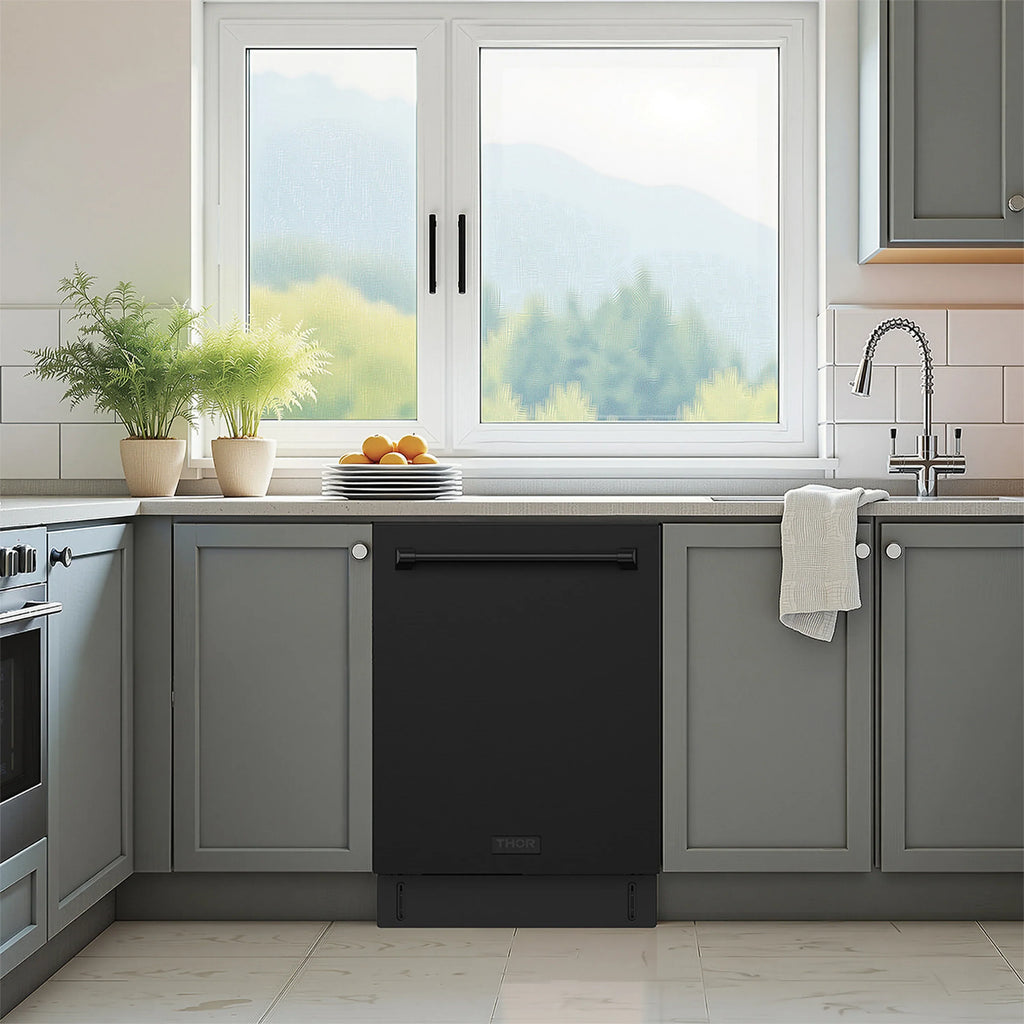

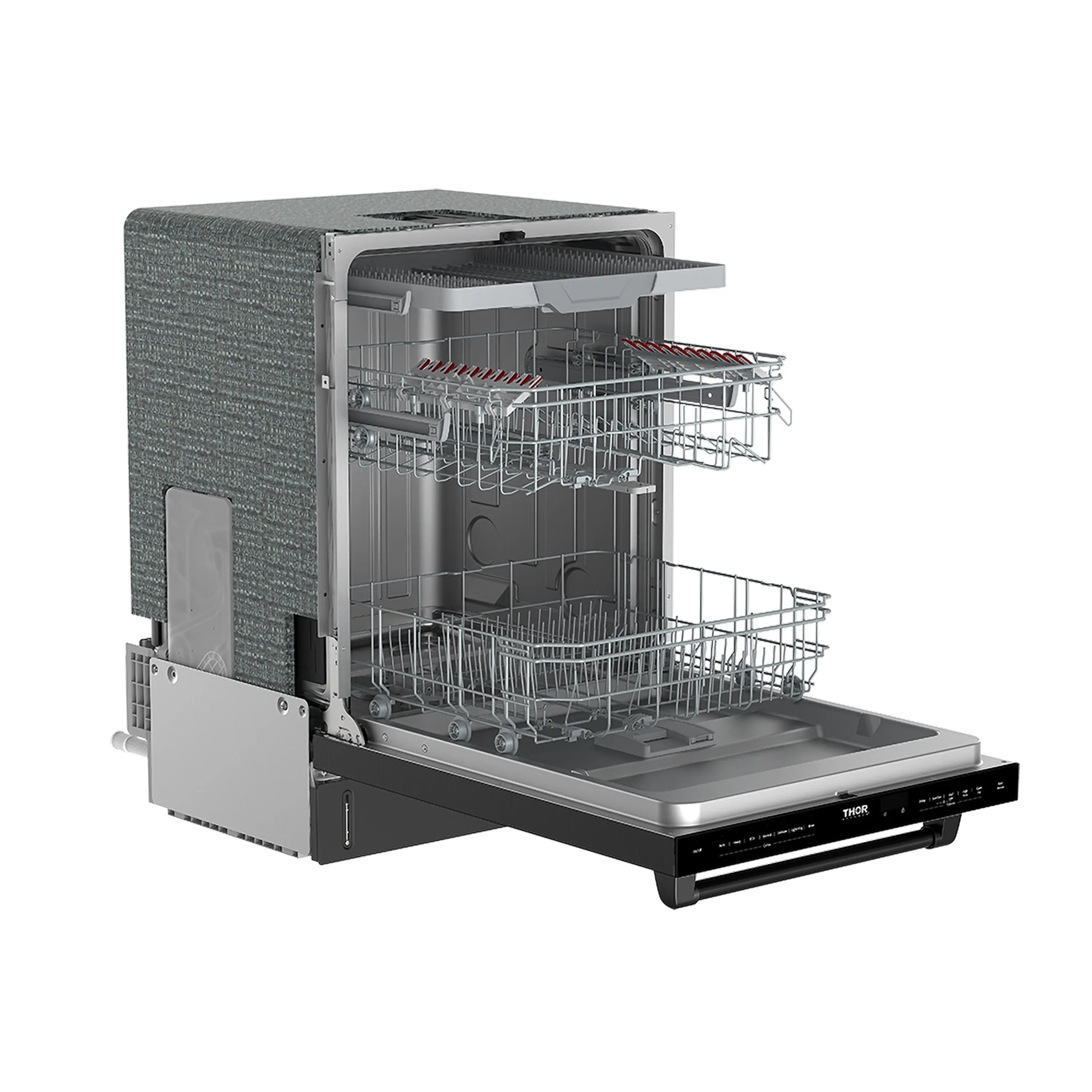

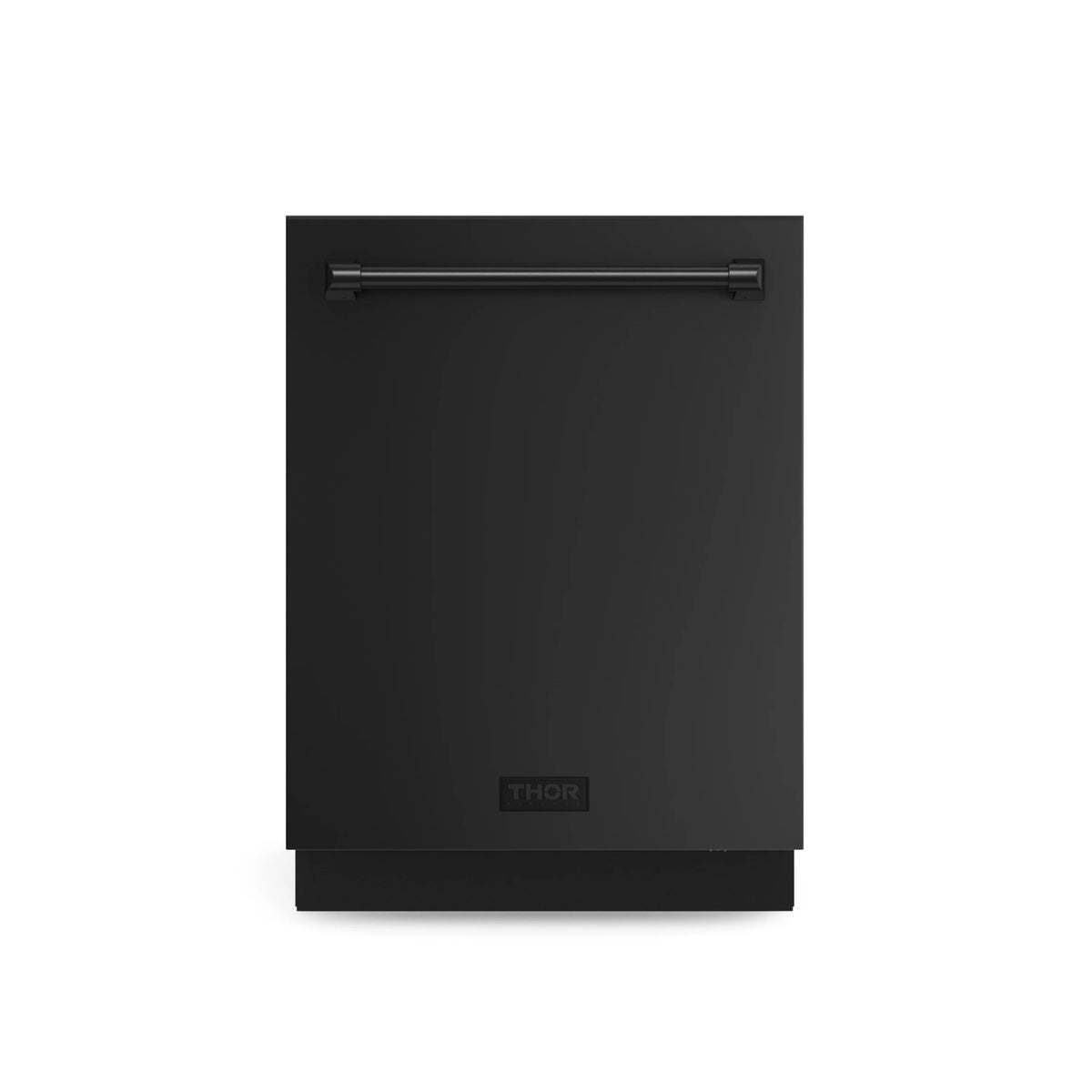

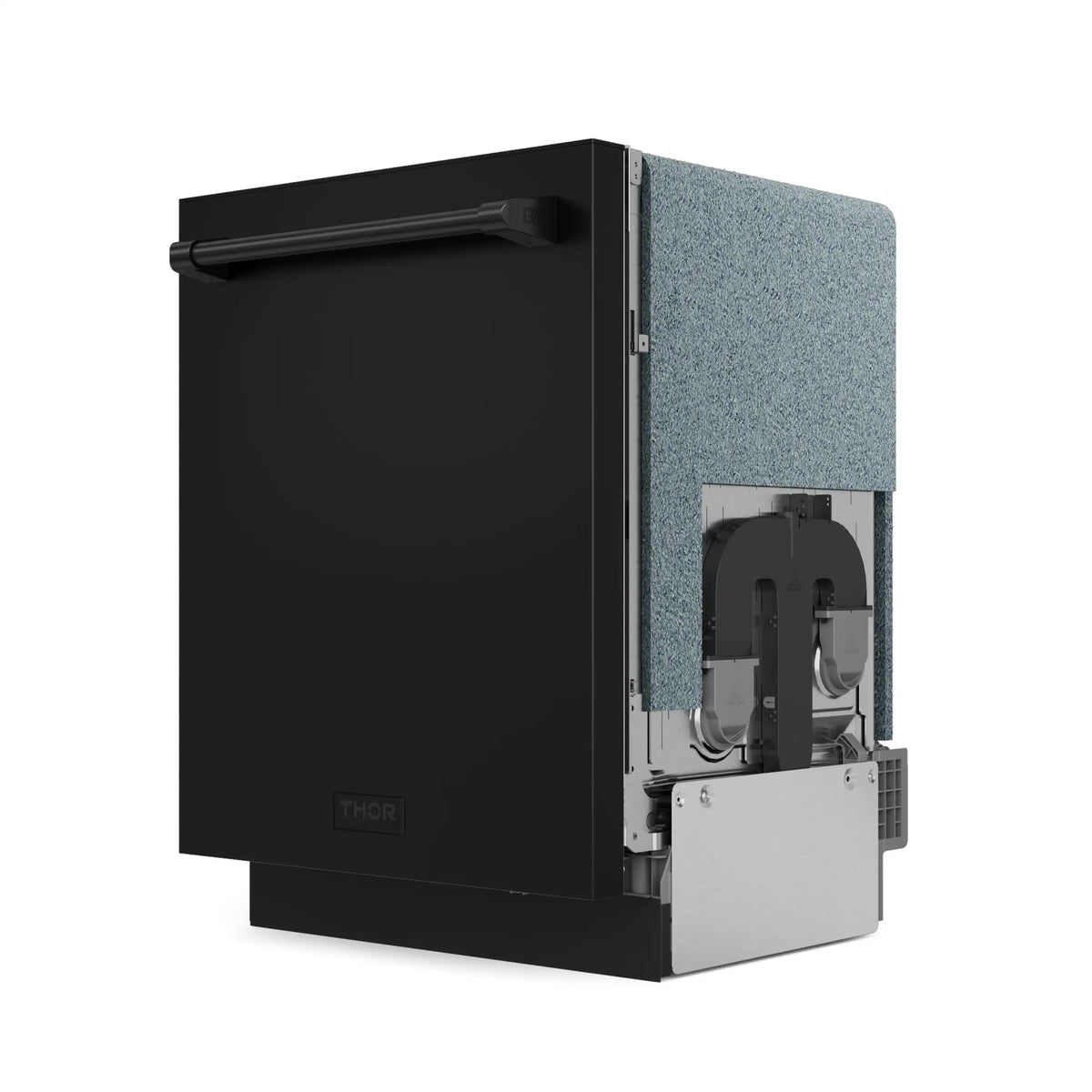

Piece 4 of 4 — DISHWASHER

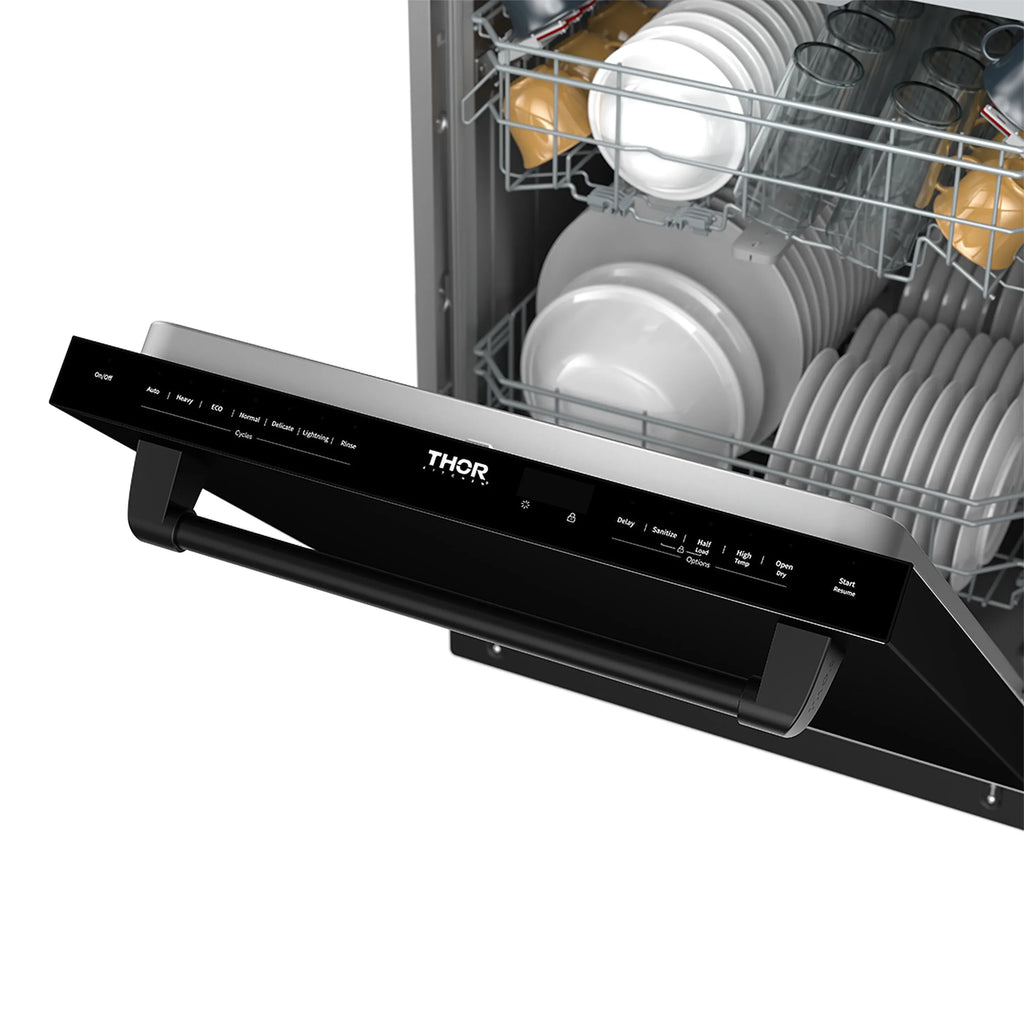

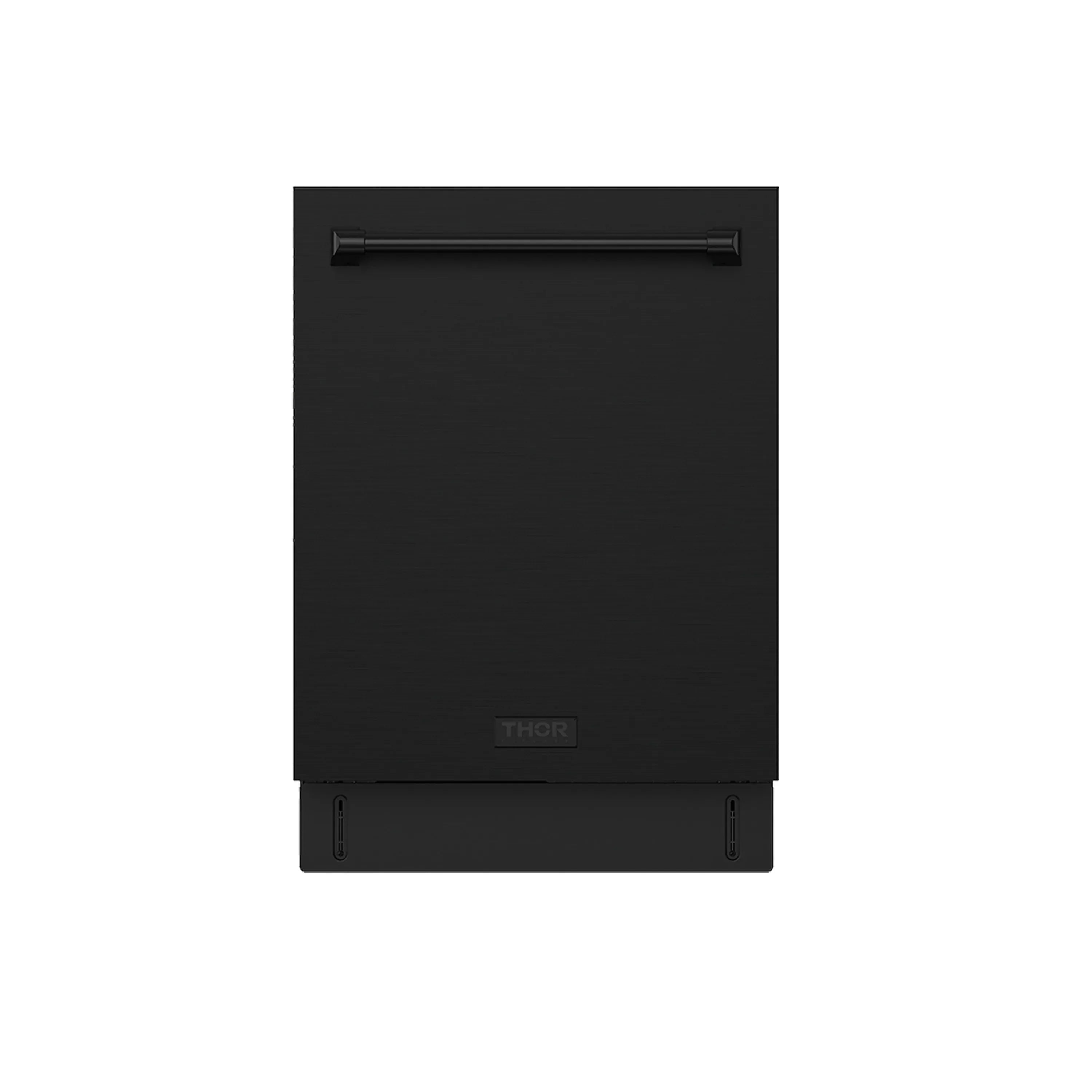

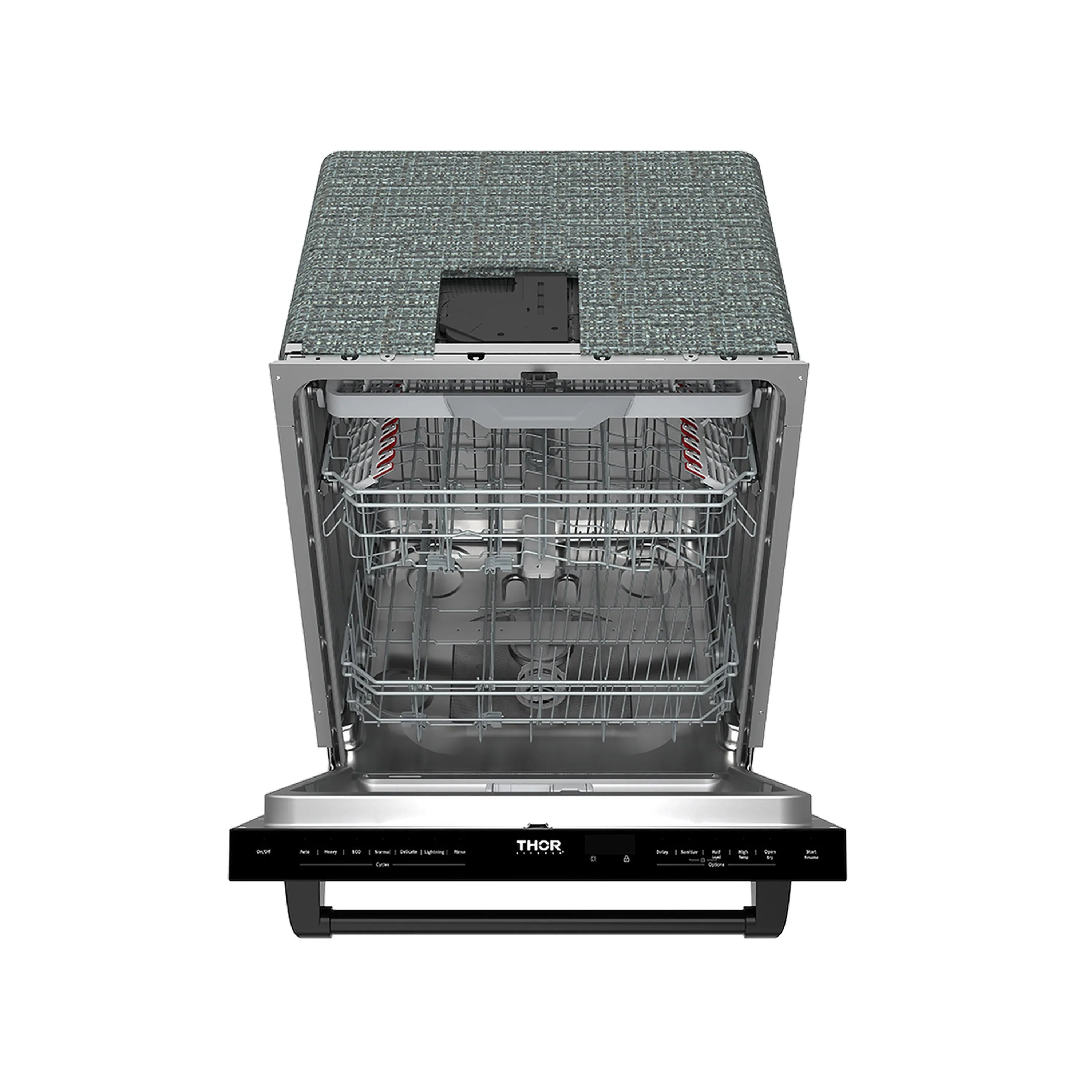

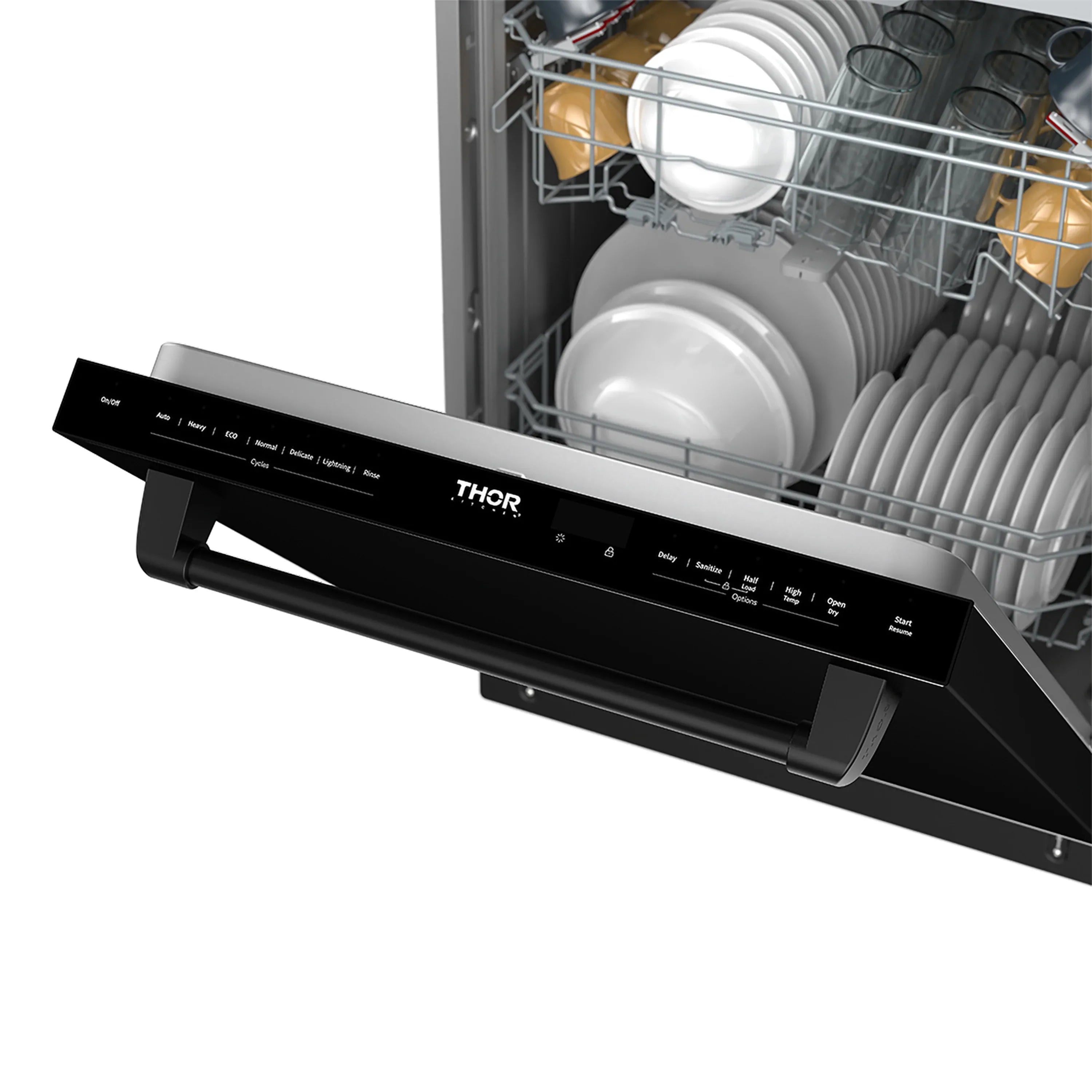

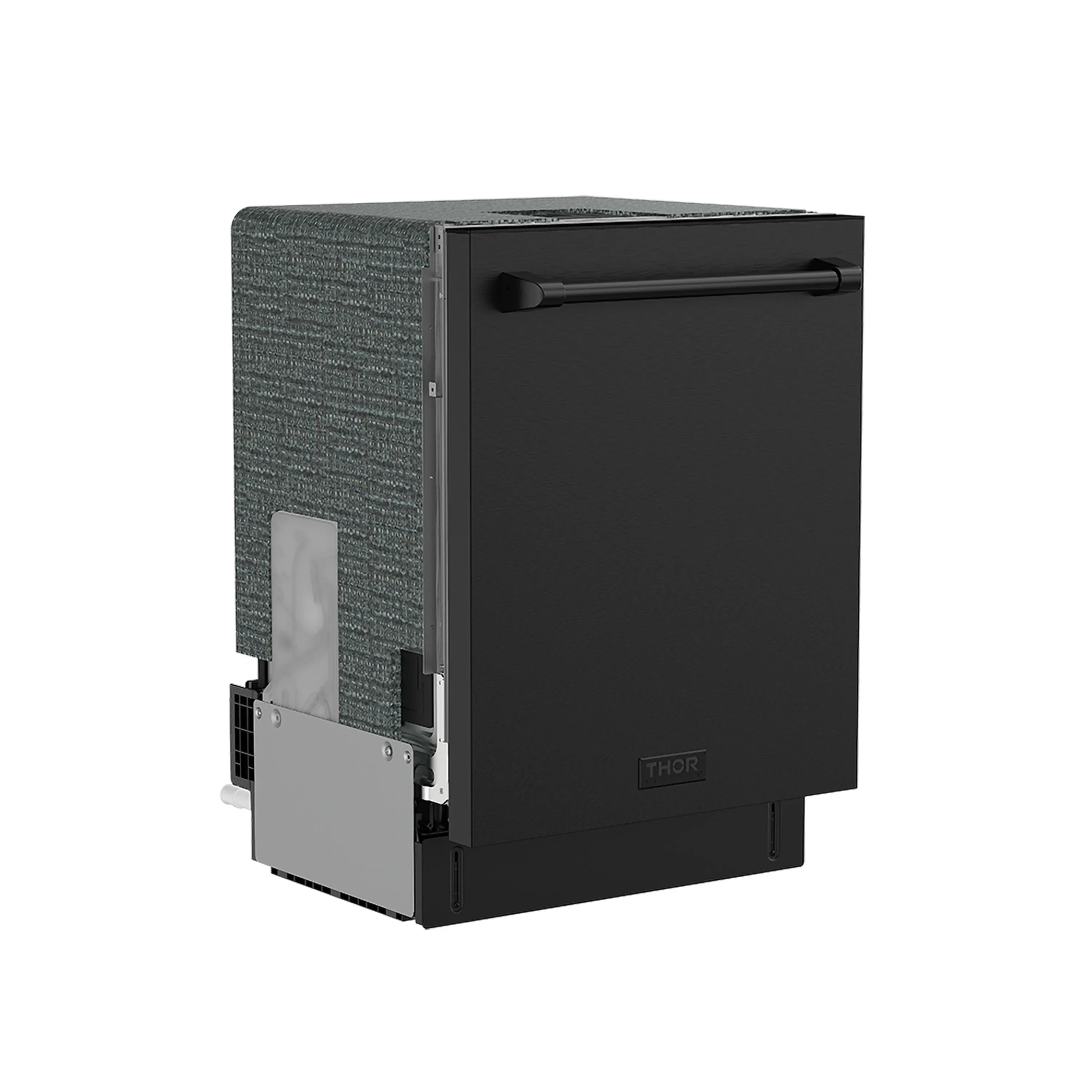

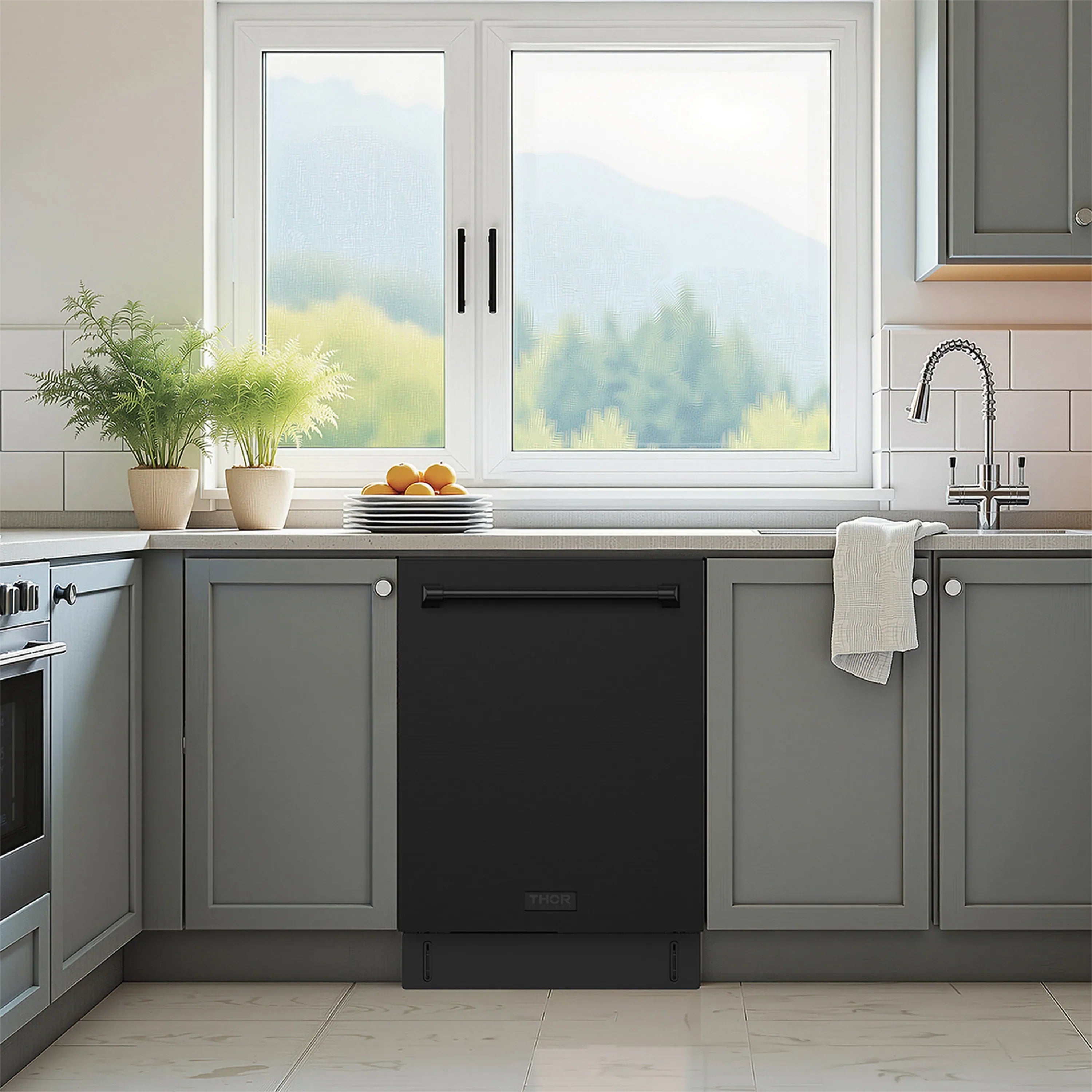

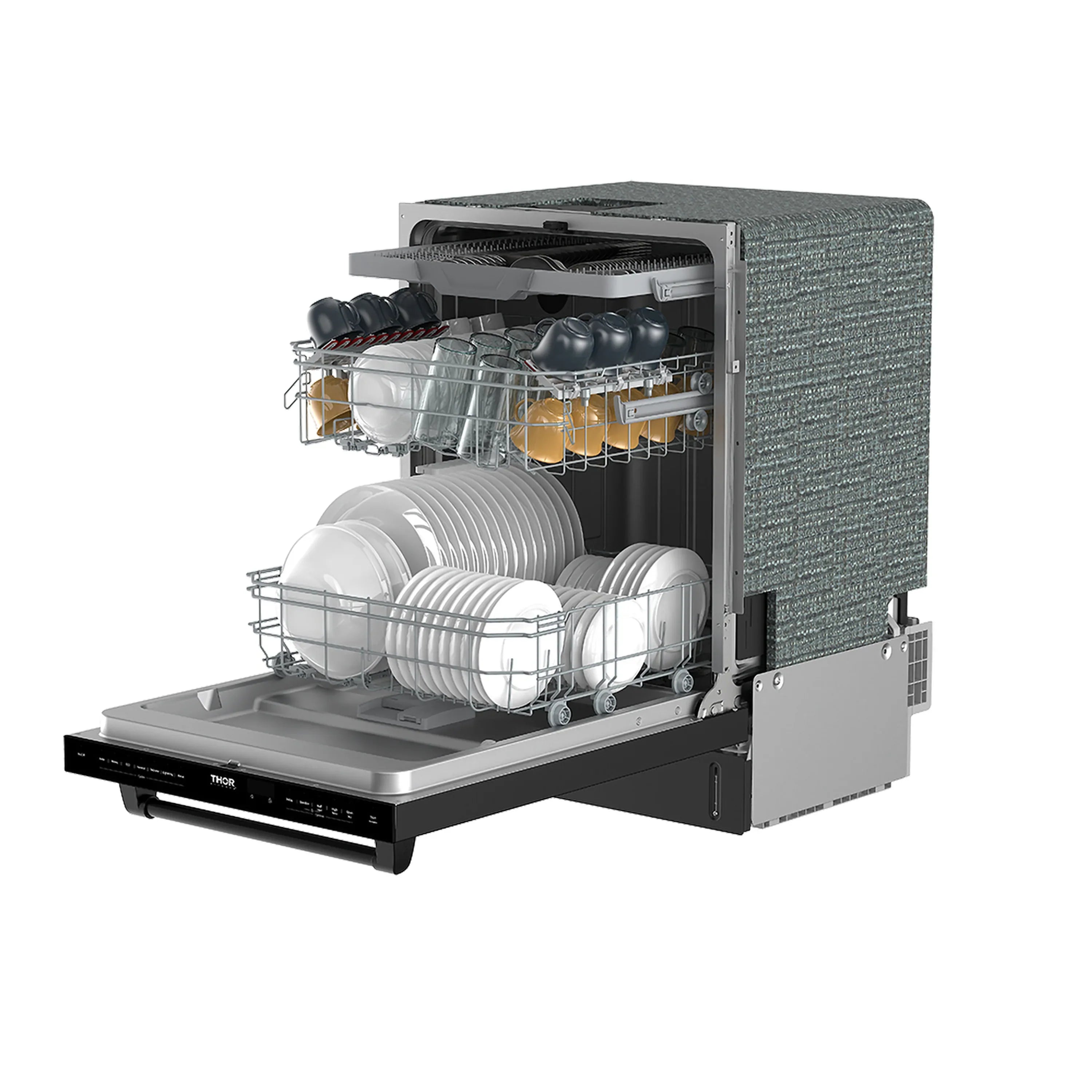

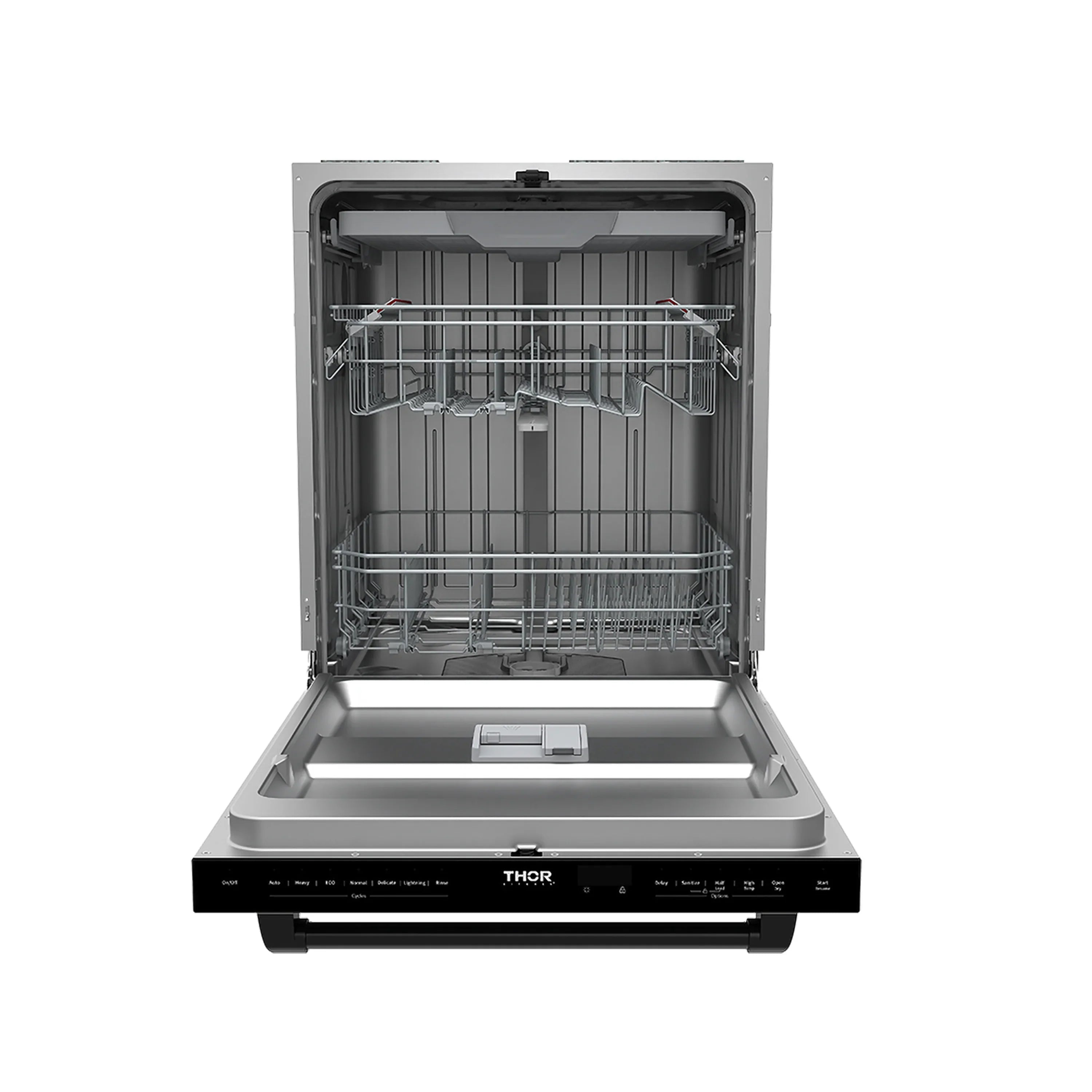

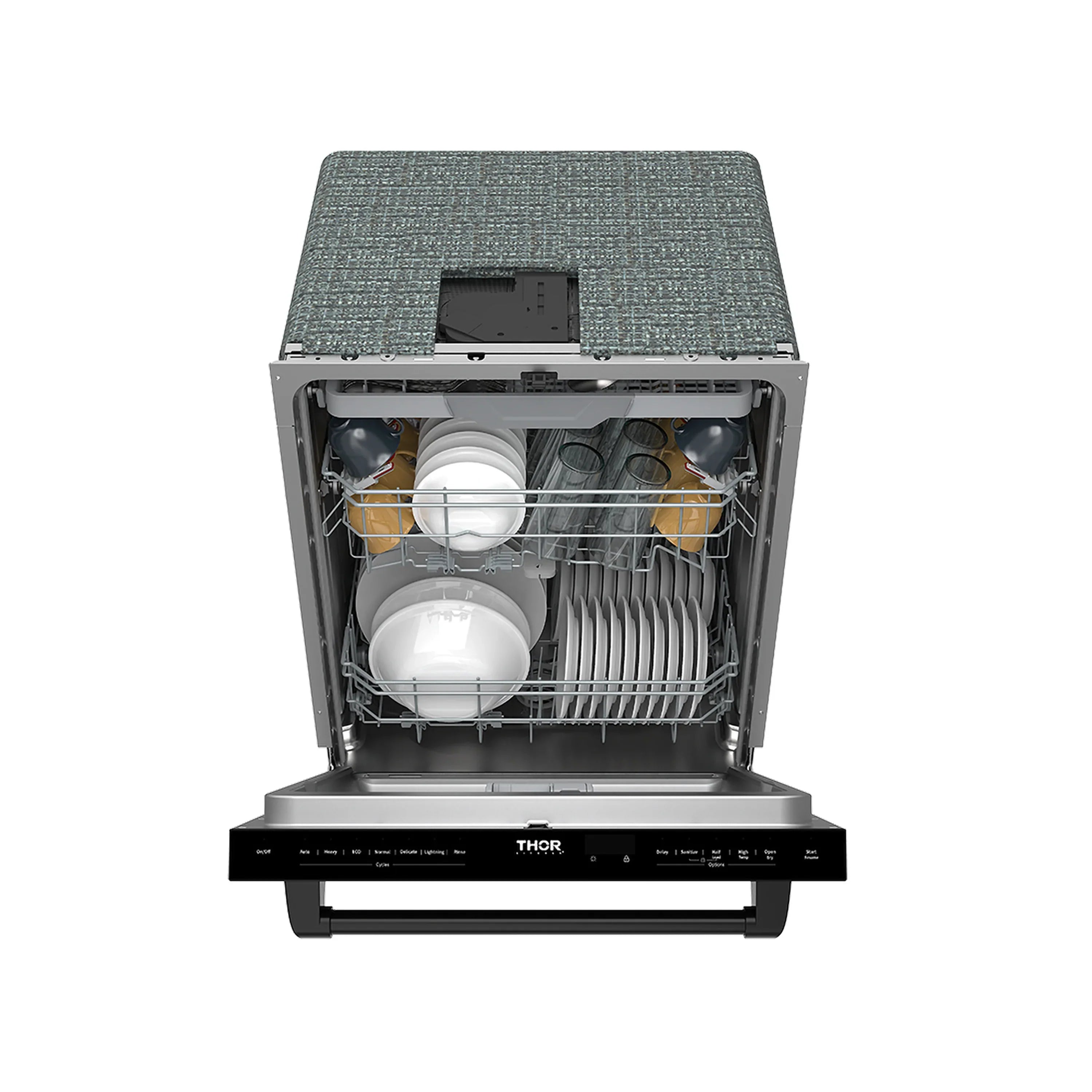

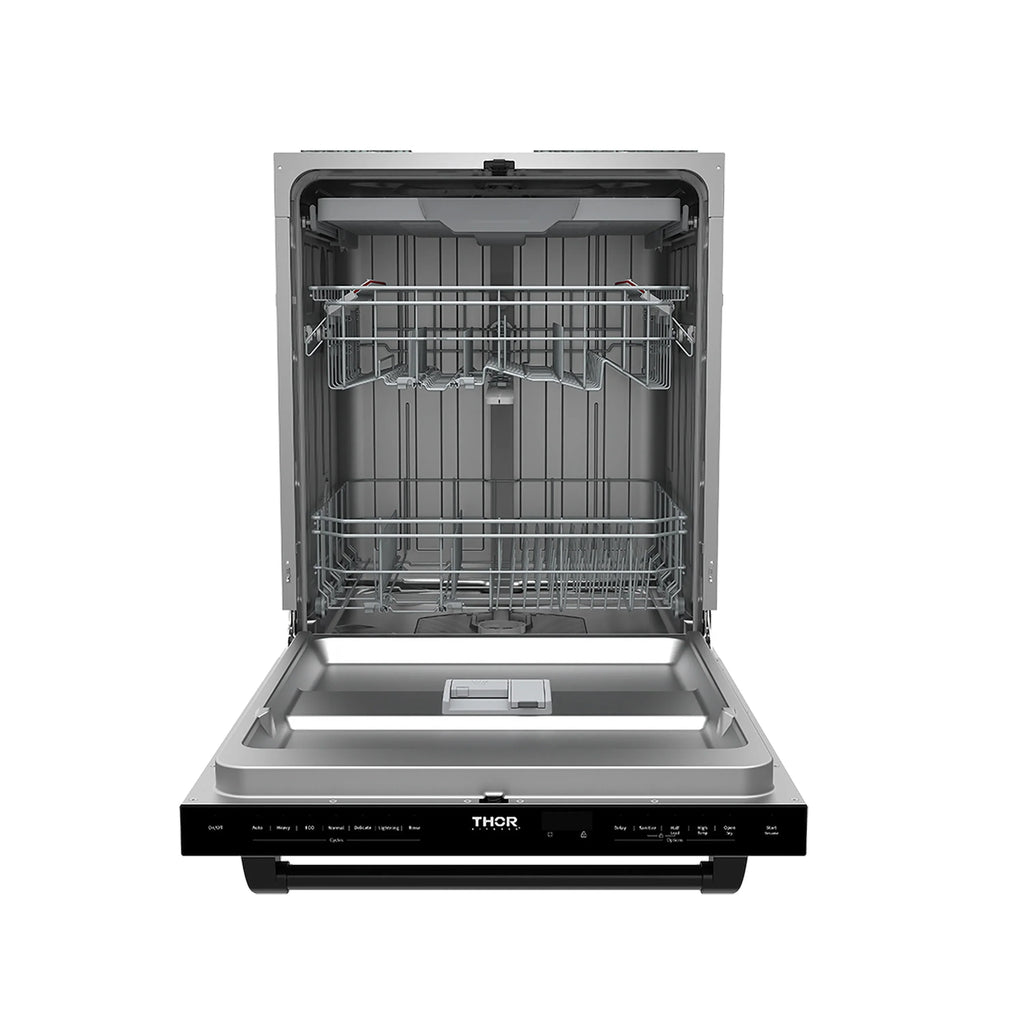

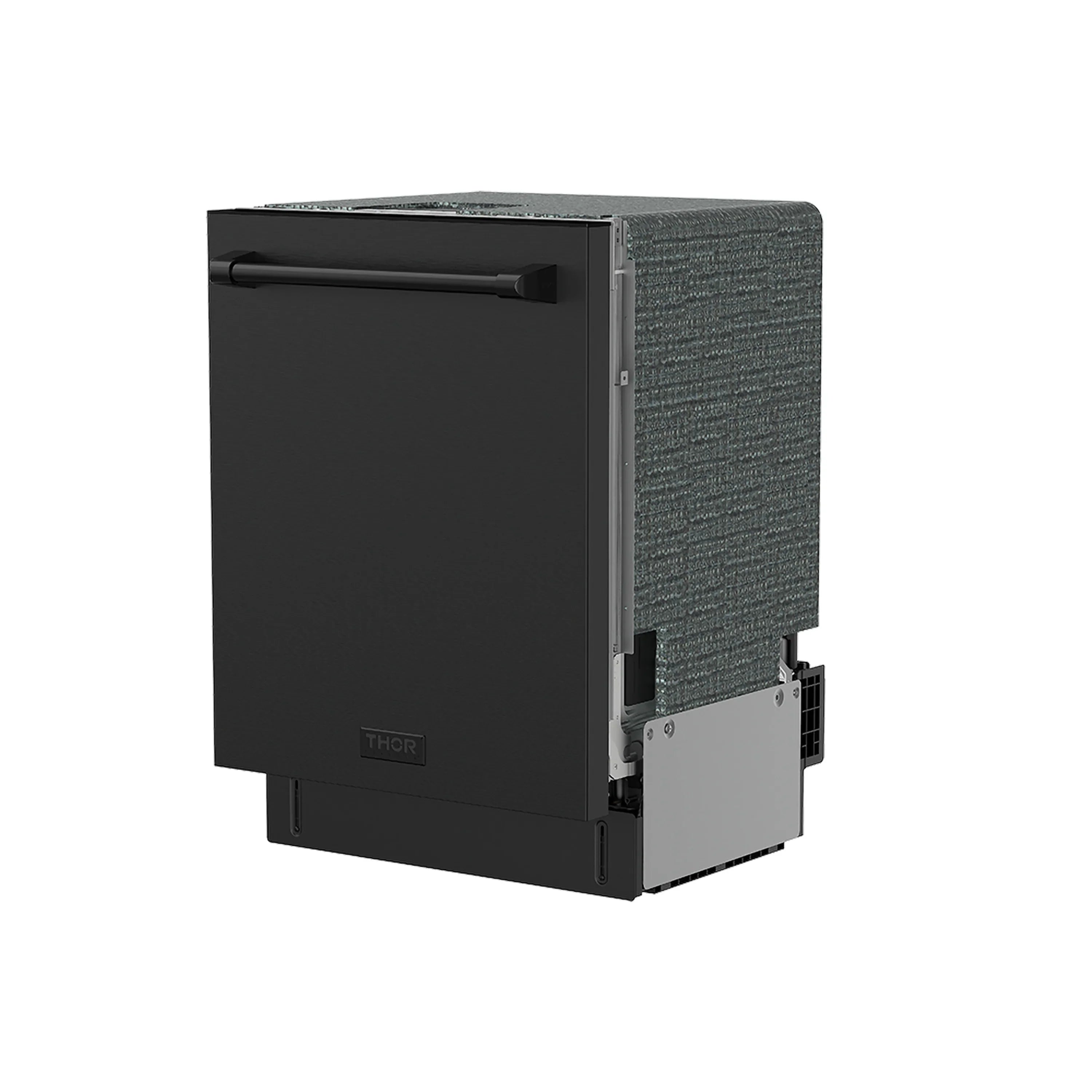

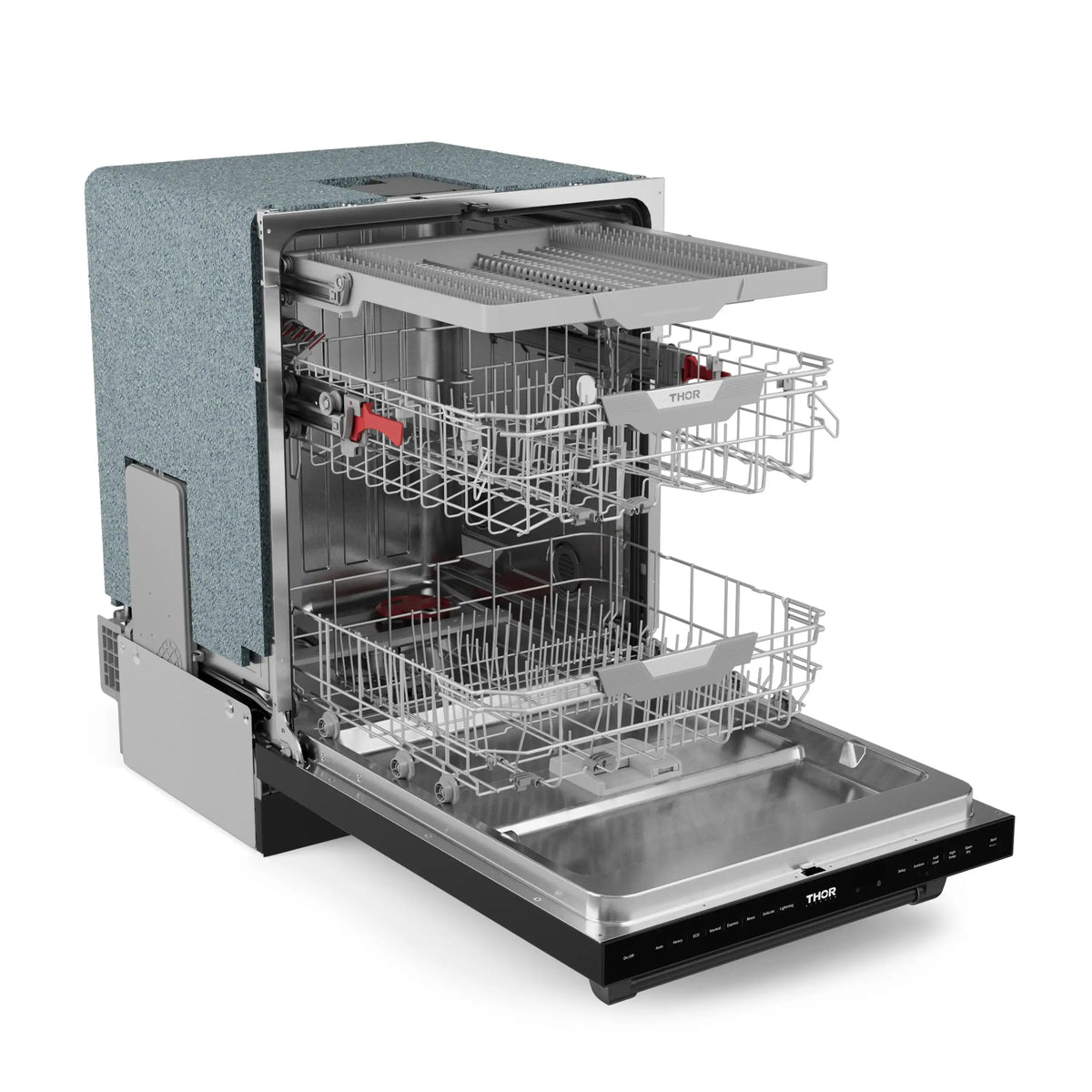

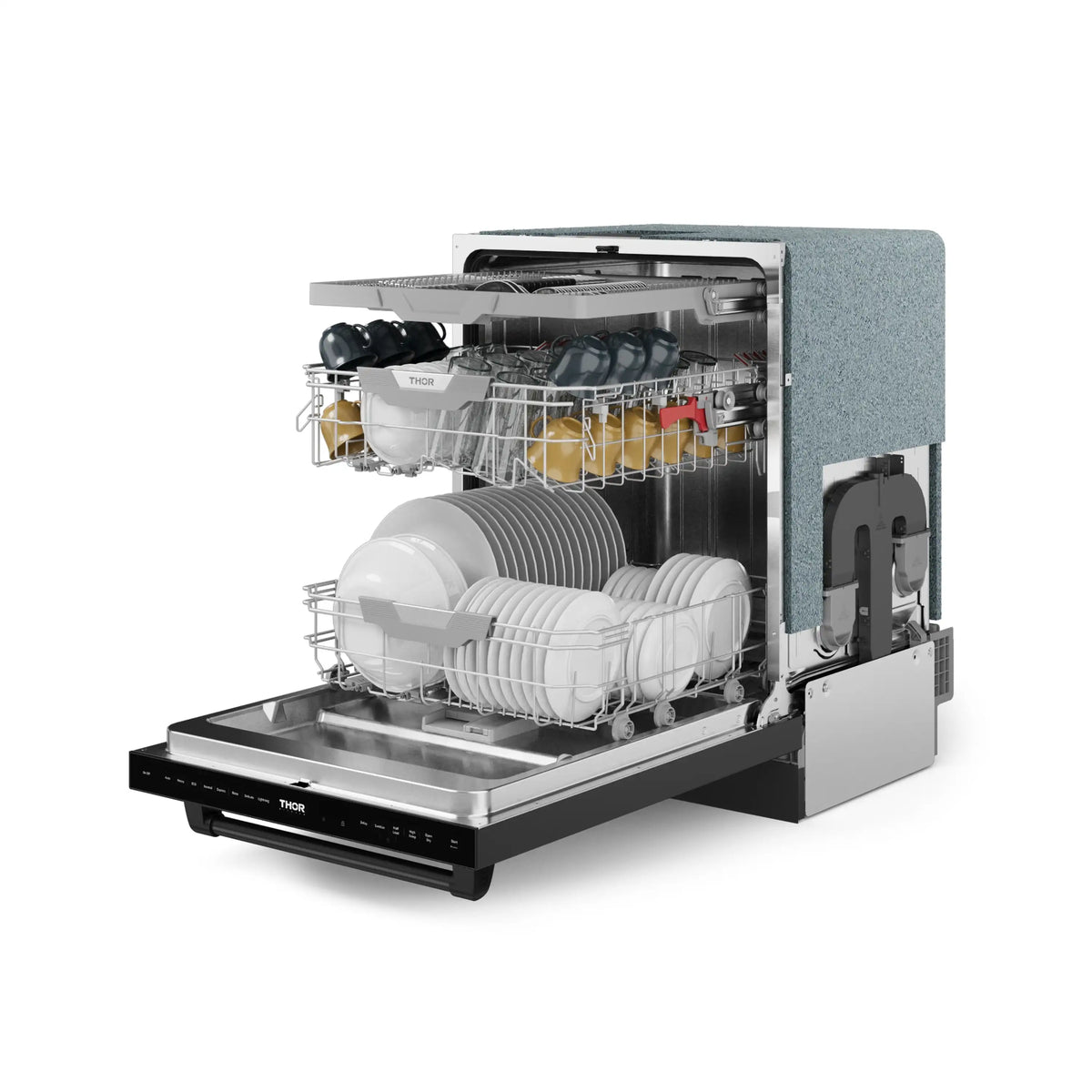

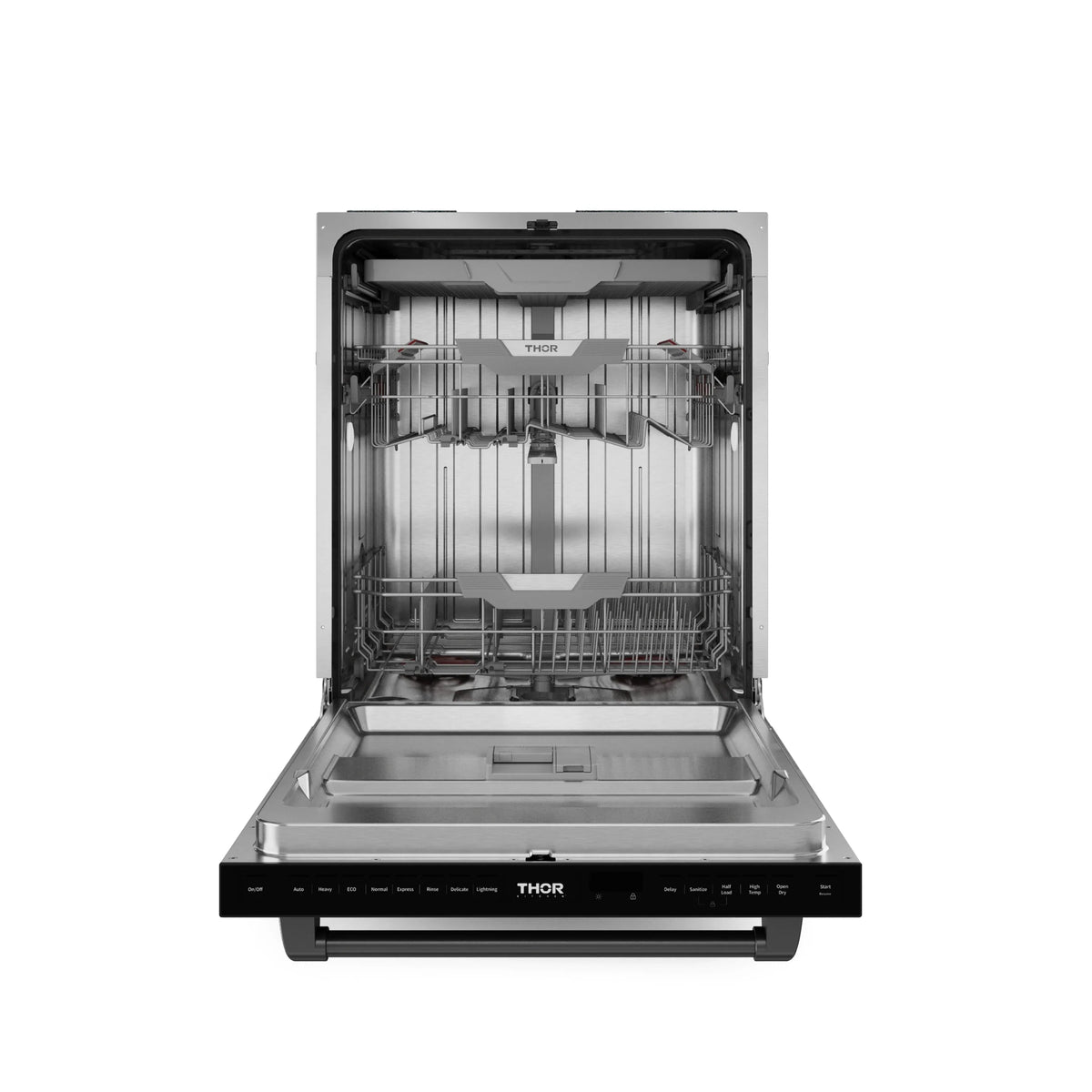

The Thor Kitchen TDW24C7B is a 24-inch top control built-in dishwasher in black, offering 7 wash cycles with 5 options to handle everything from delicate glassware to heavily soiled cookware. Featuring a quiet 47 dBA operation, a 3-rack system with a third-layer cutlery rack, height-adjustable upper basket, and a wine glass bracket, it delivers flexible, organized cleaning for up to 15 place settings. The touchscreen controls, status indicator light, and open dry system round out a feature-rich dishwasher designed for modern kitchens.
Features
- Open Dry - Enhances air circulation for effective and even drying, ensuring dishes are dry and free from residual moisture.
- Height-Adjustable Upper Basket - Adjust to different heights to create space for larger or taller items in the lower rack.
- 7 Wash Cycles with 5 Options - Tackle everything from delicate glassware to heavily soiled pots with efficient, customized cleaning for any load.
- Quiet Operation at 47 dBA - So quiet you can run it anytime—perfect for open-concept kitchens, entertaining, or mealtime cleanups.
- Status Indicator Light - Displays a clear visual indication of the dishwasher's progress, allowing you to monitor the current wash cycle without opening the door.
- Wine Glass Bracket - Securely holds delicate glassware, ensuring wine glasses and other fragile items are spotless and intact after each wash.

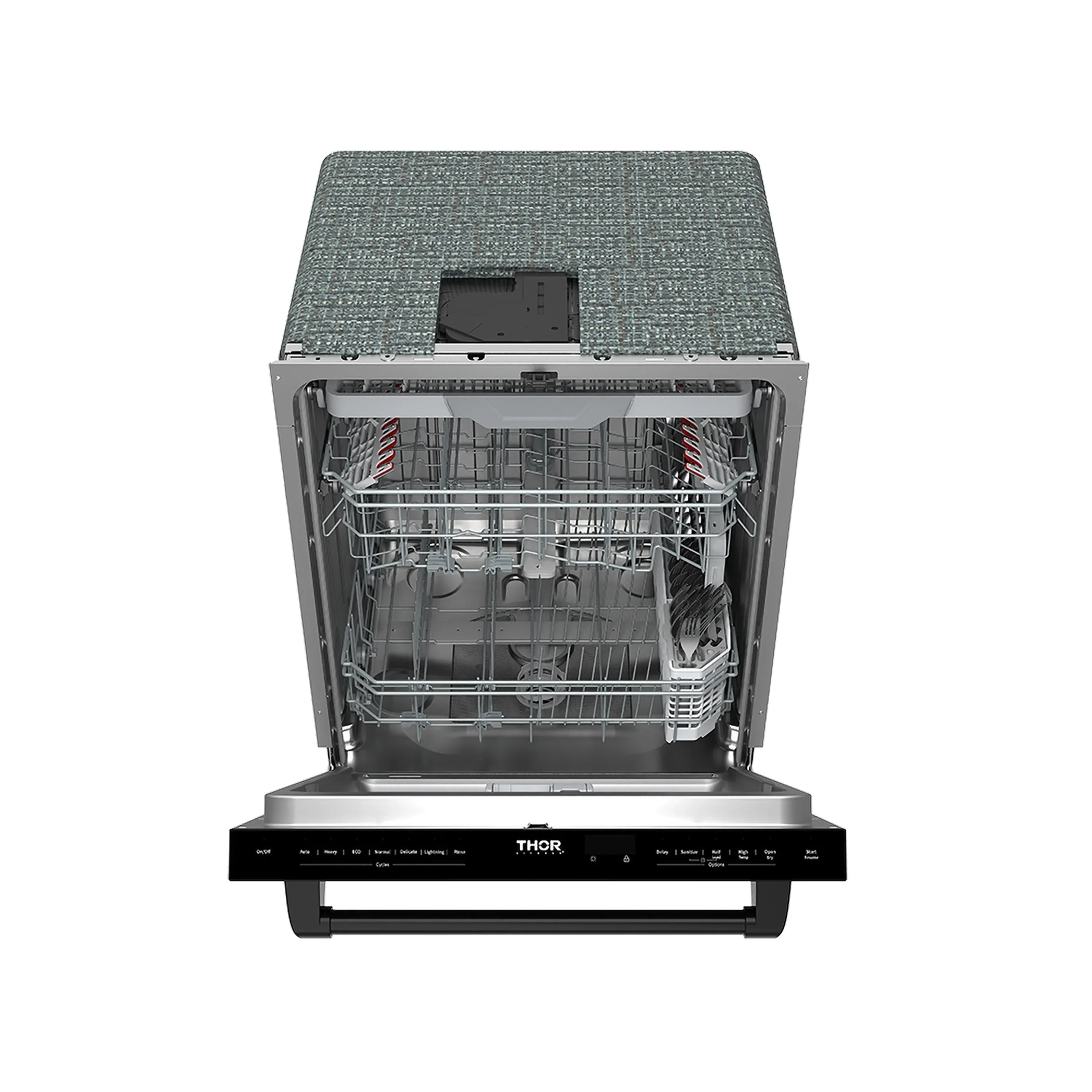

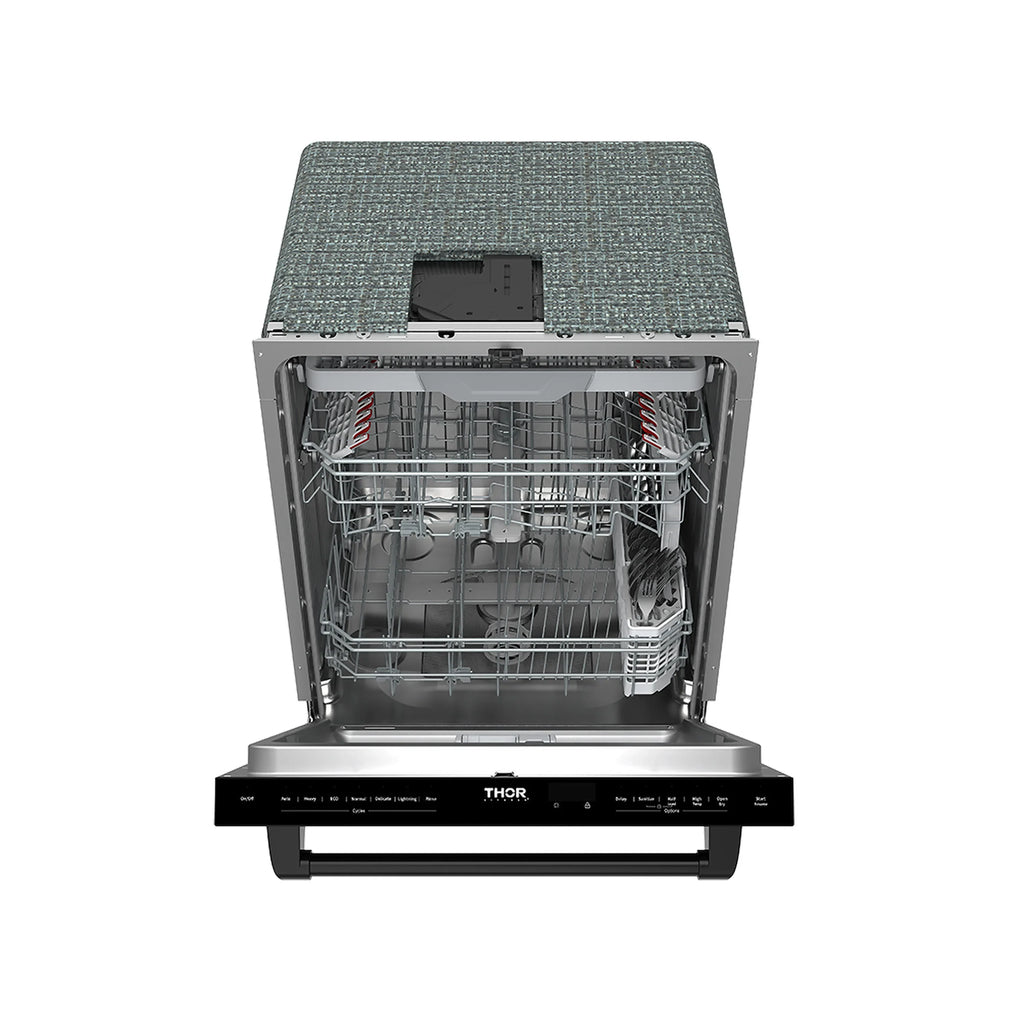

- Third Layer Cutlery Rack - Maximize space and organization with a dedicated third rack for utensils, knives, and small items—keeping them secure and separate for a thorough, gentle clean.
DIMENSIONS
- Product Dimensions (WxDxH) (in.)
- 23-7/8" x 22-5/8" x 33-7/8"
- Product Depth with Handles (in.)
- 25-1/8"
- Cutout Dimensions (WxDxH) (in.)
- 23-7/8" - 24" x 22-7/8" - 23-5/8" x 34" - 35-1/2"
- Package Dimensions (WxDxH) (in.)
- 28-3/4" x 28-3/4" x 35-1/16"
- Net Weight (lbs.)
- 80.5
- Gross Weight (lbs.)
- 97.8
GENERAL INFORMATION
- Brand
- Thor Kitchen
- Model Number
- TDW24C7B
- Product
- 24 Inch Top Control Built-In Dishwasher in Black
- Spray Arms
- 3 (Lower, Upper, and Top)
DESIGN & FINISH
- Tub Material
- Stainless Steel

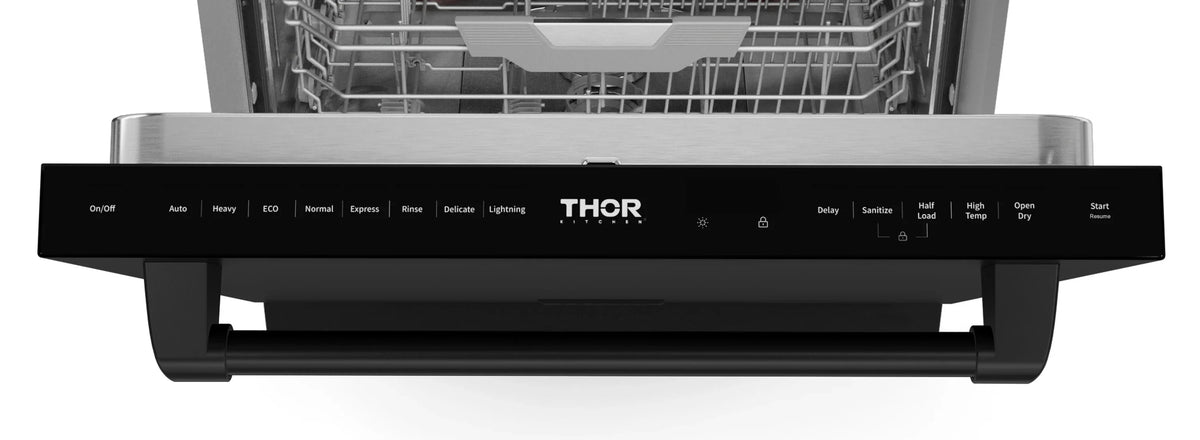

- Control Type
- Touch Screen
TECHNICAL DETAILS
- Watts
- 1200W
- Amperage
- 15A (Dedicated)
- Volts
- 120V
- Frequency
- 60Hz
- Total Annual Energy Consumption
- 240 kWh/per year
- Water Consumption
- 3.2 gal
- Noise Level
- 47 dBA
- Water Feed Pressure
- 20-120 psi
- Inlet Water Temperature
- Recommended 120°F (49°C)
- Outlet Hose Length (in.)
- 59"
- Drain Hose
- Yes
- Water Supply Hose
- Required
- Power Cord
- Required
FEATURES
- Load Capacity (Place Settings)
- 15
- Number of Wash Cycles
- 7
- Number of Racks
- 3
- Adjustable Rack
- Yes
- Water Softener
- No
- Child Lock
- Yes
- Status Indicator
- Yes (Red)
- Tub Light
- No
- Wine Glass Bracket
- Yes
- Third Layer Cutlery Rack
- Yes
- Moisture Barrier
- Yes
- Mounting Hole Cover
- 4 (2 Already Installed)
WARRANTY & CERTIFICATIONS
- Warranty
- 2 Years Parts and Labor
Authorized Thor Kitchen Dealer
Full manufacturer warranty on every Thor Kitchen product we sell.
