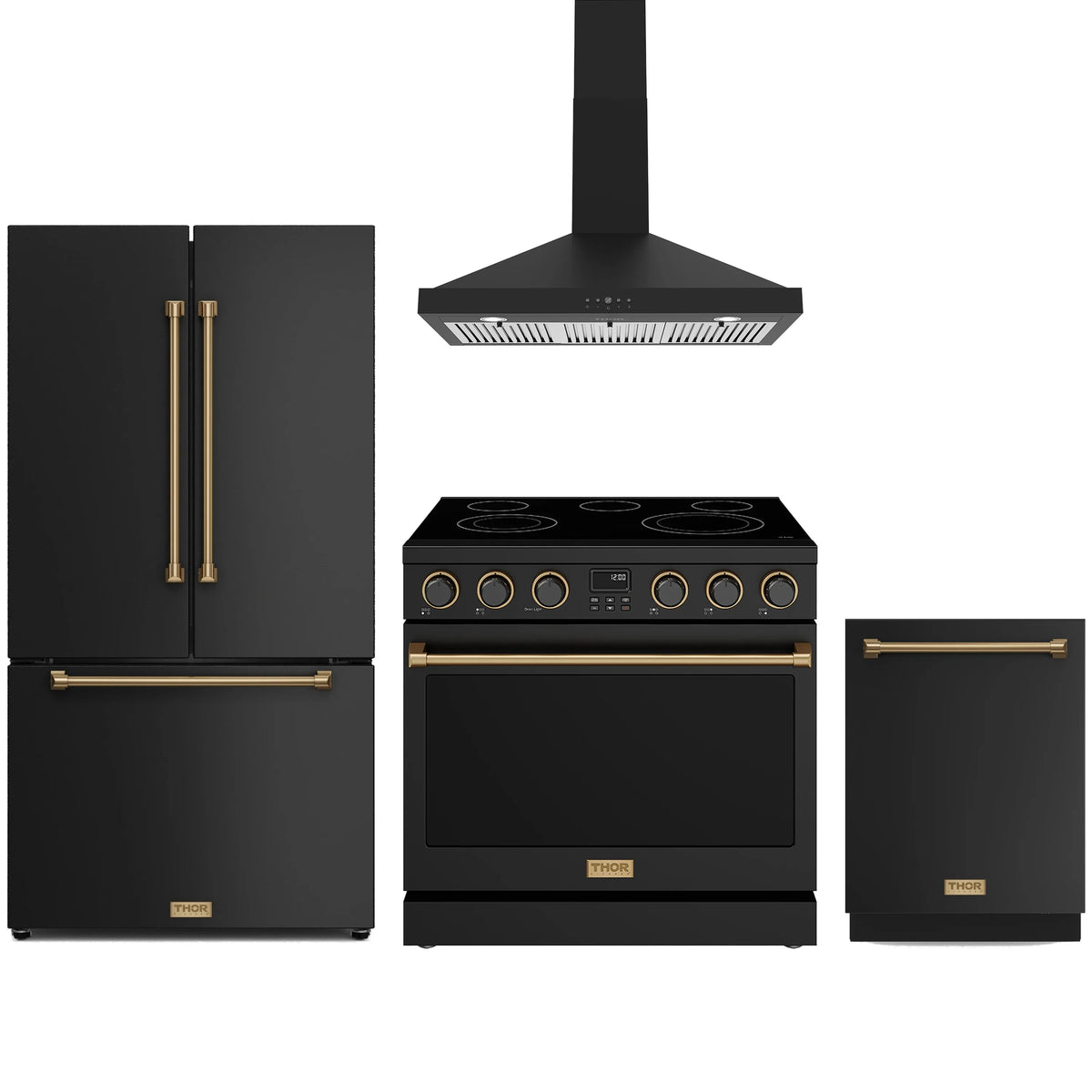

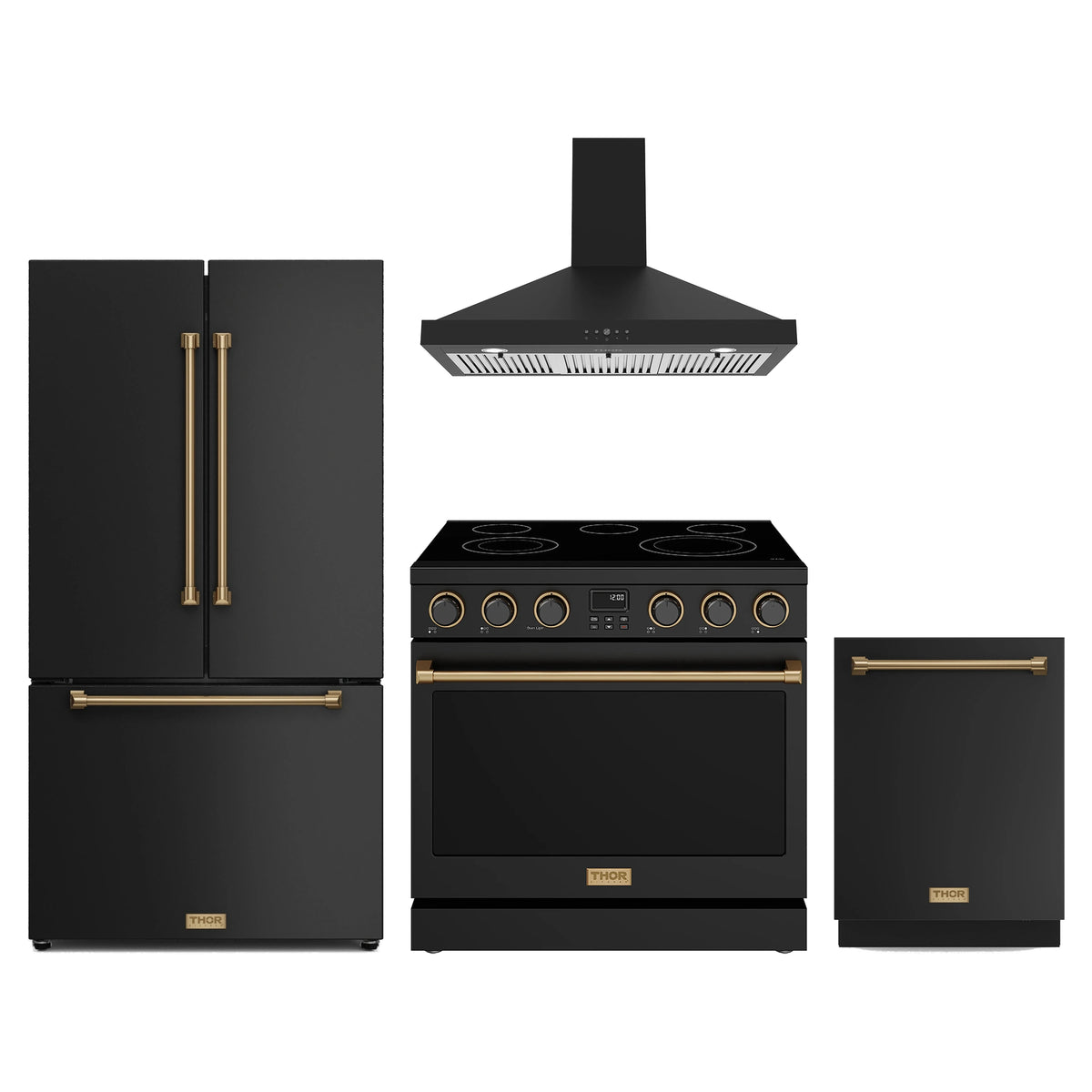

What's in this package
$750 less than buying separatelyEvery piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

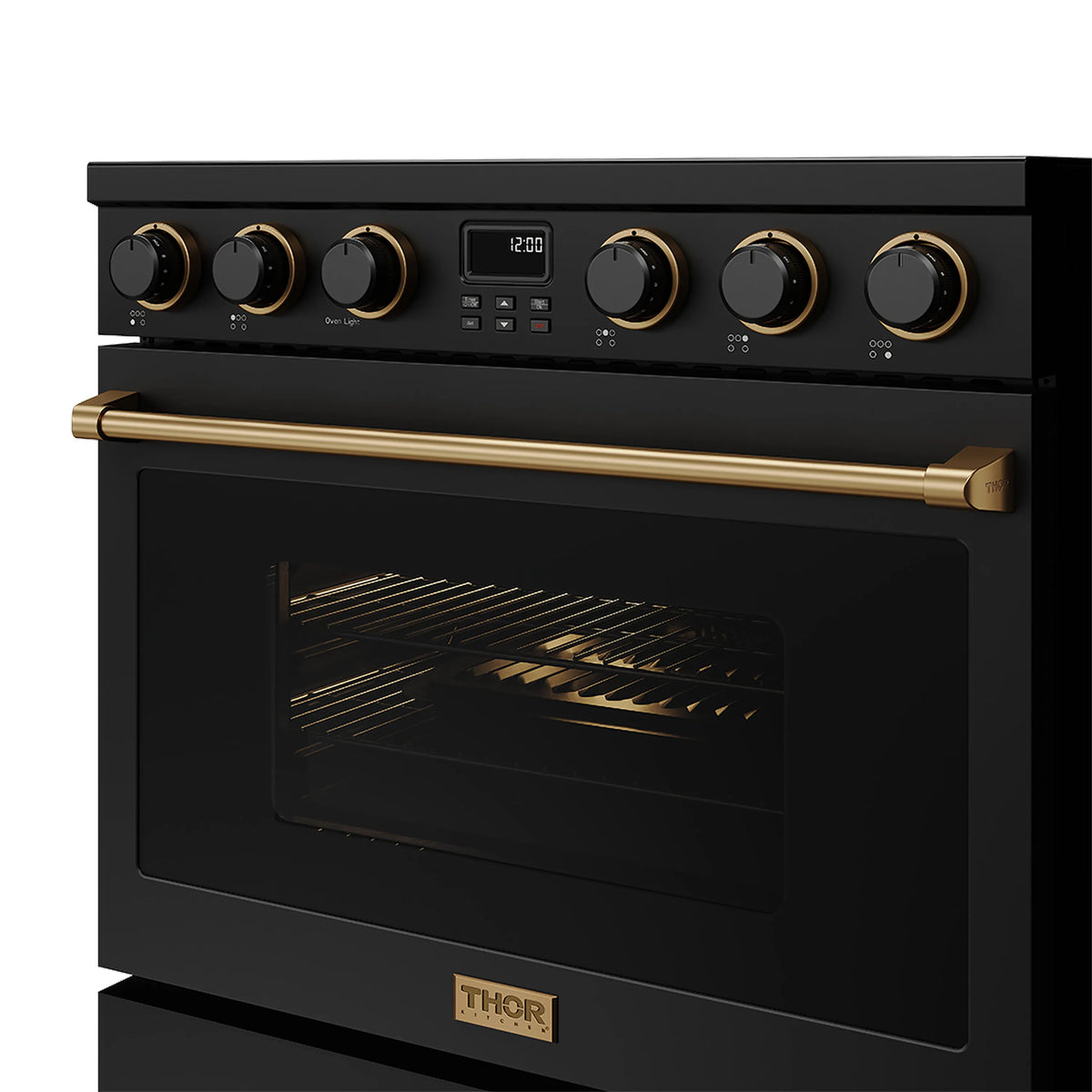

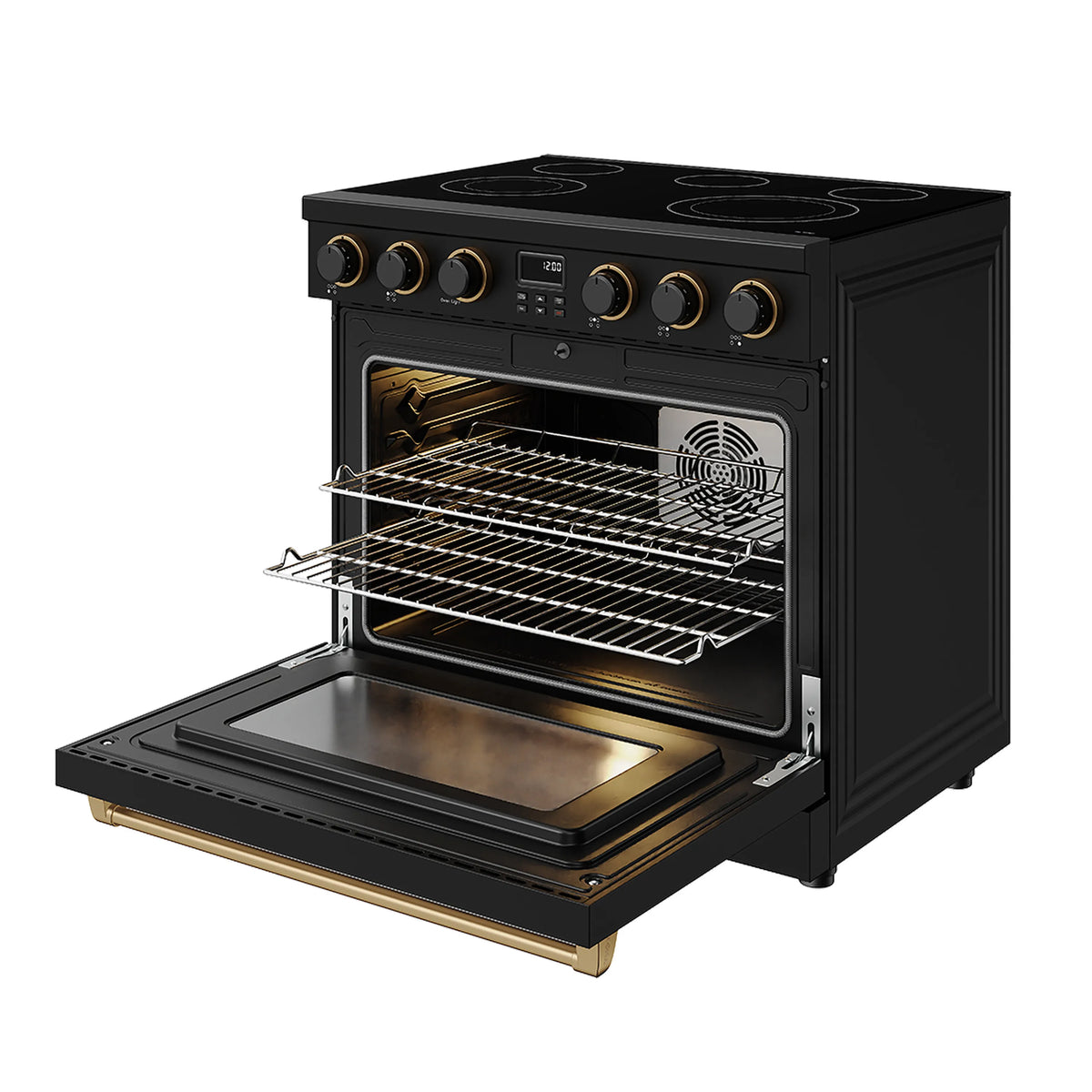

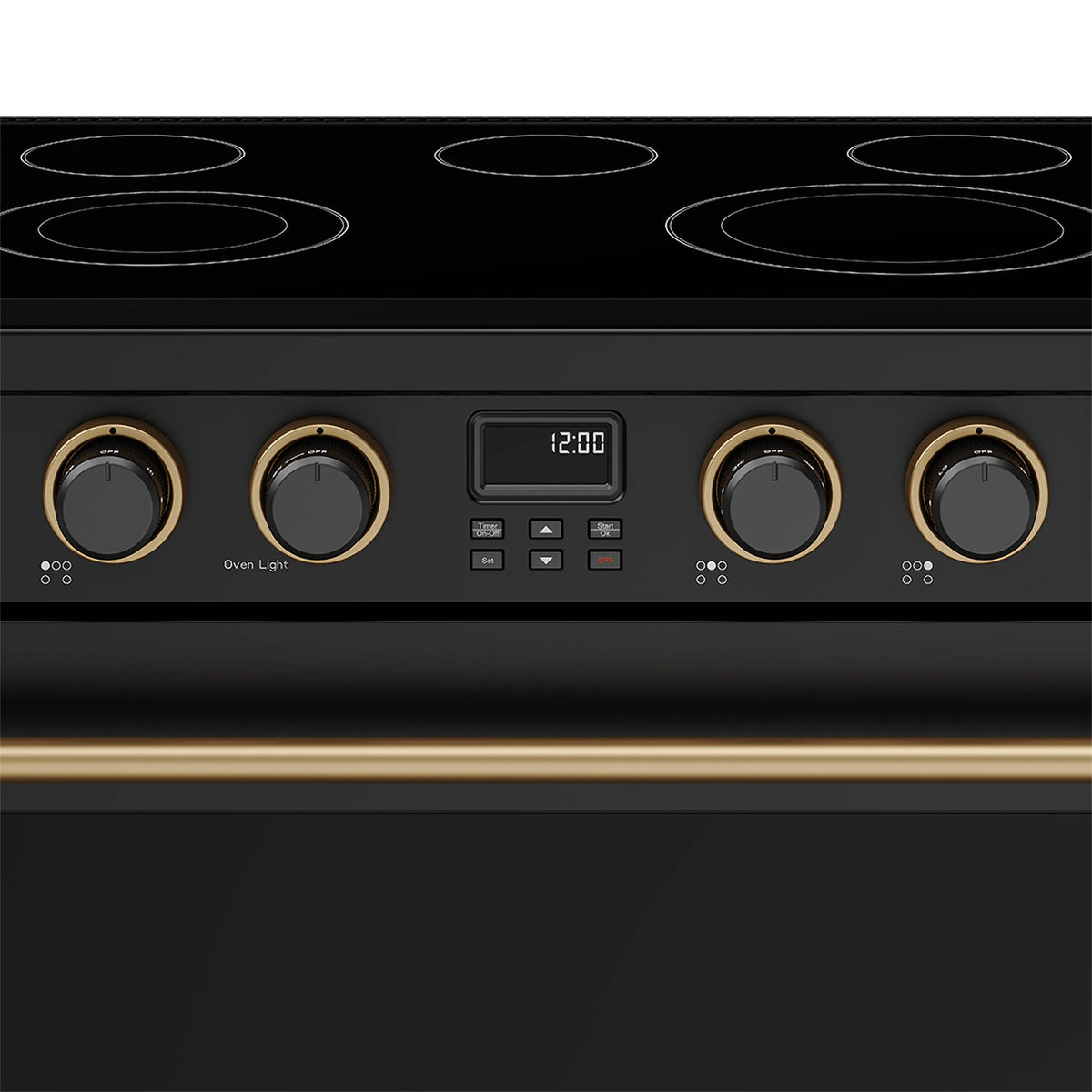

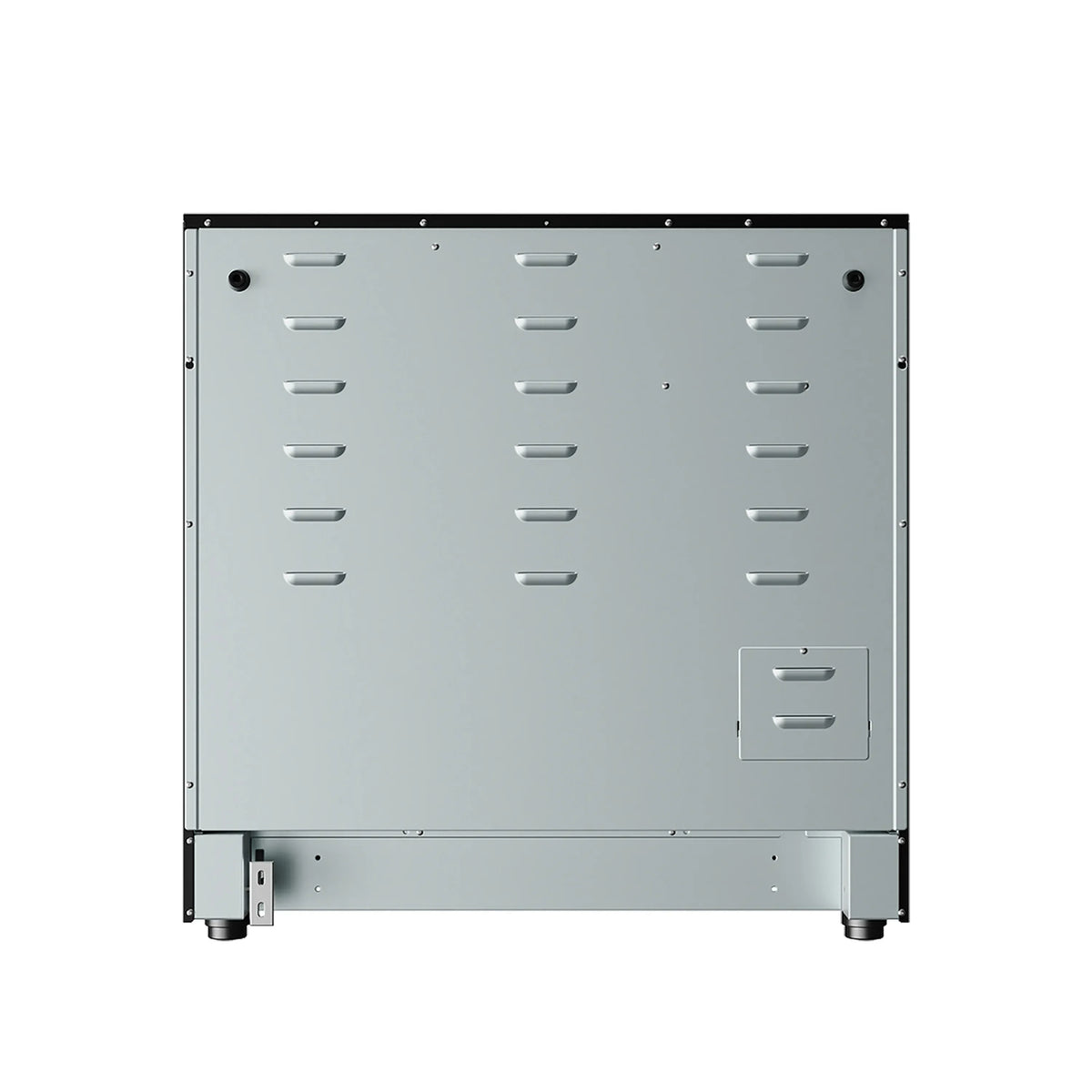

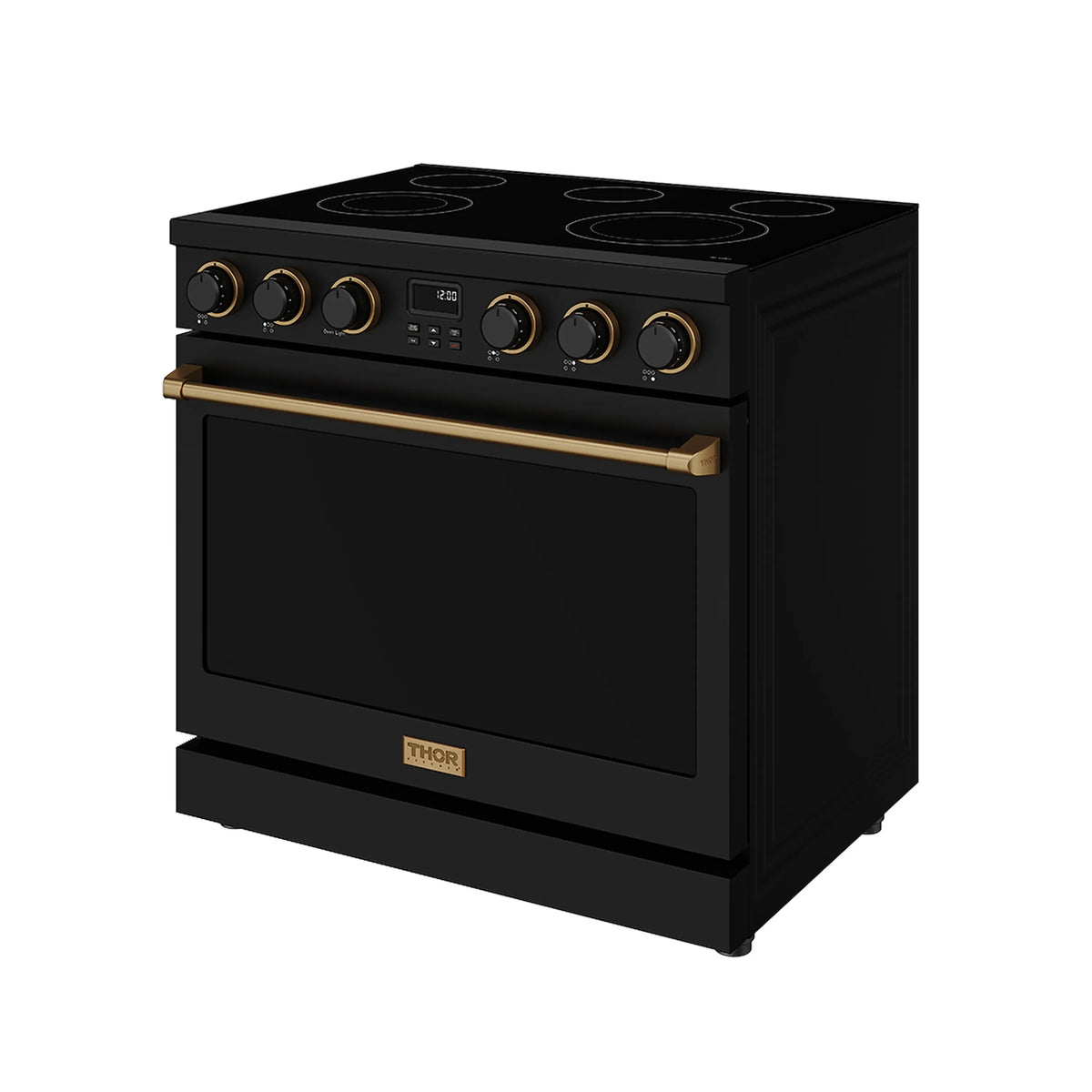

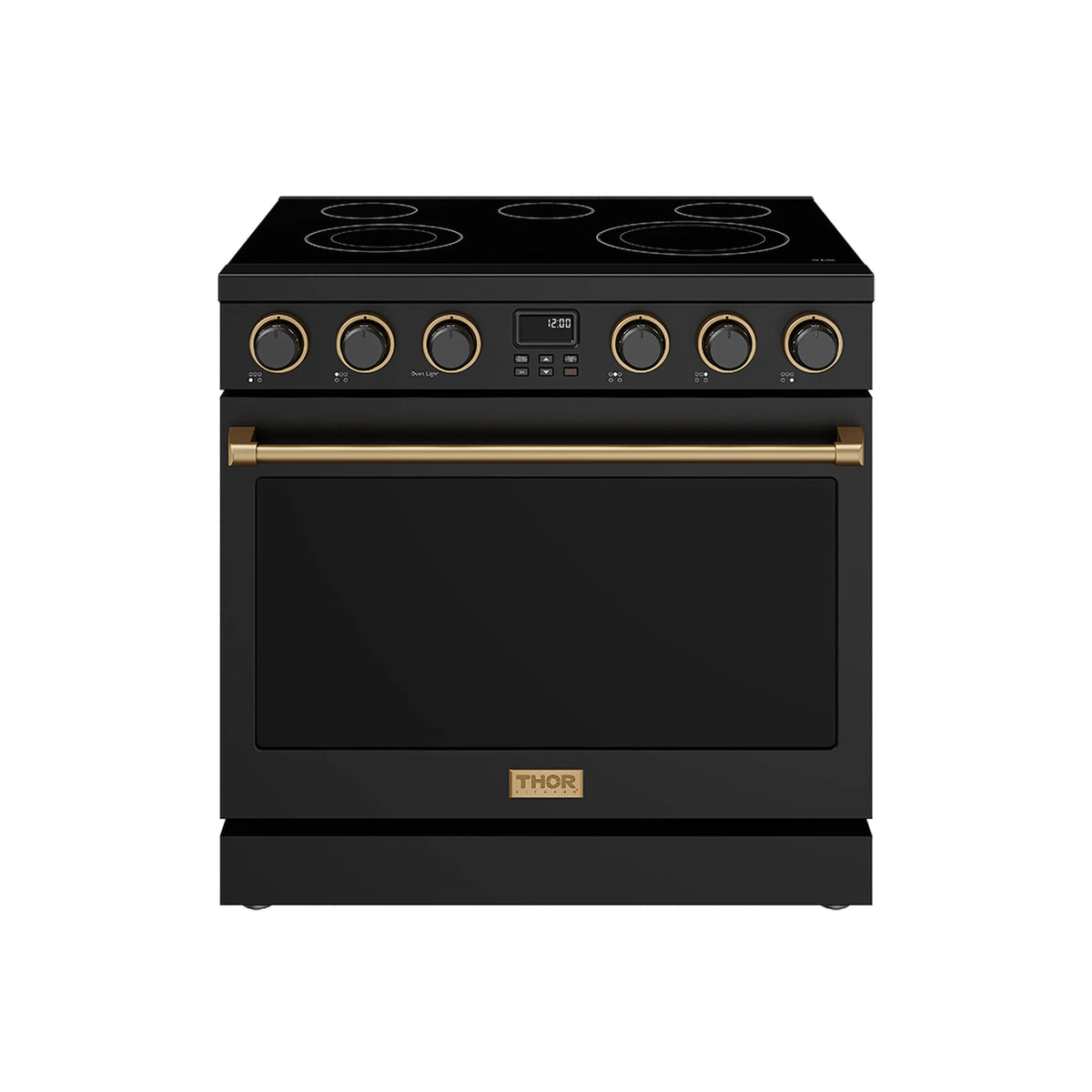

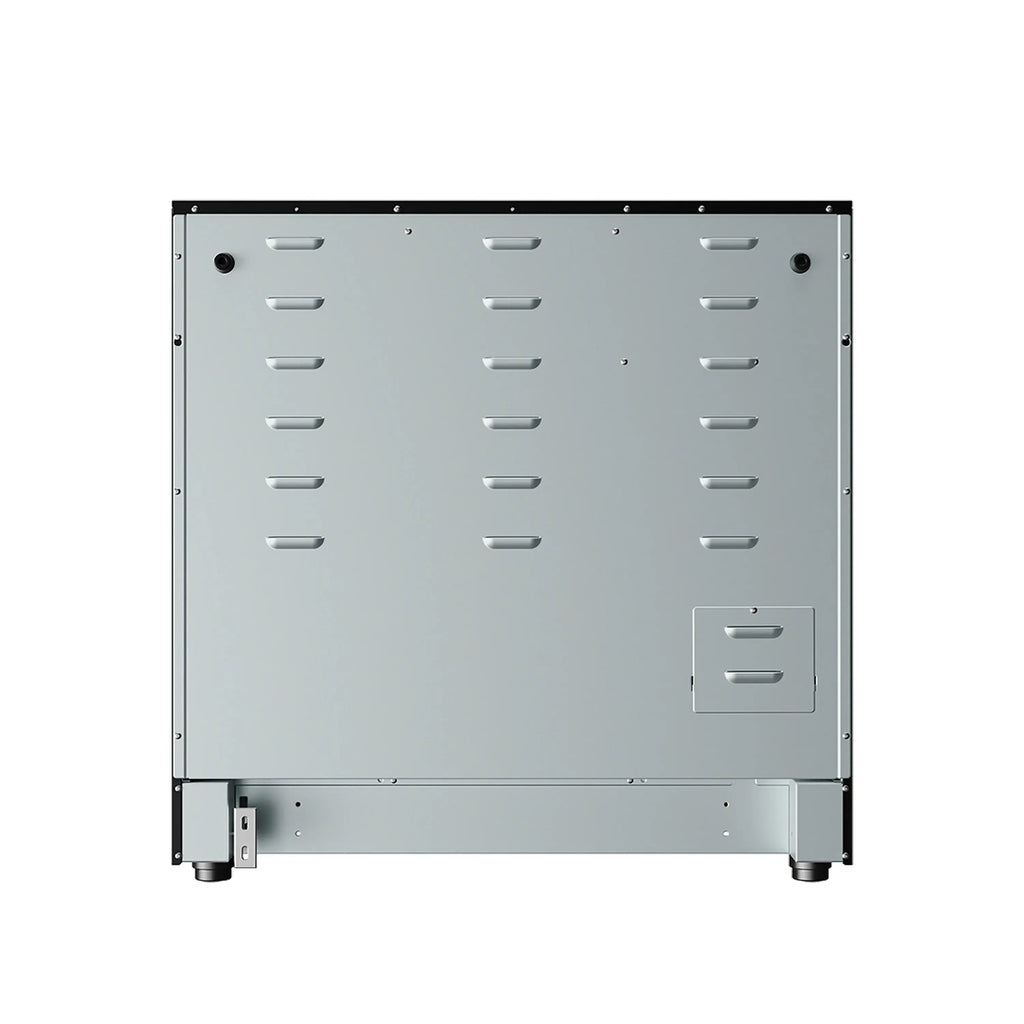

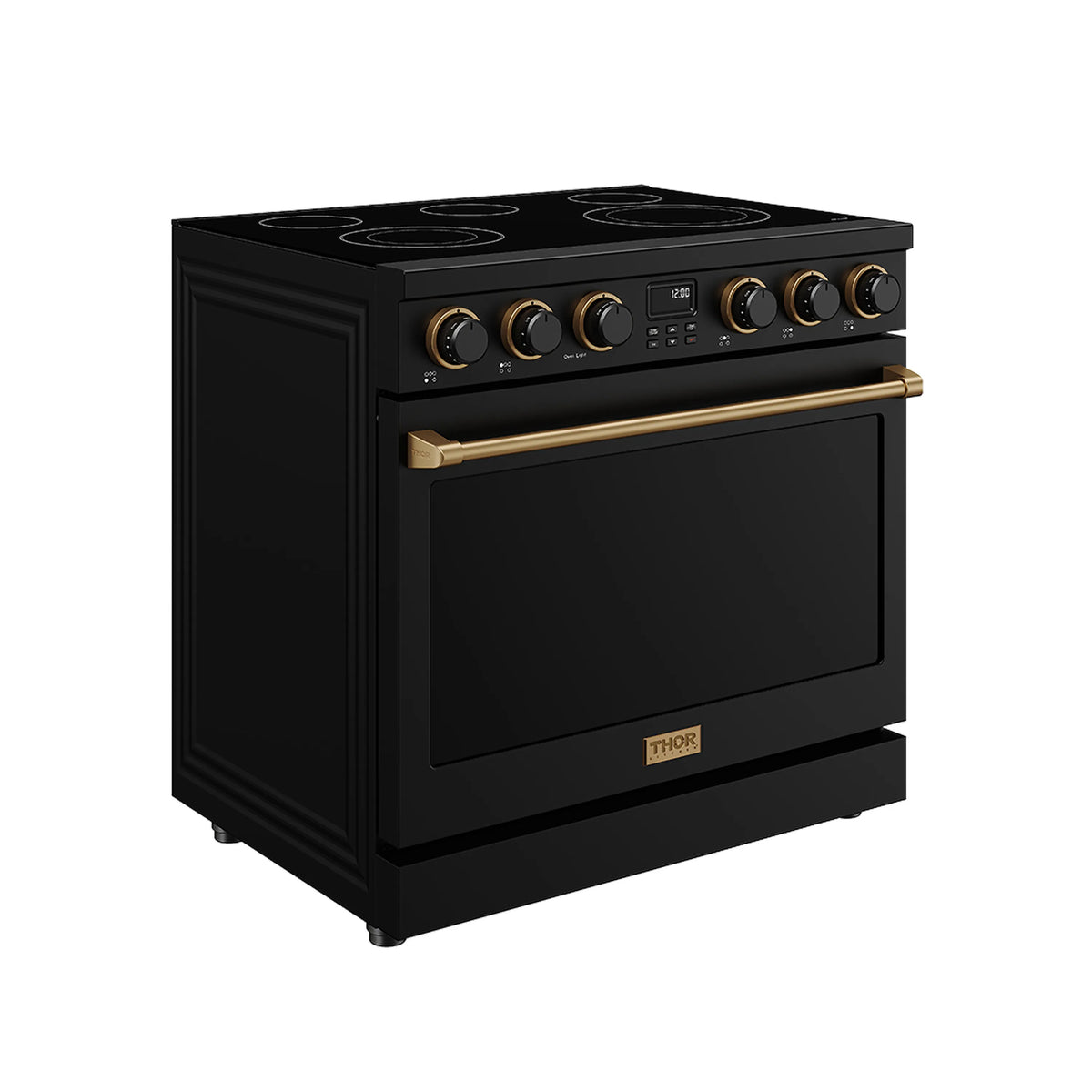

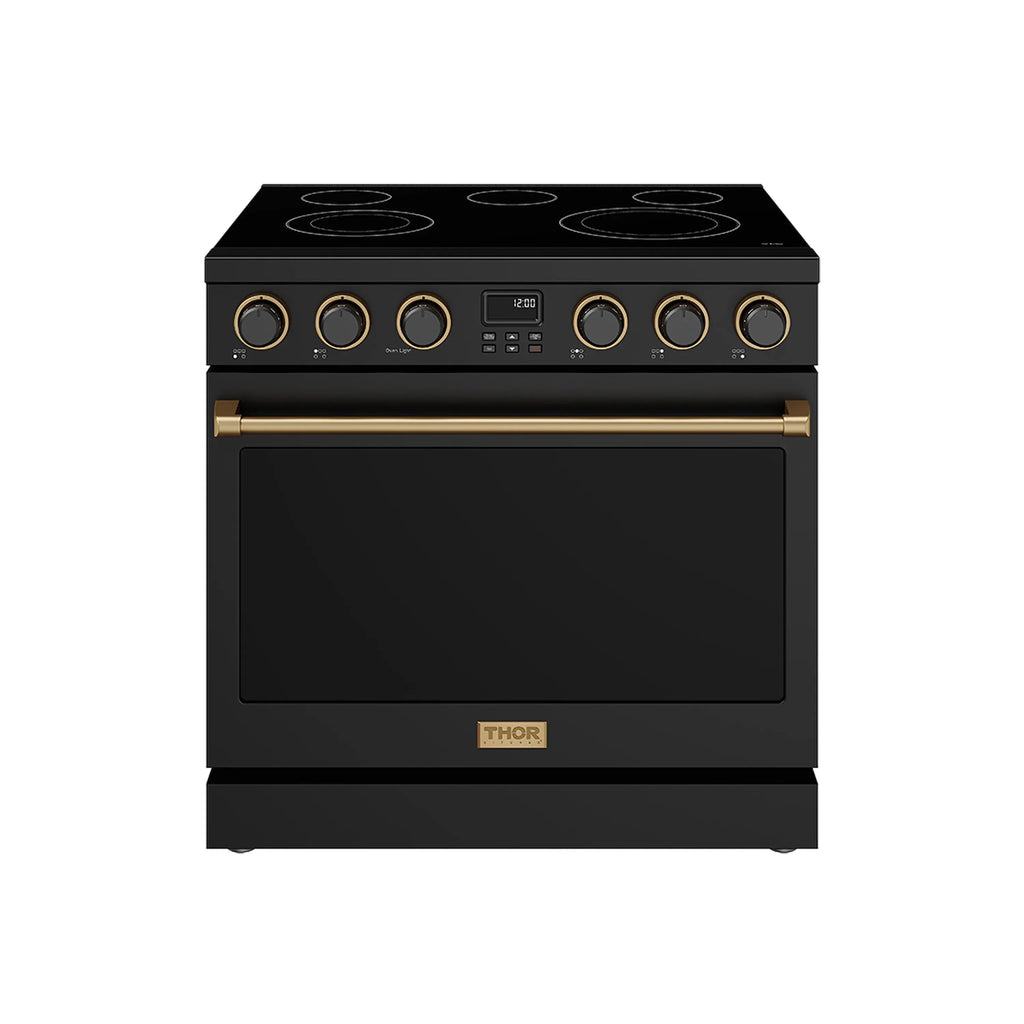

The THOR Kitchen 36 Inch A-Series Electric Range is a stainless-steel machine that is designed with powerful features and functionality. This range features a smooth glass top that is easy to clean and five heating element zones that give you the ultimate cooking flexibility with a power radiant cooktop. From a 1,200W single burner to a high-powered 3,000W dual heating element, this range gives you the power to master any meal.
Features
- Five Heating Elements — Five element cooktop gives you the ultimate cooking flexibility with a powerful radiant cooktop. From a 1,200W single burner to a high-powered 3,000W dual heating element, this range gives you the power to master any meals.
- Large Oven Capacity — 6.0 cu. ft. oven capacity can accommodate multiple dishes for enhanced cooking.
- Black Glass Top — Black glass top catches the mess and makes cleanup easy.

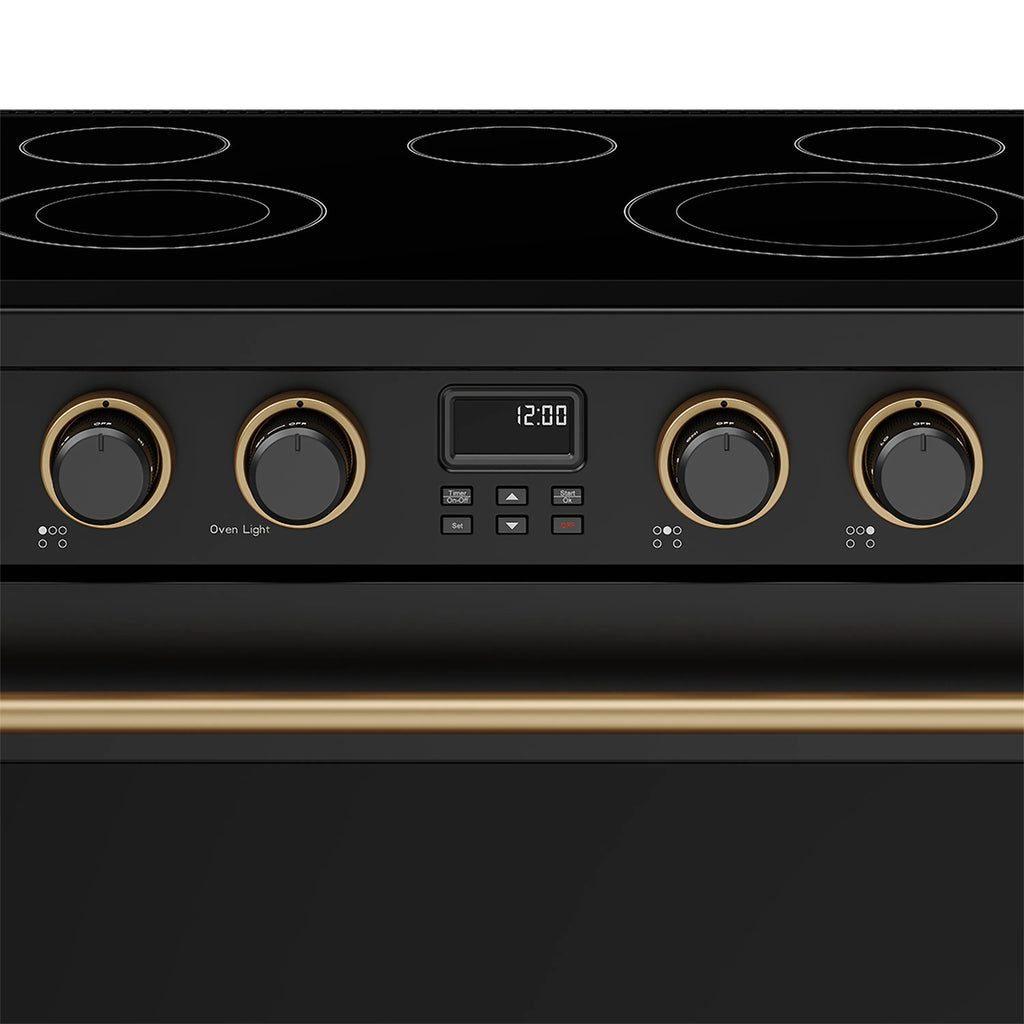

- LED Display Screen — LED display screen, oven function button operation.
- Convection Fan — Convection Fan provides controlled heat distribution for fast efficient cooking.
- Heavy Duty Control Knobs — Offer robust, reliable performance and easy handling, designed to withstand the demands of professional and high-usage kitchens.
- Large Oven Windows — Large oven windows makes it easy to check on cooking food without opening the oven door.
- Chrome Plated Oven Rack — Provides a protective layer that resists rust and corrosion, even with frequent exposure to high temperatures and moisture.
DIMENSIONS
- Product Width
- 35 7/8"
- Product Height (from bottom to top of back splash)
- 36 1/12" – 40 1/12"
- Product Height (from bottom to top of side panel)
- 36" – 39"
- Product Depth (from back panel to bullnose)
- 26 7/8"
- Product Depth (from back panel to control board)
- 26 1/4"
- Product Depth (from back panel to side panel front)
- 24"
- Adjustable Leg Sizes
- 3" Max.
- Cutout Height
- 36 Inch
- Cutout Width
- 36 Inch
- Cutout Depth
- 24 Inch
- Net Weight
- 199 lbs.
- Gross Weight
- 254 lbs.
GENERAL INFORMATION
- Fuel Type
- Electric
- Installation Type
- Freestanding
- Total Elements
- 5
DESIGN & FINISH
- Color
- Black
- Accent/Trim Color
- Bronze
TECHNICAL DETAILS
- Voltage
- 240 V
- Circuit Breaker
- 50 A
- Frequency (Hz)
- 60 Hz
- Control Type
- Oven Function Button + LED Panel Display
- Hot Surface Indicator Light
- Front Right Corner of Cooktop w/ Temp at 150 °F
- Plug Type
- 4-Prong 14-50R (Not Included)

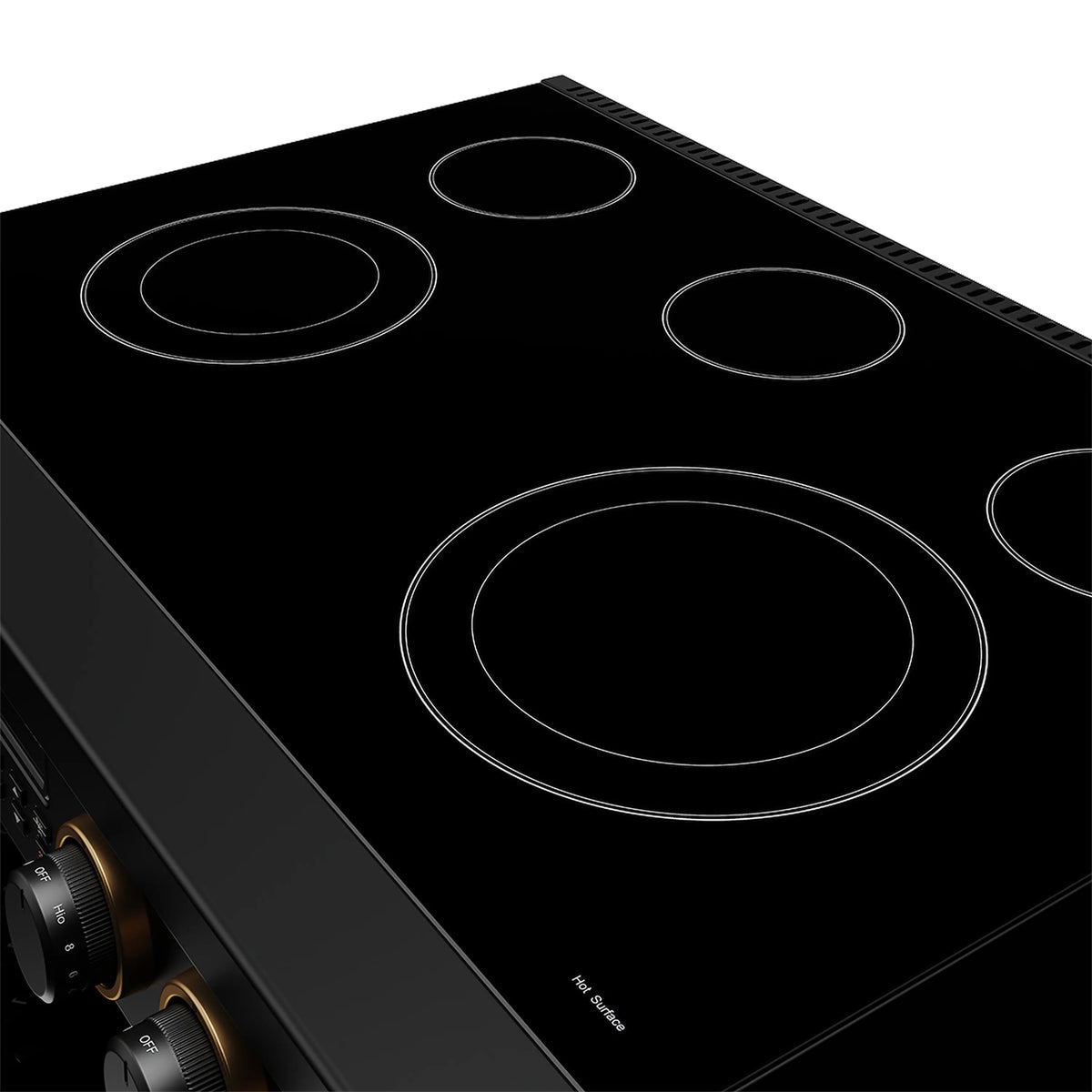

COOKTOP FEATURES
- Cooktop
- Black Polished Plate Ceramic
- Total Elements
- 5

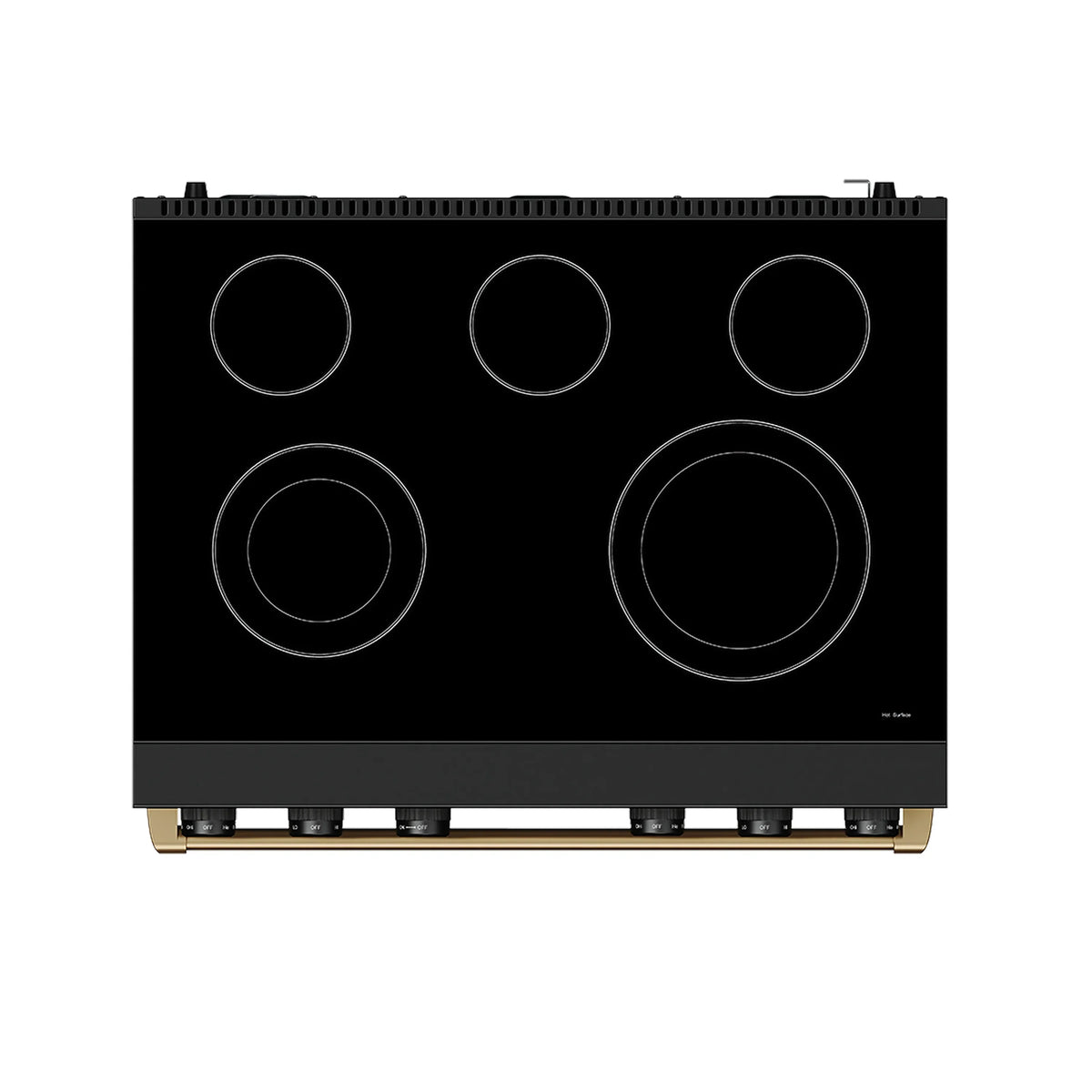

- Element Outputs
- [1] Front Left Element (Dual): Outer Ring 1,200W / Inner Ring 1,800W / Total 3,000W
- [2] Front Right Element (Dual): Outer Ring 1,500W / Inner Ring 1,500W / Total 3,000W
- [3] Rear Left Element (Single): 1,200W
- [4] Rear Middle Element (Single): 1,200W
- [5] Rear Right Element (Single): 1,200W

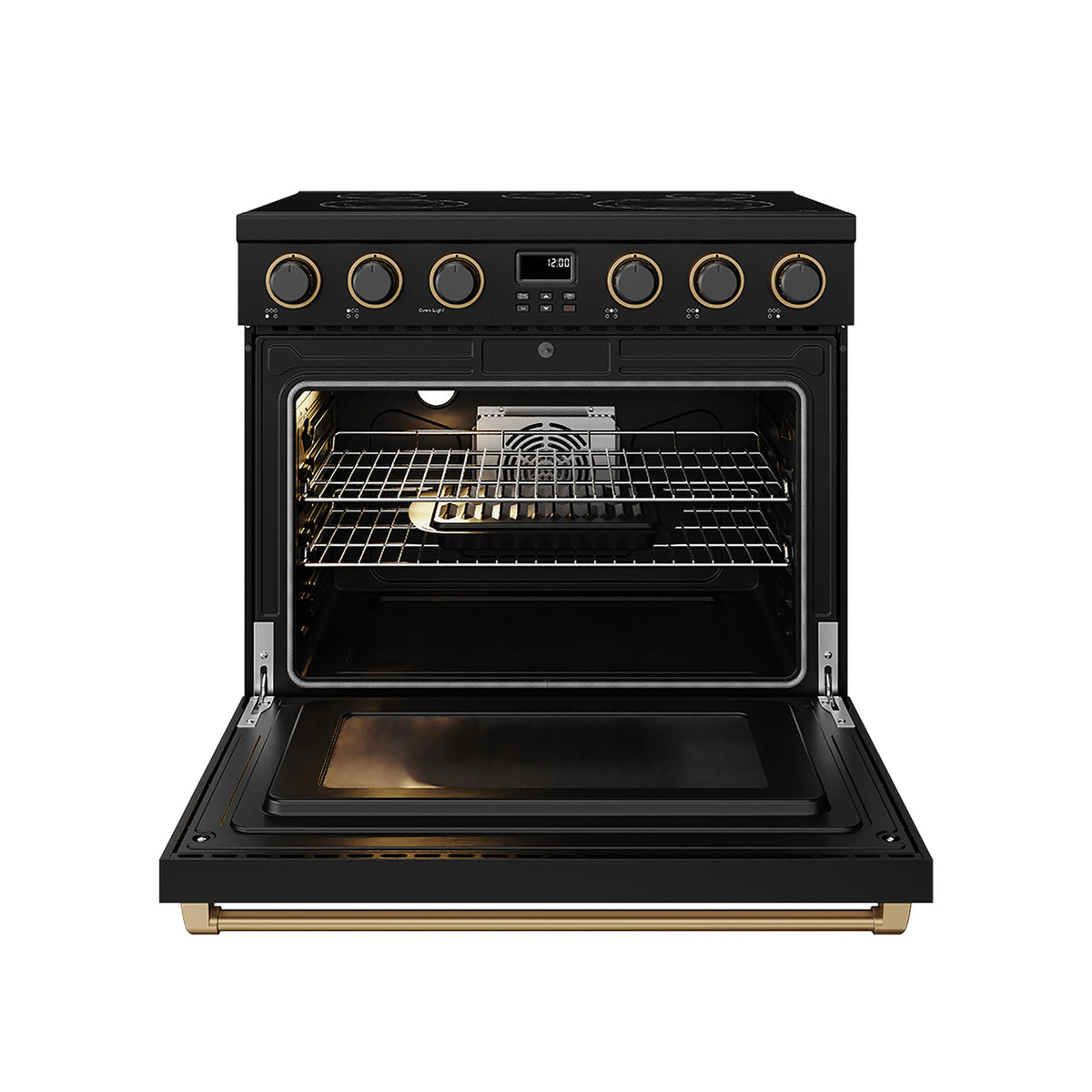

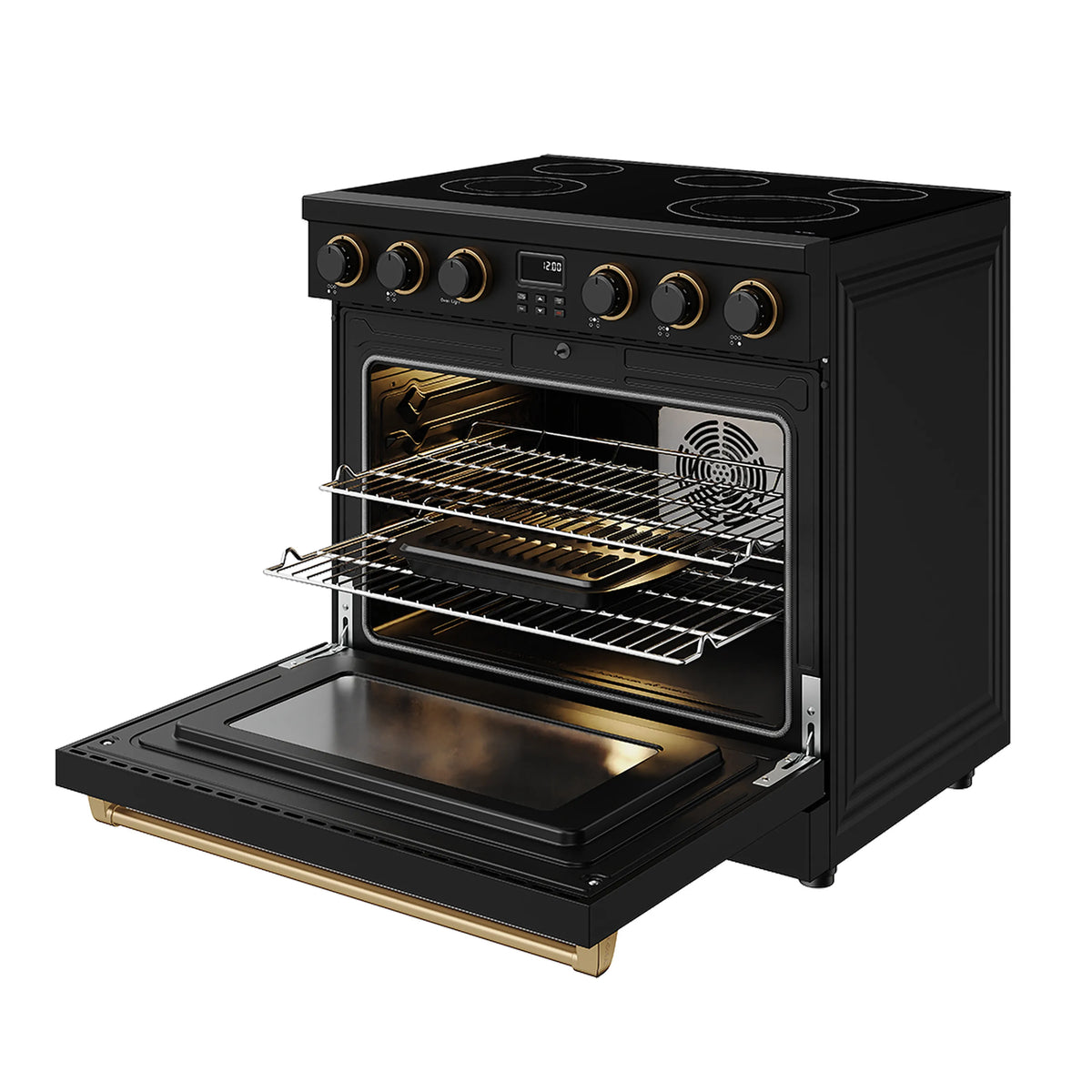

OVEN FEATURES
- Oven Capacity
- 6.0 cu.ft.
- Oven Color
- Black
- Oven Control Buttons
- Start/Ok, Timer On/Off
- Lower Heater Power
- 3,500W
- Top Heater Power
- 3,500W
- Convection
- Convection Fan
- Oven Light
- 1*40W, Rear
- Oven Racks
- 2
- Rack Positions
- 6
- Oven Rack Material
- Chrome Plated
- Baking Sheet Size
- Fits up to 28" x 14" Sheet
- Oven Height
- 18"
- Oven Width
- 29.7"
- Oven Depth
- 19.4"
- Accessories Included
- 2 Oven Racks
- 1 Broiler Pan
- 1 Bake Pan
WARRANTY & CERTIFICATIONS
- California Proposition 65
- WARNING: Cancer and Reproductive Harm

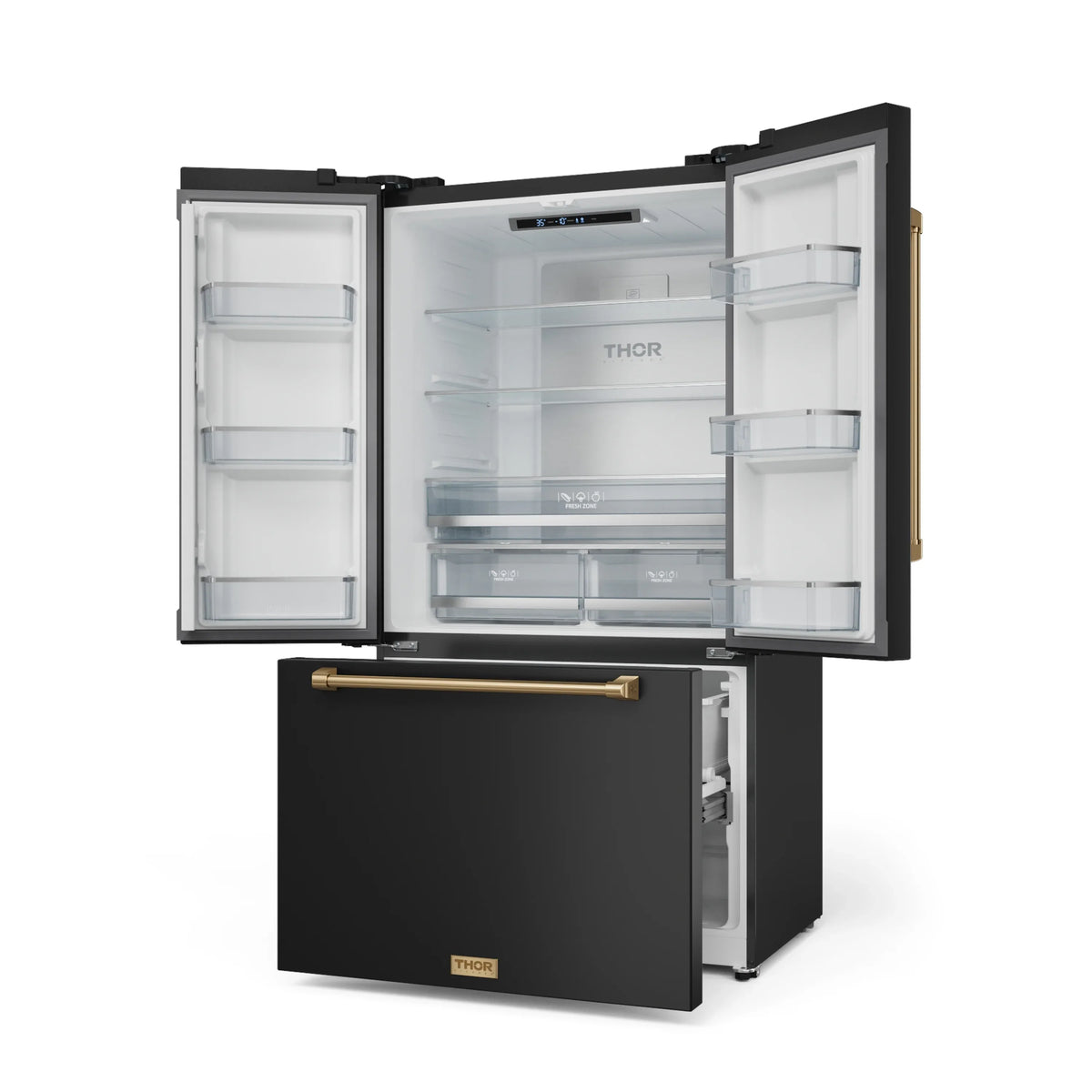

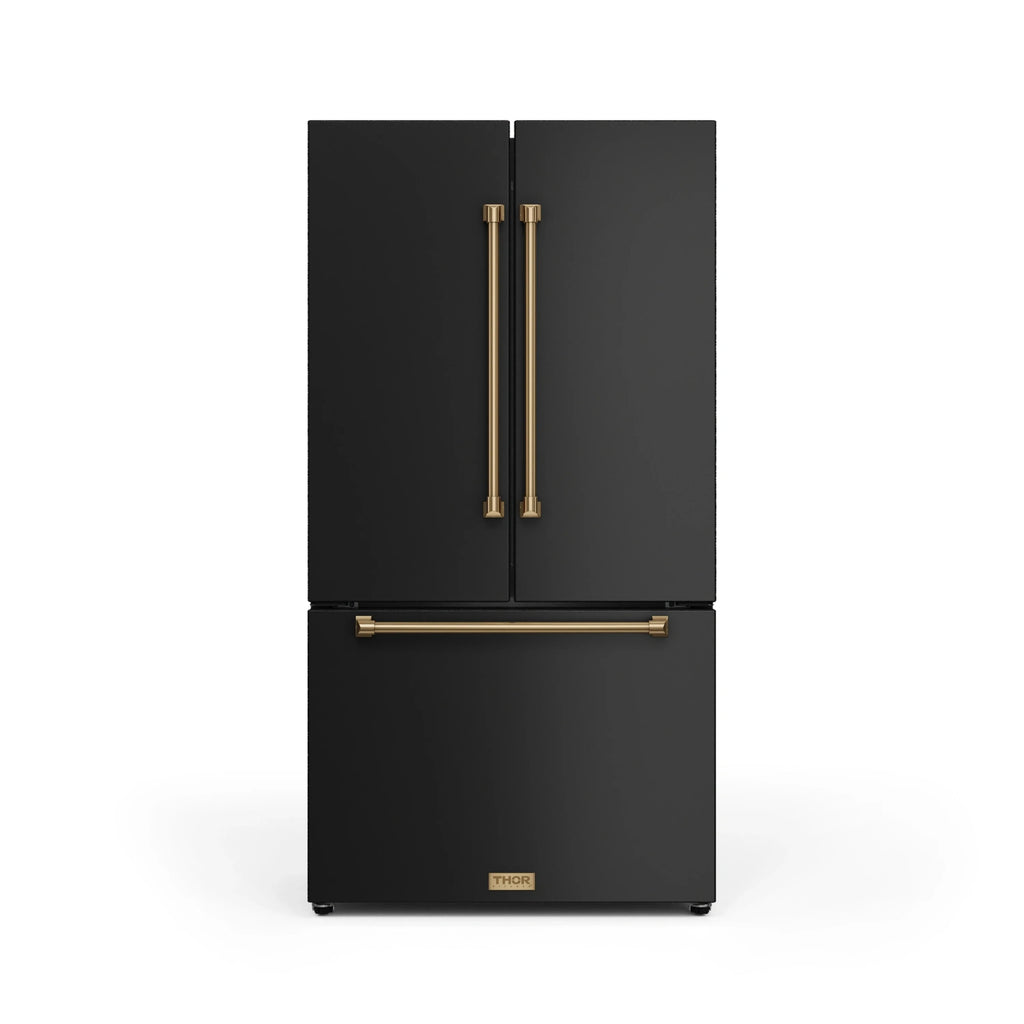

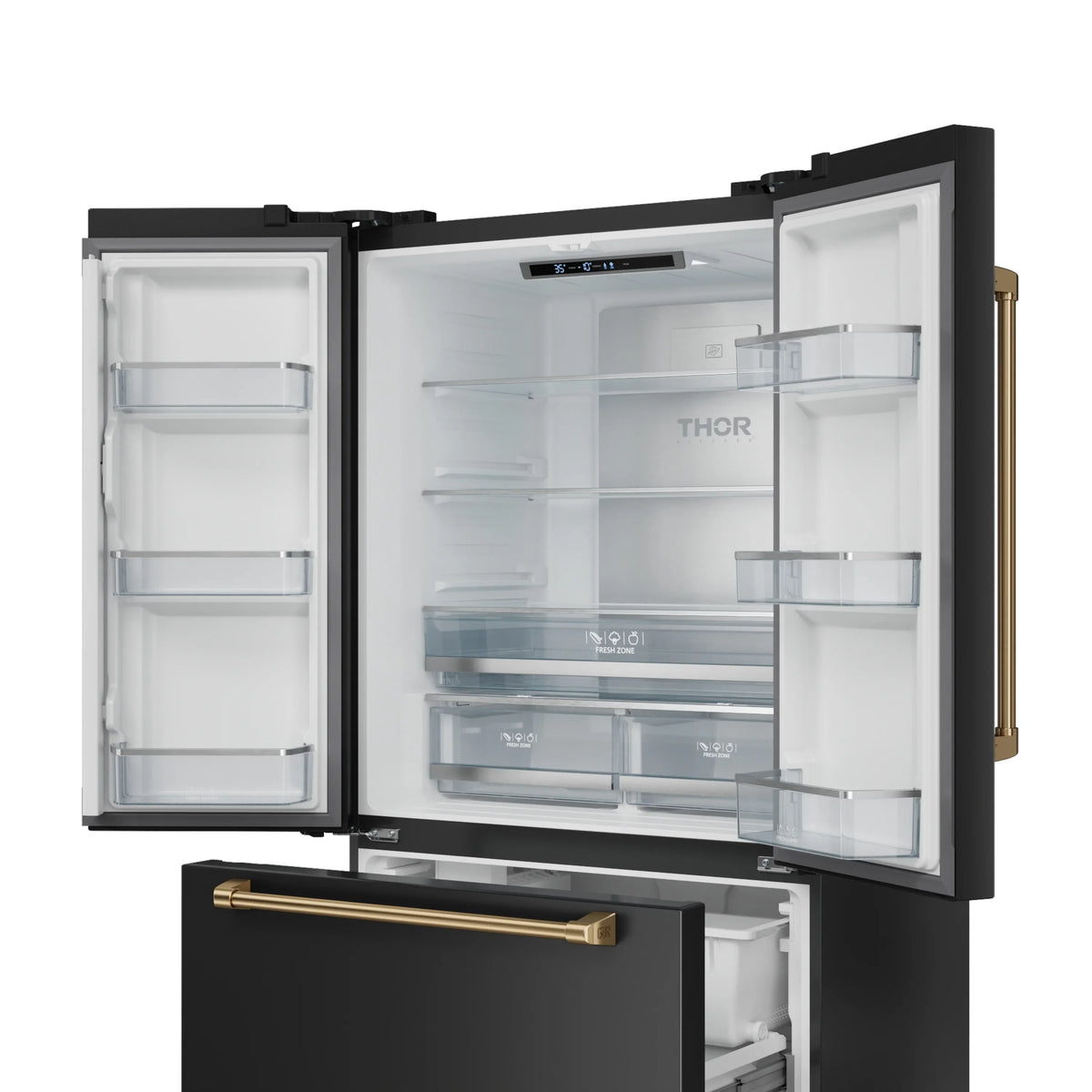

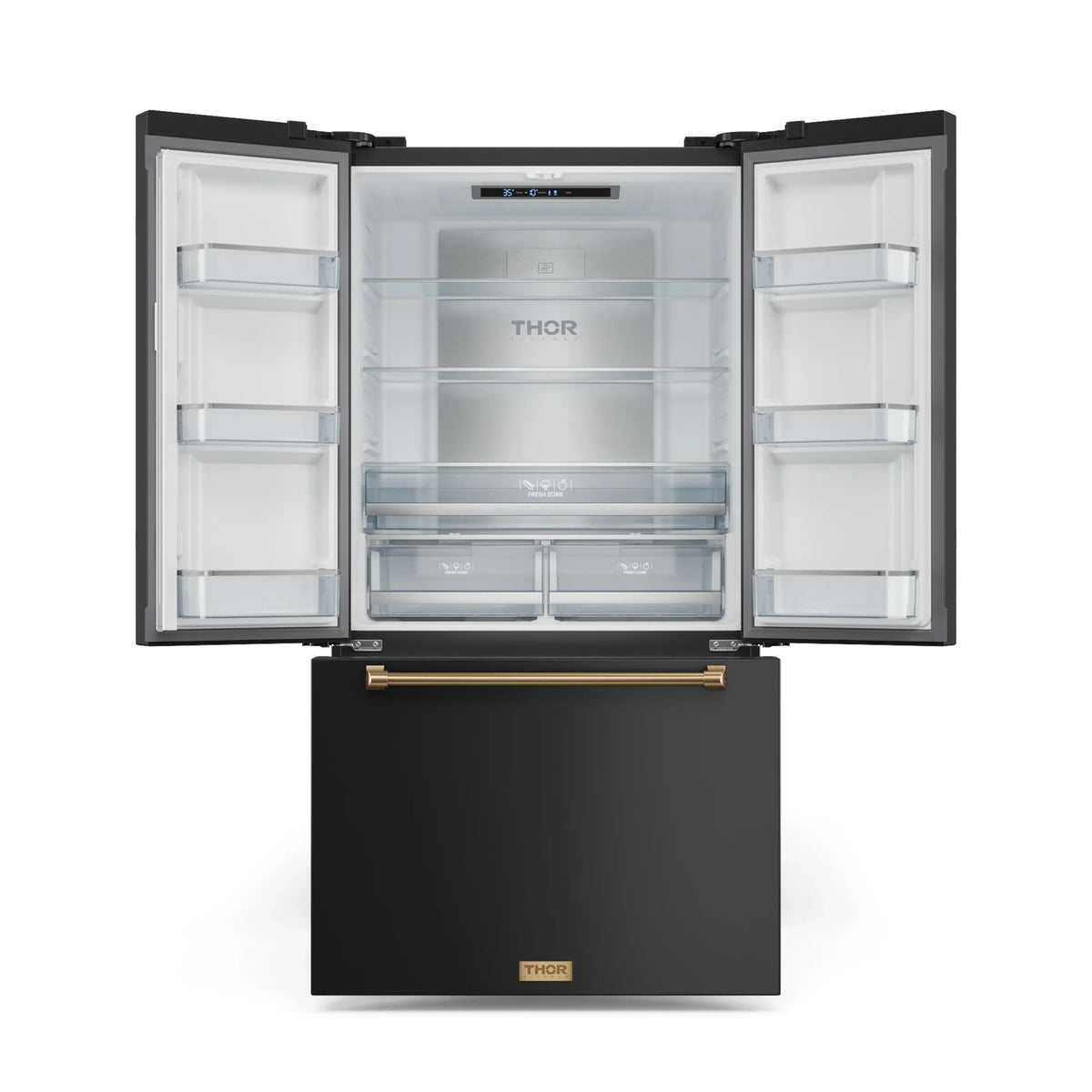

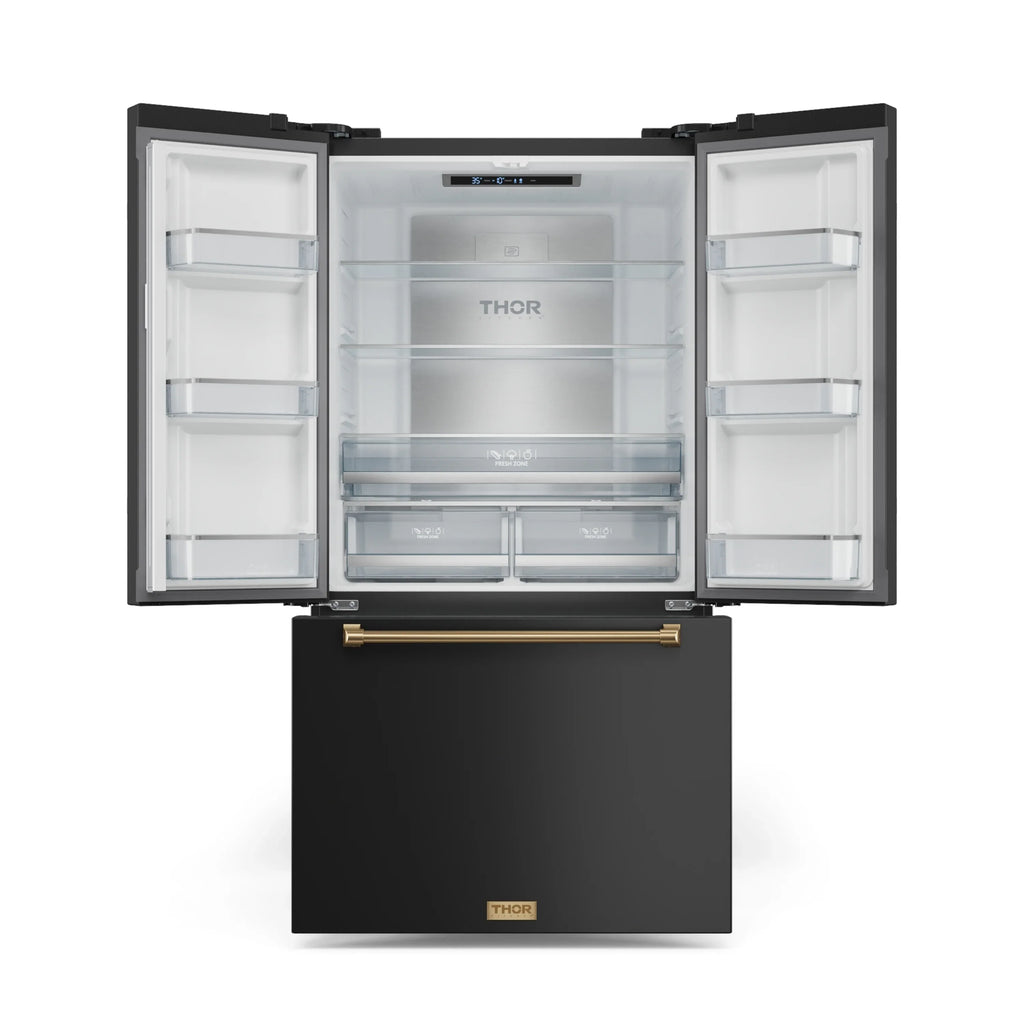

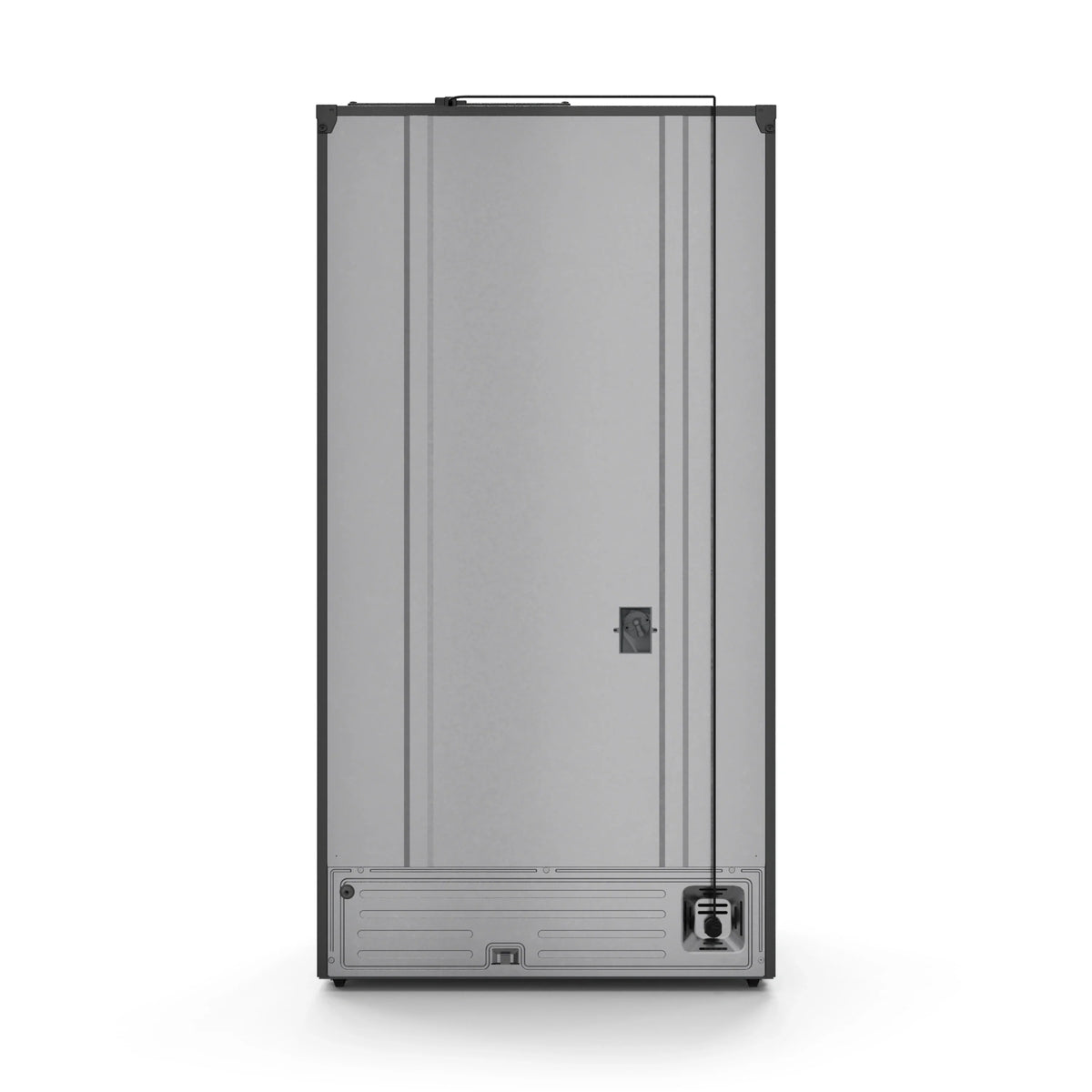

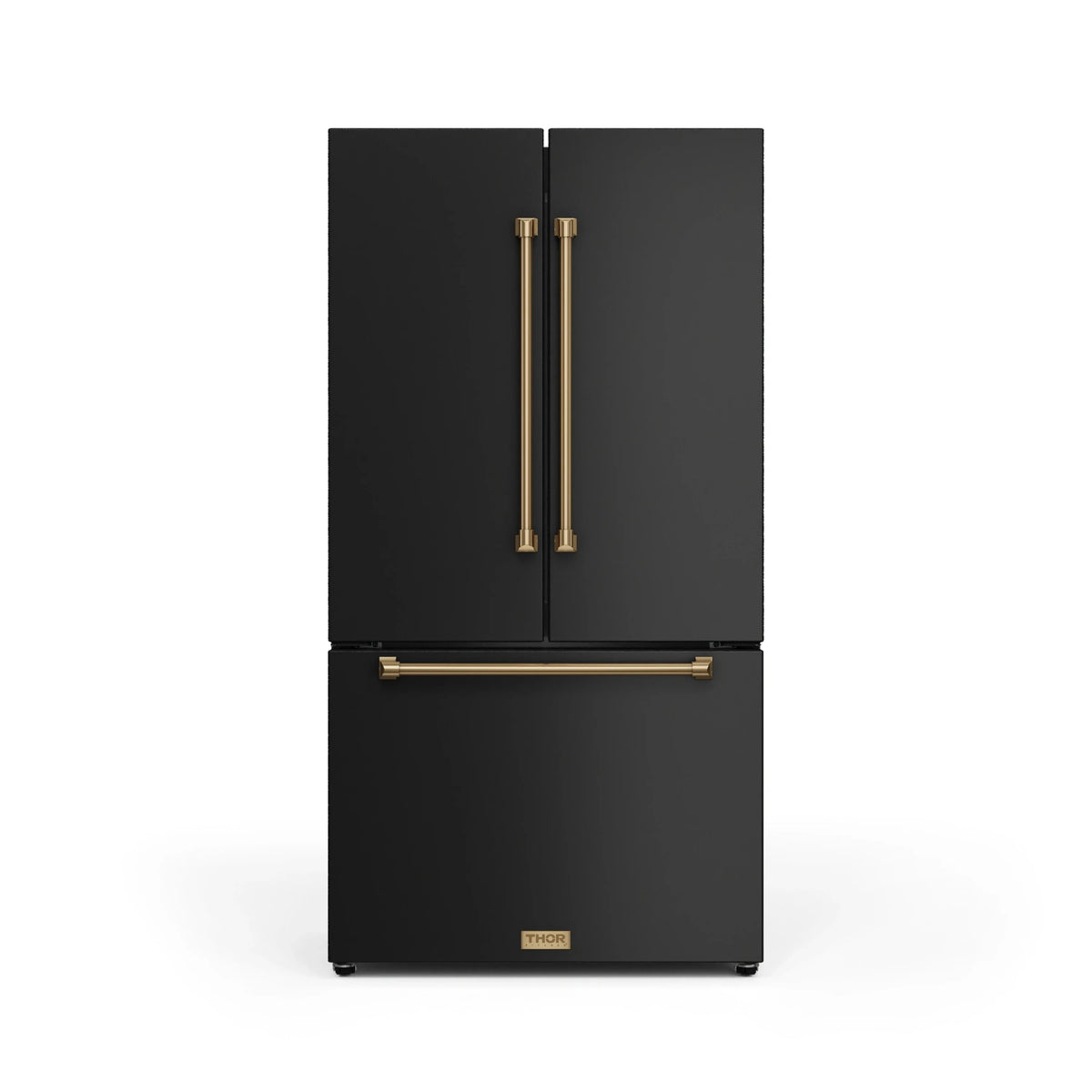

Experience superior freshness with the 36 Inch 20.3 cu ft French Door Counter Depth Refrigerator in Black/Bronze. With advanced cooling technology, spacious interiors, and customizable features, this refrigerator ensures your ingredients stay at peak freshness. Designed for durability and efficiency, it brings top-tier performance and style to your kitchen.
Features
-
Fast Freezing and Fast Cooling - Quickly freeze and cool your food to maintain optimal freshness and taste.
-
Multi-Flow Air System - Dual vents on every shelf for even air distribution, ensuring long-lasting food freshness throughout the refrigerator.
-
Inverter Compressor - Maintains consistent food freshness with quieter, more efficient operation and less wear than traditional compressors.
-
Electronic Touch Controls - Adjust settings directly on the door for convenience and ease of use
-
Control Panel Lock - Prevents unintended changes to settings, providing peace of mind and added safety.
-
Interior LED Lights - Illuminate your refrigerator interior with bright, energy-efficient lighting.
-
Full-Width Adjustable Shelves - Customize your storage space with
fully adjustable shelves to accommodate items of all sizes.
-
Vacation Mode - Automatically adjusts temperatures to 43ºF for the
refrigerator and 5ºF for the freezer to save energy while you’re away.
DIMENSIONS
- Product Dimensions (WxDxH)
- 36” x 30 1/8” x 70”
- Product Depth Excluding Handles
- 27 5/8”
- Product Depth Including Handles
- 30 1/8”
- Product Depth Excluding Door
- 24 5/8”
- Product Depth With Door Open 90 Degrees
- 43 1/4”
- Product Height To Top Of Door Hinge
- 70”
- Product Height To Top Of Refrigerator
- 68”
- Cutout Dimensions (WxDxH)
- 39 7/8” x 26” x 72”
- Net Weight
- 231 lbs
- Package Dimensions (WxDxH)
- 38 1/8” x 29 1/2” x 73 7/8”
- Package Weight
- 255 lbs
- Total Capacity
- 20.3 cu. ft.
GENERAL INFORMATION
- Installation Type
- Freestanding
- Accessories Included
- Water Pipe Ice Scoop Ice Storage Box
DESIGN & FINISH
- Shelf Material
- Glass With Stainless Steel Trim
- Lighting
- LED
TECHNICAL DETAILS
- Watts
- 190W
- Circuit Breaker Amperage
- 15A
- Volts
- 115V
- Frequency
- 60Hz
- Plug Type
- 3-Prong Plug
- Power Cord Length
- 94”
REFRIGERATOR FEATURES
- Refrigerator Capacity
- 14.2 cu. ft.
- Number Of Door Bins
- 6
- Number Of Shelves
- 3
- Refrigerator Features
- 6 pcs Gallon Bottle Storage Child Lock / Energy Saving & Vacation Mode/ Fast Cooling Humidity Controlled Crispers Fridge Temperature Range: 35~46°F (2~8°C)

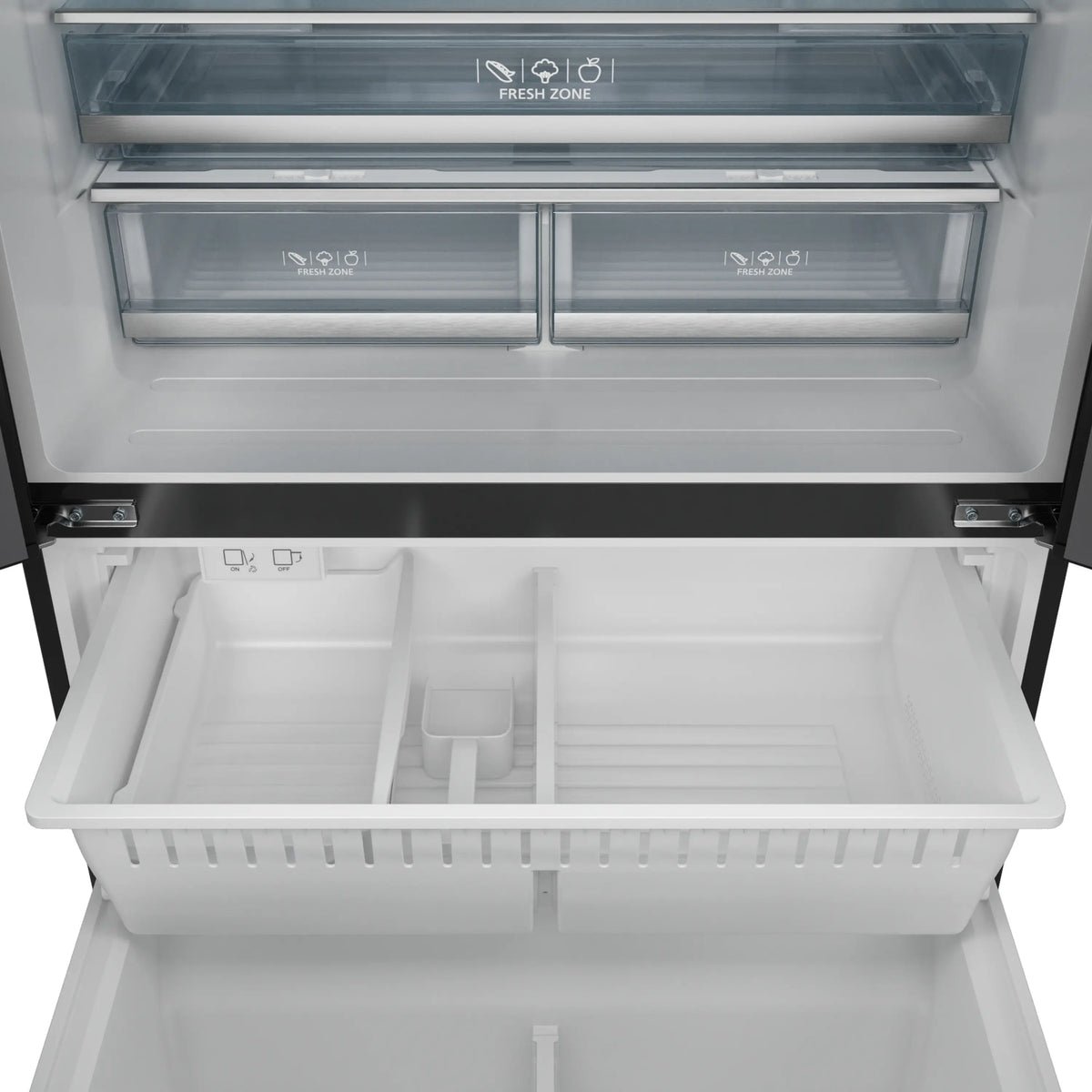

FREEZER FEATURES
- Freezer Capacity
- 6.1 cu. ft

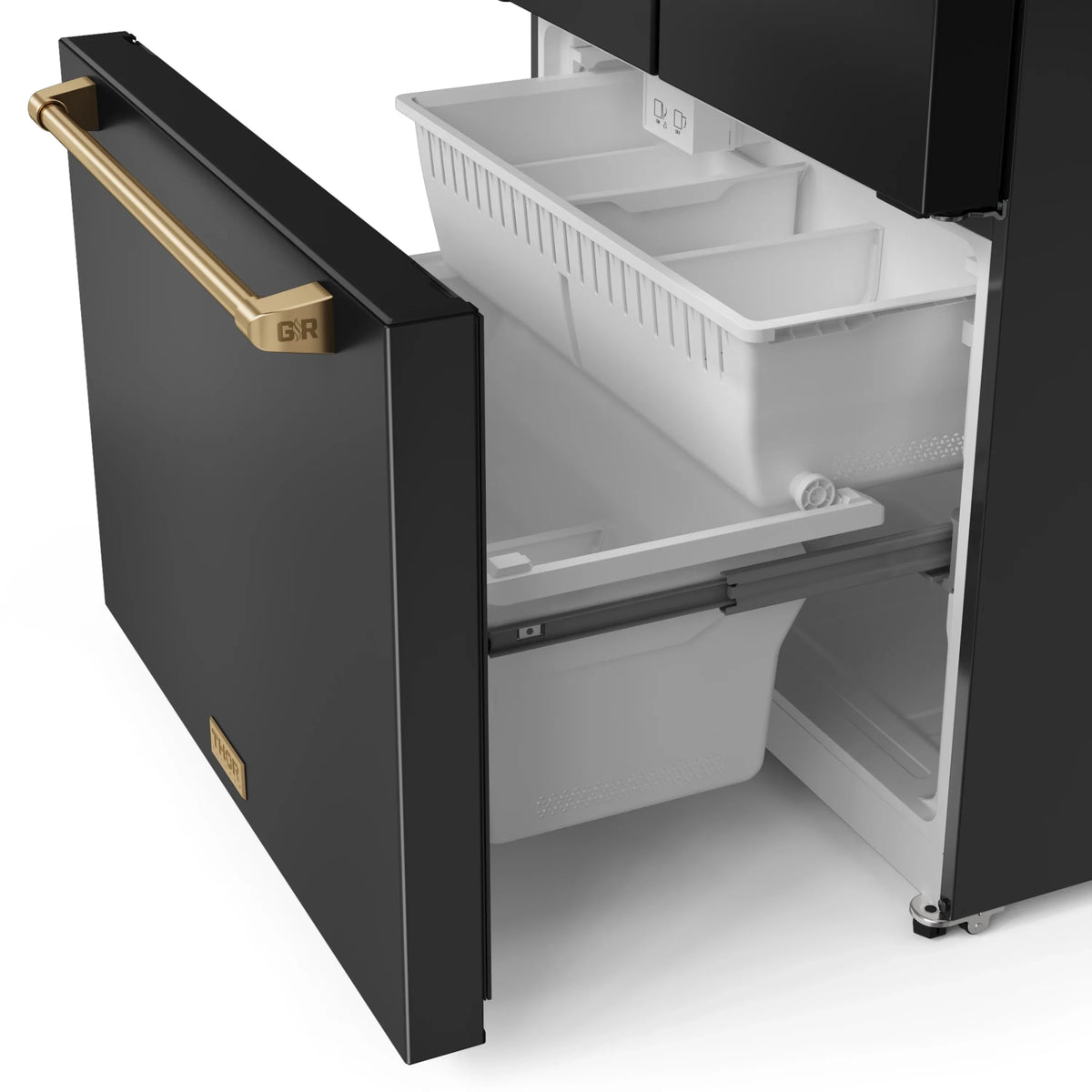

- Number Of Freezer Baskets
- 1
- Freezer Features
- LED Lightening Fast Freezing Freezer Temperature Range: -10~5°F ( -23~ -15°C) No Frost Design

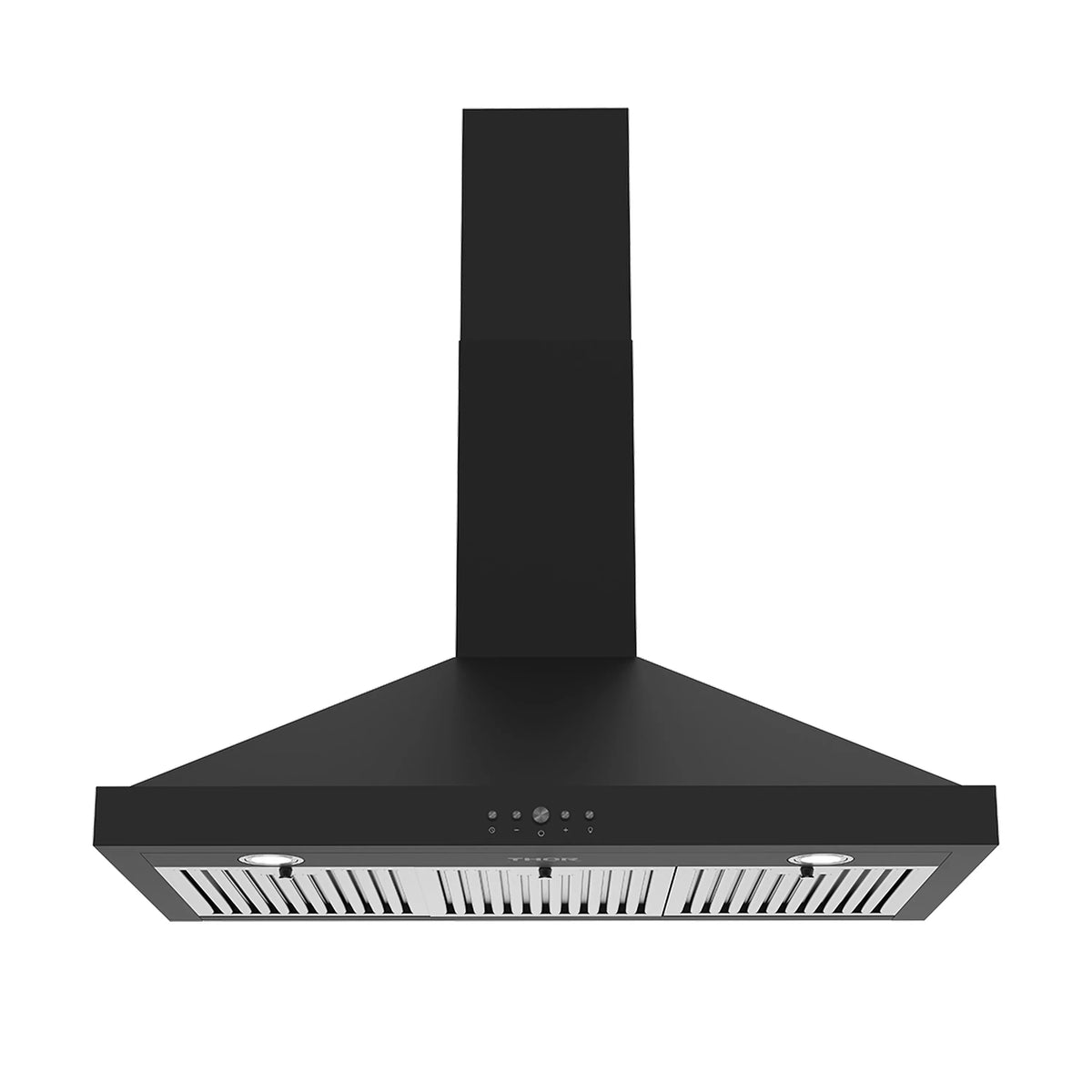

Piece 3 of 4 — RANGE HOOD

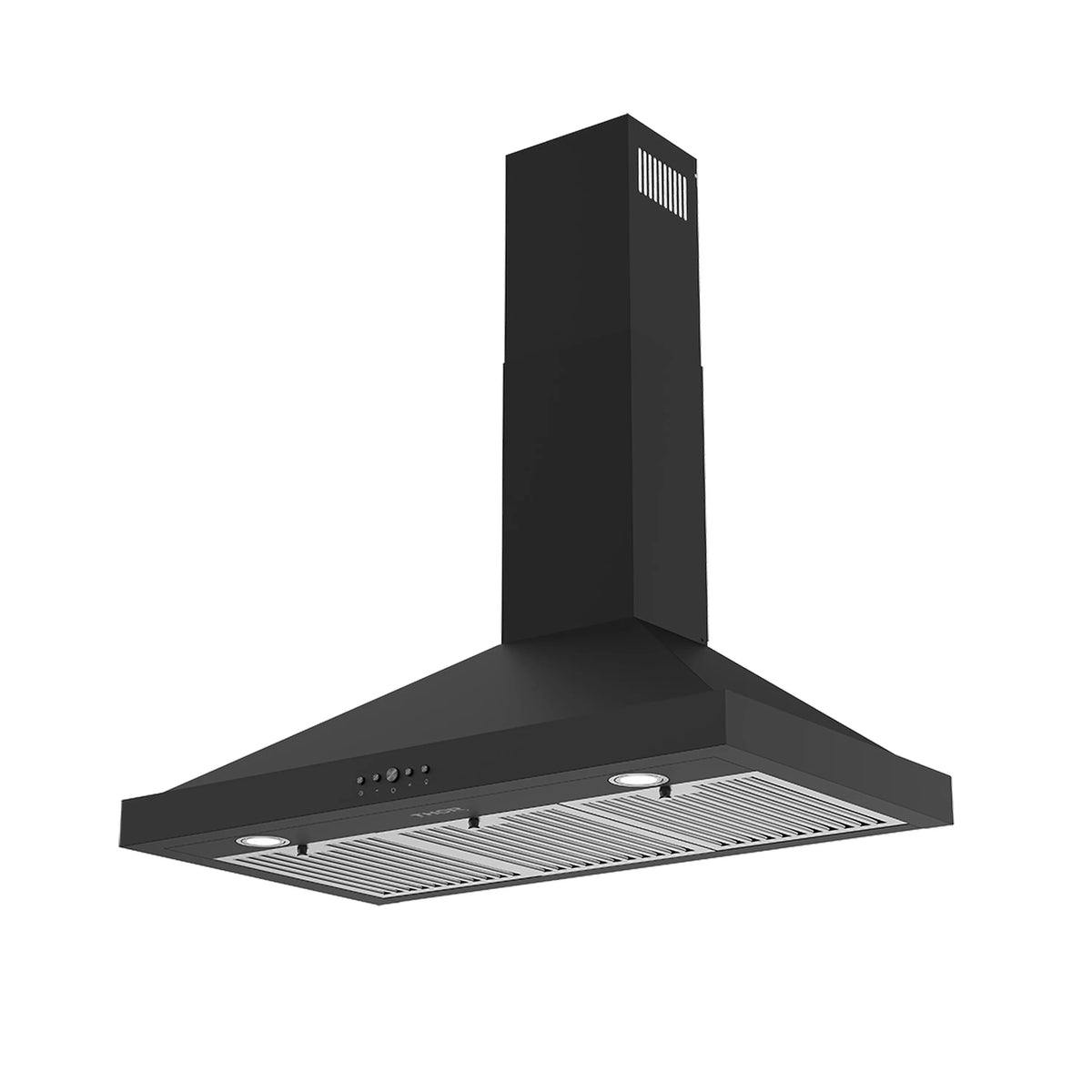

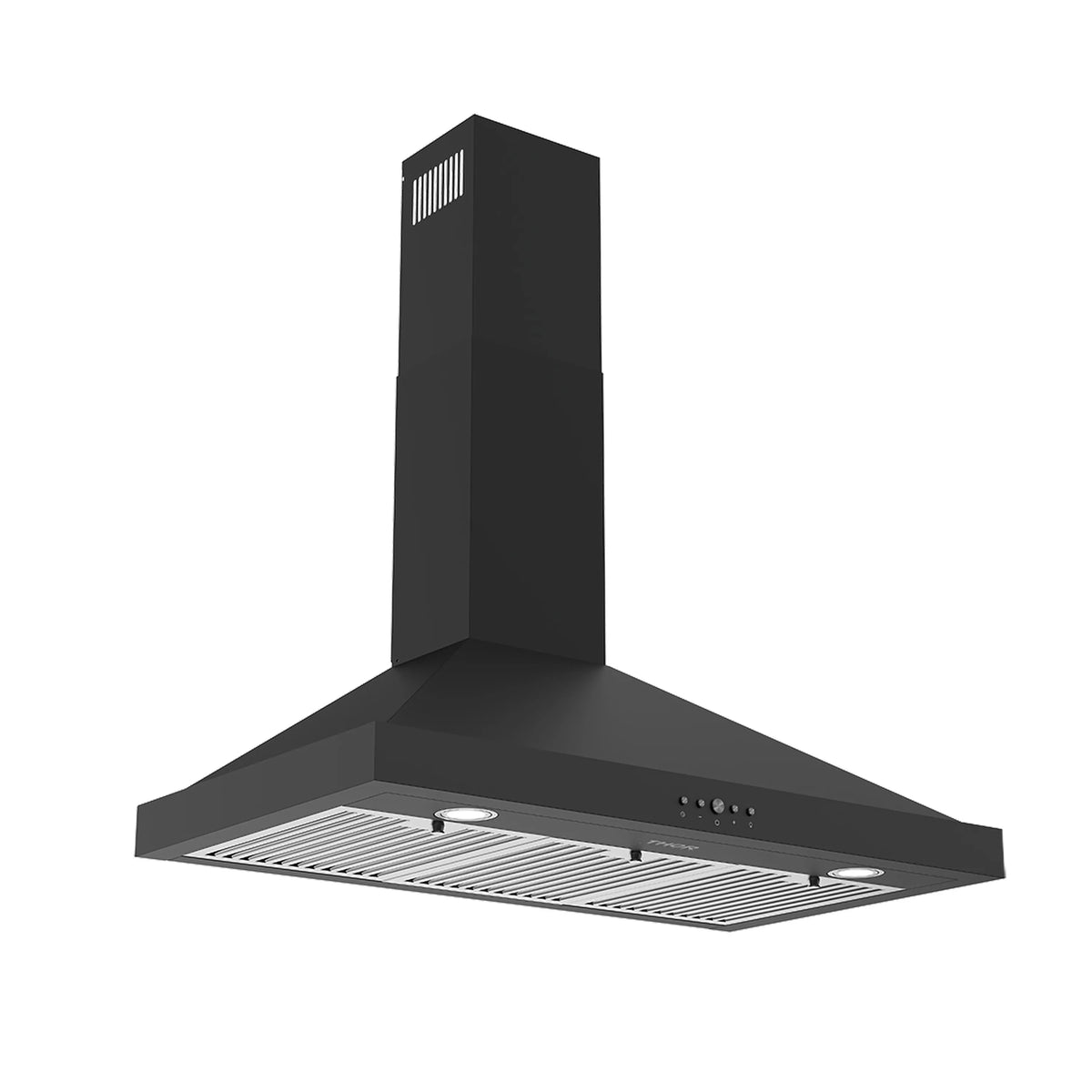

THOR brings professional-grade performance to your kitchen with the 36-Inch Wall Mounted Chimney Range Hood, crafted from durable stainless steel for a sleek, modern look that lasts. Featuring powerful 350 CFM ventilation, convertible ducted or ductless installation, easy push button controls, bright energy-saving LED lights, three adjustable fan speeds, and dishwasher-safe baffle filters, this range hood delivers strength, convenience, and control right out of the box—so you can focus on creating meals with confidence. #IgniteYourCulinaryCreativity
Features
- Durable Matte Black Finish: Provides a sleek, modern look that complements any kitchen style while ensuring long-lasting strength and quality.
- Efficient 350 CFM Ventilation: Provides effective airflow to manage everyday cooking smoke, steam, and odors.
- Dual Installation Options (Ducted or Ductless): Convertible ducted or ductless installation for flexible setup.
- Easy Push Button Controls: Simple mechanical buttons for hassle-free operation.

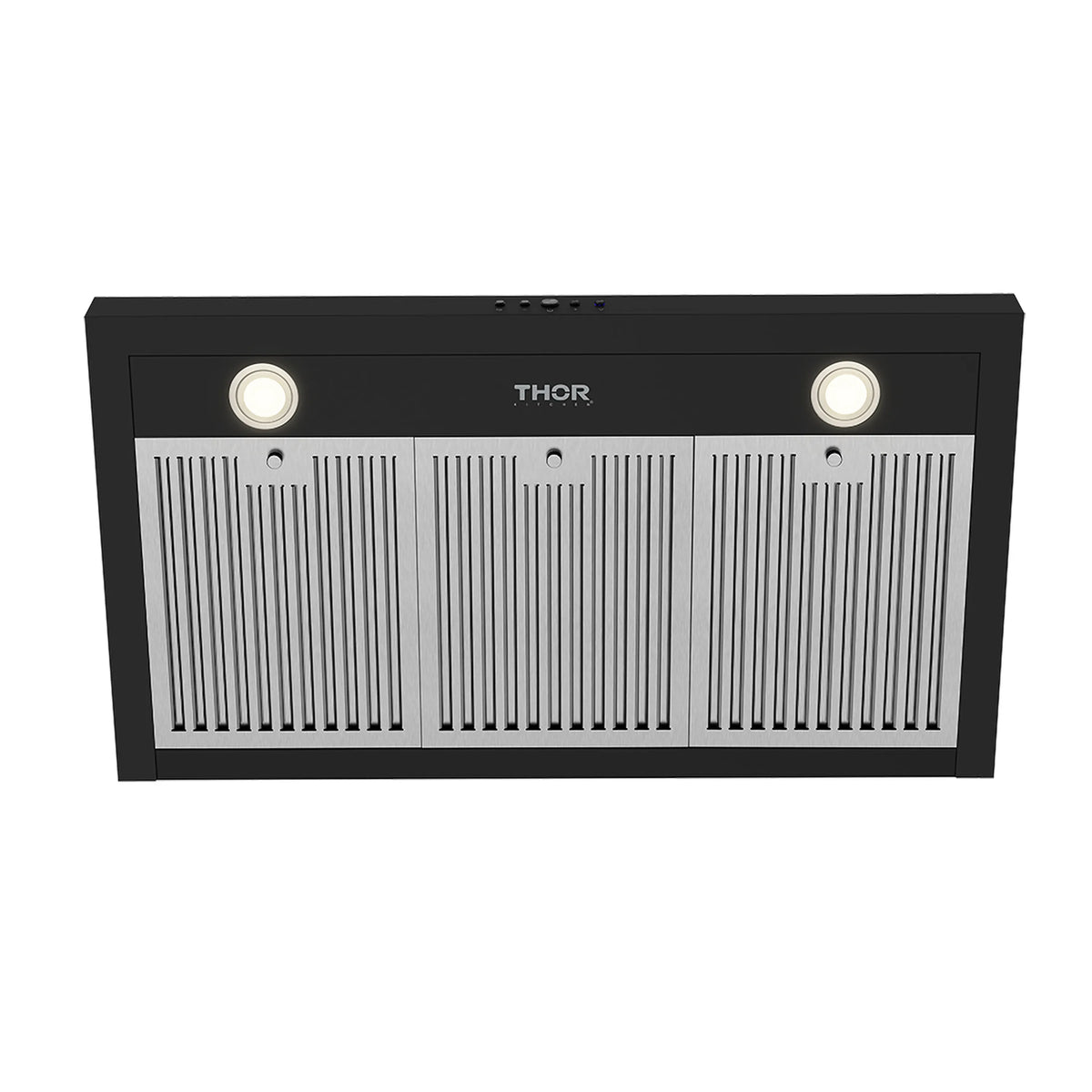

- Bright, Energy-Saving LED Lights: Illuminates the cooking surface clearly while minimizing energy use.

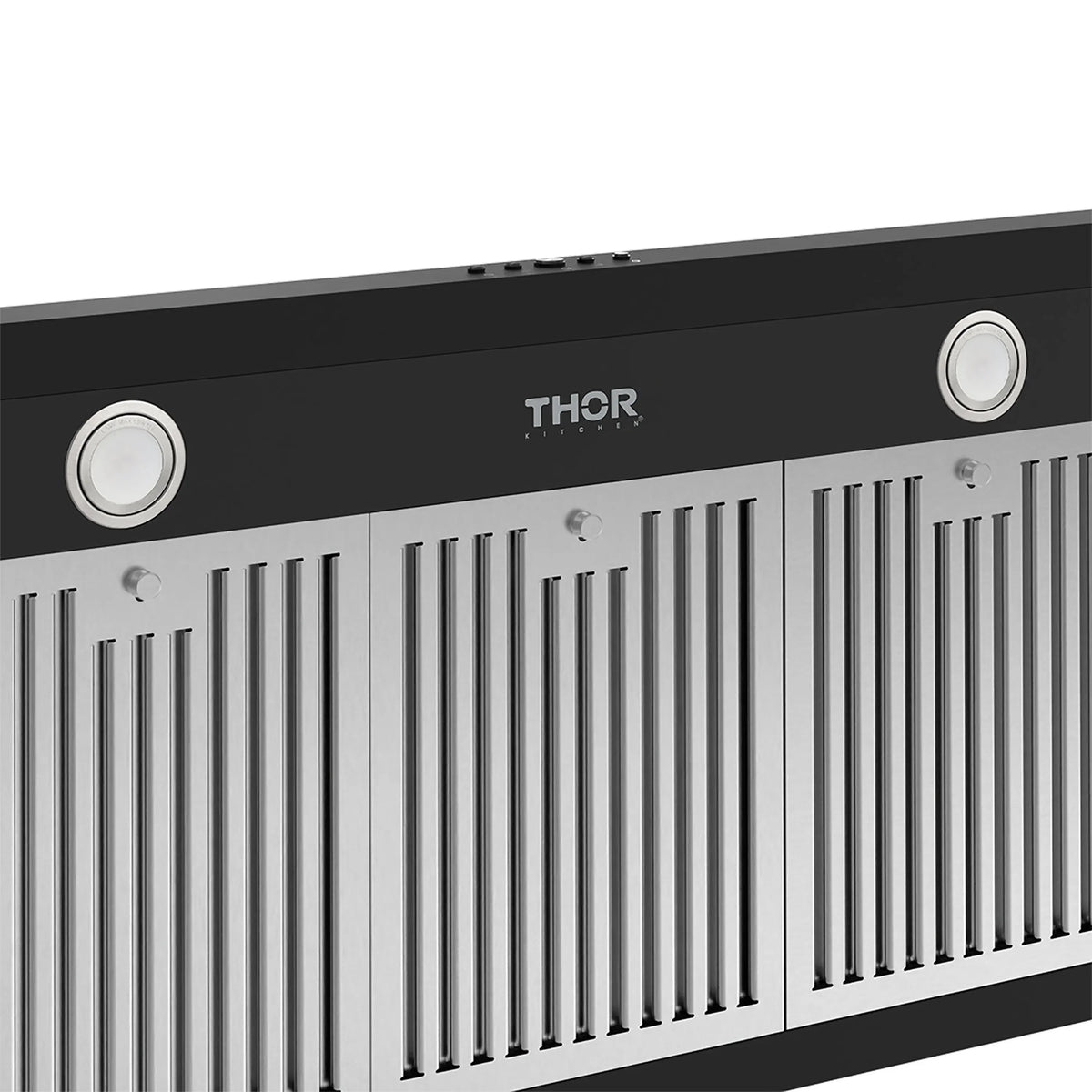

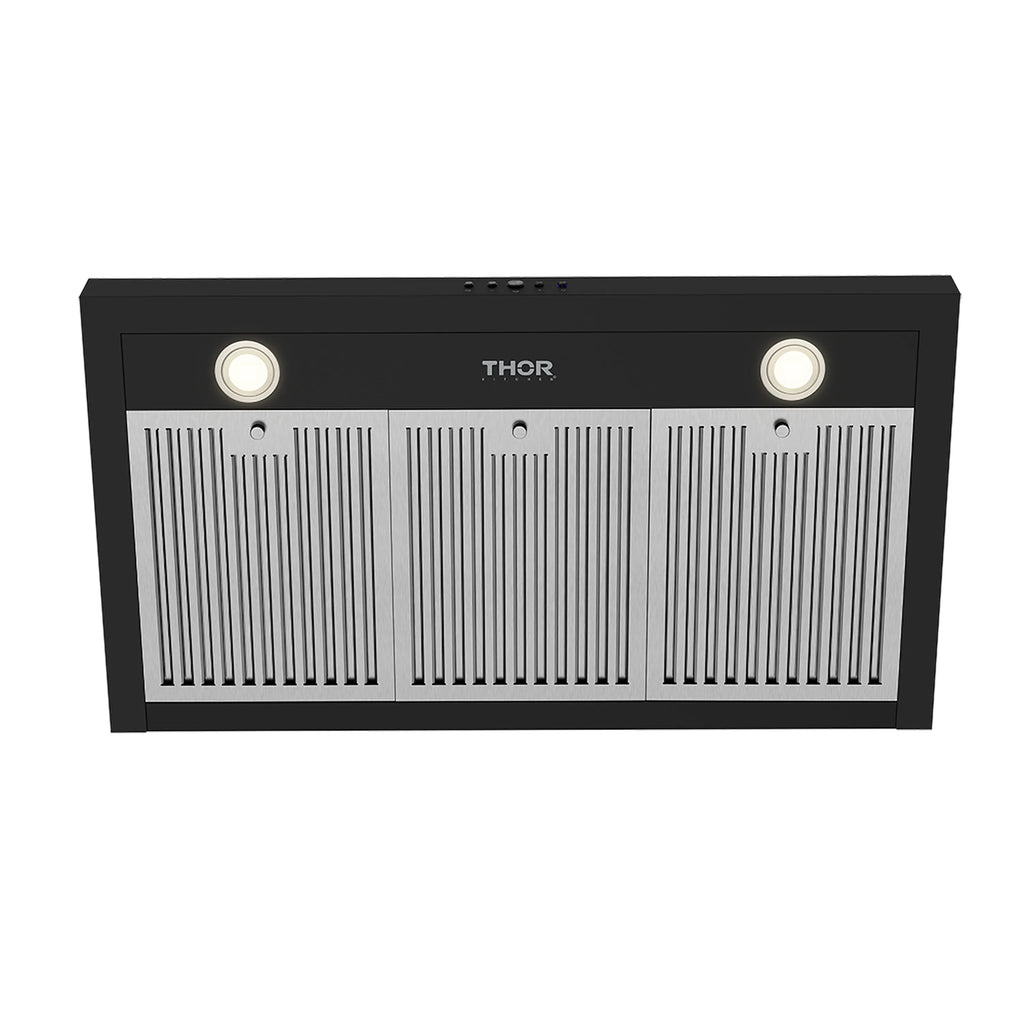

- Dishwasher-Safe Baffle Filters: Three removable filters trap grease and are easy to clean for long-lasting performance.
- Three-Speed Fan Settings: Adjustable airflow to suit light simmering or more intensive cooking.
- Delay Shut-Off Function: A 5-minute delay clears lingering smoke and odors after you finish cooking.

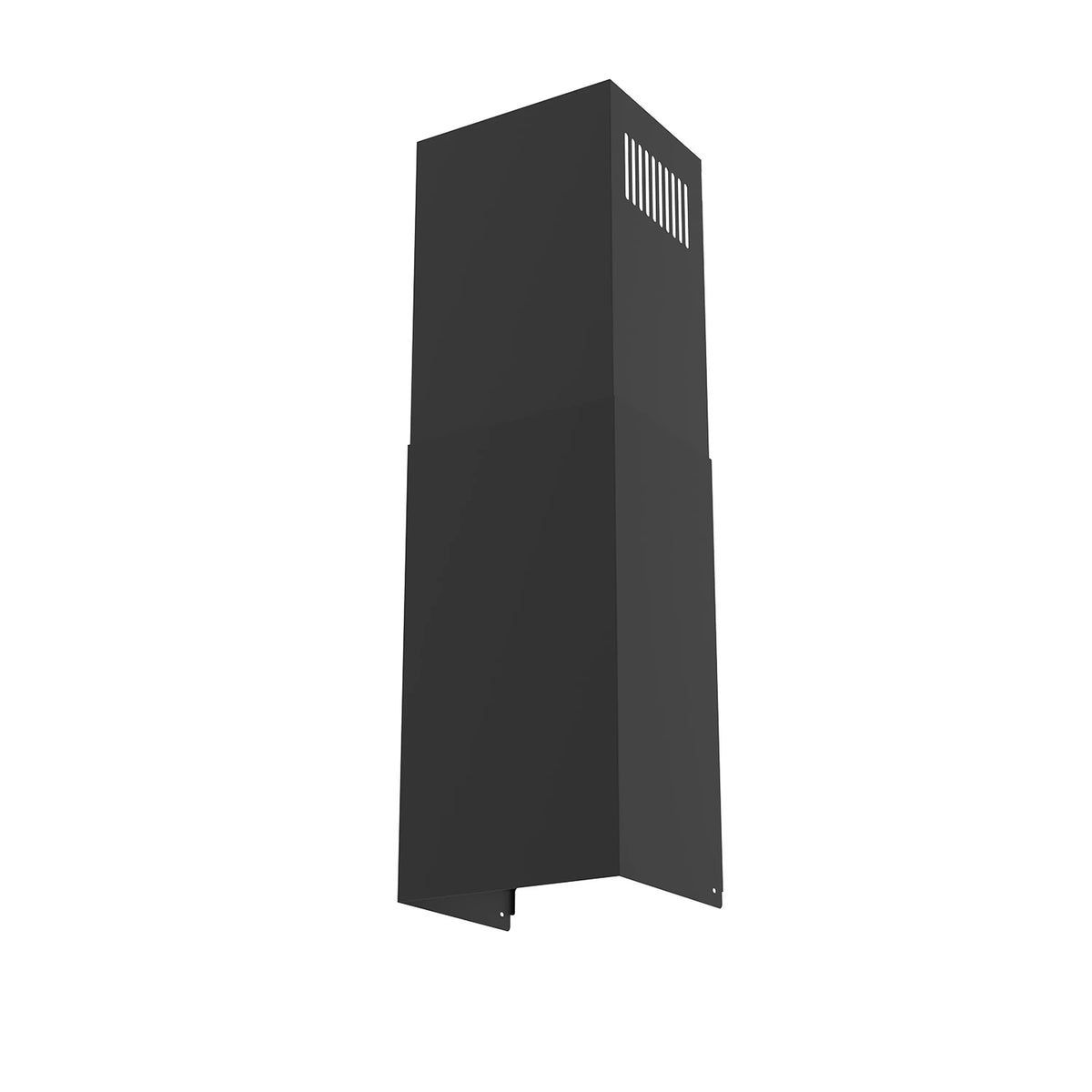

- Fits Ceilings up to 9 Feet: Adjustable chimney (26-7/16" – 40-3/16") with included duct cover for a clean, finished look.
DIMENSIONS
- Product Dimensions
- 35-1/4" W x 19-11/16" D x 26-7/16"–40-3/16" H
- Chimney Height
- 26-7/16" - 40-3/16"
- Accommodates Ceiling Heights
- Up to 9 ft
- Minimum Distance Above Gas / Electric
- 30" / 28"
- Net Weight
- 27 lbs.
- Gross Weight
- 32.3 lbs.
- Package Dimensions
- 37-3/16" W x 13-9/16" D x 22-1/16" H
GENERAL INFORMATION
- Brand
- THOR Kitchen
- Model
- TRH3635B
- Product Type
- Wall-Mounted Chimney Range Hood
- Shape / Style
- Chimney
- Mounting Type
- Wall Mounted
- Airflow
- 350 CFM (max)
- Ducted / Recirculating Convertible
- Yes
DESIGN & FINISH
- Finish
- Matte Black
- Filter Type
- Baffle Filter
- Filter Qty
- 3
- Lighting
- 2 x 1.5W Warm White LED
- Duct Size
- 5-7/8"
- Duct Type
- Round
TECHNICAL DETAILS
- Watts
- 193W
- Amperage
- 15A (Dedicated)
- Volts
- 120V
- Frequency
- 60Hz
- Plug Type
- US 3-Prong Plug
- Power Cord Length
- 39-3/8"
FEATURES
- Number of Speeds
- 3
- CFM (Low / Medium / High)
- Low: 190 CFM
- Medium: 285 CFM
- High: 350 CFM
- Noise Rating (Low / Medium / High)
- Low: 45 dB
- Medium: 54 dB
- High: 61 dB
- Control Type
- Push Button
- Delay Function
- Yes (5 mins)
- Installation
- Ducted or Ductless (Convertible)
- Dishwasher-Safe Baffle Filters
- Yes
- Accessories Included
- Mounting Brackets
- Duct Cover
WARRANTY & CERTIFICATIONS
- Warranty
- Two Years Parts and Labor

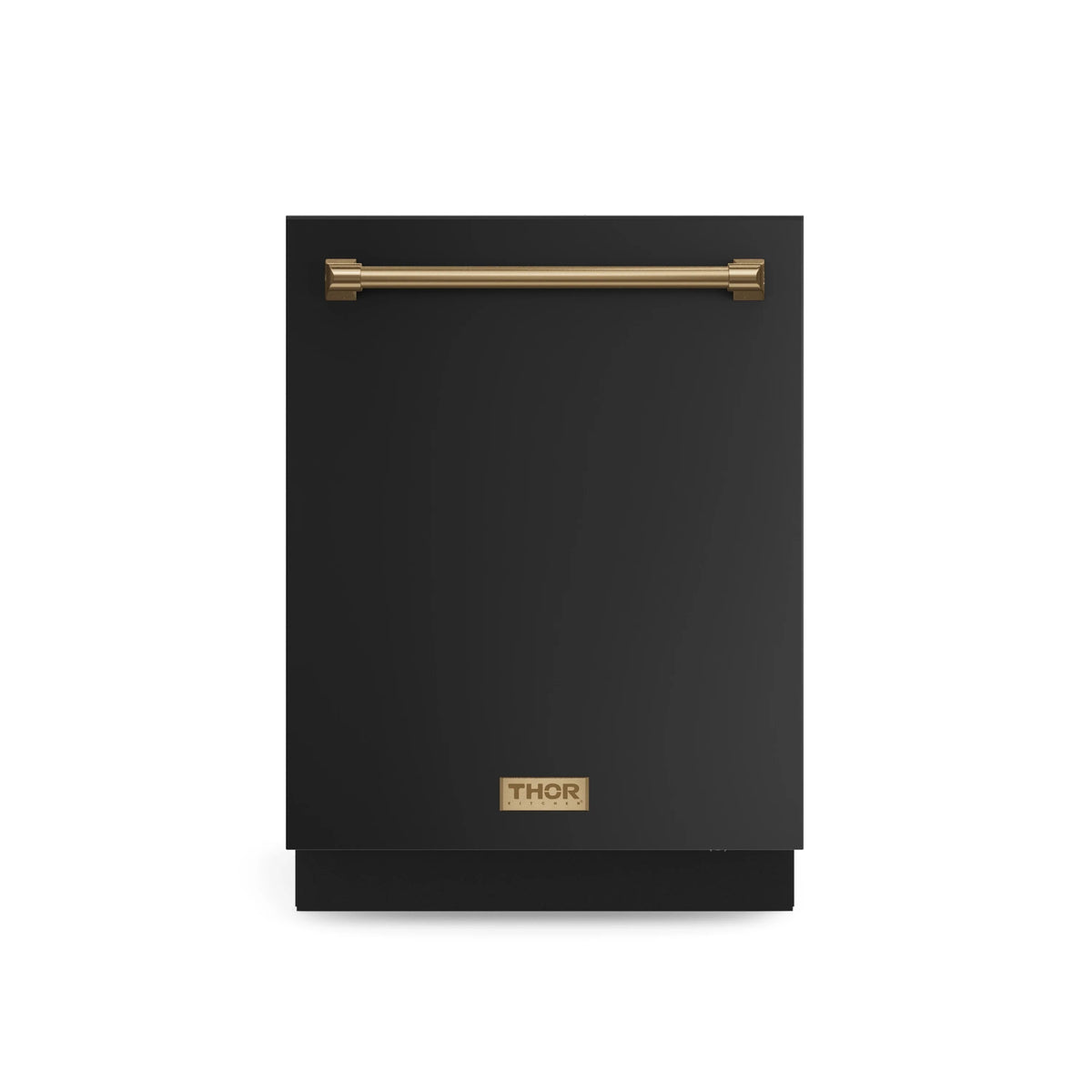

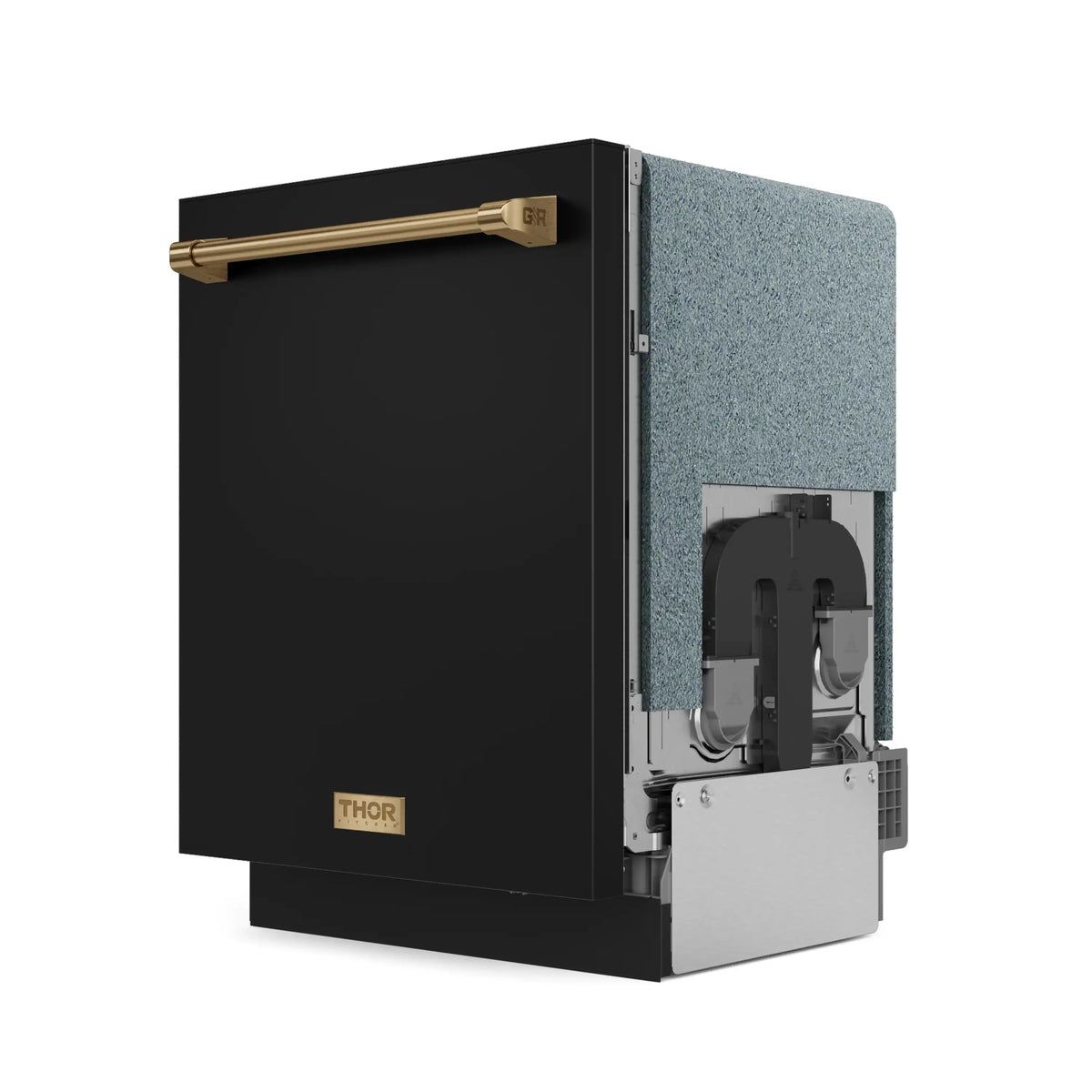

Piece 4 of 4 — DISHWASHER

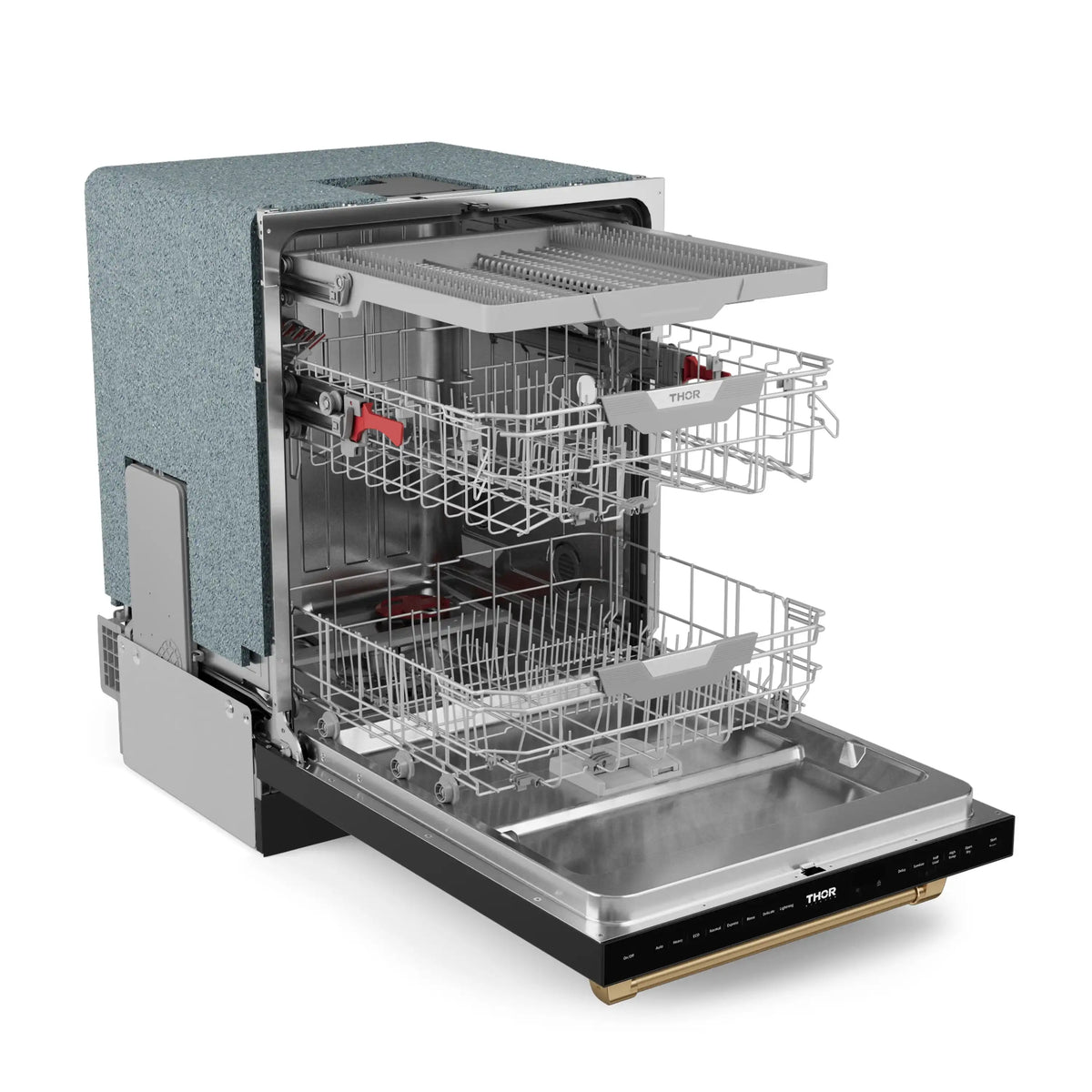

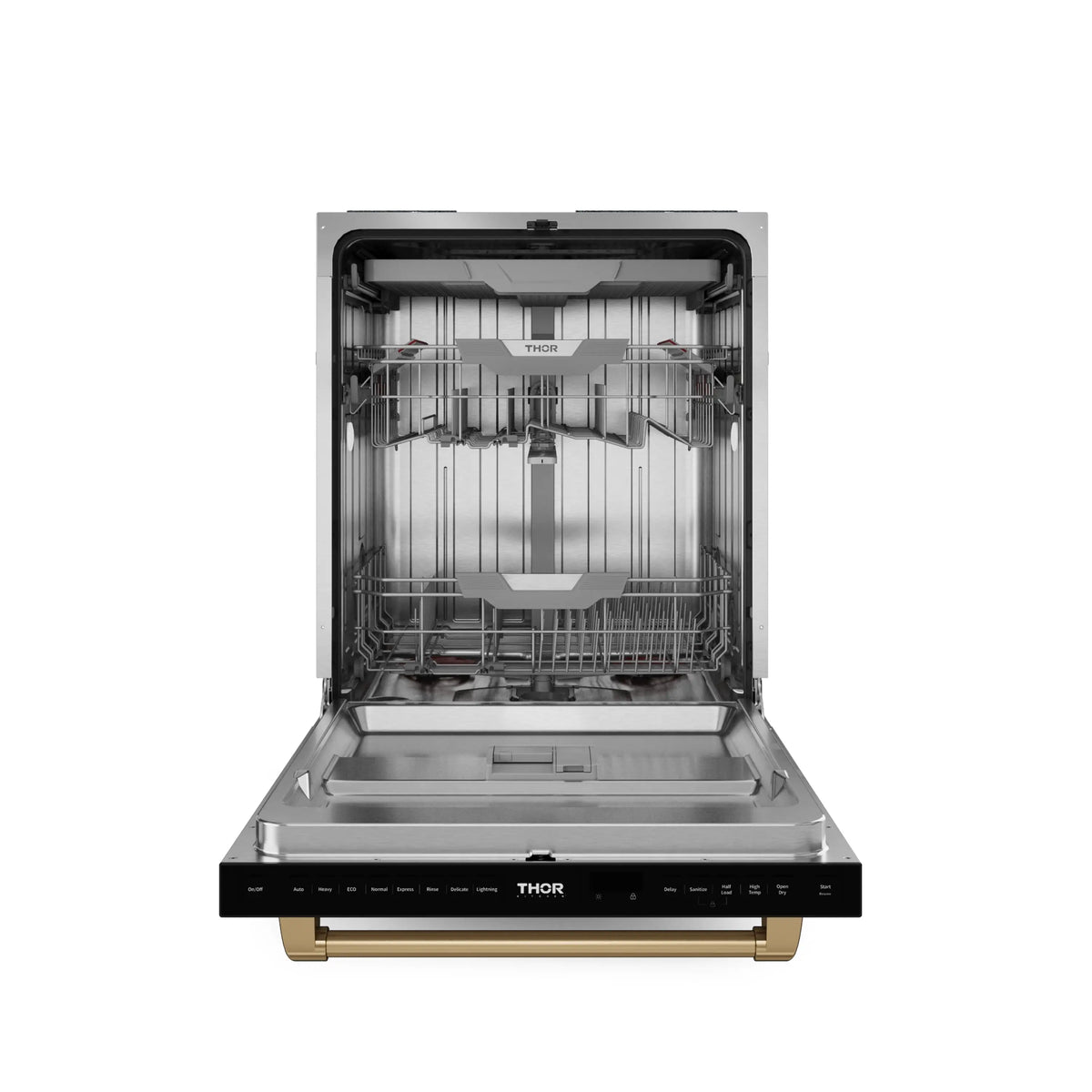

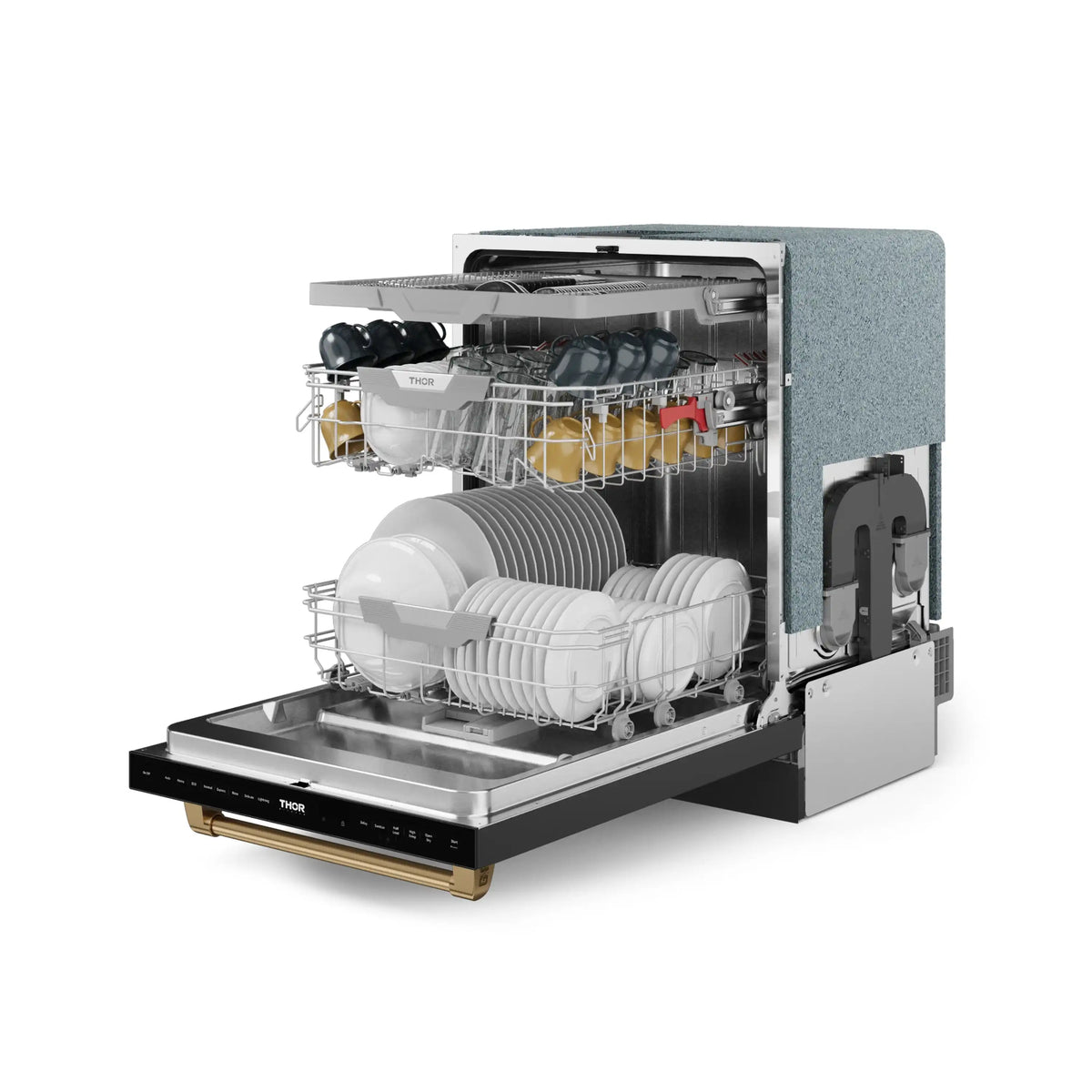

Discover effortless cleaning with our professional dishwashers, designed for efficiency and reliability. Featuring powerful jets, adjustable racks, and advanced drying technology, the 24 Inch Dishwasher in Stainless Black ensures a thorough clean with every cycle. Built for durability and ease of use, it makes post-meal cleanup seamless, enhancing your kitchen’s functionality and style.
Features
-
Open Dry - Enhances air circulation for effective and even drying, ensuring dishes are completely dry and free from residual moisture.
-
8 Wash Cycles with Flexible Modes - Offers 8 wash cycles, including Auto, Heavy, Eco, Normal, Express, Rinse, Lightning, and Delicate modes, providing flexibility for everything from heavily soiled pots to delicate glassware.
-

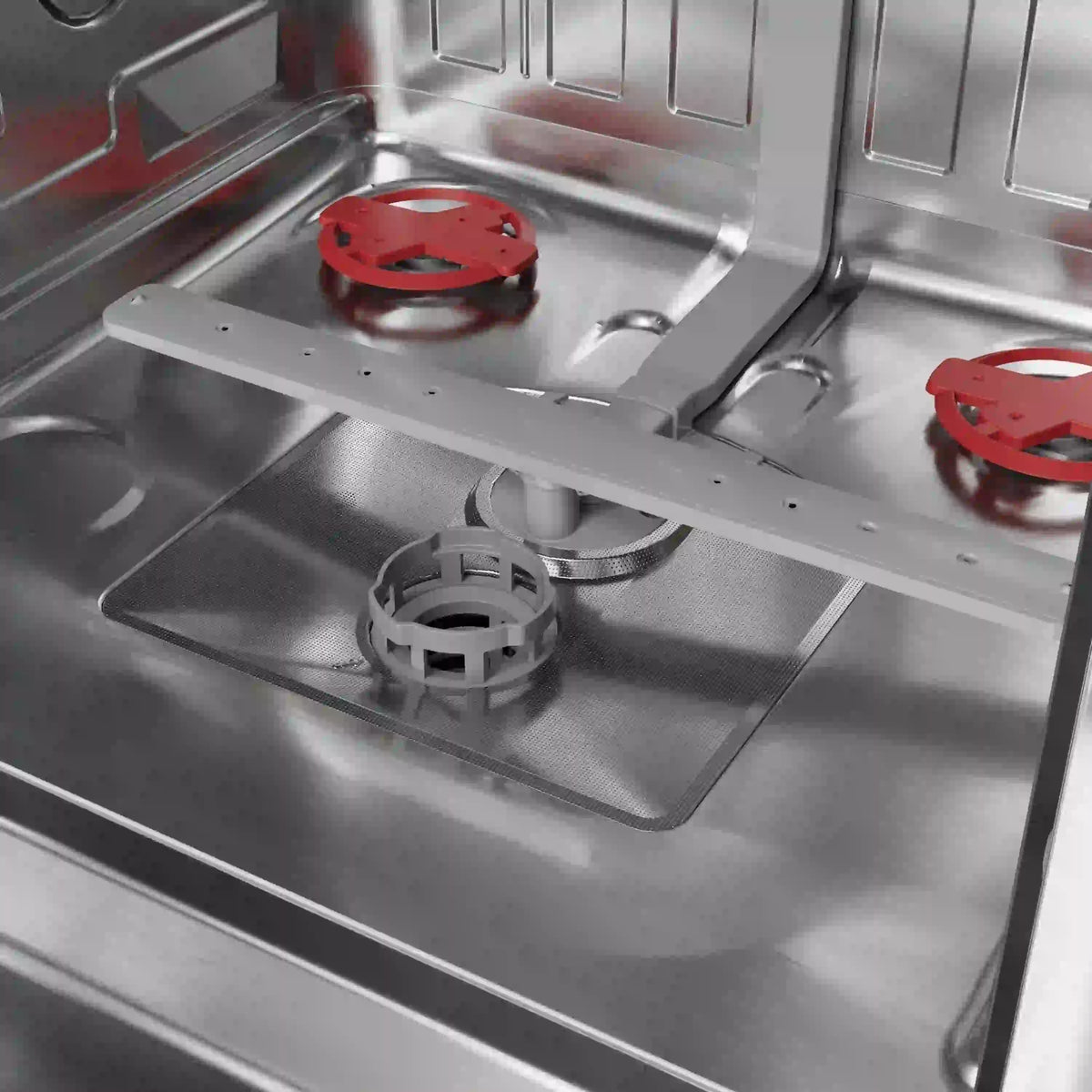

Three-Tiered Spray Arms - Equipped with top, upper, and lower spray arms, this dishwasher delivers comprehensive coverage, thoroughly cleaning every dish from all angles.
-
Wine Glass Bracket - Designed to securely hold delicate glassware, ensuring wine glasses and other fragile items are spotless and intact after each wash.
-
Height-Adjustable Upper Basket -The upper basket can be adjusted to different heights, allowing you to create space for larger or taller items in the lower rack.
-
Third Rack - Provides additional space for organizing smaller utensils and kitchen tools, keeping them separate and secure during the wash cycle.
-

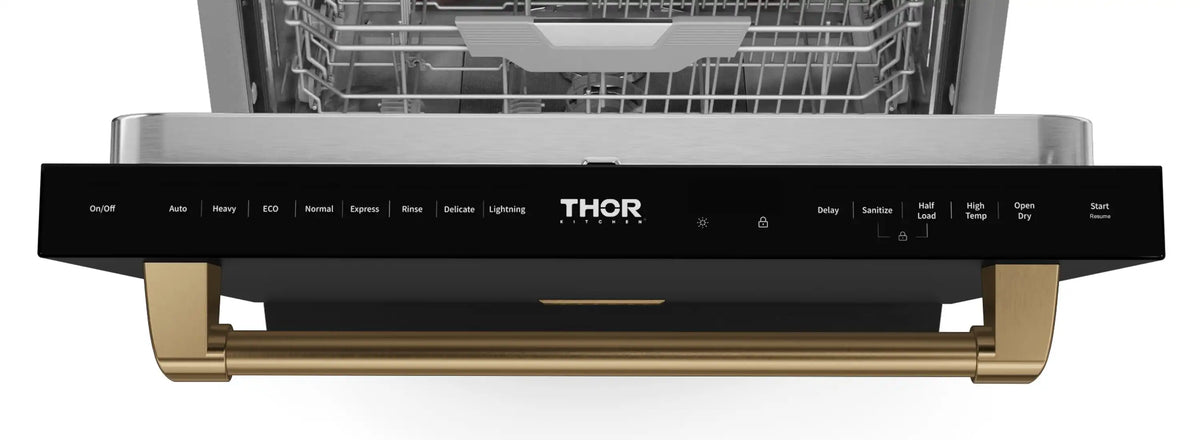

Status Indicator Light - Displays a clear visual indication of the dishwasher’s progress, allowing you to easily monitor the current wash cycle without needing to open the door.
- Interior LED Lighting - Automatically illuminates the tub’s interior when opened, providing clear visibility and added convenience for loading and unloading.
DIMENSIONS
- Product Dimensions (WxDxH)
- 23 7/8’’ x 22 5/8’’ x 33 7/8’’
- Product Depth With Handles
- 25 1/8’’
- Cutout Dimensions (WxDxH)
- 24’’ x 22 7/8’’-23 5/8’’ x 34’’-35 1/2’’
- Net Weight
- 82.7 lbs
- Package Dimensions (WxDxH)
- 28 3/4” x 28 3/4” x 35 1/16”
- Package Weight
- 100 lbs
DESIGN & FINISH
- Tub Material
- Stainless Steel
- Control Type
- Touch
TECHNICAL DETAILS
- Amperage
- 15 Amps, Dedicated circuit required
- Volts
- 120V
- Frequency
- 60Hz
- Noise Level
- 49 dBa
- Power Cord Length
- No Power Cord Included
- Water Feed Pressure
- 20-120psi
- Inlet Water Temperature
- 120ºF (49ºC)
- Inlet Hose Length
- 59”/ 1500mm
- Outlet Hose Length
- 59”/ 1500mm
- Water Consumption
- 3.2 Gal
FEATURES
- Rated Power Usage
- 220kWh/per year
- Load Capacity (Place Settings)
- 15
- Number Of Wash Cycles
- 8
- Number Of Racks
- 3
- Rack Adjustability
- Height Adjustable Upper Rack
- Water Softener
- No
- Childlock
- Yes
- Status Indicator
- Yes (Red)
- Tub Light
- Yes (Led, 2)
- Hidden Heating Element
- Yes
- Wine Glass Bracket
- Yes
- Third Layer Cutlery Basket
- Yes
- Basket Handles /Outdoor Handles
- Yes
- Accessories Included
- Drain Hose
- Accessories Not Included
- Power Cord
