Description
DIMENSIONS
- Product Dimensions
- 47-7/8" W x 26-1/2" D x 37-1/8" H
- Cutout Dimensions
- 48" W x 24-3/4" D x 36"-39" H
GENERAL INFORMATION
- Product Type
- Gas Range
- Configuration
- Double Oven (30" + 18")
- Fuel Type
- Gas
- Gas Type
- Natural Gas
- Mount Type
- Freestanding
- Number of Burners
- 8
TECHNICAL DETAILS
- Electrical Requirements
- Requires a minimum of 120V/60Hz/15A (please check your kitchen meets this electrical requirement prior to purchase)

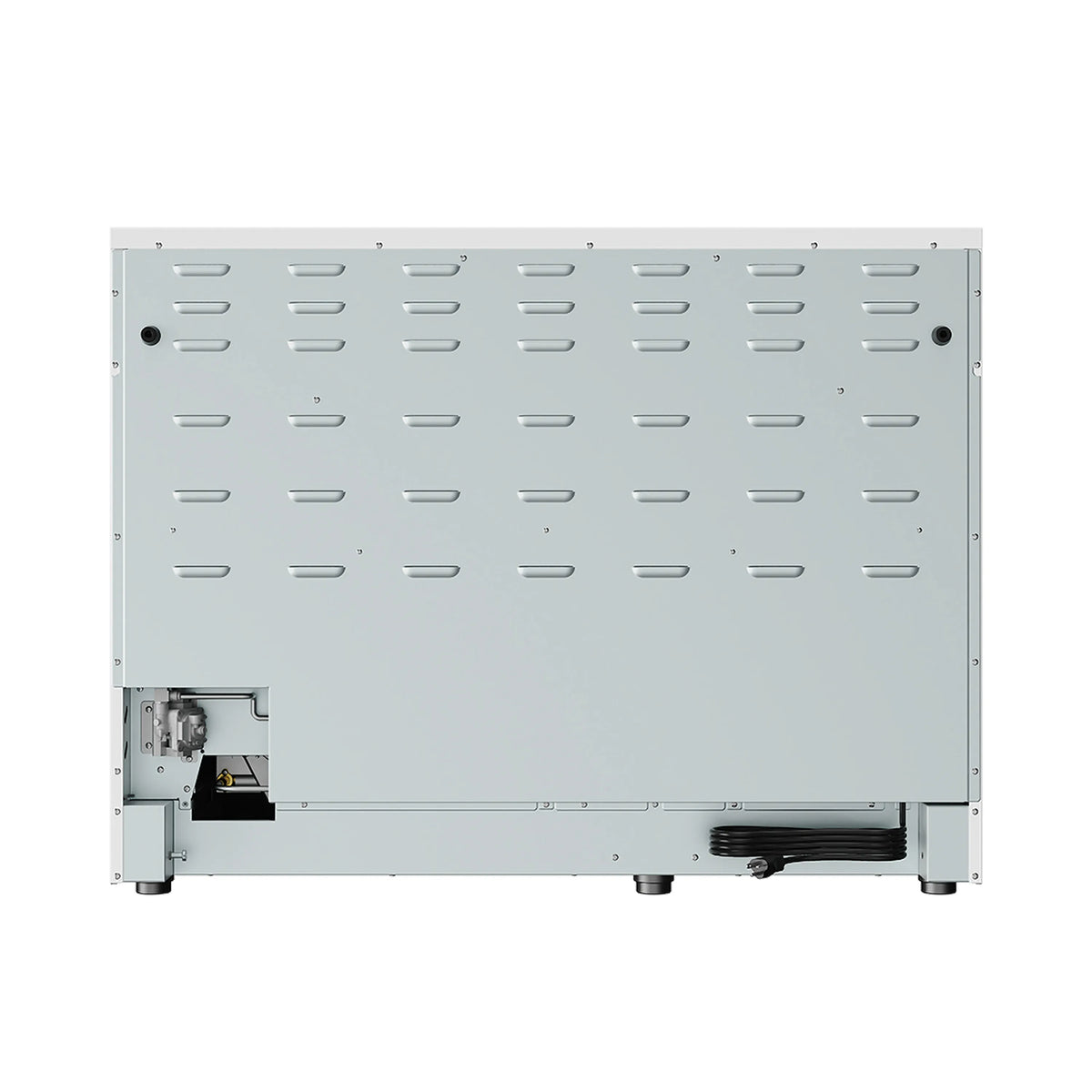

- Plug Type
- US 3-Prong
- Cord Length
- 59"

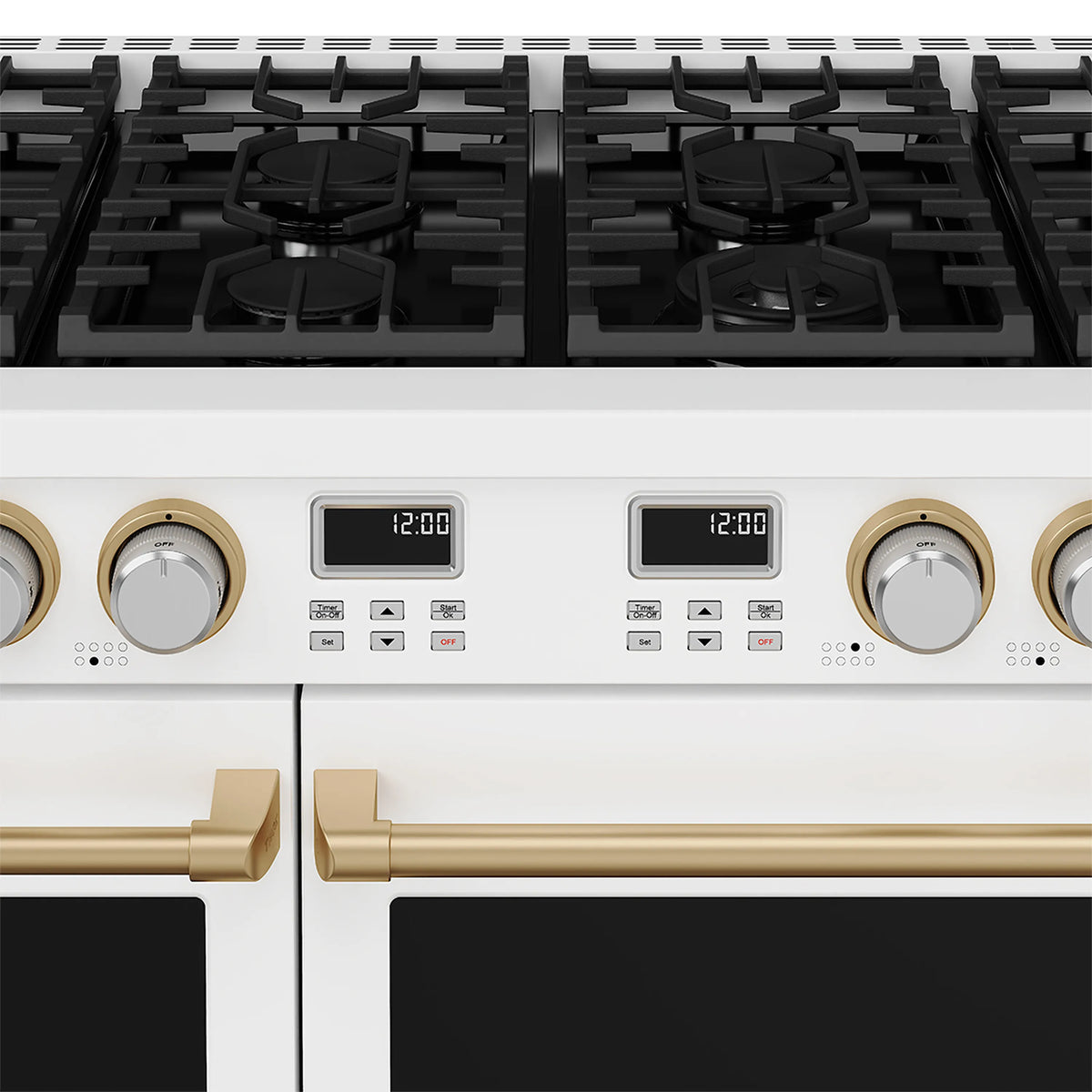

- Control Type
- Knob

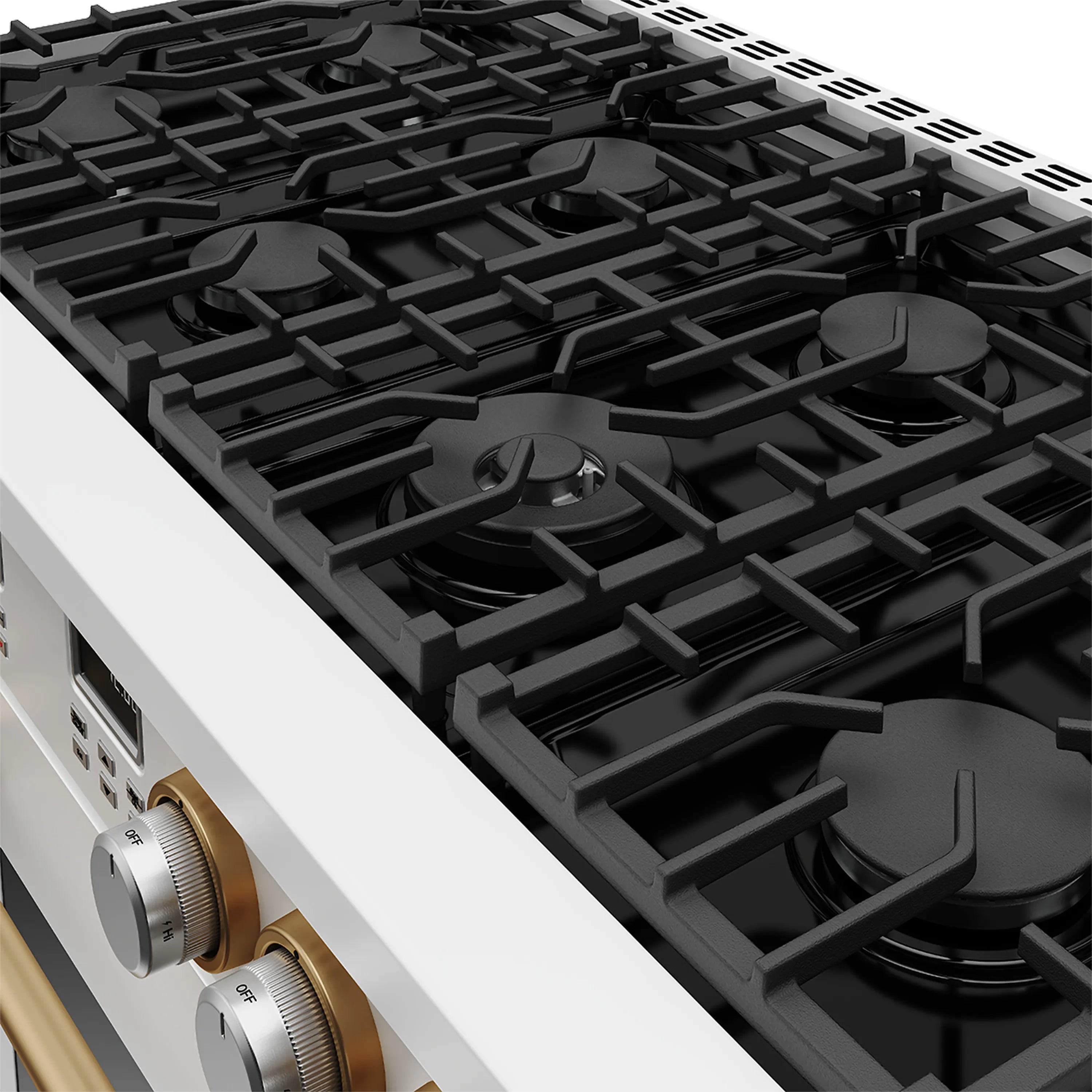

COOKTOP FEATURES
- Cooktop Type
- Gas
- Total Burners
- 8
- Burner Type
- Sealed Burners
- Burner Settings
- Front Left: 18,000 BTU
- Front Left Center: 12,000 BTU
- Front Right Center: 22,000 BTU
- Front Right: 18,000 BTU
- Rear Left: 9,500 BTU
- Rear Left Center: 12,000 BTU
- Rear Right Center: 12,000 BTU
- Rear Right: 9,500 BTU

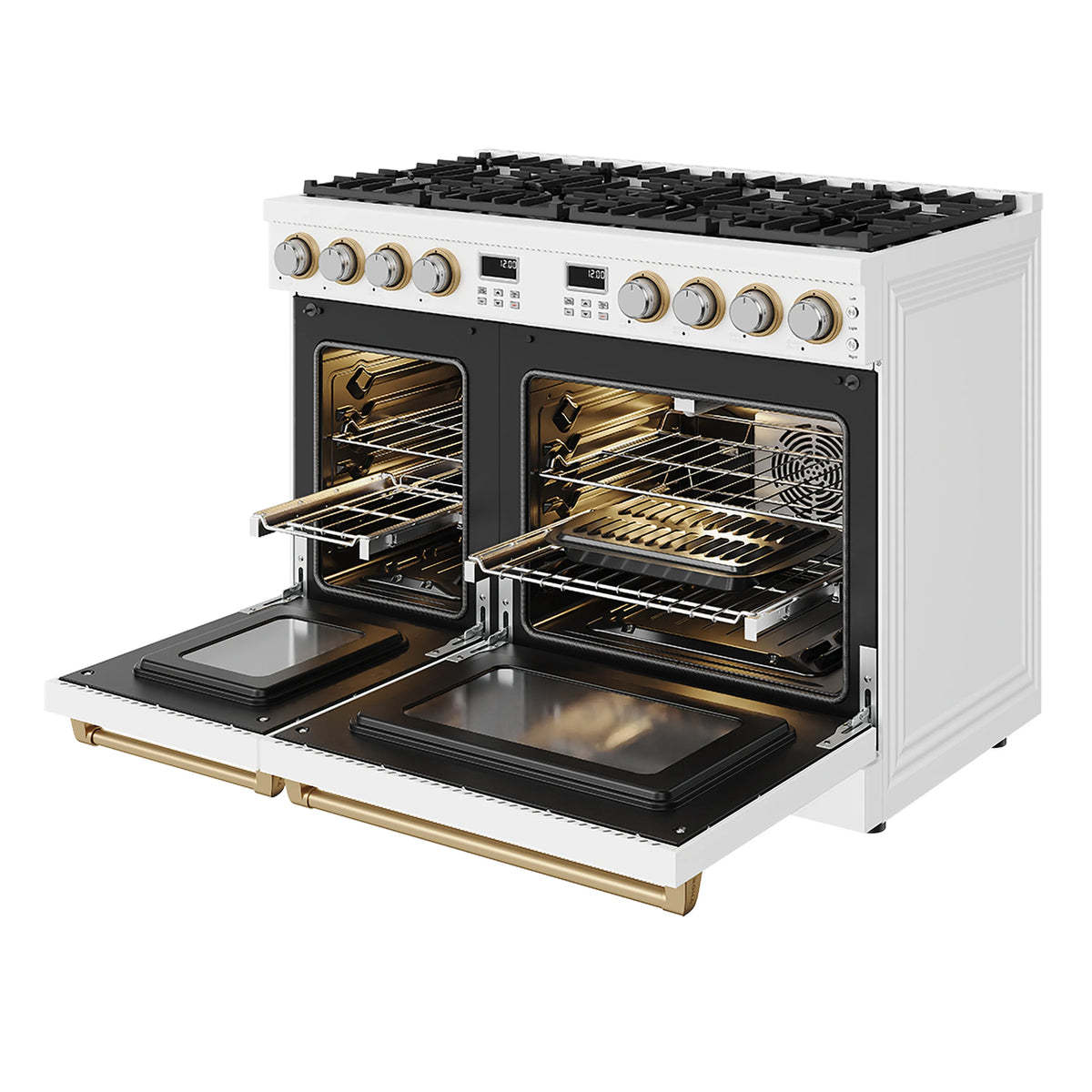

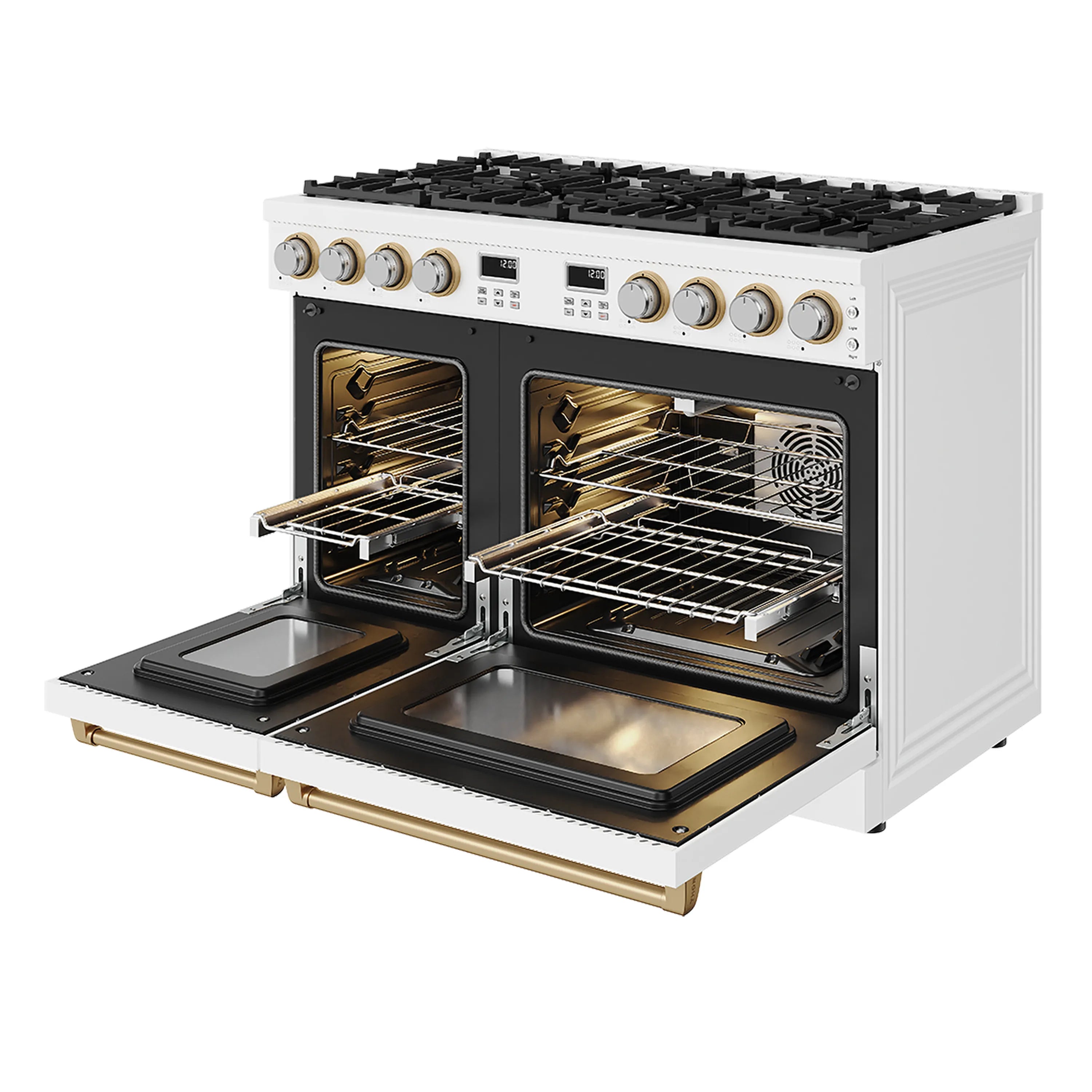

OVEN FEATURES
- Oven Configuration
- Double Oven
- Oven Capacity
- 30" Oven: 4.8 cu. ft.
- 18" Oven: 2.8 cu. ft.
- Oven Internal Width
- 30" Oven: 23-3/4"
- 18" Oven: 12-5/8"
- Convection Fan
- Yes
- Oven Settings
- 30" Oven: Bake, Broil, Conv Bake, Conv Roast, Pizza, Keep Warm
- 18" Oven: Bake, Conv Bake, Pizza, Keep Warm
- Oven BTU
- Bake — 30" Oven: 22,000 BTU
- Bake — 18" Oven: 14,000 BTU
- Broil — 30" Oven: 10,000 BTU

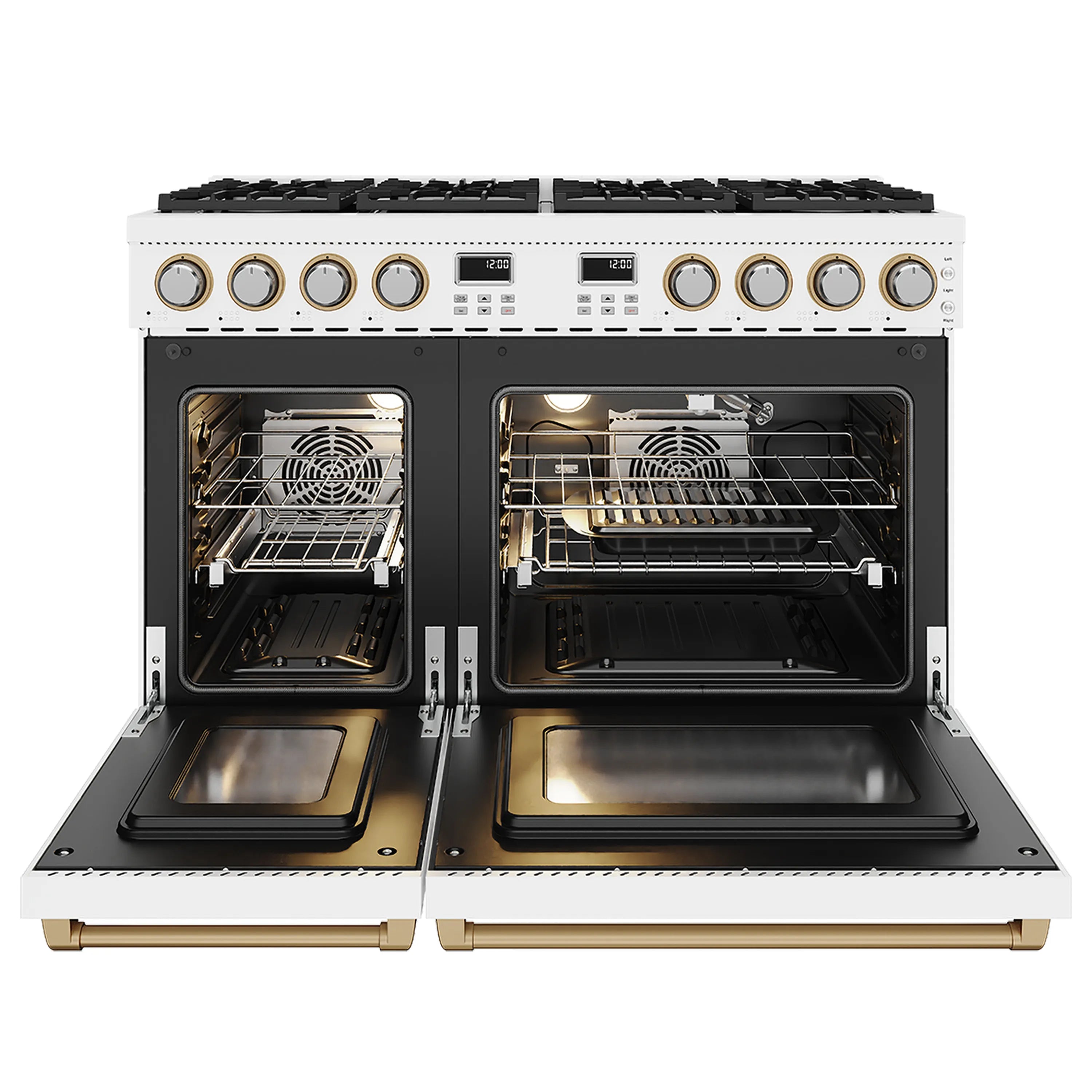

- Oven Racks
- 30" Oven: 1 Standard, 1 Telescopic
- 18" Oven: 1 Standard, 1 Telescopic
- Baking Sheet
- 30" Oven: Fits 29" x 16" baking sheet
- 18" Oven: Fits 16" x 12-1/2" baking sheet
- Self-Clean / Air Fry
- No
WARRANTY & CERTIFICATIONS
- Warranty
- Two Years Parts & Labor
