Description
DIMENSIONS
- Product Width
- 47-7/8"
- Product Height (Bottom to Top of Back Splash)
- 36-1/8" - 37-1/8"
- Product Height (Bottom to Top of Side Panel)
- 35-9/16"
- Product Depth (Back Panel to Bullnose)
- 27-1/2"
- Product Depth (Back Panel to Control Board)
- 26-3/8"
- Product Depth (Back Panel to Side Panel Front)
- 24"
- Depth of Control Panel (Minimum)
- 2-5/16"
- Depth of Control Panel (Bullnose)
- 3-1/2"
- Adjustable Legs
- Not to Exceed 1"
- Required Cutout Size (W x D x H)
- 48-1/8" x 25" x 34-7/8" (+1")
- Net Weight
- 323 lbs
- Gross Weight
- 376 lbs
GENERAL INFORMATION
- Brand
- Thor Kitchen
- Product

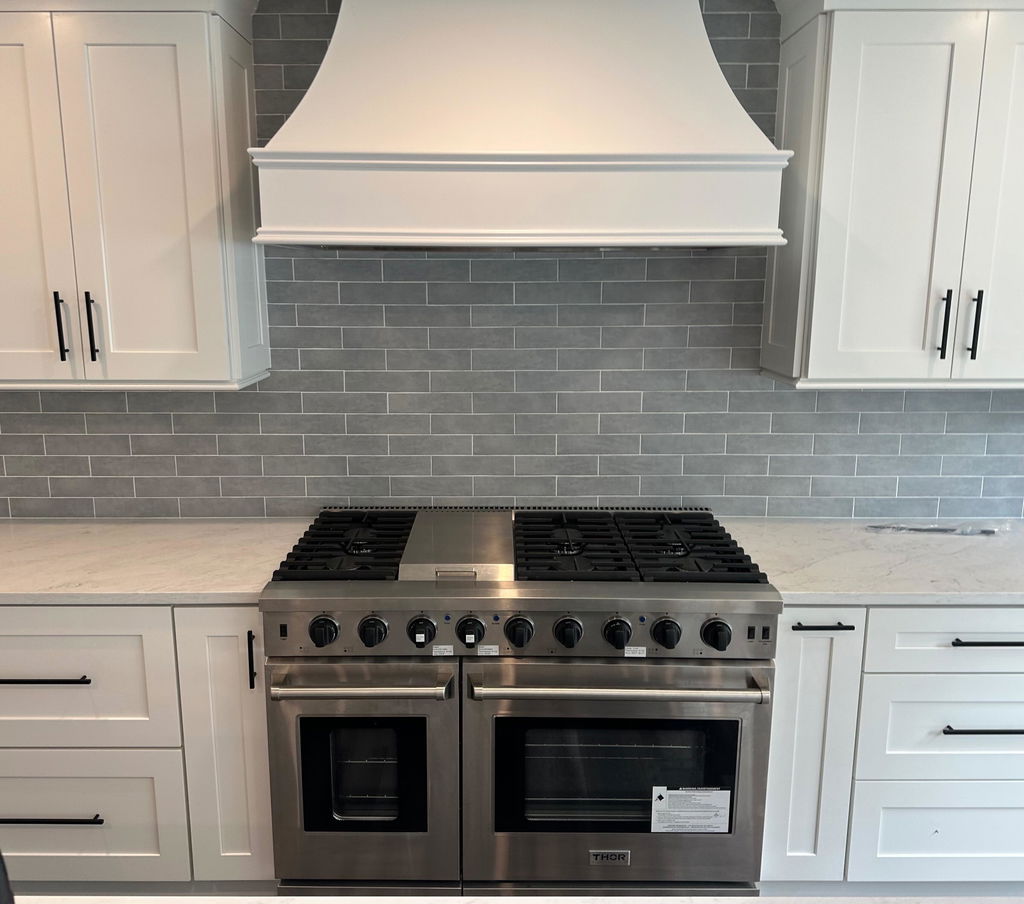

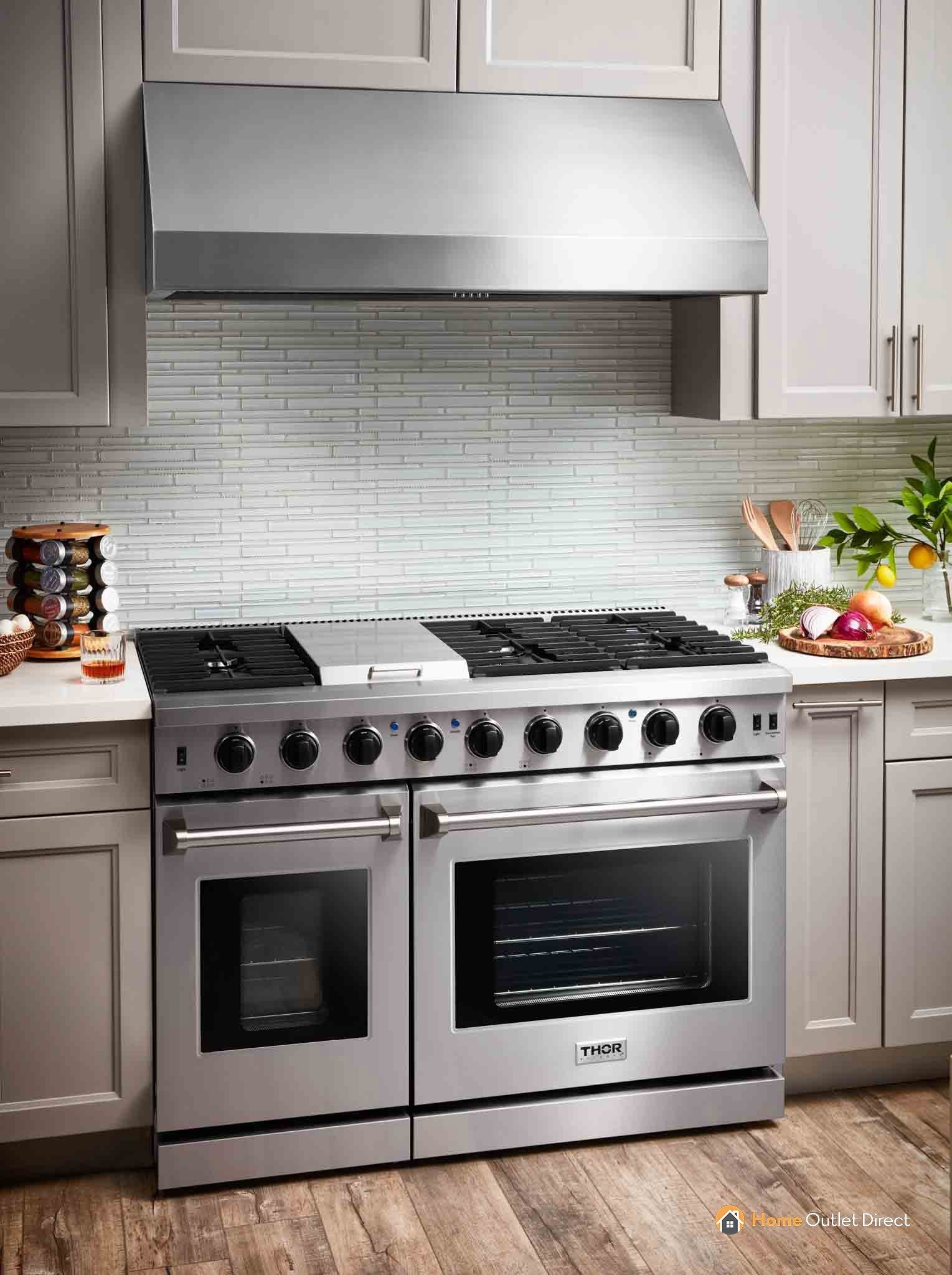

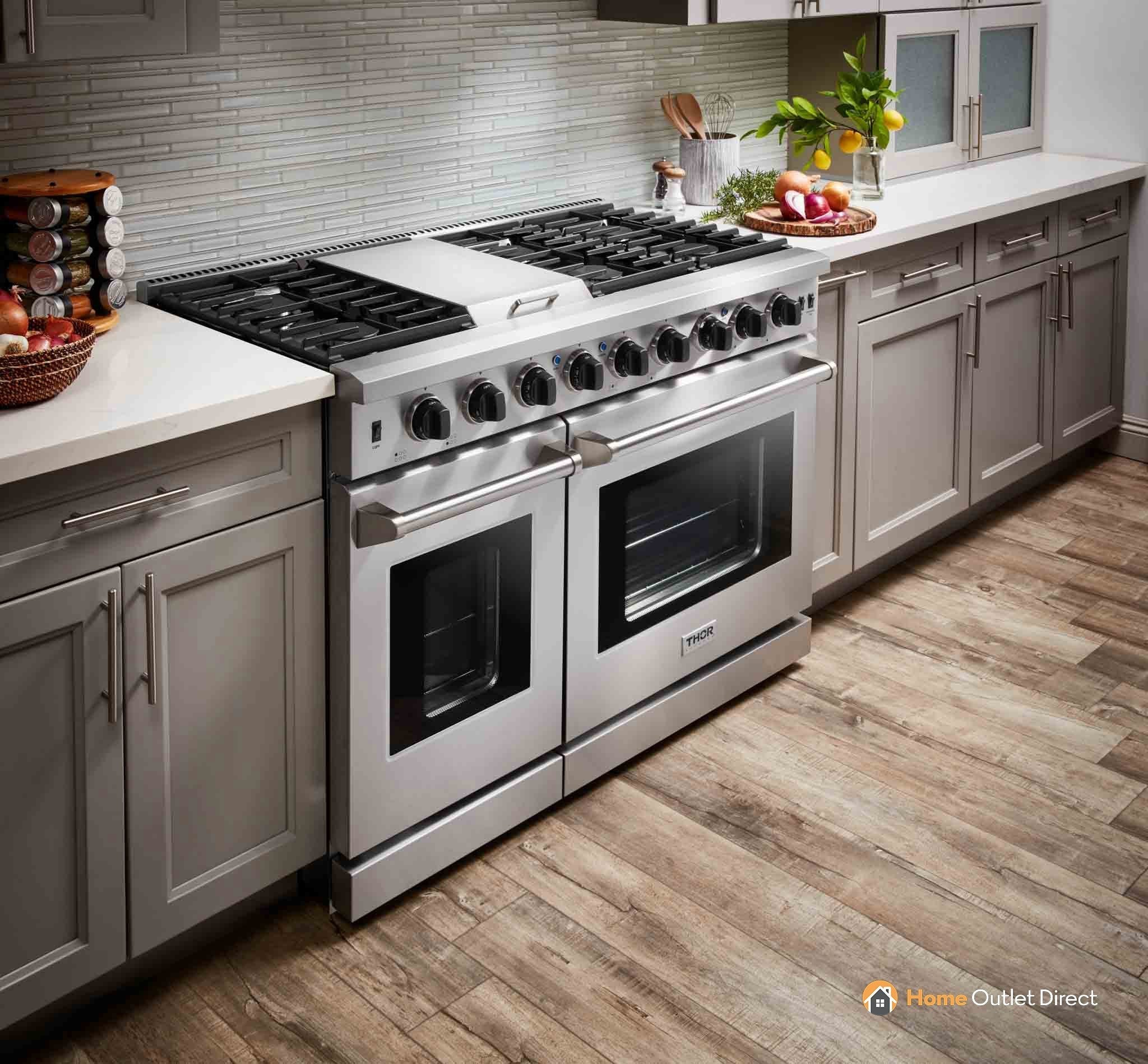

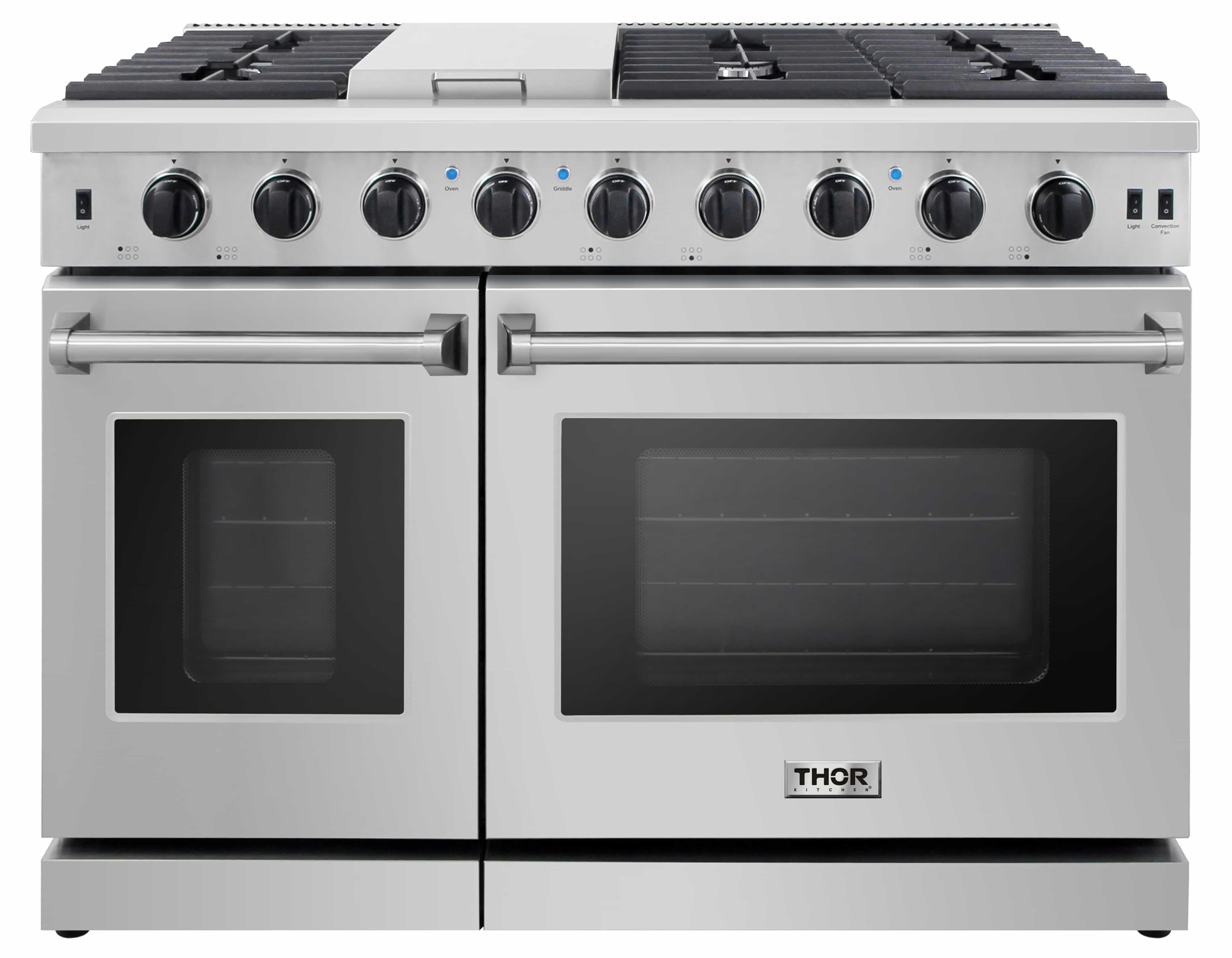

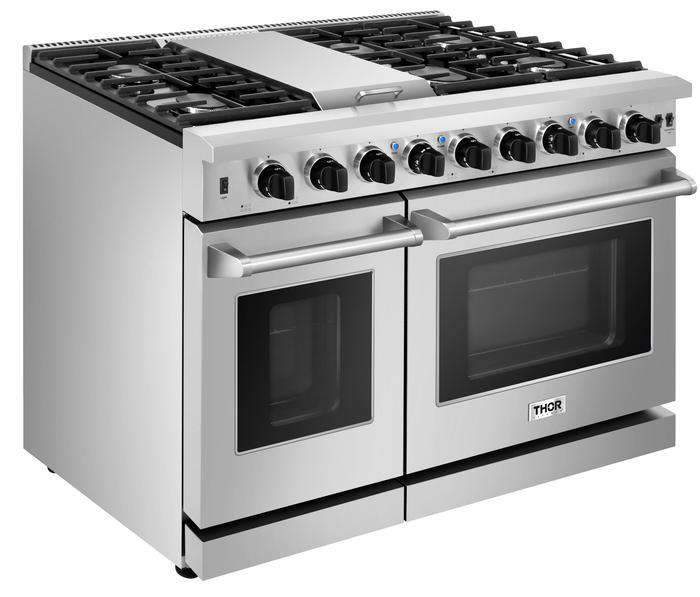

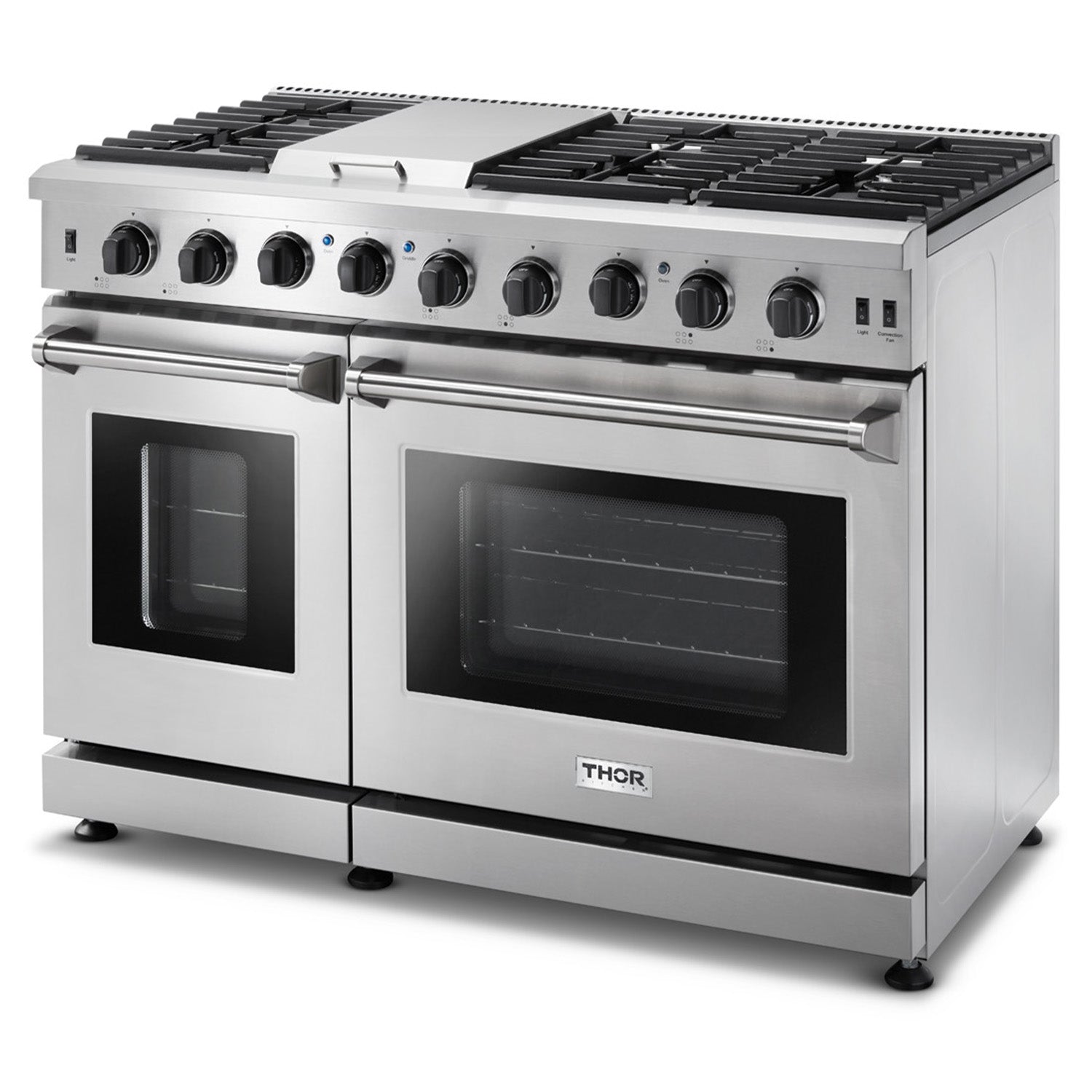

- 48 Inch Gas Range in Stainless Steel
- Model Number
- LRG4807U / LRG4807ULP
- Installation Type
- Freestanding
DESIGN & FINISH
- Color
- Stainless Steel

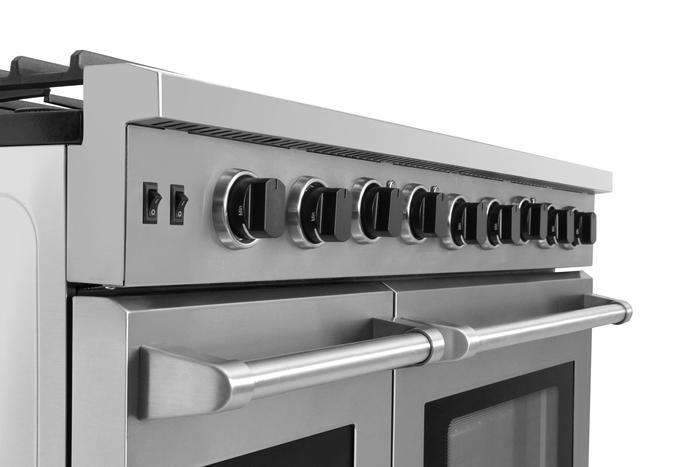

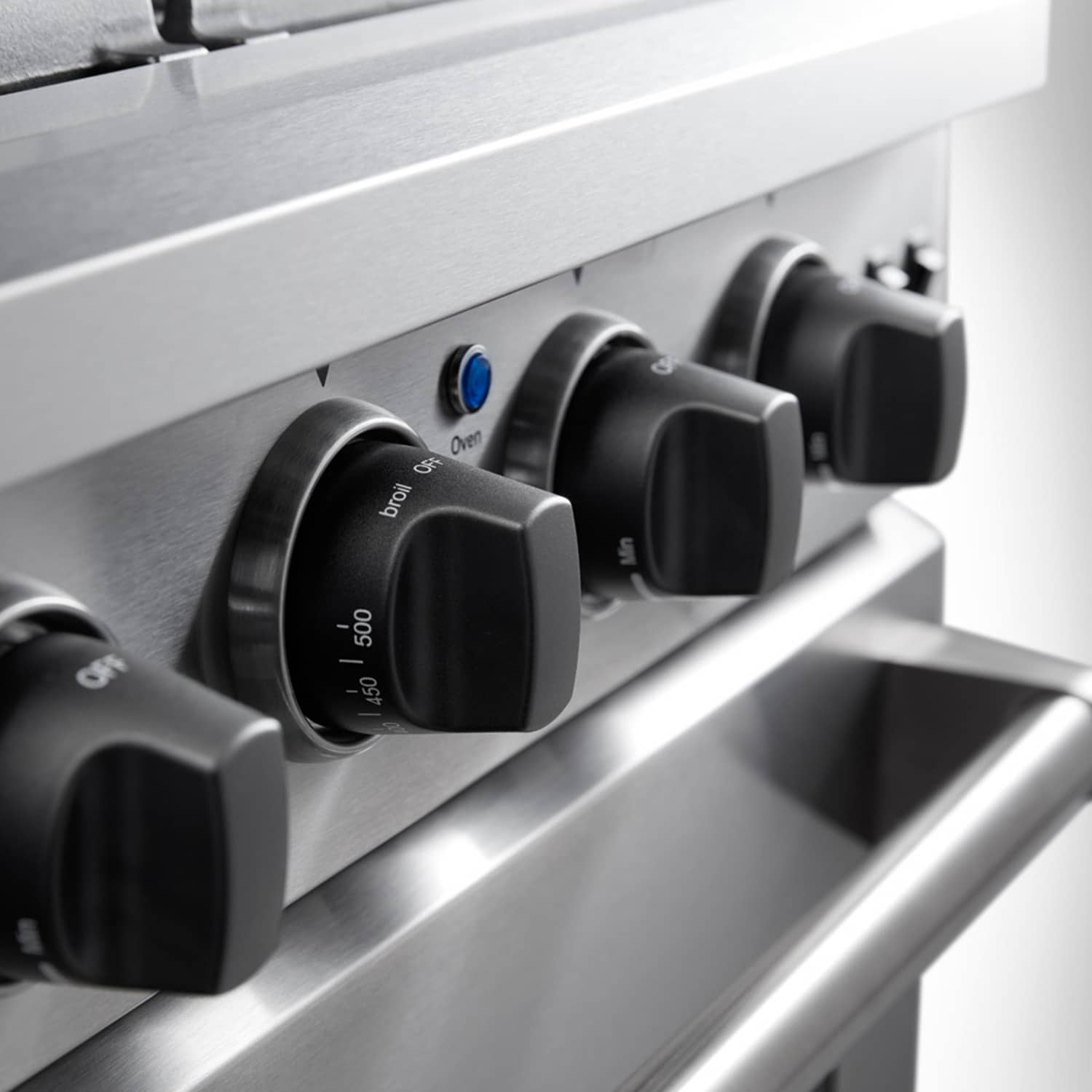

- Controls Type
- Knob
- Oven Interior
- Gray Porcelain
- Spill Tray
- Single-Piece Black Porcelain
TECHNICAL DETAILS
- Fuel Type
- Natural Gas / LP Convertible
- Electrical Requirements
- 120 V
- Circuit Breaker
- 15 A
- Frequency
- 60 Hz

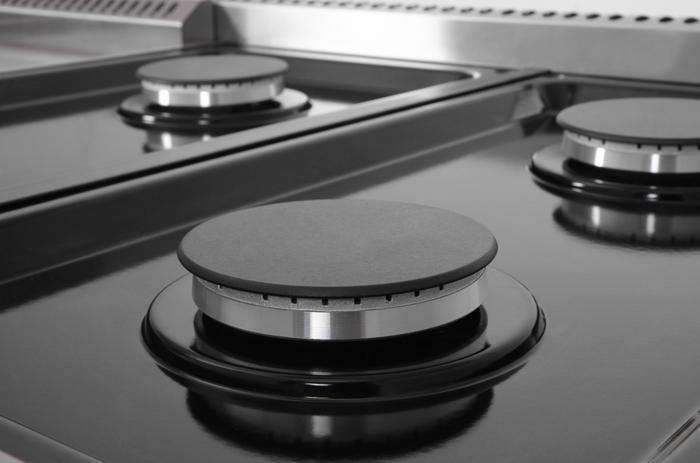

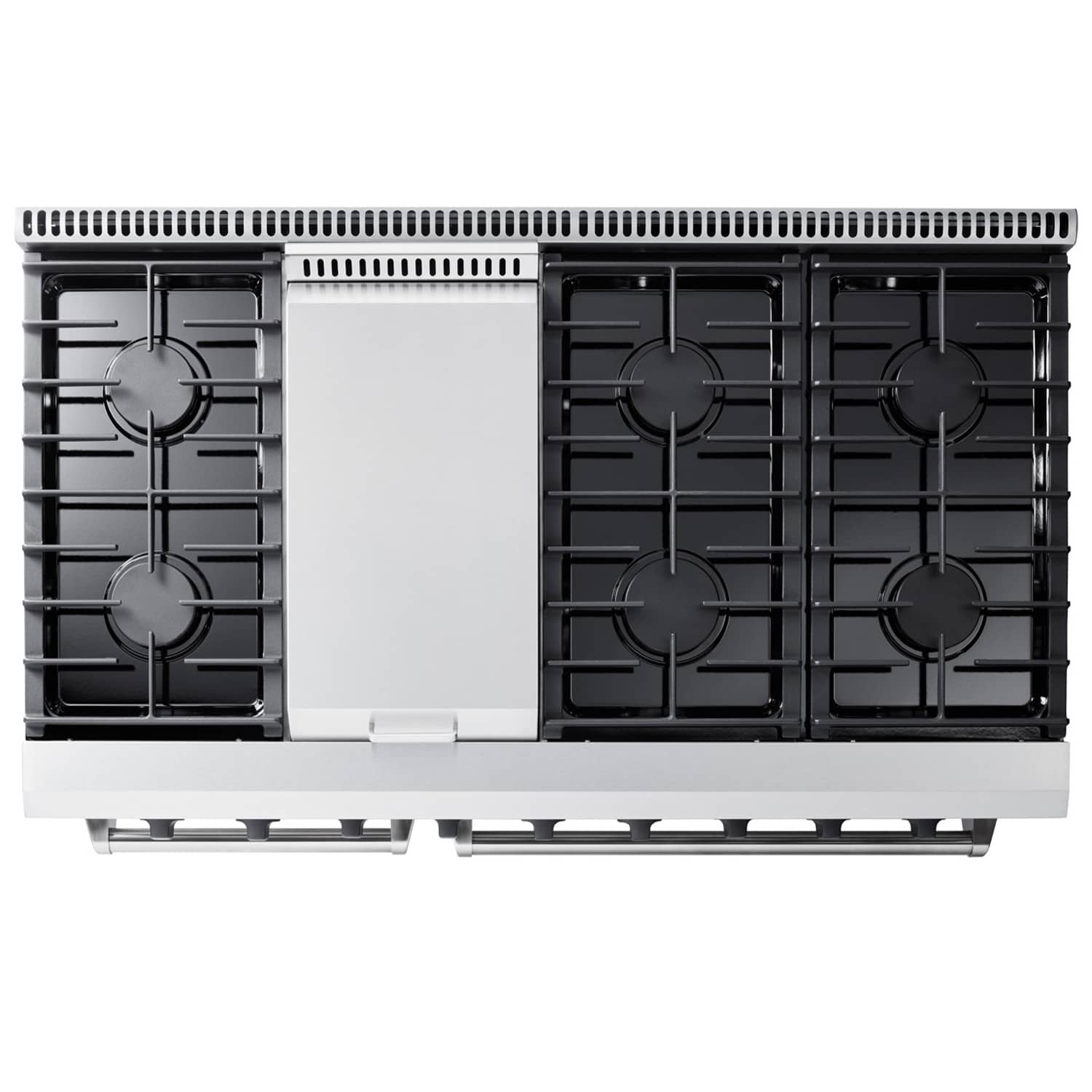

COOKTOP FEATURES
- Total Burners
- 6 + Griddle
- Front Left (Single)
- 12,000 BTU
- Front Middle (Single)
- 18,000 BTU
- Front Right (Single)
- 12,000 BTU
- Rear Left (Single)
- 12,000 BTU
- Rear Middle (Single)
- 12,000 BTU
- Rear Right (Single)
- 12,000 BTU

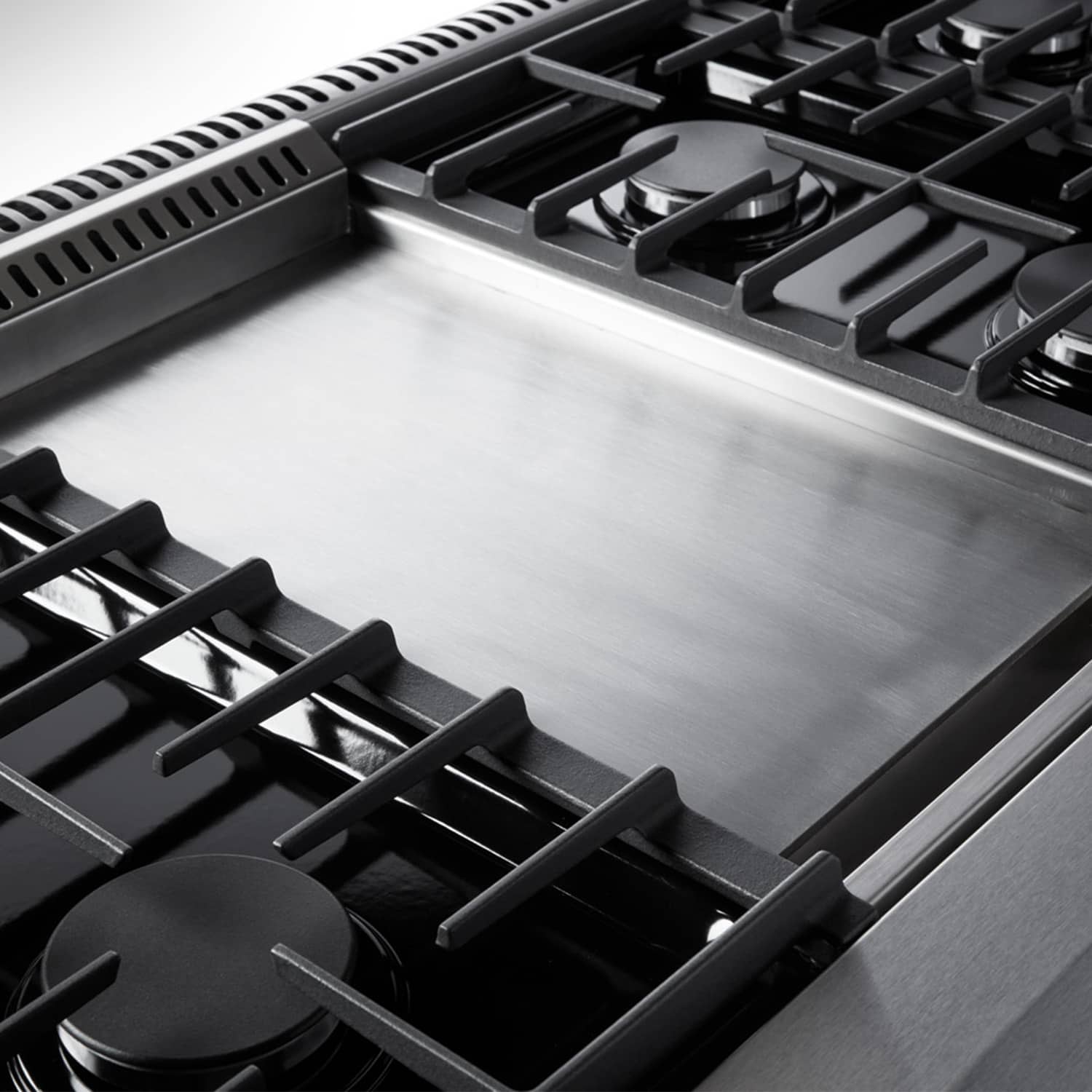

- Griddle Burner
- 15,000 BTU

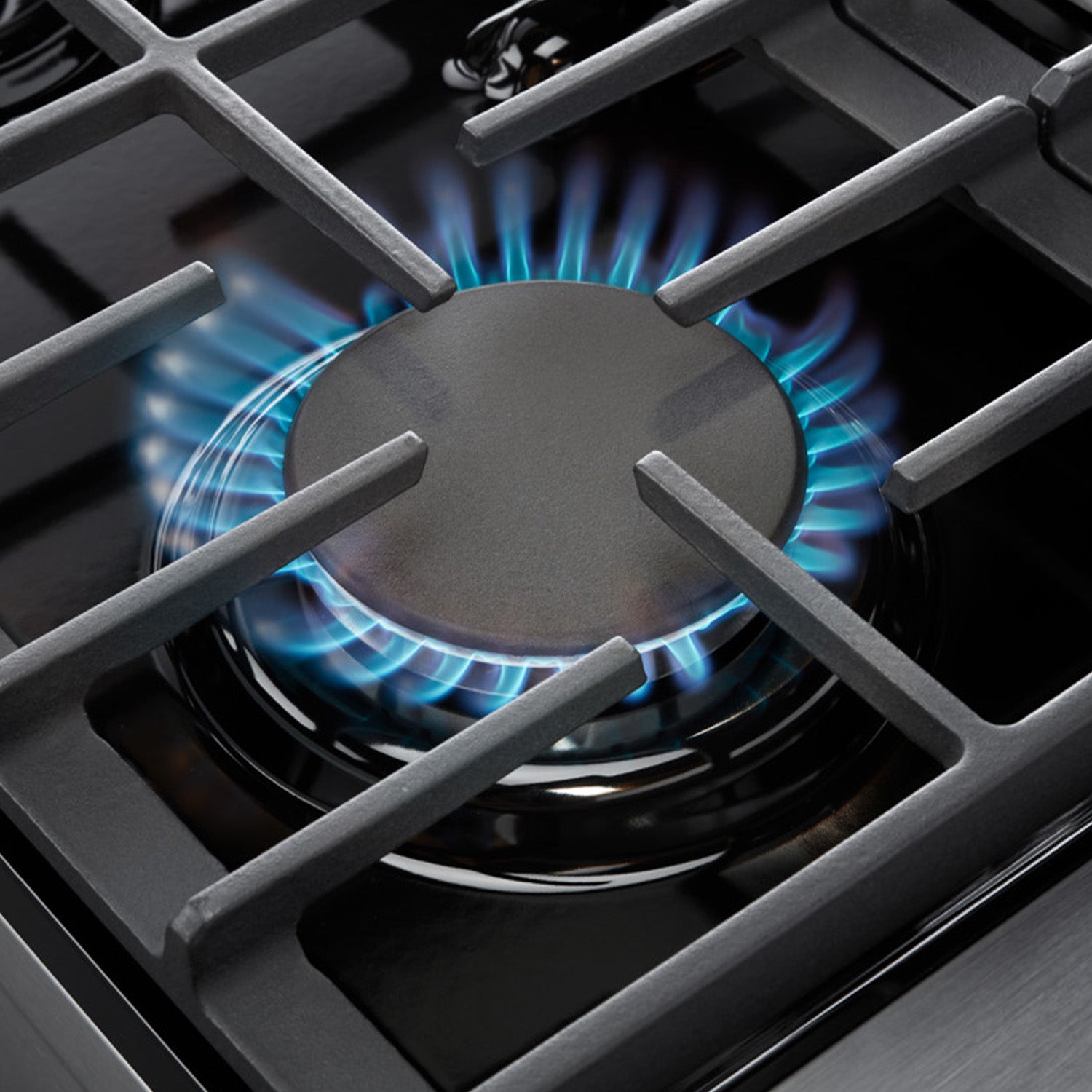

- Grates
- Continuous Cast-Iron

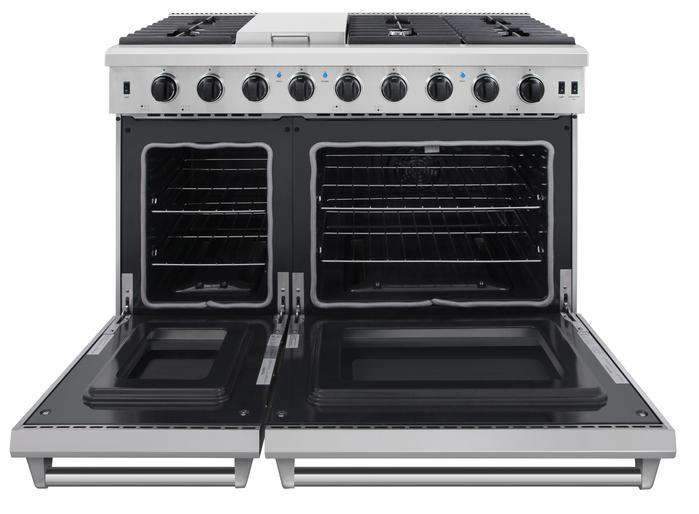

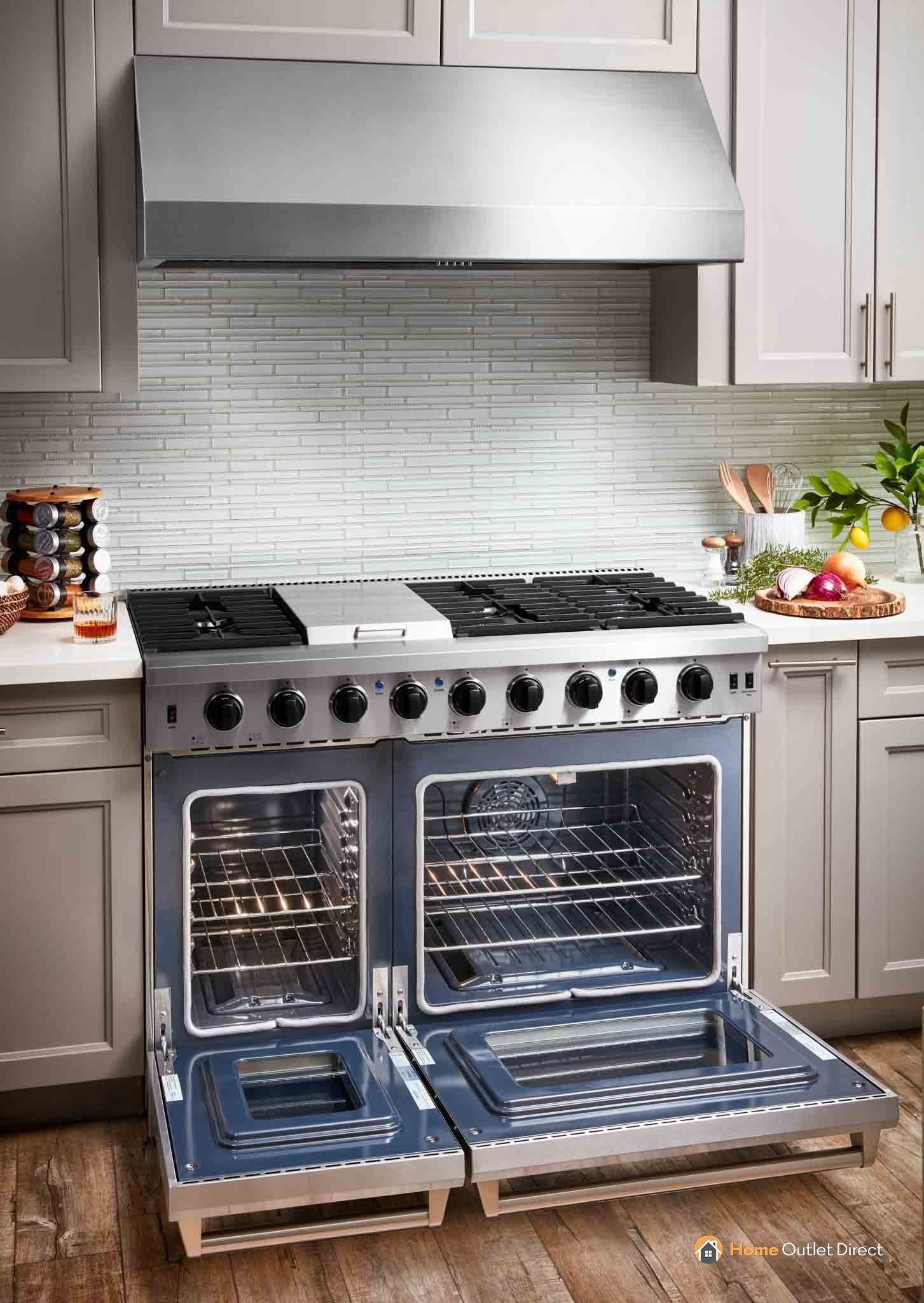

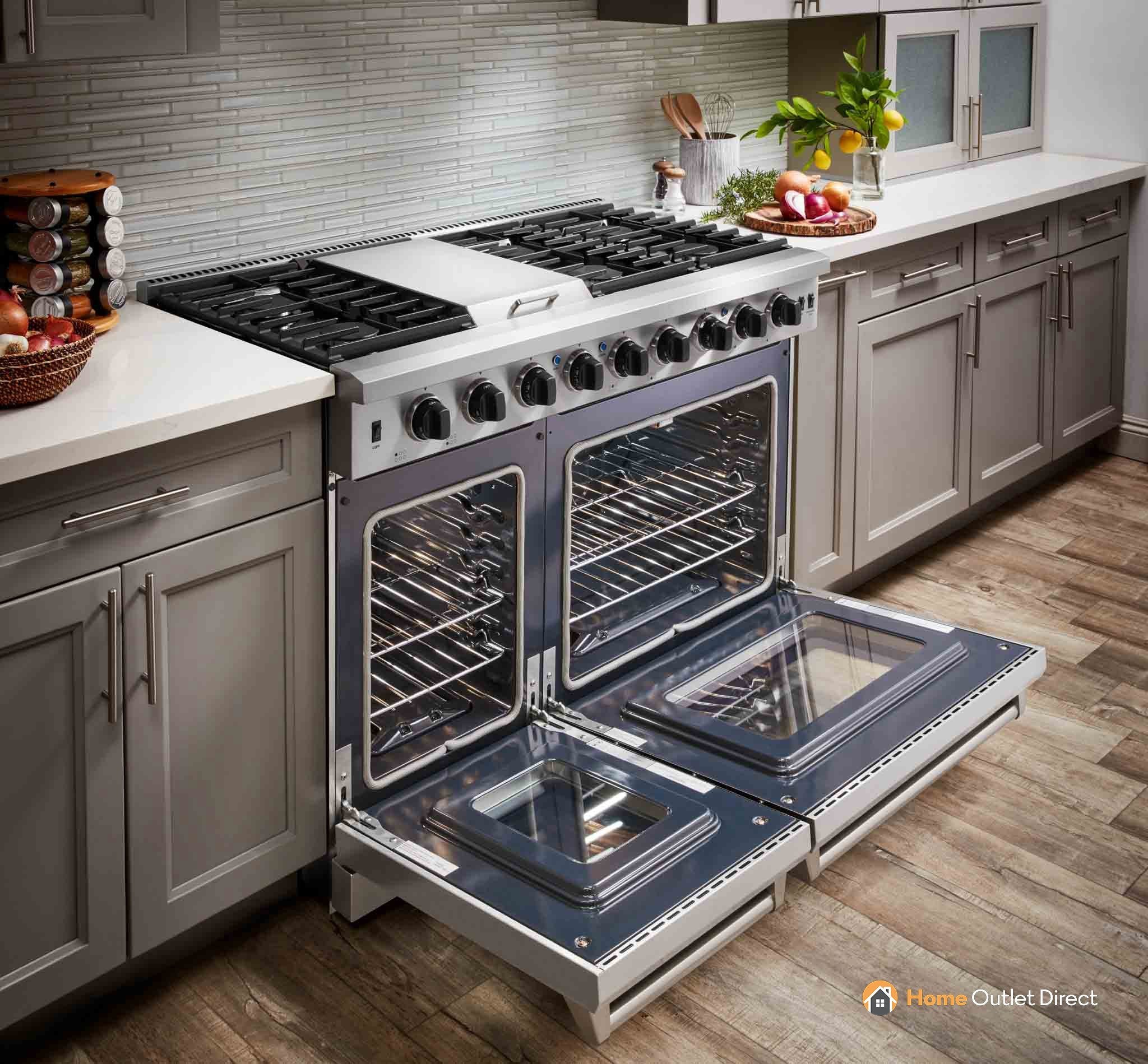

OVEN FEATURES
- Oven Capacity

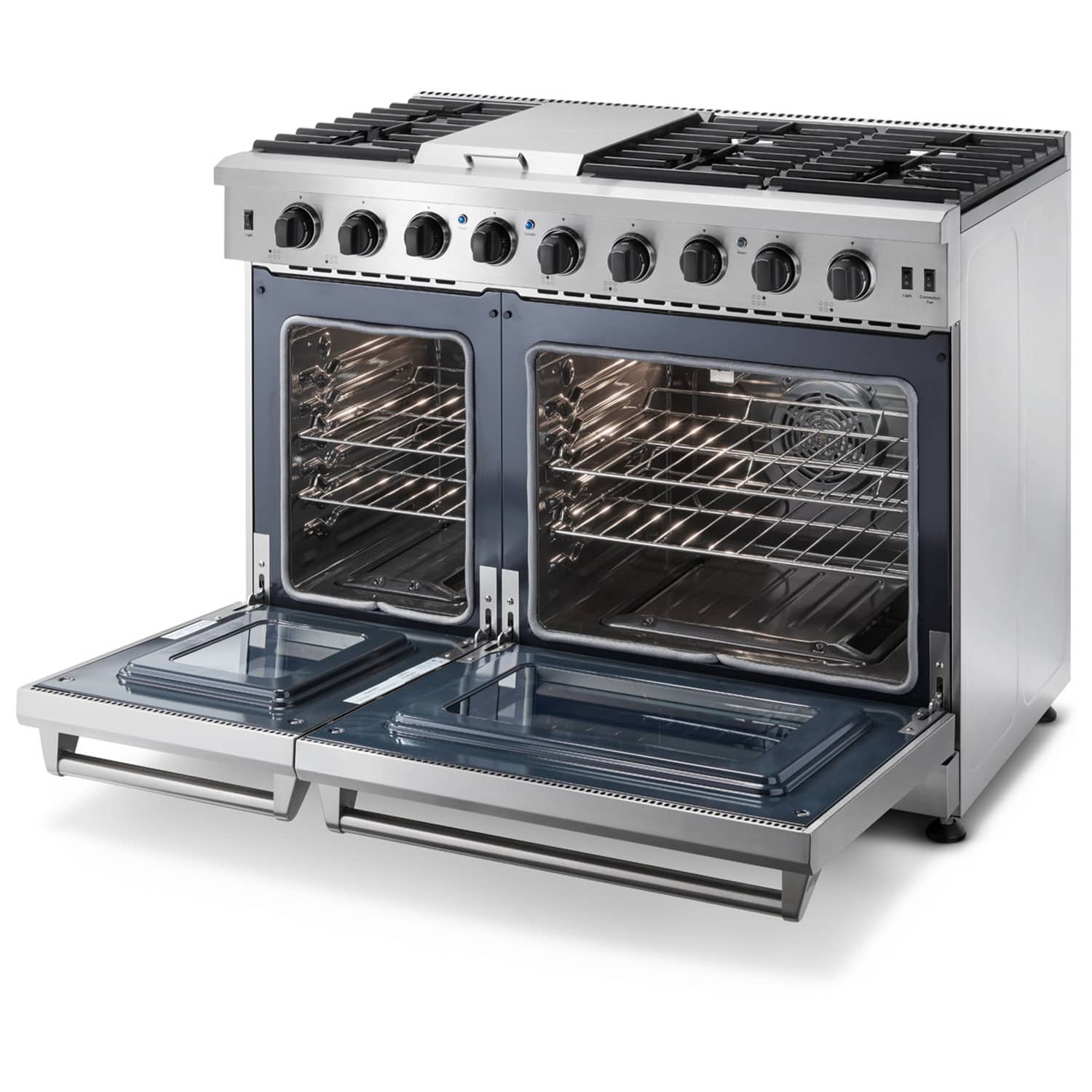

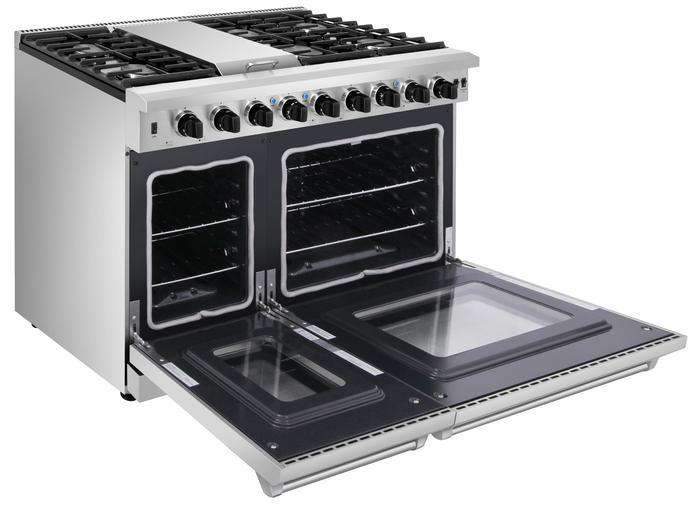

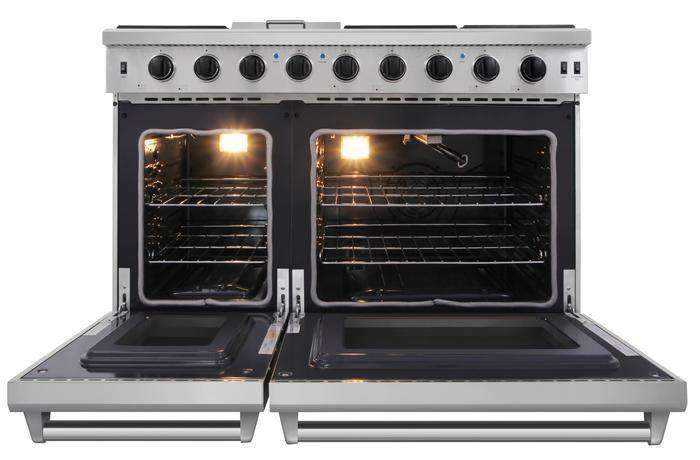

- 4.6 cu. ft. (30" Oven) + 2.2 cu. ft. (18" Oven)
- Convection
- Commercial Convection Fan
- Tube Broil Burner
- 10,000 BTU
- U-Shape Burner (30" Oven)
- 22,000 BTU
- Tube Burner (18" Oven)
- 14,000 BTU
ACCESSORIES (NOT INCLUDED)
- Liquid Propane Conversion Kit
- LPKLRG4807U
- Wok Ring
- WK01
- Bamboo Cutting Board
- CB0001
- Cast Iron Reversible Griddle
- RG1022
WARRANTY & CERTIFICATIONS
- Warranty
- 2 Years Parts and Labor
Authorized Thor Kitchen Dealer
Full manufacturer warranty on every Thor Kitchen product we sell.
