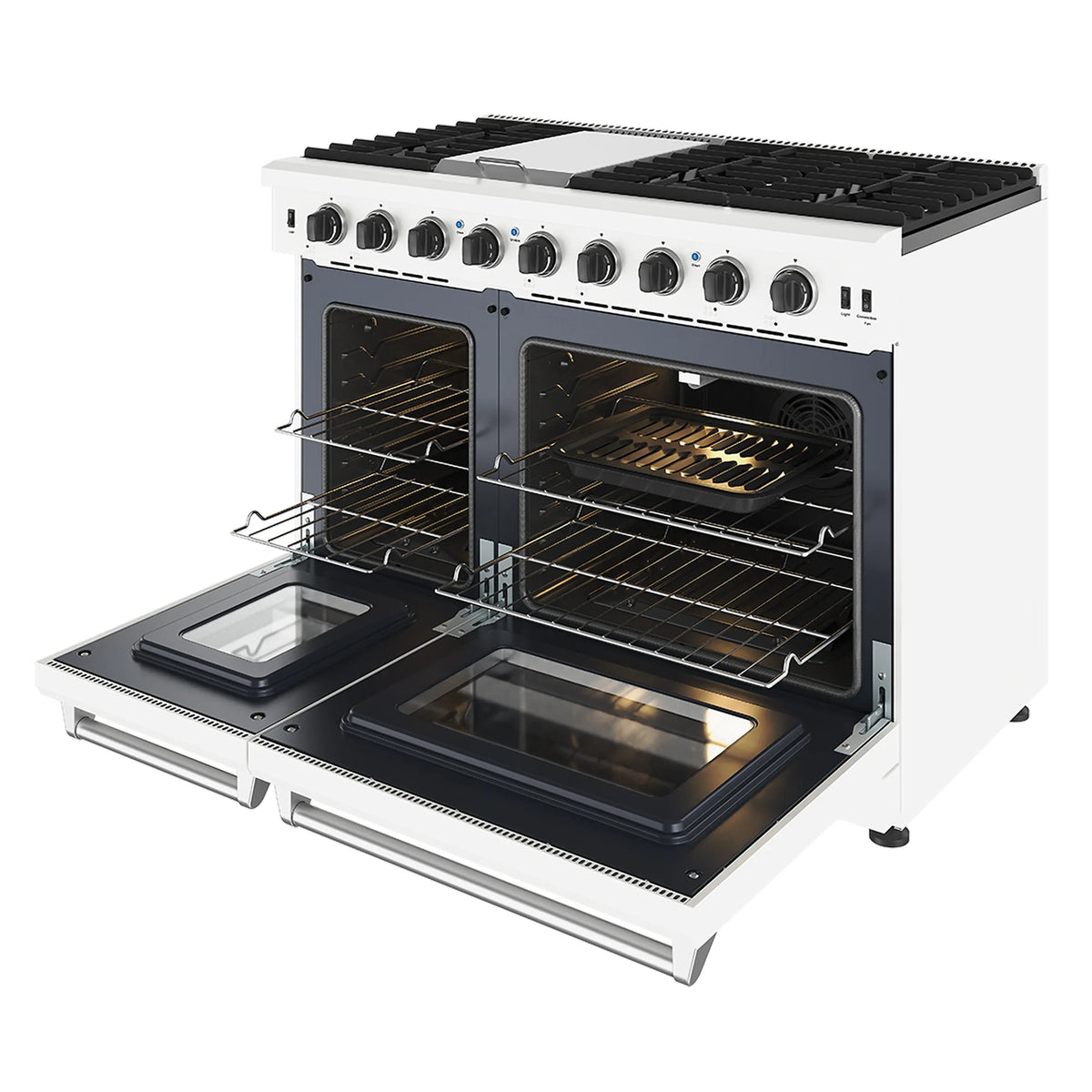

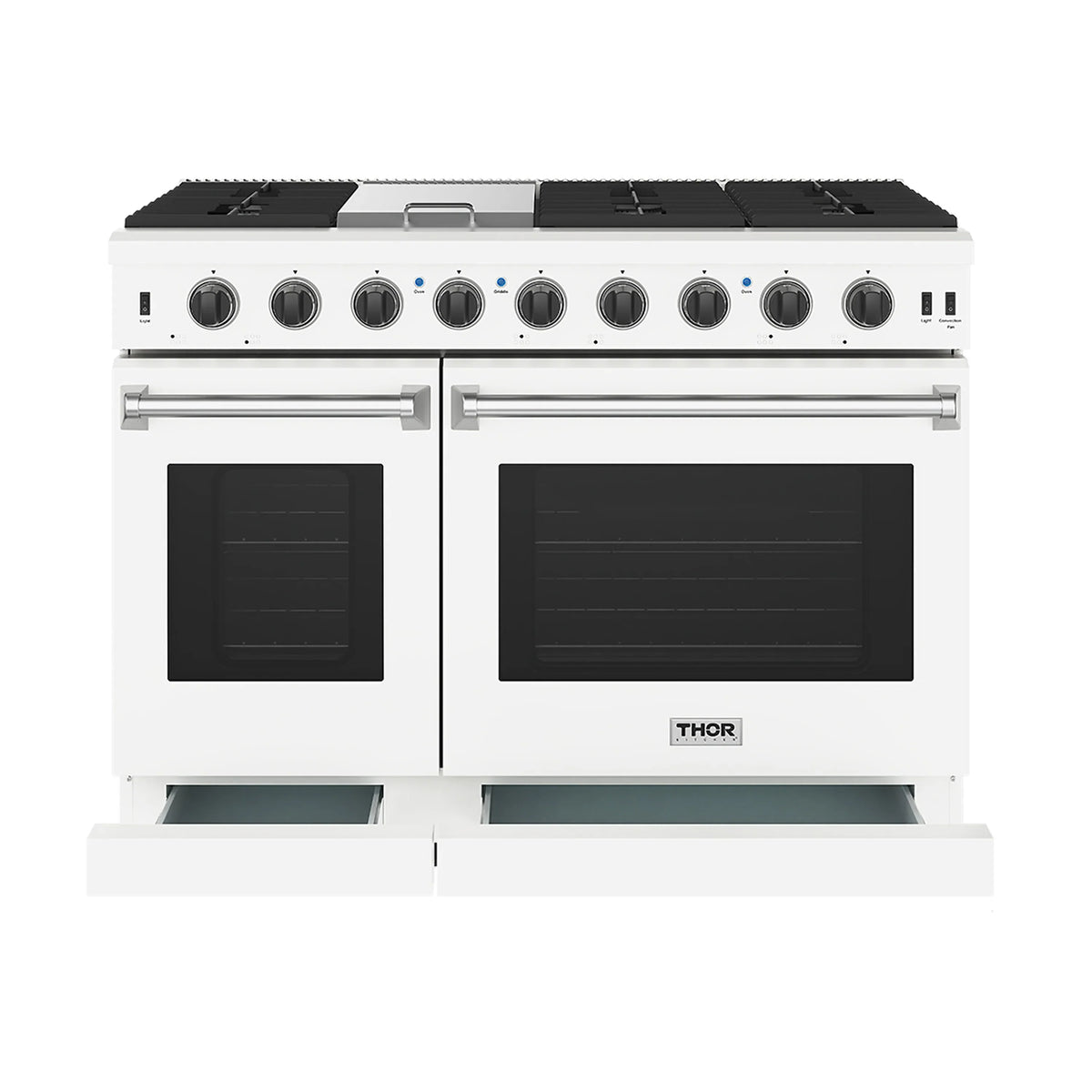

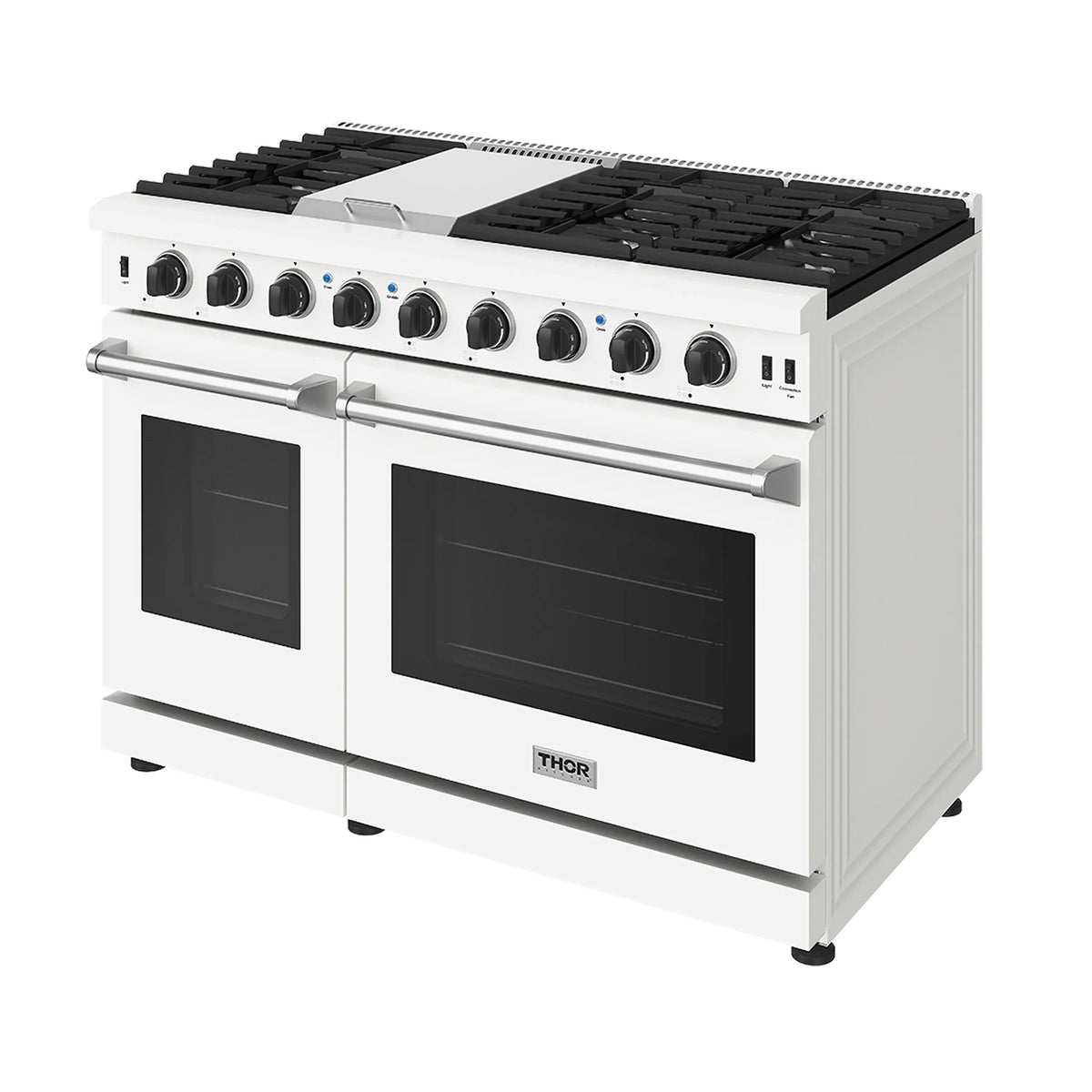

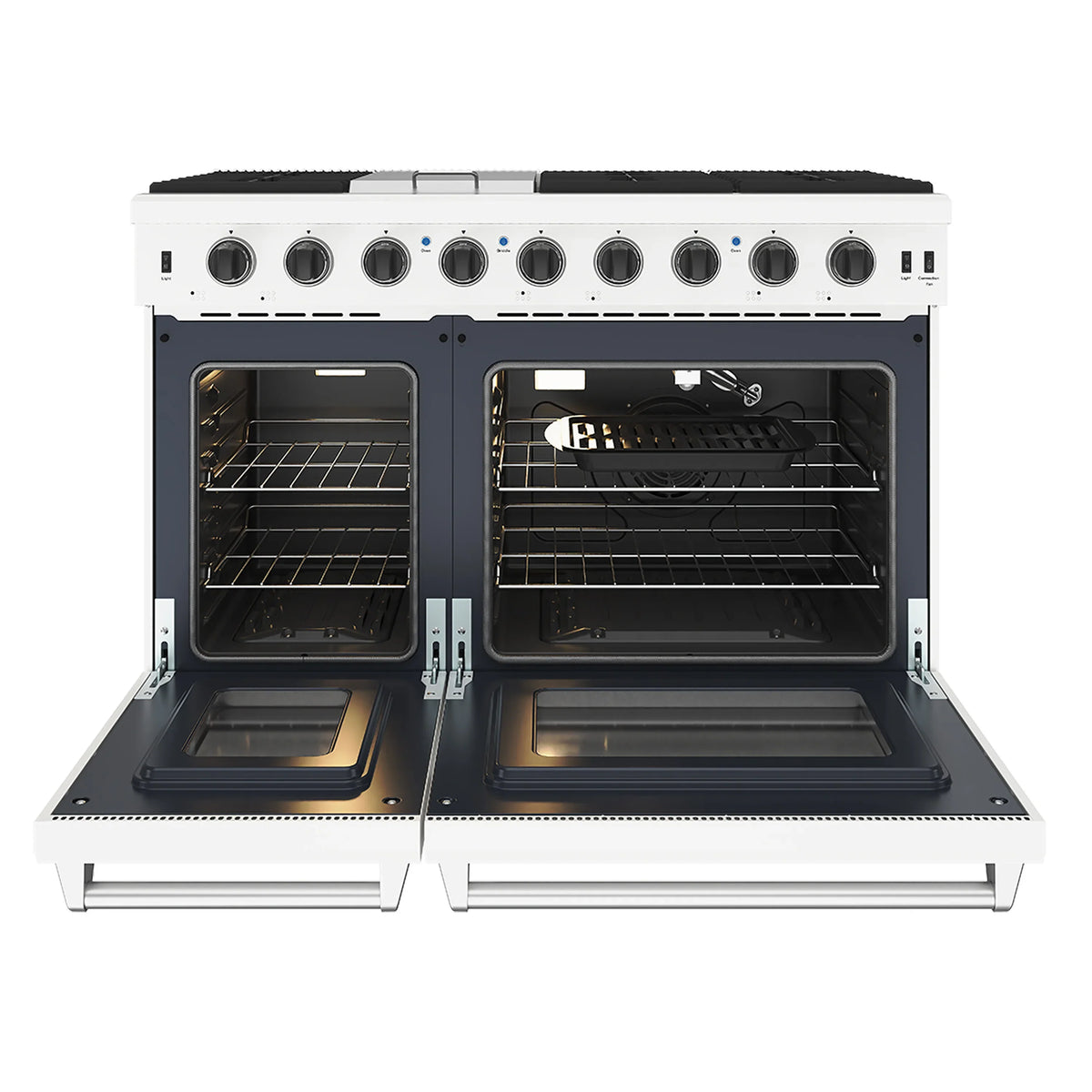

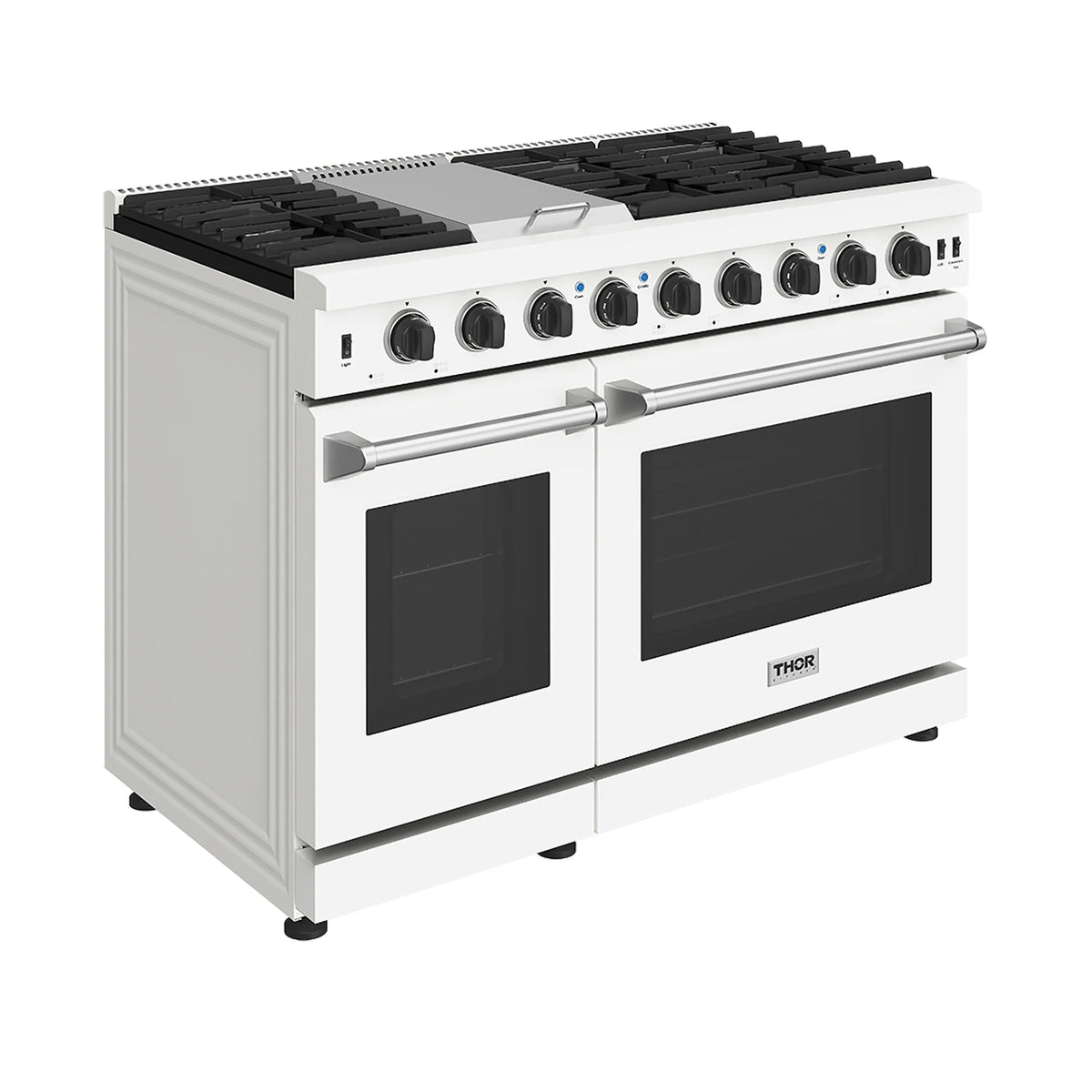

| Dimensions & Weight | |
|---|---|
| Product Dimensions (W × D × H) | 47-7/8" × 27-1/2" × 36-1/8" |
| Cutout Dimensions (W × D × H) | 48-1/8" x 25" x 34-7/8" (+1") |
| Product Height (to top of back splash) | 36-1/8" - 37-1/8" |
| Product Height (to top of side panel) | 35-9/16" |
| Product Depth (back panel to bullnose) | 27-1/2" |
| Product Depth (back panel to control panel) | 26-3/8" |
| Product Depth (back panel to side panel front) | 24" |
| Adjustable Leg Size | Not to Exceed 1" |
| Net Weight | 323 lbs |
| Gross Weight | 376 lbs |
| Package Dimensions (W × D × H) | 30" x 51-3/8" x 45-1/4" |
| Package Weight | 376 lbs |

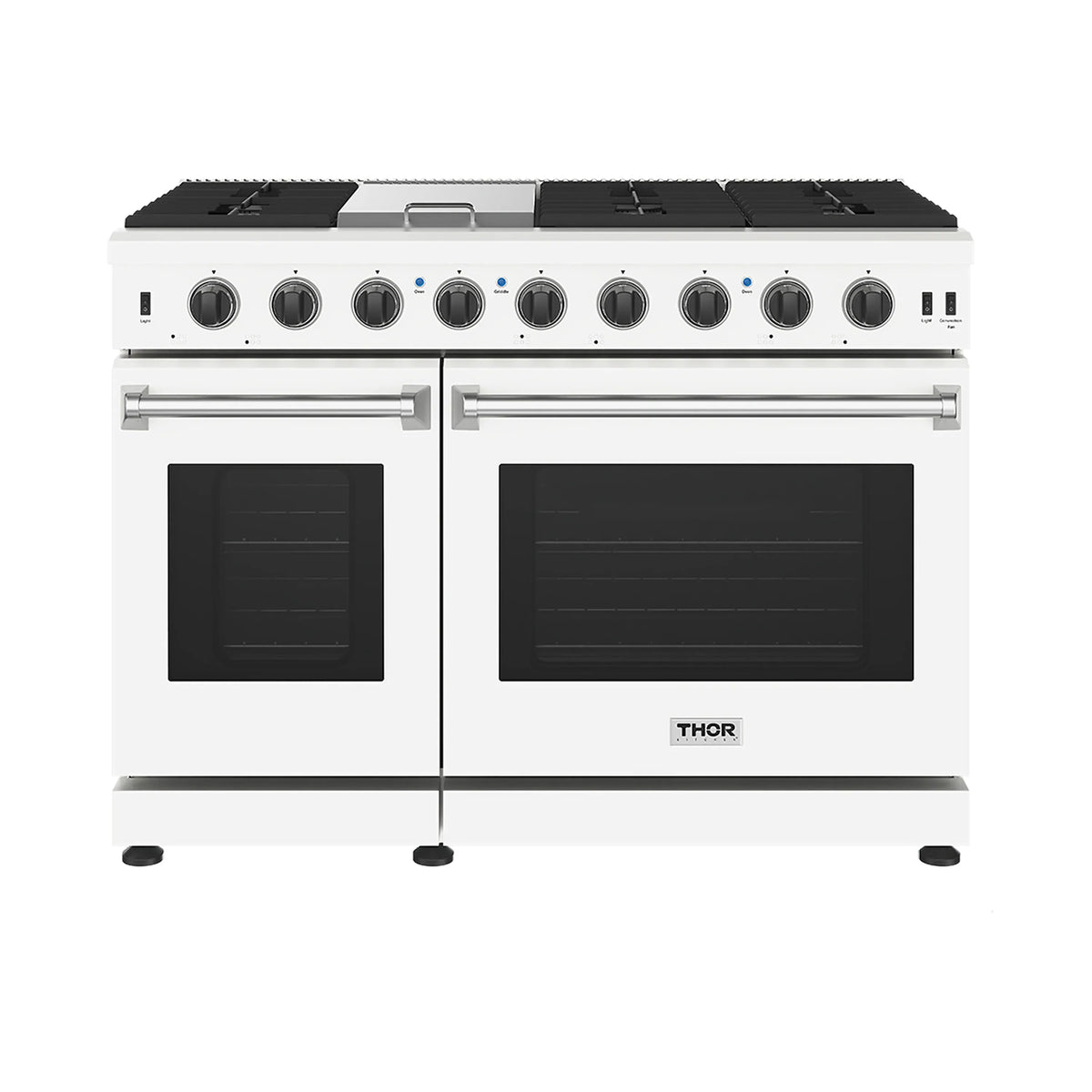

| General Information | |
| Brand | Thor Kitchen |
| Product Family | 48-Inch Gas Range |
| Product Class | Freestanding Gas Range |
| Color | White |
| Finish | White |
| Installation Type | Freestanding |
| Fuel Type | Liquid Propane (LP) |

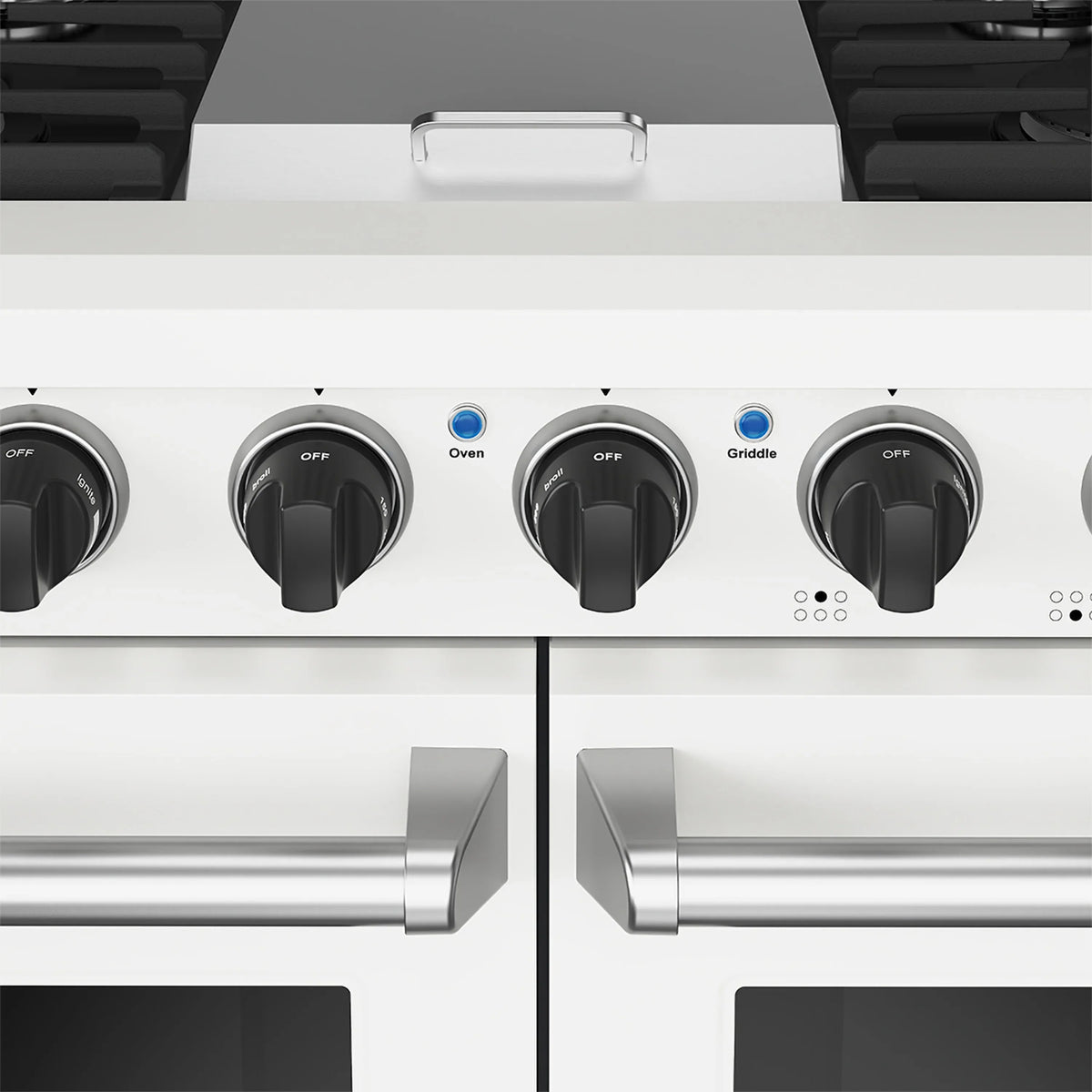

| Control Type | Knob Control |

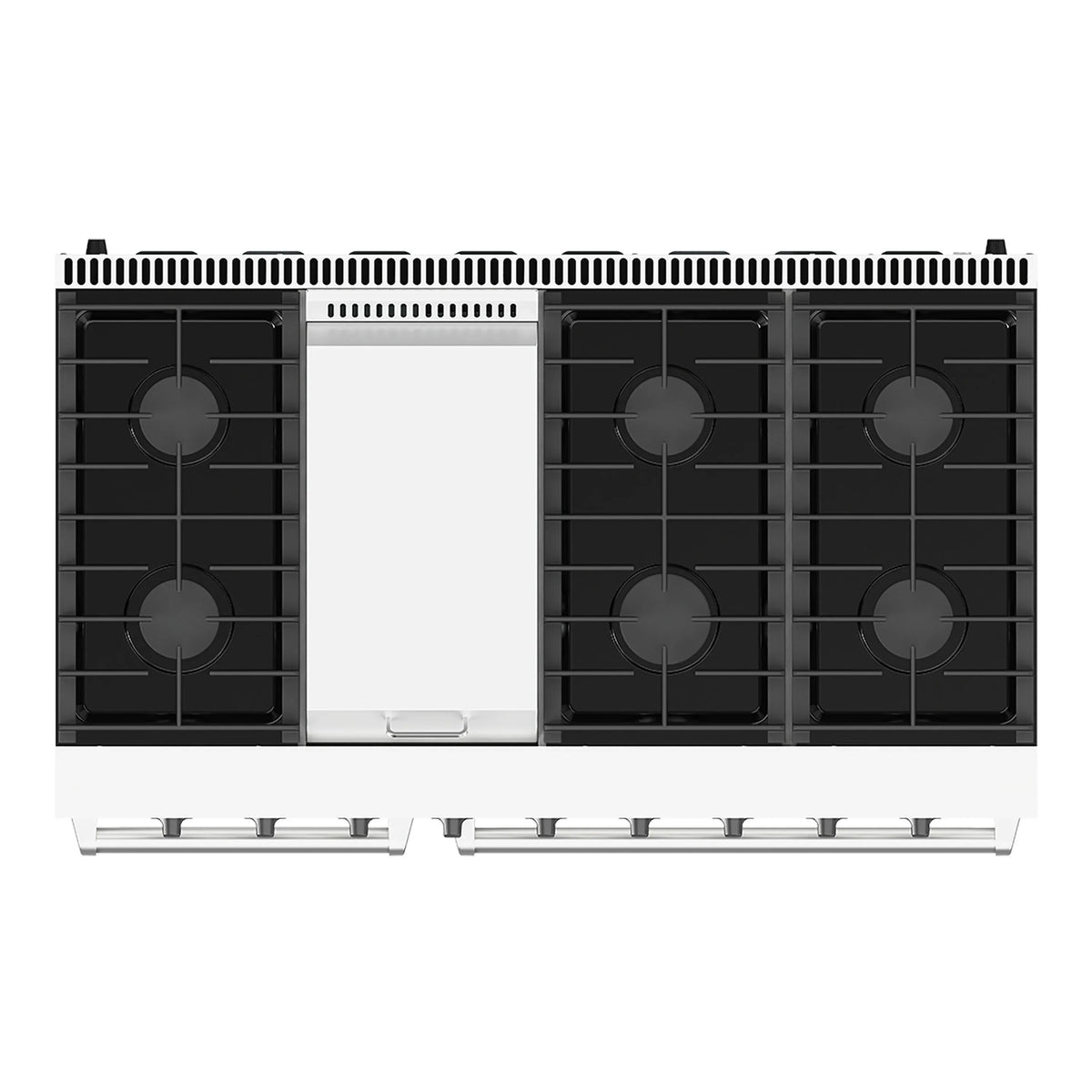

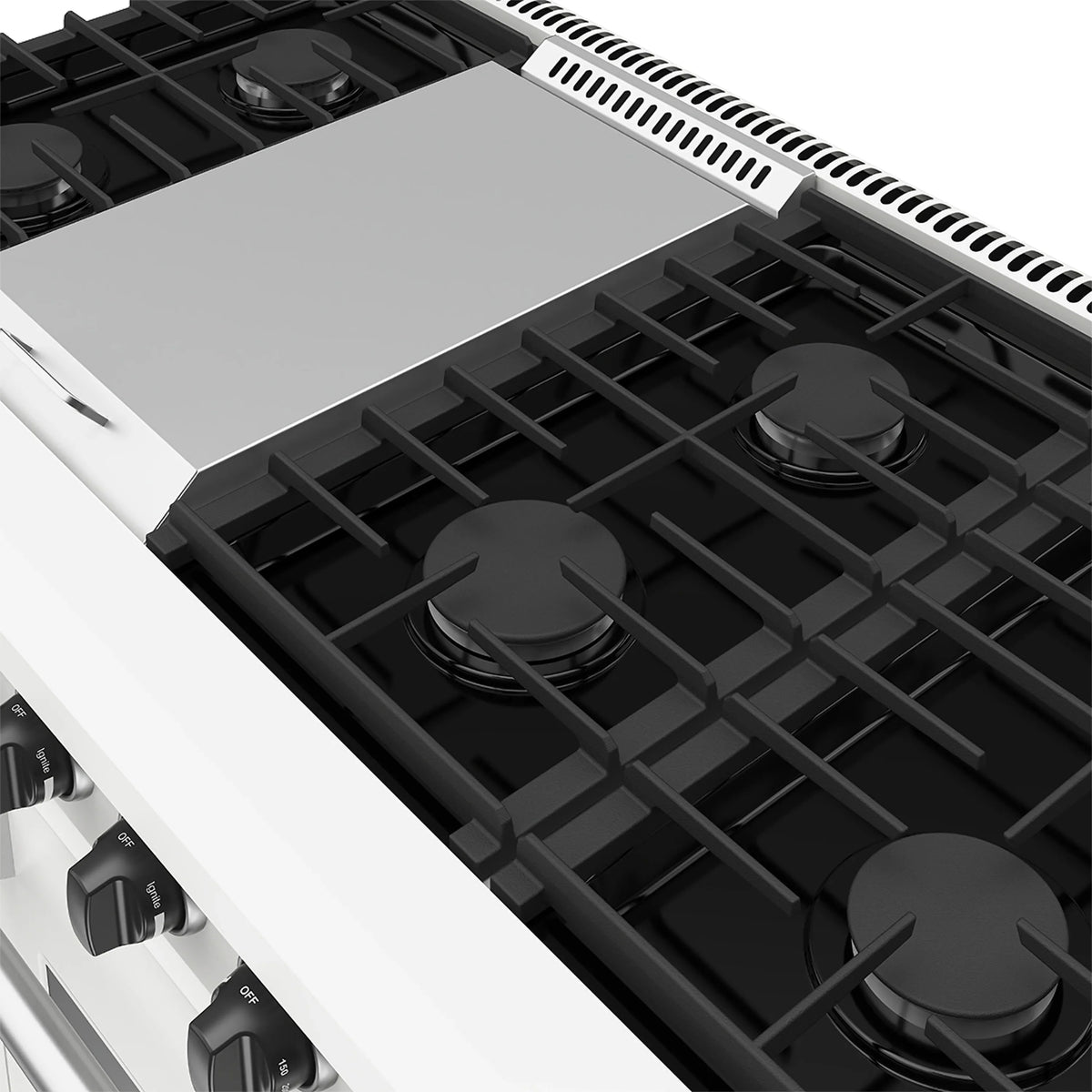

| Cooktop Performance | |
| Total Burners | 7 |
| Burner 1 | 12,000 BTU (Front Left) |
| Burner 2 | 18,000 BTU (Front Middle) |
| Burner 3 | 12,000 BTU (Rear Middle) |
| Burner 4 | 12,000 BTU (Front Right) |
| Burner 5 | 12,000 BTU (Rear Left) |
| Burner 6 | 12,000 BTU (Rear Right) |
| Burner 7 | 15,000 BTU (Griddle) |

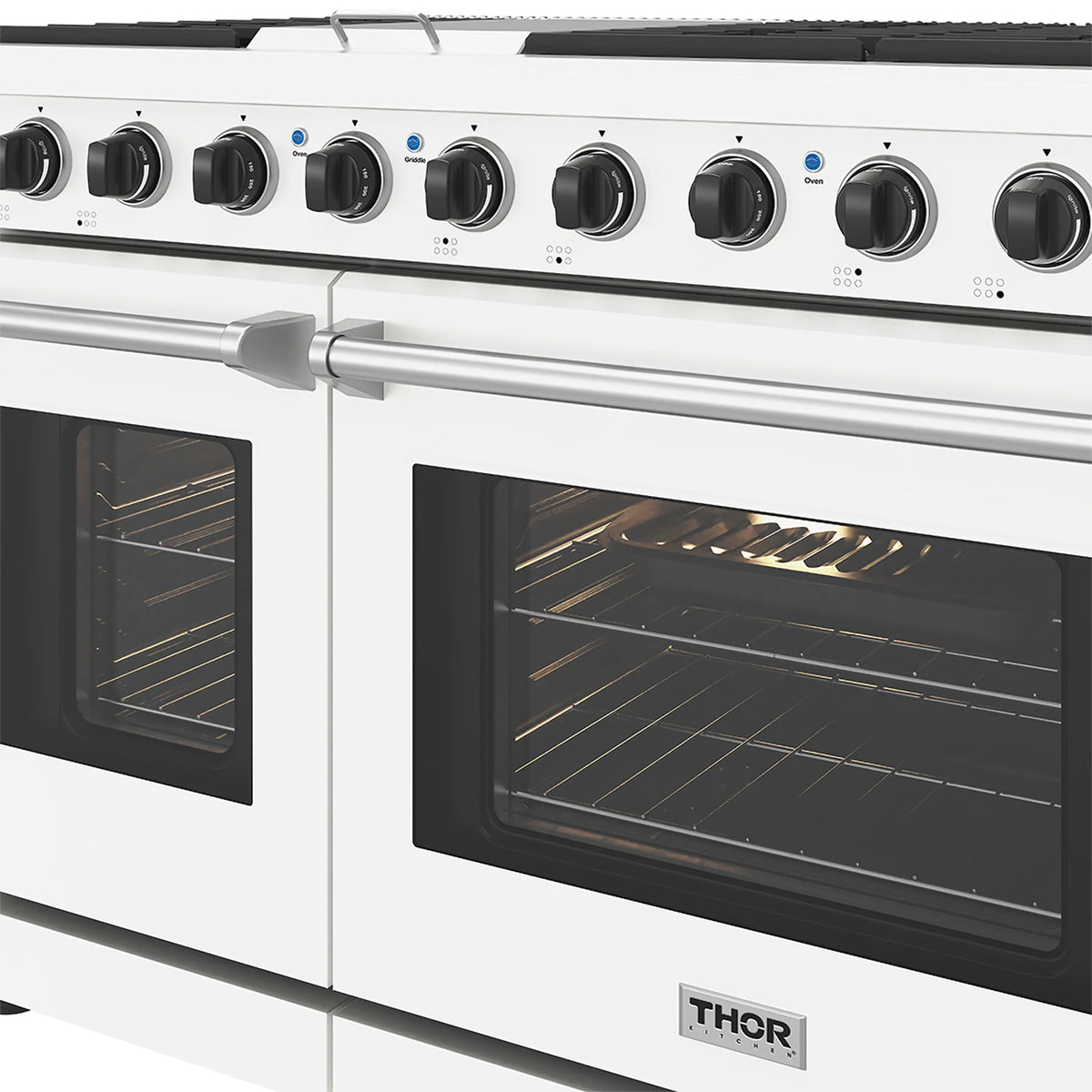

| Oven Performance | |
| Oven Capacity | 4.55 cu. ft. (30" oven) + 2.2 cu. ft. (18" oven) |
| Cooking Modes | Bake, Convection Bake, Roast, Convection Roast, Broil |
| Bake Burner Power | 22,000 BTU (U-shape, 30" oven) |
| Broil Burner Power | 10,000 BTU |
| Convection | Commercial Convection |
| Oven Lights | 1 (each oven) |
| Oven Racks | Standard Racks x2 (both ovens) |
| Oven Rack Material | Chrome Plated |
| Baking Sheet Size | 30" oven: Fits 23" x 16" | 18" oven: Fits 16" x 12-1/2" |
| Self Clean | No |
| Air Fry | No |
| Electrical Requirements | |
| Voltage | 120 V |
| Amperage | 12.5A |
| Frequency | 60 Hz |
| Plug Type | US 3-prong |
| Power Cord Length | 59" |
| Accessories Included | |
| Racks | 2 Standard Racks |
| Broiler Pan Set | 1 (30" oven only) |
| Warranty | |
| Manufacturer Warranty | 2 Years Parts and Labor |

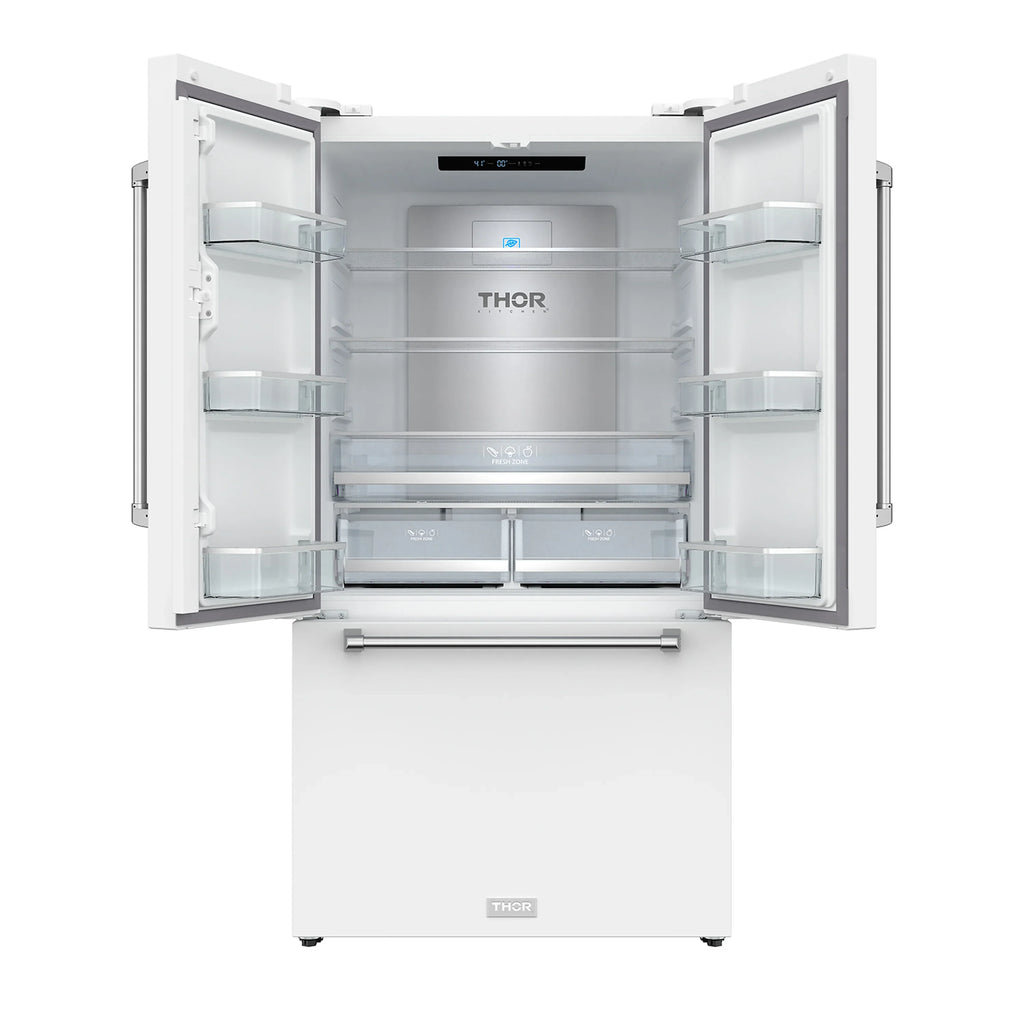

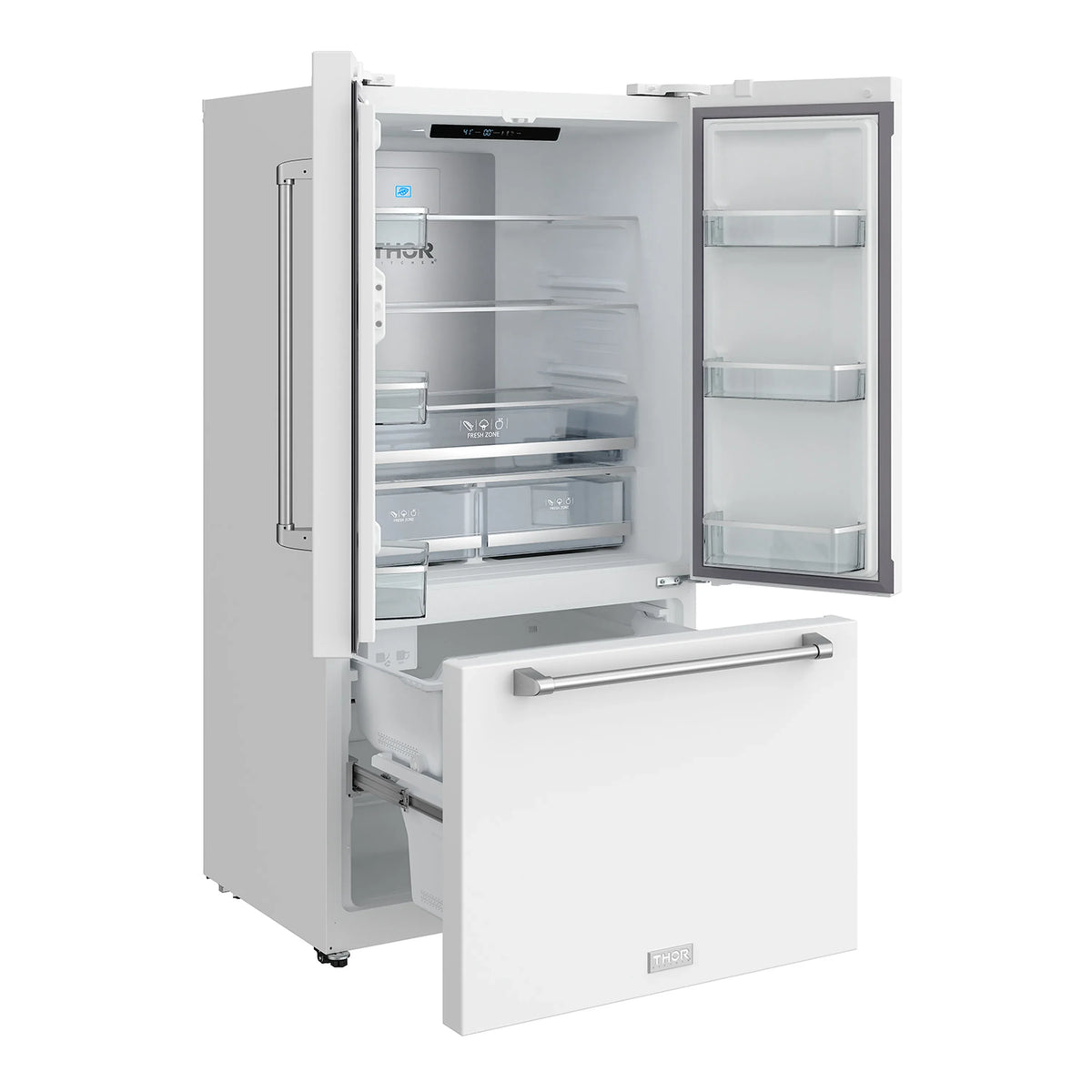

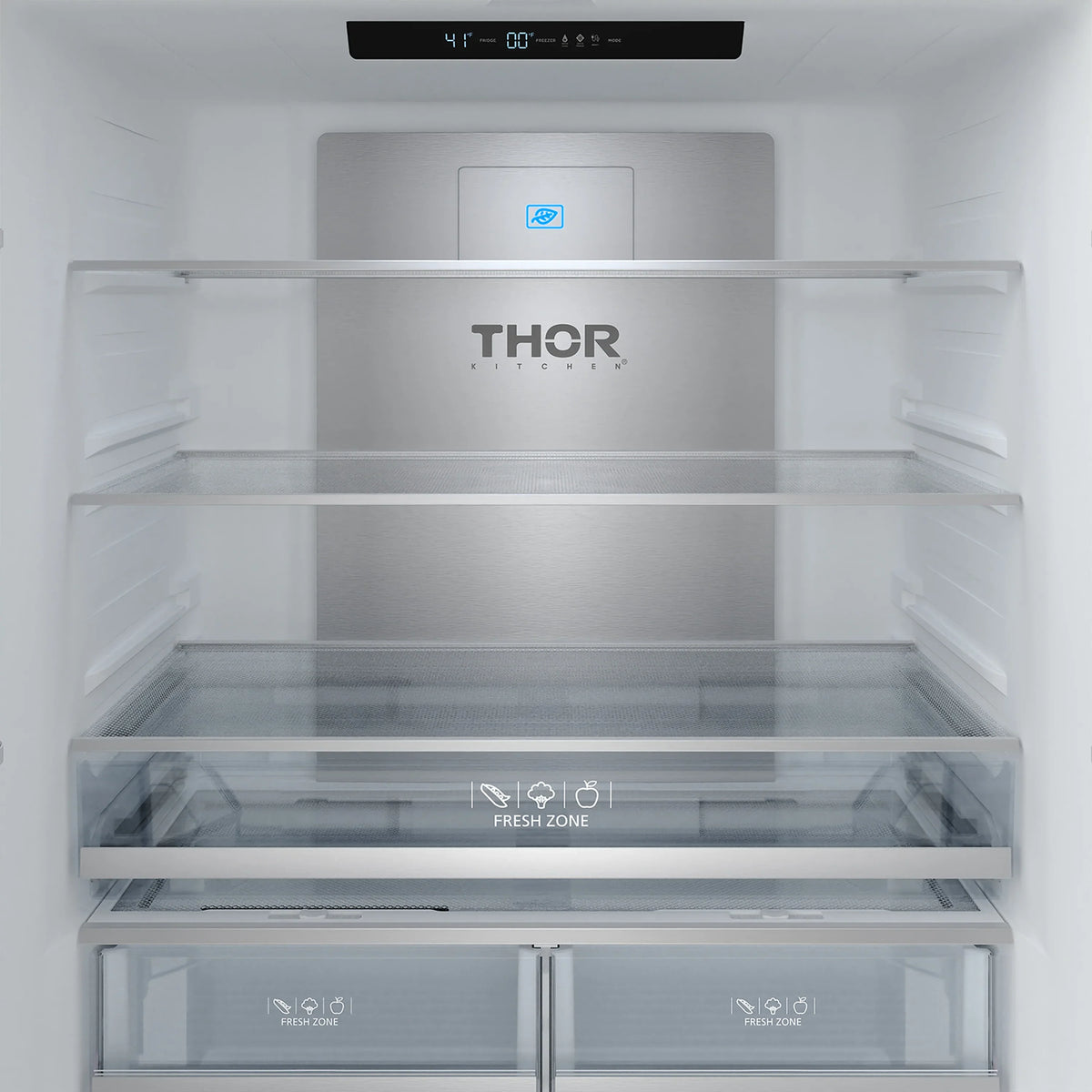

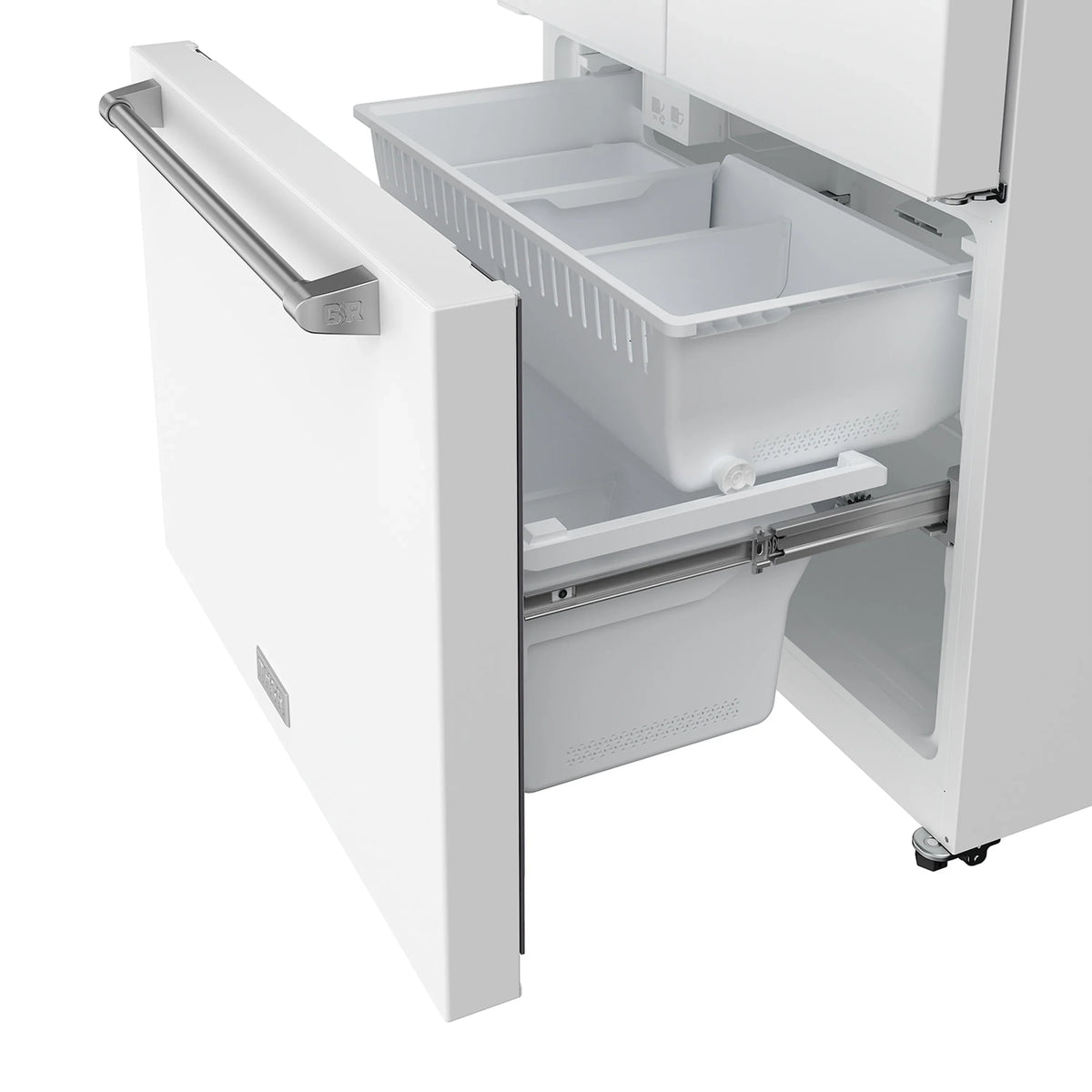

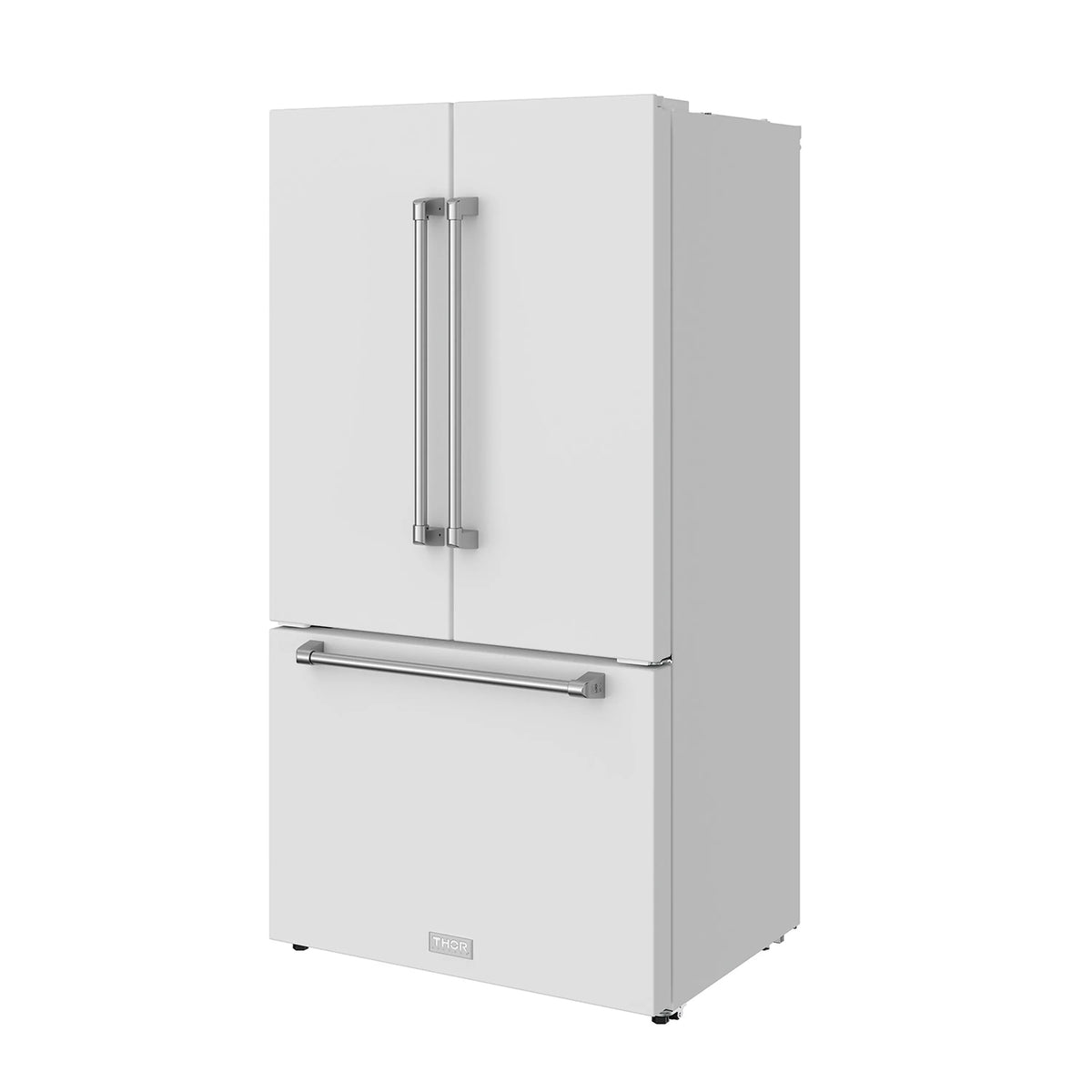

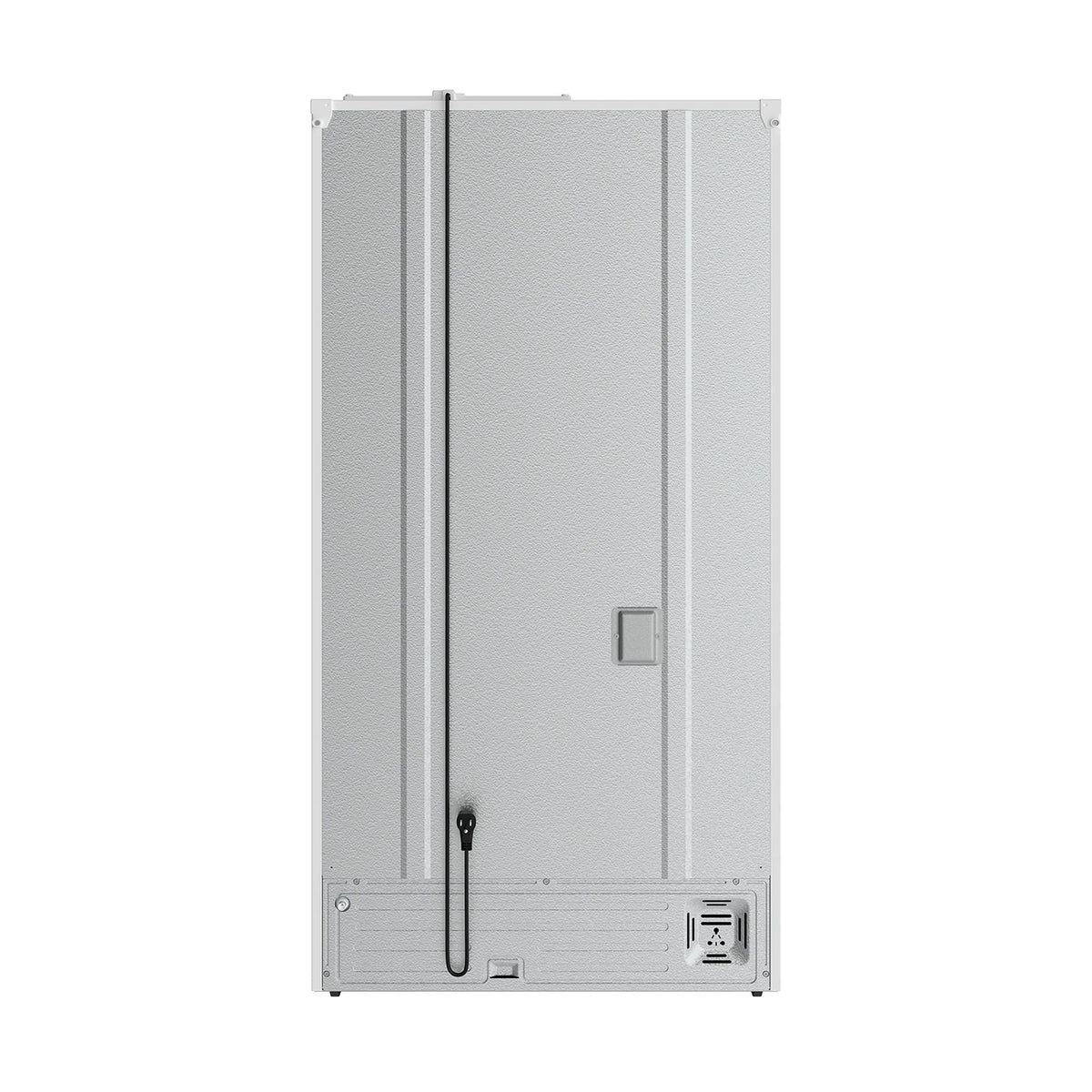

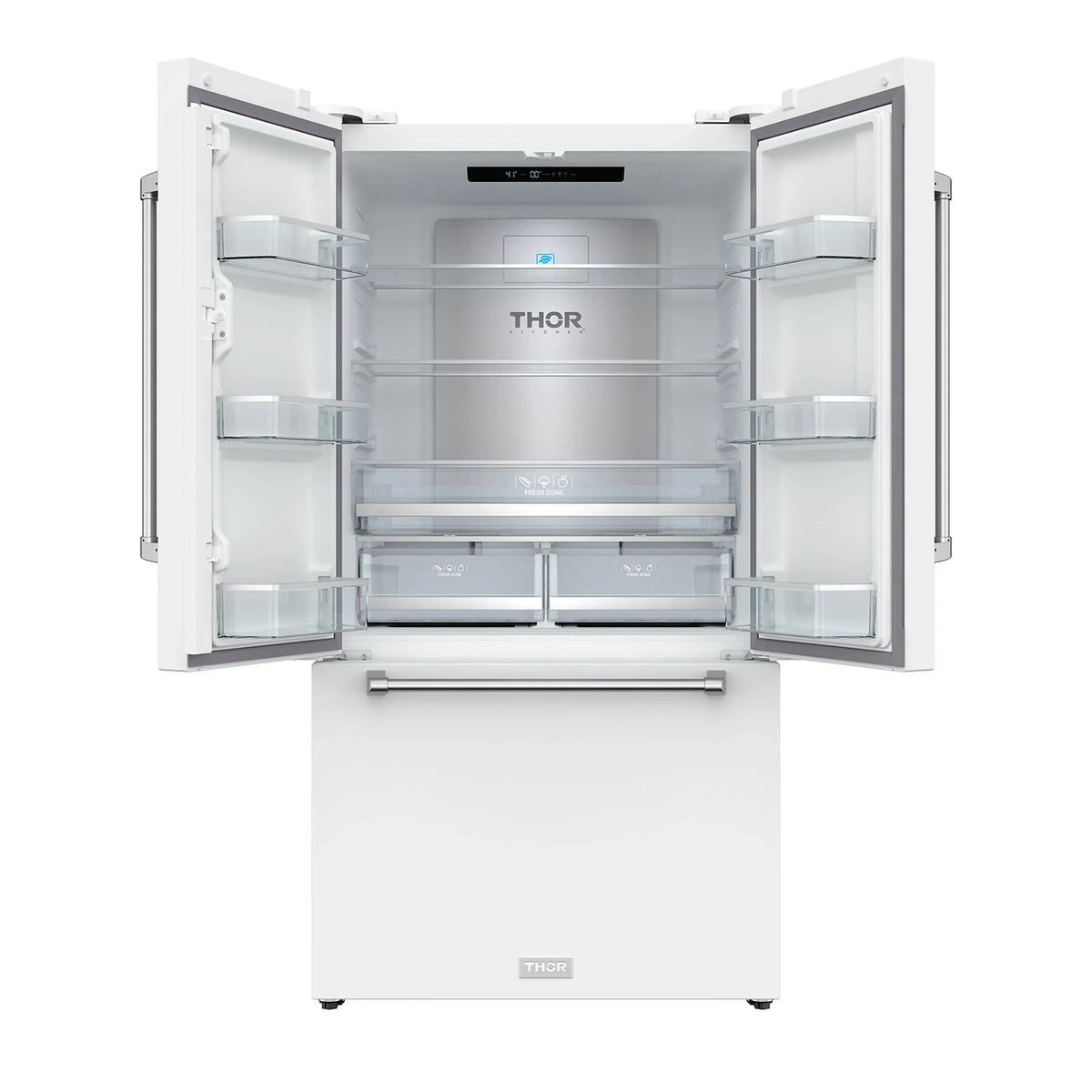

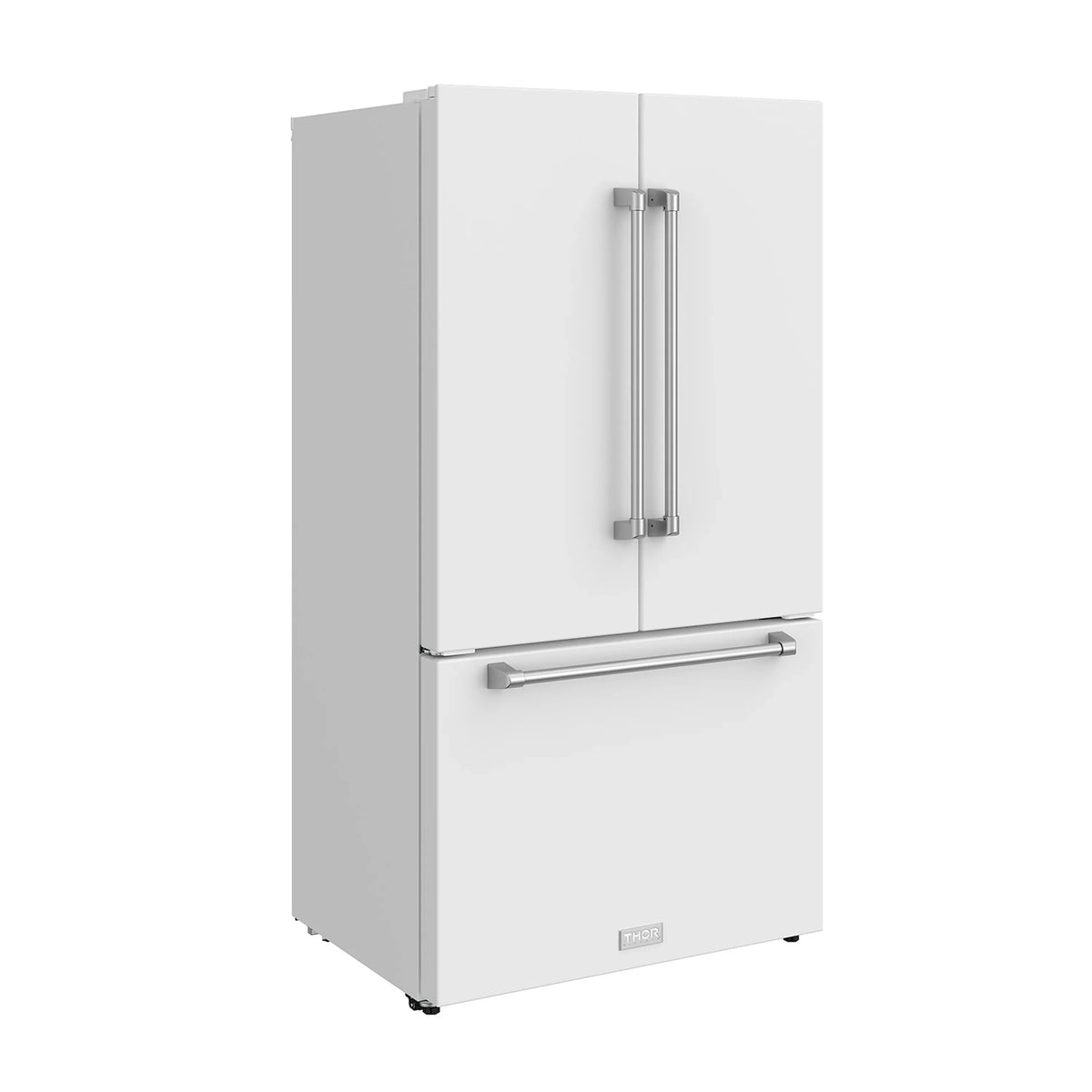

The THOR x Gordon Ramsay Collection 36” French Door Counter Depth Refrigerator with Ice Maker is where innovation meets culinary excellence. With 20.3 cu. ft. of thoughtfully designed space, full-width adjustable shelves give you the flexibility to store everything your kitchen demands. Fast Freezing and Fast Cooling technology locks in peak freshness and flavor from the moment food enters, while the Multi-Flow Air System ensures even air distribution across every shelf for lasting freshness.

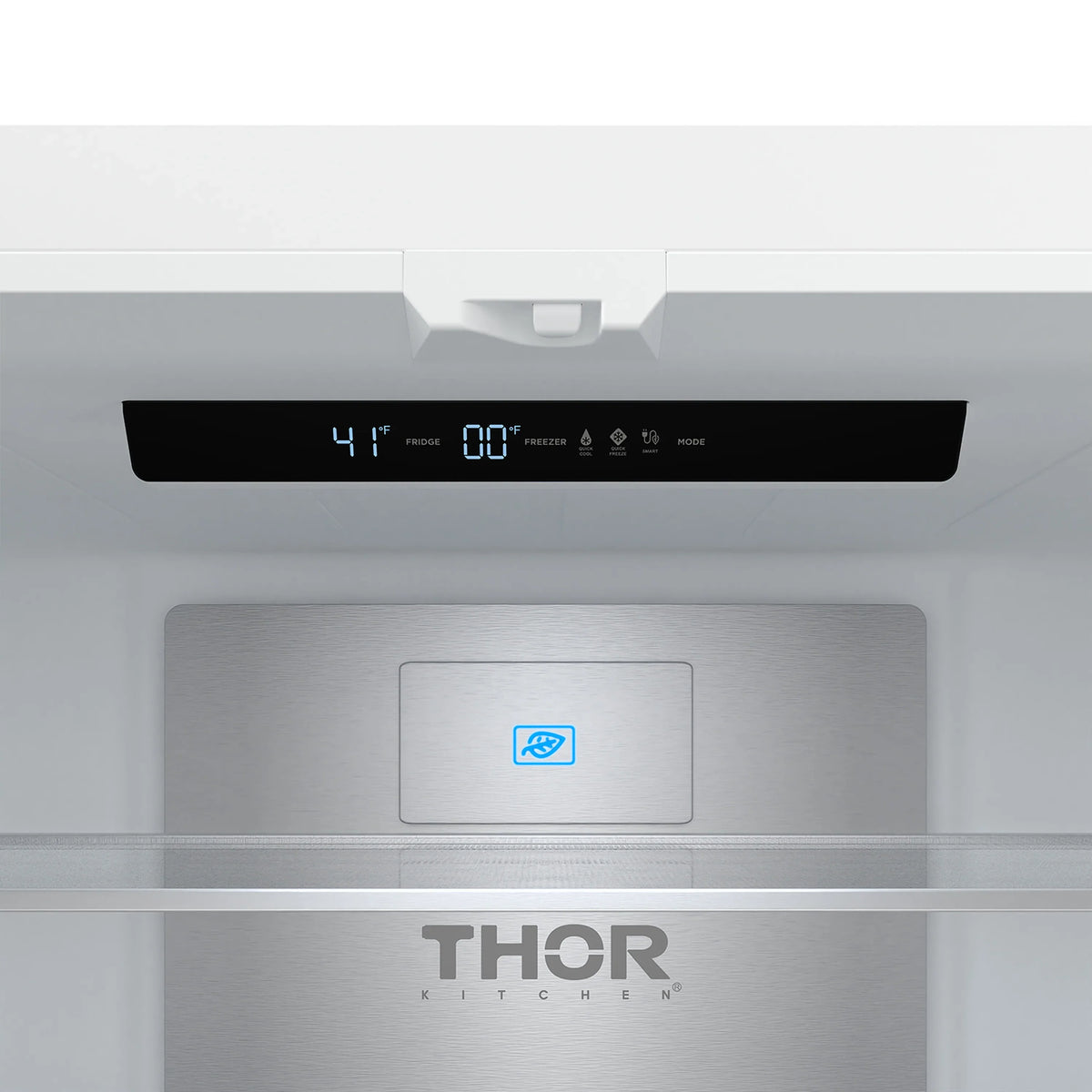

A whisper-quiet inverter compressor delivers consistent, efficient performance without disruption, and electronic touch controls put effortless command right at your fingertips. This is where every meal begins. #IgniteYourCulinaryCreativity
| Dimensions & Weight | |
|---|---|
| Product Dimensions (W x D x H) | 35-11/16" W x 29-5/8" D x 70" H |
| Product Depth Excluding Handles | 27-1/4" |
| Product Depth Including Handles | 29-5/8" |
| Product Depth Excluding Door | 24" |
| Product Depth with Door Open 90 Degrees | 43-1/4" |
| Product Depth with Drawer Open | 41-1/8" |
| Product Height to Top of Door Hinge | 70" |
| Product Height to Top of Refrigerator | 68" |
| Cutout Dimensions (W x D x H) | 36" W x 26" D x 72" H |
| Net Weight | 231 lbs |
| Package Dimensions (W x D x H) | 38-1/8" W x 30-1/2" D x 73-7/8" H |
| Package Weight | 255 lbs |
| General Information | |
| Installation Type | Freestanding |
| Color | White |
| Style | French Door Counter Depth |
| Capacity & Performance | |
| Total Capacity | 20.3 cu. ft. |
| Refrigerator Capacity | 14.2 cu. ft. |
| Freezer Capacity | 6.1 cu. ft. |
| Fridge Temperature Range | 35-46°F (2-8°C) |
| Freezer Temperature Range | -10 to 5°F (-23 to -15°C) |
| Refrigerator Features | |
| Gallon Bottle Storage | 6 pcs |
| Crispers | Humidity Controlled |
| Modes | Child Lock / Energy Saving & Vacation Mode / Fast Cooling |

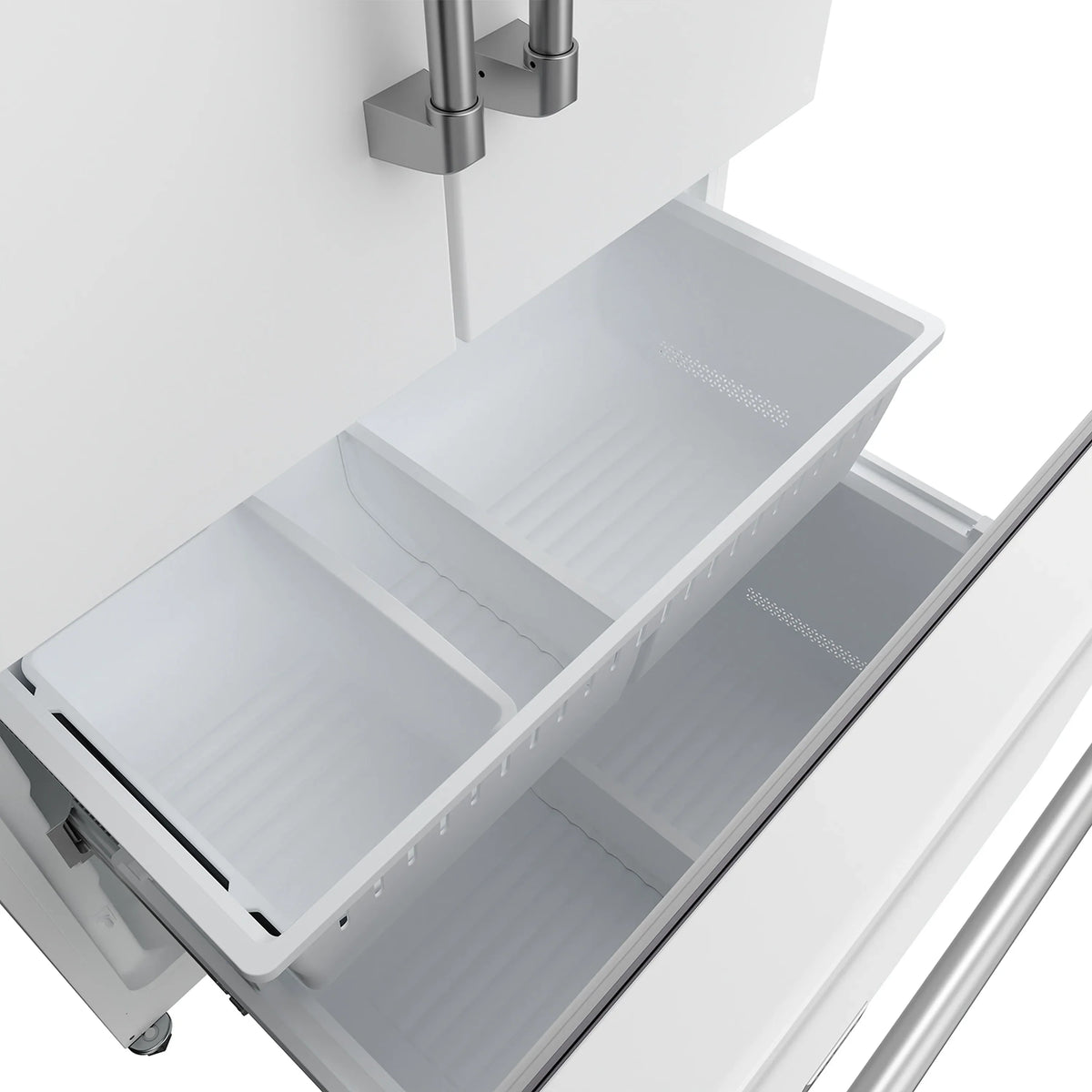

| Freezer Features | |
| Automatic Ice Maker | Produces Up To 3.8 Pounds of Ice Daily |
| Fast Freezing | Yes |
| Design | No Frost |
| Storage & Shelving | |
| Number of Door Bins | 6 |
| Number of Shelves | 3 |
| Number of Freezer Baskets | 1 |
| Shelf Material | Glass with Stainless Steel Trim |
| Lighting | LED |
| Electrical Requirements | |
| Watts | 190W |
| Volts | 115V |
| Frequency | 60Hz |
| Circuit Breaker Amperage | 15A |
| Plug Type | 3-Prong Plug |
| Power Cord Length | 94" |
| Accessories Included | |
| Items | Water Pipe, Ice Scoop, Ice Storage Box |
| Warranty | |
| Warranty | 2 Years Parts and Labor |

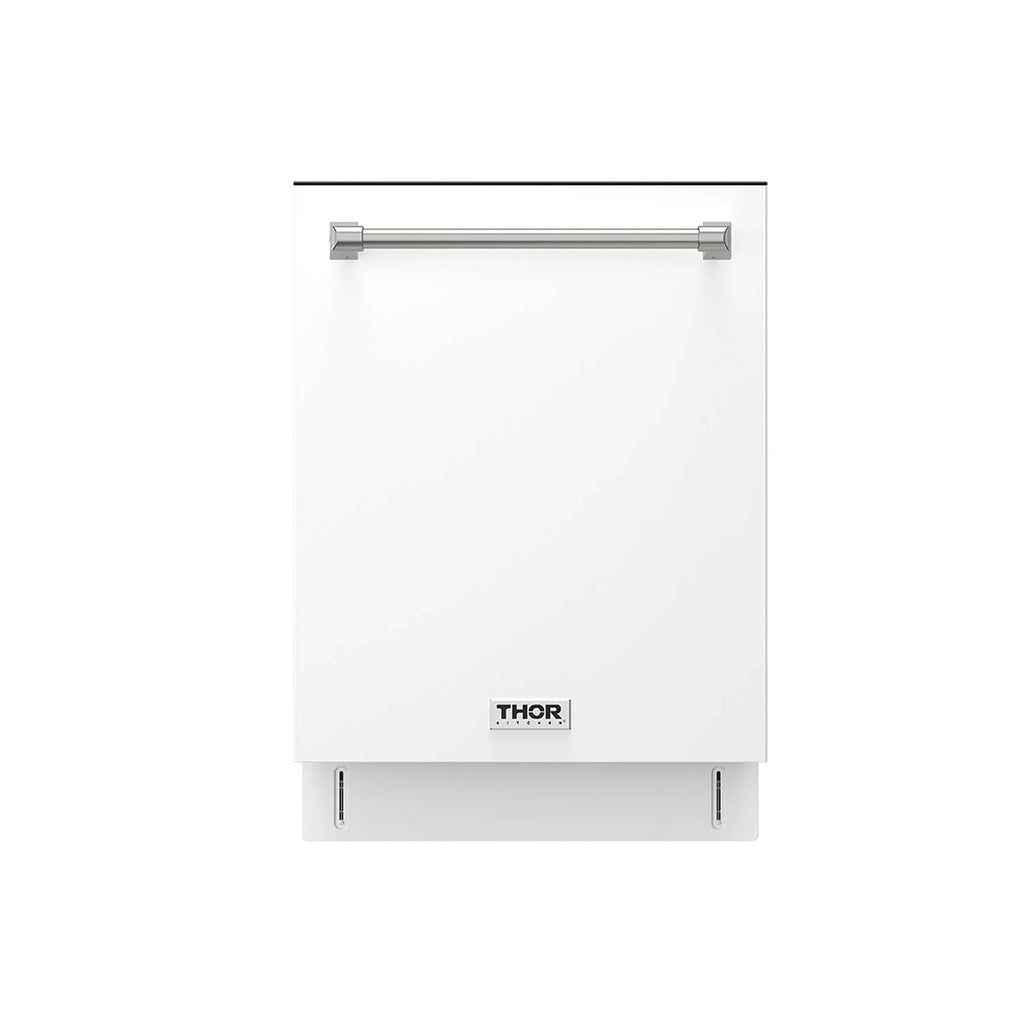

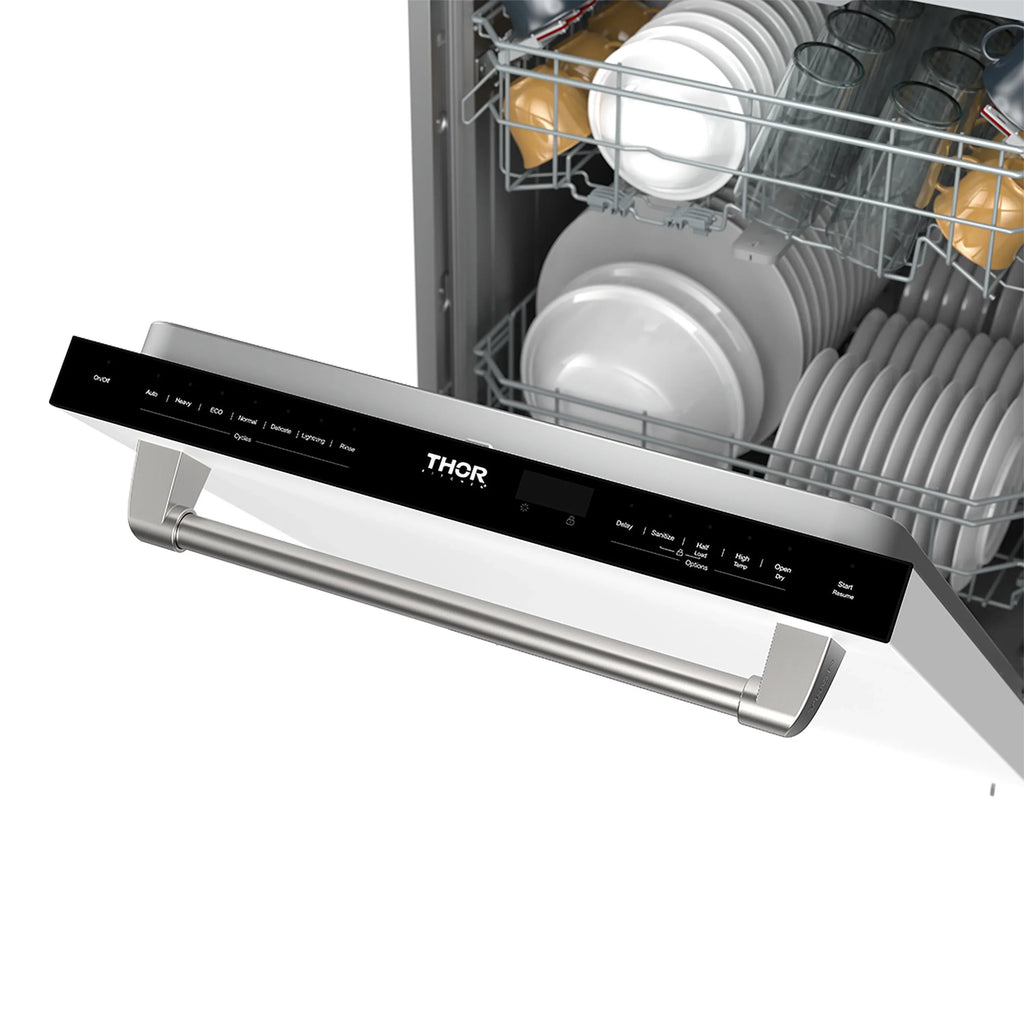

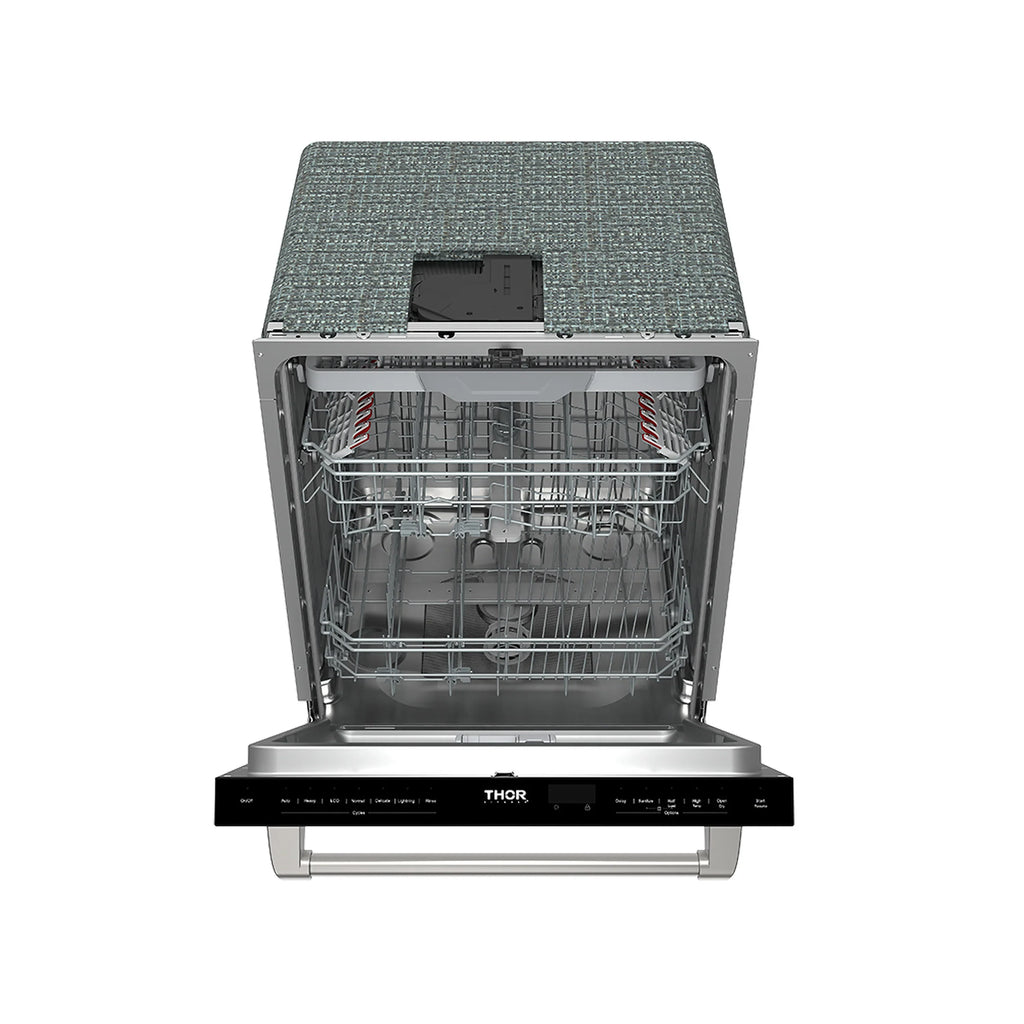

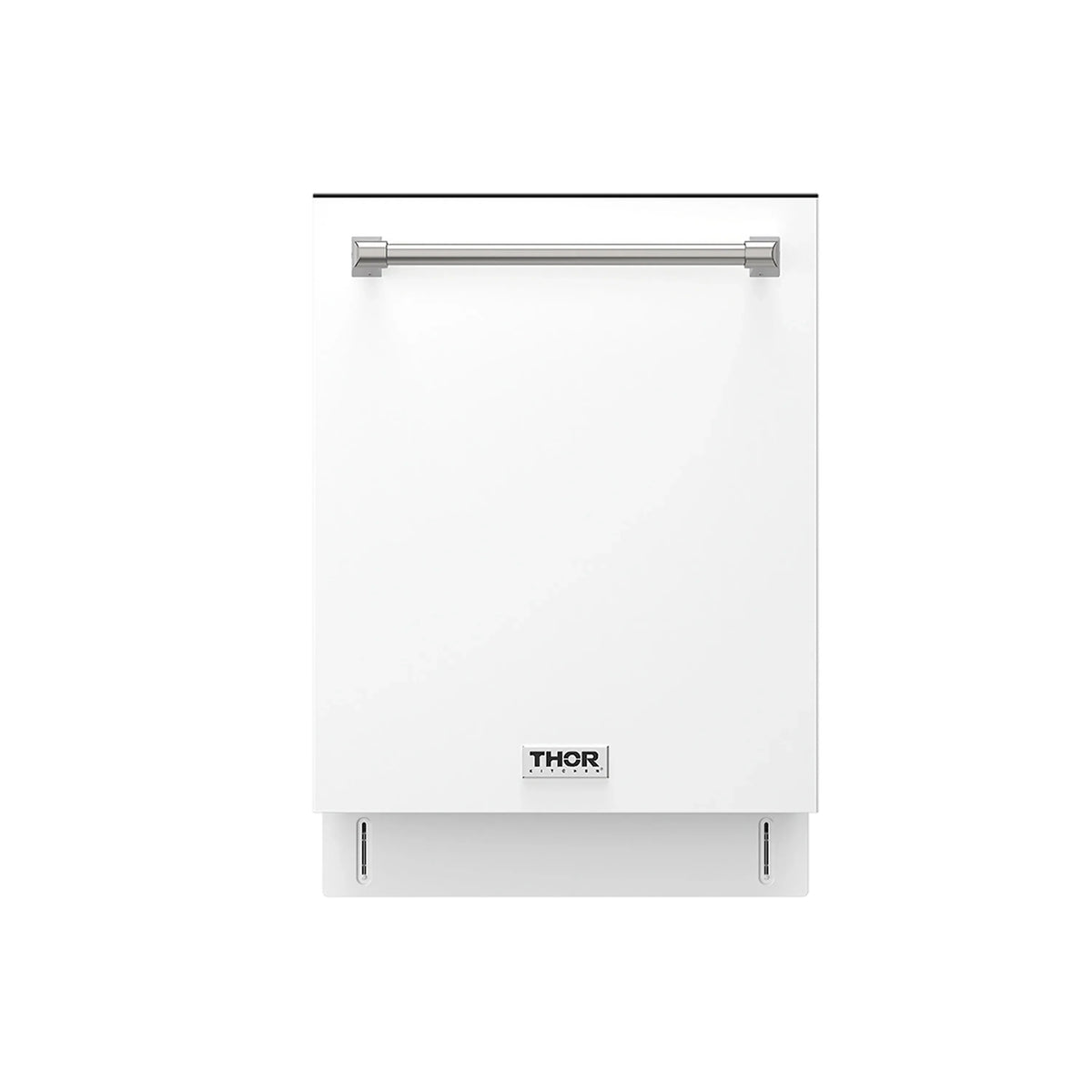

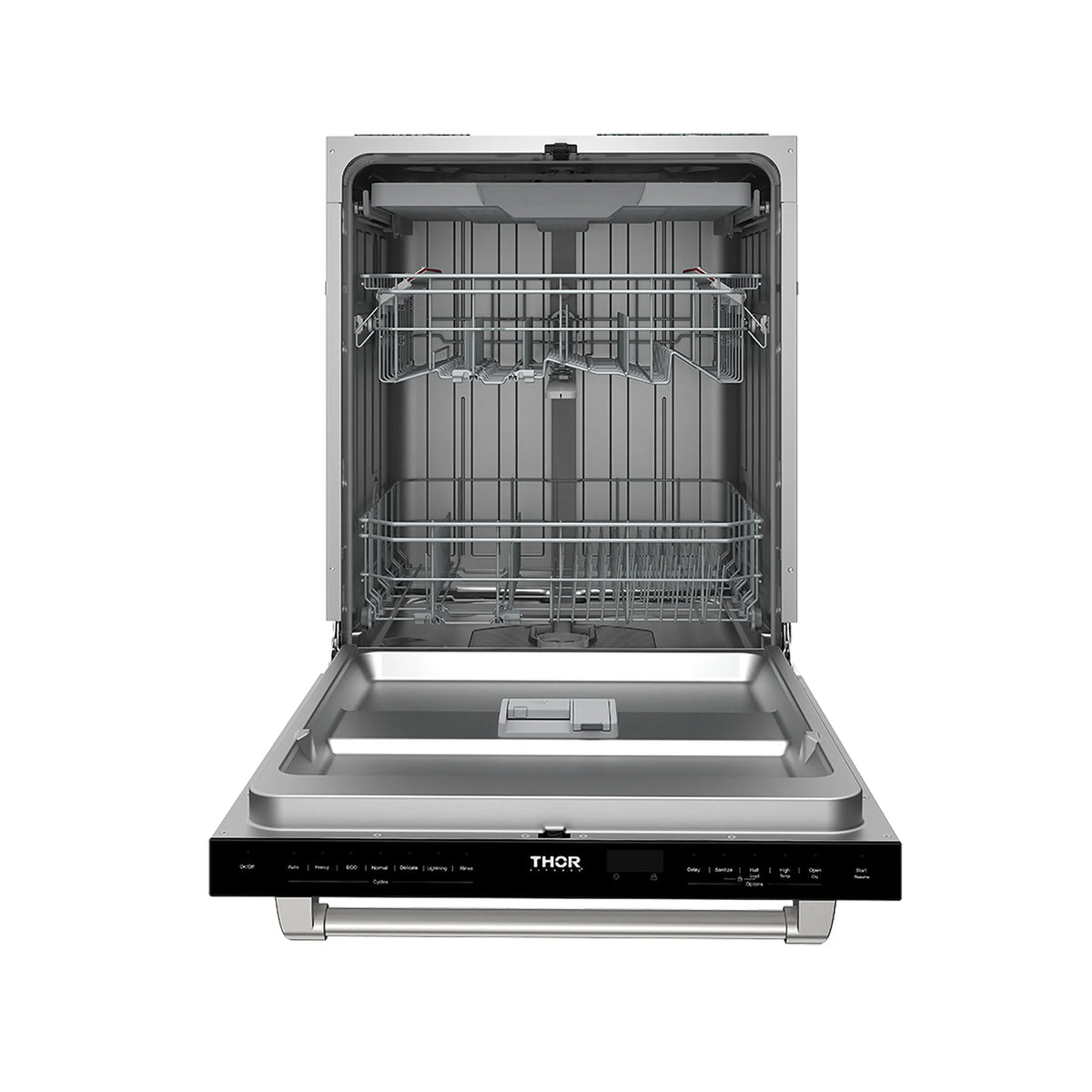

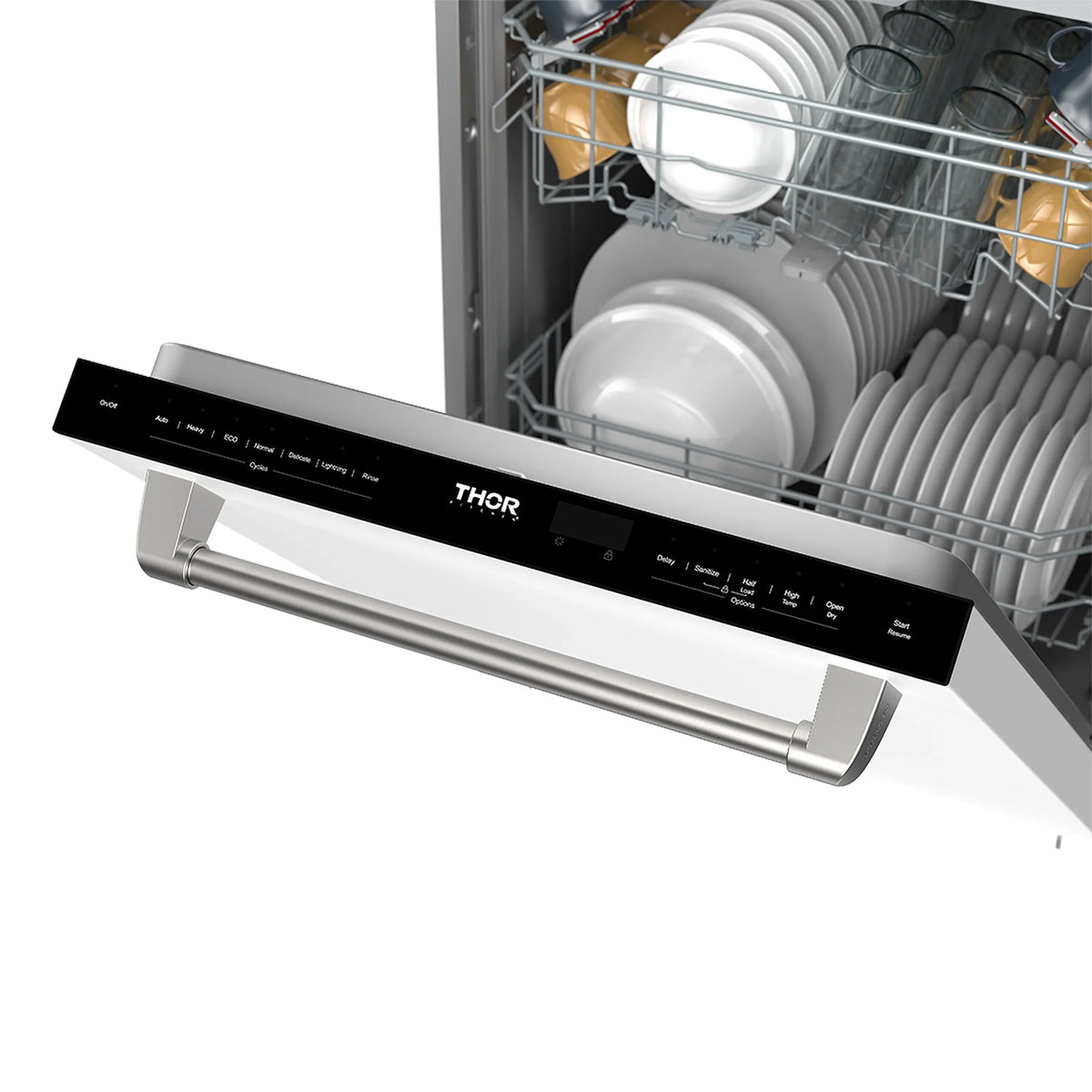

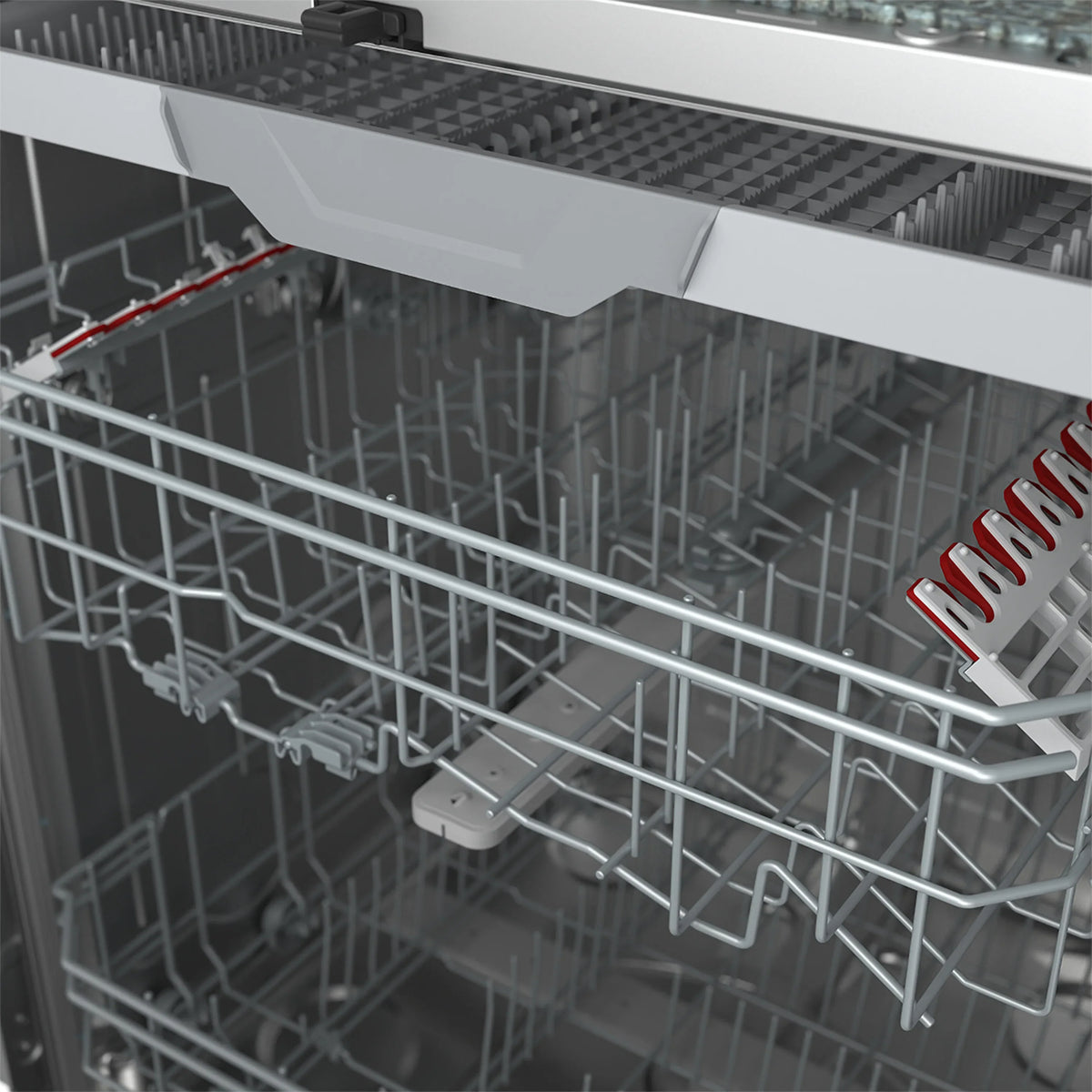

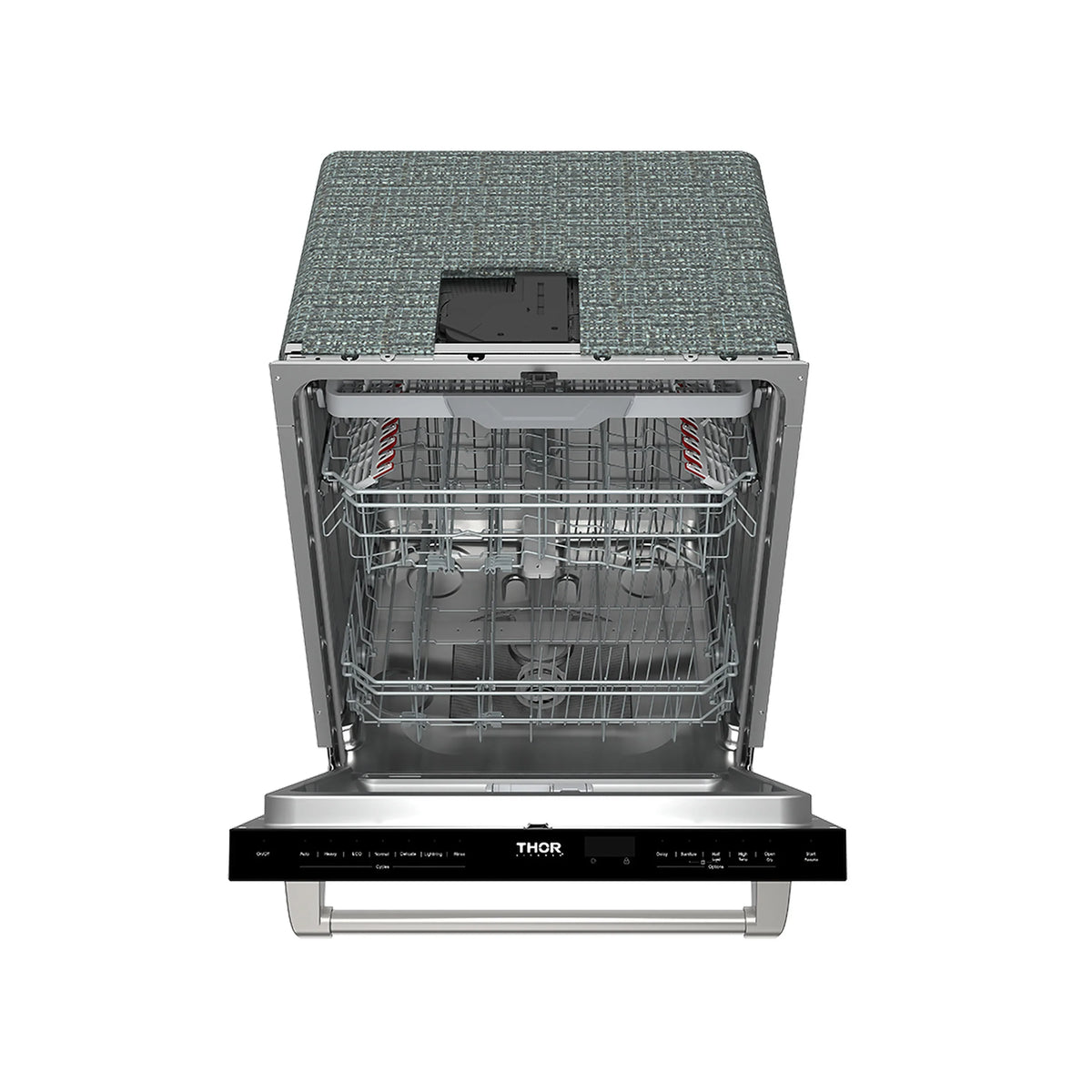

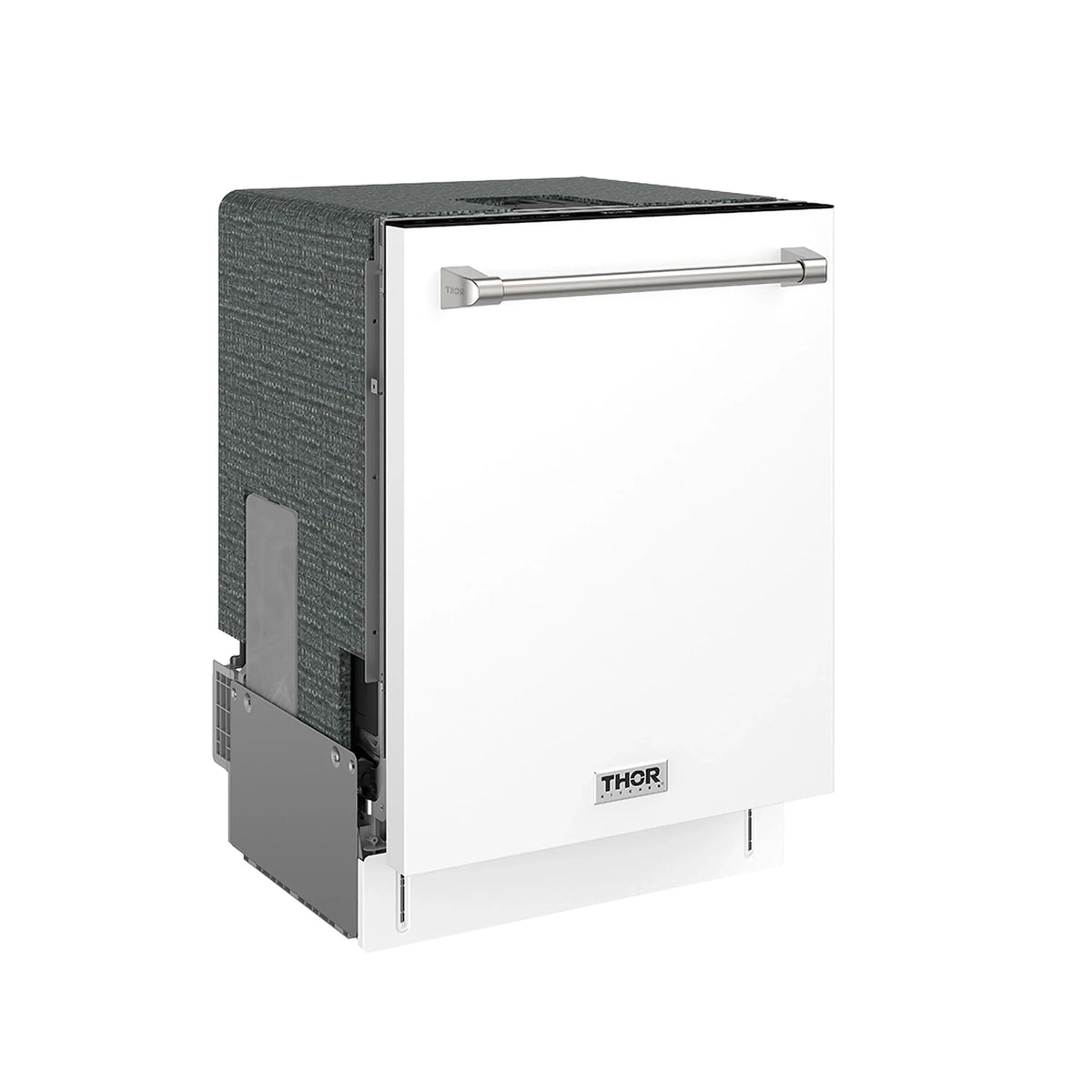

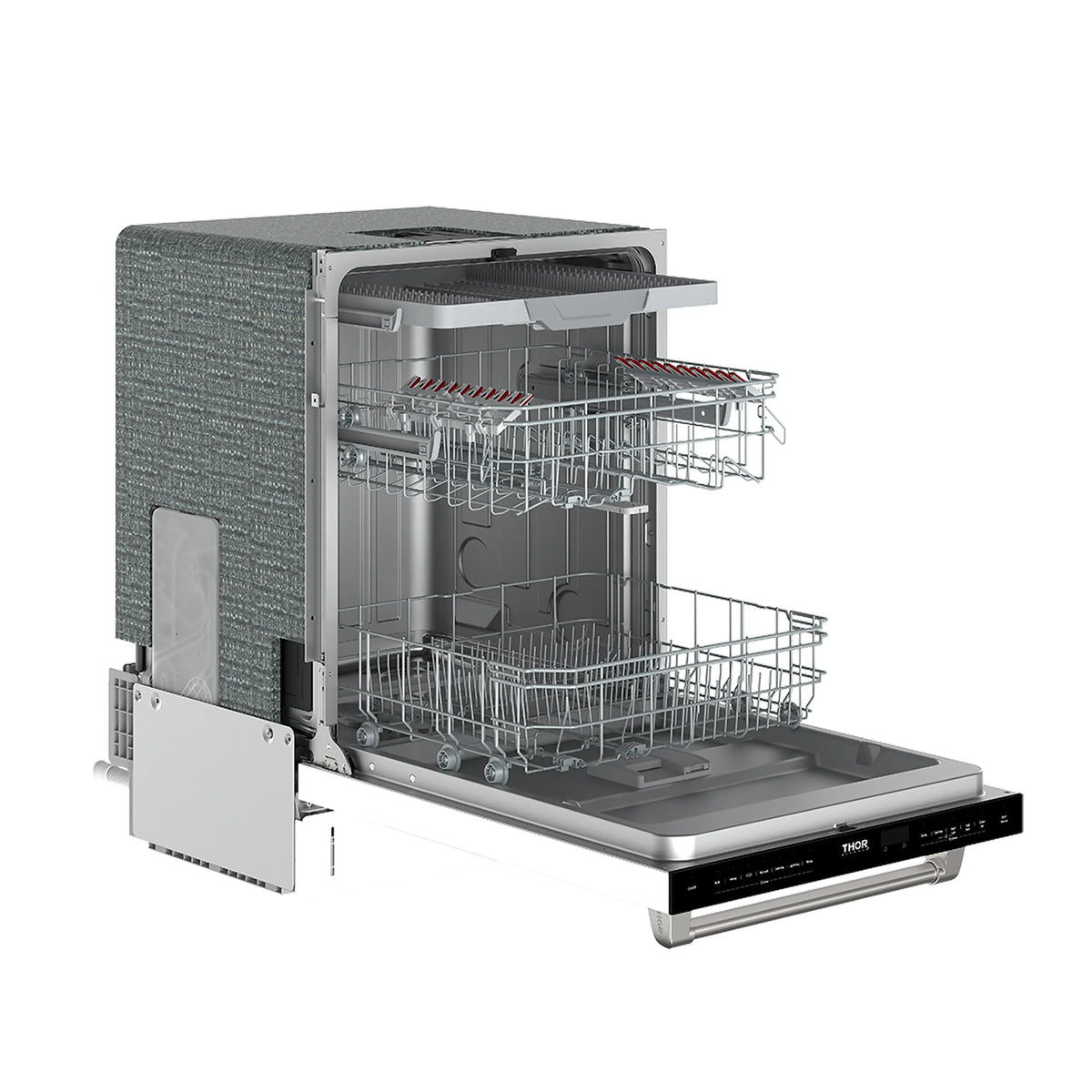

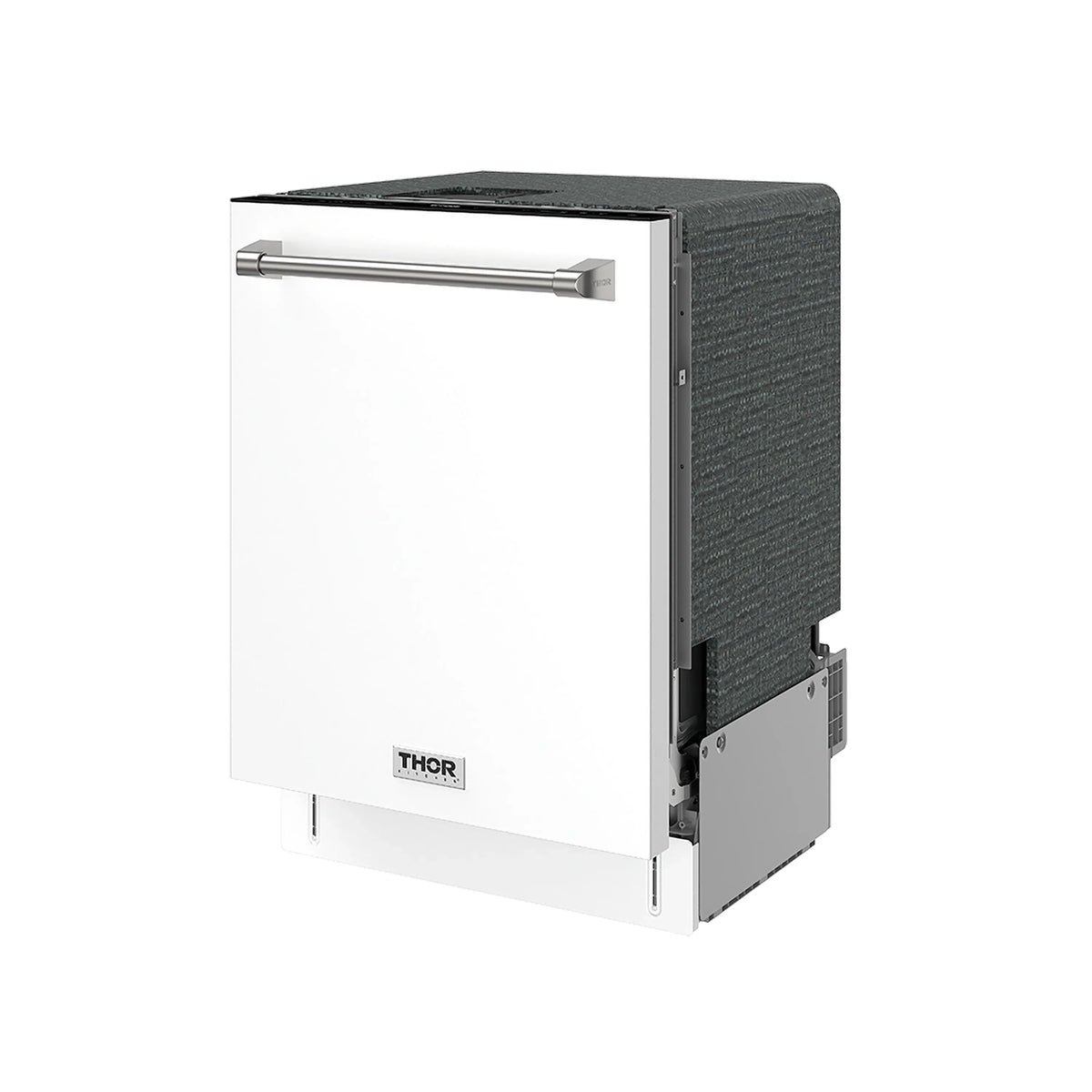

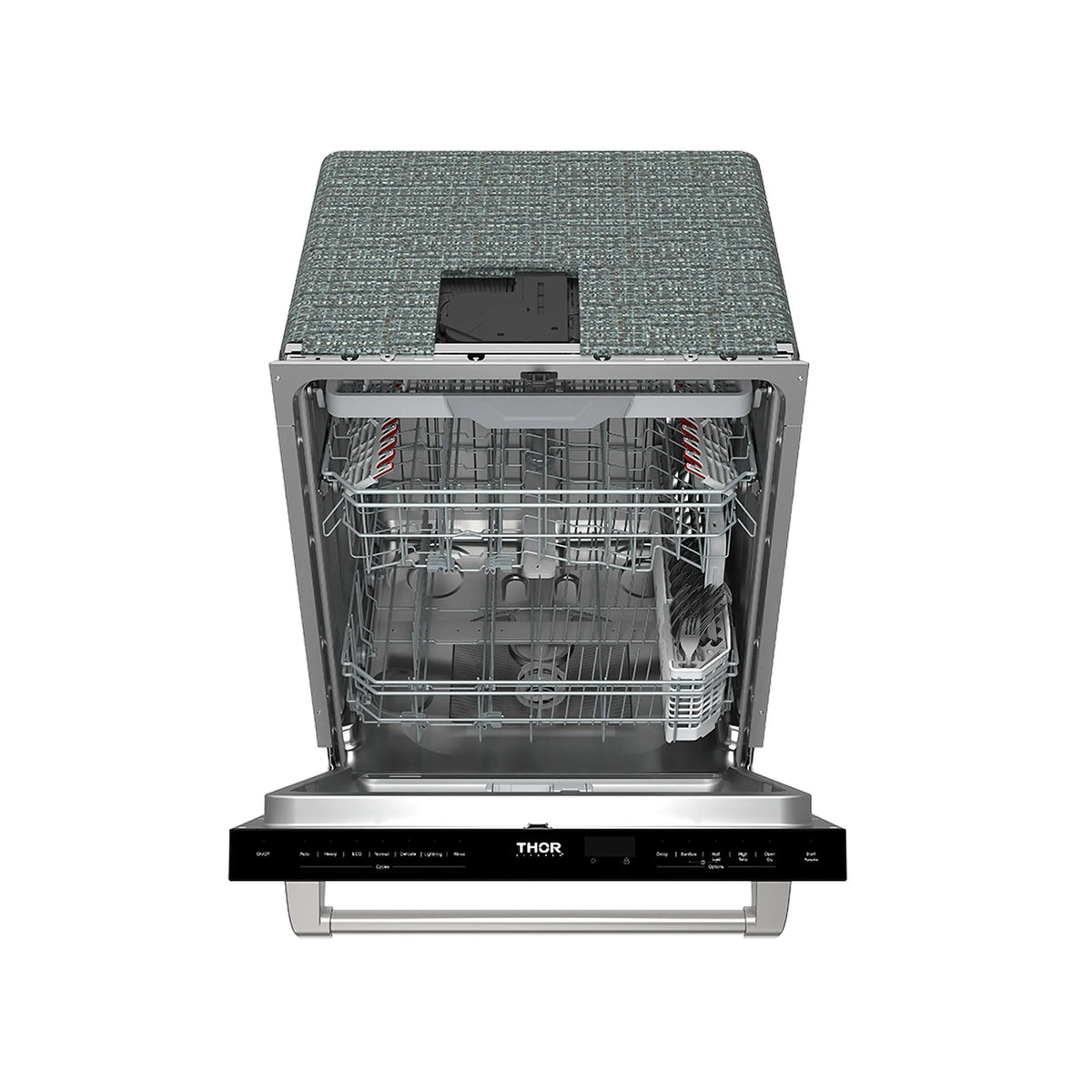

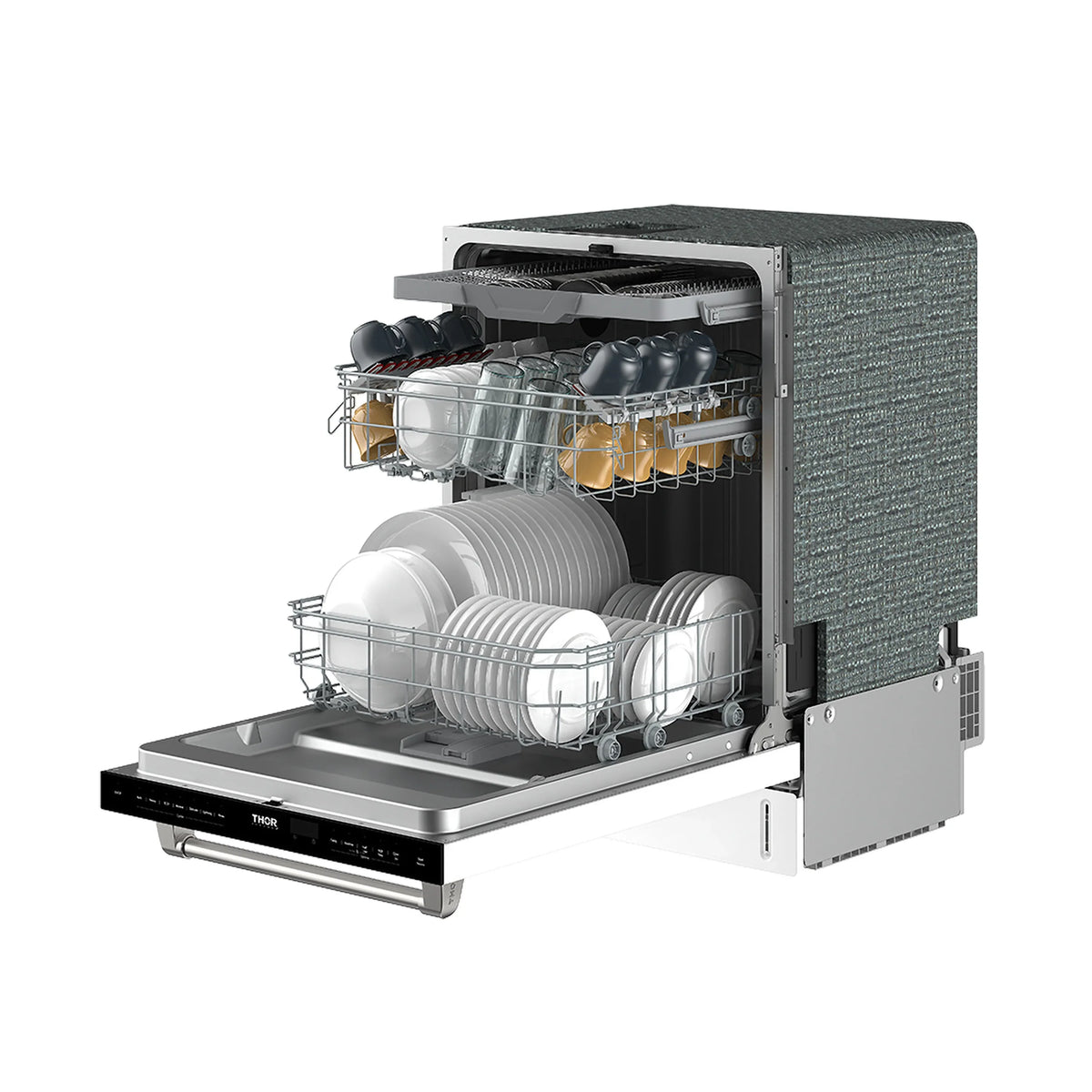

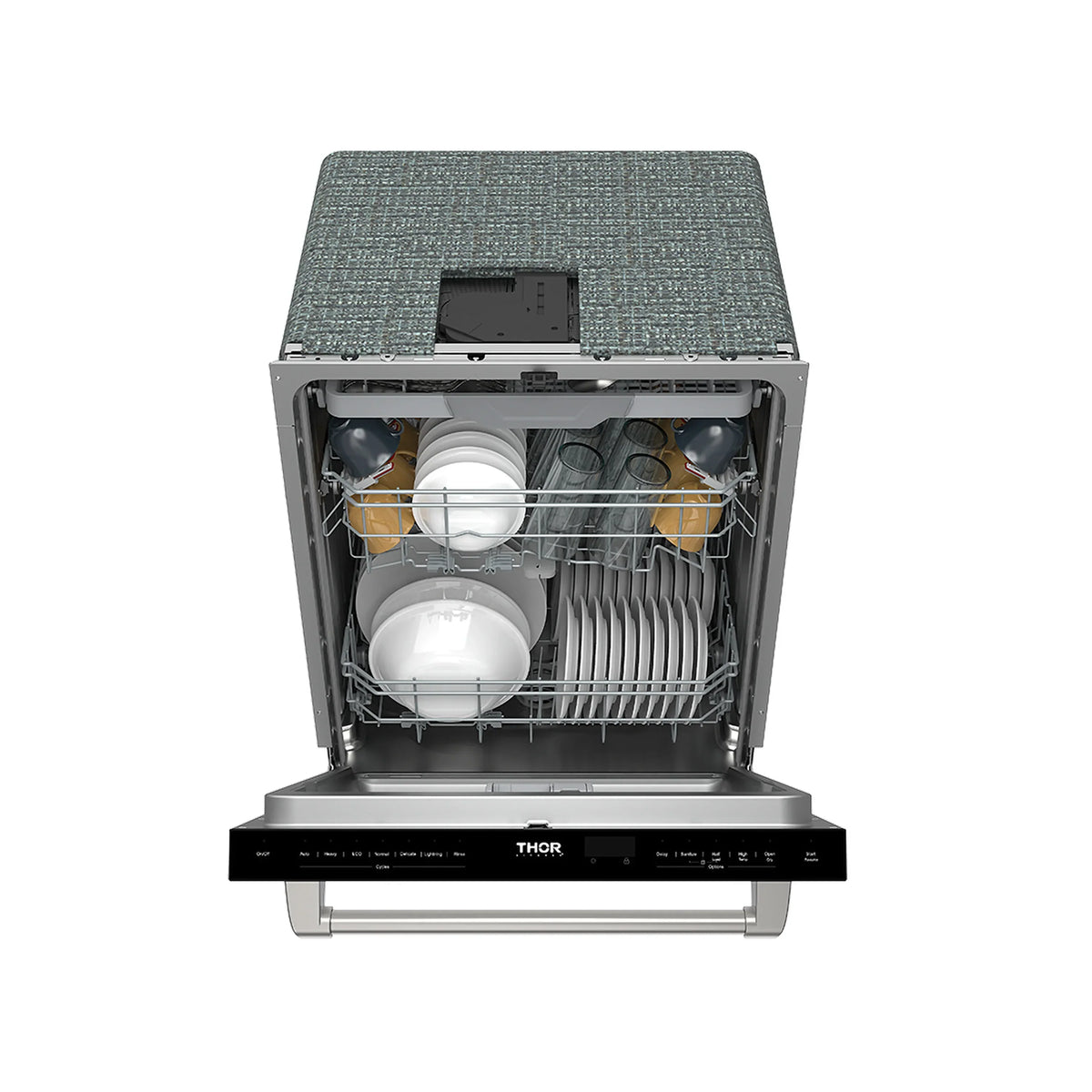

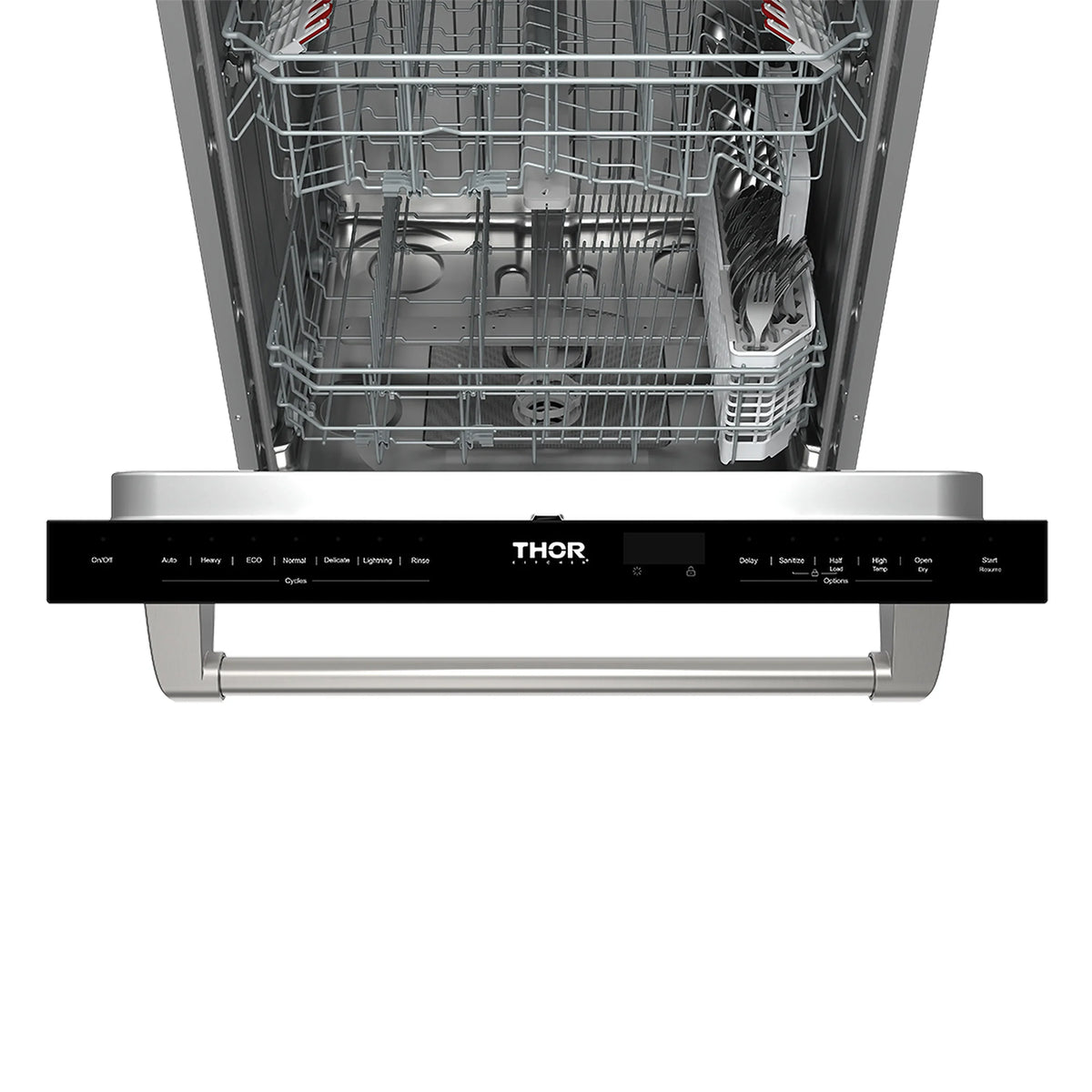

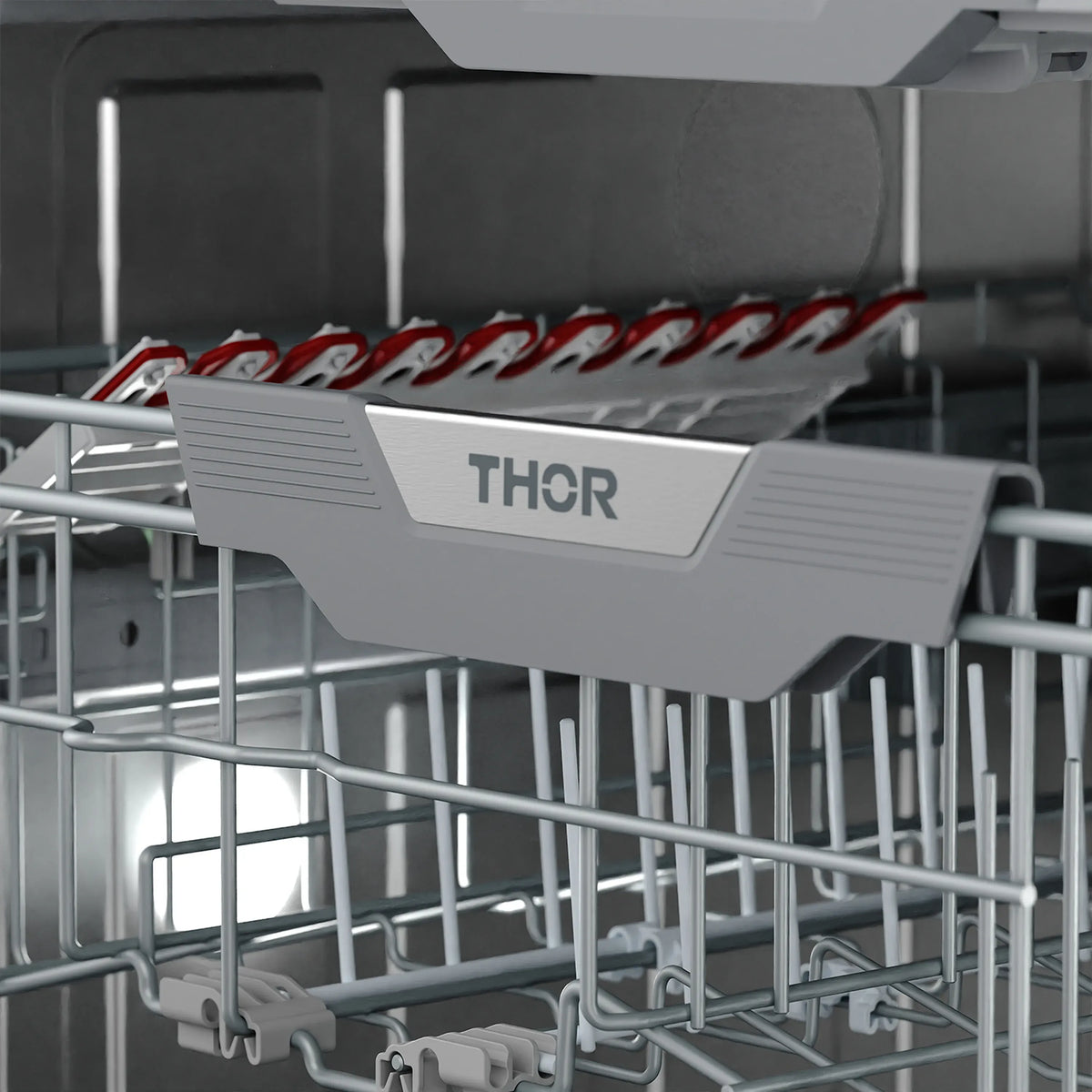

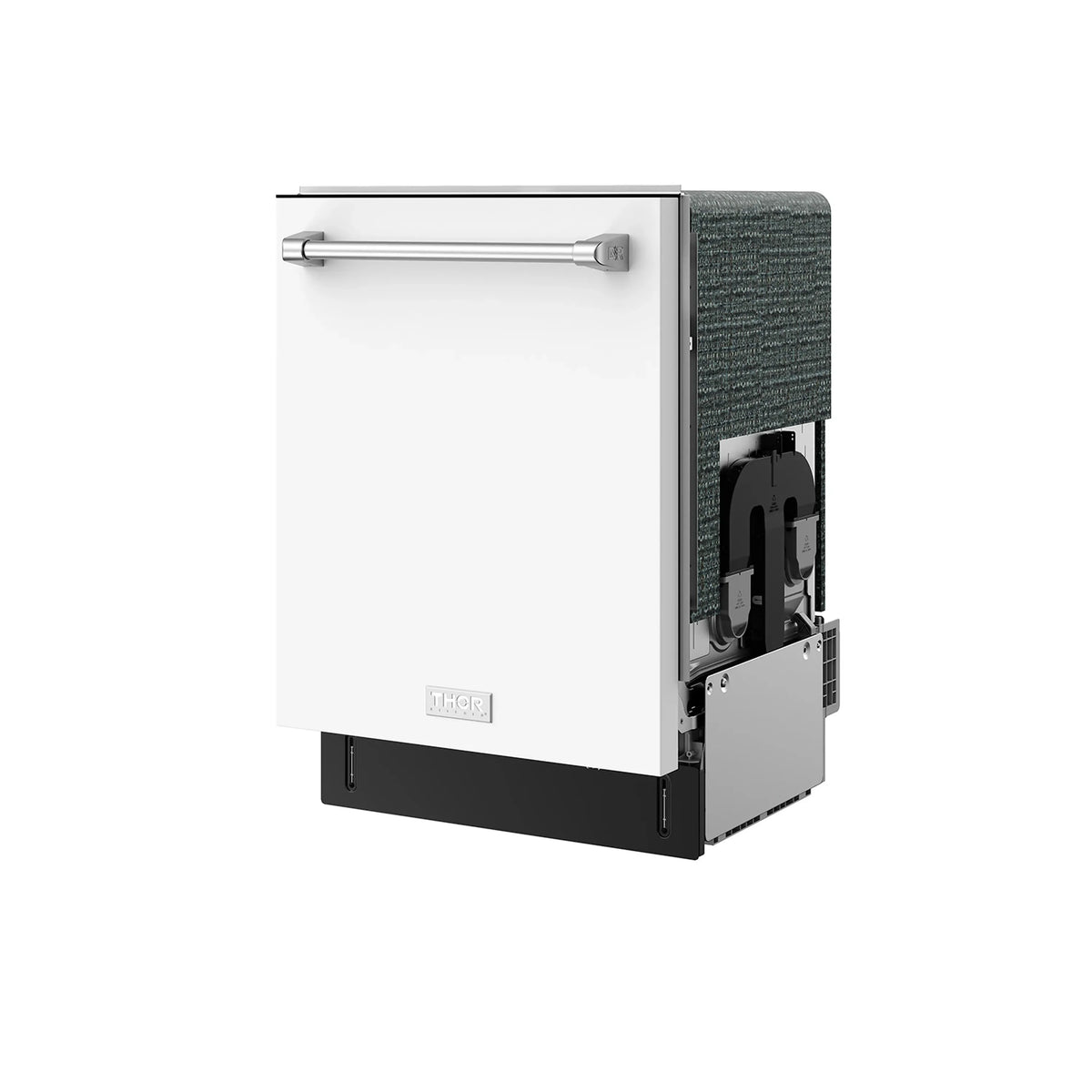

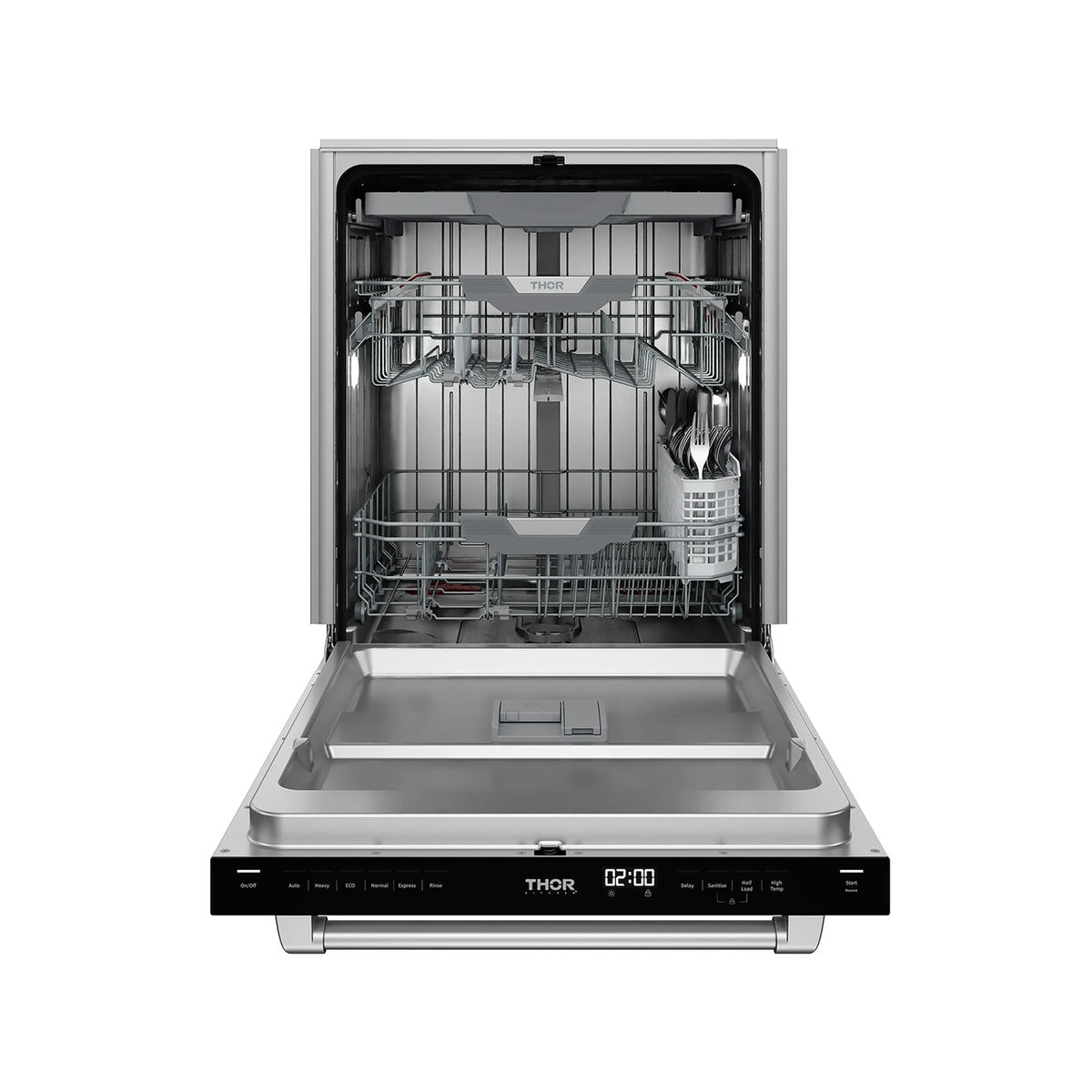

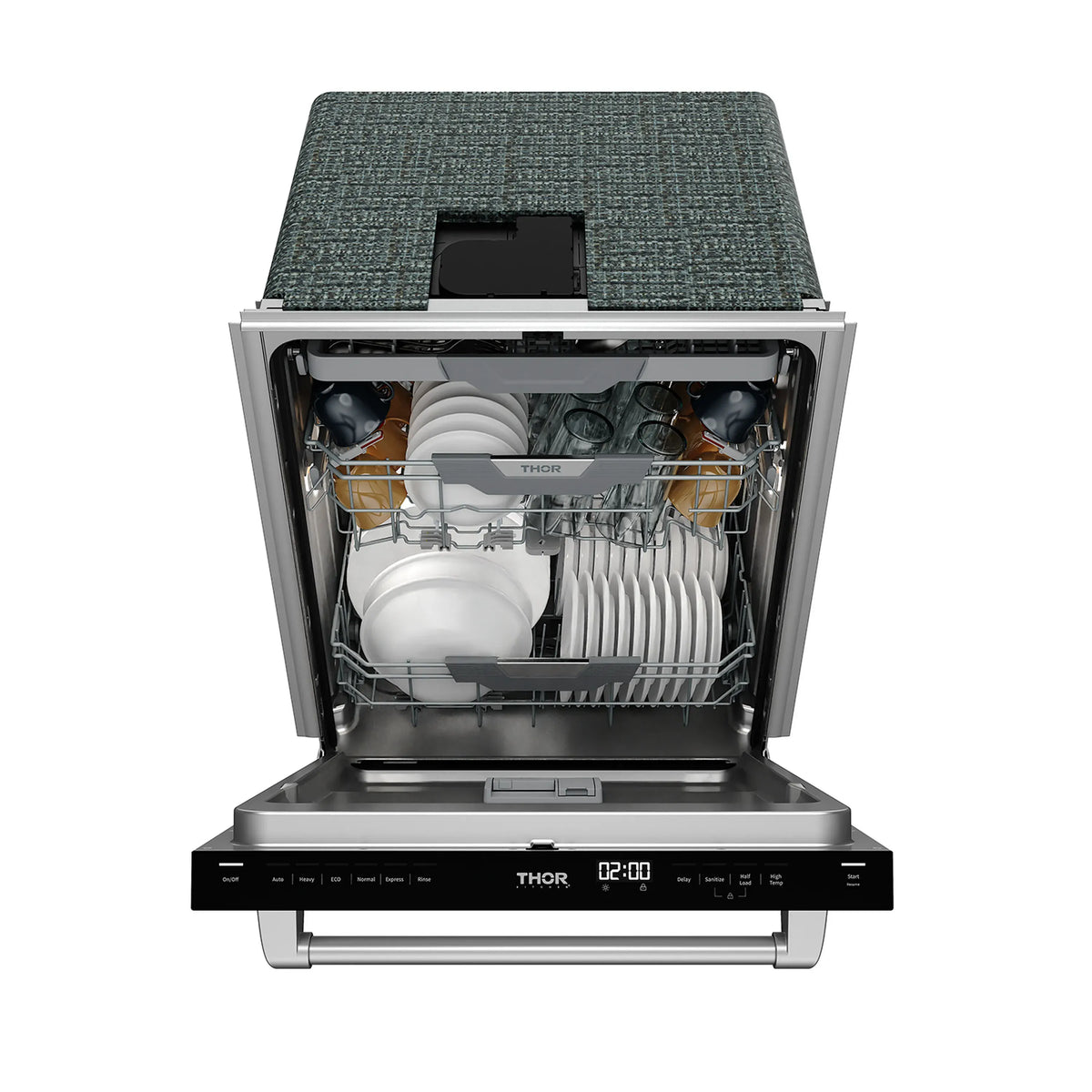

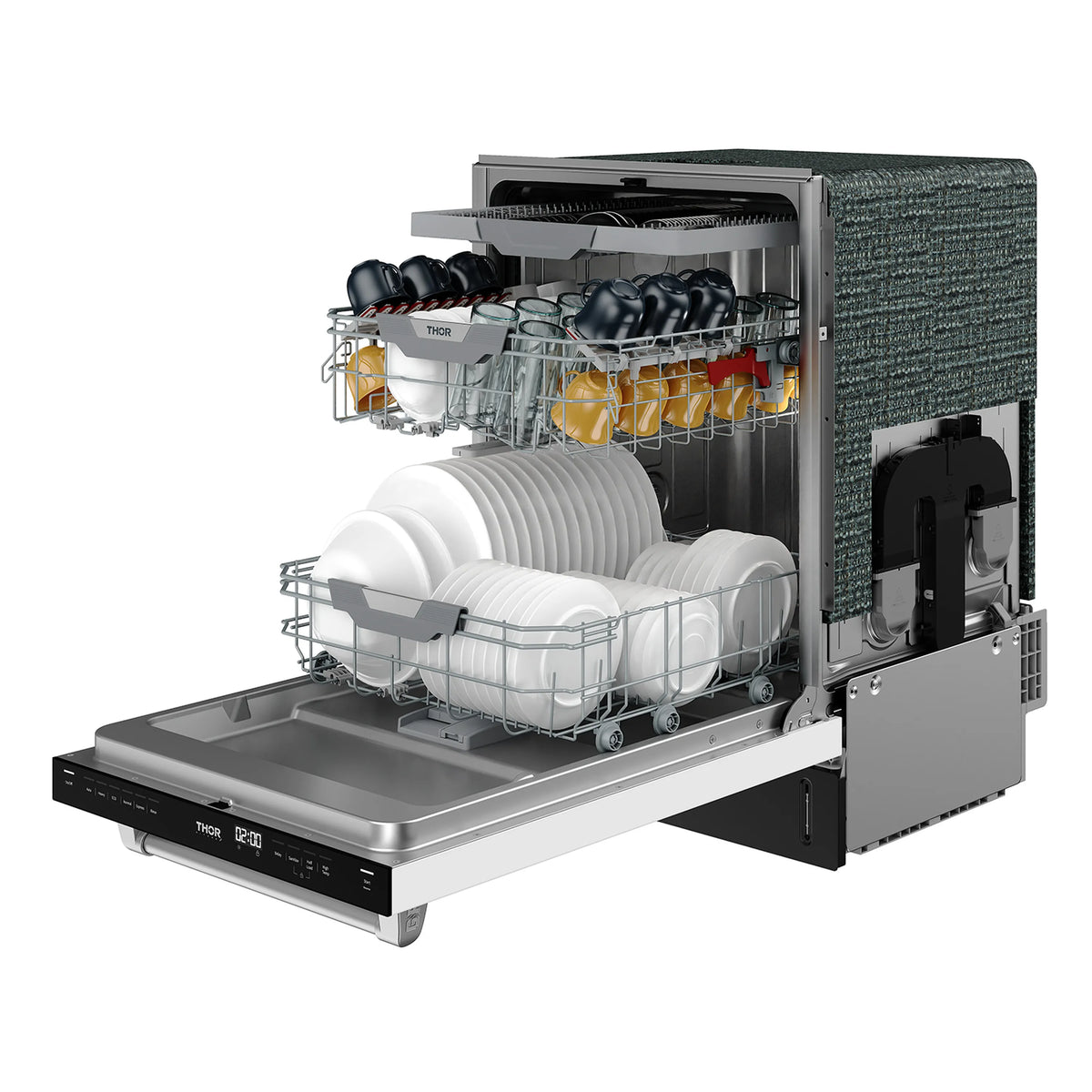

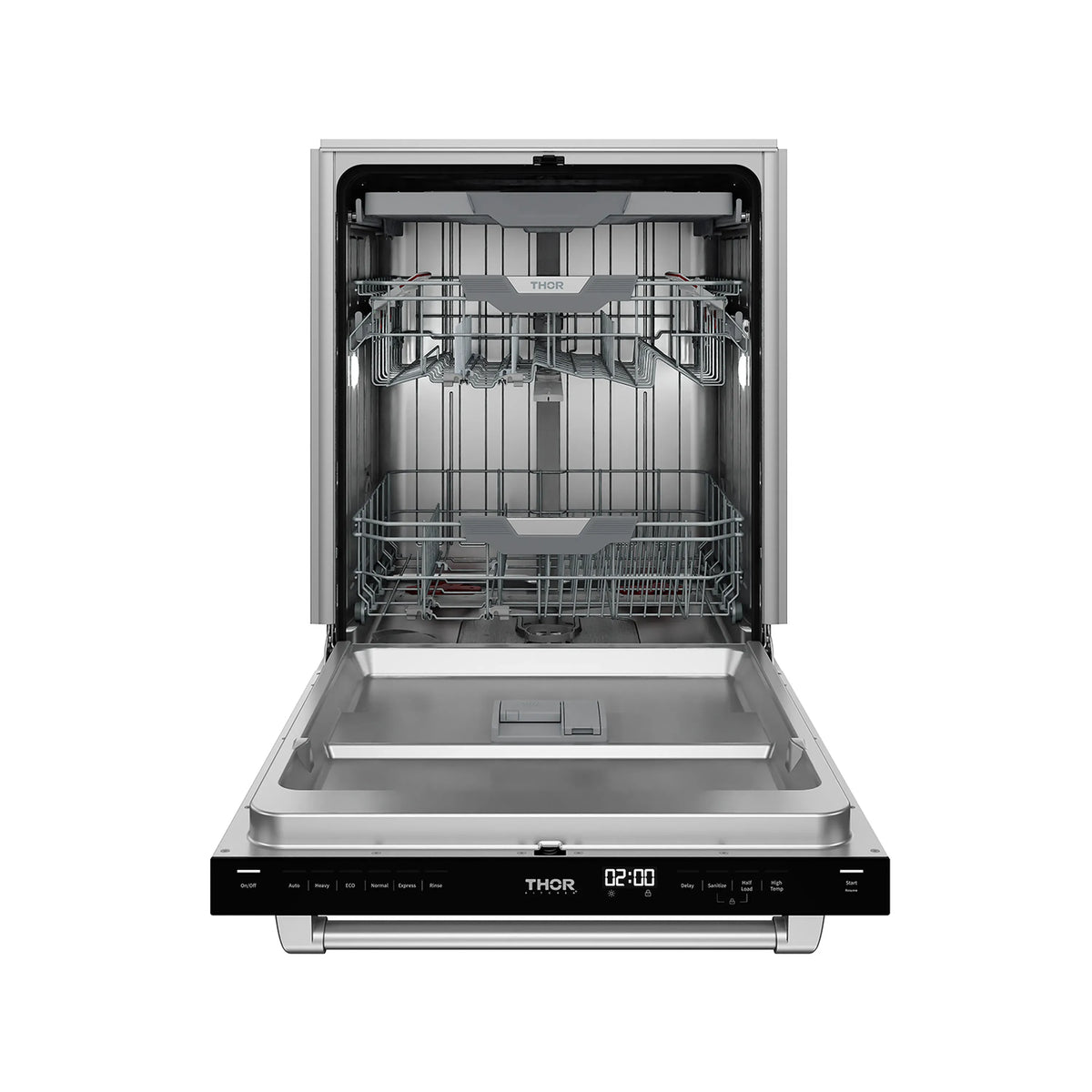

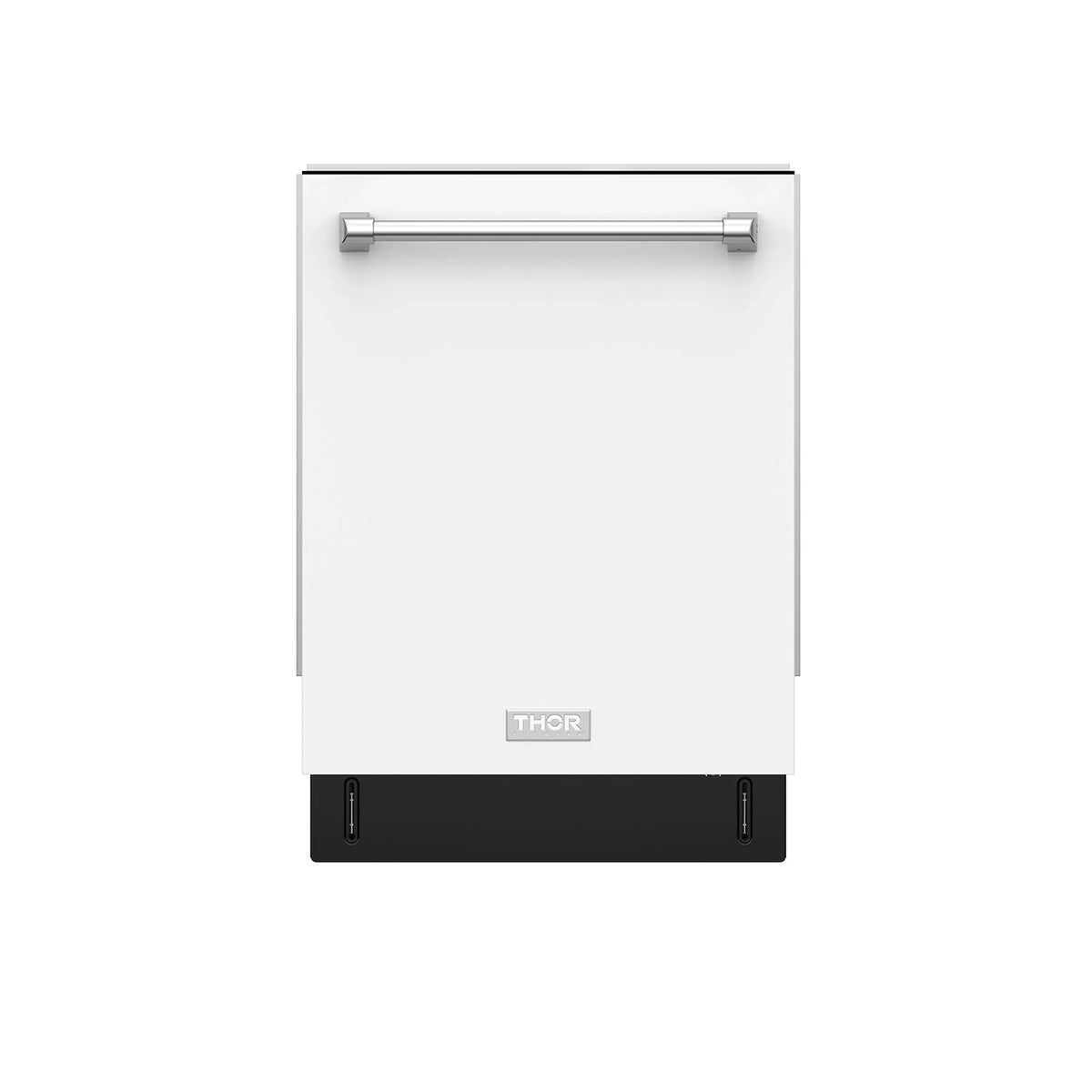

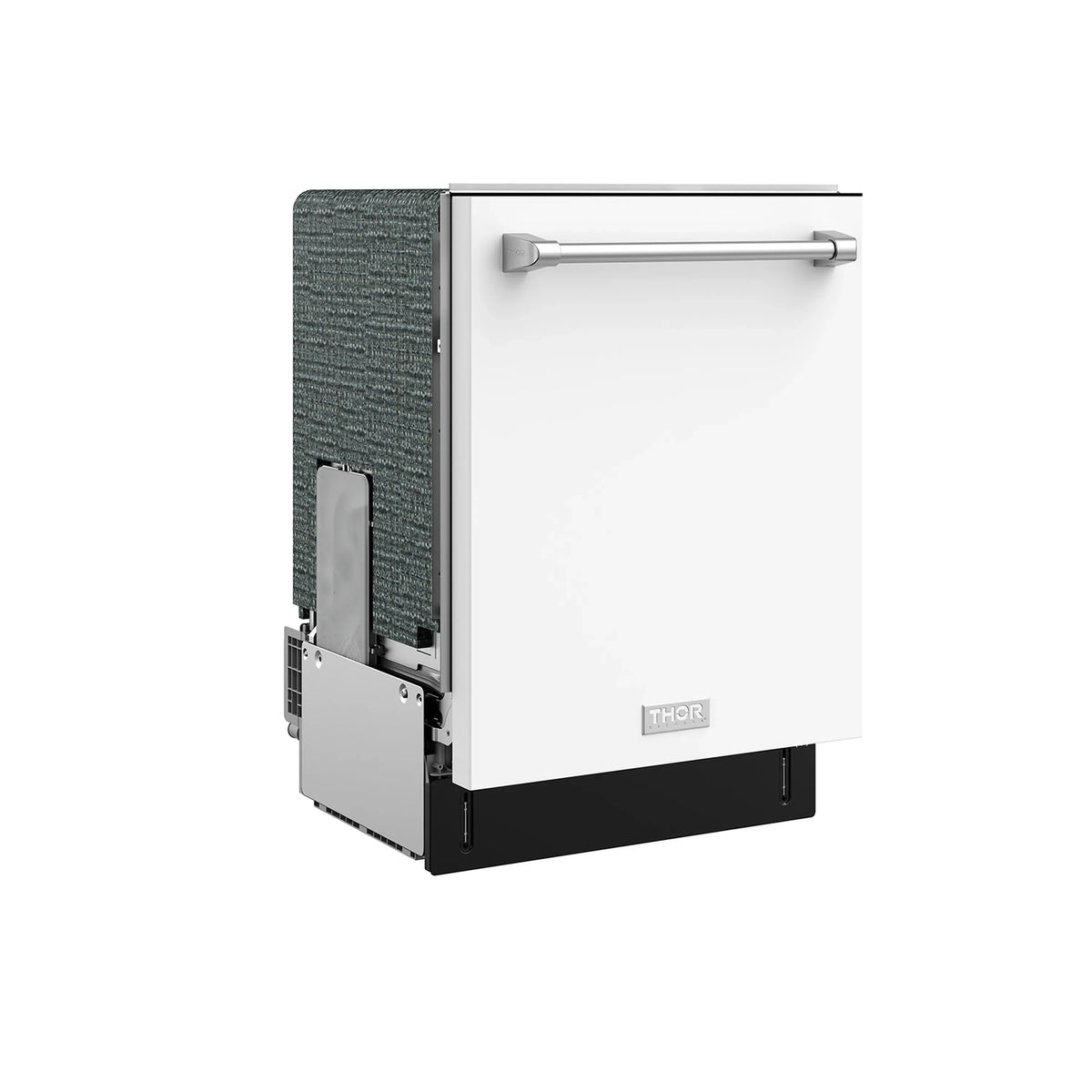

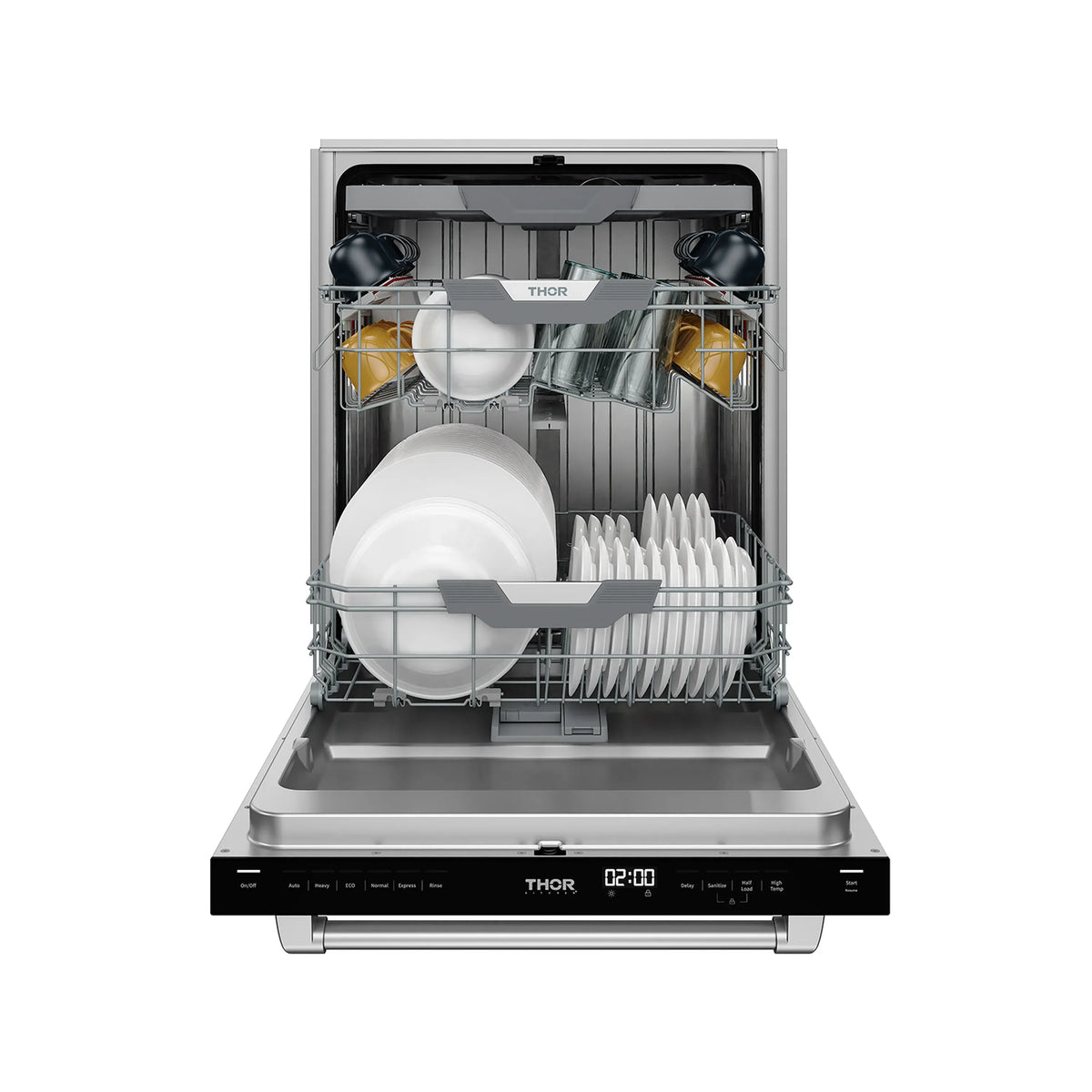

The Thor Kitchen TDW24C7B is a 24-inch top control built-in dishwasher in white, offering 7 wash cycles with 5 options to handle everything from delicate glassware to heavily soiled cookware. Featuring a quiet 47 dBA operation, a 3-rack system with a third-layer cutlery rack, height-adjustable upper basket, and a wine glass bracket, it delivers flexible, organized cleaning for up to 15 place settings. The touchscreen controls, status indicator light, and open dry system round out a feature-rich dishwasher designed for modern kitchens.
| General Information | |
|---|---|
| Brand | Thor Kitchen |
| Model Number | TDW24C7W |
| Product | 24 Inch Top Control Built-In Dishwasher in White |
| Technical Details | |
| Watts | 1200W |
| Amperage | 15A (Dedicated) |
| Volts | 120V |
| Frequency | 60Hz |
| Total Annual Energy Consumption | 240 kWh/per year |
| Water Consumption | 3.2 gal |
| Noise Level | 47 dBA |
| Water Feed Pressure | 20-120 psi |
| Inlet Water Temperature | Recommended 120°F (49°C) |
| Outlet Hose Length (in.) | 59" |
| General Properties | |
| Load Capacity (Place Settings) | 15 |
| Number of Wash Cycles | 7 |

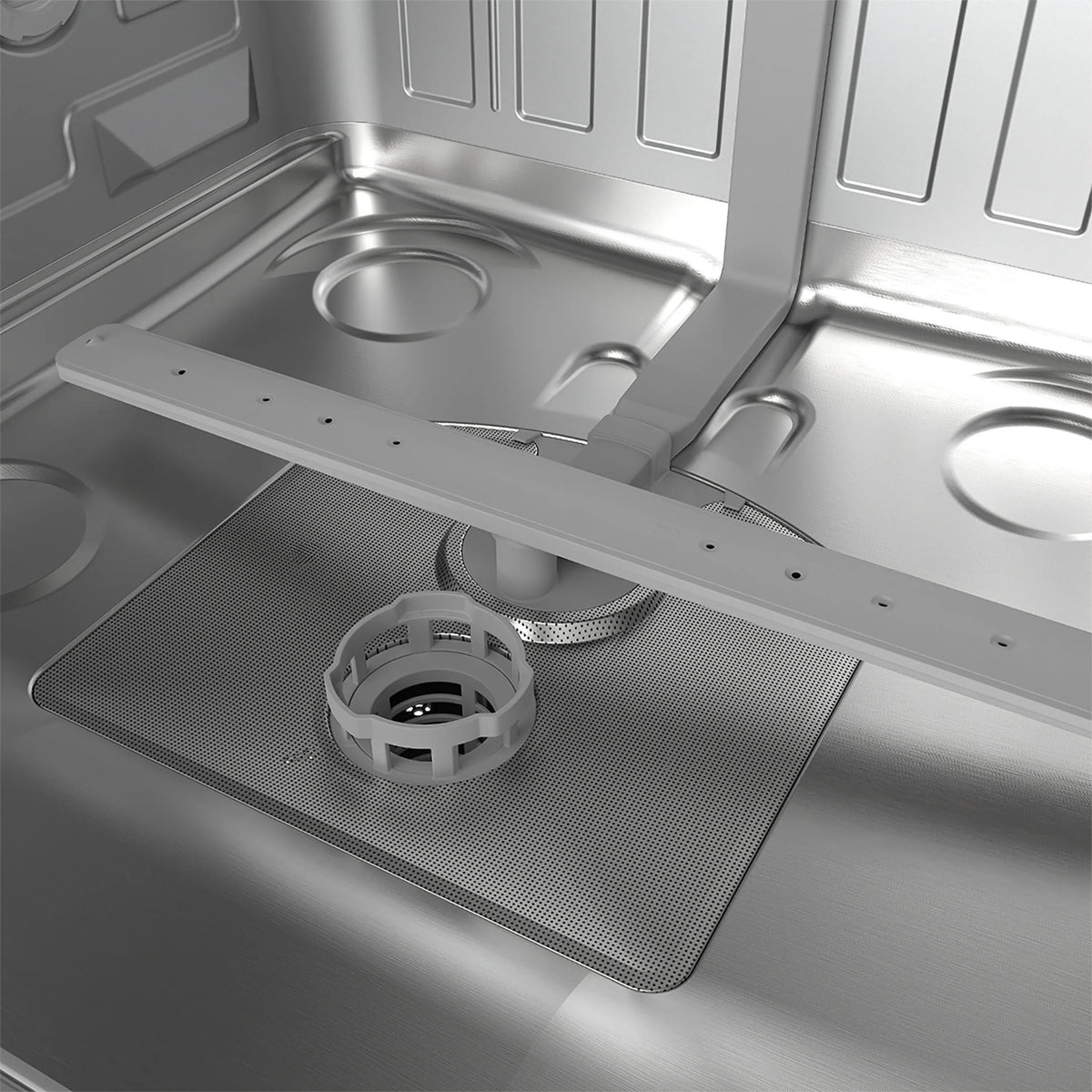

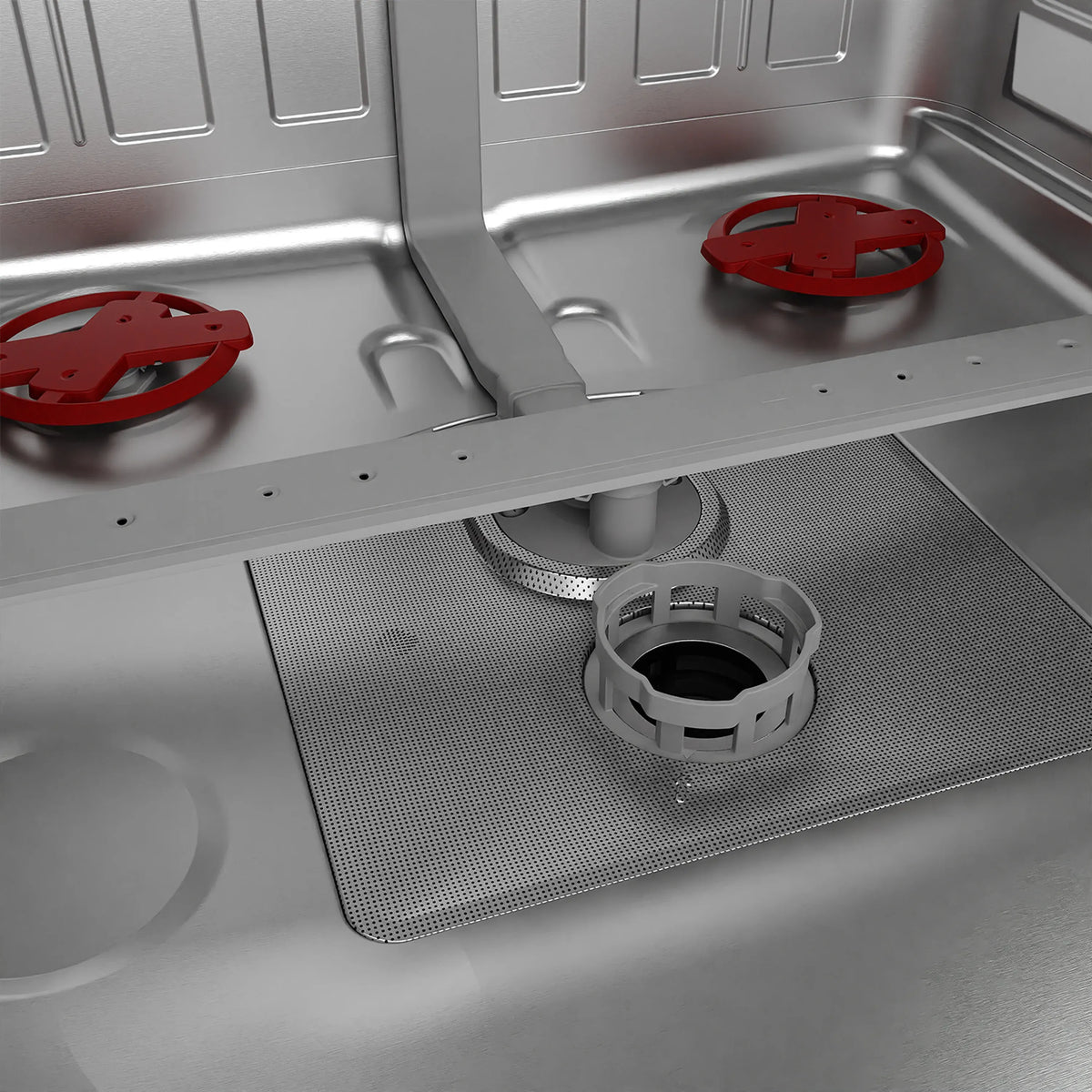

| Spray Arms | 3 (Lower, Upper, and Top) |
| Tub Material | Stainless Steel |
| Number of Racks | 3 |
| Adjustable Rack | Yes |

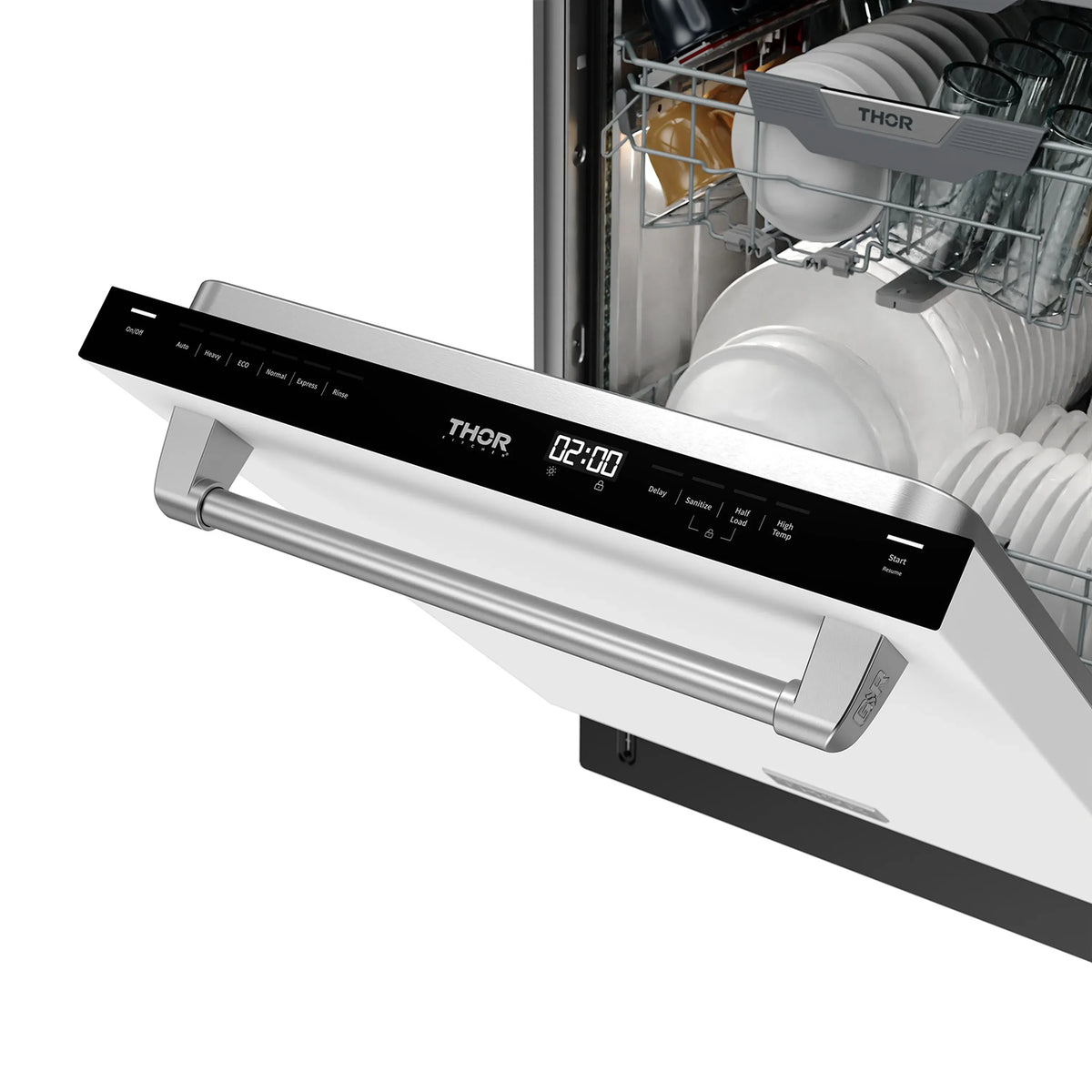

| Control Type | Touch Screen |
| Water Softener | No |
| Child Lock | Yes |
| Status Indicator | Yes (Red) |
| Tub Light | No |
| Wine Glass Bracket | Yes |
| Third Layer Cutlery Rack | Yes |
| Dimensions & Weight | |
| Product Dimensions (WxDxH) (in.) | 23-7/8" x 22-5/8" x 33-7/8" |
| Product Depth with Handles (in.) | 25-1/8" |
| Cutout Dimensions (WxDxH) (in.) | 23-7/8" - 24" x 22-7/8" - 23-5/8" x 34" - 35-1/2" |
| Package Dimensions (WxDxH) (in.) | 28-3/4" x 28-3/4" x 35-1/16" |
| Net Weight (lbs.) | 80.5 |
| Gross Weight (lbs.) | 97.8 |
| Accessories Included | |
| Moisture Barrier | Yes |
| Drain Hose | Yes |
| Mounting Hole Cover | 4 (2 Already Installed) |
| Accessories Not Included (Required) | |
| Water Supply Hose | Required |
| Power Cord | Required |
| Warranty | |
| Warranty | 2 Years Parts and Labor |
