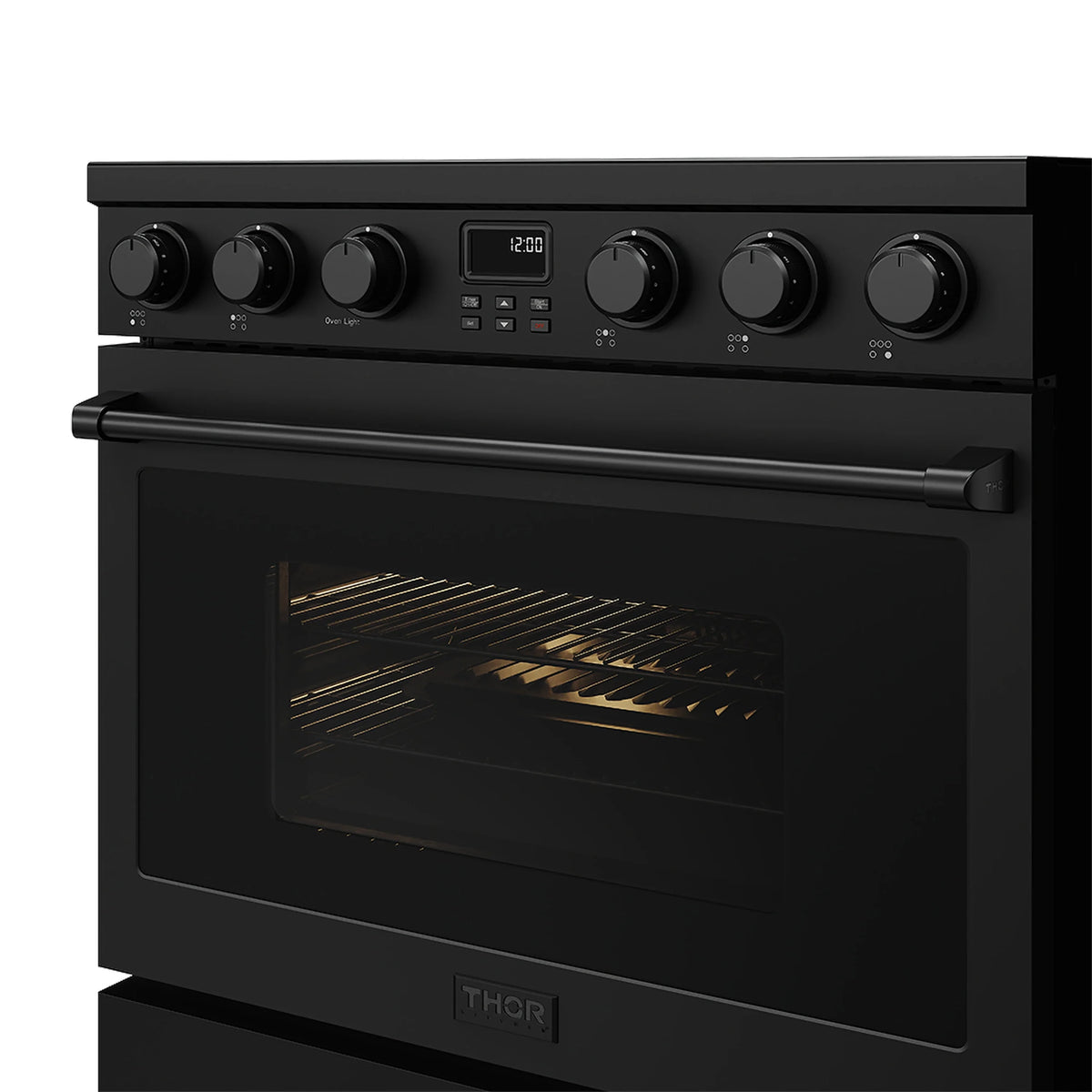

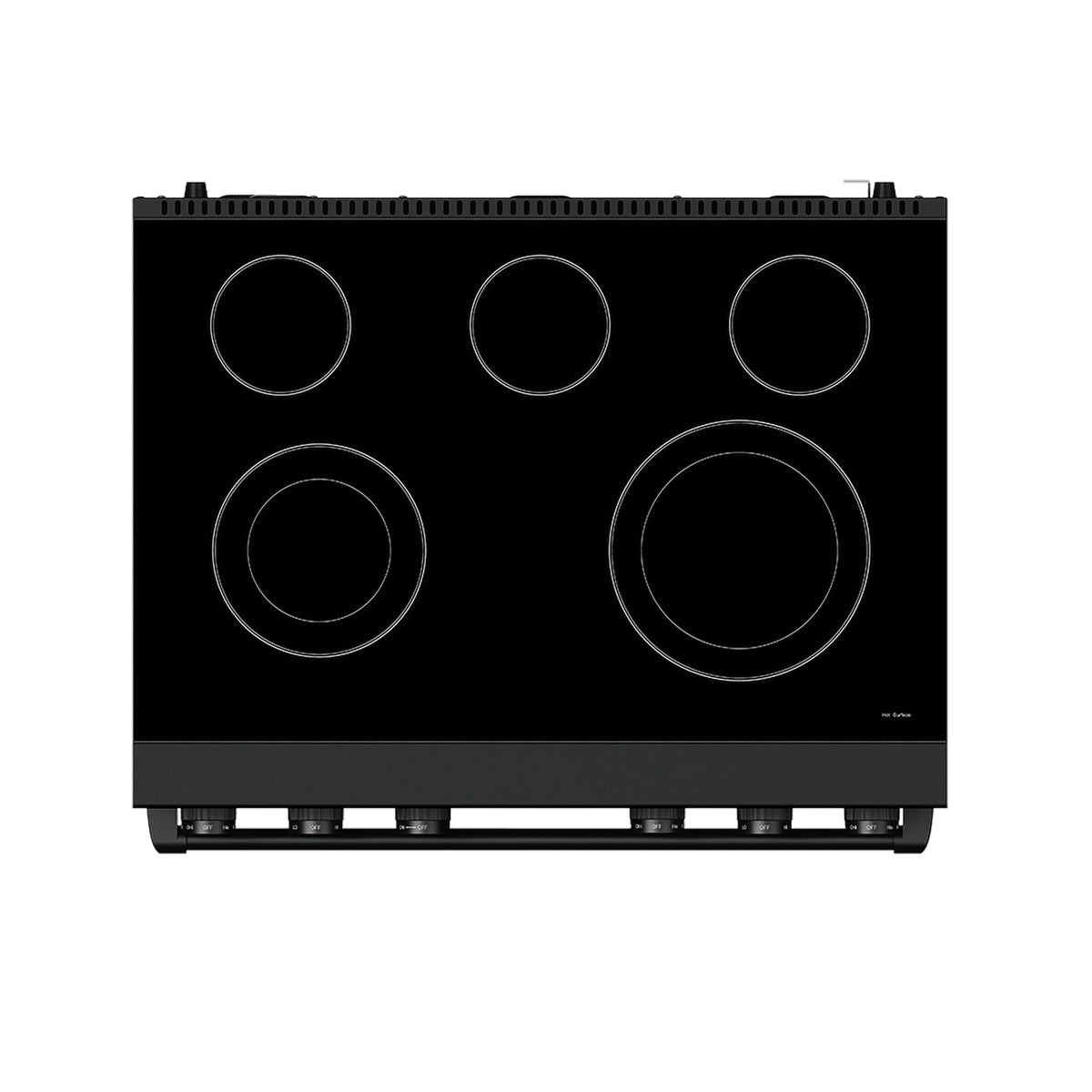

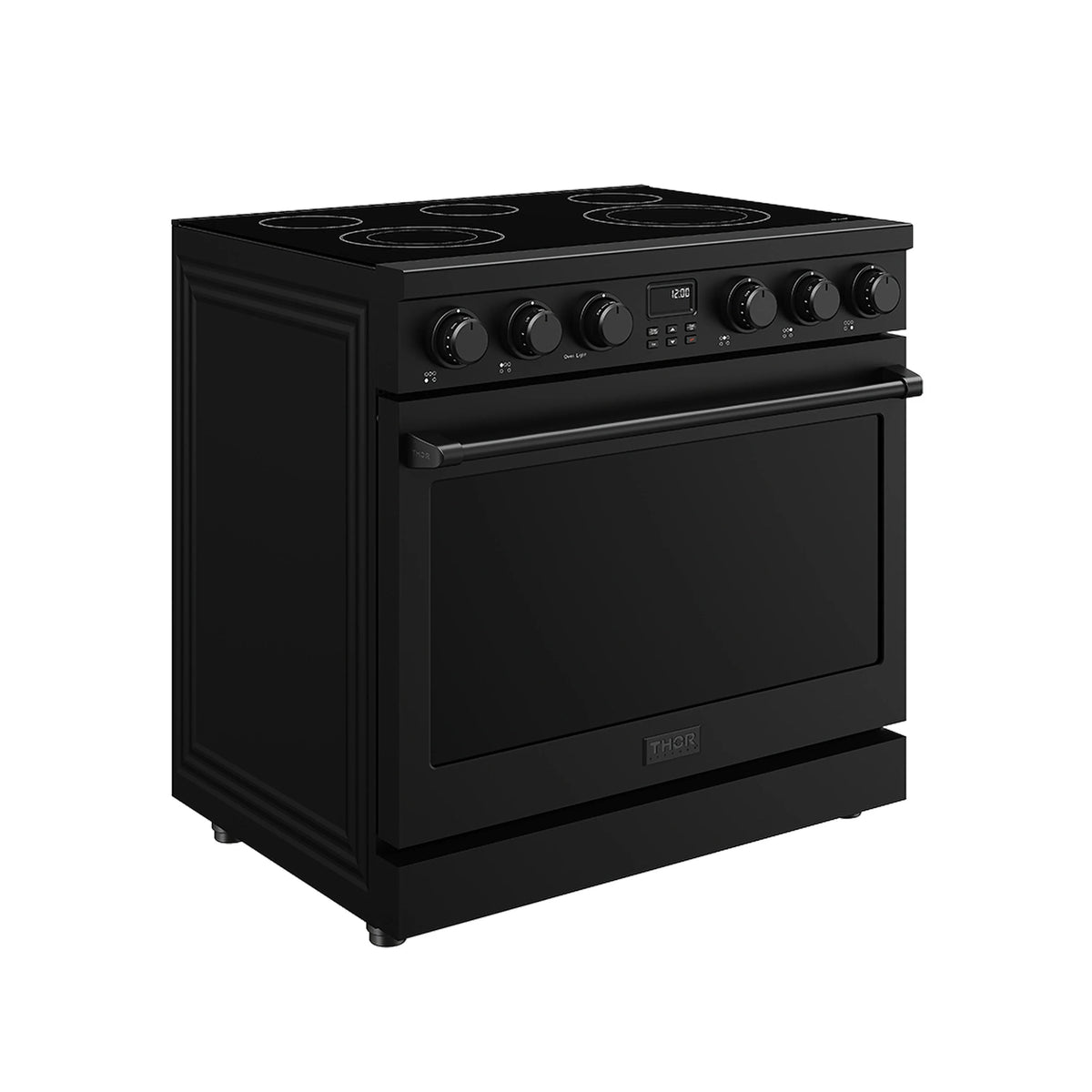

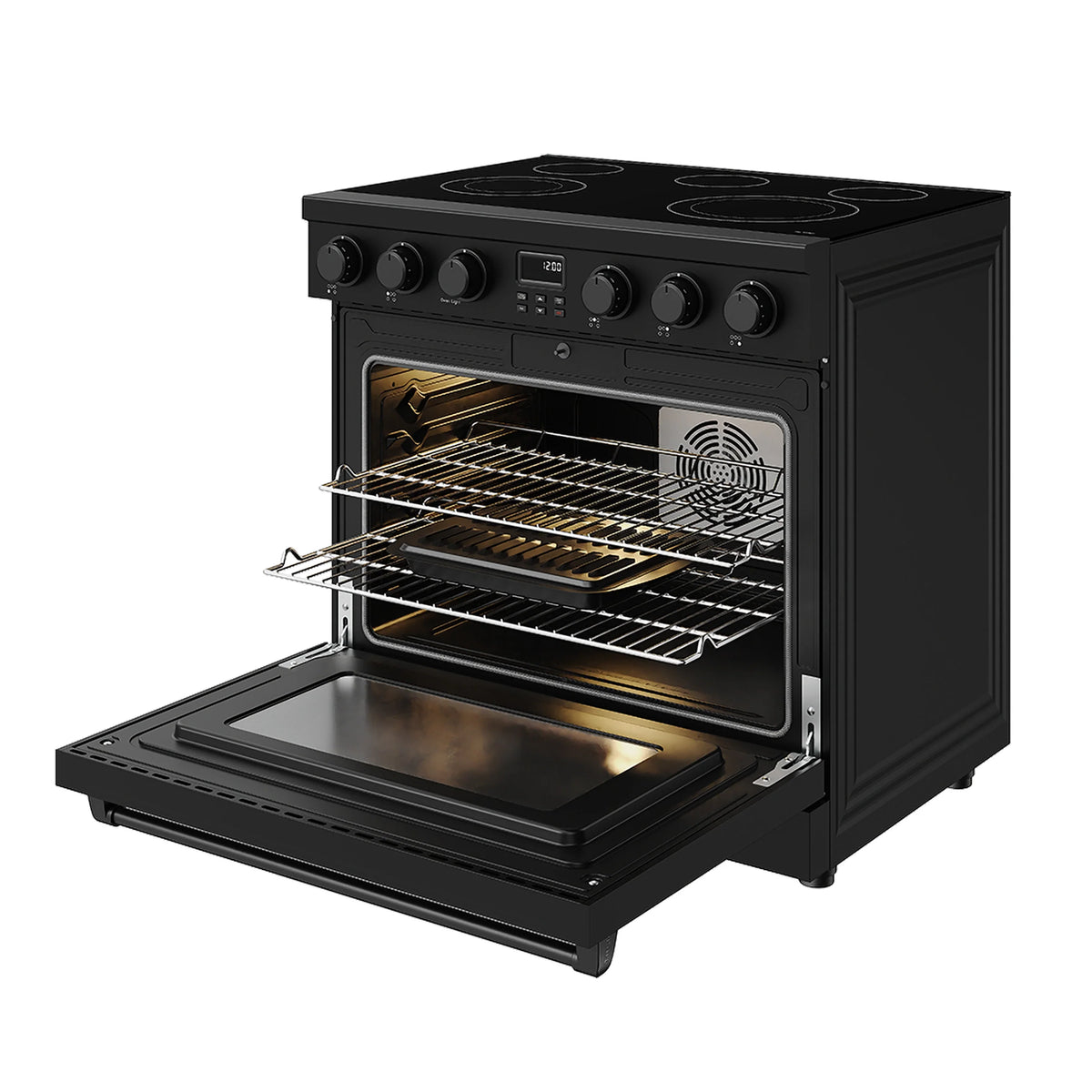

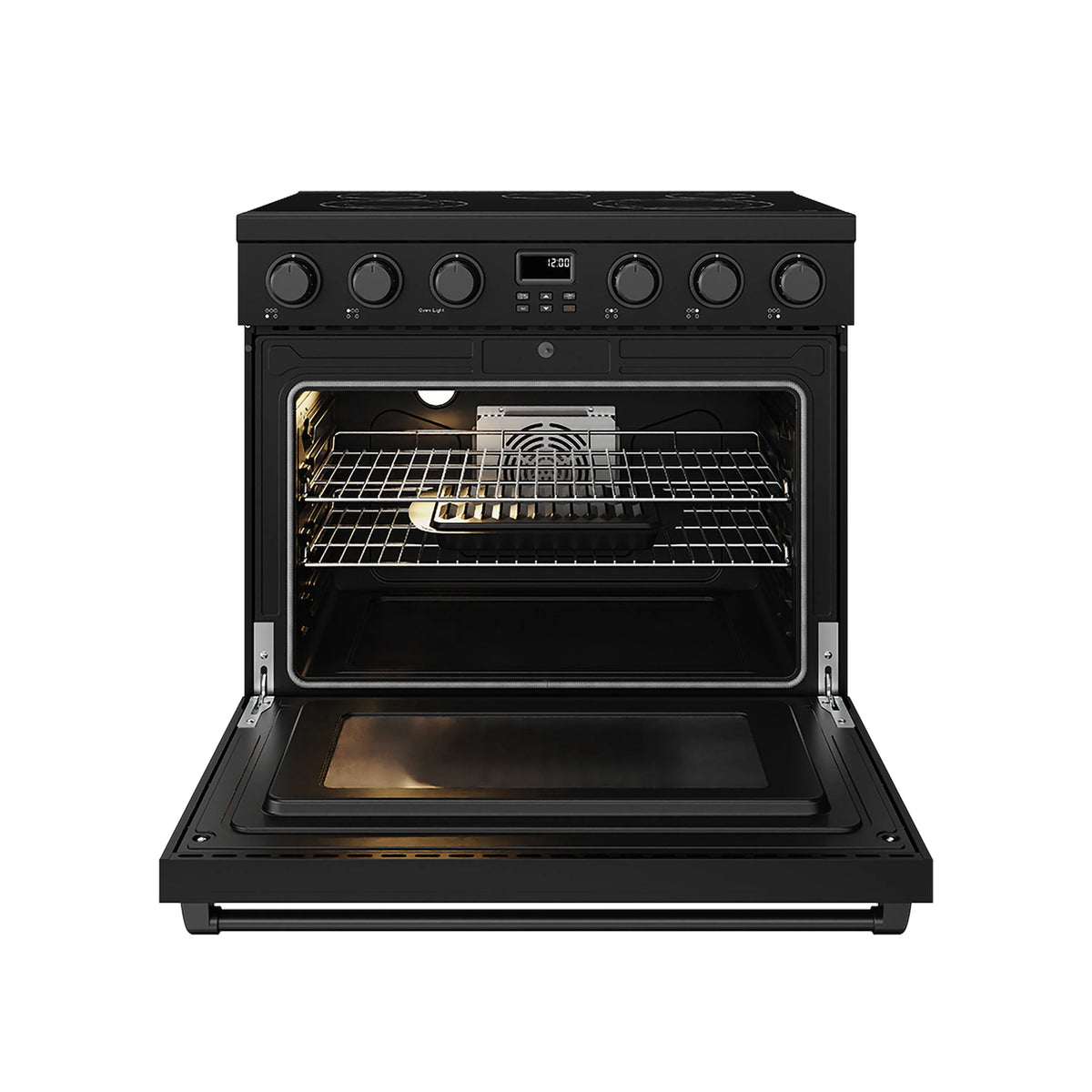

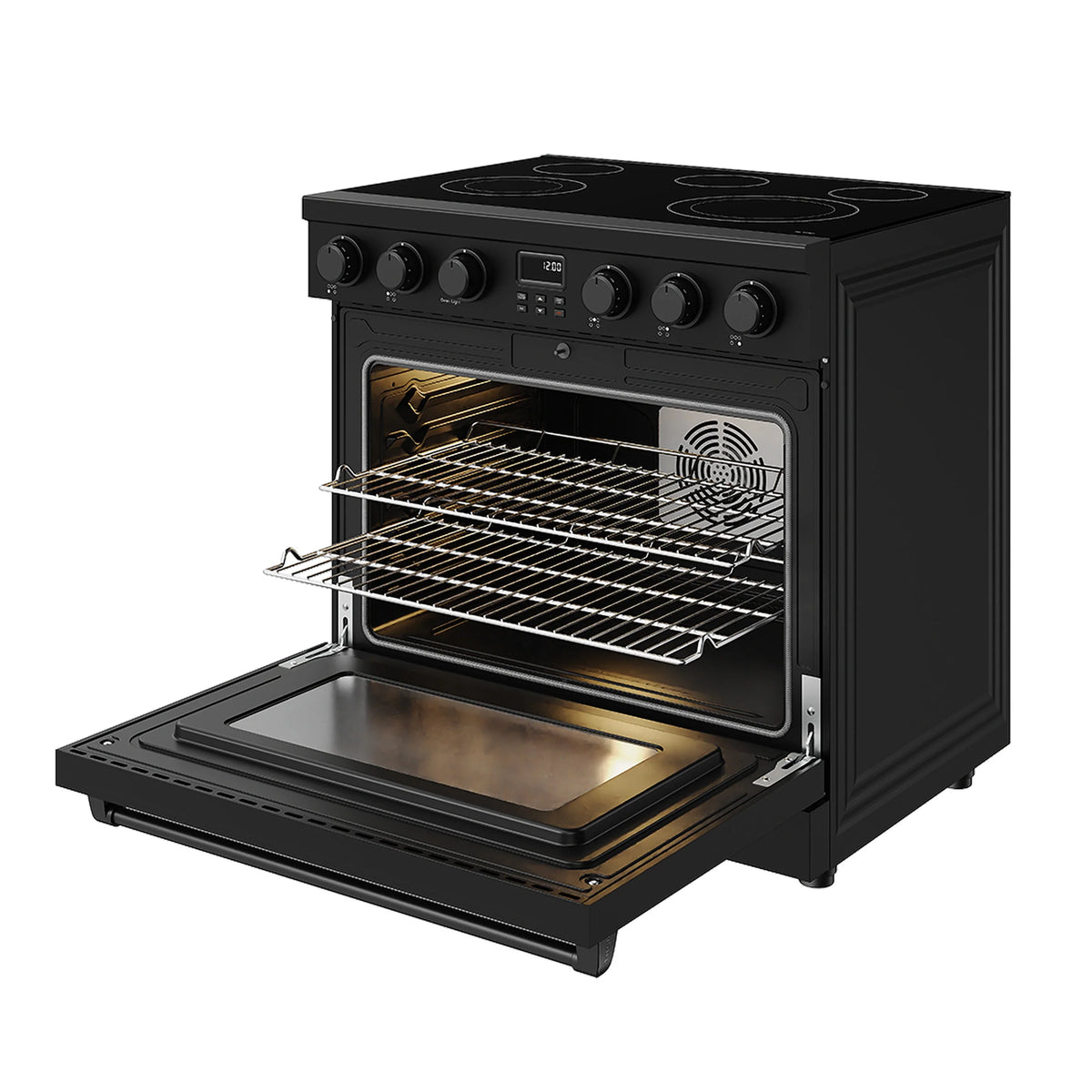

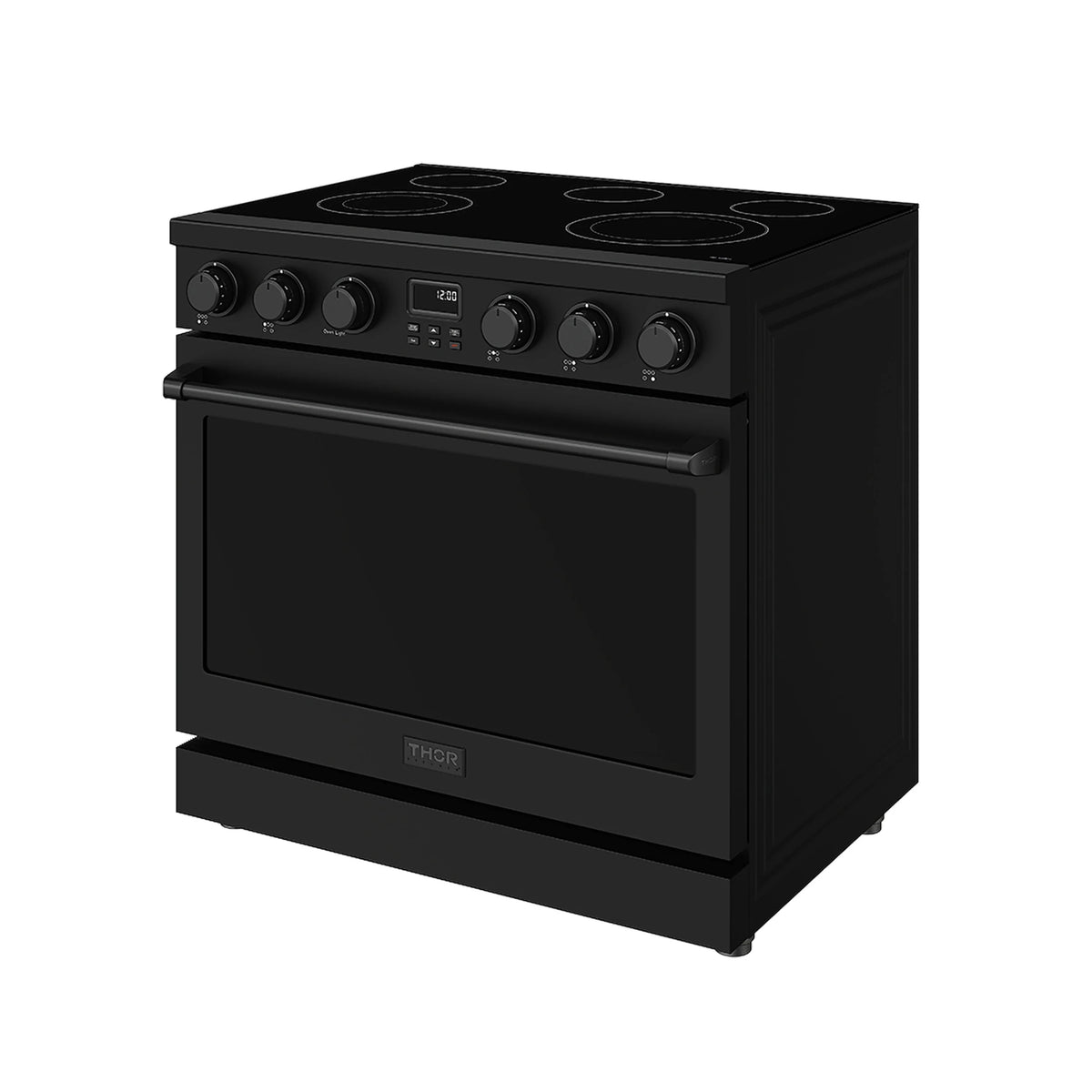

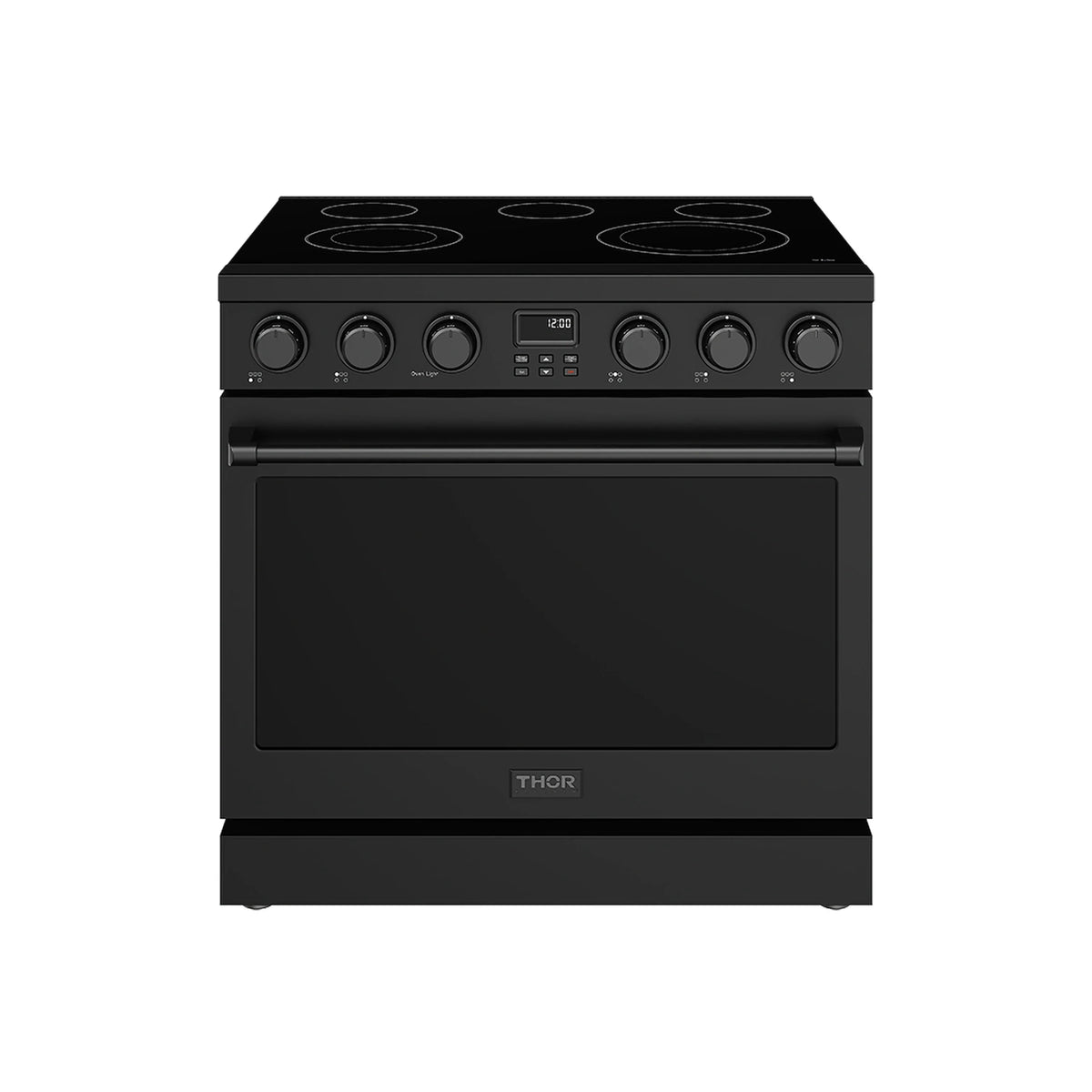

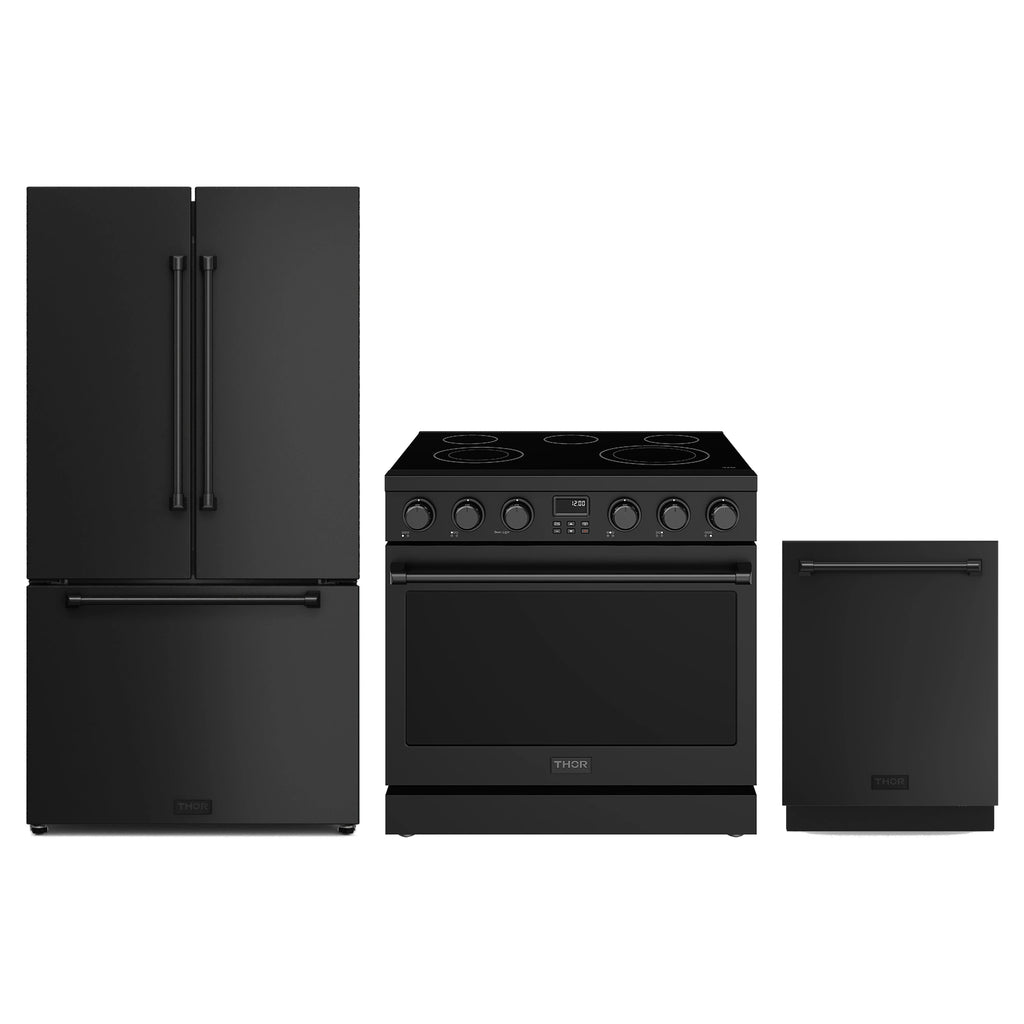

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. The THOR Kitchen 36 Inch Professional Electric Range is a stainless-steel machine designed with professional features and functionality. With easily accessible controls, high-powered burners, continuous grates, and a commercial convection fan, this range takes everything from prime rib to snickerdoodles to the next level.
| DIMENSIONS | |
|---|---|
| Product Width | 35 7/8 in. |
| Product Height (from bottom to top of back splash) | 36 1/12 - 40 1/12 in. |
| Product Height (from bottom to top of side panel) | 36 - 39 in. |
| Product Depth (from back panel to bullnose) | 26 7/8 in. |
| Product Depth (from back panel to control board) | 26 1/4 in. |
| Product Depth (from back panel to side panel front) | 24 in. |
| Oven (W x D x H) | 29.7 in. x 19.4 in. x 18 in. |
| GENERAL INFORMATION | |
| Baking Sheet Size | Fits up to 28" x 14" Sheet |
| DESIGN & FINISH | |
| Color | Black |
| Finish | Black |

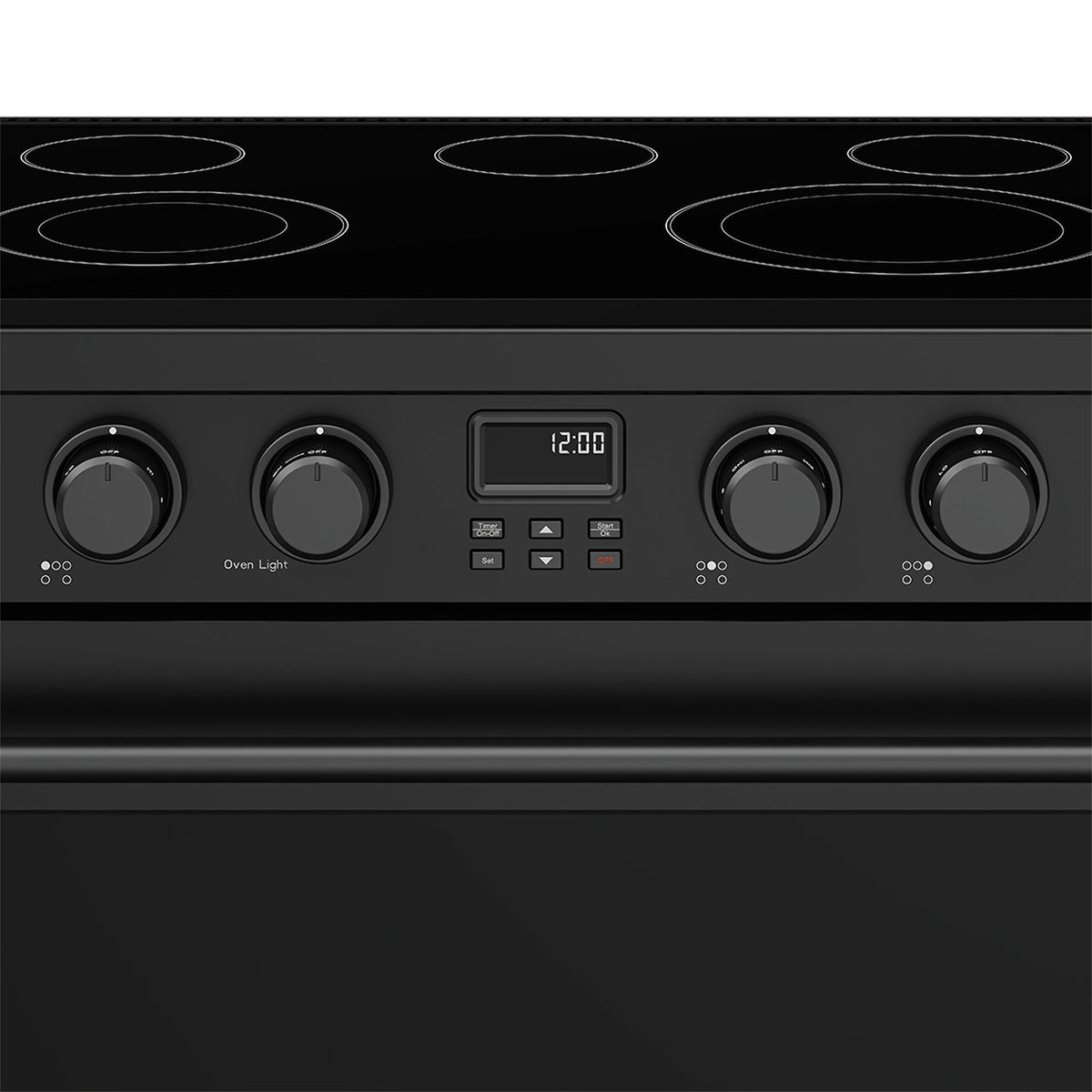

| Control Type | Oven Function Button + LED |
| TECHNICAL DETAILS | |
| Fuel Type | Electric |
| Installation Type | Freestanding |
| Voltage | 240V 50A |
| Frequency (Hz) | 60Hz |
| Plug Type | 4-Prong 14-50R (Not Included) |
| Lower Heater Power | 3,000W |
| Top Heater Power | 3,500W |
| COOKTOP FEATURES | |

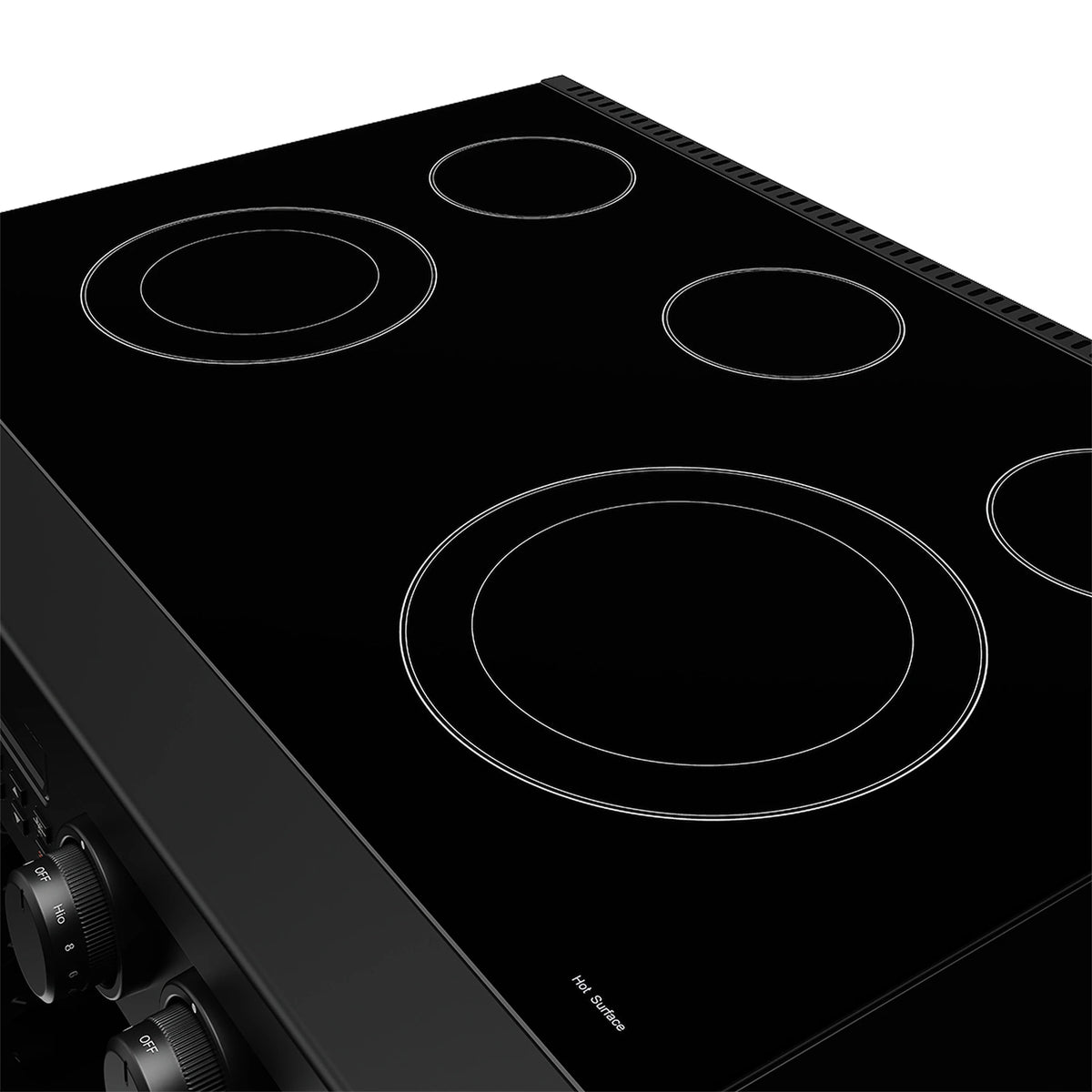

| Hot Surface Indicator Light | Front Right Corner Of Cooktop w/Temp At 150°F |
| OVEN FEATURES | |
| Oven Capacity | 6.0 cu. ft |
| Oven Color | Black |
| Oven Features | Bake, Broil, Conv Bake/Roast, Pizza, Keep Warm |
| Oven Control Buttons | Start/Ok, Timer On/Off |
| Convection | Convection Fan |
| Oven Light | 1*40W, Rear |
| Oven Racks | 2 |
| Rack Positions | 6 |
| Oven Rack Material | Chrome Plated |

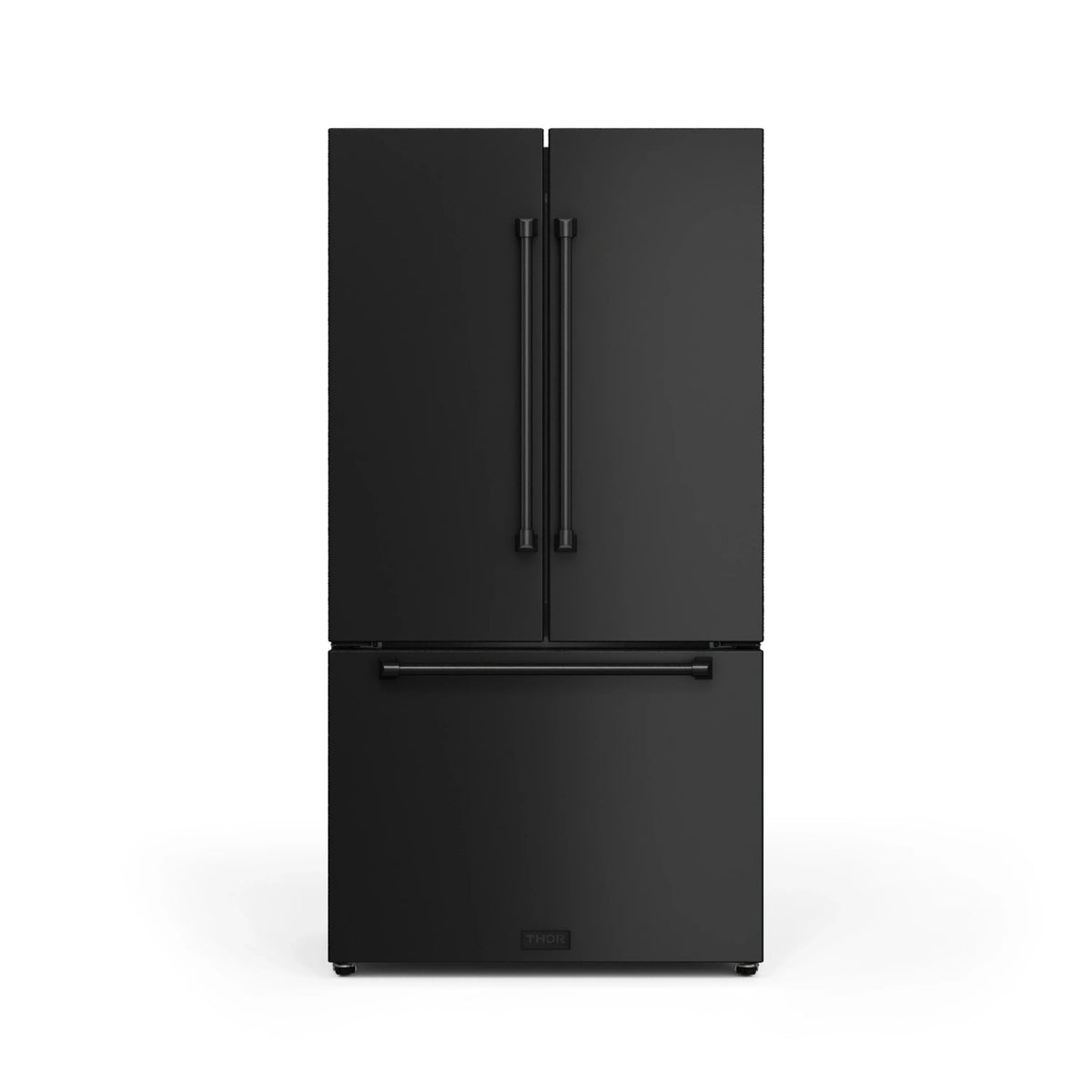

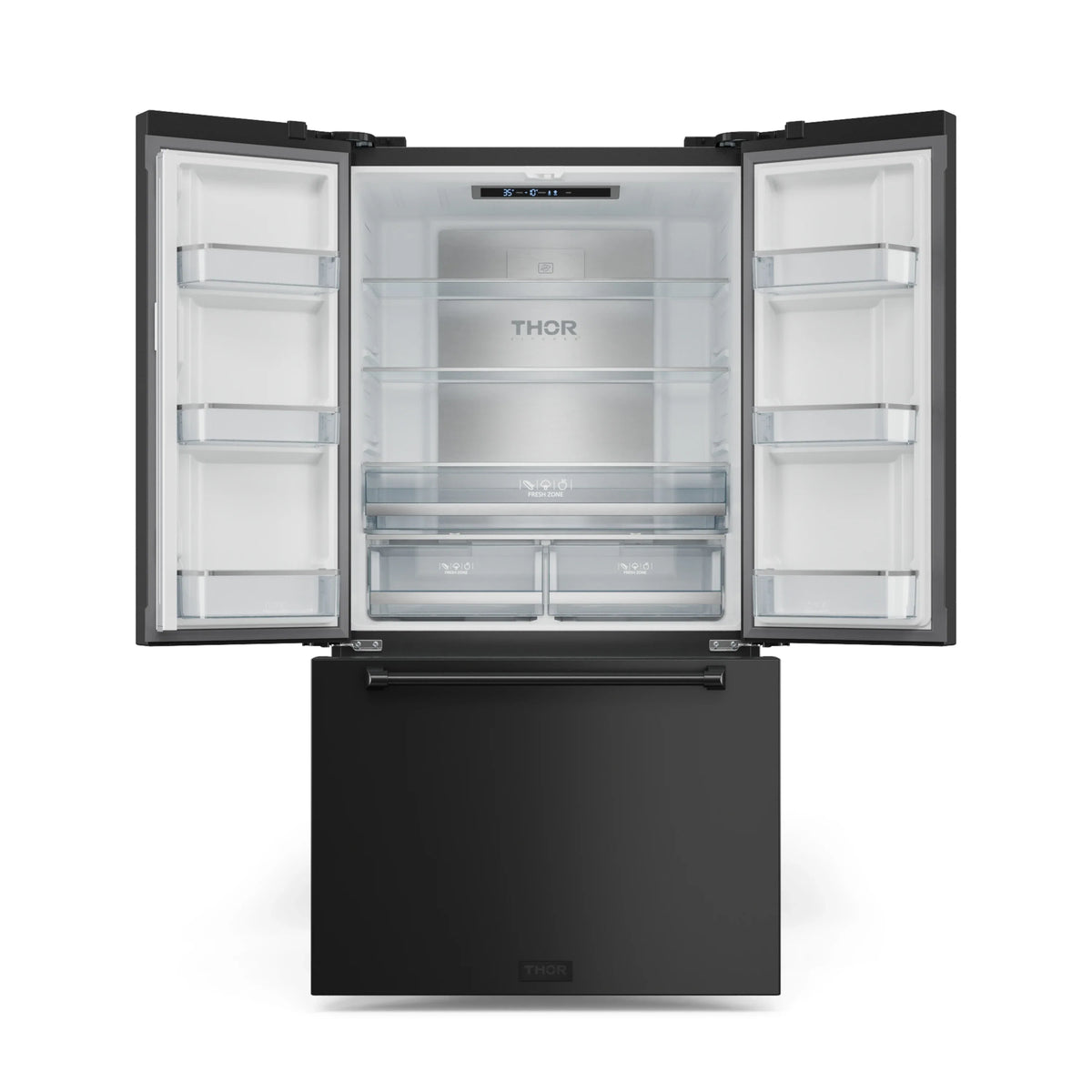

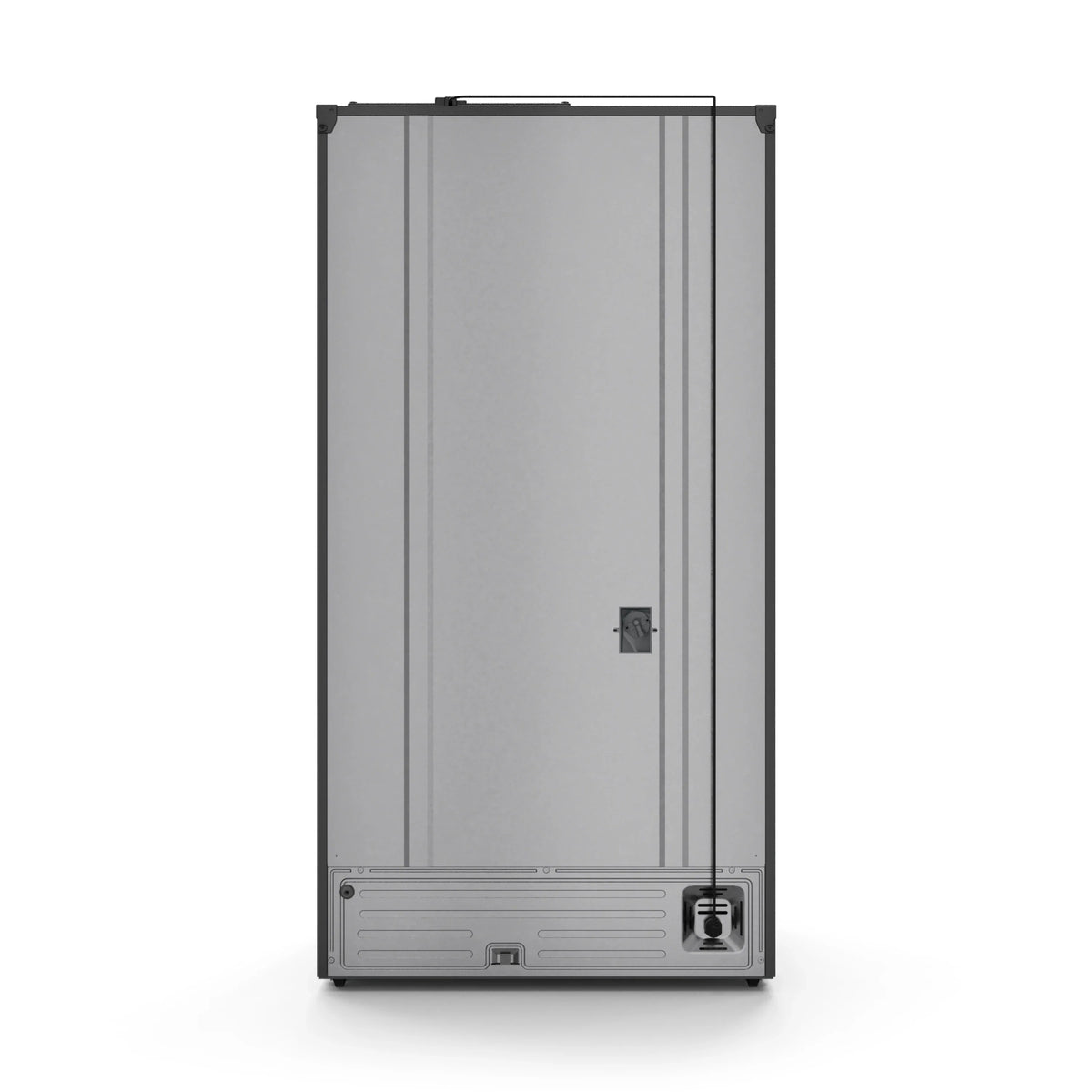

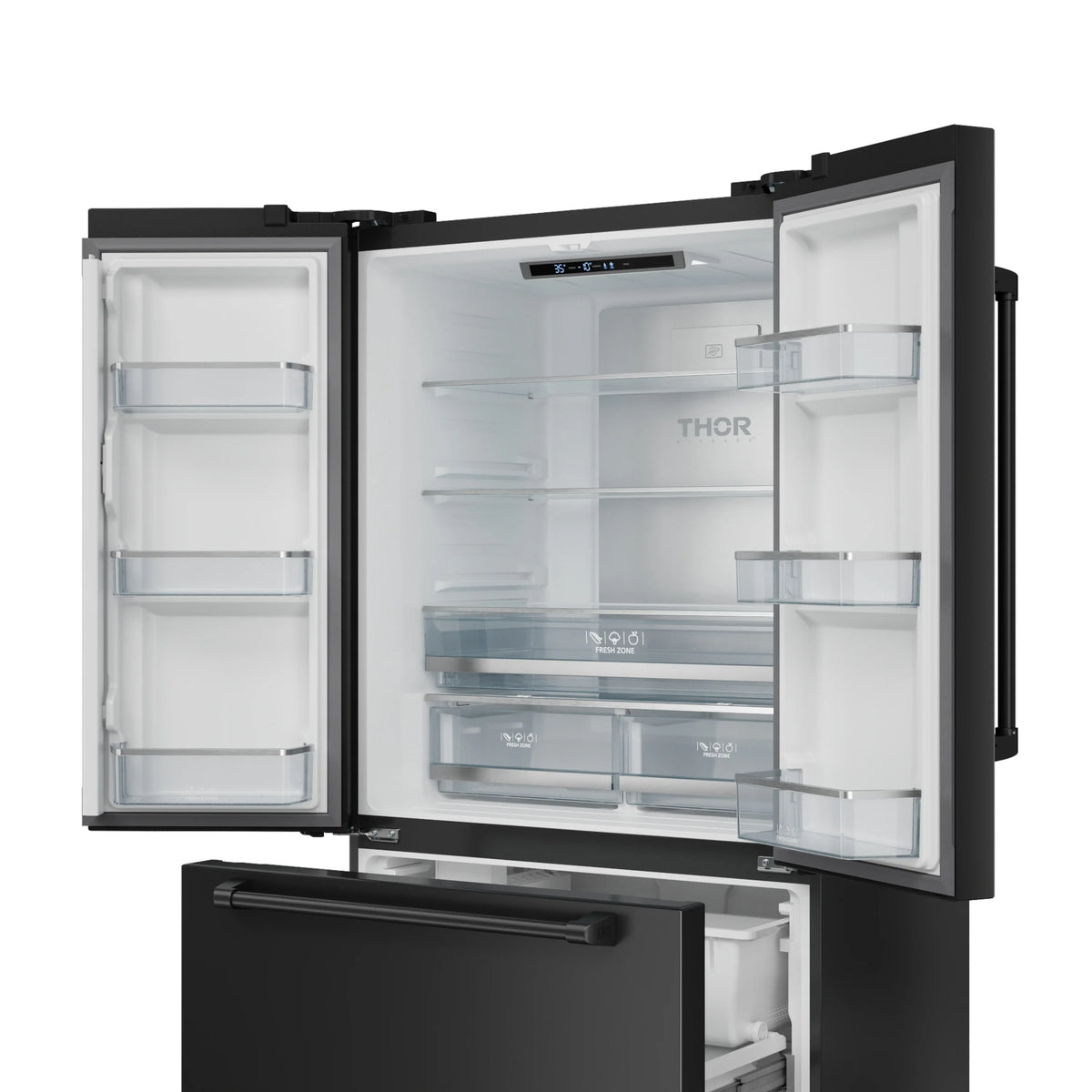

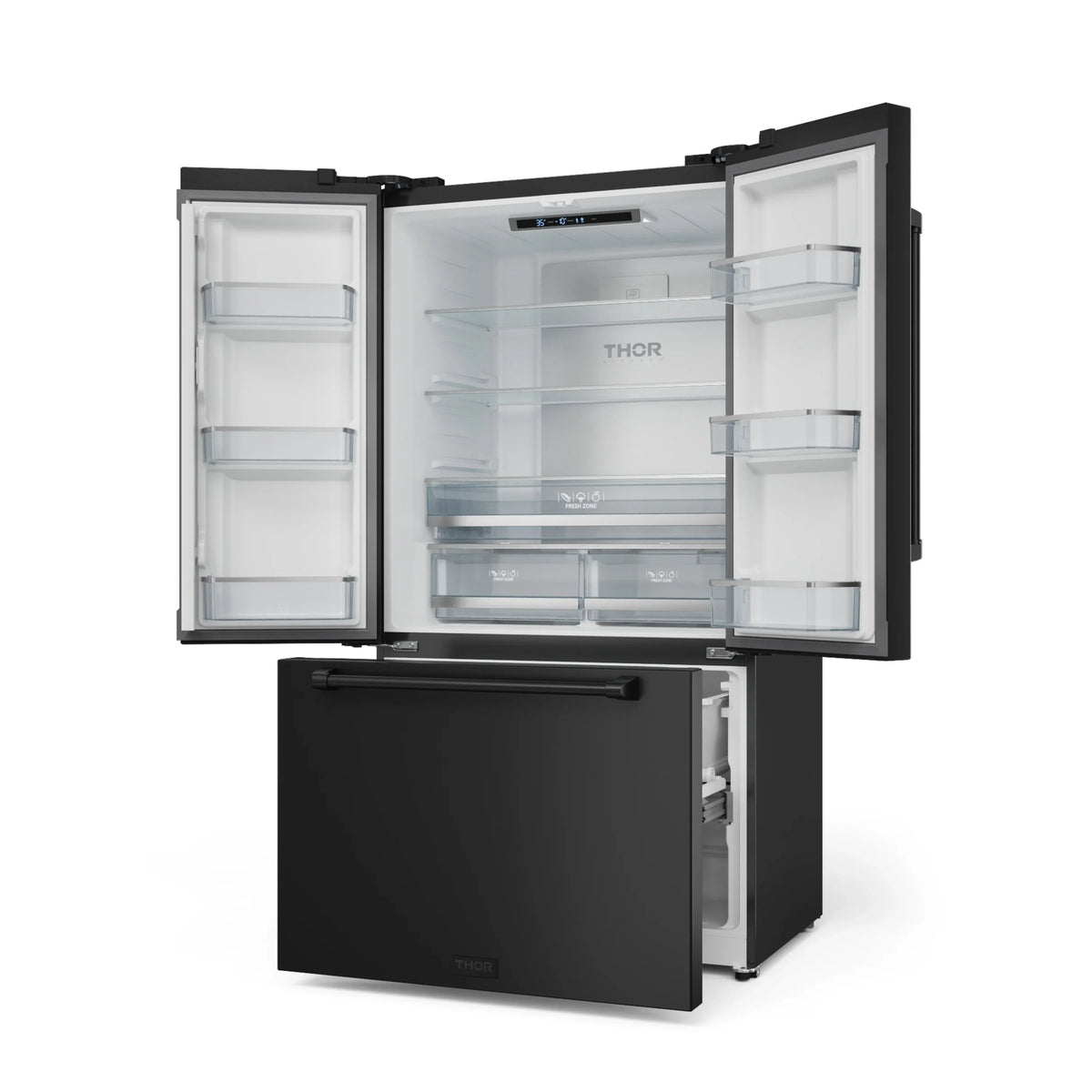

Experience superior freshness with the 36 Inch 20.3 cu ft French Door Counter Depth Refrigerator in Black. With advanced cooling technology, spacious interiors, and customizable features, this refrigerator ensures your ingredients stay at peak freshness. Designed for durability and efficiency, it brings top-tier performance and style to your kitchen.
| DIMENSIONS | |
|---|---|
| Product Dimensions (WxDxH) | 36” x 30 1/8” x 70” |
| Product Depth Excluding Handles | 27 5/8” |
| Product Depth Including Handles | 30 1/8” |
| Product Depth Excluding Door | 24 5/8” |
| Product Depth With Door Open 90 Degrees | 43 1/4” |
| Product Height To Top Of Door Hinge | 70” |
| Product Height To Top Of Refrigerator | 68” |
| Cutout Dimensions (WxDxH) | 39 7/8” x 26” x 72” |
| Net Weight | 231 lbs |
| Package Dimensions (WxDxH) | 38 1/8” x 29 1/2” x 73 7/8” |
| Package Weight | 255 lbs |
| Total Capacity | 20.3 cu. ft. |
| GENERAL INFORMATION | |
| Installation Type | Freestanding |
| Accessories Included | Water Pipe Ice Scoop Ice Storage Box |
| DESIGN & FINISH | |
| Shelf Material | Glass With Stainless Steel Trim |
| Lighting | LED |
| TECHNICAL DETAILS | |
| Watts | 190W |
| Circuit Breaker Amperage | 15A |
| Volts | 115V |
| Frequency | 60Hz |
| Plug Type | 3-Prong Plug |
| Power Cord Length | 94” |
| REFRIGERATOR FEATURES | |
| Refrigerator Capacity | 14.2 cu. ft. |
| Number Of Door Bins | 6 |
| Number Of Shelves | 3 |
| Refrigerator Features | 6 pcs Gallon Bottle Storage Child Lock / Energy Saving & Vacation Mode/ Fast Cooling Humidity Controlled Crispers Fridge Temperature Range: 35~46°F (2~8°C) |

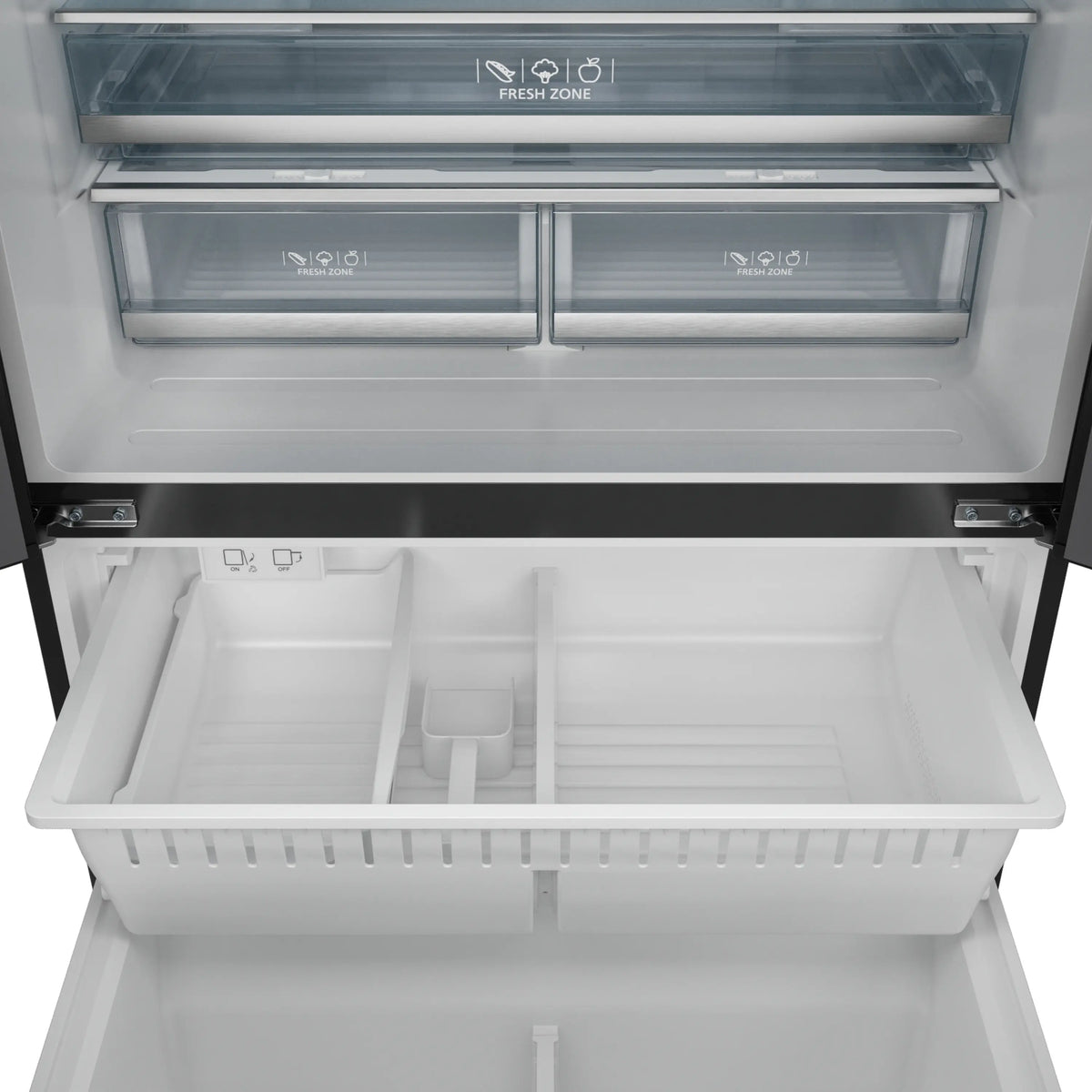

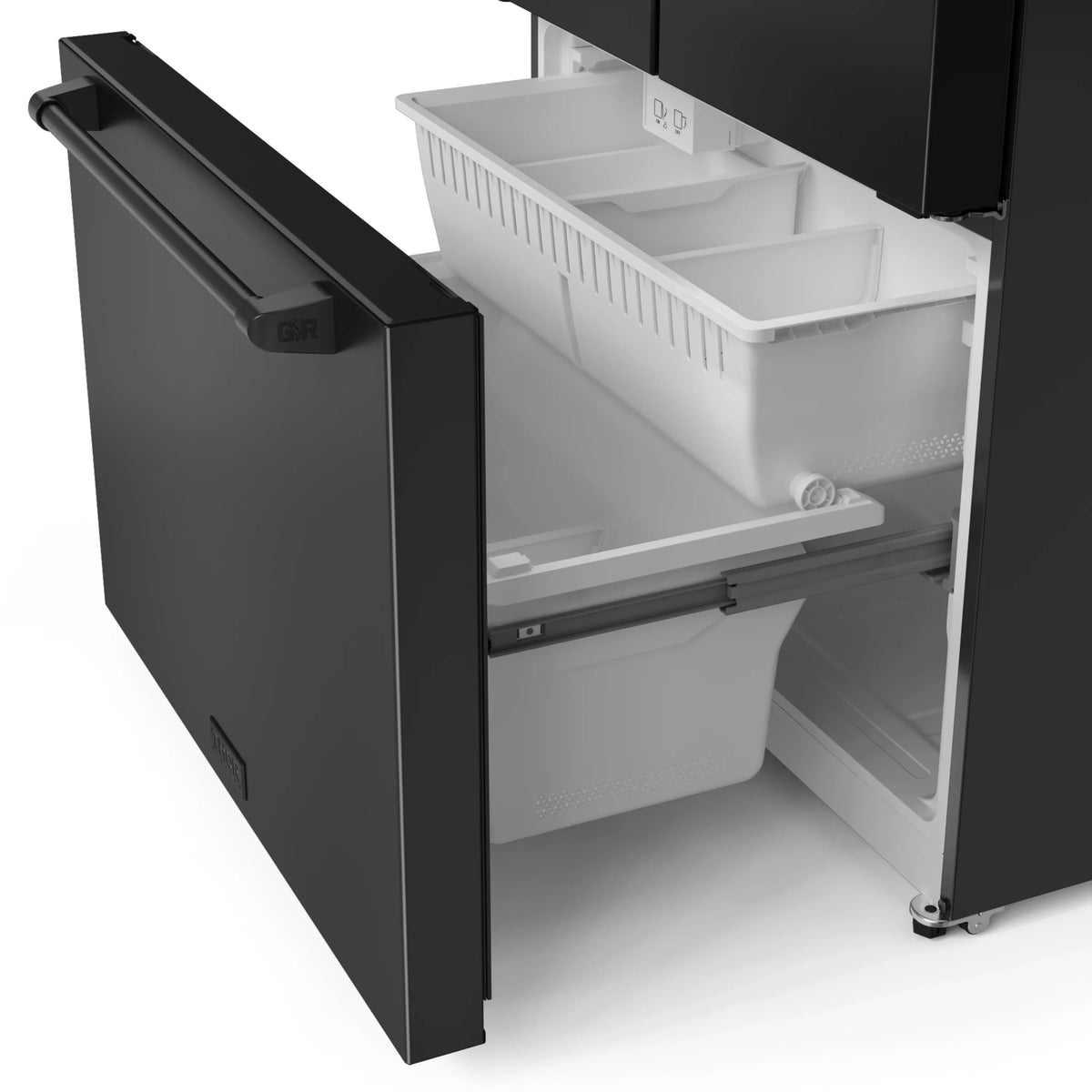

| FREEZER FEATURES | |
| Freezer Capacity | 6.1 cu. ft |
| Number Of Freezer Baskets | 1 |
| Freezer Features | LED Lightening Fast Freezing Freezer Temperature Range: -10~5°F ( -23~ -15°C) No Frost Design |

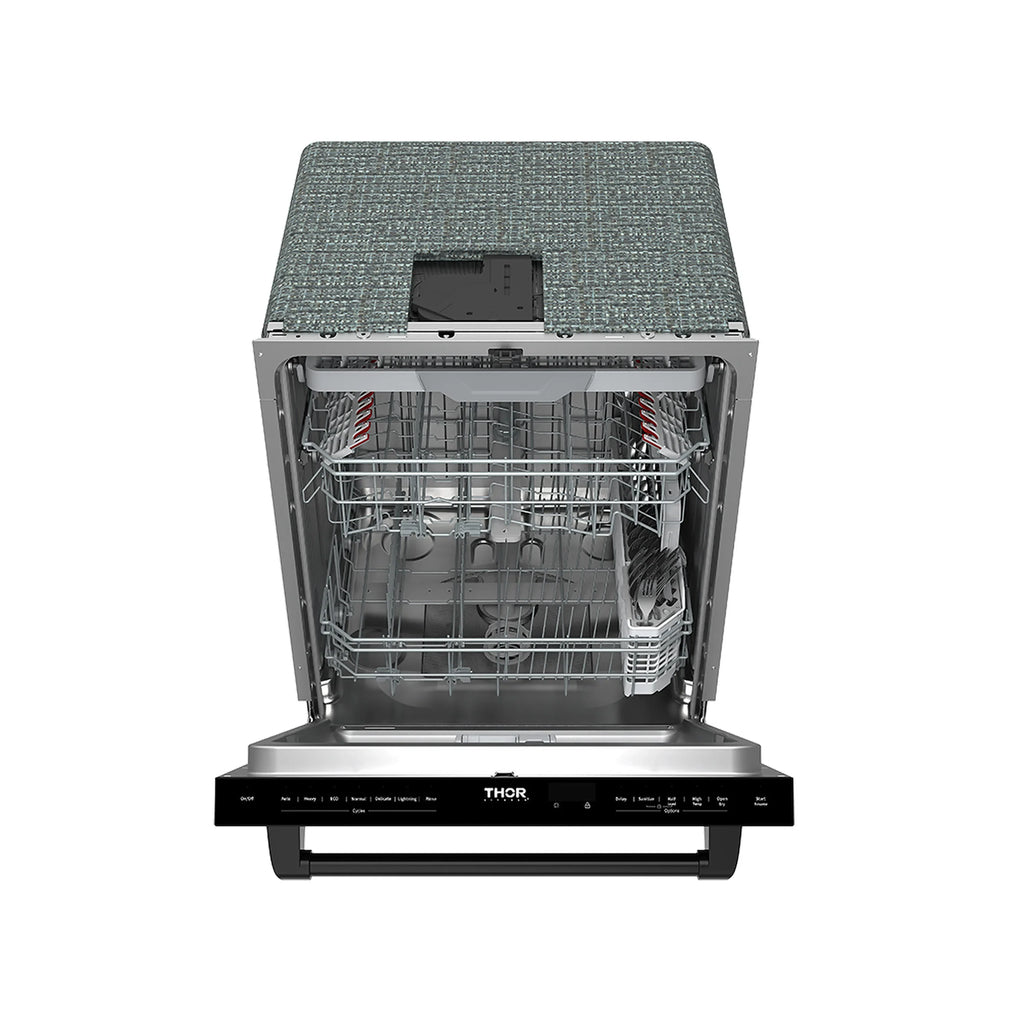

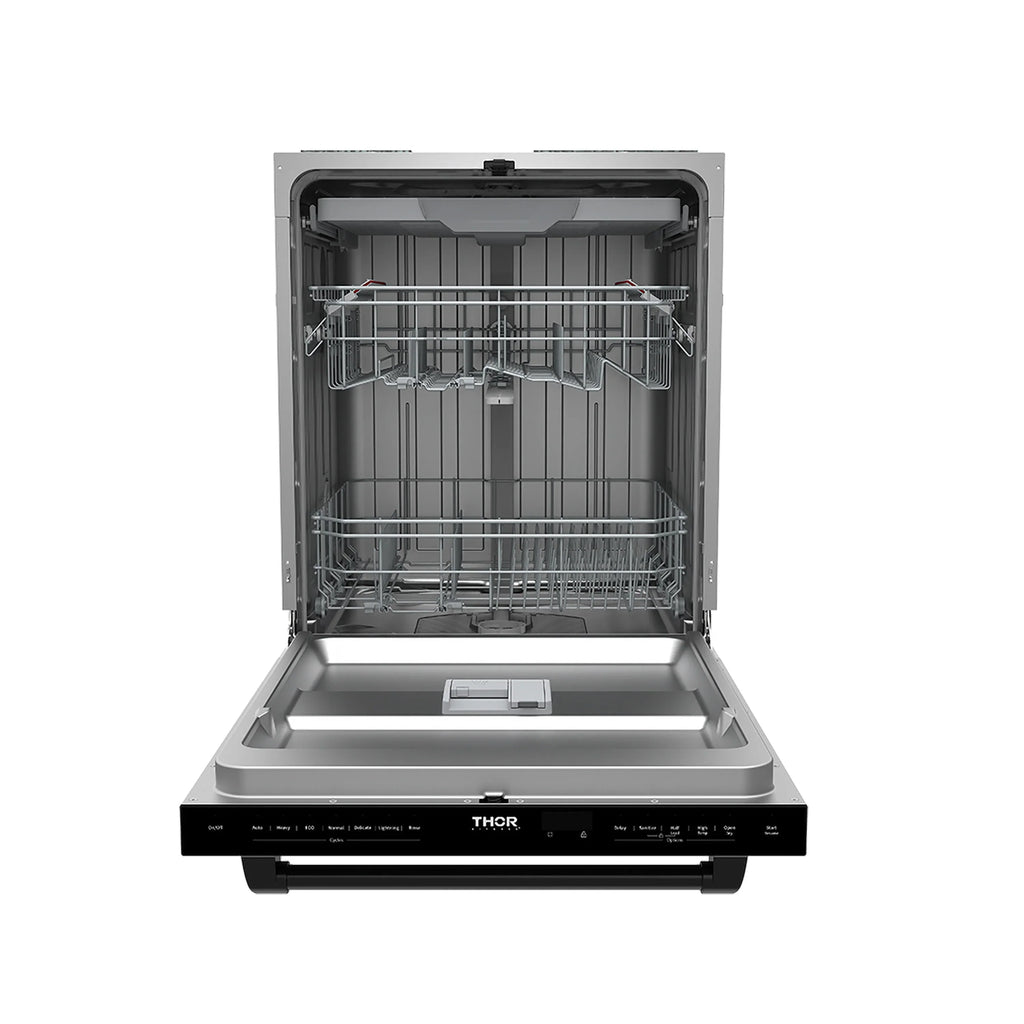

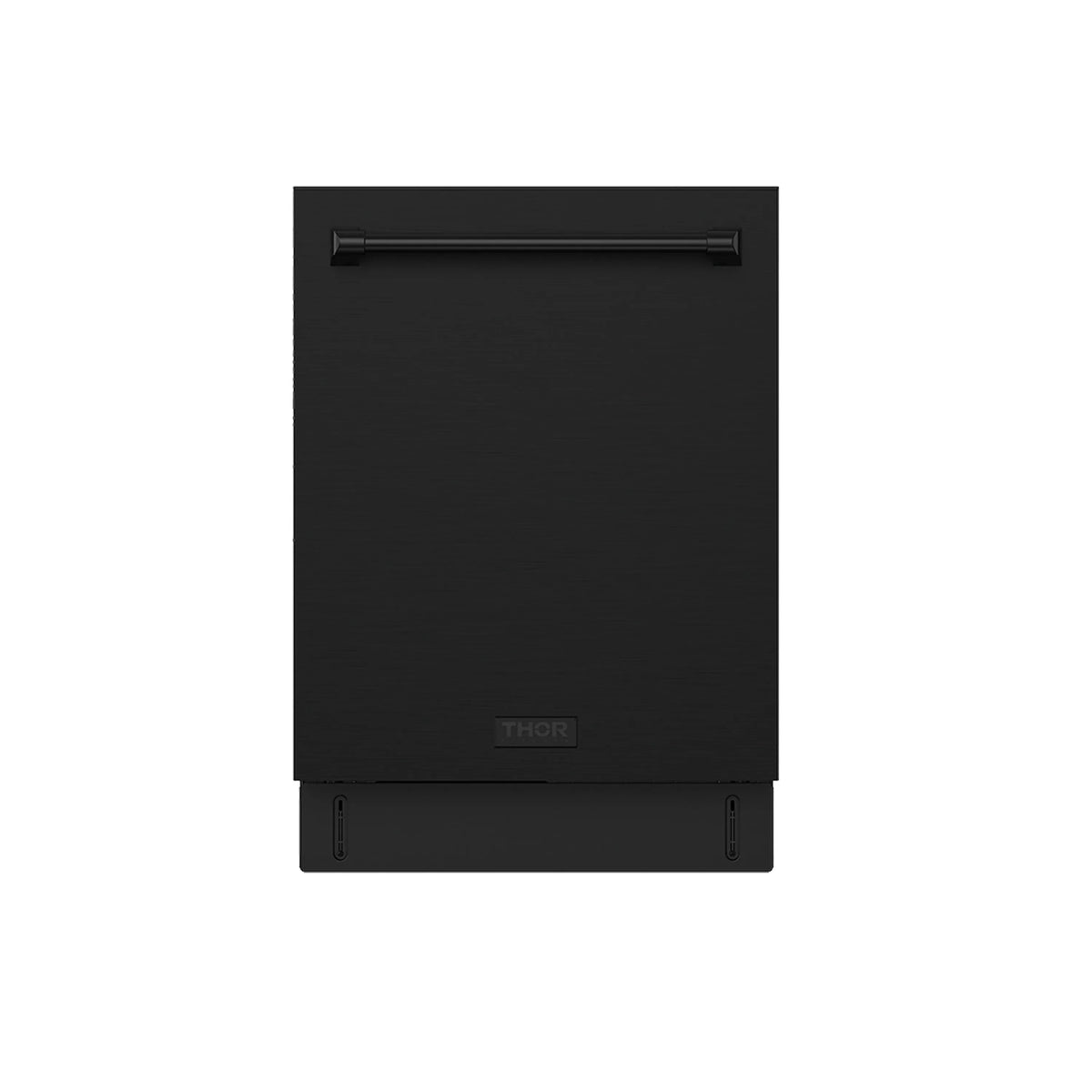

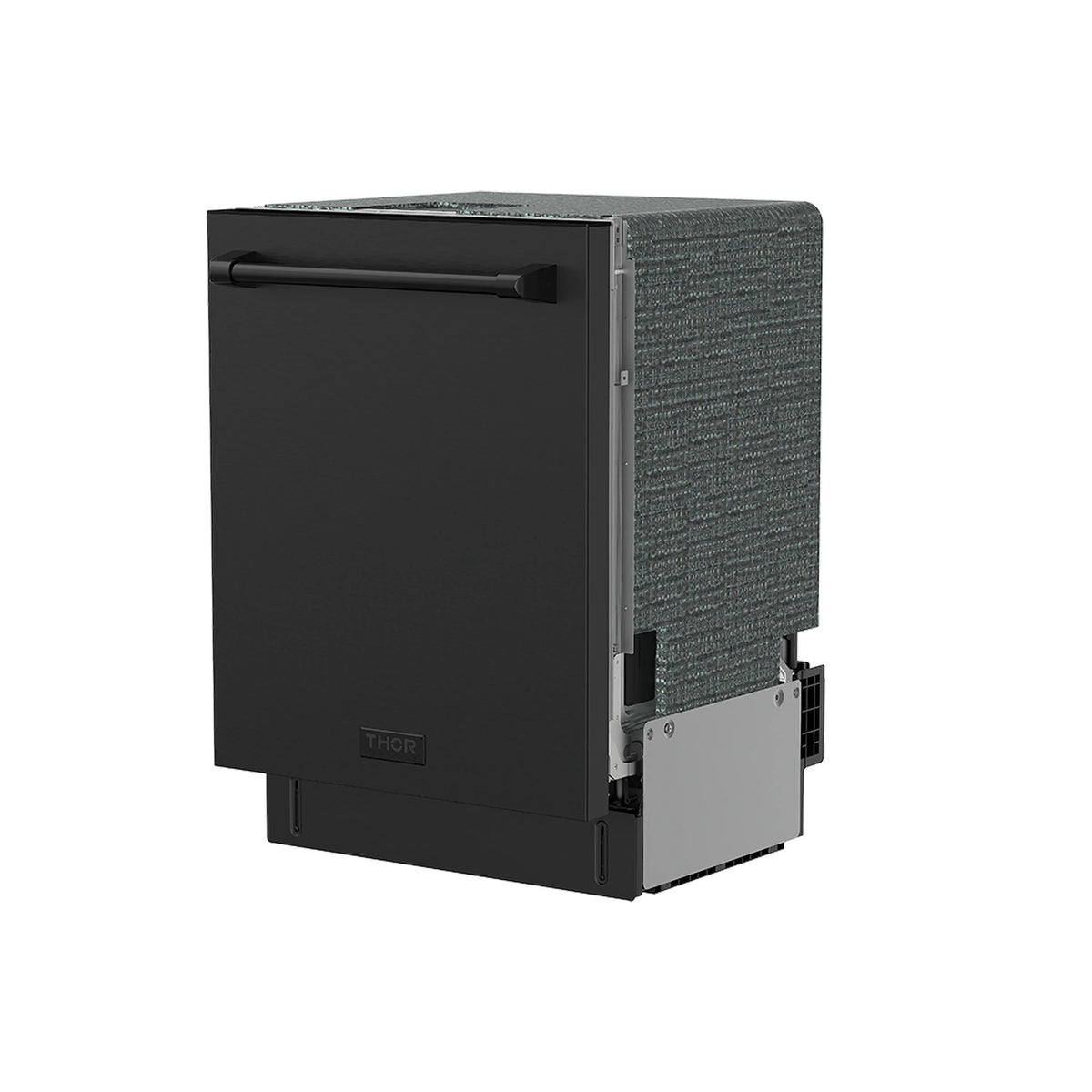

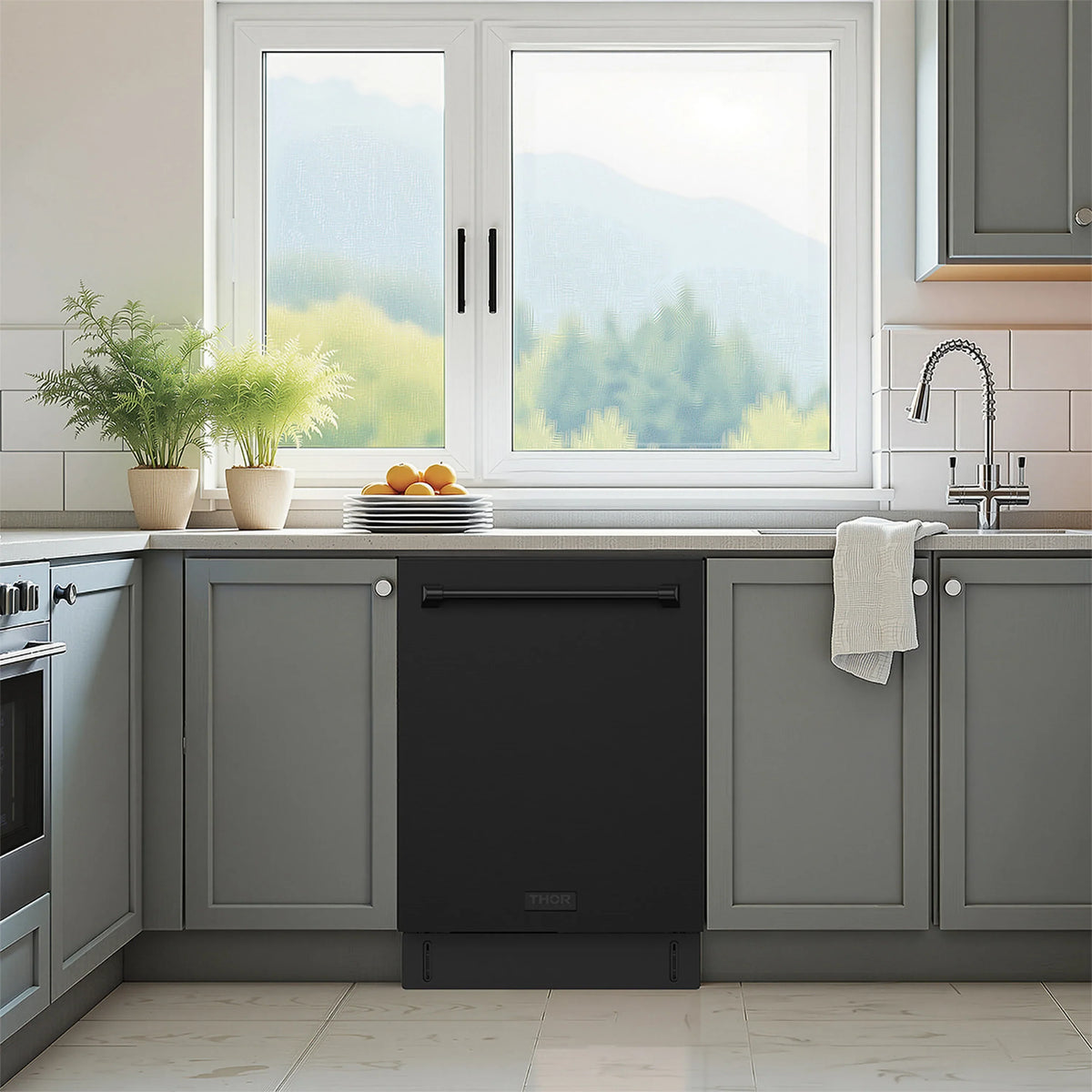

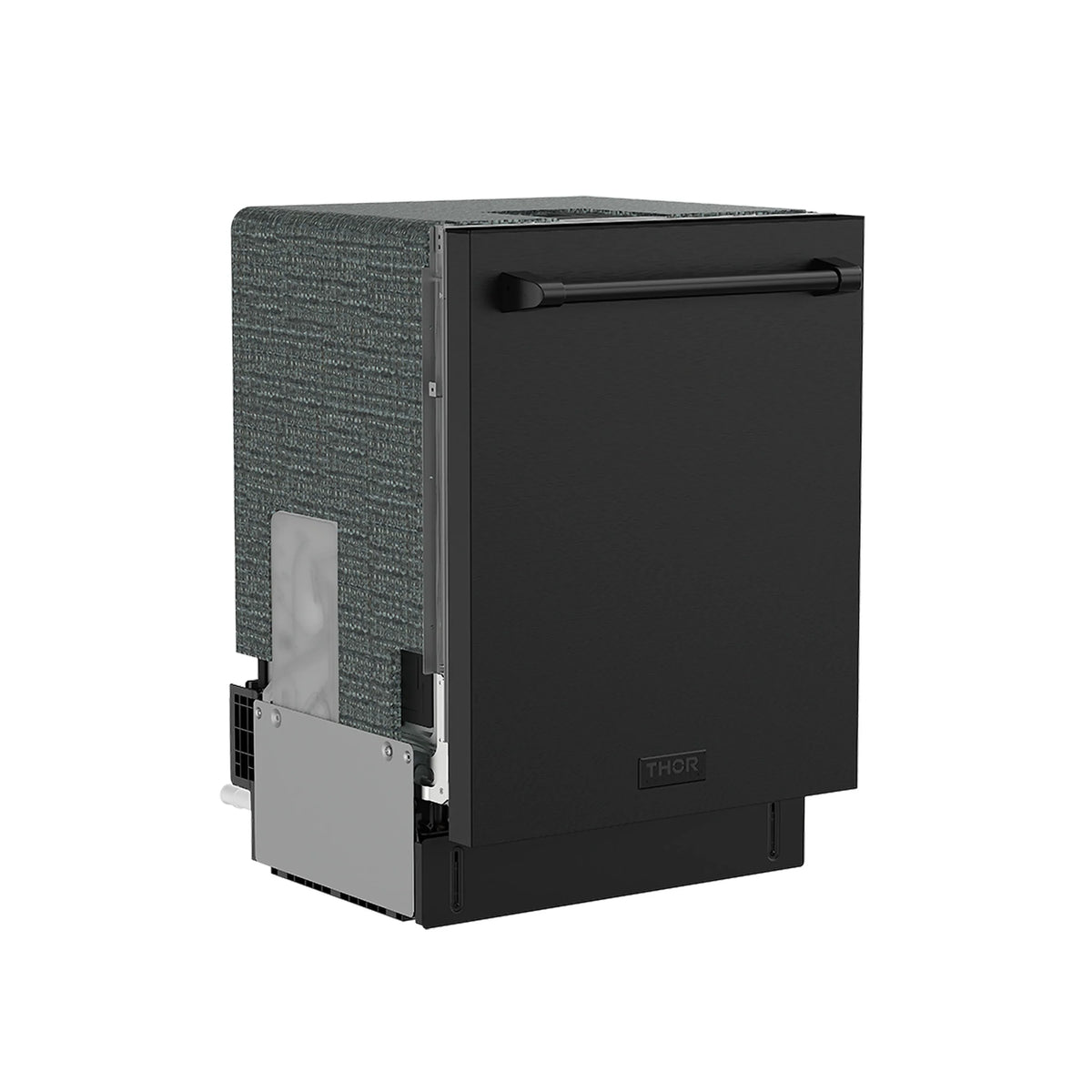

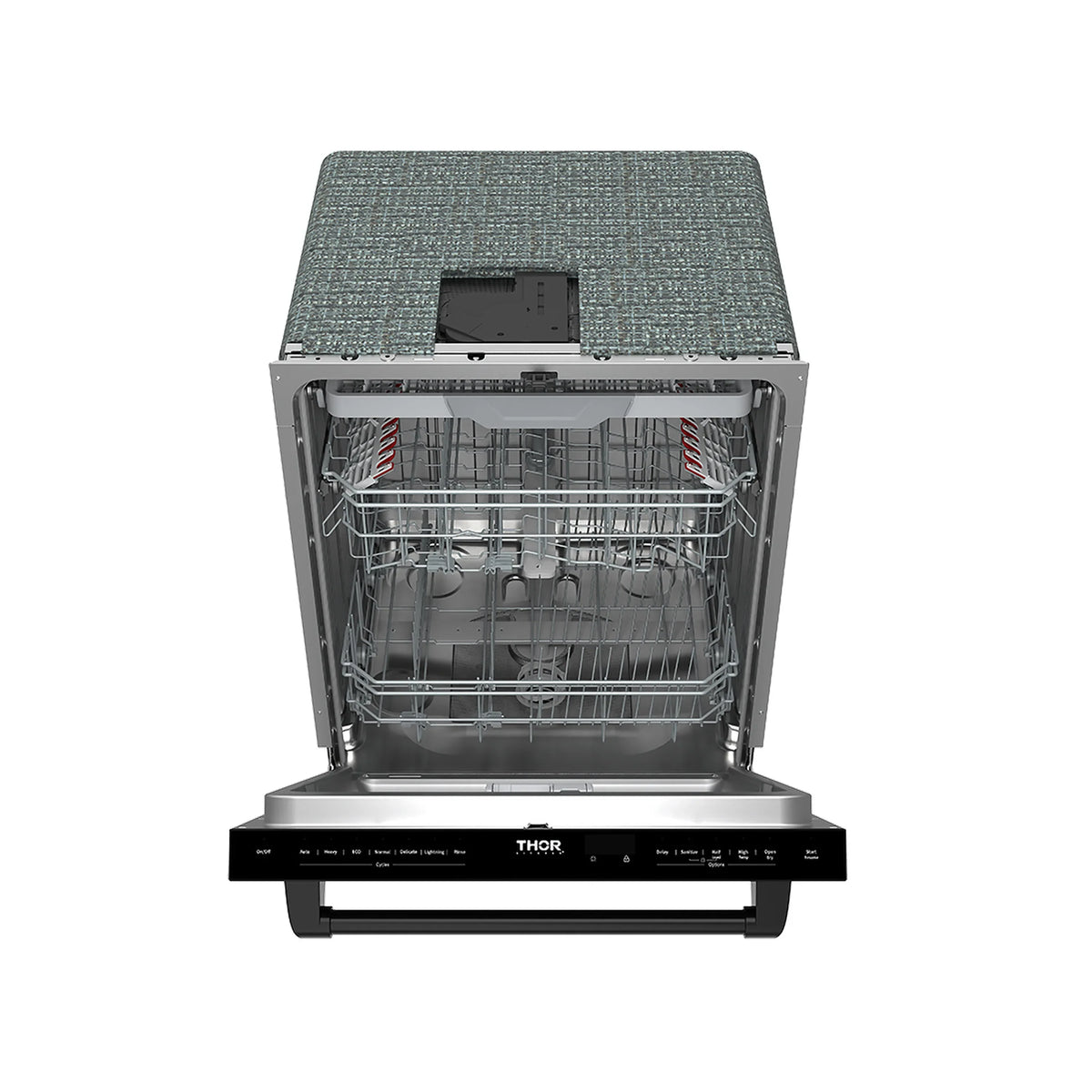

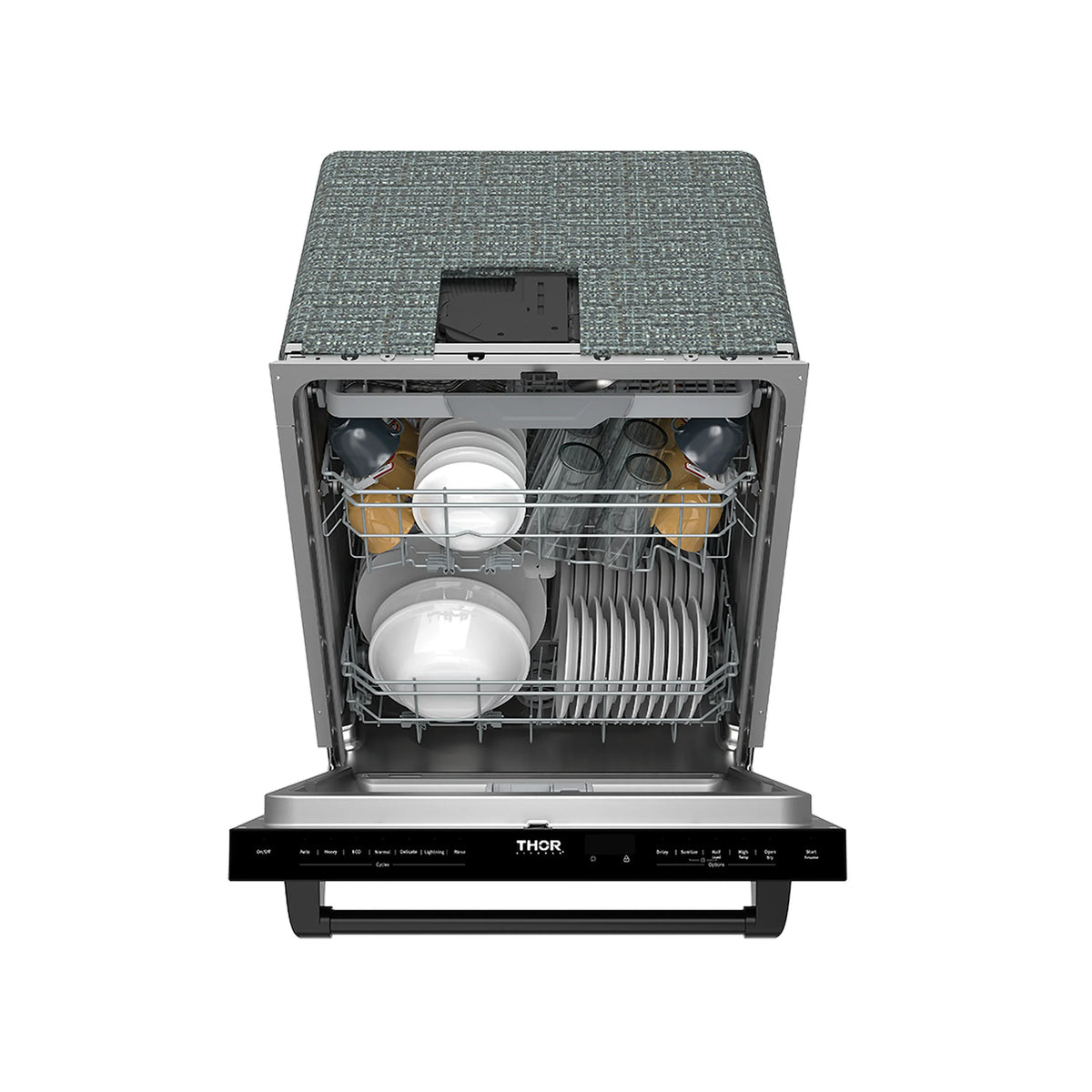

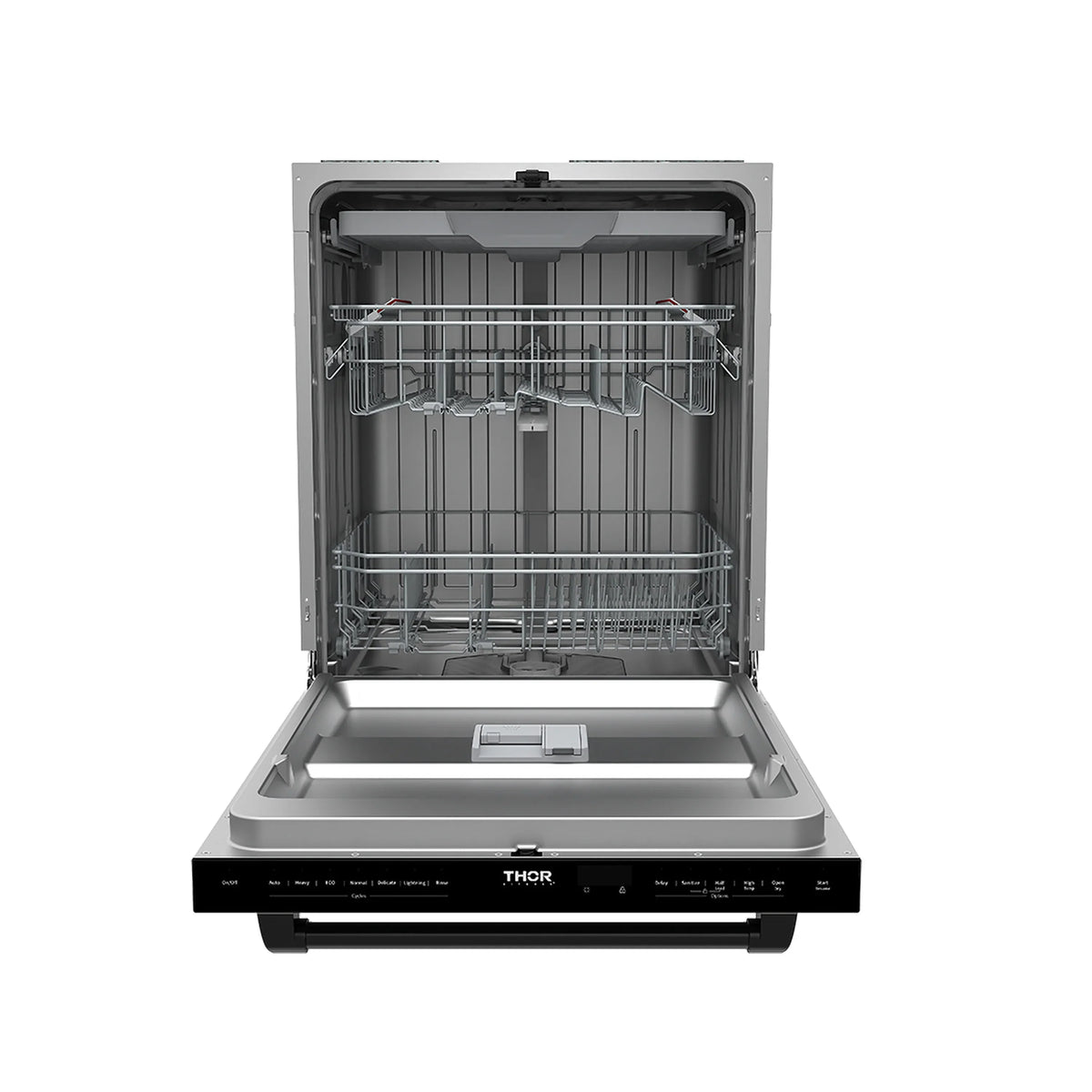

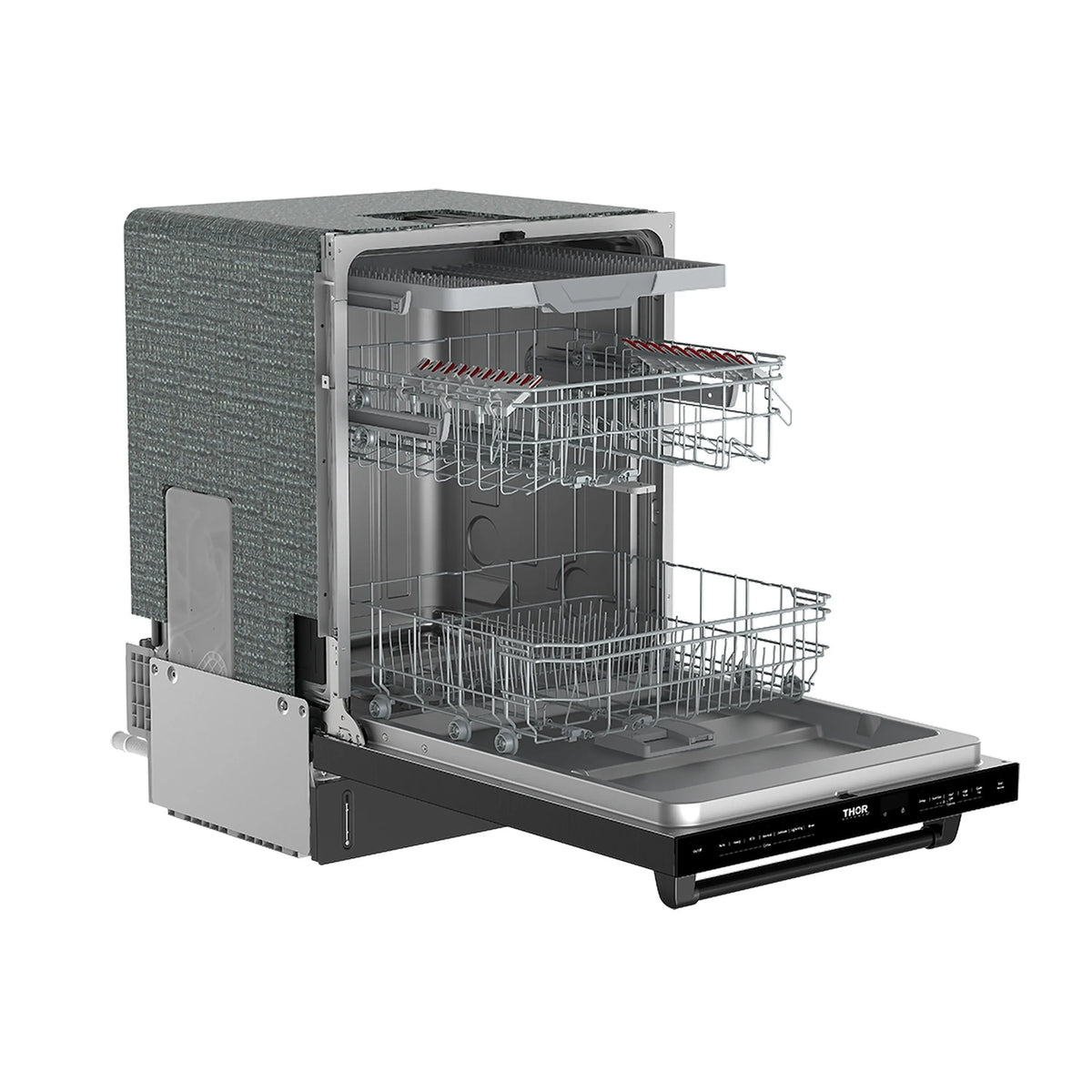

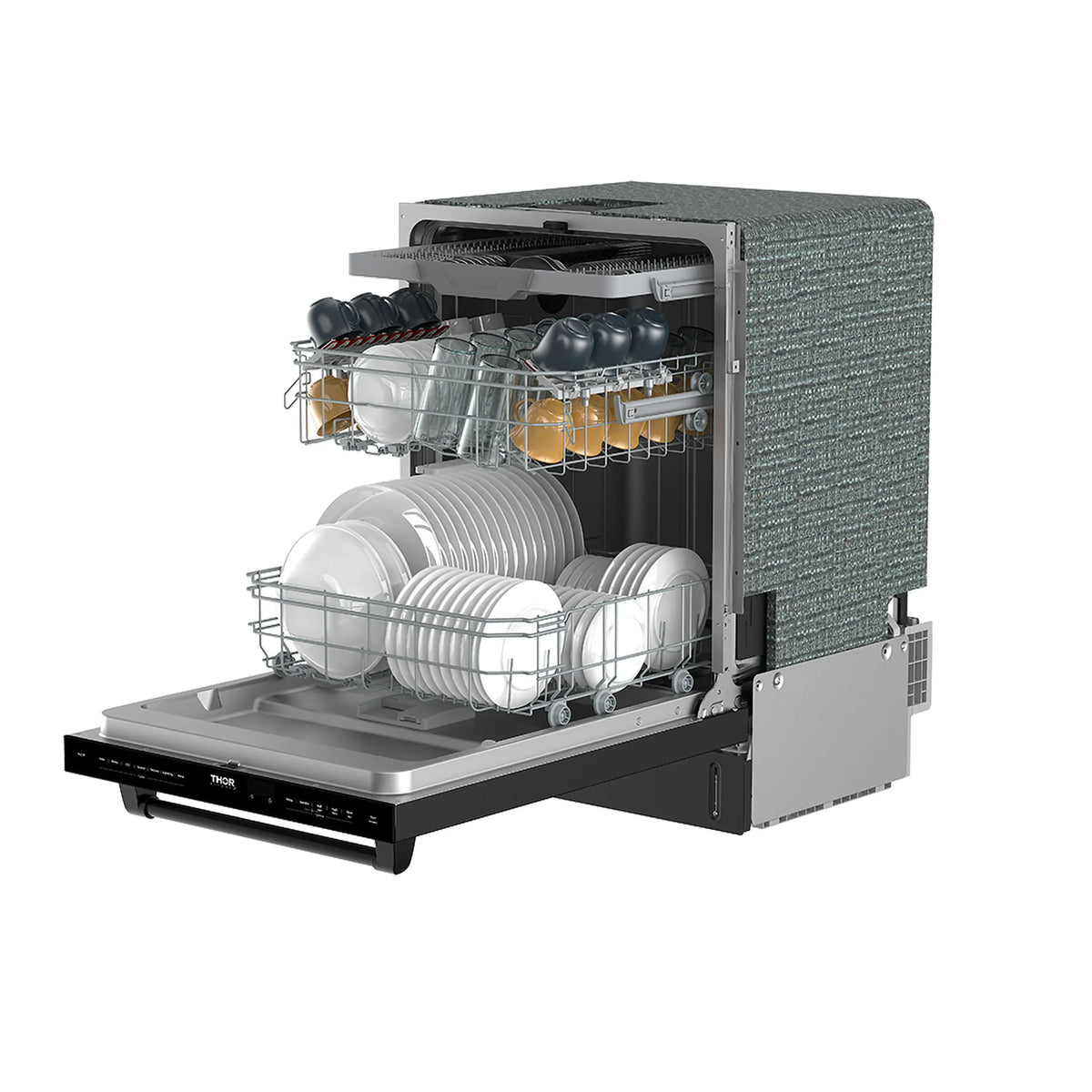

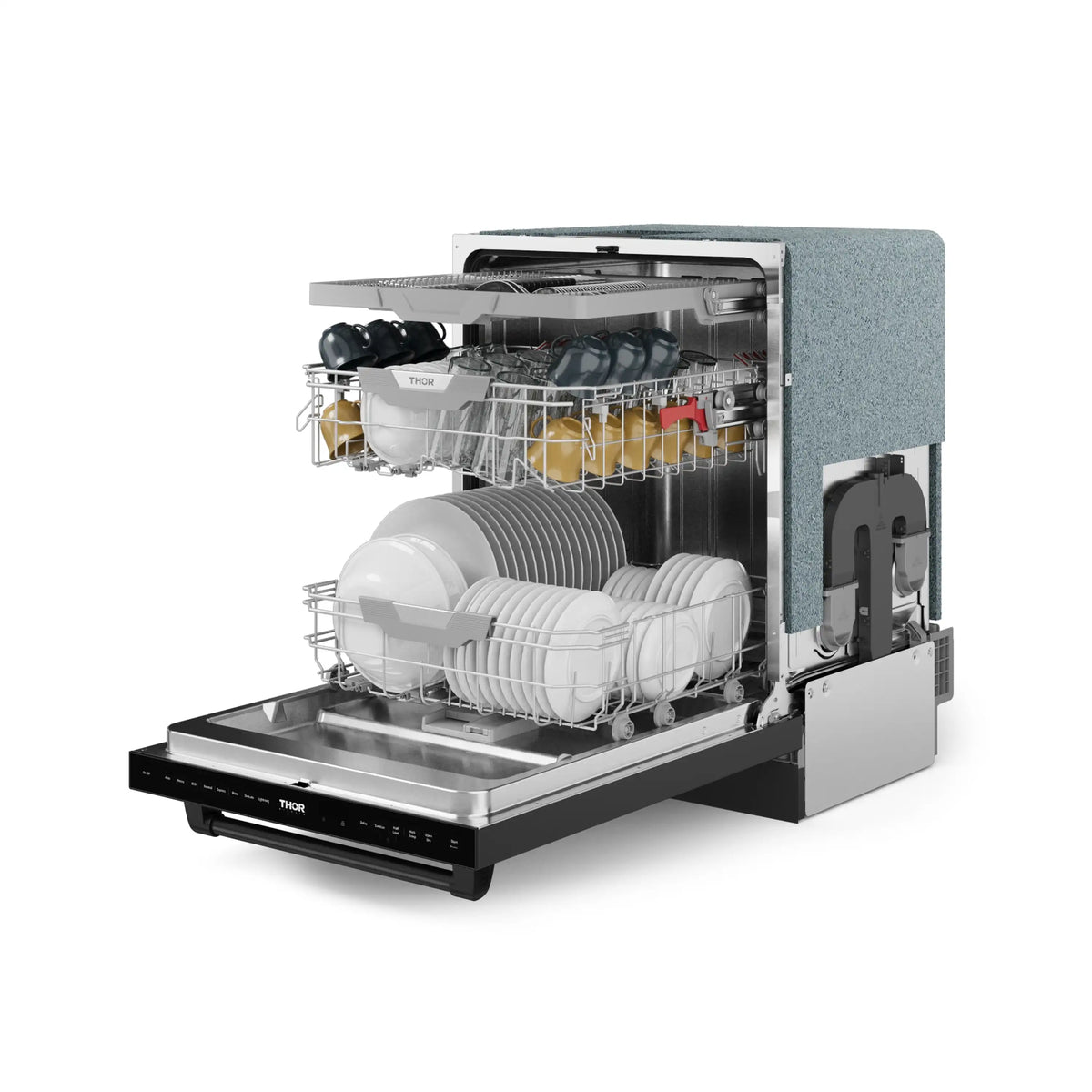

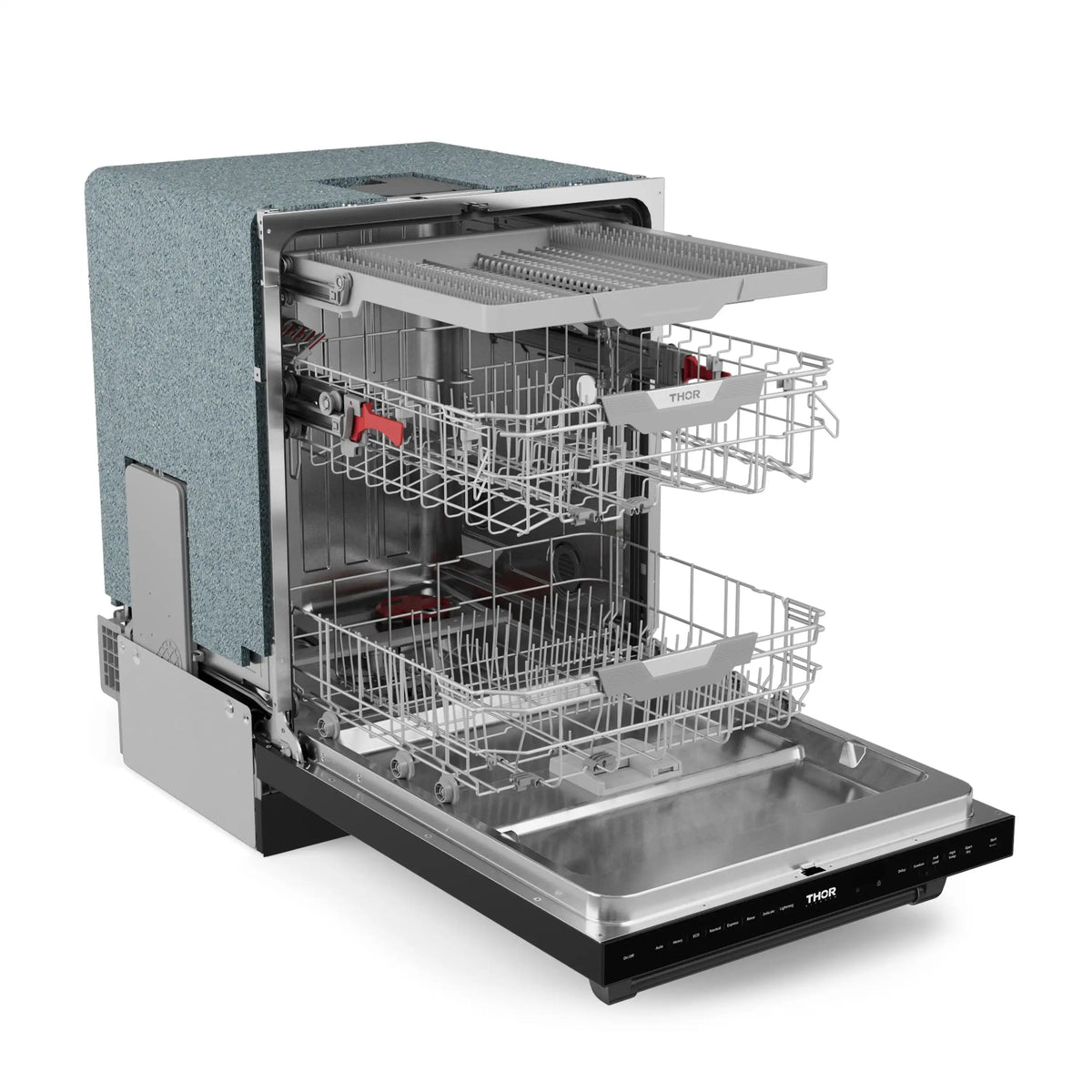

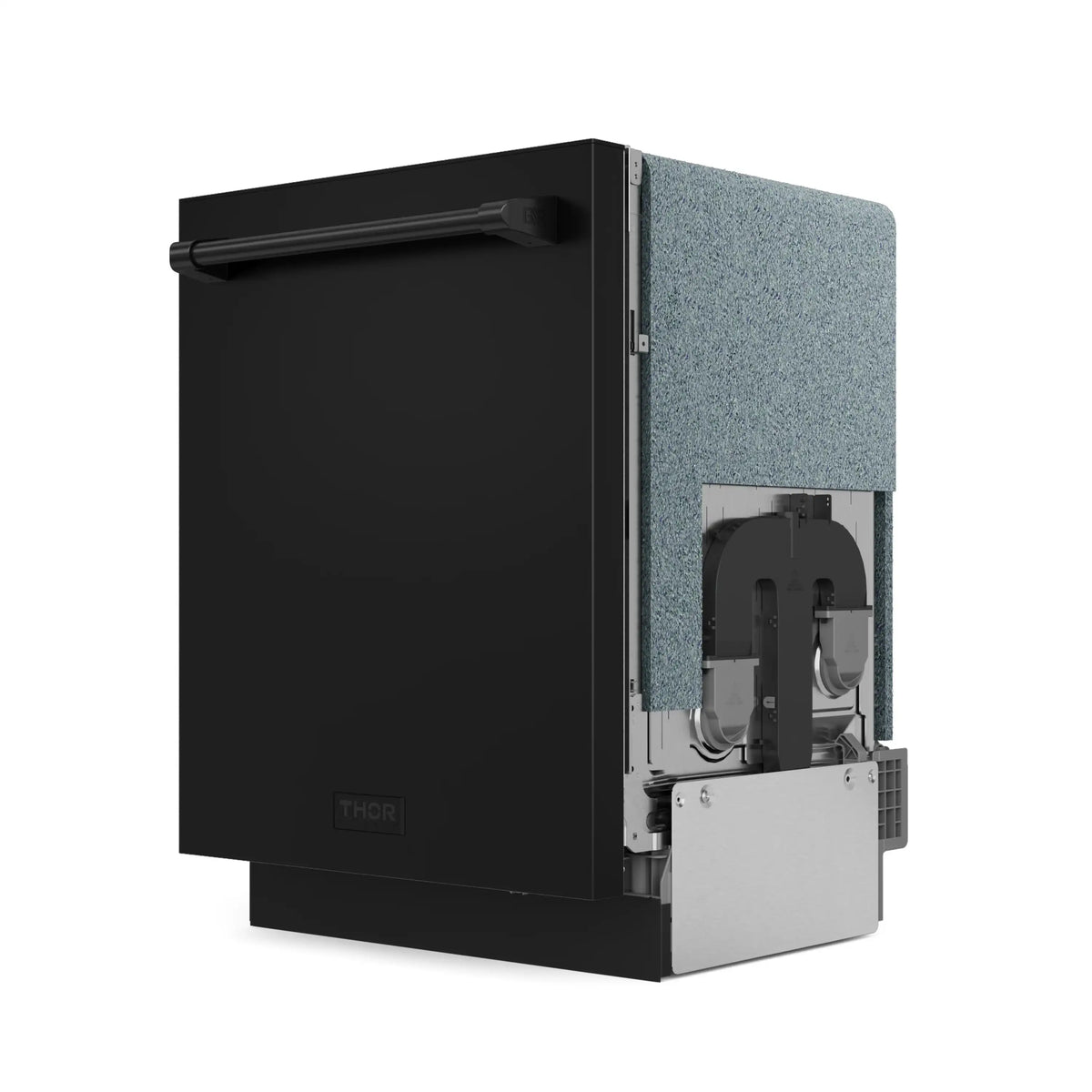

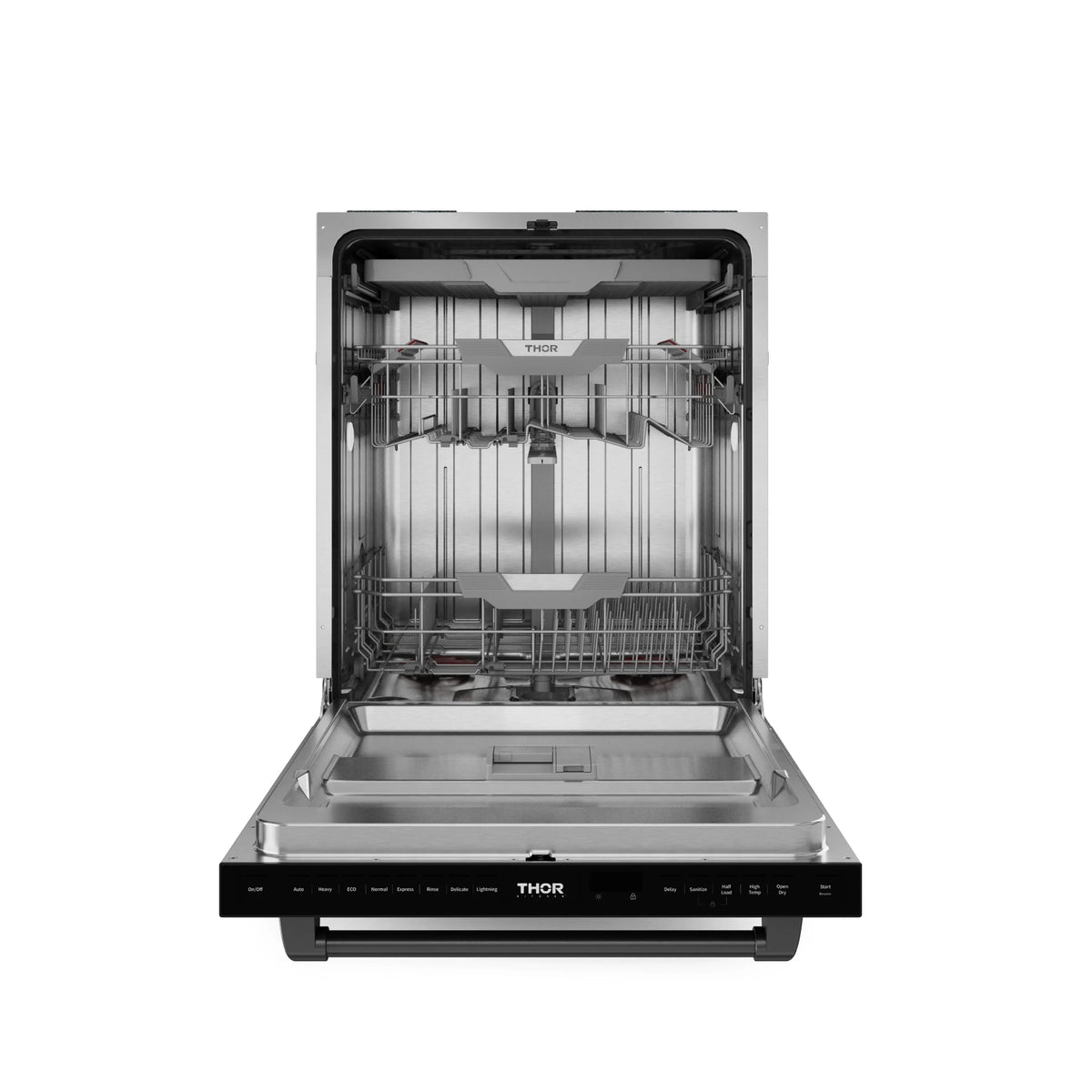

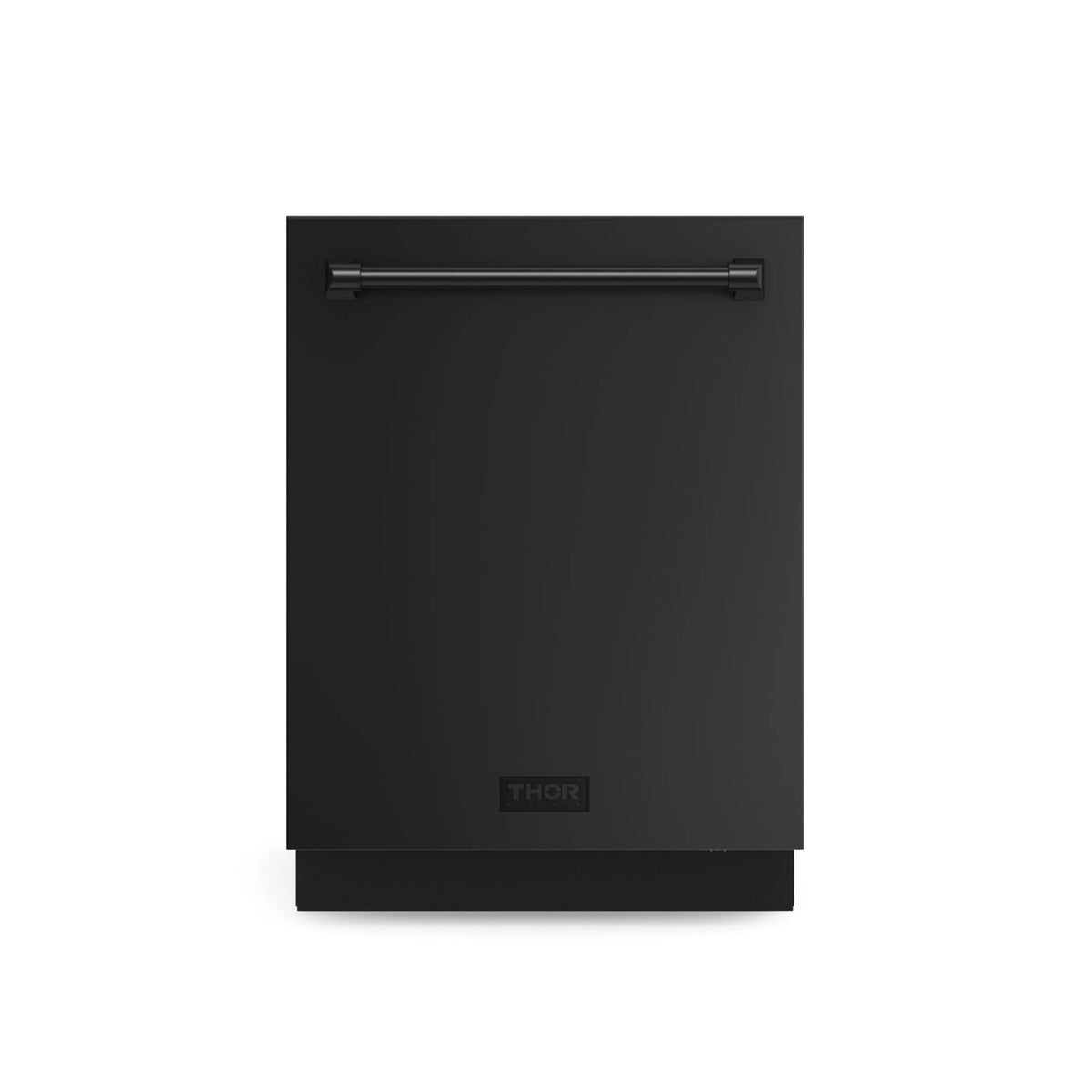

The Thor Kitchen TDW24C7B is a 24-inch top control built-in dishwasher in black, offering 7 wash cycles with 5 options to handle everything from delicate glassware to heavily soiled cookware. Featuring a quiet 47 dBA operation, a 3-rack system with a third-layer cutlery rack, height-adjustable upper basket, and a wine glass bracket, it delivers flexible, organized cleaning for up to 15 place settings. The touchscreen controls, status indicator light, and open dry system round out a feature-rich dishwasher designed for modern kitchens.
| DIMENSIONS | |
|---|---|
| Product Dimensions (WxDxH) (in.) | 23-7/8" x 22-5/8" x 33-7/8" |
| Product Depth with Handles (in.) | 25-1/8" |
| Cutout Dimensions (WxDxH) (in.) | 23-7/8" - 24" x 22-7/8" - 23-5/8" x 34" - 35-1/2" |
| Package Dimensions (WxDxH) (in.) | 28-3/4" x 28-3/4" x 35-1/16" |
| Net Weight (lbs.) | 80.5 |
| Gross Weight (lbs.) | 97.8 |
| GENERAL INFORMATION | |
| Brand | Thor Kitchen |
| Model Number | TDW24C7B |
| Product | 24 Inch Top Control Built-In Dishwasher in Black |
| Spray Arms | 3 (Lower, Upper, and Top) |
| DESIGN & FINISH | |
| Tub Material | Stainless Steel |

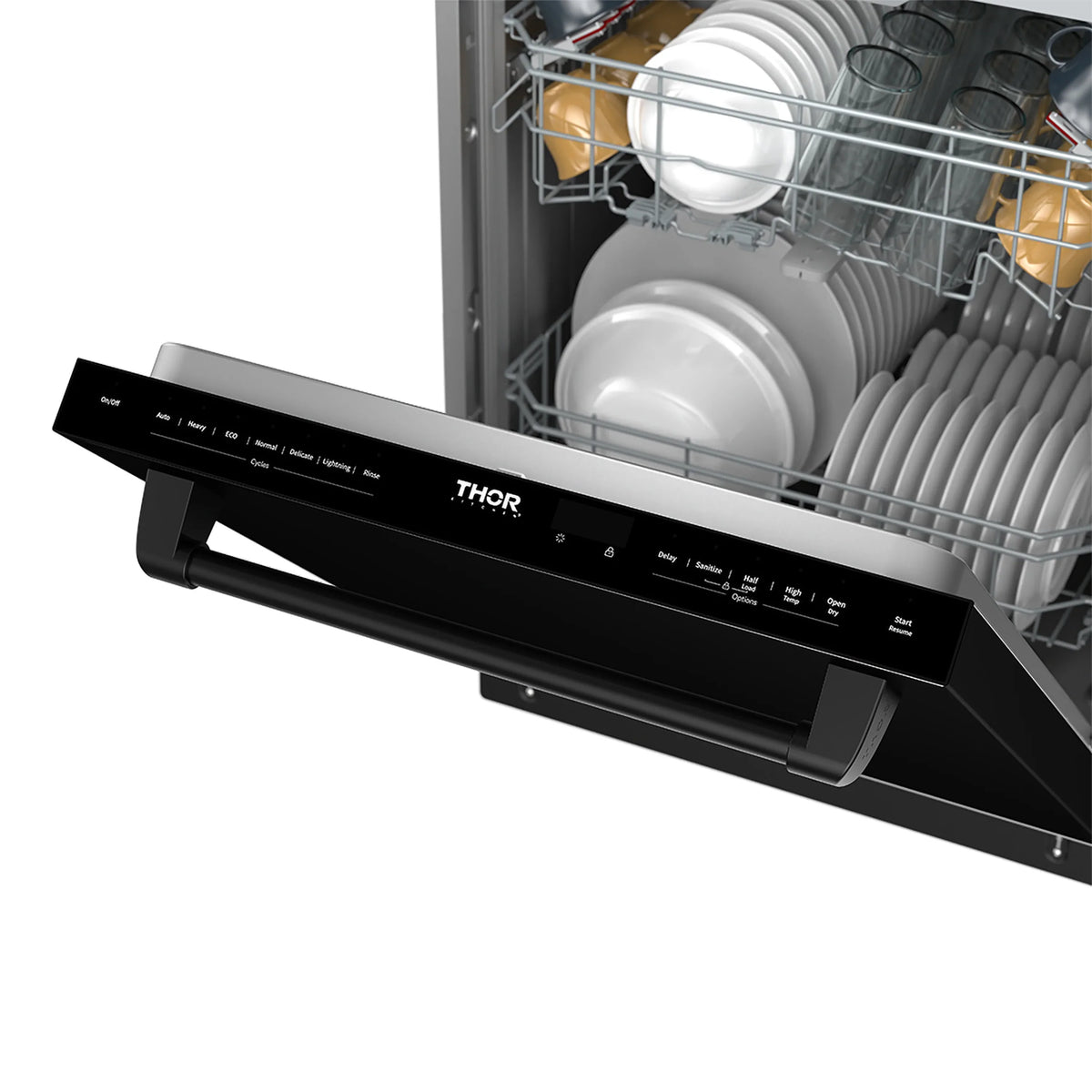

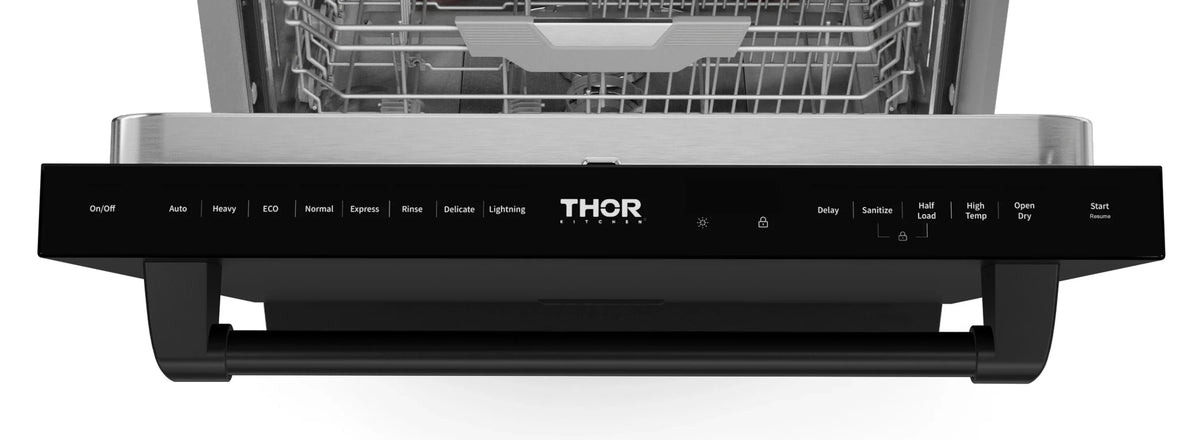

| Control Type | Touch Screen |
| TECHNICAL DETAILS | |
| Watts | 1200W |
| Amperage | 15A (Dedicated) |
| Volts | 120V |
| Frequency | 60Hz |
| Total Annual Energy Consumption | 240 kWh/per year |
| Water Consumption | 3.2 gal |
| Noise Level | 47 dBA |
| Water Feed Pressure | 20-120 psi |
| Inlet Water Temperature | Recommended 120°F (49°C) |
| Outlet Hose Length (in.) | 59" |
| Drain Hose | Yes |
| Water Supply Hose | Required |
| Power Cord | Required |
| FEATURES | |
| Load Capacity (Place Settings) | 15 |
| Number of Wash Cycles | 7 |
| Number of Racks | 3 |
| Adjustable Rack | Yes |
| Water Softener | No |
| Child Lock | Yes |
| Status Indicator | Yes (Red) |
| Tub Light | No |
| Wine Glass Bracket | Yes |

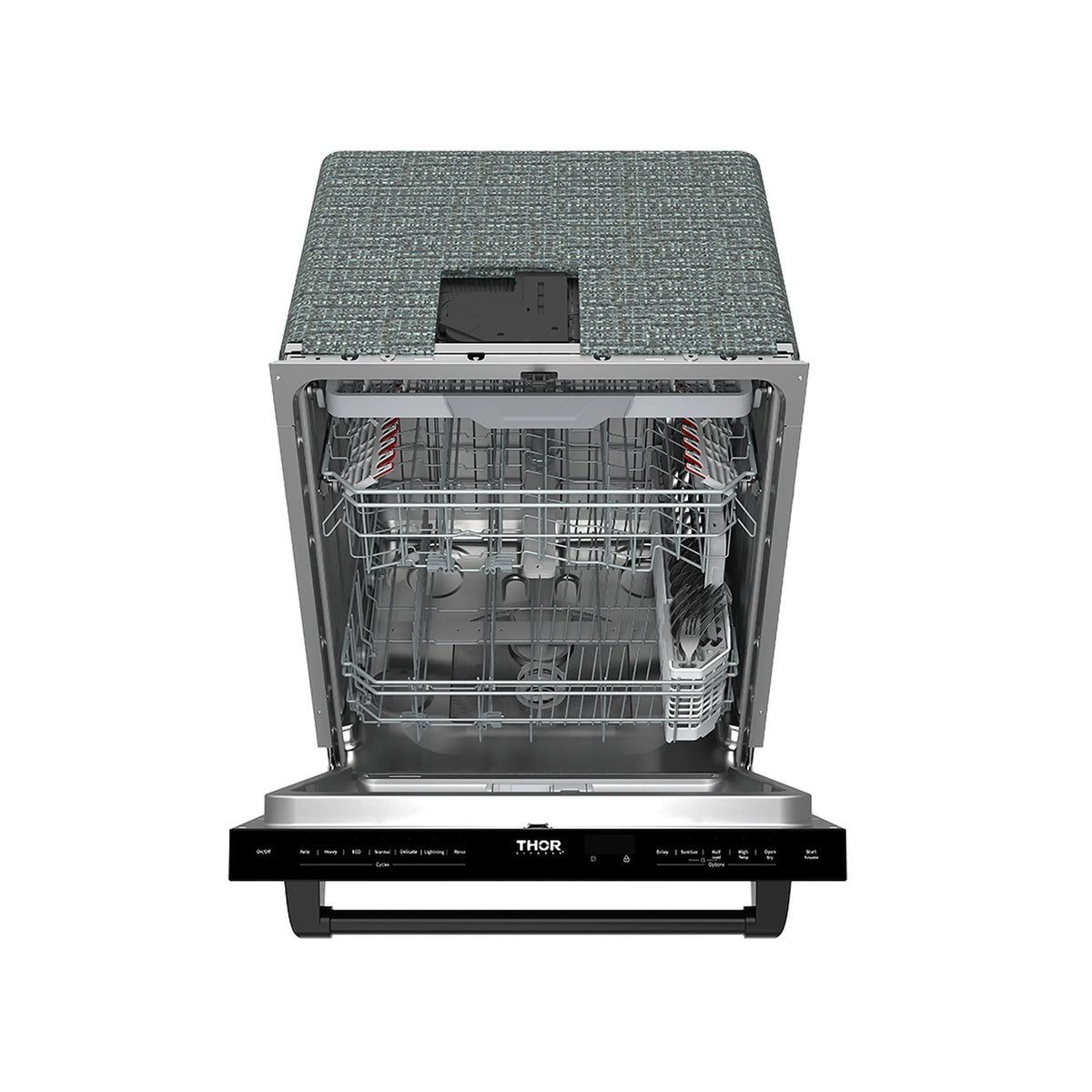

| Third Layer Cutlery Rack | Yes |
| Moisture Barrier | Yes |
| Mounting Hole Cover | 4 (2 Already Installed) |
| WARRANTY & CERTIFICATIONS | |
| Warranty | 2 Years Parts and Labor |
