THOR Kitchen 34 Inch Liner Hood Insert in a streamlined 15” height is designed to command your kitchen with confidence—where powerful performance meets seamless integration. Crafted from durable stainless steel, it delivers a bold, professional aesthetic while standing strong against the demands of everyday cooking. The efficient 350 CFM ventilation system clears smoke, steam, and odors with ease, while three adjustable fan speeds give you total control—from delicate simmering to high-heat searing. Built for flexibility, this convertible unit supports both ducted and ductless installation, adapting effortlessly to your custom cabinetry. Intuitive push button controls provide simple, reliable operation, and bright, energy-saving LED lights illuminate your cooktop with clarity and precision. #IgniteYourCulinaryCreativity
| DIMENSIONS | |
|---|---|
| Product Dimensions (W x D x H) | 33-15/16" x 14-15/16" x 15-1/4" |
| Cutout Dimensions (W x D x H) | 33-1/4" x 14-3/8" x 15-2/4" |
| Net Weight (lbs.) | 27.8 |
| Gross Weight (lbs.) | 37.2 |
| Package Dimensions (W x D x H) | 36-13/16" x 18-1/2" x 18-1/2" |
| GENERAL INFORMATION | |
| Model Number | TLH3415 |
| DESIGN & FINISH | |

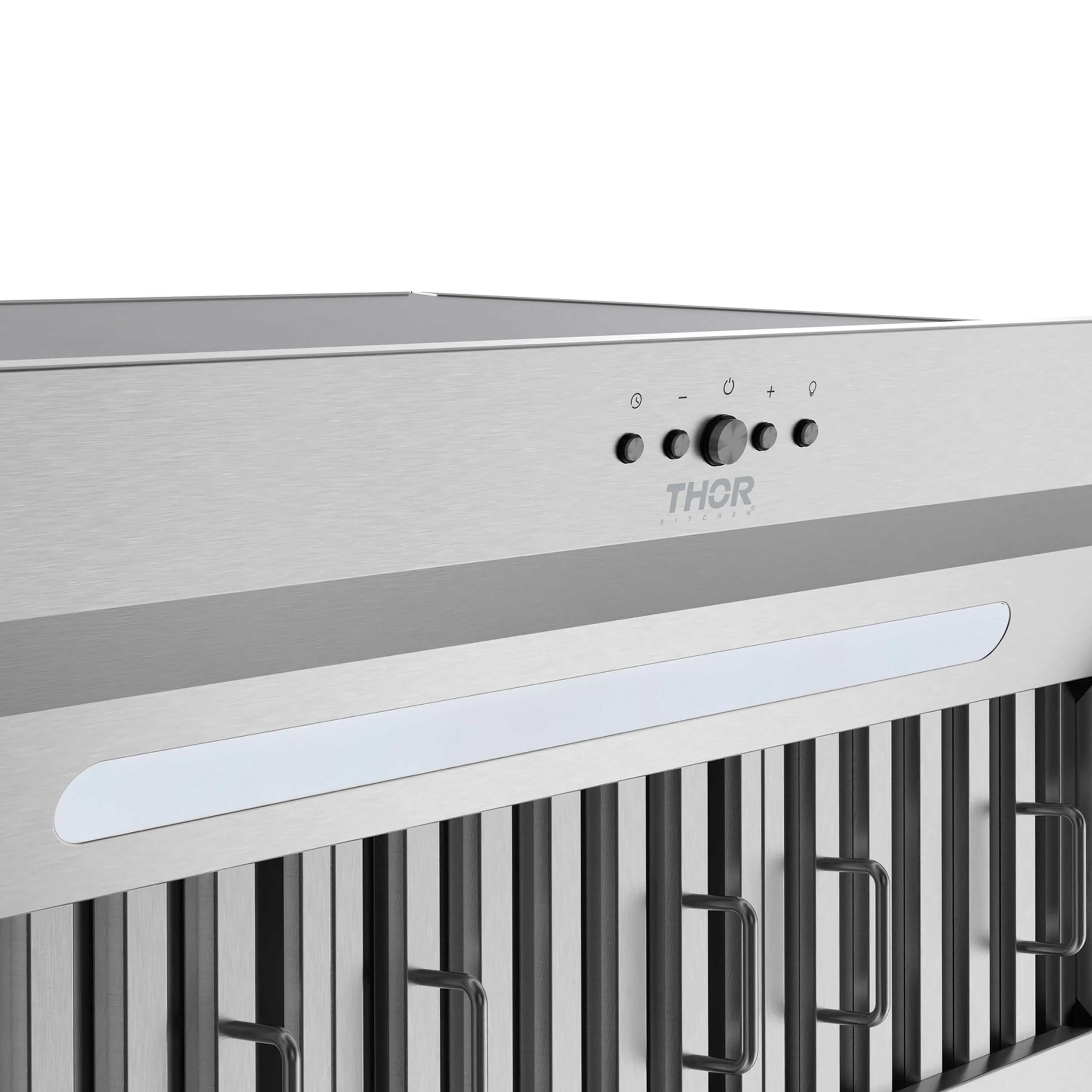

| Control Type | Button |
| TECHNICAL DETAILS | |
| Product | 34 Inch Liner Hood in 15" Height |
| Number of Speeds | 3 |
| CFM at Low / Medium / High | 187 / 280 / 350 |
| Noise Level | 3 |
| Noise Rating at Low / Medium / High | 47 dB / 51 dB / 57 dB |
| Ducted / Recirculating Convertible | Yes |

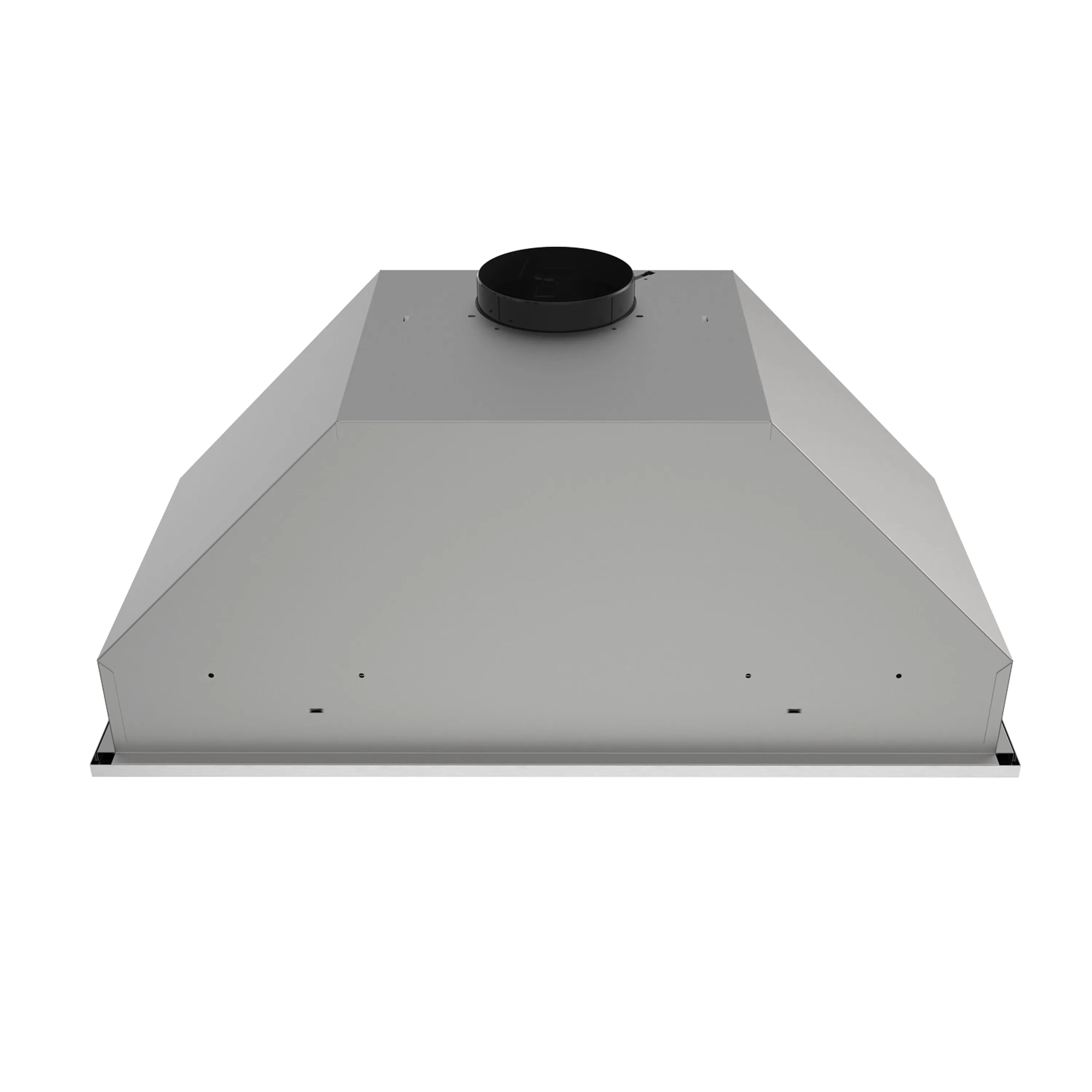

| Duct Size | 5-7/8" |
| Duct Type | Round |
| Damper Included | Yes |
| Mounting Type | Insert |
| Watts (W) | 196W |
| Amperage (Dedicated) | 15A |
| Volts (V) | 120V |
| Frequency (Hz) | 60Hz |
| Plug Type | US 3-Prong Plug |
| Power Cord Length | 35-3/8" |
| FEATURES | |
| Filter Type | Baffle Filter |
| Filter Qty | 3 |
| Lighting | 1 × 6W Warm White LED |
| Delay Function | Yes (5 mins) |
