Description
DIMENSIONS
- Product Dimensions (HxWxD) (in.)
- 51-1/8x30x25-1/8
- Product Height (from bottom to top of back splash) (in.)
- 49 1/4
- Product Height (from bottom to top of side panel) (in.)
- 49 1/4
- Product Depth (from back panel to bullnose) (in.)
- /
- Product Depth (from back panel to control panel) (in.)
- 25-1/8
- Product Depth (from back panel to side panel front) (in.)
- 23 7/8
- Cutout Dimensions (WDH) (in.)
- 28-1/2x24x49 1/2
- Adjustable Leg Sizes
- /
- Net Weight (lbs.)
- 284
- Gross Weight (lbs.)
- 329
- Package Dimensions (WDH) (in.)
- 33-1/16 x 30-1/8 x 57-7/16
GENERAL INFORMATION
- Fuel Type
- Electric
- Installation Type
- Built-in
DESIGN & FINISH

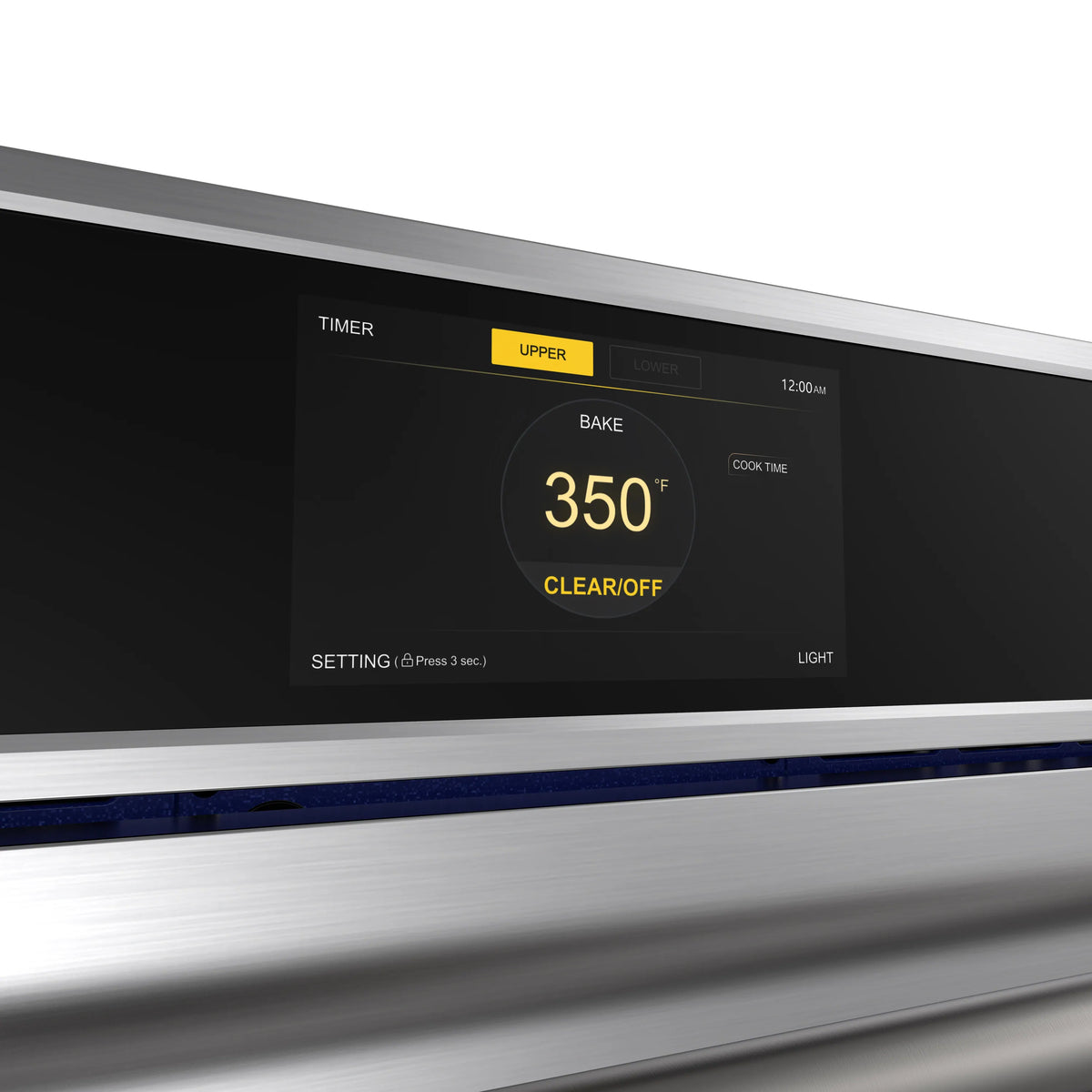

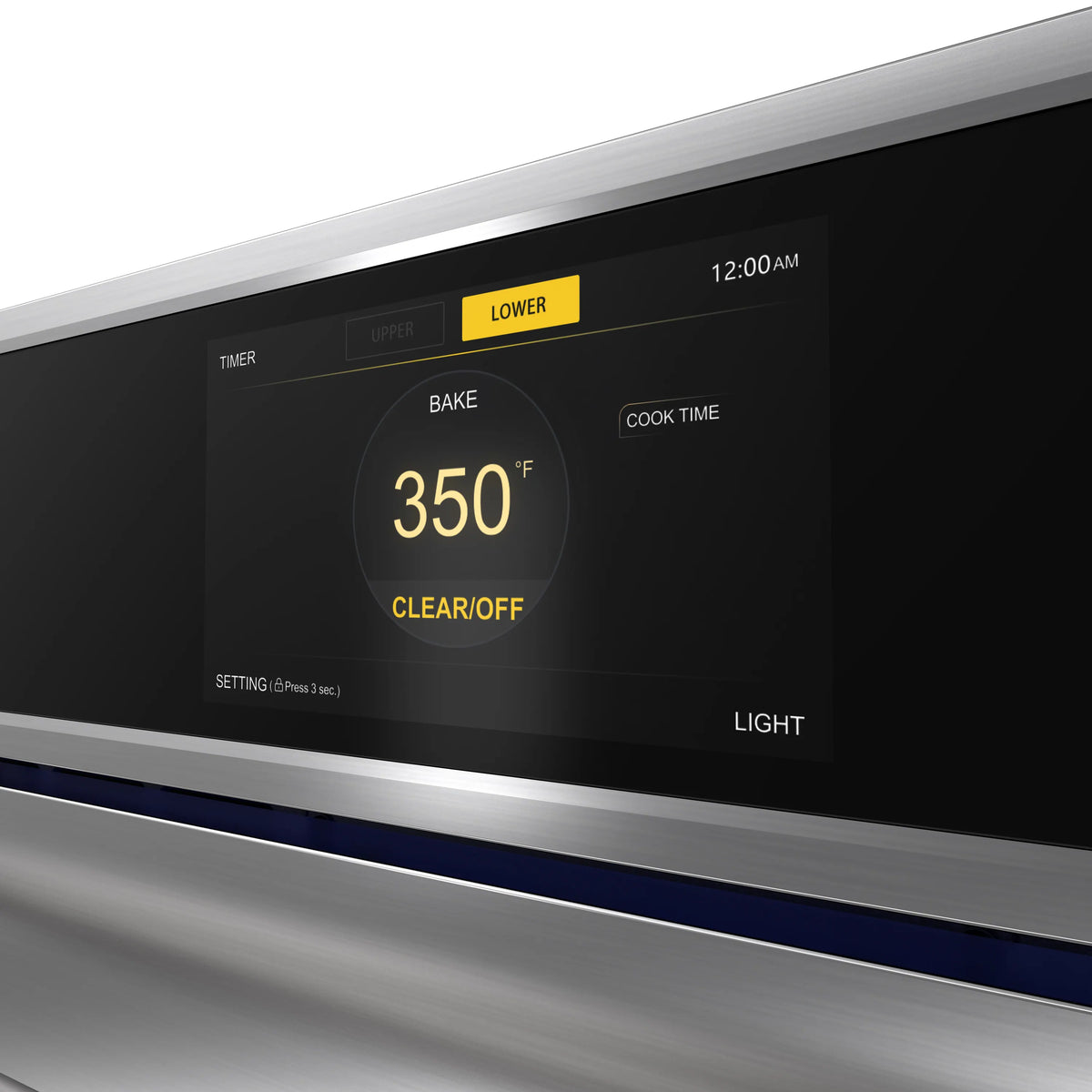

- Control Type
- Touch Screen
TECHNICAL DETAILS
- Required Circuit (A)
- 40 amps
- Voltage (V)
- 240V
- Frequency (Hz)
- 60Hz

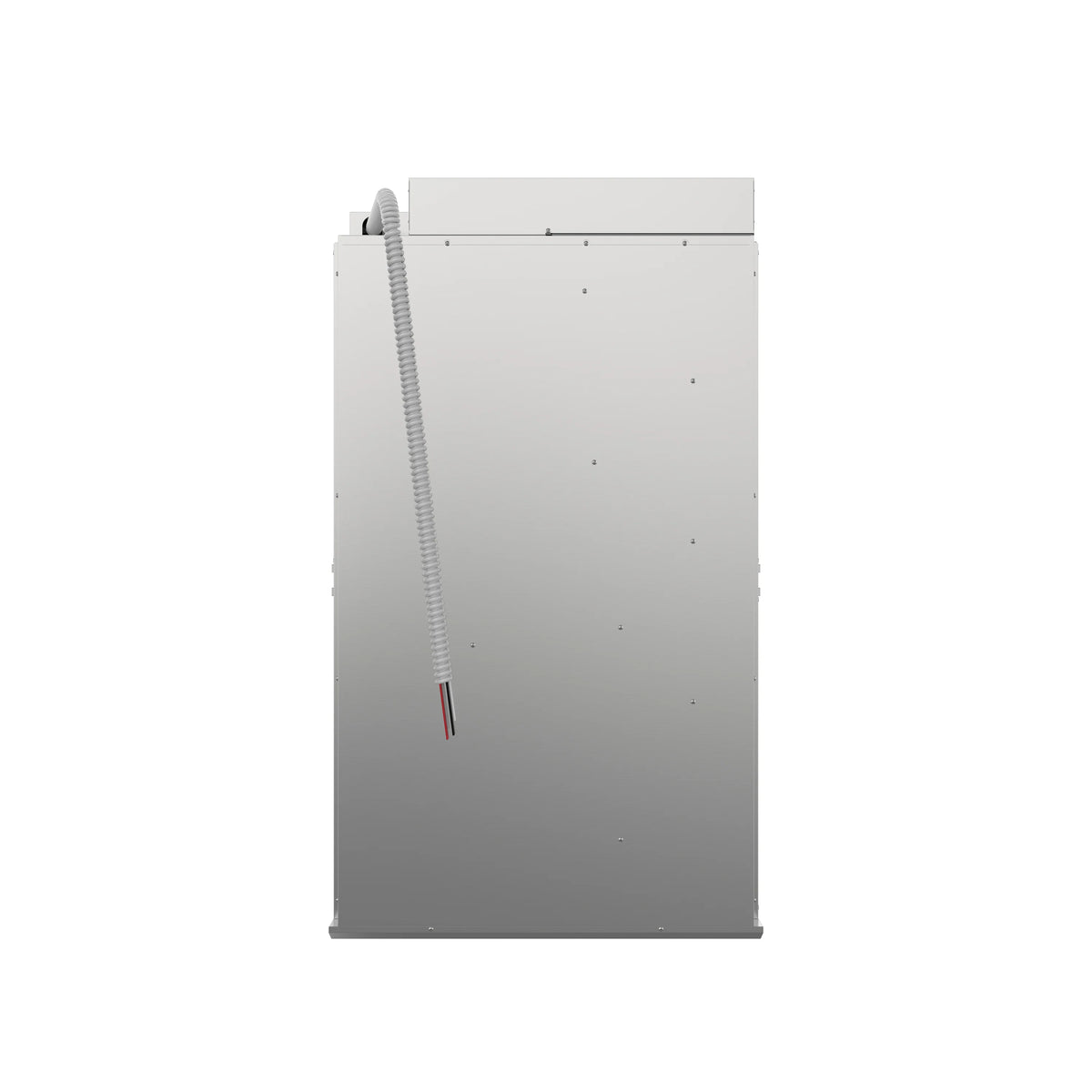

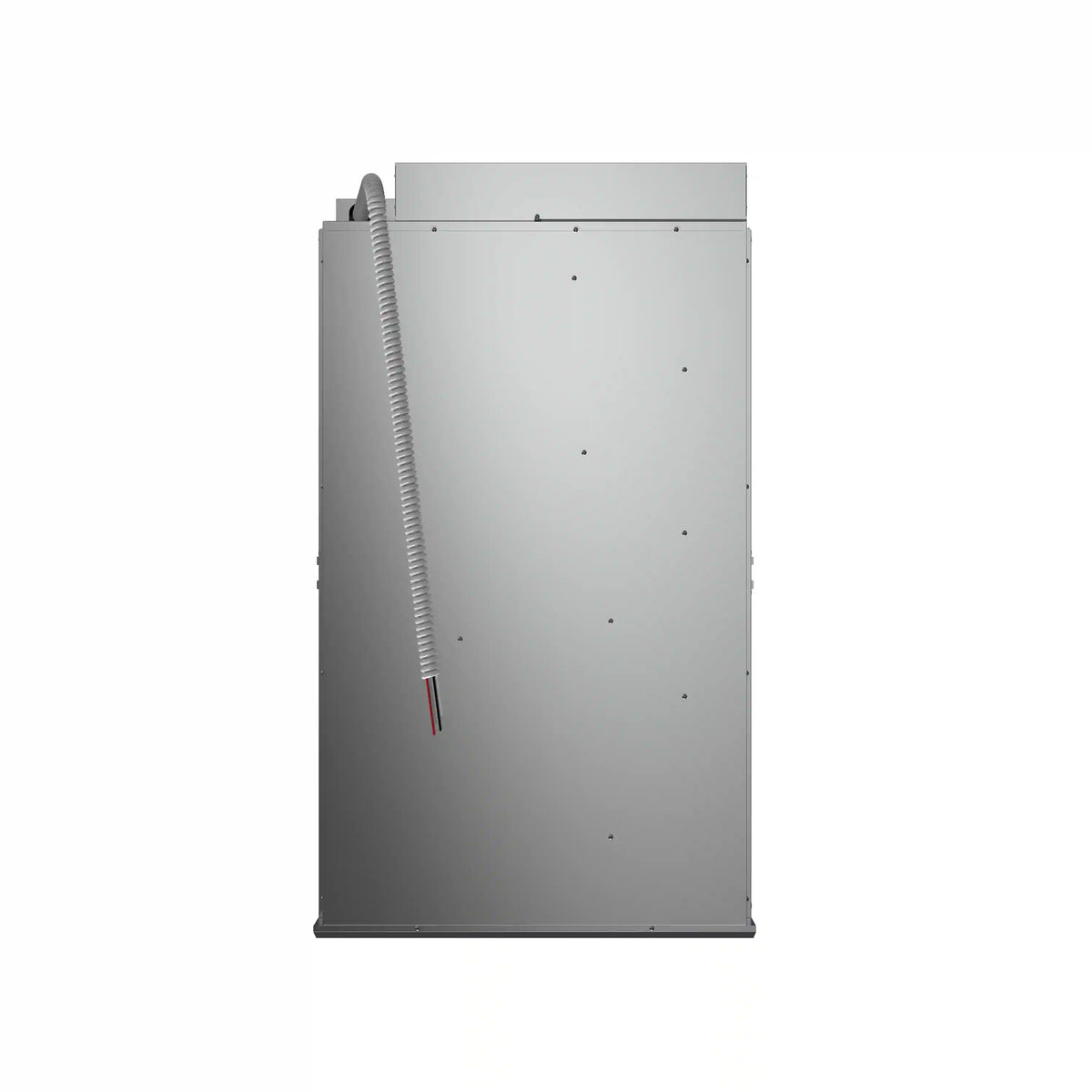

- Power Cord Length (in.)
- 47in (hard wire)
FEATURES
- Total Output Watts (A)
- 8800 Watt
- Oven Capacity (cu. Ft.)
- 9.6 cu ft (4.8 cu ft + 4.8 cu ft)
- Oven Control Features
- Oven Light Control
- Cook Time
- Timer
- Delay Start
- Self Clean
- Control Lock
- Sabbath Mode
- Temperature Unit
- Cooking Modes
- Bake, Convection Bake, Multi-Rack Bake, Broil, Convection Roast, Warm, Pizza, Air Fry, Proof, Meat Probe
- Bake Burner Power
- 3000 Watt
- Broil Burner Power
- 3500 Watt

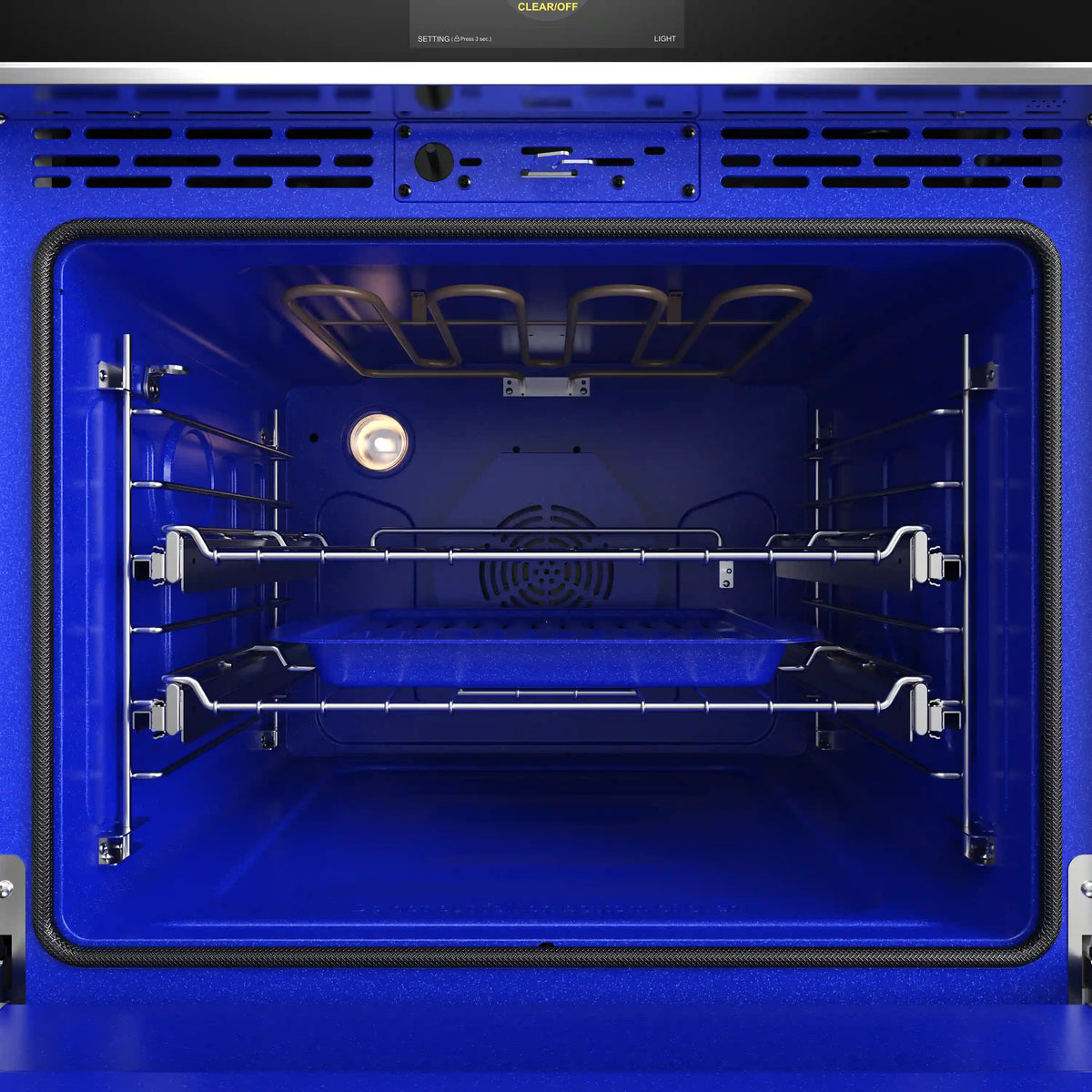

- Convection
- True Convection
- Convection Element Power
- 800 Watt
- Oven Lights
- YES

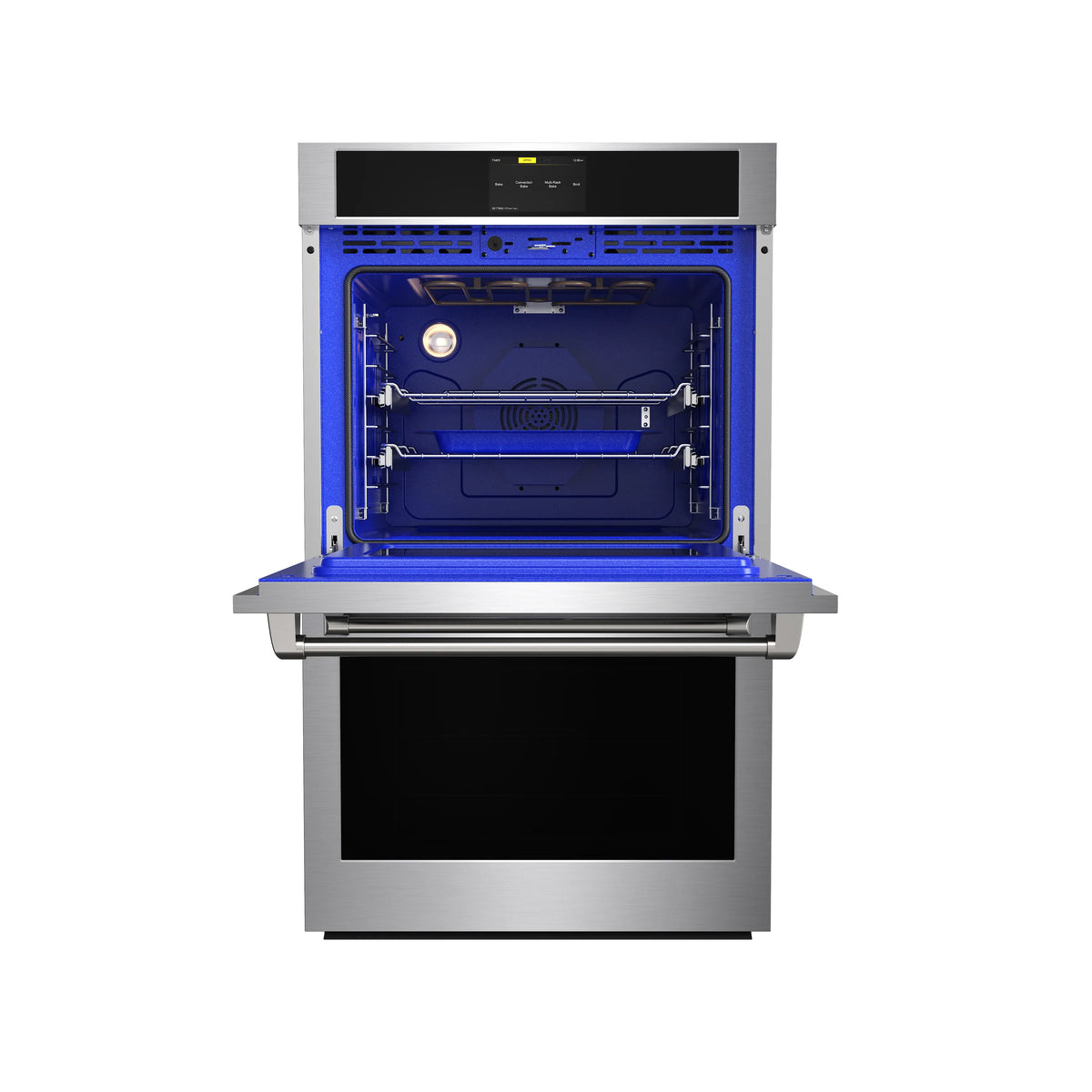

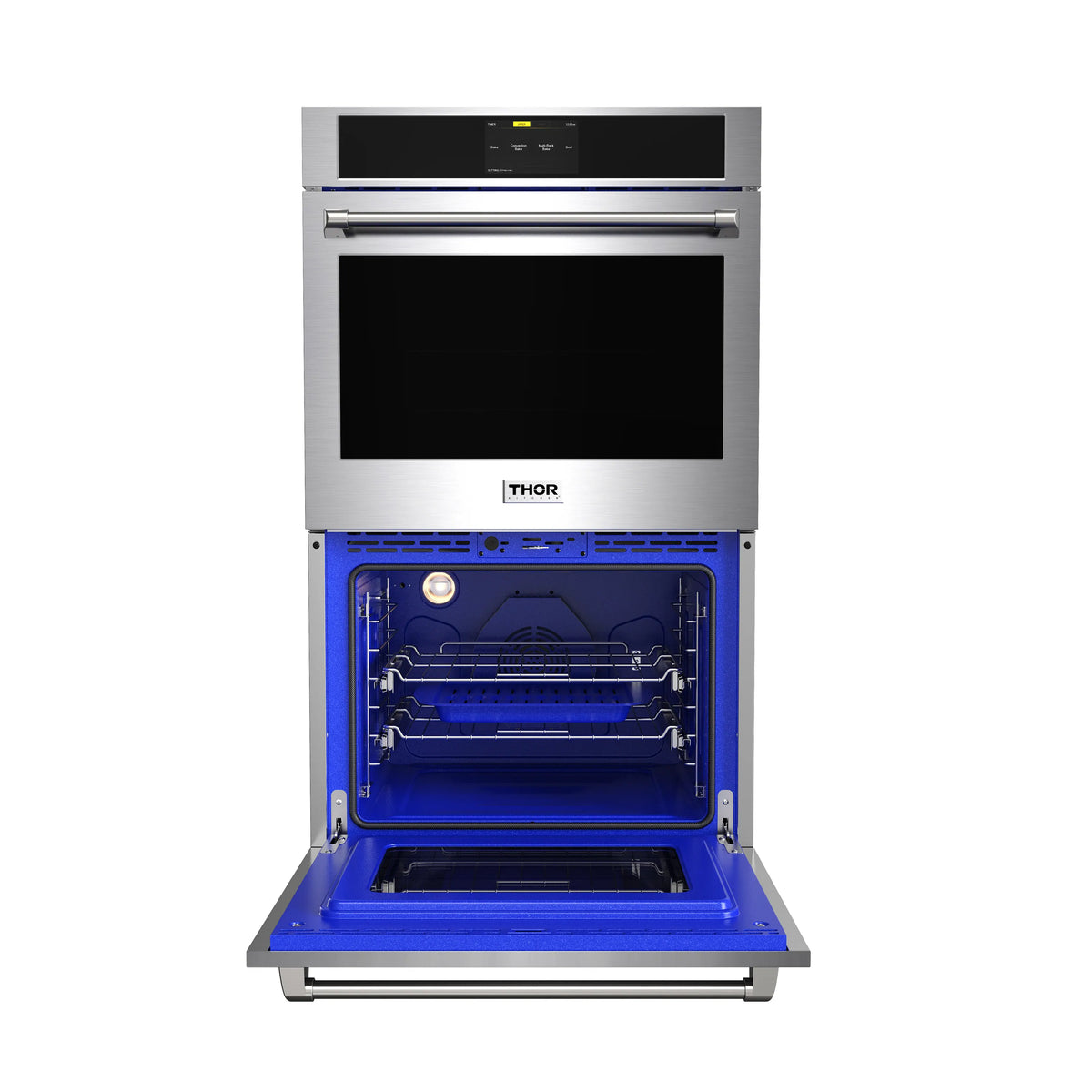

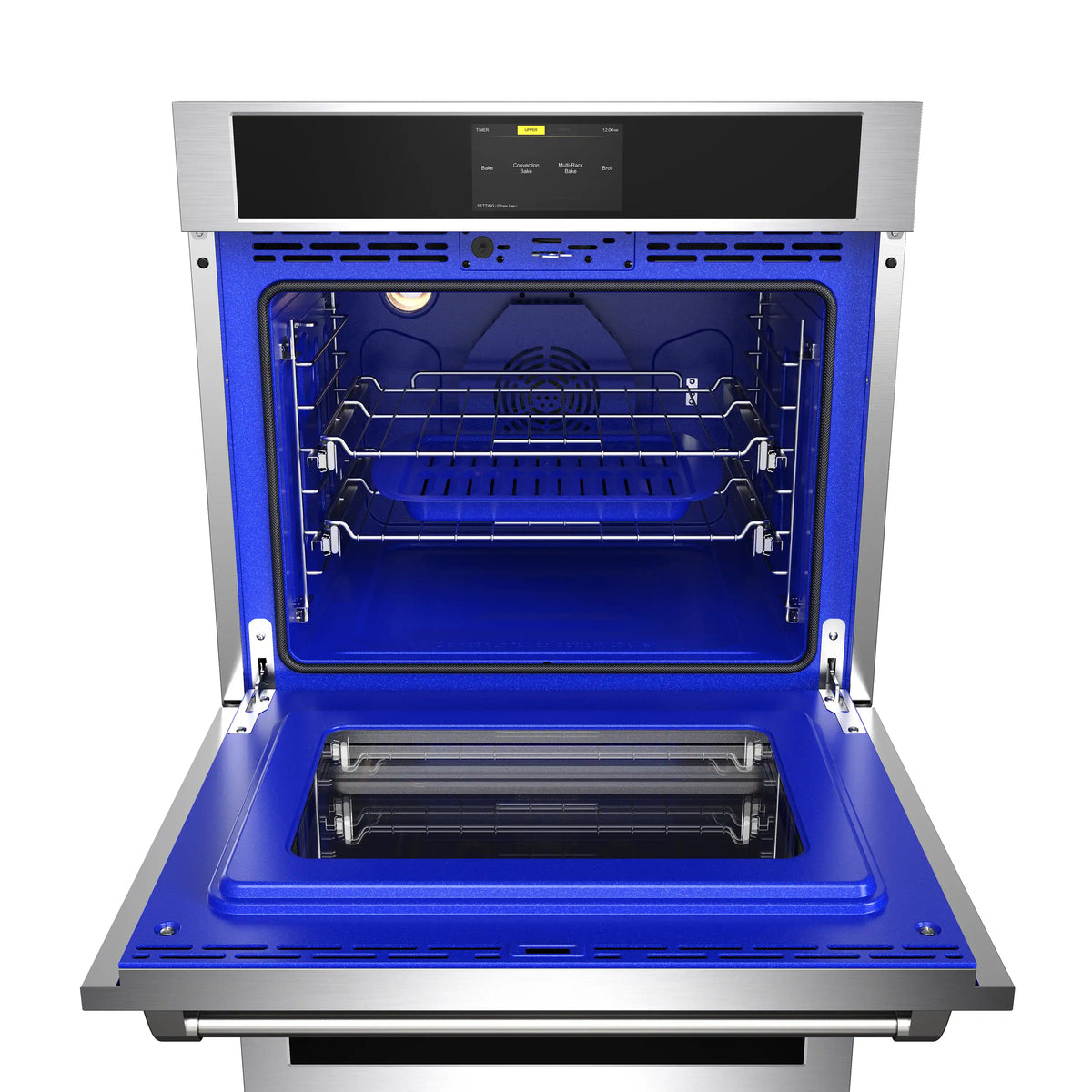

- Oven Racks
- Telescopic Racks x4
- Oven Rack Material
- Chrome Plated
- Baking Sheet Size
- Fits Standard Half Sheet Pan
- Self Clean (Y/N)
- YES
- Air Fry
- YES
- Oven Internal Height
- 18''
- Oven Internal Width
- 23-3/4''
- Oven Internal Depth
- 19-1/2''
- Accessories Included
- 4 LuxGlide™ 1 Broiler Pan 1 Air fry Basket
- Required Accessories (Sold separately)
- Power Plug (only hardware power cord is provided)
