| General Properties | |
|---|---|
| Product | 30 Inch Wall Mounted Chimney Range Hood with 350 CFM |
| Model Number | TRH3035 |
| Number of Speeds | 3 |
| CFM at Low / Medium / High | 190 / 286 / 350 |
| Noise Level | 3 |
| Noise Rating at Low / Medium / High | 46 / 55 / 61 dB |
| Ducted / Recirculating Convertible | Yes |
| Filter Type | Baffle Filter |
| Filter Qty | 2 |

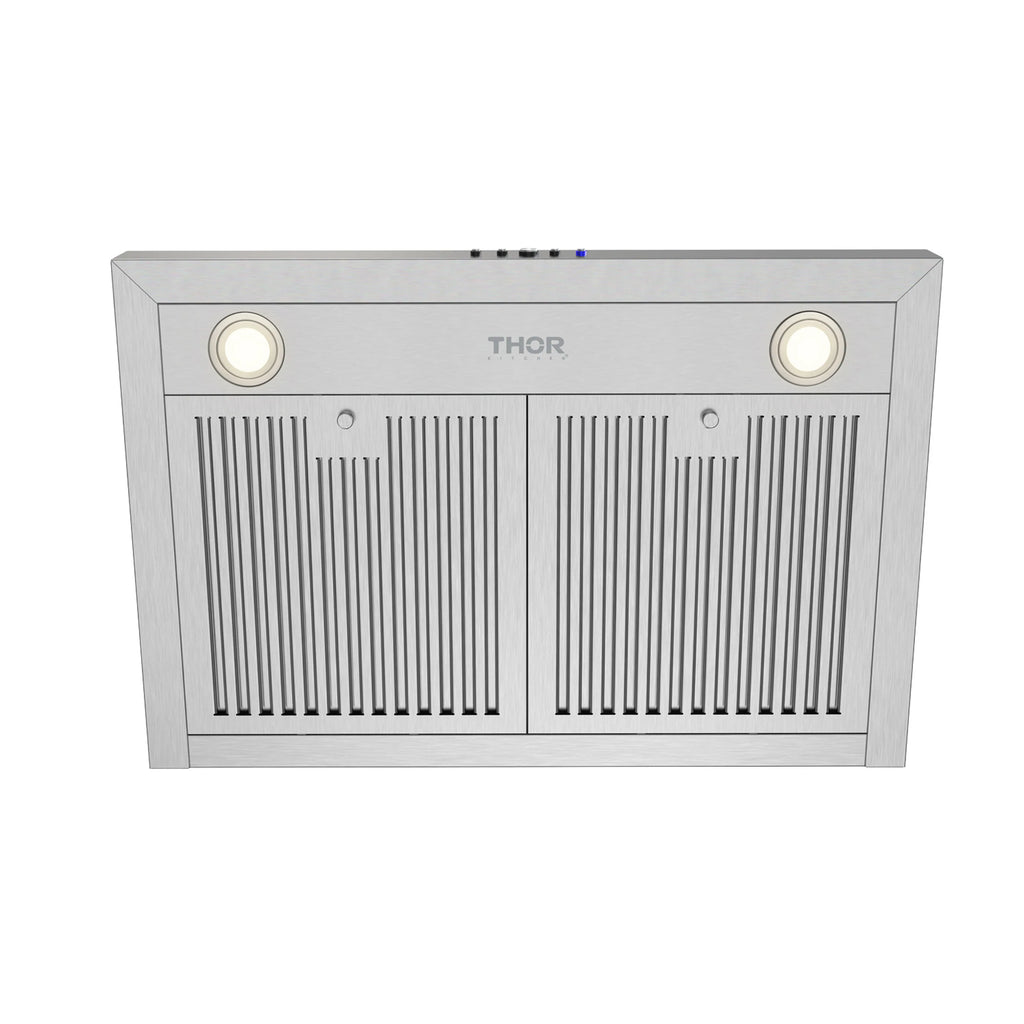

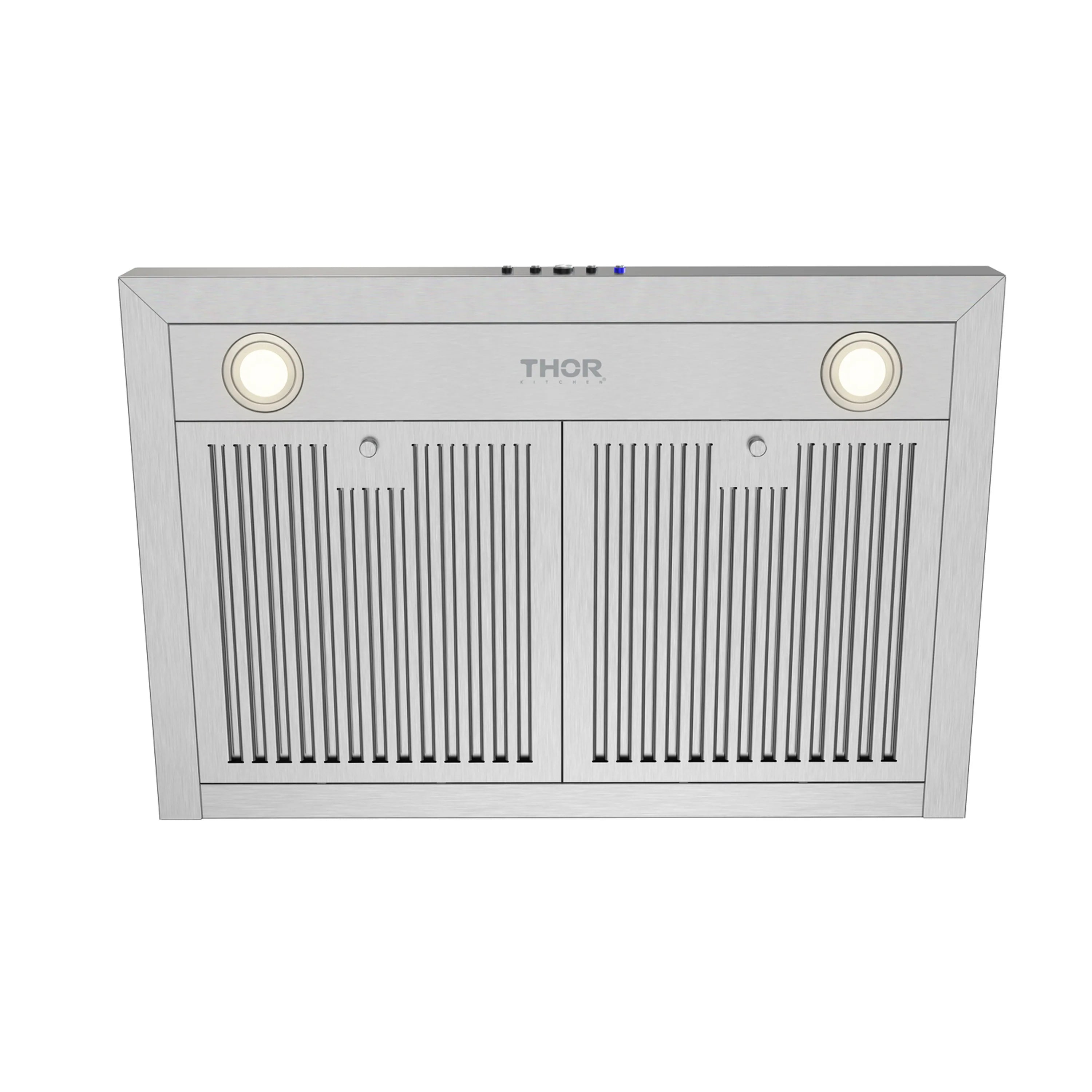

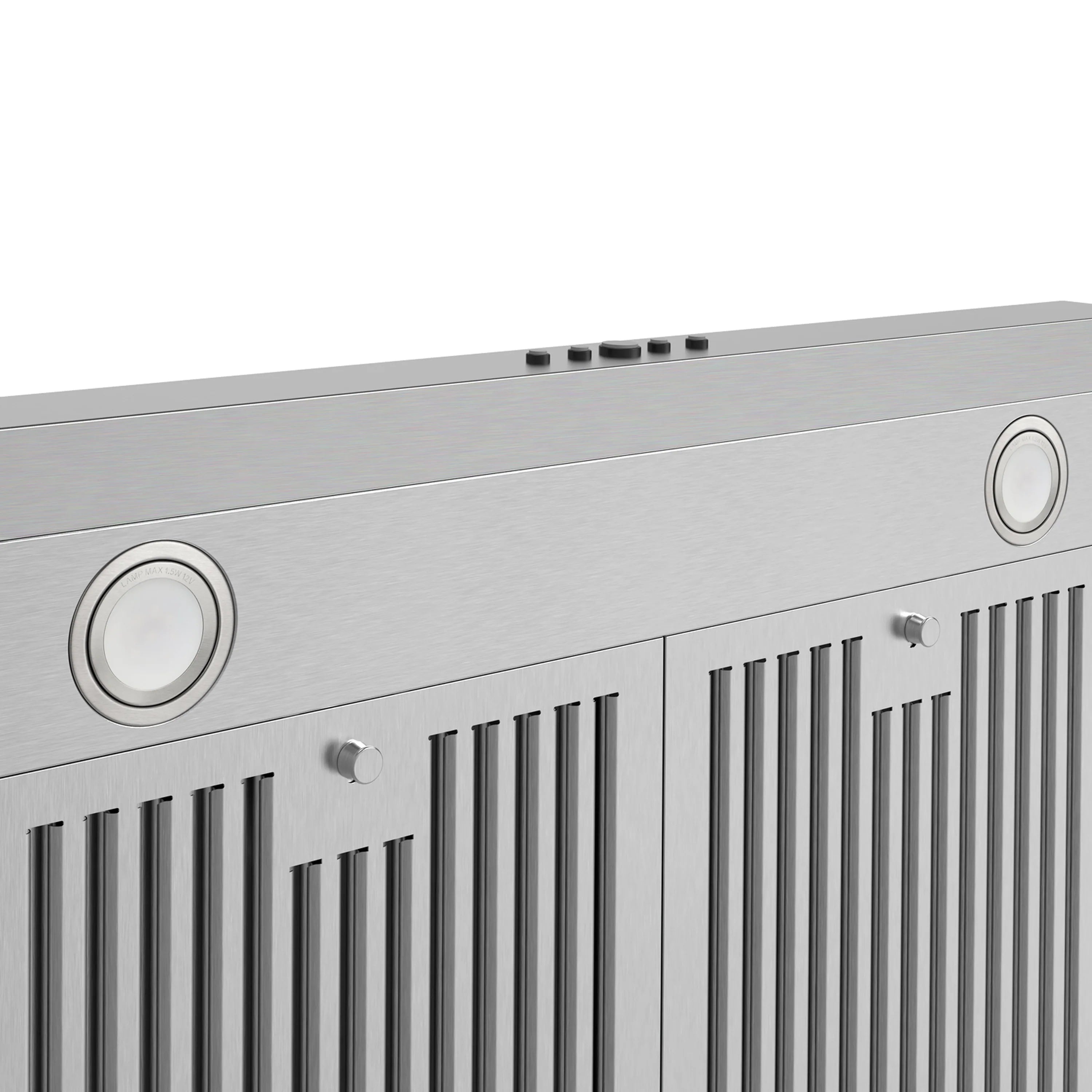

| Lighting | 2 × 1.5W Warm White LED |
| Control Type | Button |
| Delay Function | Yes (5 mins) |

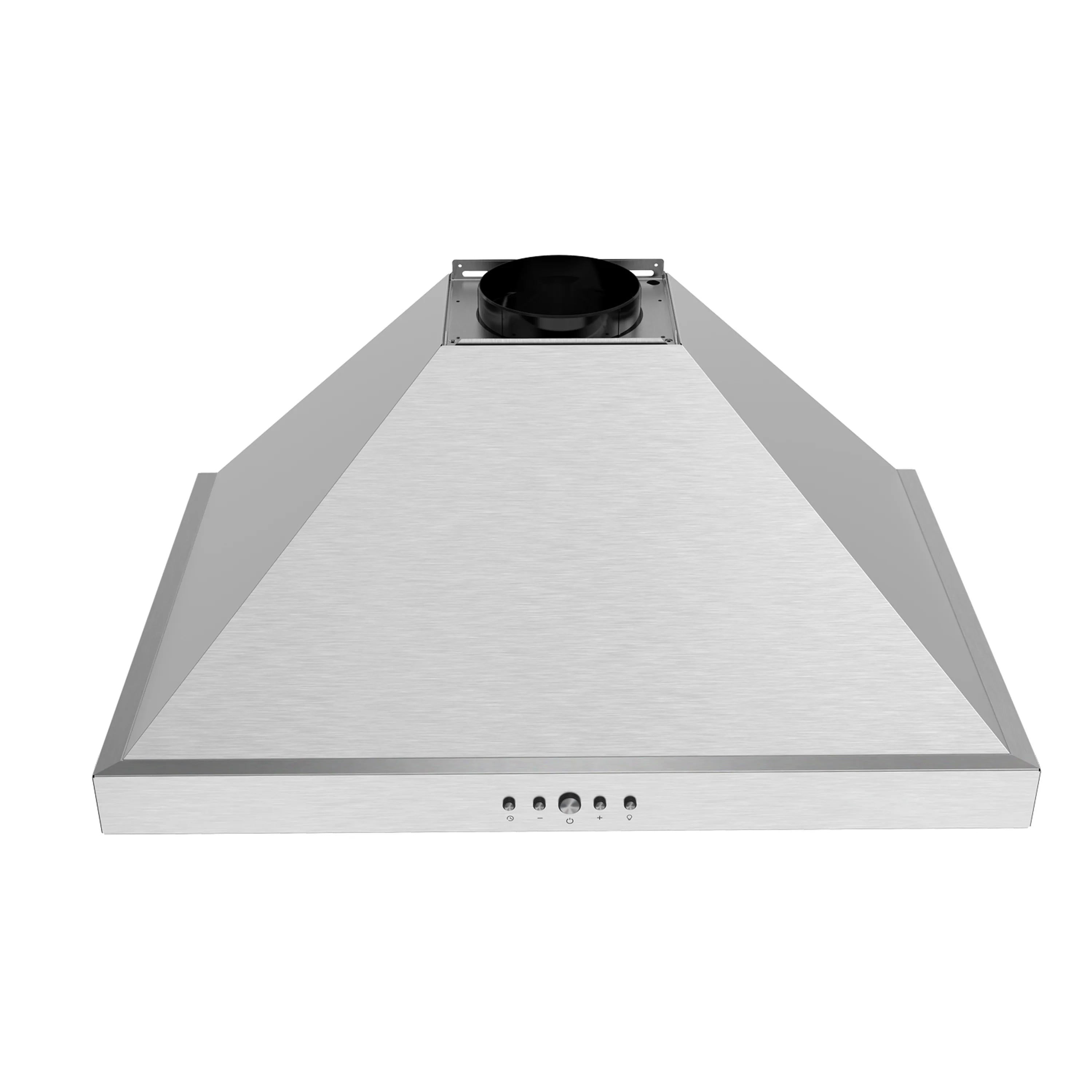

| Duct Size | 5-7/8" |
| Duct Type | Round |
| Technical Details | |
| Shape / Style | Chimney |
| Mounting Type | Wall Mounted |
| Watts (W) | 193W |
| Amperage (Dedicated) | 15A |
| Volts (V) | 120V |
| Frequency (Hz) | 60Hz |
| Plug Type | US 3-Prong Plug |
| Power Cord Length | 39-3/8" |
| Product Dimensions & Weights | |
| Product Dimensions (W x D x H) | 29-5/16" x 19-11/16" x 26-7/16" – 40-3/16" |
| Height of the Chimney | 26-7/16" – 40-3/16" |
| Accommodates Ceiling Heights | Up to 9 Feet |
| Minimum Distance Above Gas / Electric | 30" / 28" |
| Net Weight (lbs.) | 24 |
| Gross Weight (lbs.) | 29.4 |
| Package Dimensions (W x D x H) | 31-5/16" x 13-9/16" x 22-1/6" |
| Accessories Included | |
| Mounting Brackets | |

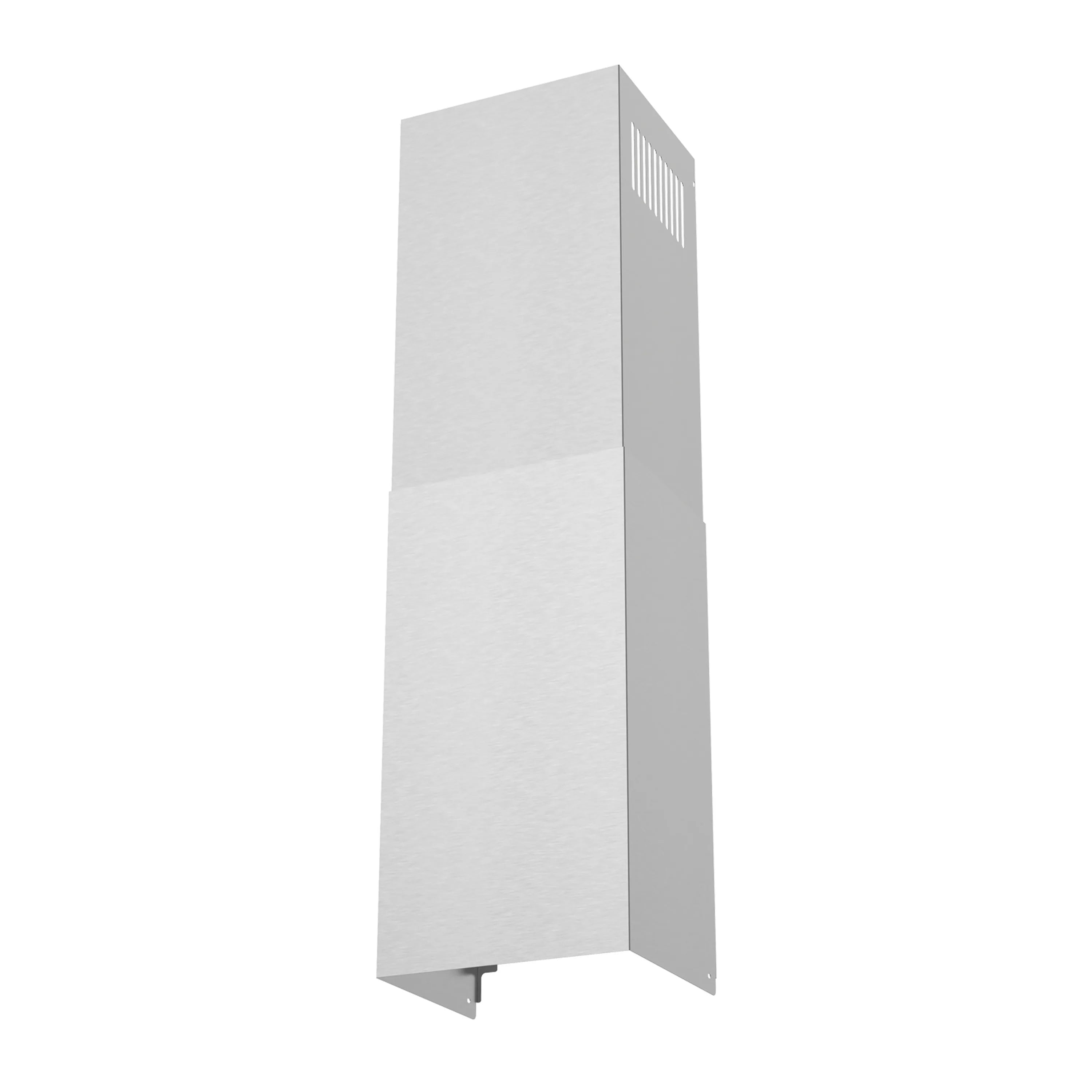

| Duct Cover | |
| Accessories (Optional) | |
| Replacement Charcoal Filters | |
| Recirculation Kit | |
| Duct Cover Extension Up to 10' Ceiling | |
