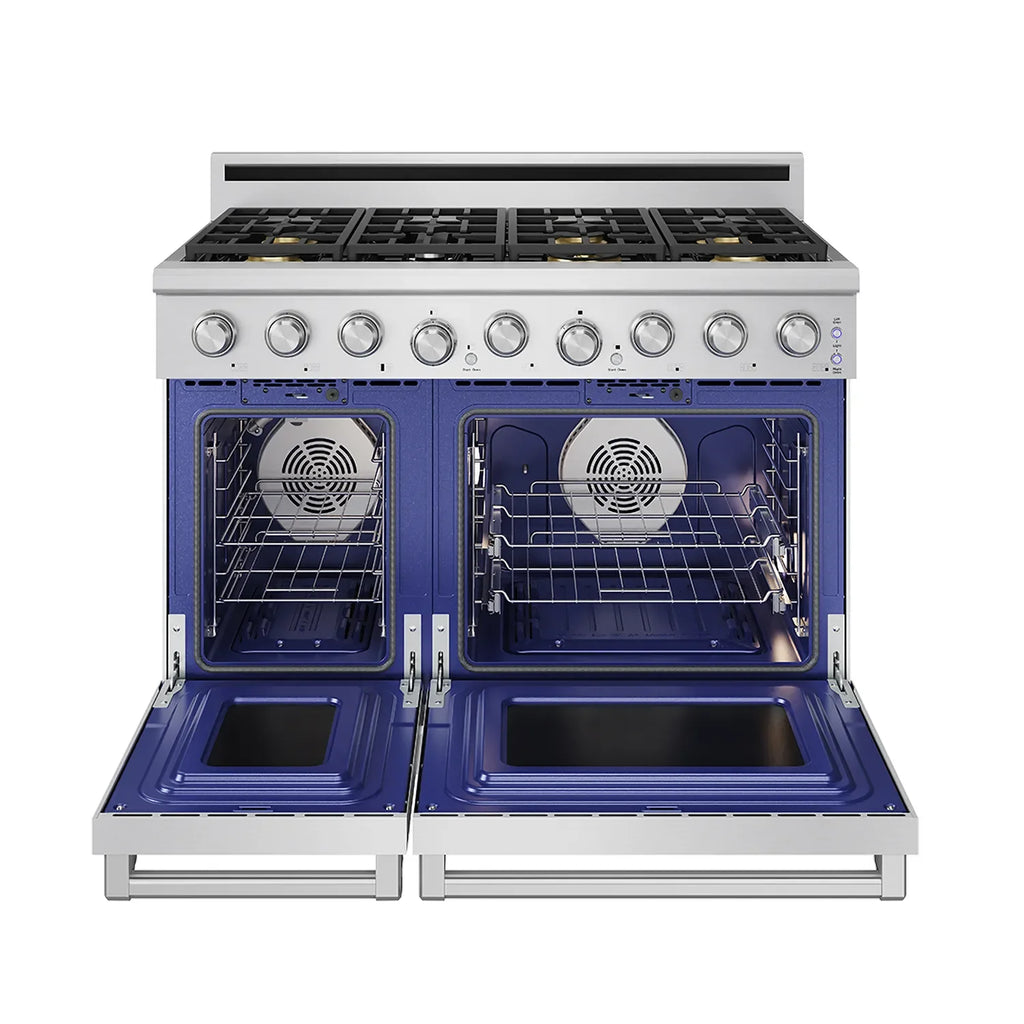

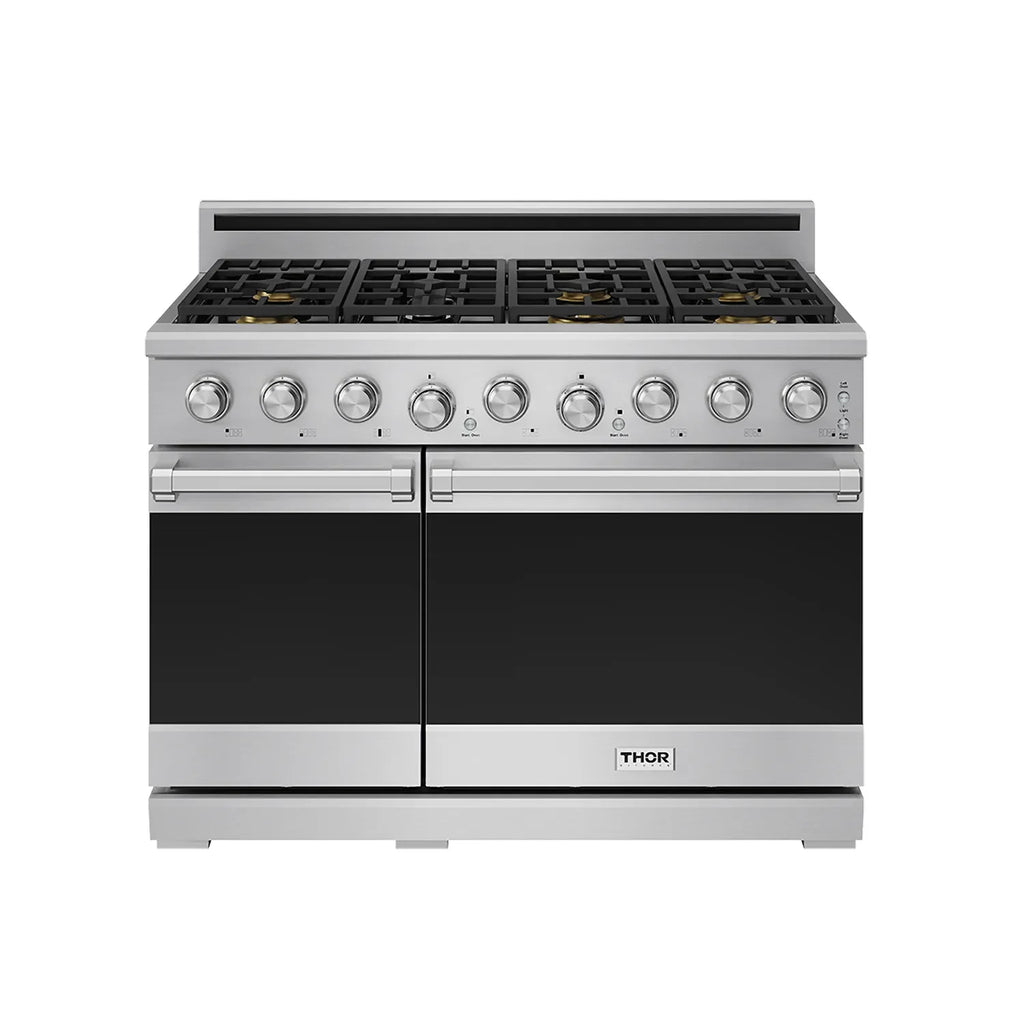

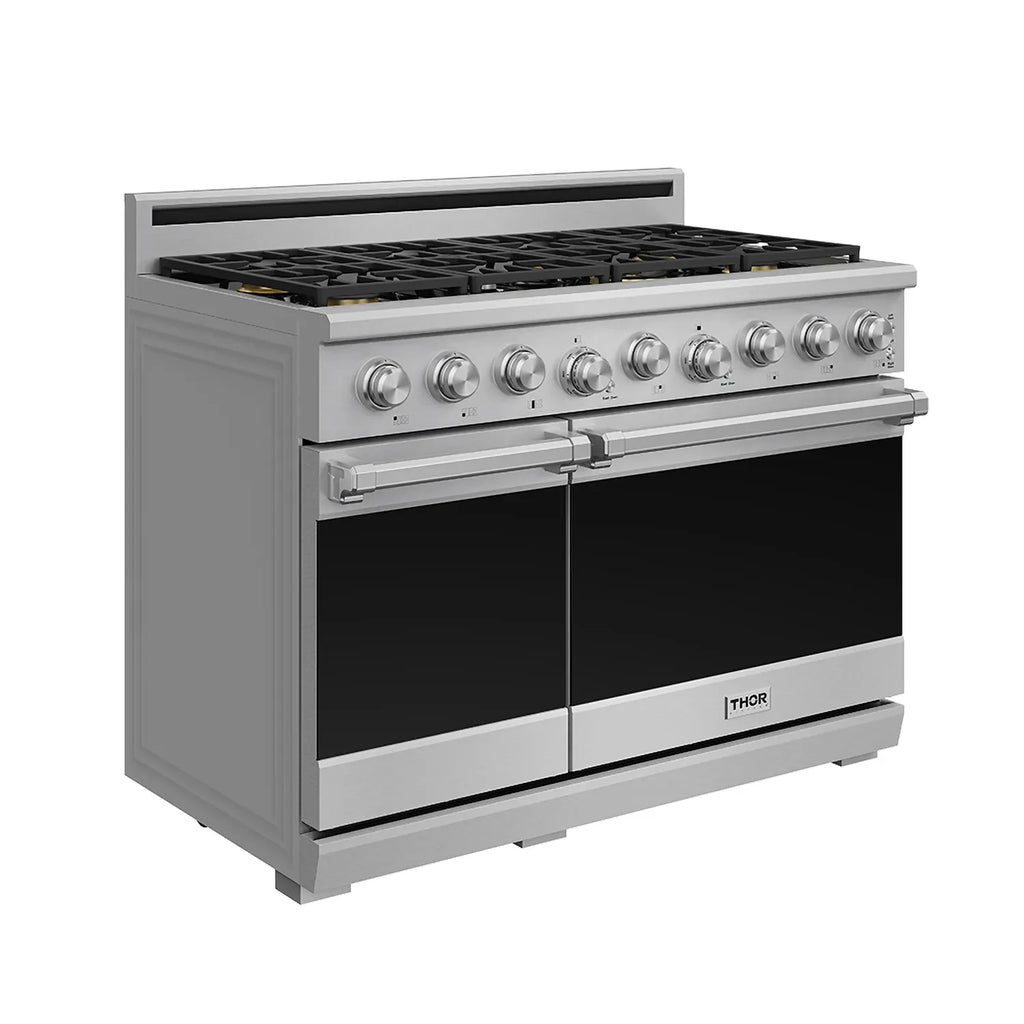

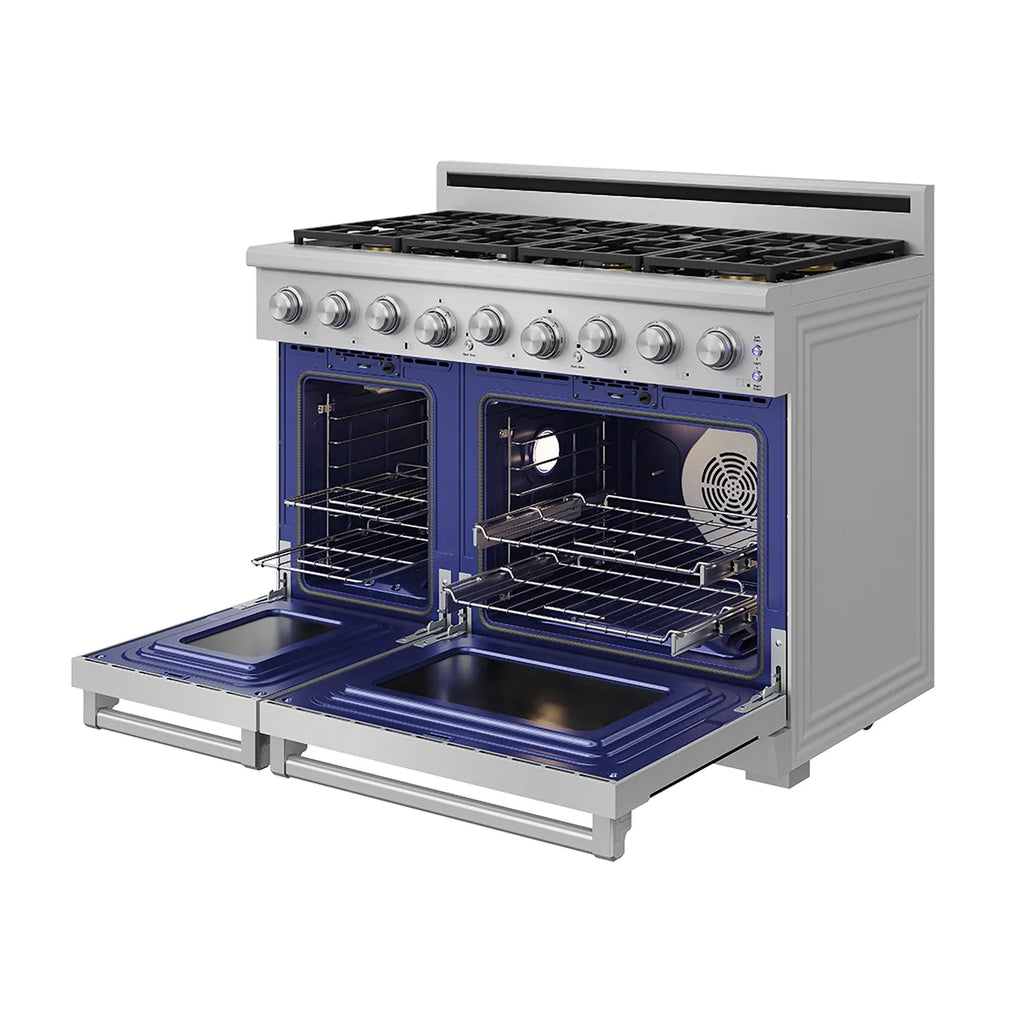

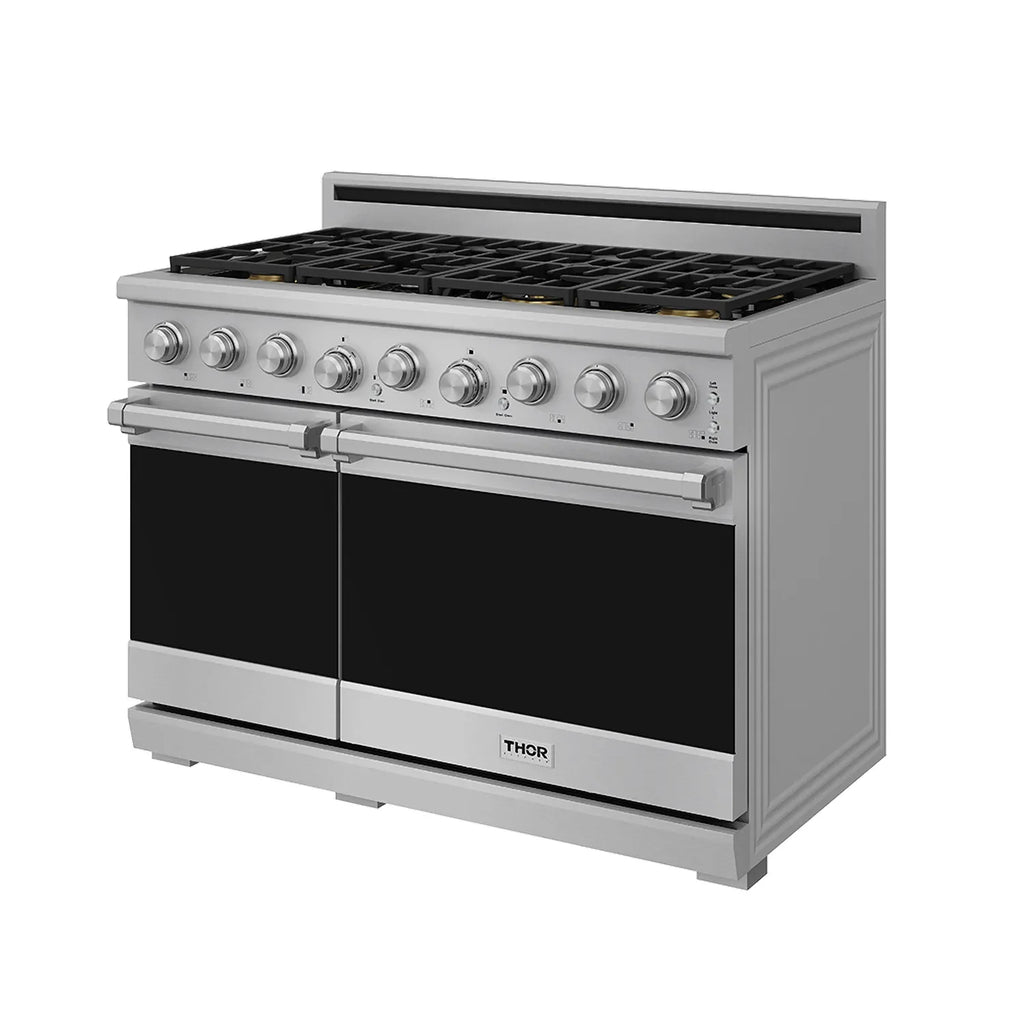

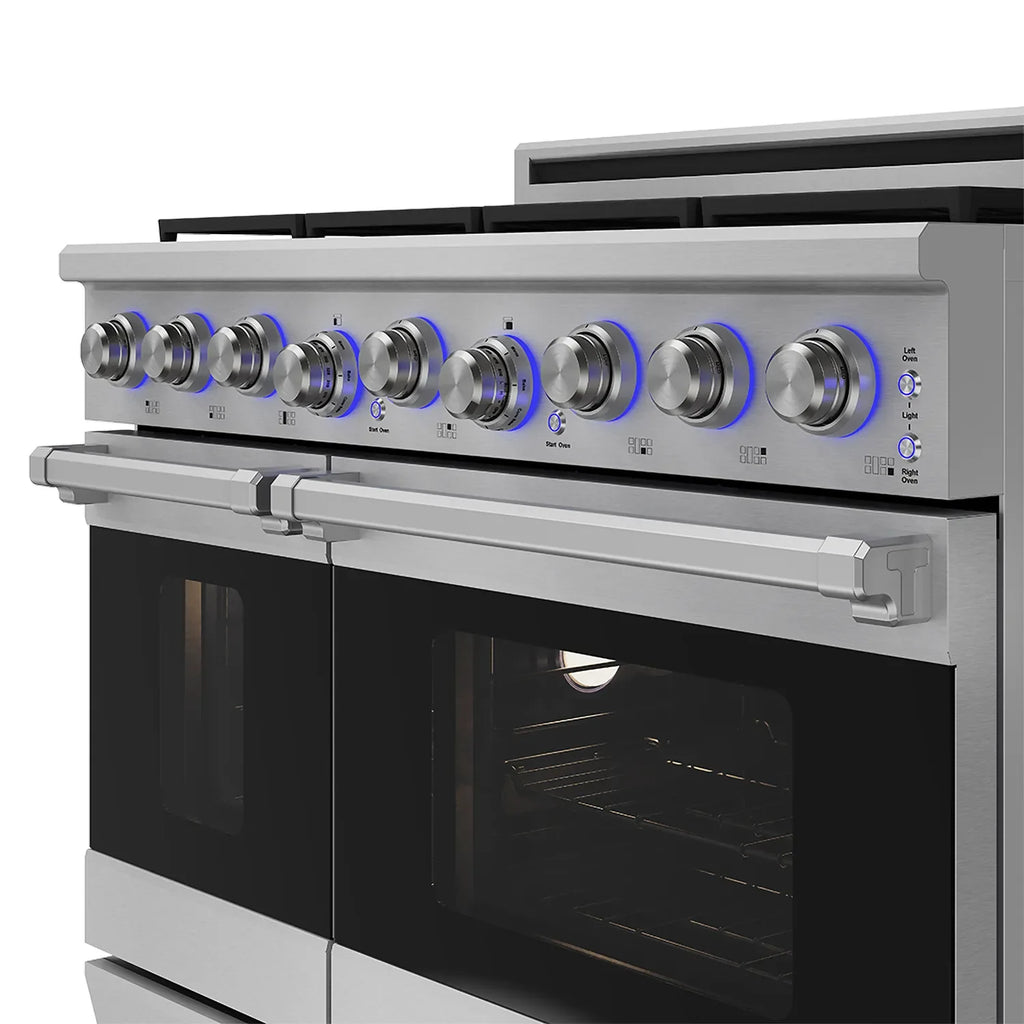

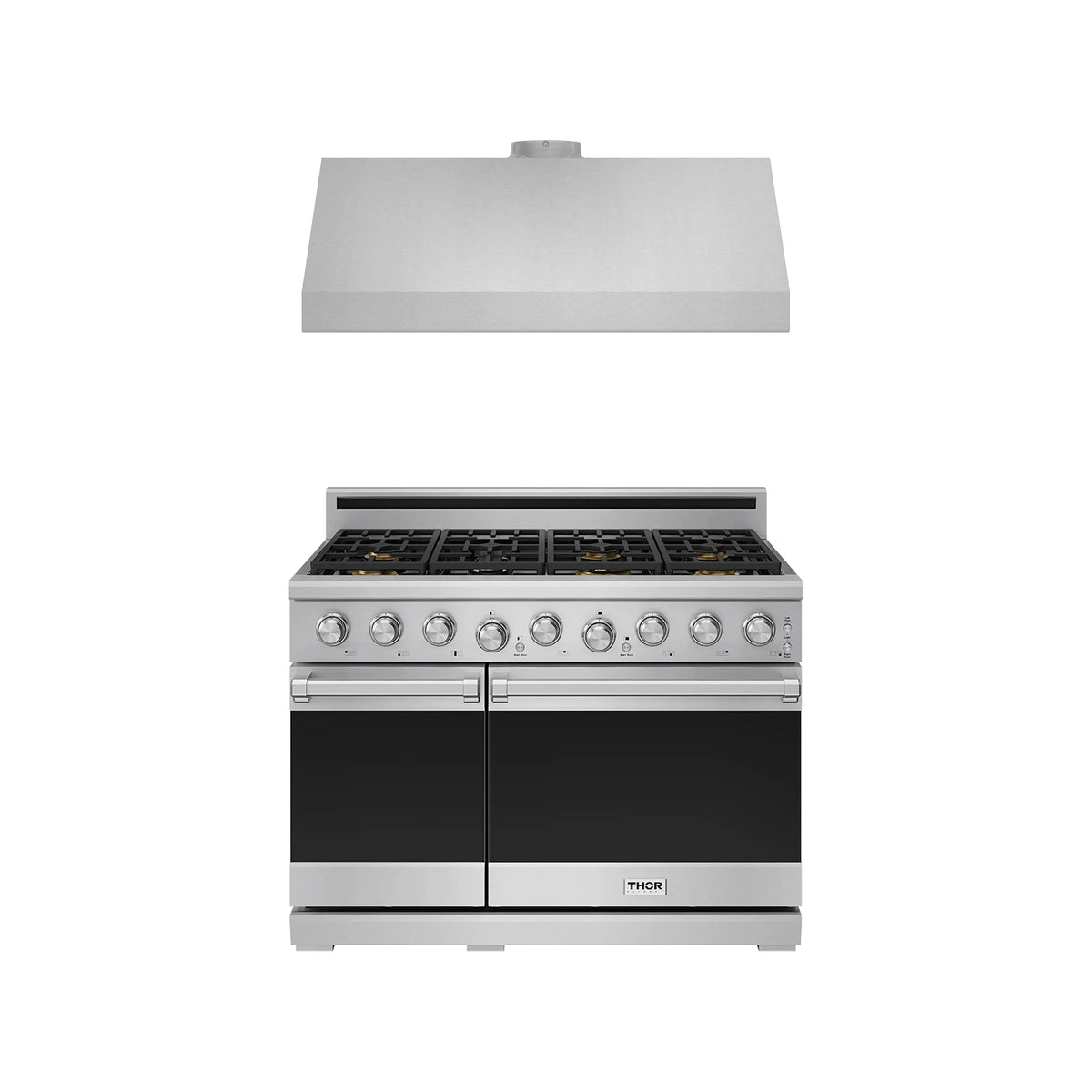

Cook like a pro with our 48-inch professional gas range. Featuring Italian brass burners with up to 22,000 BTUs and precise simmer control, a spacious 4.8 plus 2.8 cu. ft. oven with versatile modes—including Bake, Roast, Conv. Bake, and Infrared Broil—and LuxGlide™ telescopic racks, this range delivers power, precision, and convenience. Continuous cast-iron grates, soft-close doors, built-in casters, and blue LED illuminated knobs combine durability, safety, and modern style, making every cooking experience effortless and professional-grade.
| DIMENSIONS | |
|---|---|
| Product Dimensions (WxDxH) | 48” x 24-3/5” x 36-1/8” |
| Product Height (from bottom to top of back splash) | 41-1/2” |
| Product Height (from bottom to top of side panel) | 32-7/8” |
| Product Depth (from back panel to bullnose) | 28-1/2” |
| Product Depth (from back panel to control panel) | 27-1/4 |
| Product Depth (from back panel to side panel front | 24-3/4 |
| Cutout Dimensions (WxDxH) | 36”x 24” x 36” |
| Adjustable Leg Height | 3" |
| Net Weight | 398 lbs |
| Gross Weight | 470 lbs |
| Plug Type Power Cord Length | 59" |
| Oven Internal (D x H) | 19-1/2'' x 18'' |
| Oven Internal Width |
|
| GENERAL INFORMATION | |
| Baking Sheet Size |
|
| Accessories (Included) | 2 Telescopic Racks and 1 Broiler Pan |
| Accessories (Not Included) |
|
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Control Type | Knob |
| TECHNICAL DETAILS | |
| Fuel Type | Natural gas or Liquid Propane |
| Installation Type | Freestanding |
| Required Circuit | 15 Amp Dedicated Circuit |
| Max Current Draw | 6 Amps |
| Volts | 120V |
| Frequency | 60Hz |
| Plug Type | NEMA 5-15P / US 3-prong |

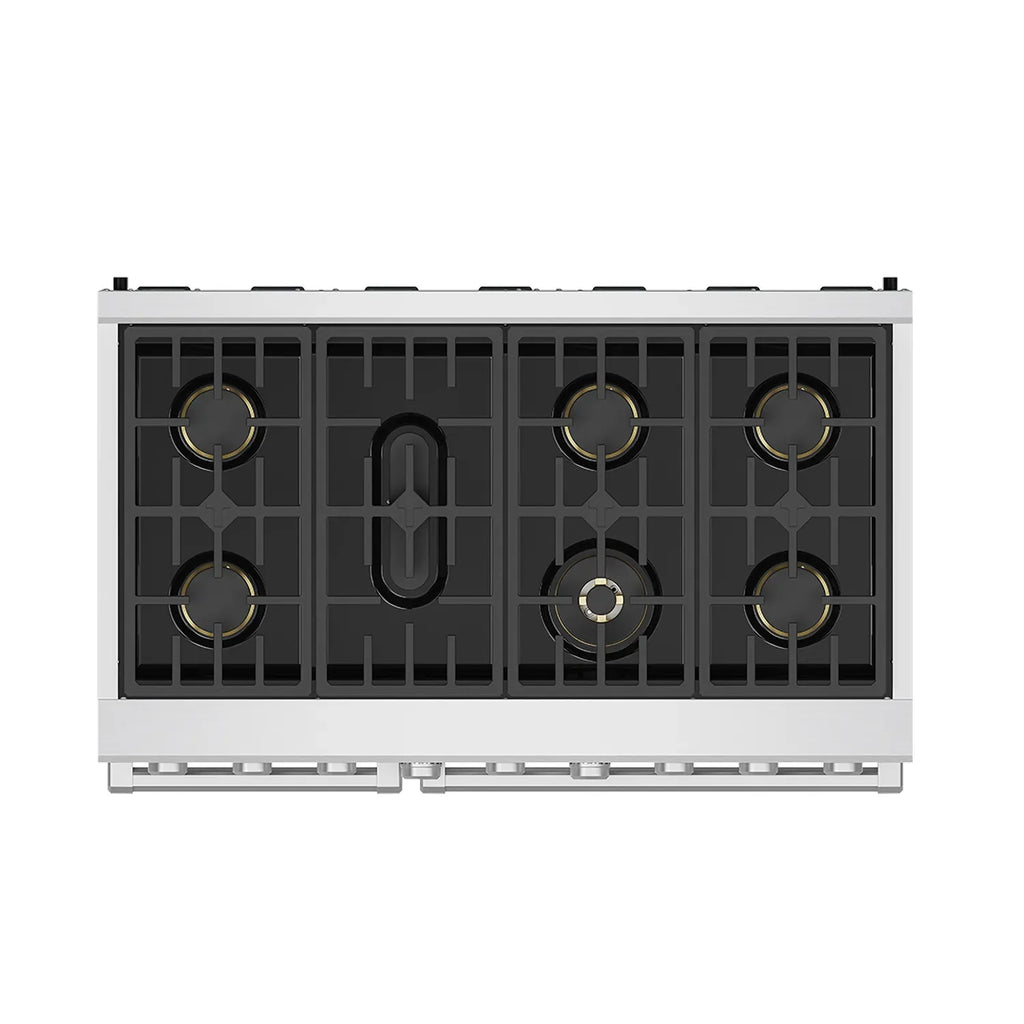

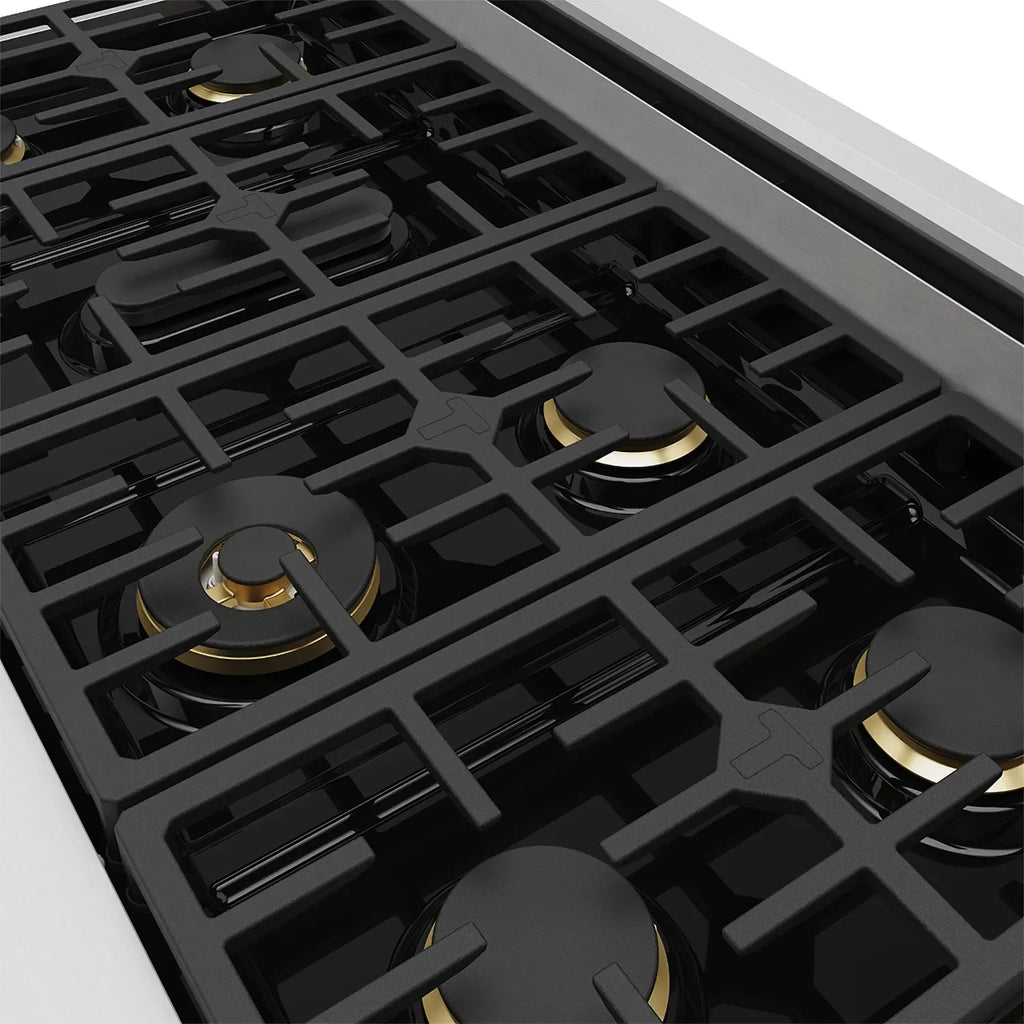

| COOKTOP FEATURES | |
| Burner Type | Sealed Burners |
| Type of Grate | Continuous |
| Max BTU | 22000 BTU (Dual) Simmer1000 BTU |
| Total Number Of Cooktop Burners | 6 |
| [1] Front Left Burner | 15000 BTU |
| [2] Rear Left Burner | 15000 BTU |
| [3] Oval Burner | 9000 BTU |
| [4] Front Center Burner | 22000 BTU (Dual) Simmer 1000 BTU |
| [5] Rear Center Burner | 15000 BTU |
| [6] Front Right Burner | 15000 BTU |
| [7] Rear Right Burner | 12000 BTU |
| Bake Burner Power |
|
| Broil Burner Power |
|
| OVEN FEATURES | |
| Oven Capacity | 4.8 cu.ft. +2.8 cu.ft. |
| Oven Control Features | Light on/ Off |
| Cooking Modes |
|
| Convection | Standard |
| Oven Lights |
|
| Oven Racks (Standard) |
|
| Oven Racks (telescopic) |
|
| Oven Rack Material | Chrome Plated |
| Self Clean (Y/N) | YES |

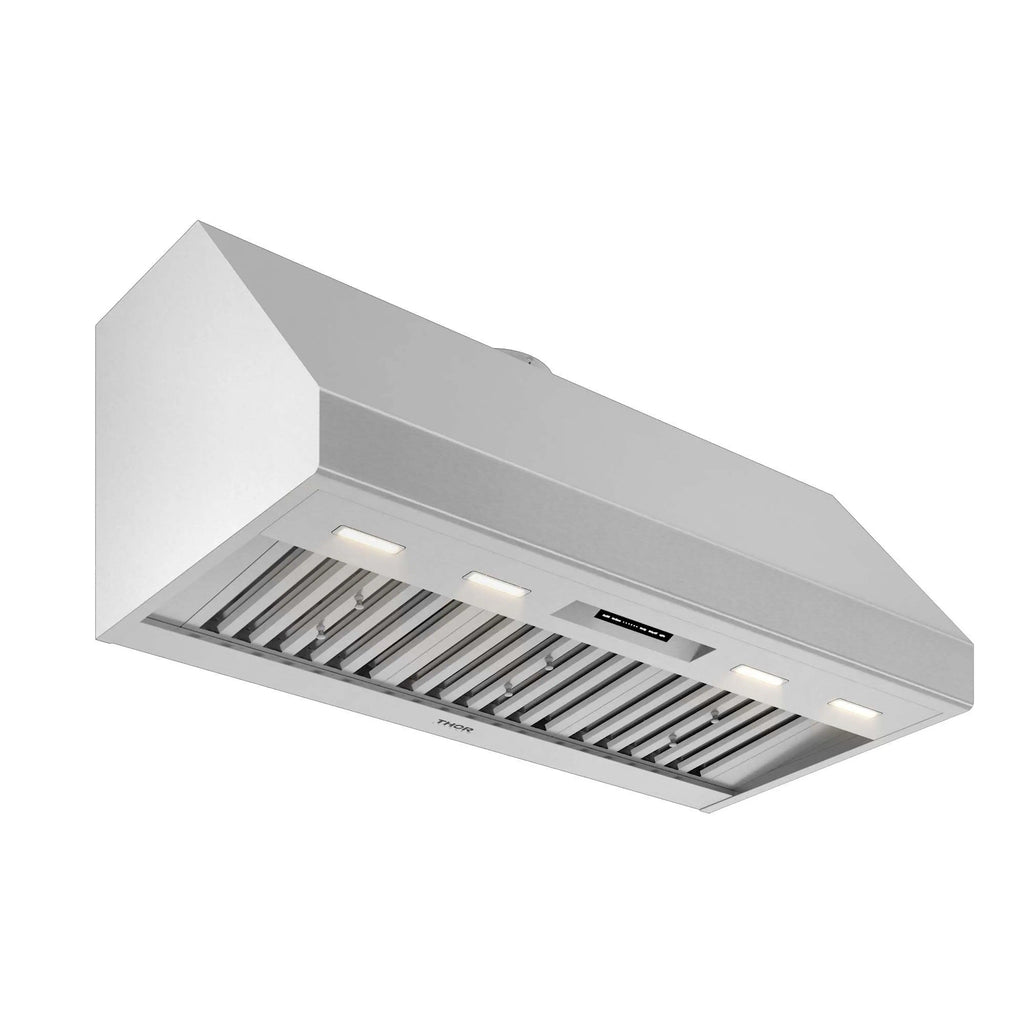

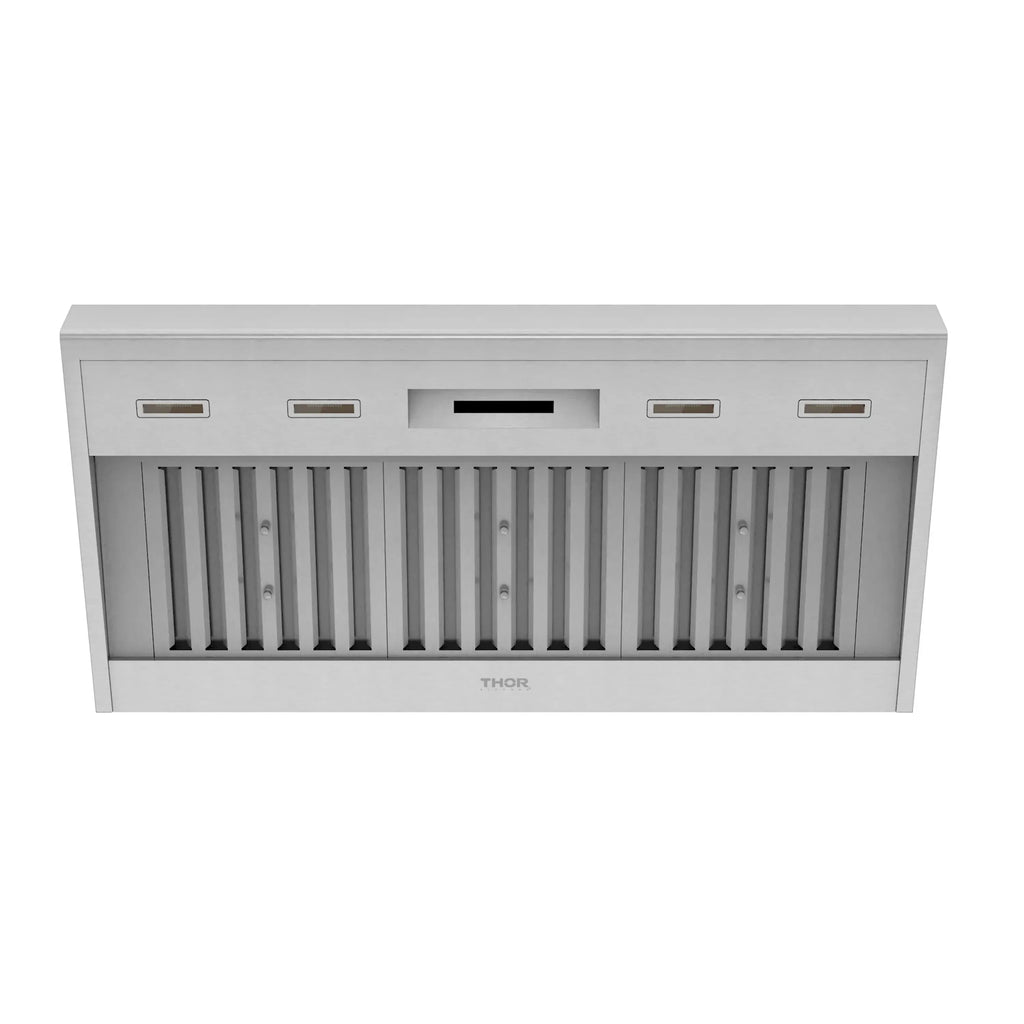

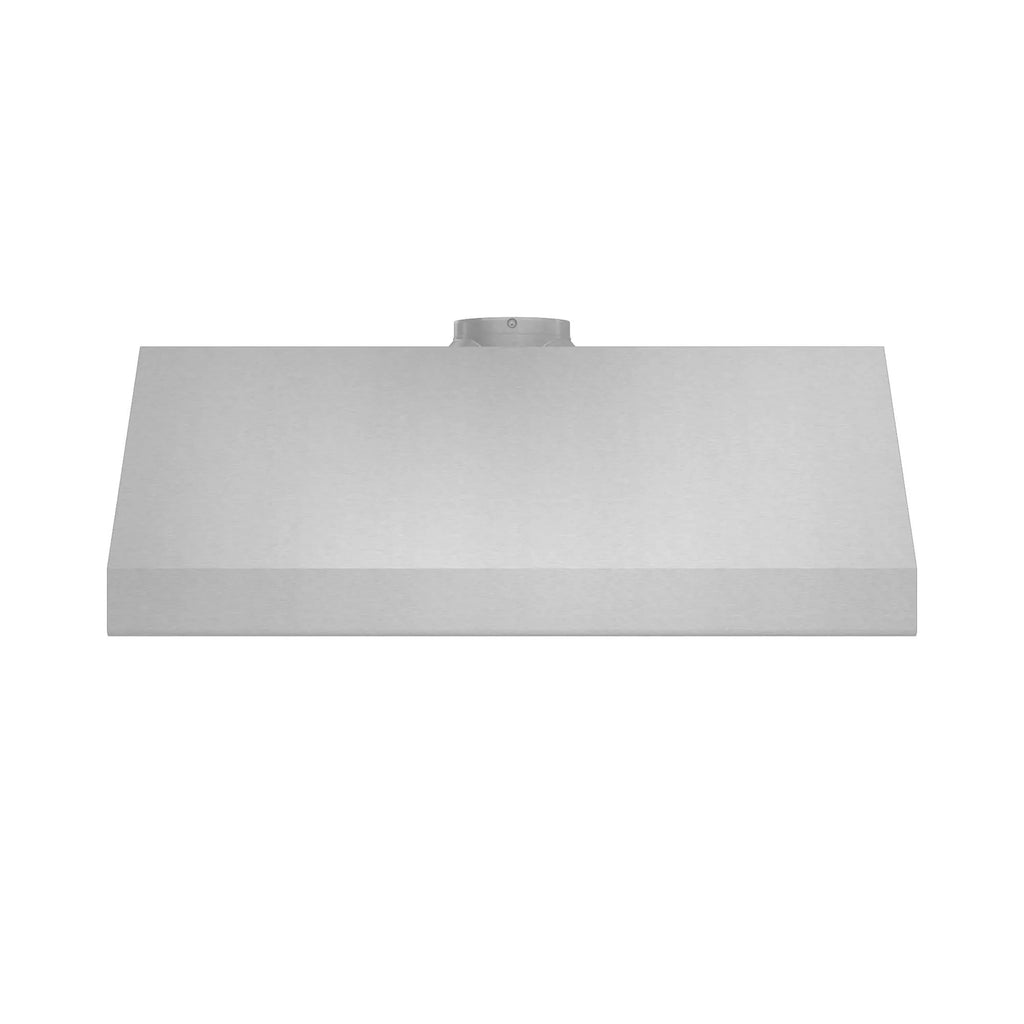

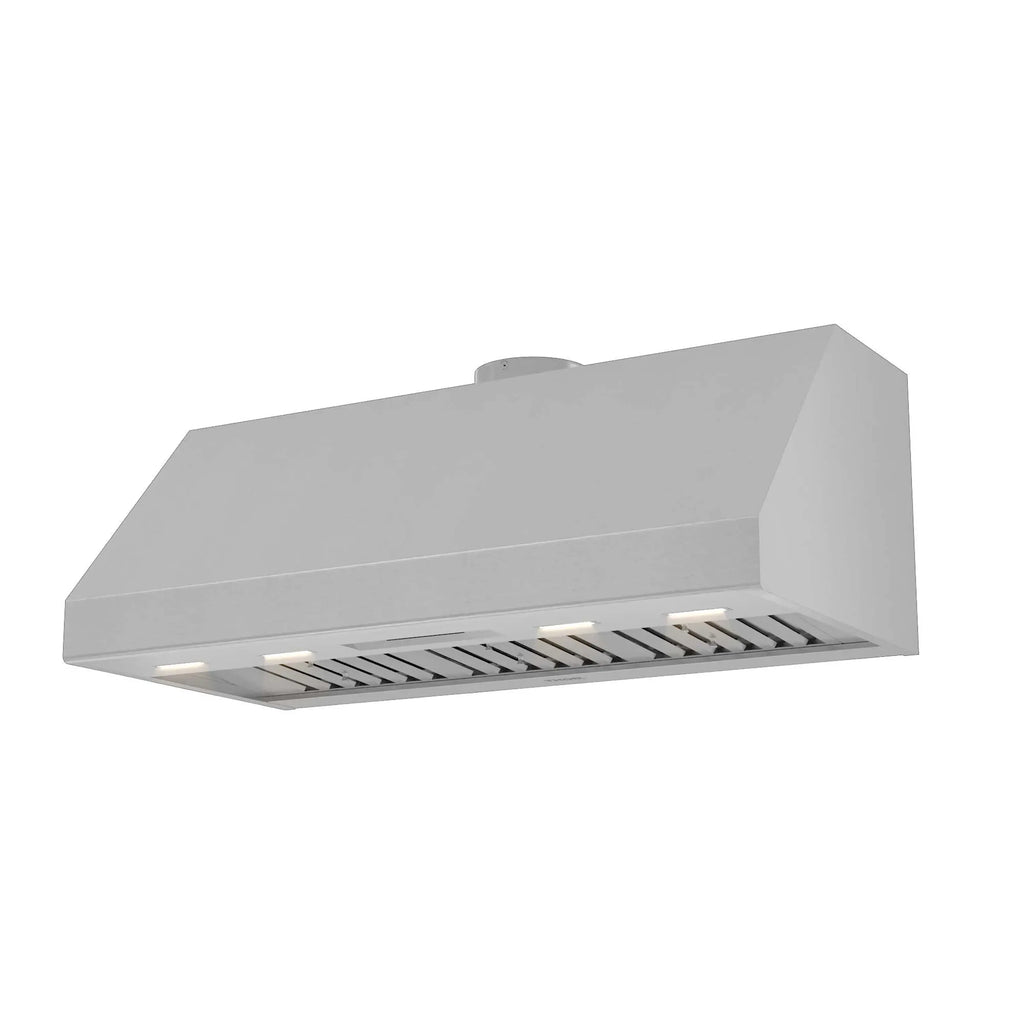

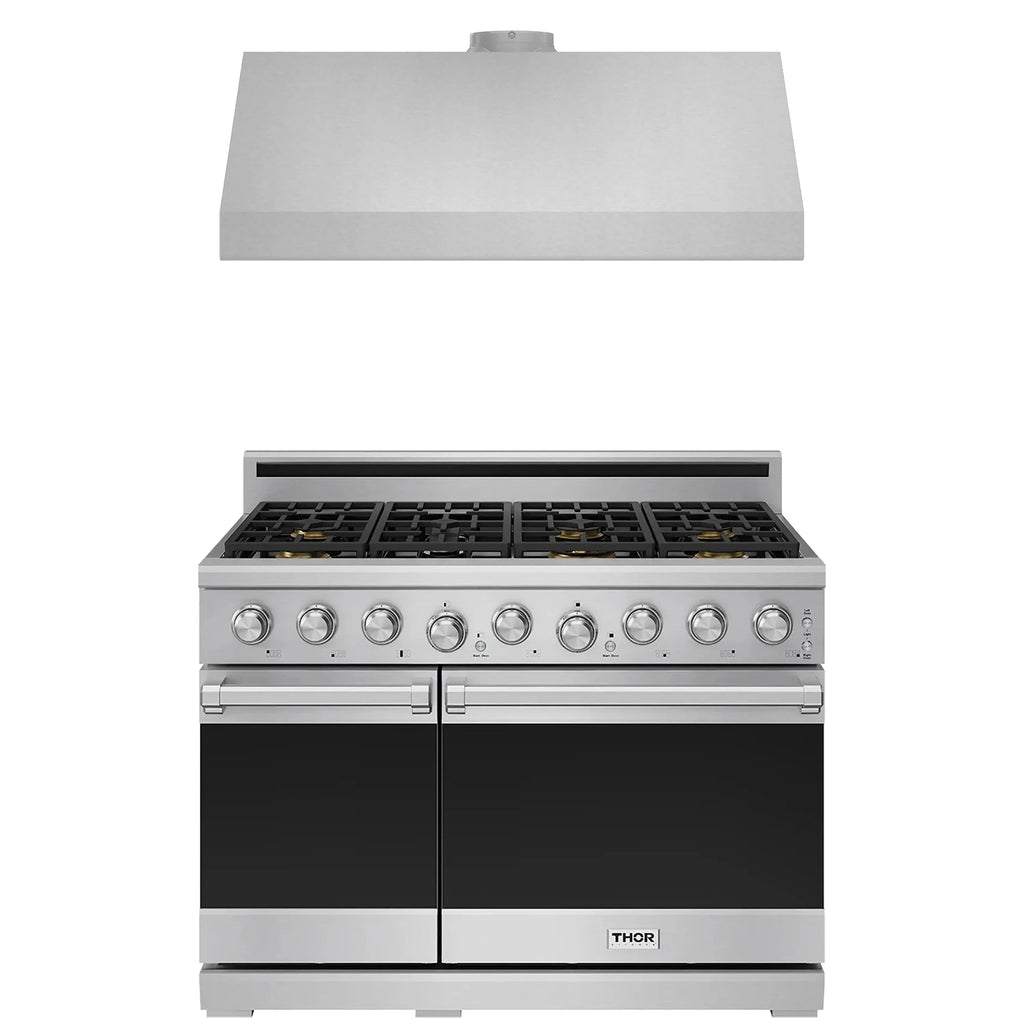

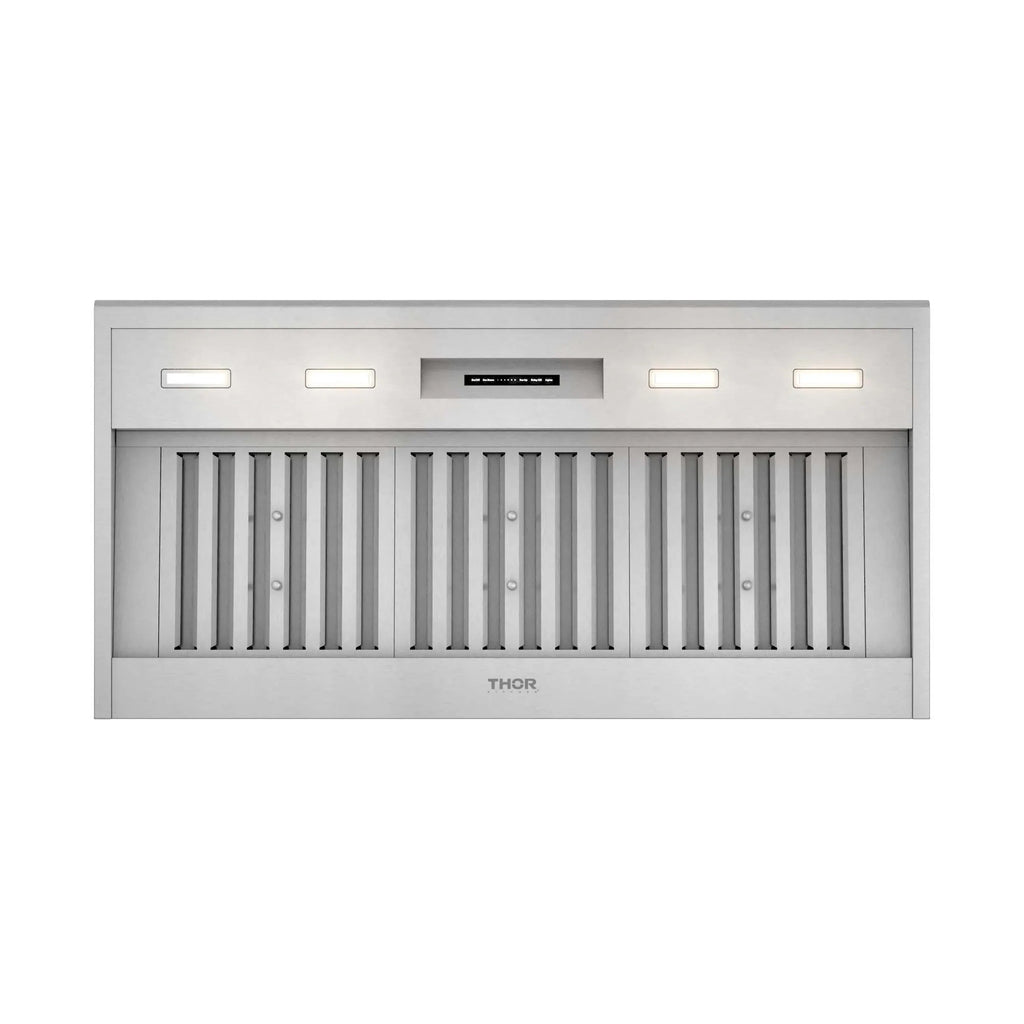

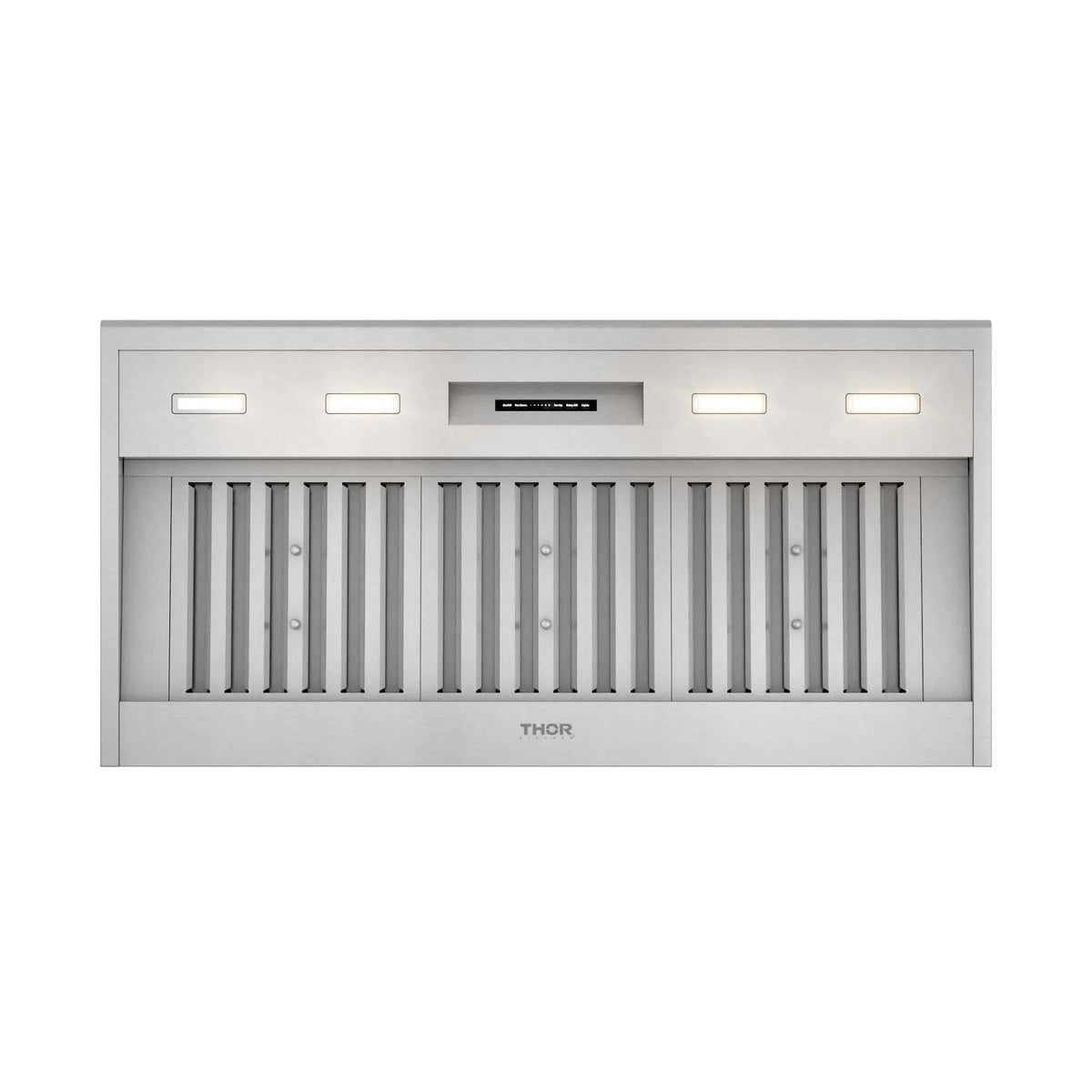

THOR Kitchen 48-Inch 600 CFM Convertible Under Cabinet Range Hood is designed to handle the demands of serious home cooking, this hood combines powerful ventilation, intuitive features, and sleek design to elevate your culinary experience.
| DIMENSIONS | |
|---|---|
| Product Dimensions | 47-7/8" W x 24" D x 18" H |
| GENERAL INFORMATION | |
| Bulb Type | LED Light |
| DESIGN & FINISH | |

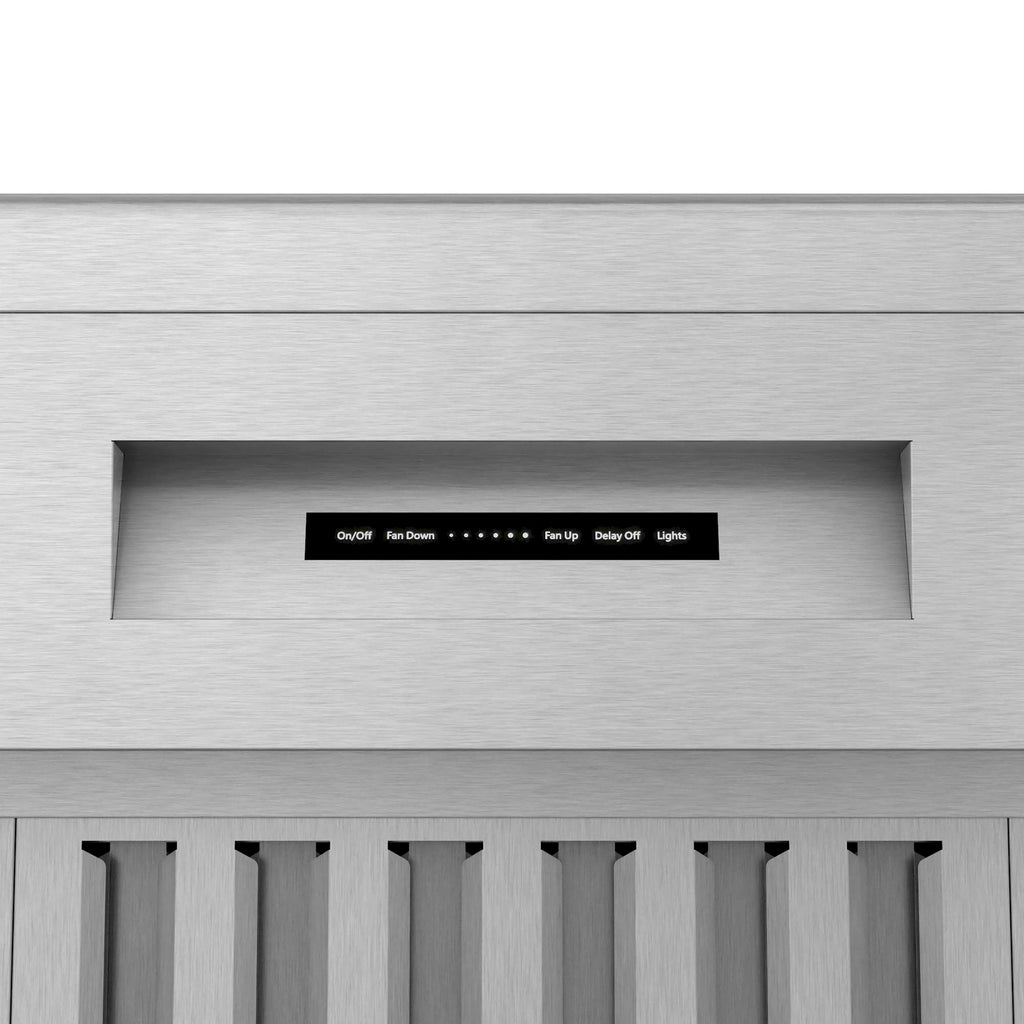

| Control | Touch / Hand Gesture Control |
| TECHNICAL DETAILS | |
| Duct Diameter | 8" |
| Duct Shape | Round |
| Volts | 120V |
| Frequency | 60Hz |
| Amperage | 15A (Dedicated) / 7A |
| Number of Speed Settings | 6 |
| Noise Level | 38 / 43 / 50 / 56.5 / 59 / 63 dBA |
| FEATURES | |
| Operating Mode | Ducted or Ductless |
| Air Flow | 90 / 260 / 350 / 460 / 500 / 600 CFM |
| Number of Lights | 4 |
| Filter Type | Baffle Filter x 3 |
| WARRANTY & CERTIFICATIONS | |
| Certifications | CUL Listed |
| Warranty | 2 Years Parts and Labor |
