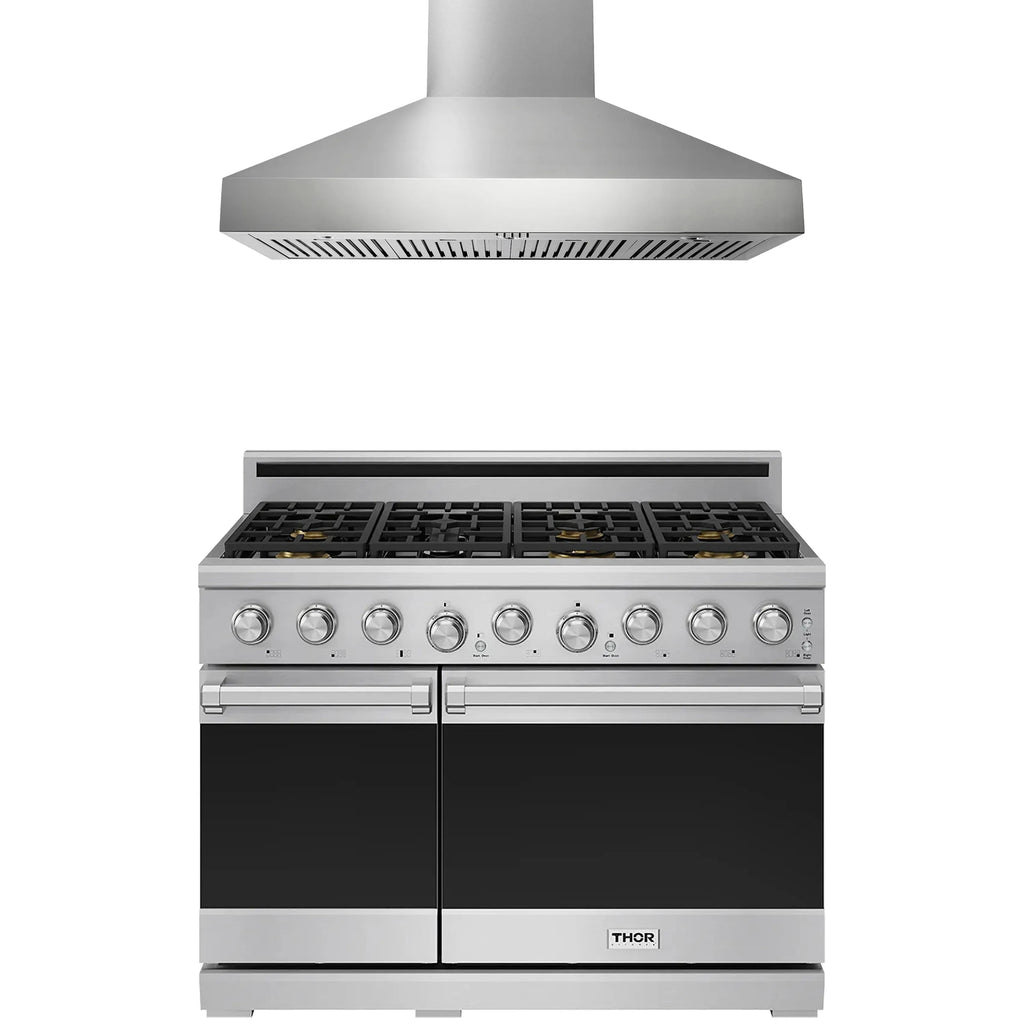

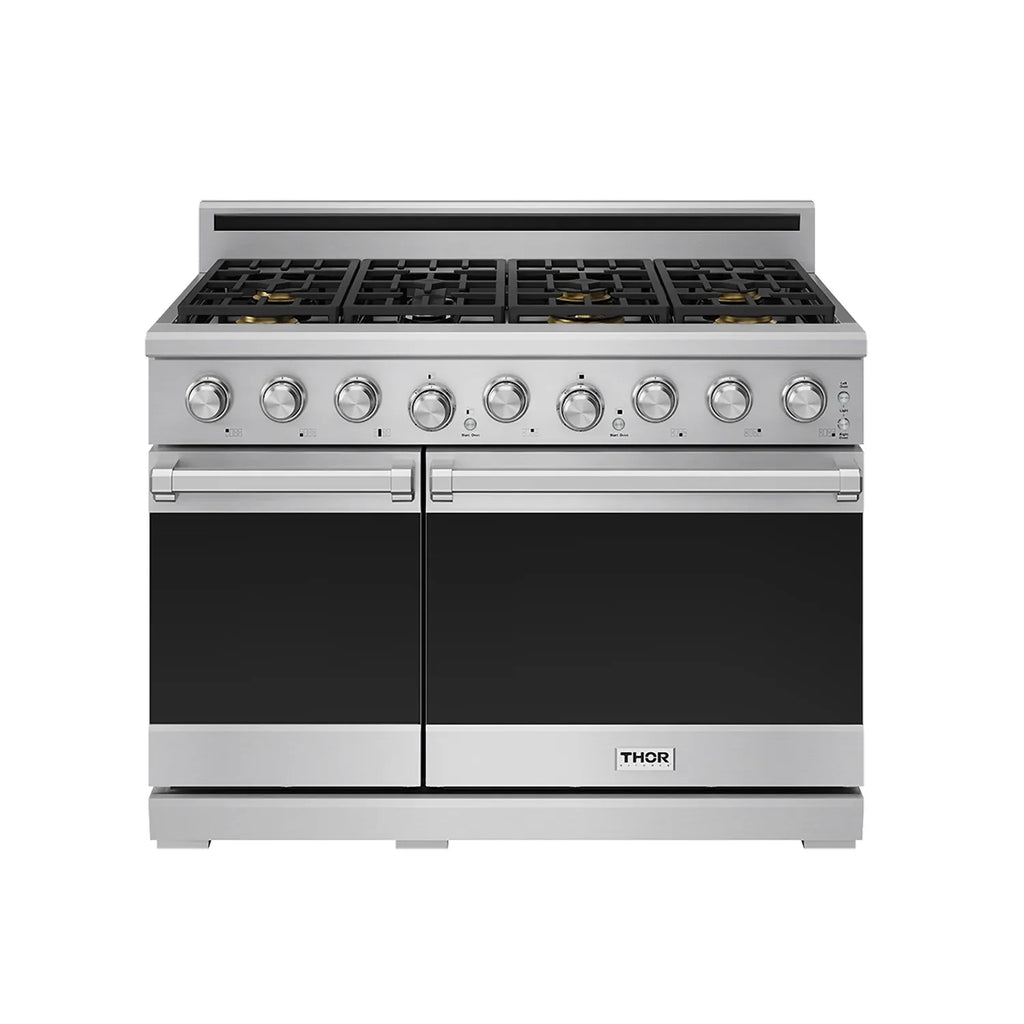

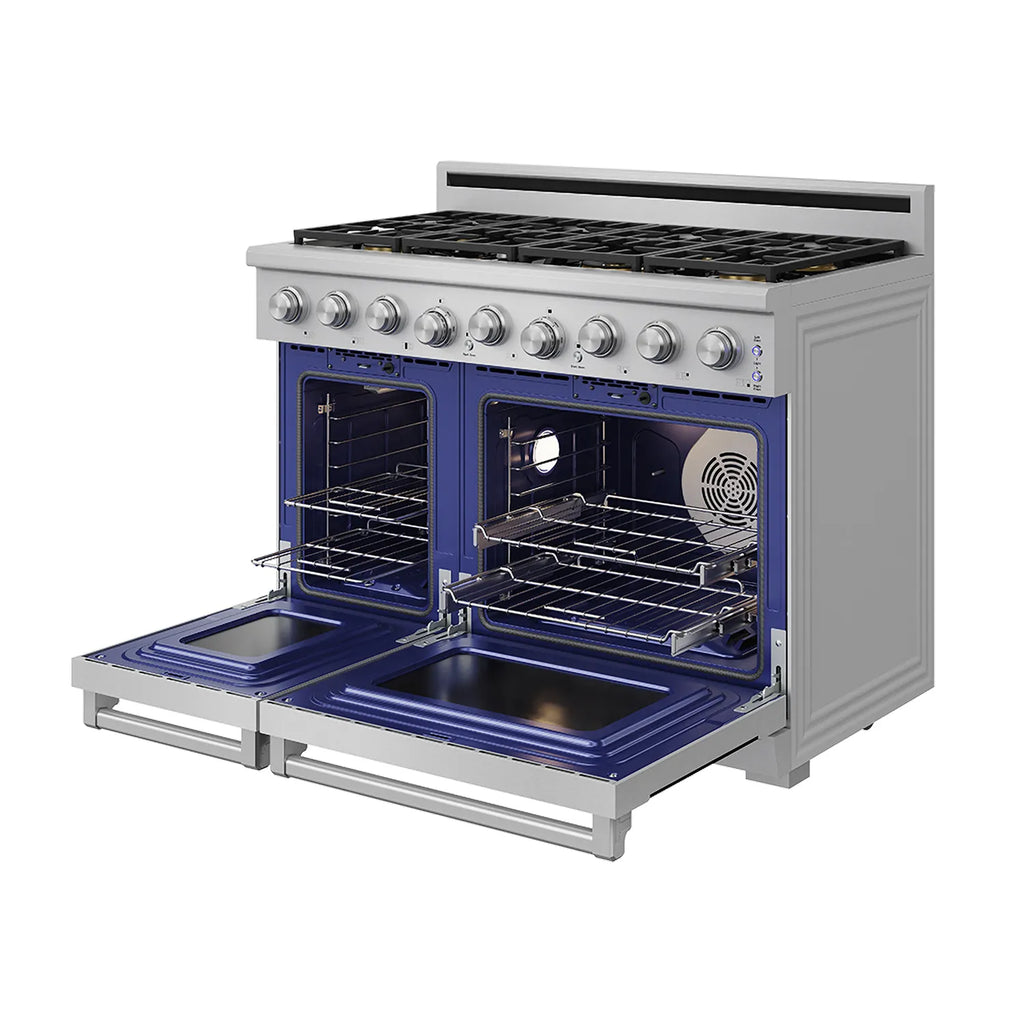

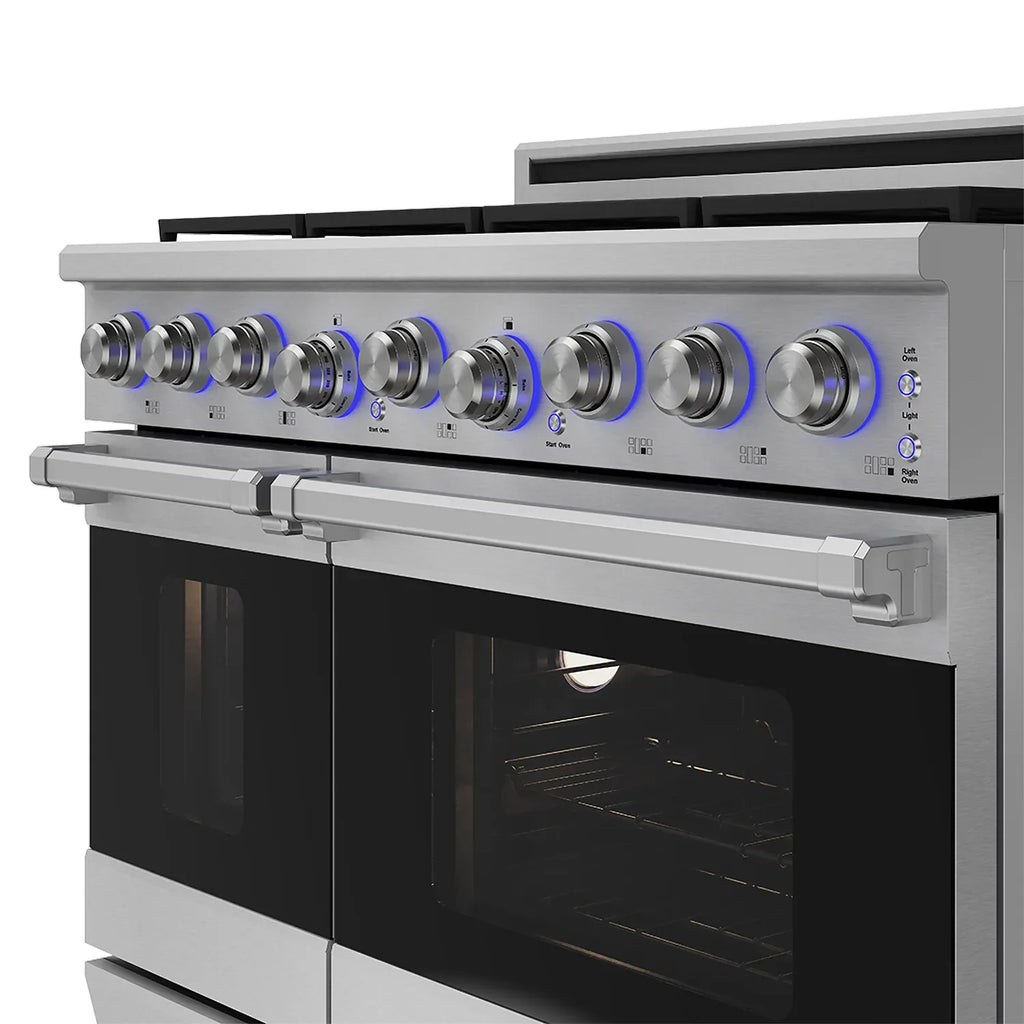

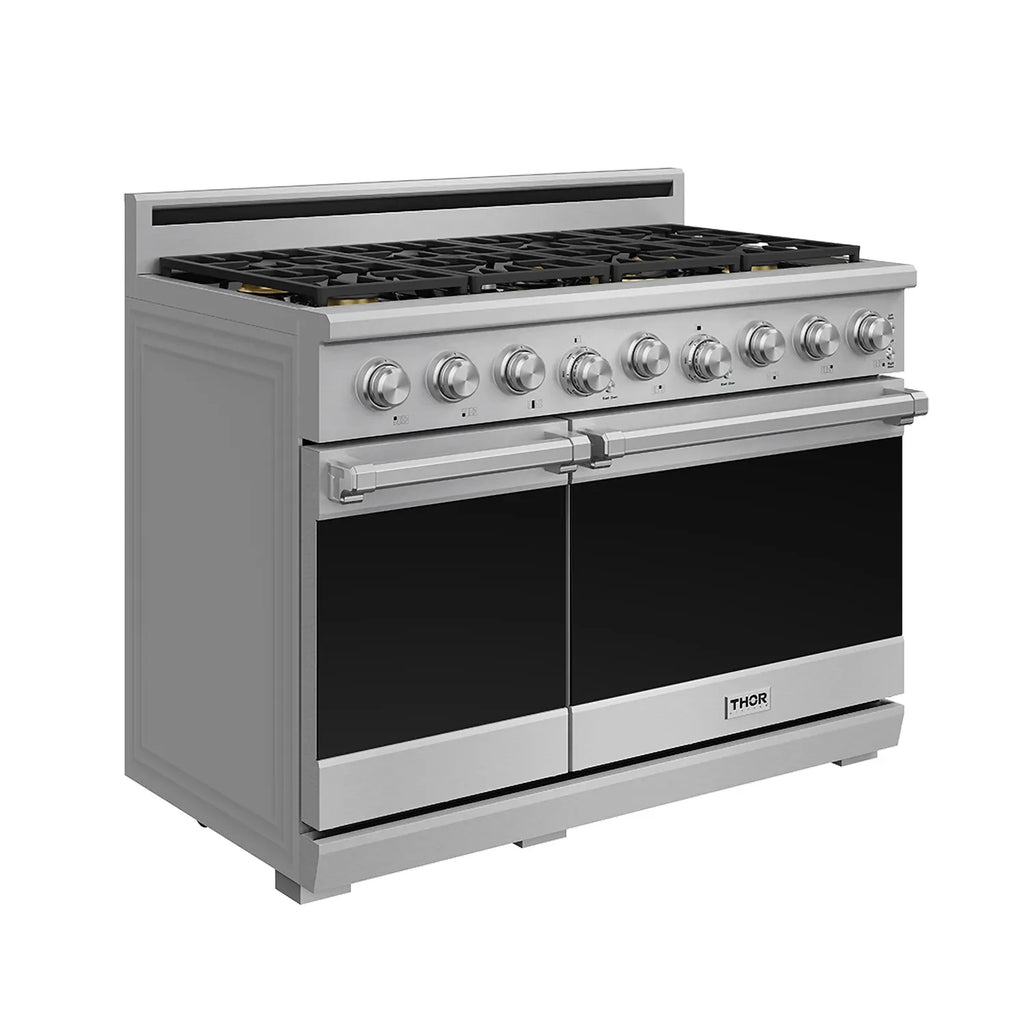

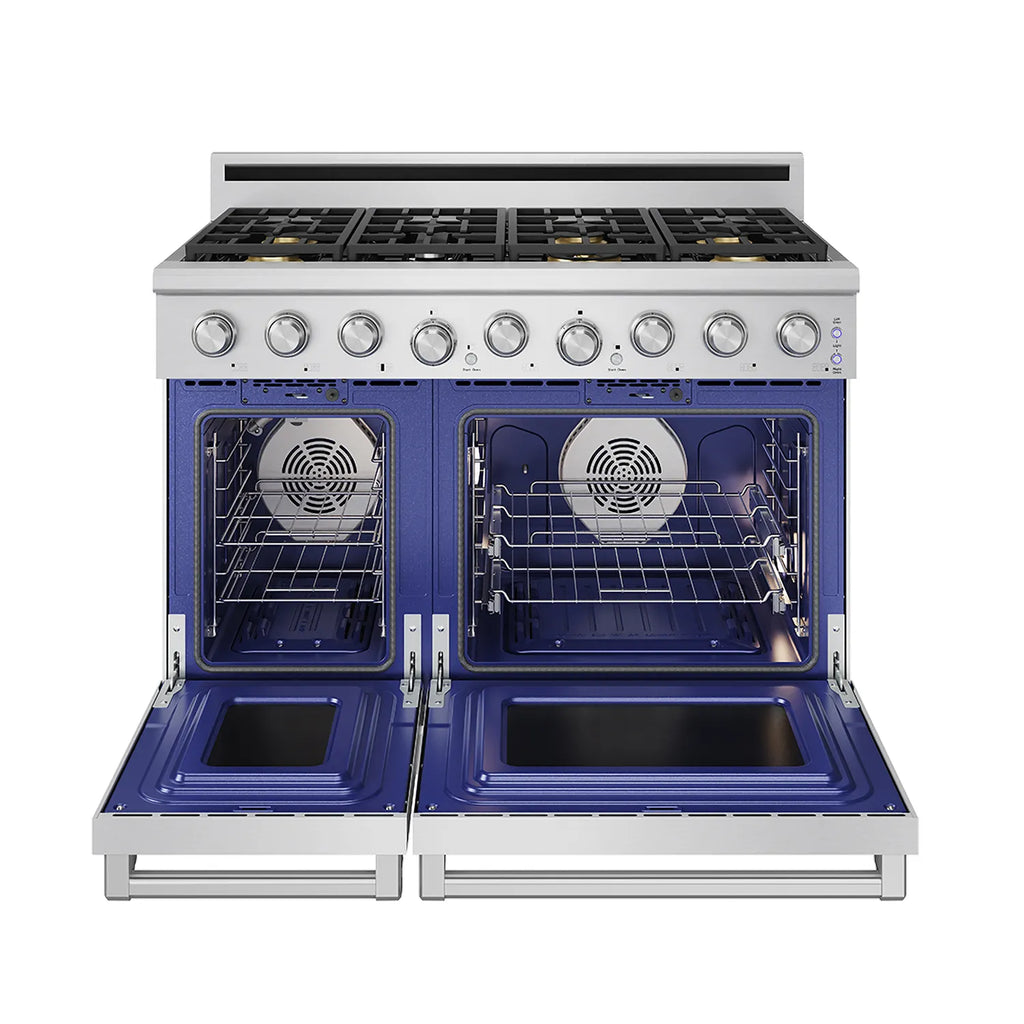

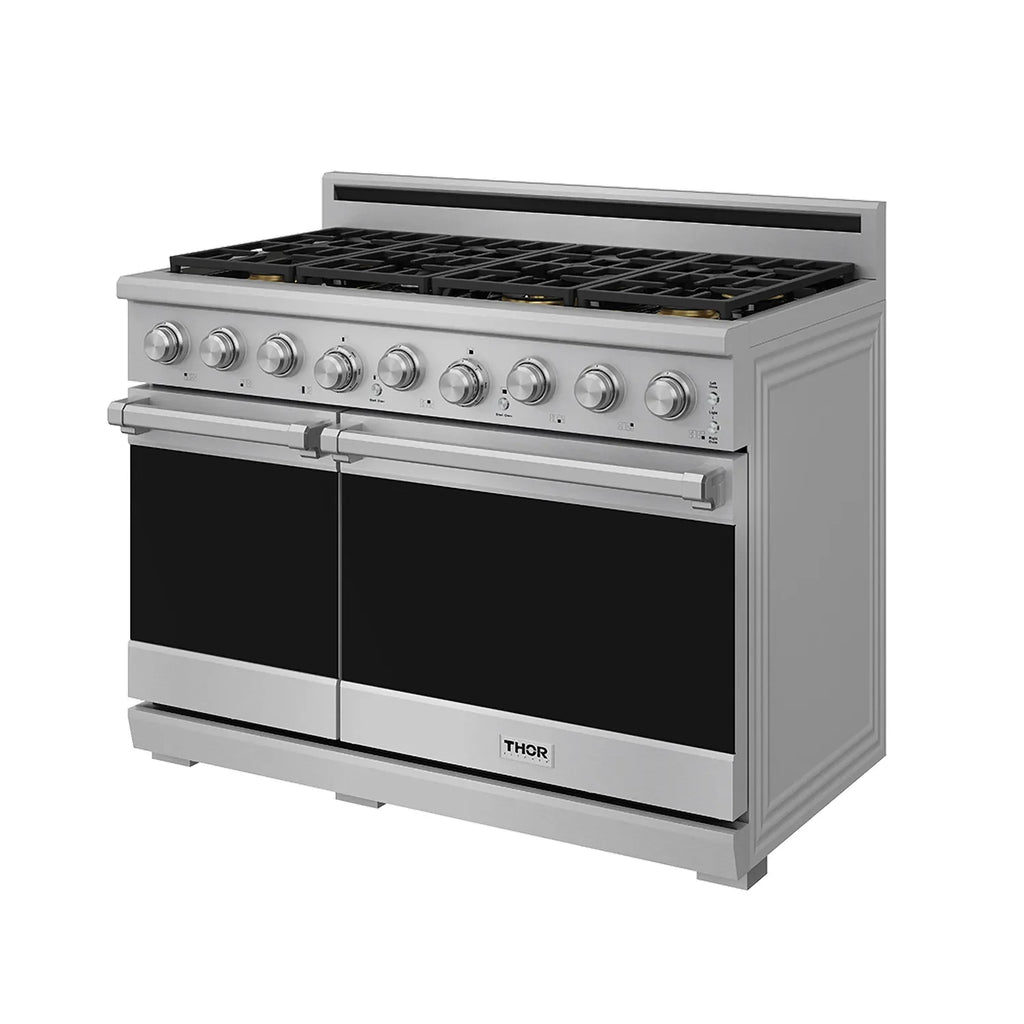

Cook like a pro with our 48-inch professional gas range. Featuring Italian brass burners with up to 22,000 BTUs and precise simmer control, a spacious 4.8 plus 2.8 cu. ft. oven with versatile modes—including Bake, Roast, Conv. Bake, and Infrared Broil—and LuxGlide™ telescopic racks, this range delivers power, precision, and convenience. Continuous cast-iron grates, soft-close doors, built-in casters, and blue LED illuminated knobs combine durability, safety, and modern style, making every cooking experience effortless and professional-grade.
| DIMENSIONS | |
|---|---|
| Product Dimensions (WxDxH) | 48” x 24-3/5” x 36-1/8” |
| Product Height (from bottom to top of back splash) | 41-1/2” |
| Product Height (from bottom to top of side panel) | 32-7/8” |
| Product Depth (from back panel to bullnose) | 28-1/2” |
| Product Depth (from back panel to control panel) | 27-1/4 |
| Product Depth (from back panel to side panel front | 24-3/4 |
| Cutout Dimensions (WxDxH) | 36”x 24” x 36” |
| Adjustable Leg Height | 3" |
| Net Weight | 398 lbs |
| Gross Weight | 470 lbs |
| Plug Type Power Cord Length | 59" |
| Oven Internal (D x H) | 19-1/2'' x 18'' |
| Oven Internal Width |
|
| GENERAL INFORMATION | |
| Baking Sheet Size |
|
| Accessories (Included) | 2 Telescopic Racks and 1 Broiler Pan |
| Accessories (Not Included) |
|
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Control Type | Knob |
| TECHNICAL DETAILS | |
| Fuel Type | Natural gas or Liquid Propane |
| Installation Type | Freestanding |
| Required Circuit | 15 Amp Dedicated Circuit |
| Max Current Draw | 6 Amps |
| Volts | 120V |
| Frequency | 60Hz |
| Plug Type | NEMA 5-15P / US 3-prong |

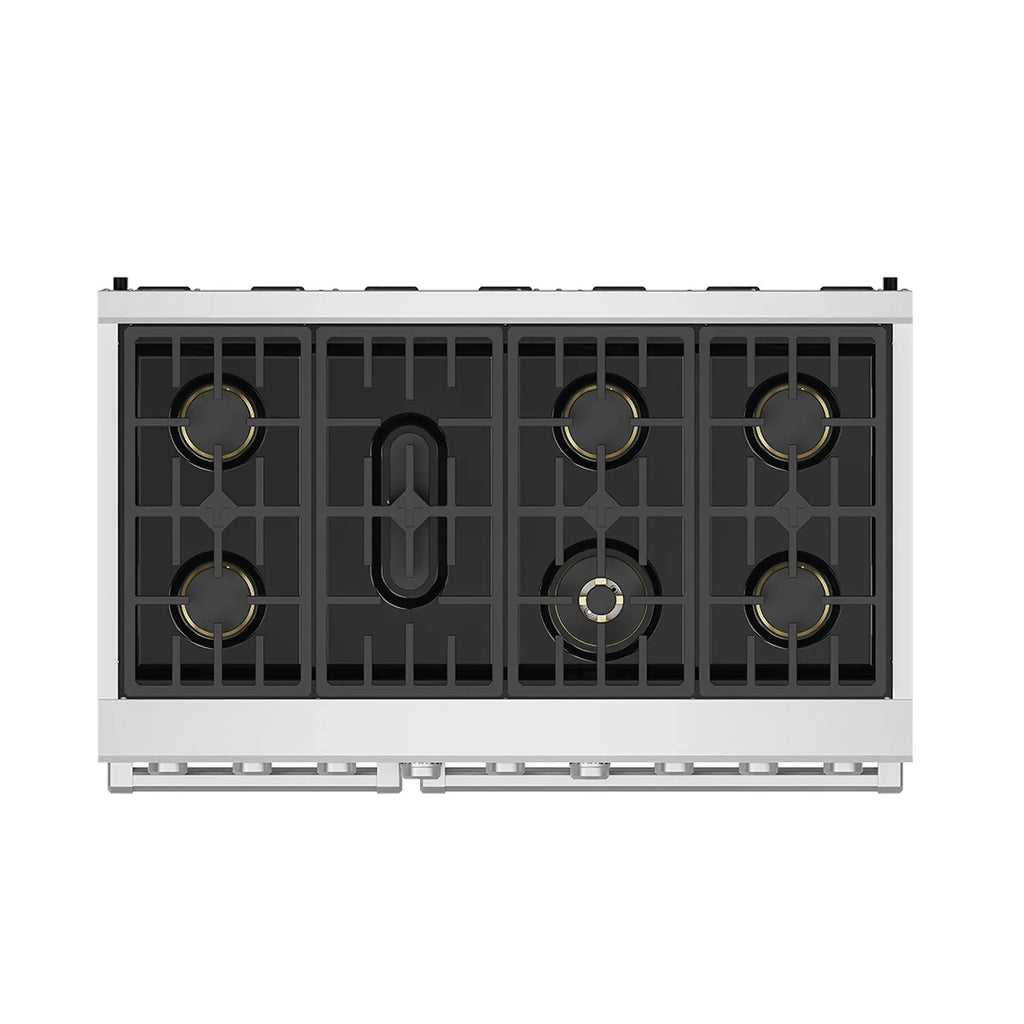

| COOKTOP FEATURES | |
| Burner Type | Sealed Burners |

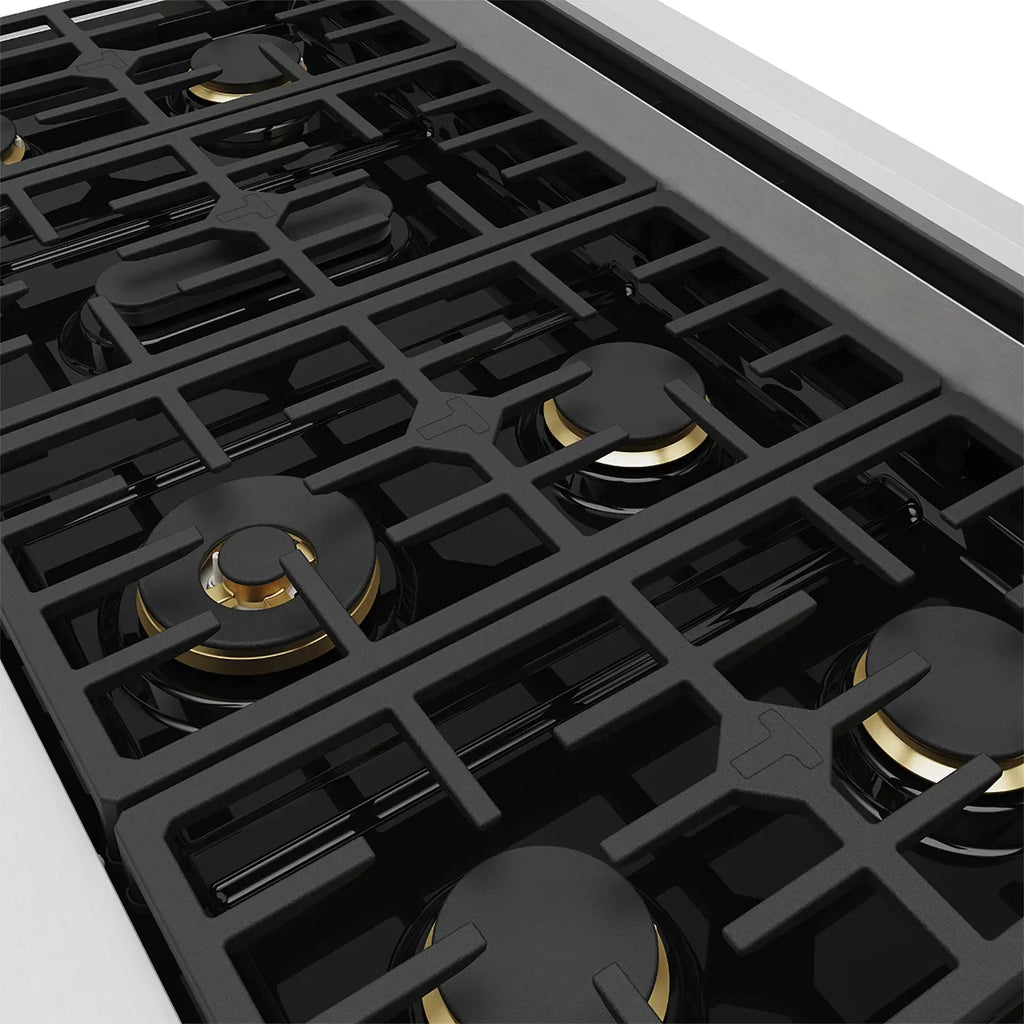

| Type of Grate | Continuous |
| Max BTU | 22000 BTU (Dual) Simmer1000 BTU |
| Total Number Of Cooktop Burners | 6 |
| [1] Front Left Burner | 15000 BTU |
| [2] Rear Left Burner | 15000 BTU |
| [3] Oval Burner | 9000 BTU |
| [4] Front Center Burner | 22000 BTU (Dual) Simmer 1000 BTU |
| [5] Rear Center Burner | 15000 BTU |
| [6] Front Right Burner | 15000 BTU |
| [7] Rear Right Burner | 12000 BTU |
| Bake Burner Power |
|
| Broil Burner Power |
|
| OVEN FEATURES | |
| Oven Capacity | 4.8 cu.ft. +2.8 cu.ft. |
| Oven Control Features | Light on/ Off |
| Cooking Modes |
|
| Convection | Standard |
| Oven Lights |
|
| Oven Racks (Standard) |
|
| Oven Racks (telescopic) |
|
| Oven Rack Material | Chrome Plated |
| Self Clean (Y/N) | YES |

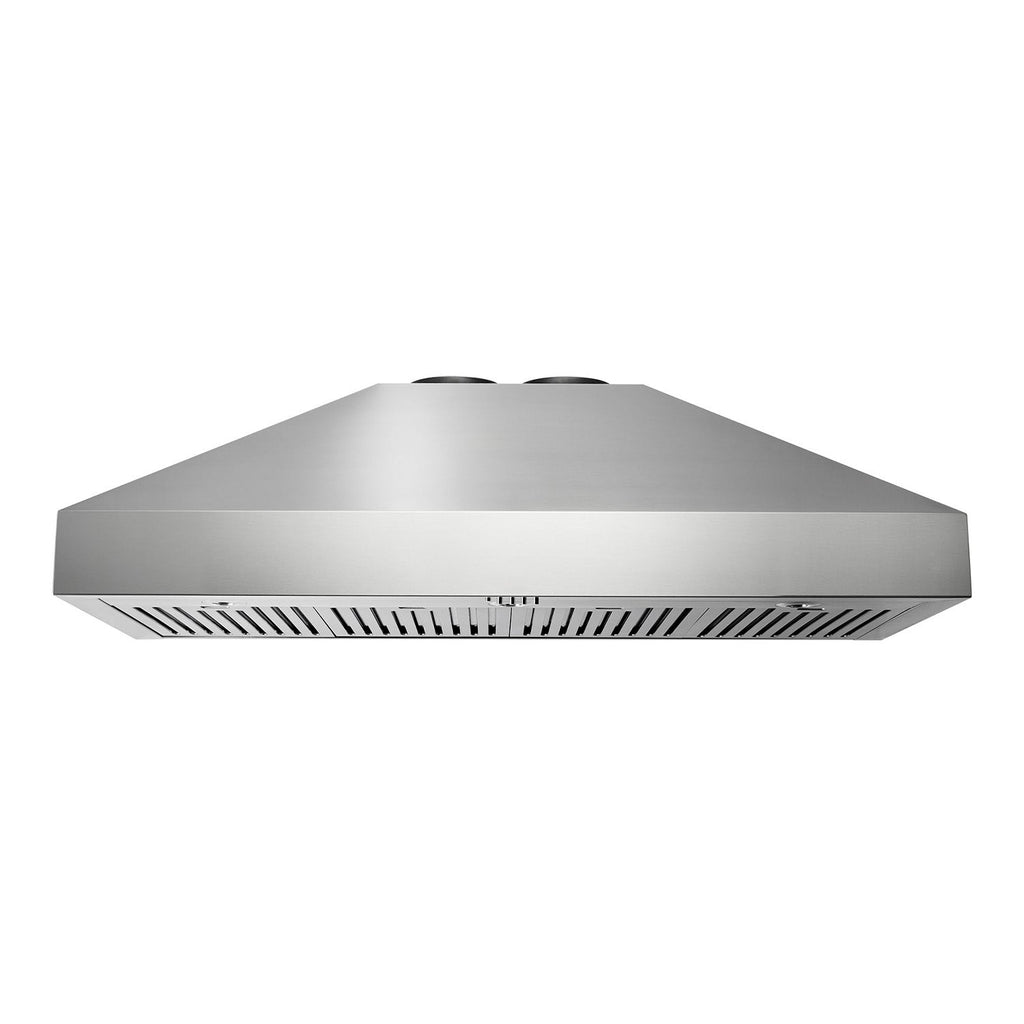

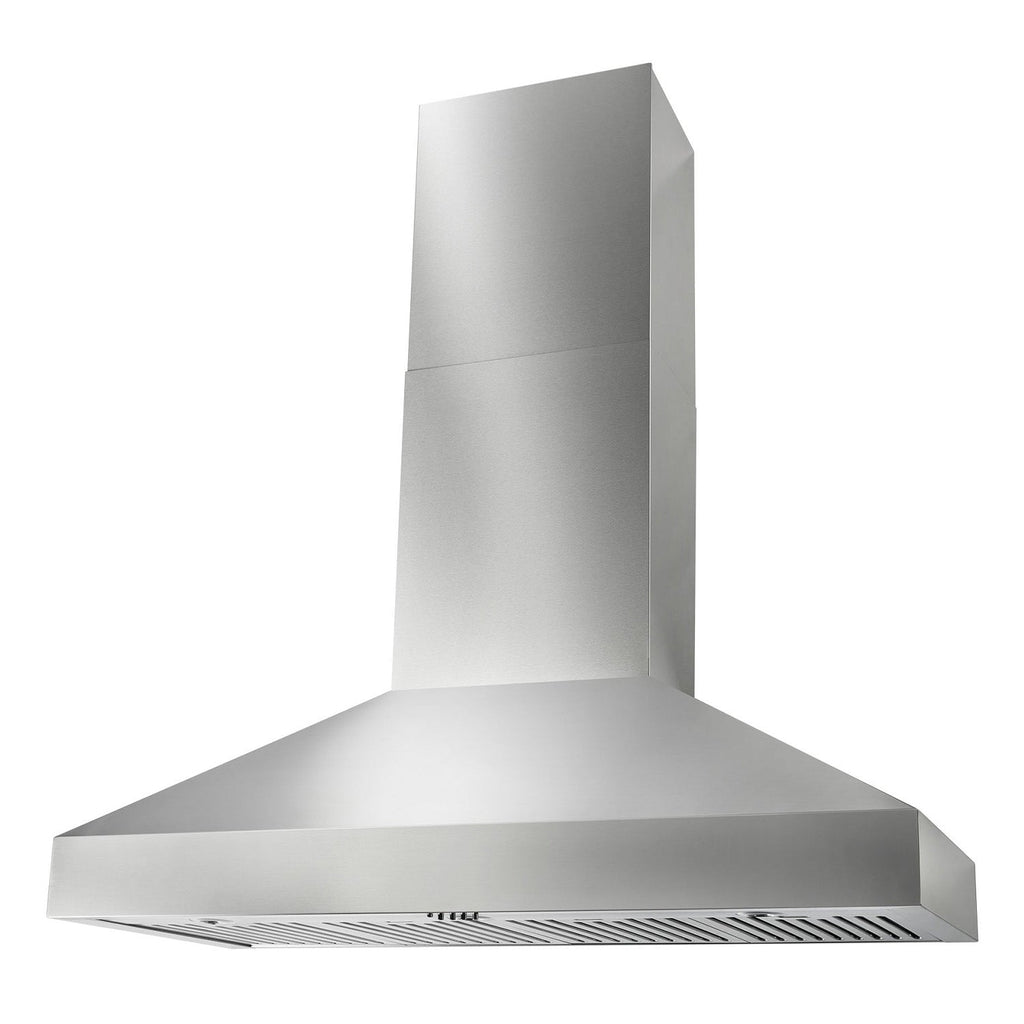

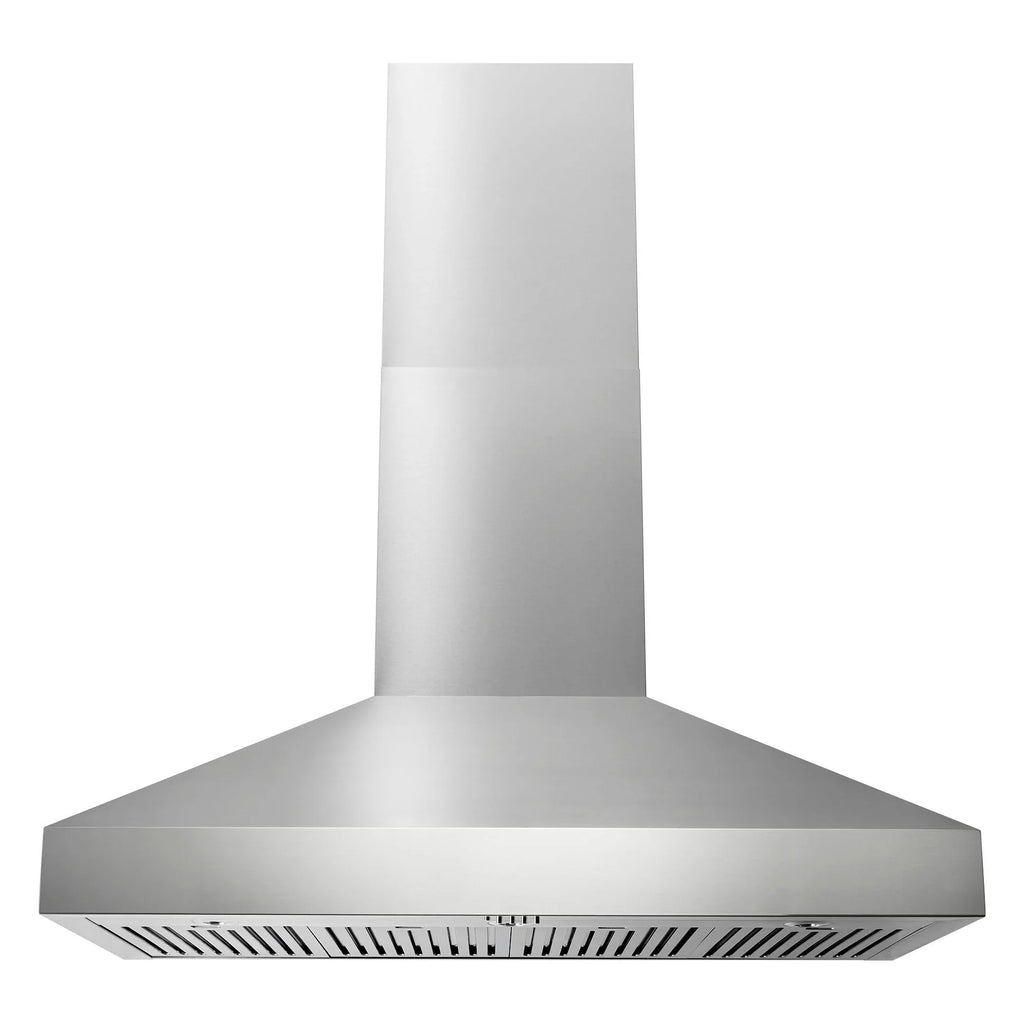

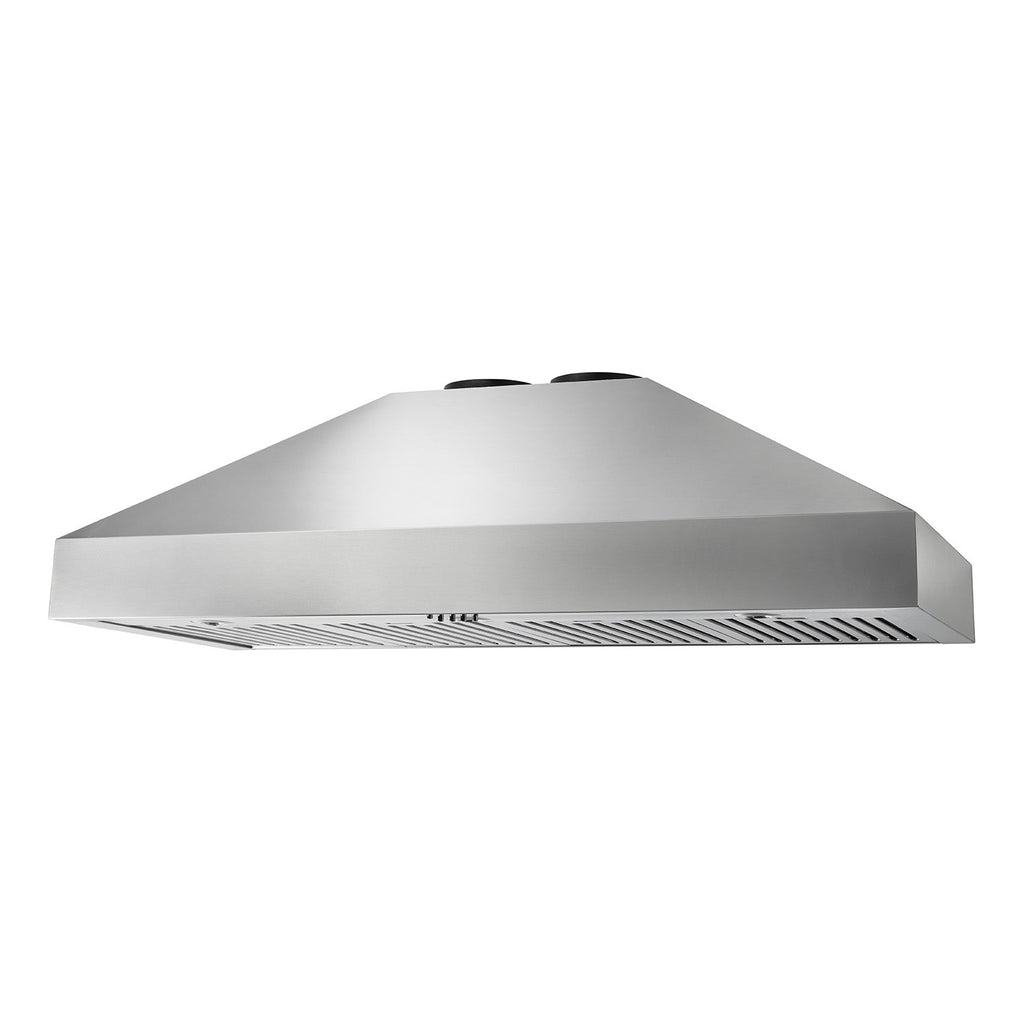

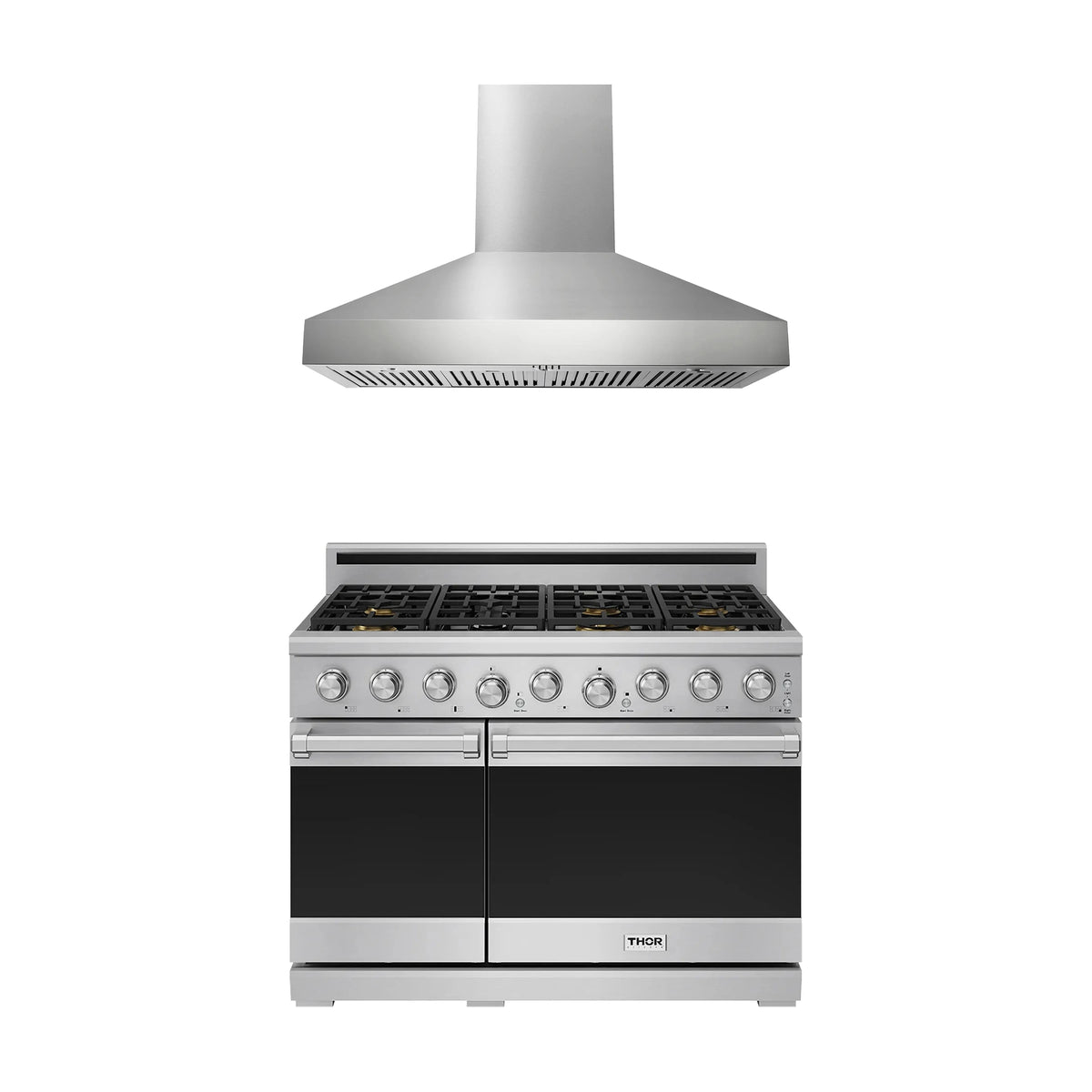

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. The 48 Inch Professional Wall Mount Pyramid Range Hood in Stainless Steel adds a sleek, modern look to your kitchen and is designed to eliminate odors, smoke and steam quietly and efficiently. Fish on the plate? Good. The lingering aroma of fish in every room? Not so good. #cooklikeagod

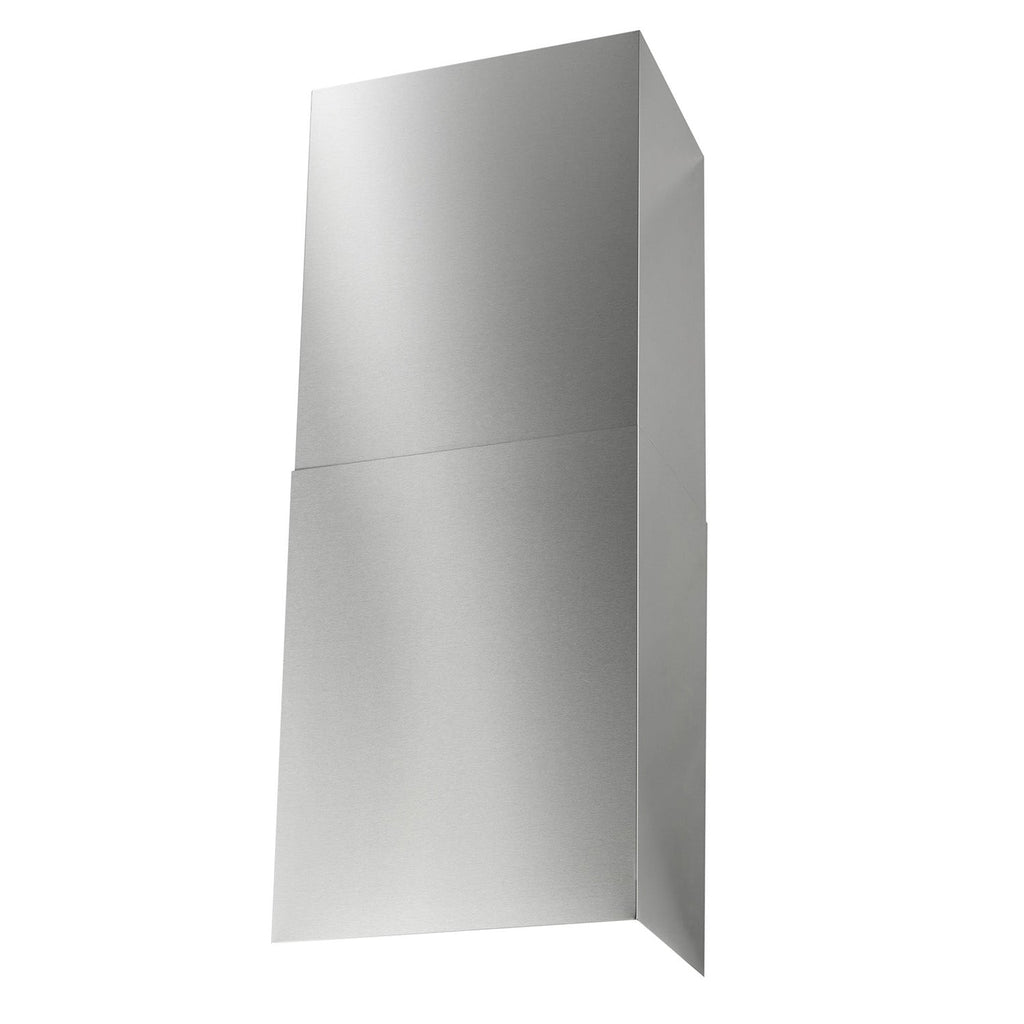

Options & Accessories (Sold Separately):
| DIMENSIONS | |
|---|---|

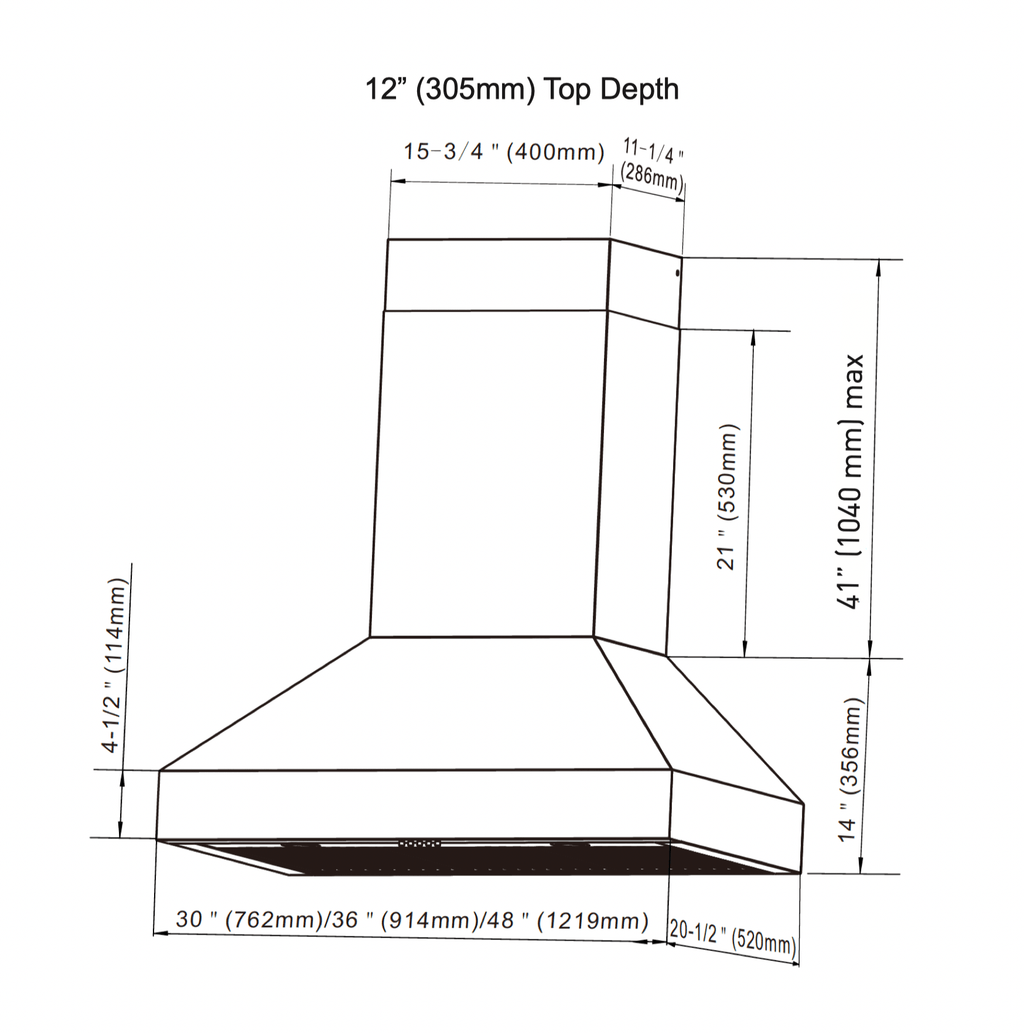

| Dimensions | 48” W x 14” H x 20 1/2” D |
| Gross Weight (lb.) | 72 |
| Duct Width (in) | 8 |
| GENERAL INFORMATION | |
| Installation Type | Wall Mount |
| DESIGN & FINISH | |

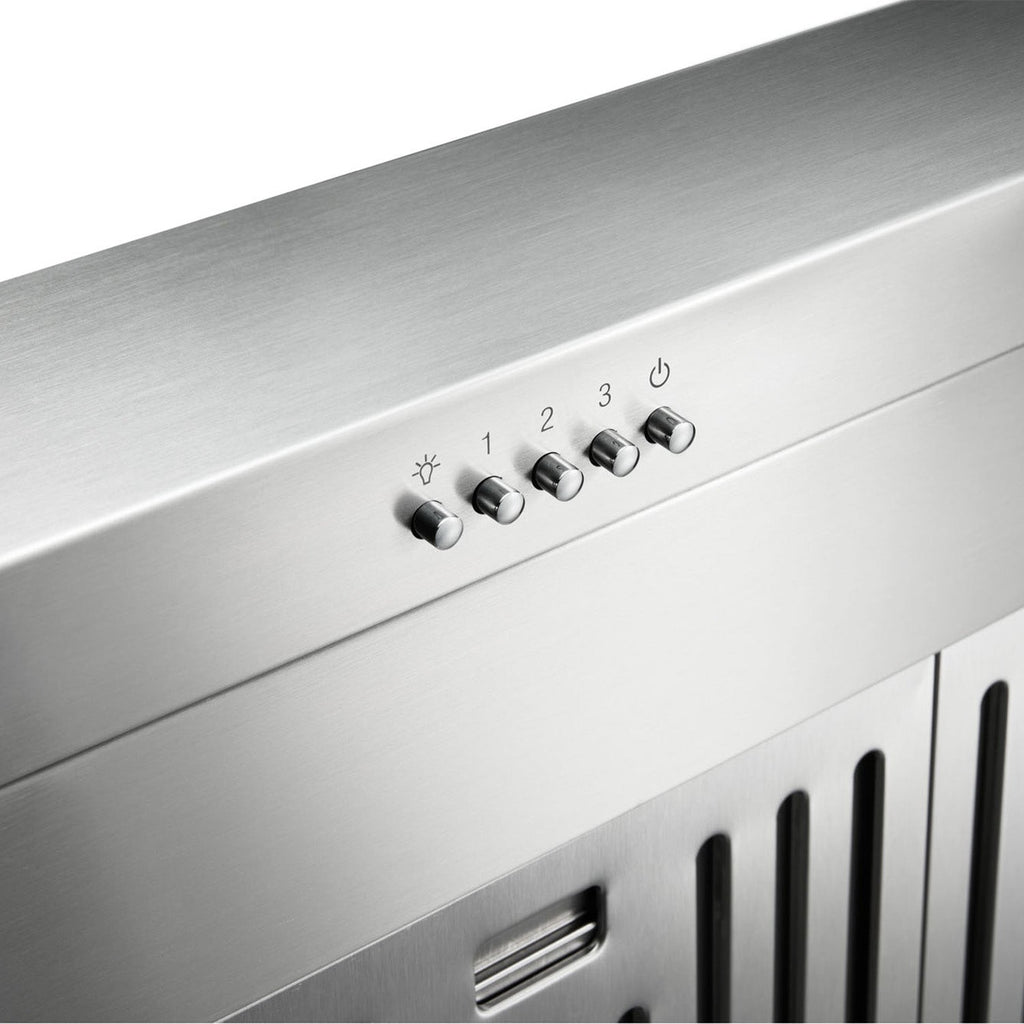

| Control type | Button, no auto shut off, no delayed shut off |
| Color/Finish | Stainless Steel |
| TECHNICAL DETAILS | |
| Duct Length (in) | 55 Fully Extended |
| Duct Diameter (in) | 7 |
| Power | 110V |
| Amperage | 3A |
| Duct Shape | Round |
| Frequency | 60 Hz |
| Blower type | Internal |
| Blower Ratings CFM |
|
| Blower Ratings dBA |
|
| FEATURES | |

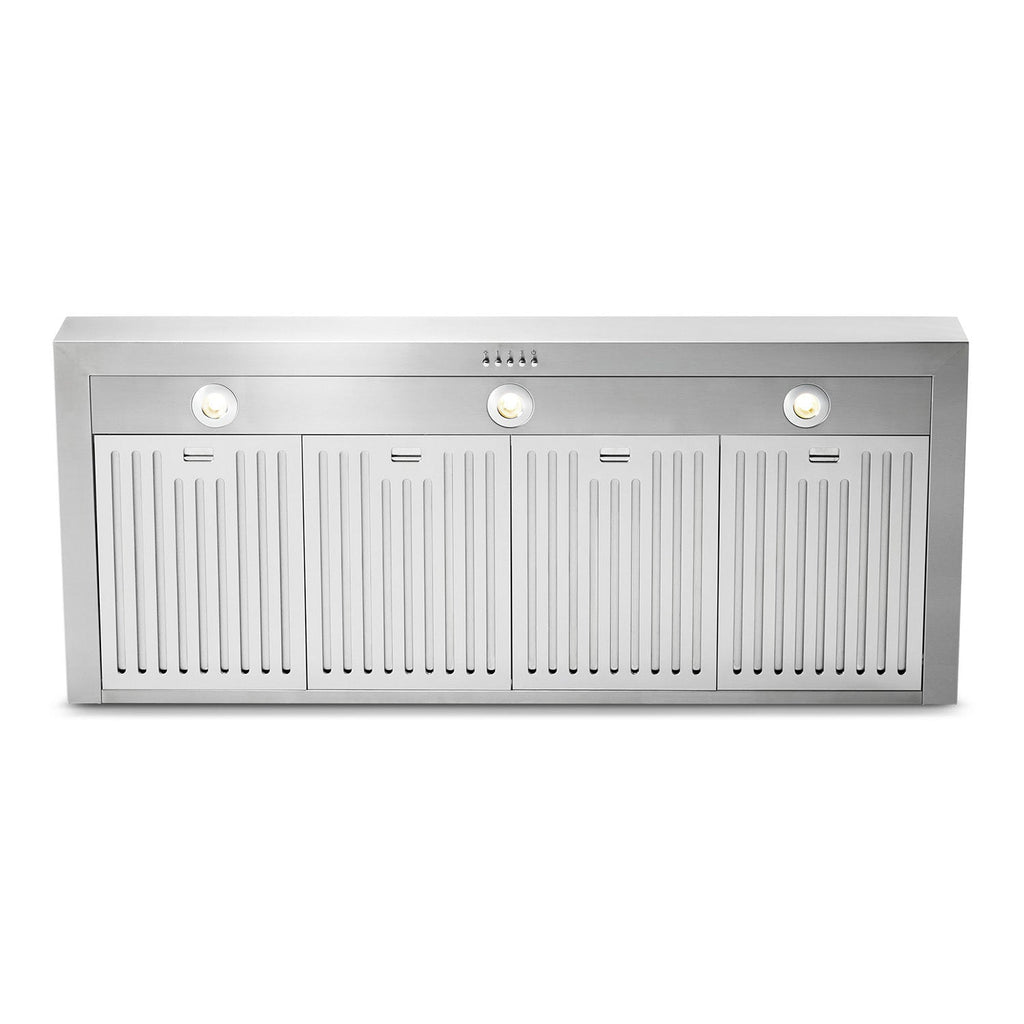

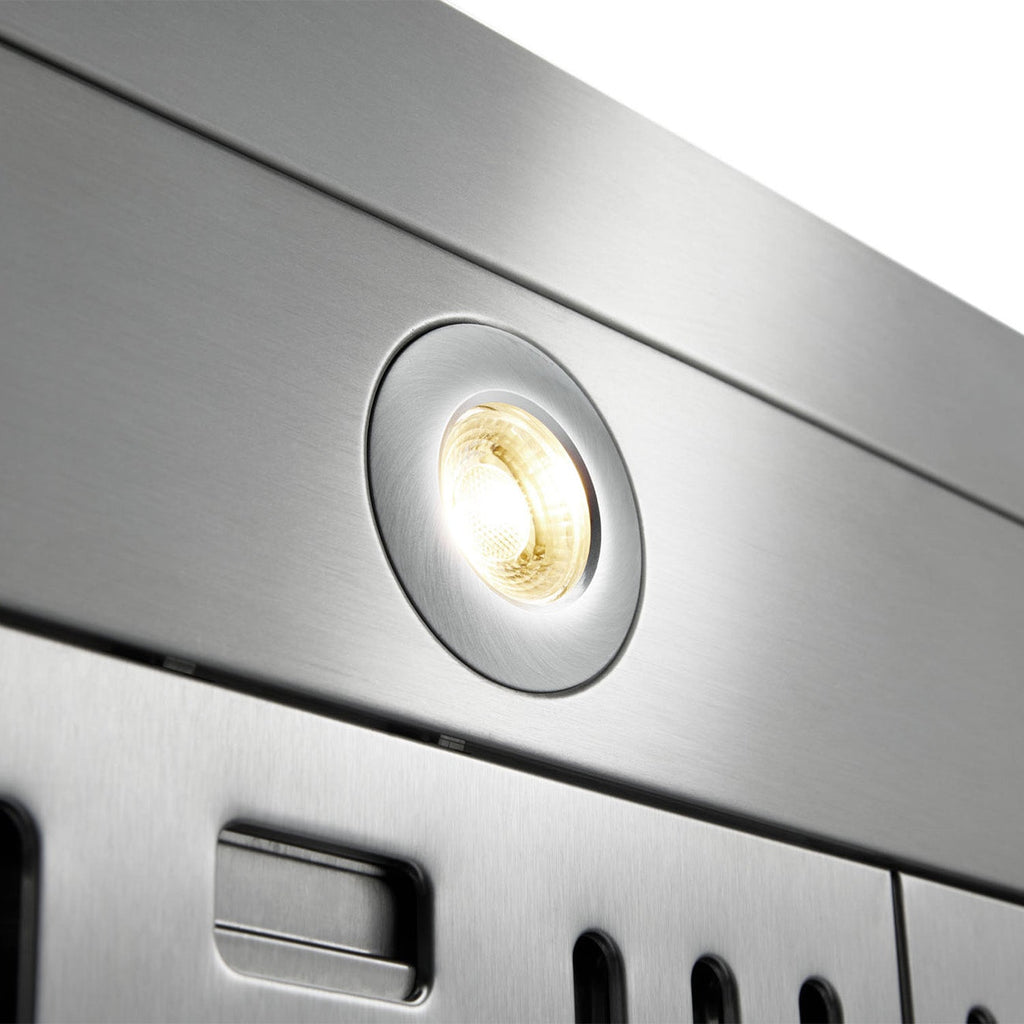

| Lighting | LED light x 3 |

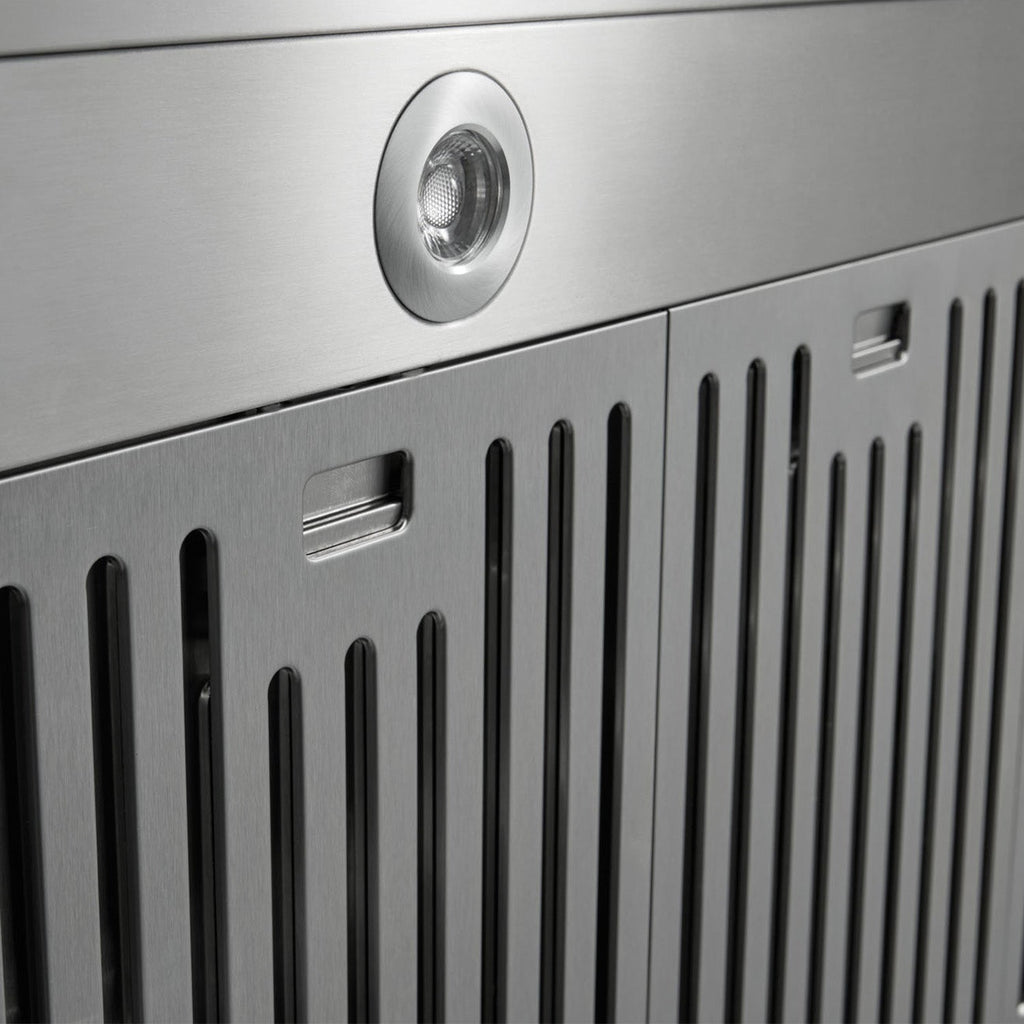

| Filter type | 430SS Baffle filter x 4 |
| Available Accessories | Charcoal Filter FT05 (Not included) |
