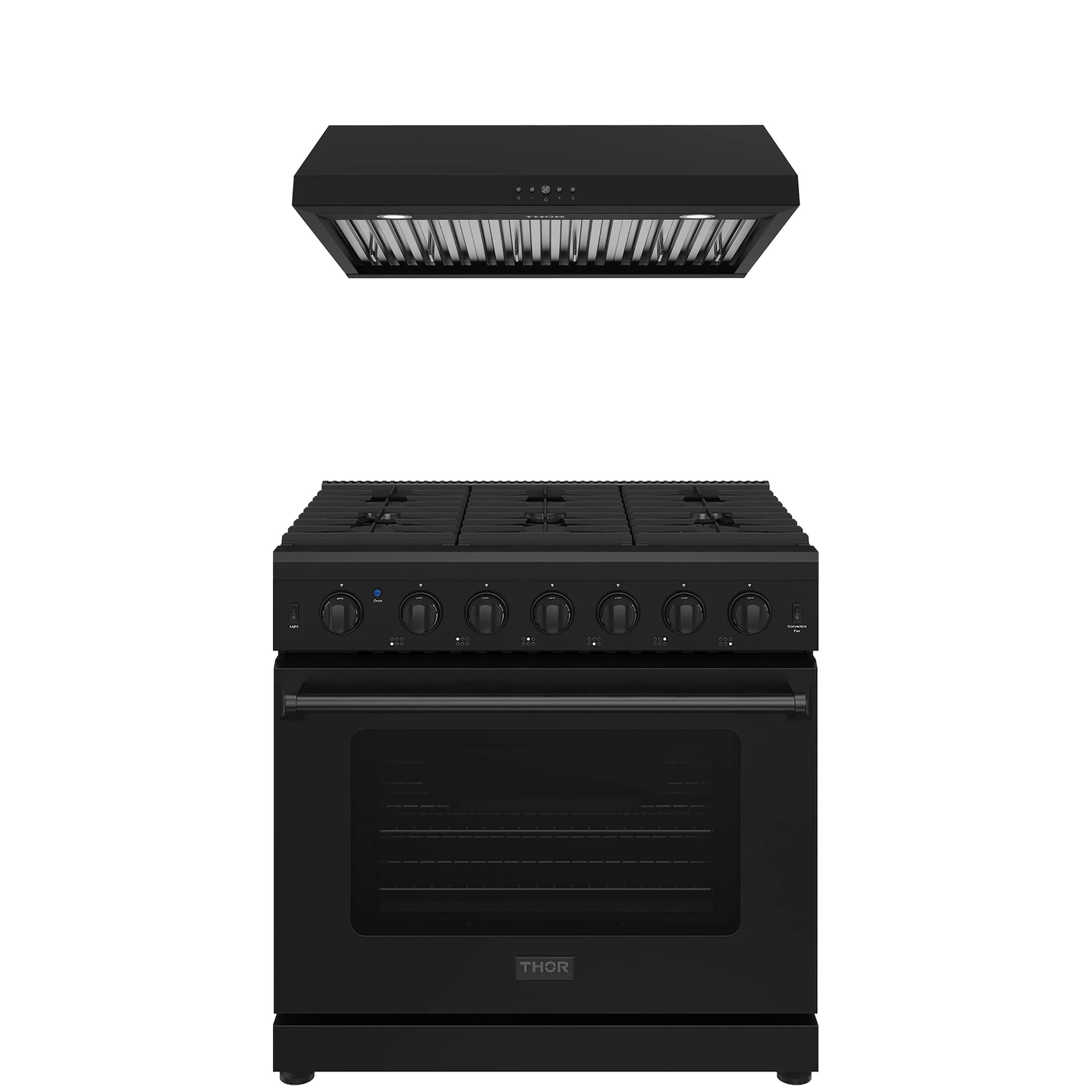

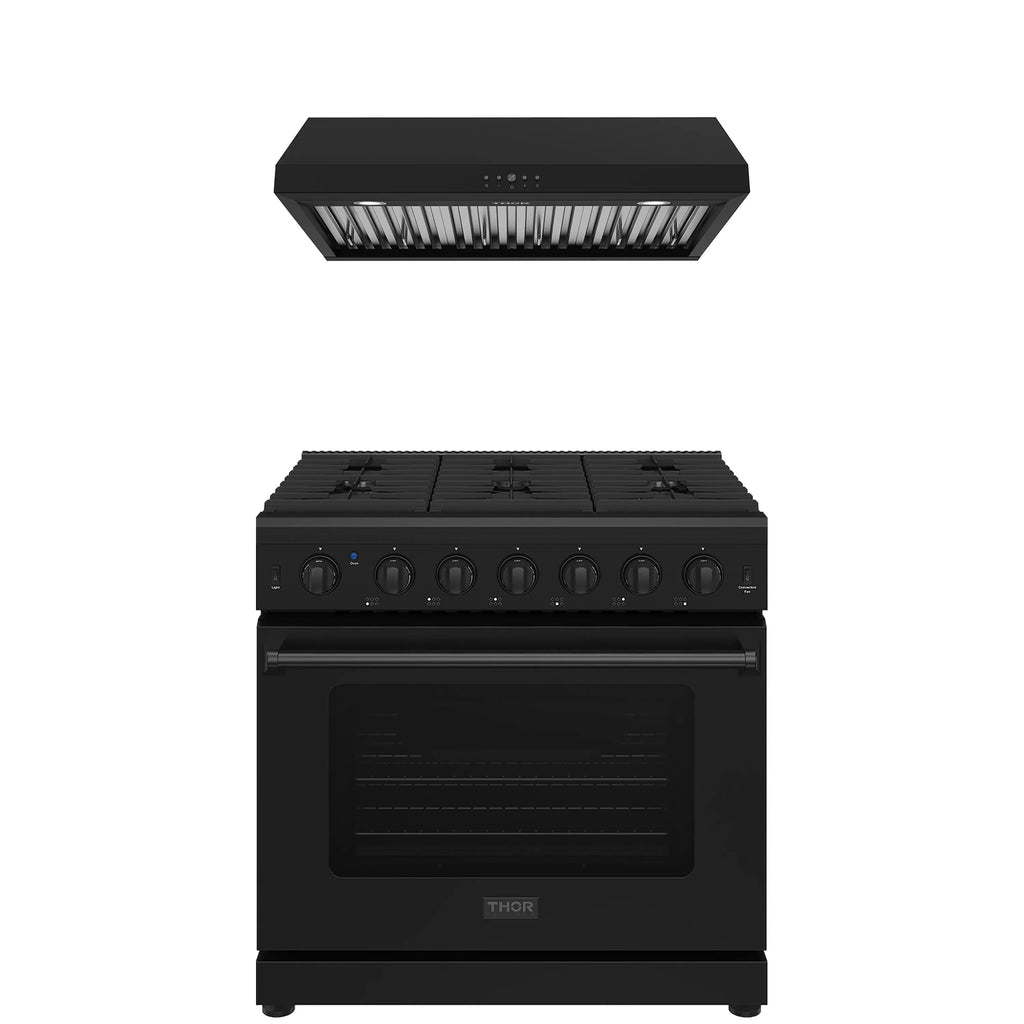

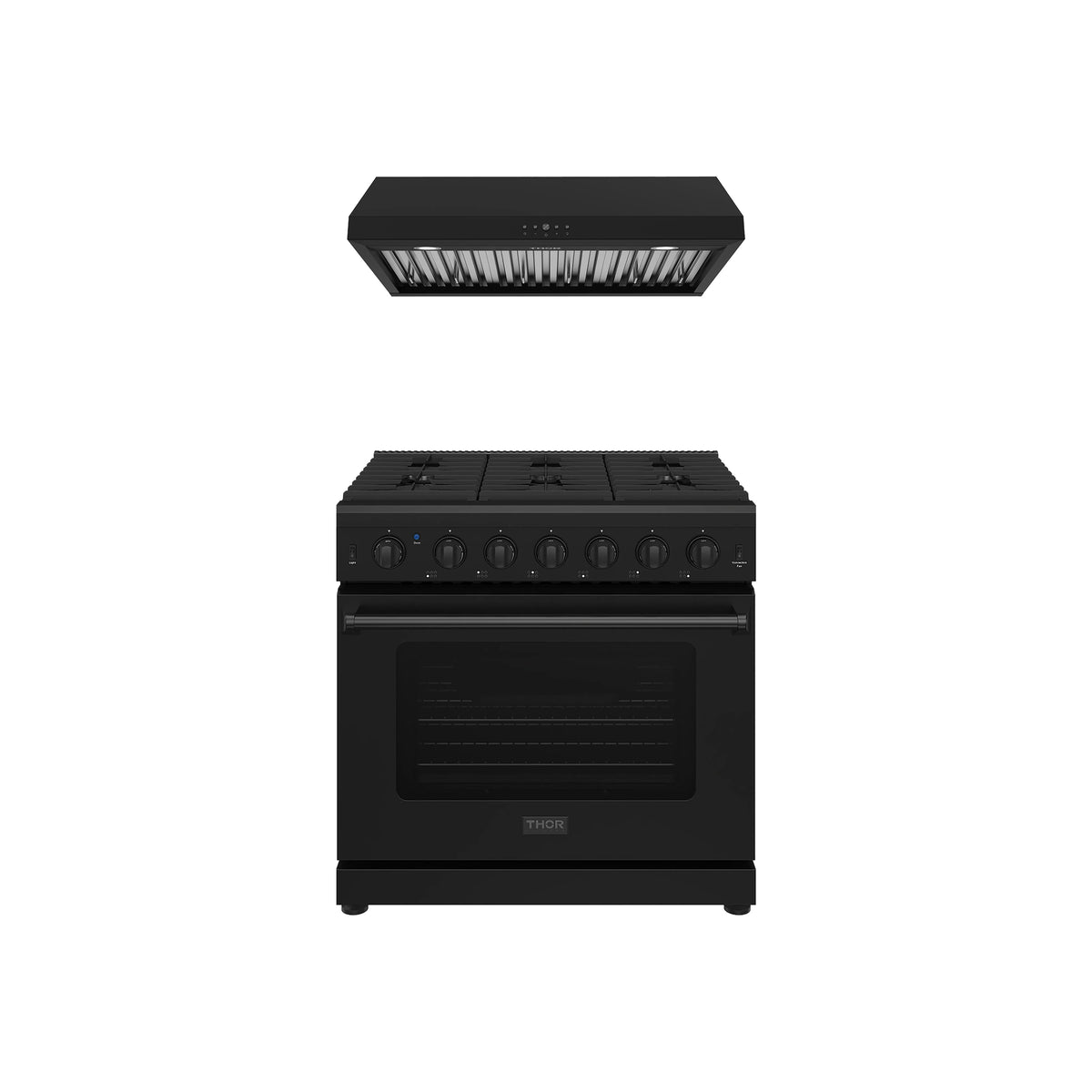

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

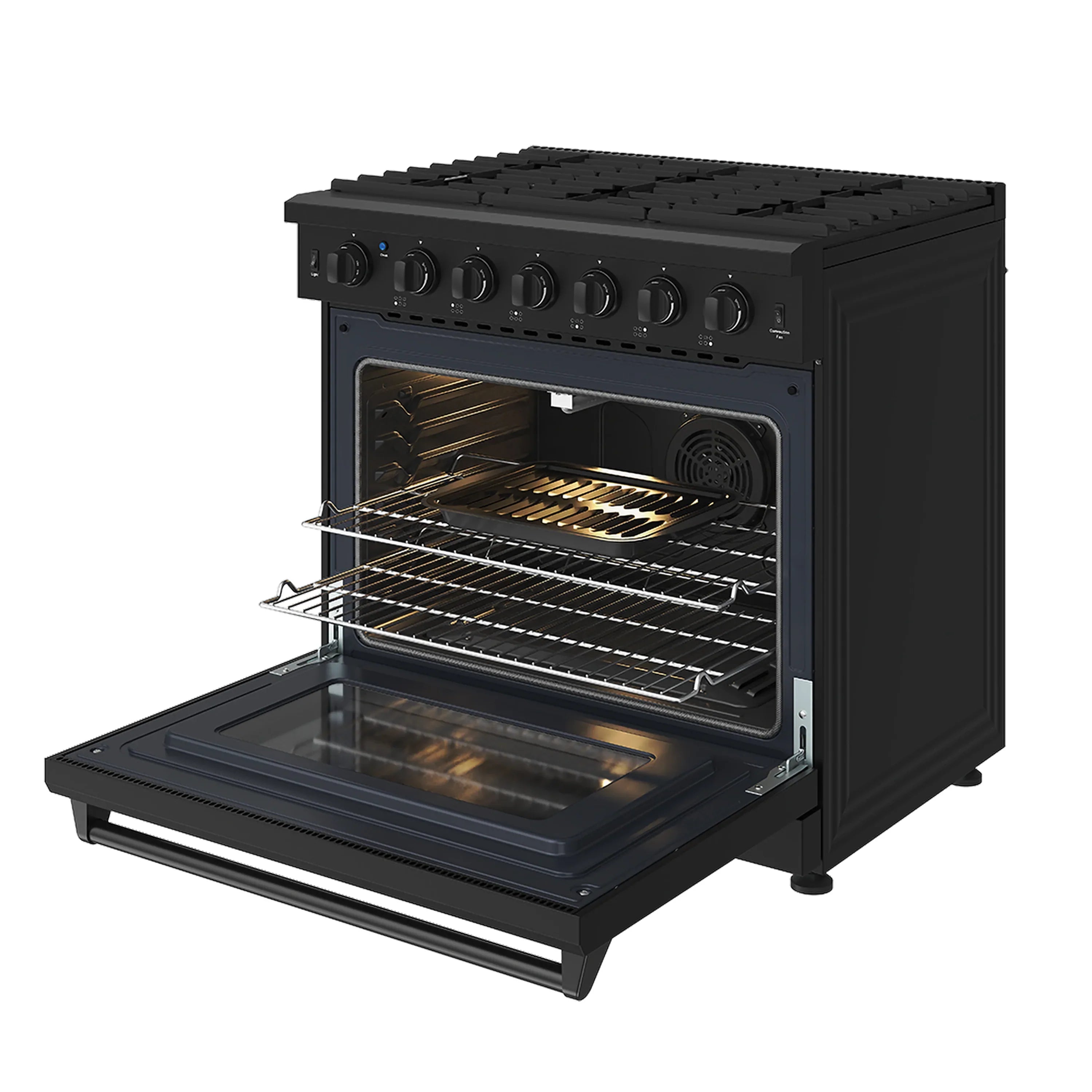

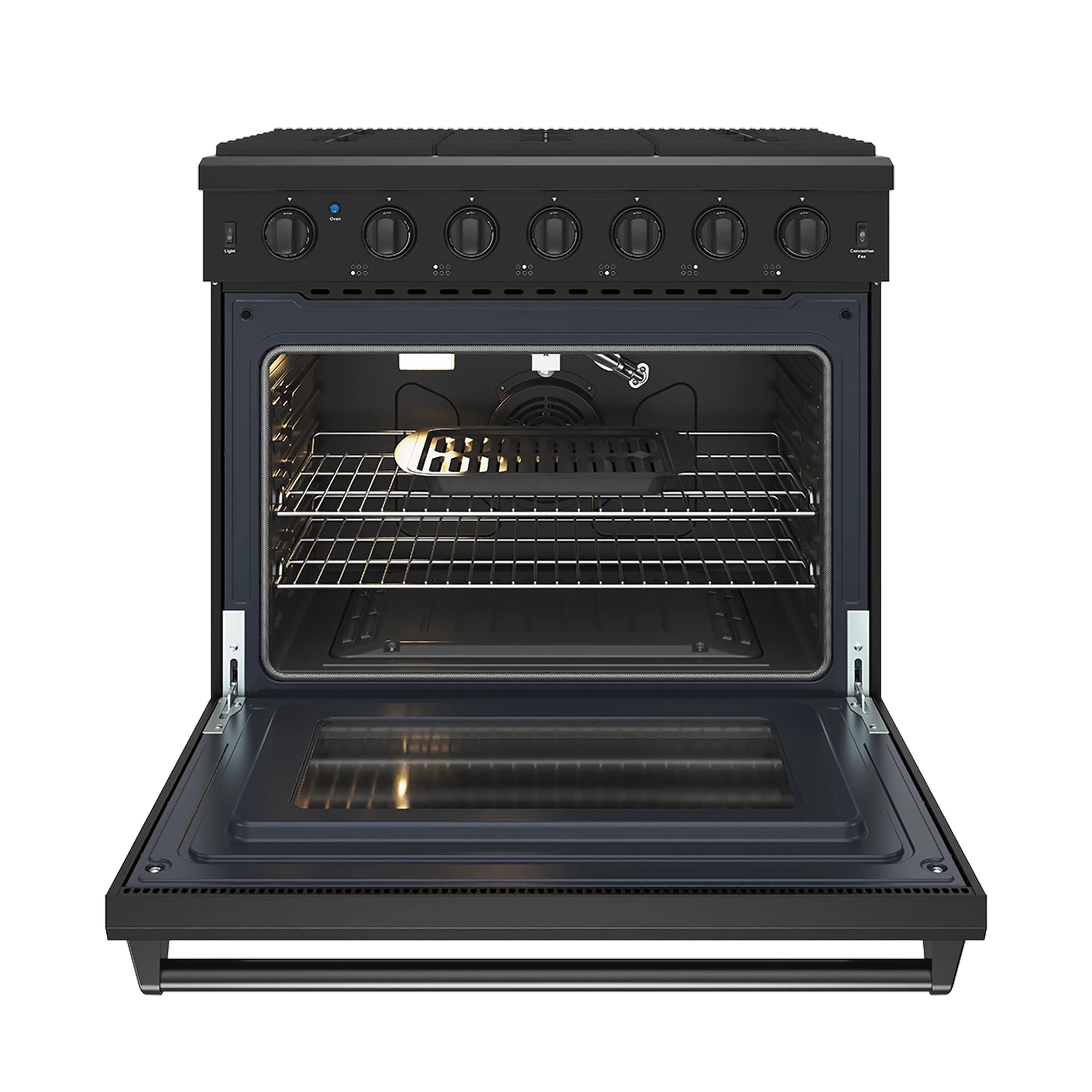

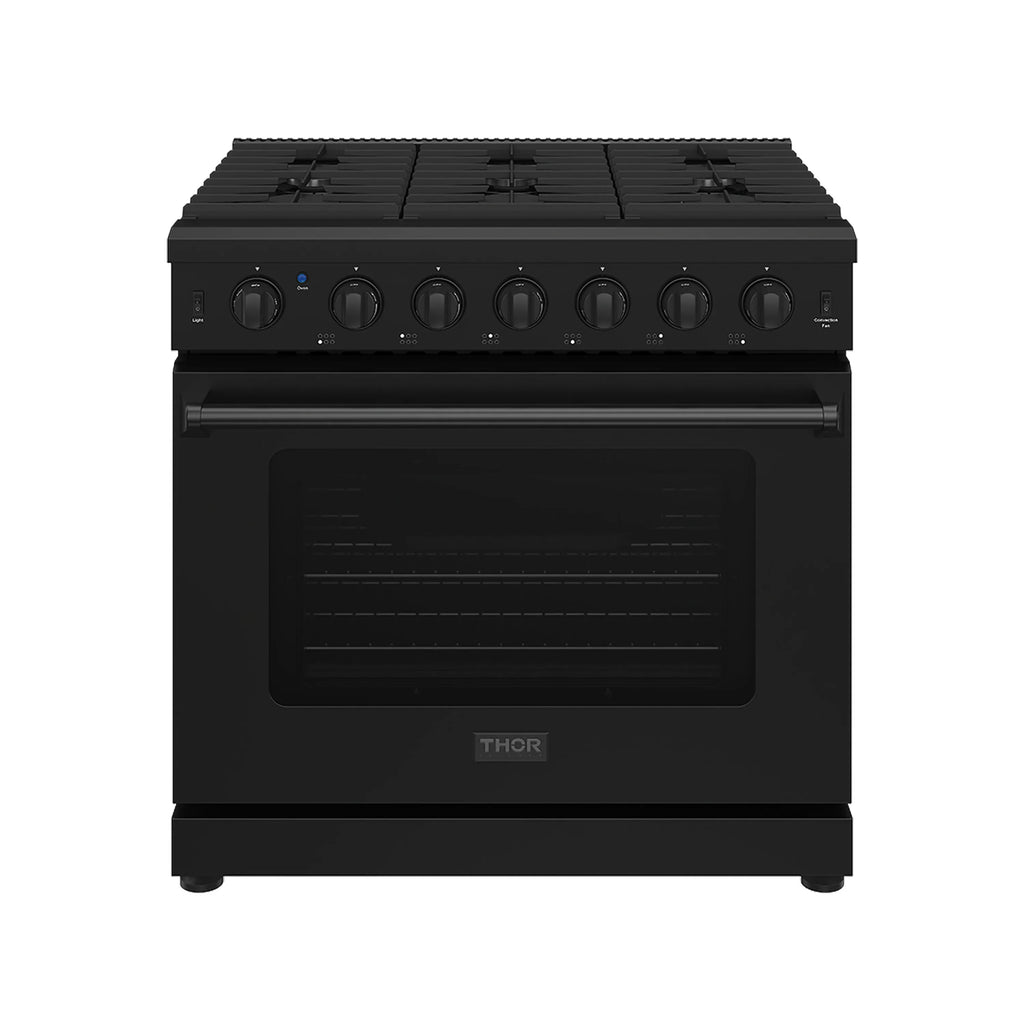

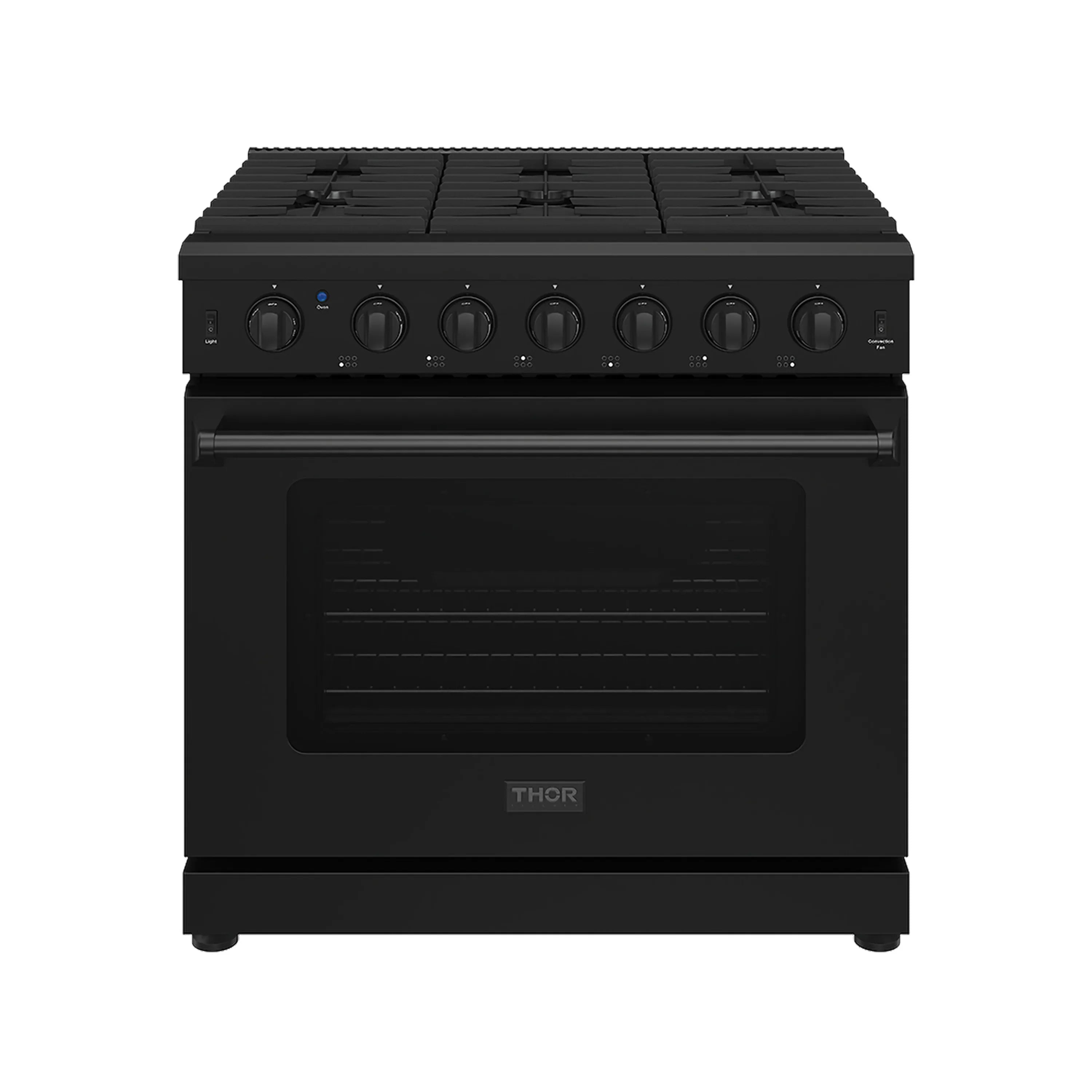

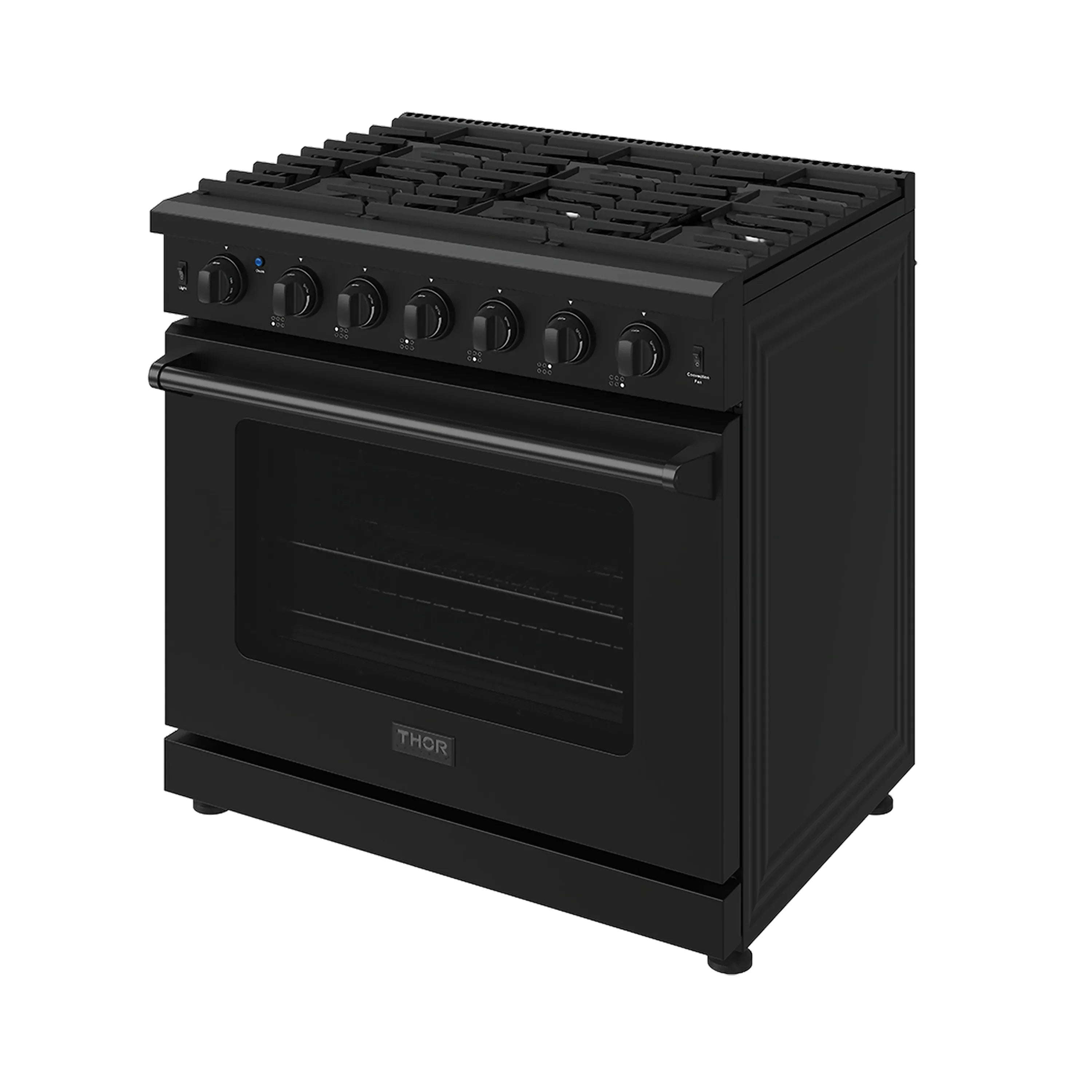

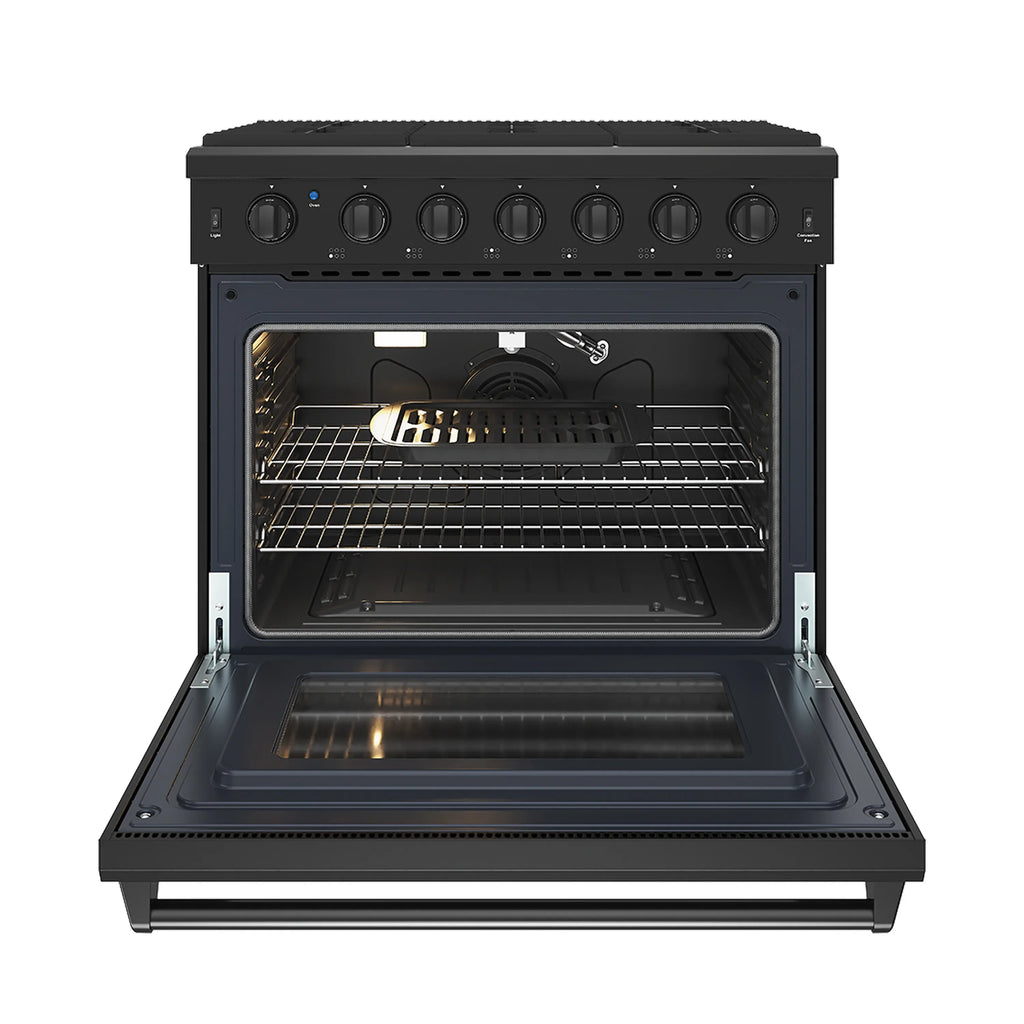

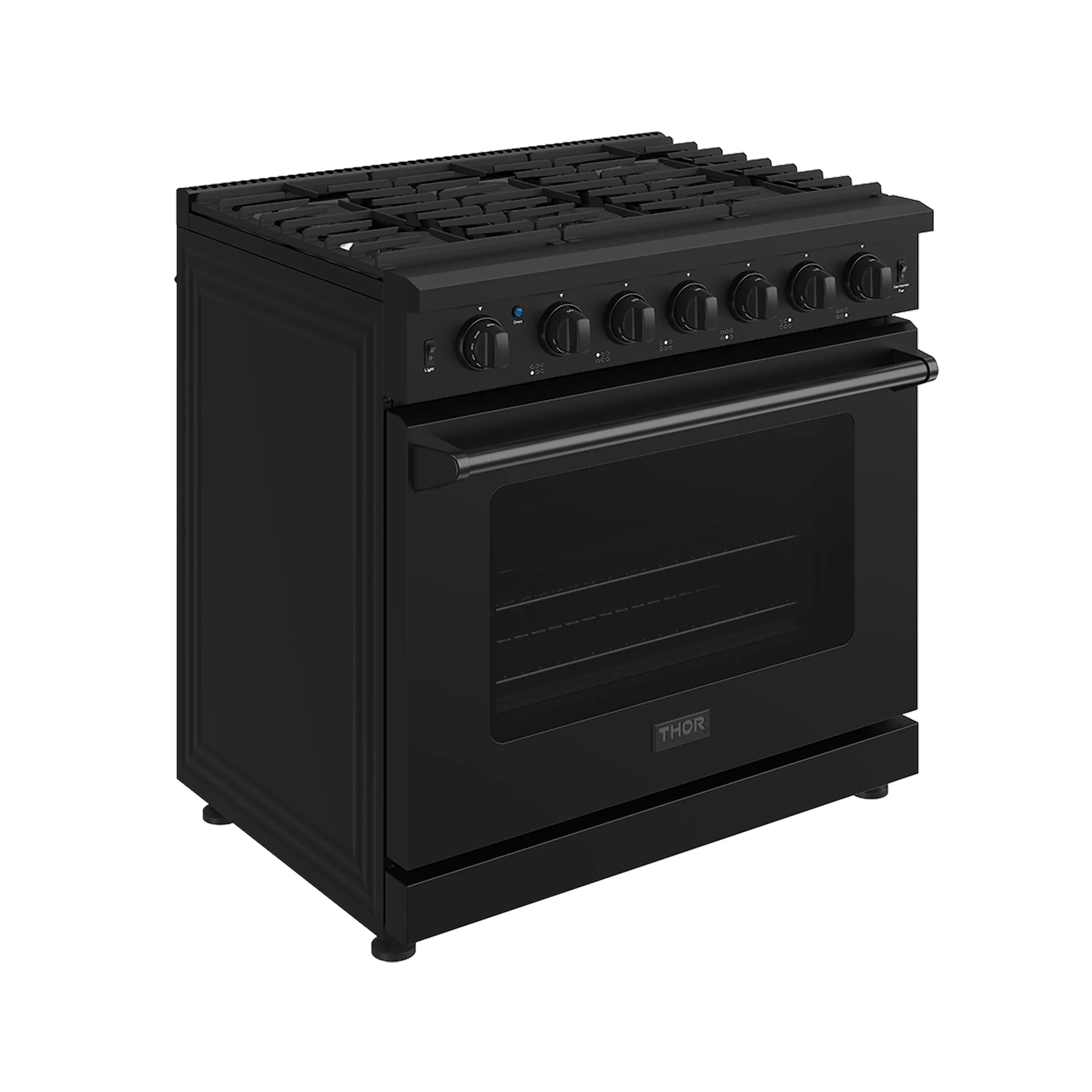

The THOR Kitchen 36 Inch Gas Range turns every kitchen into a stage for culinary brilliance. Its high-powered 18,000 BTU burner delivers rapid, intense heat for searing, boiling, and creating large family meals or restaurant-quality dishes, while the spacious 6.0 cu. ft. oven handles multiple dishes with ease. A commercial convection fan ensures even, efficient cooking, and the reflective gas tube broiler locks in juices for perfectly seared results.
Heavy-duty continuous cast-iron grates support cookware of any size, and the single-piece black porcelain spill tray plus gray porcelain oven interior make cleanup effortless. With a convenient storage drawer for trays and utensils, this range delivers unmatched control, consistent results, and the power to bring any recipe to life. #IgniteYourCulinaryCreativity
Features
- High-Powered BTU Burner: The high-powered 18,000 BTU burner provides fast, intense heat for creating large family meals and restaurant-quality dishes.
- Large Oven Capacity: 6.0 cu. ft. oven capacity can accommodate multiple dishes at a time.

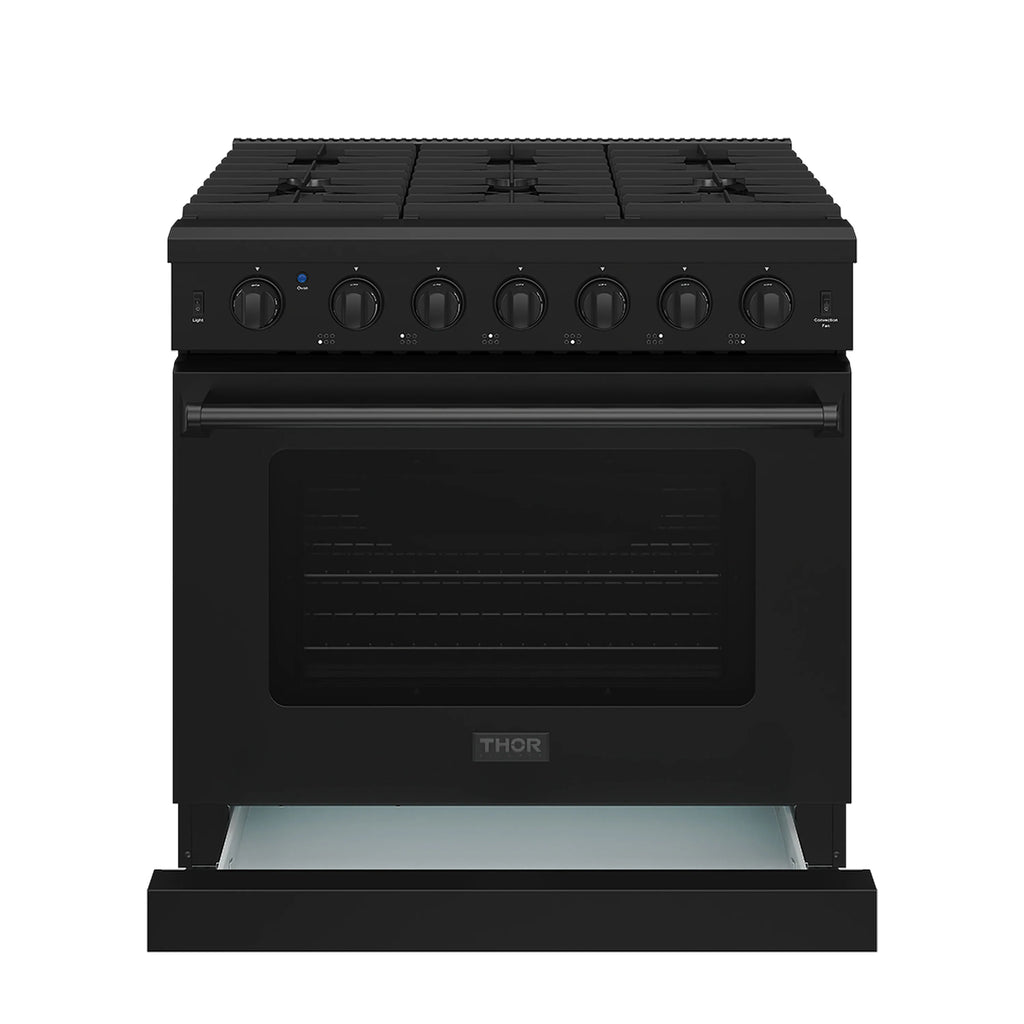

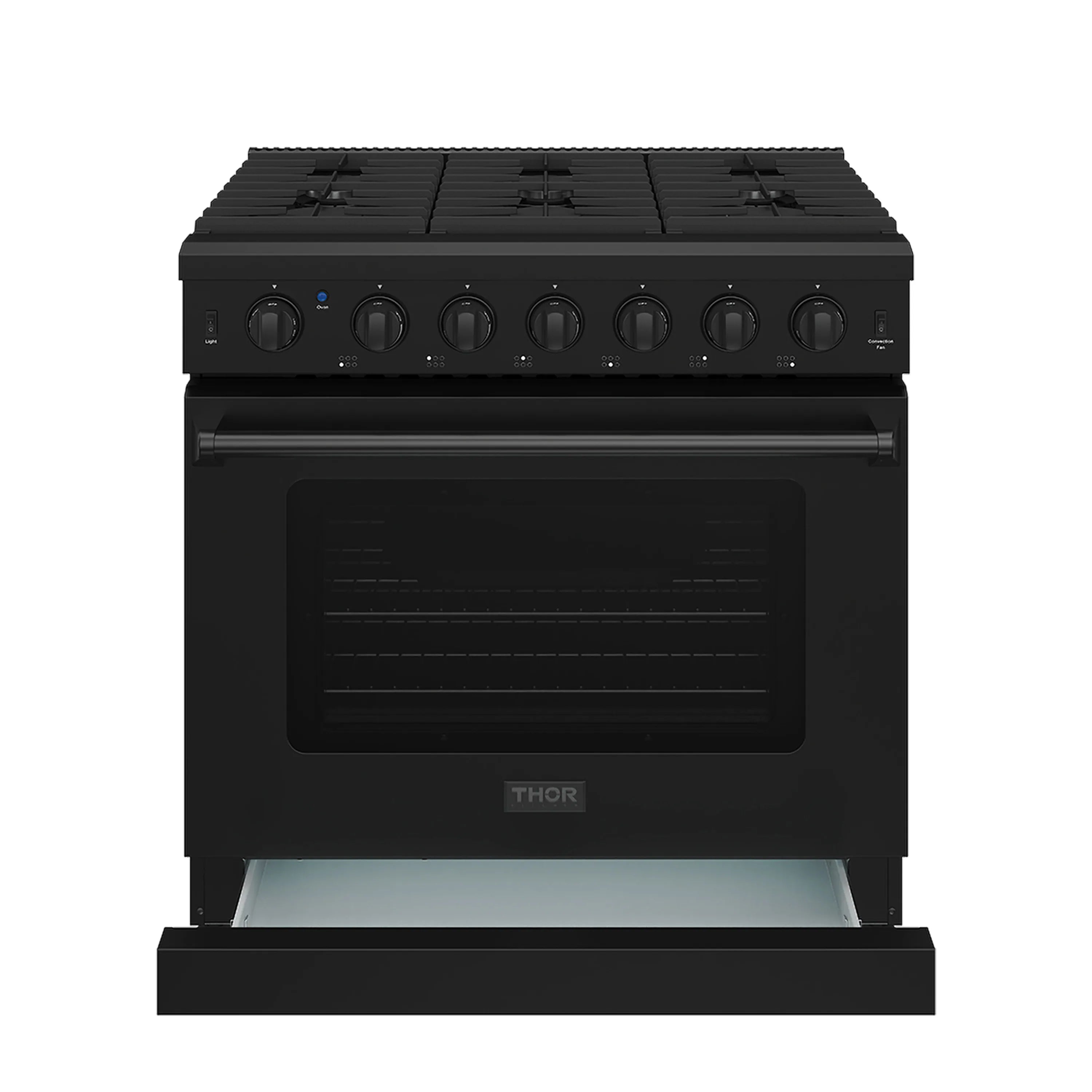

- Storage Space: Storage drawer provides additional storage space for cooking trays and other kitchen utensils.
- Convection Fan: Commercial convection fan provides controlled heat distribution for fast and efficient cooking.
- Even Heat Broiler: Reflective gas tube broiler distributes heat evenly to sear your food and seal in the juices.

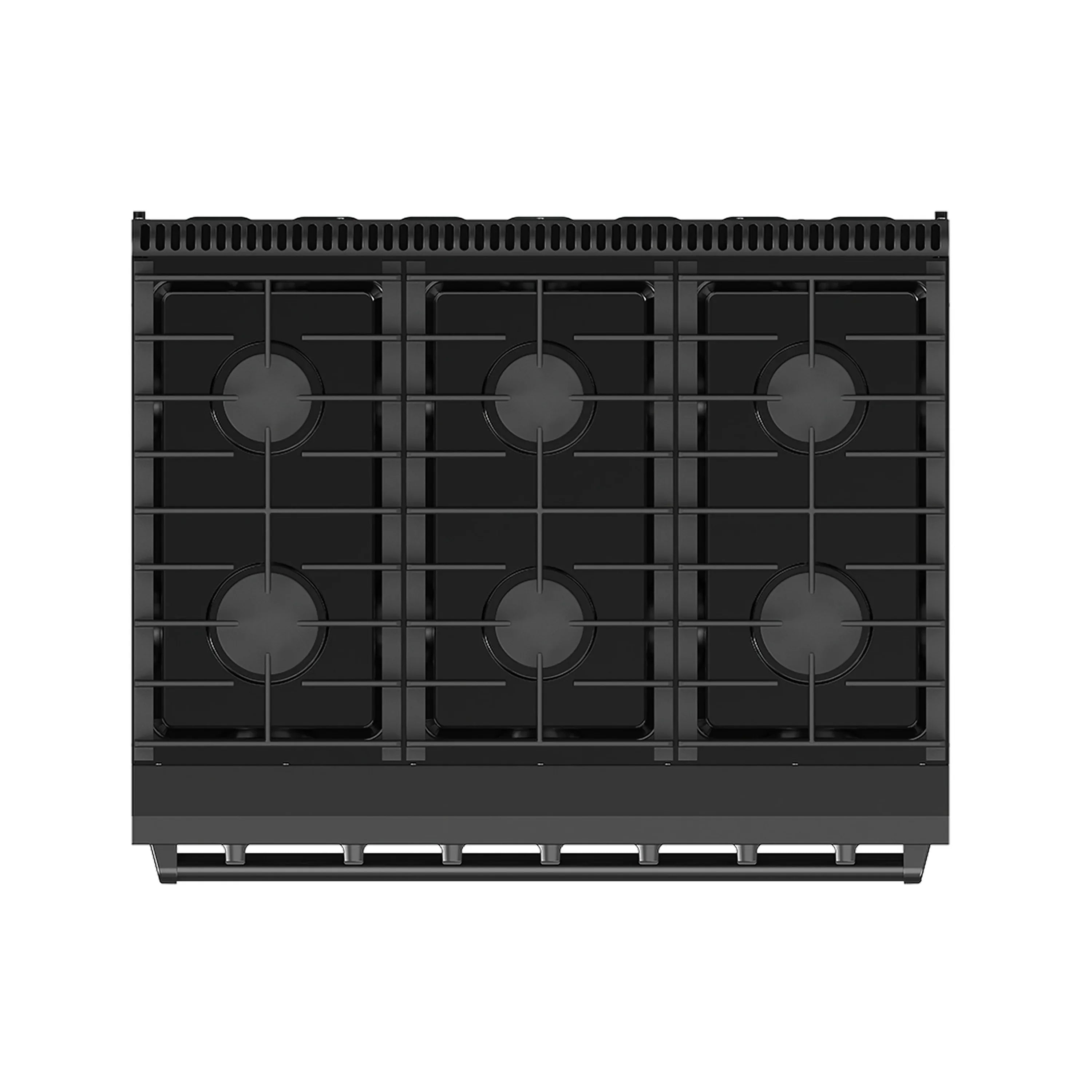

- Continuous Cast-Iron Grates: Heavy-duty continuous cast-iron cooking grates that can handle any size cookware.
- Porcelain Spill Tray: Single-piece black porcelain spill tray catches the mess and makes cleanup easy.

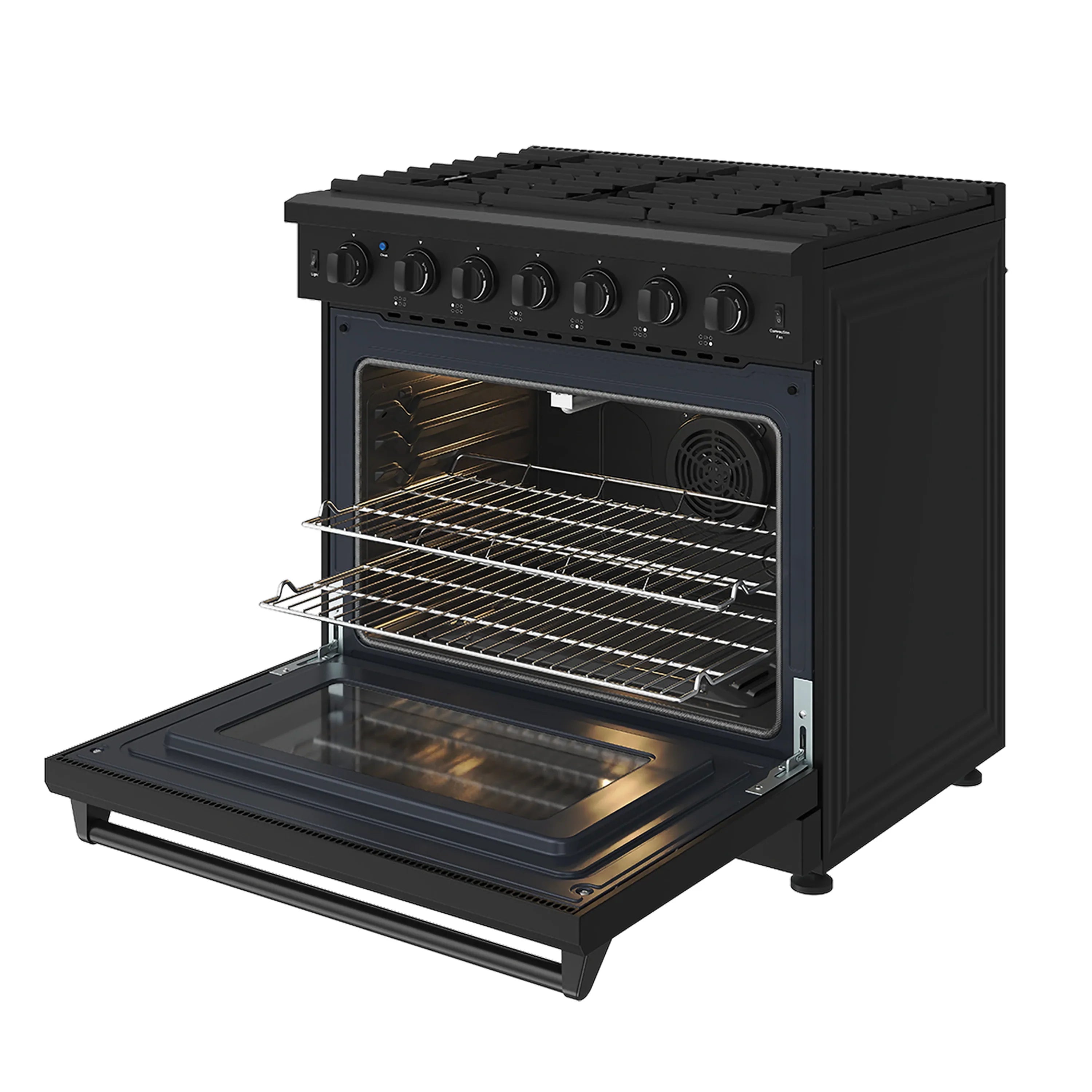

- Porcelain Interiors: The gray porcelain oven interior adds a stylish touch and is easy to clean.
- Product Dimensions (W x D x H)
- 36" x 27-1/2" x 36-1/8"
- Product Height (to back splash)
- 36-5/8" – 37-5/8"
- Product Height (to side panel)
- 36-1/8" – 37-1/8"
- Product Depth (to bullnose)
- 27-1/2"
- Product Depth (to control panel)
- 27-1/16"
- Product Depth (to side panel front)
- 24-3/4"
- Cutout Dimensions (W x D x H)
- 36-1/8" x 24-3/4" x 35-5/8"
- Adjustable Leg Sizes
- Not to Exceed 1"
- Package Dimensions (W x D x H)
- 30" x 39" x 44-7/8"
- Net Weight
- 235 lbs
- Gross Weight
- 280 lbs
- Brand
- Thor Kitchen
- Model Number
- LRG3601UB / LRG3601UBLP
- Appliance Type
- Gas Range
- Fuel Type
- Natural Gas (LRG3601UB) / Liquid Propane (LRG3601UBLP)
- Installation Type
- Freestanding
- Size
- 36"
- Color
- Black
- Control Type
- Knob Control
- Amperage
- 6A
- Volts
- 120V
- Frequency
- 60Hz
- Plug Type
- US 3-Prong
- Power Cord Length
- 59"
- Gas Regulator Size
- 1/2"
- NG Pressure (Input / Output)
- 7" / 5"
- LP Pressure (Input / Output)
- 11" / 10"
- Total Burners
- 6
- Grate Type
- Continuous Cast Iron
- Front Left Burner
- 18,000 BTU
- Front Middle Burner
- 12,000 BTU
- Front Right Burner
- 18,000 BTU
- Rear Left Burner
- 9,000 BTU
- Rear Middle Burner
- 12,000 BTU
- Rear Right Burner
- 9,000 BTU
- Spill Tray
- Single-Piece Black Porcelain
- Oven Capacity
- 6.0 cu. ft.
- Oven Color
- Grey Porcelain Interior
- Cooking Modes
- Bake, Convection Bake, Roast, Convection Roast, Broil
- Bake Burner Power
- 18,500 BTU
- Broil Burner Power
- 10,000 BTU
- Convection
- Commercial Convection
- Oven Light
- 1
- Oven Racks
- 2 Standard
- Oven Rack Material
- Chrome Plated
- Baking Sheet Size
- Fits 29" x 16" Baking Sheet
- Self Clean / Air Fry
- No
- Storage Drawer
- Yes
- Warranty
- 2 Years Parts and Labor
- Certifications
- CSA Listed

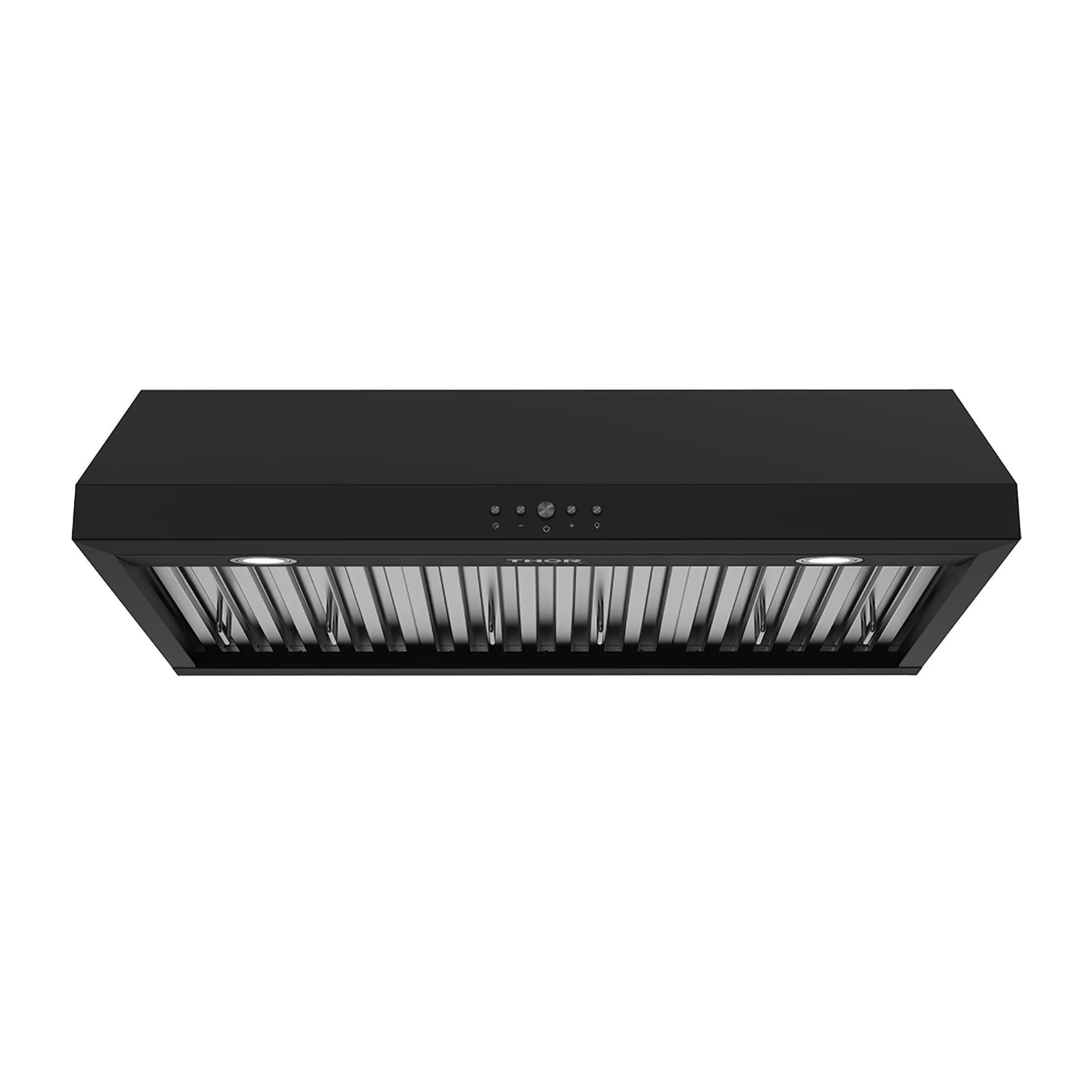

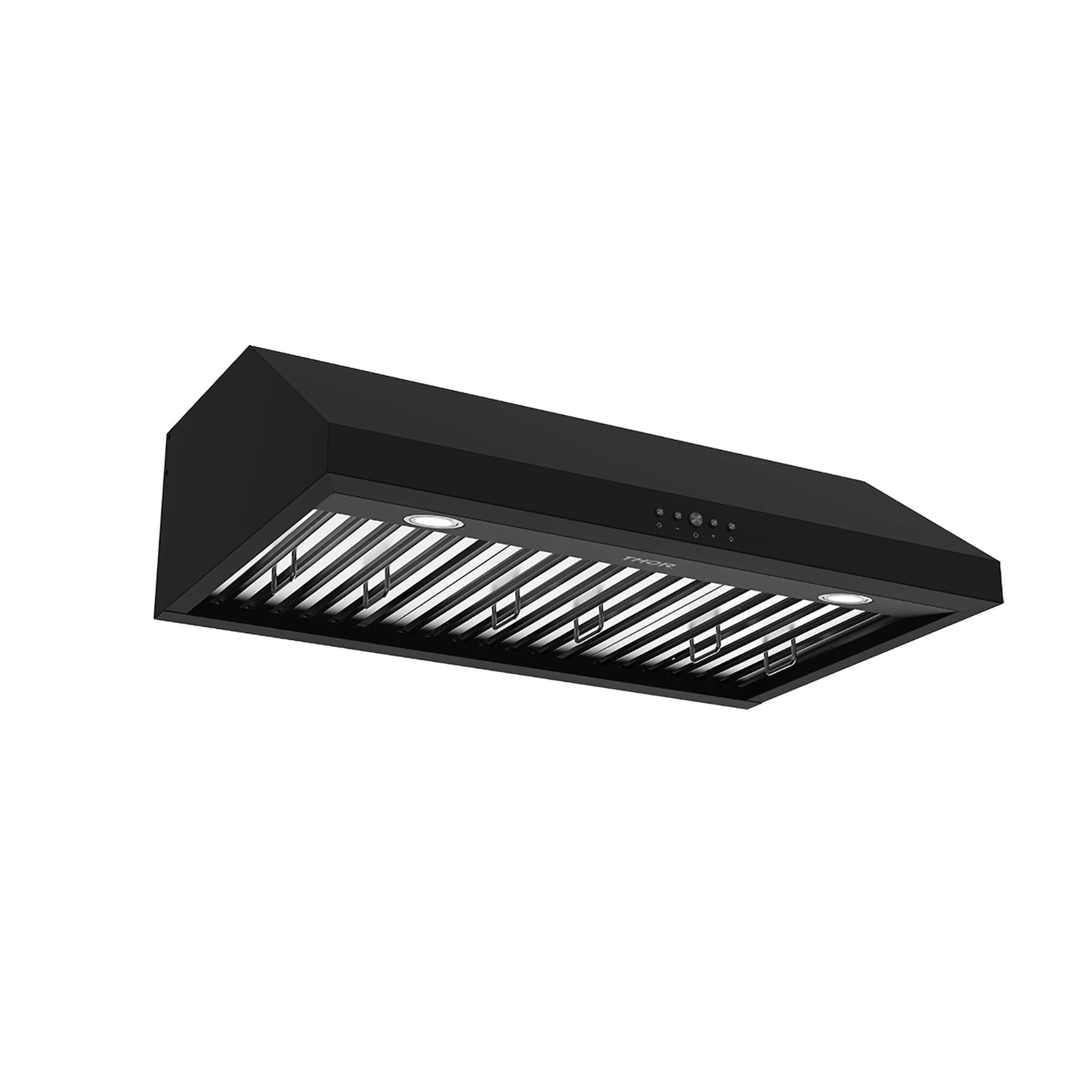

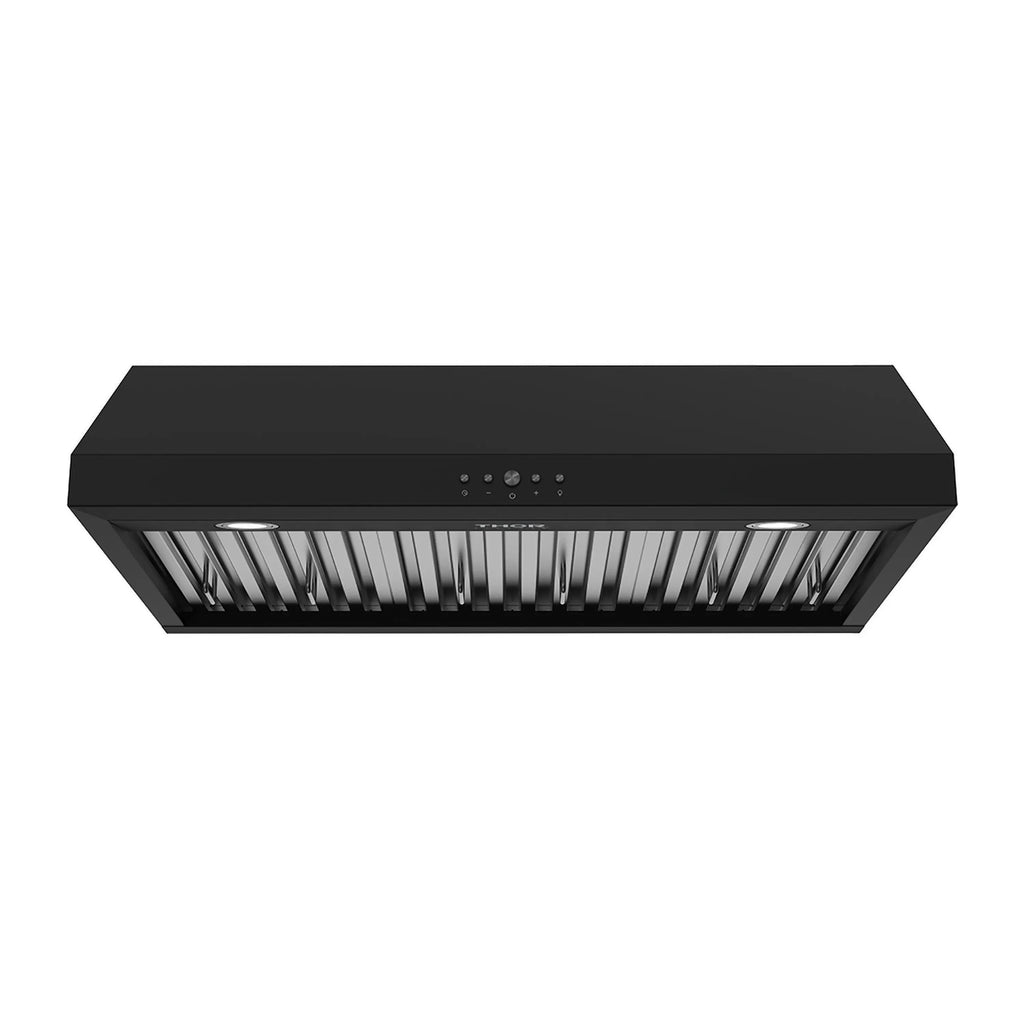

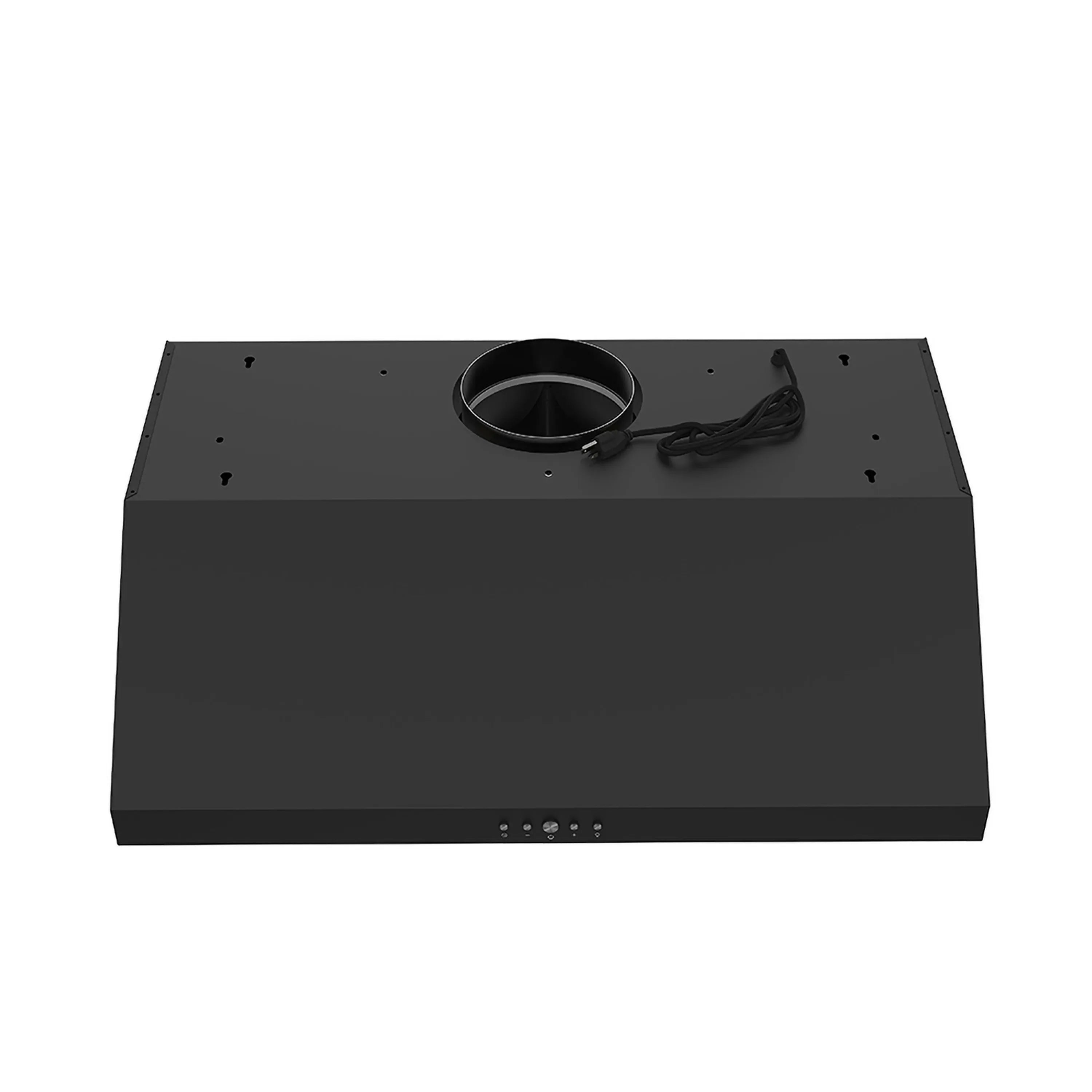

The THOR Kitchen 36 Inch Under Cabinet Range Hood delivers powerful performance with effortless style. Its sleek matte black finish adds timeless style built to last. With 480 CFM of ventilation, smoke and odors clear quickly and quietly, letting you cook with confidence. Simple push-button controls and adjustable fan speeds make it effortless to use, while bright LED lighting keeps your cooktop beautifully illuminated.
Features
- Durable Stainless Steel Finish - Provides a sleek, modern look that complements any kitchen style while ensuring long-lasting strength and quality.
- Efficient 480 CFM Ventilation - Provides effective airflow to manage everyday cooking smoke, steam, and odors.
- Dual Installation Options (Ducted or Ductless) - Convertible ducted or ductless installation for flexible setup.

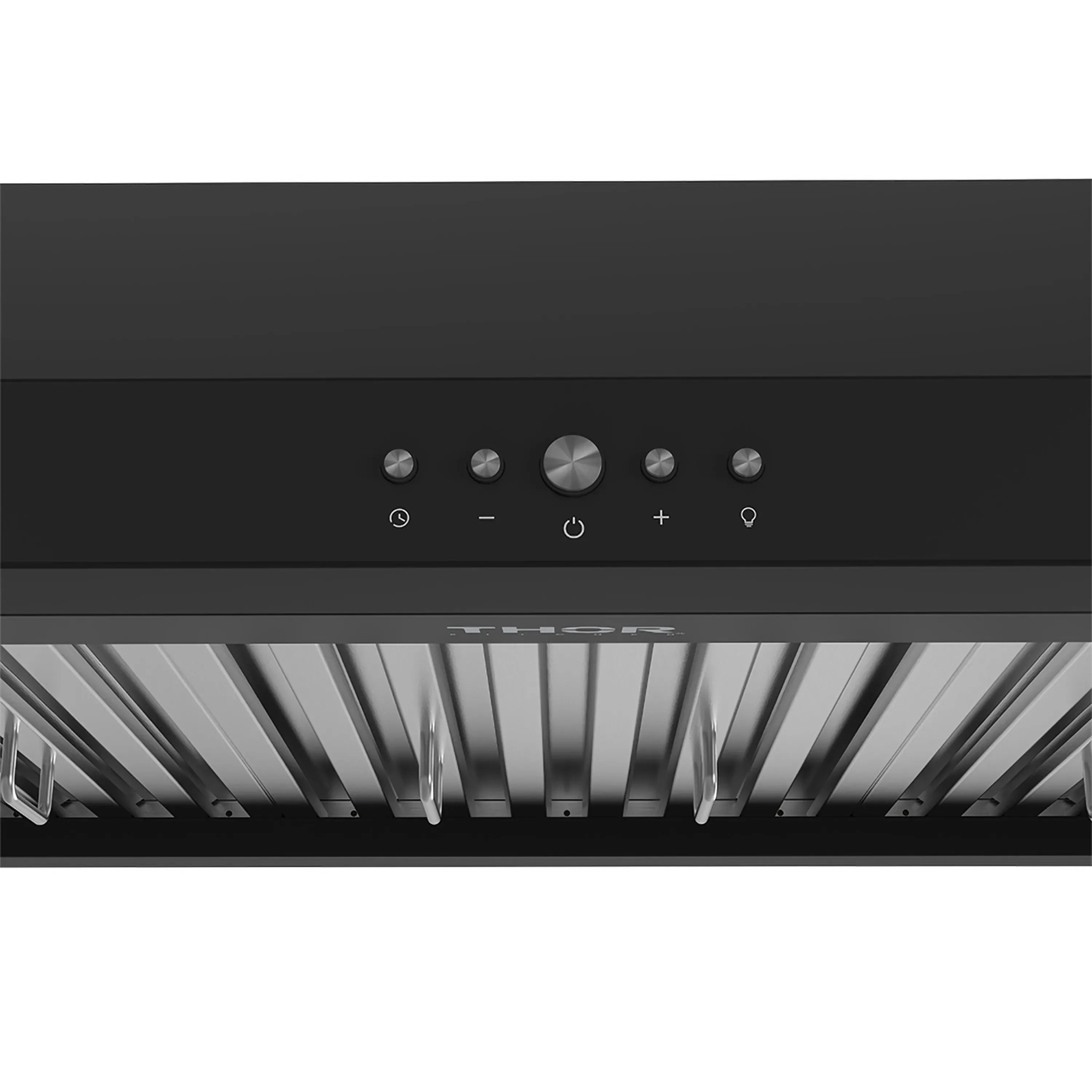

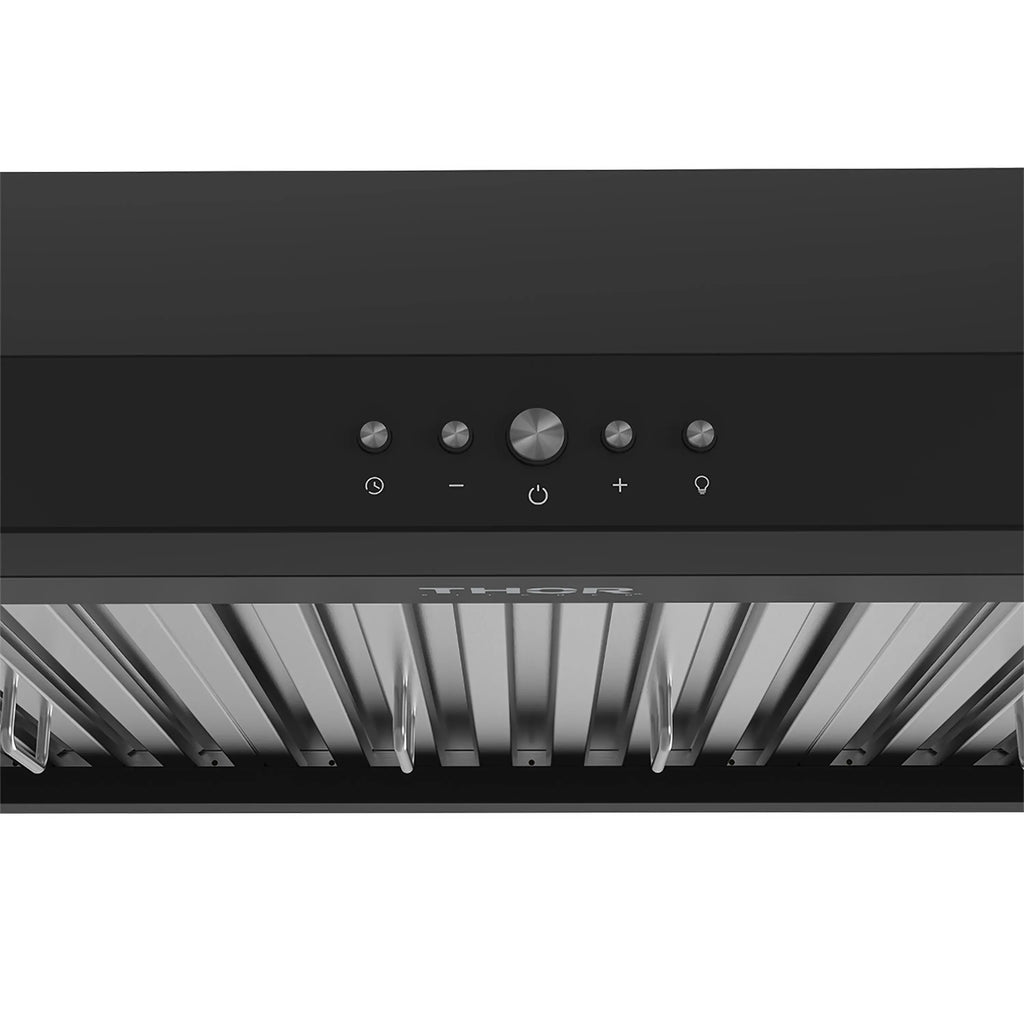

- Easy Push Button Controls - Simple mechanical buttons for hassle-free operation.

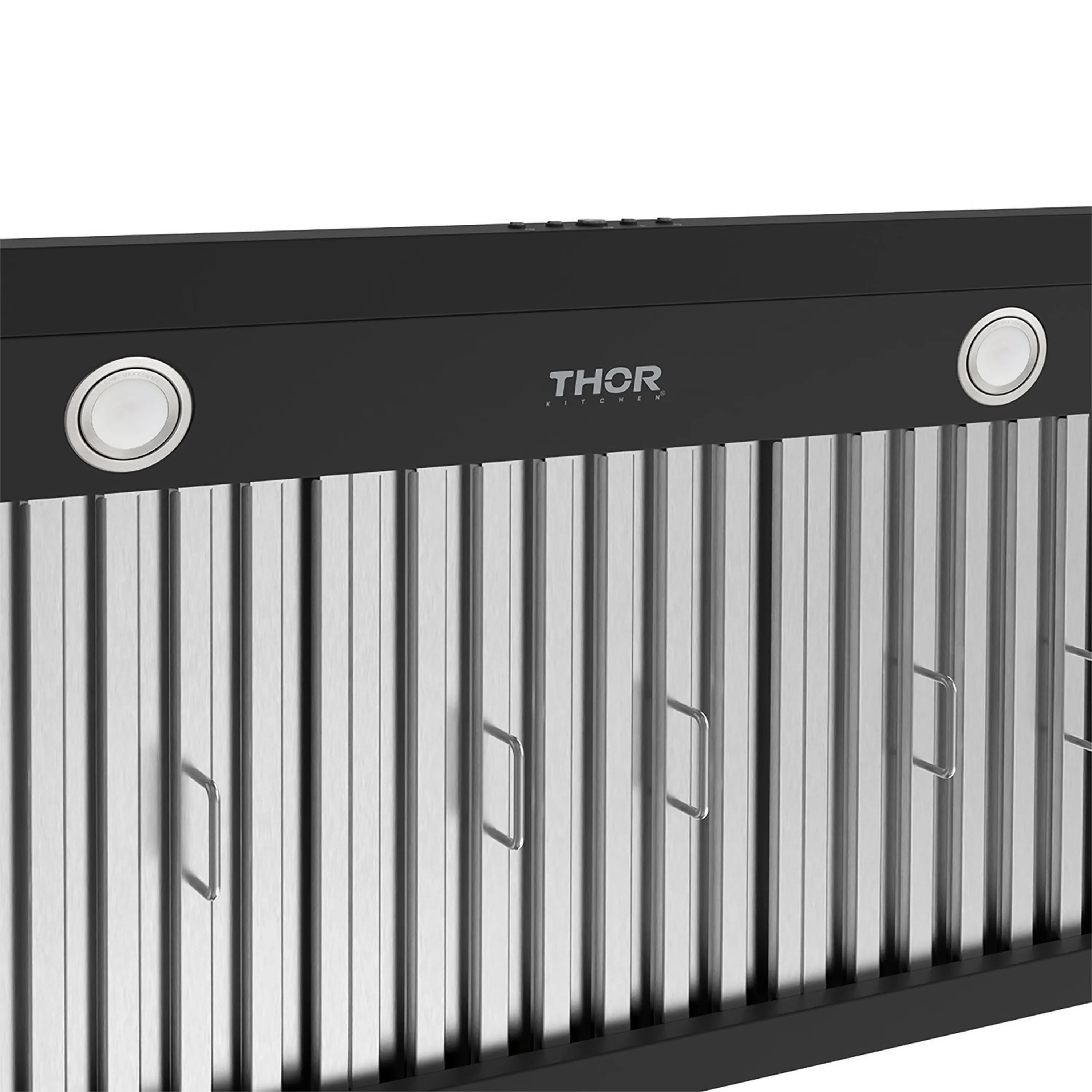

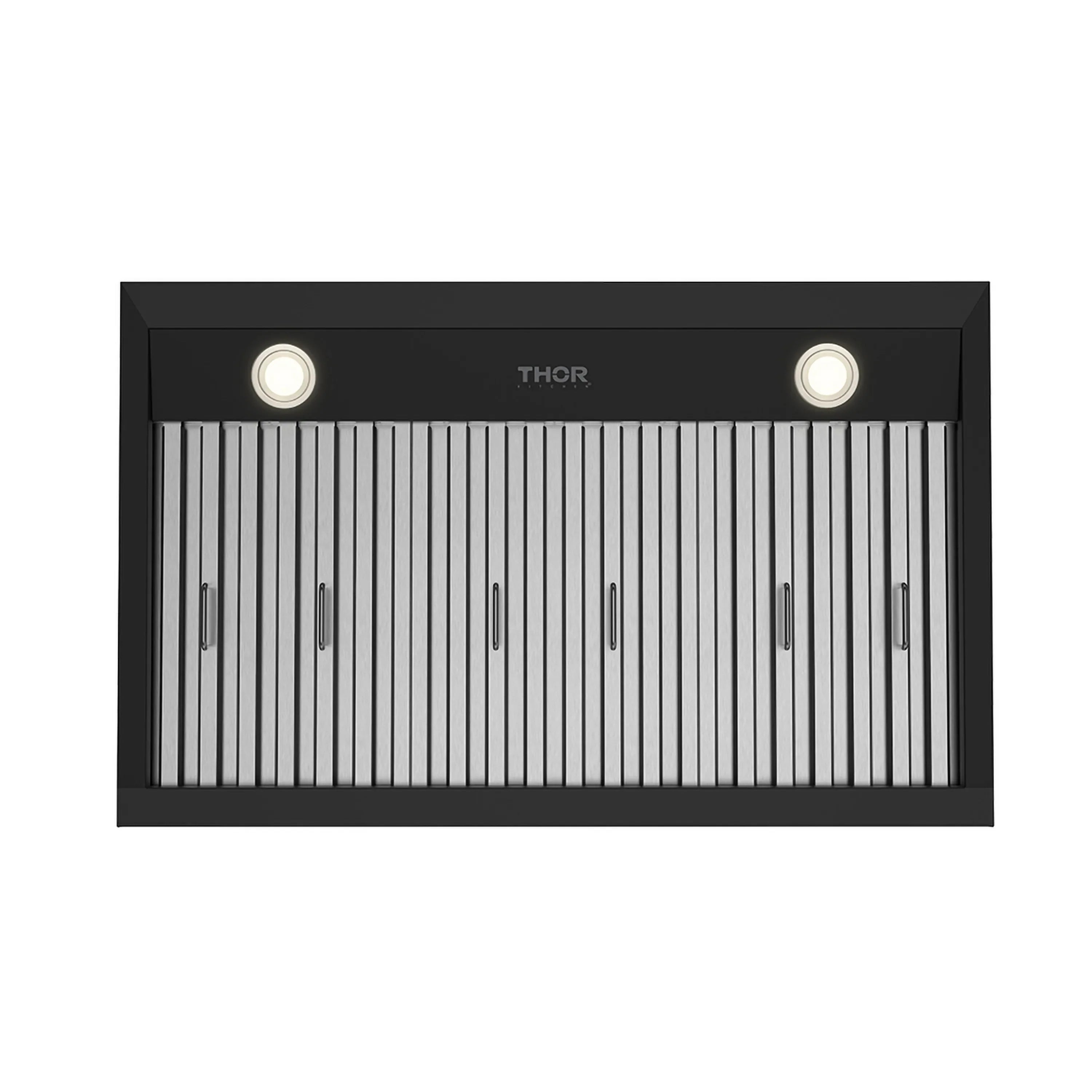

- Bright, Energy-Saving LED Lights - Illuminates the cooking surface clearly while minimizing energy use.

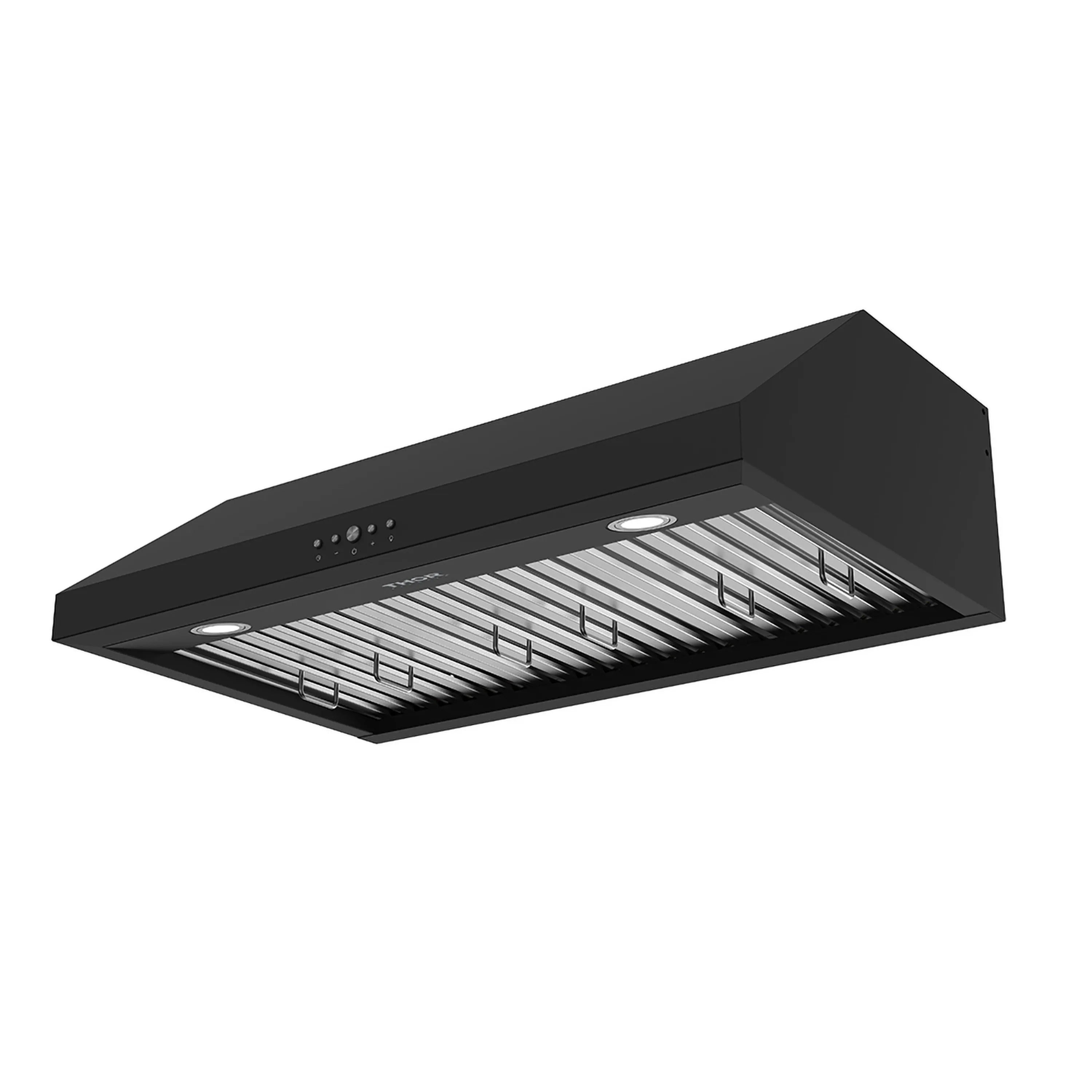

- Dishwasher-safe Baffle Filters - Removable filters trap grease and are easy to clean for long-lasting performance.
- Three-Speed Fan Settings - Adjustable airflow to suit light simmering or more intensive cooking.
- Brand
- Thor Kitchen
- Product
- 36 INCH UNDER CABINET RANGE HOOD WITH 480CFM IN BLACK
- Model Number
- TUH3648B
- Number of Speeds
- 3
- CFM at Low / Medium / High
- 331 / 387 / 480
- Noise Level
- 3
- Noise Rating at Low / Medium / High
- 58 / 61 / 64
- Ducted / Recirculating Convertible
- Yes
- Filter Type
- Baffle Filter
- Filter Qty
- 3
- Lighting
- 2×1.5W warm white LED
- Control Type
- Button
- Delay Function
- Yes (5 mins)

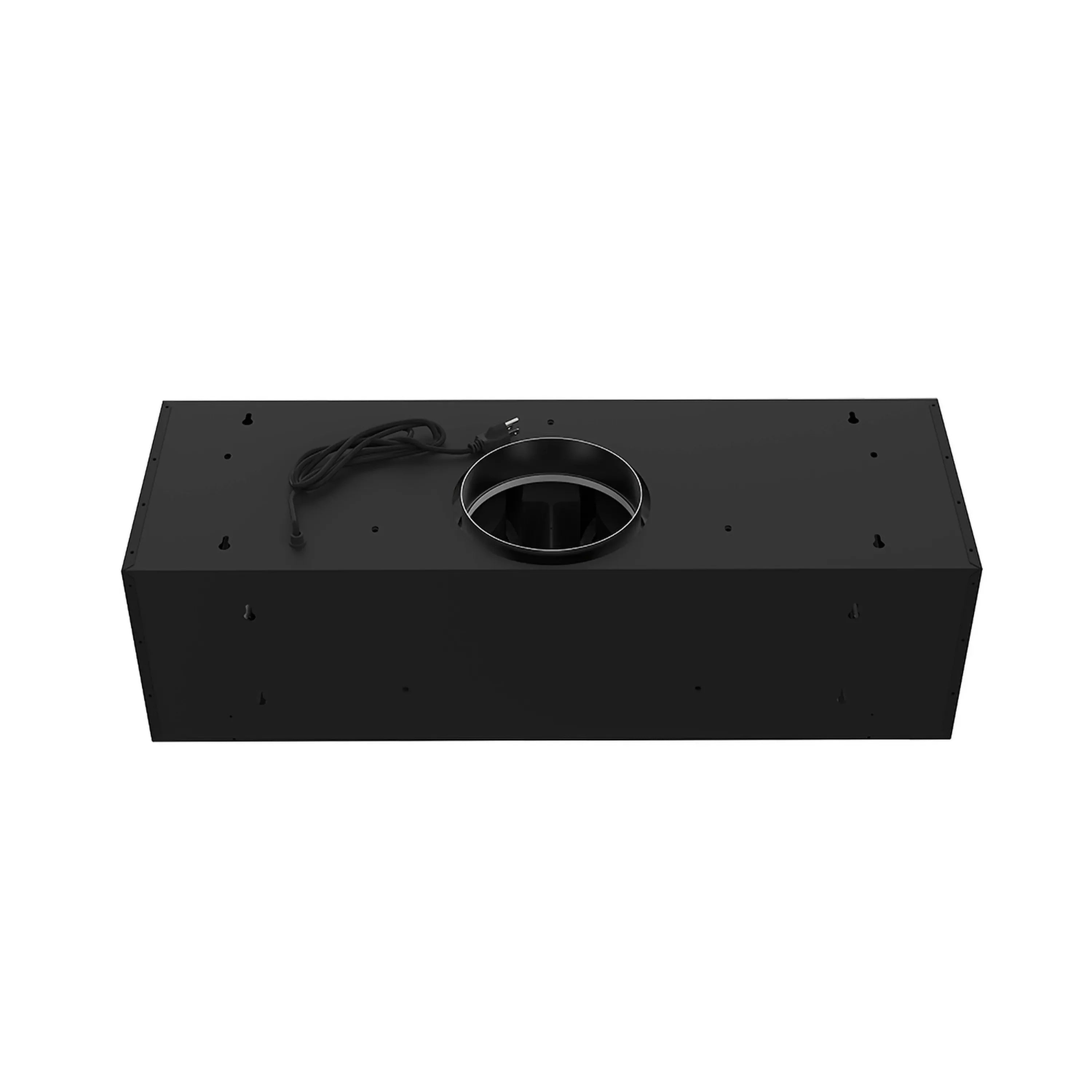

- Duct Size (in.)
- 7-11/16"
- Duct Type
- Round
- Mounting Type
- Undercabinet
- Watts (W)
- 263W
- Amperage (Dedicated)
- 15A
- Volts (V)
- 120V
- Frequency (Hz)
- 60Hz
- Plug Type
- US 3-prong plug
- Power Cord Length (in.)
- 39-3/8"
- Product Dimensions (WxDxH) (in.)
- 35-1/4" × 22-1/16" × 10-1/2"
- Cutout Dimensions (WxDxH) (in.)
- 35-3/8" × 22-1/4" × 10-11/16"
- Net Weight (lbs.)
- 51.8
- Package Dimensions (WxDxH) (in.)
- 38-3/16" × 16-1/8" × 26"
- Accessories (Optional)
- Recirculating Kit, Charcoal Filter Replacement
- Accessories Included
- Mounting Brackets, Round Damper
- Warranty
- 2 Years Parts and Labor
