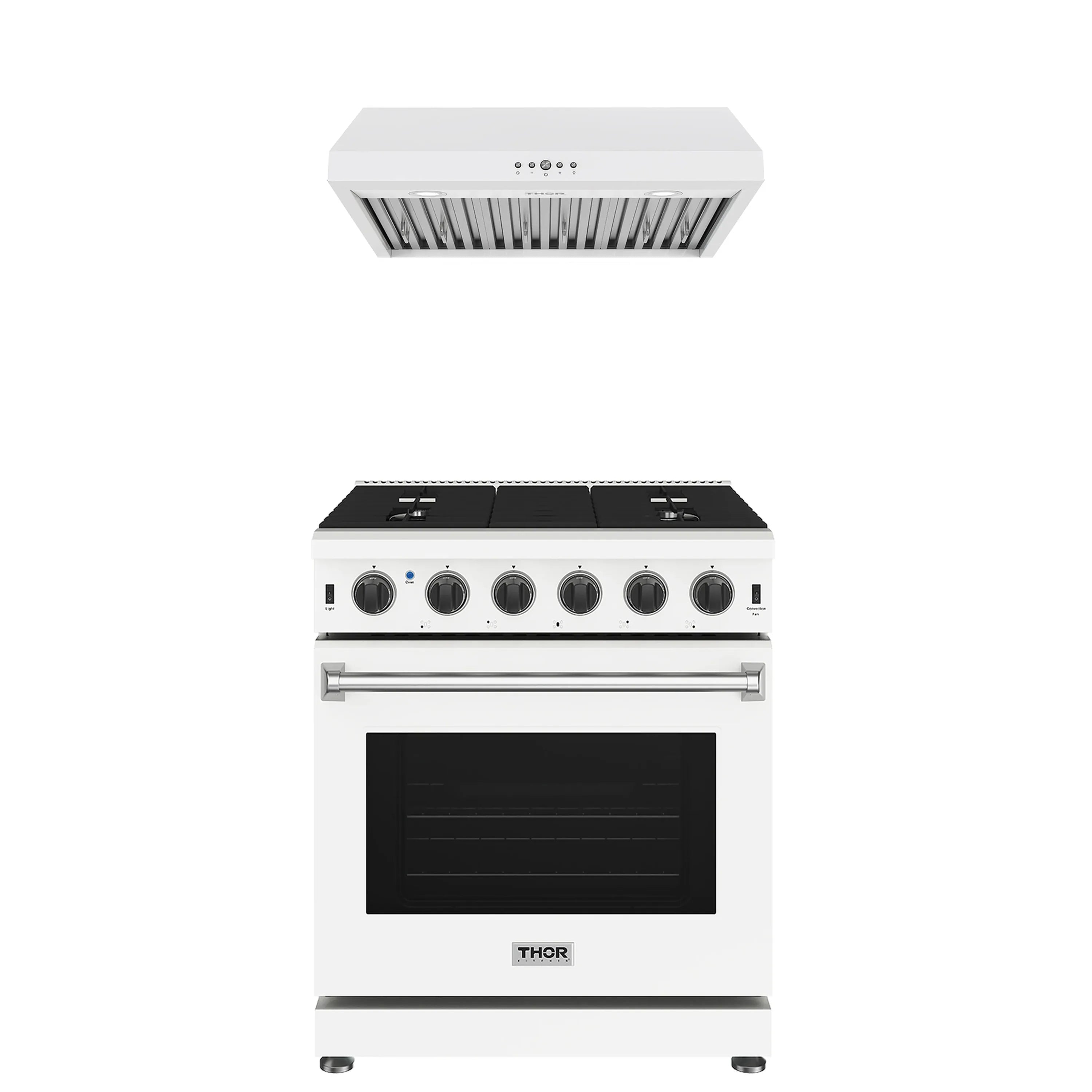

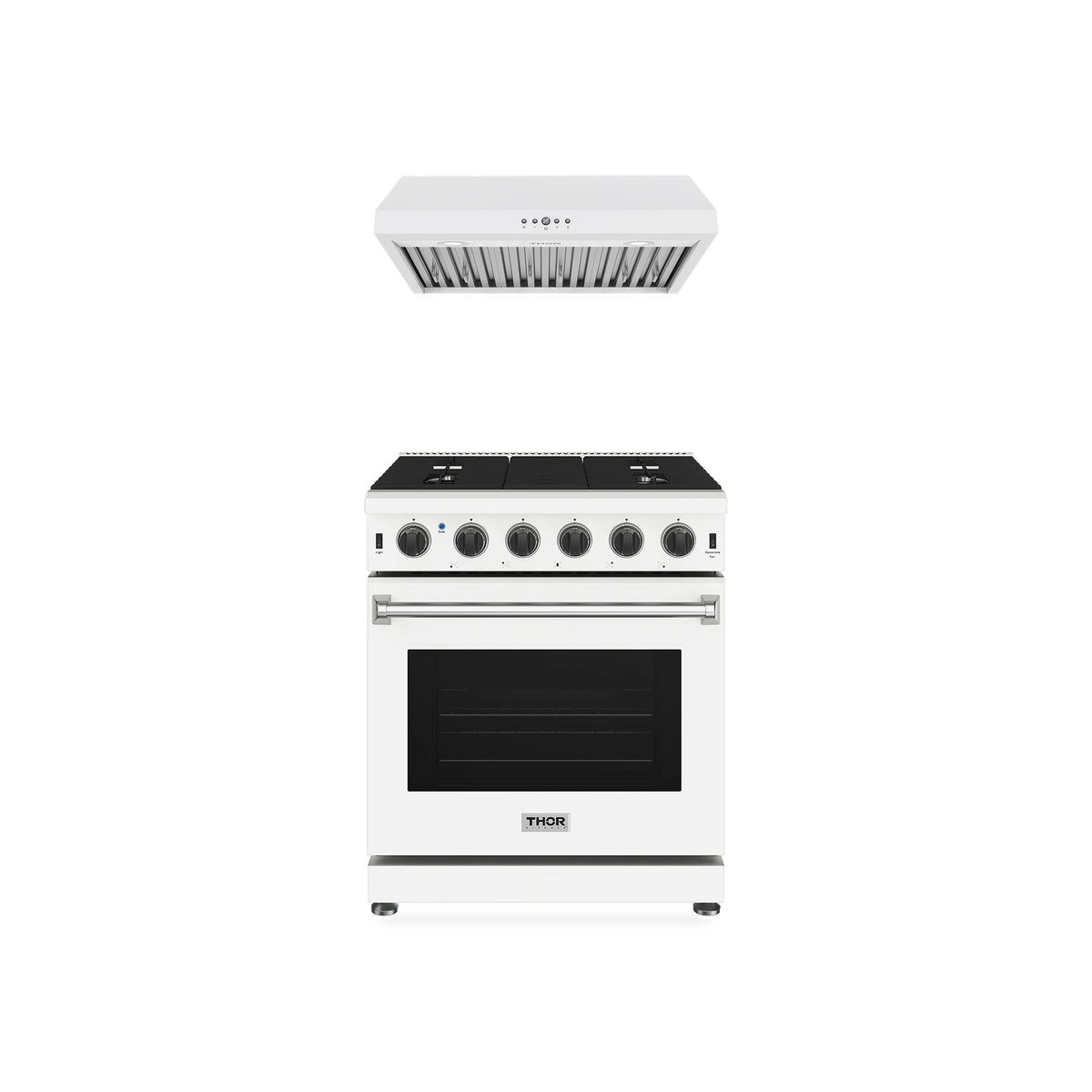

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

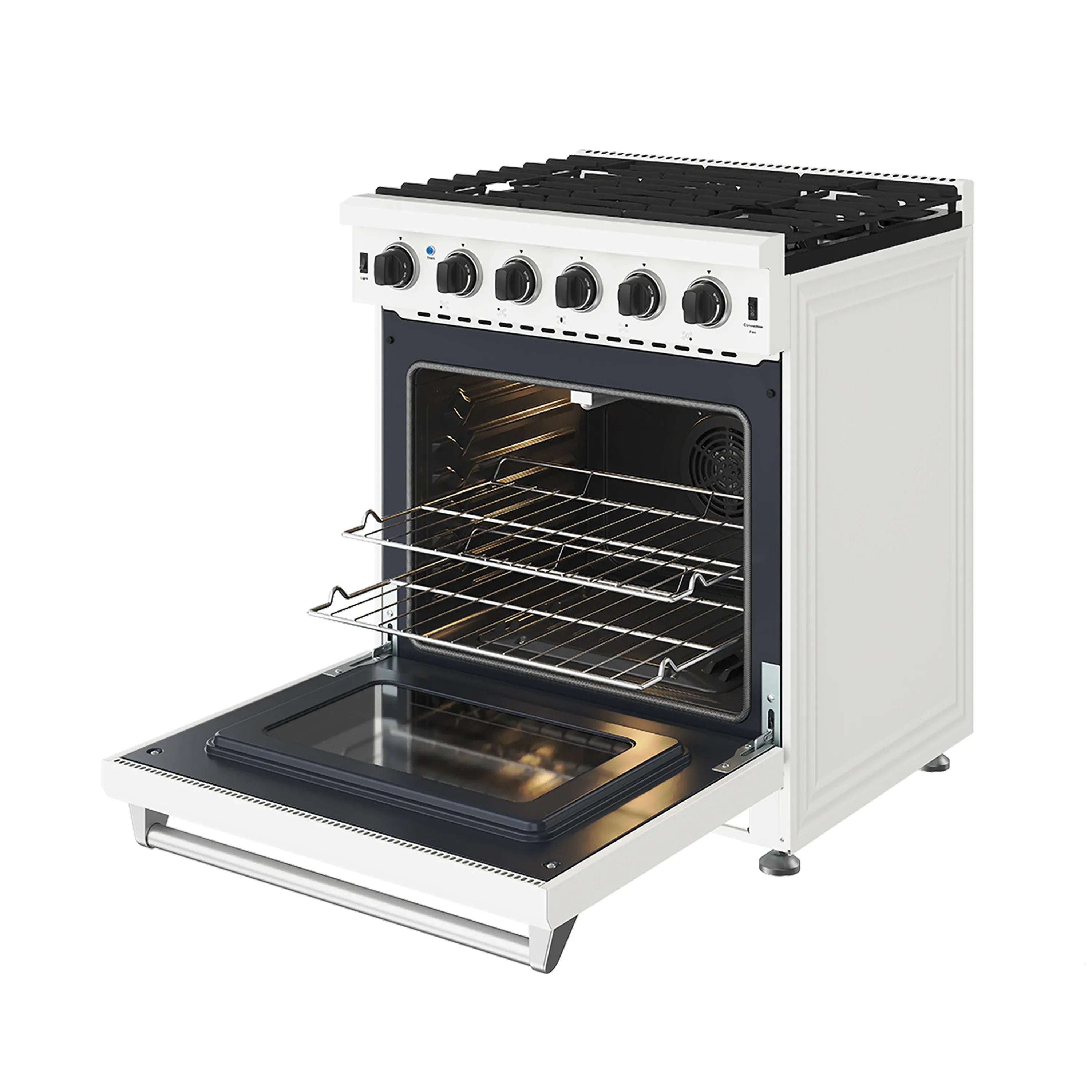

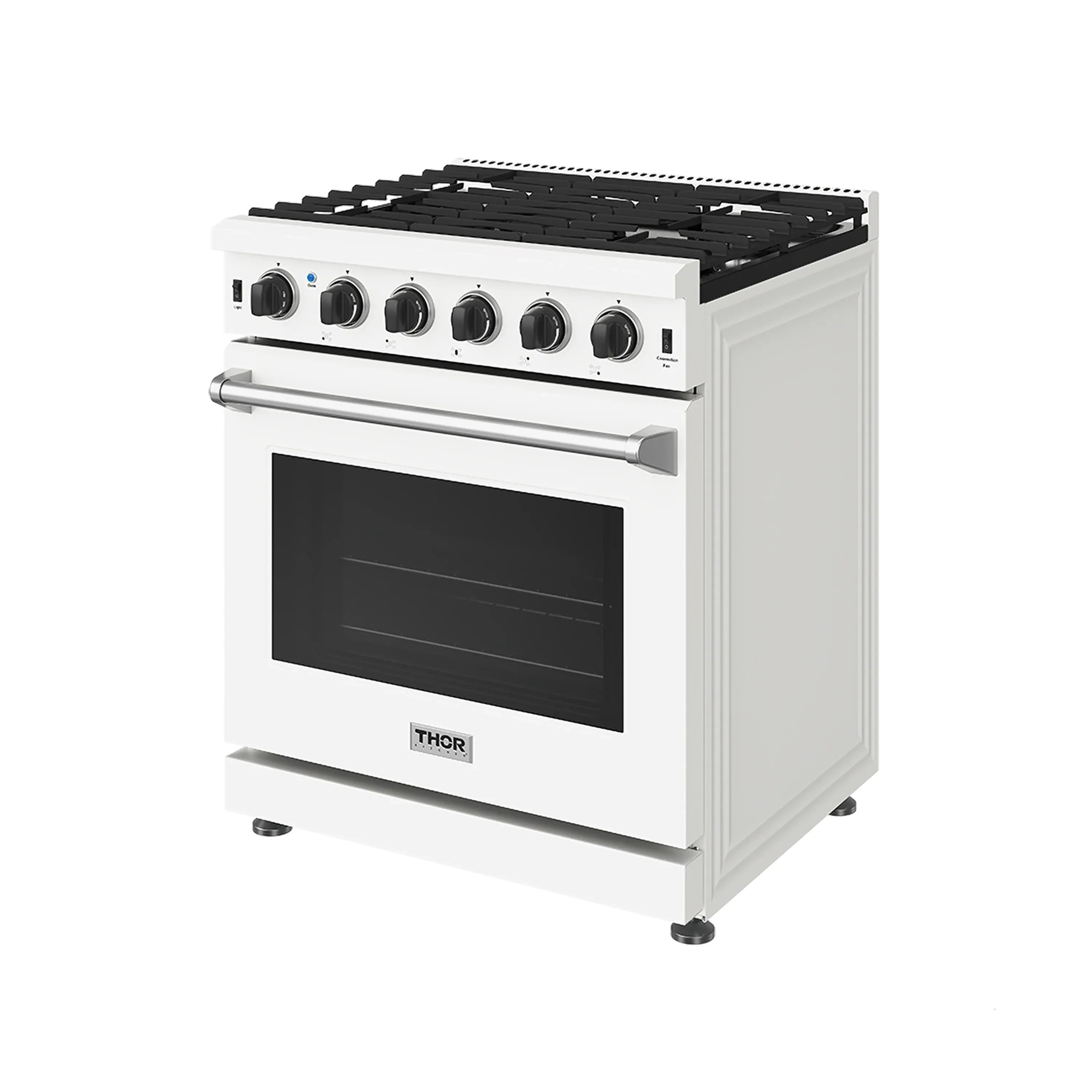

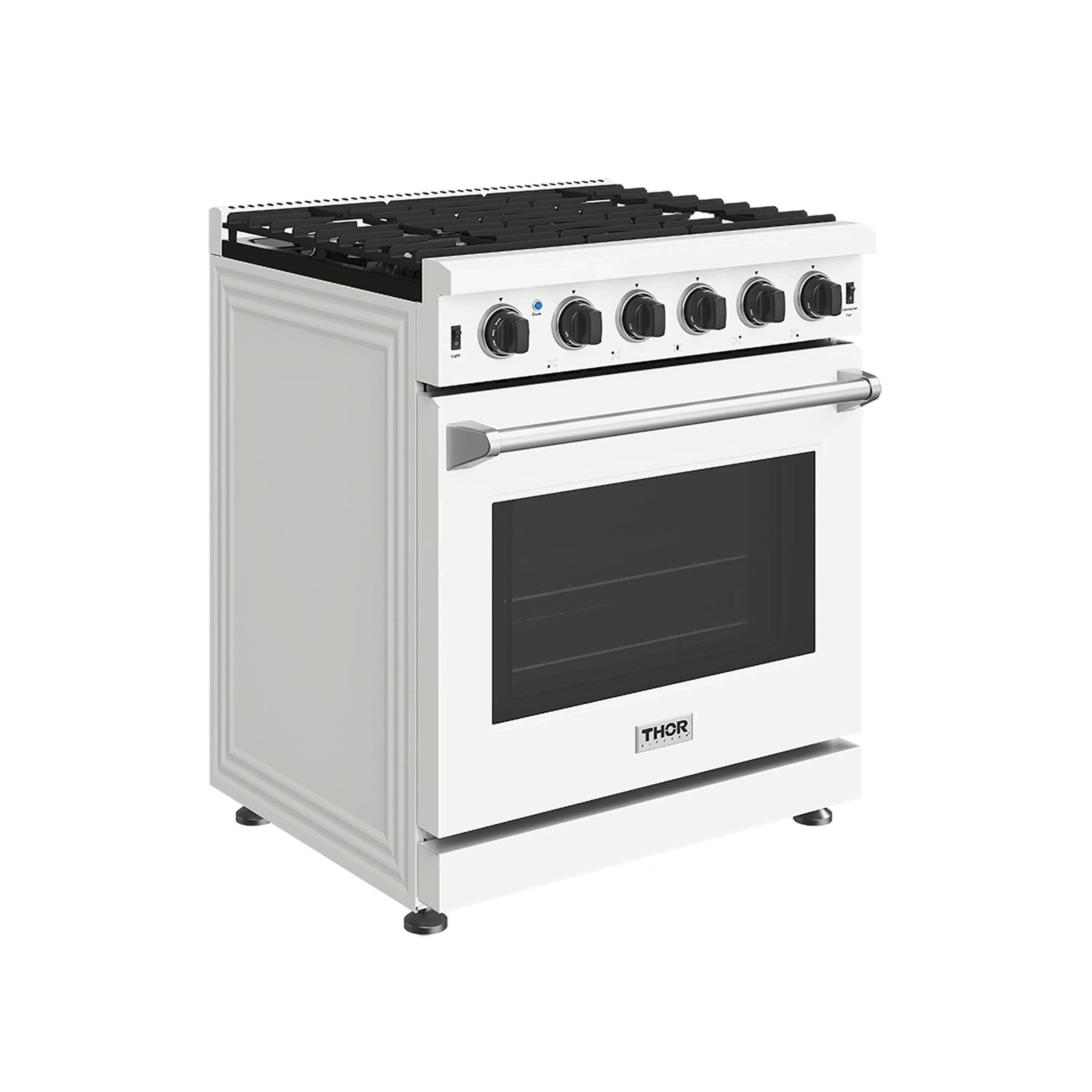

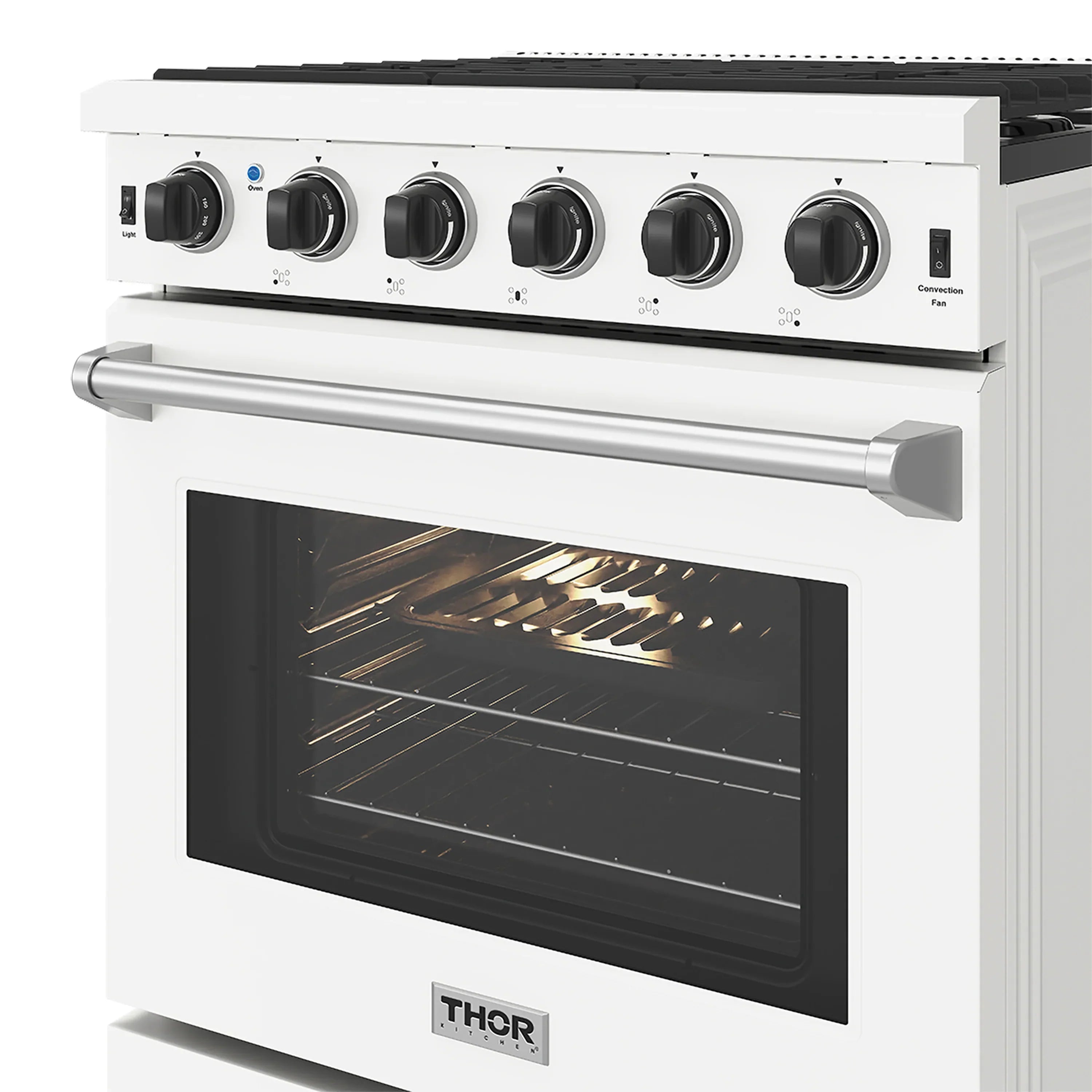

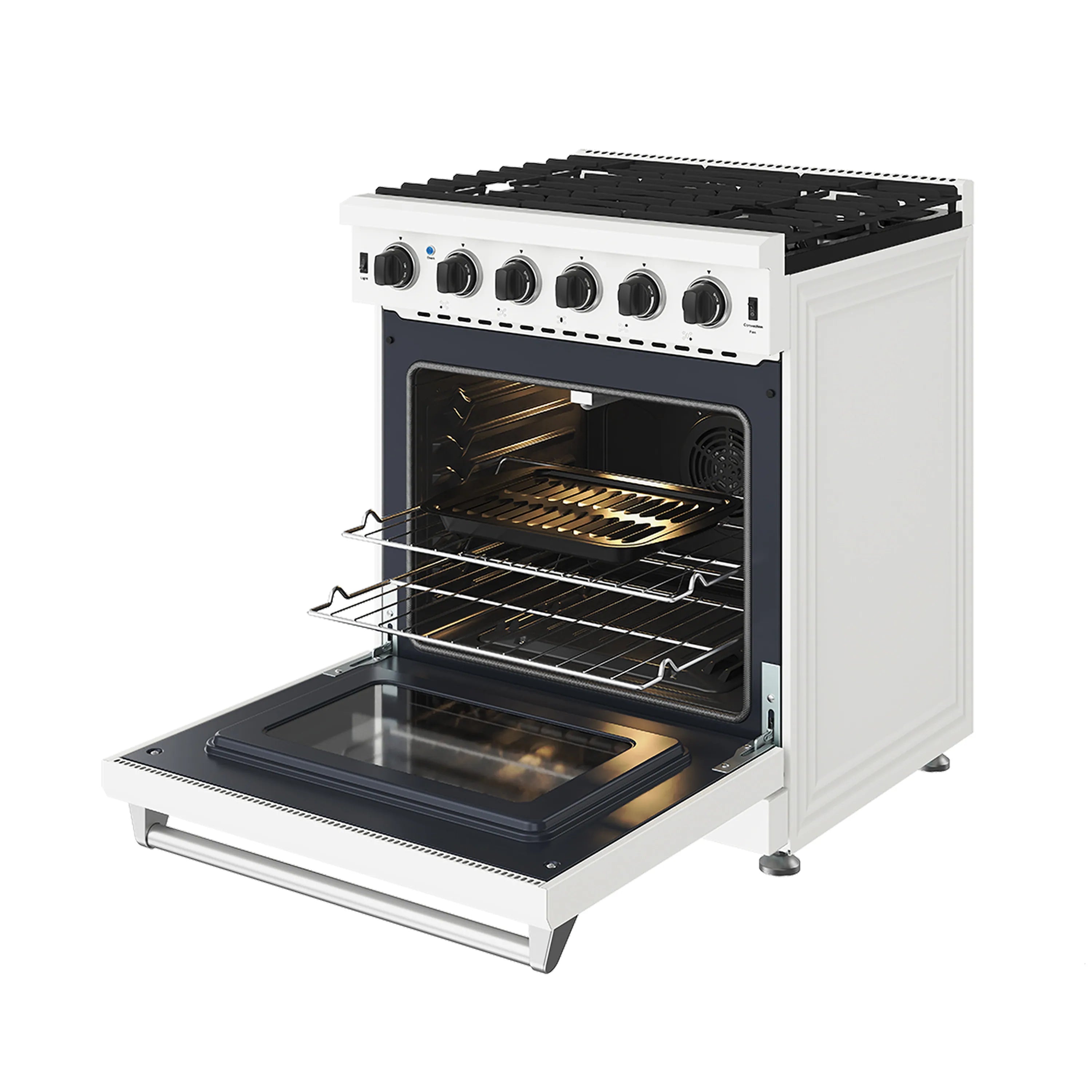

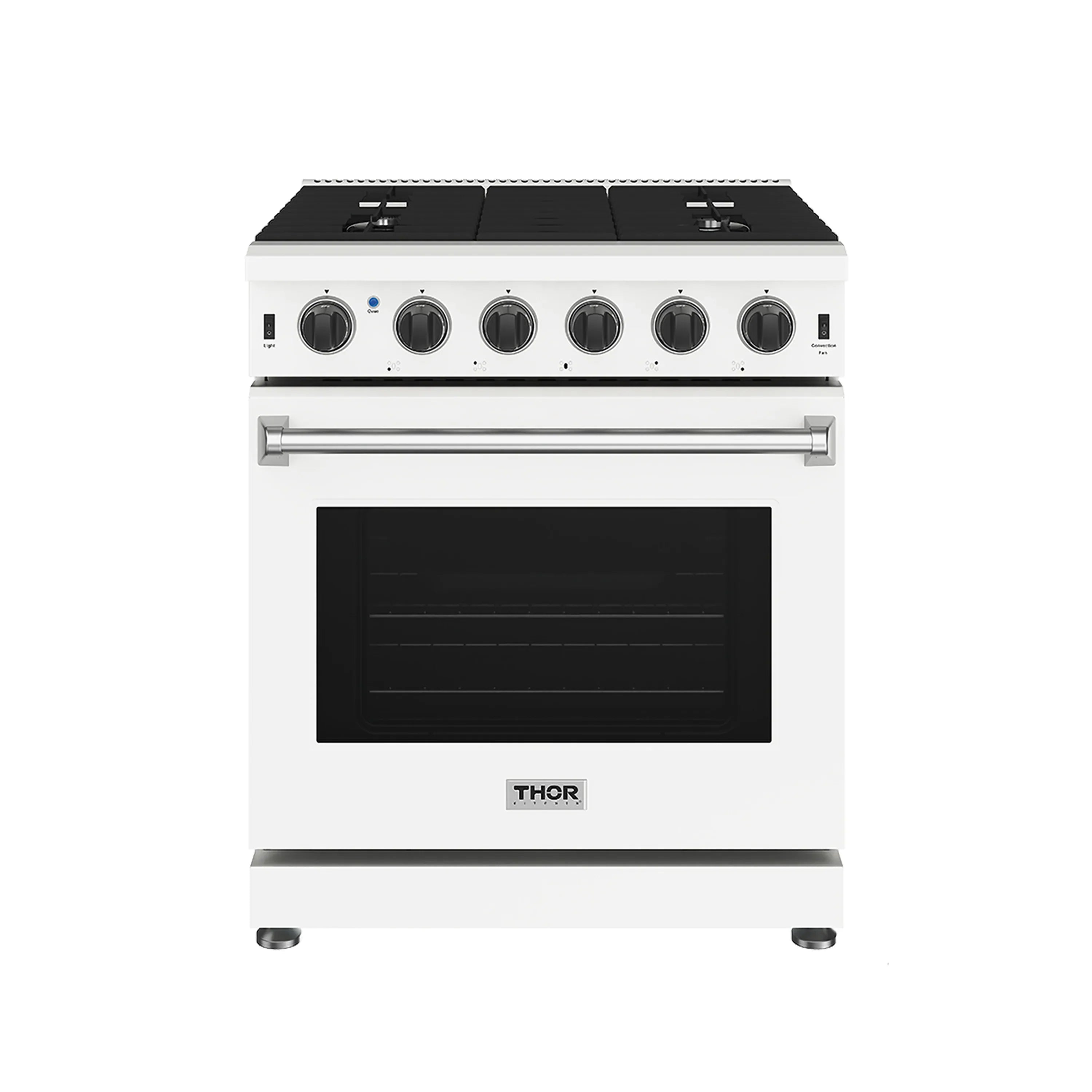

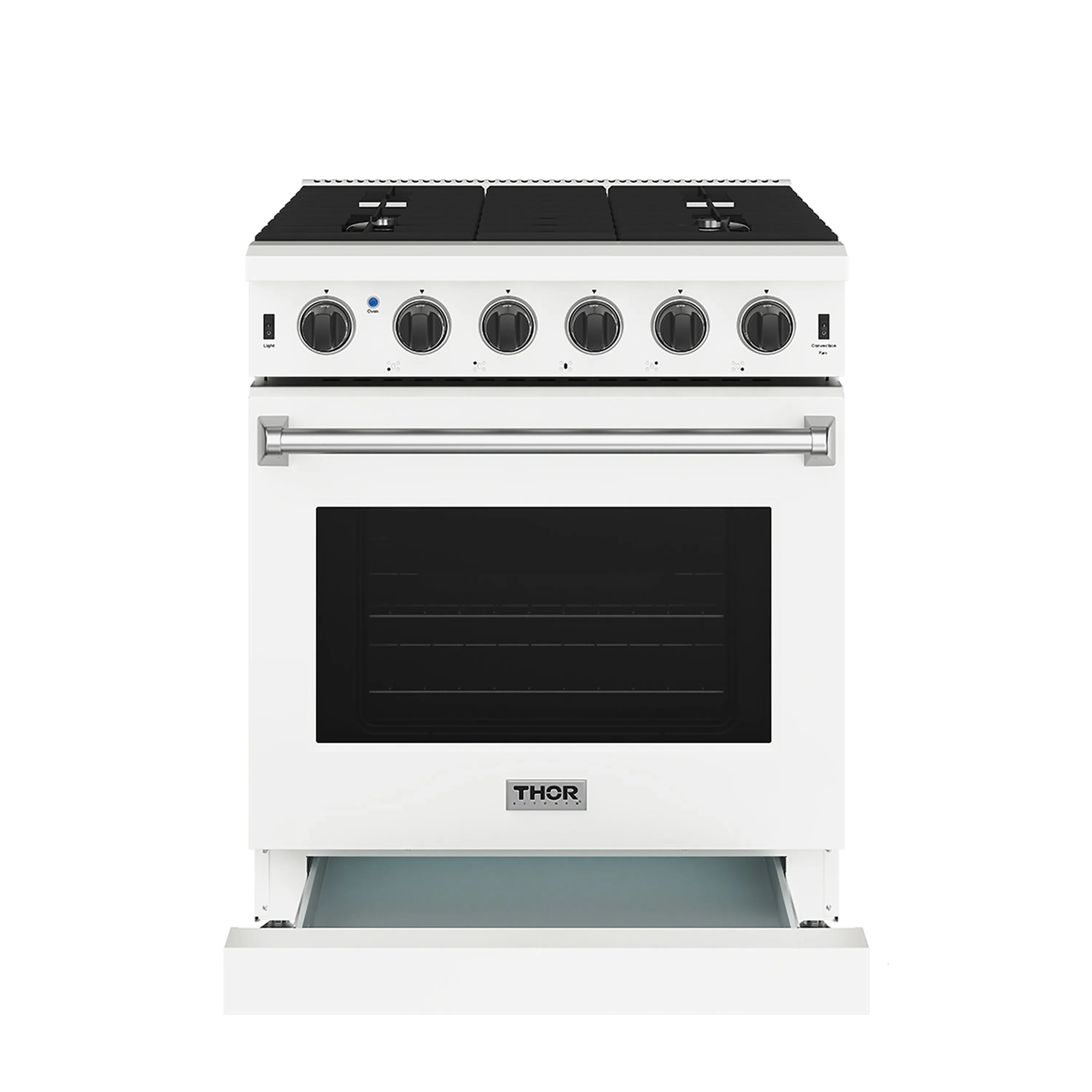

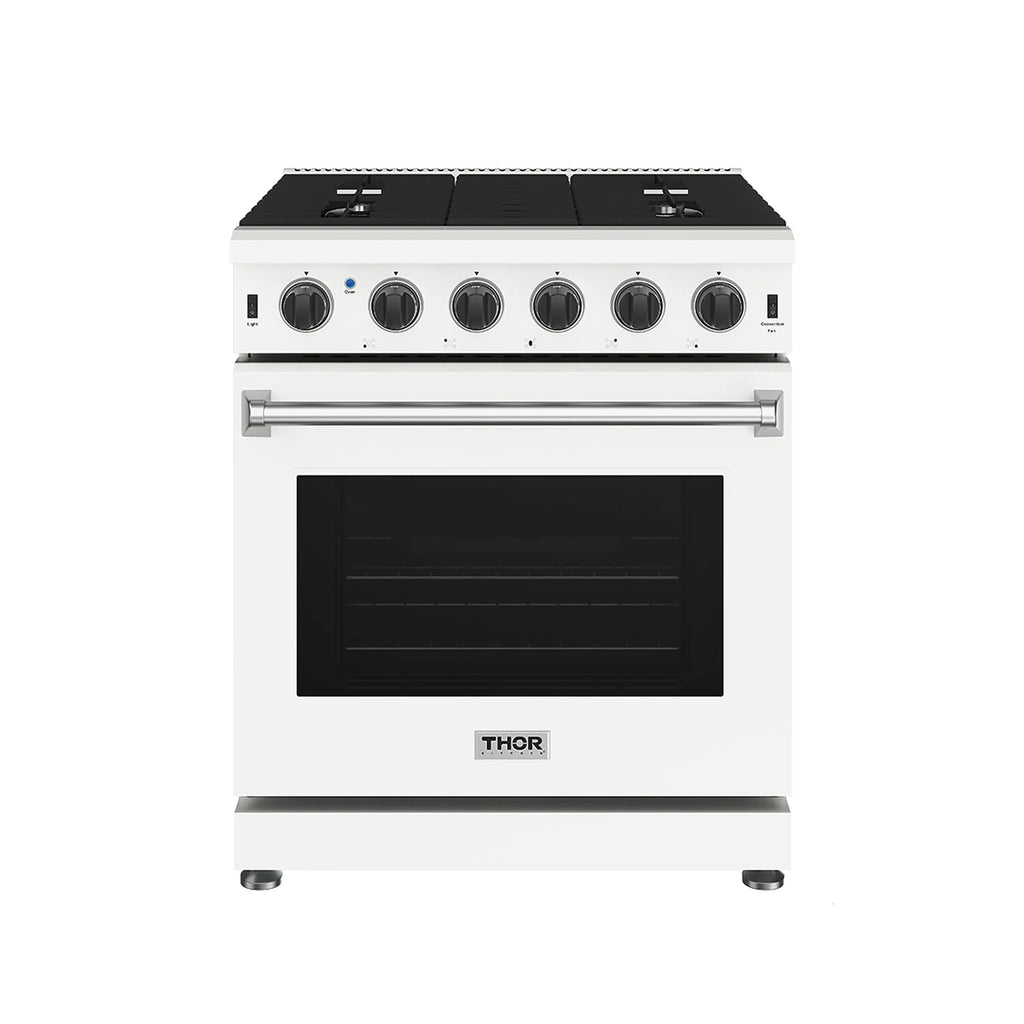

The THOR Kitchen 30 Inch Gas Range brings power, precision, and passion to every dish you create. Its high-powered 18,000 BTU burner delivers blazing heat for searing, boiling, and crafting large family meals or restaurant-quality creations, while the 4.55 cu. ft. oven accommodates multiple dishes with ease.
A commercial convection fan ensures even, efficient cooking, and the reflective gas tube broiler locks in juices for perfectly seared results. Heavy-duty continuous cast-iron grates support cookware of any size, and the single-piece black porcelain spill tray and gray porcelain oven interior make cleanup effortless. With a convenient storage drawer for trays and utensils, this range inspires confidence, creativity, and bold flavors in every meal. #IgniteYourCulinaryCreativity
Features
- High-Powered 18,000 BTU Burner for fast, intense heat

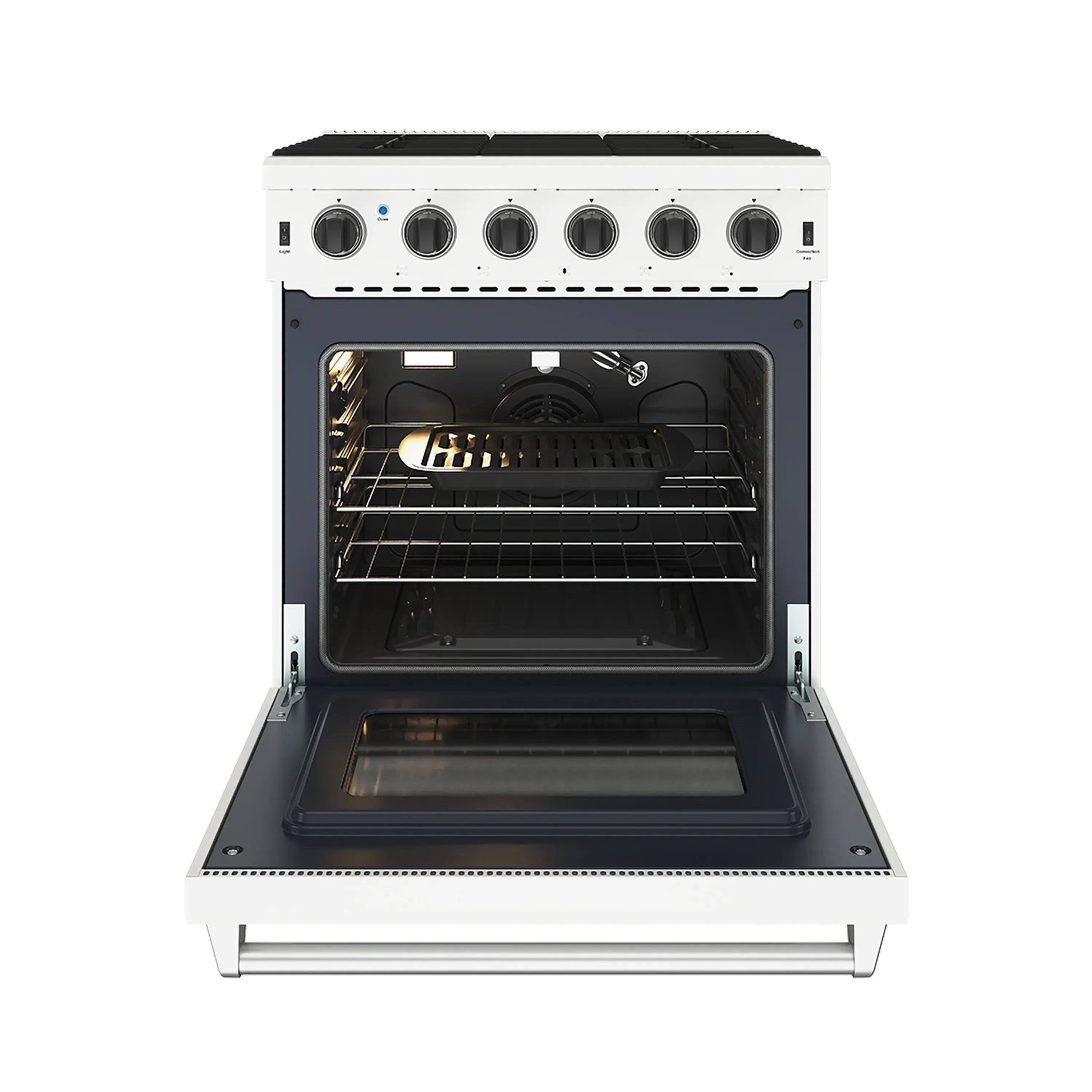

- Large 4.55 cu. ft. Oven Capacity for multiple dishes
- Storage Drawer for cooking trays and utensils
- Commercial Convection Fan for even, efficient cooking
- Even Heat Broiler with reflective gas tube

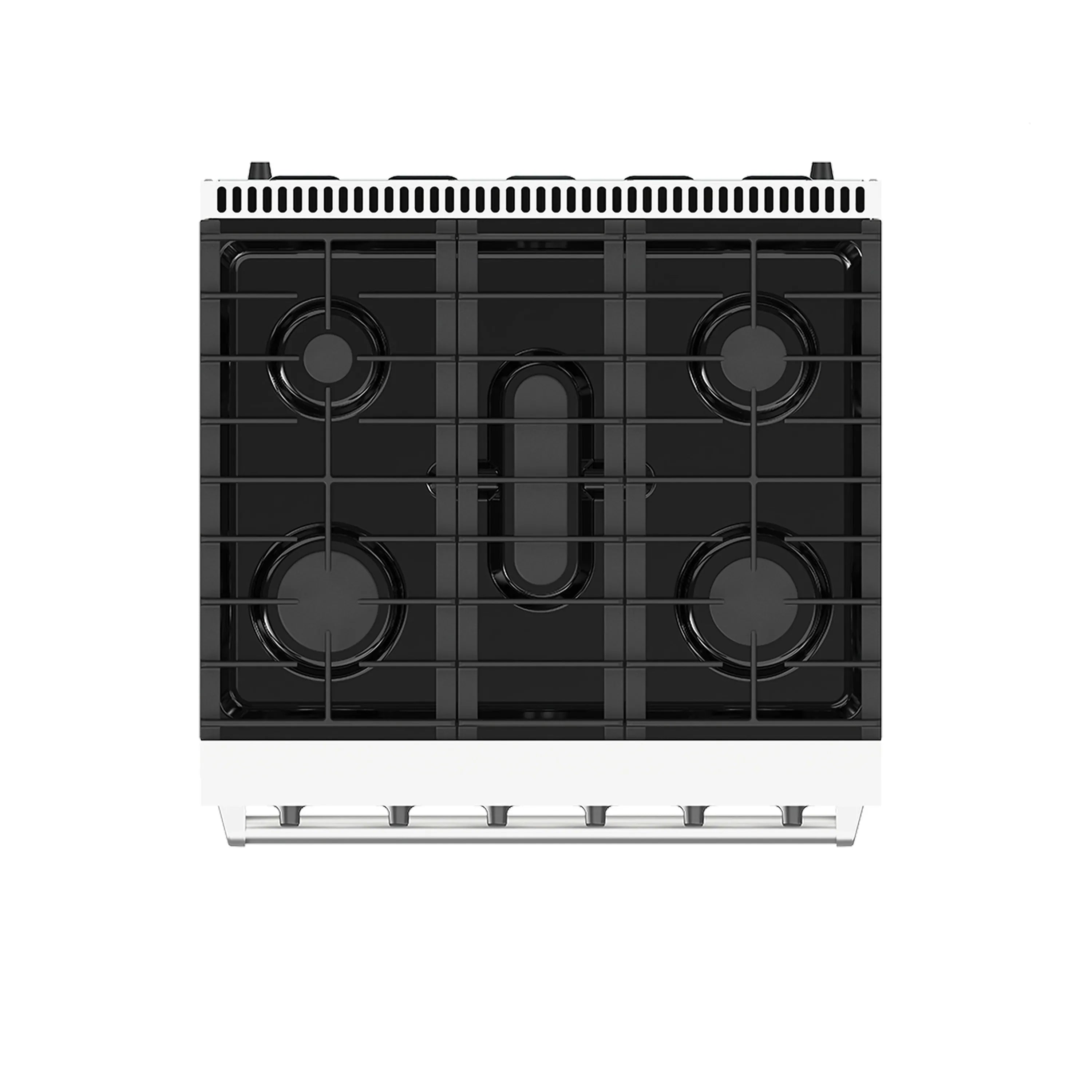

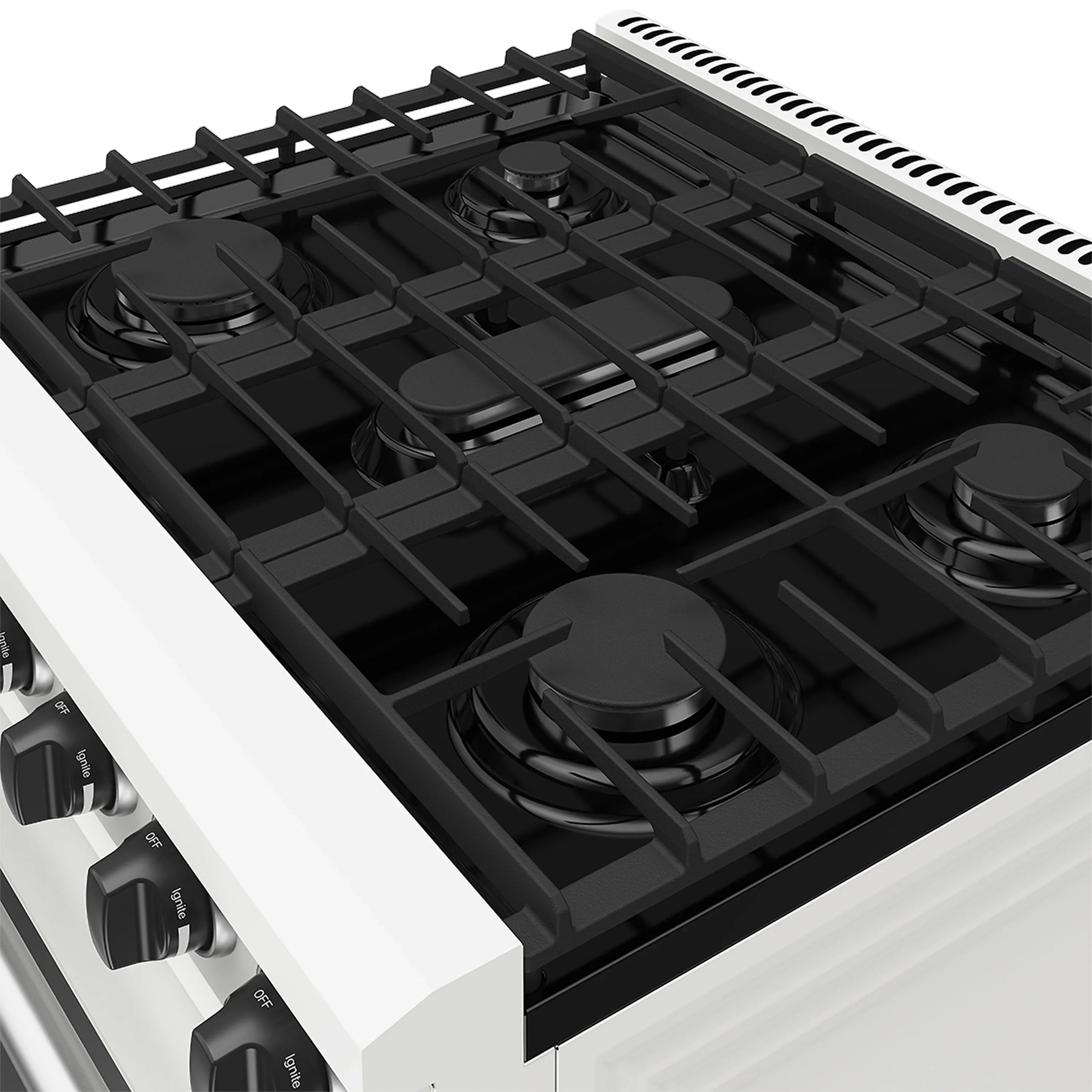

- Continuous Cast-Iron Grates
- Single-Piece Porcelain Spill Tray for easy cleanup
- Gray Porcelain Oven Interior
- Oven Capacity: 4.55 cu. ft.
- Total Cooktop Burners: 5
- Product Dimensions (W × D × H): 30" × 28-3/8" × 39-1/4"
- Fuel Type: Liquid Propane (LP)
- Backed by Thor Kitchen's 2-Year Parts and Labor Warranty
- Product Dimensions (W × D × H)
- 30" × 28-3/8" × 39-1/4"
- Cutout Dimensions (W × D × H)
- 30-1/8" x 24-3/4" x 36-1/4"
- Product Height (to top of back splash)
- 36-5/8" - 37-5/8"
- Product Height (to top of side panel)
- 36-1/8" - 37-1/8"
- Product Depth (back panel to bullnose)
- 27-1/2"
- Product Depth (back panel to control panel)
- 27-3/4"
- Product Depth (back panel to side panel front)
- 24-3/4"
- Adjustable Leg Size
- Not to Exceed 1"
- Net Weight
- 215 lbs
- Gross Weight
- 258 lbs
- Package Dimensions (W × D × H)
- 30" × 33" × 44-7/8"
- Package Weight
- 258 lbs
- Power Cord Length
- 59"
- Brand
- Thor Kitchen
- Product Family
- 30-Inch Gas Range
- Product Class
- Freestanding Gas Range
- Baking Sheet Size
- Fits 23" x 16" Baking sheet
- Color
- White
- Finish
- White

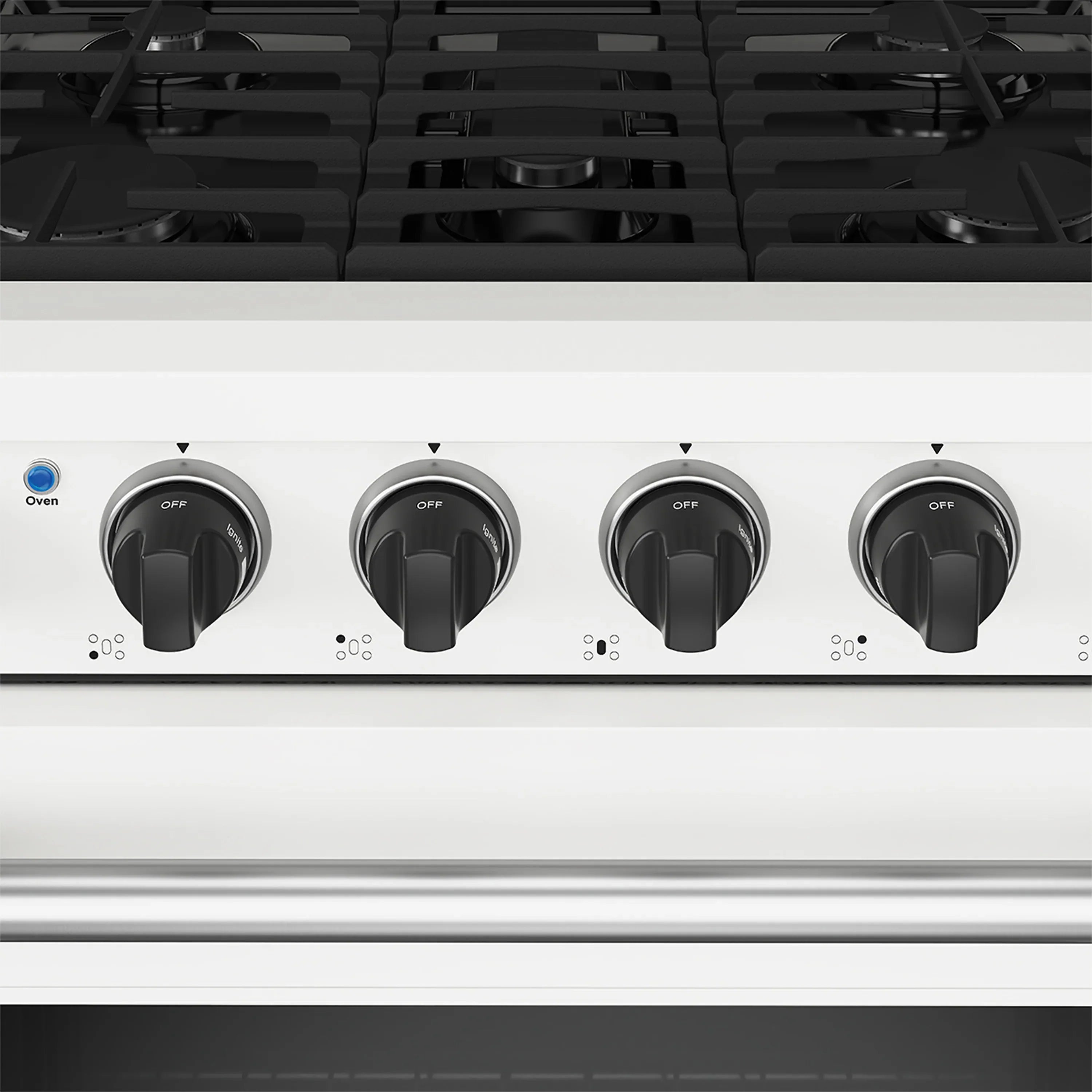

- Control Type
- Knob Control
- Installation Type
- Freestanding
- Fuel Type
- Liquid Propane (LP)
- Voltage
- 120 V
- Amperage
- 15A
- Frequency
- 60 Hz
- Plug Type
- US 3-prong
- Total Burners
- 5
- Burner 1
- 18,000 BTU (Front Left)
- Burner 2
- 8,000 BTU (Front Right)
- Burner 3
- 4,000 BTU (Rear Left)
- Burner 4
- 6,000 BTU (Rear Right)
- Burner 5
- 9,000 BTU (Middle Oval)
- Bake Burner Power
- 18,500 BTU
- Broil Burner Power
- 10,000 BTU
- Oven Capacity
- 4.55 cu. ft.
- Cooking Modes
- Bake, Convection Bake, Roast, Convection Roast, Broil
- Convection
- Commercial Convection
- Oven Lights
- 1
- Oven Racks
- Telescopic Racks x2
- Oven Rack Material
- Chrome Plated
- Self Clean
- No
- Air Fry
- No
- Racks
- 2 Telescopic Racks
- Broiler Pan Set
- 1
- Manufacturer Warranty
- 2 Years Parts and Labor

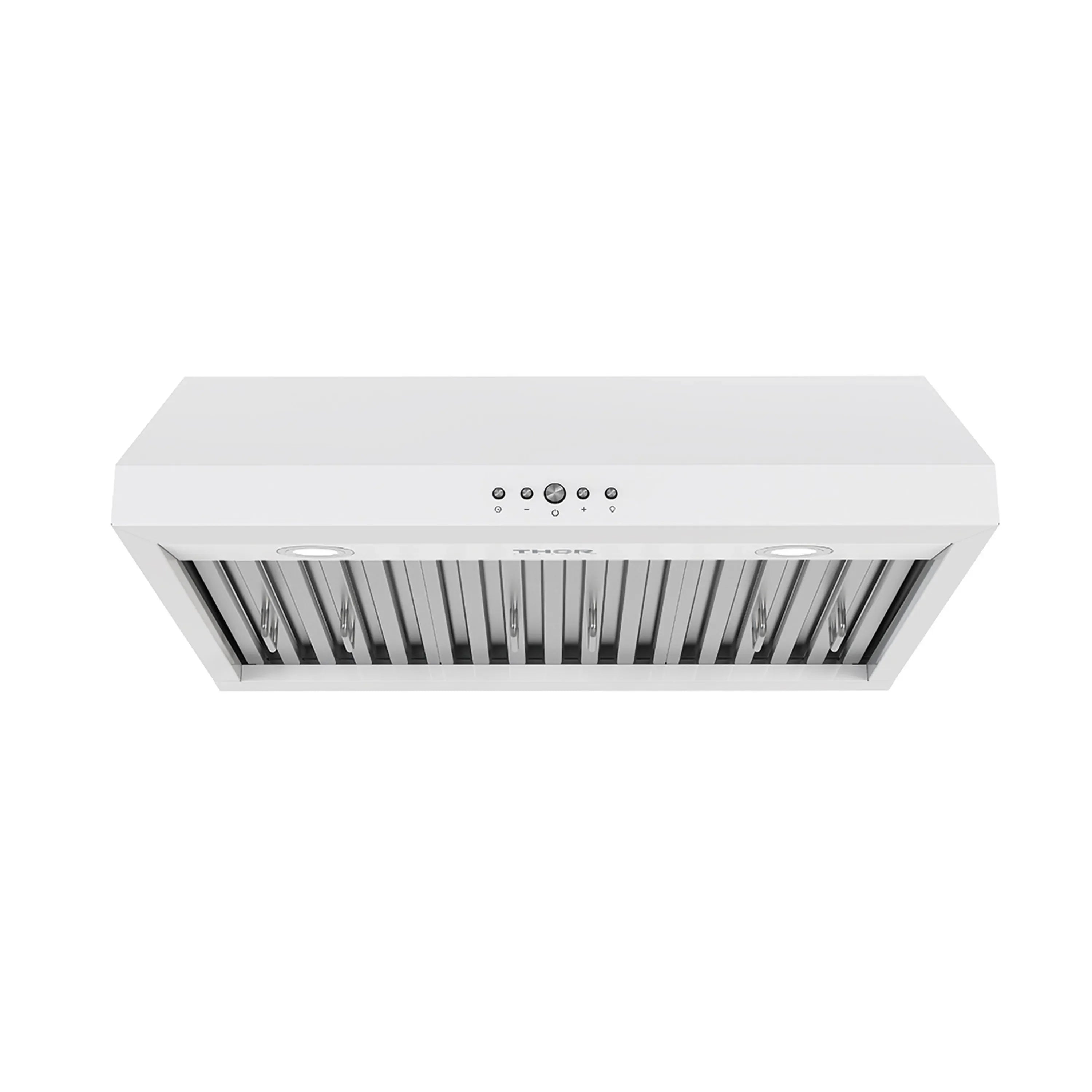

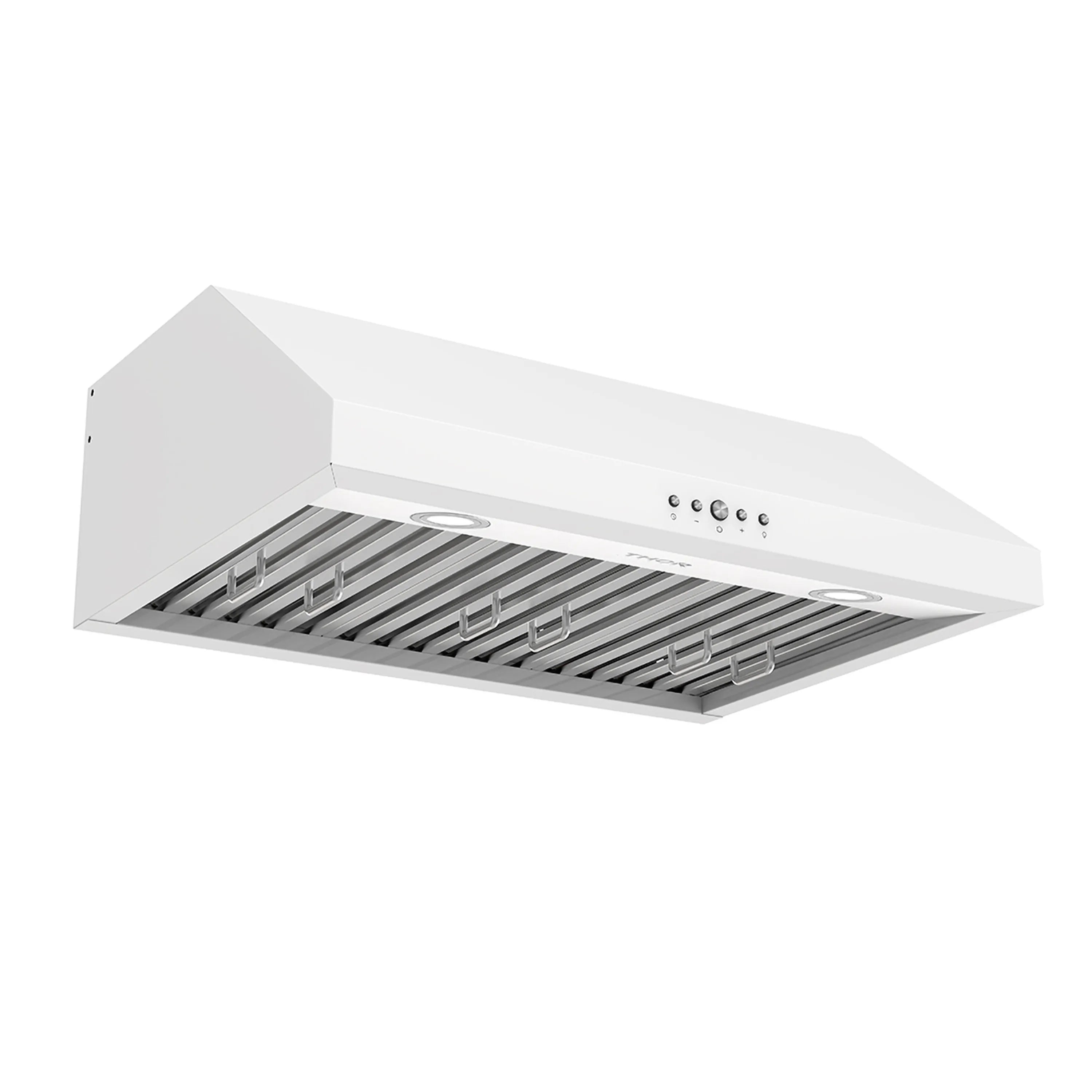

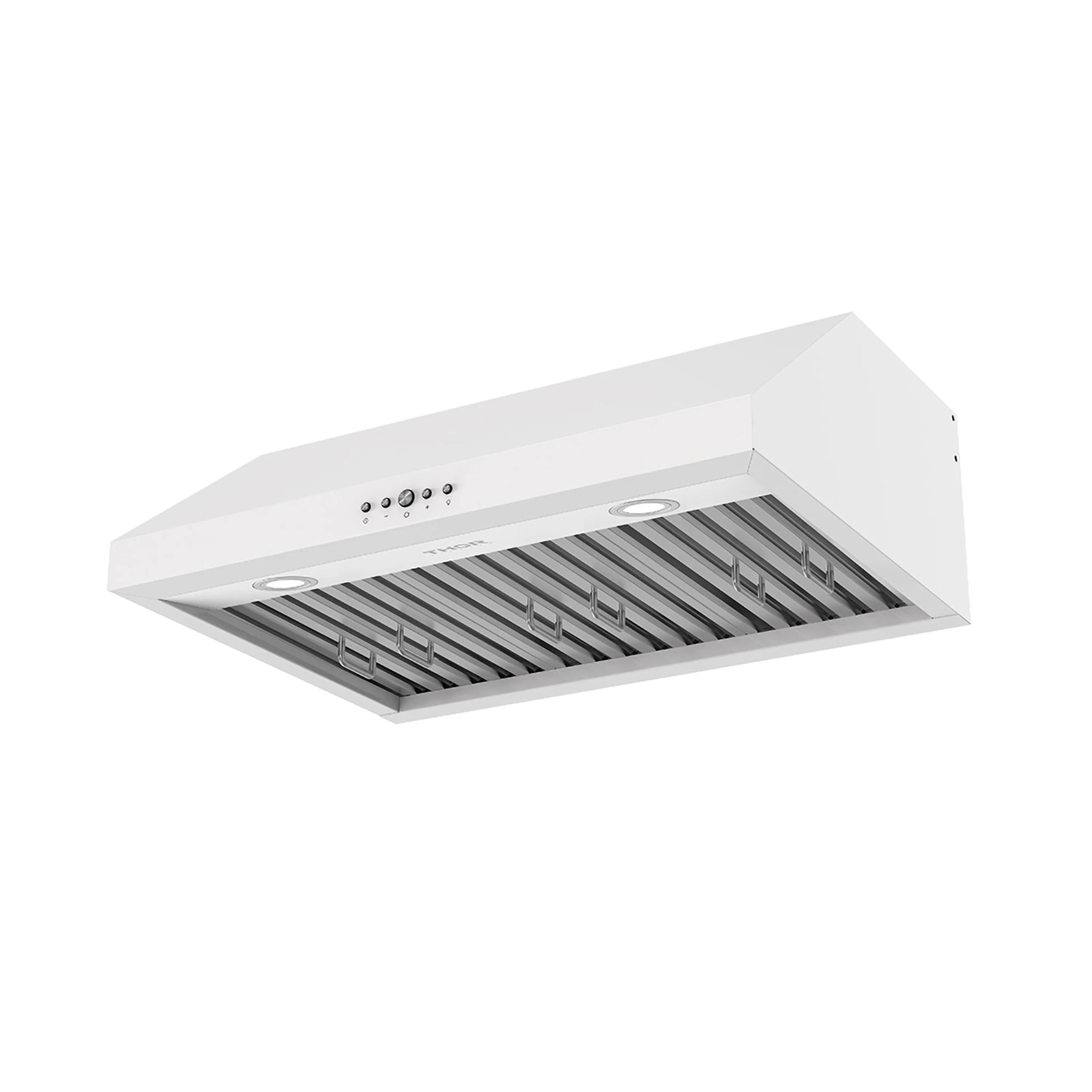

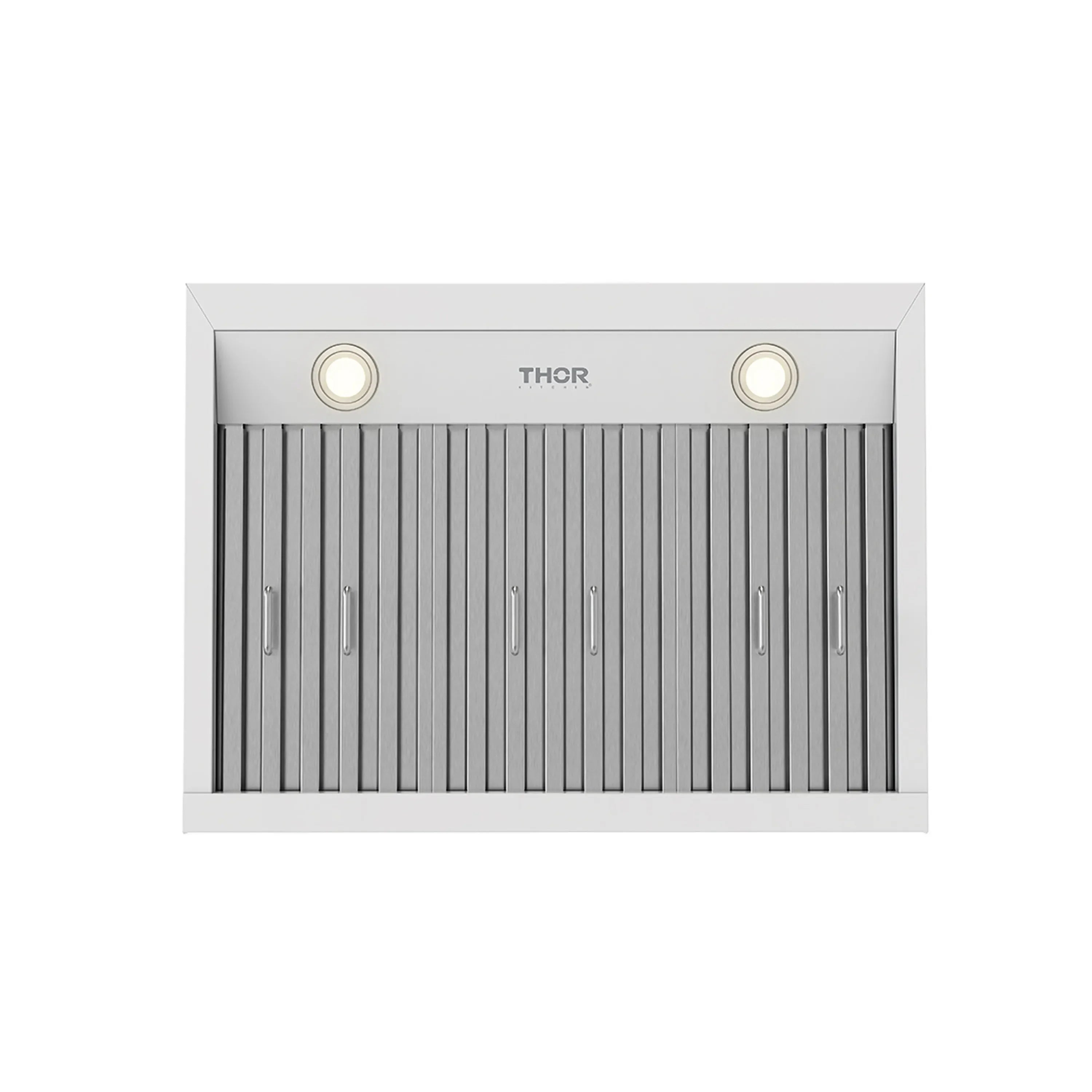

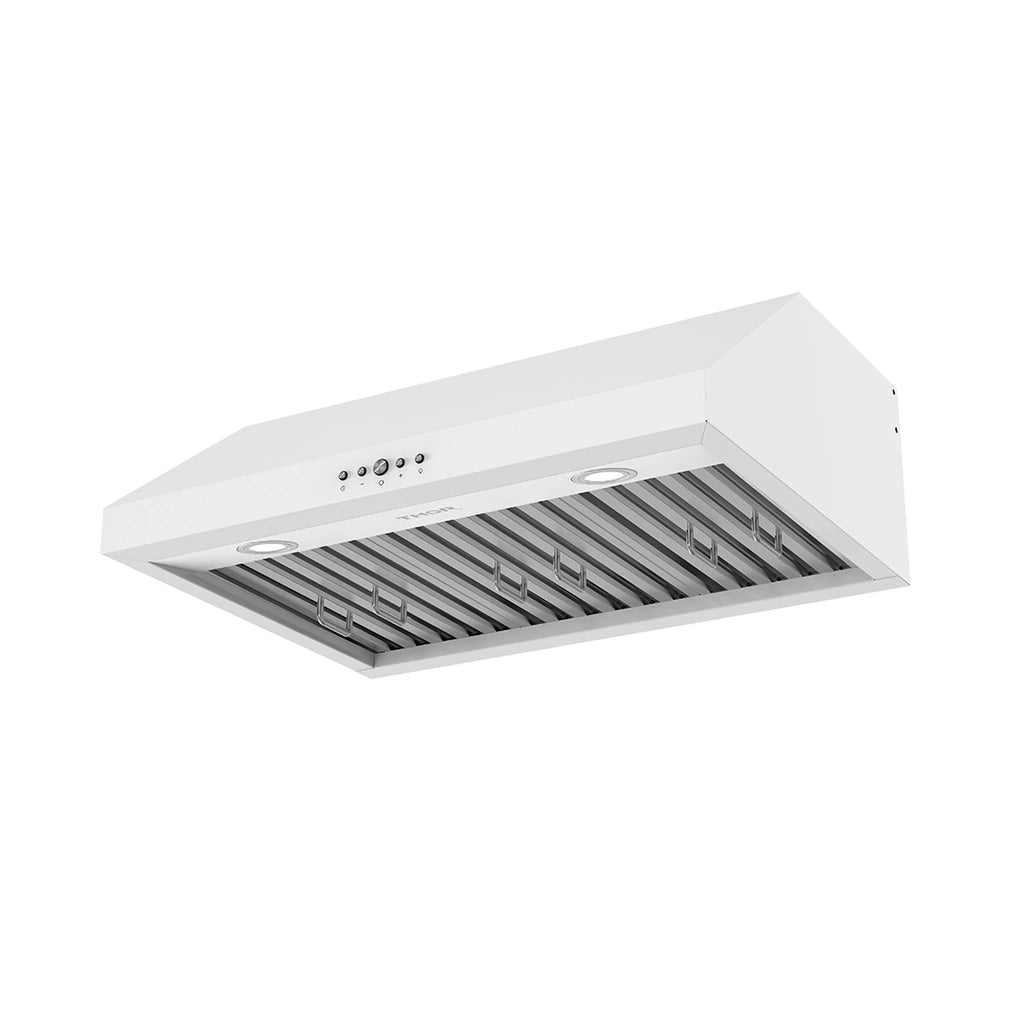

The THOR Kitchen 30 Inch Under Cabinet Range Hood combines dependable performance with everyday convenience. Its durable stainless steel finish offers a sleek, modern look, while 480 CFM of ventilation efficiently manages smoke, steam, and odors, with flexible ducted or ductless installation for easy setup. Three-speed fan settings adjust airflow for anything from light simmering to intensive cooking, and bright LED lights with dishwasher-safe baffle filters keep things clear and easy to clean. With simple push-button controls, this range hood delivers effortless, reliable performance. #IgniteYourCulinaryCreativity
Features
- Durable White Finish: Provides a sleek, modern look that complements any kitchen style while ensuring long-lasting strength and quality.
- Efficient 480 CFM Ventilation: Provides effective airflow to manage everyday cooking smoke, steam, and odors.
- Dual Installation Options (Ducted or Ductless): Convertible ducted or ductless installation for flexible setup.

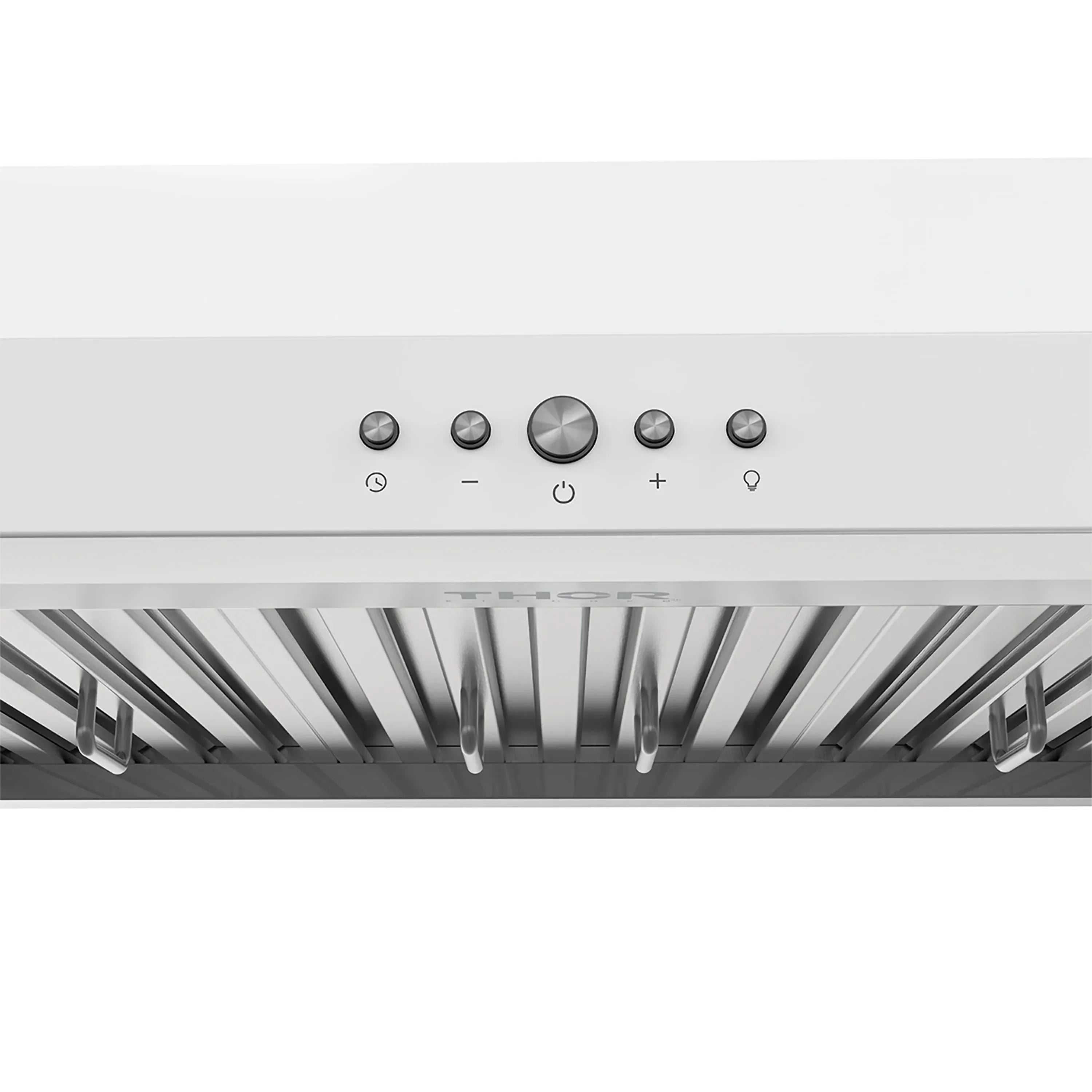

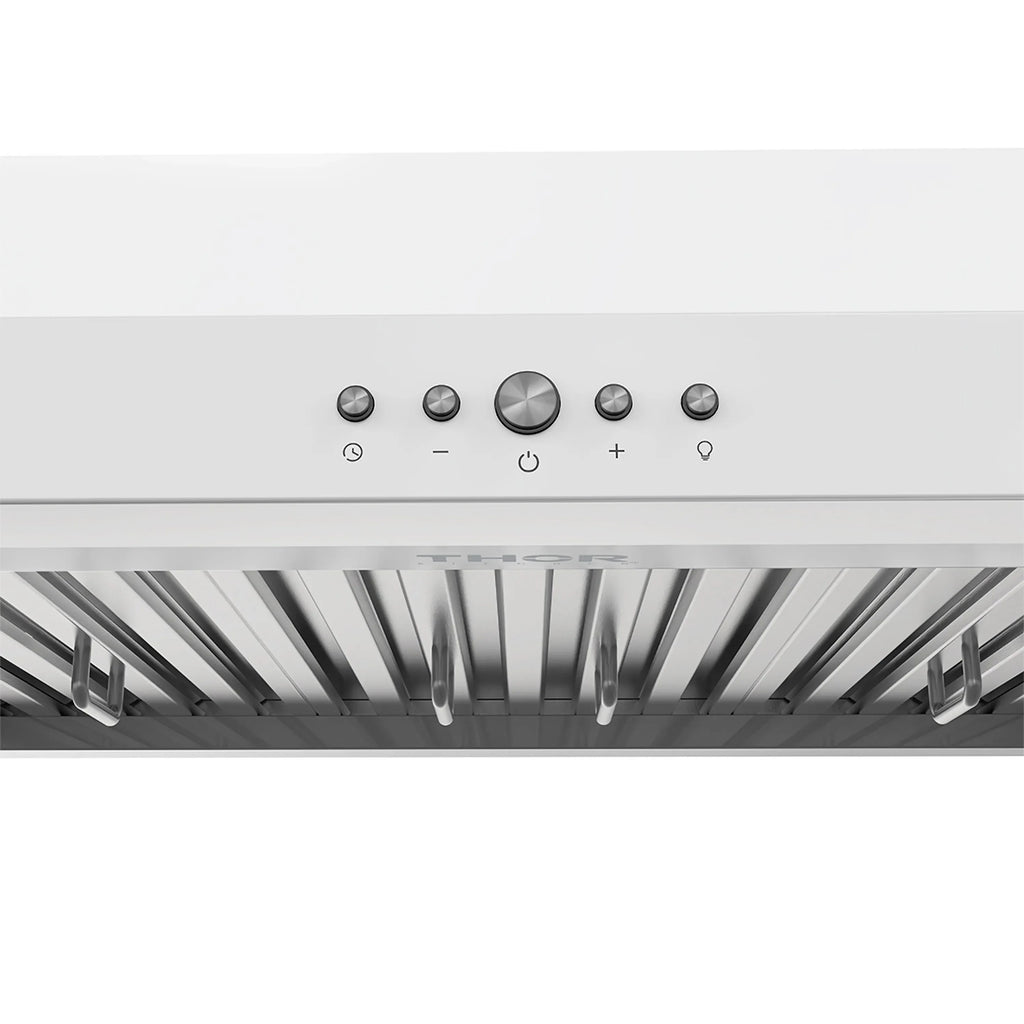

- Easy Push Button Controls: Simple mechanical buttons for hassle-free operation.

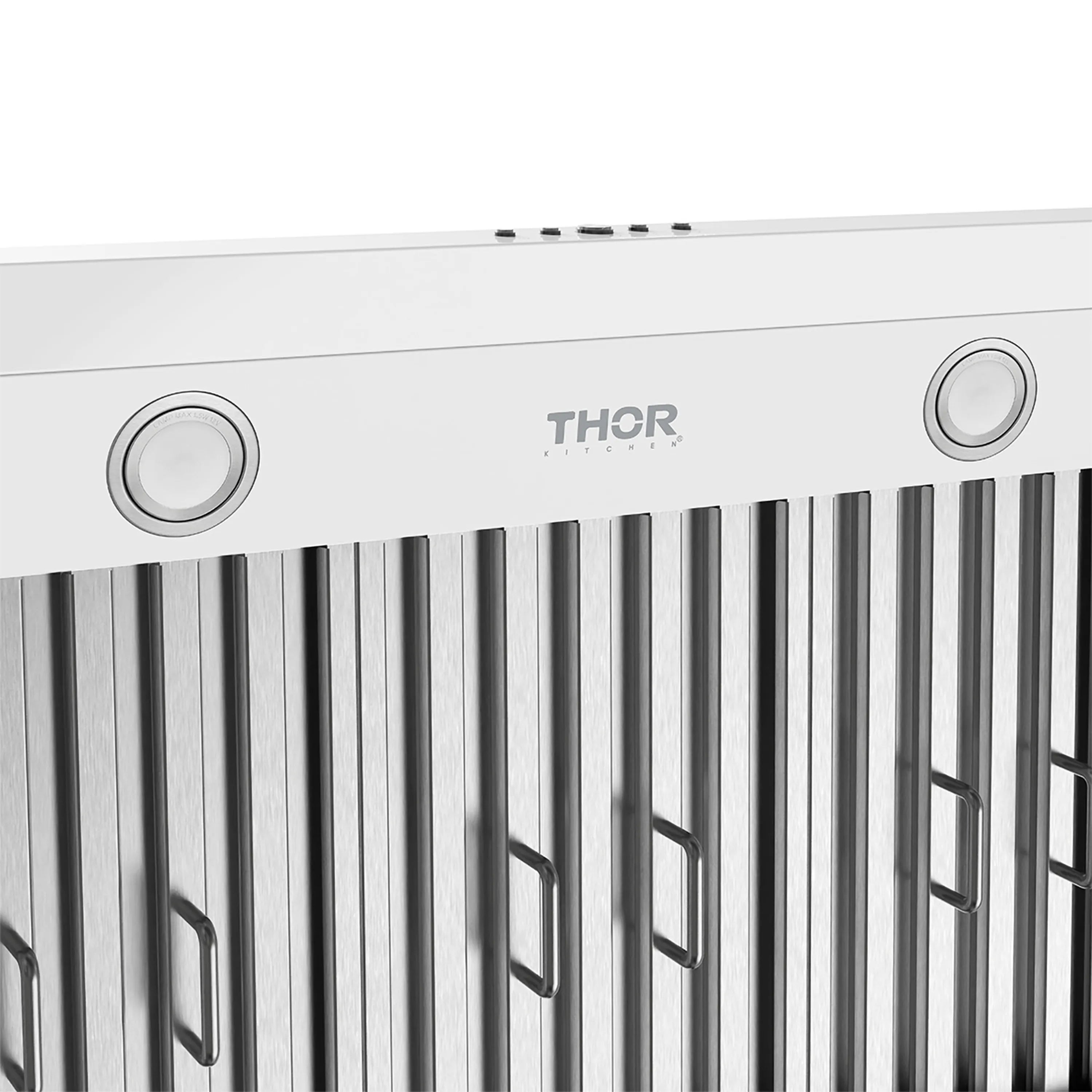

- Bright, Energy-Saving LED Lights: Illuminates the cooking surface clearly while minimizing energy use.
- Dishwasher-Safe Baffle Filters: Removable filters (three included) trap grease and are easy to clean for long-lasting performance.
- Three-Speed Fan Settings: Adjustable airflow to suit light simmering or more intensive cooking.
- Delay Shut-Off Function: Runs for 5 minutes after cooking to clear lingering smoke and odors.
- Under-Cabinet Mounting: Fits neatly beneath standard cabinetry for a clean, space-saving installation.
- Product Dimensions
- 29-3/4" W x 22-1/16" D x 10-1/2" H
- Cutout Dimensions
- 29-15/16" W x 22-1/4" D x 10-11/16" H
- Minimum Distance Above Gas / Electric
- 30" / 28"
- Net Weight
- 48.2 lbs.
- Gross Weight
- 55.3 lbs.
- Package Dimensions
- 32-11/16" W x 16-1/8" D x 26" H
- Brand
- THOR Kitchen
- Model
- TUH3048W
- Product Type
- Under-Cabinet Range Hood
- Mounting Type
- Undercabinet
- Airflow
- 480 CFM (max)
- Ducted / Recirculating Convertible
- Yes
- Finish
- White
- Filter Type
- Baffle Filter
- Filter Qty
- 3
- Lighting
- 2 x 1.5W Warm White LED

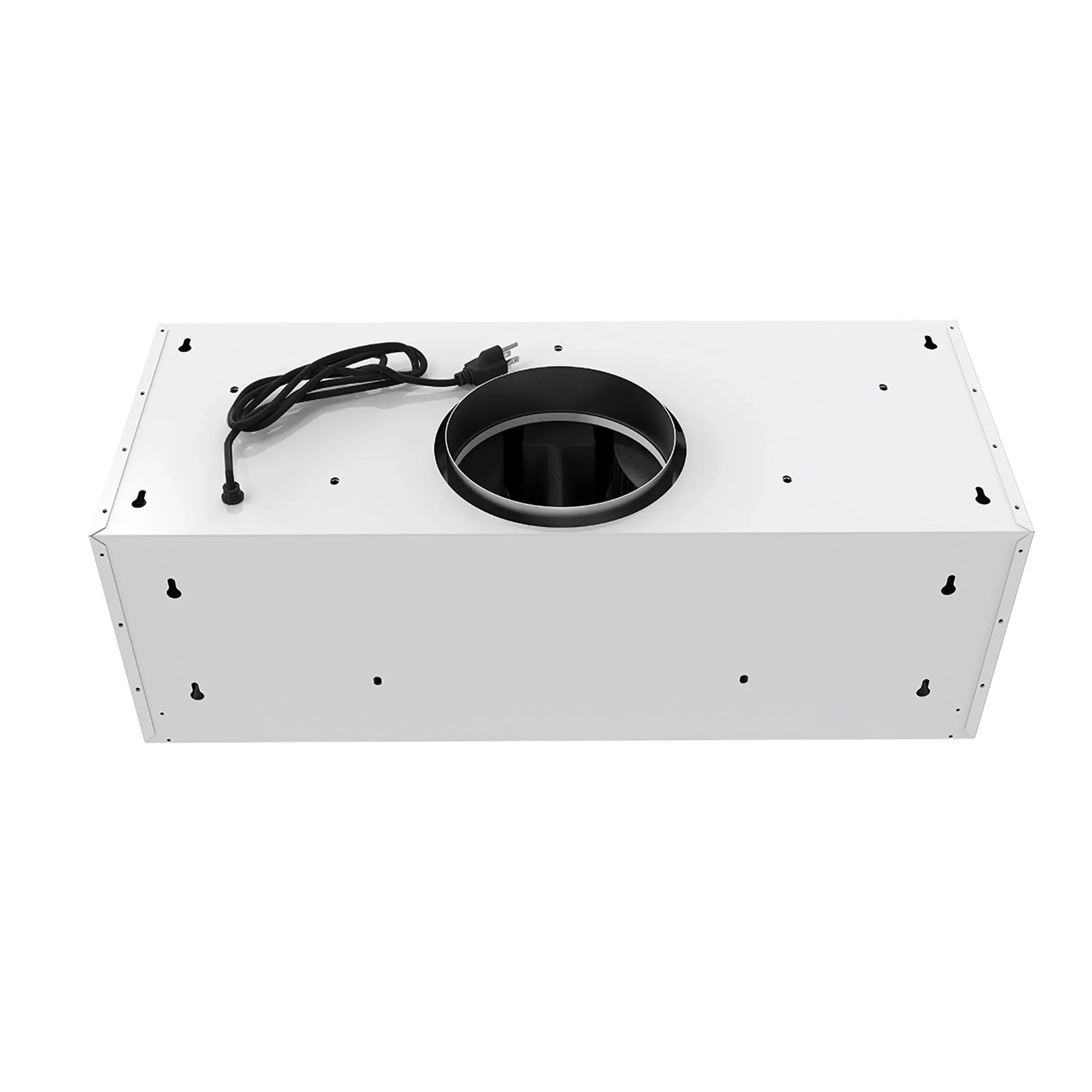

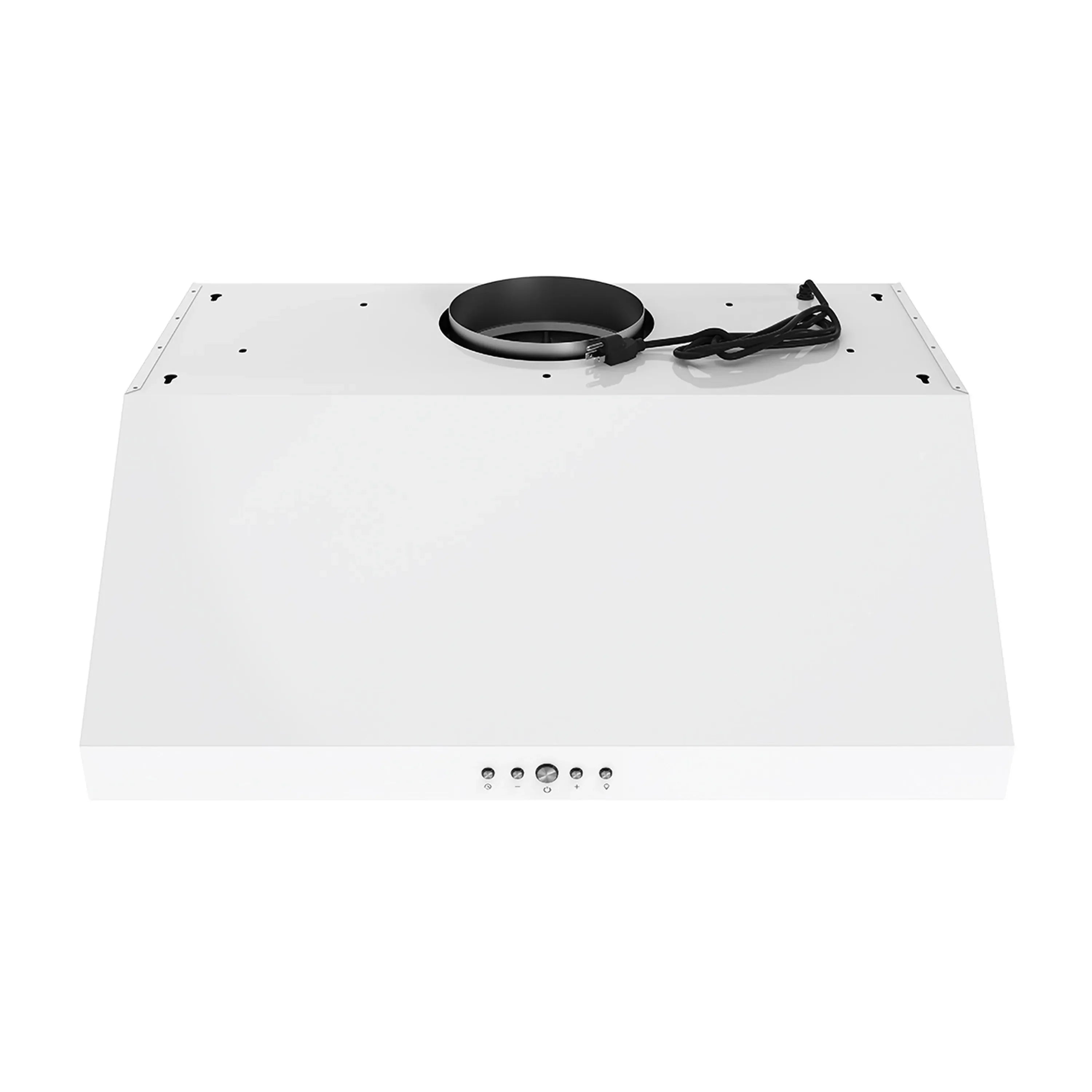

- Duct Size
- 7-11/16"
- Duct Type
- Round
- Watts
- 263W
- Amperage
- 15A (Dedicated)
- Volts
- 120V
- Frequency
- 60Hz
- Plug Type
- US 3-Prong Plug
- Power Cord Length
- 39-3/8"
- Number of Speeds
- 3
- CFM (Low / Medium / High)
- Low: 323 CFM
- Medium: 367 CFM
- High: 480 CFM
- Noise Rating (Low / Medium / High)
- Low: 58 dB
- Medium: 61 dB
- High: 64 dB
- Control Type
- Push Button
- Delay Function
- Yes (5 mins)
- Installation
- Ducted or Ductless (Convertible)
- Dishwasher-Safe Baffle Filters
- Yes
- Accessories Included
- Mounting Brackets
- Round Damper
- Warranty
- Two Years Parts and Labor
