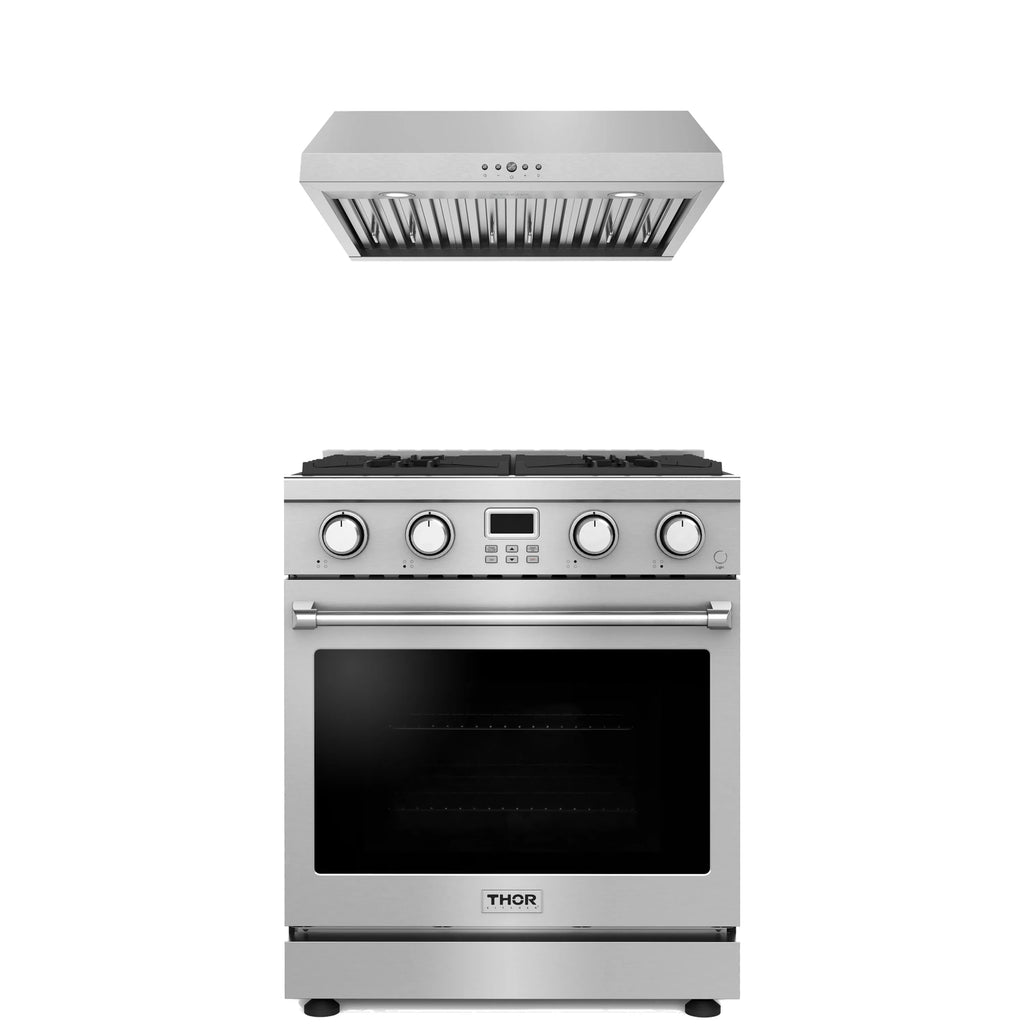

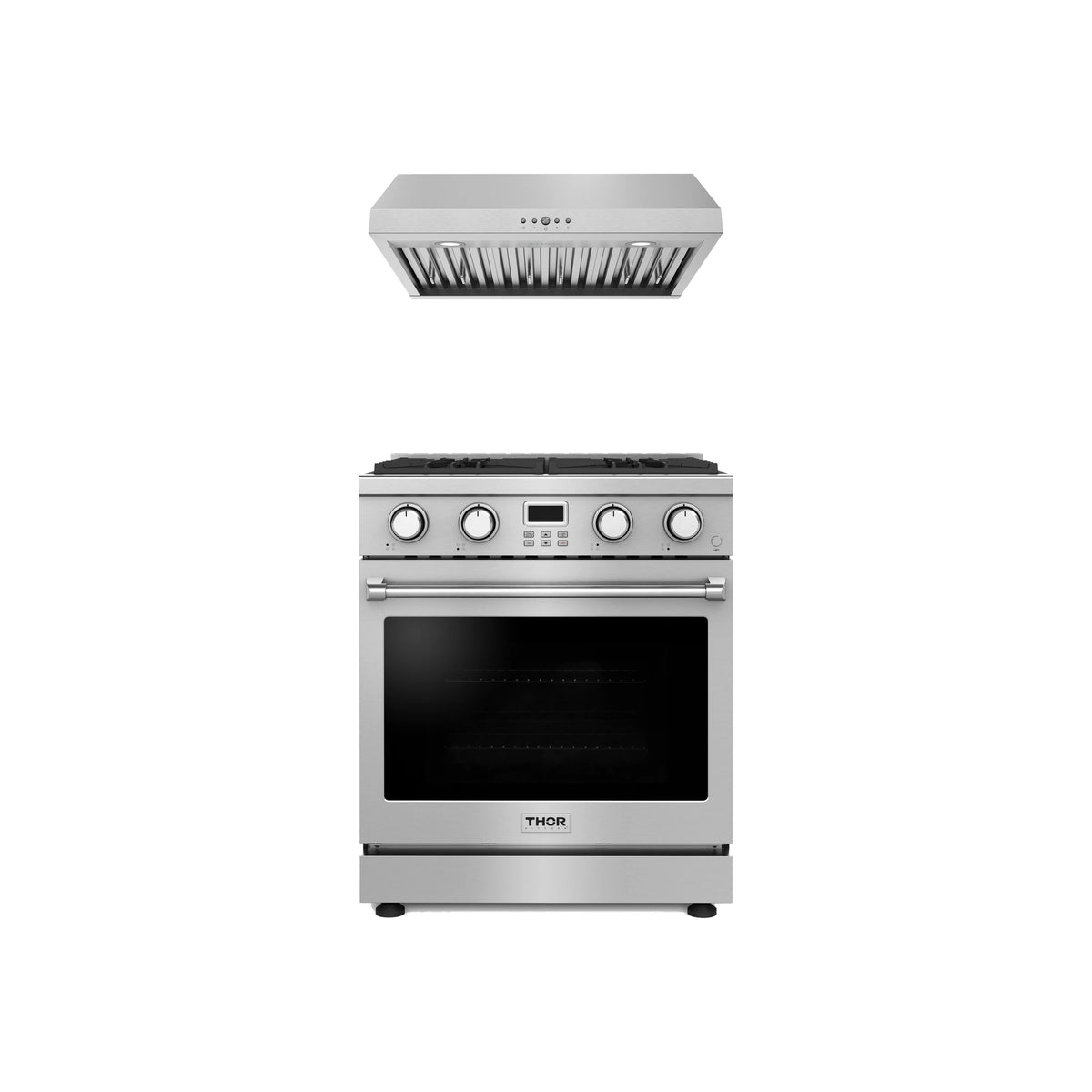

What's in this package
Every piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

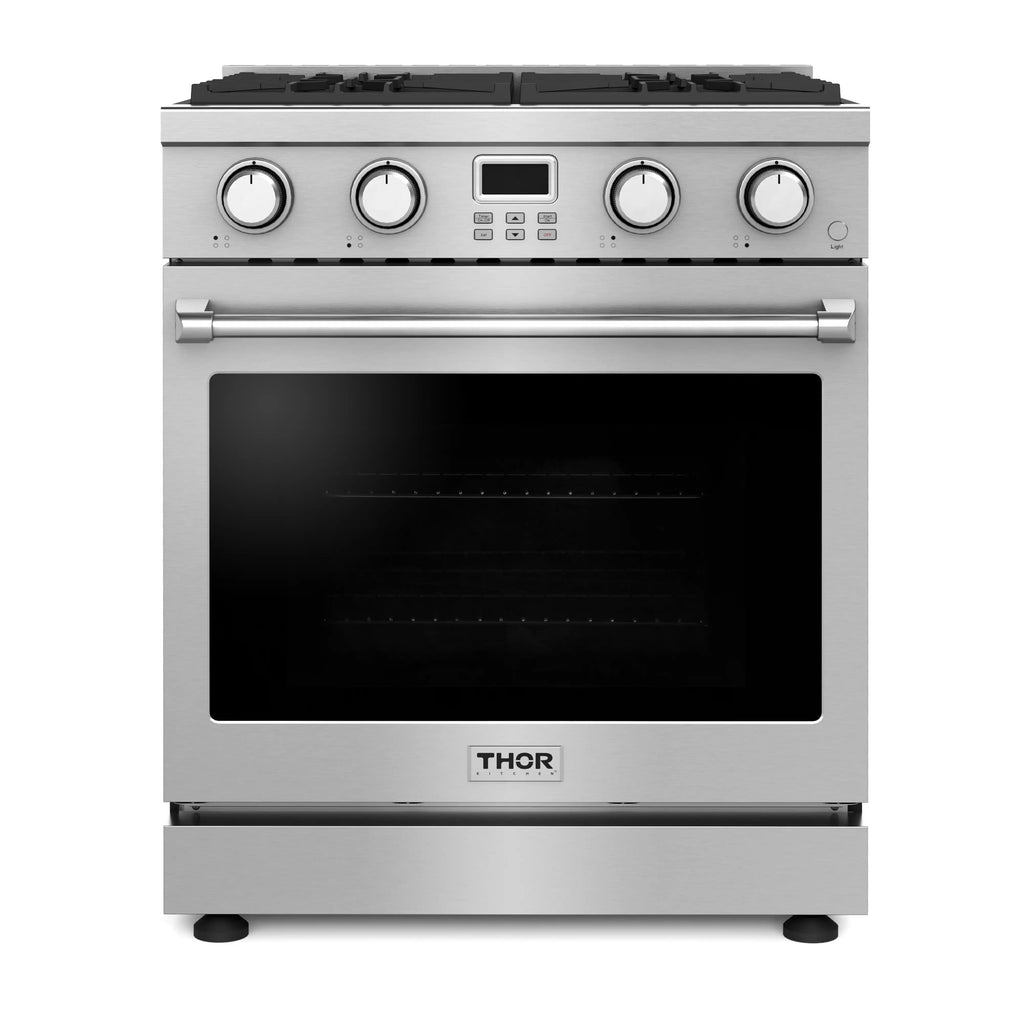

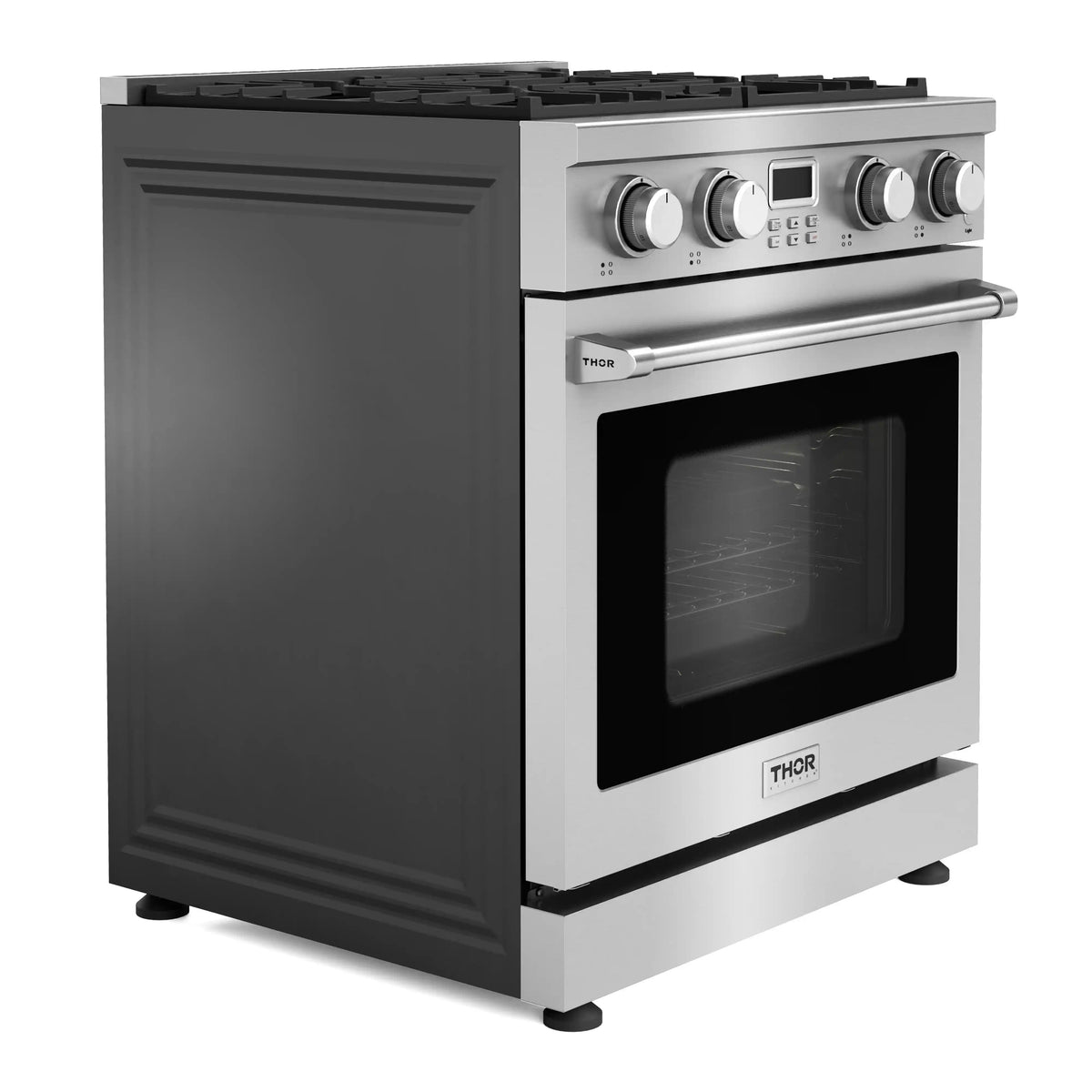

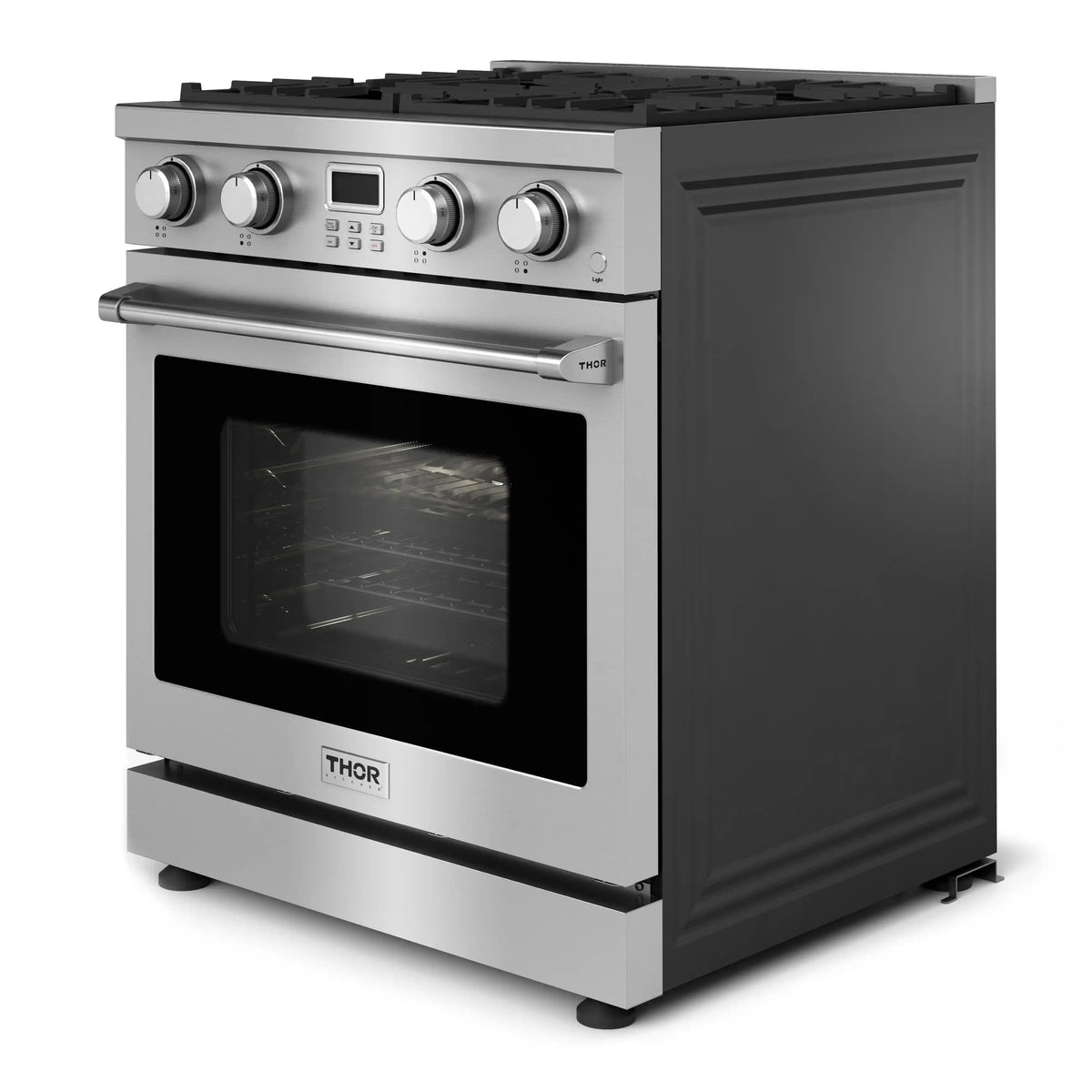

Features

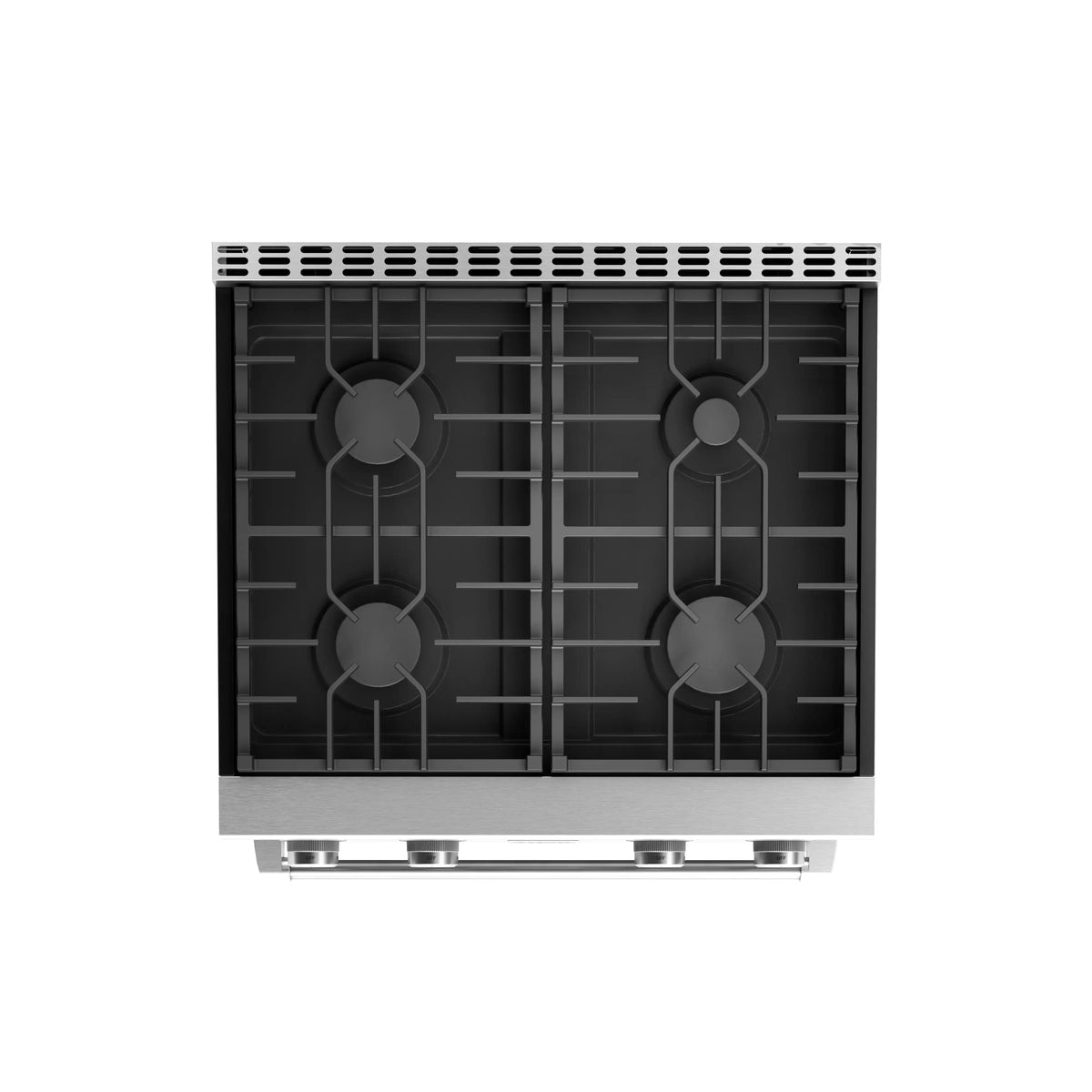

- Four Sealed Burners -From a high-powered 18,000 BTU burner to a steady 3,500 BTU burner, this range gives you the power you need for large family meals.
- Large Oven Capacity - 4.8 cu. ft. oven capacity can accommodate multiple dishes for enhanced cooking.
- One-Piece Porcelain Spill Tray - One-Piece porcelain spill tray on cooktop catches the mess and makes cleanup easy
- LED Display Screen - LED display screen, oven function button operation.
- Convection Fan - Convection fan provides controlled heat distribution for fast and efficient cooking.
- 2 Years Parts and Labor Warranty
Want to learn more about Thor?
- Product Width
- 29 7/8 in.
- Product Height (from bottom to top of back splash)
- 36 in.
- Product Height (from bottom to top of side panel)
- 34 3/4 in.
- Product Depth (from back panel to bullnose)
- 27 in.
- Product Depth (from back panel to control board)
- 26 3/8 in.
- Product Depth (from back panel to side panel front)
- 24 1/8 in.
- Adjustable Leg Sizes
- 3 in. Max.
- Cut Out Dimensions
- 30" W x 24" D x 36" H
- Cord Length
- 60 in.
- Oven (W x D x H)
- 23.7 in. x 19.5 in. x 18 in.
- Baking Sheet Size
- Fits up to 22" x 14" Sheet
- Accessories Included
- 2 Oven Racks
- 1 Broiler Pan
- 1 Bake Pan
- Accessories (Sold Separately)
- LP KIT includes orifices and gas regulator caps
- Color
- Silver
- Finish
- Stainless Steel
- Control Type
- Oven Function Button + LED Panel Display
- Fuel Type
- Gas, LP Option Available
- Installation Type
- Freestanding
- Voltage
- 120V 15A
- Frequency(Hz)
- 60Hz
- Gas Line Regulator
- 1/2 in.
- Plug Type
- 3 Prongs included
- Hot Surface Indicator Light
- Front Right Corner Of Cooktop w/Temp at 150˚F
- Bake Burner Power
- 18,500 BTU
- Broil Burner Power
- 13,500 BTU
- Oven Capacity
- 4.8 Cu. Ft.
- Oven Color
- Black
- Oven Features
- Bake
- Broil
- Conv Bake/Roast
- Pizza
- Keep Warm
- Convection
- Convection Plan

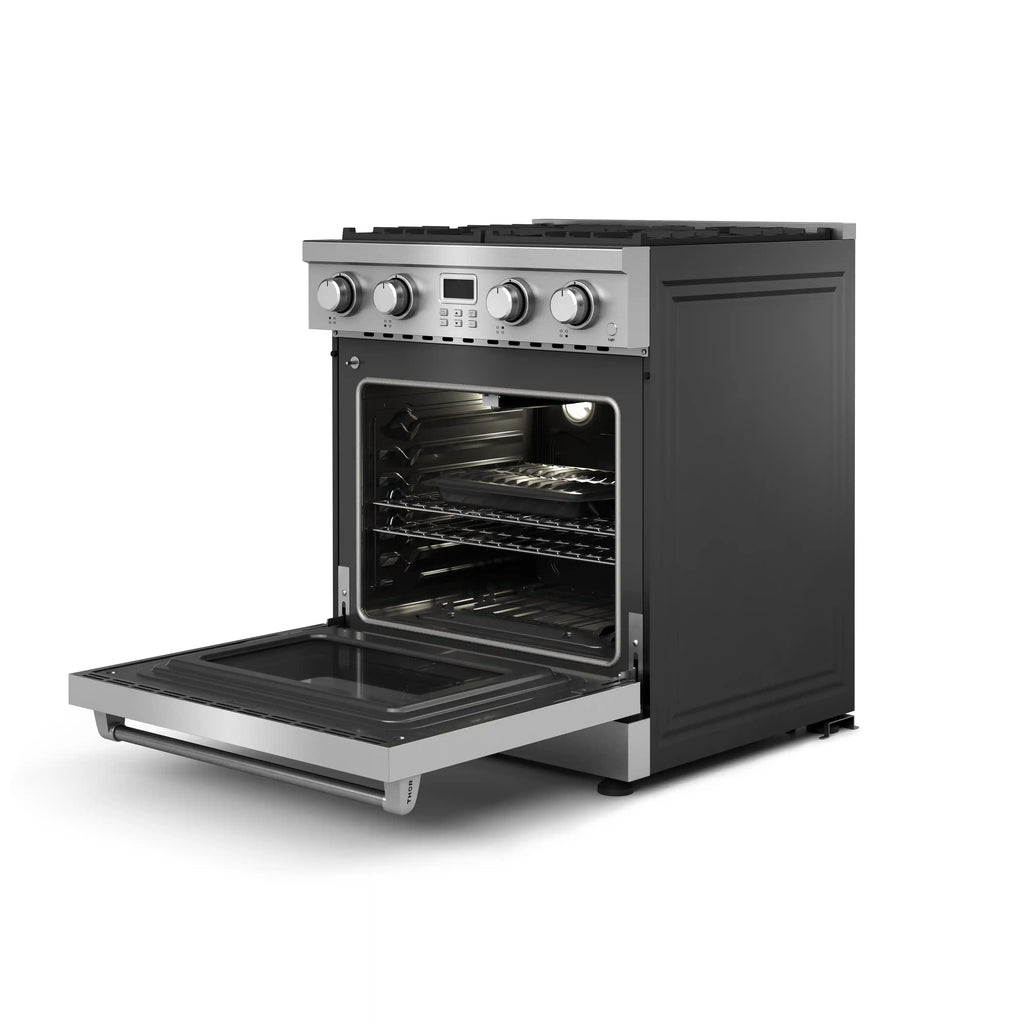

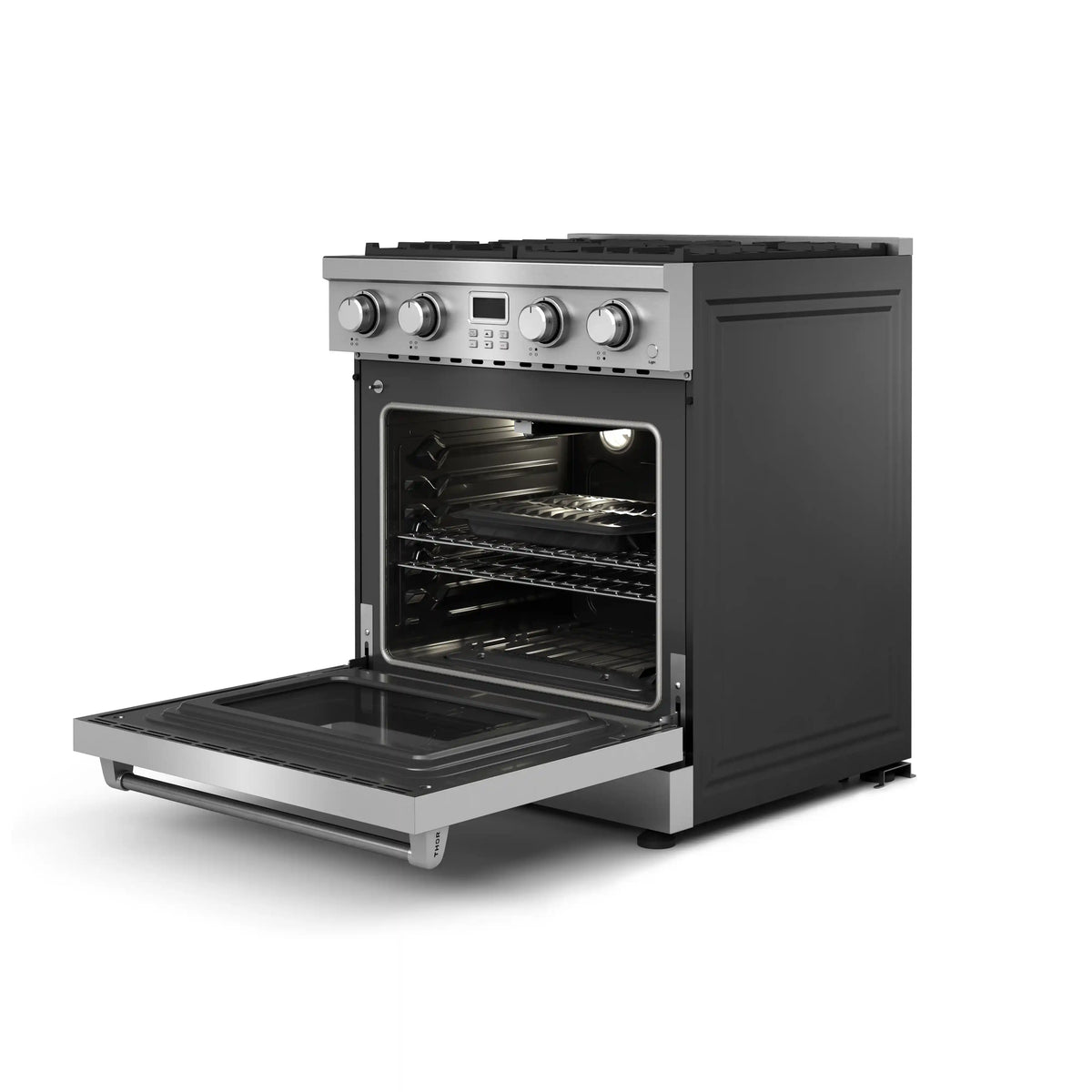

- Oven Light
- 1*40W, Rear

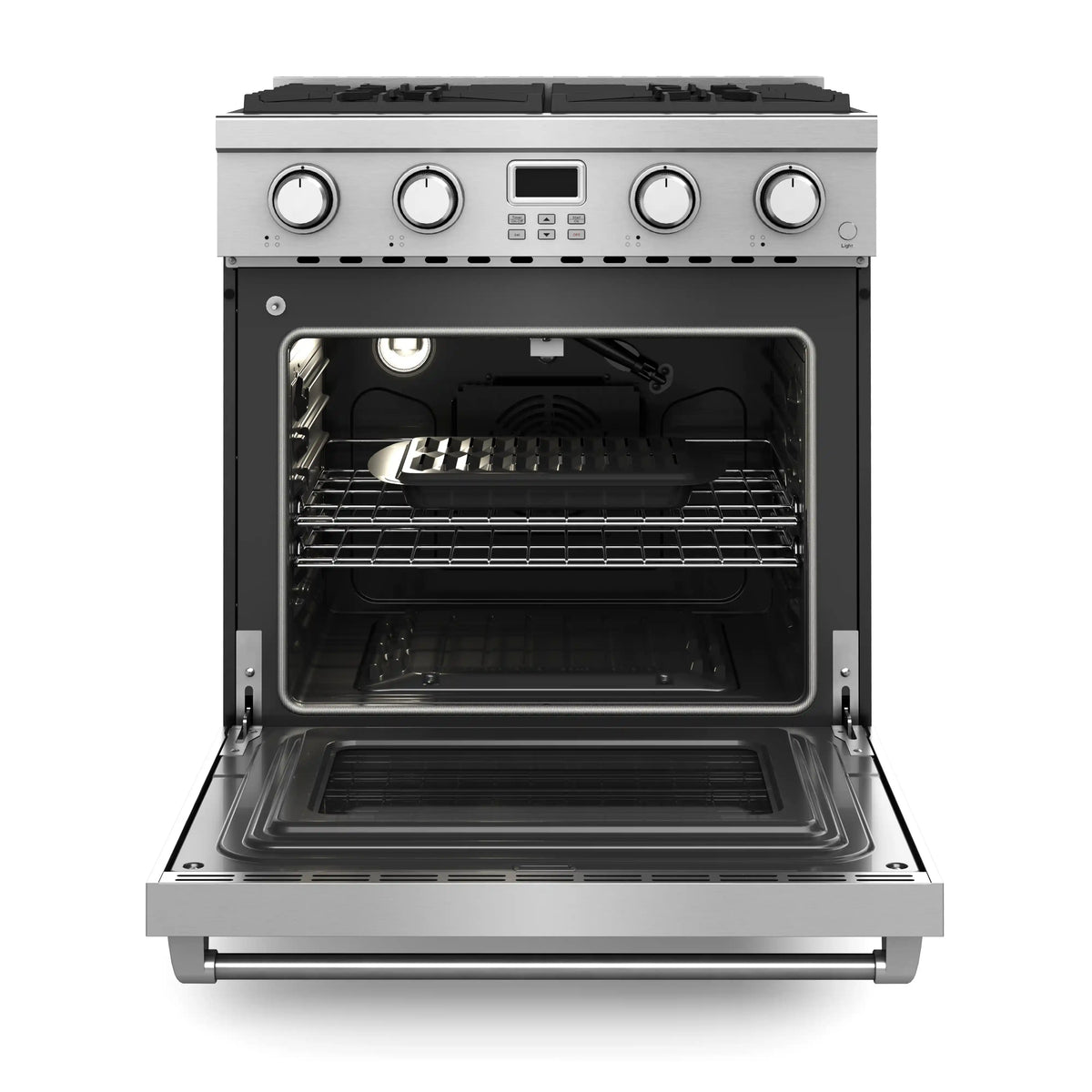

- Oven Racks
- 2
- Rack Positions
- 6
- Oven Rack Material
- Chrome Plated

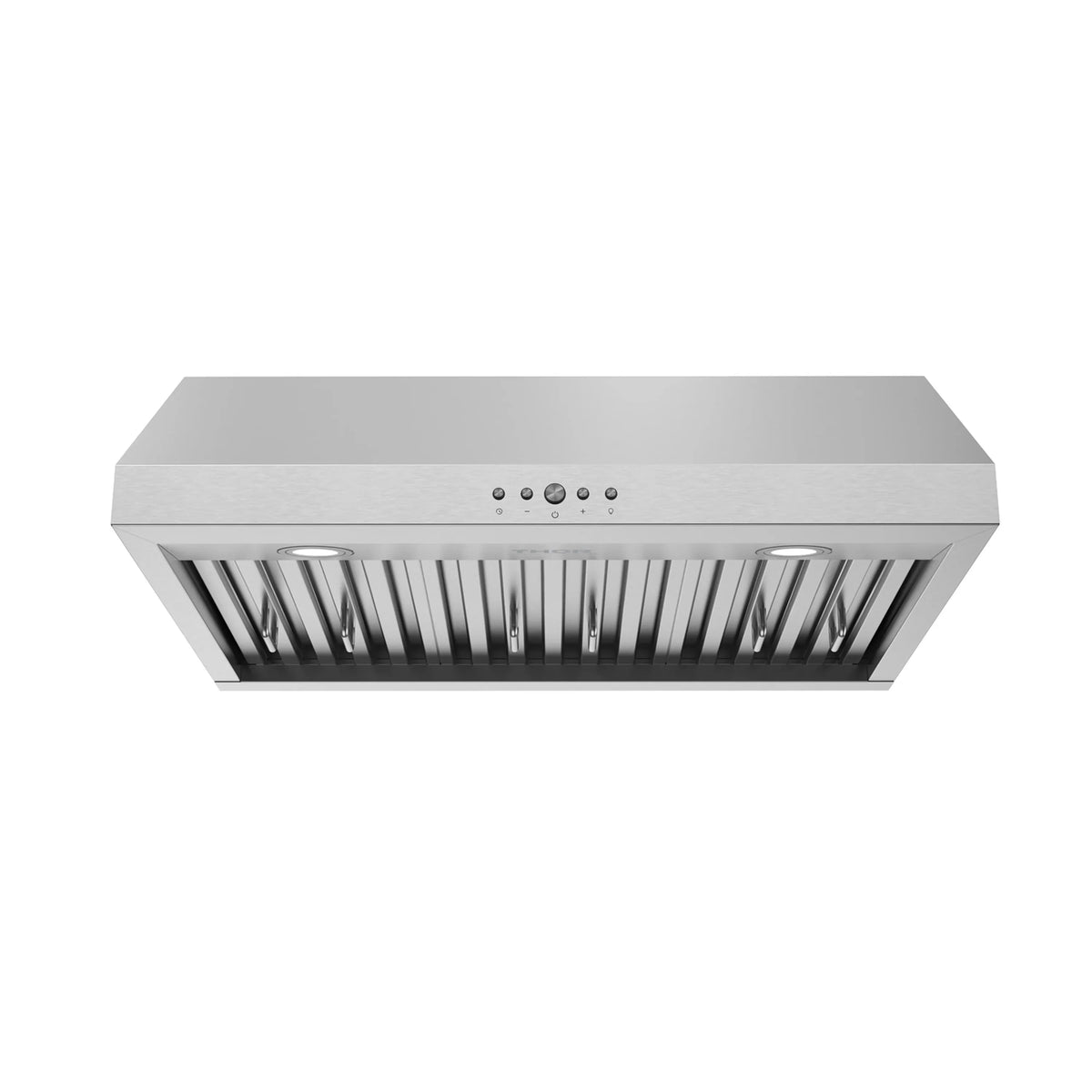

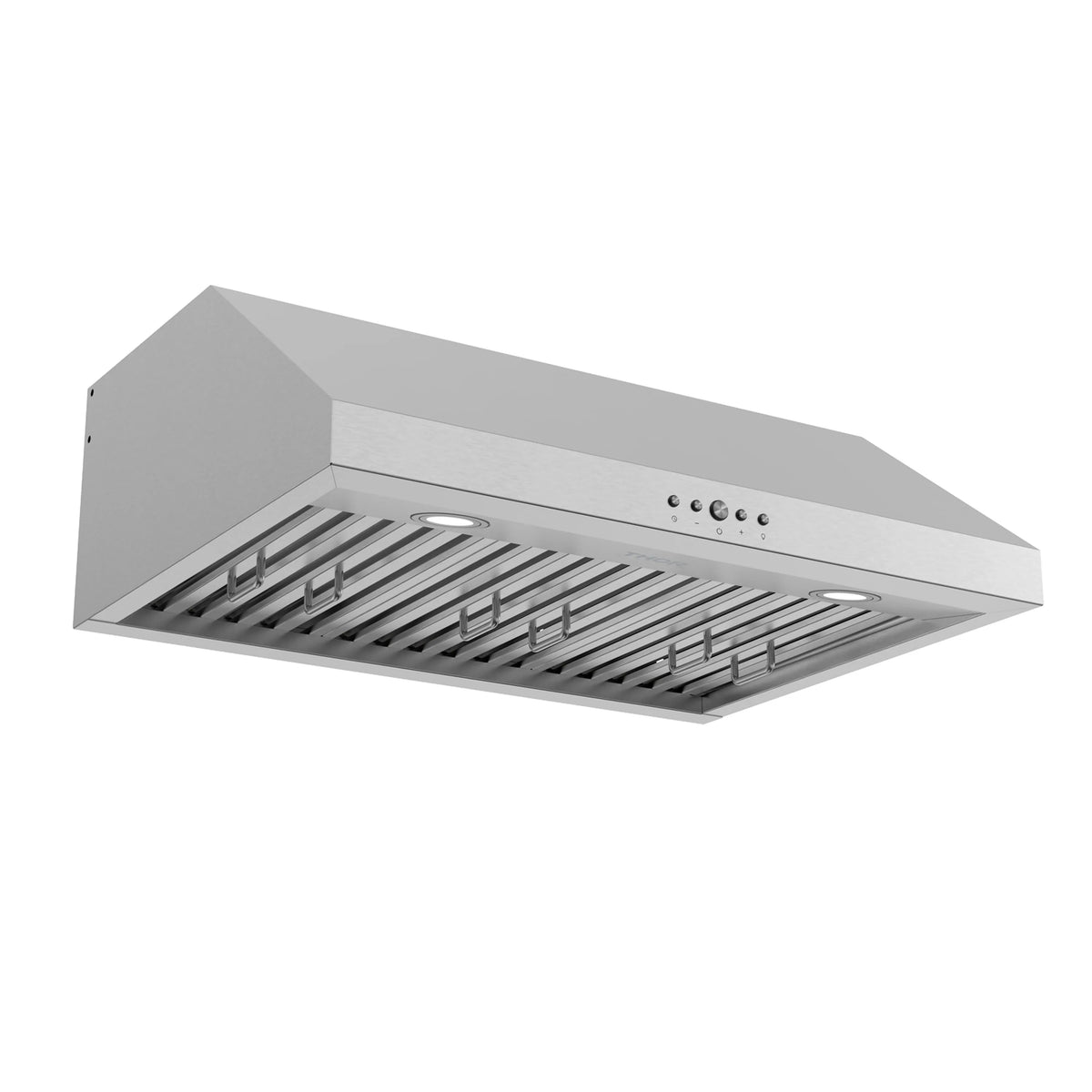

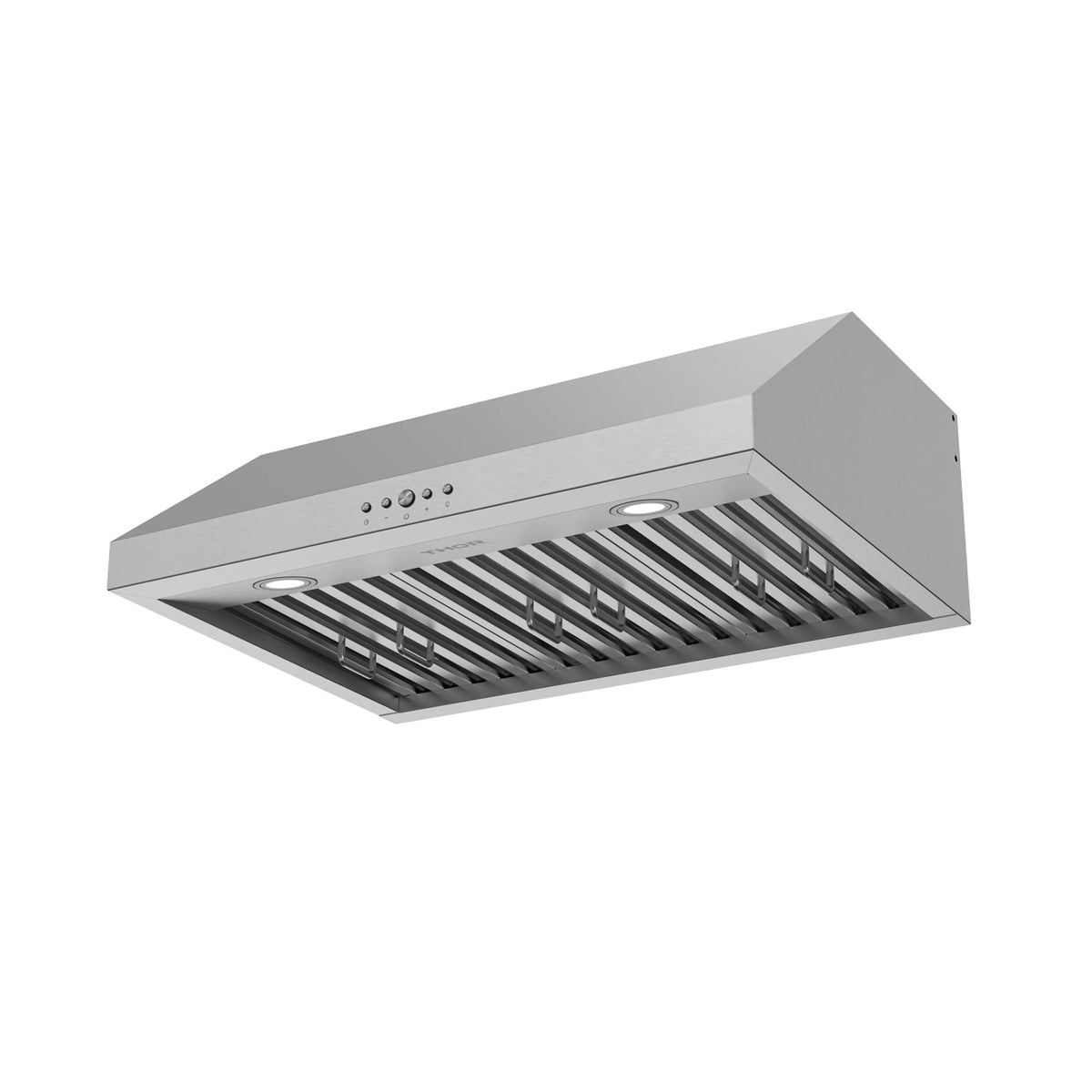

Thor Kitchen 30 Inch Under Mounted Range Hood with powerful 480 CFM ventilation is engineered to elevate your cooking experience with strength, style, and precision. Wrapped in a durable stainless-steel finish, it delivers a sleek, modern look while standing up to the demands of everyday use. The robust 480 CFM airflow efficiently clears smoke, steam, and stubborn odors, while three adjustable fan speeds give you complete control—from gentle simmering to intense searing. Designed for flexibility, this convertible unit supports both ducted and ductless installation to seamlessly fit your space. Easy push button controls ensure simple, dependable operation, and bright, energy-saving LED lights illuminate your cooktop with crisp clarity. Complete with dishwasher-safe baffle filters for effortless grease removal and long-lasting performance, this range hood empowers you to cook boldly and bring professional performance into the heart of your home. #IgniteYourCulinaryCreativity
Features
- Durable Stainless Steel Finish: Provides a sleek, modern look that complements any kitchen style while ensuring long-lasting strength and quality.
- Efficient 480 CFM Ventilation: Provides effective airflow to manage everyday cooking smoke, steam, and odors.
- Dual Installation Options (Ducted or Ductless): Convertible ducted or ductless installation for flexible setup.

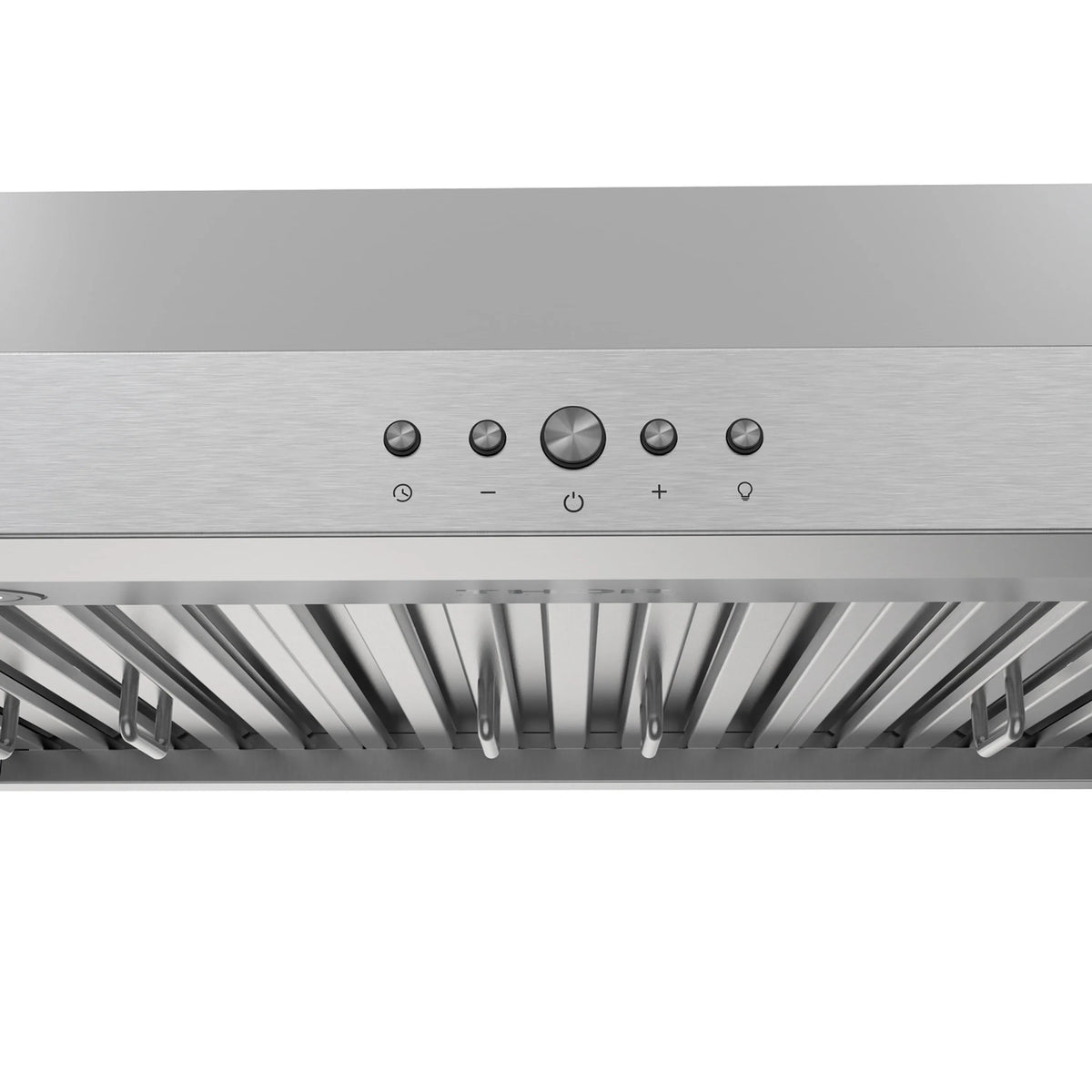

- Easy Push Button Controls: Simple mechanical buttons for hassle-free operation.

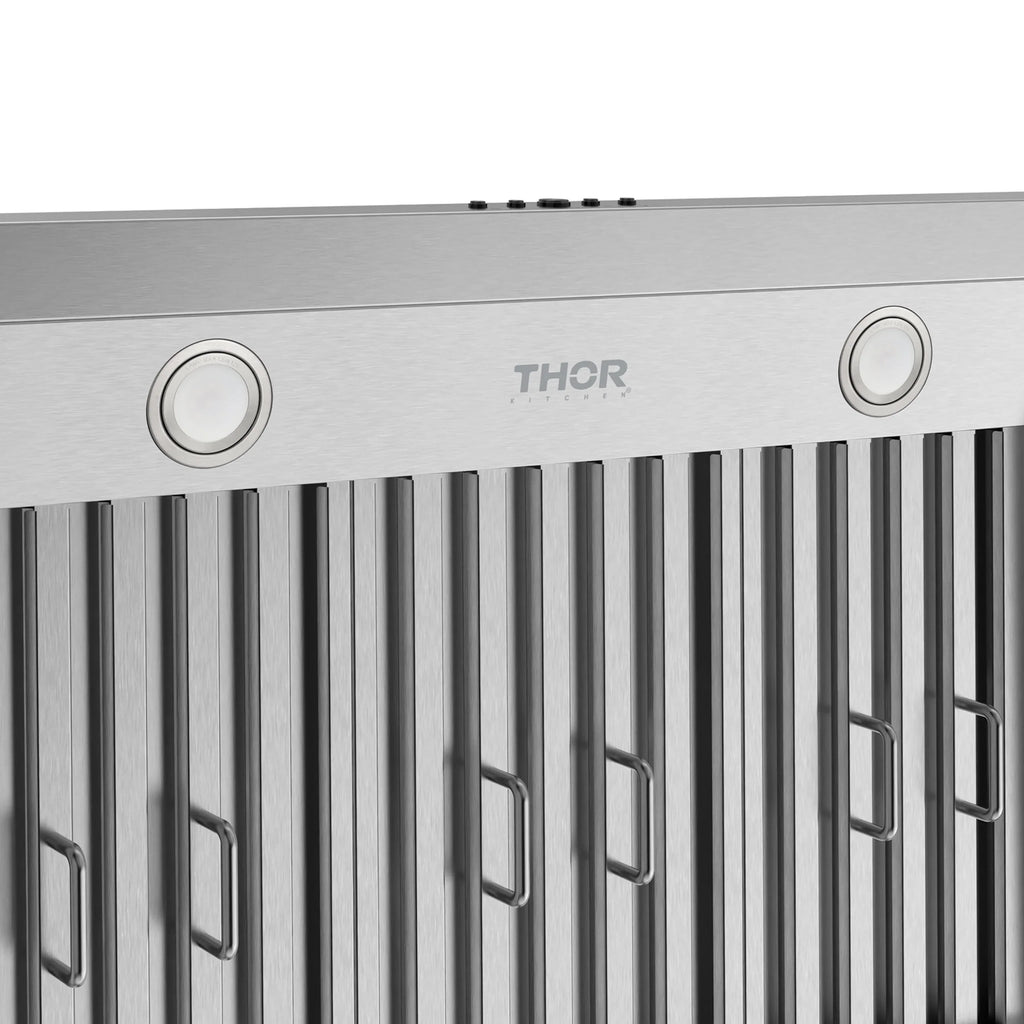

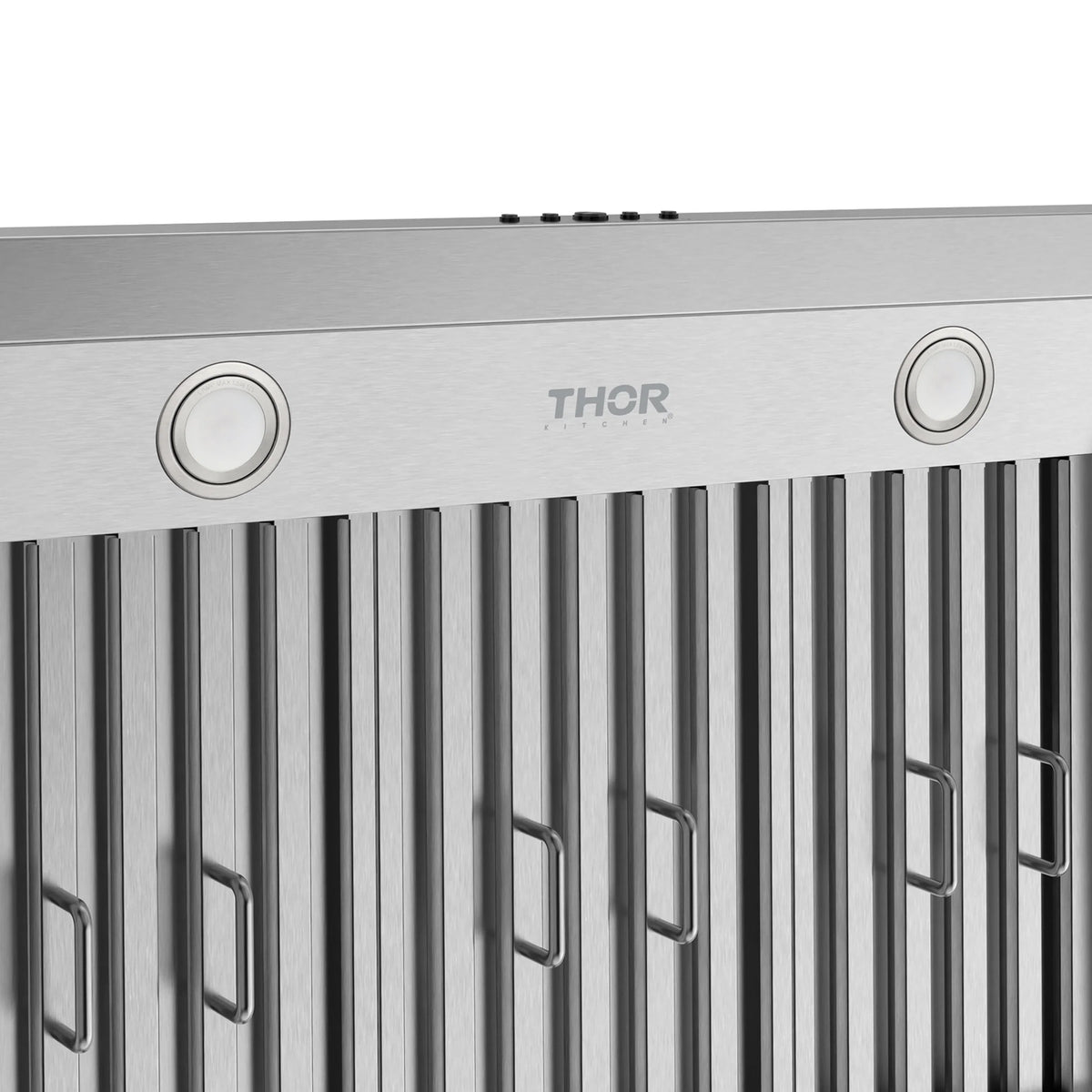

- Bright, Energy-Saving LED Lights: Illuminates the cooking surface clearly while minimizing energy use.
- Dishwasher-safe Baffle Filters: Removable filters trap grease and are easy to clean for long-lasting performance.
- Three-Speed Fan Settings: Adjustable airflow to suit light simmering or more intensive cooking.
- Product Dimensions (W x D x H)
- 29-3/4" x 22-1/16" x 10-1/2"
- Cutout Dimensions (W x D x H)
- 29-15/16" x 22-1/4" x 10-11/16"
- Net Weight (lbs.)
- 48.2
- Gross Weight (lbs.)
- 55.3
- Package Dimensions (W x D x H)
- 32-11/16" x 16-1/8" x 26"
- Model Number
- TUH3048
- Control Type
- Button
- Product
- 30 Inch Under Mounted Range Hood with 480 CFM
- Number of Speeds
- 3
- CFM at Low / Medium / High
- 323 / 367 / 480
- Noise Level
- 3
- Noise Rating at Low / Medium / High
- 58dB / 61dB / 64dB
- Ducted / Recirculating Convertible
- Yes

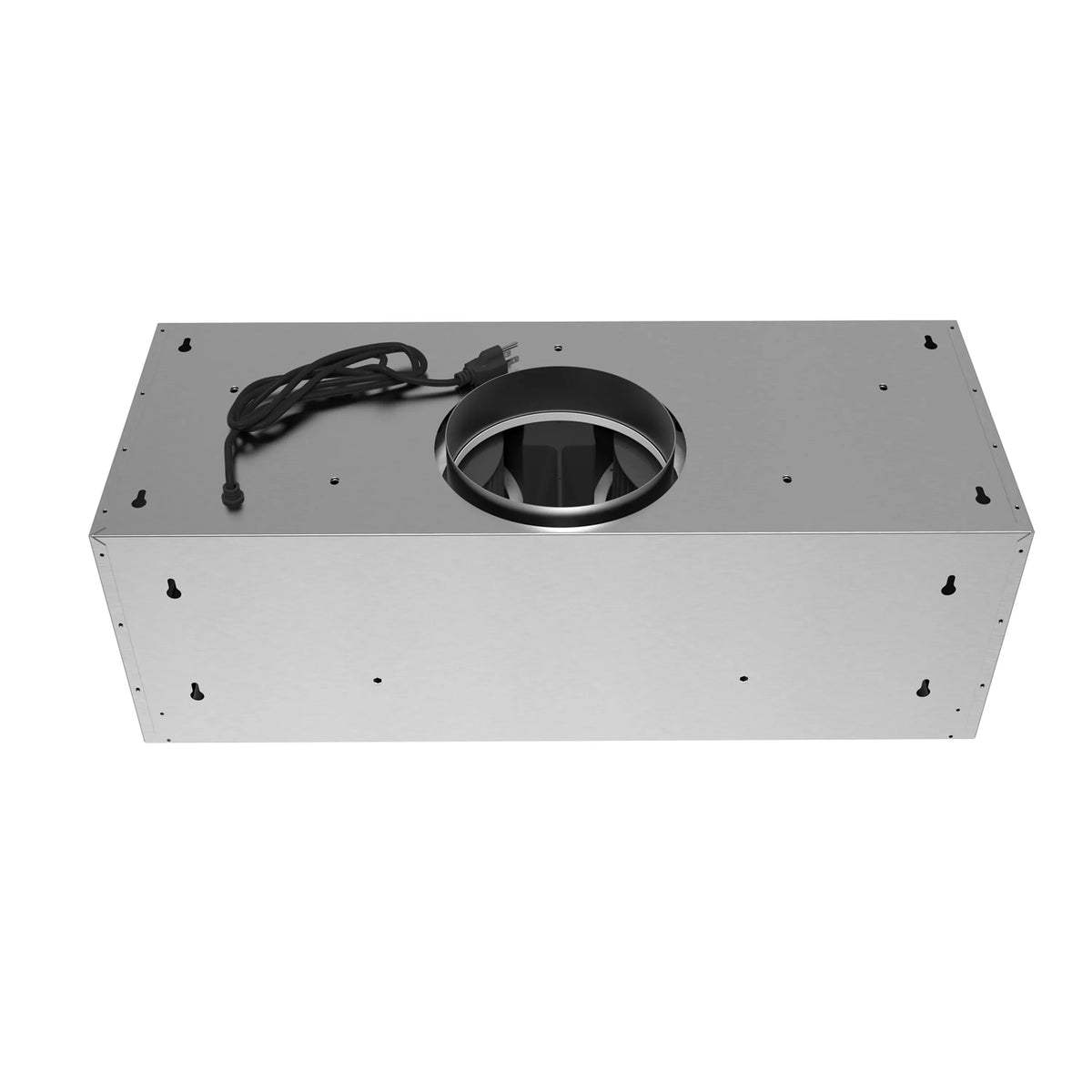

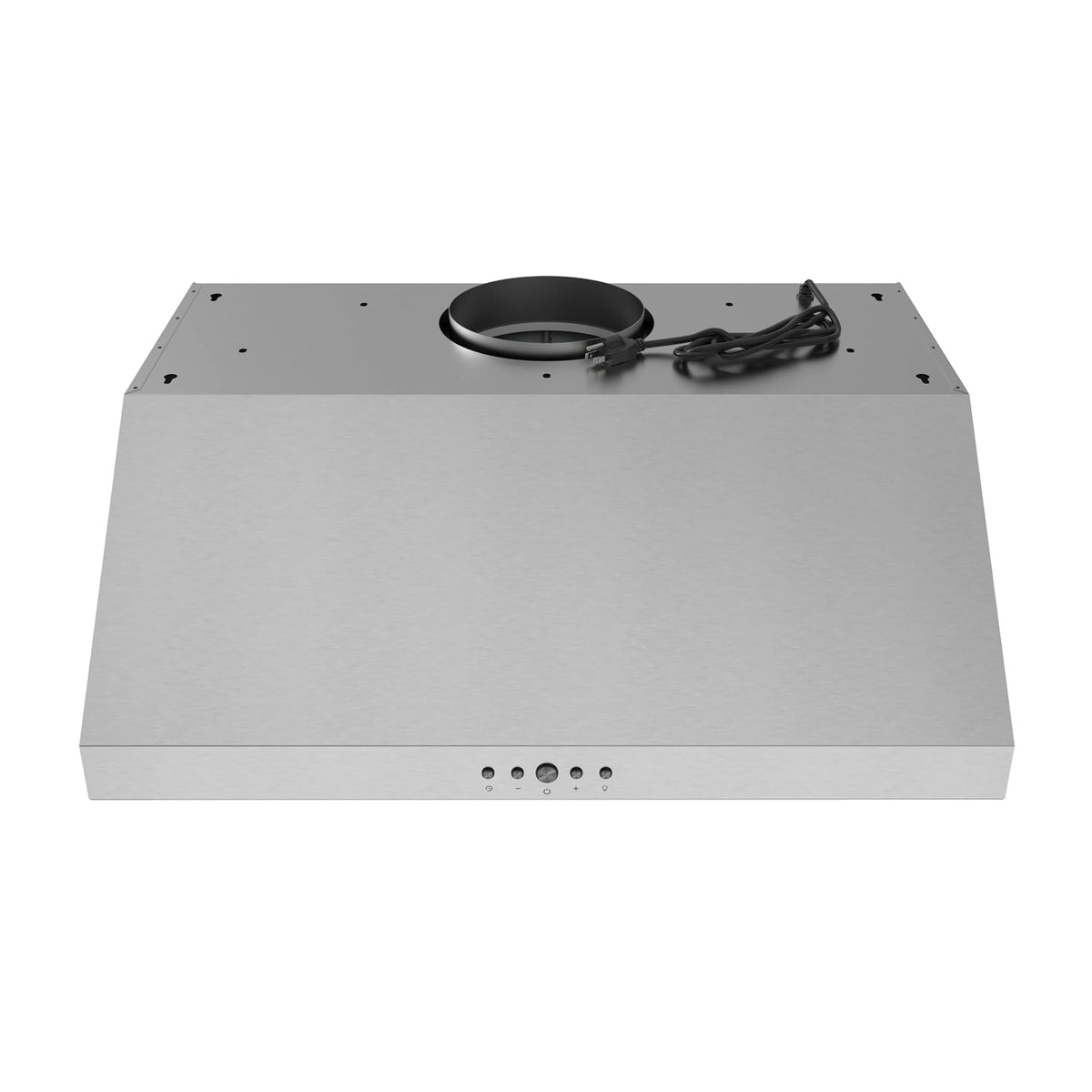

- Duct Size
- 7-11/16"
- Duct Type
- Round
- Shape / Style
- Canopy Pro Style
- Mounting Type
- Undercabinet
- Watts (W)
- 263W
- Amperage (Dedicated)
- 15A
- Volts (V)
- 120V
- Frequency (Hz)
- 60Hz
- Plug Type
- US 3-Prong Plug
- Power Cord Length
- 39-3/8"
- Filter Type
- Baffle Filter
- Filter Qty
- 3

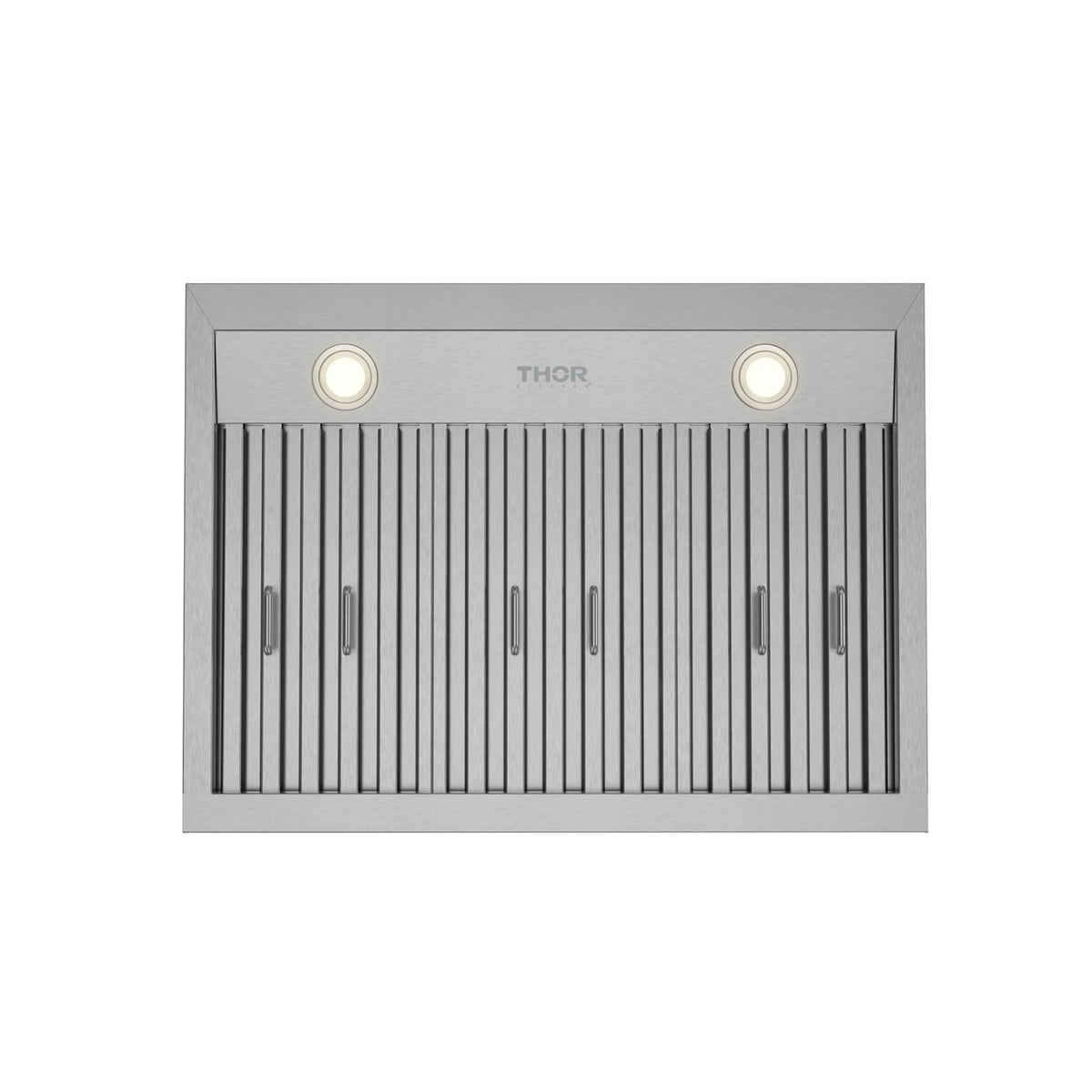

- Lighting
- 2 × 1.5W Warm White LED
- Delay Function
- Yes (5 mins)
- Minimum Distance Above Gas / Electric Cooking Surface
- 30"
- 28"
