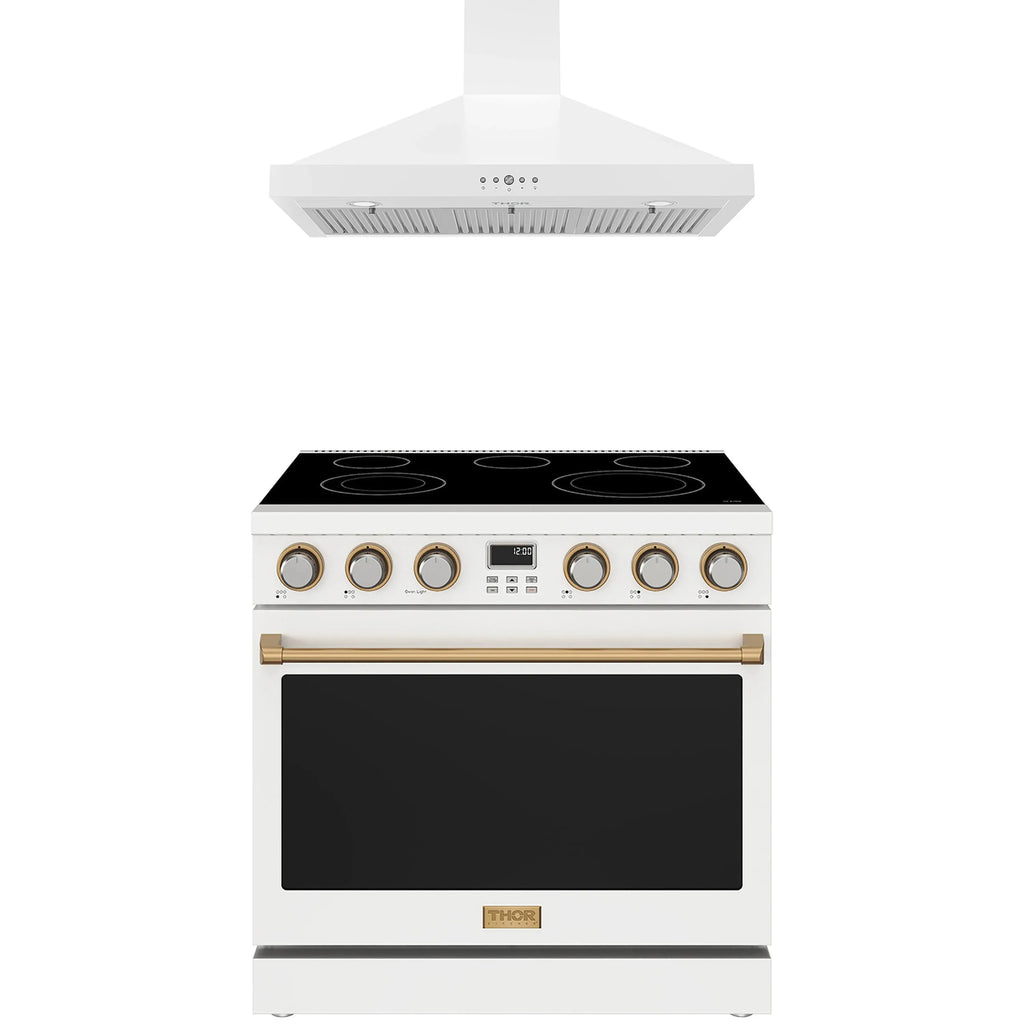

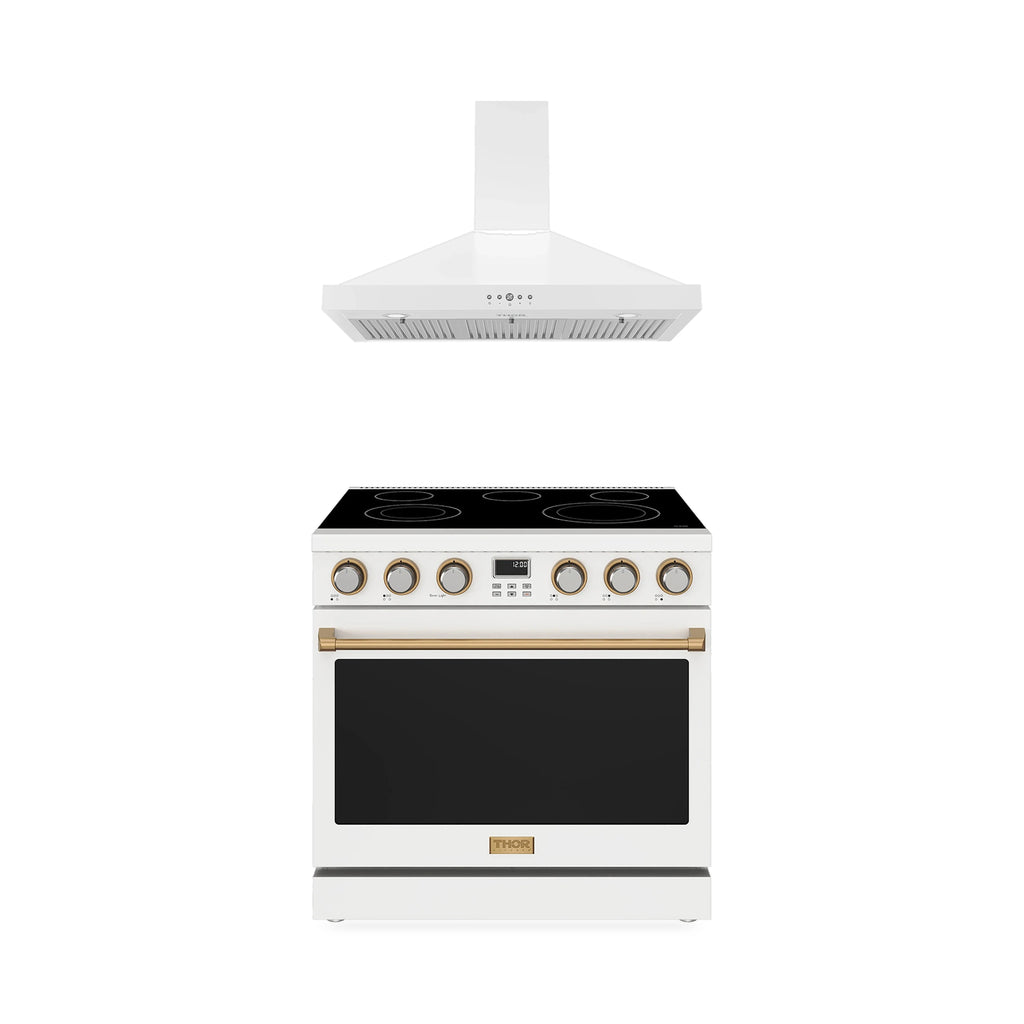

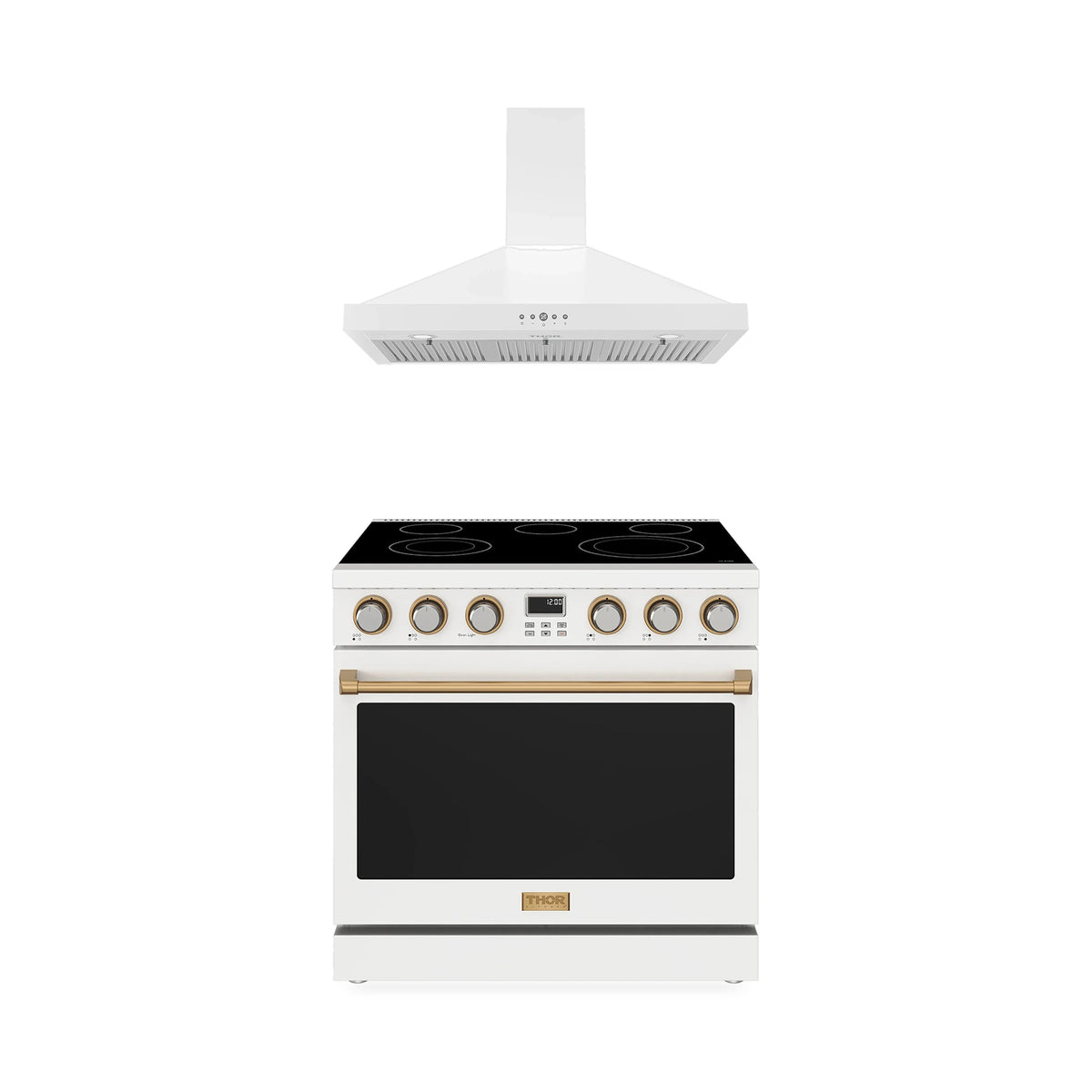

What's in this package

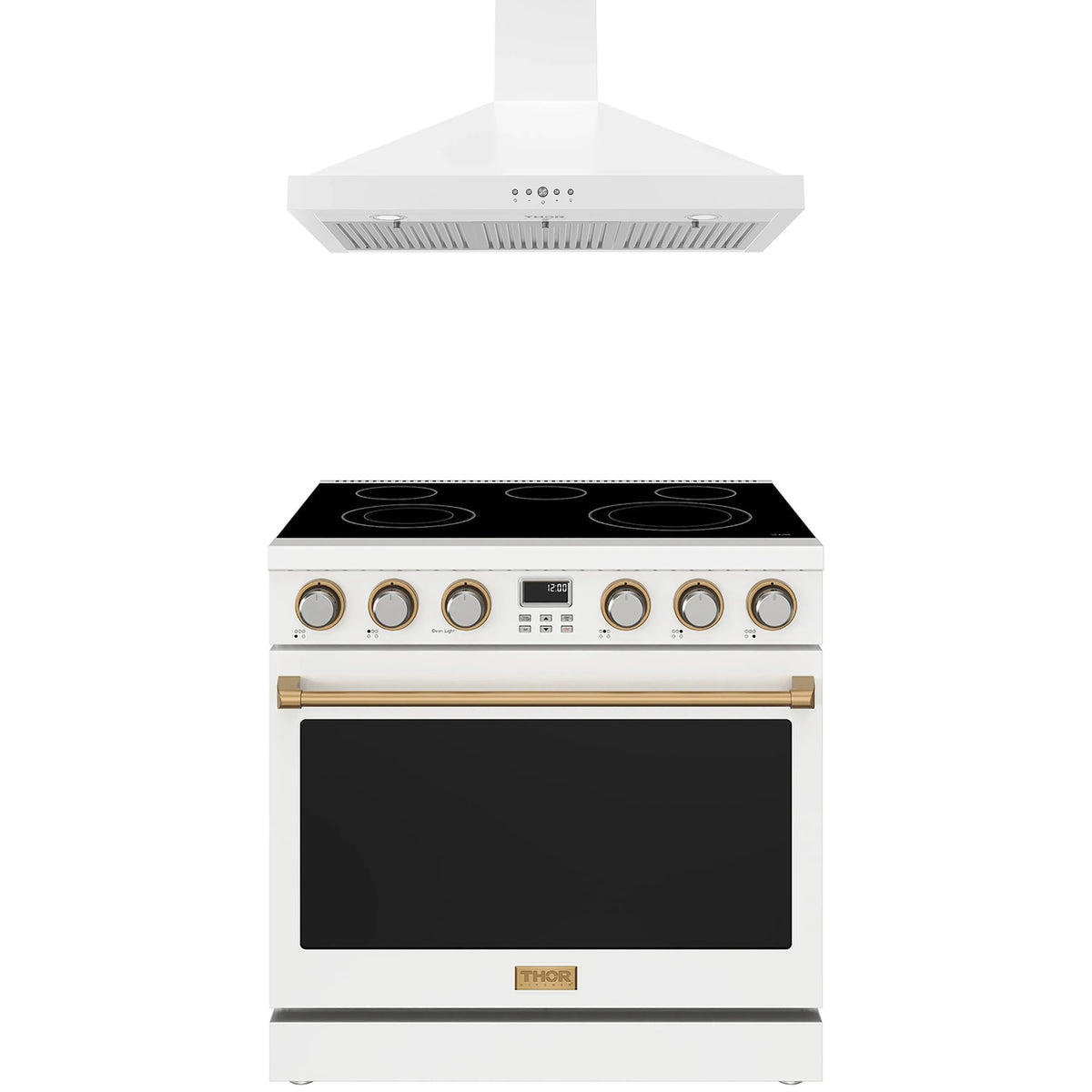

$750 less than buying separatelyEvery piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

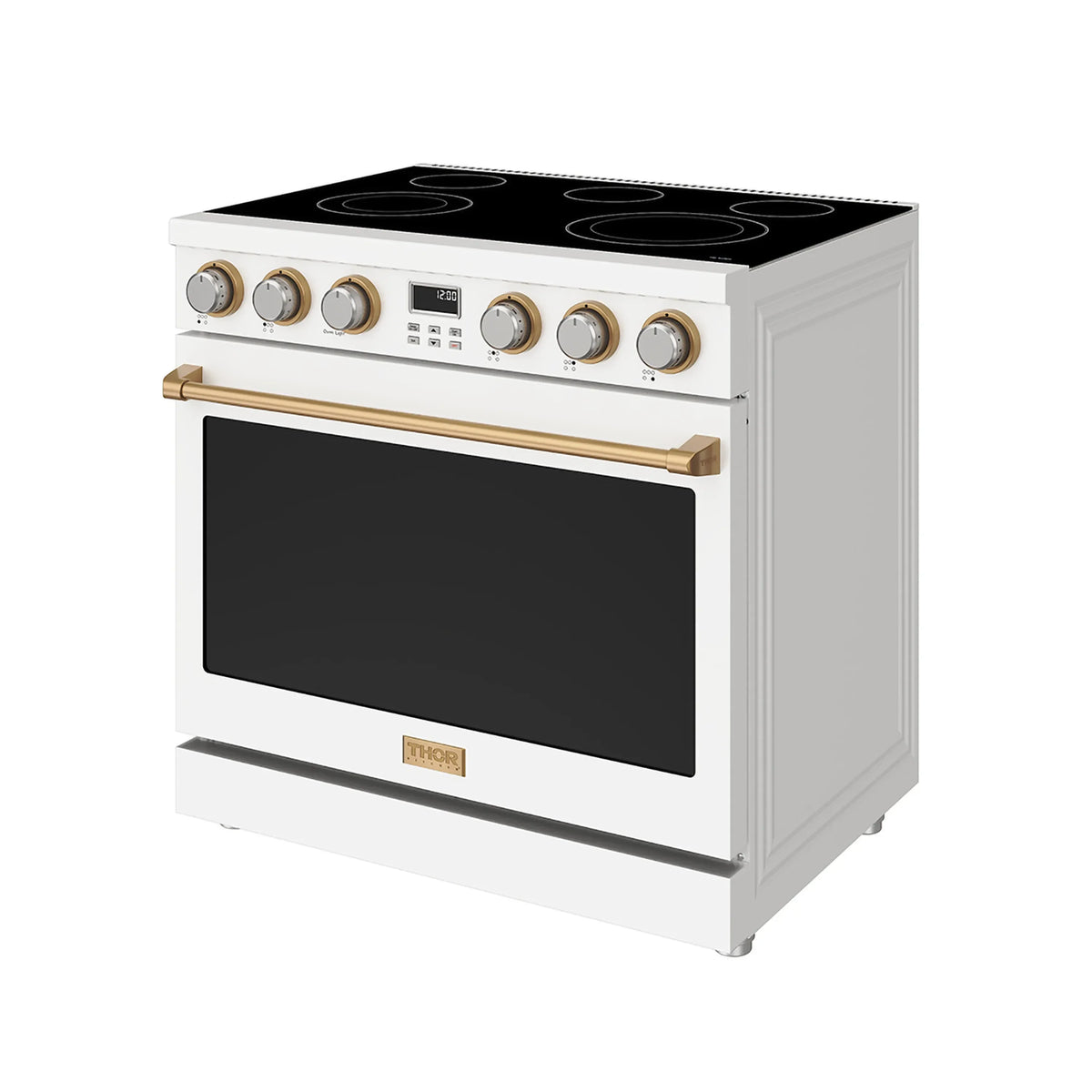

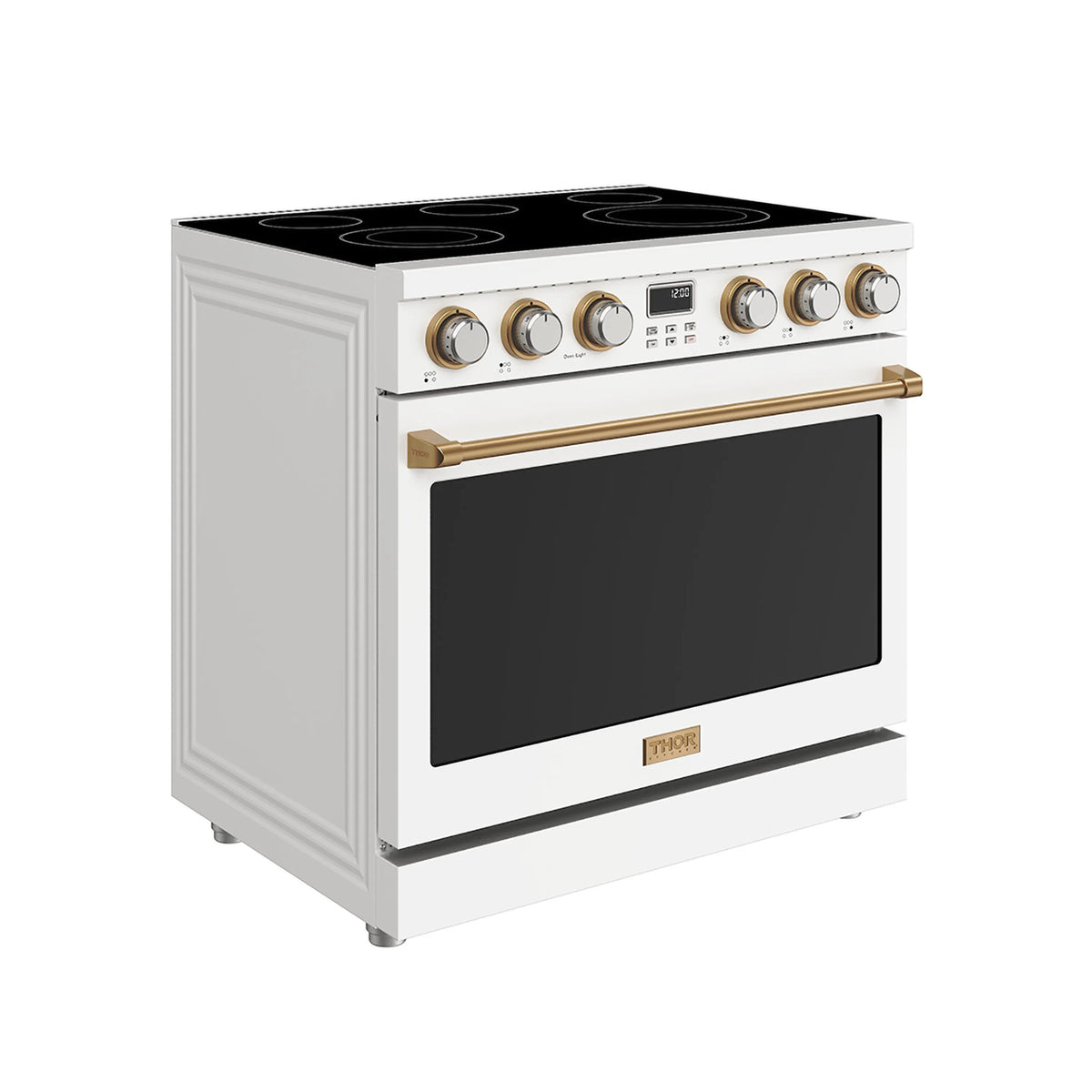

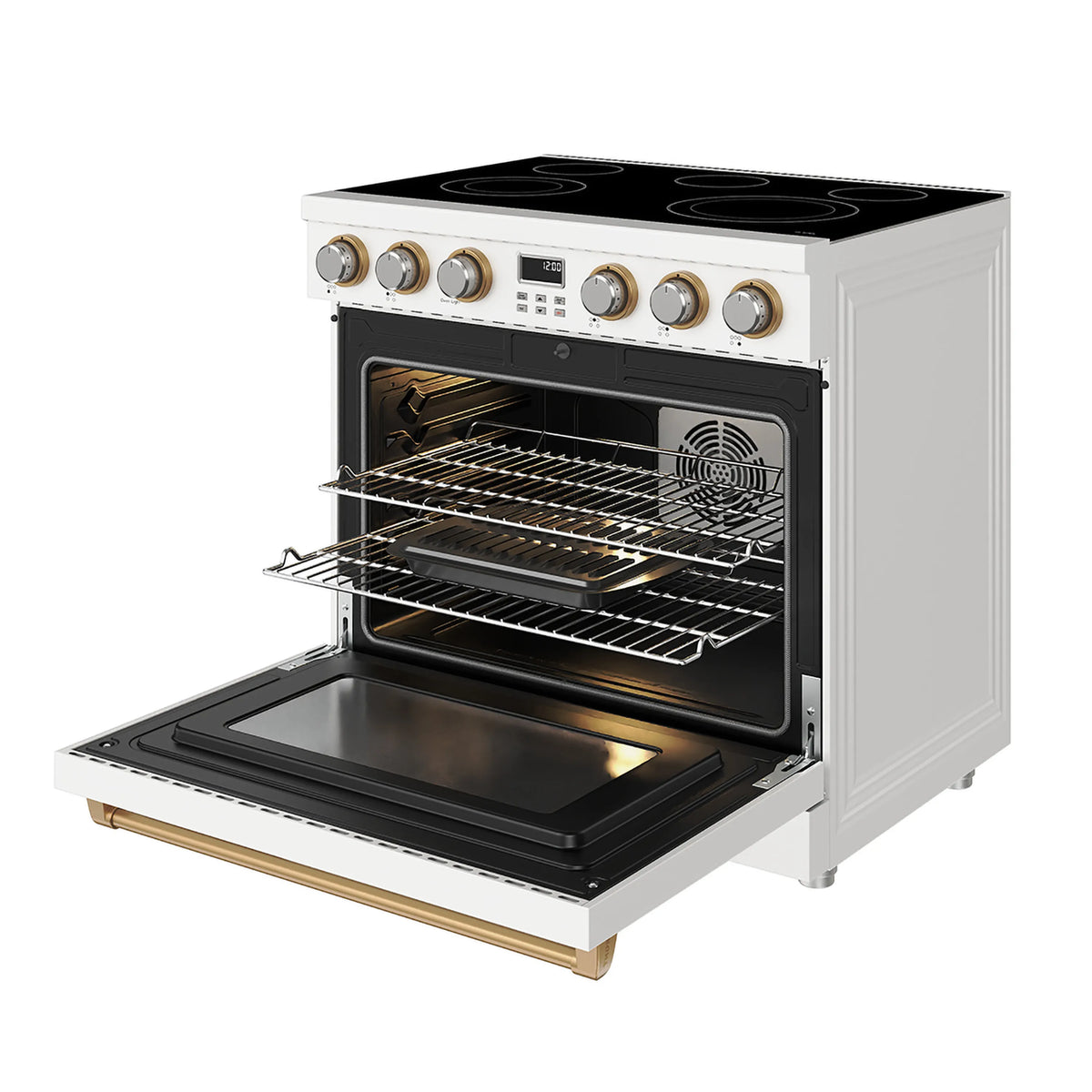

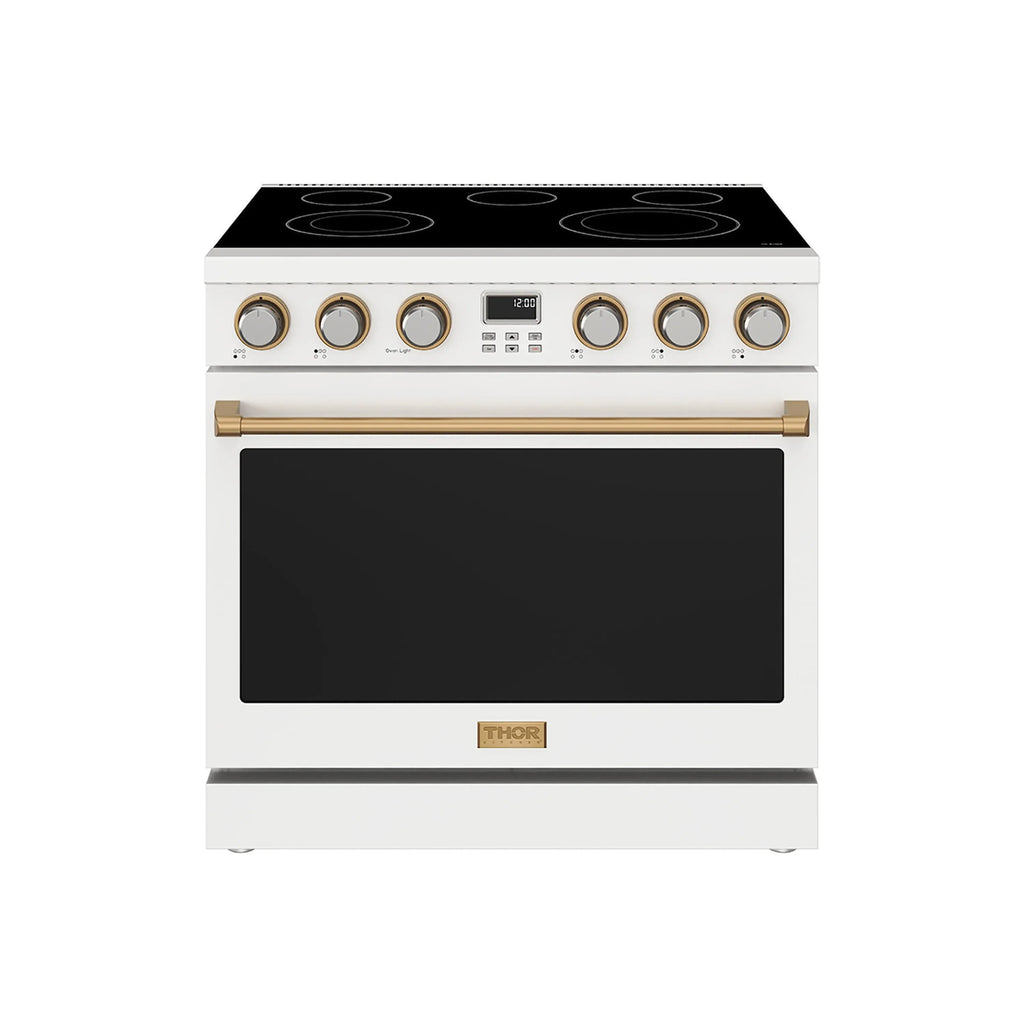

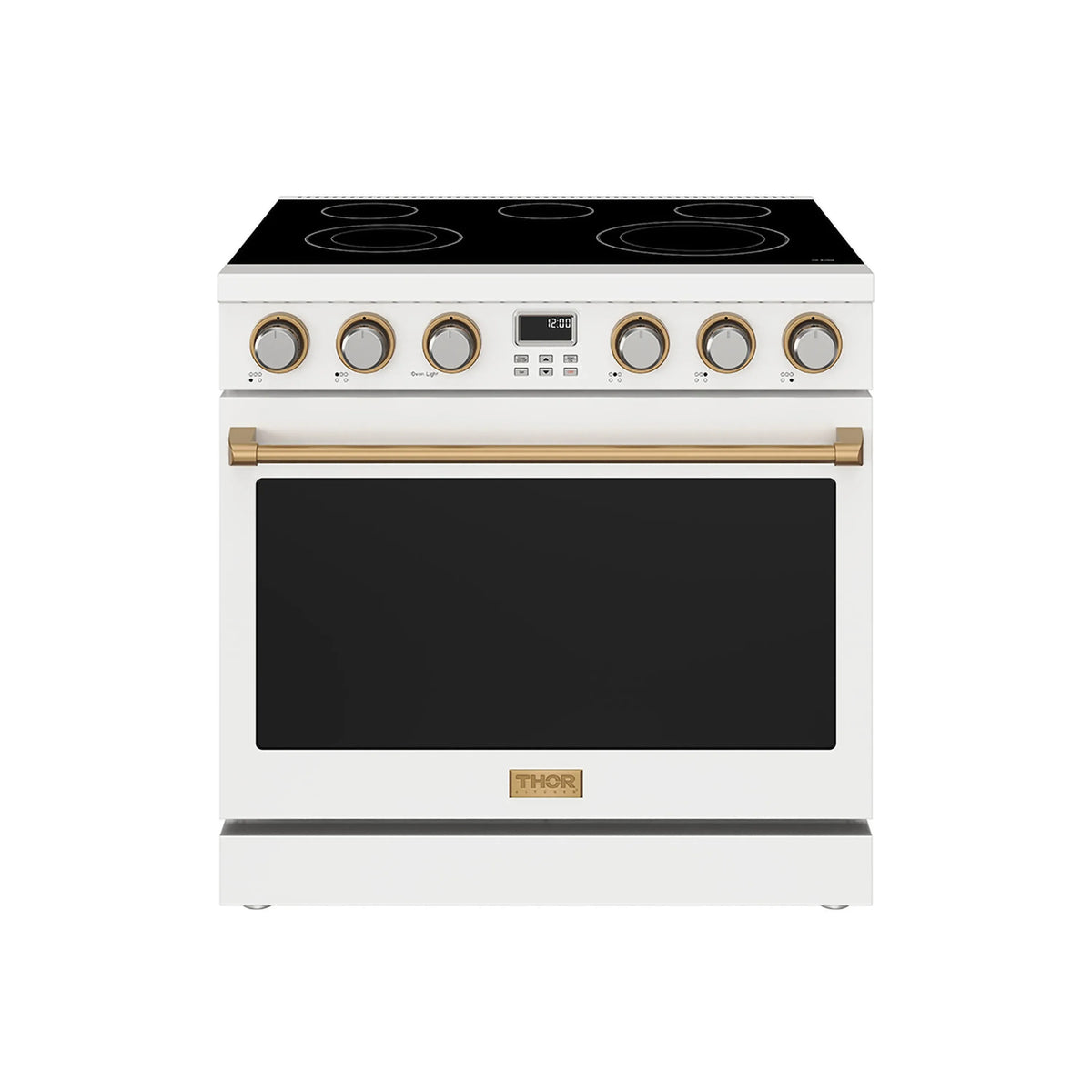

The THOR Kitchen 36 Inch A-Series Electric Range is a stainless-steel machine that is designed with powerful features and functionality. This range features a smooth glass top that is easy to clean and five heating element zones that give you the ultimate cooking flexibility with a power radiant cooktop. From a 1,200W single burner to a high-powered 3,000W dual heating element, this range gives you the power to master any meal.
Features
- Five Heating Elements — Five element cooktop gives you the ultimate cooking flexibility with a powerful radiant cooktop. From a 1,200W single burner to a high-powered 3,000W dual heating element, this range gives you the power to master any meals.

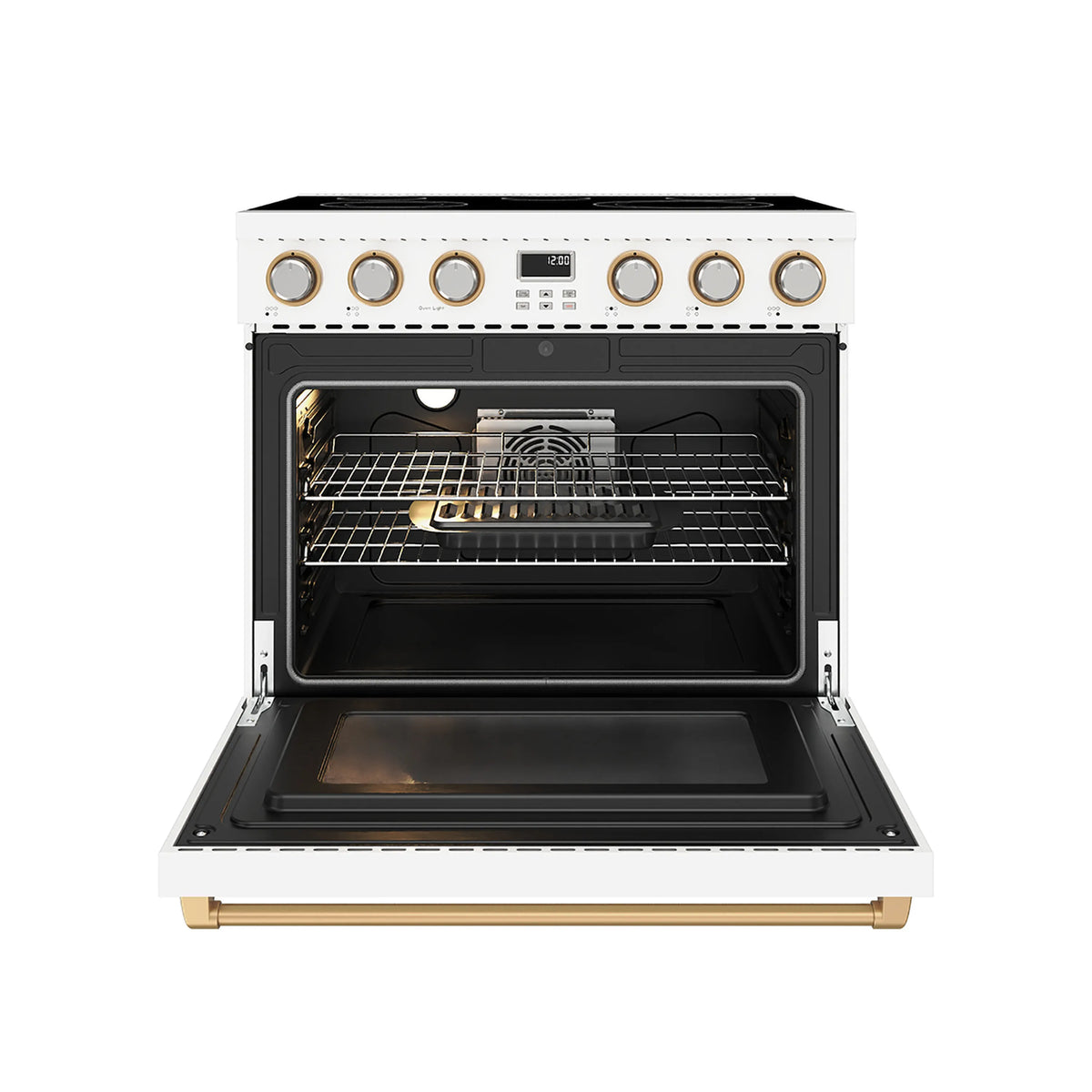

- Large Oven Capacity — 6.0 cu. ft. oven capacity can accommodate multiple dishes for enhanced cooking.

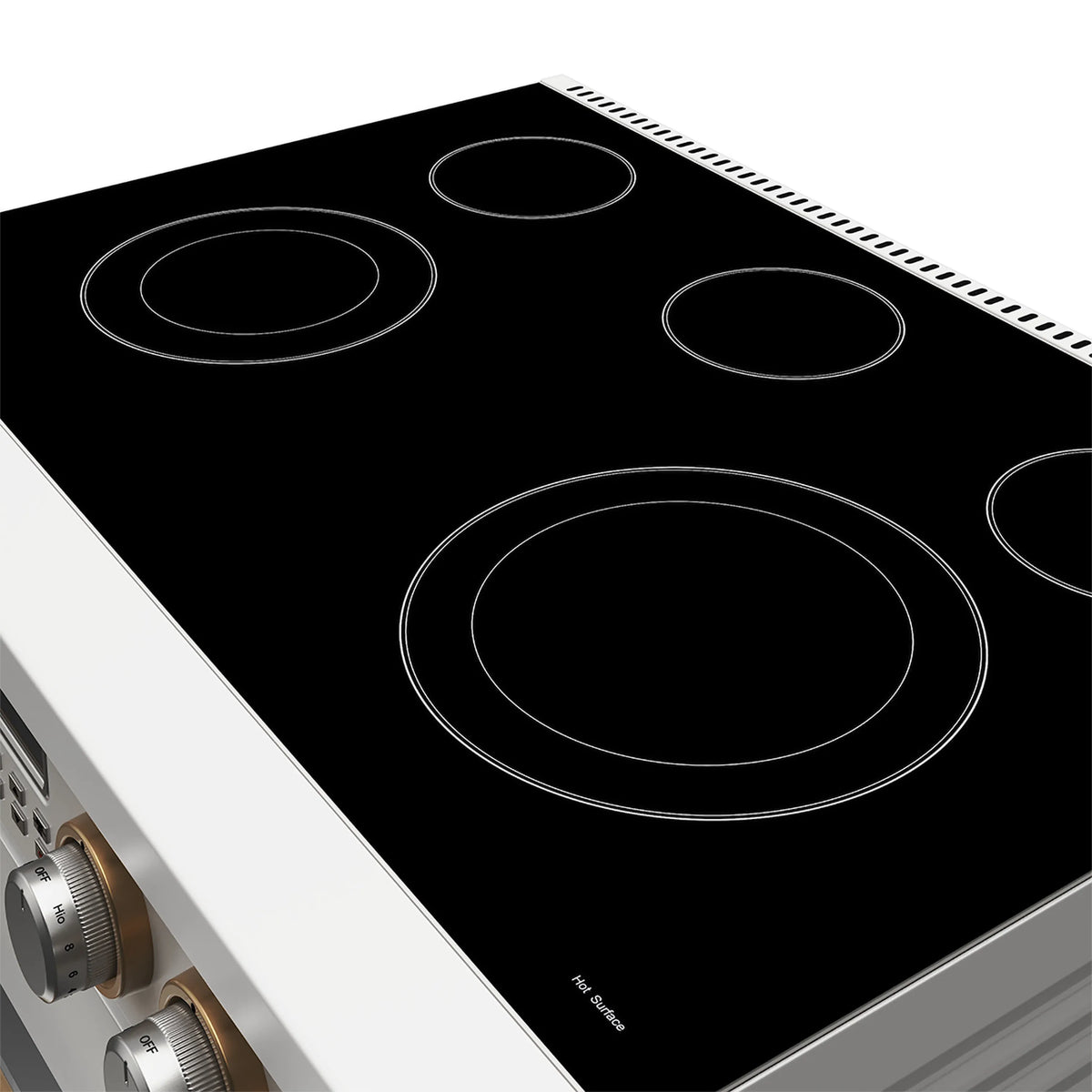

- Black Glass Top — Black glass top catches the mess and makes cleanup easy.

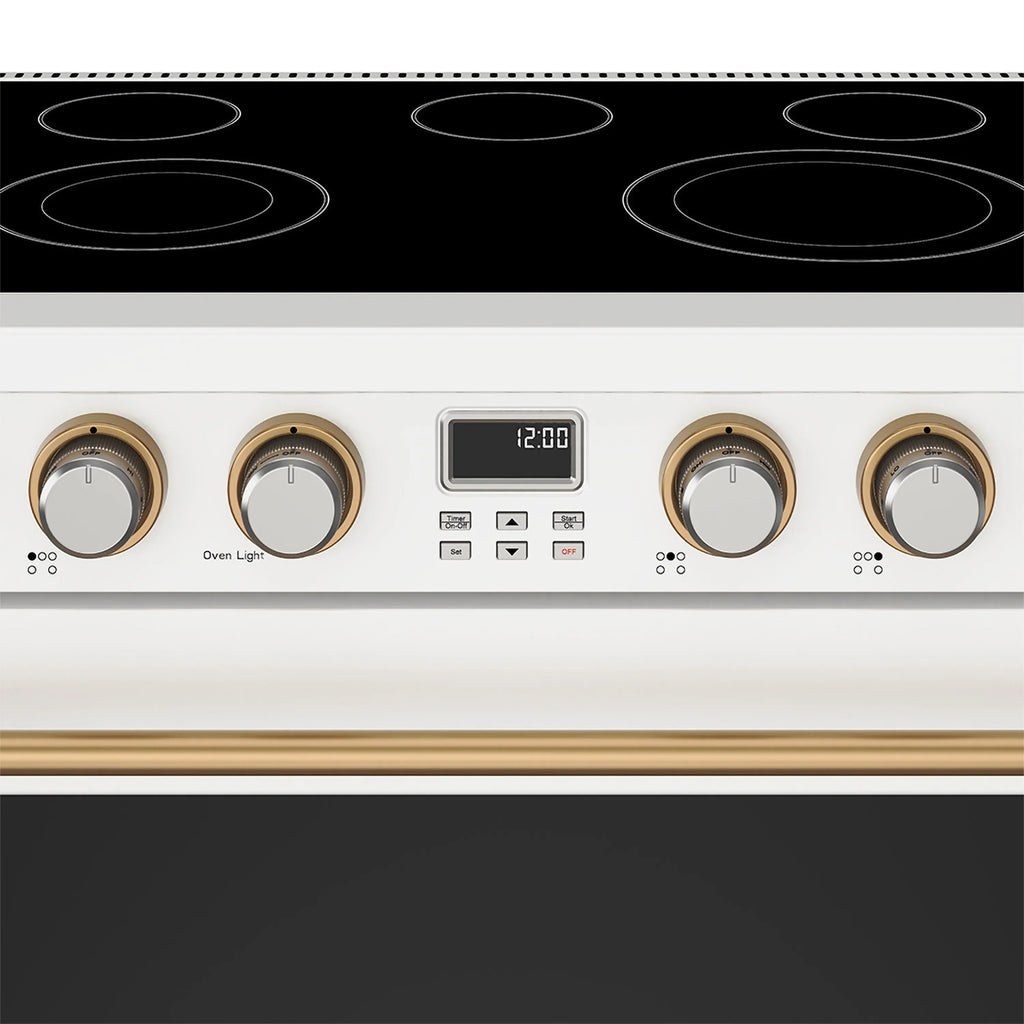

- LED Display Screen — LED display screen, oven function button operation.
- Convection Fan — Convection Fan provides controlled heat distribution for fast efficient cooking.
- Heavy Duty Control Knobs — Offer robust, reliable performance and easy handling, designed to withstand the demands of professional and high-usage kitchens.

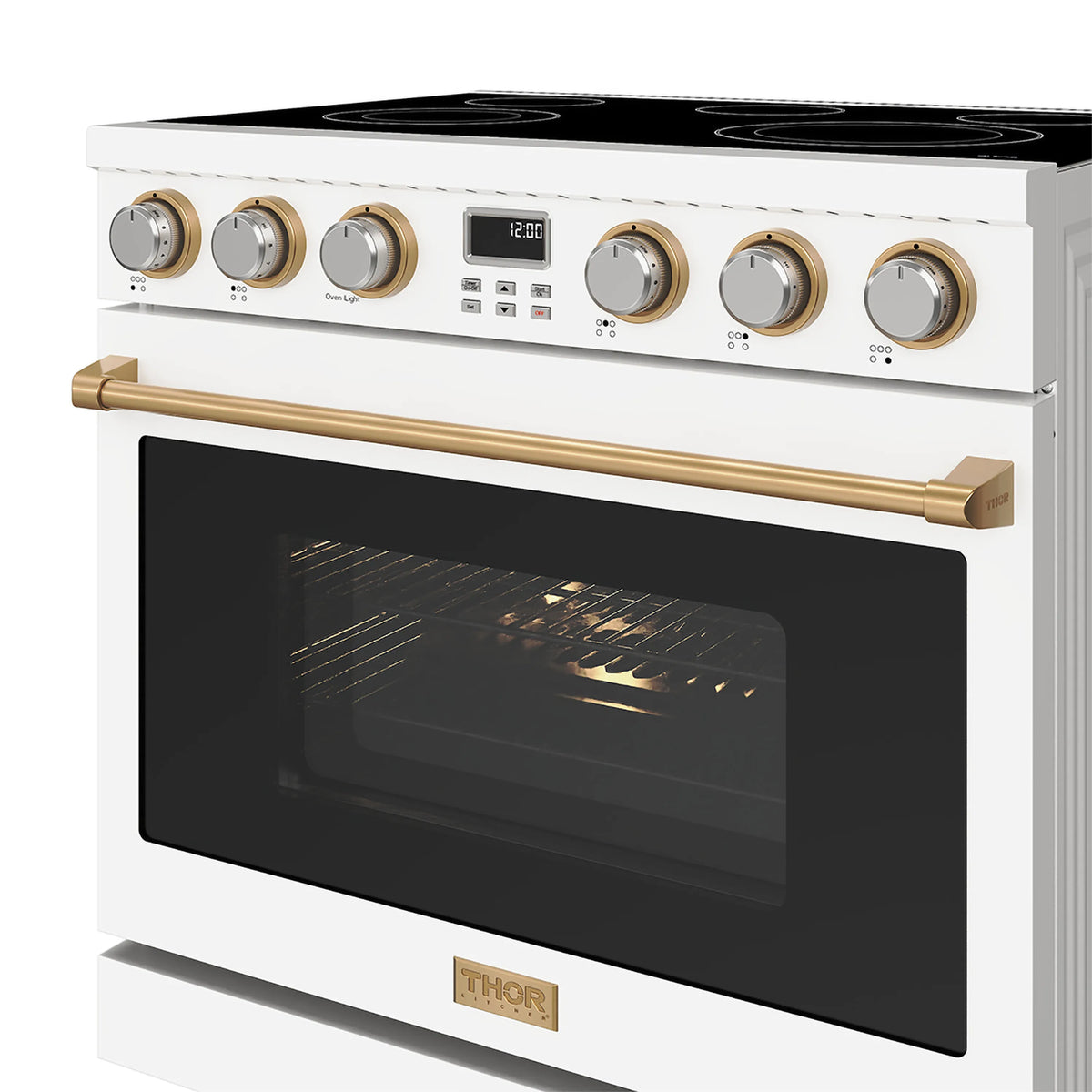

- Large Oven Windows — Large oven windows makes it easy to check on cooking food without opening the oven door.
- Chrome Plated Oven Rack — Provides a protective layer that resists rust and corrosion, even with frequent exposure to high temperatures and moisture.
DIMENSIONS
- Product Width
- 35 7/8"
- Product Height (from bottom to top of back splash)
- 36 1/12" – 40 1/12"
- Product Height (from bottom to top of side panel)
- 36" – 39"
- Product Depth (from back panel to bullnose)
- 26 7/8"
- Product Depth (from back panel to control board)
- 26 1/4"
- Product Depth (from back panel to side panel front)
- 24"
- Adjustable Leg Sizes
- 3" Max.
- Cutout Height
- 36 Inch
- Cutout Width
- 36 Inch
- Cutout Depth
- 24 Inch
- Net Weight
- 199 lbs.
- Gross Weight
- 254 lbs.
GENERAL INFORMATION
- Fuel Type
- Electric
- Installation Type
- Freestanding
- Total Elements
- 5
DESIGN & FINISH
- Color
- White
- Accent/Trim Color
- Bronze
TECHNICAL DETAILS
- Voltage
- 240 V
- Circuit Breaker
- 50 A
- Frequency (Hz)
- 60 Hz
- Control Type

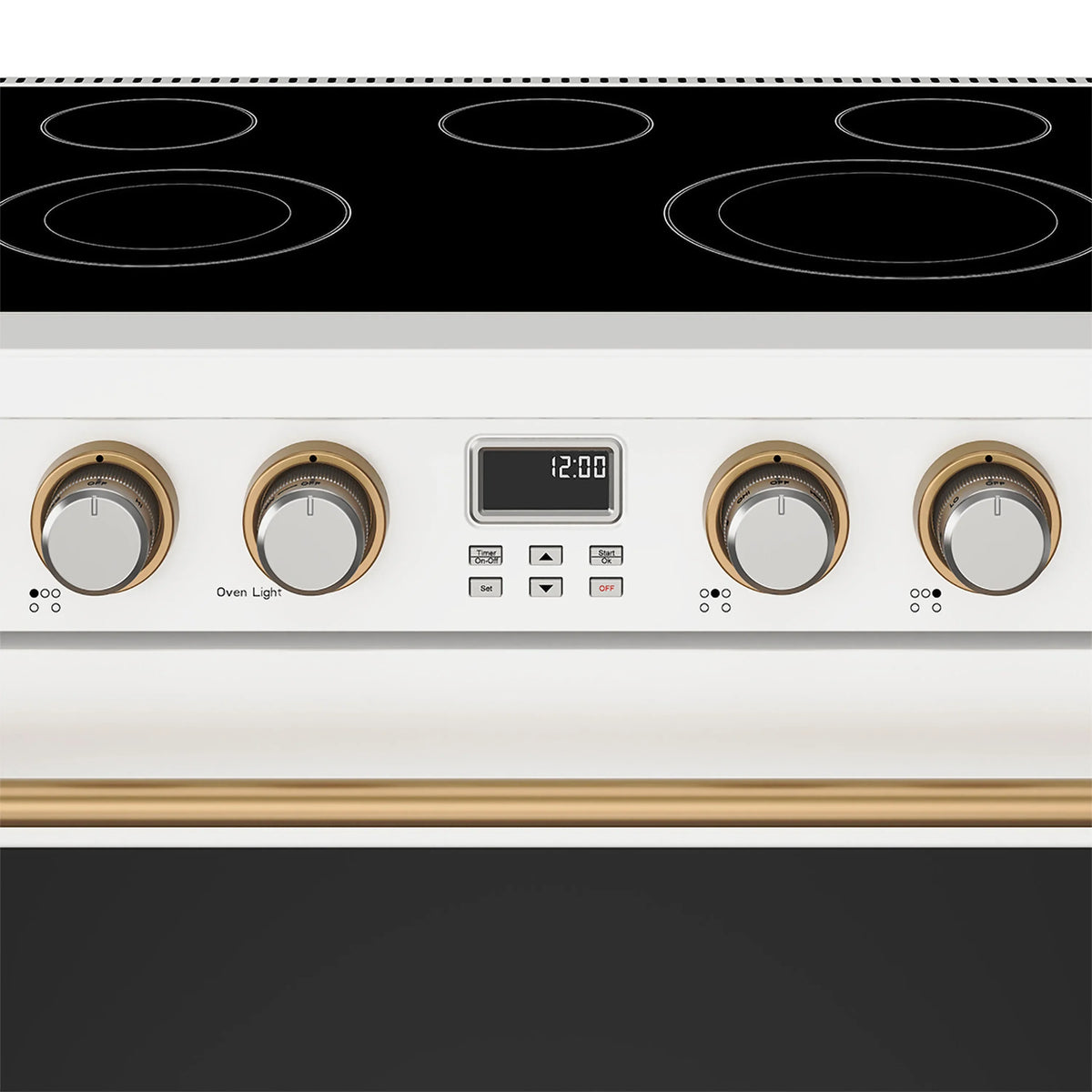

- Oven Function Button + LED Panel Display
- Hot Surface Indicator Light
- Front Right Corner of Cooktop w/ Temp at 150 °F
- Plug Type
- 4-Prong 14-50R (Not Included)
COOKTOP FEATURES
- Cooktop
- Black Polished Plate Ceramic
- Total Elements
- 5

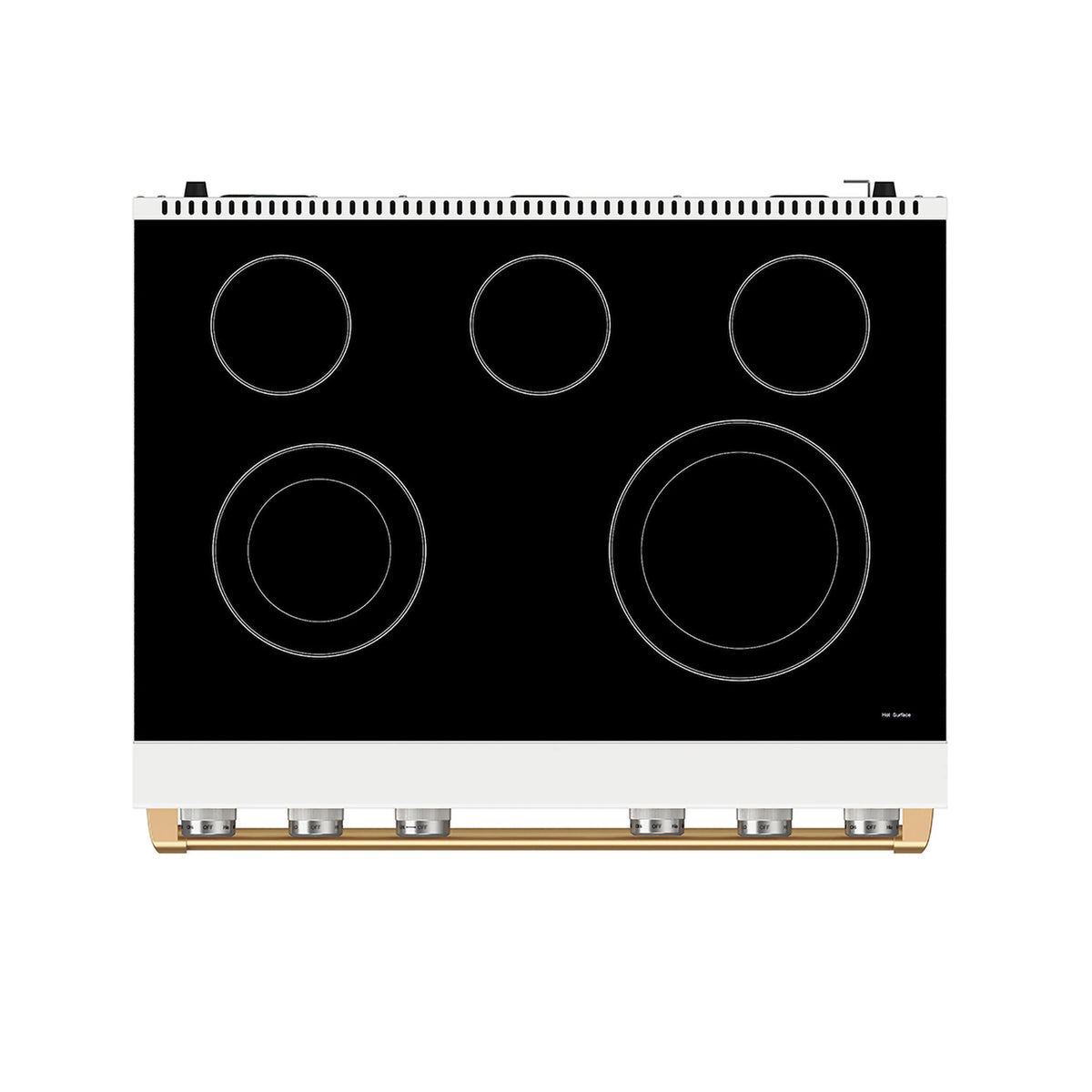

- Element Outputs
- [1] Front Left Element (Dual): Outer Ring 1,200W / Inner Ring 1,800W / Total 3,000W
- [2] Front Right Element (Dual): Outer Ring 1,500W / Inner Ring 1,500W / Total 3,000W
- [3] Rear Left Element (Single): 1,200W
- [4] Rear Middle Element (Single): 1,200W
- [5] Rear Right Element (Single): 1,200W
OVEN FEATURES
- Oven Capacity
- 6.0 cu.ft.
- Oven Color
- Black
- Oven Control Buttons
- Start/Ok, Timer On/Off
- Lower Heater Power
- 3,500W
- Top Heater Power
- 3,500W
- Convection
- Convection Fan
- Oven Light
- 1*40W, Rear
- Oven Racks
- 2
- Rack Positions
- 6
- Oven Rack Material
- Chrome Plated
- Baking Sheet Size
- Fits up to 28" x 14" Sheet
- Oven Height
- 18"
- Oven Width
- 29.7"
- Oven Depth
- 19.4"
- Accessories Included
- 2 Oven Racks
- 1 Broiler Pan
- 1 Bake Pan
WARRANTY & CERTIFICATIONS
- California Proposition 65
- WARNING: Cancer and Reproductive Harm
Piece 2 of 2 — RANGE HOOD

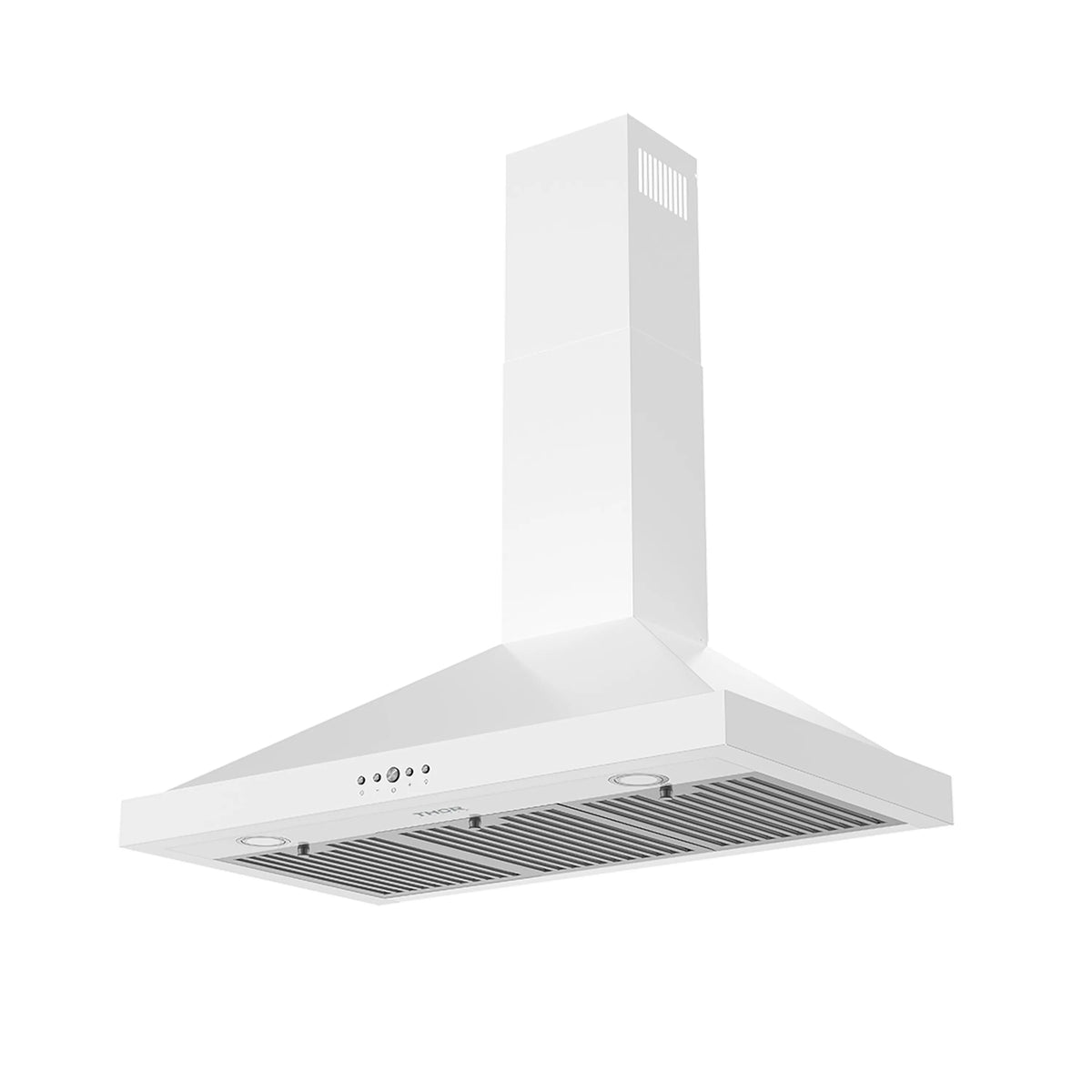

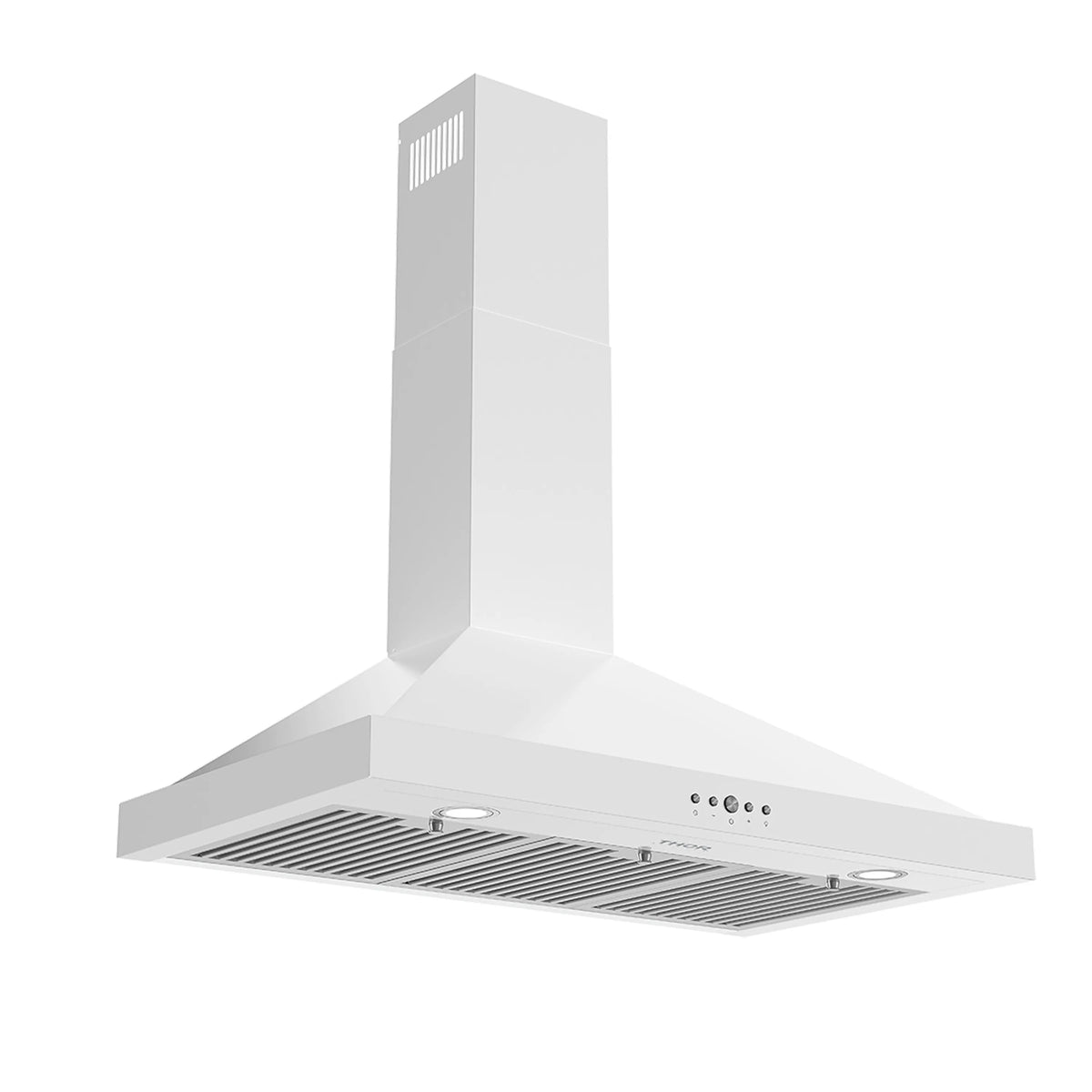

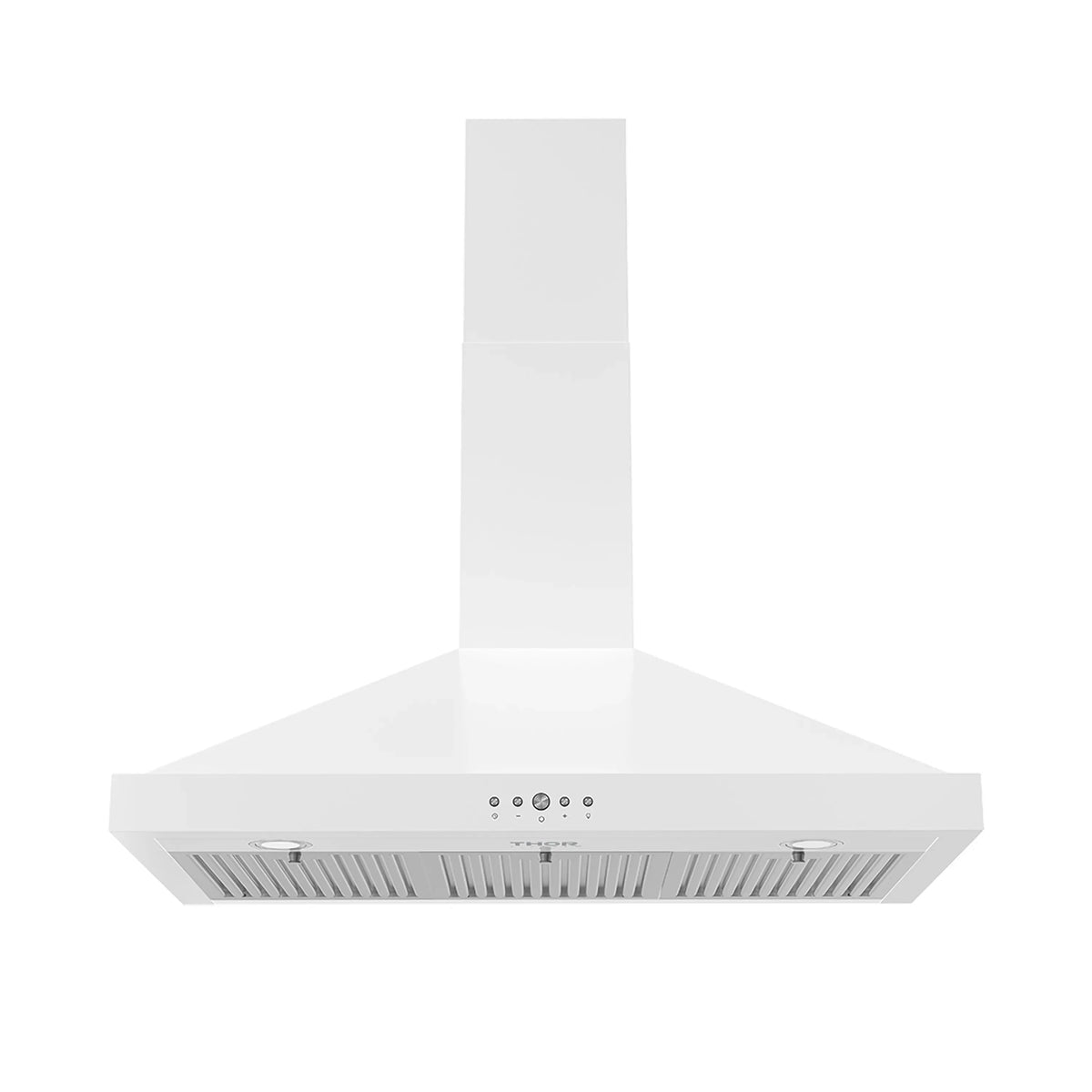

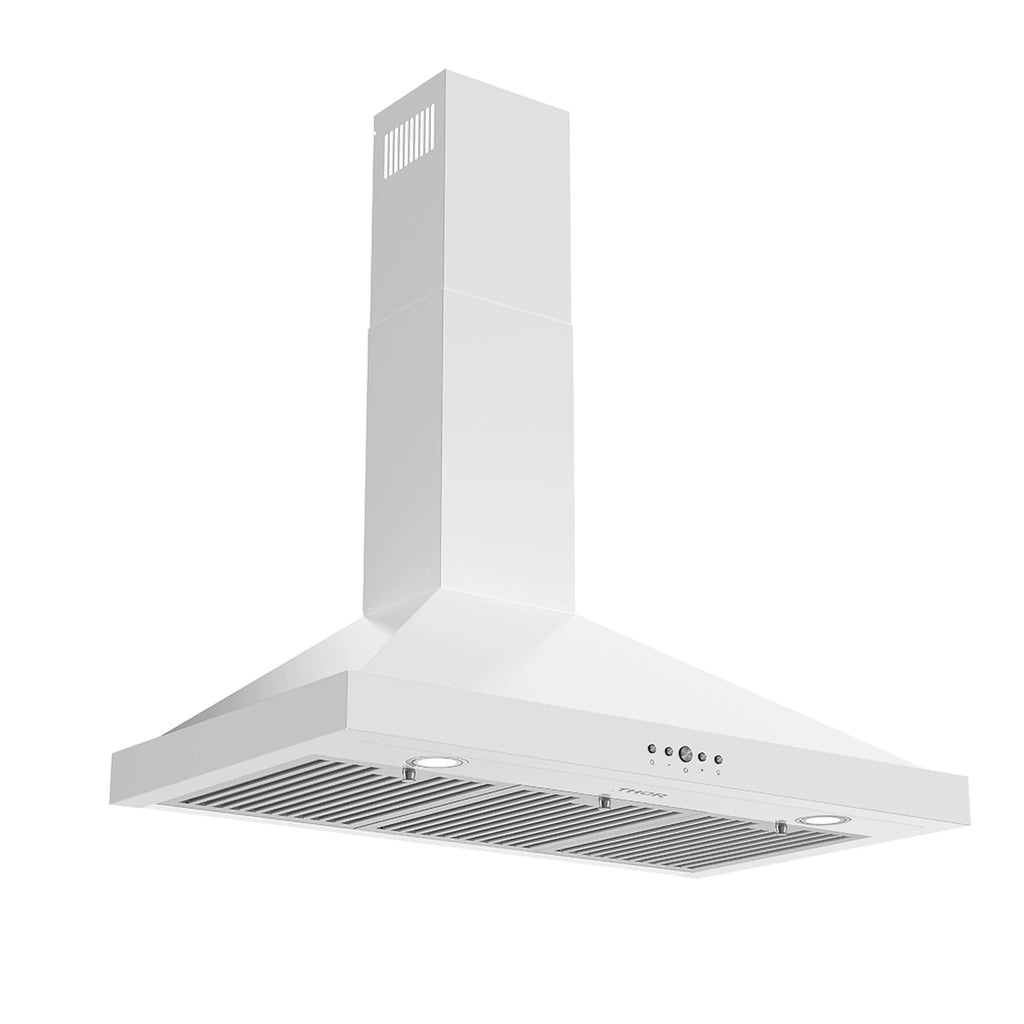

THOR brings professional-grade performance to your kitchen with the 36-Inch Wall Mounted Chimney Range Hood, crafted from durable stainless steel for a sleek, modern look that lasts. Featuring powerful 350 CFM ventilation, convertible ducted or ductless installation, easy push button controls, bright energy-saving LED lights, three adjustable fan speeds, and dishwasher-safe baffle filters, this range hood delivers strength, convenience, and control right out of the box—so you can focus on creating meals with confidence. #IgniteYourCulinaryCreativity
Features
- Durable Matte White Finish: Provides a sleek, modern look that complements any kitchen style while ensuring long-lasting strength and quality.
- Efficient 350 CFM Ventilation: Provides effective airflow to manage everyday cooking smoke, steam, and odors.
- Dual Installation Options (Ducted or Ductless): Convertible ducted or ductless installation for flexible setup.
- Easy Push Button Controls: Simple mechanical buttons for hassle-free operation.

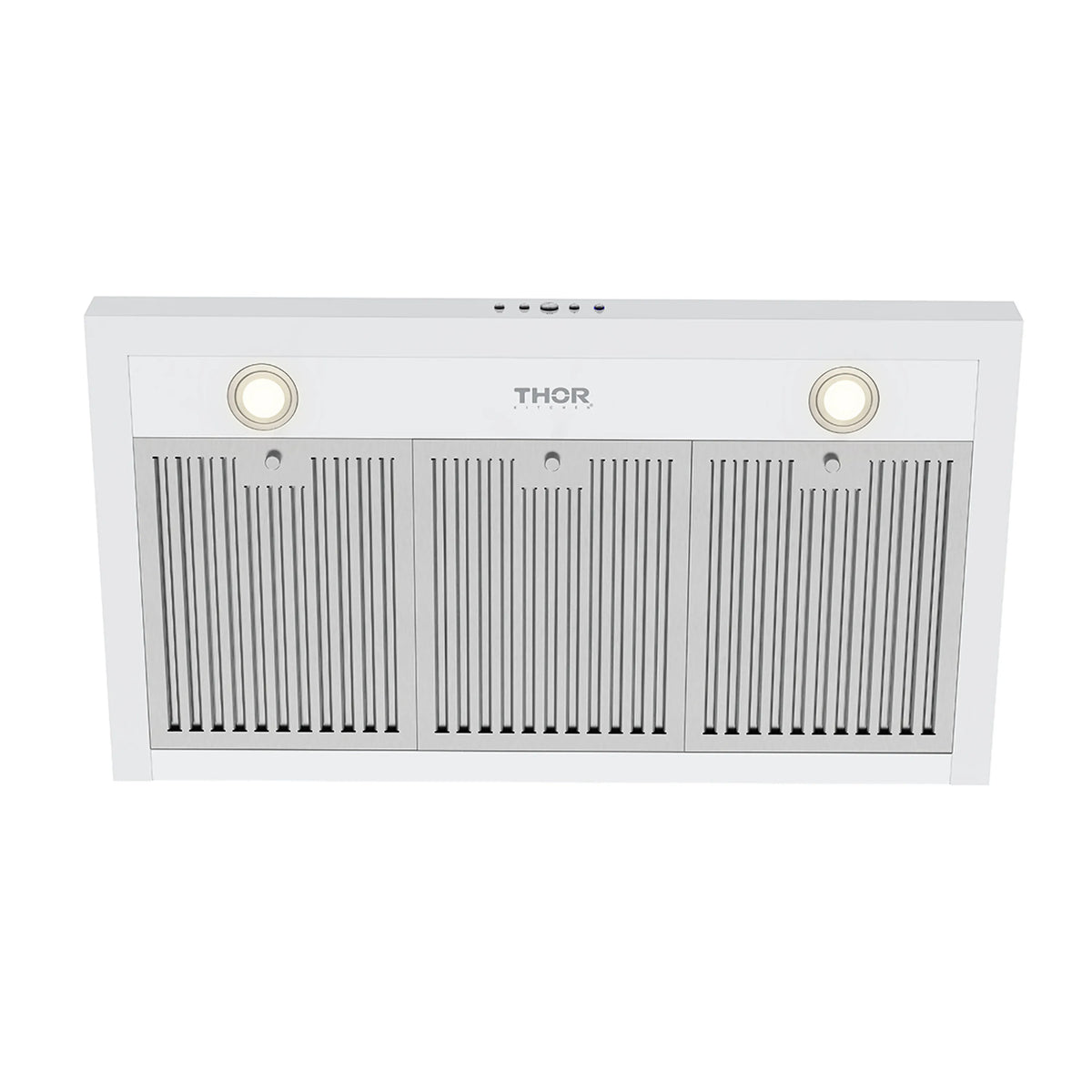

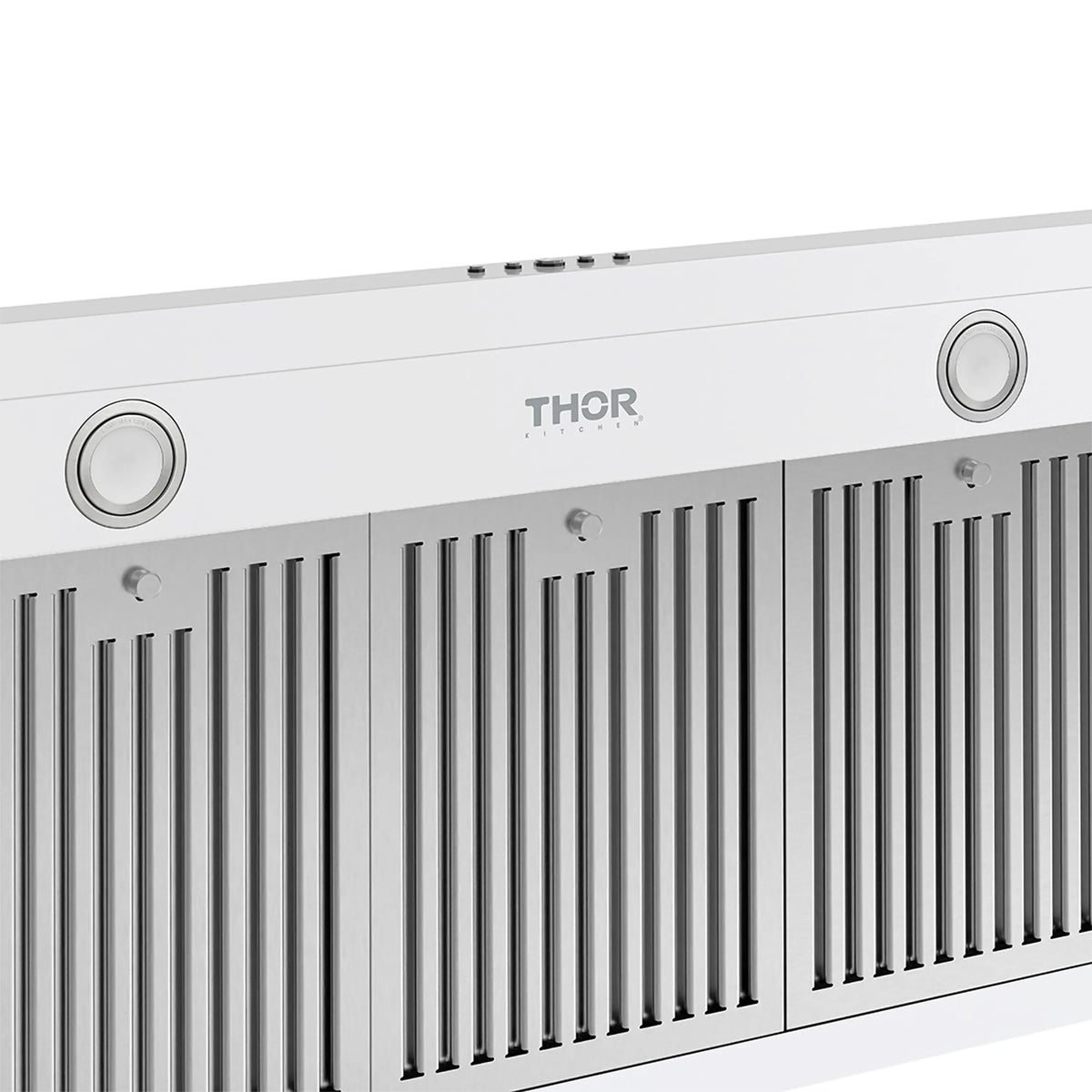

- Bright, Energy-Saving LED Lights: Illuminates the cooking surface clearly while minimizing energy use.
- Dishwasher-Safe Baffle Filters: Removable filters (three included) trap grease and are easy to clean for long-lasting performance.
- Three-Speed Fan Settings: Adjustable airflow to suit light simmering or more intensive cooking.
- Delay Shut-Off Function: Runs for 5 minutes after cooking to clear lingering smoke and odors.
- Fits Ceilings up to 9 Feet: Adjustable chimney accommodates ceiling heights up to 9 feet.
DIMENSIONS
- Product Dimensions
- 35-1/4" W x 19-11/16" D x 26-7/16"–40-3/16" H
- Chimney Height
- 26-7/16" - 40-3/16"
- Accommodates Ceiling Heights
- Up to 9 ft
- Minimum Distance Above Gas / Electric
- 30" / 28"
- Net Weight
- 27 lbs.
- Gross Weight
- 32.3 lbs.
- Package Dimensions
- 37-3/16" W x 13-9/16" D x 22-1/16" H
GENERAL INFORMATION
- Brand
- THOR Kitchen
- Model
- TRH3635W
- Product Type
- Wall-Mounted Chimney Range Hood
- Shape / Style
- Chimney
- Mounting Type
- Wall Mounted
- Airflow
- 350 CFM (max)
- Ducted / Recirculating Convertible
- Yes
DESIGN & FINISH
- Finish
- Matte White

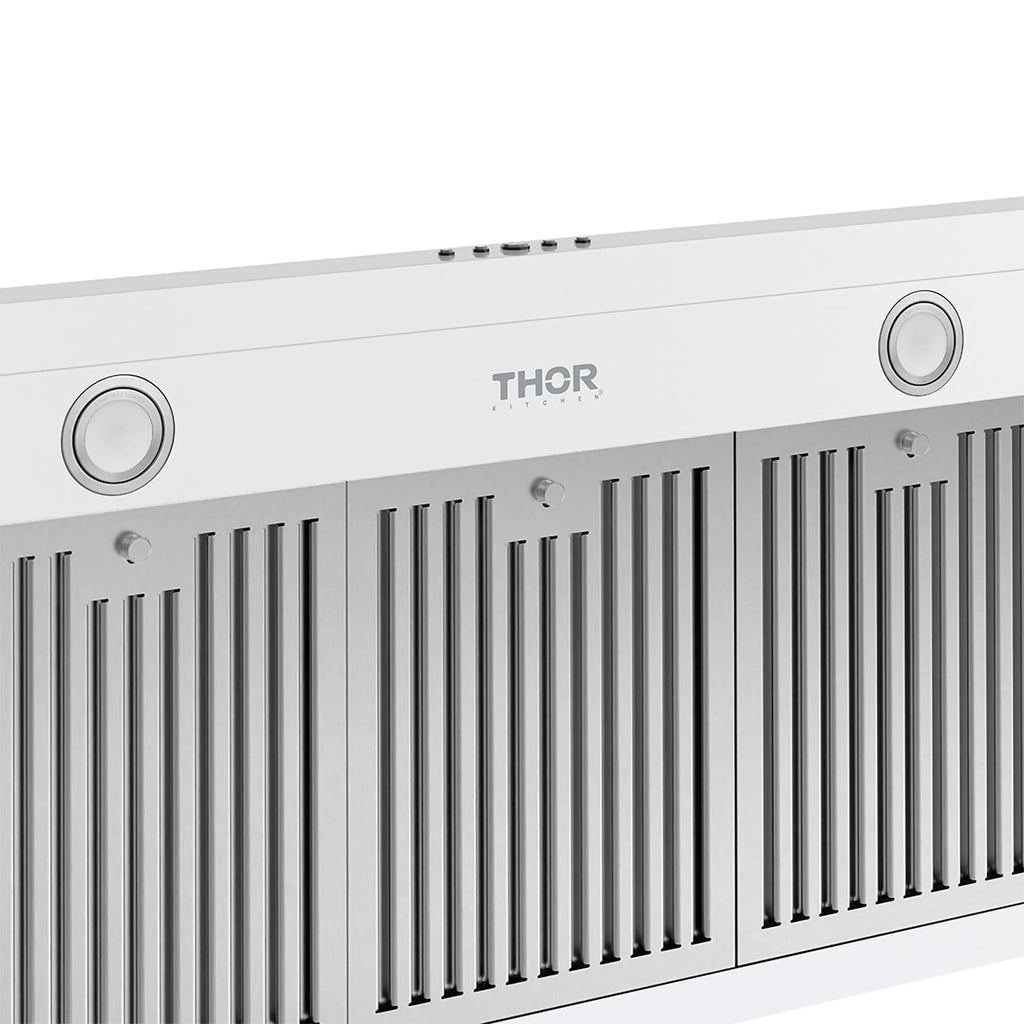

- Filter Type
- Baffle Filter
- Filter Qty
- 3
- Lighting
- 2 x 1.5W Warm White LED
- Duct Size
- 5-7/8"
- Duct Type
- Round
TECHNICAL DETAILS
- Watts
- 193W
- Amperage
- 15A (Dedicated)
- Volts
- 120V
- Frequency
- 60Hz
- Plug Type
- US 3-Prong Plug
- Power Cord Length
- 39-3/8"
FEATURES
- Number of Speeds
- 3
- CFM (Low / Medium / High)
- Low: 190 CFM
- Medium: 285 CFM
- High: 350 CFM
- Noise Rating (Low / Medium / High)
- Low: 45 dB
- Medium: 54 dB
- High: 61 dB
- Control Type
- Push Button
- Delay Function
- Yes (5 mins)
- Installation
- Ducted or Ductless (Convertible)
- Dishwasher-Safe Baffle Filters
- Yes
- Accessories Included
- Mounting Brackets

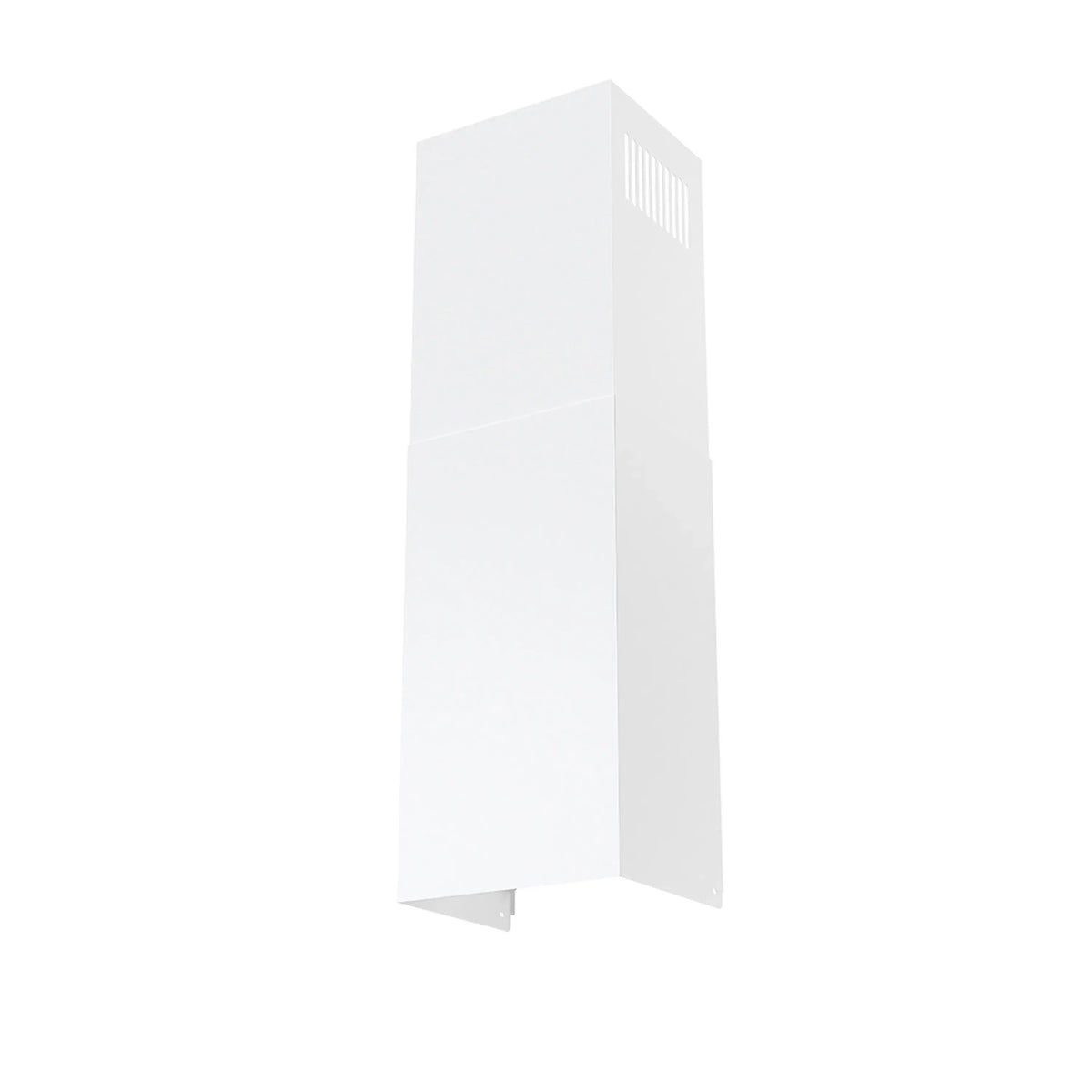

- Duct Cover
WARRANTY & CERTIFICATIONS
- Warranty
- Two Years Parts and Labor
Authorized Thor Kitchen Dealer
Full manufacturer warranty on every Thor Kitchen product we sell.
