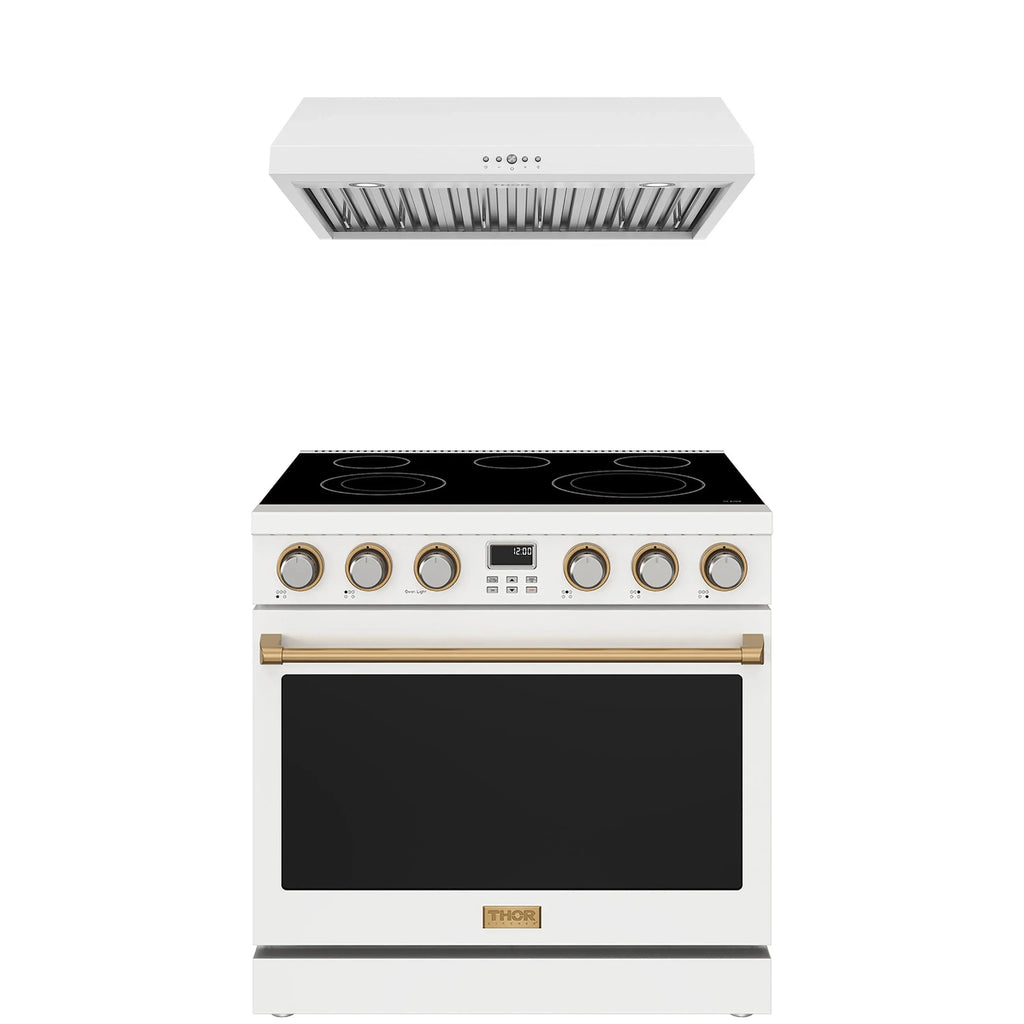

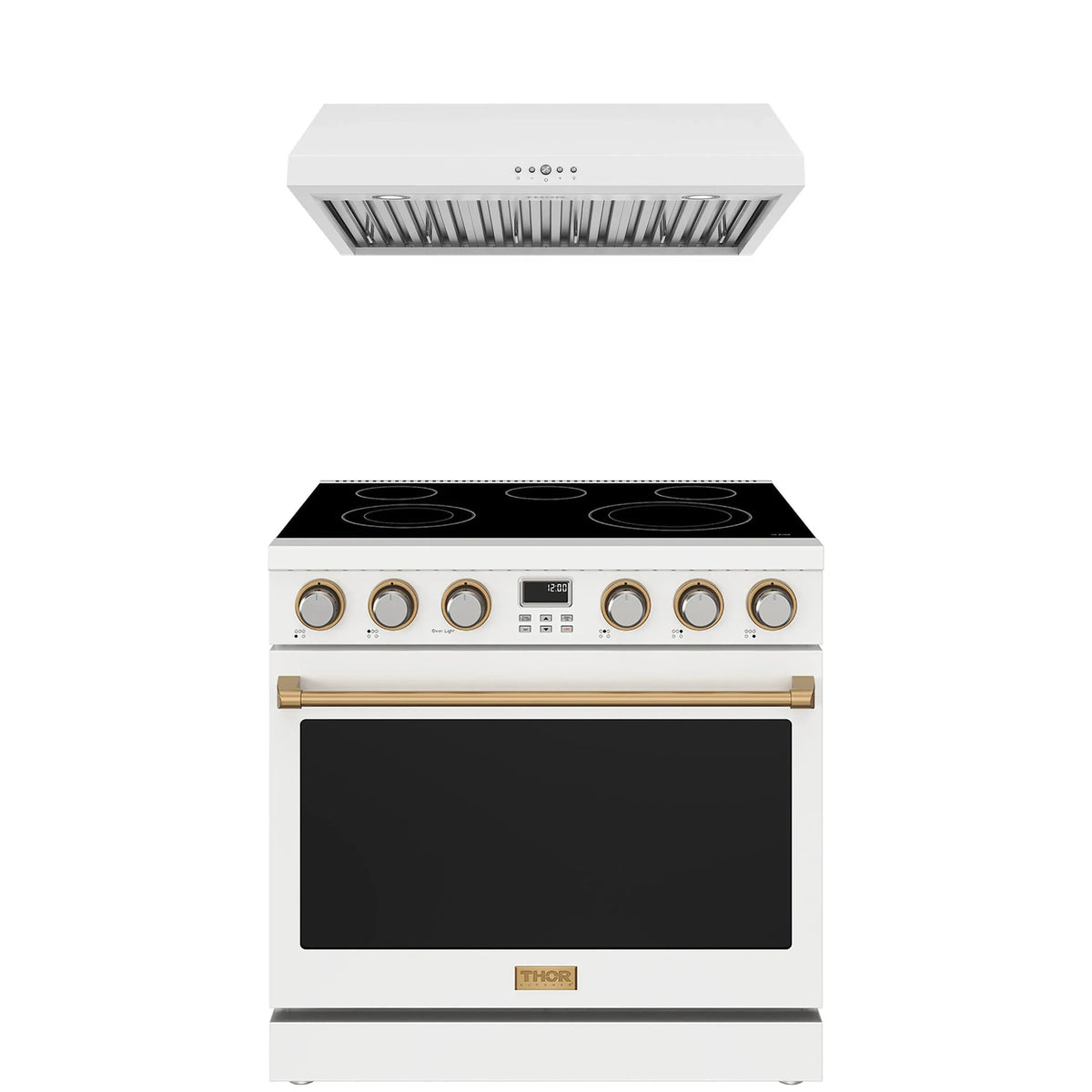

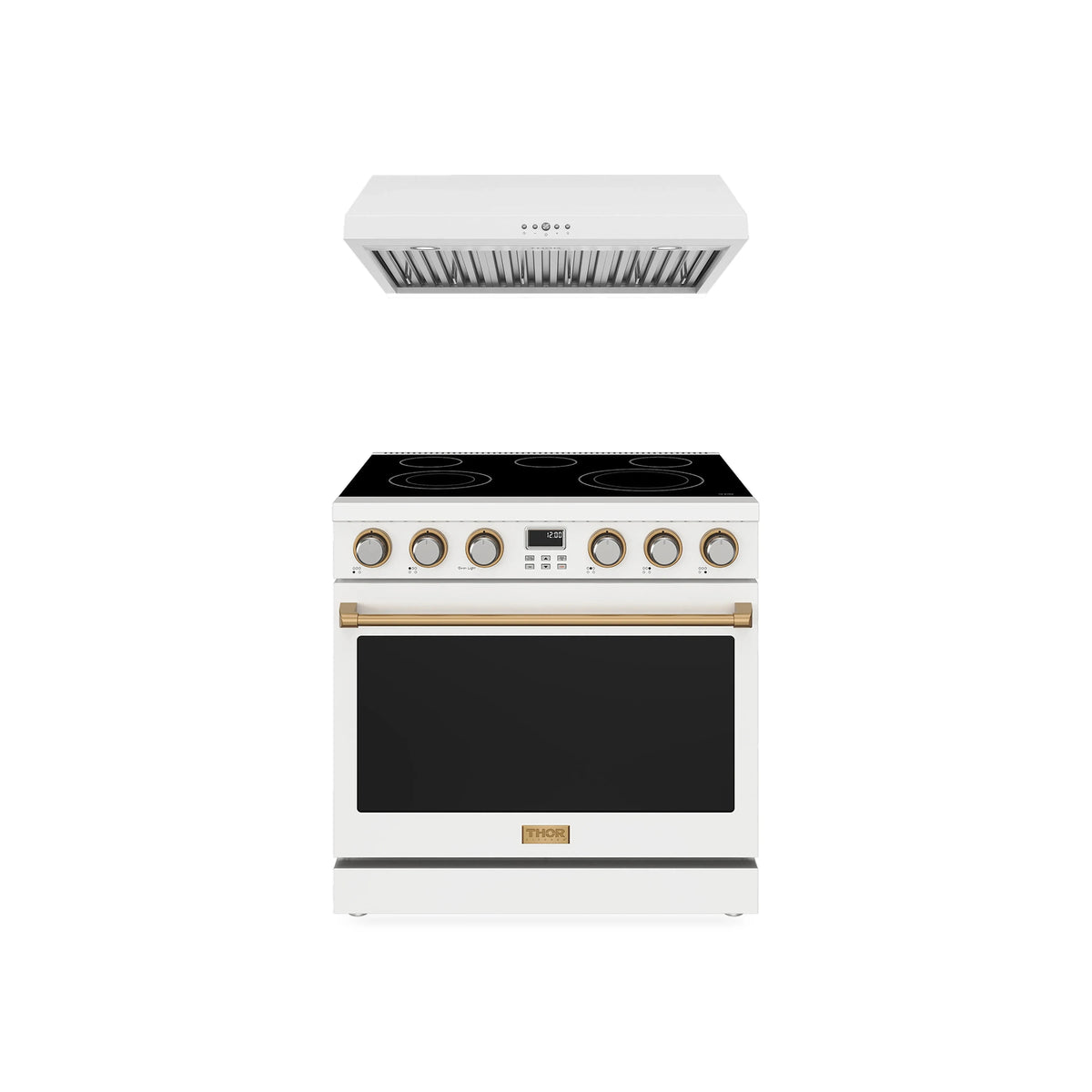

What's in this package
$750 less than buying separatelyEvery piece below is included in your package price — curated to match in design and finish. Tap a piece to see its full description, specs and manuals.

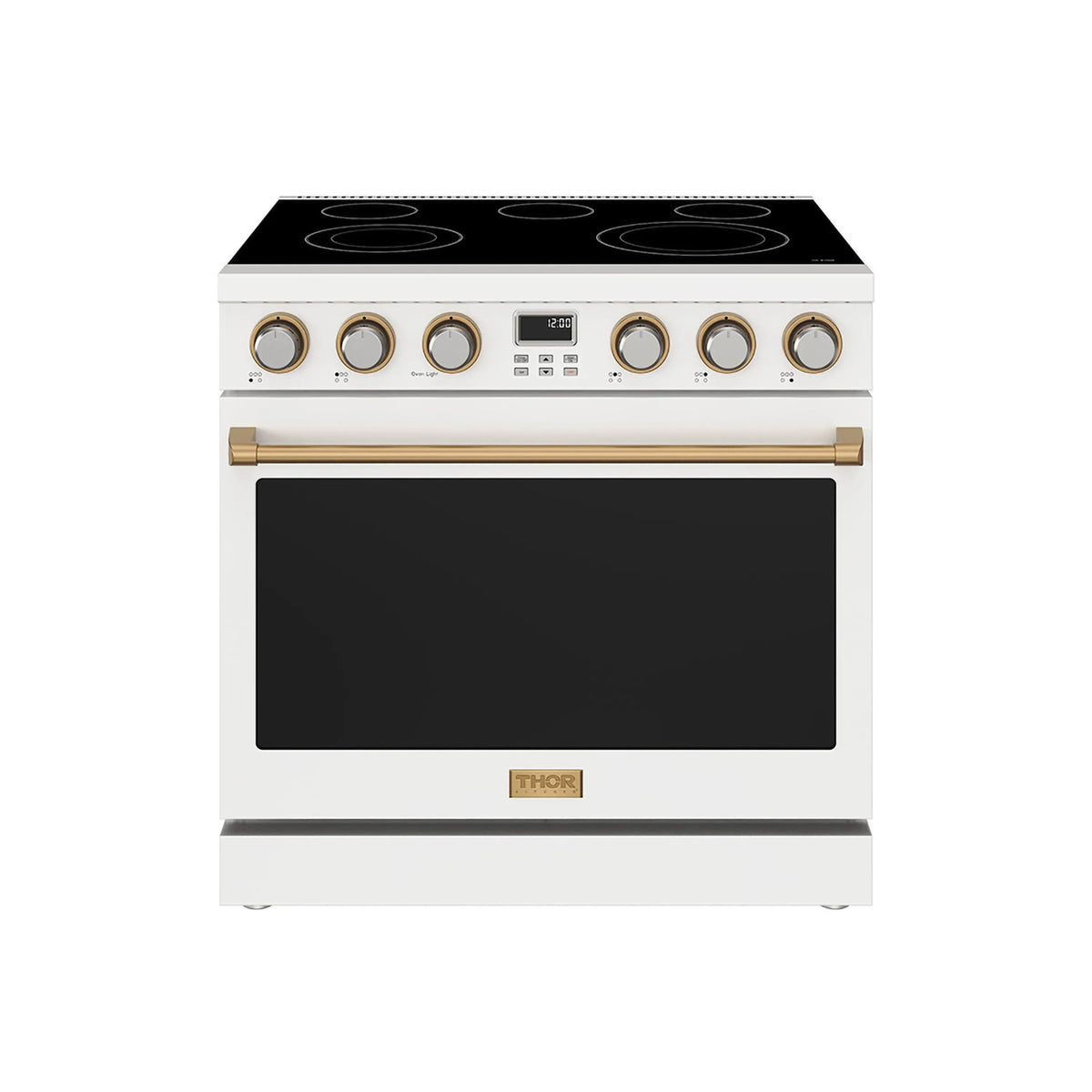

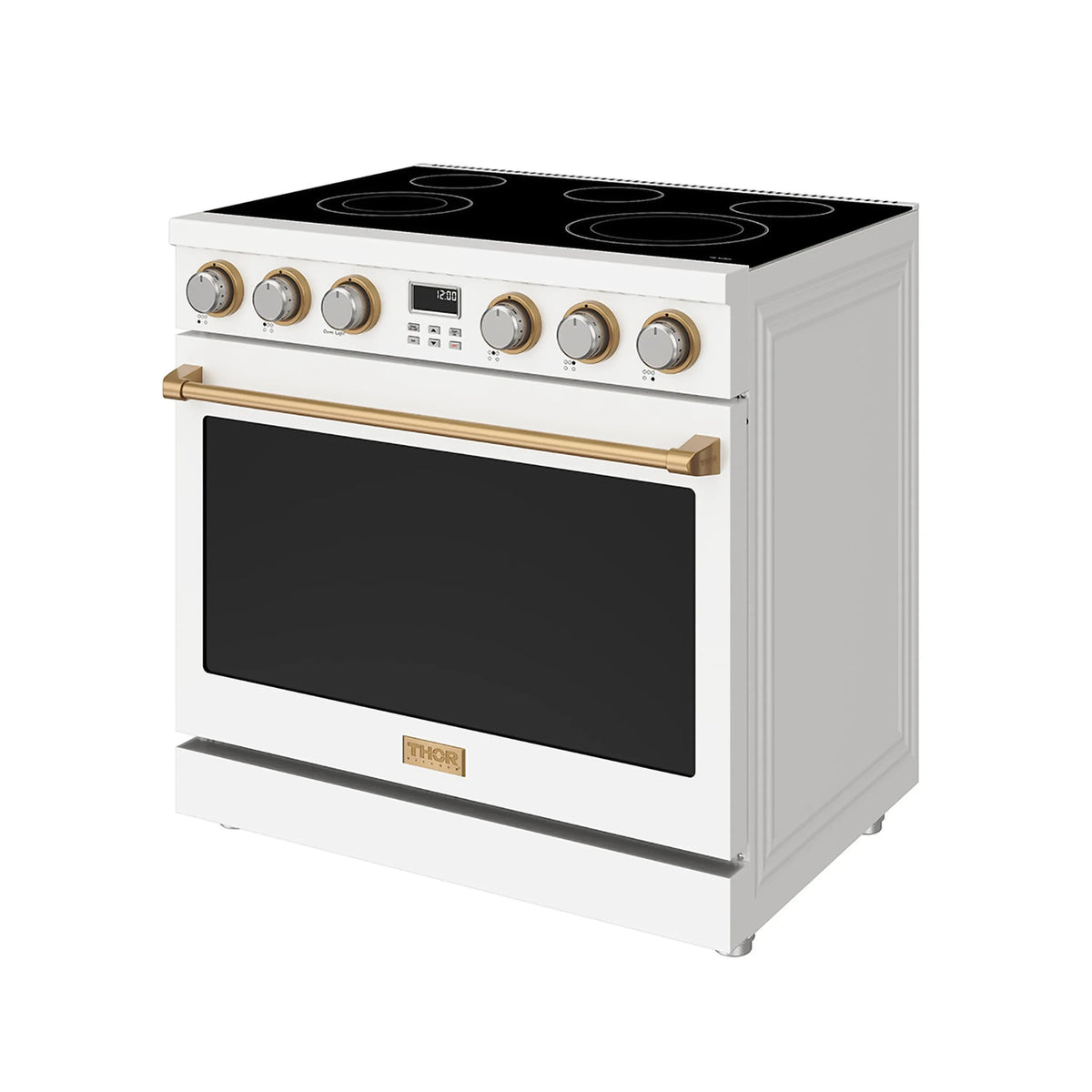

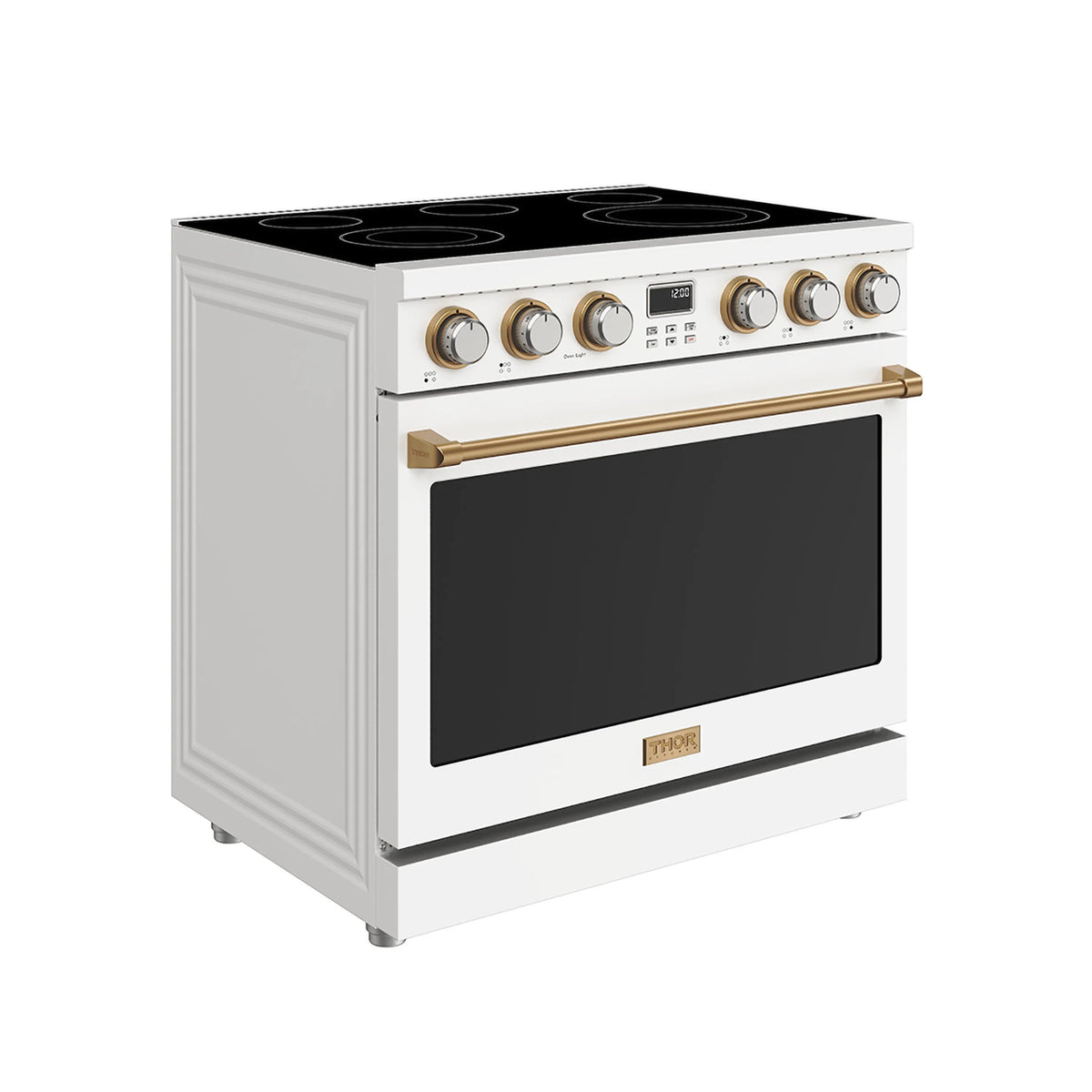

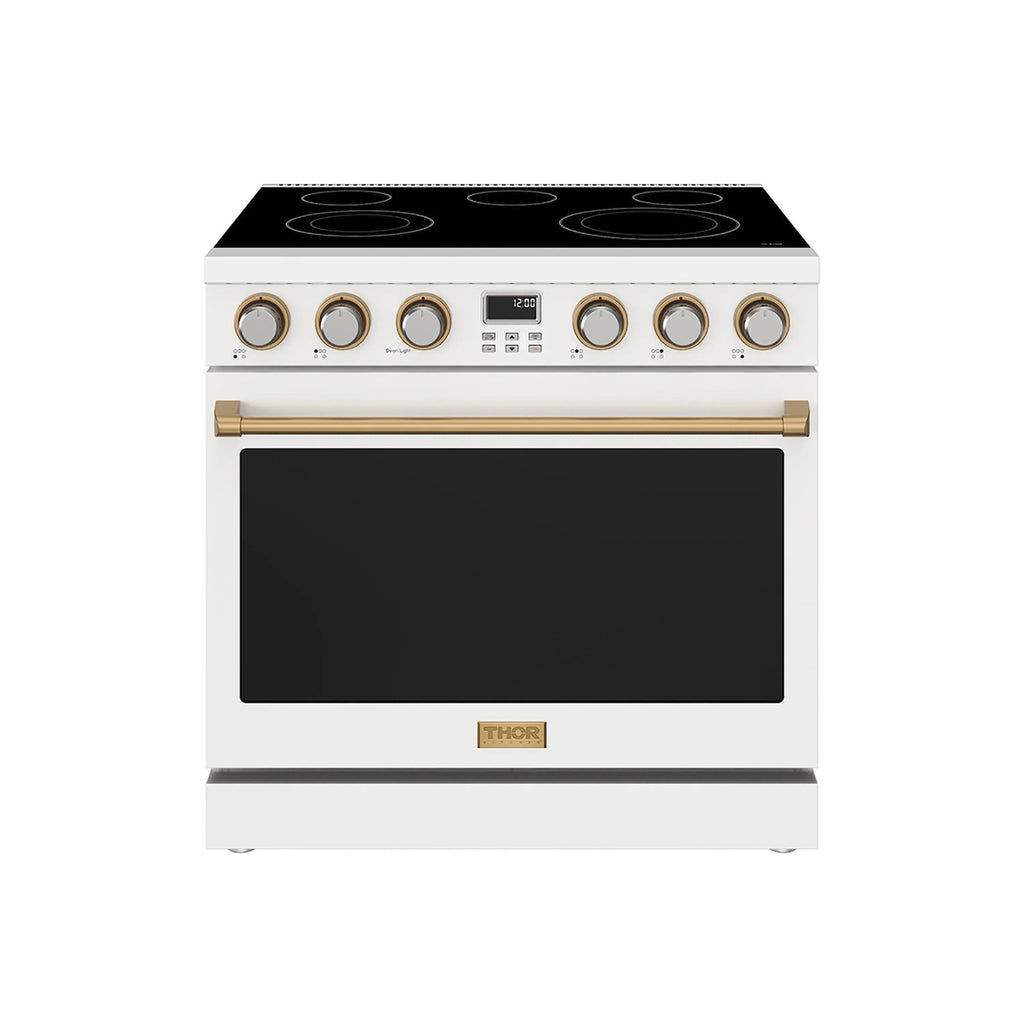

The THOR Kitchen 36 Inch A-Series Electric Range is a stainless-steel machine that is designed with powerful features and functionality. This range features a smooth glass top that is easy to clean and five heating element zones that give you the ultimate cooking flexibility with a power radiant cooktop. From a 1,200W single burner to a high-powered 3,000W dual heating element, this range gives you the power to master any meal.
Features
- Five Heating Elements — Five element cooktop gives you the ultimate cooking flexibility with a powerful radiant cooktop. From a 1,200W single burner to a high-powered 3,000W dual heating element, this range gives you the power to master any meals.

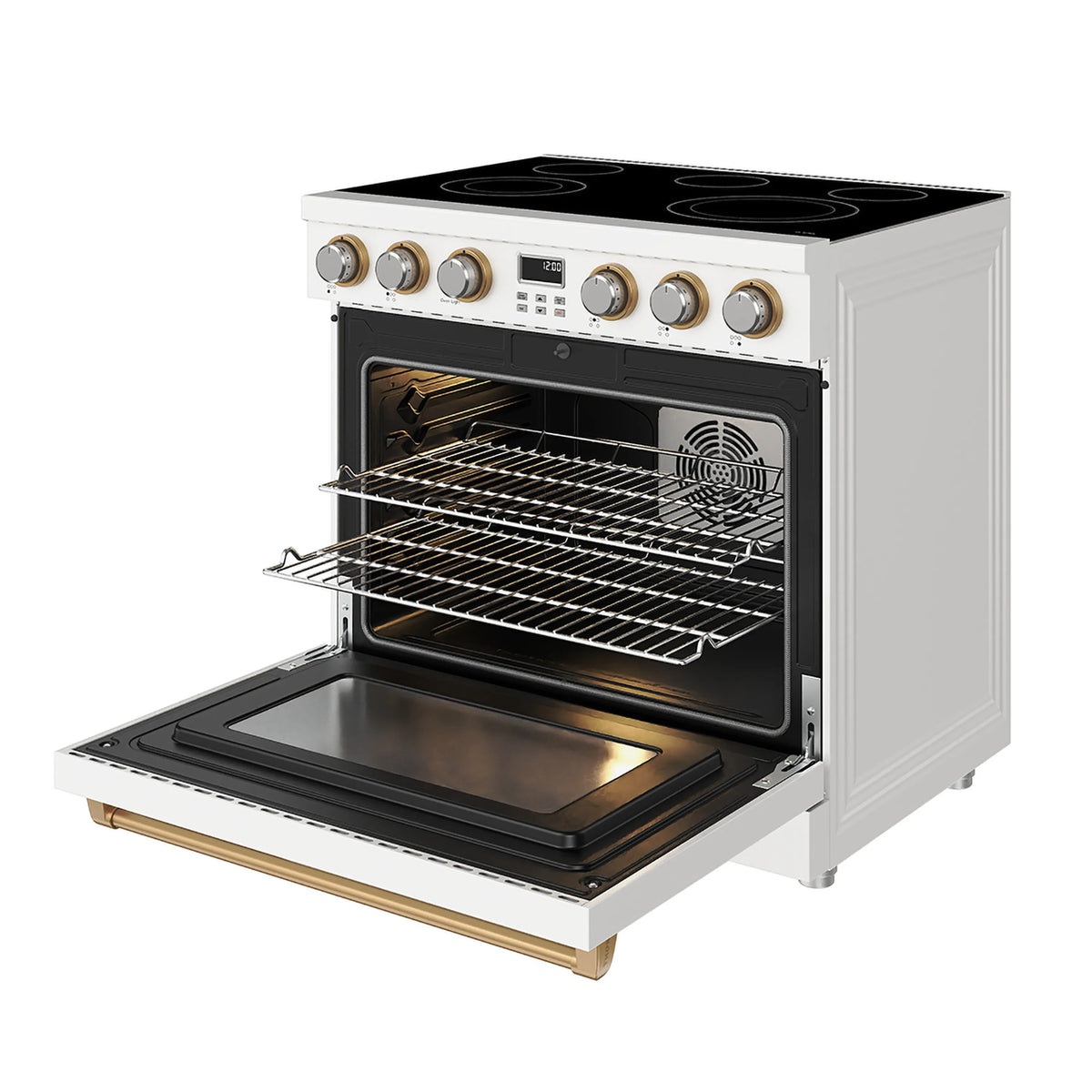

- Large Oven Capacity — 6.0 cu. ft. oven capacity can accommodate multiple dishes for enhanced cooking.

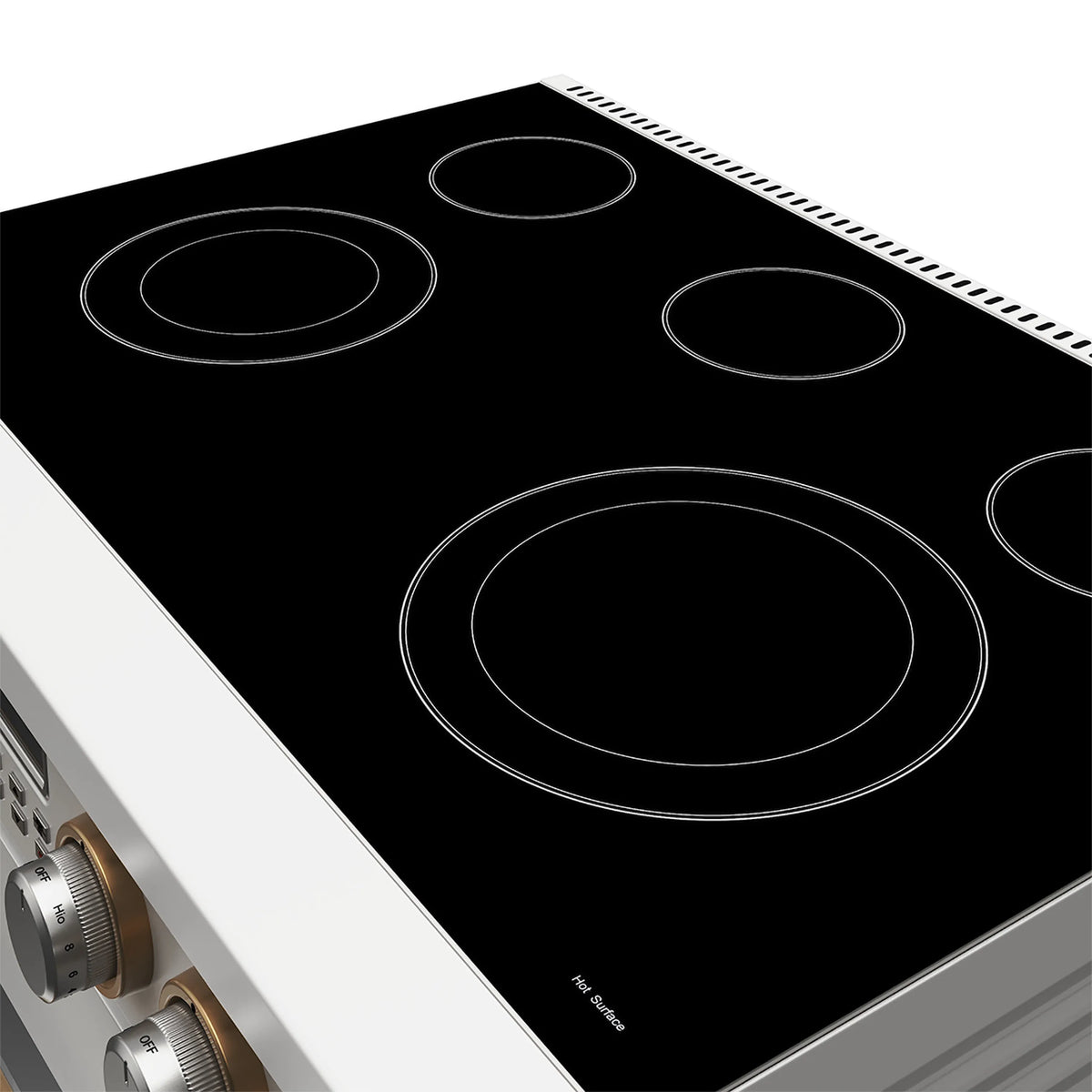

- Black Glass Top — Black glass top catches the mess and makes cleanup easy.

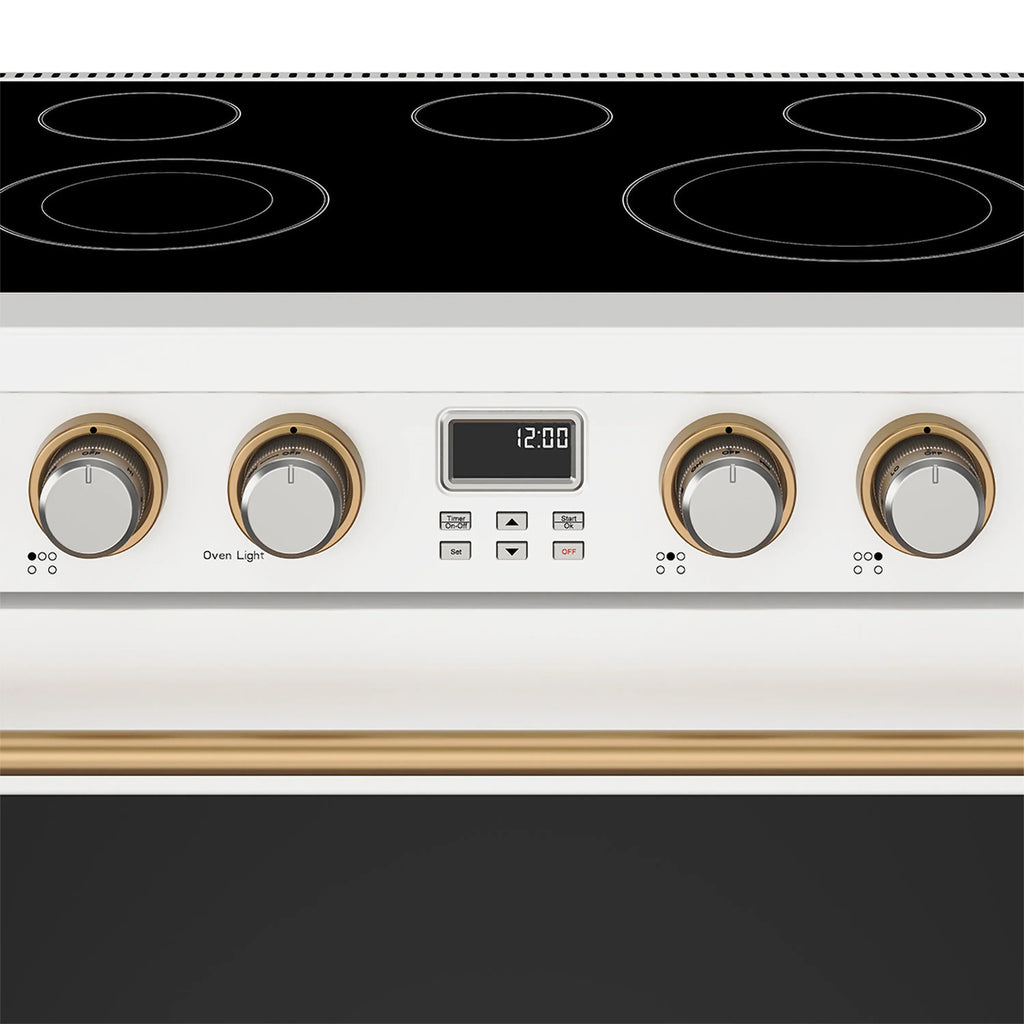

- LED Display Screen — LED display screen, oven function button operation.
- Convection Fan — Convection Fan provides controlled heat distribution for fast efficient cooking.
- Heavy Duty Control Knobs — Offer robust, reliable performance and easy handling, designed to withstand the demands of professional and high-usage kitchens.

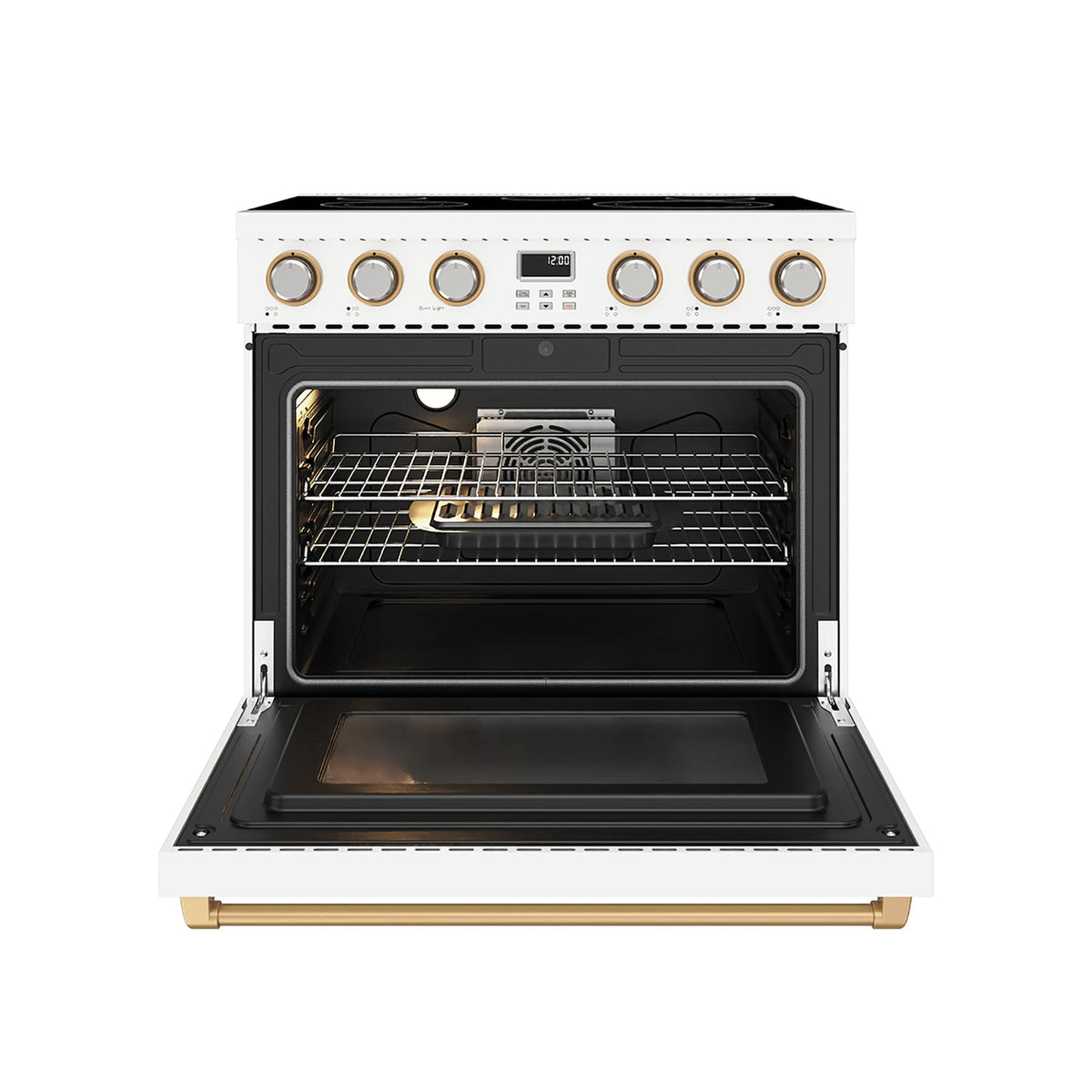

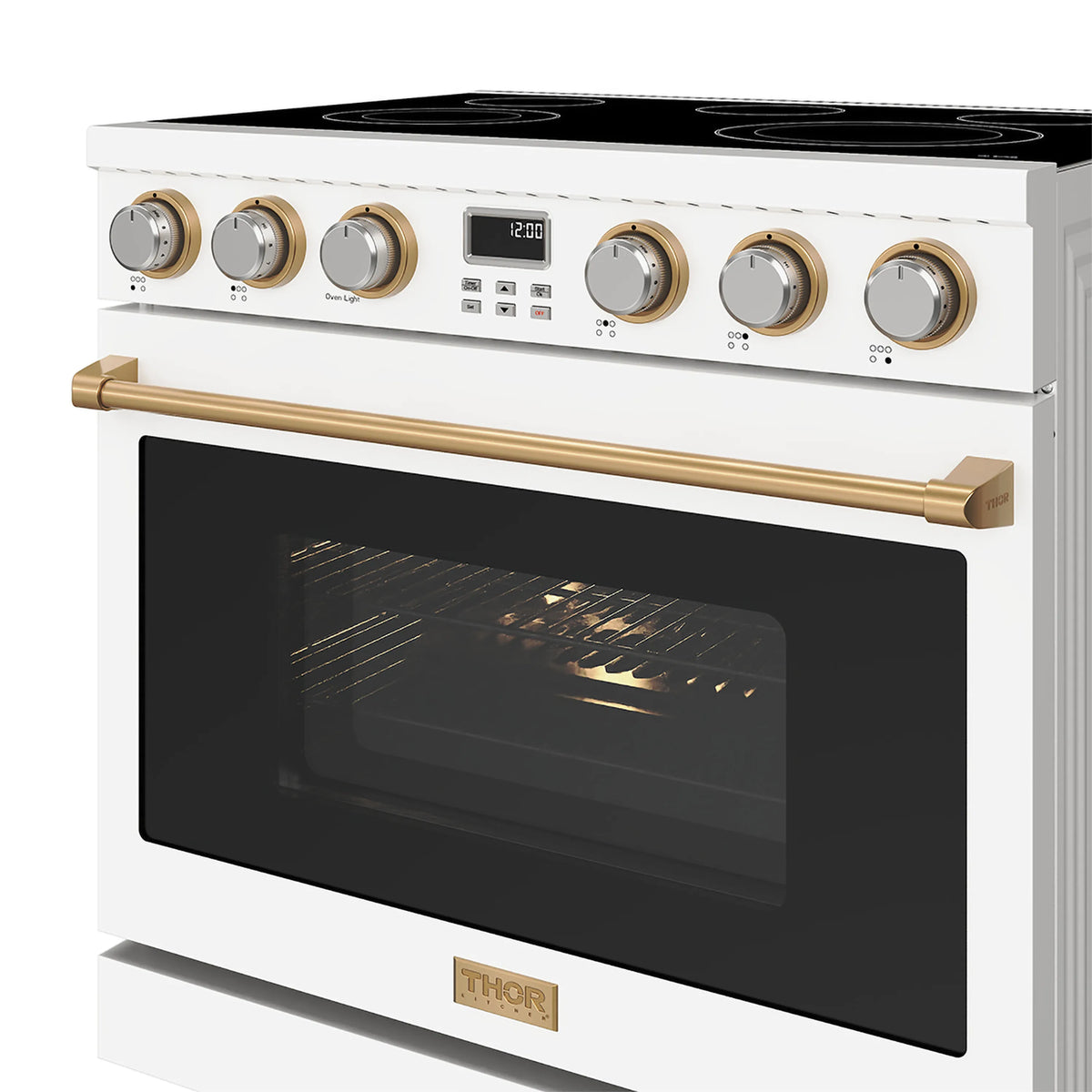

- Large Oven Windows — Large oven windows makes it easy to check on cooking food without opening the oven door.
- Chrome Plated Oven Rack — Provides a protective layer that resists rust and corrosion, even with frequent exposure to high temperatures and moisture.
DIMENSIONS
- Product Width
- 35 7/8"
- Product Height (from bottom to top of back splash)
- 36 1/12" – 40 1/12"
- Product Height (from bottom to top of side panel)
- 36" – 39"
- Product Depth (from back panel to bullnose)
- 26 7/8"
- Product Depth (from back panel to control board)
- 26 1/4"
- Product Depth (from back panel to side panel front)
- 24"
- Adjustable Leg Sizes
- 3" Max.
- Cutout Height
- 36 Inch
- Cutout Width
- 36 Inch
- Cutout Depth
- 24 Inch
- Net Weight
- 199 lbs.
- Gross Weight
- 254 lbs.
GENERAL INFORMATION
- Fuel Type
- Electric
- Installation Type
- Freestanding
- Total Elements
- 5
DESIGN & FINISH
- Color
- White
- Accent/Trim Color
- Bronze
TECHNICAL DETAILS
- Voltage
- 240 V
- Circuit Breaker
- 50 A
- Frequency (Hz)
- 60 Hz
- Control Type

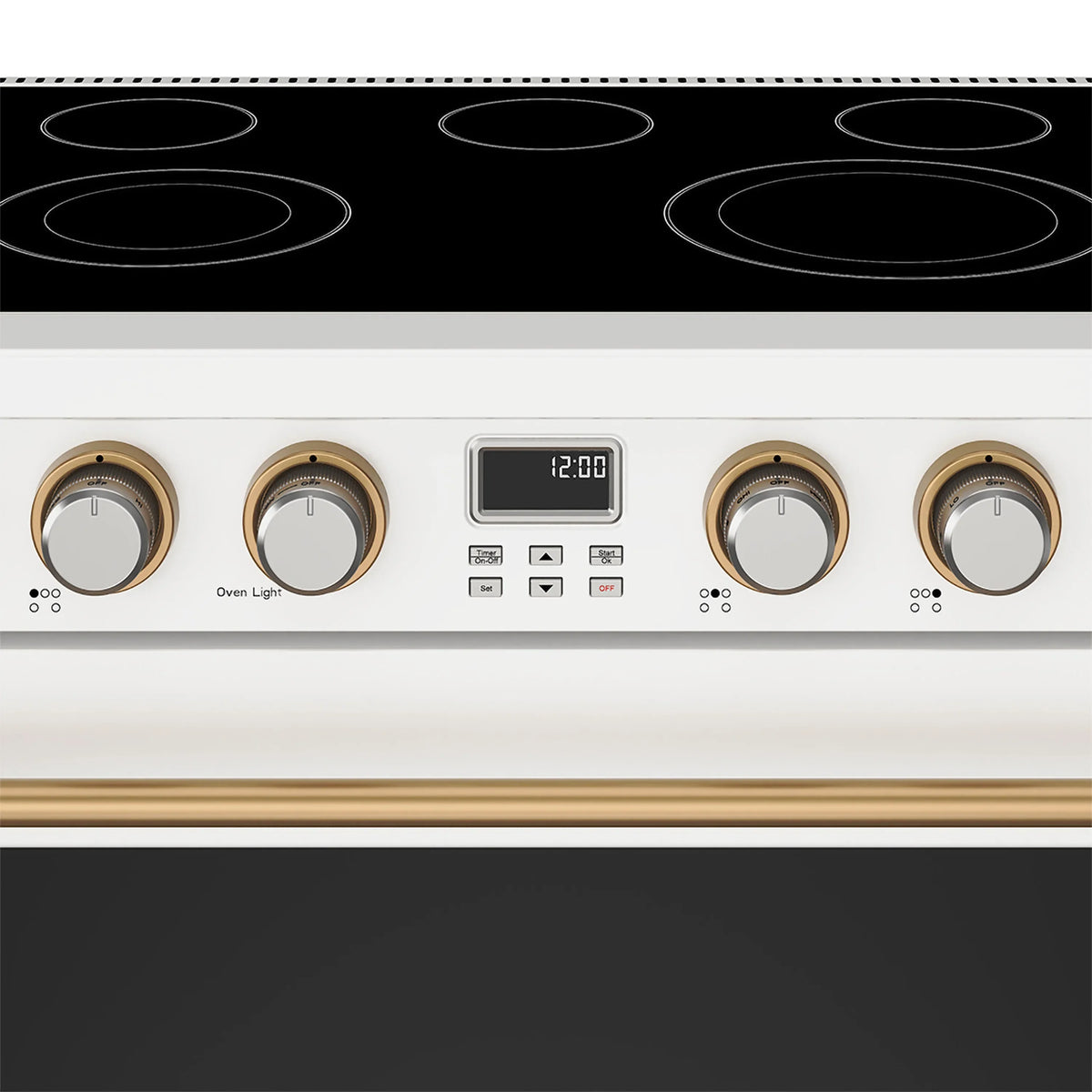

- Oven Function Button + LED Panel Display
- Hot Surface Indicator Light
- Front Right Corner of Cooktop w/ Temp at 150 °F
- Plug Type
- 4-Prong 14-50R (Not Included)
COOKTOP FEATURES
- Cooktop
- Black Polished Plate Ceramic
- Total Elements
- 5

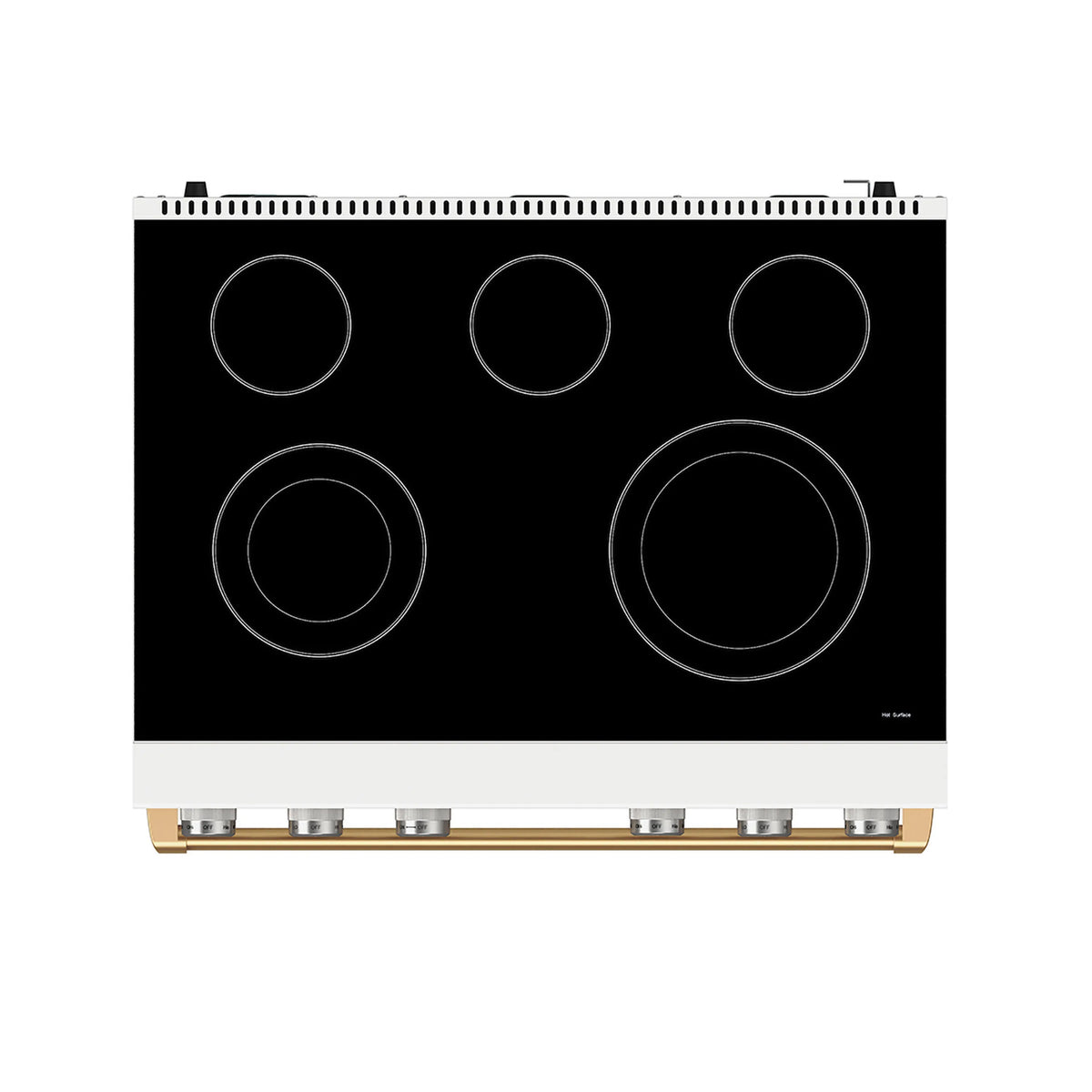

- Element Outputs
- [1] Front Left Element (Dual): Outer Ring 1,200W / Inner Ring 1,800W / Total 3,000W
- [2] Front Right Element (Dual): Outer Ring 1,500W / Inner Ring 1,500W / Total 3,000W
- [3] Rear Left Element (Single): 1,200W
- [4] Rear Middle Element (Single): 1,200W
- [5] Rear Right Element (Single): 1,200W
OVEN FEATURES
- Oven Capacity
- 6.0 cu.ft.
- Oven Color
- Black
- Oven Control Buttons
- Start/Ok, Timer On/Off
- Lower Heater Power
- 3,500W
- Top Heater Power
- 3,500W
- Convection
- Convection Fan
- Oven Light
- 1*40W, Rear
- Oven Racks
- 2
- Rack Positions
- 6
- Oven Rack Material
- Chrome Plated
- Baking Sheet Size
- Fits up to 28" x 14" Sheet
- Oven Height
- 18"
- Oven Width
- 29.7"
- Oven Depth
- 19.4"
- Accessories Included
- 2 Oven Racks
- 1 Broiler Pan
- 1 Bake Pan
WARRANTY & CERTIFICATIONS
- California Proposition 65
- WARNING: Cancer and Reproductive Harm
Piece 2 of 2 — RANGE HOOD

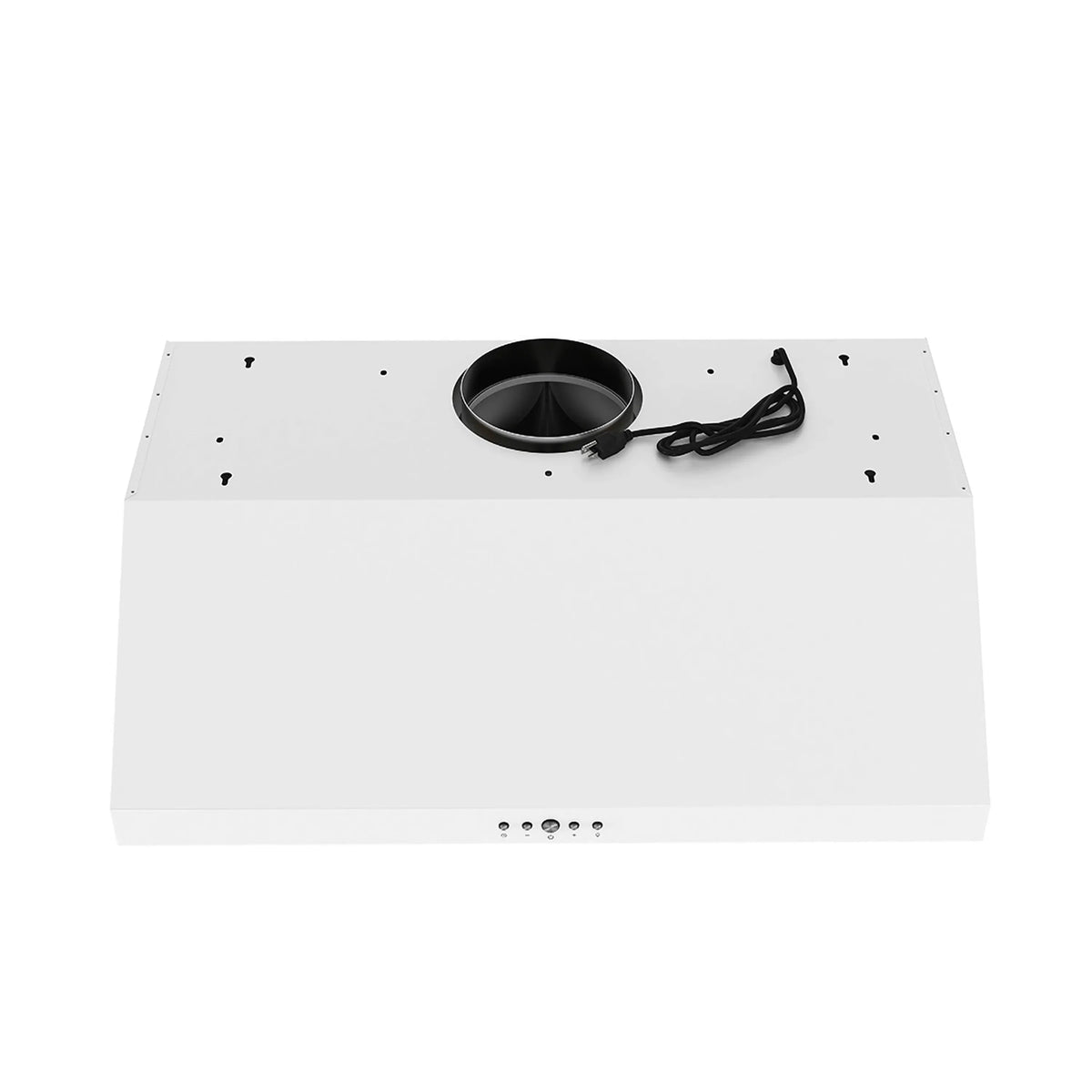

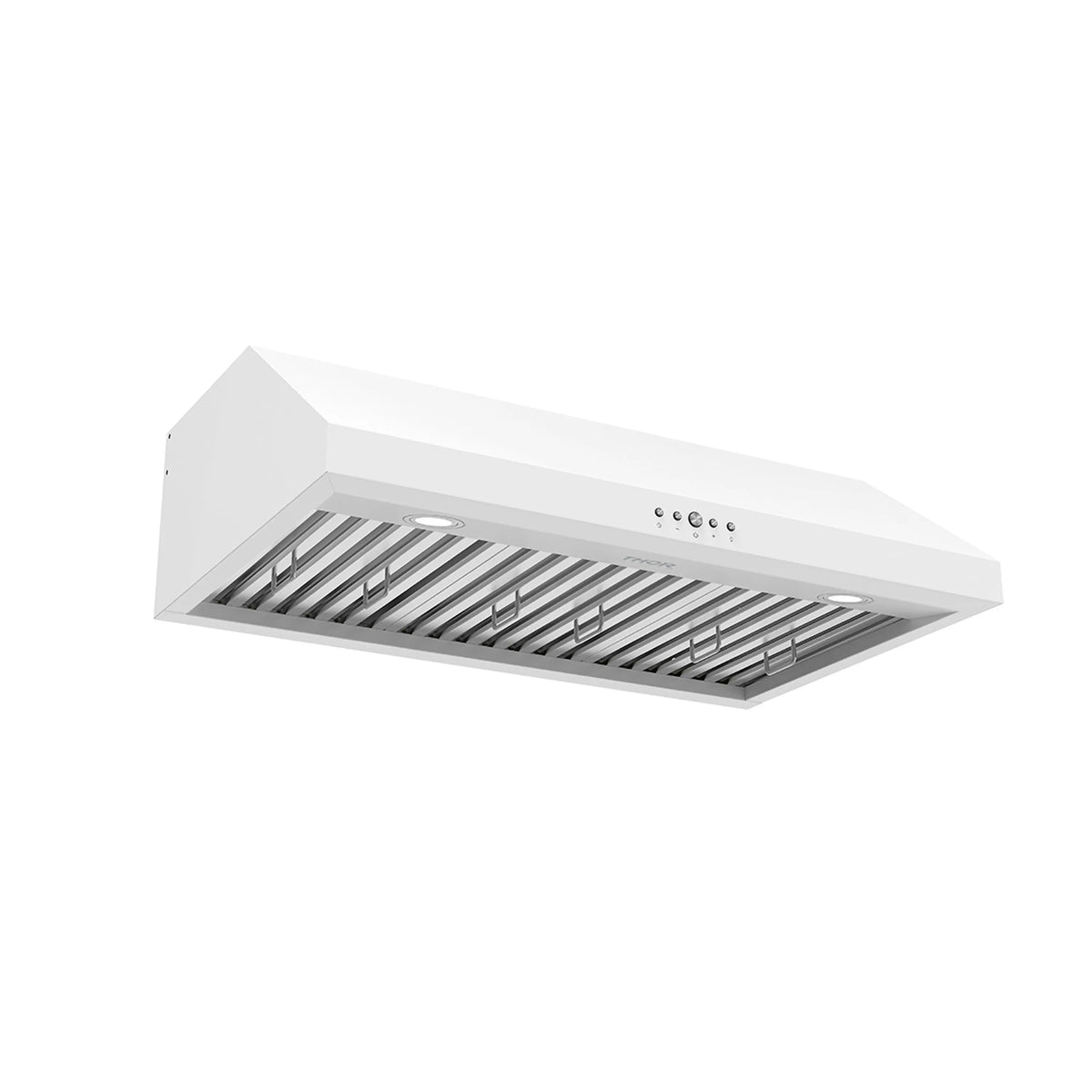

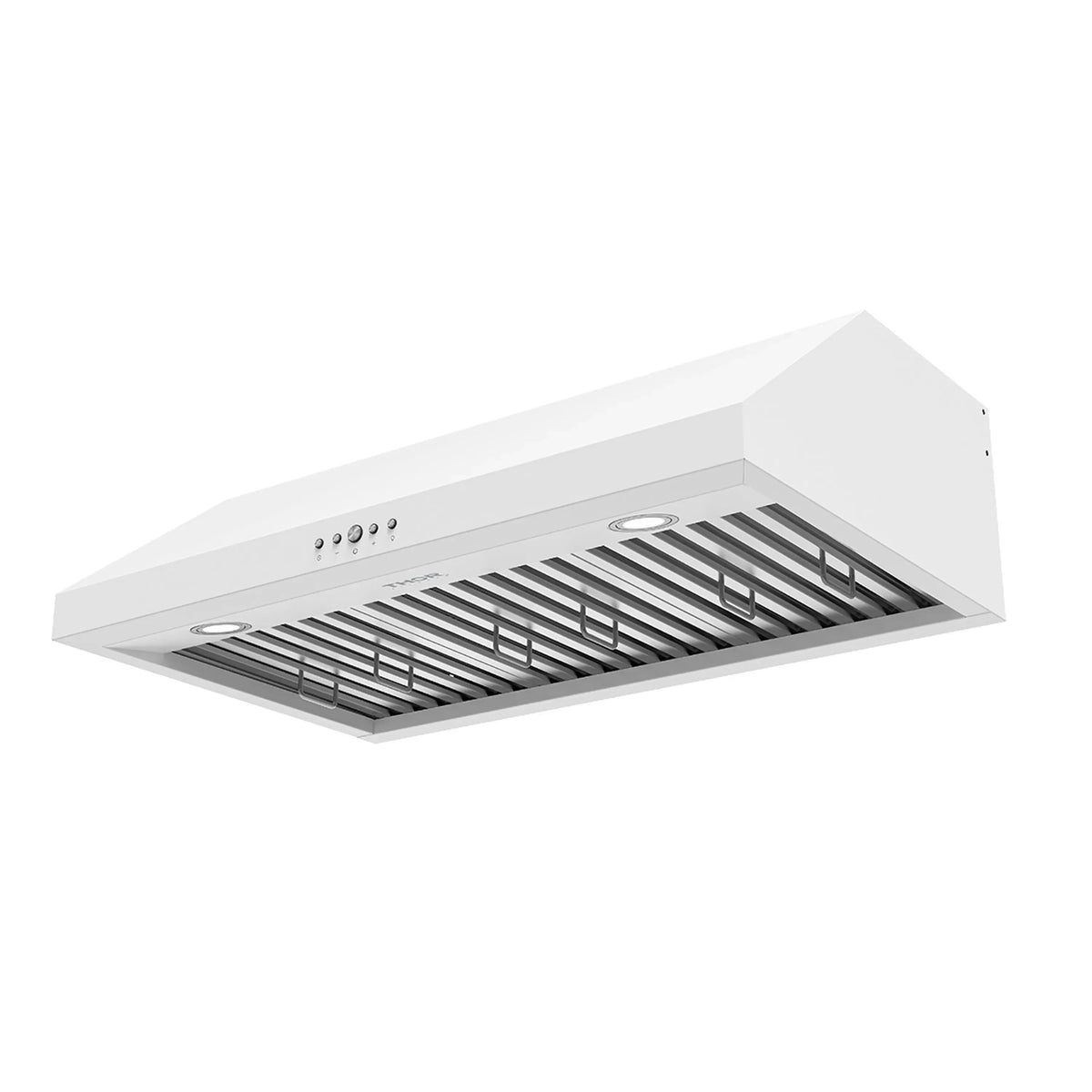

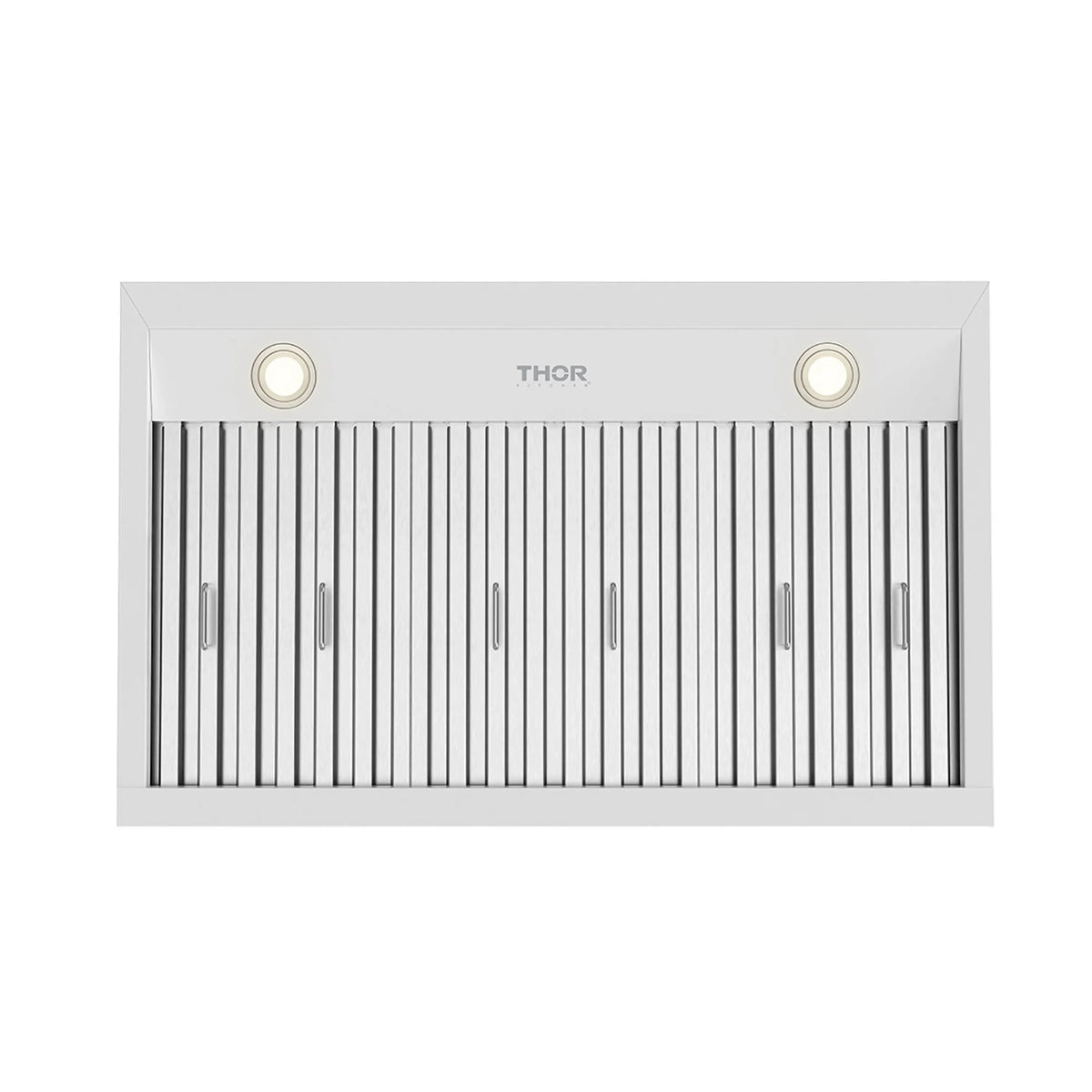

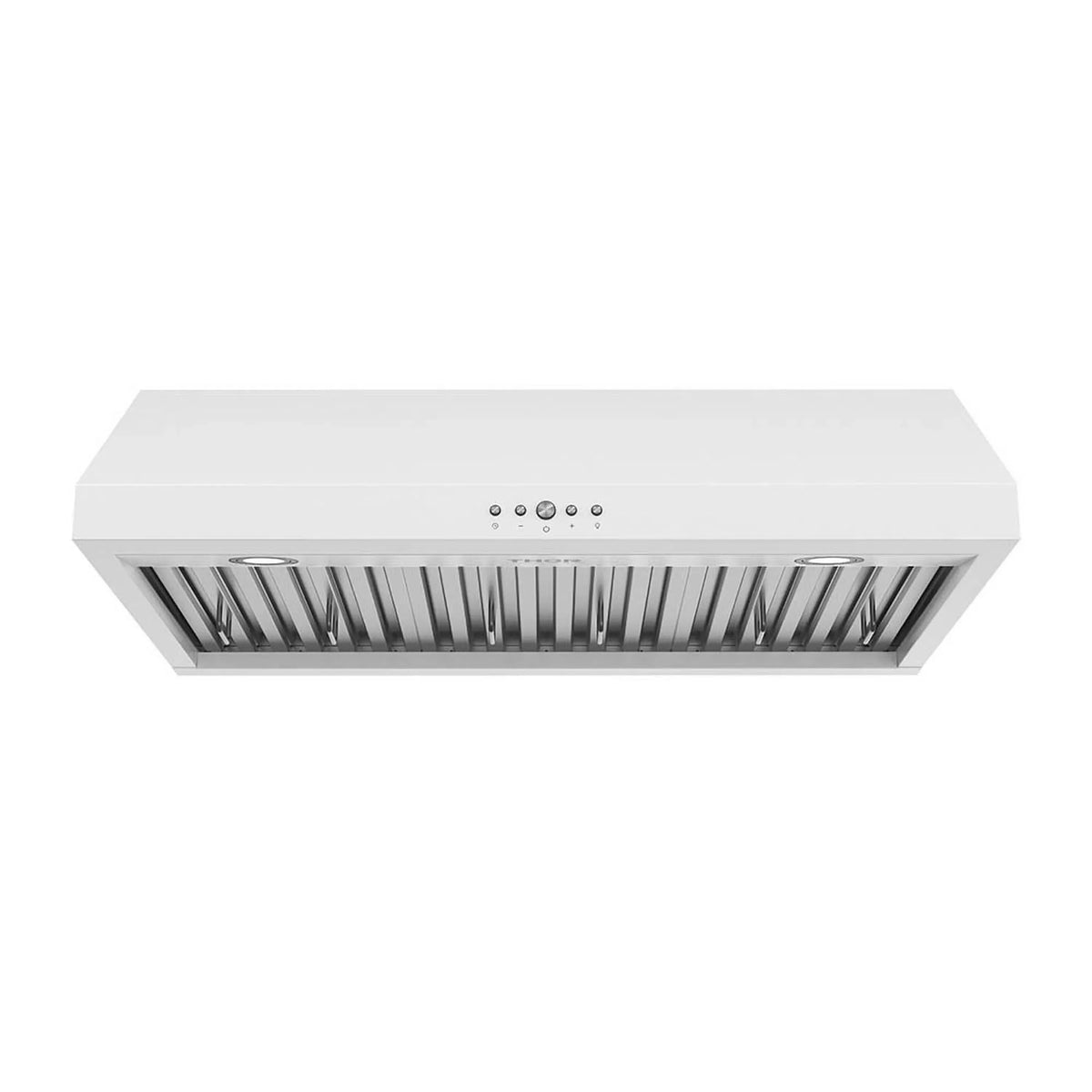

Power through everyday cooking with the Thor Kitchen 36-Inch Under Cabinet Range Hood (TUH3648W). Designed to mount neatly beneath your cabinetry, this convertible hood pulls up to 480 CFM to clear smoke, steam, and odors, with three fan speeds, bright LED lighting, and dishwasher-safe baffle filters for easy upkeep.
Features
- Durable White Finish: Provides a sleek, modern look that complements any kitchen style while ensuring long-lasting strength and quality.
- Efficient 480 CFM Ventilation: Provides effective airflow to manage everyday cooking smoke, steam, and odors.
- Dual Installation Options (Ducted or Ductless): Convertible ducted or ductless installation for flexible setup.

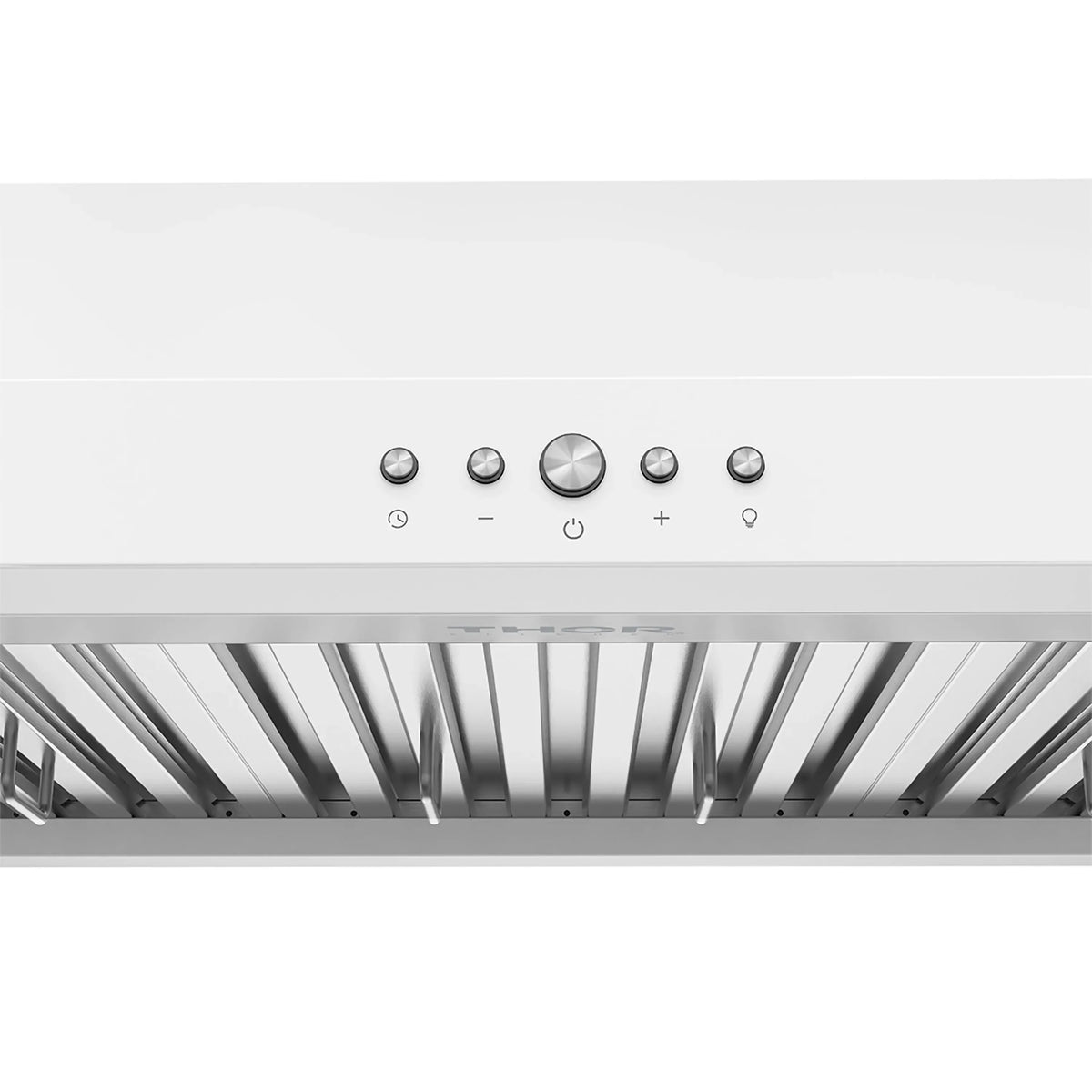

- Easy Push Button Controls: Simple mechanical buttons for hassle-free operation.

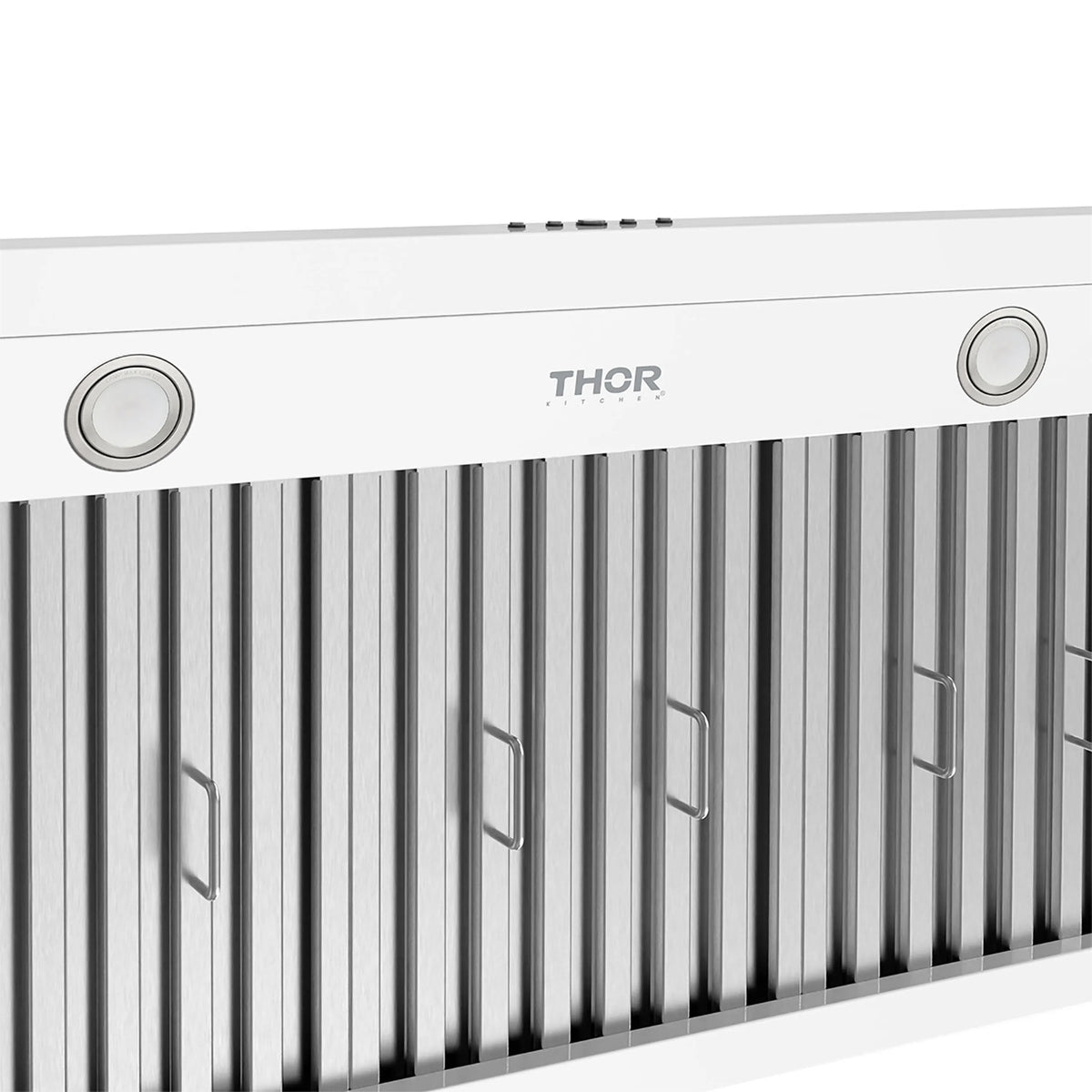

- Bright, Energy-Saving LED Lights: Illuminates the cooking surface clearly while minimizing energy use.
- Dishwasher-Safe Baffle Filters: Removable filters (three included) trap grease and are easy to clean for long-lasting performance.
- Three-Speed Fan Settings: Adjustable airflow to suit light simmering or more intensive cooking.
- Delay Shut-Off Function: Runs for 5 minutes after cooking to clear lingering smoke and odors.
- Under-Cabinet Mounting: Fits neatly beneath standard cabinetry for a clean, space-saving installation.
DIMENSIONS
- Product Dimensions
- 35-1/4" W x 22-1/16" D x 10-1/2" H
- Cutout Dimensions
- 35-3/8" W x 22-1/4" D x 10-11/16" H
- Minimum Distance Above Gas / Electric
- 30" / 28"
- Net Weight
- 51.8 lbs.
- Package Dimensions
- 38-3/16" W x 16-1/8" D x 26" H
GENERAL INFORMATION
- Brand
- THOR Kitchen
- Model
- TUH3648W
- Product Type
- Under-Cabinet Range Hood
- Mounting Type
- Undercabinet
- Airflow
- 480 CFM (max)
- Ducted / Recirculating Convertible
- Yes
DESIGN & FINISH
- Finish
- White
- Filter Type
- Baffle Filter
- Filter Qty
- 3
- Lighting
- 2 x 1.5W Warm White LED
- Duct Size
- 7-11/16"
- Duct Type
- Round
TECHNICAL DETAILS
- Watts
- 263W
- Amperage
- 15A (Dedicated)
- Volts
- 120V
- Frequency
- 60Hz
- Plug Type
- US 3-Prong Plug
- Power Cord Length
- 39-3/8"
FEATURES
- Number of Speeds
- 3
- CFM (Low / Medium / High)
- Low: 331 CFM
- Medium: 387 CFM
- High: 480 CFM
- Noise Rating (Low / Medium / High)
- Low: 58 dB
- Medium: 61 dB
- High: 64 dB
- Control Type
- Push Button
- Delay Function
- Yes (5 mins)
- Installation
- Ducted or Ductless (Convertible)
- Dishwasher-Safe Baffle Filters
- Yes
- Accessories Included
- Mounting Brackets
- Round Damper
WARRANTY & CERTIFICATIONS
- Warranty
- Two Years Parts and Labor
