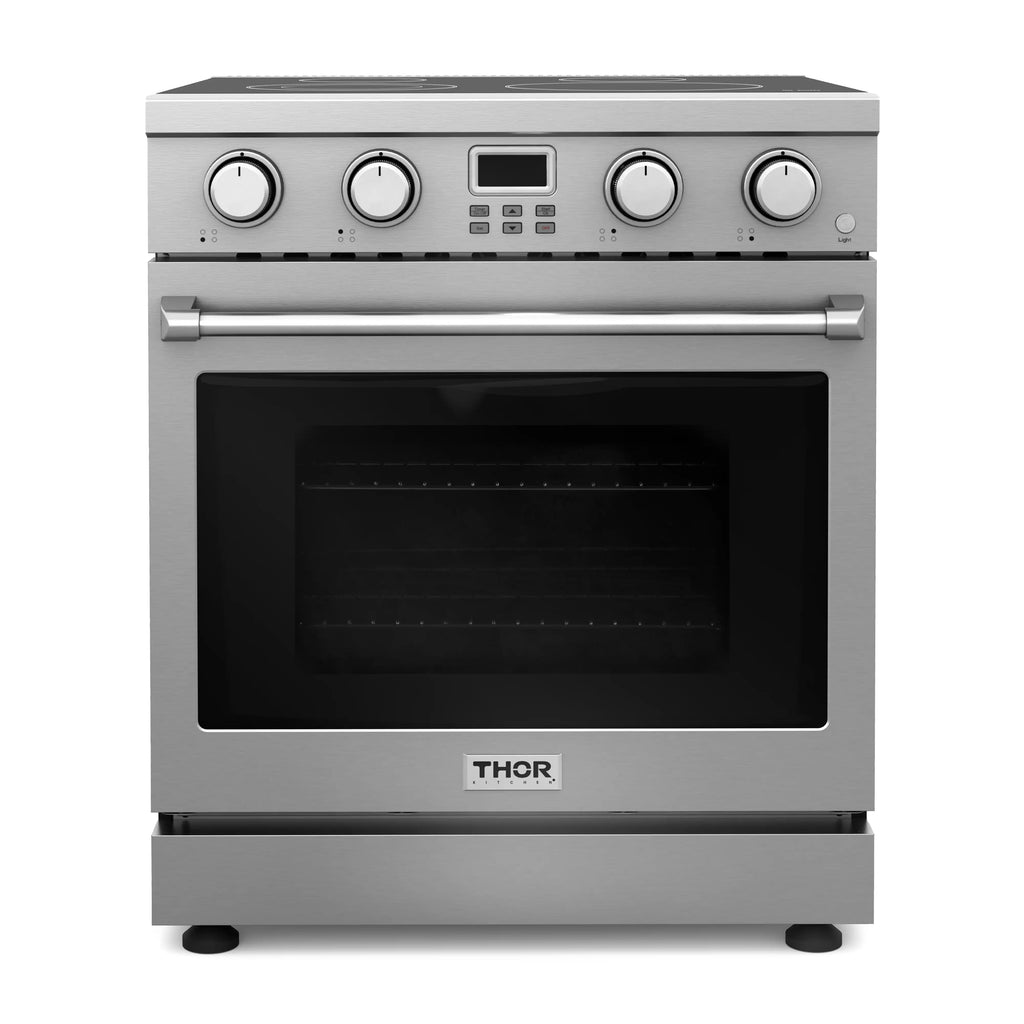

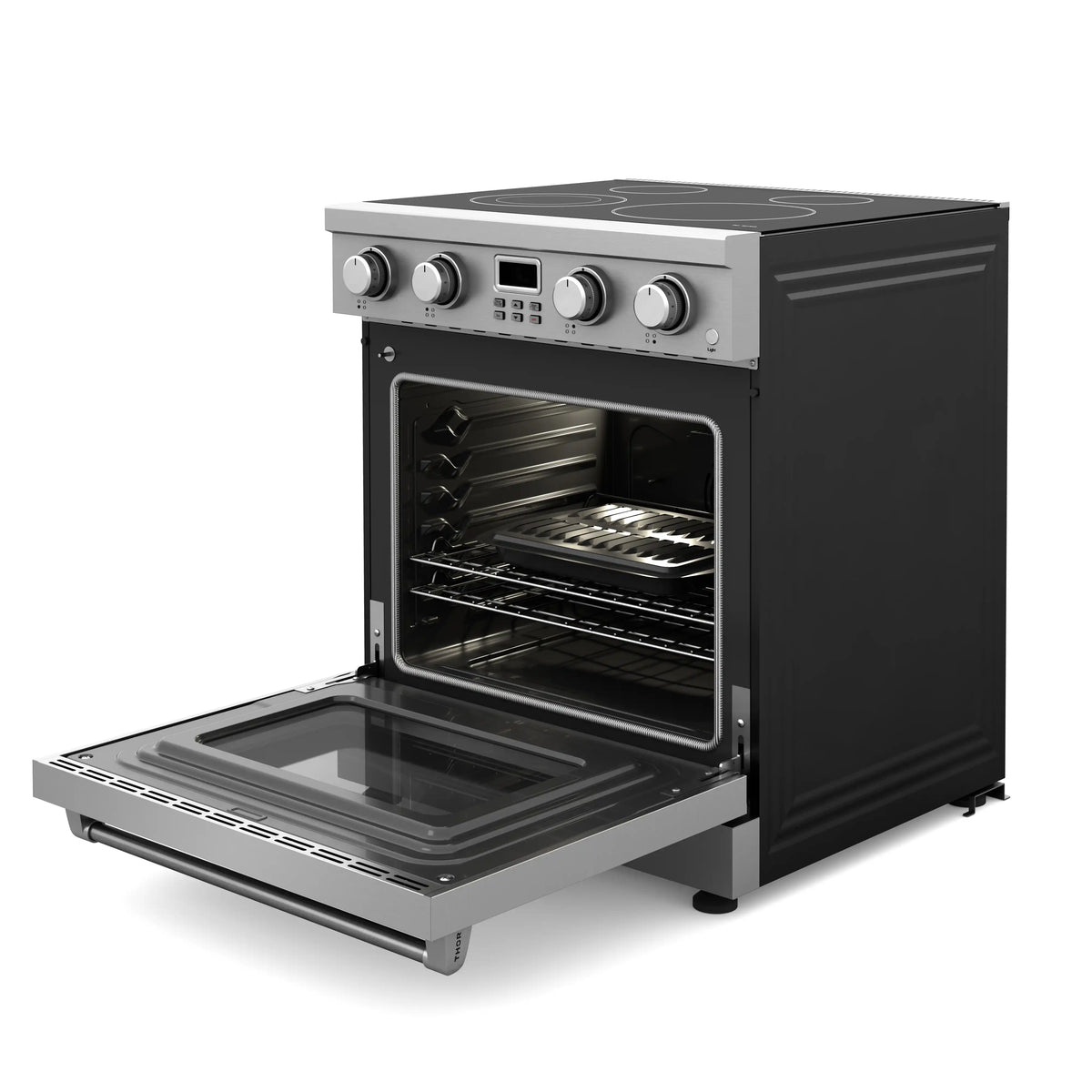

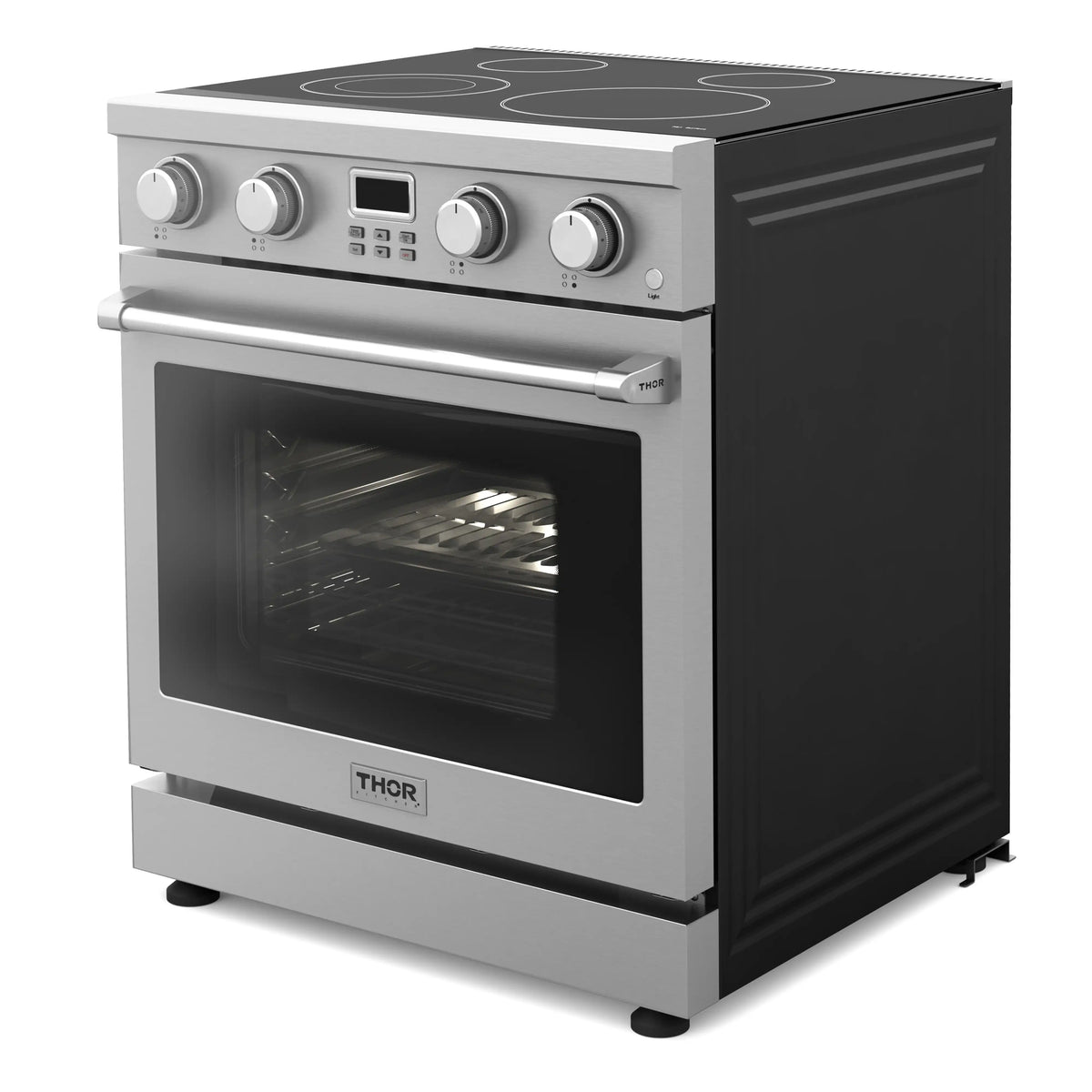

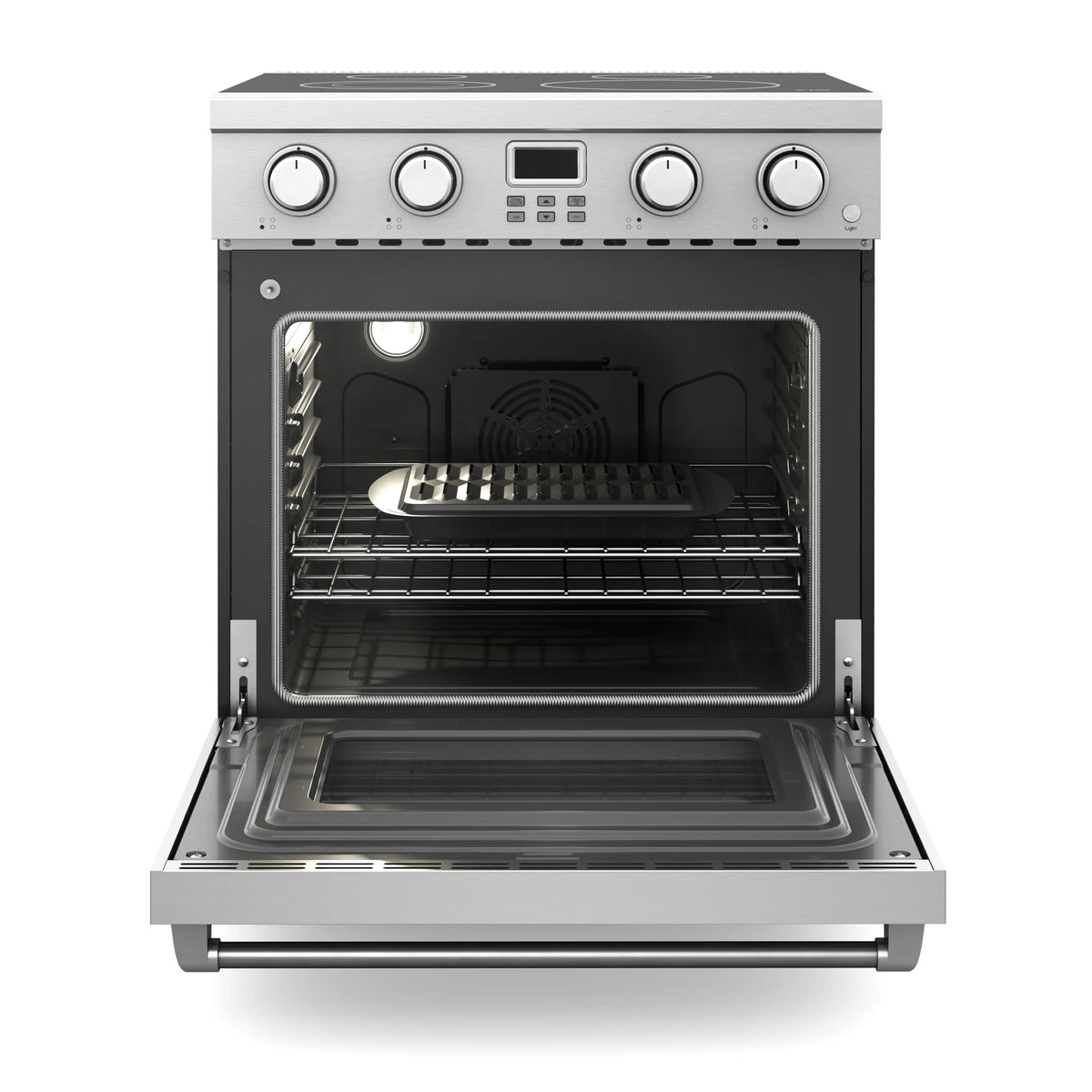

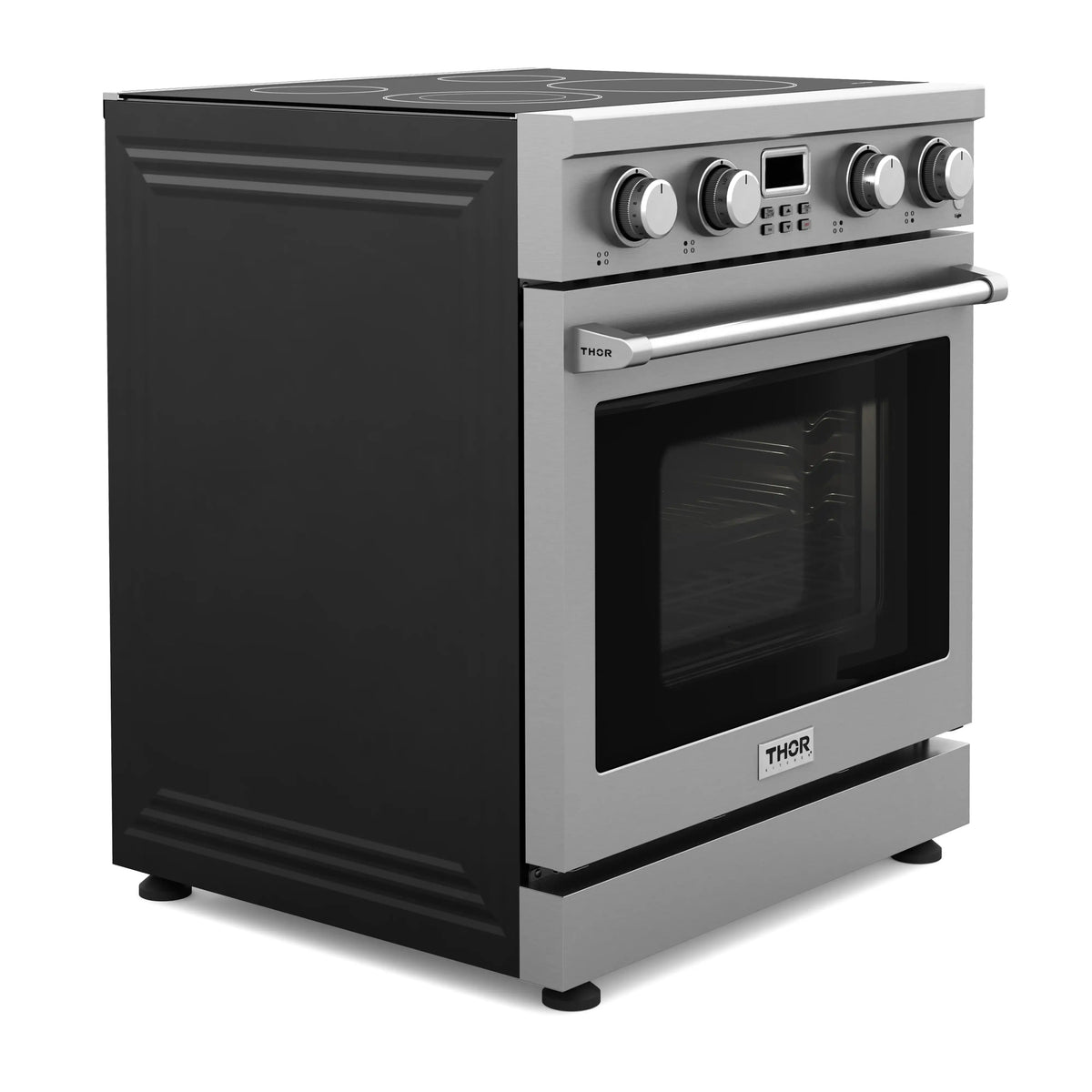

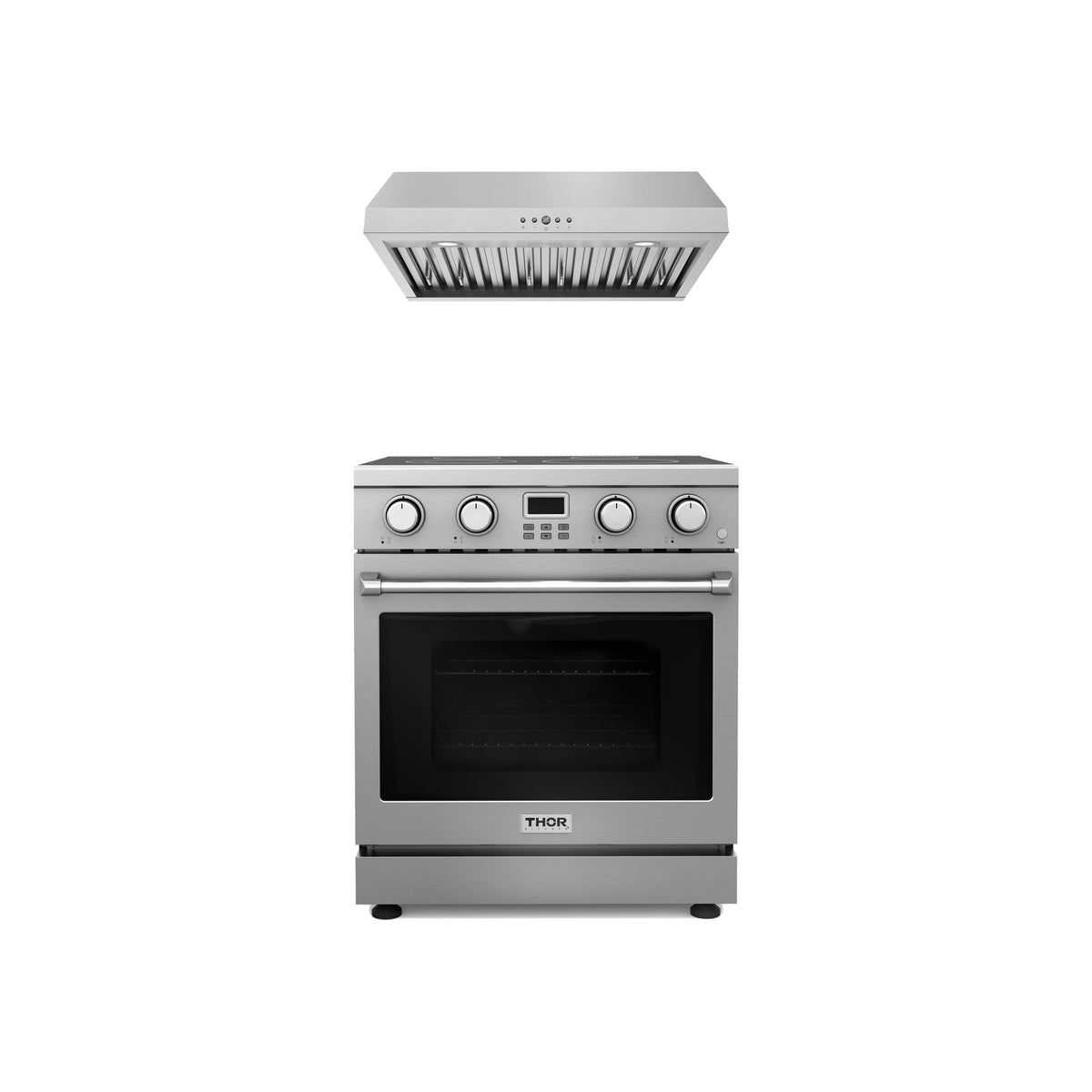

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. The THOR Kitchen 30 Inch Professional Electric Range is a stainless-steel machine designed with professional features and functionality. With easily accessible controls, high-powered burners, continuous grates, and a commercial convection fan, this range takes everything from prime rib to snickerdoodles to the next level.
| DIMENSIONS | |
|---|---|
| Product Width | 29 7/8 in. |
| Product Height (from bottom to top of back splash) | 36 in. |
| Product Height (from bottom to top of side panel) | 34 3/4 in. |
| Product Depth (from back panel to bullnose) | 26 3/4" in. |
| Product Depth (from back panel to control board) | 26 1/4" in. |
| Product Depth (from back panel to side panel front) | 24 in. |
| Adjustable Leg Sizes | 3 in. Max. |
| Cut Out Dimensions | 30" W x 24" D x 36" H |
| Oven (W x D x H) | 23.7 in. x 19.5 in. x 18 in. |
| GENERAL INFORMATION | |
| Baking Sheet Size | Fits up to 22" x 14" Sheet |
| Accessories Included |
|
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Control Type | Oven Function Button + LED Panel Display |
| TECHNICAL DETAILS | |
| Fuel Type | Electric |
| Installation Type | Freestanding |
| Voltage | 240V 50A |
| Frequency(Hz) | 60Hz |
| Plug Type | 4-Prong 14-50R (Not Included) |
| Lower Heater Power | 3000W |
| Top Heater Power | 3,500W |

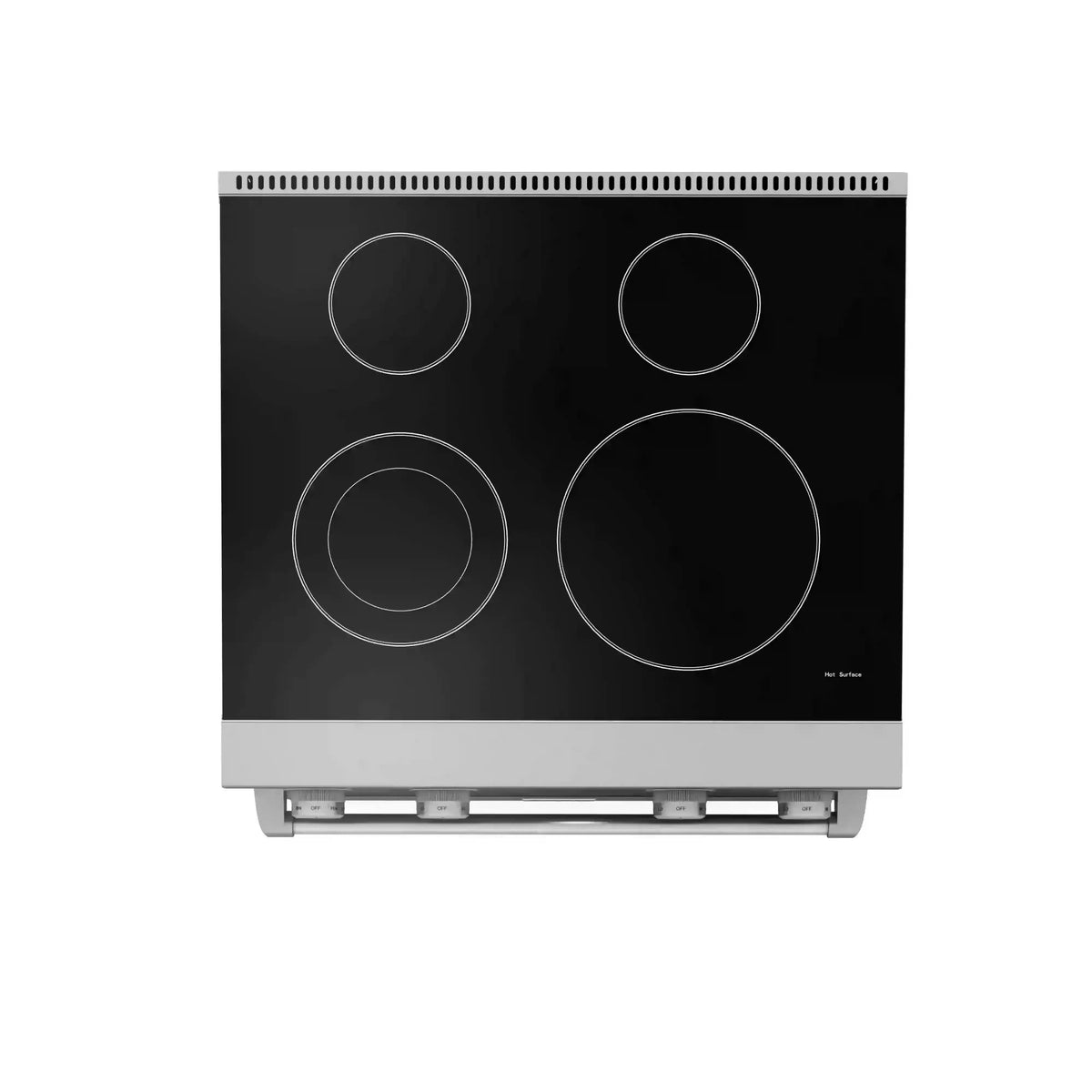

| COOKTOP FEATURES | |
| Hot Surface Indicator Light | Front Right Corner Of Cooktop w/Temp at 150˚F |
| OVEN FEATURES | |
| Oven Capacity | 4.8 Cu. Ft. |
| Oven Color | Black |
| Oven Features |
|
| Oven Control Buttons | Start/Ok, Timer On/Off |
| Convection | Convection Plan |
| Oven Light | 1*40W, Rear |
| Oven Racks | 2 |
| Rack Positions | 6 |
| Oven Rack Material | Chrome Plated |

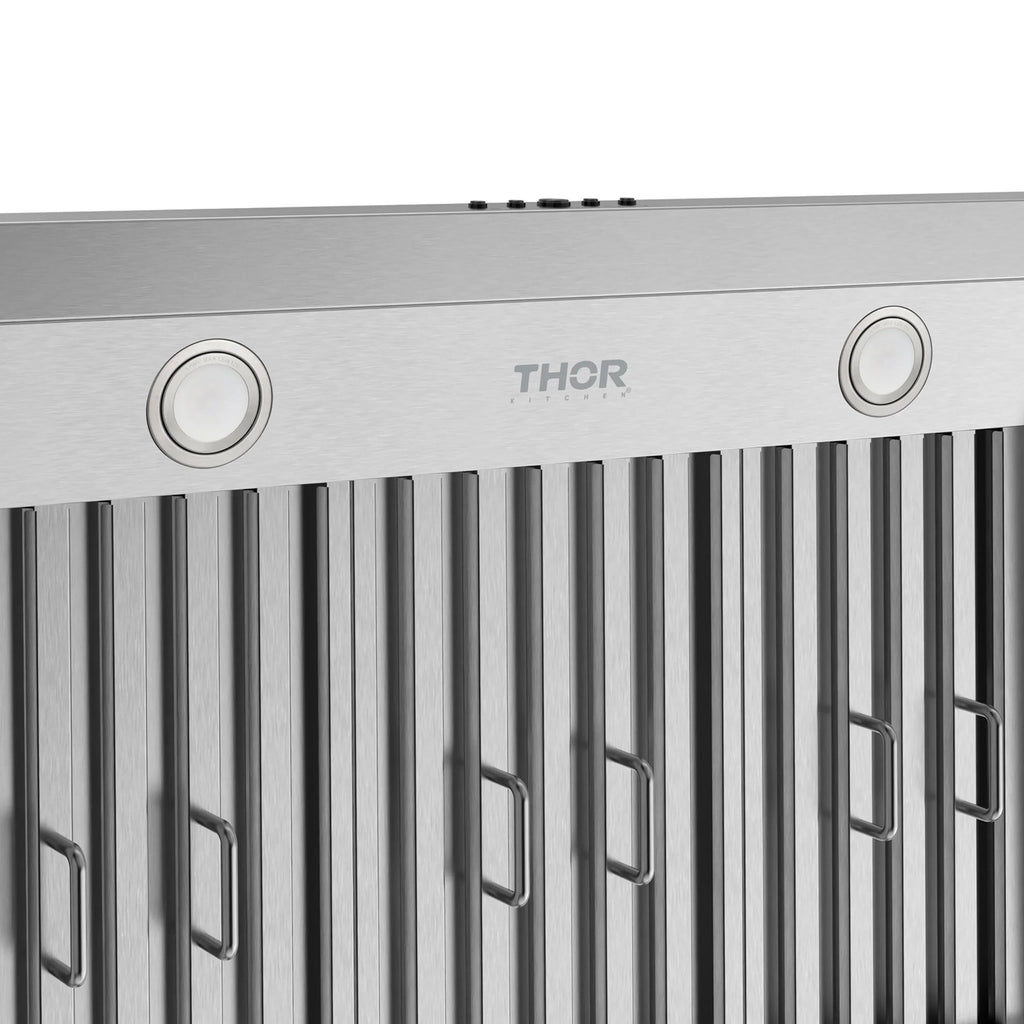

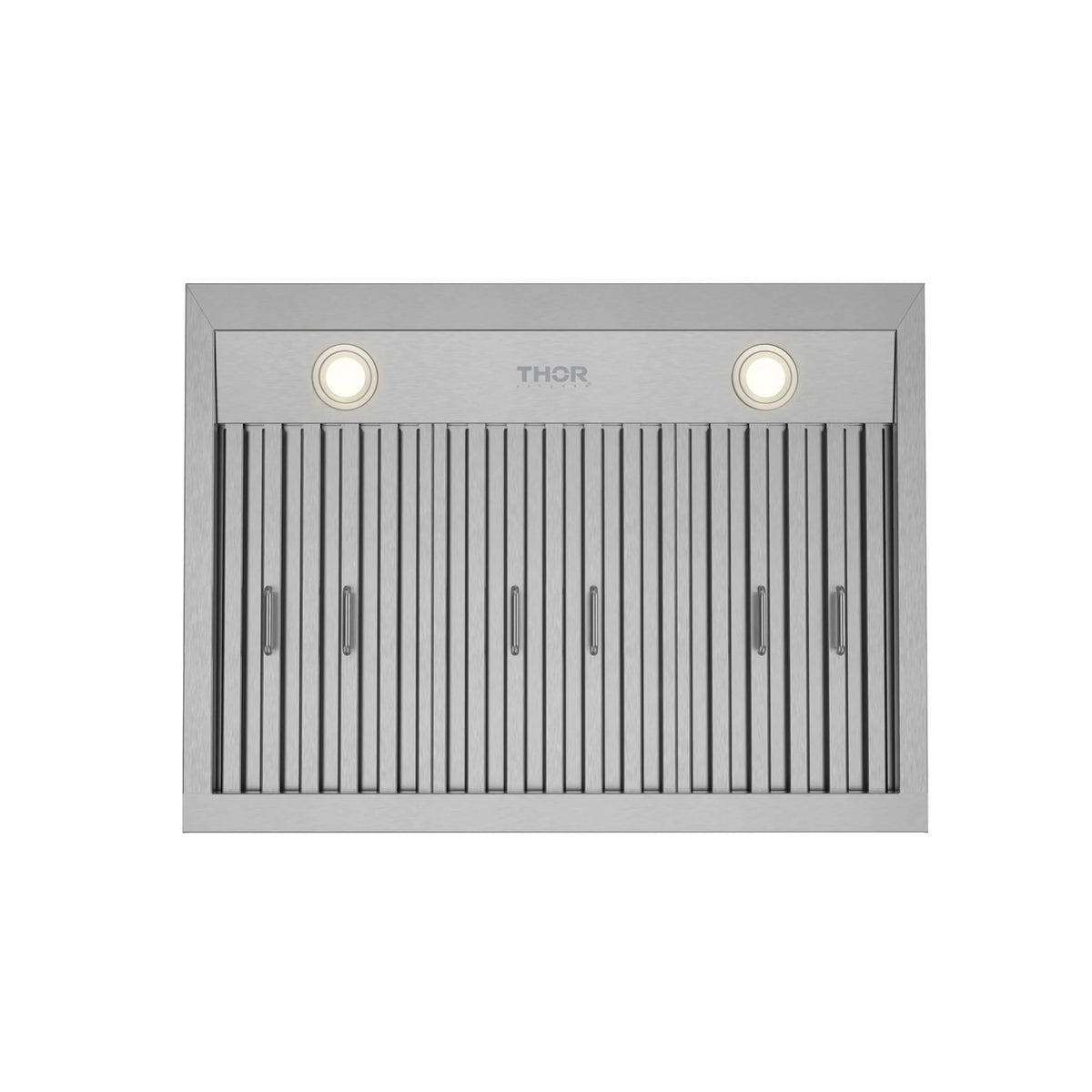

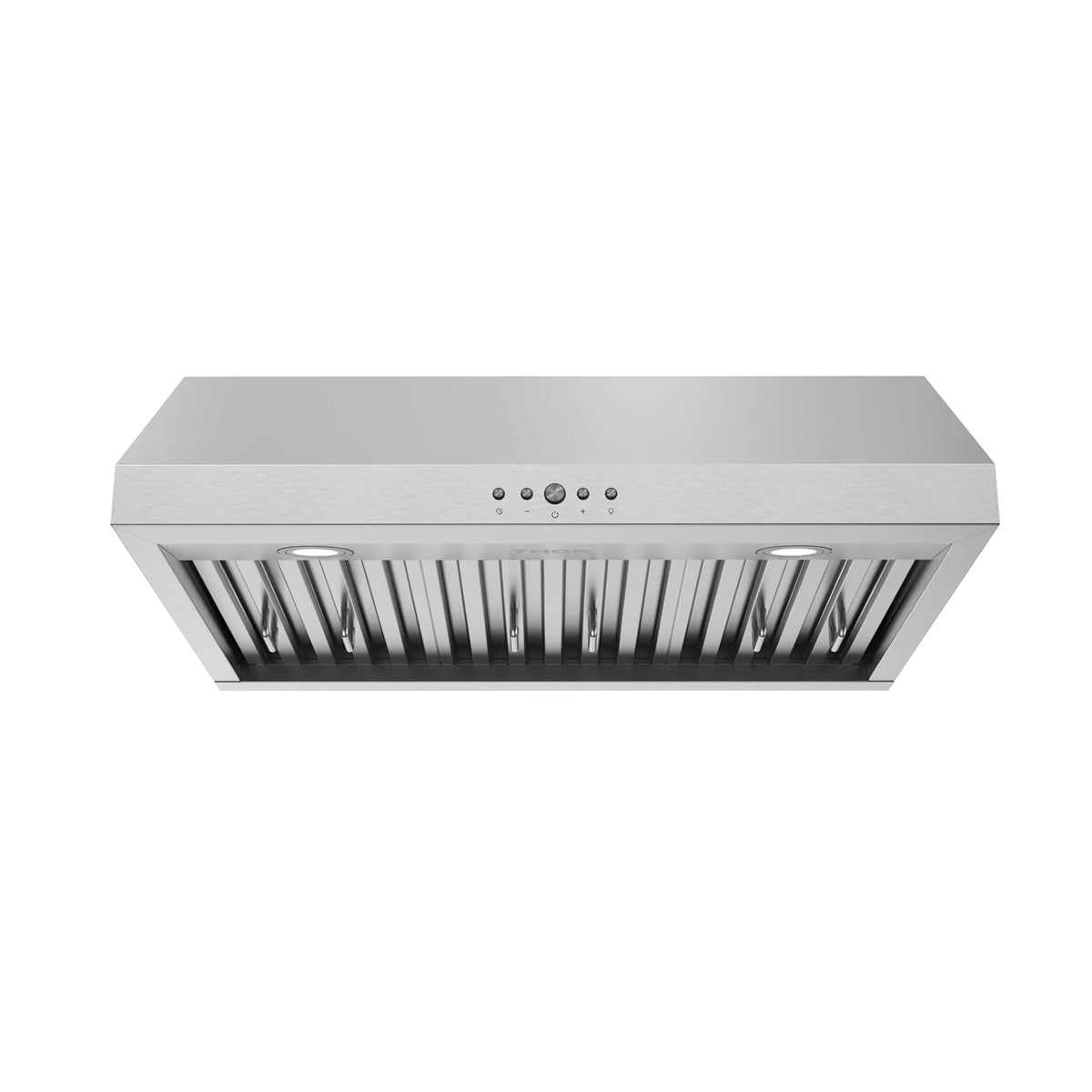

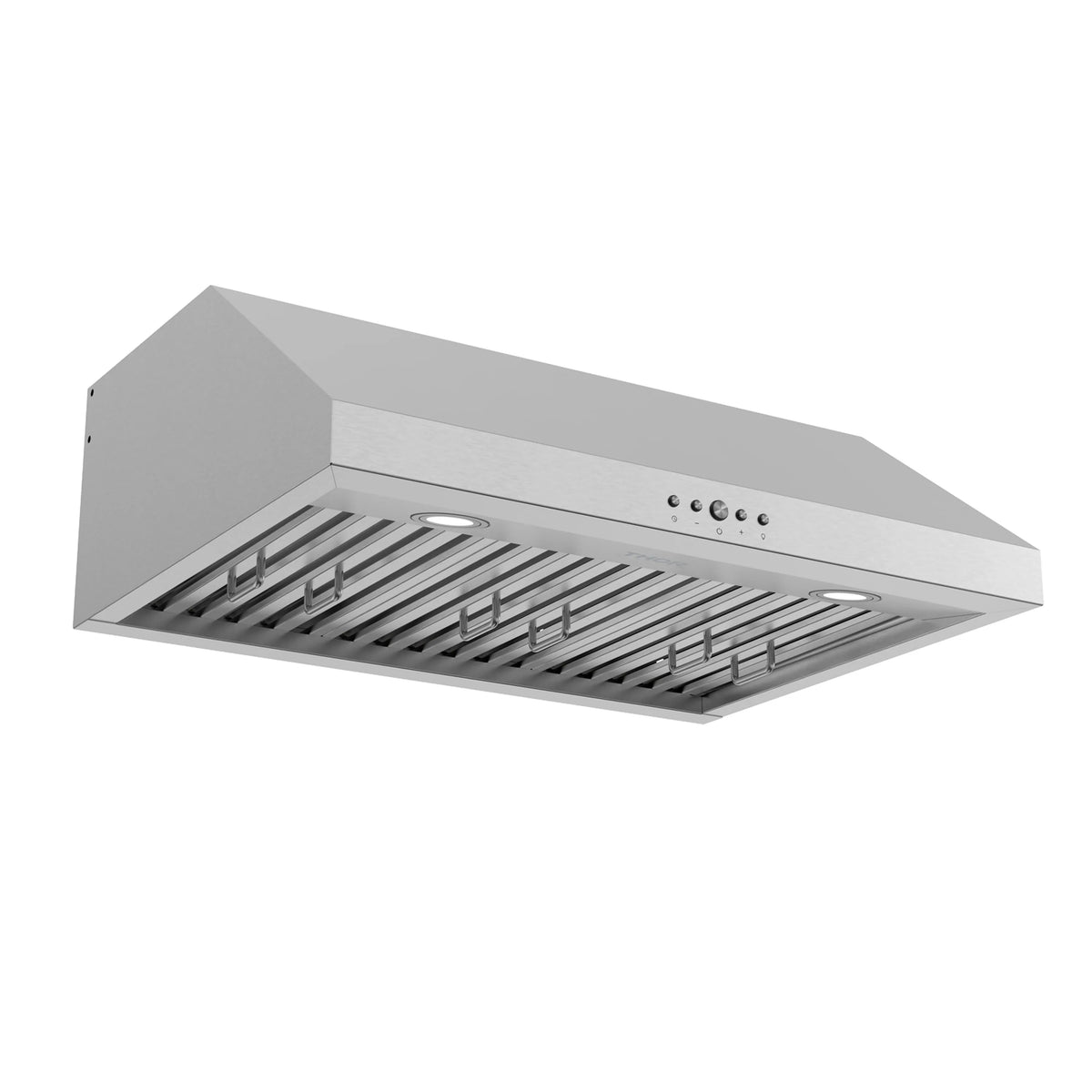

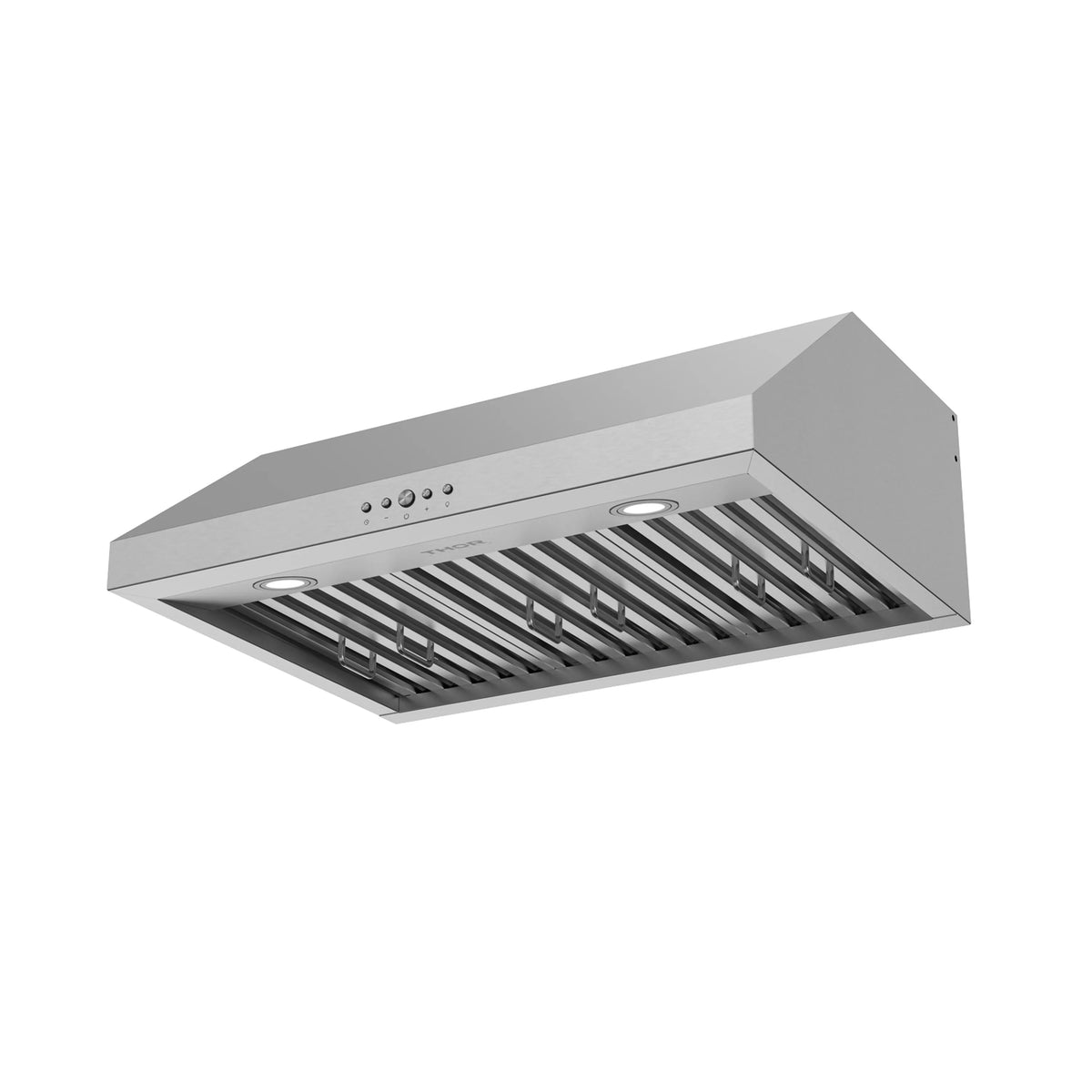

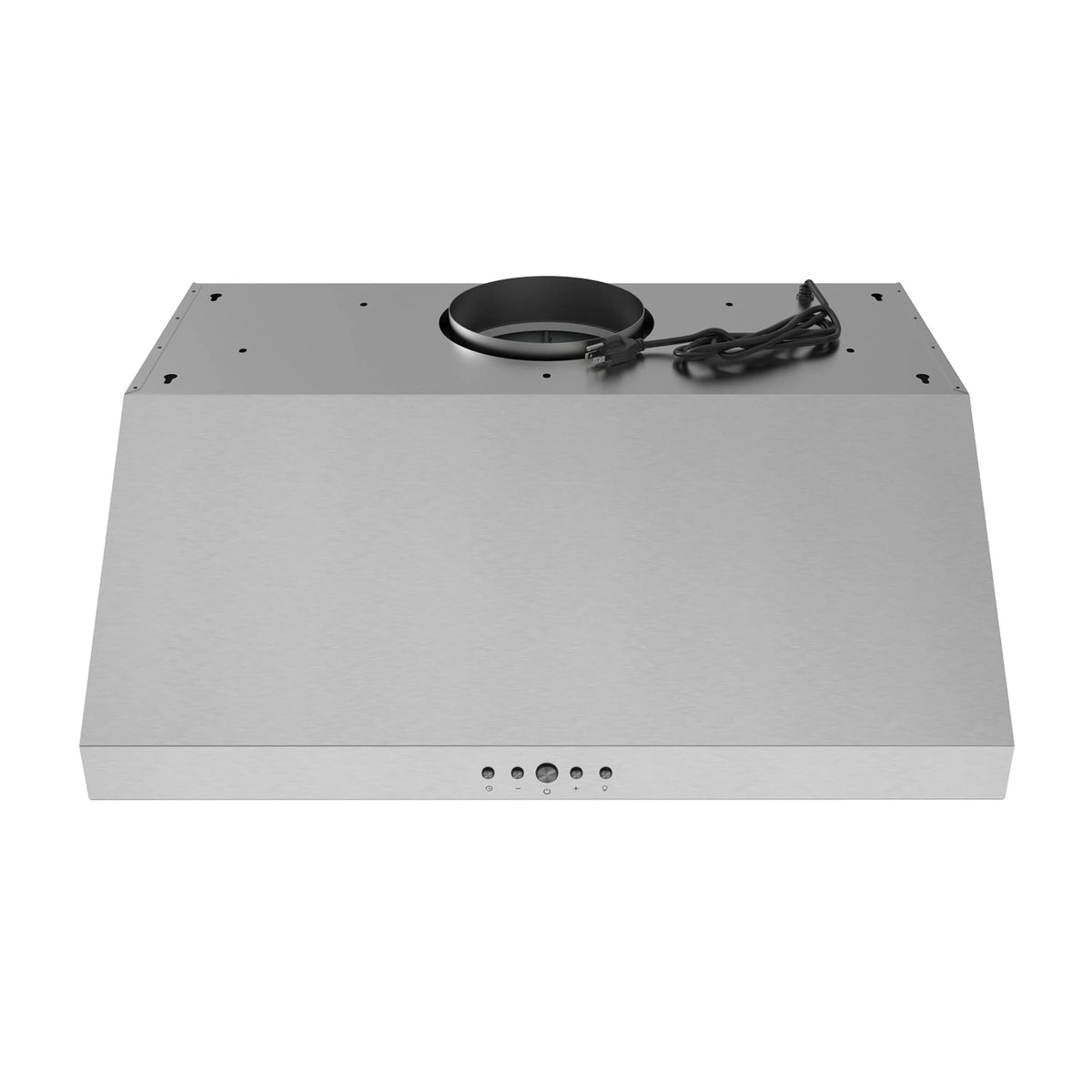

Thor Kitchen 30 Inch Under Mounted Range Hood with powerful 480 CFM ventilation is engineered to elevate your cooking experience with strength, style, and precision. Wrapped in a durable stainless-steel finish, it delivers a sleek, modern look while standing up to the demands of everyday use. The robust 480 CFM airflow efficiently clears smoke, steam, and stubborn odors, while three adjustable fan speeds give you complete control—from gentle simmering to intense searing. Designed for flexibility, this convertible unit supports both ducted and ductless installation to seamlessly fit your space. Easy push button controls ensure simple, dependable operation, and bright, energy-saving LED lights illuminate your cooktop with crisp clarity. Complete with dishwasher-safe baffle filters for effortless grease removal and long-lasting performance, this range hood empowers you to cook boldly and bring professional performance into the heart of your home. #IgniteYourCulinaryCreativity
| DIMENSIONS | |
|---|---|
| Product Dimensions (W x D x H) | 29-3/4" x 22-1/16" x 10-1/2" |
| Cutout Dimensions (W x D x H) | 29-15/16" x 22-1/4" x 10-11/16" |
| Net Weight (lbs.) | 48.2 |
| Gross Weight (lbs.) | 55.3 |
| Package Dimensions (W x D x H) | 32-11/16" x 16-1/8" x 26" |
| GENERAL INFORMATION | |
| Model Number | TUH3048 |
| DESIGN & FINISH | |

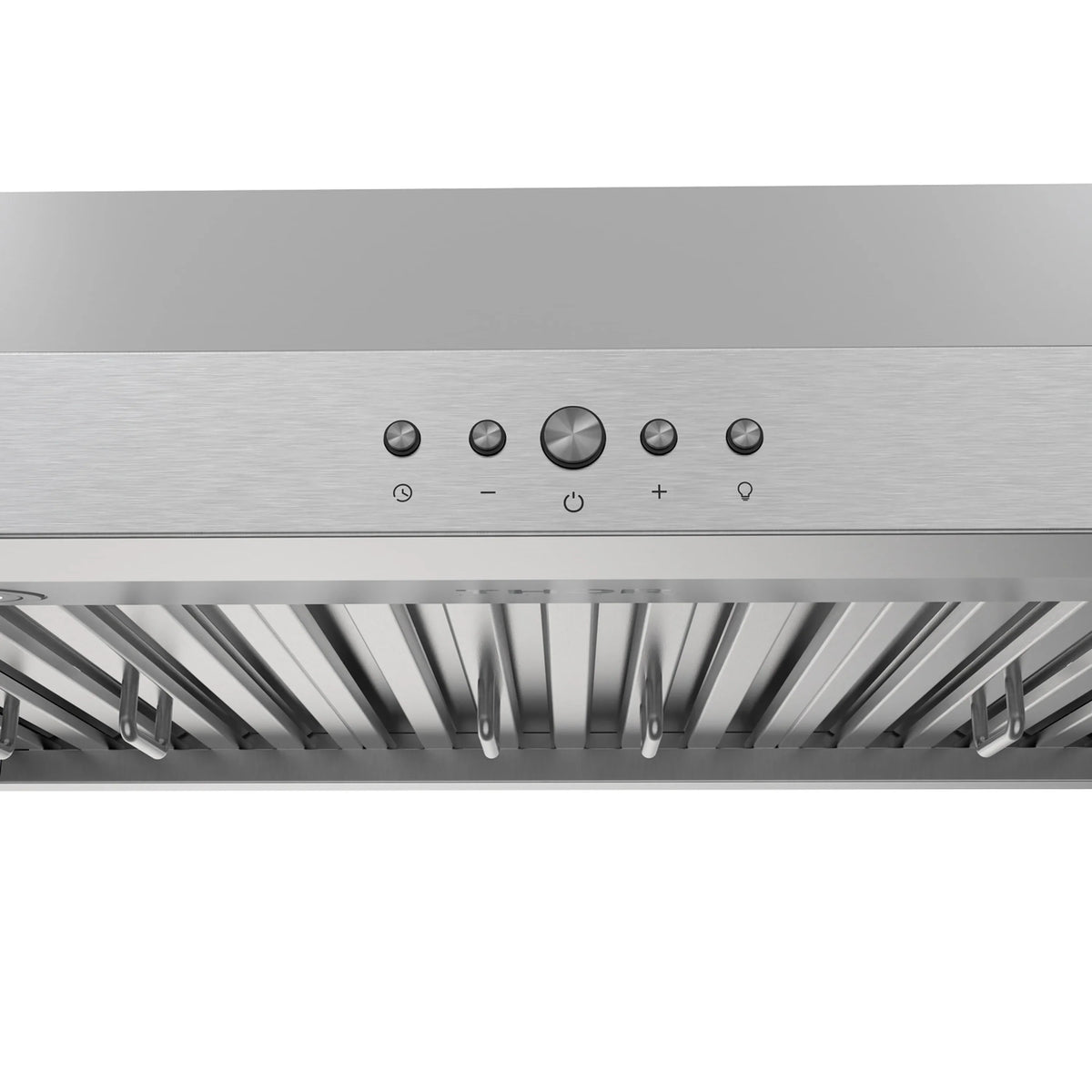

| Control Type | Button |
| TECHNICAL DETAILS | |
| Product | 30 Inch Under Mounted Range Hood with 480 CFM |
| Number of Speeds | 3 |
| CFM at Low / Medium / High | 323 / 367 / 480 |
| Noise Level | 3 |
| Noise Rating at Low / Medium / High | 58dB / 61dB / 64dB |
| Ducted / Recirculating Convertible | Yes |
| Duct Size | 7-11/16" |
| Duct Type | Round |
| Shape / Style | Canopy Pro Style |
| Mounting Type | Undercabinet |
| Watts (W) | 263W |
| Amperage (Dedicated) | 15A |
| Volts (V) | 120V |
| Frequency (Hz) | 60Hz |

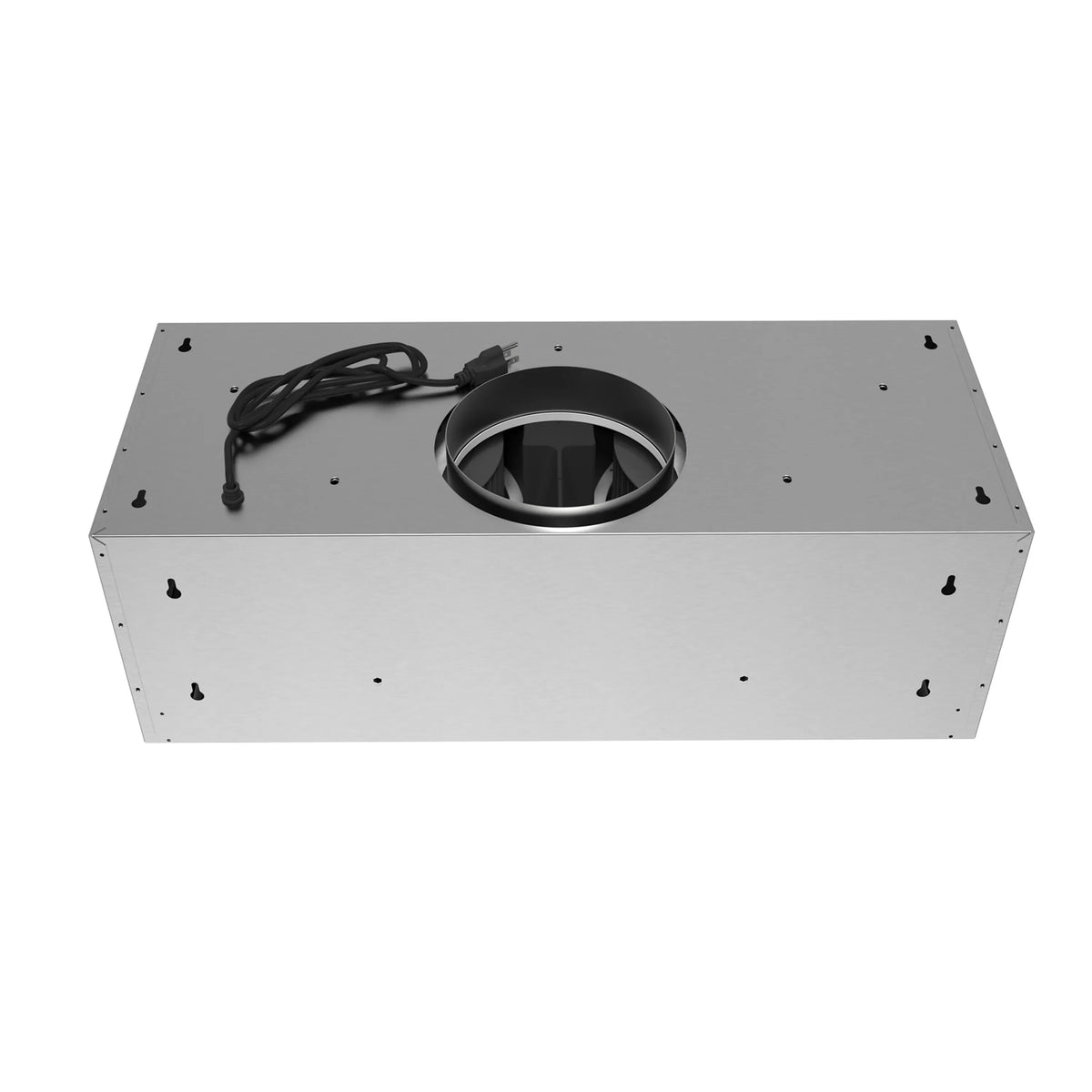

| Plug Type | US 3-Prong Plug |
| Power Cord Length | 39-3/8" |
| FEATURES | |
| Filter Type | Baffle Filter |
| Filter Qty | 3 |

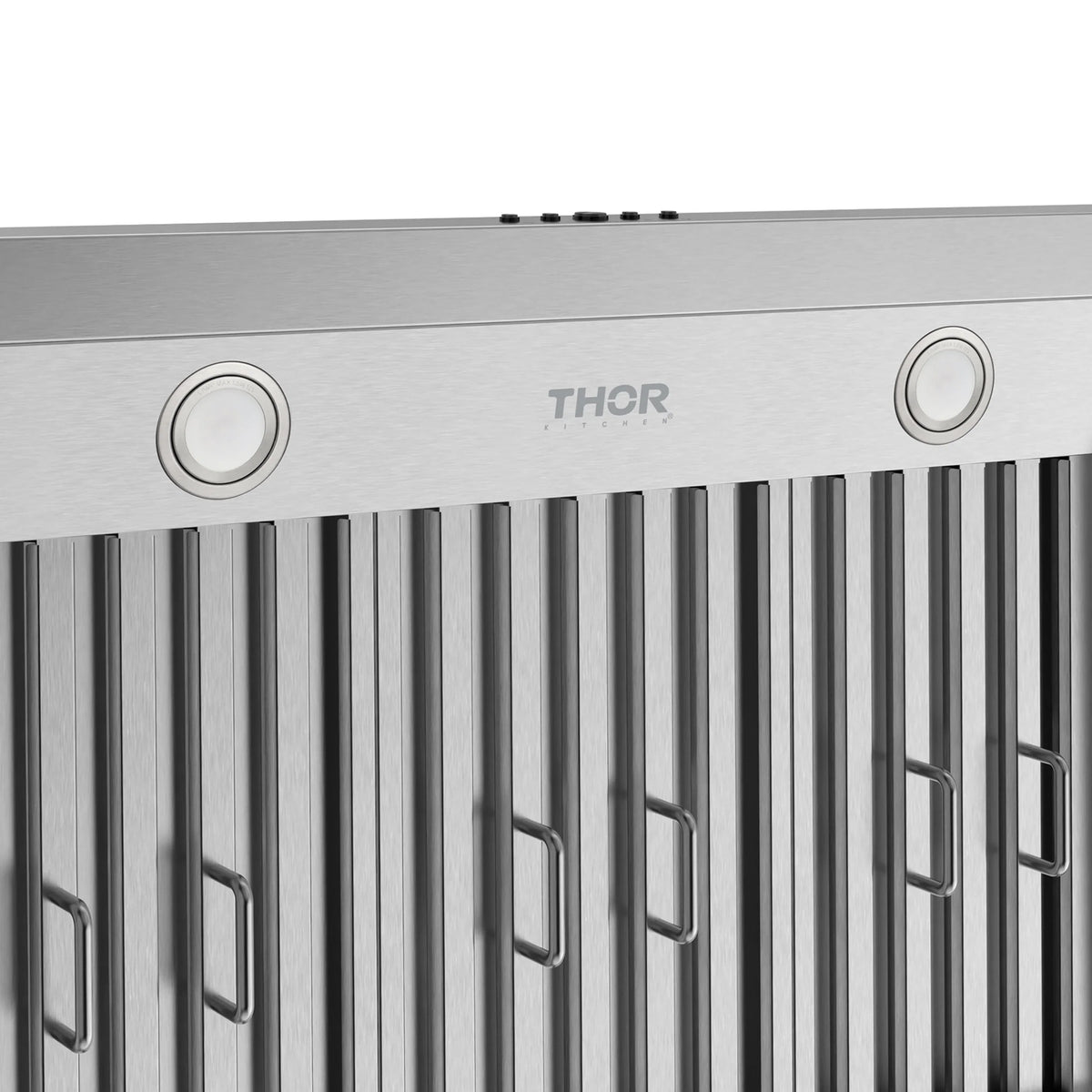

| Lighting | 2 × 1.5W Warm White LED |
| Delay Function | Yes (5 mins) |
| Minimum Distance Above Gas / Electric Cooking Surface |
|
