Description
- Product Dimensions (WxDxH) (in.)
- 23-7/8" x 22-5/8" x 33-7/8"
- Product Depth with Handles (in.)
- 25-1/8"
- Cutout Dimensions (WxDxH) (in.)
- 23-7/8" - 24" x 22-7/8" - 23-5/8" x 34" - 35-1/2"
- Package Dimensions (WxDxH) (in.)
- 28-3/4" x 28-3/4" x 35-1/16"
- Net Weight (lbs.)
- 80.5
- Gross Weight (lbs.)
- 97.8
- Brand
- Thor Kitchen
- Model Number
- TDW24C7B
- Product

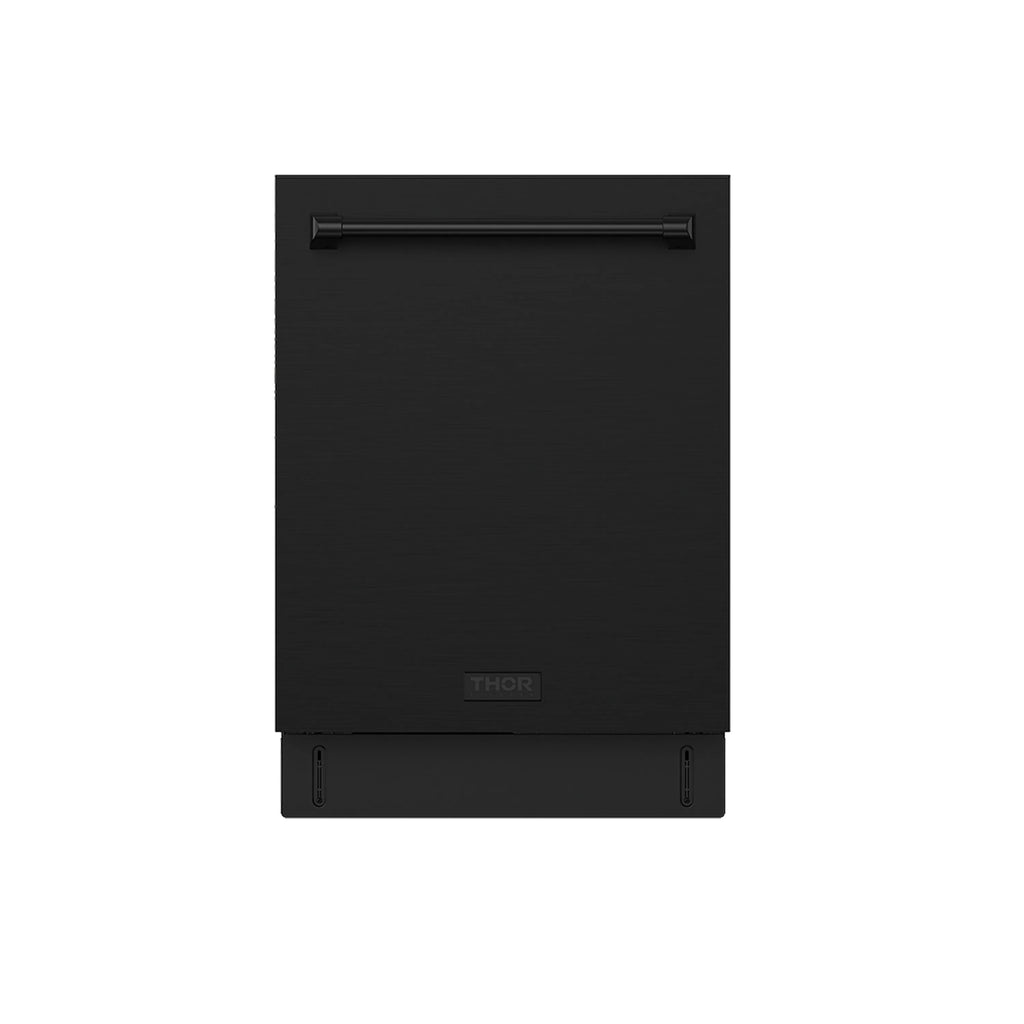

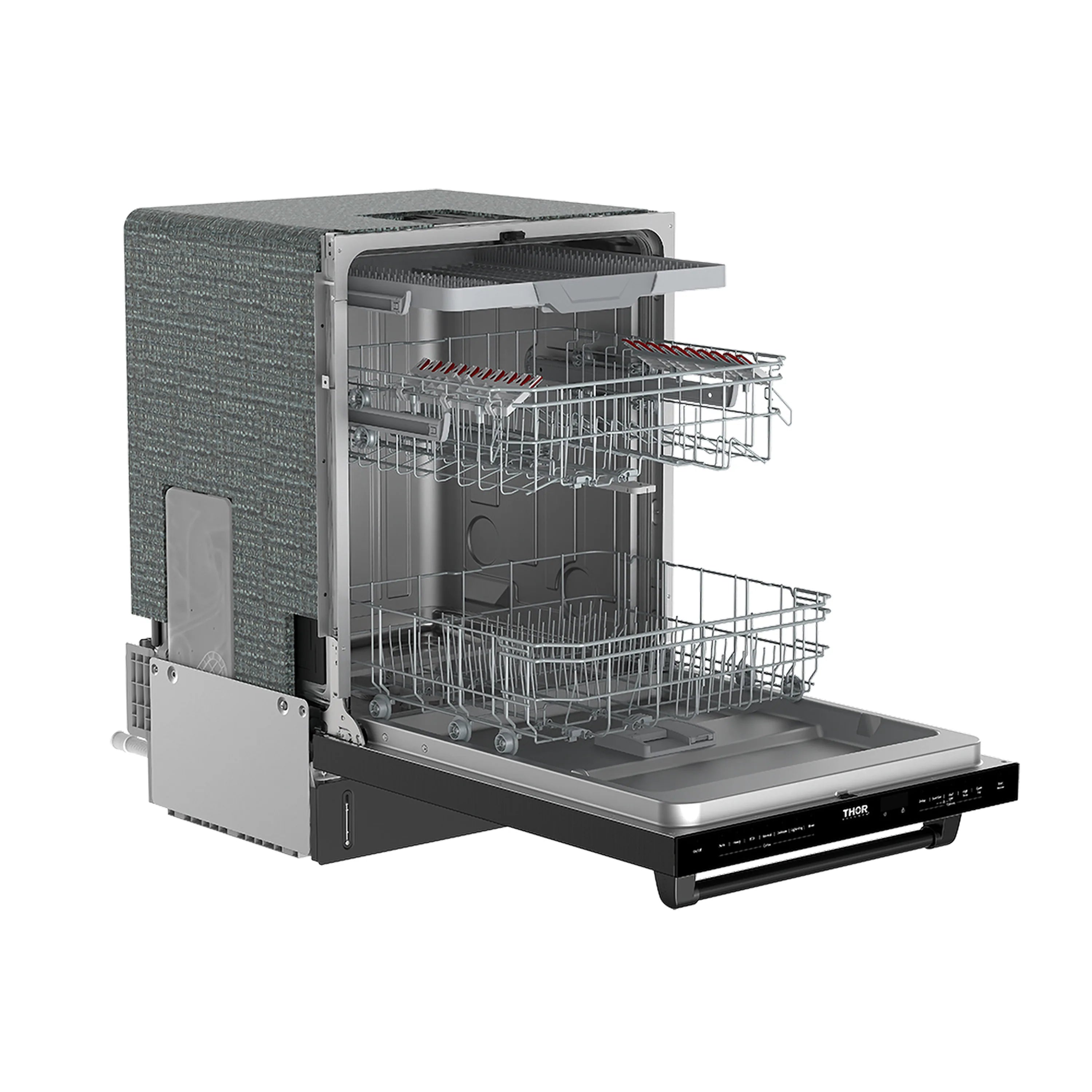

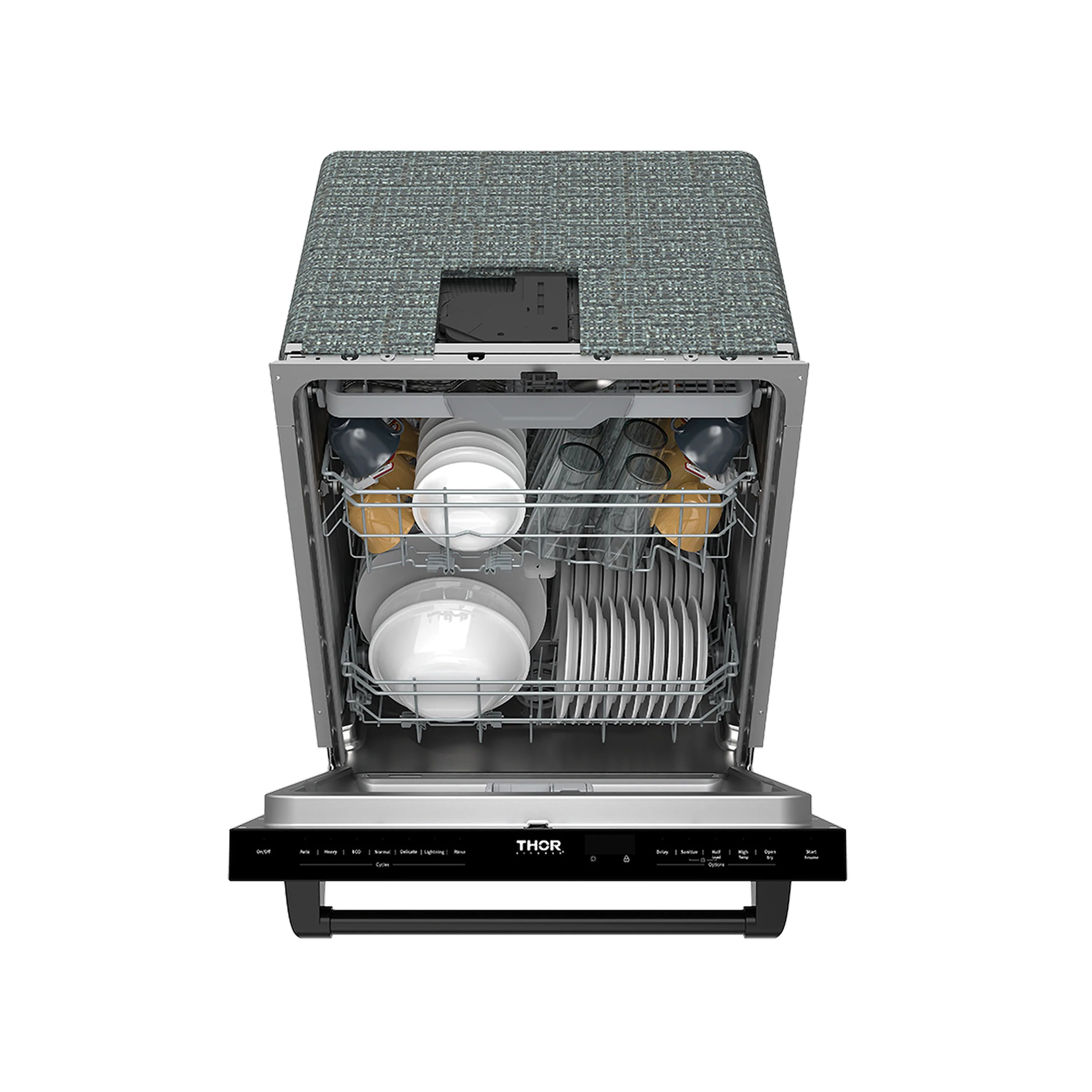

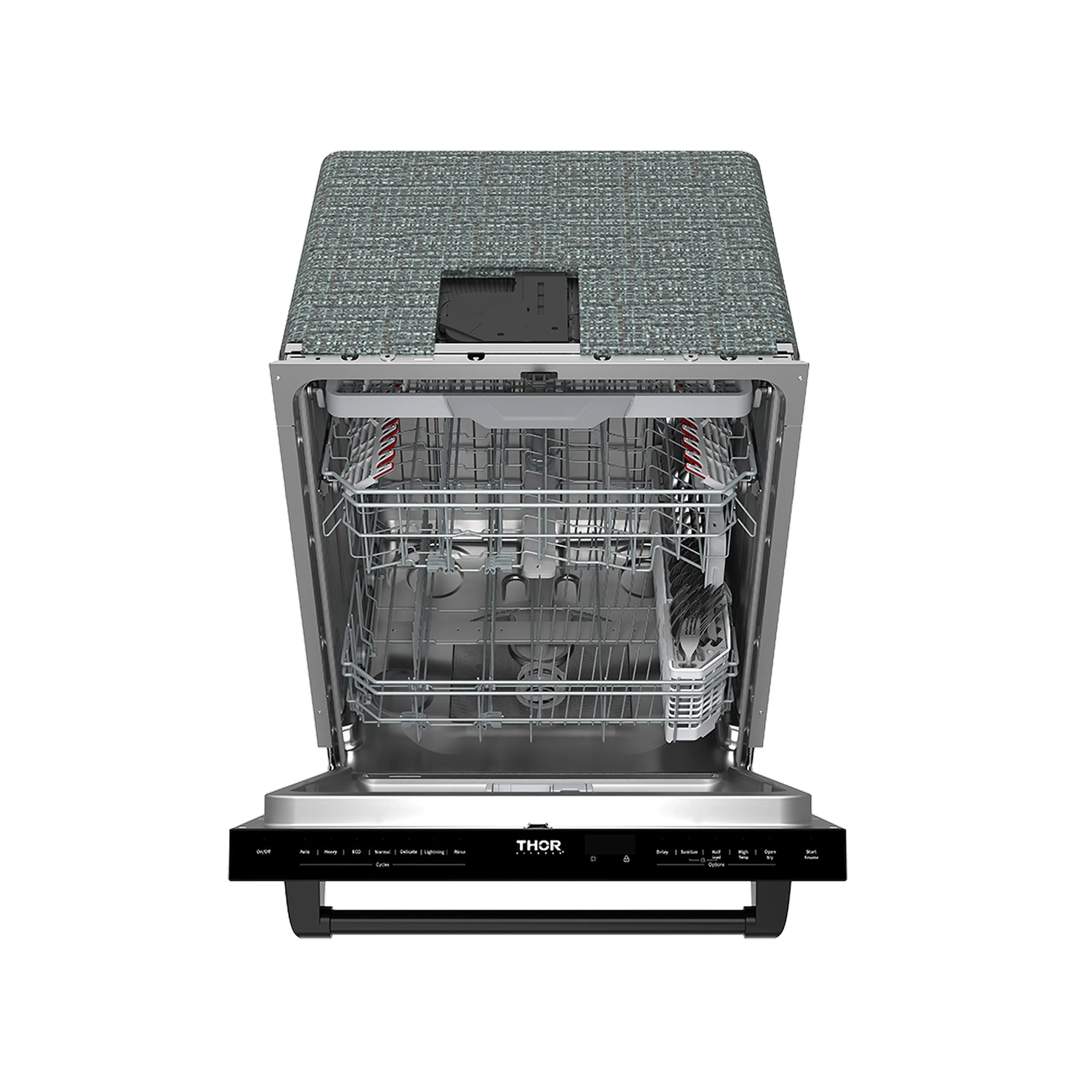

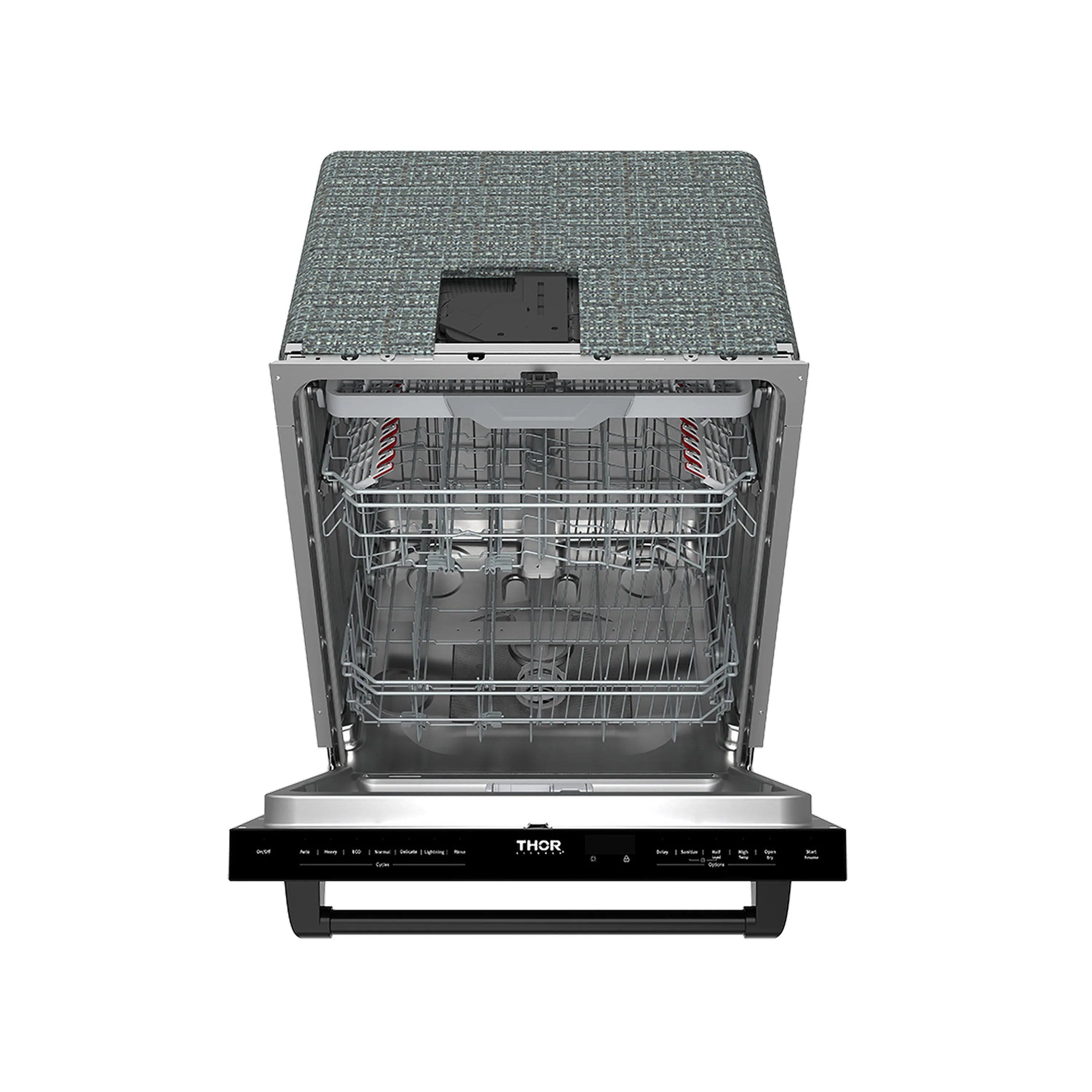

- 24 Inch Top Control Built-In Dishwasher in Black

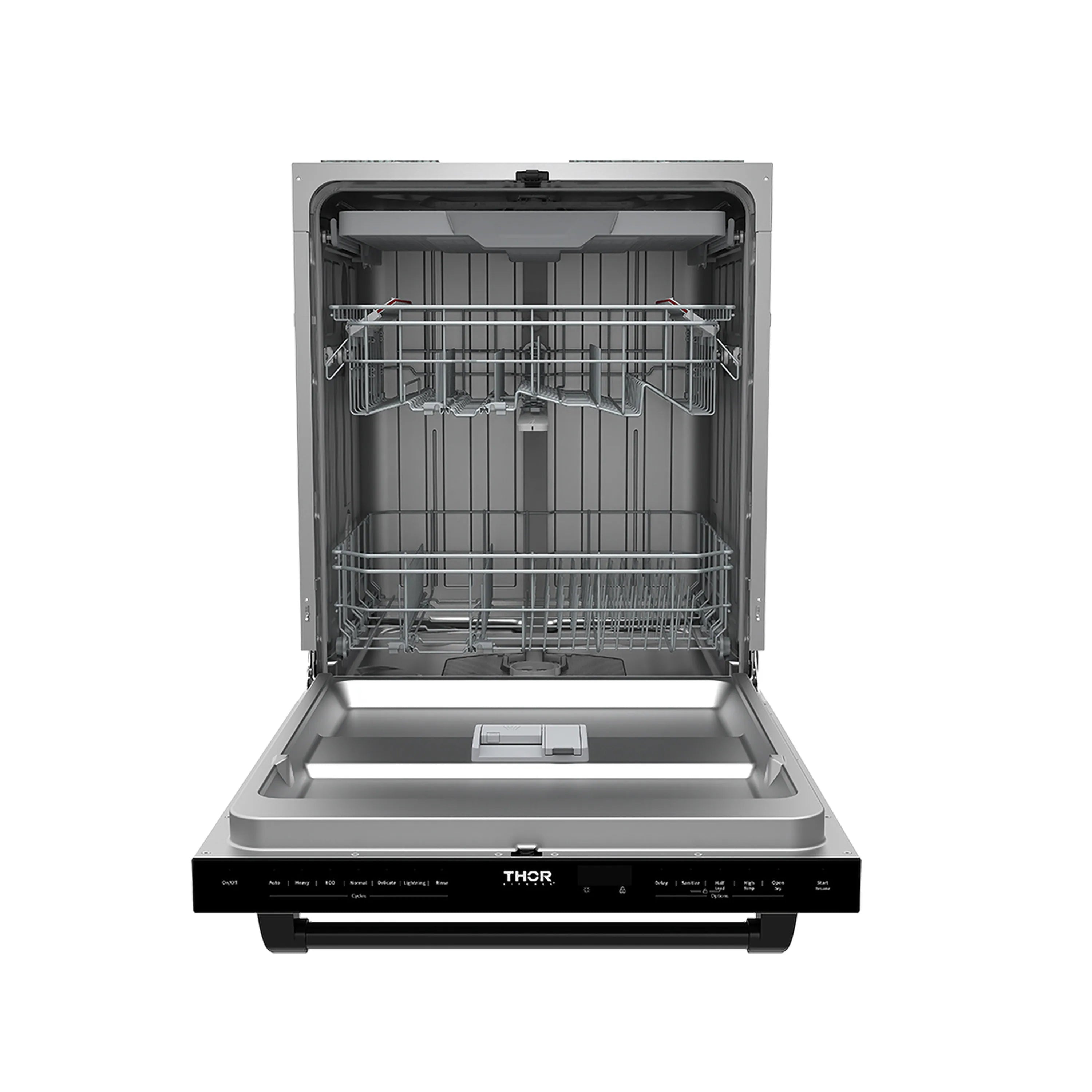

- Spray Arms
- 3 (Lower, Upper, and Top)
- Tub Material
- Stainless Steel

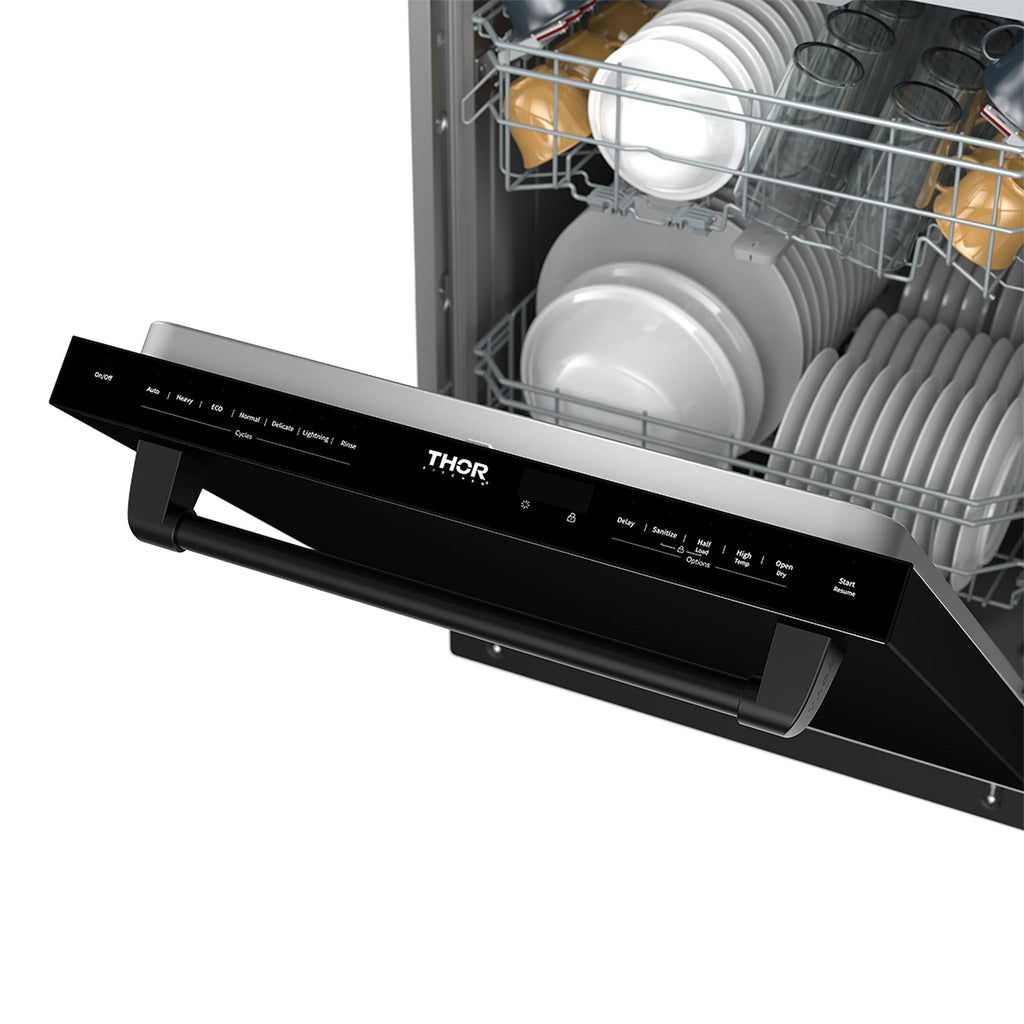

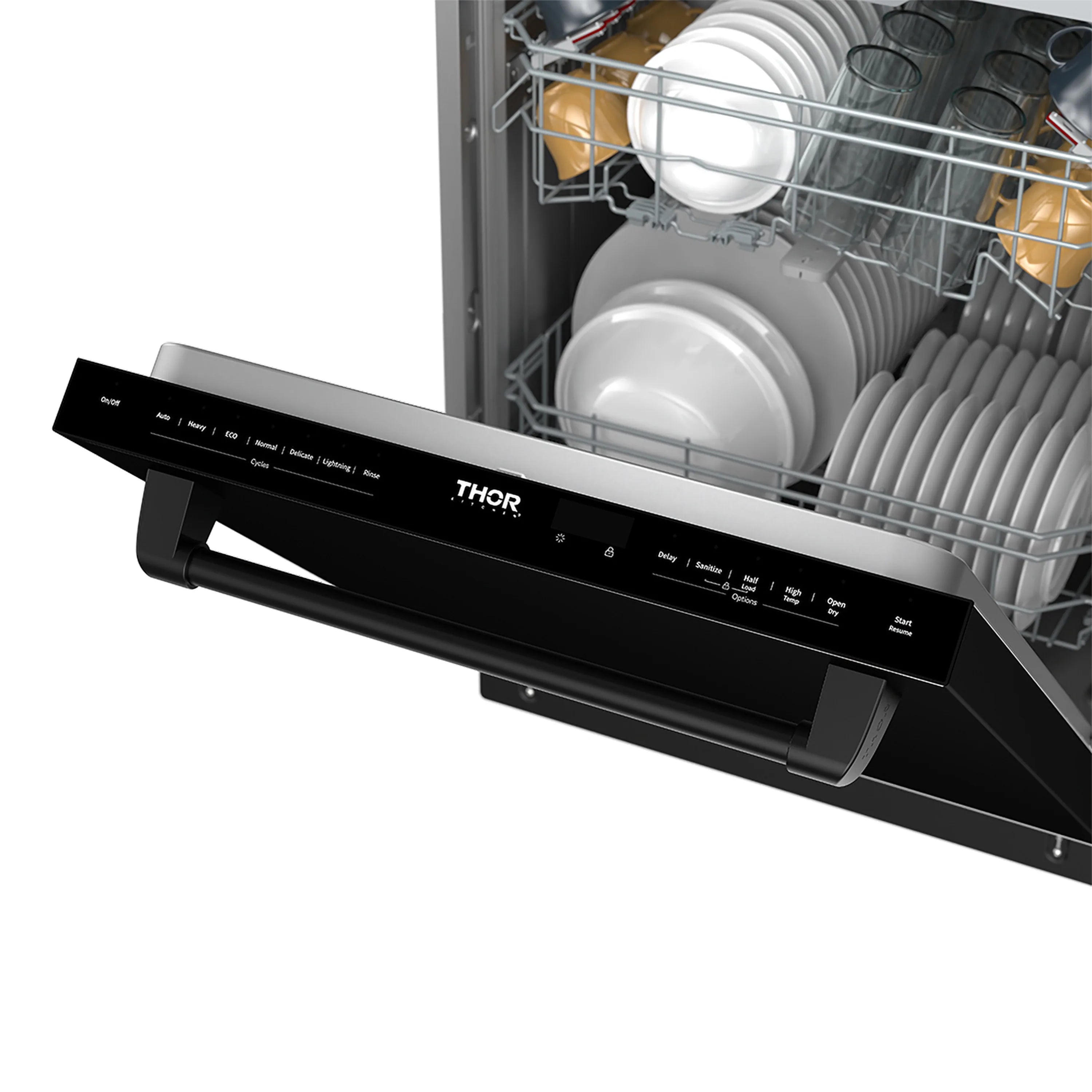

- Control Type
- Touch Screen
- Watts
- 1200W
- Amperage
- 15A (Dedicated)
- Volts
- 120V
- Frequency
- 60Hz
- Total Annual Energy Consumption
- 240 kWh/per year
- Water Consumption
- 3.2 gal
- Noise Level
- 47 dBA
- Water Feed Pressure
- 20-120 psi
- Inlet Water Temperature
- Recommended 120°F (49°C)
- Outlet Hose Length (in.)
- 59"
- Drain Hose
- Yes
- Water Supply Hose
- Required
- Power Cord
- Required
- Load Capacity (Place Settings)
- 15
- Number of Wash Cycles
- 7

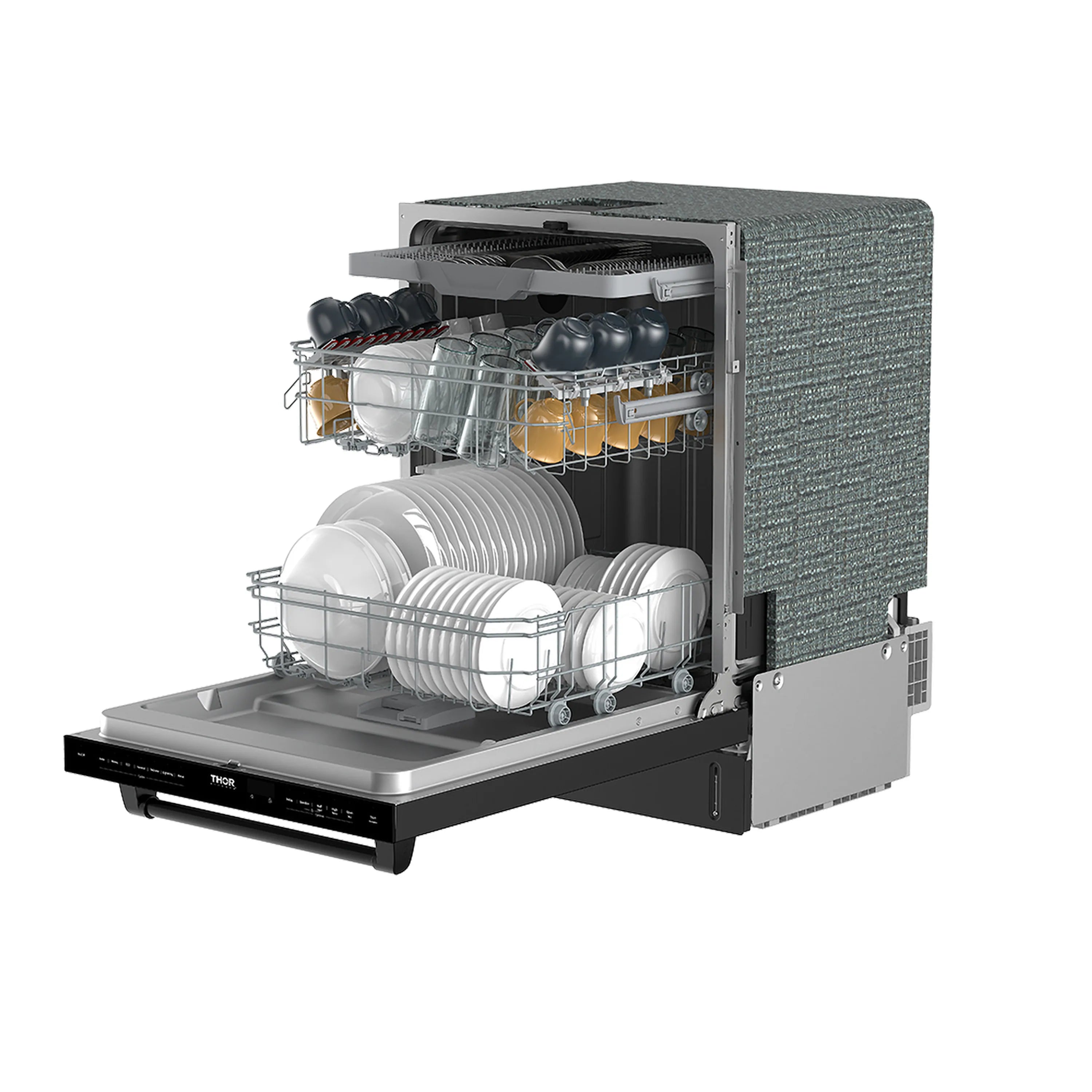

- Number of Racks
- 3
- Adjustable Rack
- Yes
- Water Softener
- No
- Child Lock
- Yes
- Status Indicator
- Yes (Red)
- Tub Light
- No
- Wine Glass Bracket
- Yes
- Third Layer Cutlery Rack
- Yes

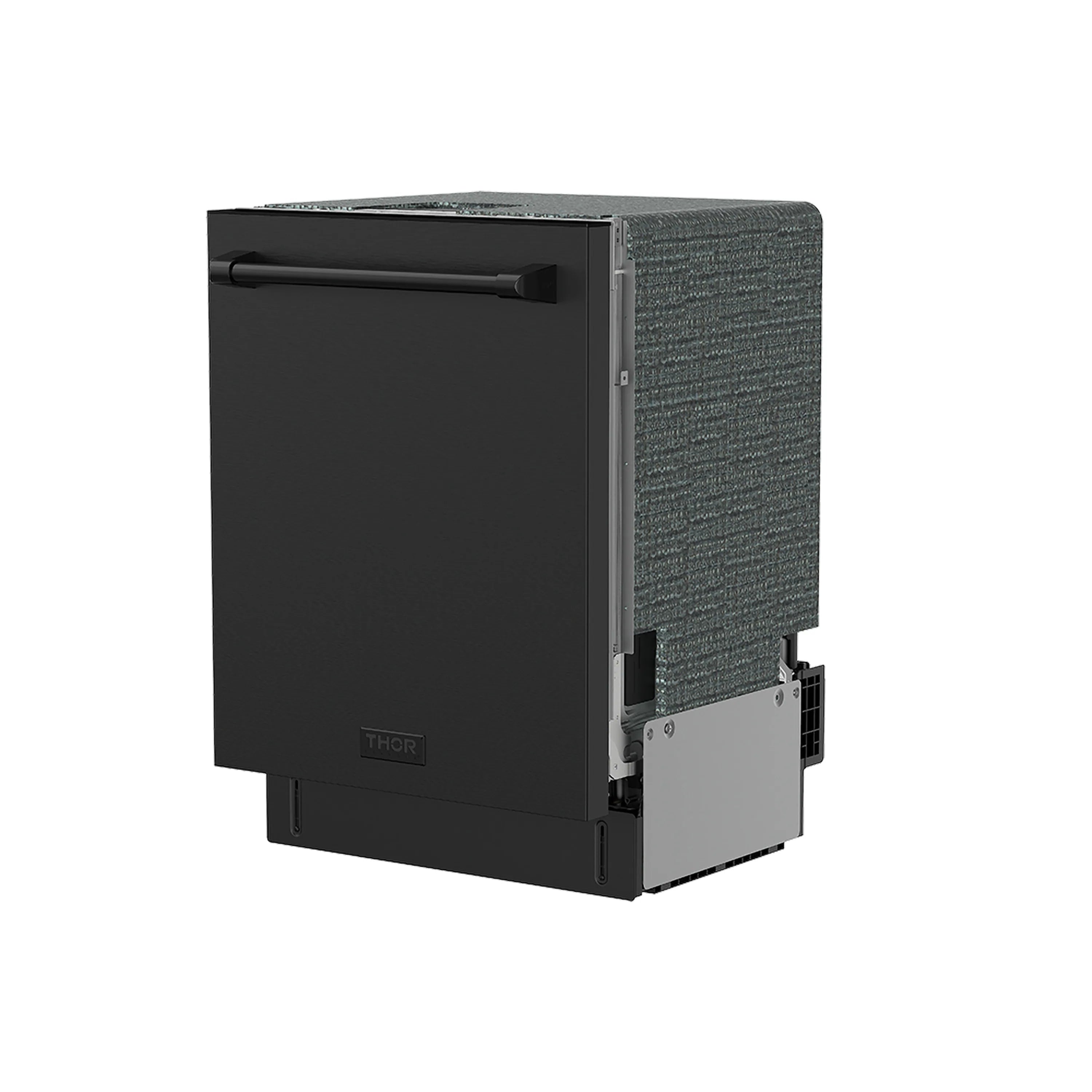

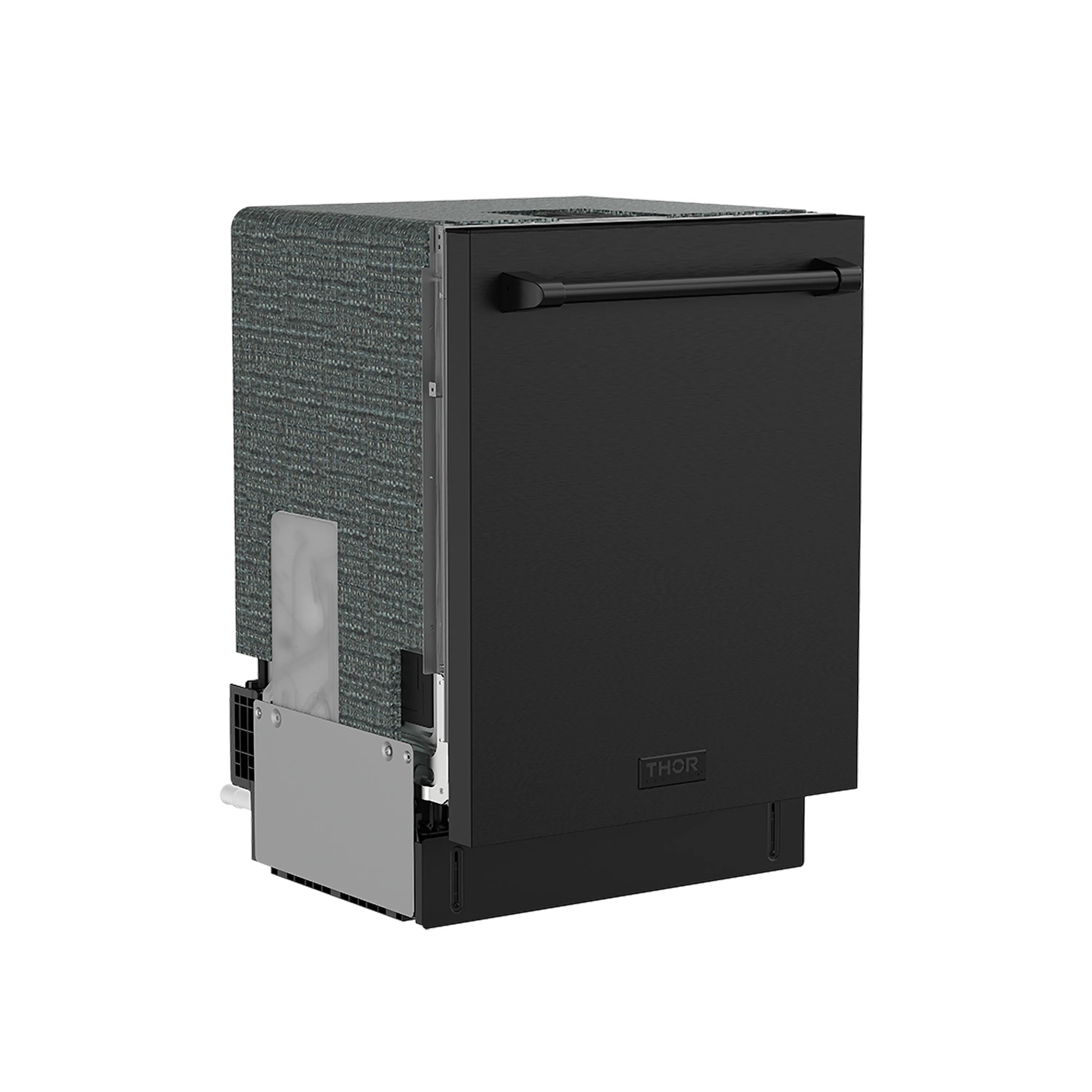

- Moisture Barrier
- Yes
- Mounting Hole Cover
- 4 (2 Already Installed)
- Warranty
- 2 Years Parts and Labor
