Description
DIMENSIONS
- Product Dimensions
- 23 3/4" W x 36” H x 30 2/9” D
- Adjustable Legs
- 1" Max
- Required Cutout Size
- 24” W x 24” D x 36” H
GENERAL INFORMATION
- Baking Sheet
- Fits Half Sheet Pan (18” x 13”)
- 01
- Right Front : 9” & 6”, 2200W Combined
- 02
- Right Rear: 6”, 1200W
- 03
- Left Rear: 6”, 1200W
- 04
- Left Front: 8”, 2000W
- 05
- Convection Fan Switch
- 06
- Oven Light Switch
- 07
- Oven Knob
- 08
- Hot Surface Indicator
- Accessories
- 2 Oven Racks
- 1 Broiler Pan
DESIGN & FINISH
- Color
- Silver
- Finish
- Stainless Steel
- Construction
- Freestanding
- Controls Type
- Zinc Alloy Knobs
- Control Panel
- Blue LED
TECHNICAL DETAILS
- Fuel Type
- Electric
- Voltage
- 240V
- Circuit Breaker
- 50A (Dedicated)
- Frequency (Hz)
- 60 Hz
COOKTOP FEATURES
- Heat Element Dimensions
- 9” / 6” (01 Right Front)
- 6” (02 Right Rear)
- 6” (03 Left Rear)
- 8” (04 Left Front)
- Top Heating Element Power
- 3000W
- Lower Heating Element Power
- 2700W
- Hot Surface Indicator Light
- Front Right Corner of Cooktop
- w/Temp at 150˚F (65˚C)

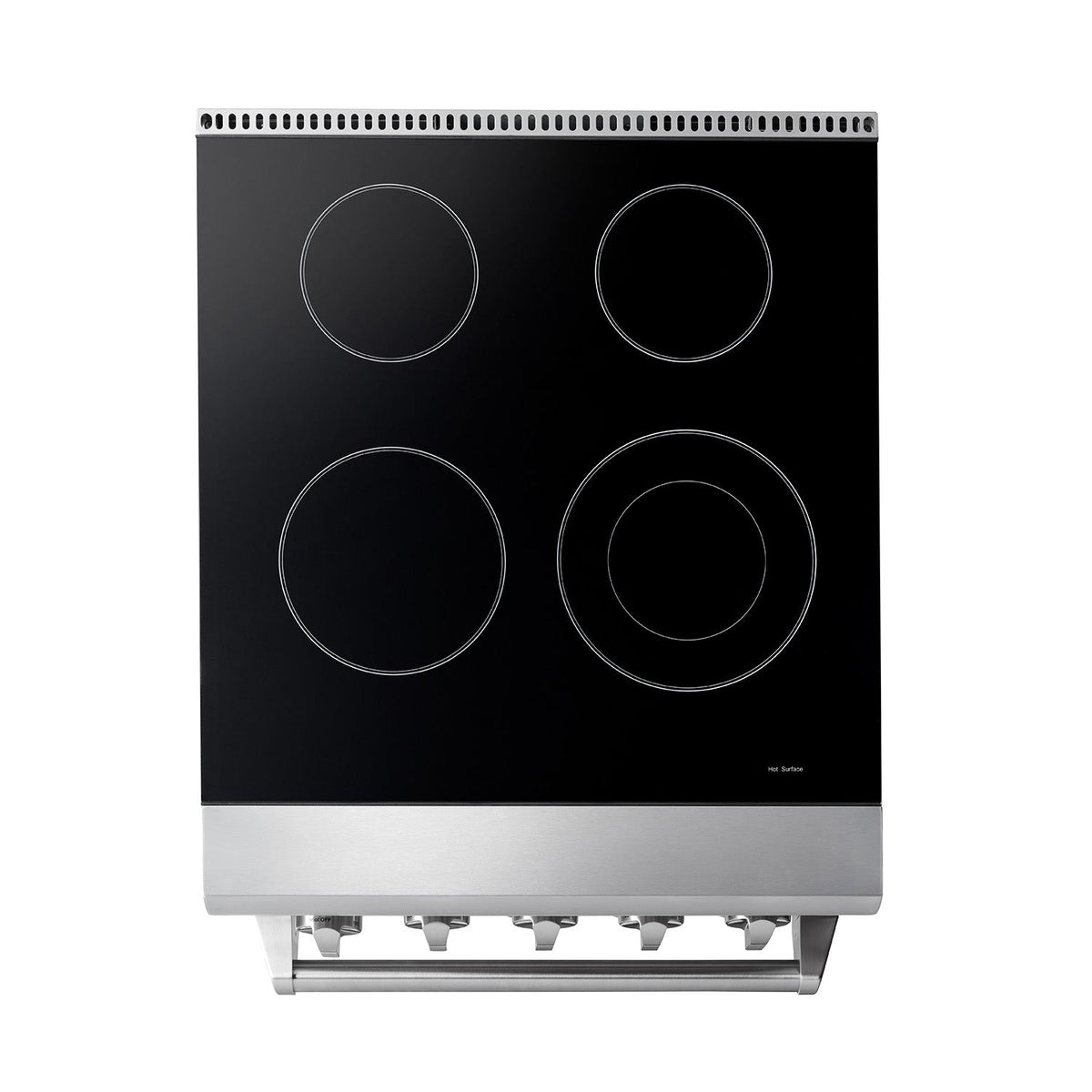

- Cooktop
- Black Polished Plate Glass
- Ceramic Cooktop
- Total Elements
- 4
- [1] Front Left Element (Single)
- 2000W
- [2] Front Right Element (Dual)
- 2200W
- [3] Rear Left Element (Single)
- 1200W
- [4] Rear Right Element (Single)
- 1200W

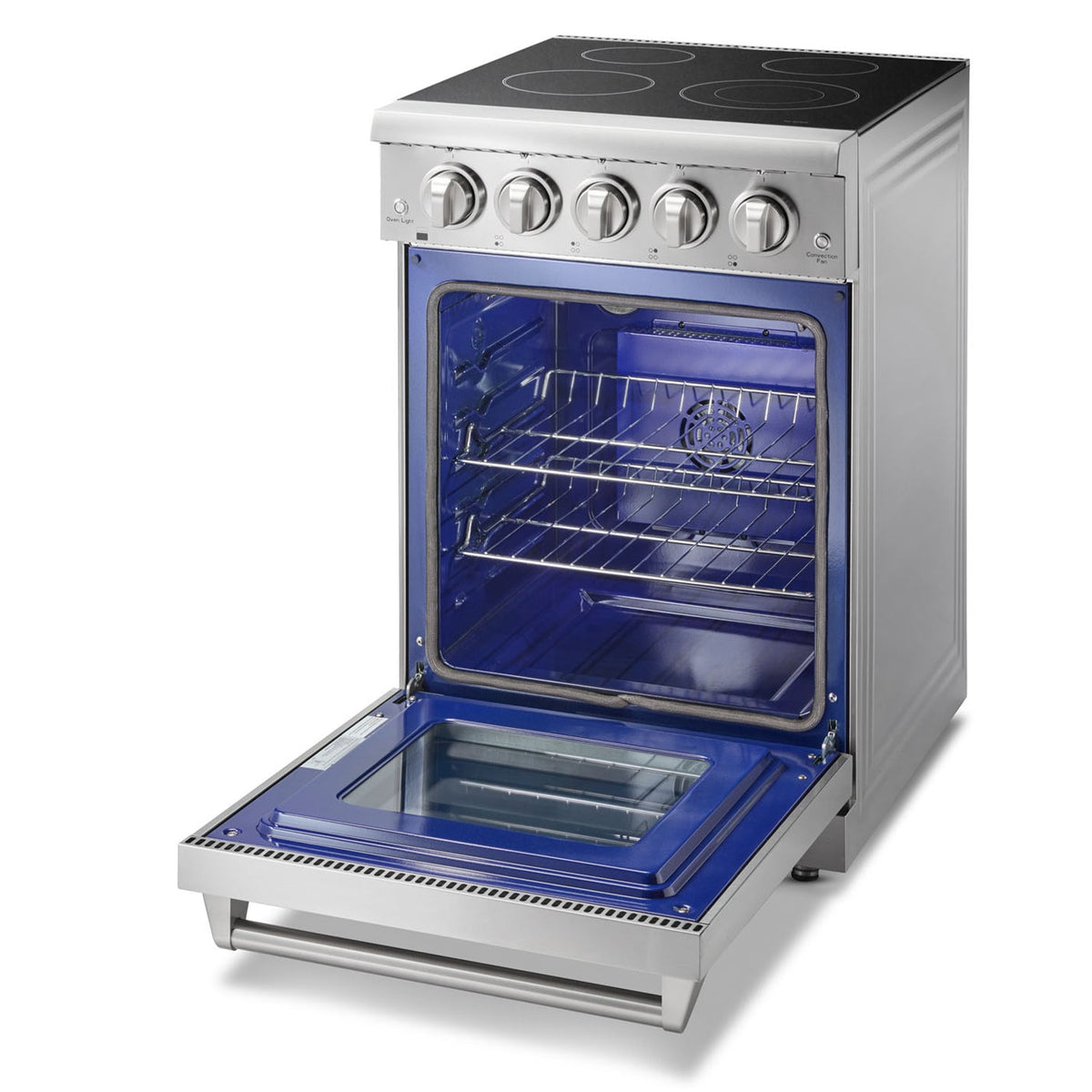

OVEN FEATURES
- Oven Capacity
- 3.73 cu. ft.
- Oven Functions
- Bake, Broil, Keep Warm,
- Convection Bake, Convection Roast
- Oven Color
- Blue
- Convection
- True Convection with 800W
- Heating Element
- Oven Light
- 1, Rear
- Oven Racks
- 2
- Oven Rack Material
- Chrome Plated
- Rack Positions
- 6
