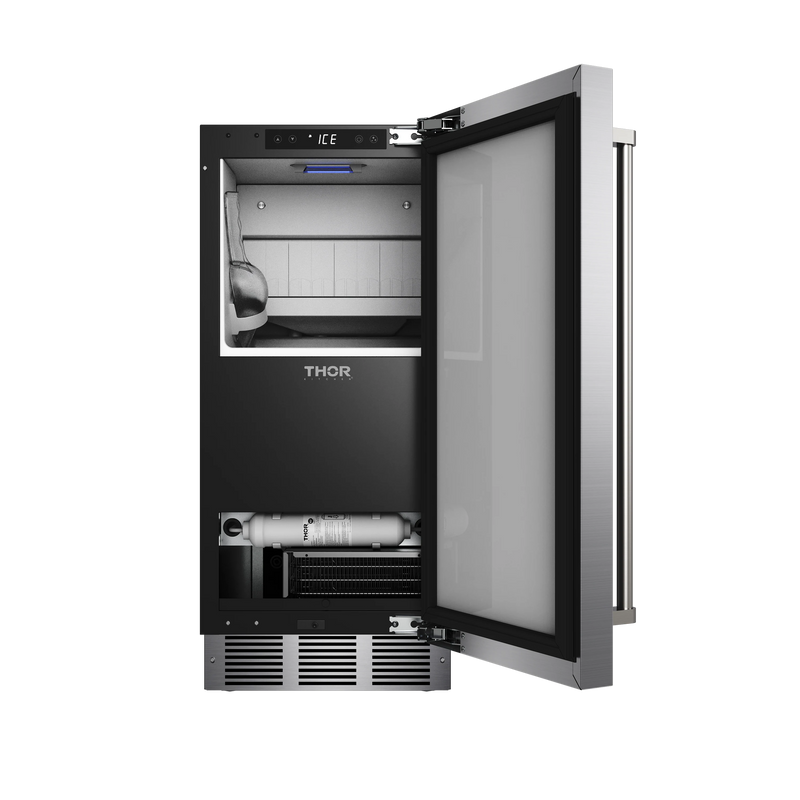

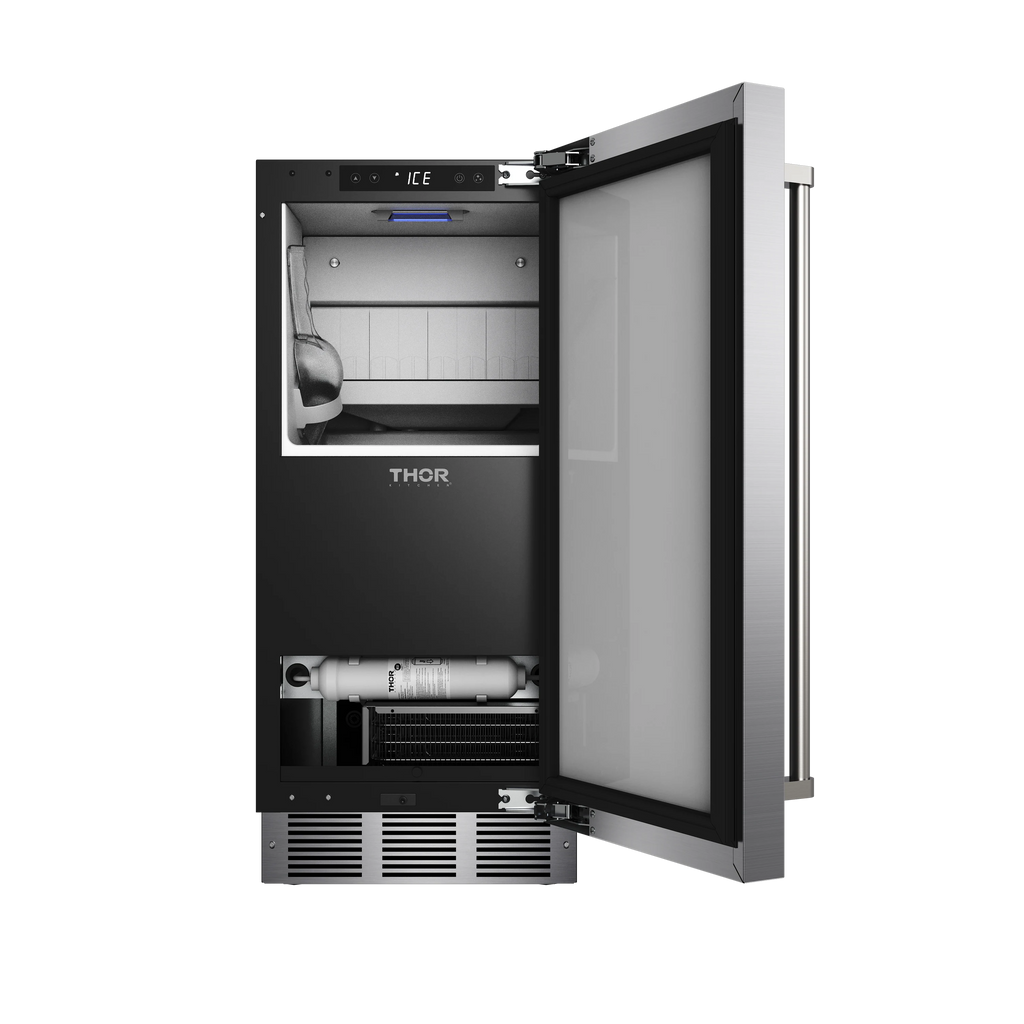

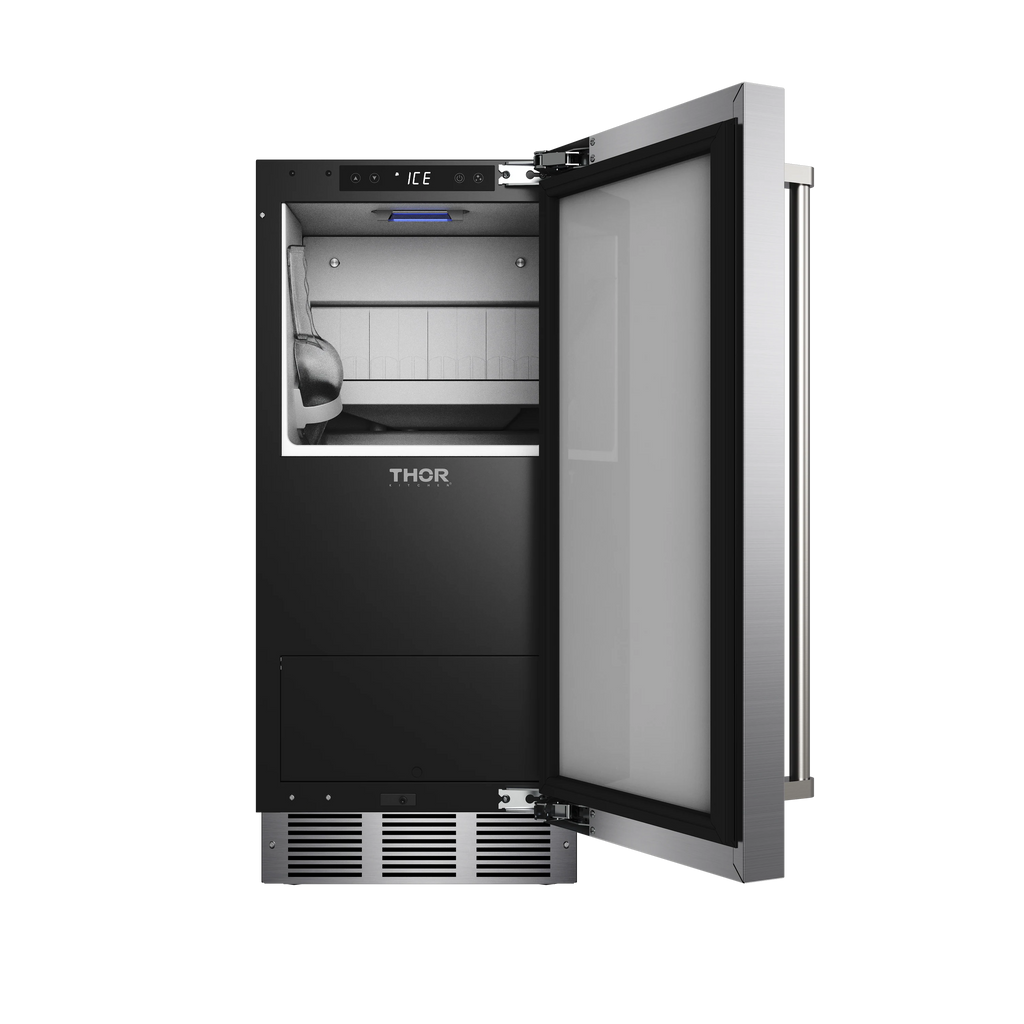

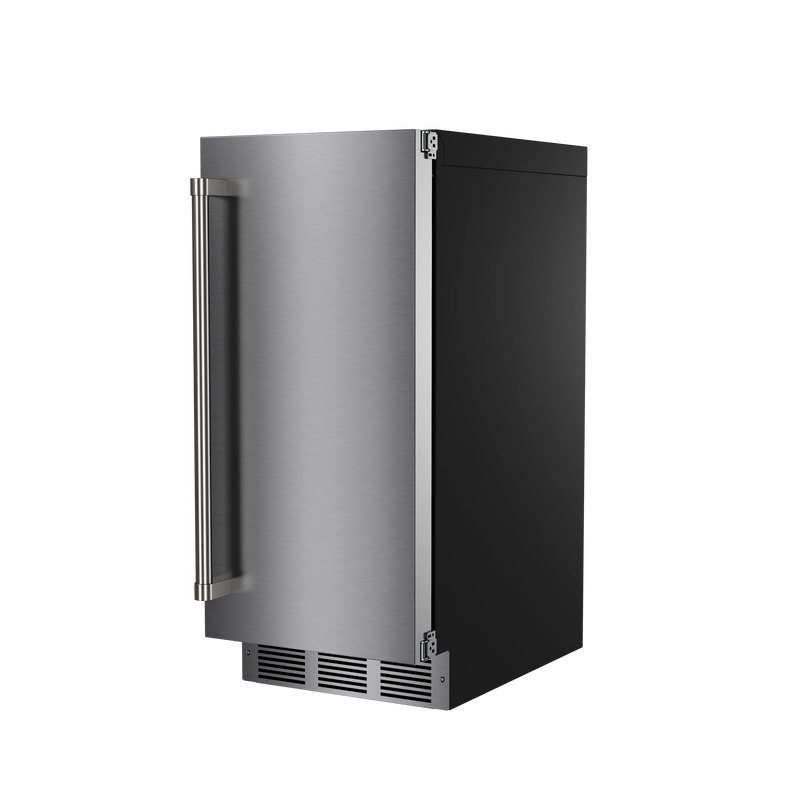

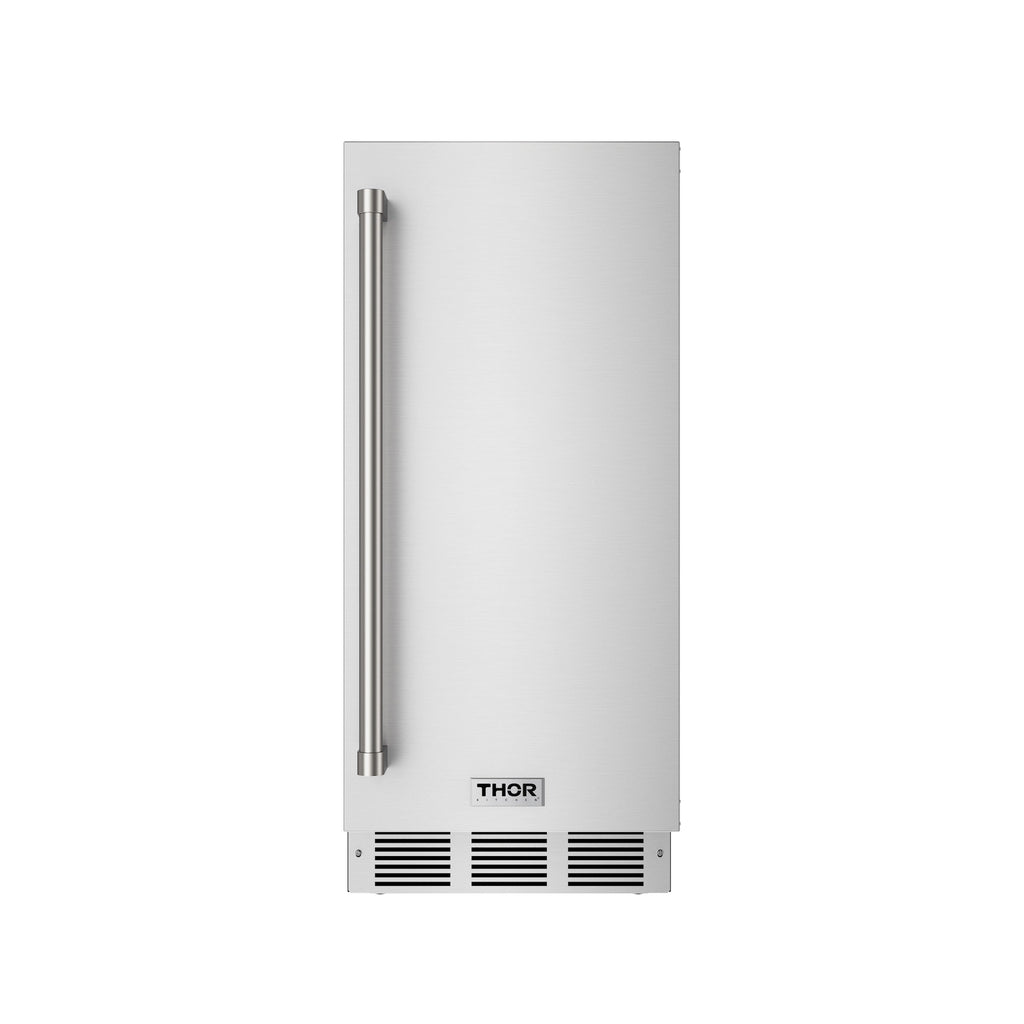

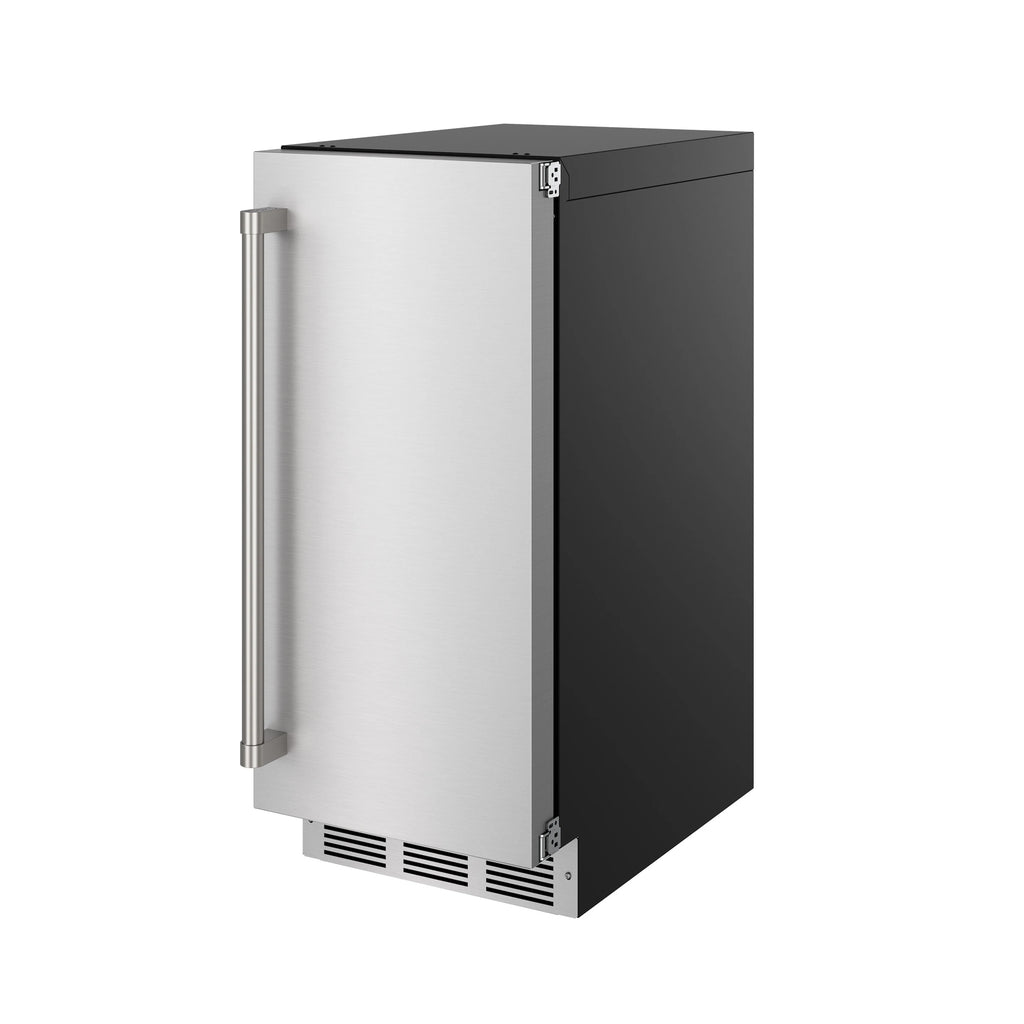

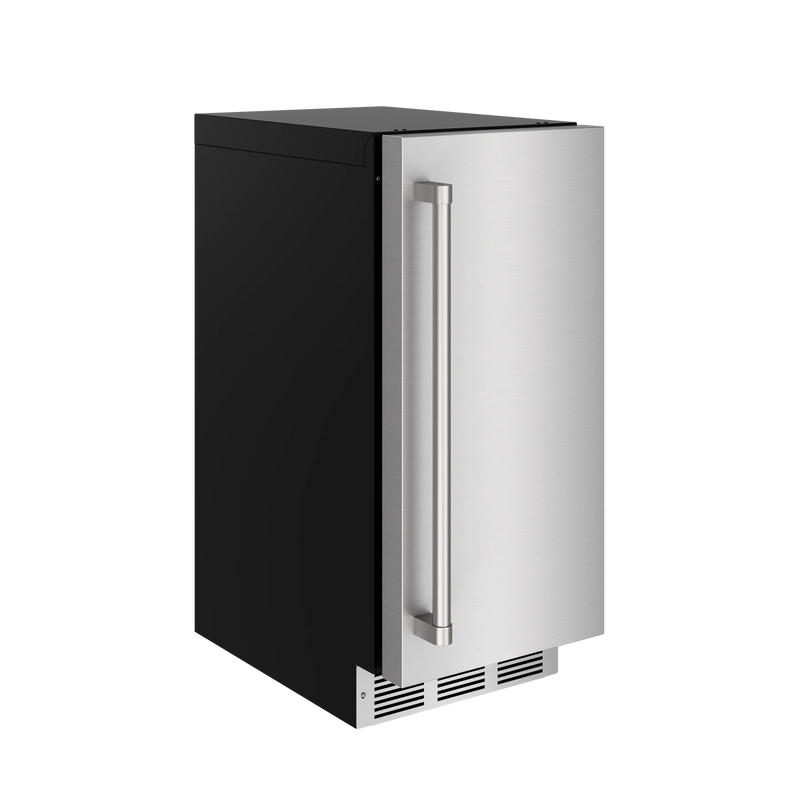

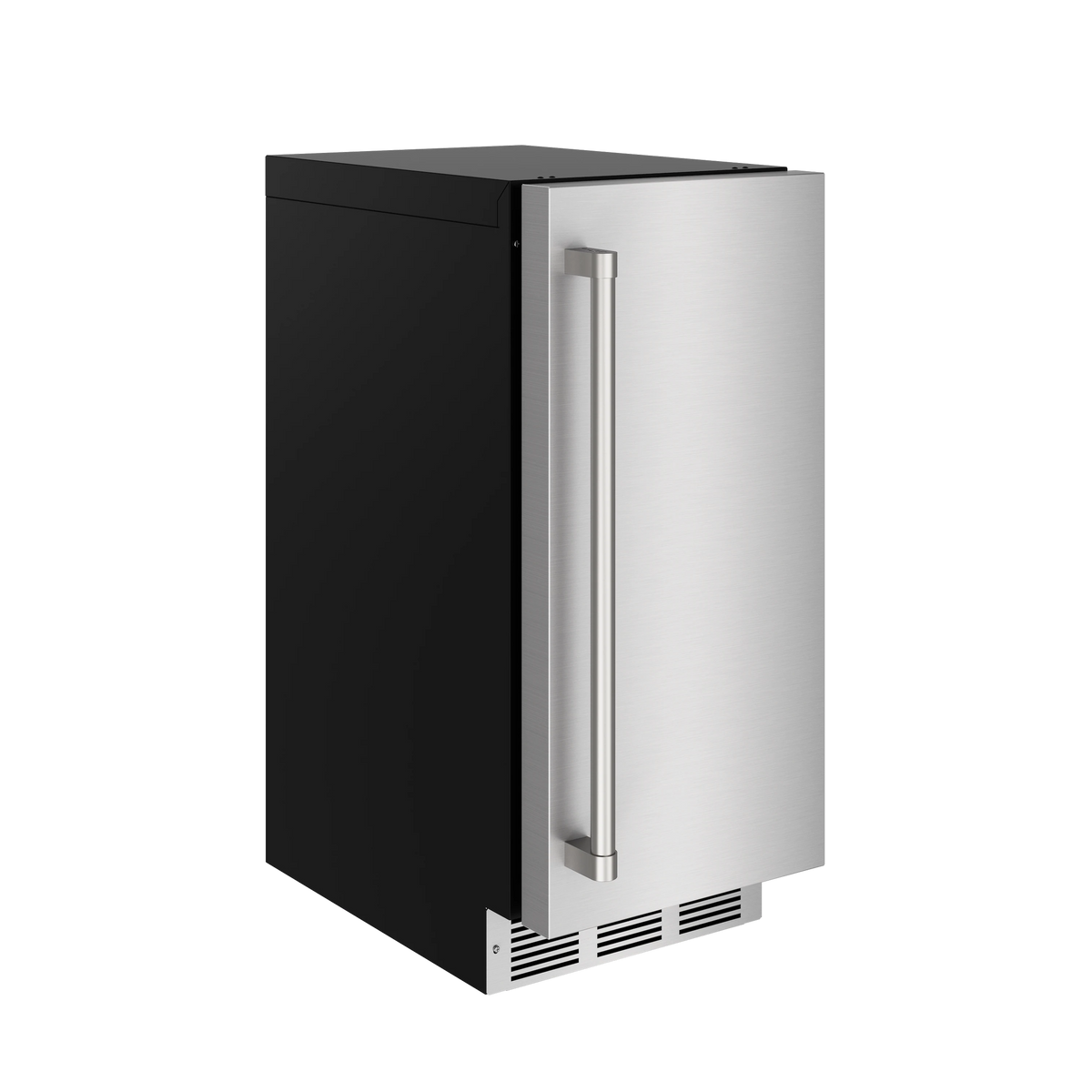

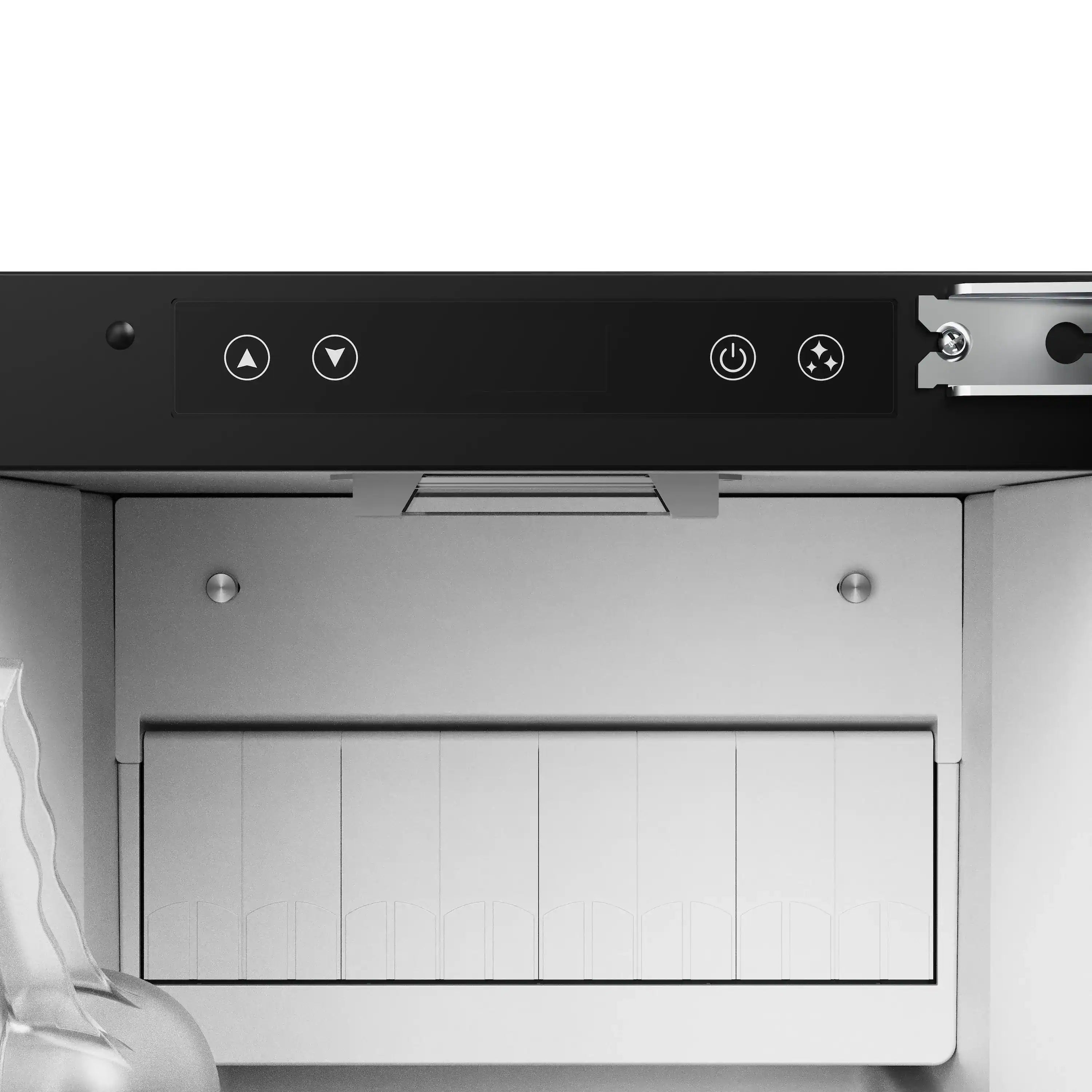

The Thor Kitchen 15-Inch Gourmet Ice Maker with Drain Pump (TIM1502) delivers premium performance and sleek design. It features a built-in pump for flexible installation, a German-made hidden hinge for seamless integration, and a reversible door to fit any kitchen layout. Producing up to 52 lbs of clear, top-hat ice daily and storing up to 26 lbs, it's ideal for entertaining. An in-line water filter ensures clean ice with a 6-month replacement reminder. With Sabbath Mode and an intuitive LED touch screen, the TIM1502 offers both convenience and sophistication for any home or entertaining space.
| Product Dimensions | 14-7/8" W x 23-1/4” D x 34" H |
| Product Depth Excluding Handles | 23-1/4" |
| Product Depth Including Handles | 25-3/4" |
| Product Depth Excluding Door | 20-11/16" |
| Product Depth With Door Open 90 Degrees | 37-3/4" |
| Product Extra Width Clearance With Door Open 115 Degrees | 8-1/4" |
| Product Height To Top Of Door Hinge | 34" |
| Cutout Dimensions | 15" W x 24” D x 34-1/2" H |
| Net Weight | 98.8lbs |
| Total Capacity | 26 lbs |
| Color/Finish | Stainless Steel |
| Ice Production Capacity (70°/50°F) | 60 lbs |
| Ice Production Capacity (90°/70°F) | 52 lbs |
| Amperage | 15 A (Dedicated) |
| Volts | 120 V |
| Frequency | 60Hz |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 6 ft. (1800mm) |

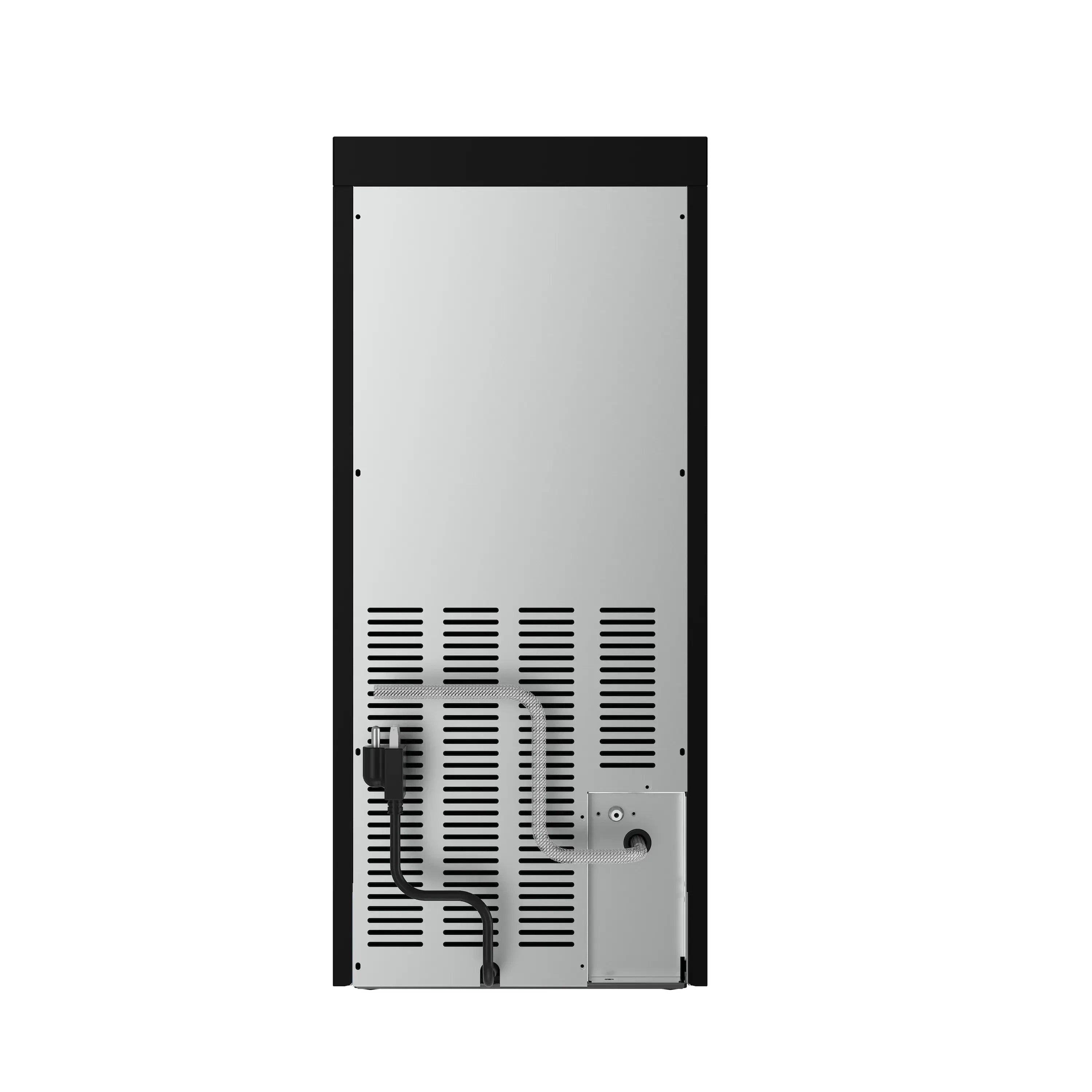

| Drain Required | Yes |
| Energy Consumption | 9.25 kWh/100 lbs Ice |
| Plumbing Pressure | Water Pressure Operating Range (PSI) 20~80 (0.14MPa~0.55MPa) |
| Defrost Type | Automatic |

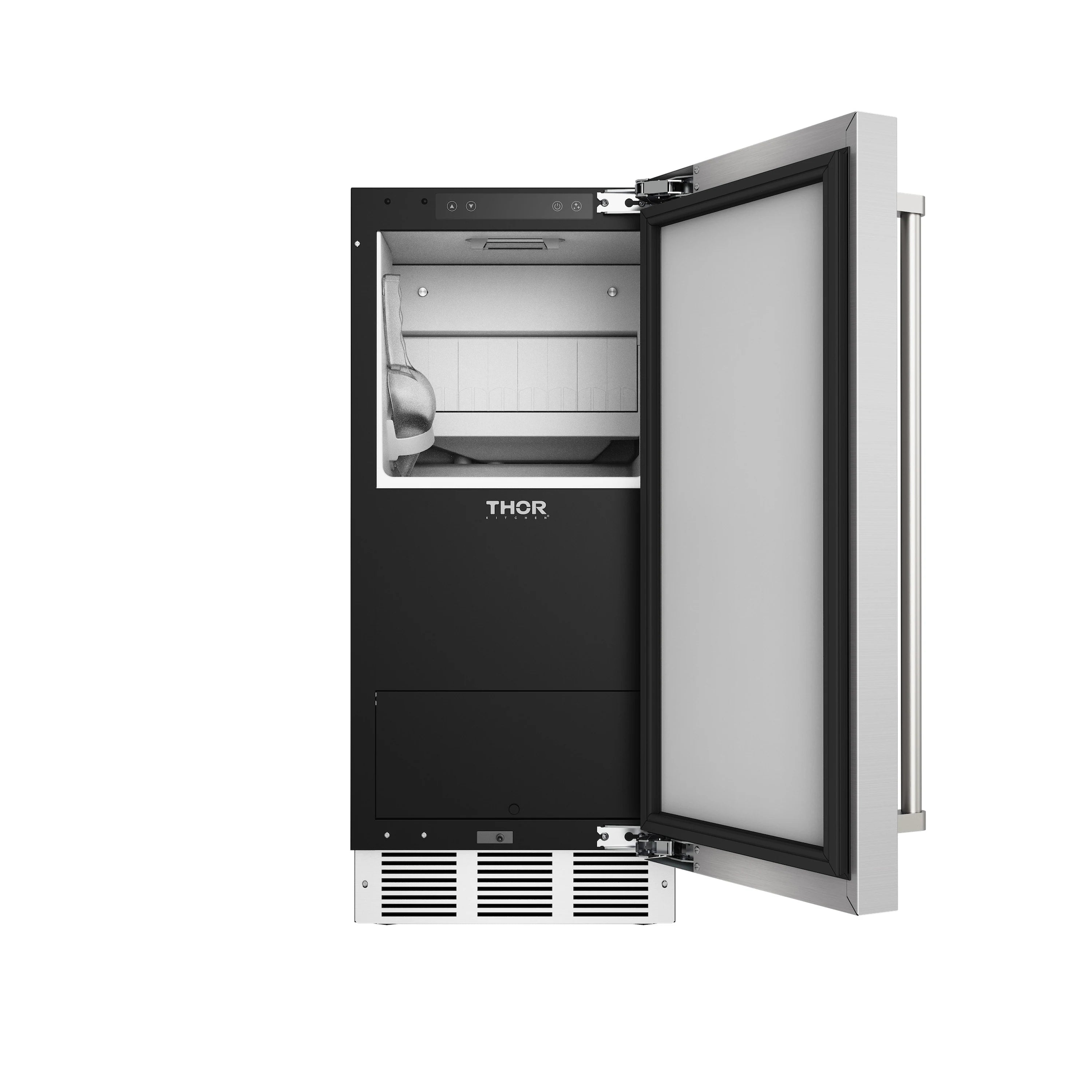

| Reversible | Yes |

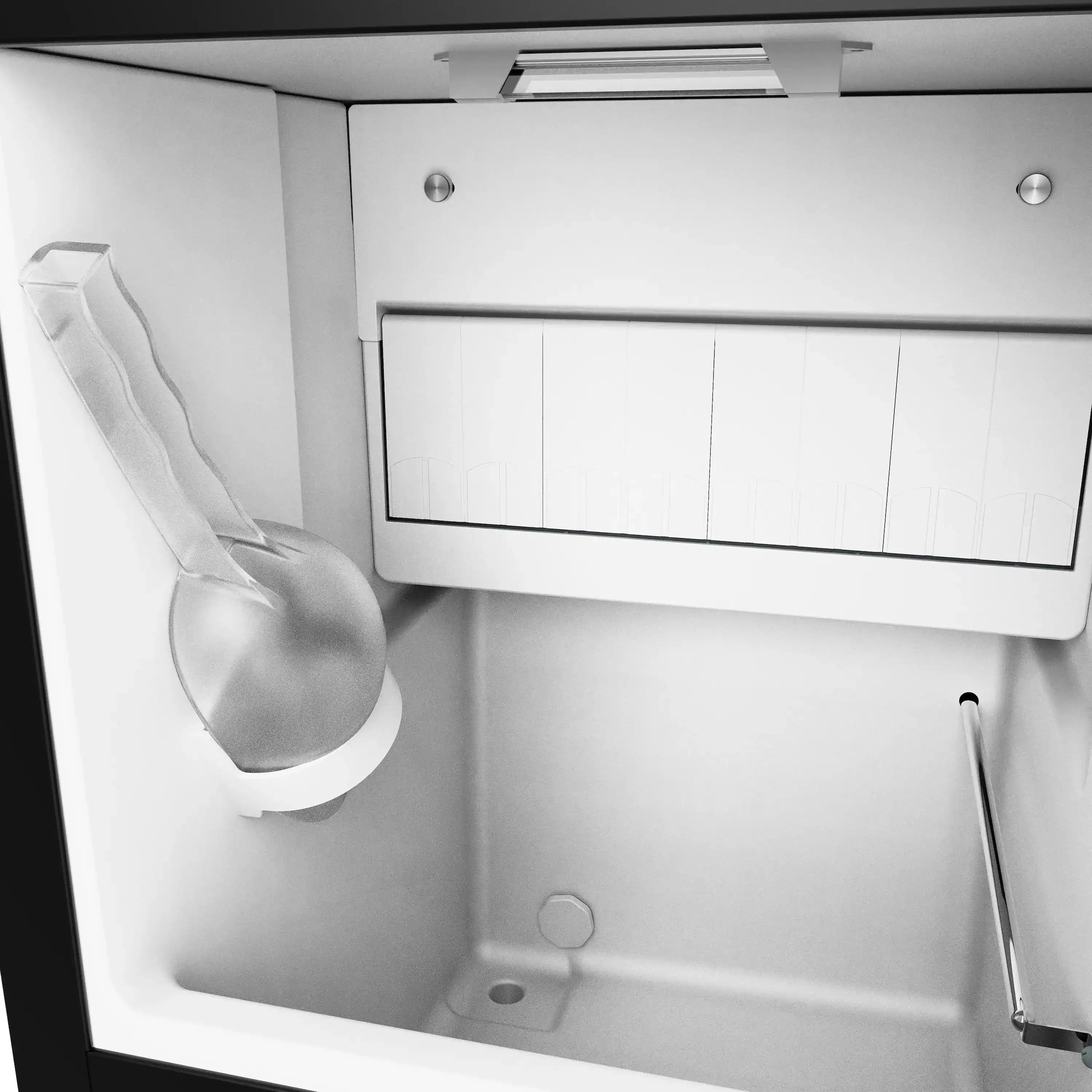

| Ice Bin (Fixed) | Yes |

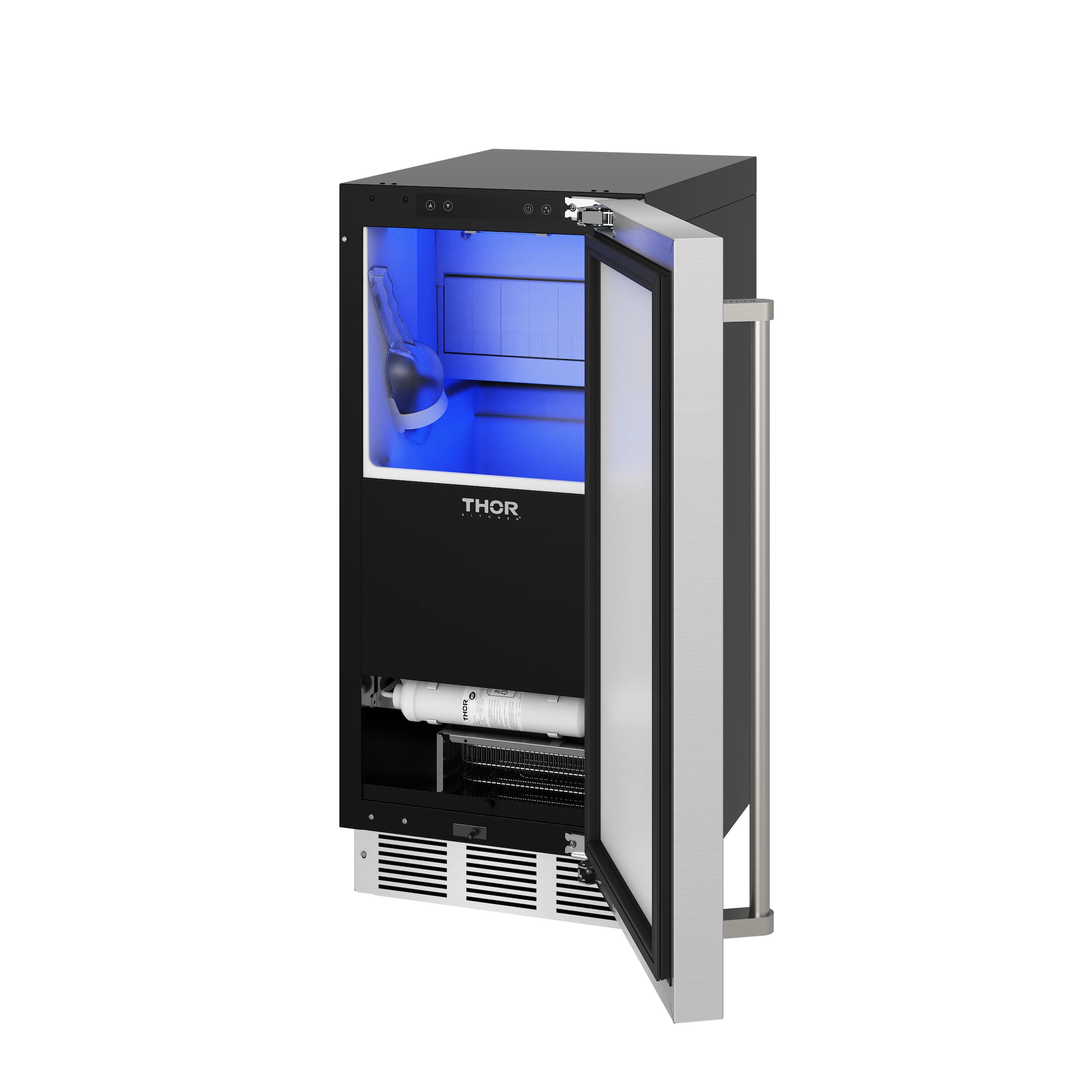

| Light | Blue LED |

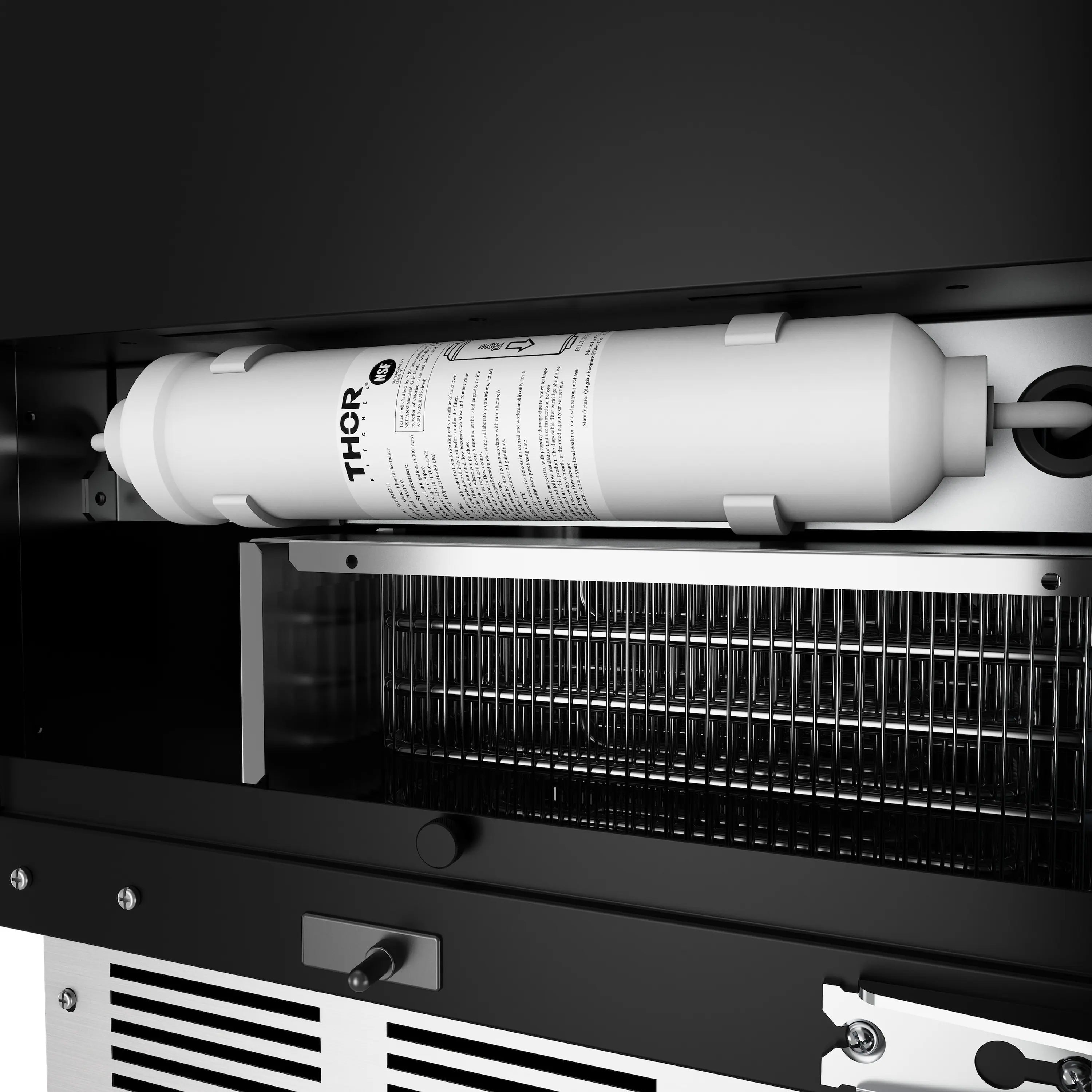

| Water Filter | Yes |
| Energy Star | Yes |

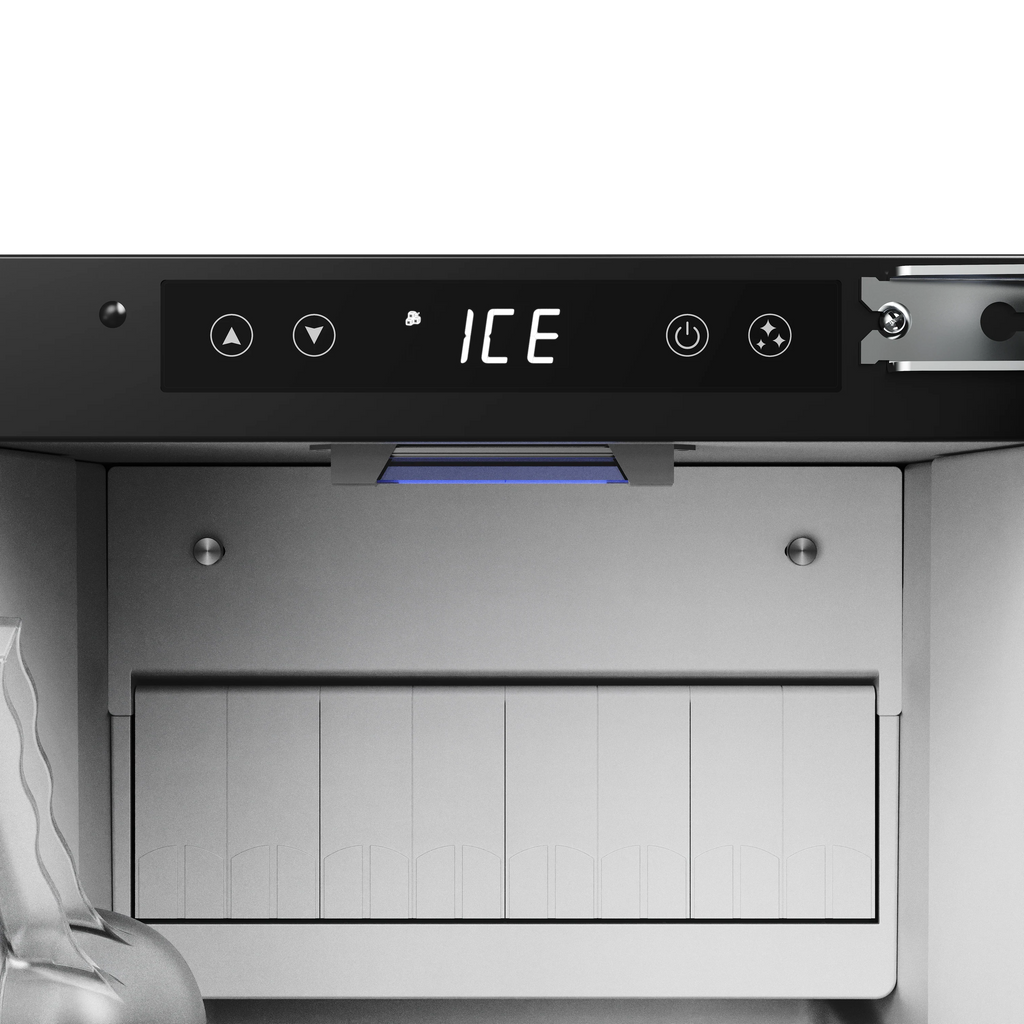

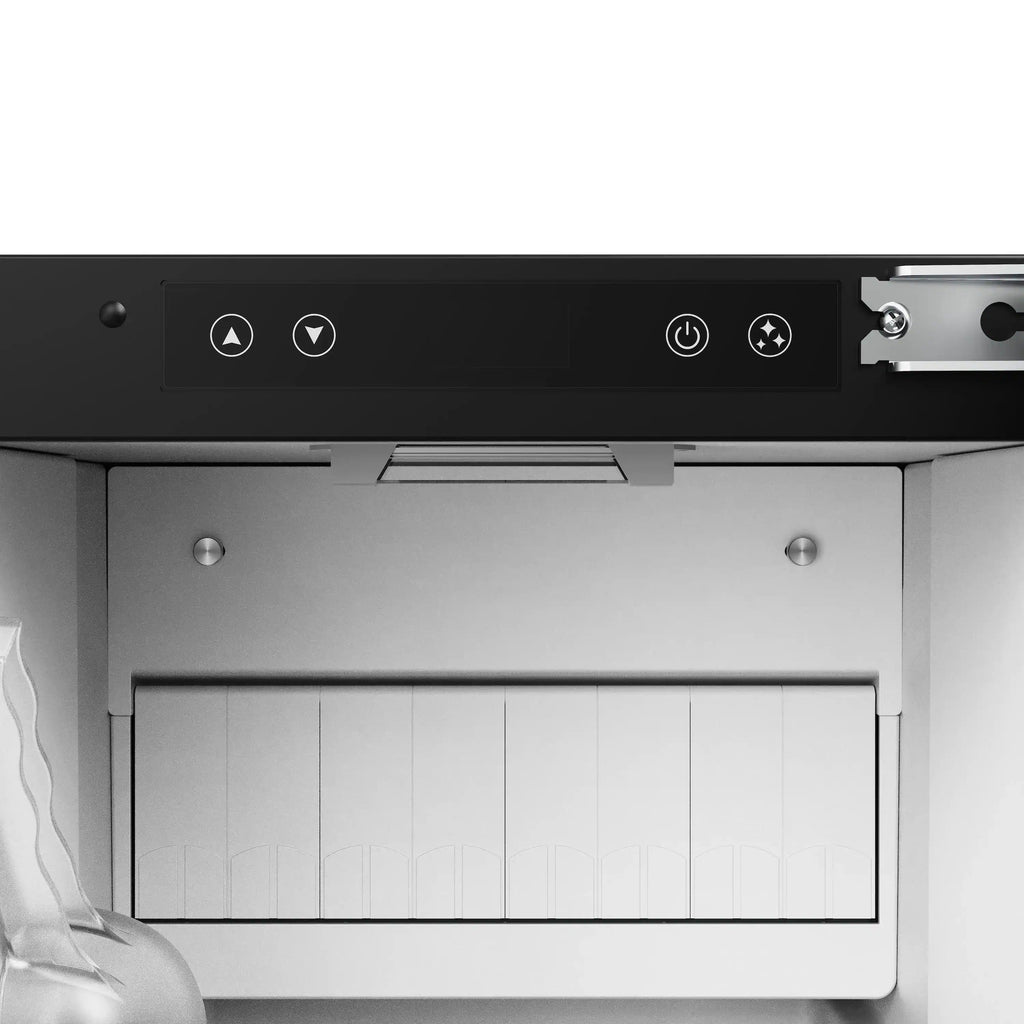

| Control Type | Touch |
| Ice Type | Gourmet / Top-Hat |
| Ice Size (W×D×H) | 1-1/4" ×1-1/4"×1" |
| Ice Weight (Per Cube) | 0.81oz (23g) per cube |
| Ice Quantity Per Cycle | 24 |
| Ice Cube Size Adjustment | Yes |
| Ice Cube Size Adjustable Level | 6 (Default Size: 3) |
| Self Clean | Yes |
| Sabbath | Yes |
| Door Ajar Alarm | Yes |
| Clean Reminder | Yes (Every 6 Months) |
| Filter Replace Reminder | Yes (Every 6 Months) |
| 1/ 4” Ice Maker Water Supply Kit | Not Included (Purchased Separately) |
