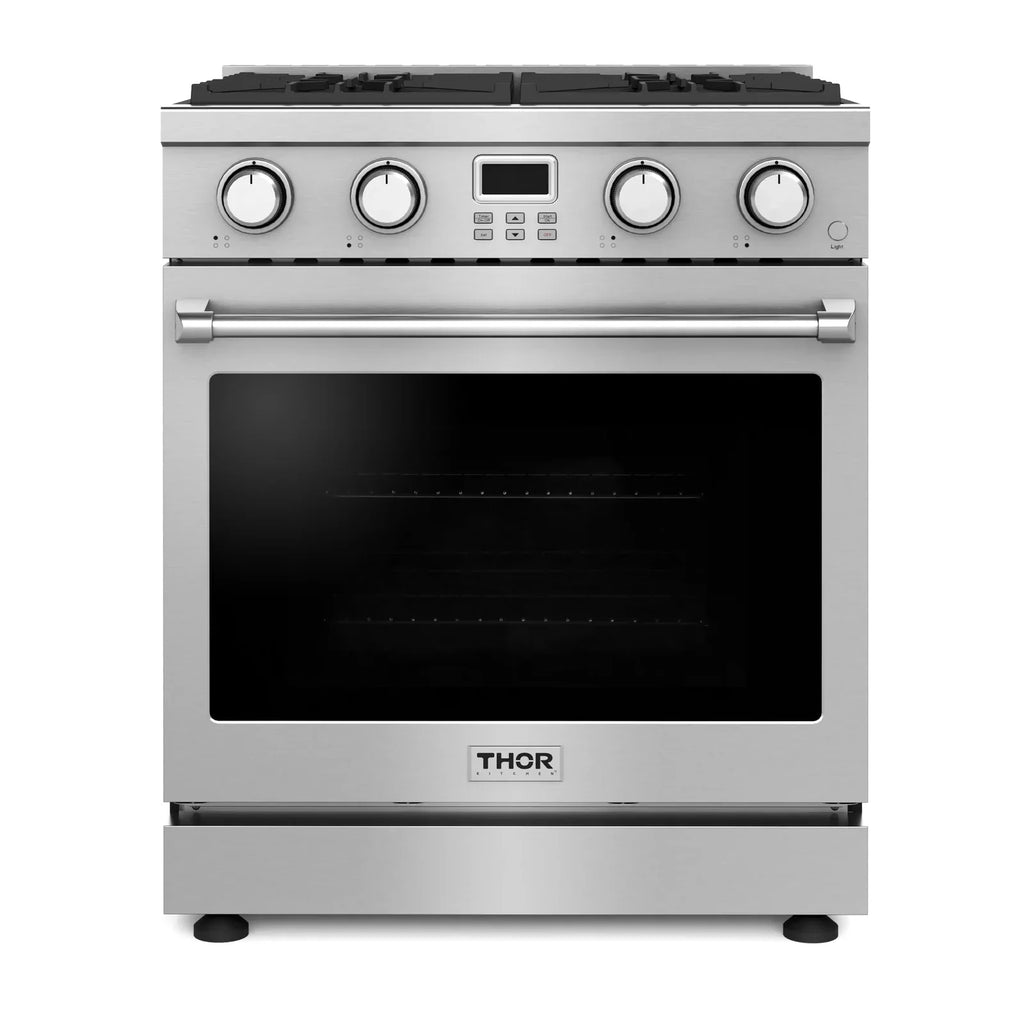

| DIMENSIONS | |
|---|---|
| Product Width | 29 7/8 in. |
| Product Height (from bottom to top of back splash) | 36 in. |
| Product Height (from bottom to top of side panel) | 34 3/4 in. |
| Product Depth (from back panel to bullnose) | 27 in. |
| Product Depth (from back panel to control board) | 26 3/8 in. |
| Product Depth (from back panel to side panel front) | 24 1/8 in. |
| Adjustable Leg Sizes | 3 in. Max. |
| Cut Out Dimensions | 30" W x 24" D x 36" H |
| Cord Length | 60 in. |
| Oven (W x D x H) | 23.7 in. x 19.5 in. x 18 in. |
| GENERAL INFORMATION | |
| Baking Sheet Size | Fits up to 22" x 14" Sheet |
| Accessories Included |
|
| Accessories (Sold Separately) | LP KIT includes orifices and gas regulator caps |
| DESIGN & FINISH | |
| Color | Silver |
| Finish | Stainless Steel |
| Control Type | Oven Function Button + LED Panel Display |

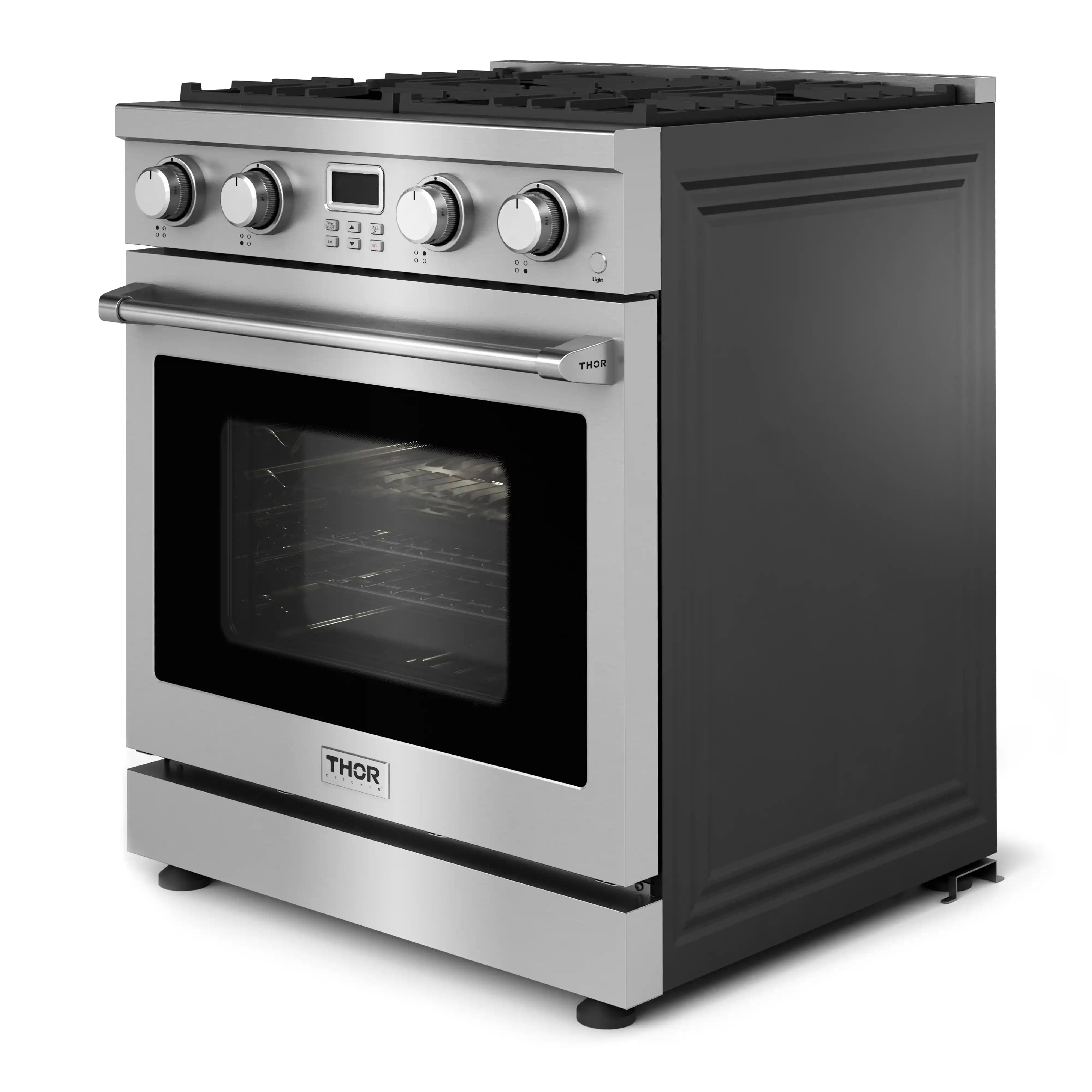

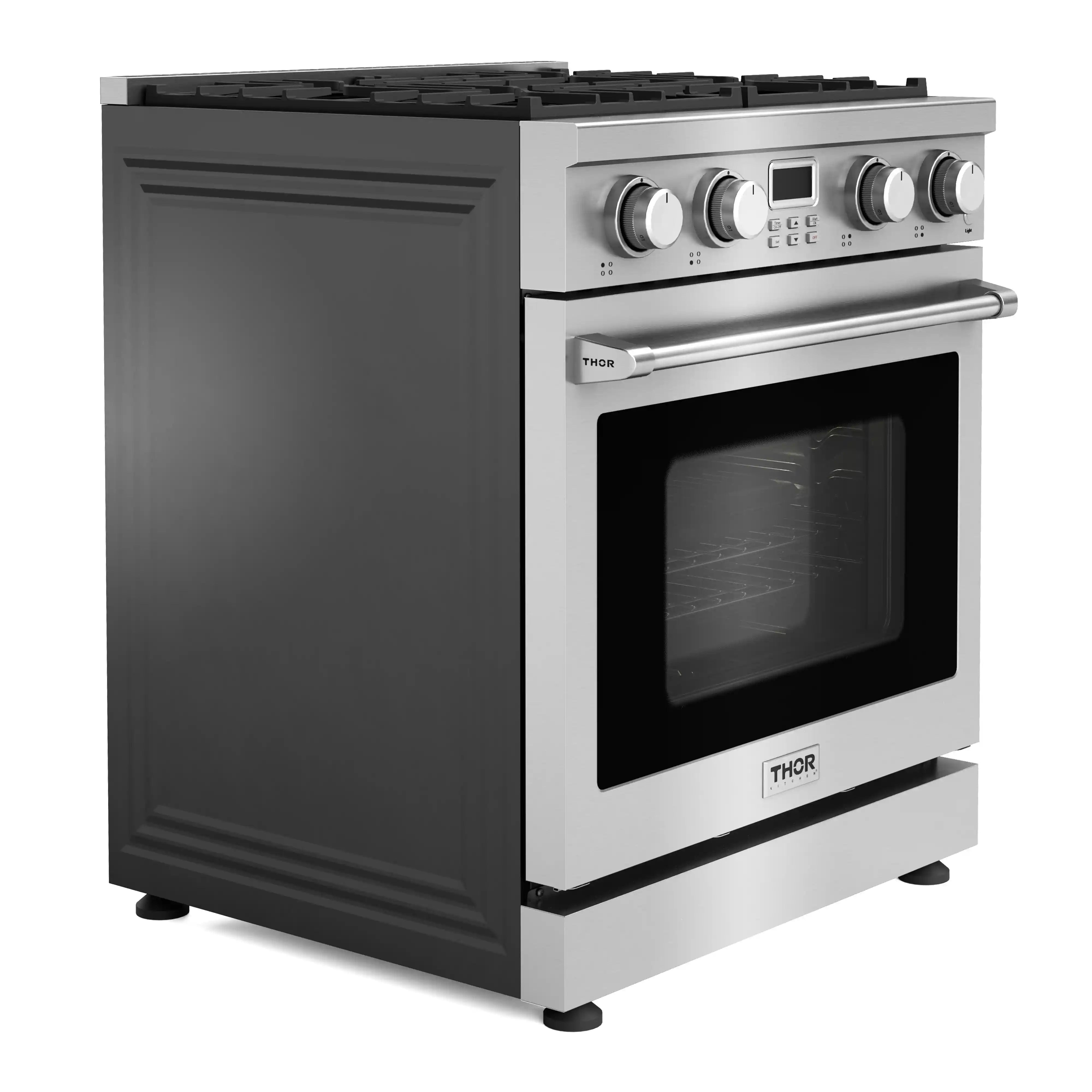

| TECHNICAL DETAILS | |
| Fuel Type | Gas, LP Option Available |
| Installation Type | Freestanding |
| Voltage | 120V 15A |
| Frequency(Hz) | 60Hz |

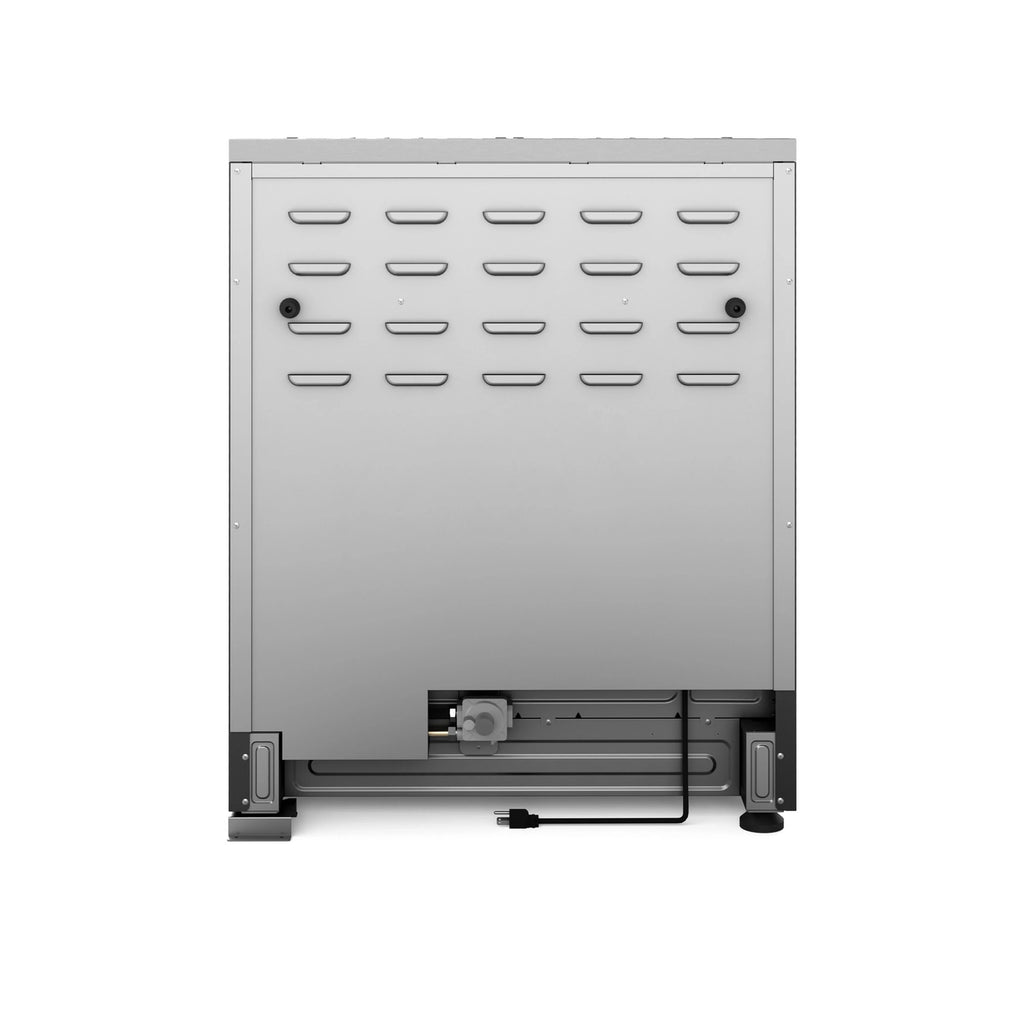

| Gas Line Regulator | 1/2 in. |
| Plug Type | 3 Prongs included |

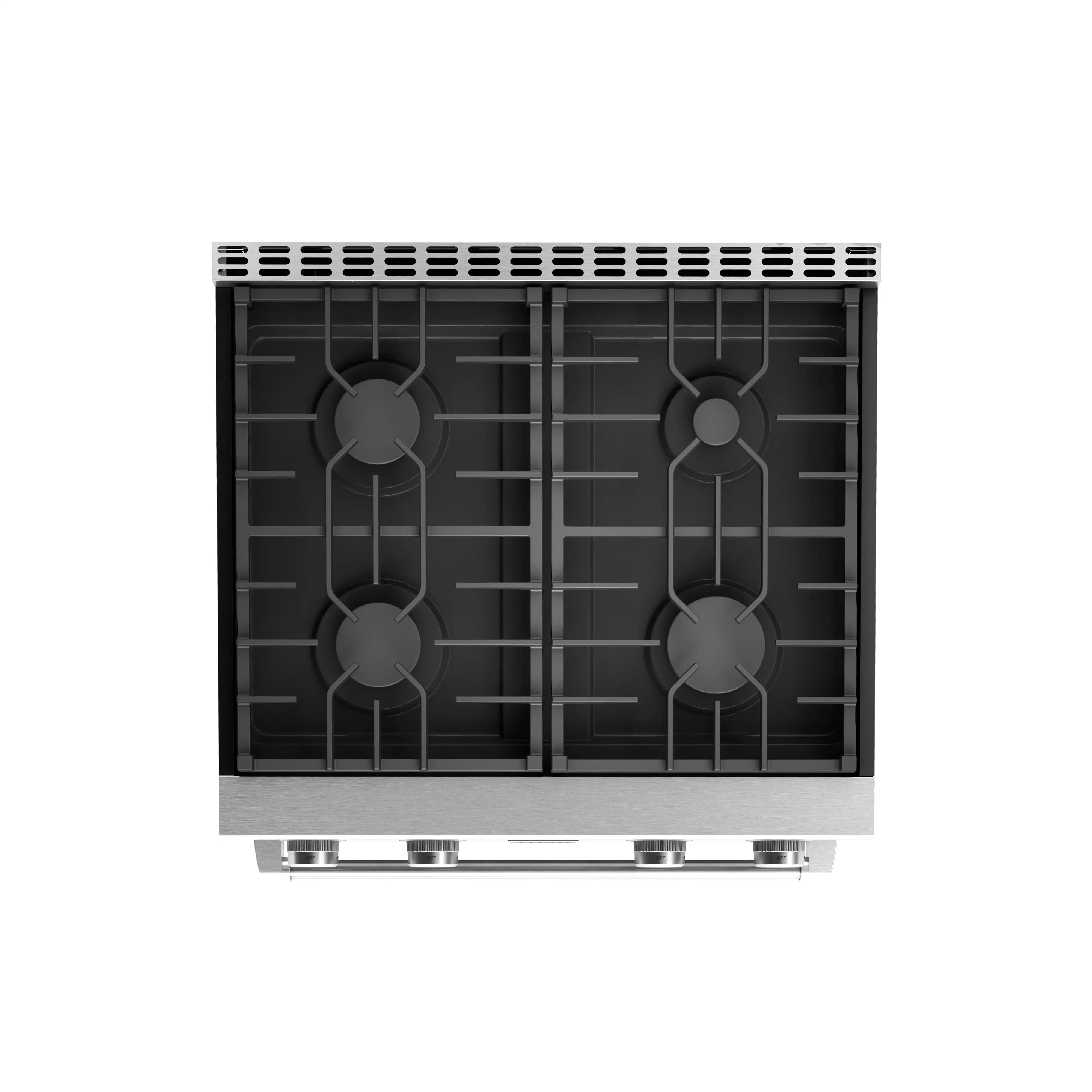

| COOKTOP FEATURES | |
| Hot Surface Indicator Light | Front Right Corner Of Cooktop w/Temp at 150˚F |
| Bake Burner Power | 18,500 BTU |
| Broil Burner Power | 13,500 BTU |
| OVEN FEATURES | |
| Oven Capacity | 4.8 Cu. Ft. |
| Oven Color | Black |
| Oven Features |
|
| Convection | Convection Plan |
| Oven Light | 1*40W, Rear |
| Oven Racks | 2 |
| Rack Positions | 6 |
| Oven Rack Material | Chrome Plated |

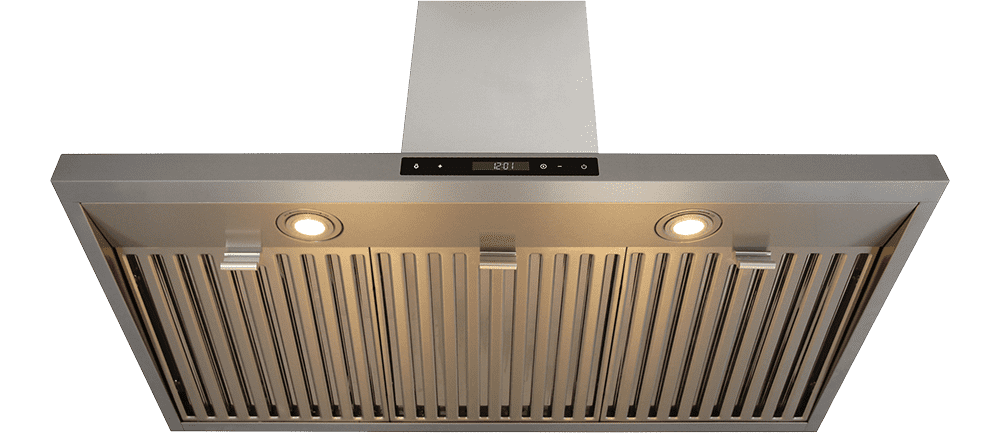

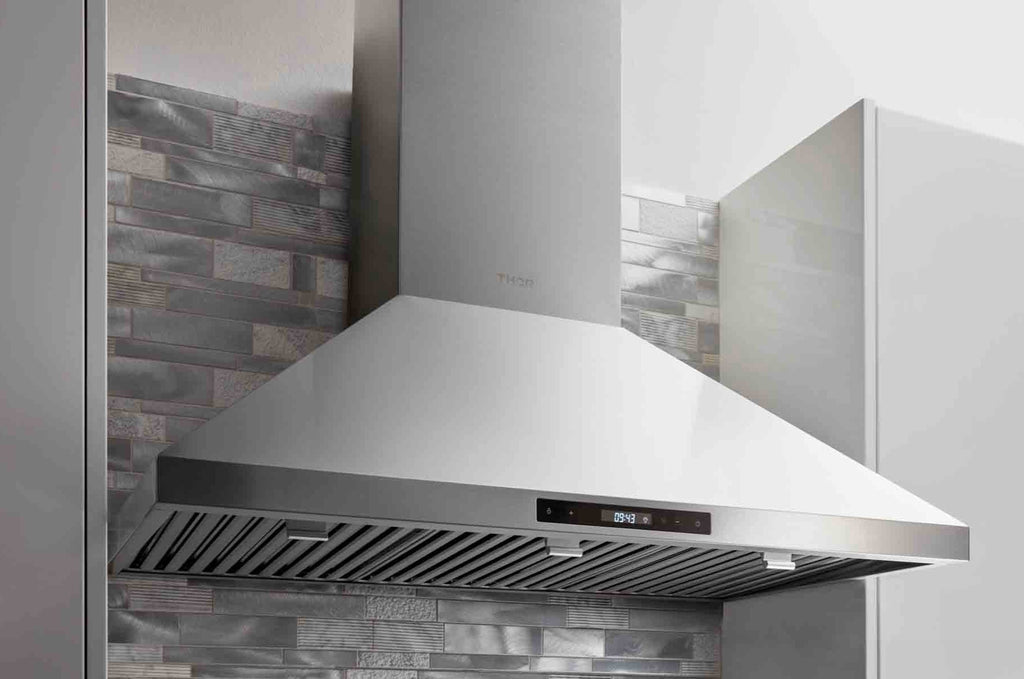

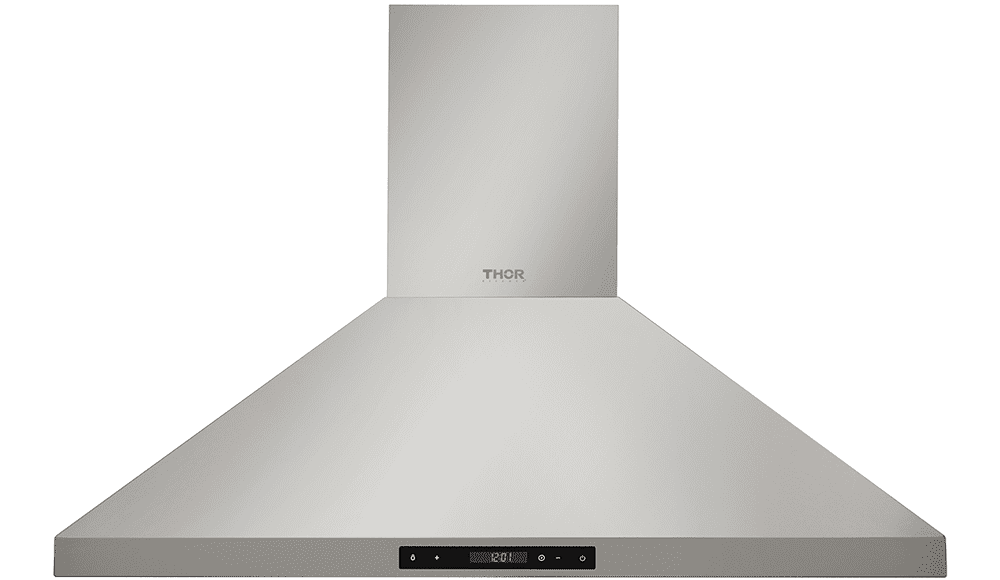

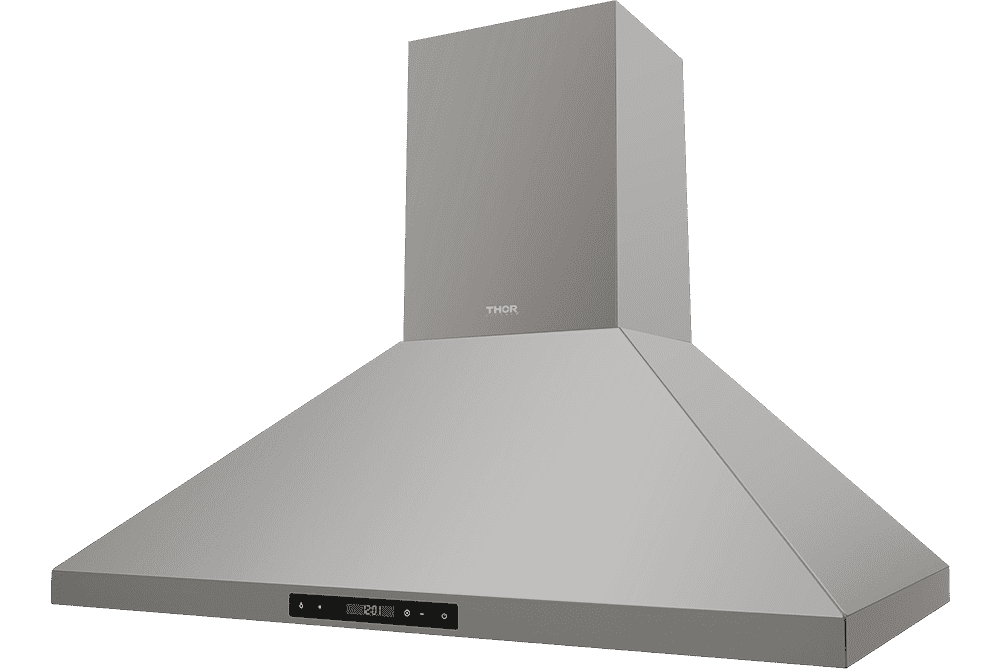

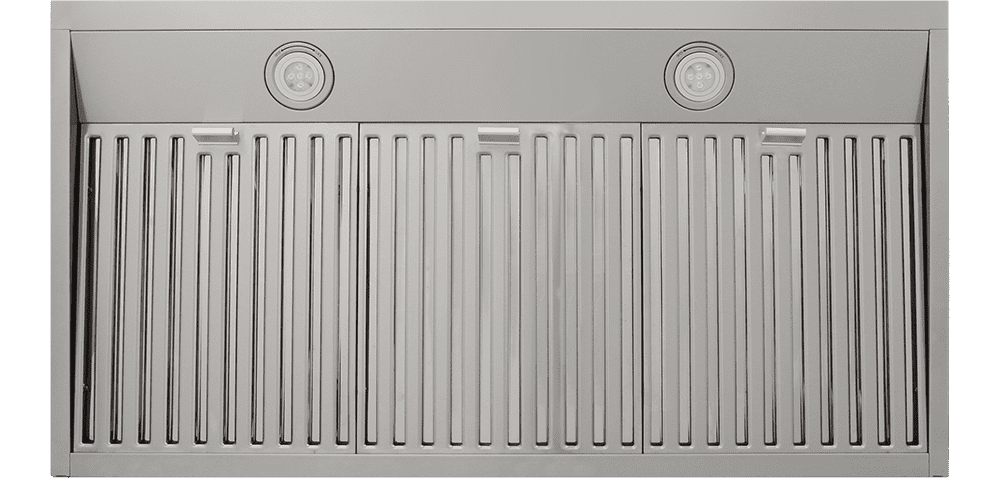

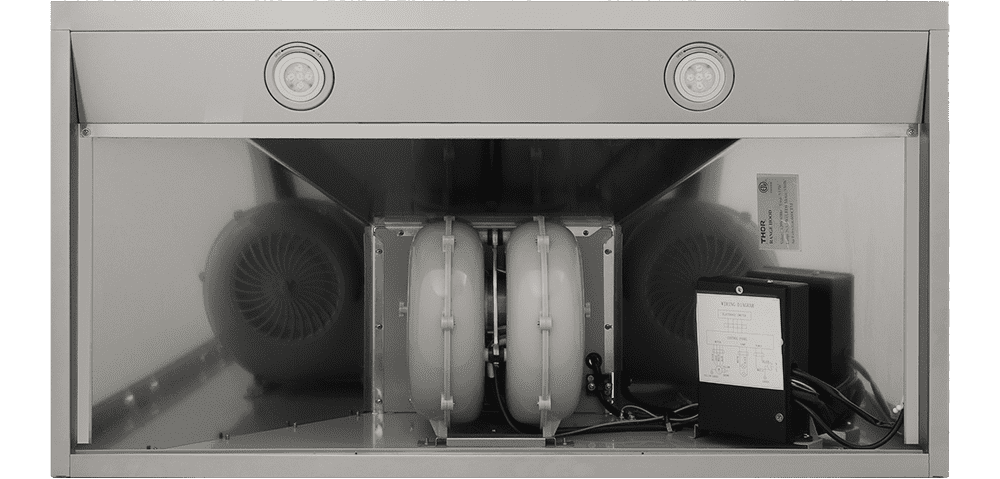

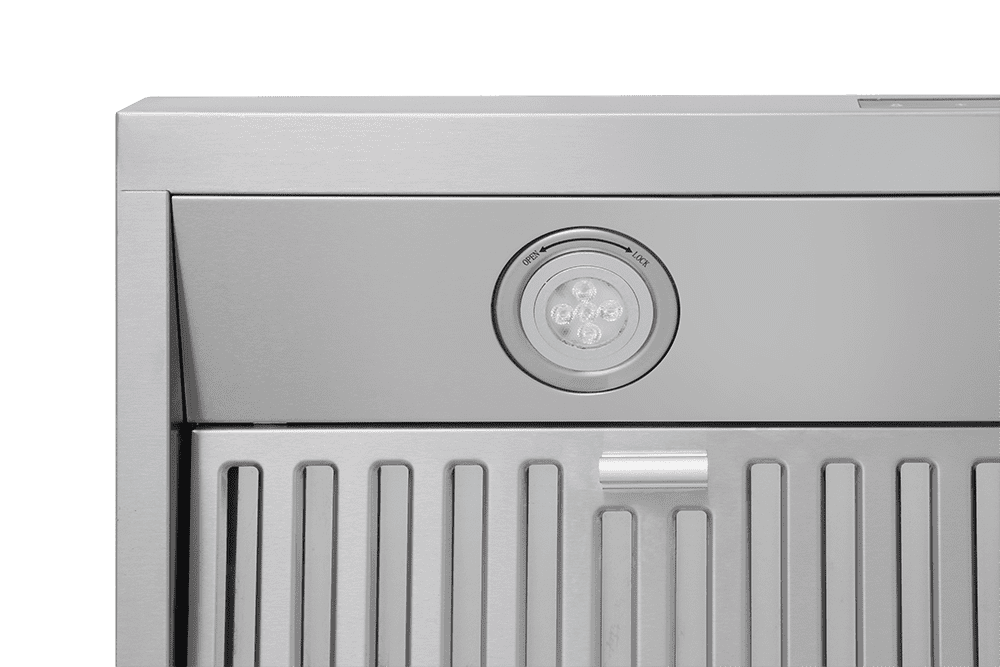

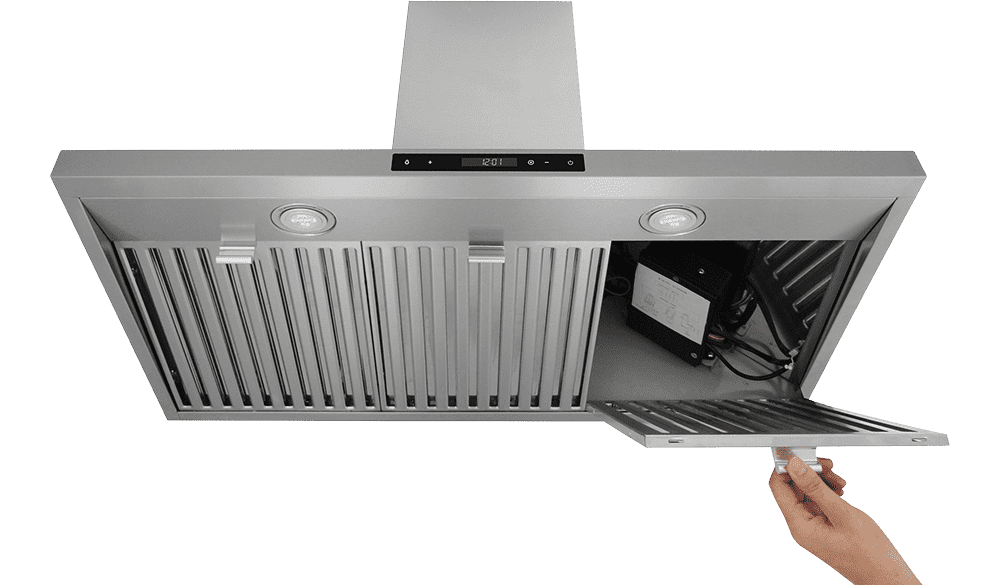

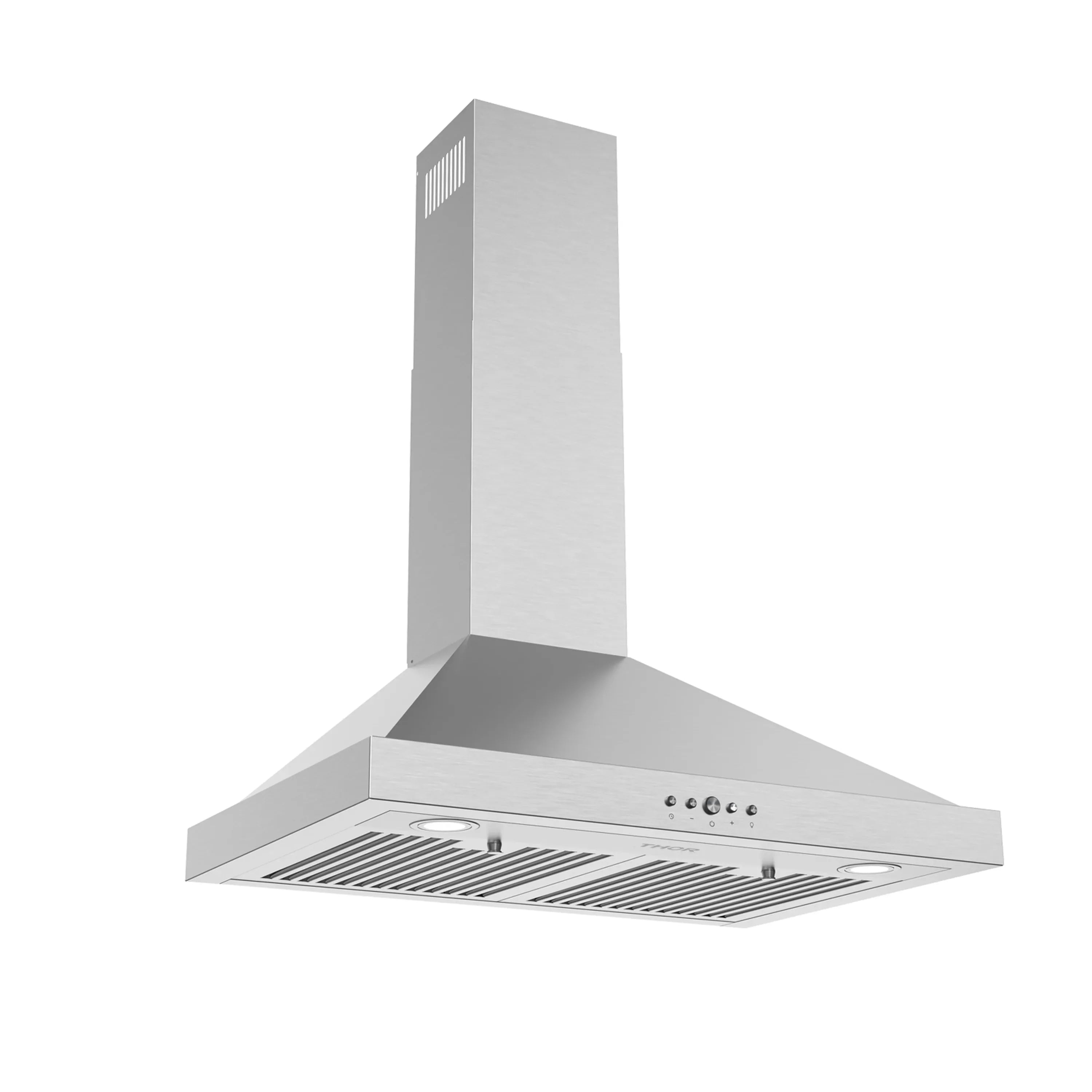

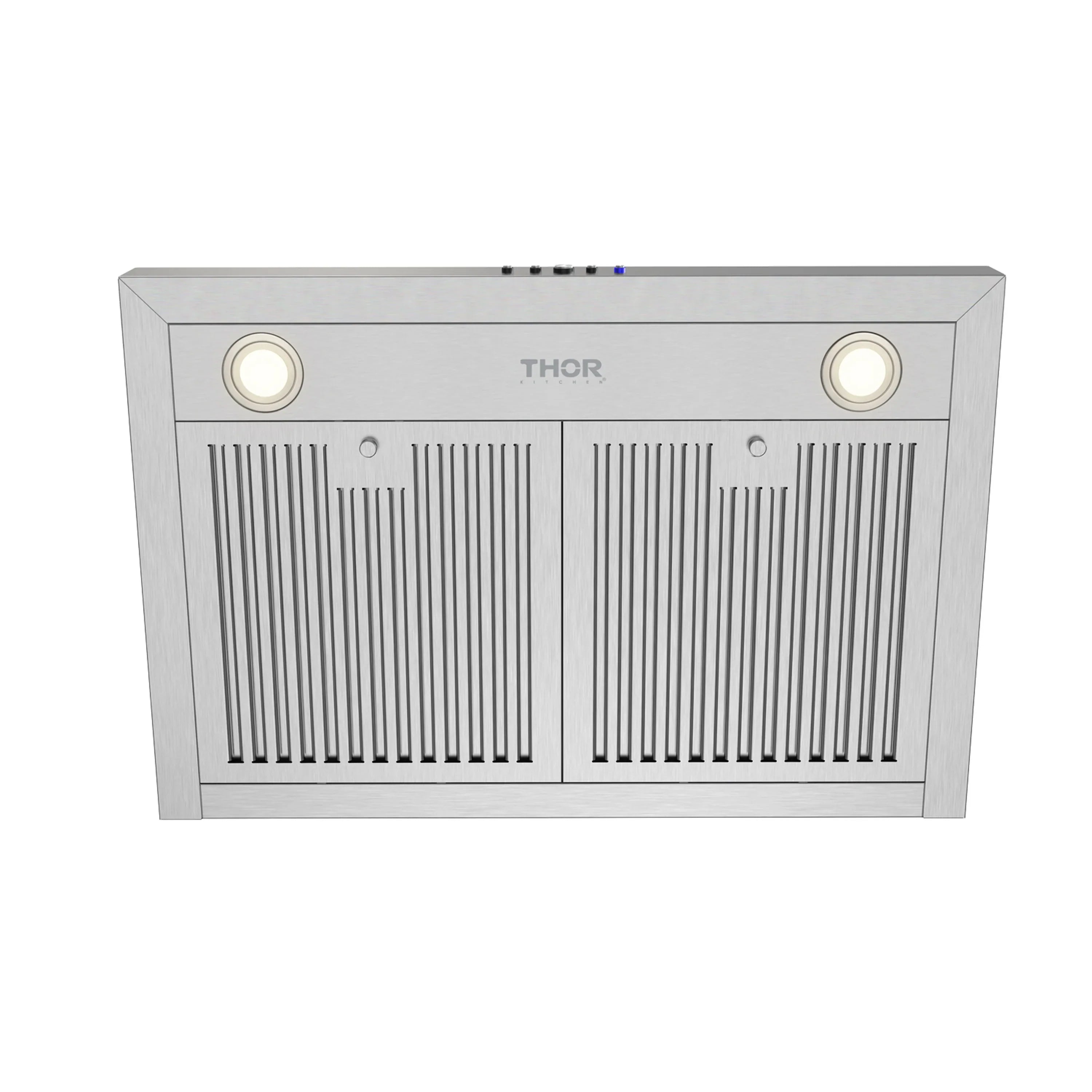

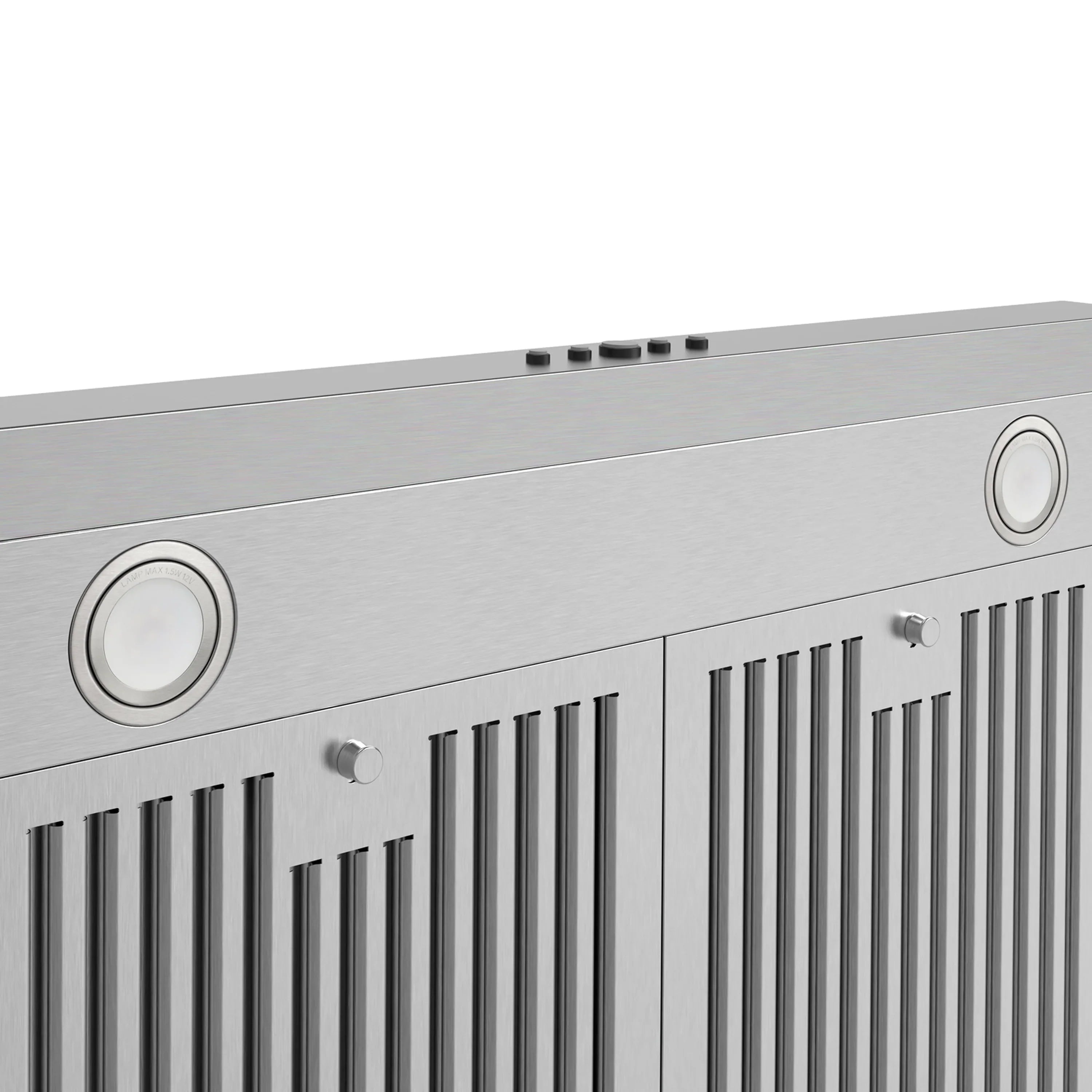

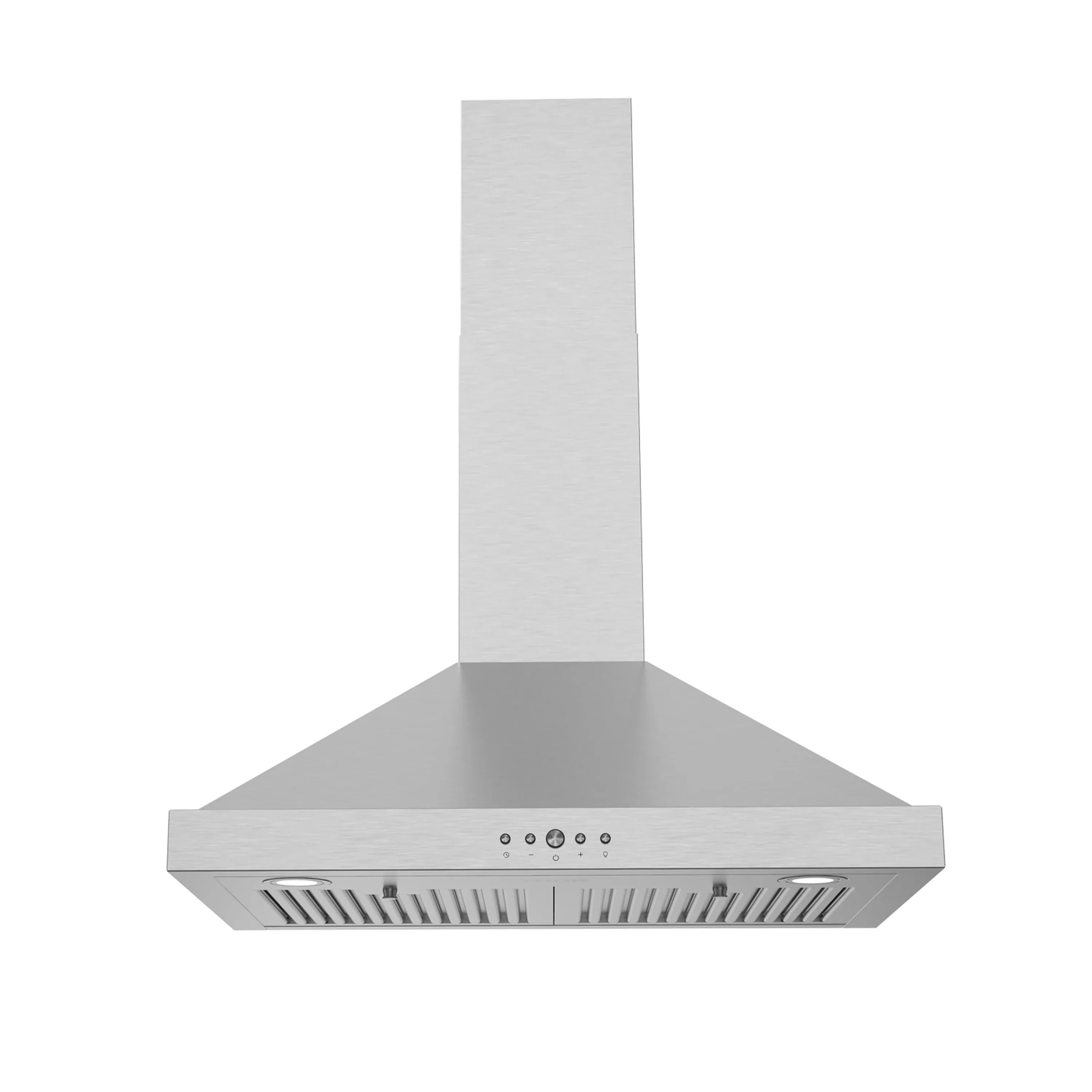

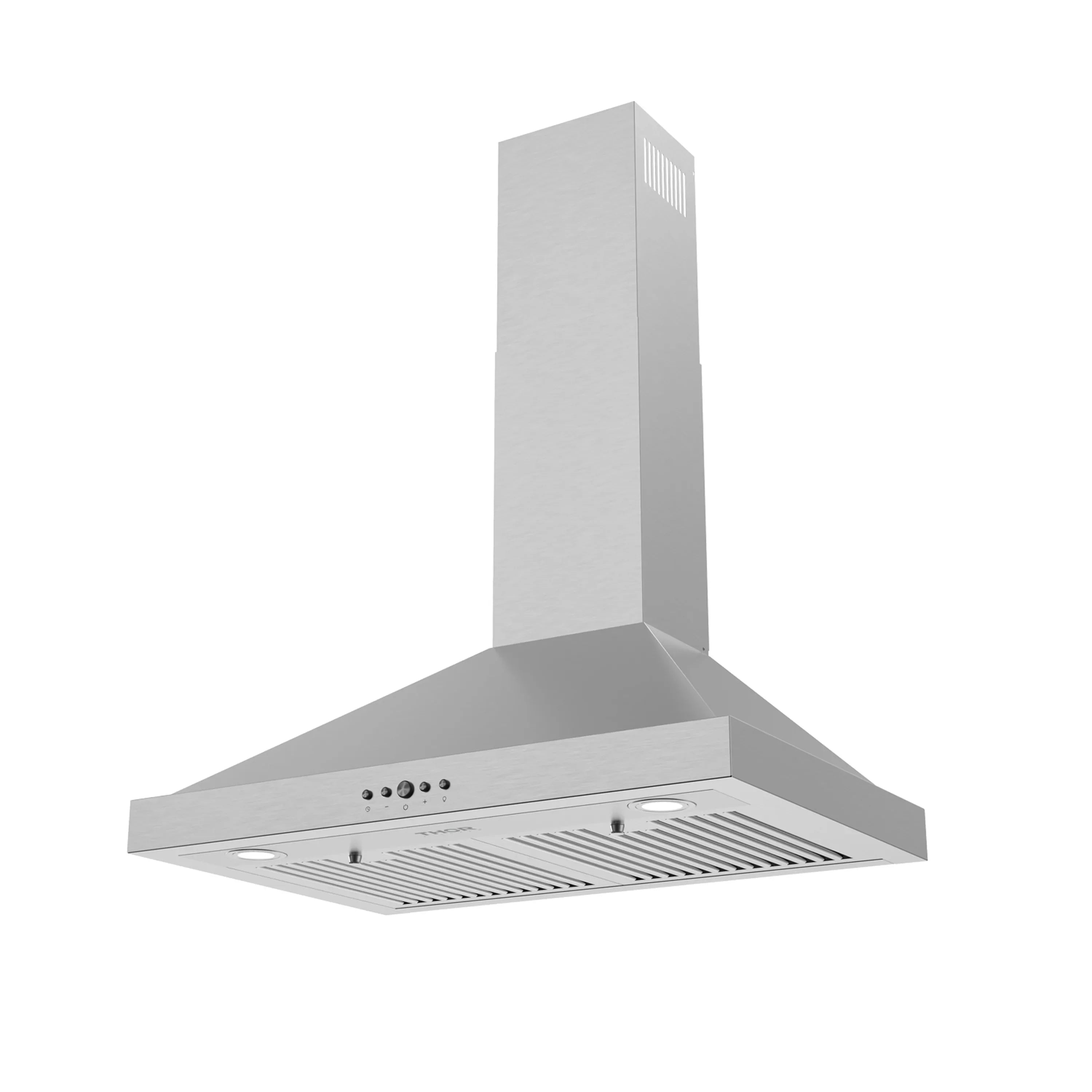

THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. The 30 Inch Wall Mount Range Hood in Stainless Steel adds a sleek, modern look to your kitchen and is designed to eliminate odors, smoke and steam quietly and efficiently. Fish on the plate? Good. The lingering aroma of fish in every room? Not so good. #cooklikeagod
Options & Accessories:
| DIMENSIONS | |
|---|---|
| Duct Width (in.) | 6 |
| Product Depth (in.) | 19 3/4” |
| Product Height (in.) | 33 1/2” - 55” |
| Product Width (in.) | 30” |
| Range Hood Size (Width) | 30 in. |
| GENERAL INFORMATION | |
| Appliance Type | Range Hood |
| Exhaust Vent Location | Top |
| Mounting Type | Wall Mount |
| Vent Install Type | Ducted |
| DESIGN & FINISH | |
| Color/Finish | Stainless Steel |
| Color/Finish Family | Stainless Steel |

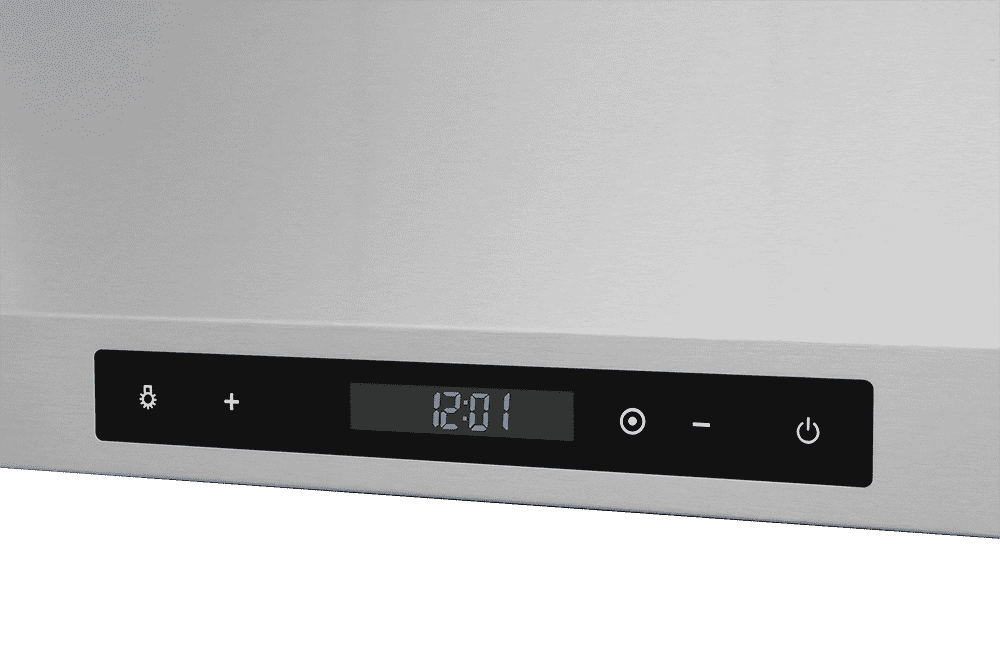

| Control Type | Touch pad |
| Vent Material | Steel |
| TECHNICAL DETAILS | |

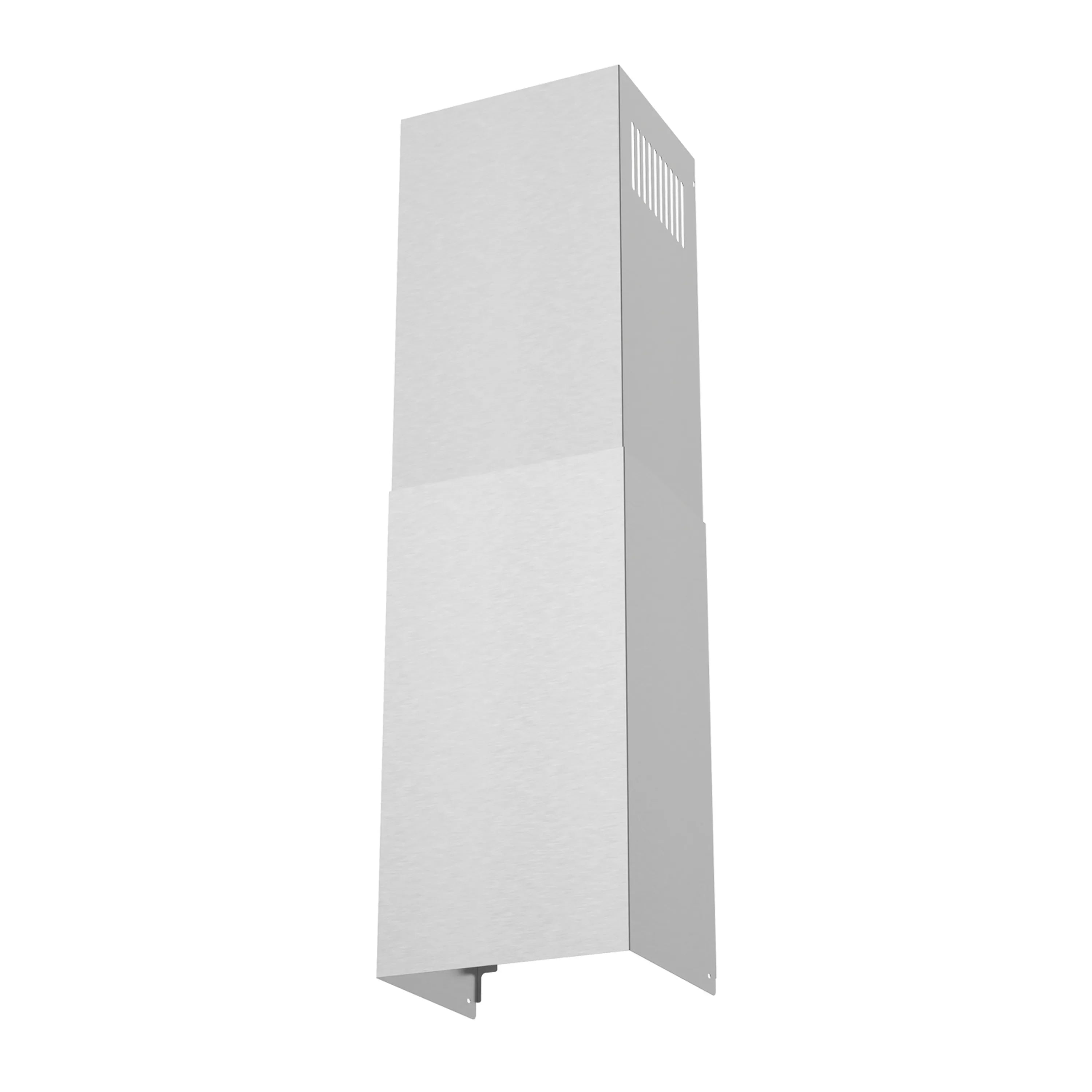

| Duct Length (in) | 59 |
| Amperage (amps) | 3 A |
| Duct Shape | Round |
| Maximum Air Flow Capacity (CFM) | 600 CFM |
| Minimum Air Flow Capacity (CFM) | 600 |
| Voltage (volts) | 120 |
| Wattage (watts) | 337 |
| FEATURES | |
| Commercial/Residential | Residential |
| Features |
|
| Included |
|
| Returnable | 90-Day |
| WARRANTY & CERTIFICATIONS | |
| Certifications and Listings | ETL Listed |
| Manufacturer Warranty | 2 Year Limited Warranty |
