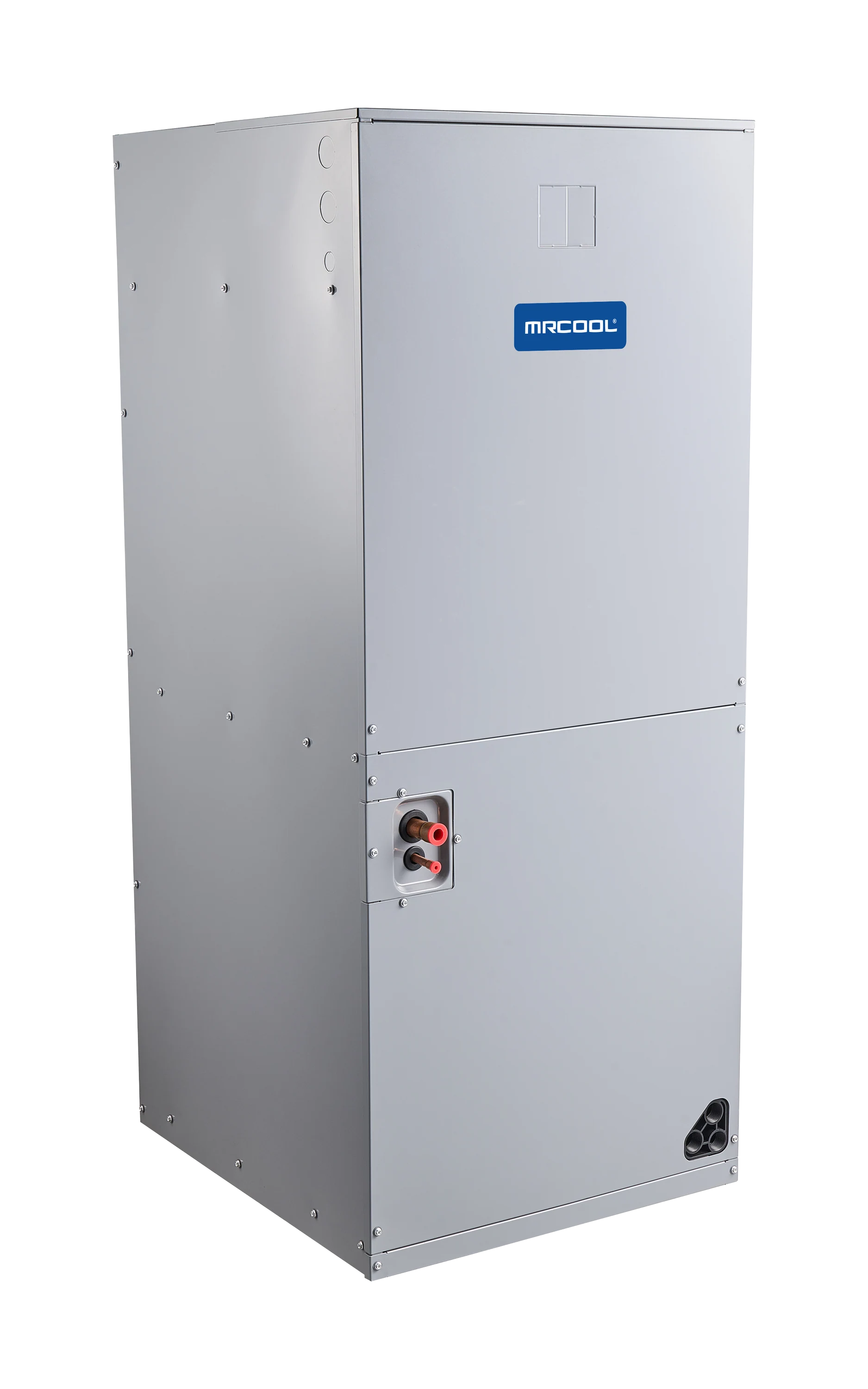

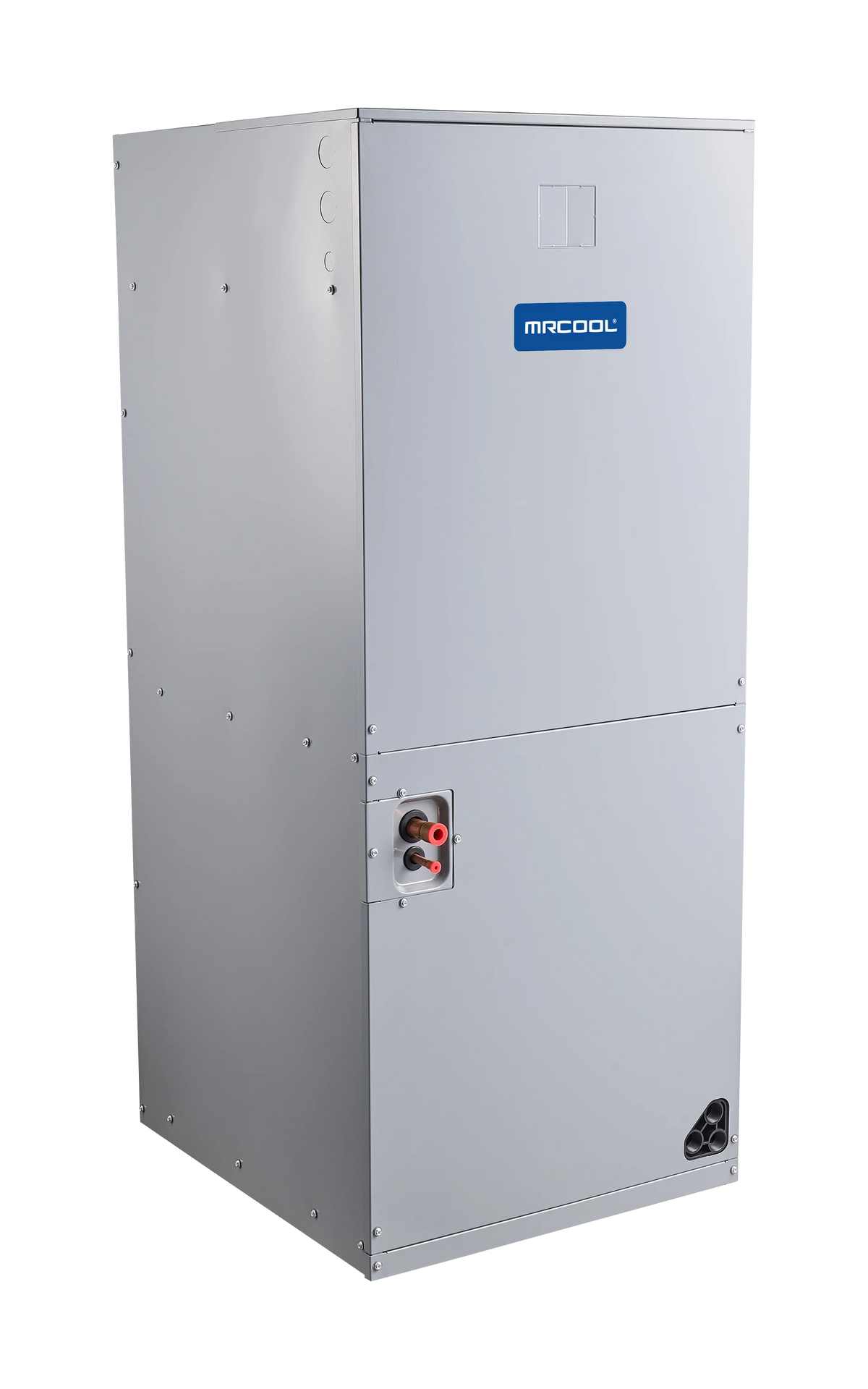

The MRCOOL® Signature Series 60k Multi-Position Air Handler is designed to deliver reliable, efficient comfort all year long. Featuring advanced R-454B refrigerant, it meets modern environmental standards while helping reduce energy use and carbon emissions without sacrificing performance.
This unit’s multi-position capability allows for installation in upflow, downflow, or horizontal configurations, making it a flexible choice for any home layout. Whether it’s placed in a utility closet, attic, or crawl space, its slim, compact design ensures a seamless fit while delivering powerful heating and cooling when paired with a compatible condenser or heat pump. Built for long-lasting performance, this unit is equipped with a galvanized steel cabinet that resists corrosion, dents, and daily wear. Its high-efficiency ECM blower motor delivers consistent, quiet airflow while helping to lower overall energy use. Inside, copper “A” coils and aluminum fins provide excellent heat exchange and effective humidity control. Meanwhile, internal thermal insulation helps minimize condensation and thermal loss, resulting in better comfort, quieter operation, and increased energy savings.
Installation is fast and simple, saving time and reducing labor costs. An air filter rack makes routine maintenance easy, and an optional electric heat kit is available to boost cold-weather performance. This system is also compatible with most third-party smart thermostats, giving you the freedom to choose the control platform that works best for your home without proprietary limitations. Backed by a 10-year limited parts warranty, the MRCOOL® Signature Series 60k Multi-Position Air Handler offers dependable performance, energy efficiency, and the flexibility to fit your space and lifestyle with ease.
| Net Dimensions (In) | 24.5 D x 53.125 H x 22 W |
| Net Weight (Lbs) | 170 |
| Works With | Signature Series Top Discharge Condensers |
| CFM | 1549 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 10 |
| Min Circuit Ampacity (A) | 7.2 |
| Mount Type | Multi-Position |
| Color | Grey |
| Refrigerant Type | R-454B |
| Decibel Rating (Dba) | 57 |
| Air Flow Direction | Multi-Position |
| Drain Connection Size | 45720 |
| Liquid Line Size | 45724 |
| Suction Line Size | 45846 |
| Blower Motor Type | ECM |
| Blower Motor Hp | 45720 |
| Blower Motor Speeds | 5 |
| Blower Motor Rpm | 1010 |
| Filter Type | Replaceable |
| Filter Size | 20 * 24 * 1 |
| Metering Device | Orifice |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 5kW, 7.5kW, 10kW |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Base Warranty | 10 Year Parts, Limited Lifetime Compressor Warranty |
| Base Parts Warranty | 10 Year |
| Base Compressor Warranty | Limited Lifetime |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Gross Depth (In) | 25.2 |
| Gross Height (In) | 54.89 |
| Gross Width (In) | 27.75 |
| Gross Weight (Lbs) | 190 |
