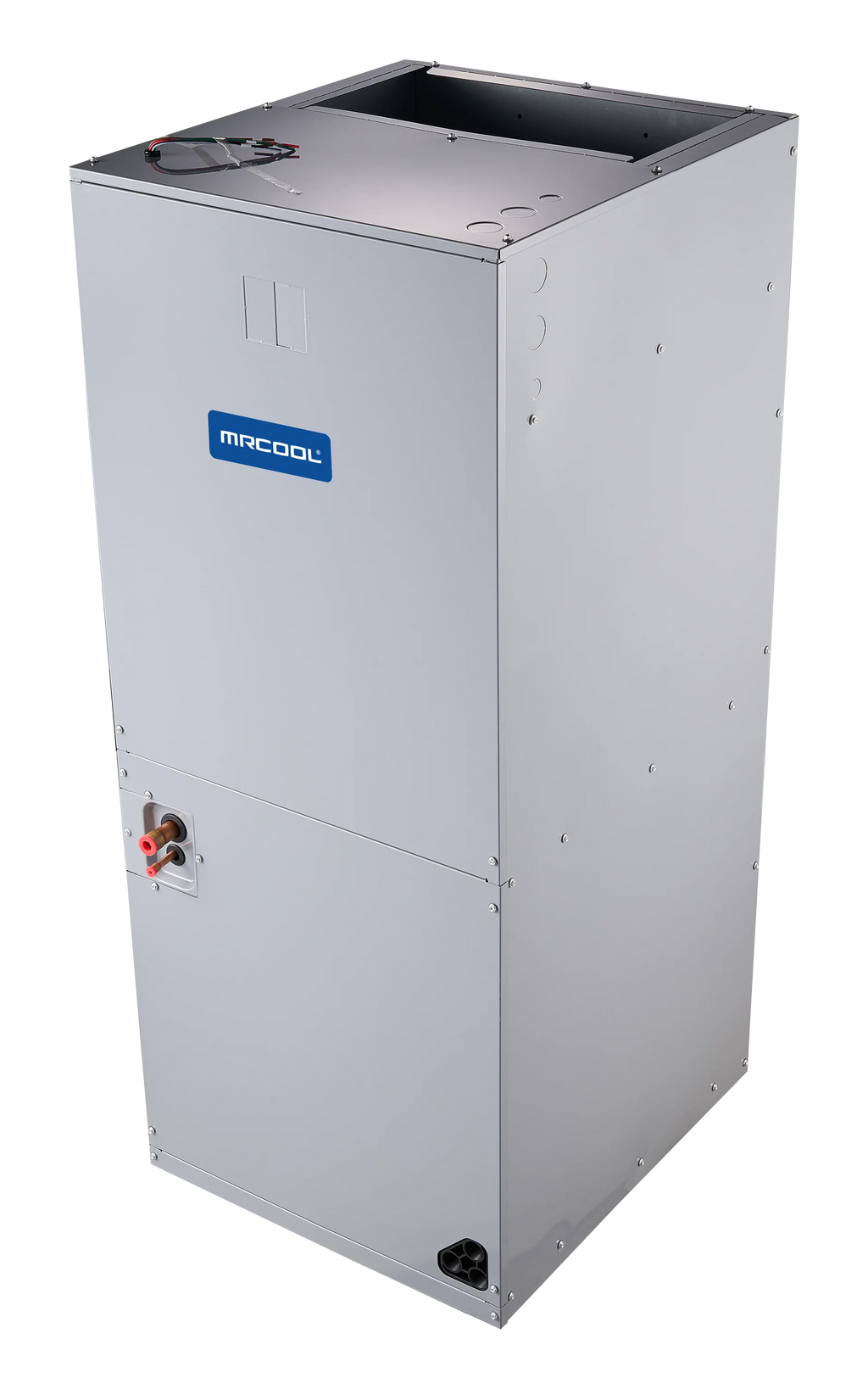

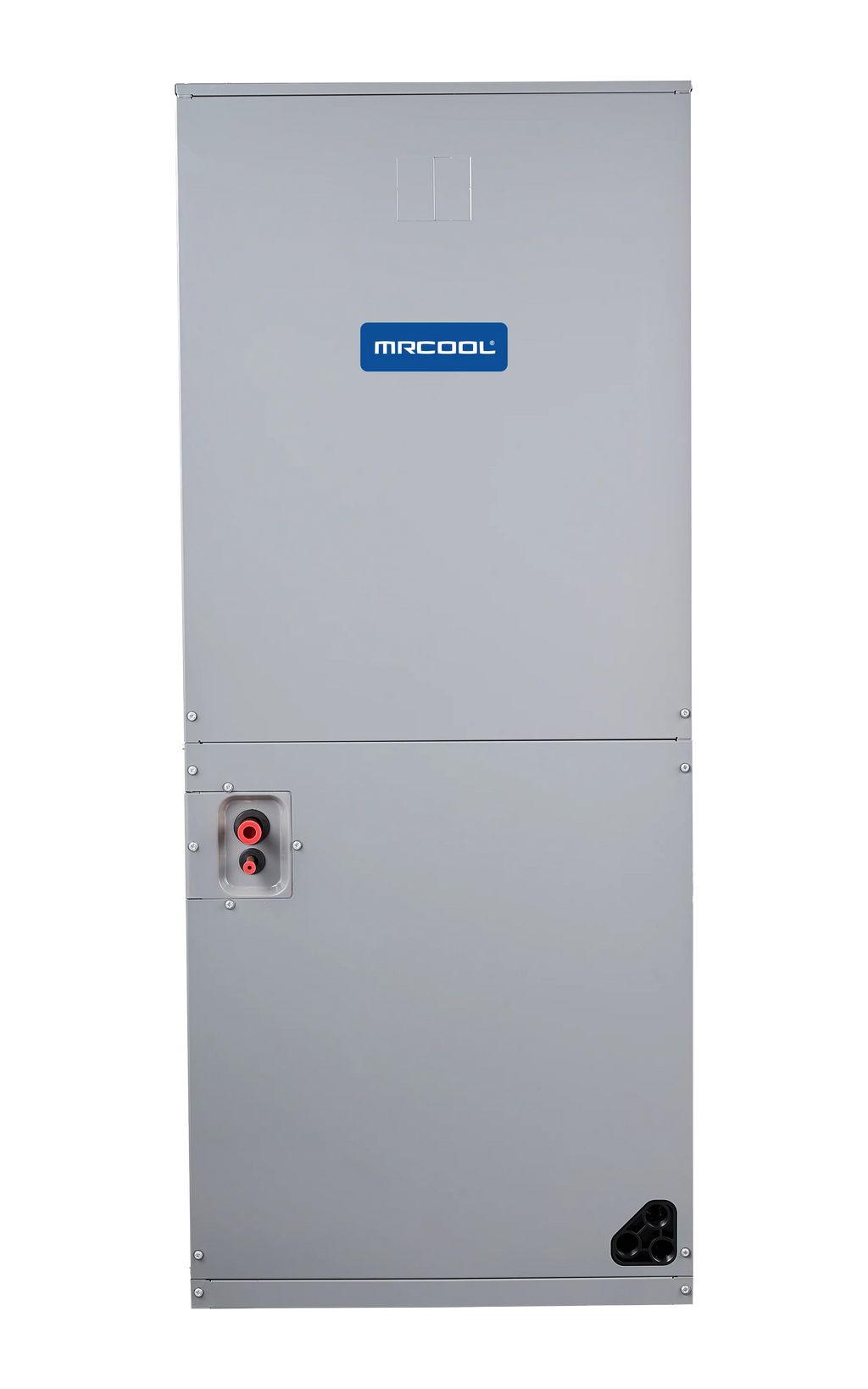

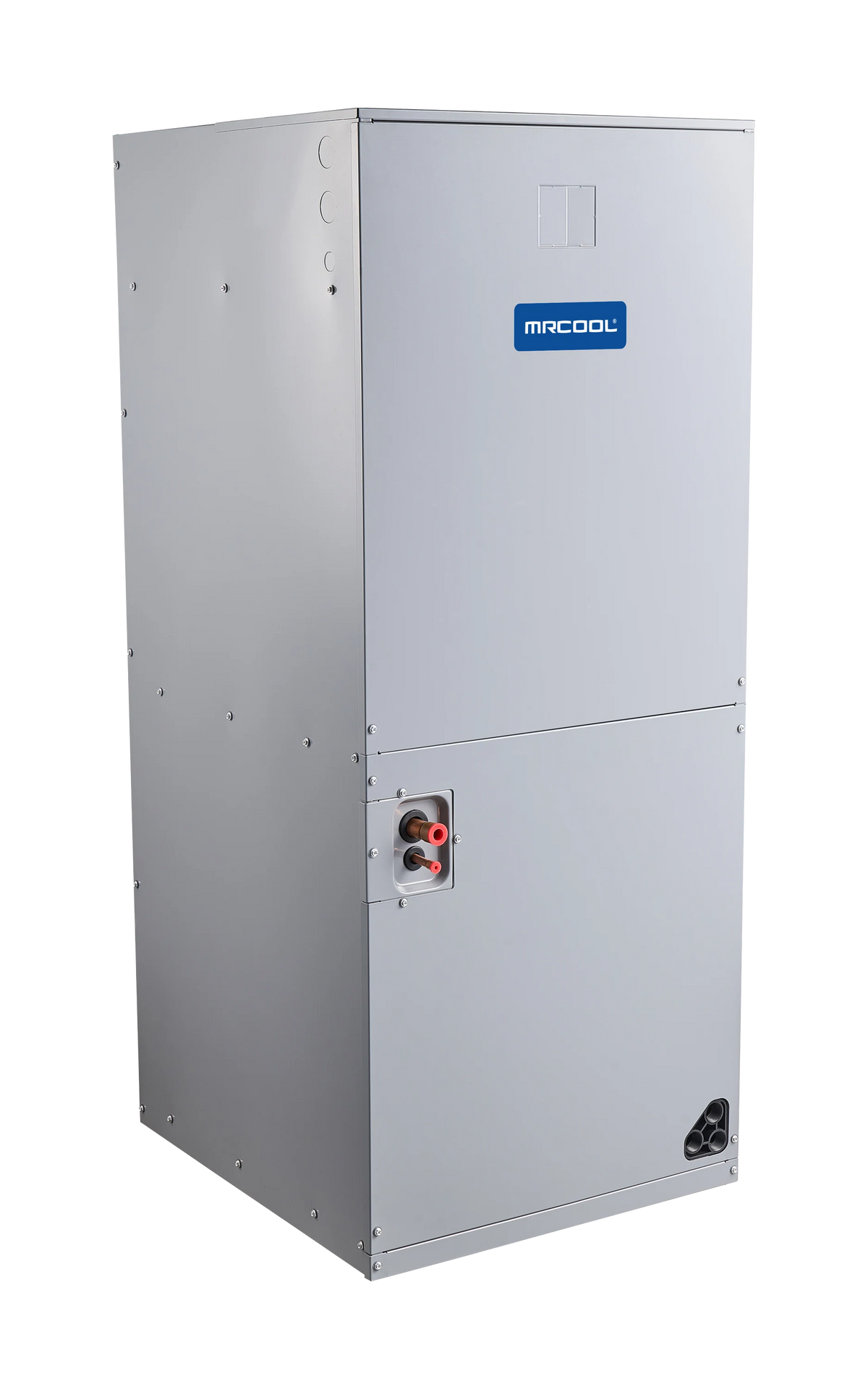

The MRCOOL® Signature Series 48k Multi-Position Air Handler is a powerful and flexible solution for year-round home comfort. Engineered for performance and efficiency, this system works with R-454B refrigerant, offering a more environmentally friendly option that meets modern energy standards without compromising reliability.
Designed to adapt to your space, this air handler supports upflow, downflow, and horizontal installations, making it an ideal fit for a wide range of home layouts. When you’re dealing with limited space, its compact and streamlined design makes installation easy without sacrificing capacity. The cabinet exterior is outfitted with galvanized steel built to withstand wear, along with an interior ECM blower motor that delivers steady airflow while helping reduce energy consumption. The copper “A” coils and aluminum fins provide efficient heat transfer, while thermal insulation along the inside of the cabinet helps reduce condensation accumulation and improve overall system efficiency. Setup is straightforward, cutting down on labor time and cost. Maintenance is just as simple, thanks to the air filter rack, and an optional electric heat kit is available for enhanced heating in colder regions.
For added convenience, this system pairs effortlessly with most third-party smart thermostats, giving you full control over your comfort without being tied to a specific platform. Backed by a 10-year limited parts warranty, the MRCOOL® Signature Series 48k Multi-Position Air Handler delivers reliable, efficient comfort season after season.
| DIMENSIONS & WEIGHT | |
|---|---|
| Net Dimensions (In) | 24.5 D x 53.125 H x 22 W |
| Net Weight (Lbs) | 163 |
| Gross Depth (In) | 25.2 |
| Gross Height (In) | 54.89 |
| Gross Width (In) | 27.75 |
| Gross Weight (Lbs) | 183 |
| GENERAL INFORMATION | |
| Mount Type | Multi-Position |
| Color | Grey |
| Air Flow Direction | Multi-Position |
| Metering Device | Orifice |
| CAPACITY & PERFORMANCE | |
| CFM | 1549 |
| Tonnage | 4 |
| Cycle | 60 |
| COMPRESSOR & MOTORS | |
| Blower Motor Type | ECM |
| Blower Motor Hp | 3/4 |
| Blower Motor Speeds | 5 |
| Blower Motor Rpm | 1010 |
| NOISE LEVELS | |
| Decibel Rating (Dba) | 57 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 10 |
| Min Circuit Ampacity (A) | 7.2 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Liquid Line Size | 3/8 |
| Suction Line Size | 7/8 |
| FILTER & HEATING | |
| Filter Type | Replaceable |
| Filter Size | 20 * 24 * 1 |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes |
|
| CONTROLS & CONNECTIVITY | |
| Works With | Signature Series Top Discharge Condensers |
| Drain Connection Size | 3/4 |
| SAFETY | |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Base Warranty | 10 Year Parts, Limited Lifetime Compressor Warranty |
| Base Parts Warranty | 10 Year |
| Base Compressor Warranty | Limited Lifetime |
