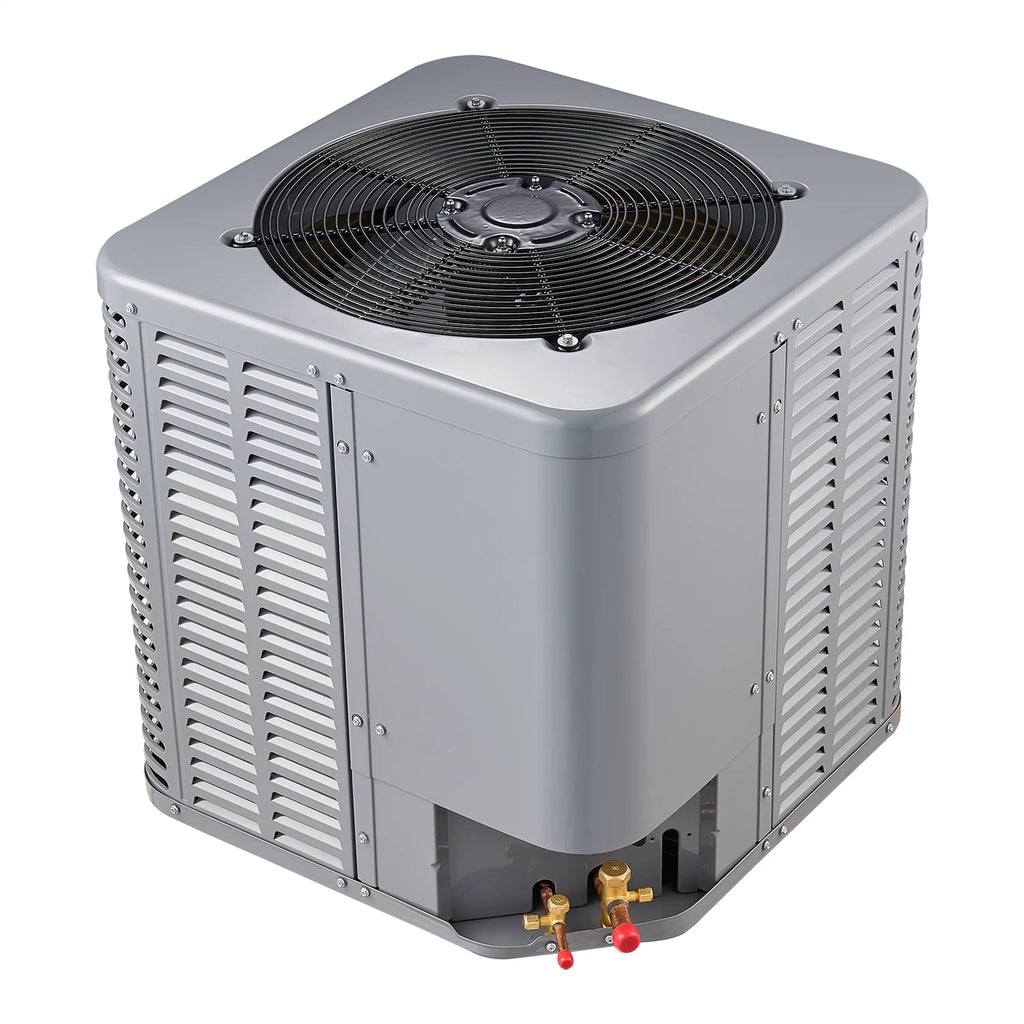

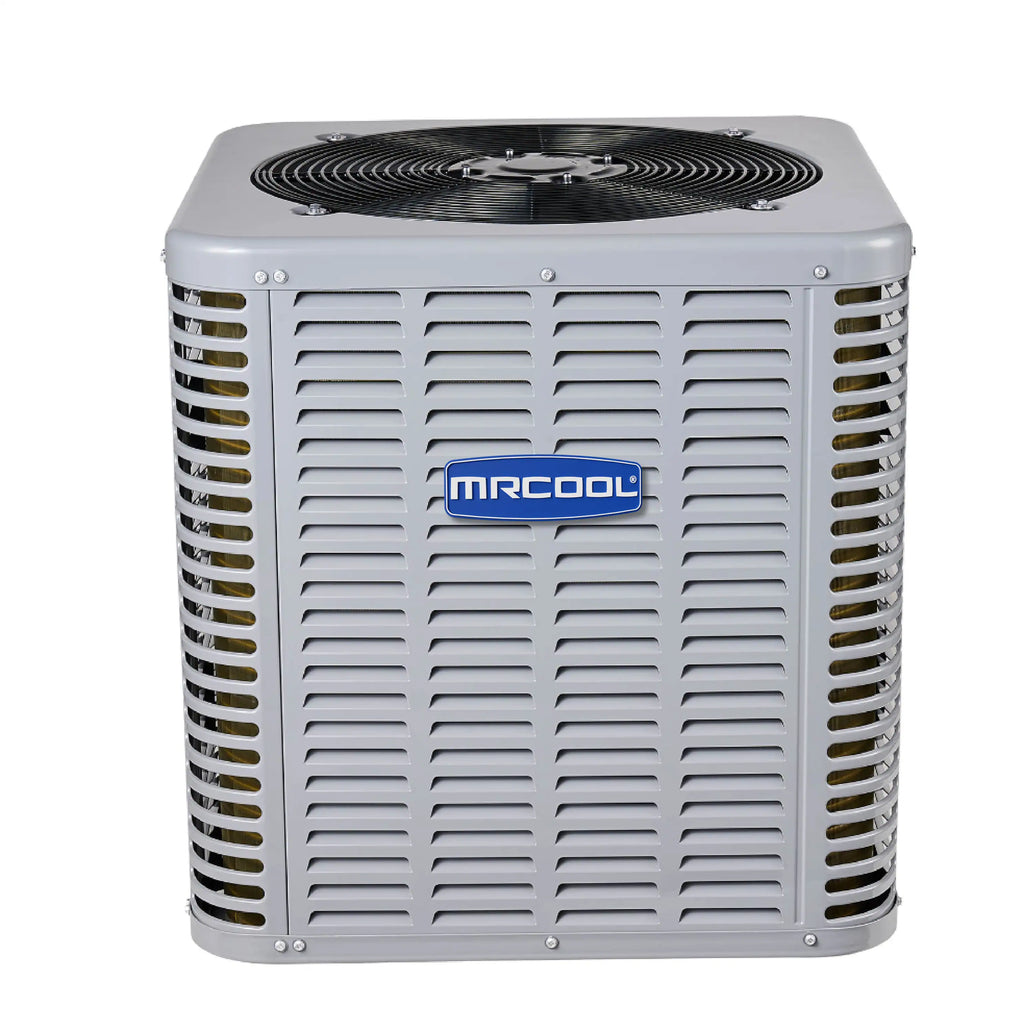

The MRCOOL® Signature Series 48k Cooling Only Condenser offers efficient, dependable cooling designed to meet the needs of modern homeowners.
With a 13.8 SEER2 and 11.2 EER2 rating, this unit is built to deliver comfort while helping lower your energy bills. Whether you’re replacing an older system or installing in a new build, this condenser delivers performance you can trust.
Pre-charged with R-454B refrigerant, the unit meets current environmental standards while maintaining strong cooling capabilities. At the heart of the system is the reliable scroll compressor, supported by inner-groove copper tubing for efficient heat exchange and improved thermal conductivity. Though powerful, the system is surprisingly quiet. Operating at just 65 decibels, about as loud as a dishwasher or a normal conversation, it’s ideal for residential use where noise can be a concern. A sound-dampening top reduces operating volume, while a steel louver coil guard and wire fan discharge grille further protect internal components from debris, impacts, and unruly weather conditions.

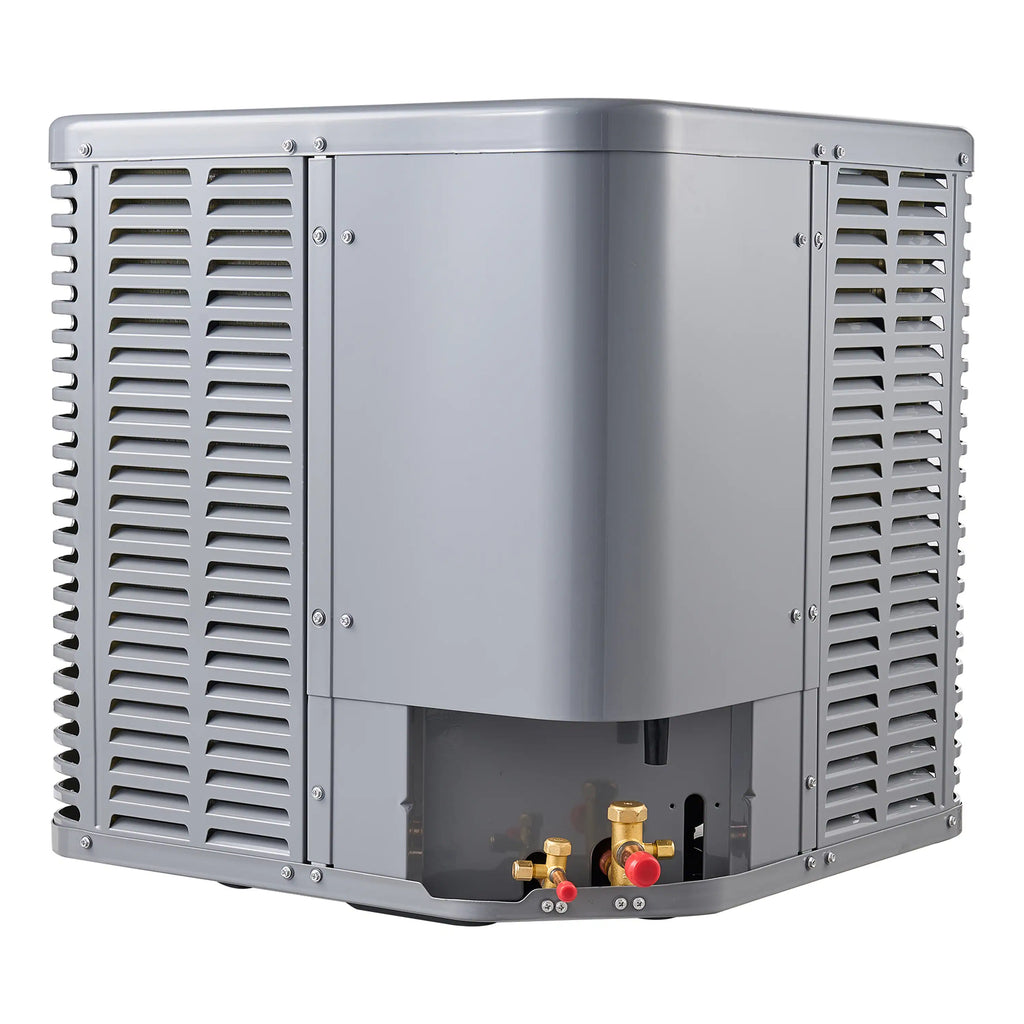

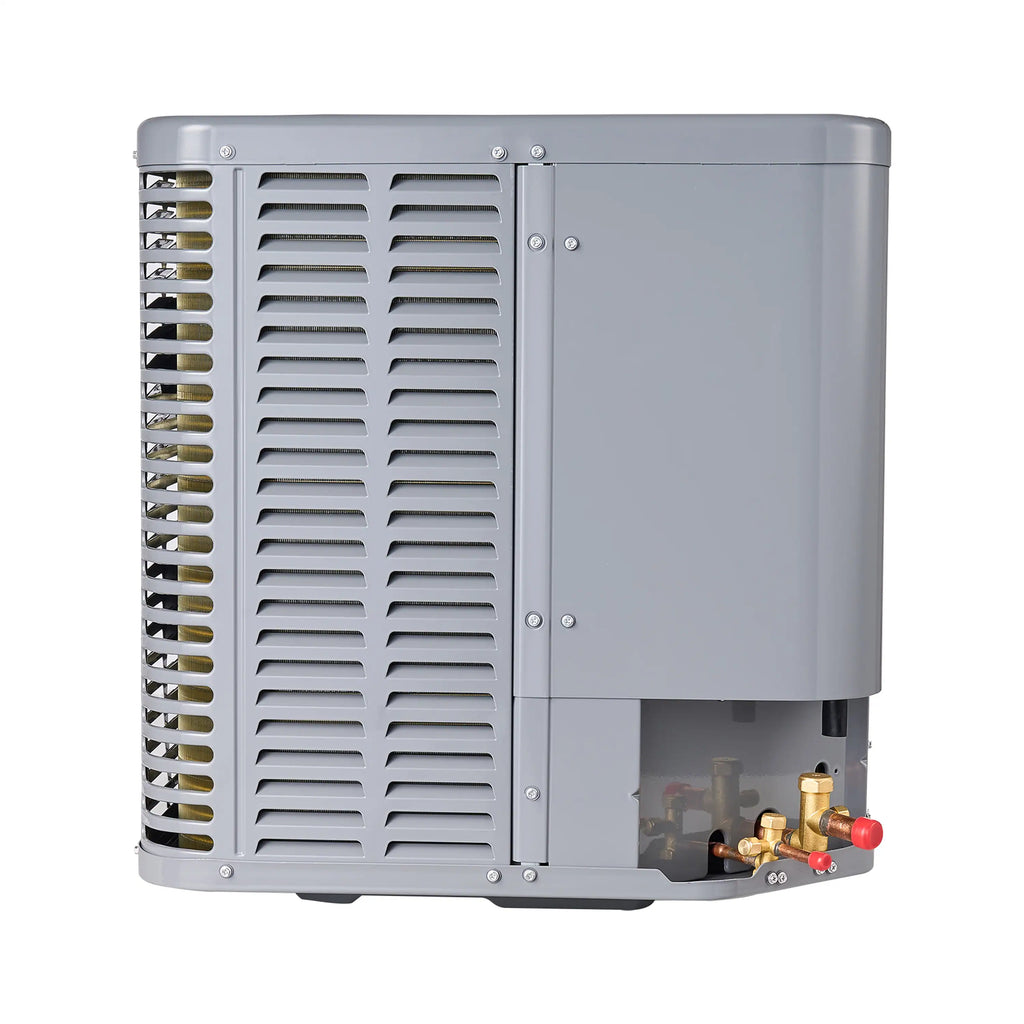

With compact sizing and user-friendly service features like sweat connection valves and a convenient gauge port, installation and maintenance are simple. MRCOOL® also includes its industry-leading 10-year limited parts warranty and a limited lifetime compressor warranty.
The MRCOOL® Signature Series 48k Cooling Only Condenser is a strong, smart choice for year-round cooling comfort.
| DIMENSIONS & WEIGHT | |
|---|---|
| Net Dimensions (In) | 29.14 D x 32.875 H x 29.14 W |
| Net Weight (Lbs) | 204 |
| Gross Depth (In) | 30.3 |
| Gross Height (In) | 34.8 |
| Gross Width (In) | 30.3 |
| Gross Weight (Lbs) | 214 |
| GENERAL INFORMATION | |
| Color | Grey |
| Inverter | No |
| CAPACITY & PERFORMANCE | |
| SEER2 | 13.8 |
| EER2 | 11.2 |
| CFM | 4000 |
| Tonnage | 4 |
| Cooling Capacity (Btu) | 45000 |
| Cycle | 60 |
| Min Ambient Cool (F) | 59 |
| COMPRESSOR & MOTORS | |
| Compressor Motor Type | Scroll |
| Condenser Fan Motor Type | PSC |
| Condenser Fan Motor Hp | 1/3 |
| NOISE LEVELS | |
| Decibel Rating (Dba) | 65 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 50 |
| Min Circuit Ampacity (A) | 30 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 116.4 |
| Max Lineset Length (Ft) | 150 |
| Liquid Line Size | 3/8 |
| Suction Line Size | 7/8 |
| CONTROLS & CONNECTIVITY | |
| Works With | Signature Series Multi-Position or Stud Mount Air Handlers |
| SAFETY | |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Base Warranty | 10 Year Parts, Limited Lifetime Compressor Warranty |
| Base Parts Warranty | 10 Year |
| Base Compressor Warranty | Limited Lifetime |
