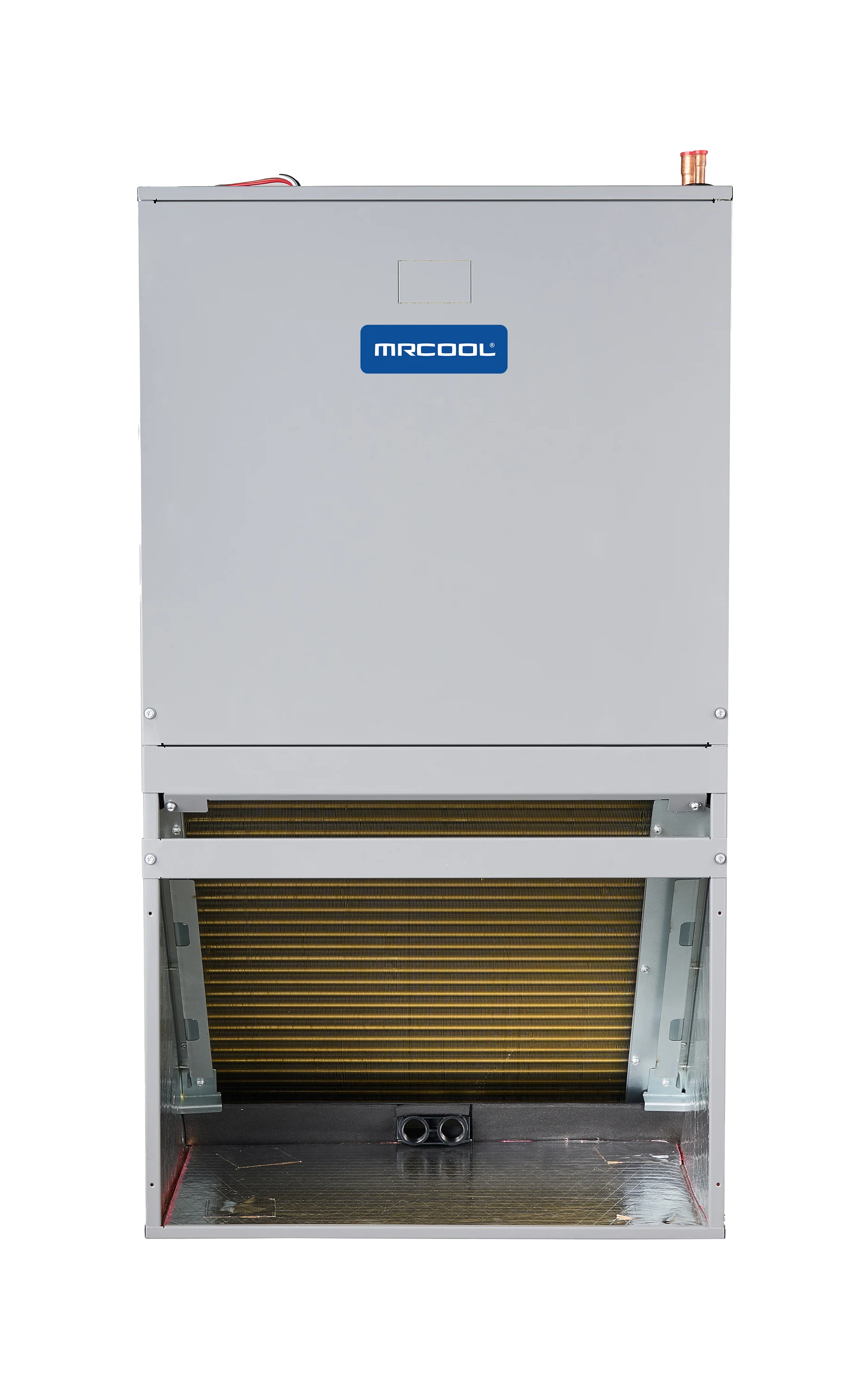

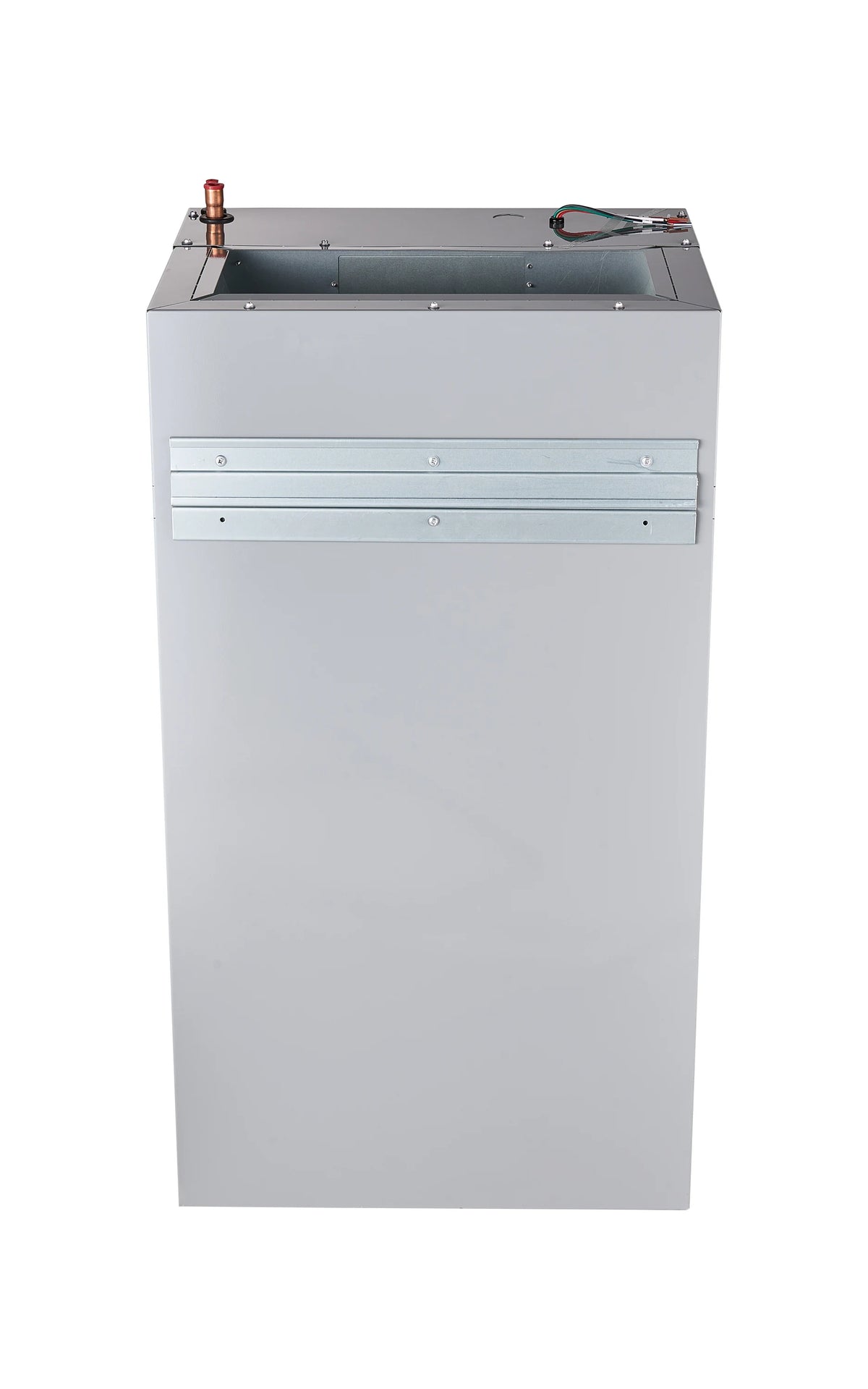

Elevate your home comfort with the MRCOOL® Signature Series 36K Stud Mount Air Handler—designed for exceptional flexibility, energy efficiency, and easy installation. Built to fit cleanly between standard wall studs, this slim, space-saving unit is perfect for areas where conventional air handlers aren’t practical, offering a smart solution for a variety of installation scenarios.
Despite its compact size, the unit delivers strong and reliable heating and cooling performance when paired with a compatible heat pump or condenser. With both front and bottom return air options available, it offers adaptable airflow configurations to suit your layout. Built to last, the MRCOOL® Signature Series 36k Stud Mount Air Handler features a rugged galvanized steel cabinet and advanced blower technology for quiet, consistent operation. Full cabinet insulation helps prevent condensation and energy loss, while the high-efficiency ECM motor ensures balanced airflow and energy savings throughout your space. Maintenance is quick and easy with the integrated filter rack, and optional electric heat kits are available to provide additional comfort during colder months.
Backed by a 10-year limited parts warranty, this unit delivers dependable performance and long-term peace of mind. Whether you're upgrading an existing system, starting a renovation, or building from the ground up, the MRCOOL® Signature Series 36K Stud Mount Air Handler is a smart, compact solution that never compromises on comfort.
| DIMENSIONS & WEIGHT | |
|---|---|
| Net Dimensions (In) | 19 D x 39.5 H x 22.125 W |
| Net Weight (Lbs) | 110 |
| Gross Depth (In) | 22.25 |
| Gross Height (In) | 42.89 |
| Gross Width (In) | 24.6 |
| Gross Weight (Lbs) | 120 |
| GENERAL INFORMATION | |
| Mount Type | Stud Mount |
| Color | Grey |
| Air Flow Direction | Upflow |
| Metering Device | Orifice |
| CAPACITY & PERFORMANCE | |
| CFM | 1095 |
| Tonnage | 3 |
| Cycle | 60 |
| COMPRESSOR & MOTORS | |
| Blower Motor Type | ECM |
| Blower Motor Hp | 1/2 |
| Blower Motor Speeds | 5 |
| Blower Motor Rpm | 1000 |
| NOISE LEVELS | |
| Decibel Rating (Dba) | 57 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 6 |
| Min Circuit Ampacity (A) | 4.5 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| FILTER & HEATING | |
| Filter Type | Replaceable |
| Filter Size | 20 * 20 * 1 |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes |
|
| CONTROLS & CONNECTIVITY | |
| Works With | Signature Series Top Discharge Condensers |
| Drain Connection Size | 3/4 |
| SAFETY | |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Base Warranty | 10 Year Parts, Limited Lifetime Compressor Warranty |
| Base Parts Warranty | 10 Year |
| Base Compressor Warranty | Limited Lifetime |
