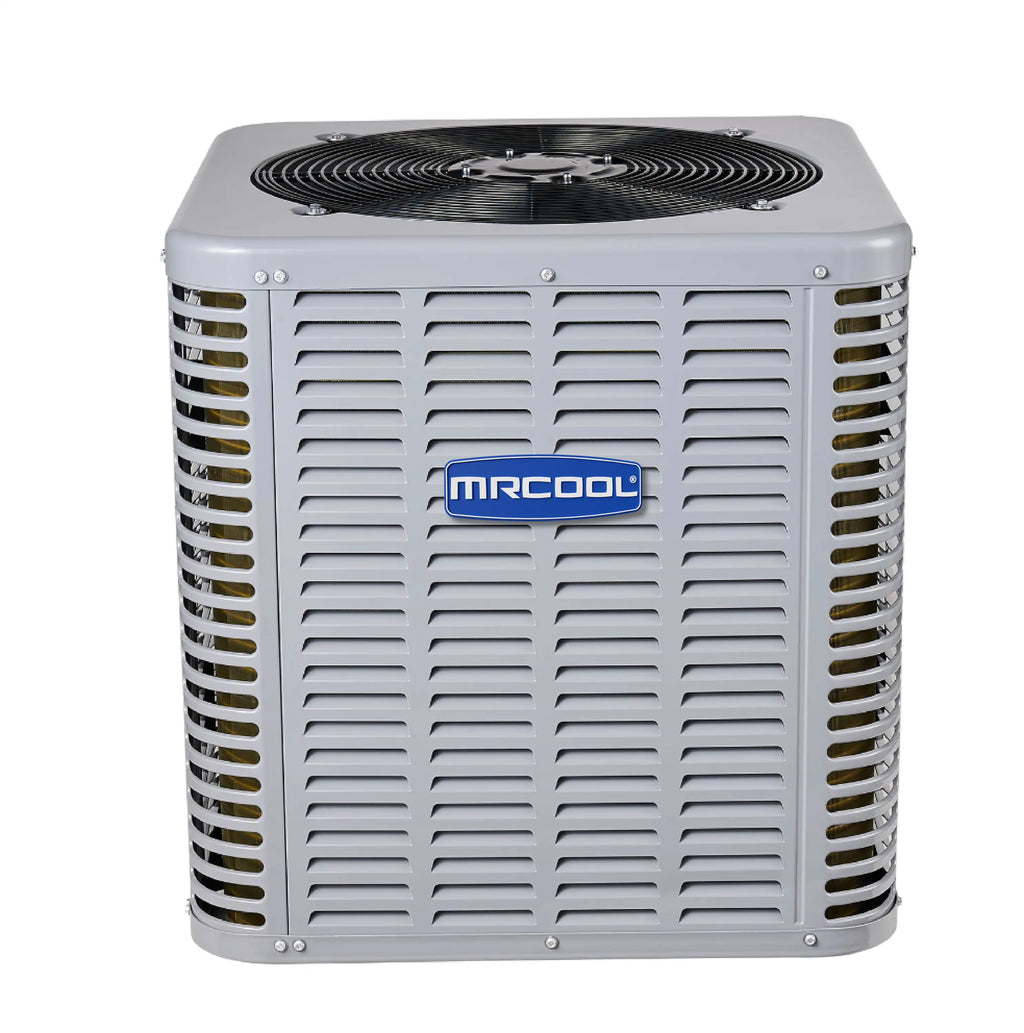

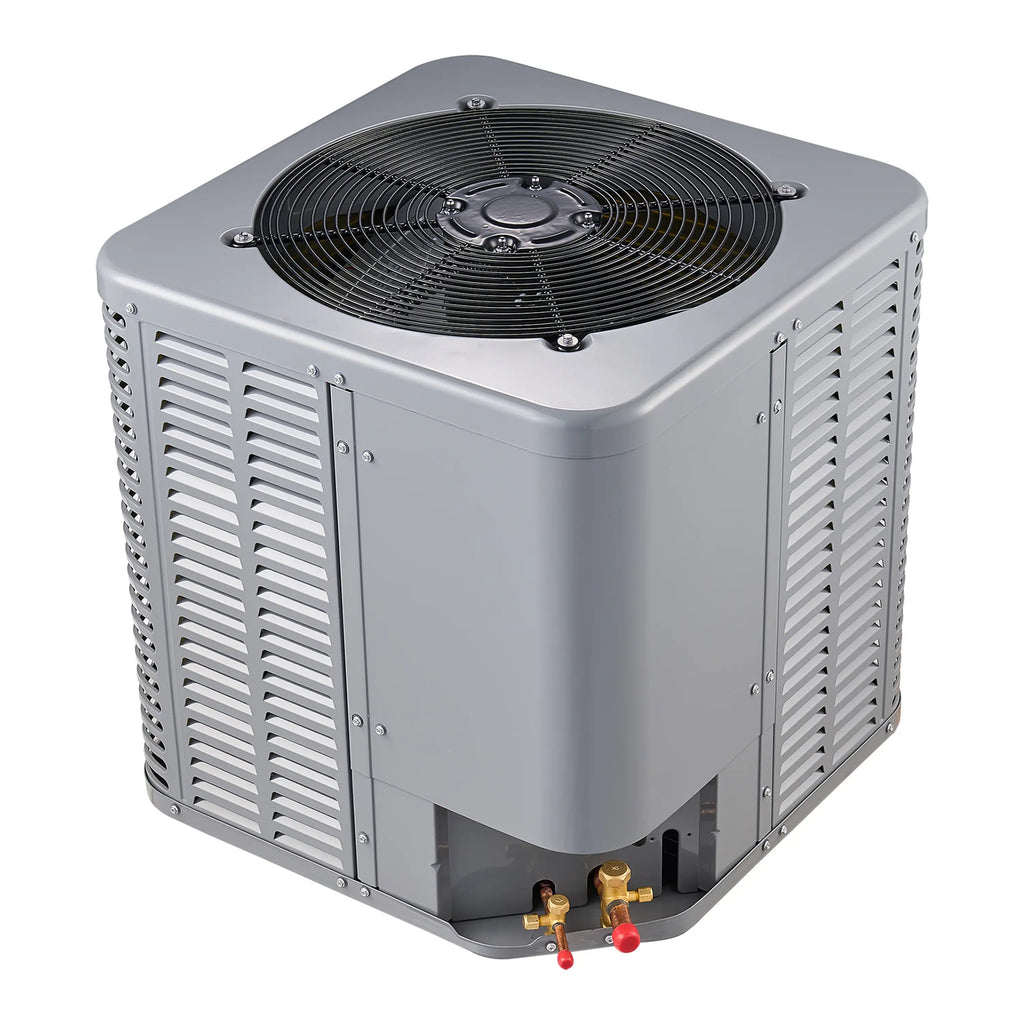

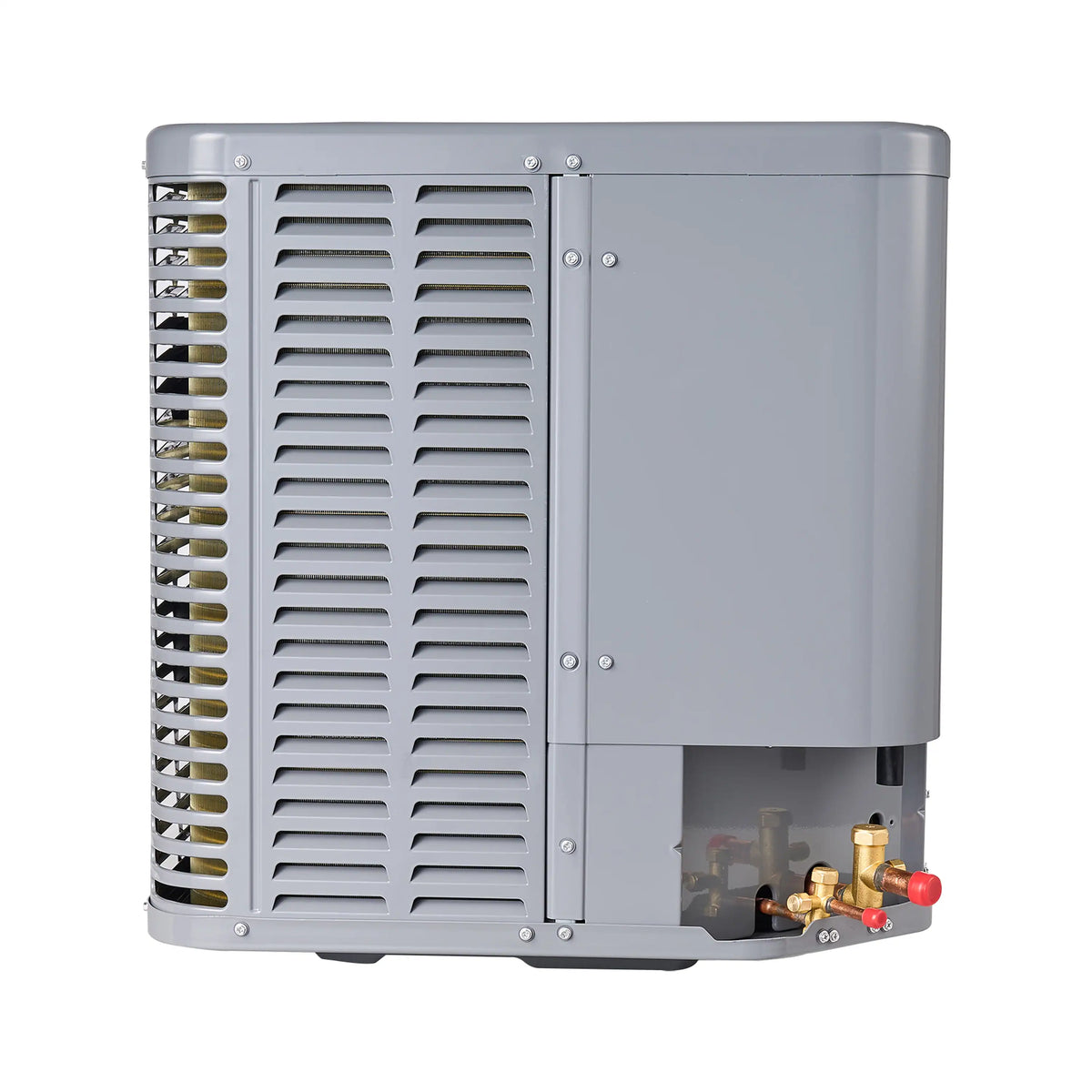

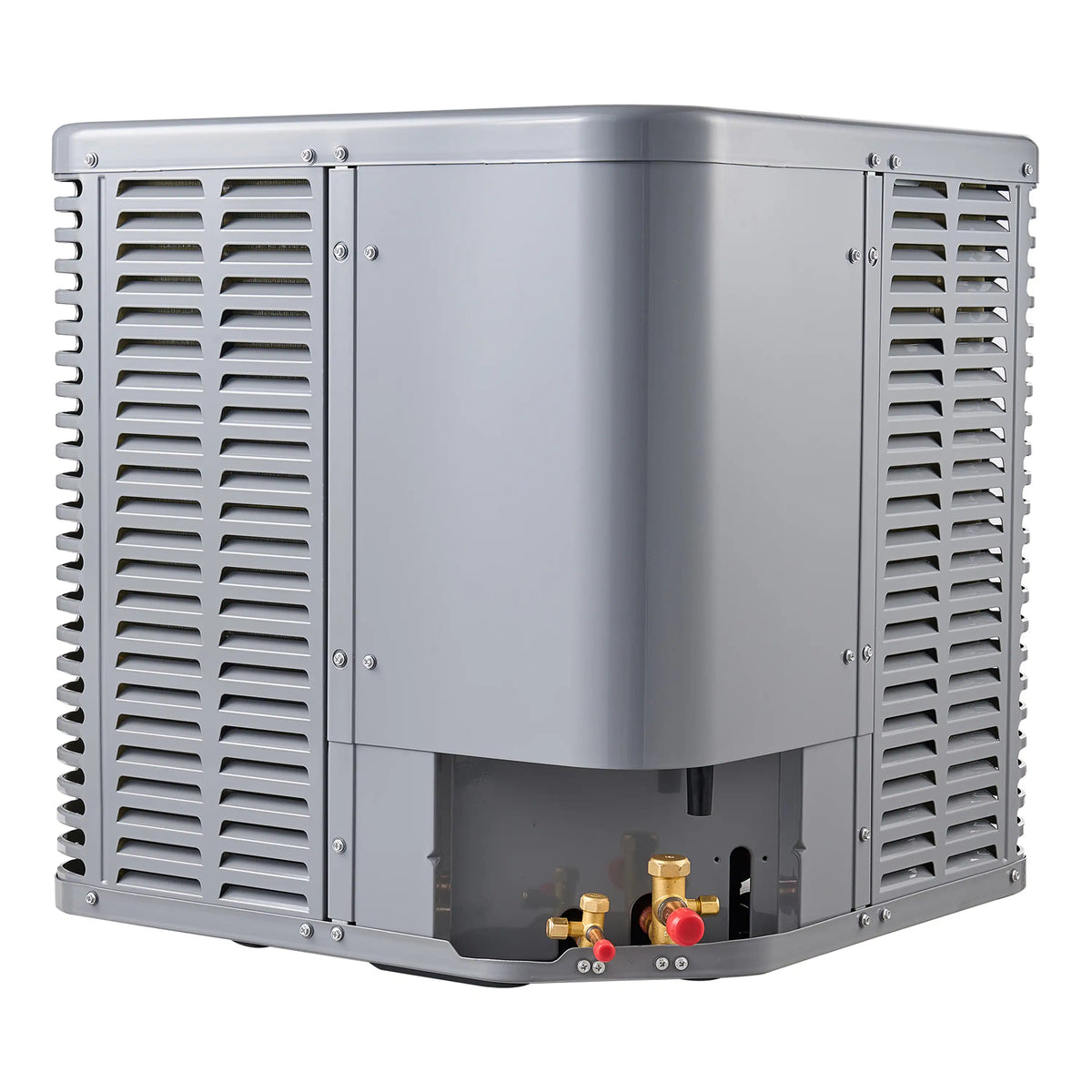

The MRCOOL® Signature Series 30k Cooling Only Condenser is engineered to deliver reliable, energy-efficient cooling performance for modern homes. With a 14.3 SEER2 and 11.7 EER2 rating, this system is designed to reduce energy usage while maintaining consistent indoor comfort during the hottest months of the year.
This unit comes pre-charged with R-454B refrigerant, a next-generation, low-GWP solution that aligns with modern environmental regulations while still delivering reliable, high-performance heating and cooling. The factory-charged design streamlines installation, saving both time and labor costs for contractors and homeowners alike. At its core, the system is powered by a durable scroll compressor, engineered for consistent, long-lasting performance. To enhance overall efficiency, it also incorporates inner-groove copper tubing, which improves heat transfer and supports rapid temperature regulation throughout the system.
Despite its powerful capabilities, this unit operates at a remarkably quiet 63 decibels, thanks to a thoughtfully designed sound-dampening top that reduces operational noise without limiting airflow. This makes it particularly well-suited for homes in residential neighborhoods or settings where maintaining a peaceful environment is important. For added durability, the unit is equipped with a steel louver coil guard and a wire fan discharge grille, both of which provide critical protection against debris and external damage.
For long-term peace of mind, this system includes a 10-year limited parts warranty and a limited lifetime compressor warranty.
This MRCOOL® Signature Series 30k Cooling Only Condenser offers efficient cooling, lasting durability, and quiet comfort in a compact, easy-to-install package.
| DIMENSIONS & WEIGHT | |
|---|---|
| Net Dimensions (In) | 23.6 D x 25 H x 23.6 W |
| Net Weight (Lbs) | 134 |
| Gross Depth (In) | 24.8 |
| Gross Height (In) | 26.2 |
| Gross Width (In) | 24.8 |
| Gross Weight (Lbs) | 141 |
| GENERAL INFORMATION | |
| Color | Grey |
| Inverter | No |
| CAPACITY & PERFORMANCE | |
| SEER2 | 14.3 |
| EER2 | 11.7 |
| CFM | 2200 |
| Tonnage | 2.5 |
| Cooling Capacity (Btu) | 27500 |
| Cycle | 60 |
| Min Ambient Cool (F) | 59 |
| COMPRESSOR & MOTORS | |
| Compressor Motor Type | Scroll |
| Condenser Fan Motor Type | PSC |
| Condenser Fan Motor Hp | 1/9 |
| NOISE LEVELS | |
| Decibel Rating (Dba) | 63 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 30 |
| Min Circuit Ampacity (A) | 18 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 81.1 |
| Max Lineset Length (Ft) | 100 |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| CONTROLS & CONNECTIVITY | |
| Works With | Signature Series Multi-Positon or Stud Mount Air Handlers |
| SAFETY | |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Base Warranty | 10 Year Parts, Limited Lifetime Compressor Warranty |
| Base Parts Warranty | 10 Year |
| Base Compressor Warranty | Limited Lifetime |
