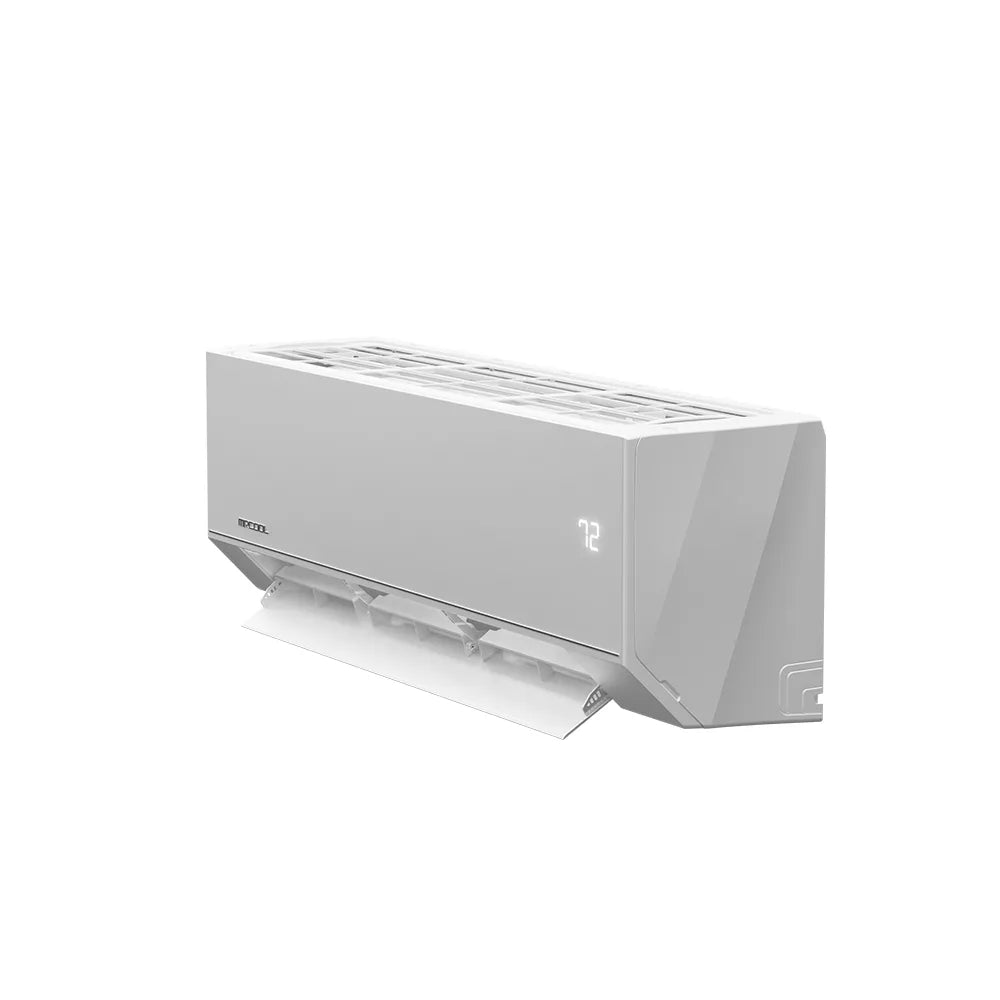

Stay comfortable all year long with the MRCOOL® OLYMPUS ESTAR® 24k Series air handler, a reliable solution for both heating and cooling. Designed to efficiently serve areas up to 1050 square feet, it’s an excellent fit for large rooms, offices, garages, and more. Its compact design also makes for an easy, straightforward installation. With built-in Wi-Fi capabilities and the MRCOOL® Smart HVAC app, you can control the system from your smartphone or tablet—anytime, anywhere.
Prefer a hands-on approach? Use the included remote control for quick and simple access to your comfort settings. Built for high efficiency, the unit features a SEER2 rating of 23, EER2 of 14, and HSPF2-4 rating of 11.7, helping you save on energy costs without compromising performance. Multiple indoor fan speed options and whisper-quiet operation at just 51.5 dB ensure a peaceful and customized climate experience. The system now uses R-454B refrigerant, an environmentally friendly choice that supports greener living while delivering the performance you expect.
You’ll also enjoy versatile control options, including compatibility with Amazon Alexa and Google Assistant for voice-activated comfort, in addition to app and remote access.
Backed by an industry-leading warranty, including a limited lifetime warranty, 7-year compressor coverage, and 5-year parts protection, the MRCOOL® OLYMPUS ESTAR® 24k Series air handler offers advanced technology, dependable performance, and year-round climate control you can count on.
| DIMENSIONS & WEIGHT | |
|---|---|
| Net Dimensions (In) | 11.02 D x 14.61 H x 47.13 W |
| Net Weight (Lbs) | 43.65 |
| Gross Depth (In) | 14.17 |
| Gross Height (In) | 17.91 |
| Gross Width (In) | 50.39 |
| Gross Weight (Lbs) | 55.56 |
| GENERAL INFORMATION | |
| Mount Type | Wall |
| Color | White |
| Max Coverage Area | Up to 1050 |
| Number Of Speeds | 5 (Variable) |
| Oscillation | Yes |
| CAPACITY & PERFORMANCE | |
| Tonnage | 2 |
| Cycle | 60 |
| COMPRESSOR & MOTORS | |
| Blower Motor Speeds | 812.3/618/412/317.8/317.8 |
| Blower Motor Rpm | 1000/850/630 |
| NOISE LEVELS | |
| Decibel Rating (Dba) | 54.5/43.5/38.5/27/16 |
| Decibel Rating Low (Dba) | 16 |
| Decibel Rating High (Dba) | 54.5 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 3/8 |
| Suction Line Size | 5/8 |
| FILTER & HEATING | |
| Filter Type | Reusable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| CONTROLS & CONNECTIVITY | |
| Fan Only Option | Yes |
| Sleep Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Works With Ios | Yes |
| Works With Android | Yes |
| Remote Control Included | Yes |
| SAFETY | |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| WARRANTY | |
| Base Warranty | 5-Year Parts |
| Base Parts Warranty | 5-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
