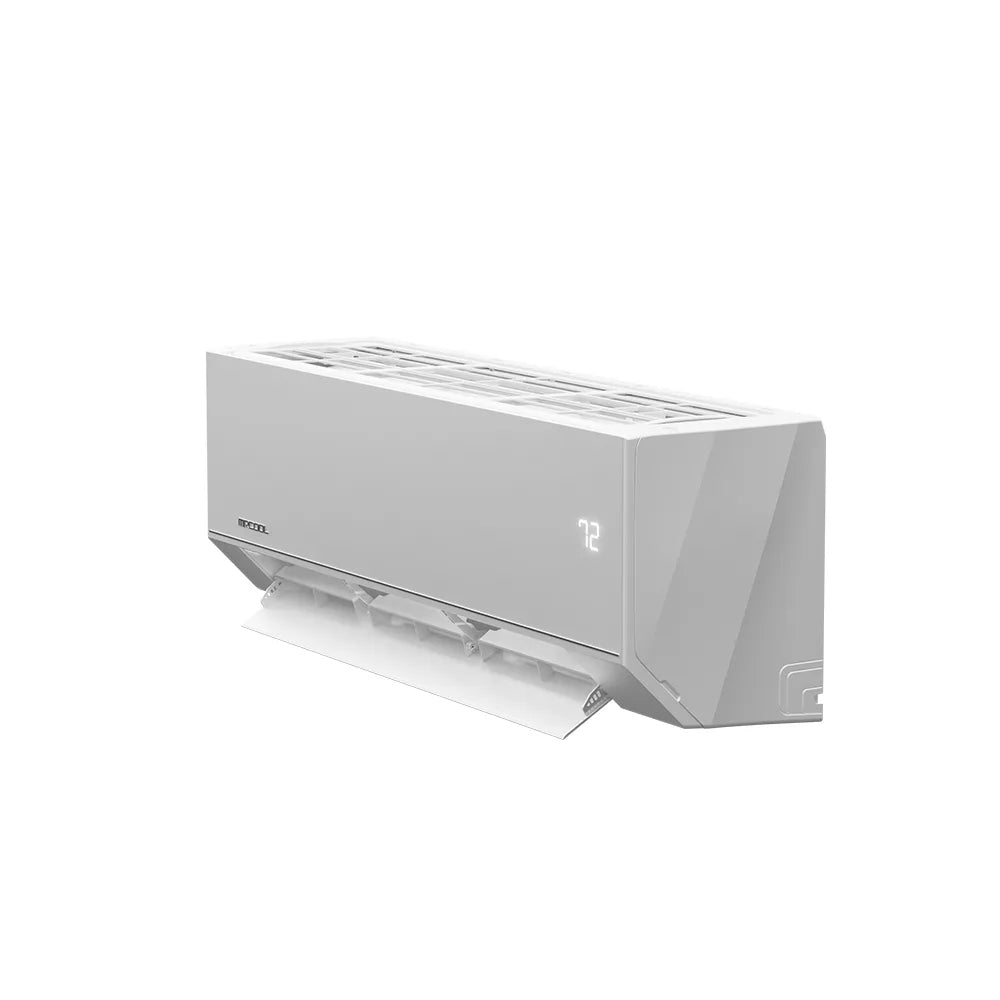

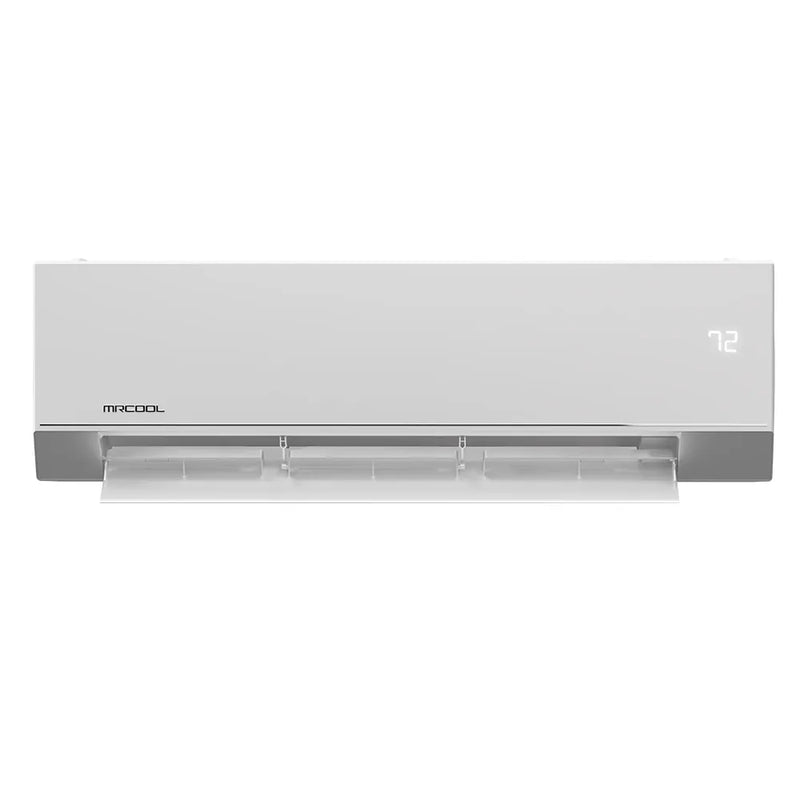

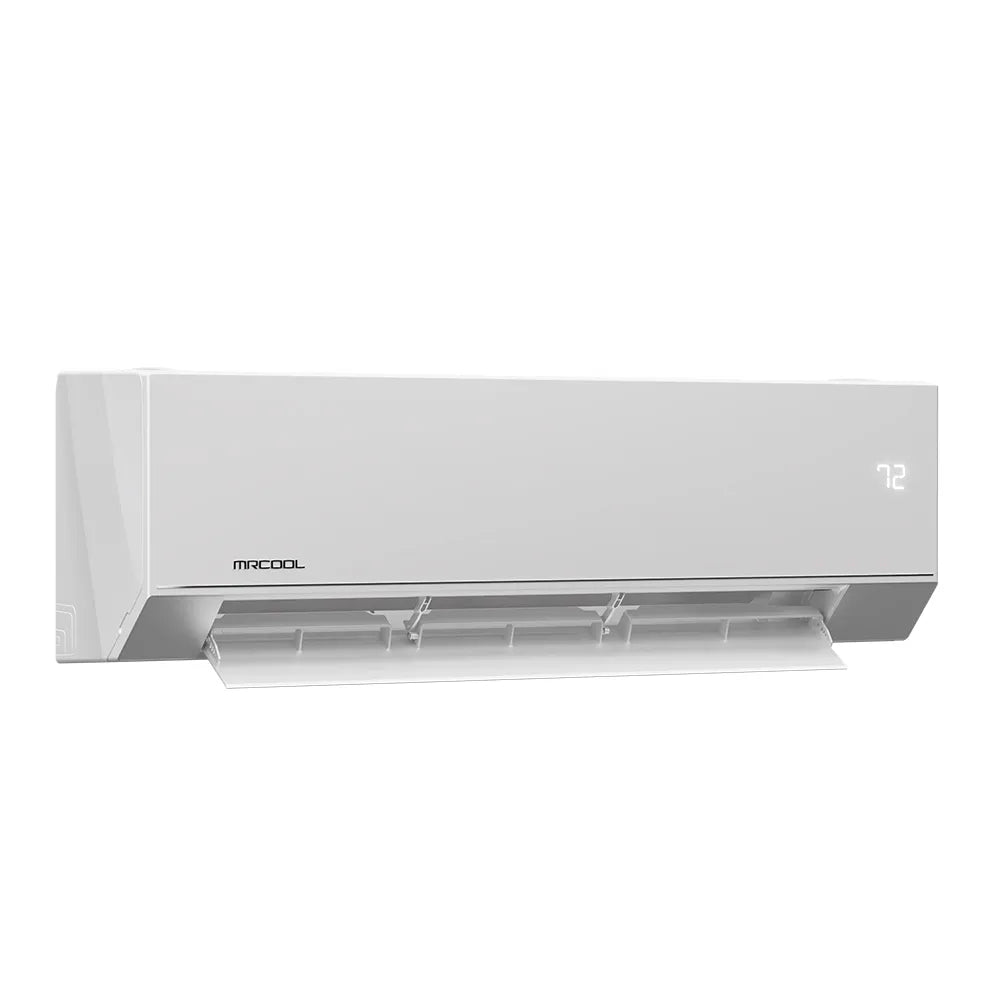

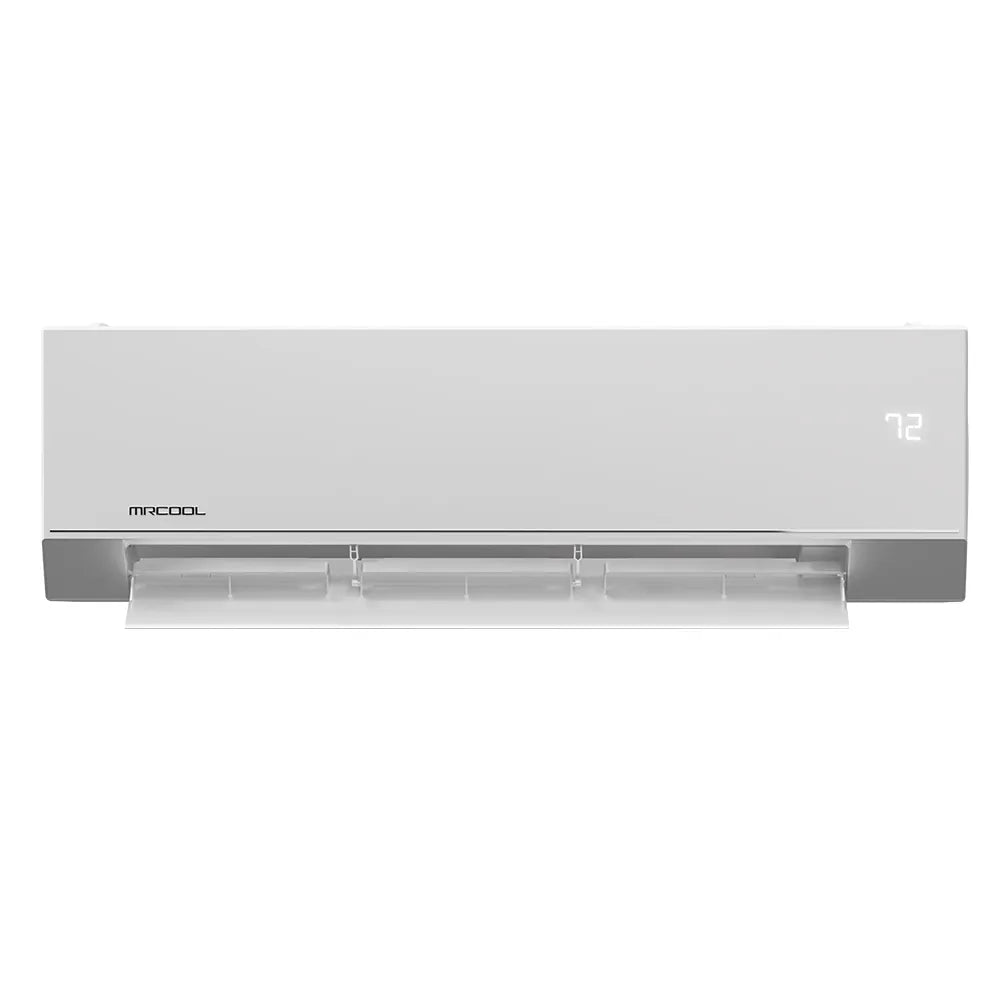

Enjoy peace of mind and reliable comfort with the MRCOOL® OLYMPUS ESTAR® 18k Series air handler, designed to efficiently heat and cool areas up to 800 square feet—making it an ideal choice for large rooms, offices, garages, and more. Thanks to its compact design, installation is fast and straightforward. Control your comfort from anywhere with the MRCOOL® Smart HVAC app, which allows Wi-Fi connectivity for remote access via your smartphone or tablet.
For added convenience, the unit also includes a wireless remote control, giving you flexible options to manage your indoor climate with ease. Engineered for energy efficiency, this system features a SEER2 rating of 23.5, EER2 of 12.7, and HSPF2-4 of 10.8, helping you lower your utility costs while staying comfortable year-round. With multiple fan speed settings and whisper-quiet operation at just 49 dB, it delivers powerful performance with minimal noise. Now using R-454B refrigerant, a more eco-friendly choice, this unit supports environmentally conscious living without sacrificing performance.
Enjoy seamless control options, including the smartHVAC app, wireless remote, and voice control compatibility with Amazon Alexa and Google Assistant, giving you personalized comfort at your fingertips.
Backed by an industry-leading warranty—including a limited lifetime warranty, 7-year compressor warranty, and 5-year parts warranty—the MRCOOL® OLYMPUS ESTAR® 18k Series air handler offers dependable performance, smart technology, and lasting comfort throughout the seasons.
| DIMENSIONS & WEIGHT | |
|---|---|
| Net Dimensions (In) | 9.69 D x 12.64 H x 40.31 W |
| Net Weight (Lbs) | 27.34 |
| Gross Depth (In) | 12.8 |
| Gross Height (In) | 15.75 |
| Gross Width (In) | 43.11 |
| Gross Weight (Lbs) | 36.6 |
| GENERAL INFORMATION | |
| Mount Type | Wall |
| Color | White |
| Max Coverage Area | Up to 800 |
| Number Of Speeds | 5 (Variable) |
| Oscillation | Yes |
| CAPACITY & PERFORMANCE | |
| Tonnage | 1.5 |
| Cycle | 60 |
| COMPRESSOR & MOTORS | |
| Blower Motor Speeds | 635.7/500.3/359/294.3/294.3 |
| Blower Motor Rpm | 1190/994/896 |
| NOISE LEVELS | |
| Decibel Rating (Dba) | 49.5/45/38/31.5/19.5 |
| Decibel Rating Low (Dba) | 19.5 |
| Decibel Rating High (Dba) | 49.5 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 3 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Lineset Fitting Type | Flare |
| Liquid Line Size | 1/4 |
| Suction Line Size | 1/2 |
| FILTER & HEATING | |
| Filter Type | Reusable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| CONTROLS & CONNECTIVITY | |
| Fan Only Option | Yes |
| Sleep Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Works With Ios | Yes |
| Works With Android | Yes |
| Remote Control Included | Yes |
| SAFETY | |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Restricted States | GU, PR, VI |
| WARRANTY | |
| Base Warranty | 5-Year Parts |
| Base Parts Warranty | 5-Year |
| Base Remote Warranty | 5 Year |
| Registered Labor Warranty | None |
| Base Labor Warranty | None |
