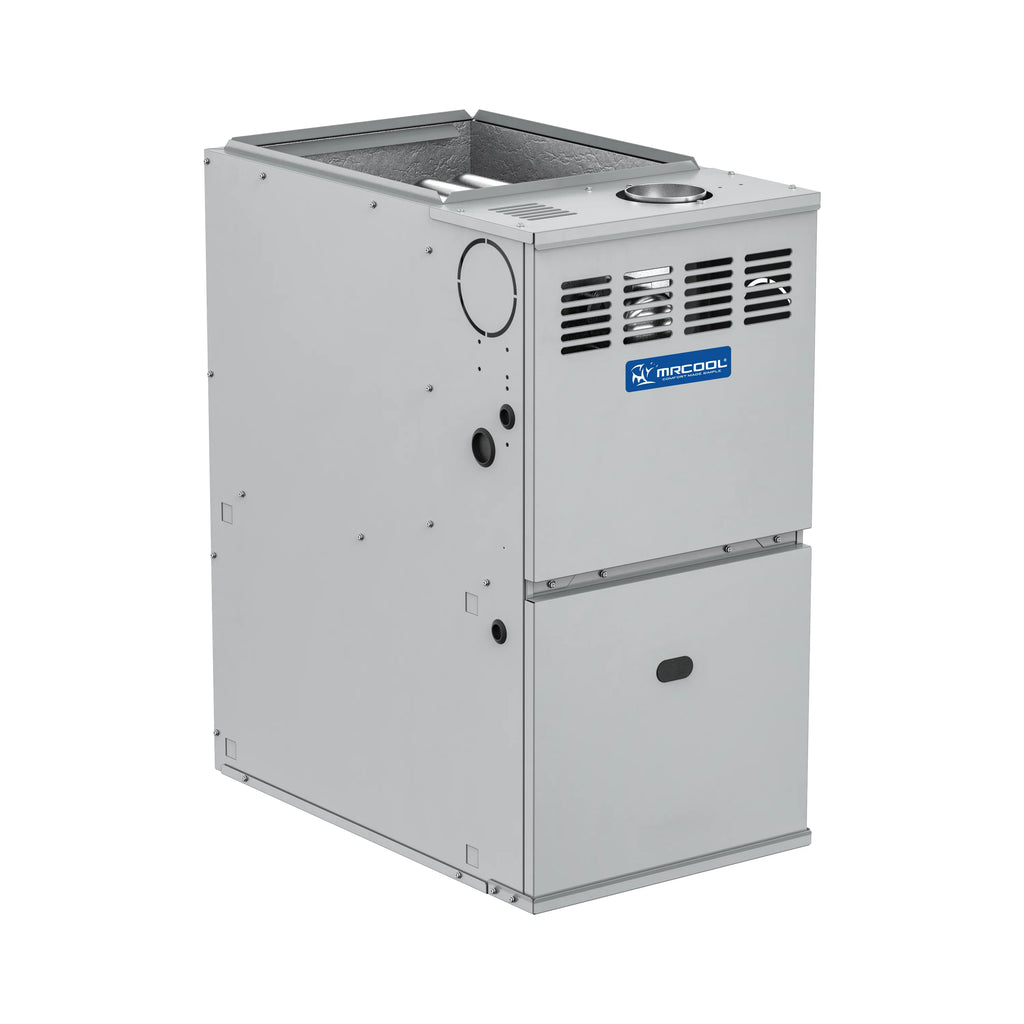

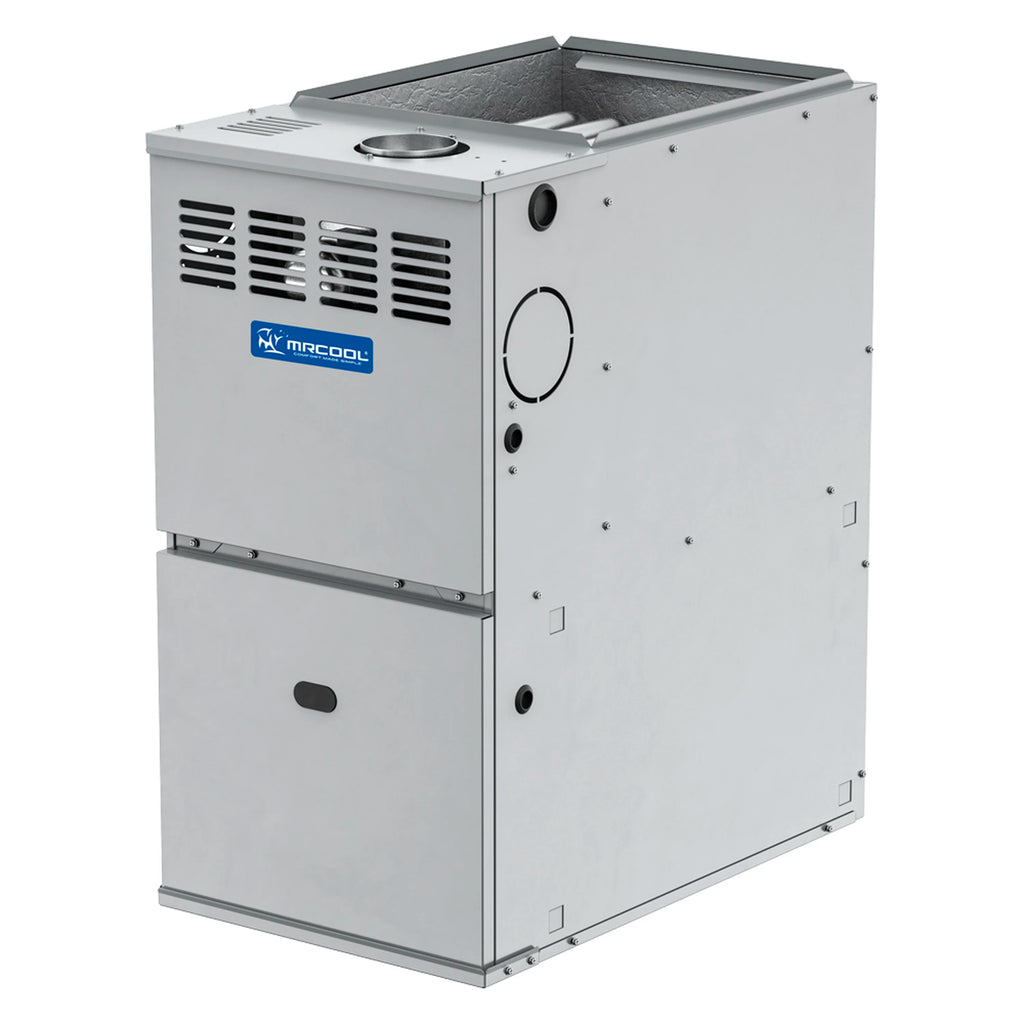

80% AFUE 80K BTU Upflow/Horizontal/Downflow Single-Stage DC Motor VersaPro Natural Gas Furnace with C Cabinet
Presenting the MRCOOL® VersaPro® 80K BTU 80% AFUE Gas Furnace, engineered to provide consistent warmth and comfort throughout the winter months. With an 80% AFUE rating, this high-efficiency furnace transforms the majority of the fuel it uses into heat, offering an affordable and dependable heating solution while helping to lower energy bills. Designed for both performance and longevity, the VersaPro® features a robust ECM blower motor that boosts airflow efficiency, enables smooth speed adjustments, and aids in reducing energy costs. Its compact design allows for versatile installation, making it an excellent option for homes with space constraints. Whether you need upflow, downflow, or horizontal installation, this furnace adapts to multiple configurations. It also includes convenient left or right gas and electric service connections, and with the optional LP conversion kit, switching from natural gas to propane is simple.
Compatible with most 24V thermostats, this furnace ensures easy operation and precise temperature control. For added reassurance, it comes with a 10-year parts warranty and a lifetime heat exchanger warranty if registered within 90 days of installation. If not registered, it still offers a 5-year parts warranty and a 20-year heat exchanger warranty, guaranteeing long-lasting comfort and reliability in your home.
| DIMENSIONS & WEIGHT | |
|---|---|
| Net Width | 21in |
| Net Height | 33.75in |
| Net Depth | 28.5in |
| Net Weight | 135 lbs |
| Gross Width | 23.5in |
| Gross Height | 41in |
| Gross Depth | 31.02in |
| Gross Weight | 163 lbs |
| GENERAL INFORMATION | |
| Fuel Type | Natural/Propane Gas |
| Stage | Single |
| Full Load | 8A |
| LP Kit Included | Yes |
| LP Kit Available | Yes |
| CAPACITY & PERFORMANCE | |
| Cycle | 60 Hz |
| BTU Input | 80,000 BTU |
| BTU Output | 64,000 BTU |
| CFM | 1,300 |
| COMPRESSOR & MOTORS | |
| Blower Motor Type | ECM |
| Blower Motor HP | 1/2 |
| Blower Motor Speeds | 5 |
| Blower Motor RPM | 1,050 |
| Number of Speeds | 5 |
| ELECTRICAL REQUIREMENTS | |
| Voltage | 115V |
| Phase | 1 |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 8A |
| REFRIGERANT & PIPING | |
| Gas Connection Size | 3/4in |
| FILTER & HEATING | |
| AFUE | 80% |
| Number of Burners | 5 |
| Ignition Type | Hot Surface |
| Heat Exchanger Type | Aluminized Tubular Steel |
| SAFETY | |
| UL Listed | Yes |
| ETL Listed | Yes |
| Contains Electronics | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Registered Parts Warranty | 10 Years |
| Base Parts Warranty | 5 Years |
| Registered Heat Exchanger Warranty | Lifetime* |
| Base Heat Exchanger Warranty | 20 Years |
