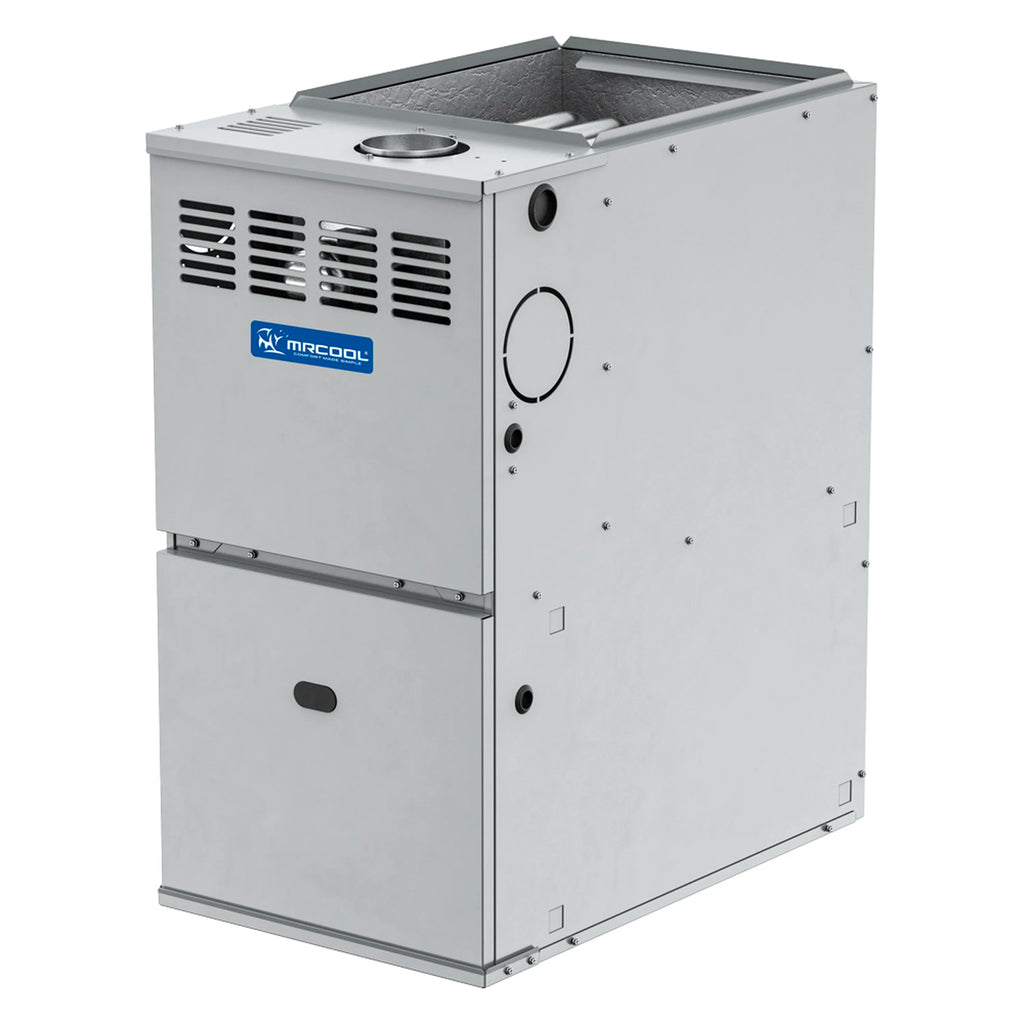

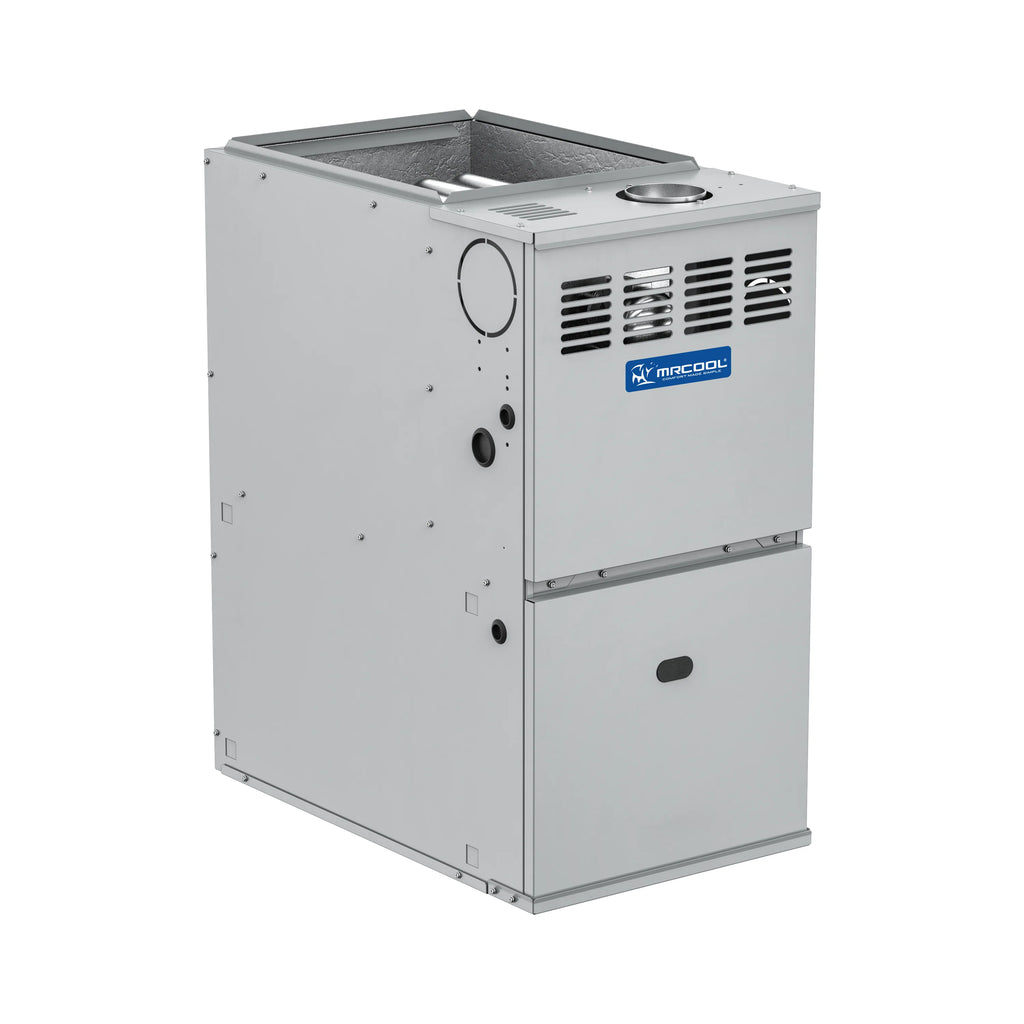

80% AFUE 80K BTU Upflow/Horizontal/Downflow Single-Stage DC Motor VersaPro Natural Gas Furnace with B Cabinet
Stay cozy and efficient throughout the winter with the MRCOOL® VersaPro® 80K BTU 80% AFUE Gas Furnace. Built for both efficiency and dependability, this furnace converts 80% of fuel into usable heat, providing a cost-effective heating solution that helps reduce energy costs. The VersaPro® is crafted for optimal performance and long-lasting durability, featuring a high-efficiency ECM blower motor that enhances airflow, offers variable speeds, and contributes to lower utility bills. Its compact design allows for flexible installation, making it ideal for homes with limited space. With multi-position options, it can be configured for upflow, downflow, or horizontal installations, fitting a variety of home layouts. It also includes both left and right gas and electric service connections for a straightforward setup. Additionally, the optional LP conversion kit allows easy switching from natural gas to propane when needed. Compatible with most 24V thermostats, this furnace ensures smooth operation and precise control. For extra peace of mind, it comes with a 10-year parts warranty and a lifetime heat exchanger warranty if registered within 90 days of installation. Even if unregistered, it still offers a 5-year parts warranty and a 20-year heat exchanger warranty, delivering reliable performance and year-round comfort.
| General Information | |
|---|---|
| AFUE | 80% |
| Fuel Type | Natural/Propane Gas |
| Stage | Single |
| Voltage | 115V |
| Phase | 1 |
| Cycle | 60 Hz |
| UL Listed | Yes |
| ETL Listed | Yes |
| Contains Electronics | Yes |
| Proposition 65 Warning | Yes |
| Performance | |
| BTU Input | 80,000 BTU |
| BTU Output | 64,000 BTU |
| CFM | 1,300 |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 8A |
| Full Load | 8A |
| Burners | |
| Number of Burners | 5 |
| Ignition Type | Hot Surface |
| Gas Connection Size | 3/4in |
| LP Kit Included | Yes |
| LP Kit Available | Yes |
| Blower Motor | |
| Blower Motor Type | ECM |
| Blower Motor HP | 1/2 |
| Blower Motor Speeds | 5 |
| Blower Motor RPM | 1,050 |
| Number of Speeds | 5 |
| Heat Exchanger | |
| Heat Exchanger Type | Aluminized Tubular Steel |
| Dimensions | |
| Net Width | 17.5in |
| Net Height | 33.75in |
| Net Depth | 28.5in |
| Net Weight | 128 lbs |
| Gross Width | 20in |
| Gross Height | 41in |
| Gross Depth | 31.02in |
| Gross Weight | 155 lbs |
| Warranty | |
| Registered Parts Warranty | 10 Years |
| Base Parts Warranty | 5 Years |
| Registered Heat Exchanger Warranty | Lifetime* |
| Base Heat Exchanger Warranty | 20 Years |
