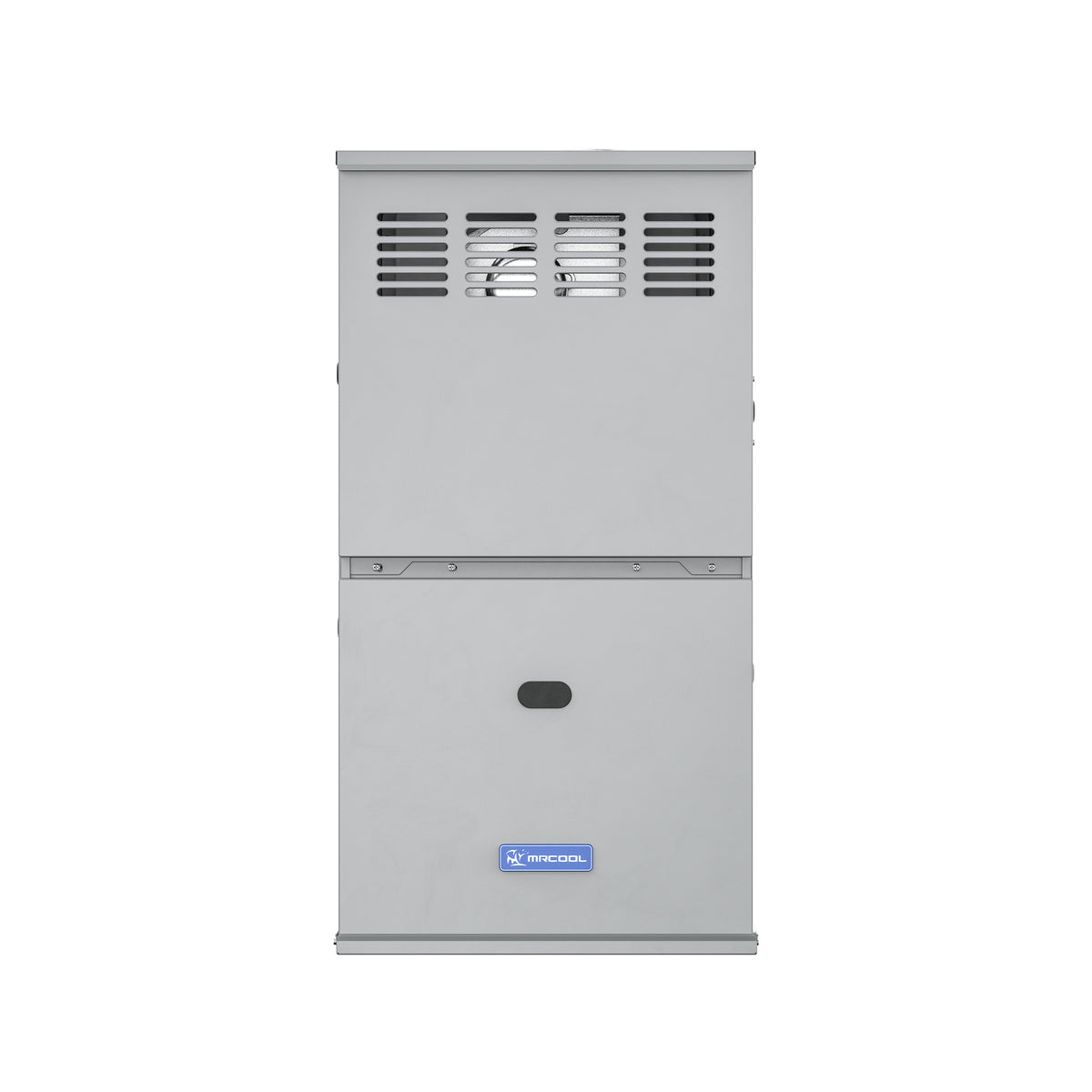

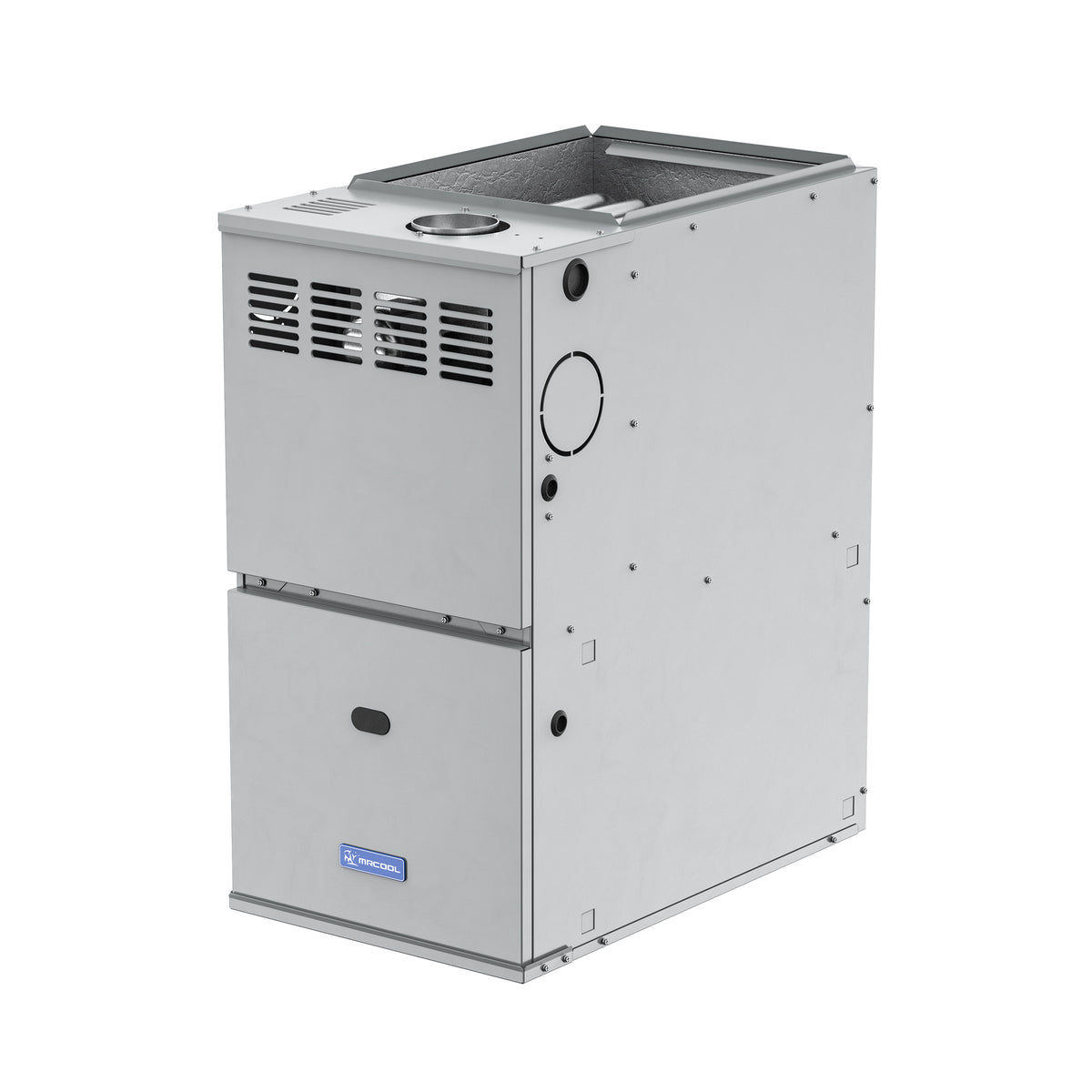

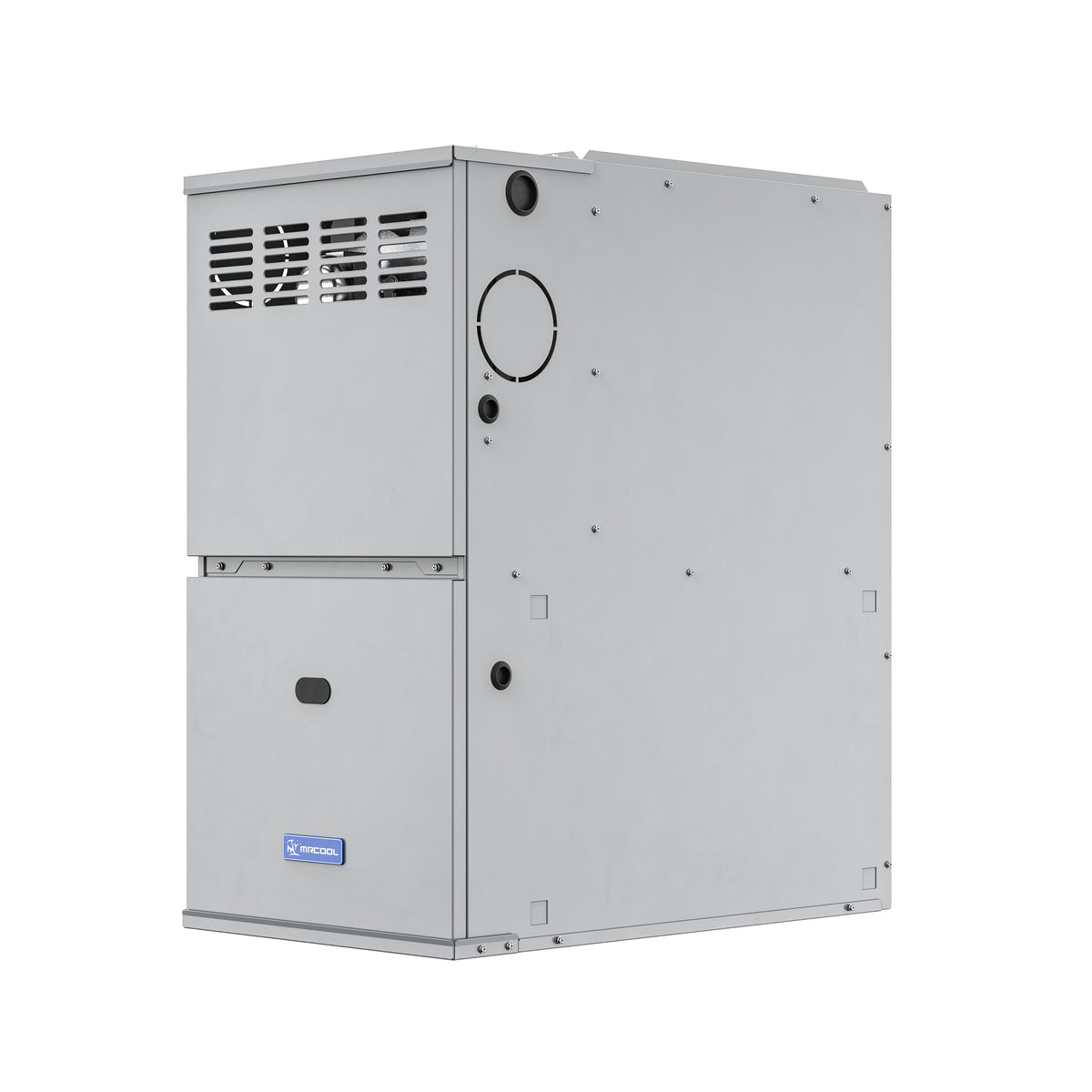

In the face of severe winter conditions, the MRCOOL® VersaPro™ 60k BTU 80% AFUE Gas Furnace ensures unwavering warmth and comfort within your home. Crafted with a strong build and compact design, this furnace effortlessly accommodates most cabinet sizes, even in spatially restricted areas, simplifying installation, replacement, add-on cooling, and maintenance. Its adaptable multi-position installation caters to upflow, downflow, and horizontal applications, featuring convenient left or right connections for gas and electric service. Additionally, transitioning from natural gas to propane is simple with an optional LP kit. The uniquely engineered two-stage consistent flow DC motor promises substantial energy and utility cost savings over time. Count on reliable performance with its hot-surface ignition, guaranteeing consistent and reliable operation. Meanwhile, the multi-speed direct-drive blower operates efficiently and quietly, seamlessly blending into your daily routine without disruption.
The furnace's reliability is further strengthened by its AHRI certification and ETL listing, signifying rigorous testing to meet stringent quality and operational benchmarks. Further peace of mind is offered when the unit is registered within 90 days of installation, unlocking a 10-year parts warranty and lifetime heat exchanger coverage. Even without registration, the furnace is safeguarded by a 5-year parts warranty and 20-year heat exchanger guarantee, reinforcing its durability and performance assurance.
| DIMENSIONS & WEIGHT | |
|---|---|
| Dimensions | 28.50" D x 33.74" H x 17.52" W |
| Net Weight (Lbs) | 115 |
| GENERAL INFORMATION | |
| Fuel Type | Natural/Propane Gas |
| Stage | Two |
| Color | Gray |
| Full Load | 8 |
| CAPACITY & PERFORMANCE | |
| BTU Input | 60000 |
| BTU Output | 48000 |
| Cycle | 60 |
| COMPRESSOR & MOTORS | |
| Number of Speeds | 5 |
| Condenser Fan Motor Type | ECM |
| Condenser Fan Motor HP | 1/2 |
| Condenser Fan Motor RPM | 1050 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 115 |
| Phase | 1 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 6 |
| FILTER & HEATING | |
| Afue | 80 |
| Number of Burners | 3 |
| Filter Type | replaceable |
| SAFETY | |
| ETL Listed | yes |
| AHRI Certified | yes |
| Contains Electronics | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Registered Parts Warranty | 10 Years |
| Base Parts Warranty | 5 Years |
| Registered Heat Exchanger Warranty | Lifetime |
| Base Heat Exchanger Warranty | 20 Years |
