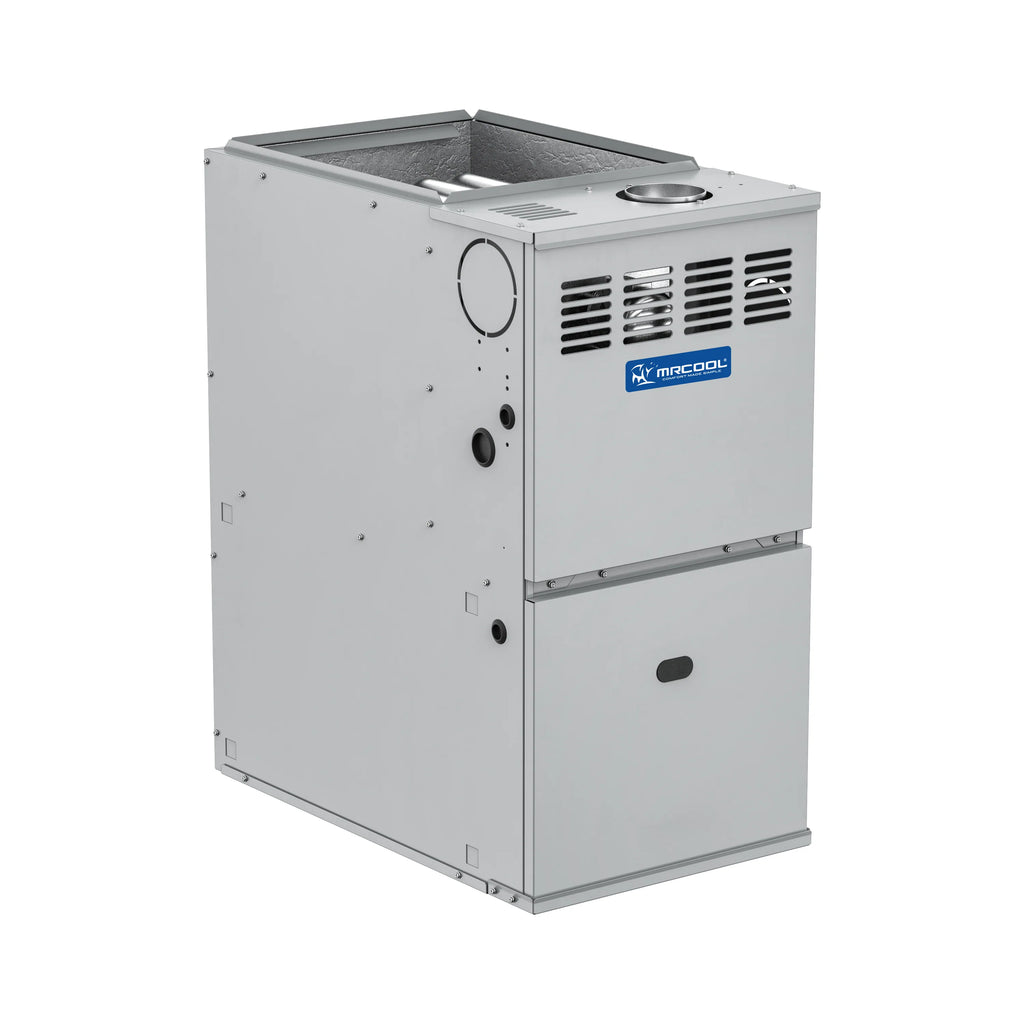

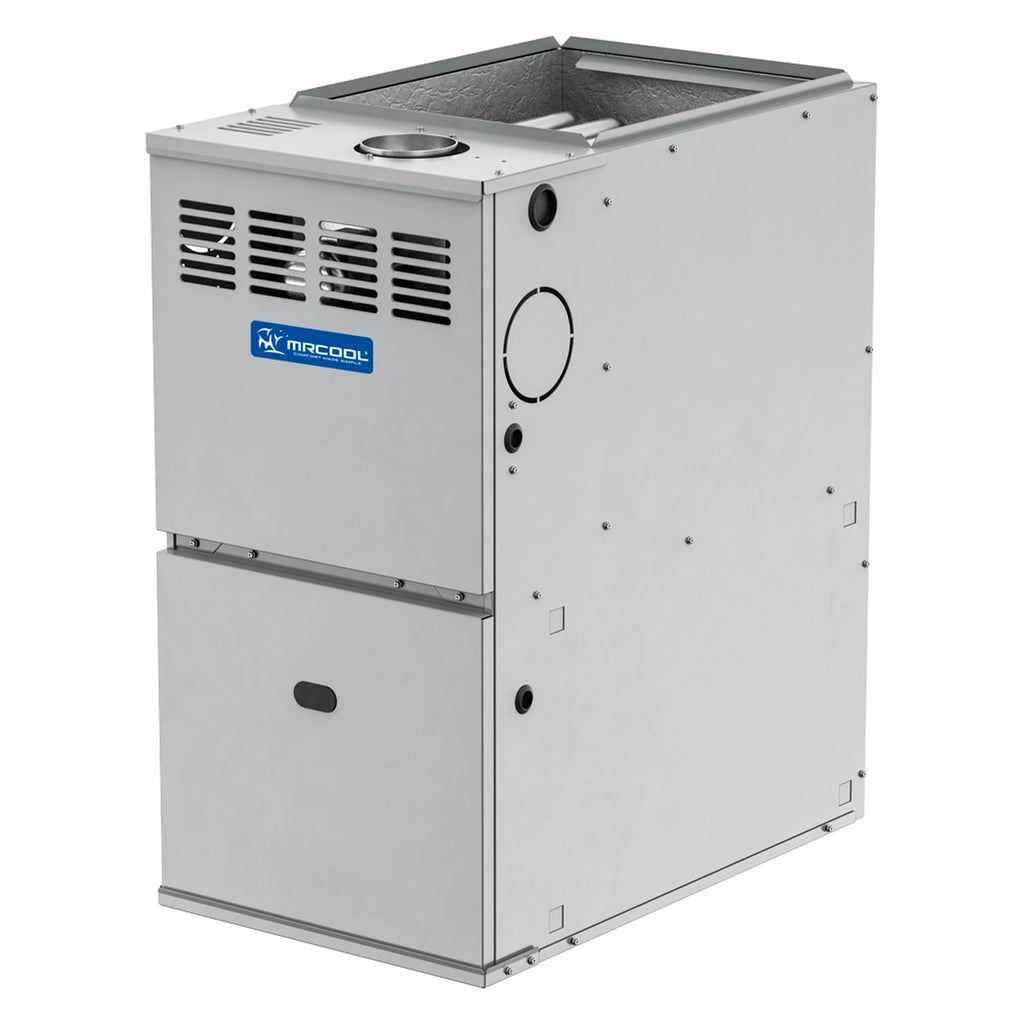

80% AFUE 40K BTU Upflow/Horizontal/Downflow Single-Stage DC Motor VersaPro Natural Gas Furnace with A Cabinet
Introducing the MRCOOL® VersaPro® 40K BTU 80% AFUE Gas Furnace, designed to keep your home warm and comfortable throughout the winter. With an 80% AFUE rating, this high-efficiency furnace ensures that most of the fuel consumed is converted into heat, providing cost-effective and reliable warmth while helping to reduce energy expenses. Built for durability and performance, the VersaPro® features a powerful ECM blower motor, which enhances airflow efficiency, allows for easy speed adjustments, and contributes to lower utility costs. Its compact design ensures flexible installation, making it an ideal choice for homes with limited space. Whether for upflow, downflow, or horizontal applications, this furnace offers multi-position installation for maximum adaptability.
Additionally, it features convenient left or right gas and electric service connections, and with an optional LP conversion kit, it can easily switch from natural gas to propane. This furnace is compatible with a wide range of 24V thermostats, allowing for seamless control. For added peace of mind, it comes with a 10-year parts warranty and a lifetime heat exchanger warranty when registered within 90 days of installation. Even without registration, it includes a 5-year parts warranty and a 20-year heat exchanger warranty, ensuring long-term reliability and home comfort.
| DIMENSIONS & WEIGHT | |
|---|---|
| Net Width | 14.5in |
| Net Height | 33.75in |
| Net Depth | 28.5in |
| Net Weight | 108 lbs |
| Gross Width | 17in |
| Gross Height | 41in |
| Gross Depth | 31.02in |
| Gross Weight | 132 lbs |
| GENERAL INFORMATION | |
| Fuel Type | Natural/Propane Gas |
| Stage | Single |
| Full Load | 8A |
| LP Kit Included | Yes |
| LP Kit Available | Yes |
| CAPACITY & PERFORMANCE | |
| Cycle | 60 Hz |
| BTU Input | 40,000 BTU |
| BTU Output | 32,000 BTU |
| CFM | 1,150 |
| COMPRESSOR & MOTORS | |
| Blower Motor Type | ECM |
| Blower Motor HP | 1/2 |
| Blower Motor Speeds | 5 |
| Blower Motor RPM | 1,050 |
| Number of Speeds | 5 |
| ELECTRICAL REQUIREMENTS | |
| Voltage | 115V |
| Phase | 1 |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 8A |
| REFRIGERANT & PIPING | |
| Gas Connection Size | 3/4in |
| FILTER & HEATING | |
| AFUE | 80% |
| Number of Burners | 3 |
| Ignition Type | Hot Surface |
| Heat Exchanger Type | Aluminized Tubular Steel |
| SAFETY | |
| UL Listed | Yes |
| ETL Listed | Yes |
| Contains Electronics | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Registered Parts Warranty | 10 Years |
| Base Parts Warranty | 5 Years |
| Registered Heat Exchanger Warranty | Lifetime* |
| Base Heat Exchanger Warranty | 20 Years |
