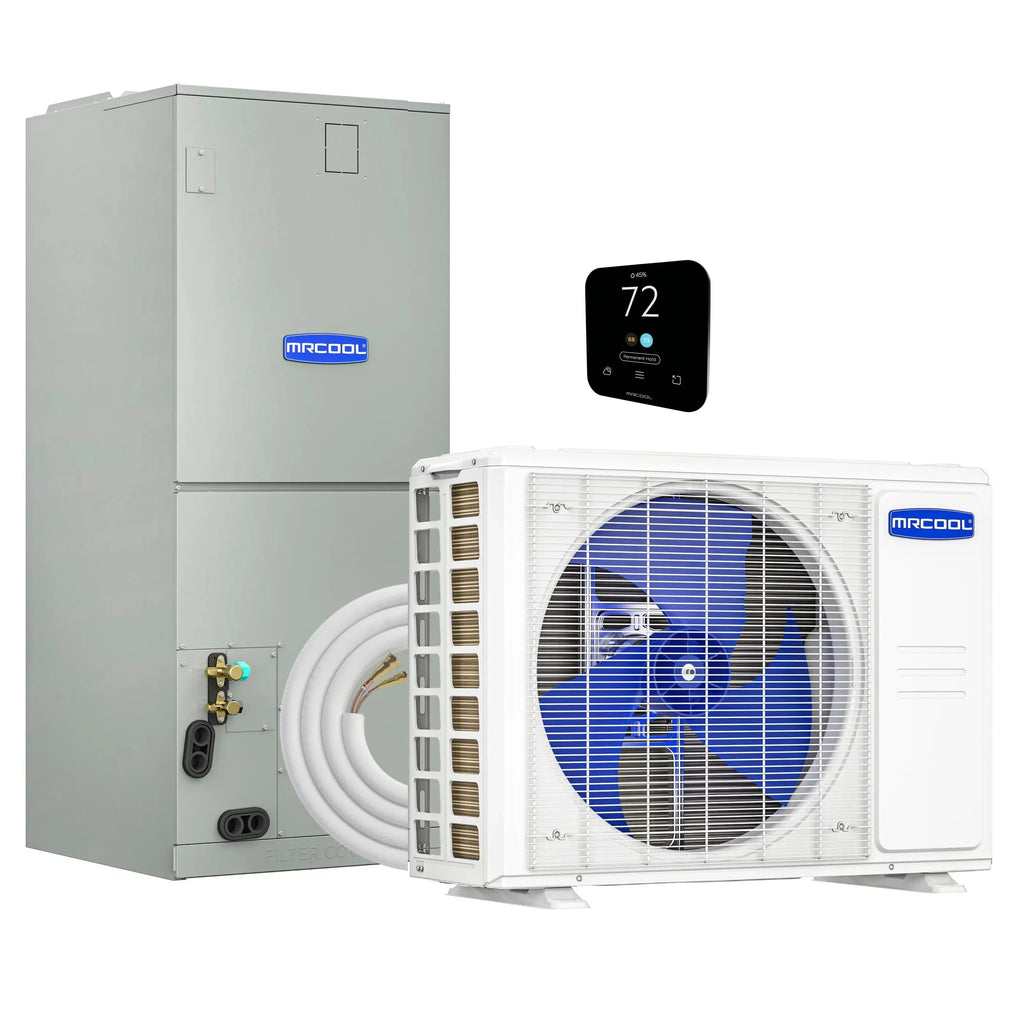

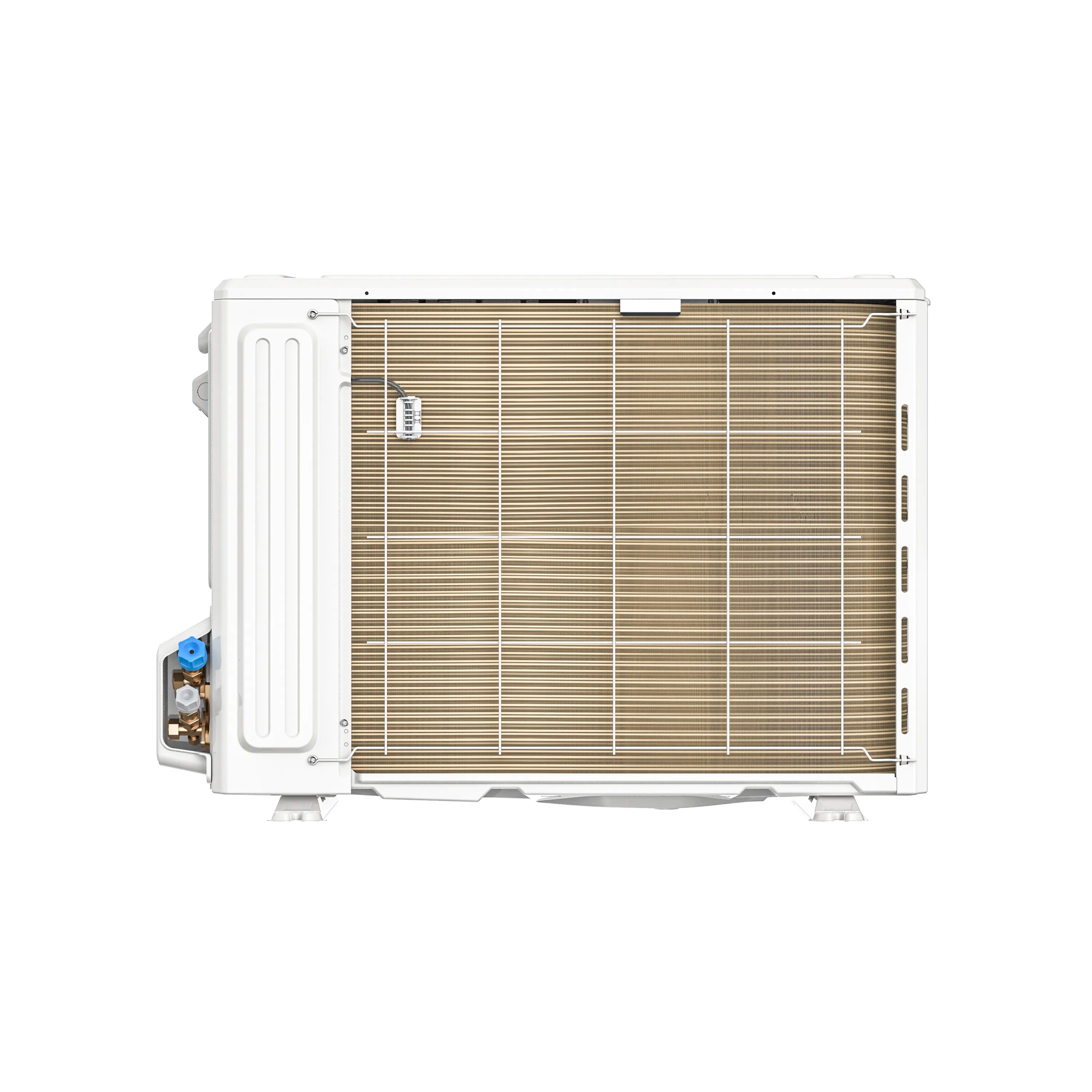

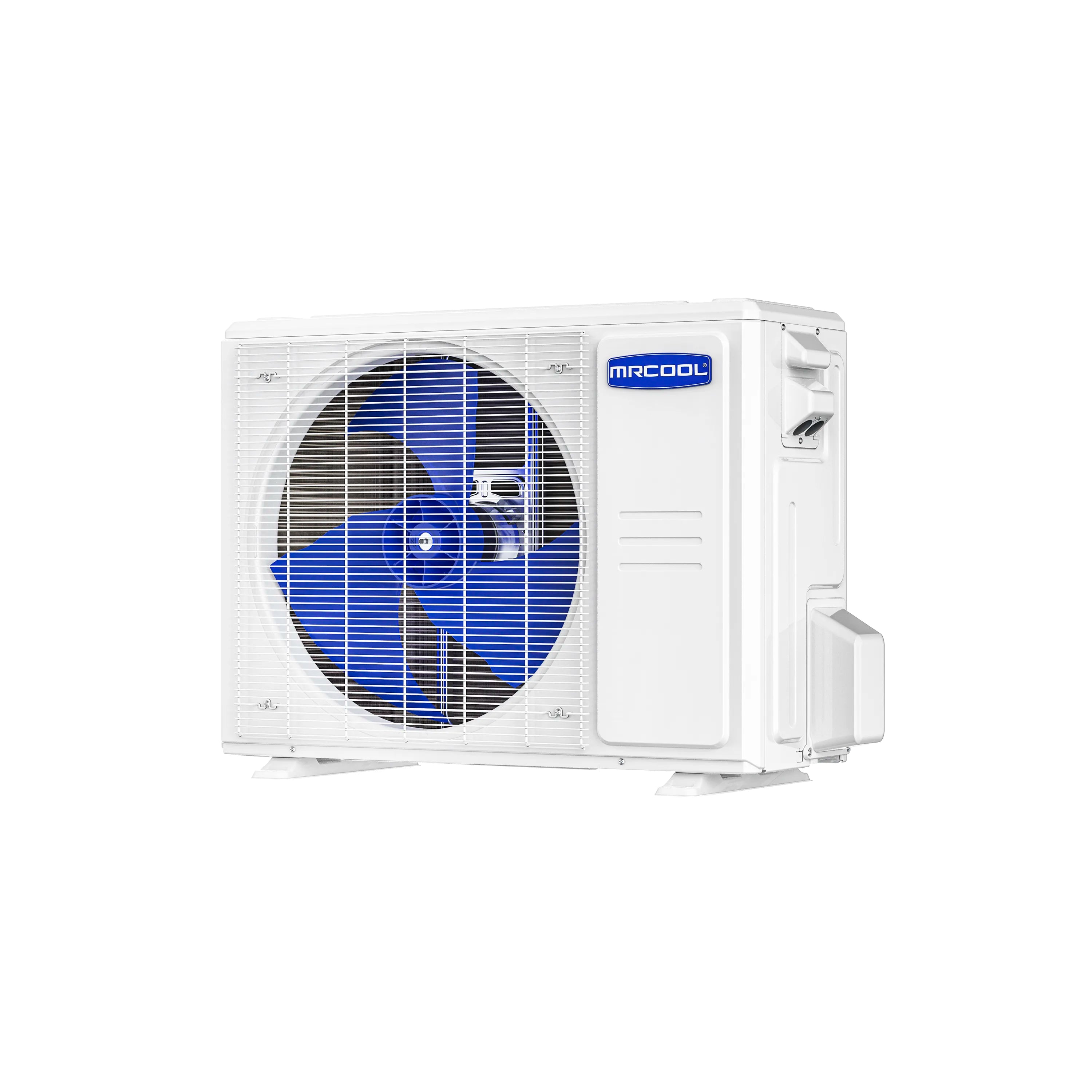

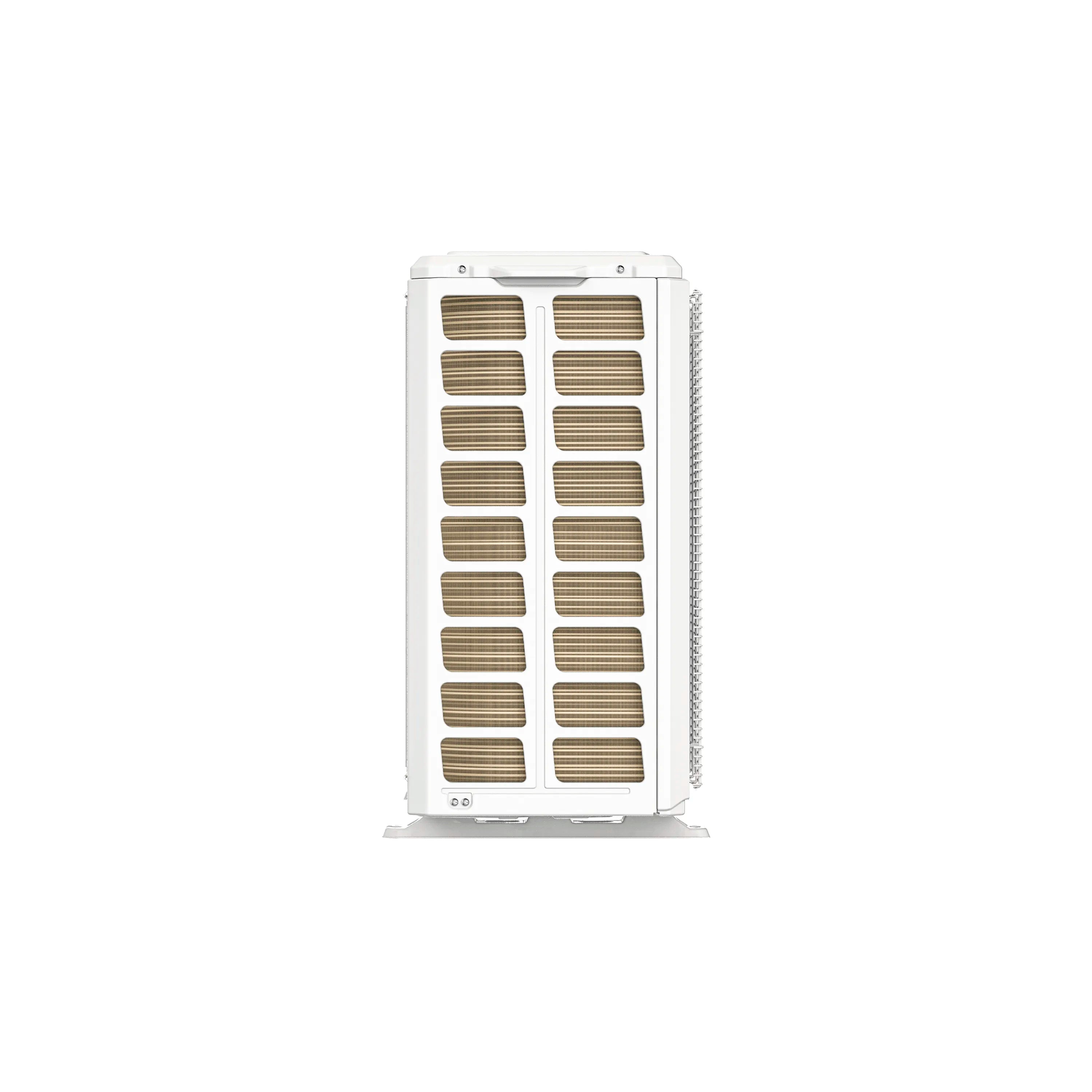

The 4 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser offers a dependable and efficient solution for year-round heating and cooling. Designed with durability and modern technology, this unit provides consistent comfort in all seasons. With a variable-speed 48k capacity, the VersaPro® achieves a SEER2 rating of 16 and an HSPF4 rating of 8.5. Paired with the MRCOOL® VersaPro® Central Ducted Air Handler, it creates a complete and reliable system tailored to your home’s needs. The DC inverter technology ensures quiet operation and optimized energy use, making it an excellent upgrade from older, less efficient systems. You’ll also receive the MRCOOL® Smart thermostat, giving you complete control over your home’s temperature with ease.
The VersaPro® condenser utilizes R-454B refrigerant, a more environmentally friendly alternative to traditional refrigerants. Its durable painted galvanized steel construction is built to withstand the elements, while the compact side-discharge design makes installation easier in tight spaces. Maintenance is simplified with the built-in self-diagnostics system, which helps identify issues quickly and reduce service calls. To ensure peace of mind, the VersaPro® comes with a 10-year warranty covering the compressor and parts. This long-term protection ensures reliable performance and safeguards your investment. Choose the 4 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser for an efficient, reliable way to maintain home comfort.
Dimensions |
16.34" D x 38.39" H x 38.58" W |
SEER2 |
16 |
EER2 |
10 |
HSPF-4 |
8.5 |
HSPF-5 |
7.2 |
CFM |
3037.1 |
Tonnage |
4 |
Cooling Capacity (BTU) |
48000 |
Heating Capacity (BTU) |
48000 |
Voltage (V) |
208-230 |
Phase |
1 |
Cycle |
60 |
Max Fuse Breaker (A) |
40 |
Min Circuit Ampacity (A) |
36 |
Color |
gray |
Refrigerant Type |
R454B |
Refrigerant Volume (OZ) |
134.04 |
Decibel Rating (DBA) |
65 |
Liquid Line Size |
3/8 |
Suction Line Size |
3/4 |
WIFI Compatibility |
Yes |
APP Compatibility |
Yes |
ETL Certified |
Yes |
Energy Star Certified |
Yes |
AHRI Certified |
Yes |
Base Parts Warranty |
10 Years |
Base Compressor Warranty |
10 Years |
Contains Electronics |
Yes |
Contains Chemicals |
Yes |
Contains Compressed Gas |
Yes |
Net Weight (Lbs) |
192.9 |
Gross Depth (In) |
19.68 |
Gross Height (In) |
42.52 |
Gross Width (In) |
45.08 |
Gross Weight (Lbs) |
224.21 |

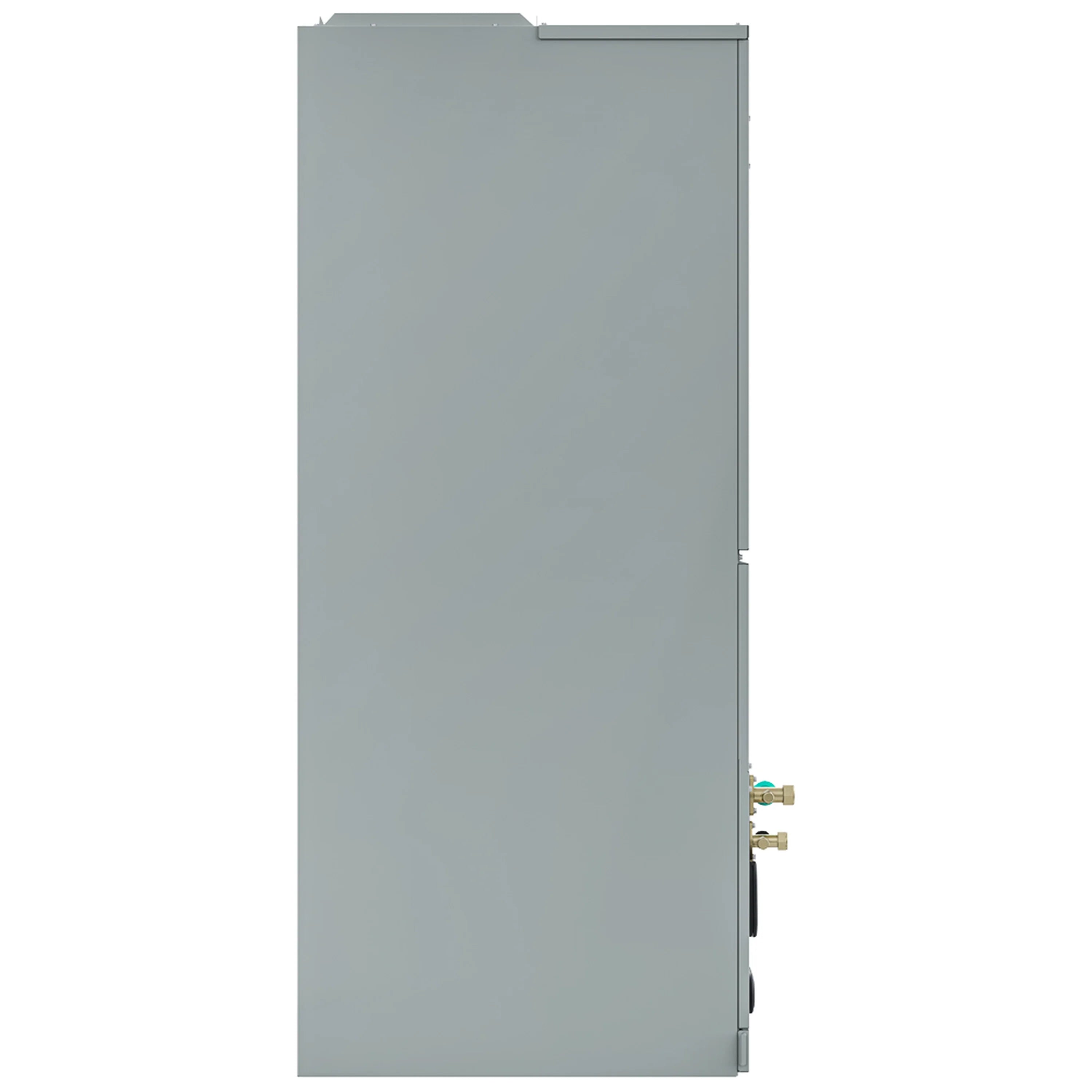

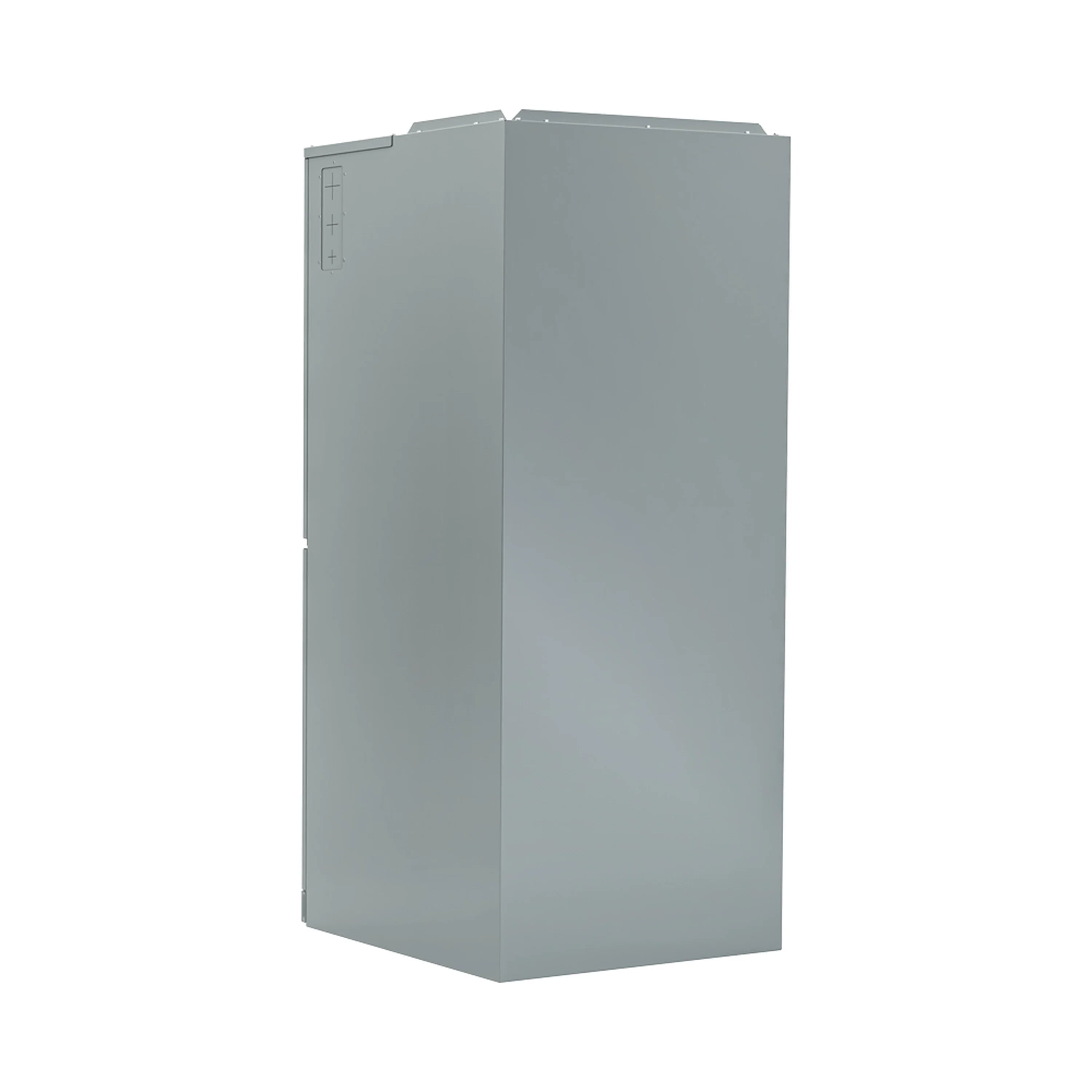

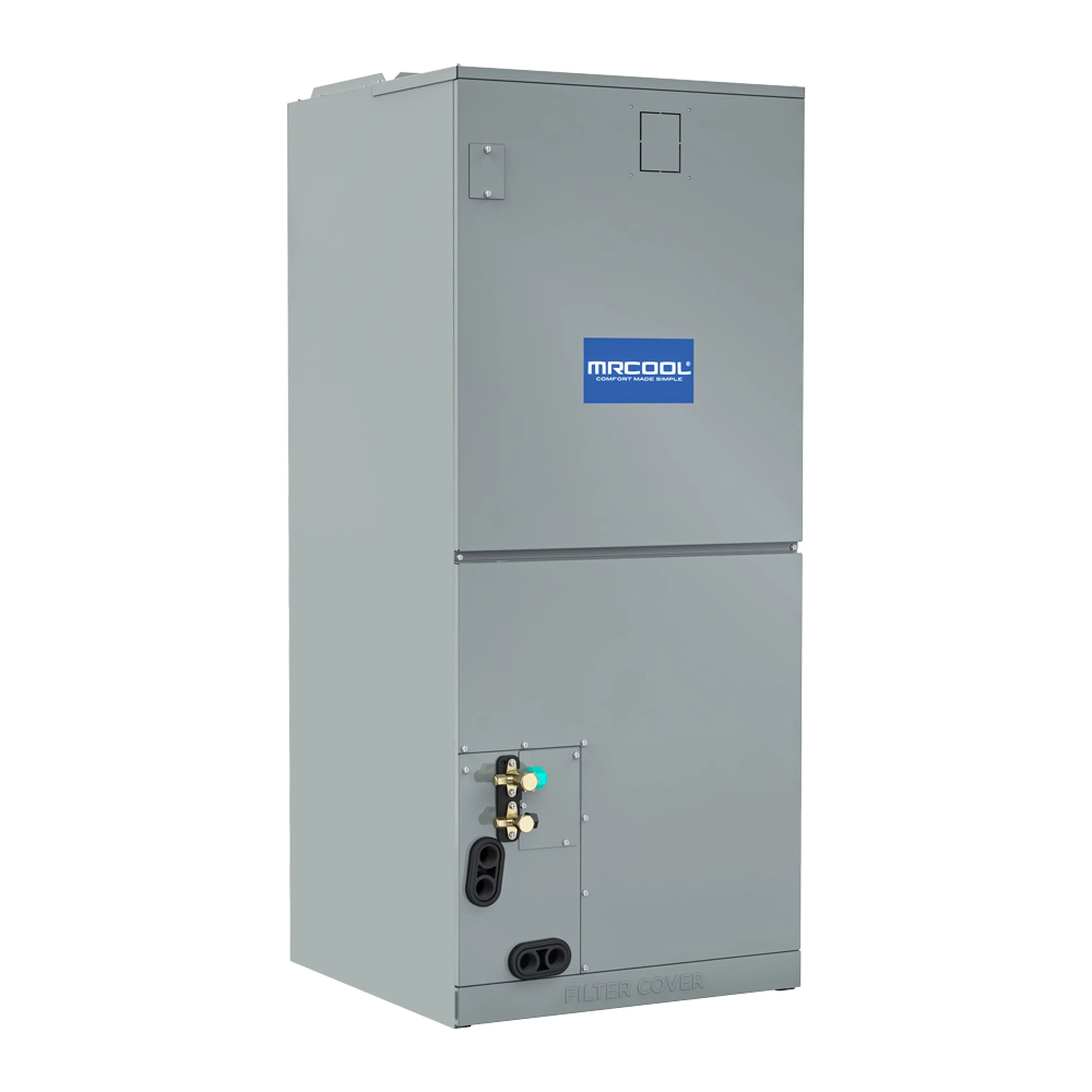

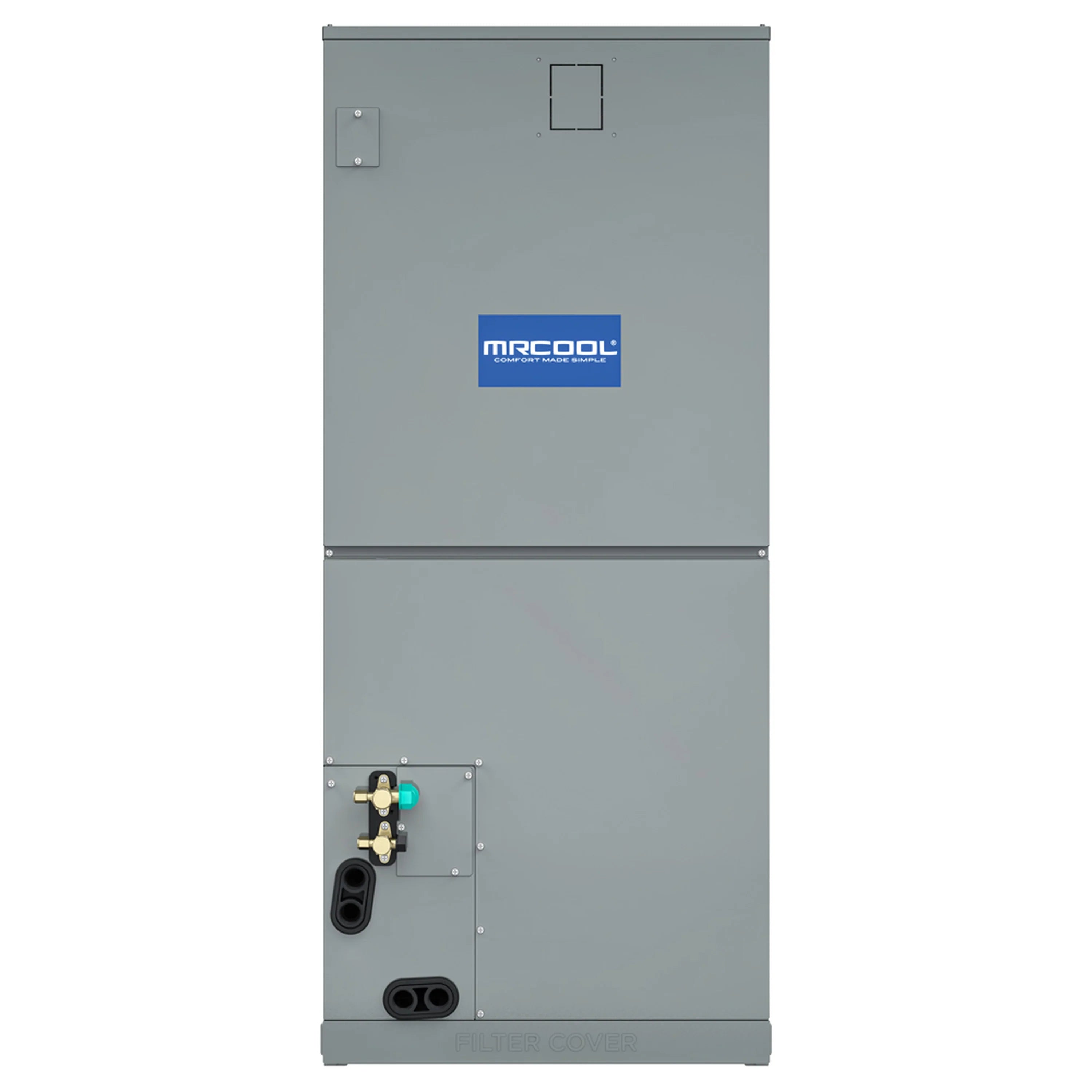

Experience year-round comfort with the 4 Ton MRCOOL® VersaPro® Central Ducted Air Handler, engineered for efficient and reliable heating and cooling. With an impressive SEER2 rating of up to 16.5, this unit is ideal for spaces up to 2,000 square feet, making it the perfect solution to modernize your older HVAC system. Crafted from durable painted galvanized steel, this air handler is built to last. Its self-diagnostics panel helps quickly identify issues, making maintenance easier and reducing troubleshooting time. Versatility is key with this model, offering flexible installation options, including upflow, downflow, and horizontal configurations left or right configurations, so it can adapt to different layouts.
This air handler utilizes R-454B refrigerant, and an optional heat kit is readily available for those seeking additional warmth, enhancing its versatility. Compatible with our Central Ducted Hyper Heat Condenser, this air handler ensures optimal performance and comfort. The included MRCOOL® Smart Thermostat provides easy and precise temperature control for your home. It is also compatible with the MRCOOL® SmartHVAC app, allowing you to adjust settings remotely for added convenience. Backed by a 10-year warranty, the 4 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient solution for upgrading your home’s HVAC system. It’s an affordable option that enhances comfort while offering energy savings.
Dimensions |
24.49" D x 52.99" H x 21.02" W |
CFM |
1600.99/1471.50/1283.15/1094.80 |
Tonnage |
4 |
Cooling Capacity (BTU) |
48000 |
Heating Capacity (BTU) |
48000 |
Voltage (V) |
115/208-230 |
Phase |
1 |
Cycle |
60 |
Max Fuse Breaker (A) |
15 |
Min Circuit Ampacity (A) |
14.5/11.0 |
Color |
gray |
Decibel Rating Low (DBA) |
44 |
Decibel Rating High (DBA) |
53 |
Number of Speeds |
3 |
Max Lineset Length (FT) |
246 ft |
Liquid Line Size |
3/8 |
Suction Line Size |
3/4 |
Filter Type |
Replaceable |
Filter Size |
23x20x1 |
Auxiliary Heater Included |
No |
Auxiliary Heater Available |
Yes |
Auxiliary Heater Sizes |
8kW/10kW/15kW/20kW |
Adjustable Thermostat |
Yes |
WIFI Compatibility |
Yes |
APP Compatibility |
Yes |
ETL Certified |
Yes |
Energy Star Certified |
Yes |
AHRI Certified |
Yes |
Base Parts Warranty |
10 Years |
Base Compressor Warranty |
10 Years |
Contains Electronics |
Yes |
Contains Chemicals |
Yes |
Contains Compressed Gas |
Yes |
Net Weight (Lbs) |
162.92 |
Gross Depth (In) |
26.77 |
Gross Height (In) |
56.5 |
Gross Width (In) |
27.95 |
Gross Weight (Lbs) |
190.92 |

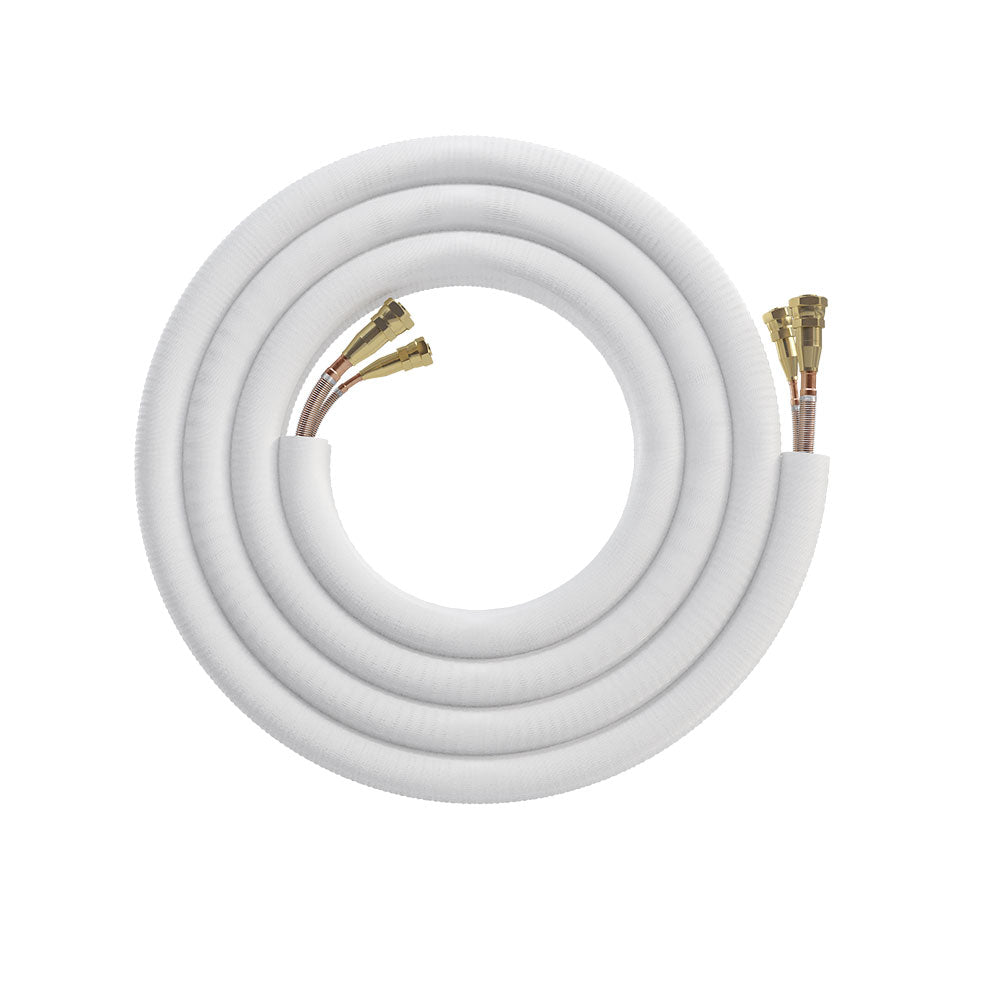

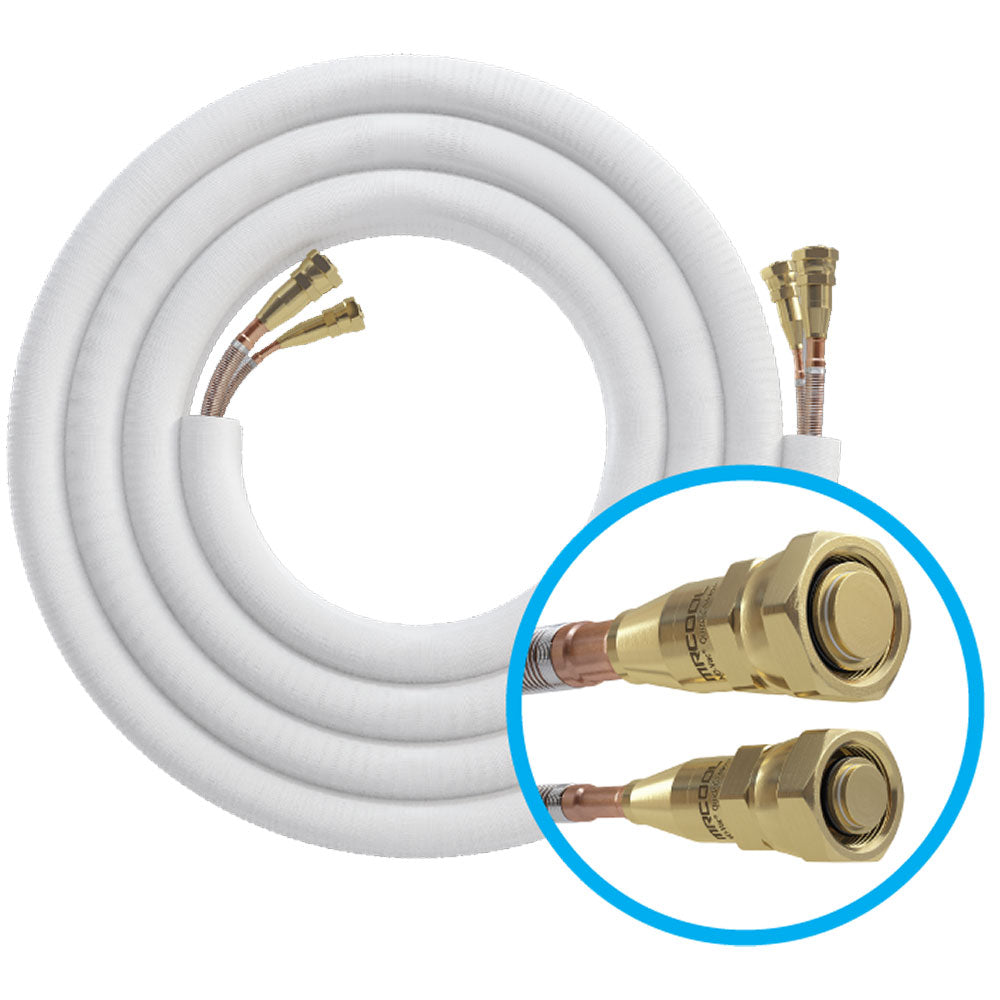

25' R-454B No-Vac Lineset
Dimensions |
35" D x 35" H x 5" W |
Refrigerant Type |
R-454B |
Refrigerant Volume (Oz) |
2.11 |
Line Set Length |
25ft |
Lineset Fitting Type |

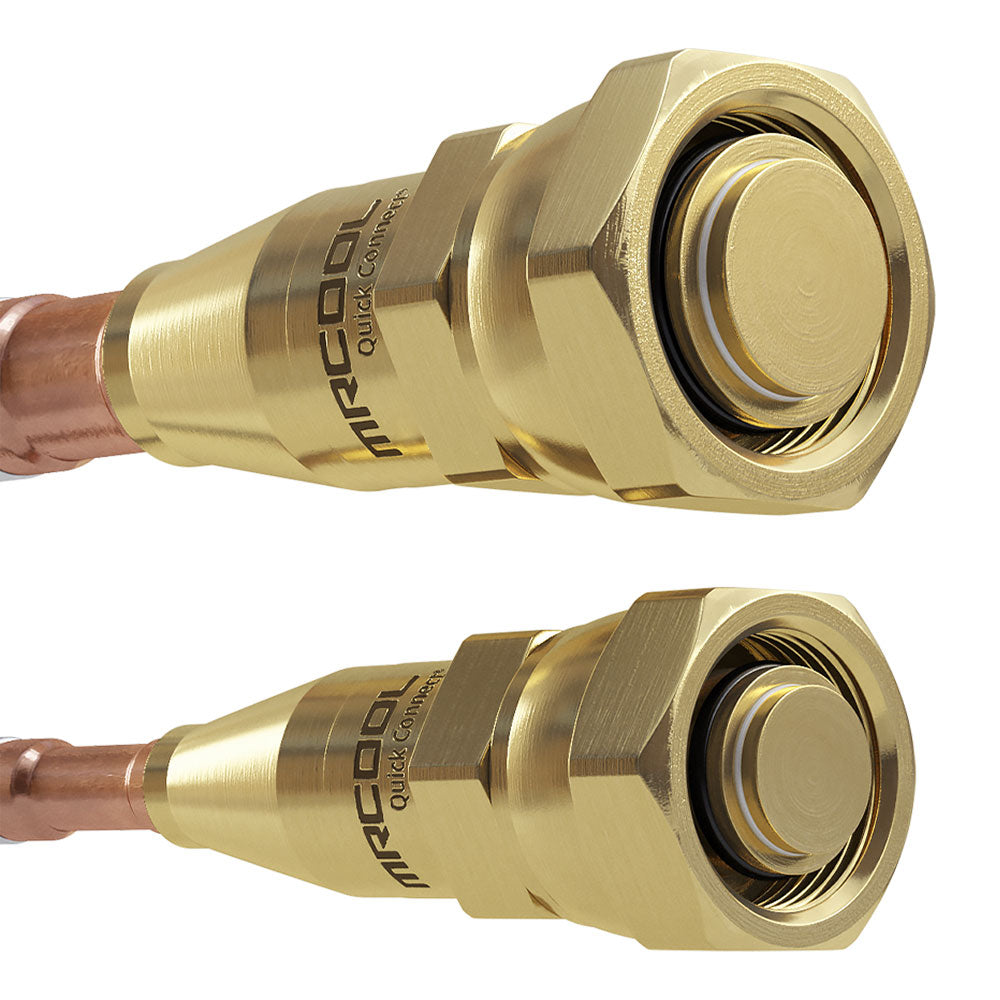

Quick-Connect |
Liquid Line Size |
3/8 |
Suction Line Size |
3/4 |
Contains Chemicals |
Yes |
Net Weight (Lbs) |
22 |
Gross Weight (Lbs) |
27 |

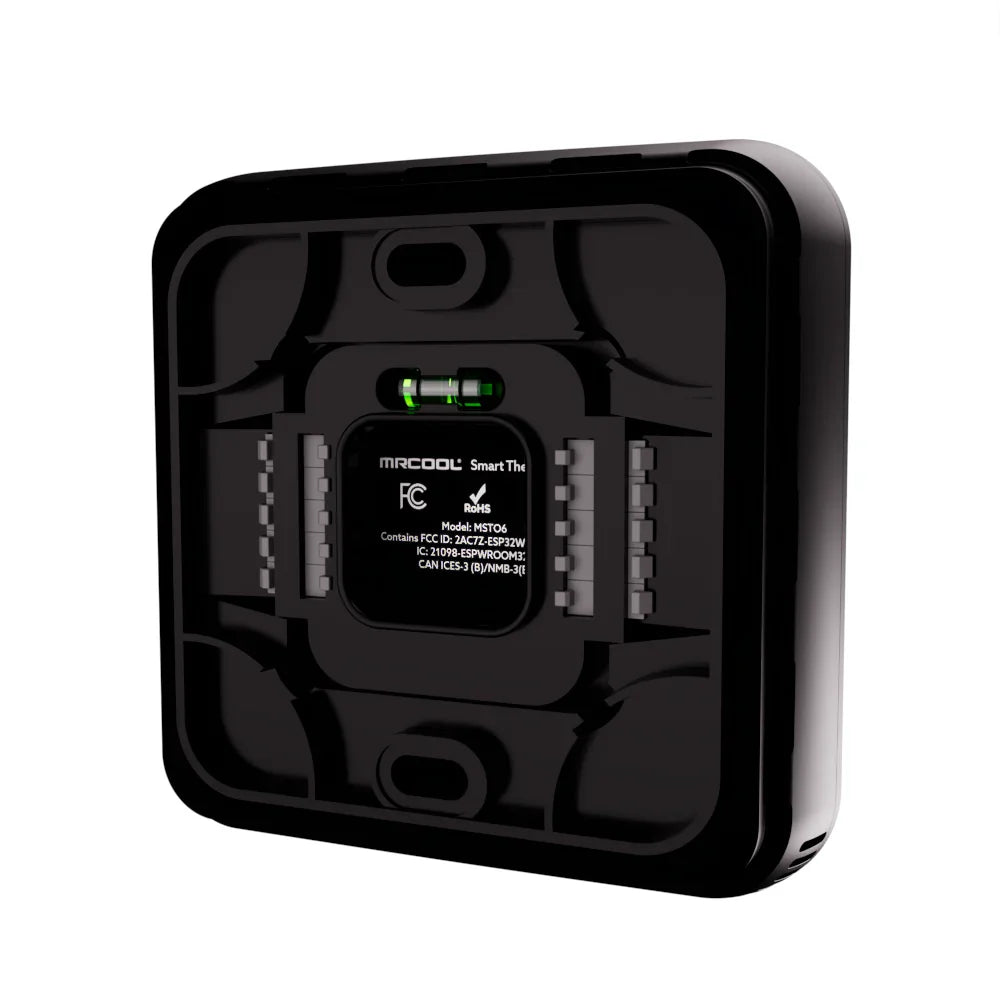

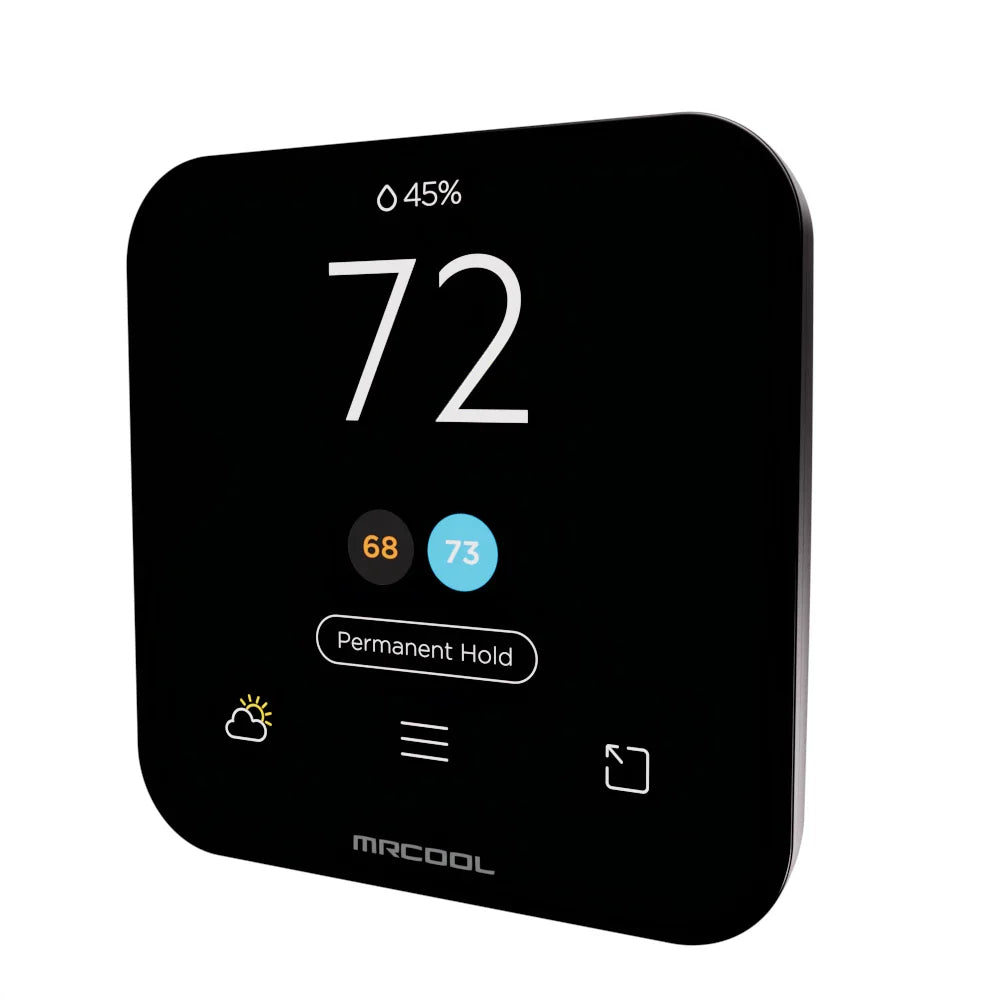

Experience unparalleled comfort and energy efficiency with the MRCOOL Smart Thermostat, which boasts personalized heating and cooling options alongside a straightforward DIY installation process. This thermostat empowers you to customize settings effortlessly, enhancing your comfort while simultaneously reducing energy consumption. Choose from a plethora of modes and options to curate your ideal environment, including the convenient vacation mode, ensuring home safety during your absence without unnecessarily inflating energy bills.
Control lies at the heart of this Smart Thermostat, providing multiple avenues such as the intuitive touch-screen display, voice commands via popular virtual assistants like Google Assistant, Siri, or Amazon Alexa, or the innovative Smart HVAC app. The app offers a range of useful features, from an air filter cleaning monitor to a timeline displaying recent system adjustments, allowing you to track usage levels and fine-tune temperature and fan speed settings.
With its unique location-based services, the thermostat automatically adjusts settings based on your proximity to home, ensuring you always return to the perfect temperature. Even in the event of an internet outage, you can maintain control using the thermostat directly, adjusting temperature and settings as needed. With the added reassurance of a 3-year warranty, the MRCOOL Smart Thermostat provides peace of mind alongside unparalleled technology, comfort, and efficiency.
Dimensions |
3.9" D x 1" H x 3.9" W |
Voltage (V) |
24 |
Sleep Mode | Yes |
Base Parts Warranty | 3 Years |
Gross Dimensions | 6.5" D x 2.12" H x 5.37" W |
Gross Weight (lbs) | 0.95 |
