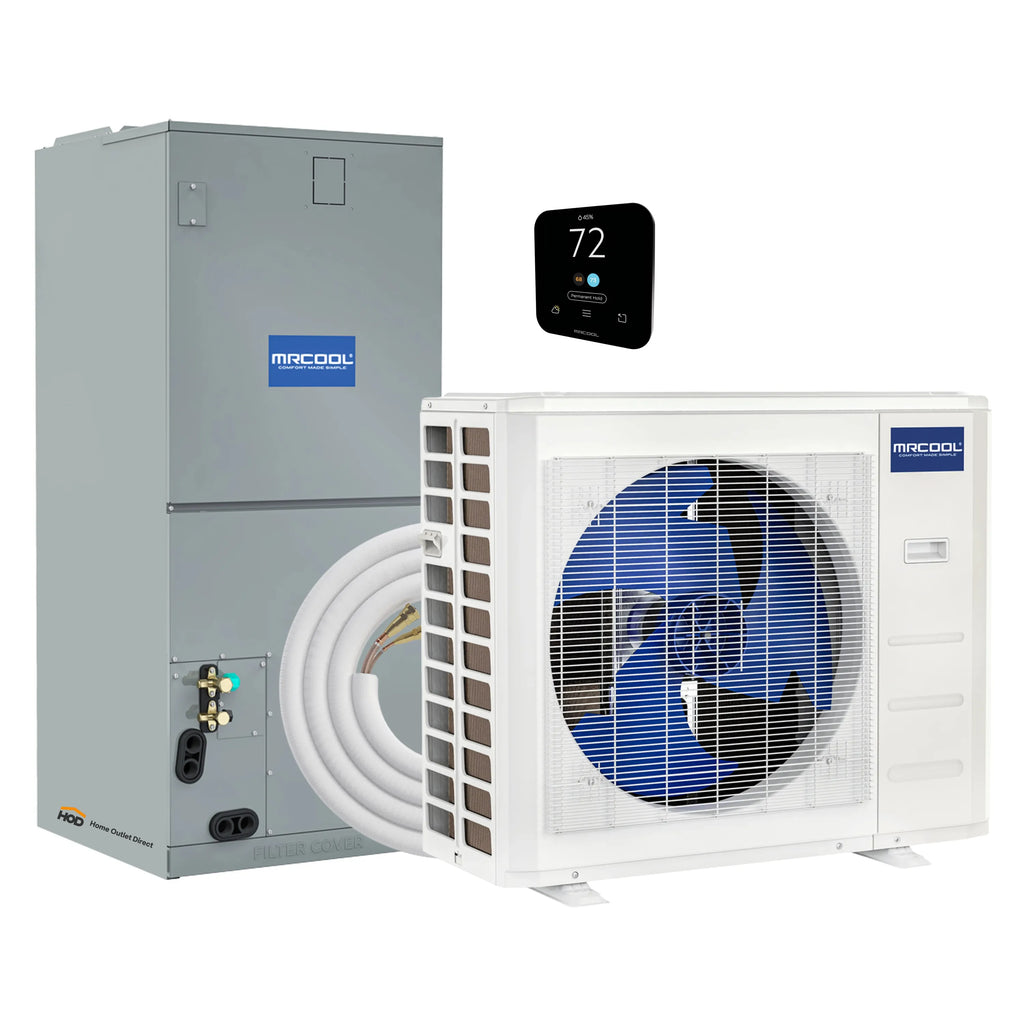

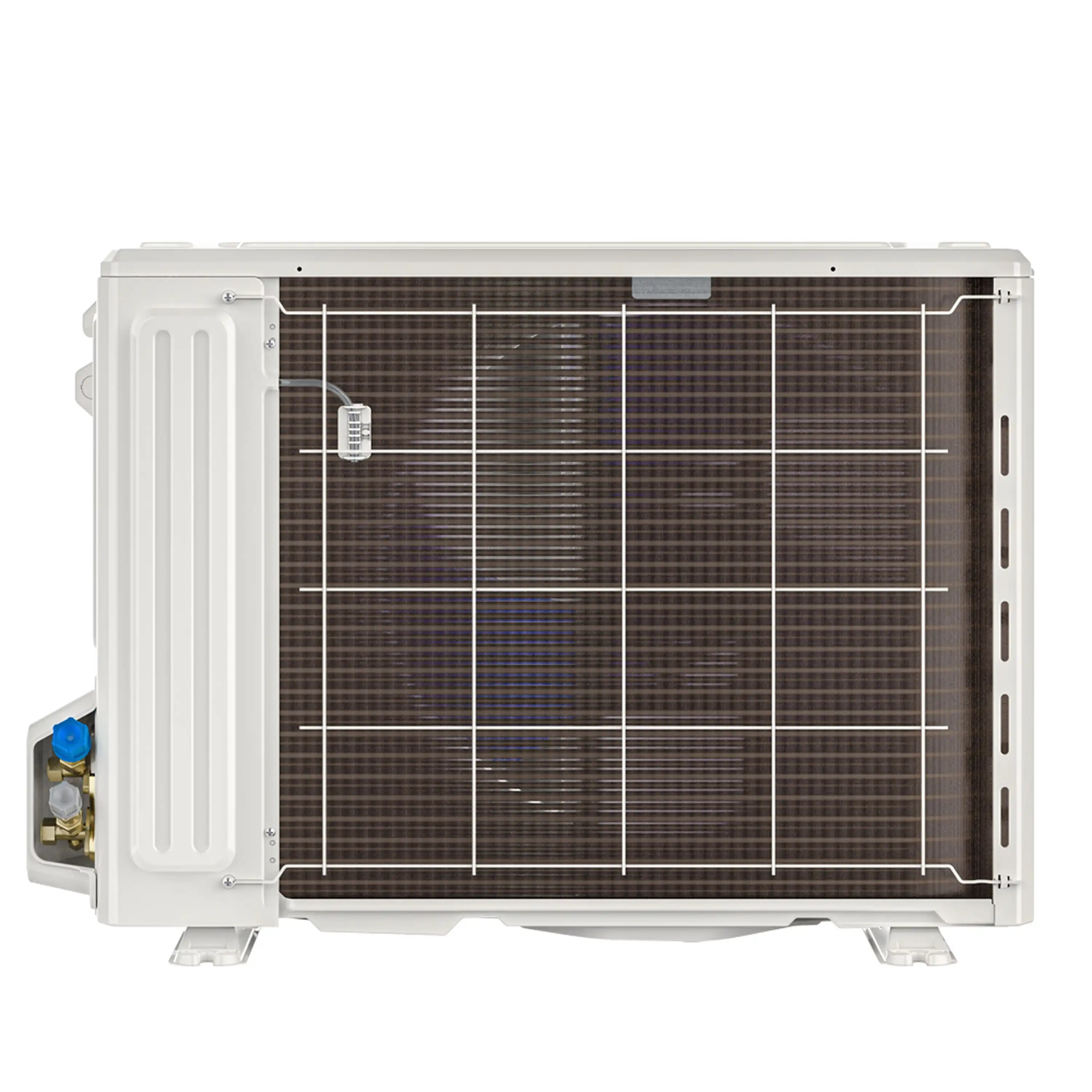

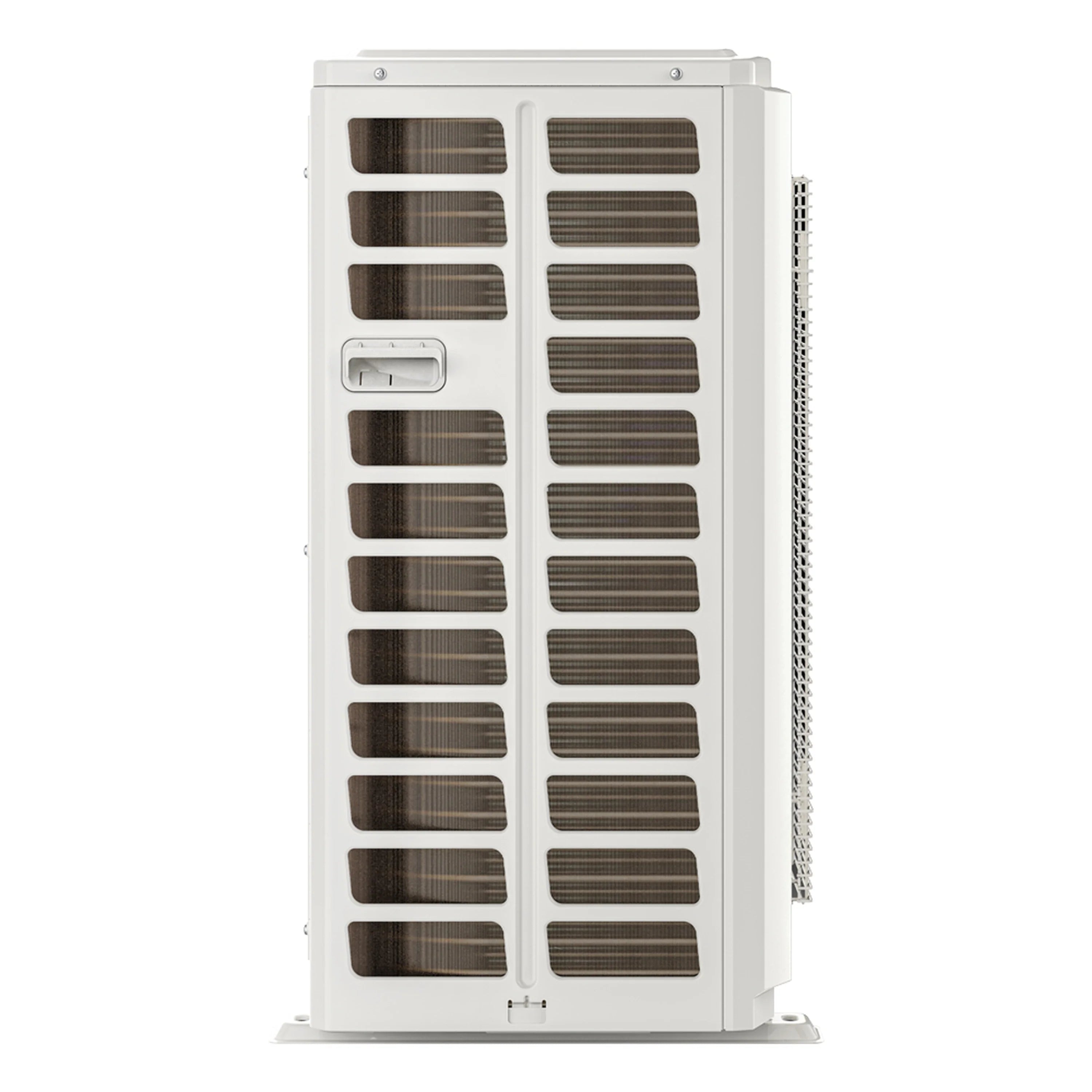

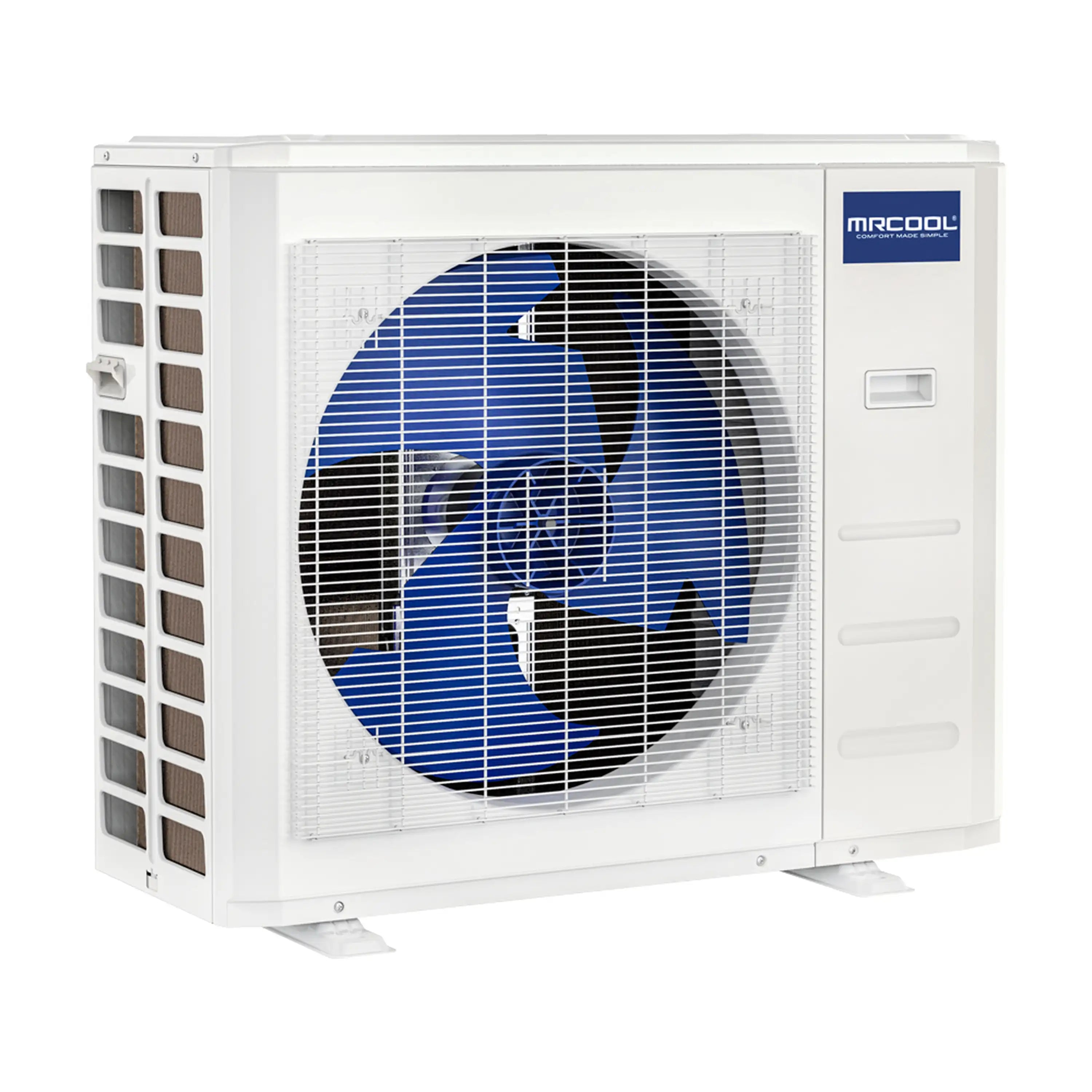

Upgrading your HVAC system doesn’t have to be complicated. The 2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser offers a simple, cost-effective solution to meet your home’s heating and cooling needs year-round. With a 30k capacity and a variable-speed design, this unit provides a SEER2 rating of 17 and an HSPF4 rating of 8.5, ensuring it’s both energy-efficient and effective. Paired with the MRCOOL® VersaPro® Central Ducted Air Handler, this system delivers reliable performance, adjusting to your home’s heating and cooling demands.
The advanced DC inverter technology helps optimize energy usage and minimize utility costs. A MRCOOL® Smart thermostat is also included, ensuring simple and effective temperature management.
The VersaPro® condenser also focuses on sustainability, using eco-friendly R-454B refrigerant. Its durable, painted galvanized steel construction ensures long-lasting reliability, while the compact side-discharge design makes installation easier, even in tight spaces. Built-in self-diagnostic features further simplify maintenance, helping you avoid unnecessary service calls.
To give you peace of mind, the 2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser comes with a 10-year warranty that covers the compressor and parts. This means you can rely on its performance for years to come, knowing your investment is protected. Upgrade today and experience a more efficient, hassle-free way to maintain comfort in your home.
| DIMENSIONS & WEIGHT | |
|---|---|
| Dimensions | 16.14" D x 31.89" H x 37.24" W |
| NET WEIGHT (Lbs) | 141.76 |
| Gross Depth (In) | 19.68 |
| Gross Height (In) | 34.84 |
| Gross Width (In) | 42.91 |
| Gross Weight (Lbs) | 152.34 |
| GENERAL INFORMATION | |
| Color | gray |
| CAPACITY & PERFORMANCE | |
| SEER2 | 17 |
| EER2 | 10.7 |
| HSPF-4 | 8.5 |
| HSPF-5 | 6.6 |
| CFM | 3001.8 |
| Tonnage | 2.5 |
| Cooling Capacity (BTU) | 30000 |
| Heating Capacity (BTU) | 31000 |
| Cycle | 60 |
| NOISE LEVELS | |
| Decibel Rating (DBA) | 60 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208-230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 25 |
| Min Circuit Ampacity (A) | 22.5 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R454B |
| Refrigerant Volume (OZ) | 91.71 |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| CONTROLS & CONNECTIVITY | |
| WIFI Compatibility | Yes |
| APP Compatibility | Yes |
| SAFETY | |
| ETL Certified | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| WARRANTY | |
| Base Parts Warranty | 10 Years |
| Base Compressor Warranty | 10 Years |

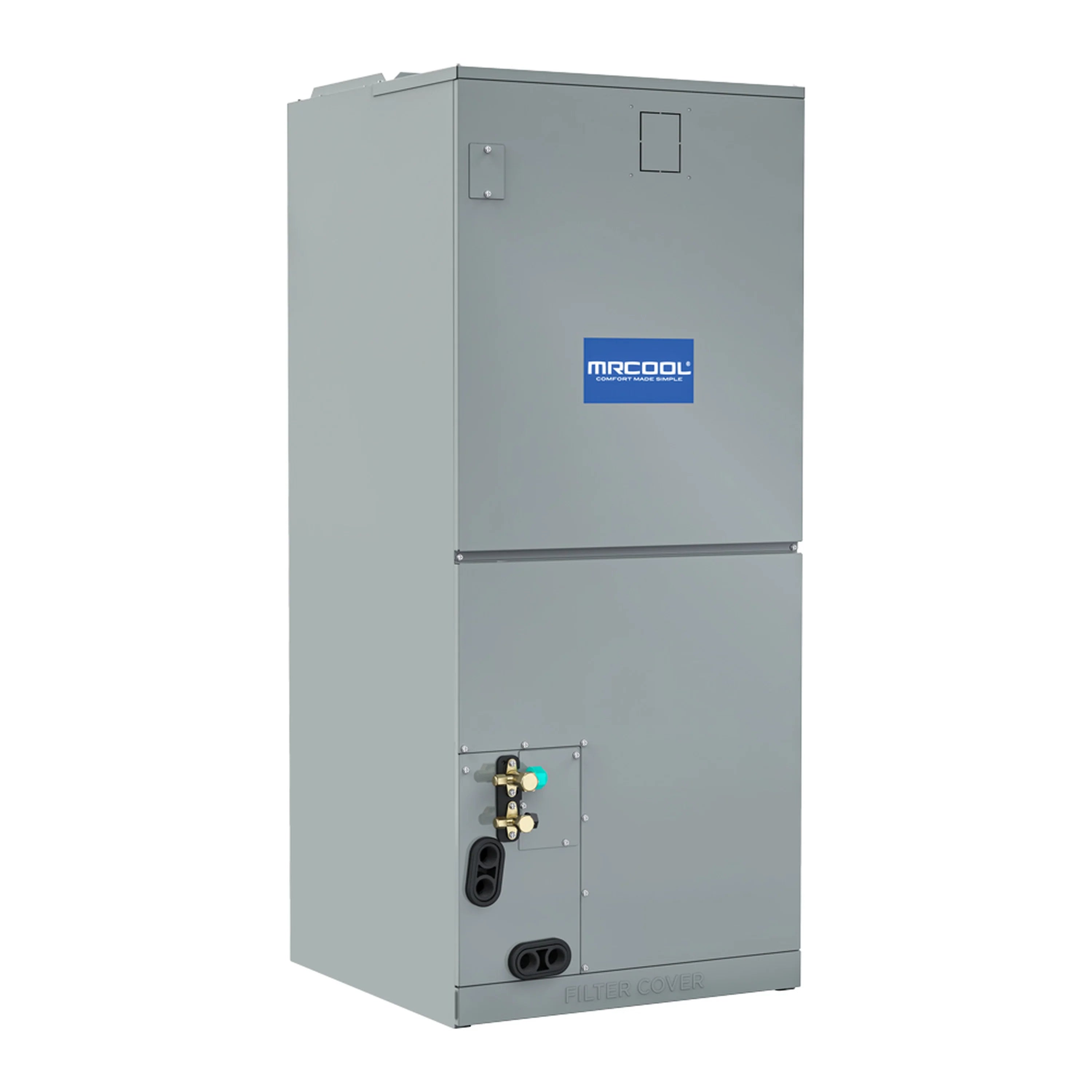

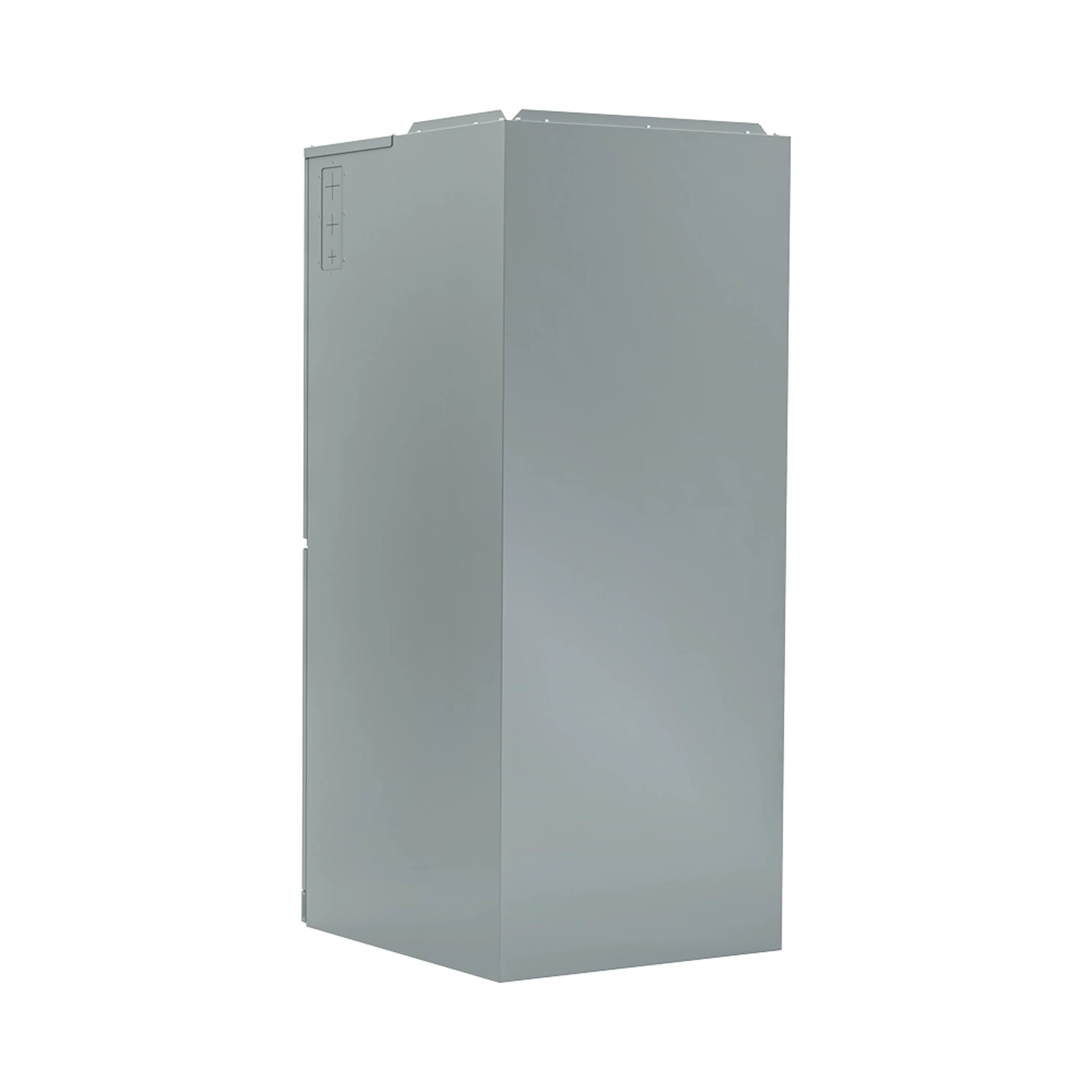

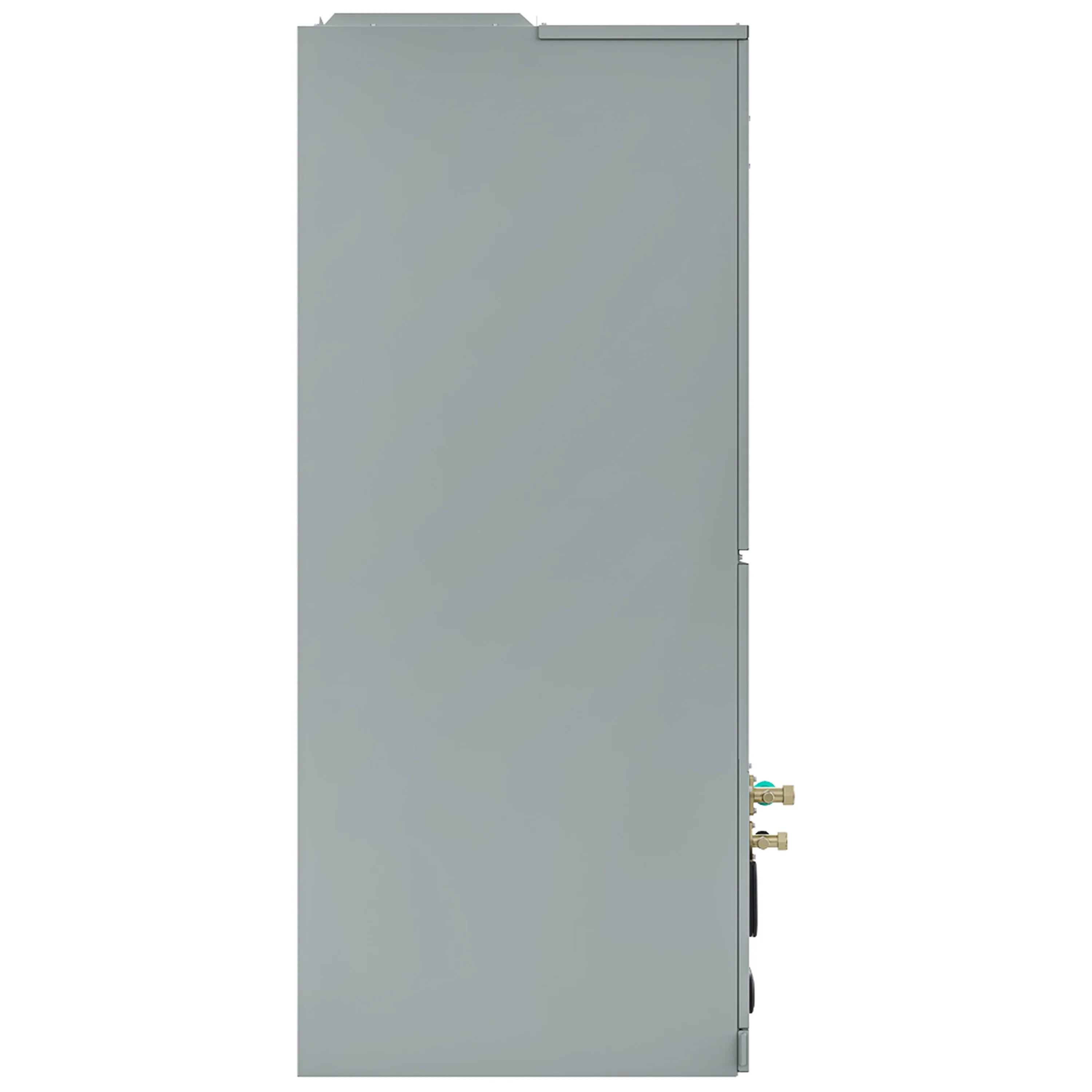

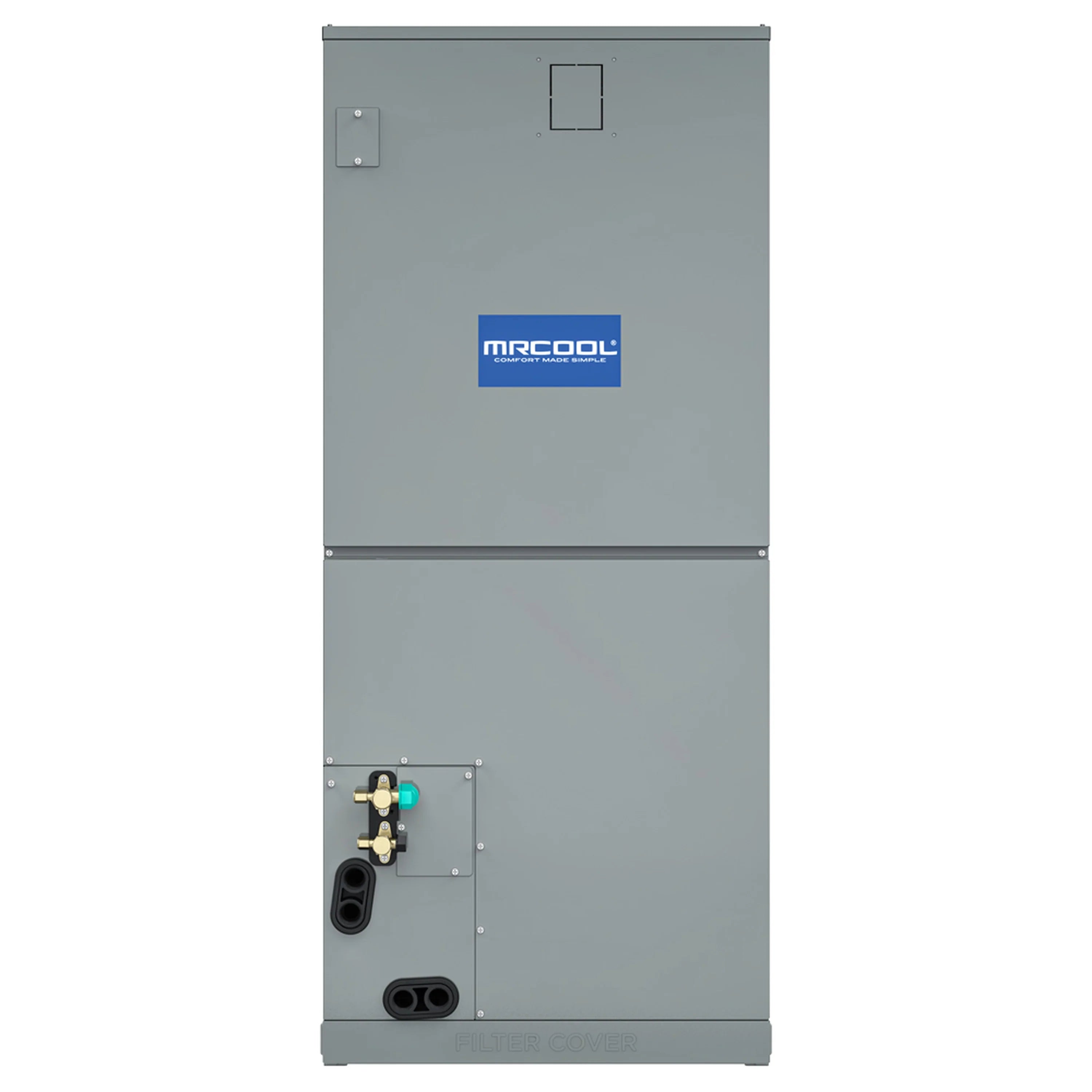

The 2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is an efficient and reliable choice for heating and cooling spaces up to 1,250 square feet. With a SEER2 rating of up to 17, it provides year-round comfort while keeping energy costs in check. Designed for durability, this air handler features painted galvanized steel construction, ensuring it will last for years to come. Plus, its self-diagnostics panel simplifies maintenance by identifying error codes quickly, reducing downtime.
This unit is flexible when it comes to installation, with options for upflow, downflow, and horizontal left or right configurations to suit various setups. It uses R-454B refrigerant, an eco-friendly choice that helps reduce environmental impact. Additionally, this air handler is compatible with our Central Ducted Hyper Heat Condenser. For those who need additional warmth, an optional heat kit is available. The included MRCOOL® Smart Thermostat allows for precise and reliable temperature control, ensuring your home stays comfortable. Plus, it's compatible with the MRCOOL® SmartHVAC app, giving you the convenience of adjusting your system remotely from your smartphone. Backed by a 10-year warranty covering both parts and the compressor, the 2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a dependable solution for maintaining your home’s climate. It combines efficiency, flexibility, and ease of use, making it an excellent choice for upgrading your HVAC system.
| DIMENSIONS & WEIGHT | |
|---|---|
| Dimensions | 21.02" D x 49.02" H x 21.02" W |
| Net Weight (Lbs) | 128.97 |
| Gross Depth (In) | 24.41 |
| Gross Height (In) | 52.56 |
| Gross Width (In) | 26.57 |
| Gross Weight (Lbs) | 153.44 |
| GENERAL INFORMATION | |
| Color | gray |
| CAPACITY & PERFORMANCE | |
| CFM | 988.85/894.67/806.38/712.21 |
| Tonnage | 2.5 |
| Cooling Capacity (BTU) | 30000 |
| Heating Capacity (BTU) | 31000 |
| Cycle | 60 |
| COMPRESSOR & MOTORS | |
| Number of Speeds | 3 |
| NOISE LEVELS | |
| Decibel Rating Low (DBA) | 29 |
| Decibel Rating High (DBA) | 46 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 115/208-230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 8.0/6.0 |
| REFRIGERANT & PIPING | |
| Max Lineset Length (FT) | 164 ft |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| FILTER & HEATING | |
| Filter Type | Replaceable |
| Filter Size | 19x20x1 |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 5kW/8kW/10kW/15kW |
| CONTROLS & CONNECTIVITY | |
| Adjustable Thermostat | Yes |
| WIFI Compatibility | Yes |
| APP Compatibility | Yes |
| SAFETY | |
| ETL Certified | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| WARRANTY | |
| Base Parts Warranty | 10 Years |
| Base Compressor Warranty | 10 Years |

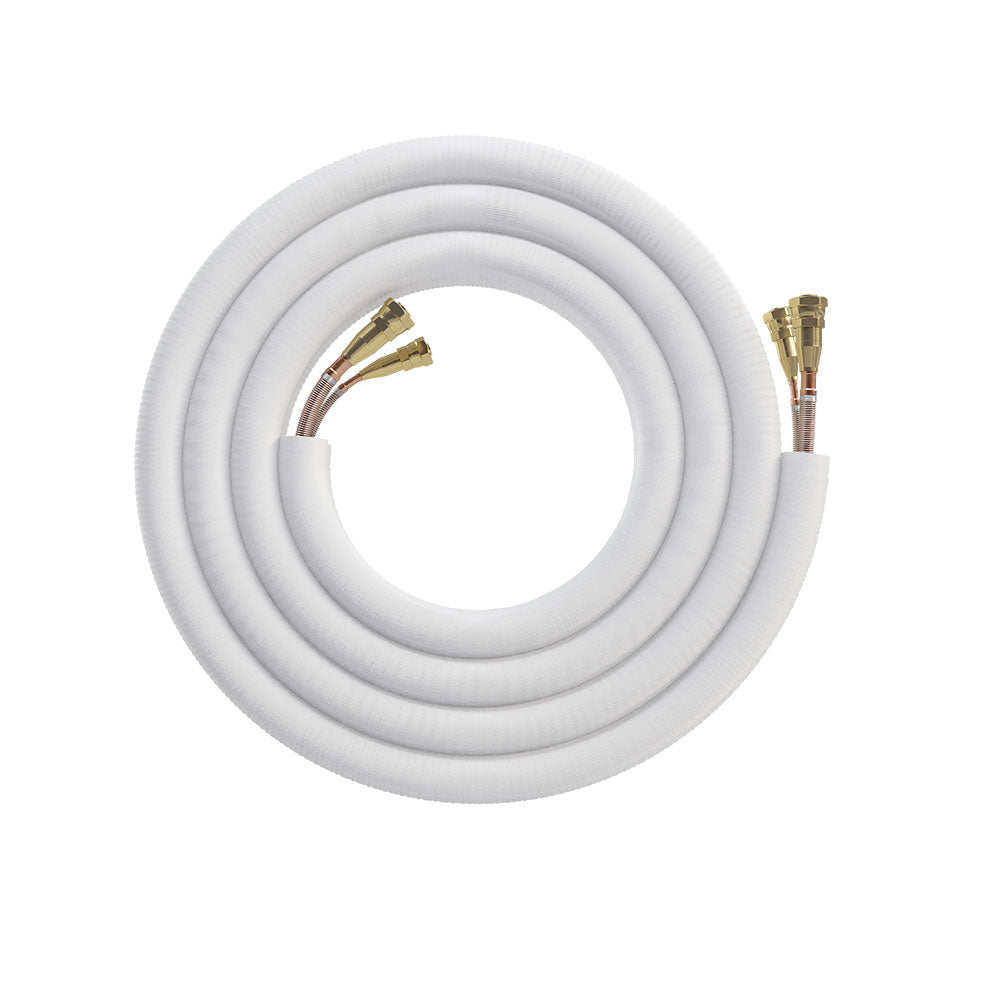

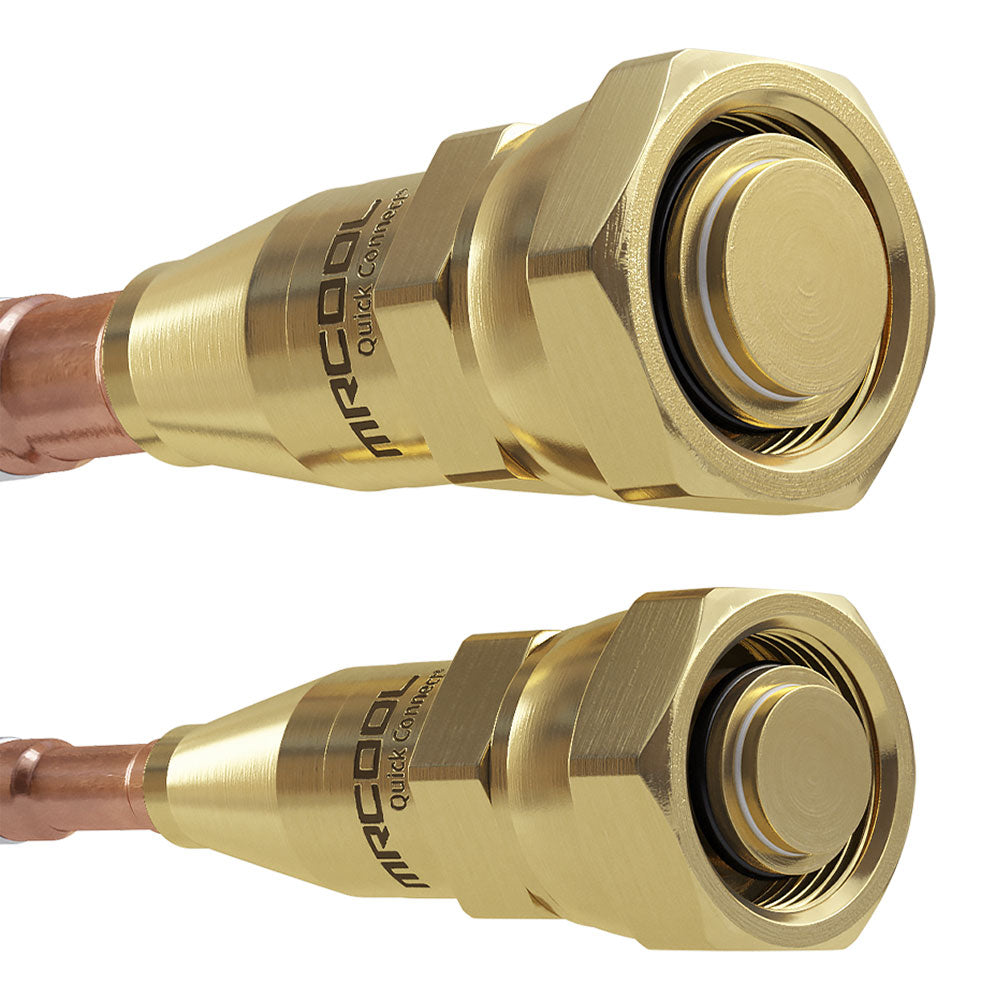

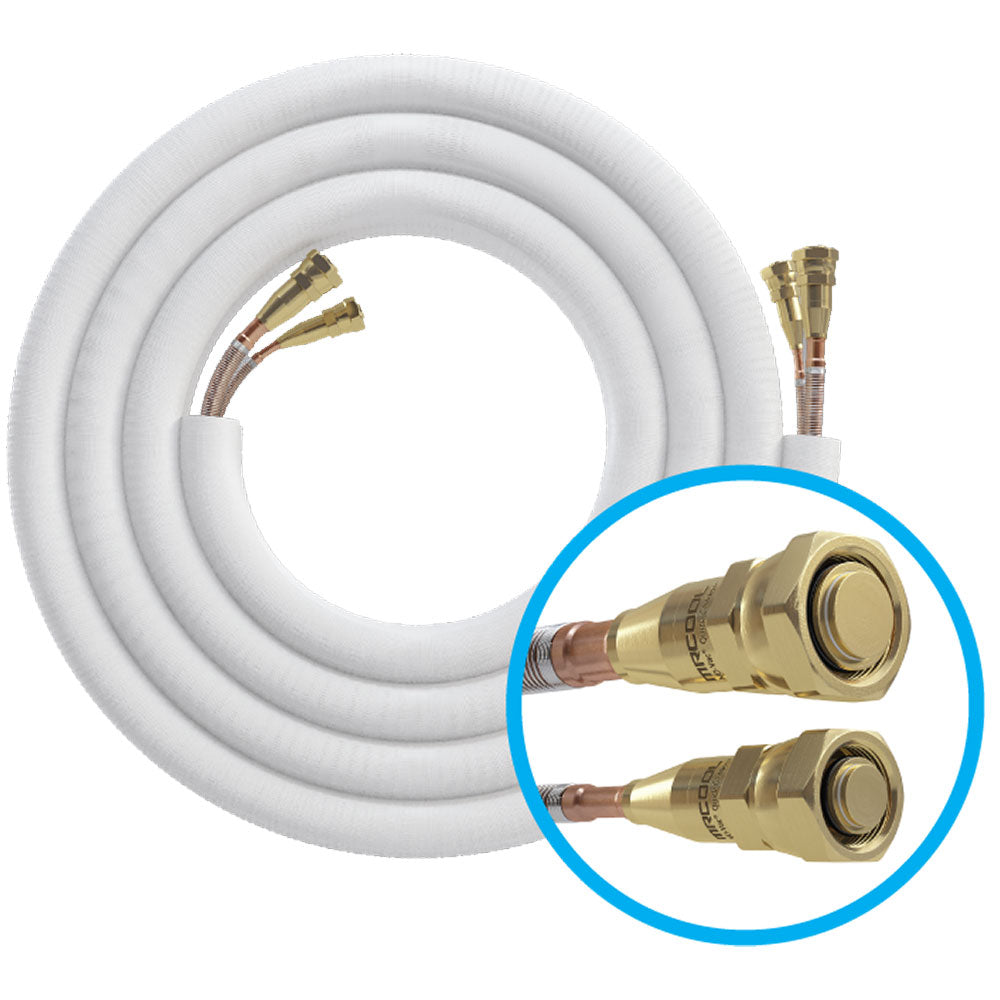

35 Ft. R-454B No-Vac Line Set
| DIMENSIONS | |
|---|---|
| Dimensions | 41" D x 41" H x 5" W |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Net Weight (Lbs) | 32 |
| Gross Weight (Lbs) | 37 |
| GENERAL INFORMATION | |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 5.73 |
| Line Set Length | 35ft |
| Lineset Fitting Type | Quick-Connect |
| Contains Chemicals | Yes |

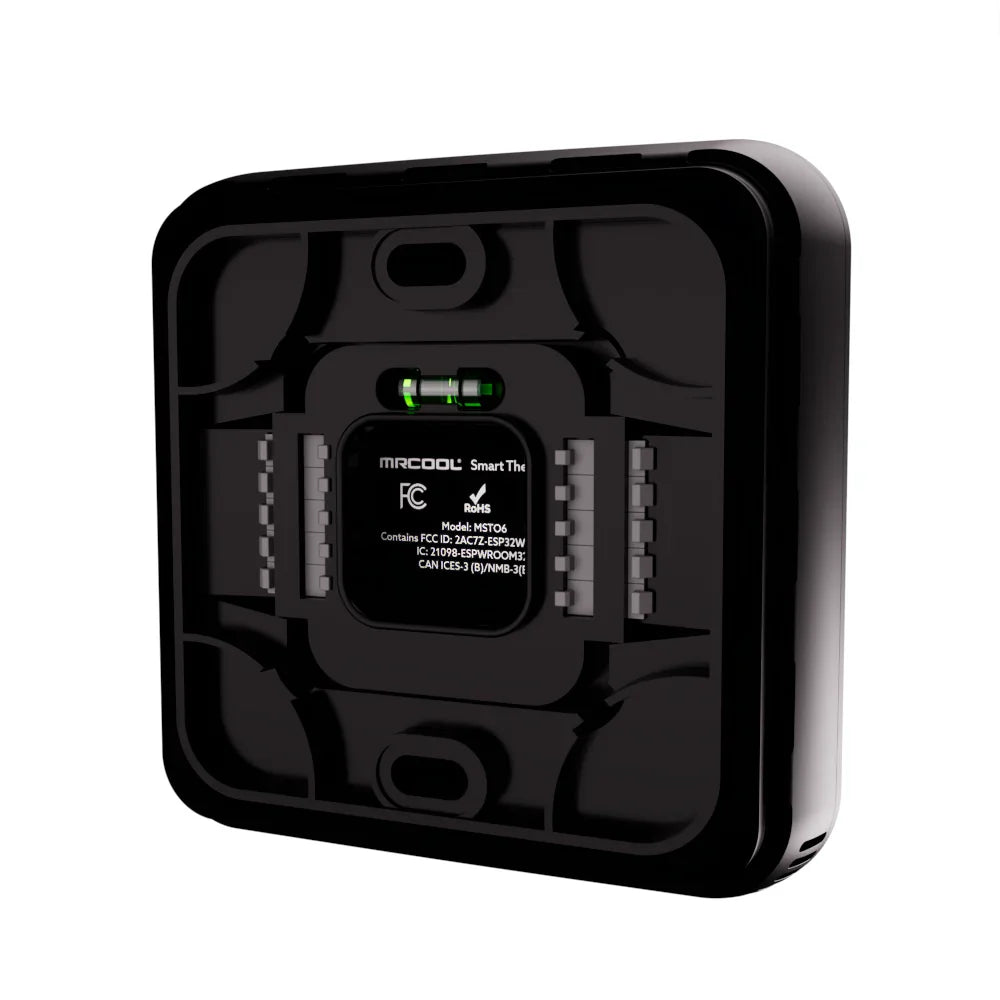

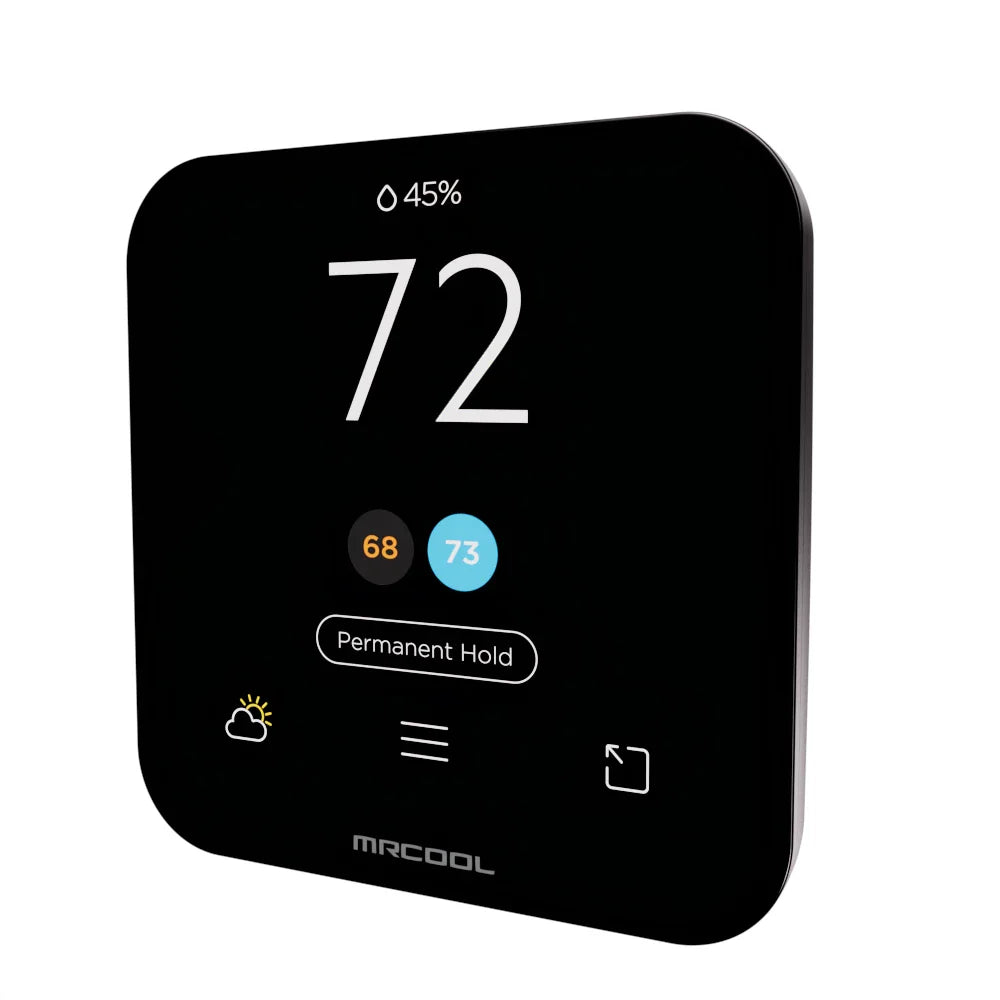

The MRCOOL® Smart Thermostat is designed to fit seamlessly into any home, delivering the perfect balance of comfort, convenience, and energy efficiency. Upgrade your heating and cooling system into a smarter, more responsive solution that gives you complete control right from your phone.
Getting started is simple with the MRCOOL® SmartHVAC app. Guided registration and an intuitive interface makes setup fast and frustration-free, while DIY-friendly installation gets your system running in no time—no professional install required. Fine-tune your home environment with personalized temperature thresholds and smart templates designed for comfort and efficiency. Create schedules that complement your lifestyle using presets like Home, Away, and Sleep, or build a fully customized routine that is personalized just for you.
Monitor real-time heating and cooling usage to better understand your energy consumption and maximize savings. Smart automation reduces unnecessary runtime, helping lower utility costs while maintaining ideal indoor comfort. Enjoy the ease of voice-controlled convenience with the MRCOOL® Smart Thermostat, compatible with Amazon Alexa, Google Assistant, and Siri. Location-based geofencing automatically adjusts your home’s temperature as you come and go, delivering comfort when you need it and savings when you don’t. Track, adjust, and optimize energy usage with precision to create a smarter, more efficient home.
Backed by a 3-year warranty, the MRCOOL® Smart Thermostat delivers reliable performance, advanced technology, and long-term confidence—making efficient, intelligent comfort easier than ever.
| DIMENSIONS | |
|---|---|
| Net Dimensions (In) | 3.9" D x 0.9" H x 3.9" W |
| Net Weight (Lbs) | 5.6 oz |
| Gross Depth (In) | 6.5 |
| Gross Height (In) | 2.04 |
| Gross Width (In) | 5.4 |
| Gross Weight (Lbs) | 14.1 oz |
| GENERAL INFORMATION | |
| Voltage (V) | 24 |
| Color | Black |
| Works With Ios | Yes |
| Works With Android | Yes |
| Base Warranty | 3 Year Limited |
| Contains Electronics | Yes |
| FEATURES | |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
