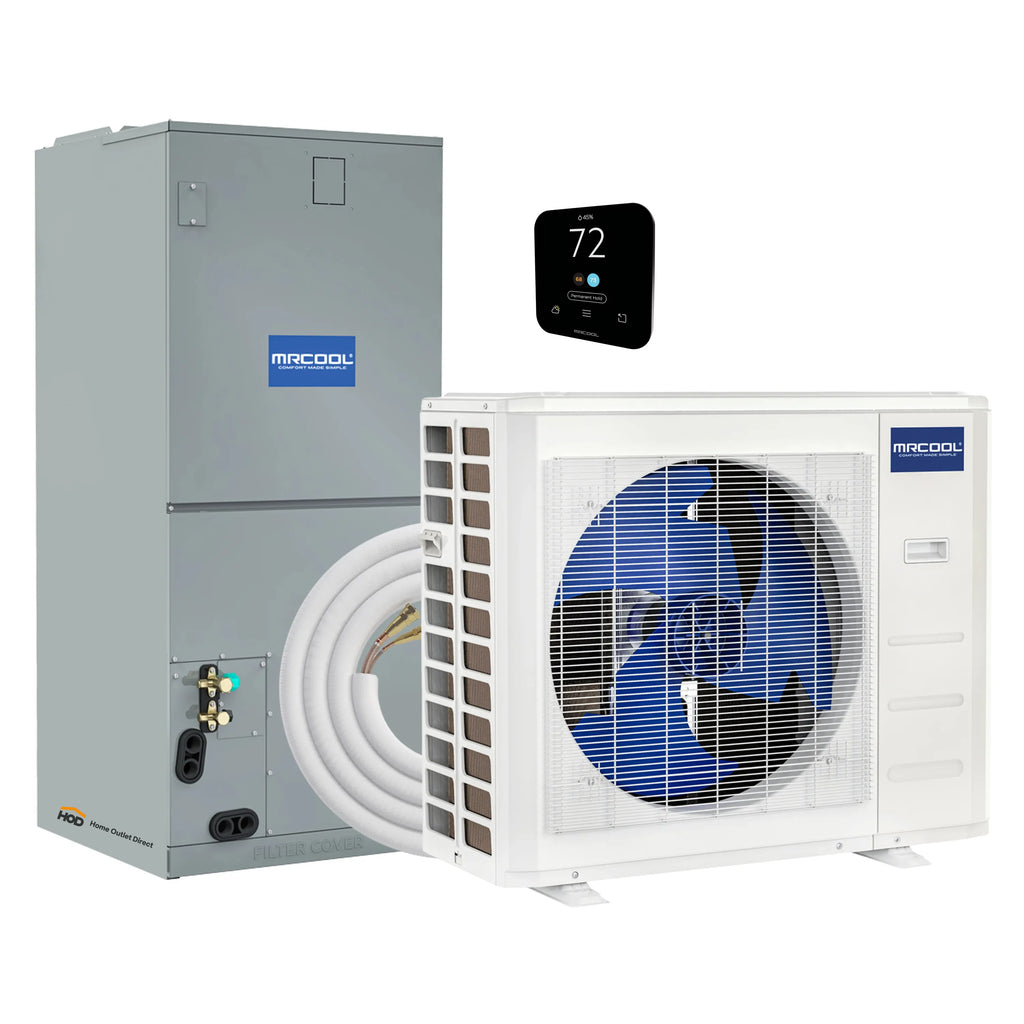

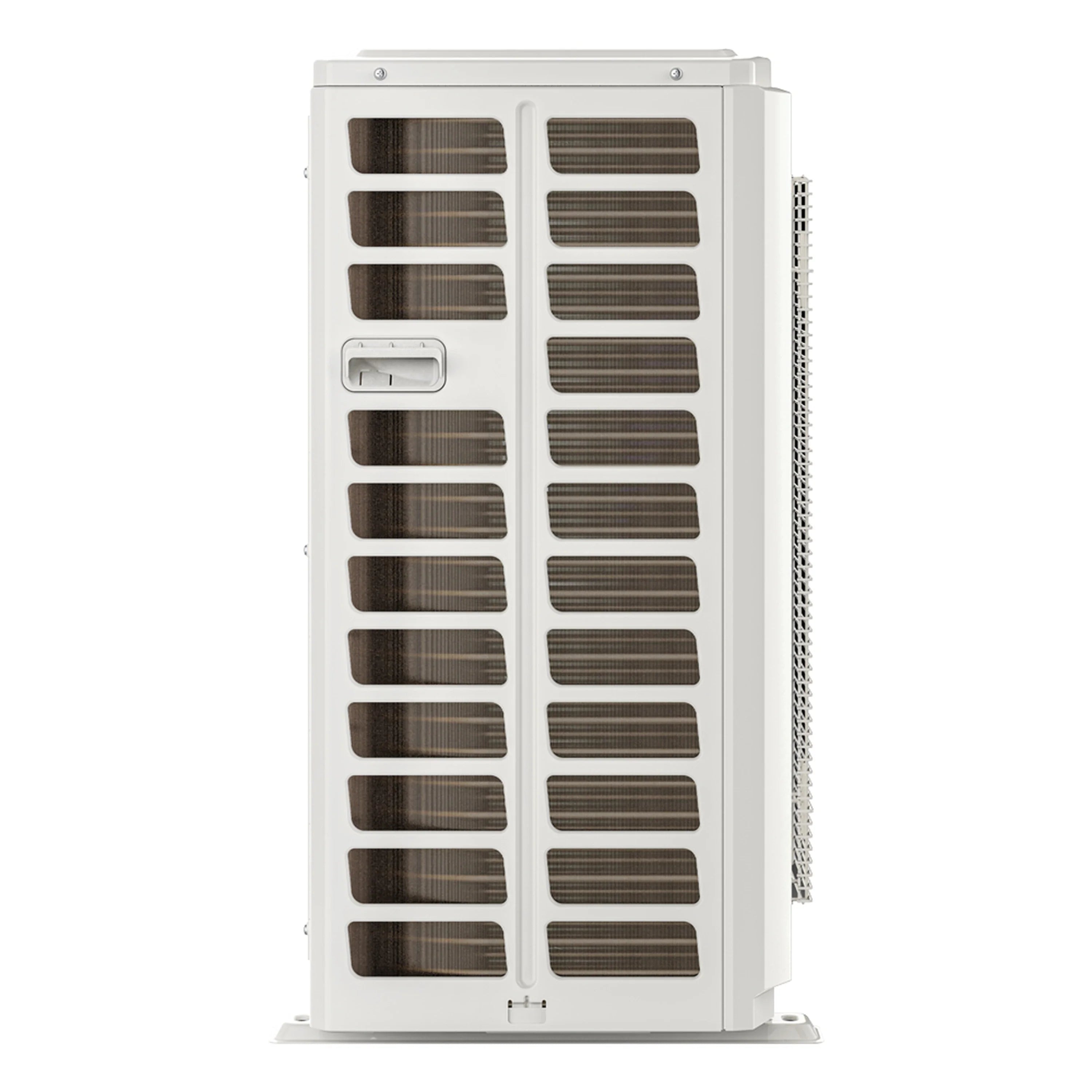

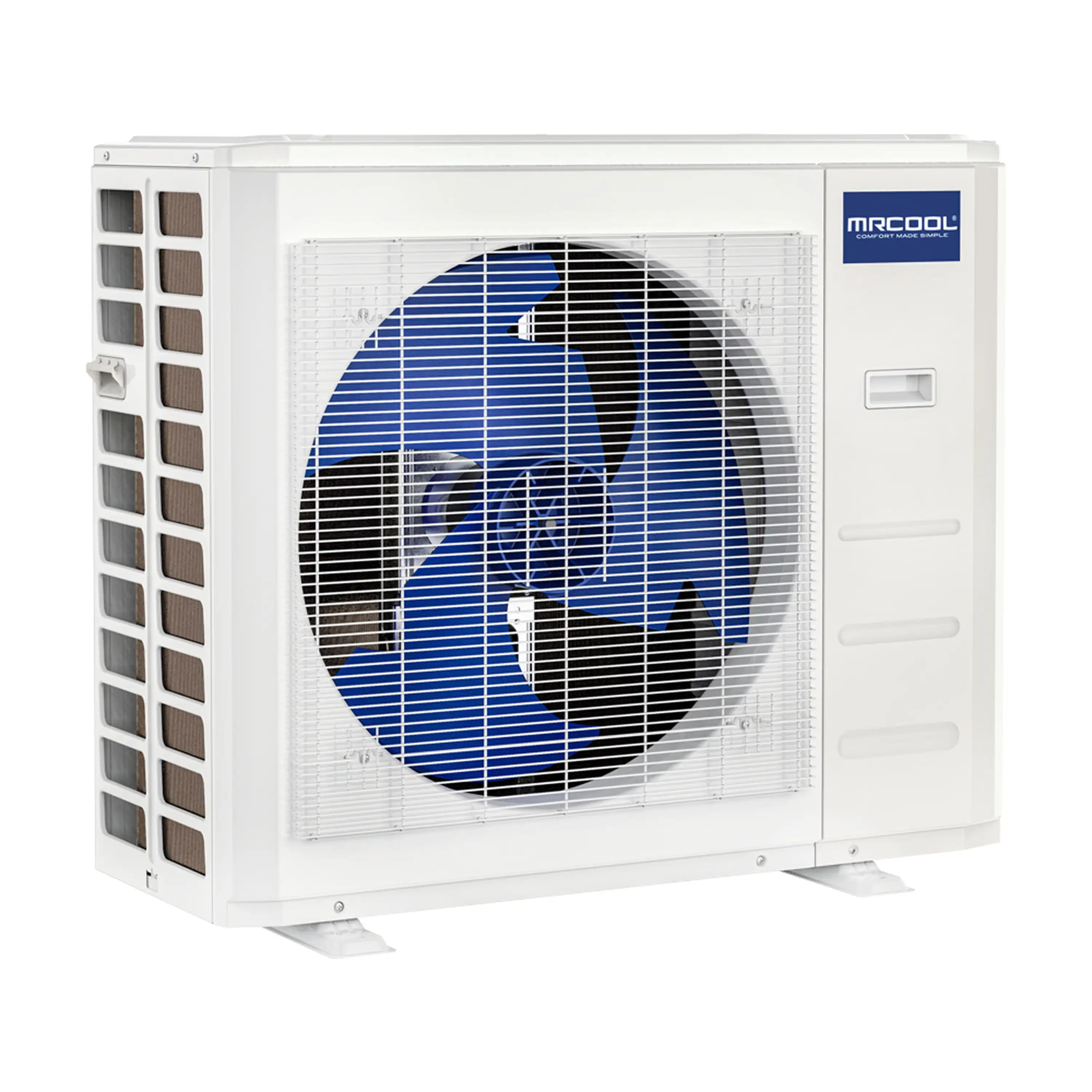

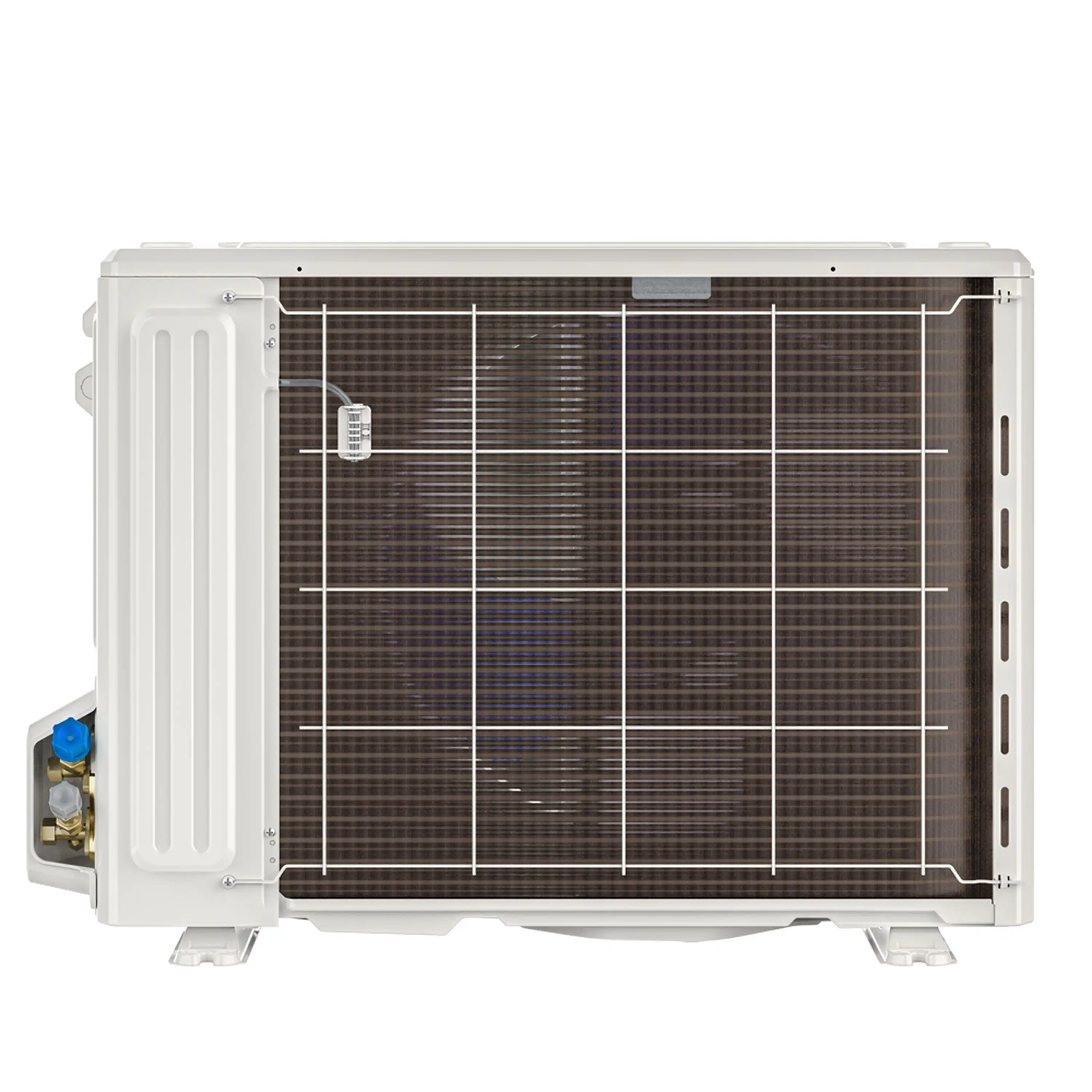

Experience unmatched comfort and efficiency with the 1.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser. You will be able to enjoy reliable year-round heating and cooling while saving on your energy bills. This advanced 18k variable-speed unit offers an impressive SEER2 rating of 18.8 and an HSPF4 rating of 9.1, combining high performance with energy savings. Specifically designed to pair seamlessly with the MRCOOL® VersaPro® Central Ducted Air Handler, it creates a dependable, high-quality system tailored to your home’s needs. Featuring a DC inverter, this unit ensures quiet, efficient operation while keeping utility costs under control, making it an excellent upgrade for older, less efficient systems. Additionally, it includes a MRCOOL® Smart thermostat that allows for effortless temperature control.
The VersaPro® condenser prioritizes sustainability by utilizing eco-friendly R-454B refrigerant, which has a lower environmental impact than traditional options. Its robust construction, made from painted galvanized steel, ensures long-lasting performance. The compact, side-discharge design allows for versatile installation in smaller spaces, while the integrated self-diagnostics feature simplifies maintenance and troubleshooting. With a comprehensive 10-year warranty covering the compressor and parts, the 1.5 Ton VersaPro® MRCOOL® Central Ducted Heat Pump Condenser offers reliability and peace of mind you can depend on. Upgrade your home’s HVAC system today and experience efficient, powerful climate control that keeps you comfortable no matter the season.
|
Dimensions |
12.99" D x 21.81" H x 31.69" W |
|
SEER2 |
18.8 |
|
EER2 |
11 |
|
HSPF-4 |
9.1 |
|
HSPF-5 |
7 |
|
CFM |
1450.9 |
|
Tonnage |
1.5 |
|
Cooling Capacity (BTU) |
18000 |
|
Heating Capacity (BTU) |
18000 |
|
Voltage (V) |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
20 |
|
Min Circuit Ampacity (A) |
16 |
|
Color |
gray |
|
Refrigerant Type |
R454B |
|
Refrigerant Volume (OZ) |
51.15 |
|
Decibel Rating (DBA) |
55 |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
ETL Certified |
Yes |
|
Energy Star Certified |
No |
|
AHRI Certified |
Yes |
|
Base Parts Warranty |
10 Years |
|
Base Compressor Warranty |
10 Years |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Compressed Gas |
Yes |
|
Net Weight (Lbs) |
77 |
|
Gross Depth (In) |
14.57 |
|
Gross Height (In) |
24.21 |
|
Gross Width (In) |
36.02 |
|
Gross Weight (Lbs) |
84 |

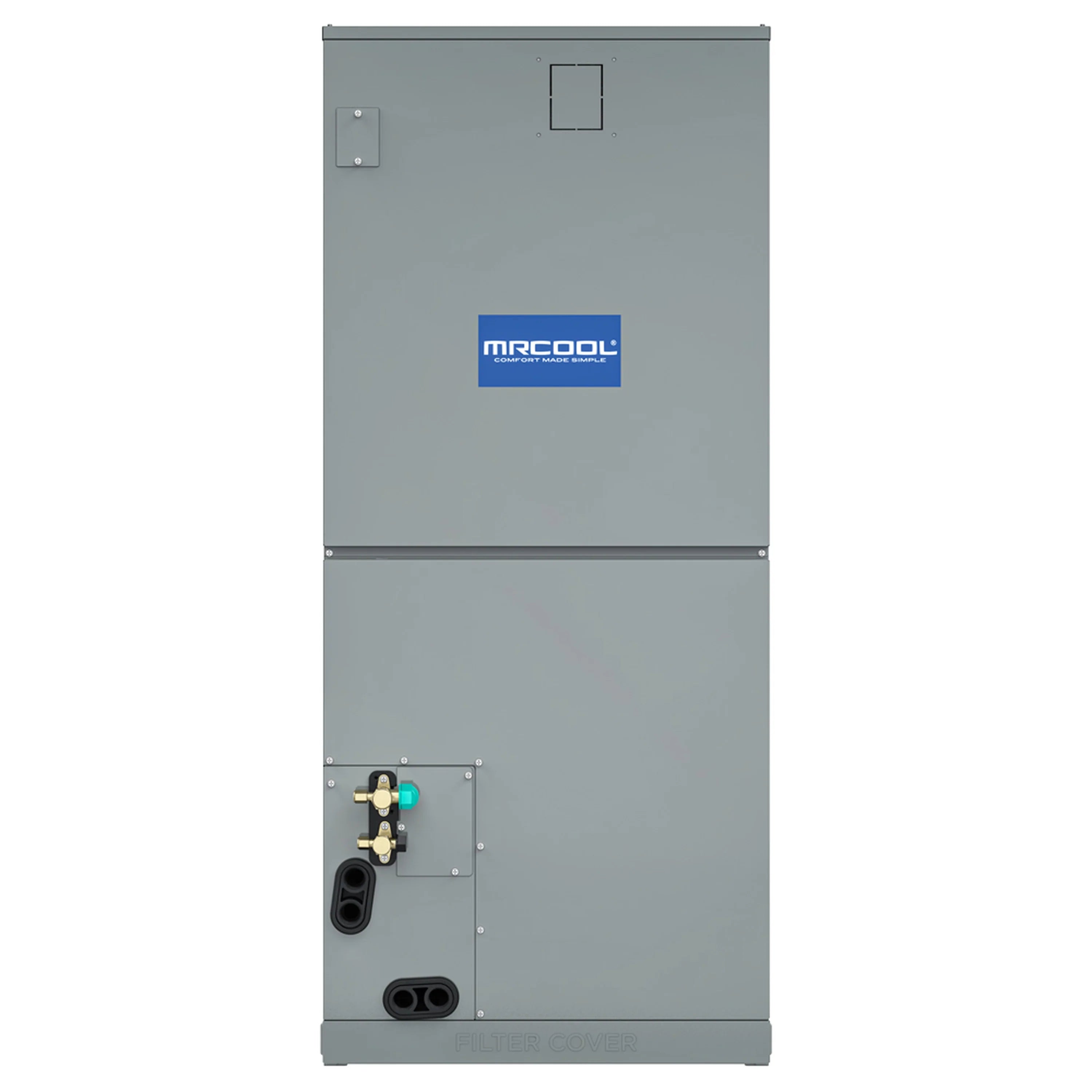

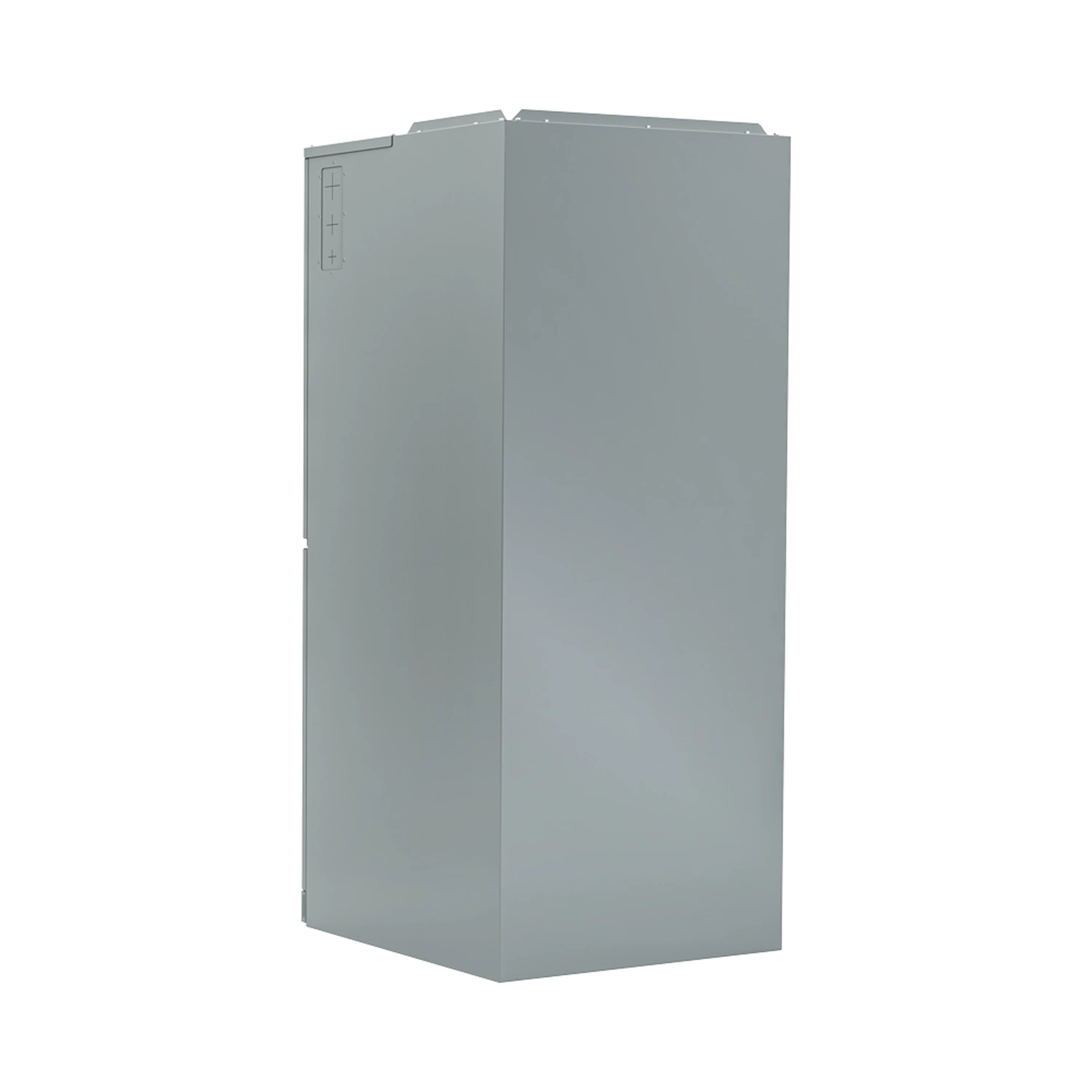

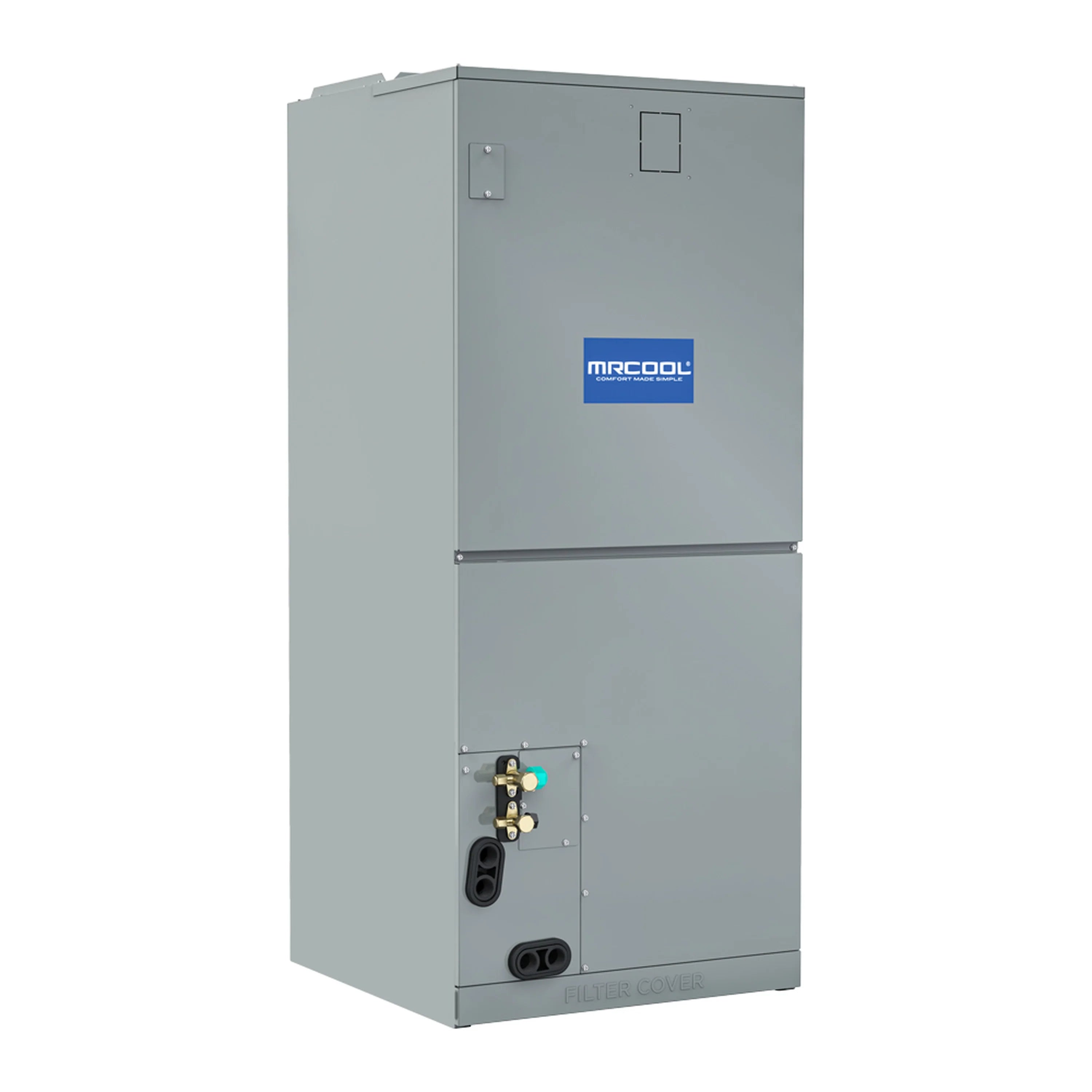

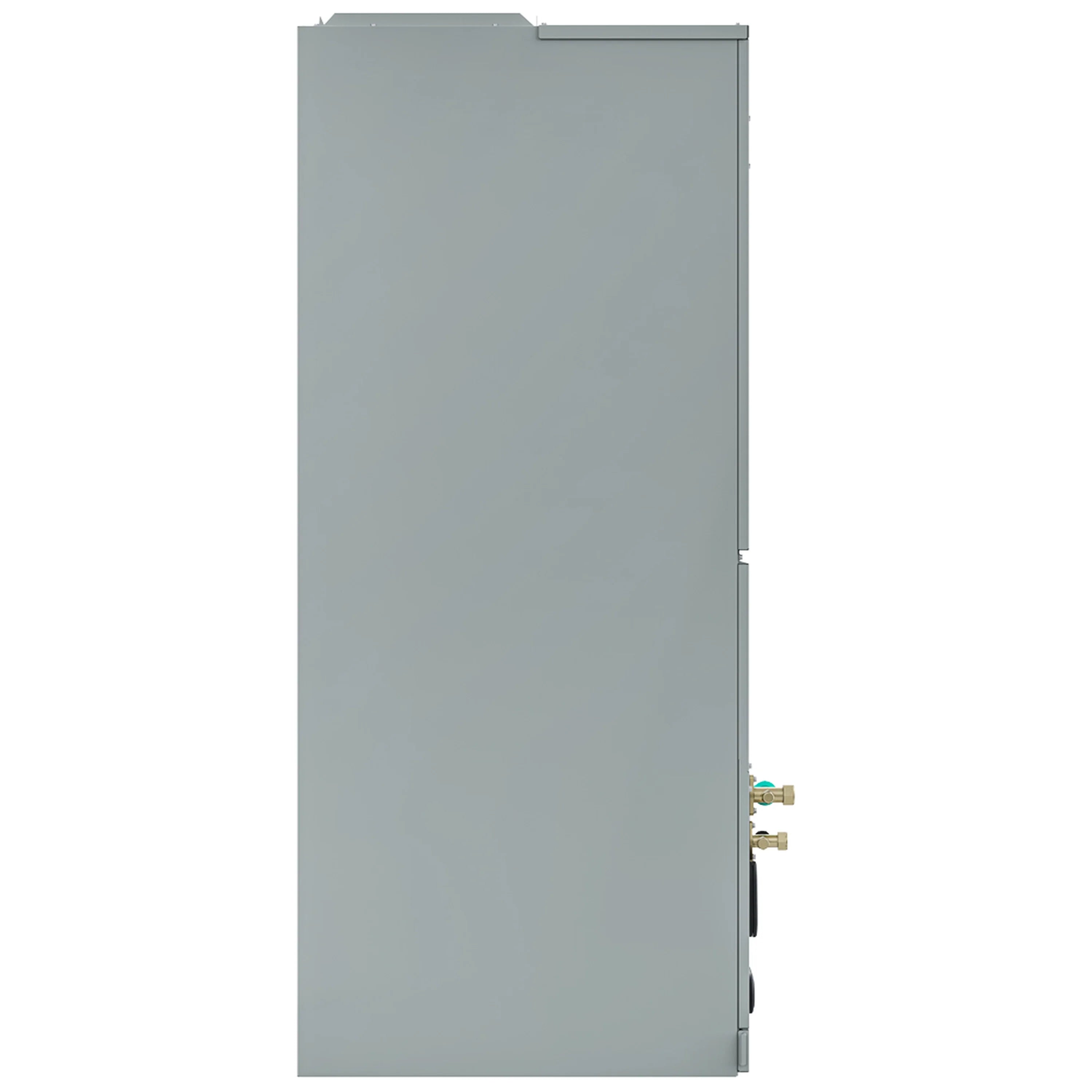

The 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is an efficient and reliable option for heating and cooling your home throughout the year. With a SEER2 rating of up to 18.8, it is ideal for spaces up to 750 square feet, making it a great upgrade for older HVAC systems. The air handler is built with durability in mind, featuring a painted galvanized steel exterior that ensures long-lasting performance. Maintenance is made easier with a self-diagnostics panel that quickly identifies any issues, reducing the need for troubleshooting.
This unit offers flexible installation options, including upflow, downflow, and horizontal left or right configurations, allowing it to fit various setups. It uses R-454B refrigerant, an eco-friendly option that reduces environmental impact while maintaining efficient performance. An optional heat kit is available for those who need additional heating. Complementing this, the MRCOOL® Smart Thermostat ensures reliable and easy-to-use temperature control, making it simple to maintain your ideal home climate. Its compatibility with the MRCOOL® SmartHVAC app allows you to conveniently adjust your settings remotely for added comfort and control. Backed by a 10-year warranty, the 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient solution for improving your home’s comfort and performance.
|
Dimensions |
17.52" D x 45" H x 21.02" W |
|
CFM |
618.03/576.83/529.74/488.54 |
|
Tonnage |
1.5 |
|
Cooling Capacity (BTU) |
18000 |
|
Heating Capacity (BTU) |
18000 |
|
Voltage (V) |
115/208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
15 |
|
Min Circuit Ampacity (A) |
5.5/4.0 |
|
Color |
gray |
|
Decibel Rating Low (DBA) |
33 |
|
Decibel Rating High (DBA) |
44 |
|
Number of Speeds |
4 |
|
Max Lineset Length (FT) |
98.4 ft |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
Filter Type |
Replaceable |
|
Filter Size |
16x20x1 |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
Yes |
|
Auxiliary Heater Sizes |
5kW/8kW/10kW |
|
Adjustable Thermostat |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
ETL Certified |
Yes |
|
Energy Star Certified |
No |
|
AHRI Certified |
Yes |
|
Base Parts Warranty |
10 Years |
|
Base Compressor Warranty |
10 Years |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Compressed Gas |
Yes |
|
Net Weight (Lbs) |
105.82 |
|
Gross Depth (In) |
20.87 |
|
Gross Height (In) |
48.62 |
|
Gross Width (In) |
26.57 |
|
Gross Weight (Lbs) |
126.76 |

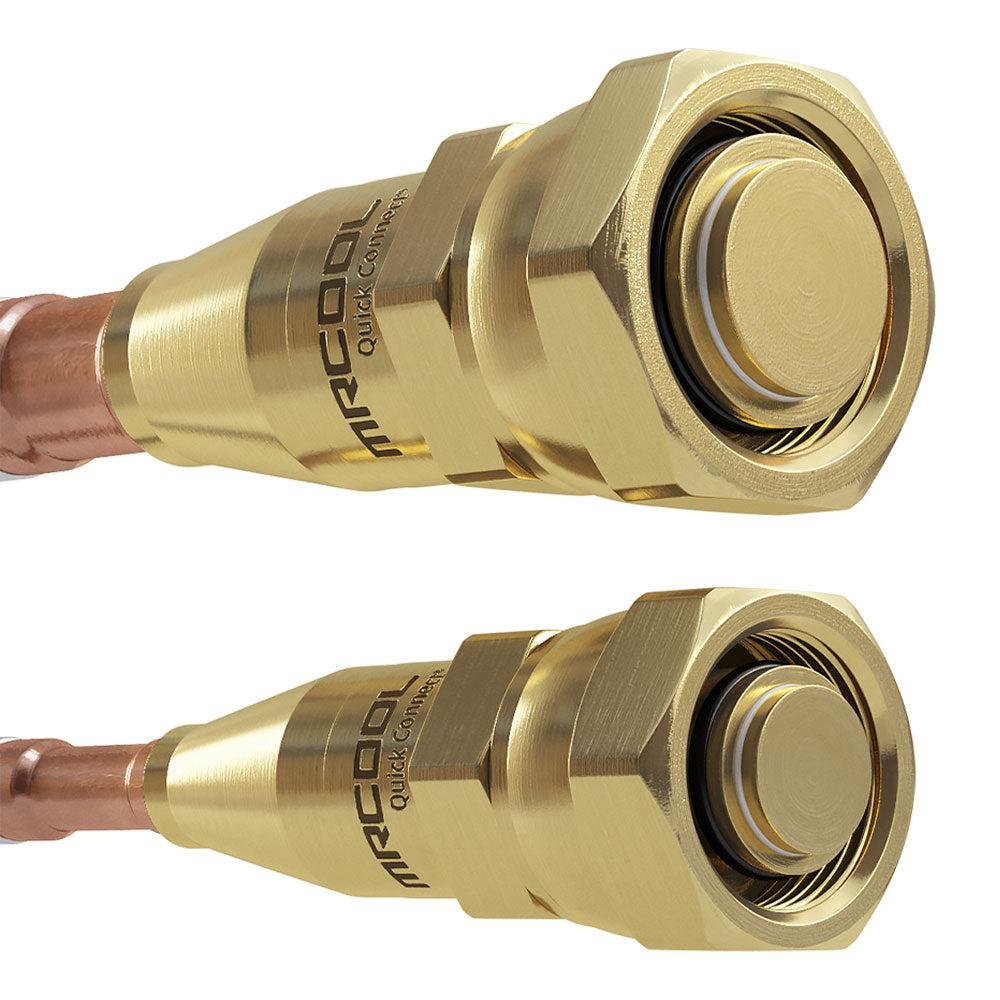

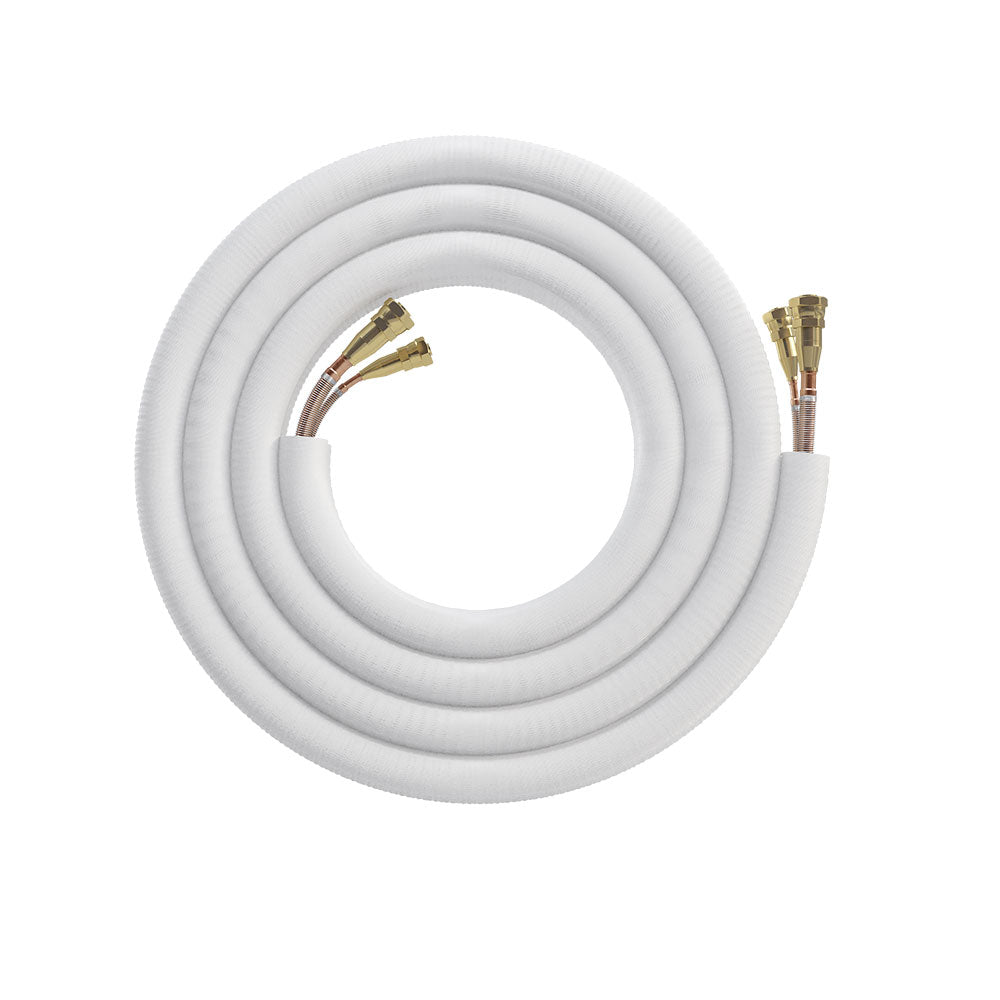

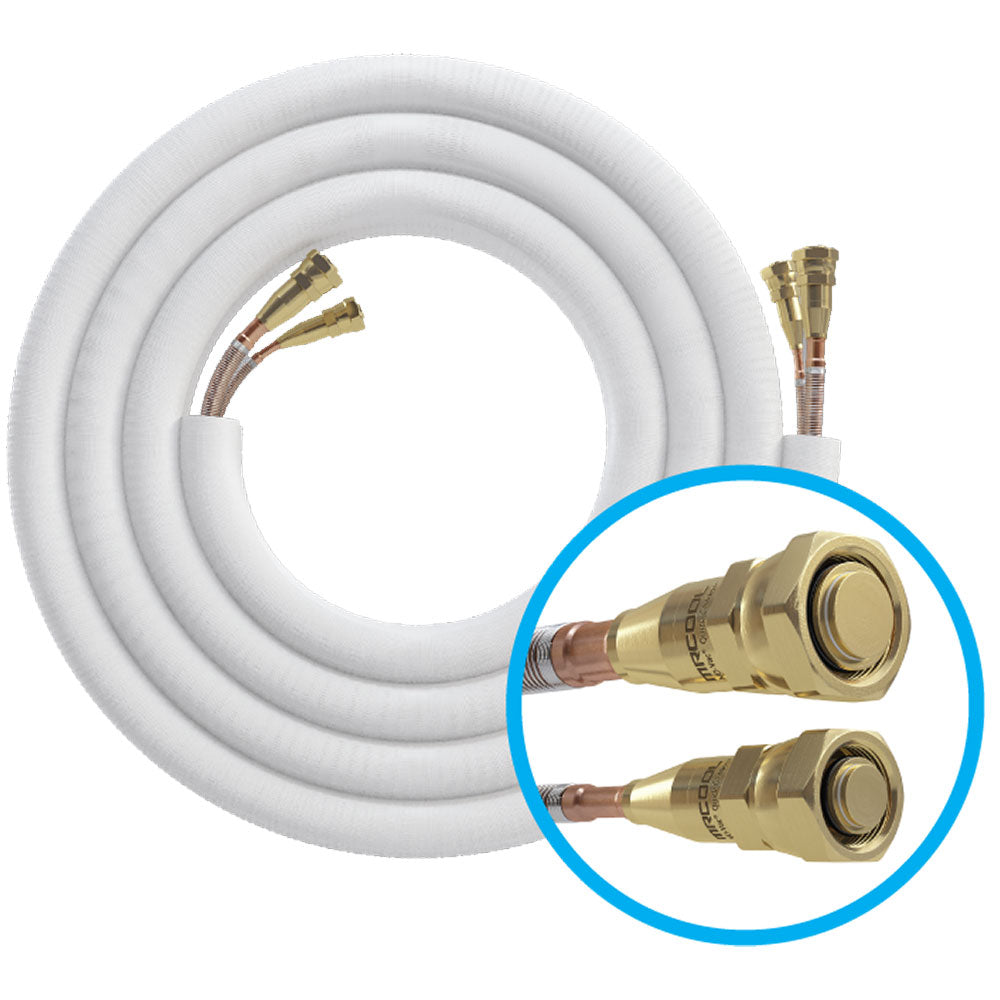

50' R-454B No-Vac Lineset
|
Dimensions |
47" D x 47" H x 5" W |
|
Refrigerant Type |
R-454B |
|
Refrigerant Volume (OZ) |
17.19 |
|
Line Set Length |
49.2ft |
|
Lineset Fitting Type |
Quick-Connect |
|
Liquid Line Size |
3/8 |
|
Suction Line Size |
3/4 |
|
Contains Chemicals |
Yes |
|
Net Weight (Lbs) |
45 |
|
Gross Weight (Lbs) |
54 |

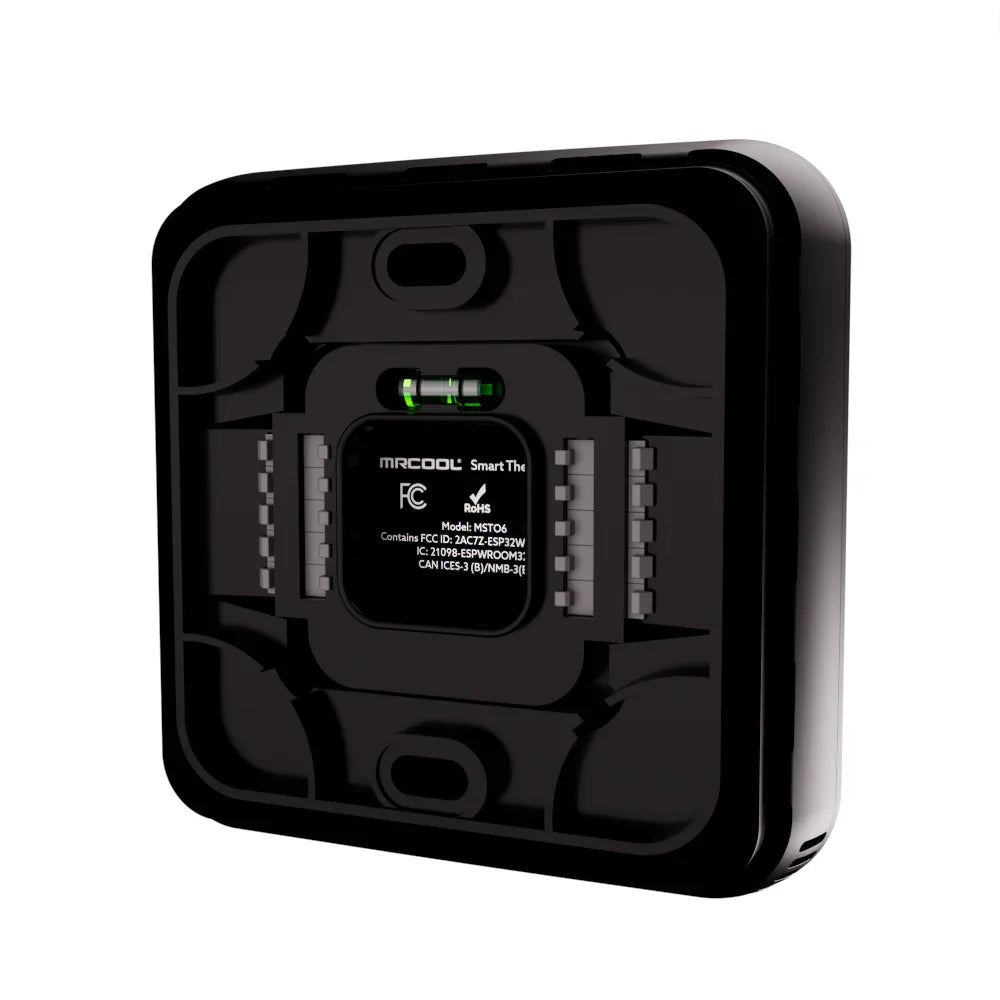

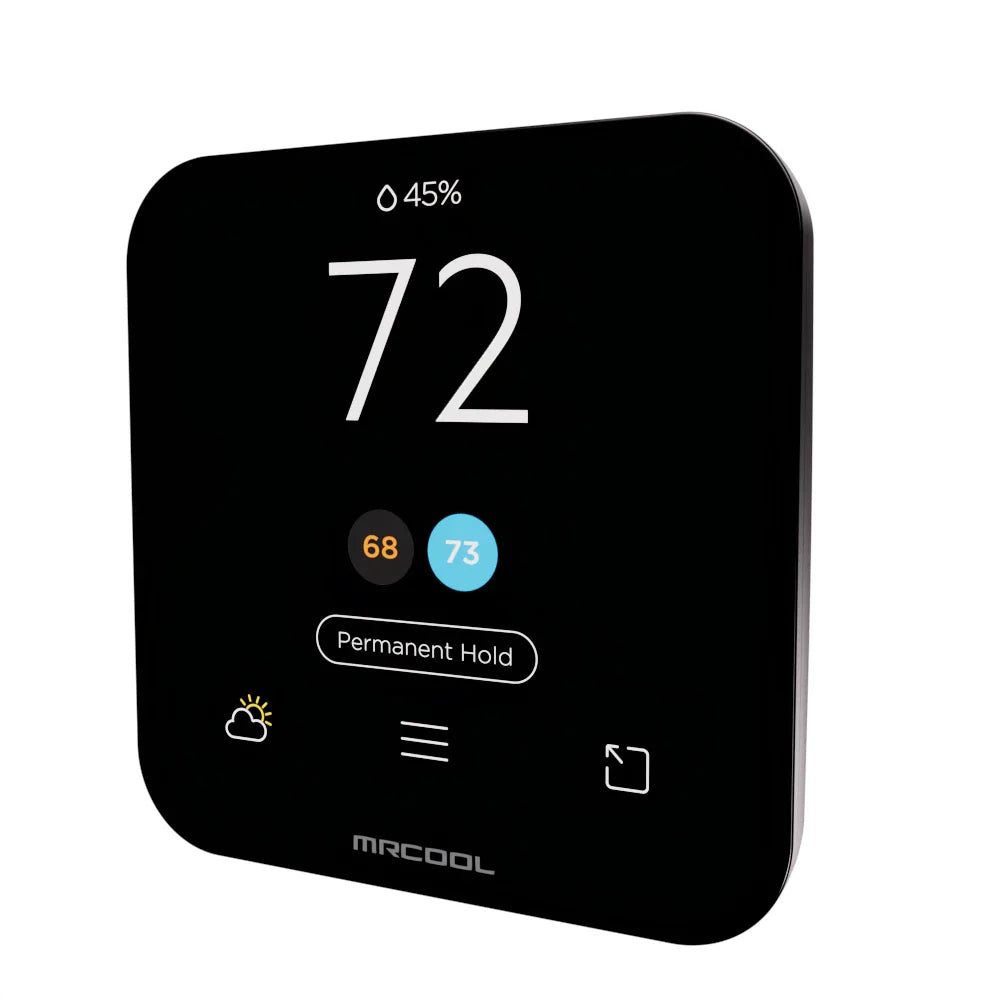

Experience unparalleled comfort and energy efficiency with the MRCOOL Smart Thermostat, which boasts personalized heating and cooling options alongside a straightforward DIY installation process. This thermostat empowers you to customize settings effortlessly, enhancing your comfort while simultaneously reducing energy consumption. Choose from a plethora of modes and options to curate your ideal environment, including the convenient vacation mode, ensuring home safety during your absence without unnecessarily inflating energy bills.
Control lies at the heart of this Smart Thermostat, providing multiple avenues such as the intuitive touch-screen display, voice commands via popular virtual assistants like Google Assistant, Siri, or Amazon Alexa, or the innovative Smart HVAC app. The app offers a range of useful features, from an air filter cleaning monitor to a timeline displaying recent system adjustments, allowing you to track usage levels and fine-tune temperature and fan speed settings.
With its unique location-based services, the thermostat automatically adjusts settings based on your proximity to home, ensuring you always return to the perfect temperature. Even in the event of an internet outage, you can maintain control using the thermostat directly, adjusting temperature and settings as needed. With the added reassurance of a 3-year warranty, the MRCOOL Smart Thermostat provides peace of mind alongside unparalleled technology, comfort, and efficiency.
|
Dimensions |
3.9" D x 1" H x 3.9" W |
|
Voltage (V) |
24 |
| Sleep Mode | Yes |
| Base Parts Warranty | 3 Years |
| Gross Dimensions | 6.5" D x 2.12" H x 5.37" W |
| Gross Weight (lbs) | 0.95 |
*Shipping Policy
I ordered a HVAC system and it arrived in a timely manner and with no apparent issues. I thought the system was defective once installed but it was the installers fault who wired it wrong. My only issue would be the fee (30% I believe) to return a defective item within the 30 day return policy. If it is defective the customer shouldn't have to pay a fee to return an item that is not operating as designed. Other than that this is a good company.
Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!
Installed with ceiling cassettes... Quiet and keeping us cool so far !
Very good customer service will be buying from them again
Was easy to install. Directions were easy to follow and unit is working great
