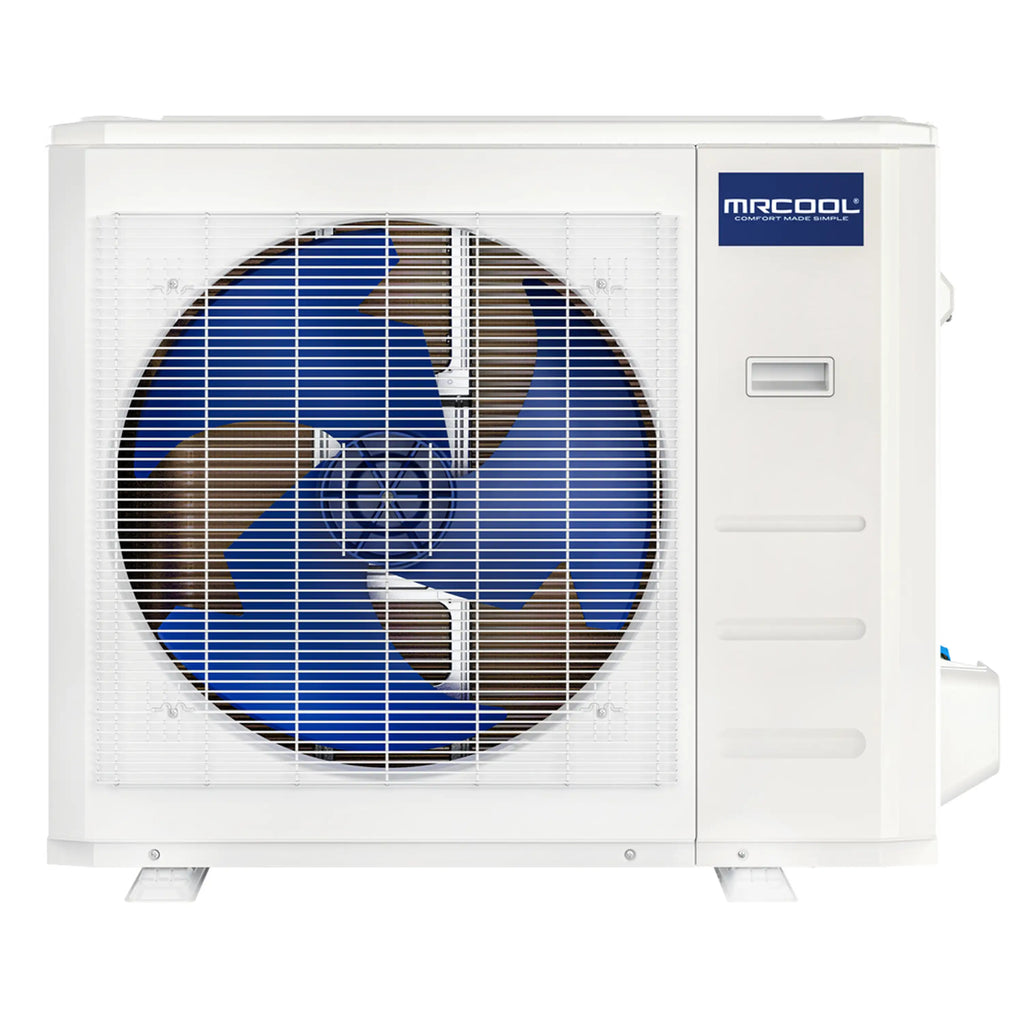

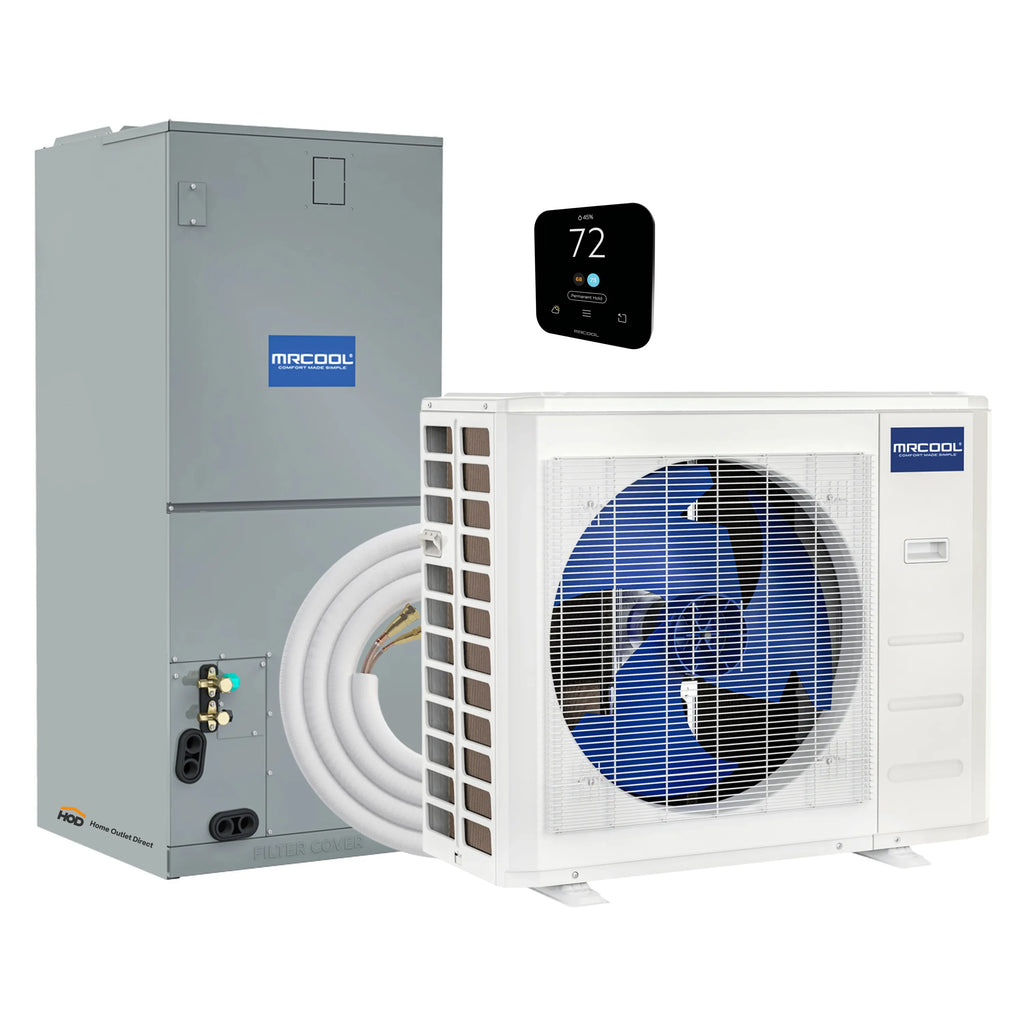

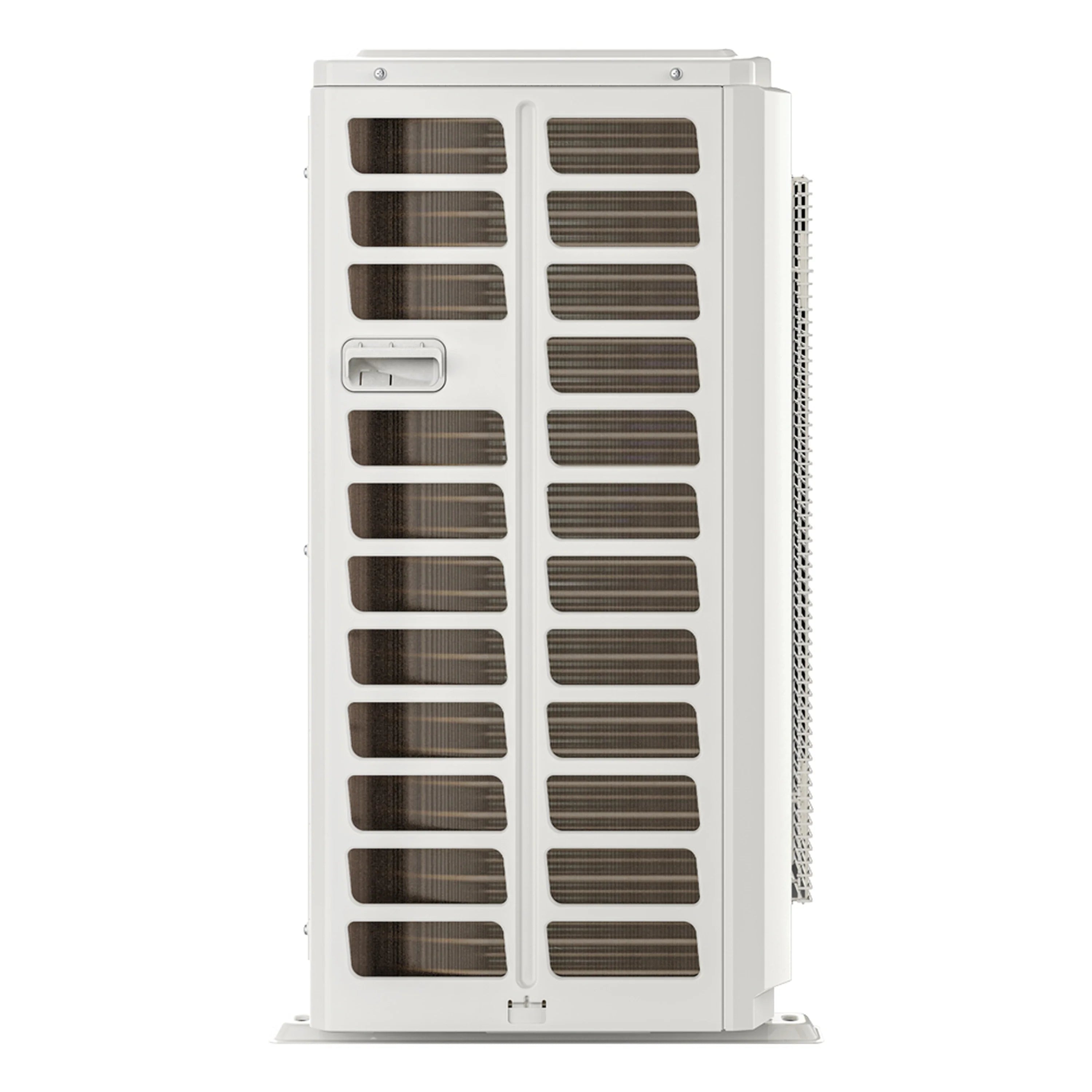

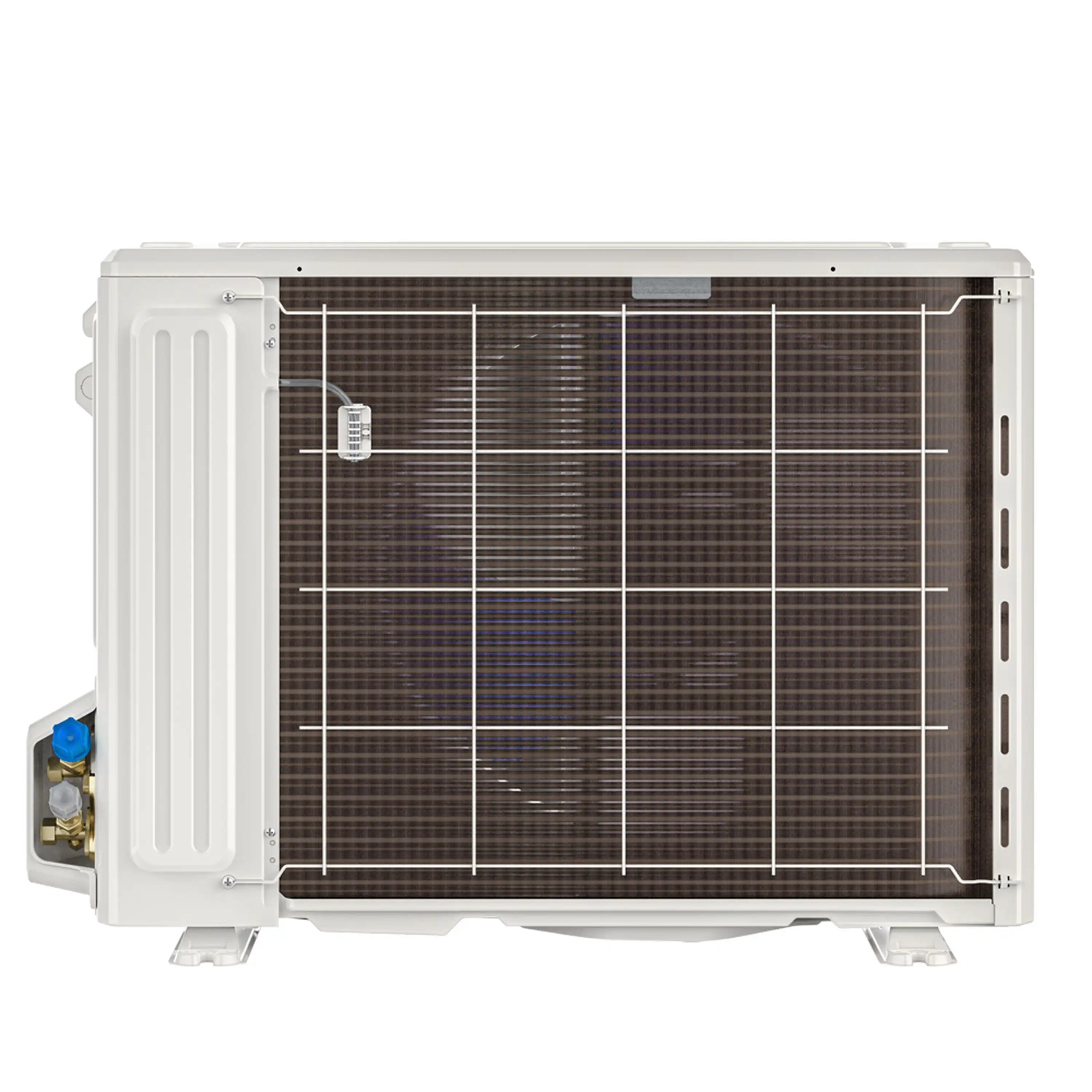

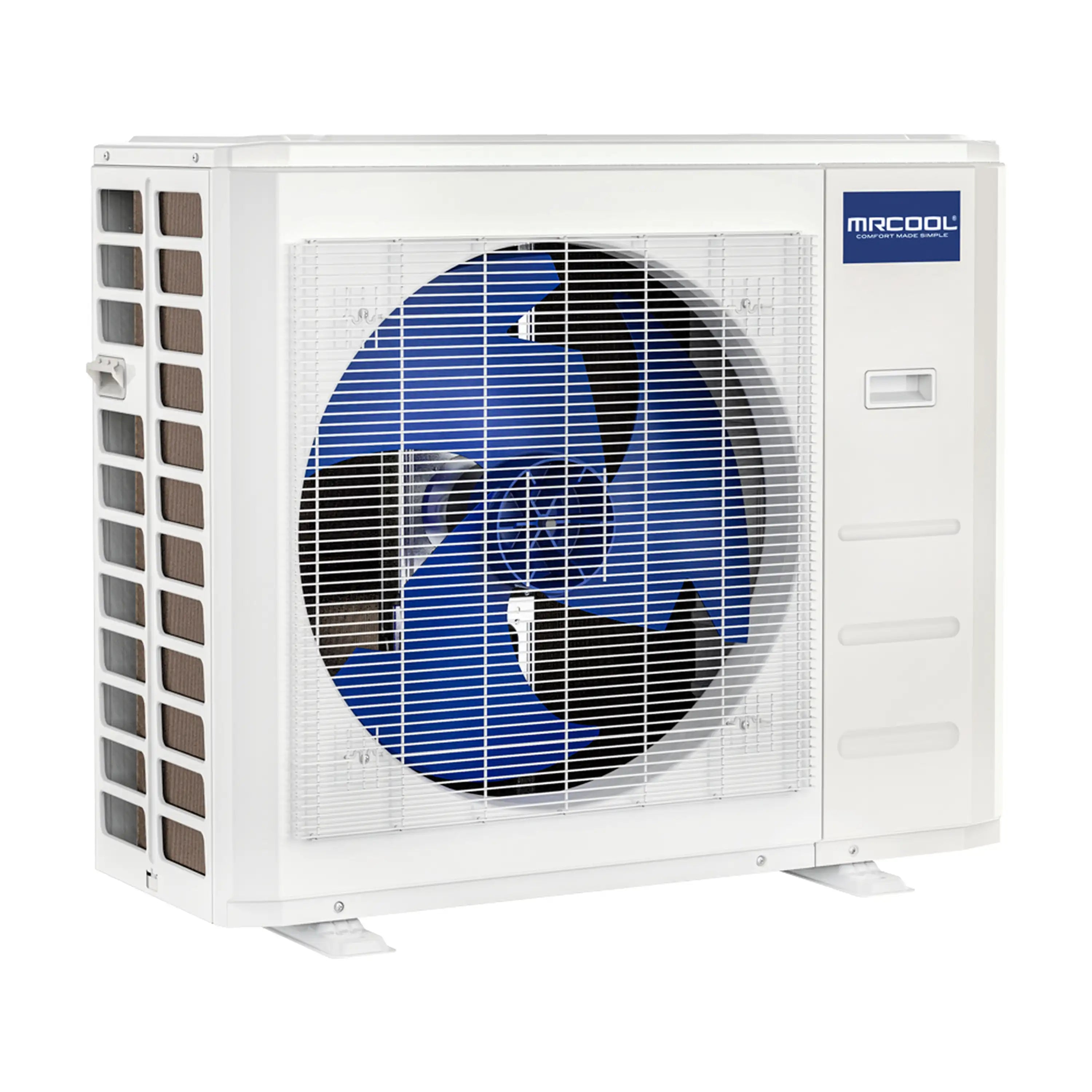

Experience unmatched comfort and efficiency with the 1.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser. You will be able to enjoy reliable year-round heating and cooling while saving on your energy bills. This advanced 18k variable-speed unit offers an impressive SEER2 rating of 18.8 and an HSPF4 rating of 9.1, combining high performance with energy savings.

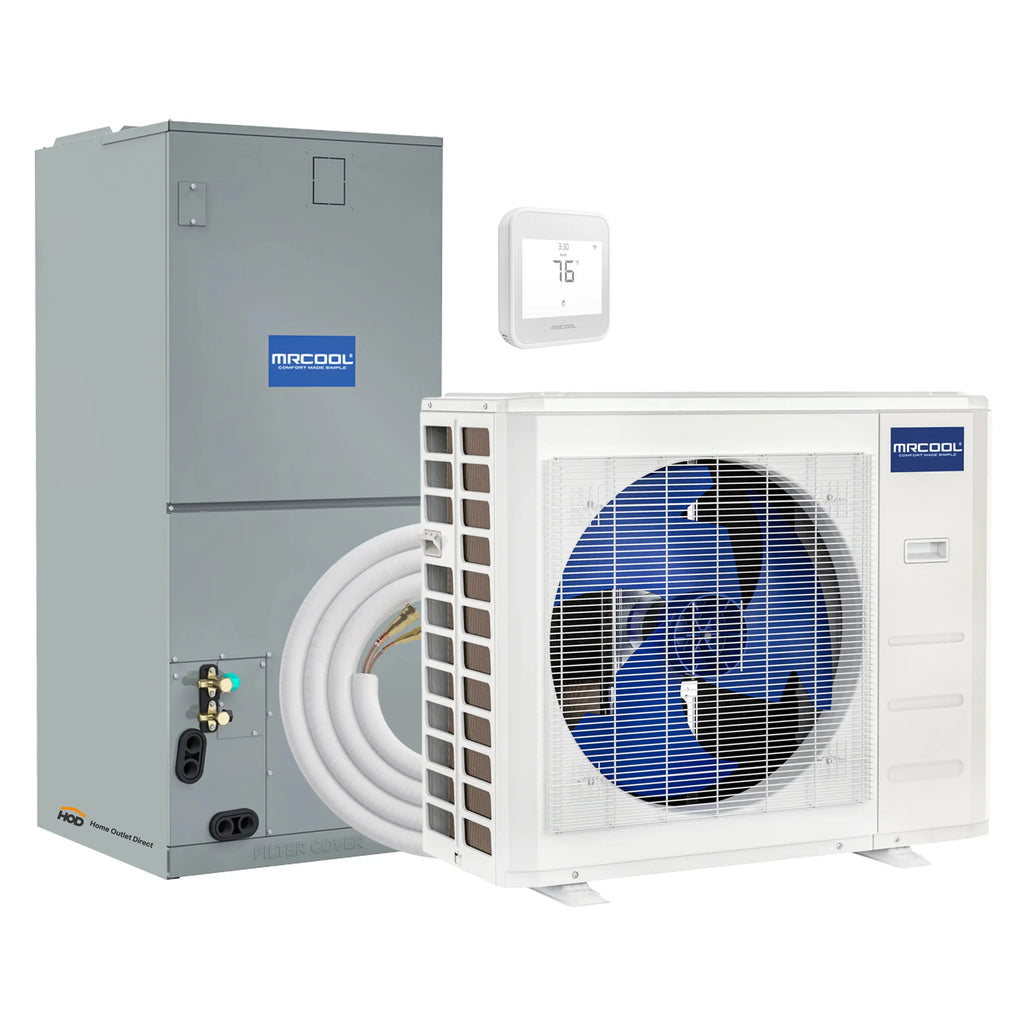

Specifically designed to pair seamlessly with the MRCOOL® VersaPro® Central Ducted Air Handler, it creates a dependable, high-quality system tailored to your home’s needs. Featuring a DC inverter, this unit ensures quiet, efficient operation while keeping utility costs under control, making it an excellent upgrade for older, less efficient systems. Additionally, it includes a MRCOOL® Smart thermostat that allows for effortless temperature control.
The VersaPro® condenser prioritizes sustainability by utilizing eco-friendly R-454B refrigerant, which has a lower environmental impact than traditional options. Its robust construction, made from painted galvanized steel, ensures long-lasting performance. The compact, side-discharge design allows for versatile installation in smaller spaces, while the integrated self-diagnostics feature simplifies maintenance and troubleshooting.
With a comprehensive 10-year warranty covering the compressor and parts, the 1.5 Ton VersaPro® MRCOOL® Central Ducted Heat Pump Condenser offers reliability and peace of mind you can depend on. Upgrade your home’s HVAC system today and experience efficient, powerful climate control that keeps you comfortable no matter the season.
| DIMENSIONS & WEIGHT | |
|---|---|
| Dimensions | 12.99" D x 21.81" H x 31.69" W |
| Net Weight (Lbs) | 77 |
| Gross Depth (In) | 14.57 |
| Gross Height (In) | 24.21 |
| Gross Width (In) | 36.02 |
| Gross Weight (Lbs) | 84 |
| GENERAL INFORMATION | |
| Color | gray |
| CAPACITY & PERFORMANCE | |
| SEER2 | 18.8 |
| EER2 | 11 |
| HSPF-4 | 9.1 |
| HSPF-5 | 7 |
| CFM | 1450.9 |
| Tonnage | 1.5 |
| Cooling Capacity (BTU) | 18000 |
| Heating Capacity (BTU) | 18000 |
| Cycle | 60 |
| NOISE LEVELS | |
| Decibel Rating (DBA) | 55 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208-230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 20 |
| Min Circuit Ampacity (A) | 16 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R454B |
| Refrigerant Volume (OZ) | 51.15 |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| CONTROLS & CONNECTIVITY | |
| WIFI Compatibility | Yes |
| APP Compatibility | Yes |
| SAFETY | |
| ETL Certified | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| WARRANTY | |
| Base Parts Warranty | 10 Years |
| Base Compressor Warranty | 10 Years |

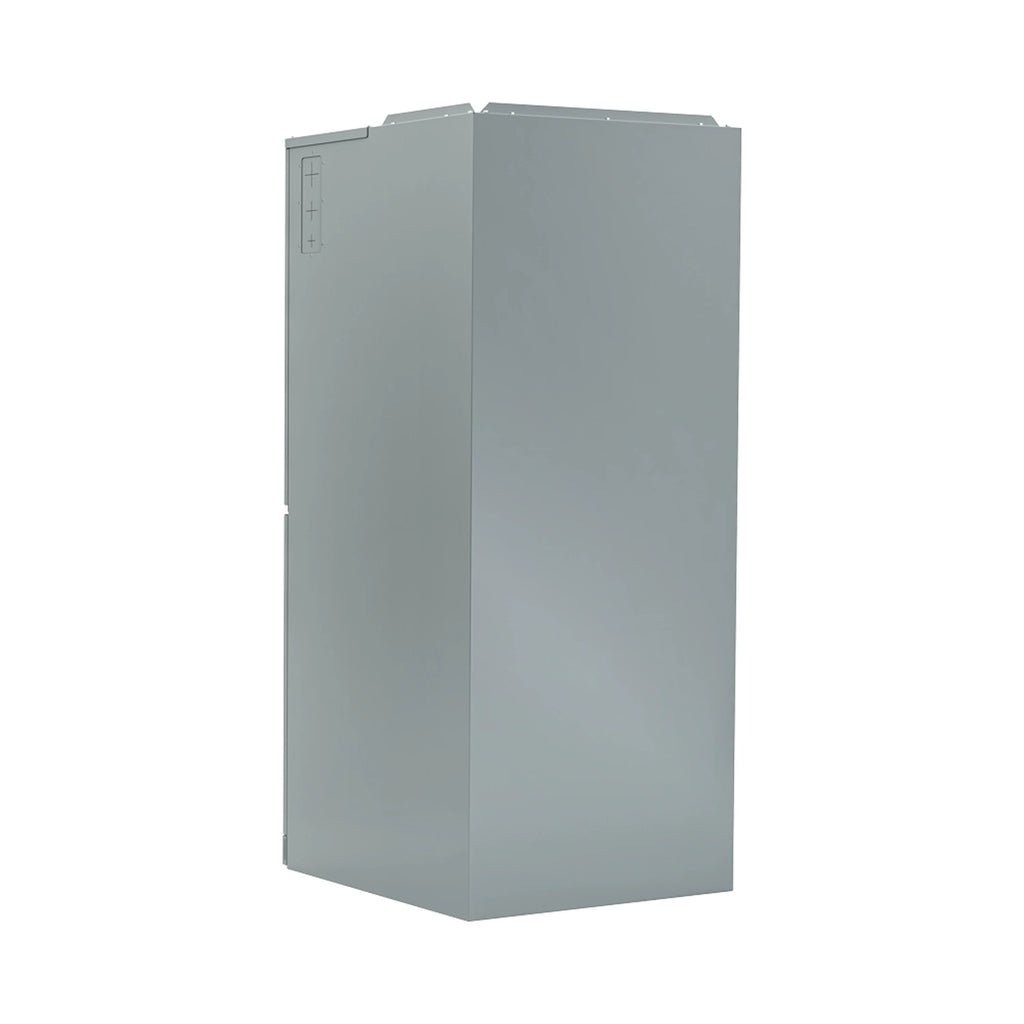

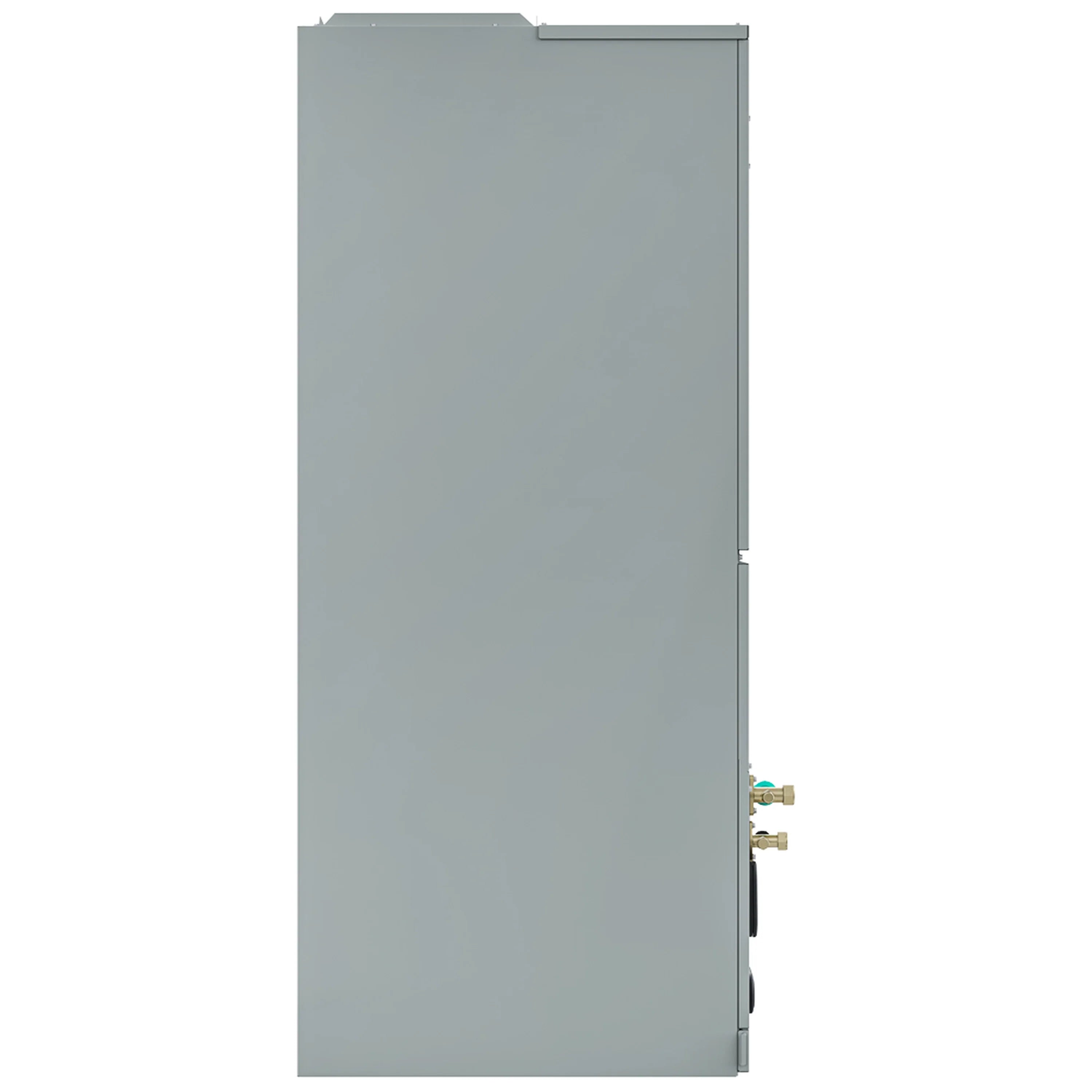

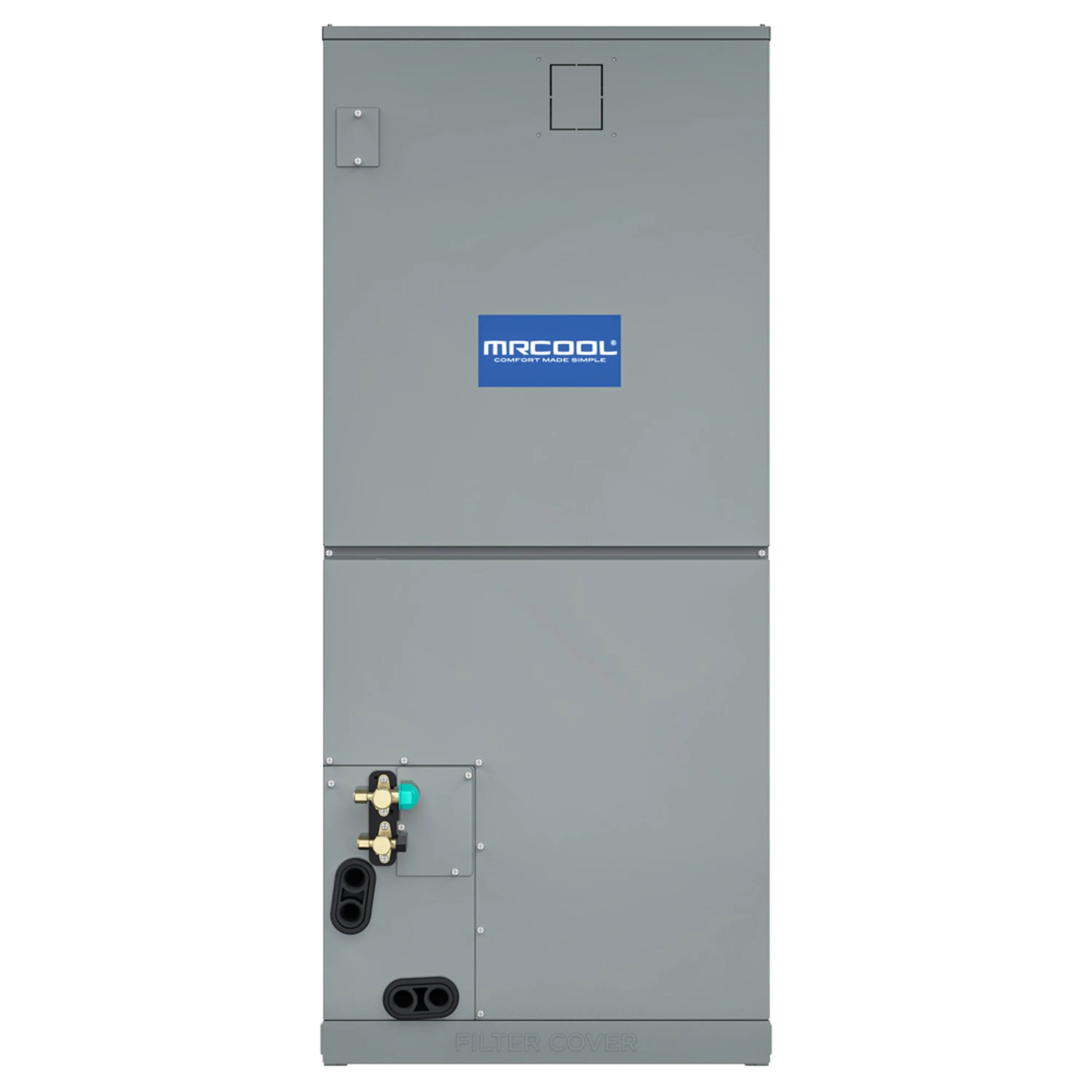

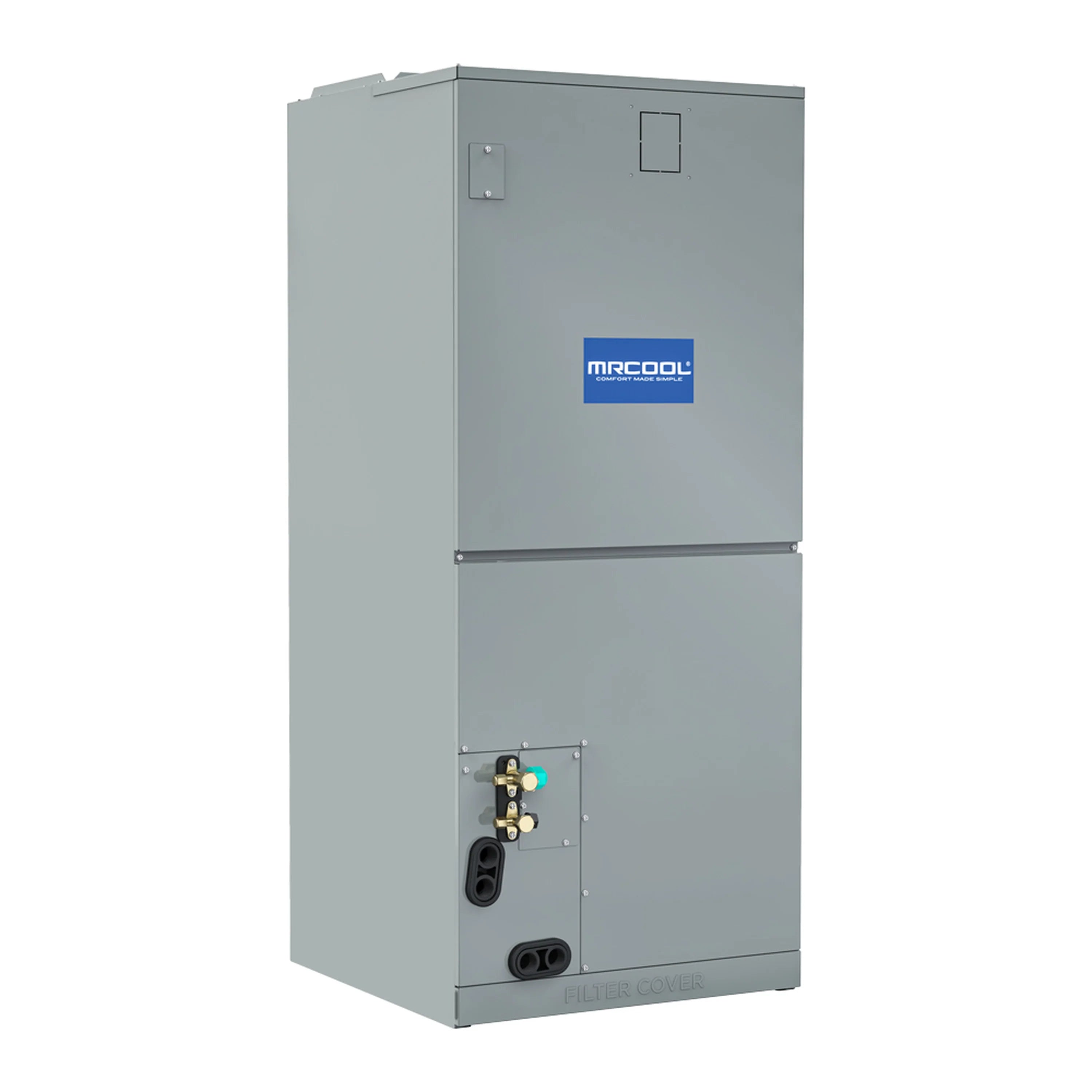

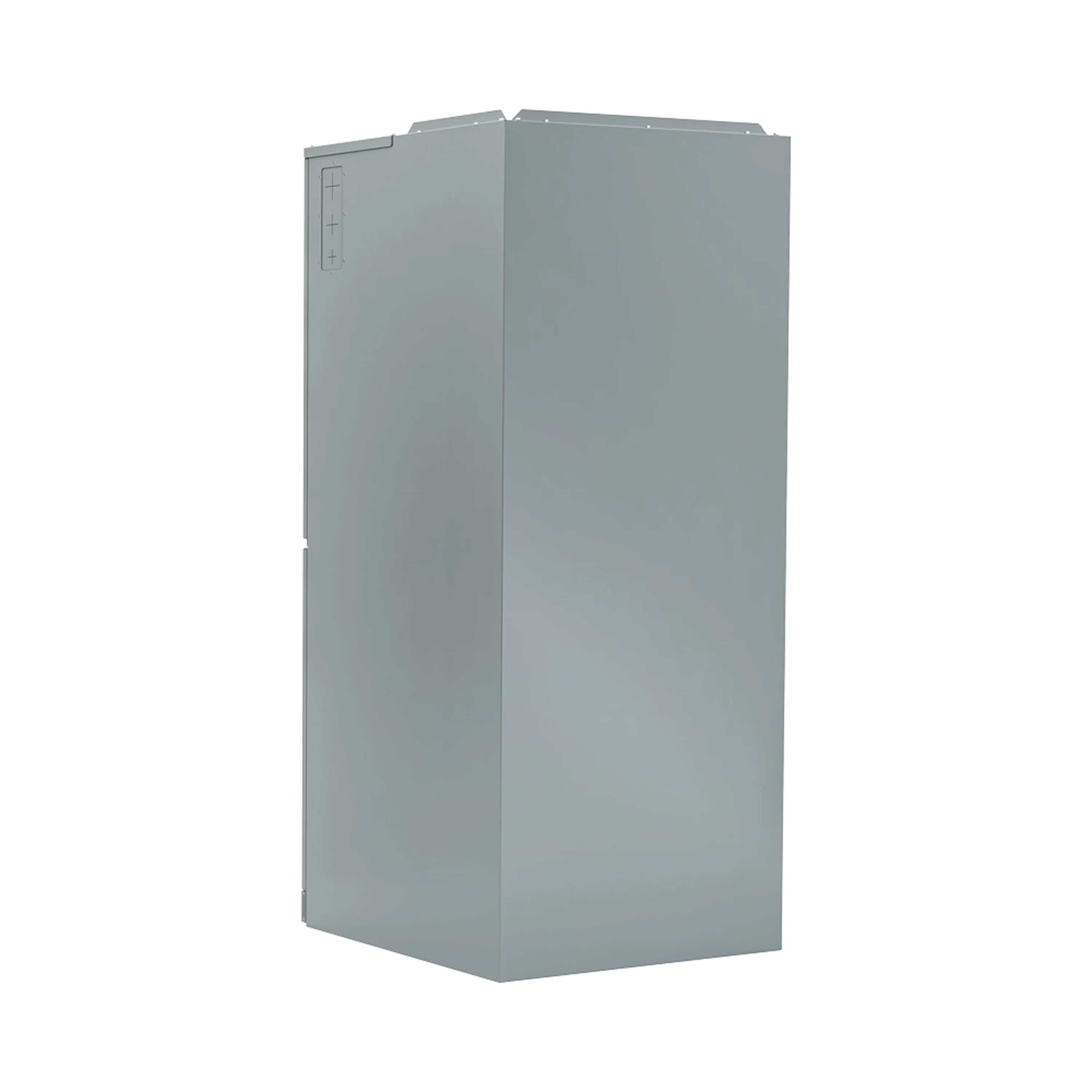

The 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is an efficient and reliable option for heating and cooling your home throughout the year. With a SEER2 rating of up to 18.8, it is ideal for spaces up to 750 square feet, making it a great upgrade for older HVAC systems. The air handler is built with durability in mind, featuring a painted galvanized steel exterior that ensures long-lasting performance. Maintenance is made easier with a self-diagnostics panel that quickly identifies any issues, reducing the need for troubleshooting.
This unit offers flexible installation options, including upflow, downflow, and horizontal left or right configurations, allowing it to fit various setups. It uses R-454B refrigerant, an eco-friendly option that reduces environmental impact while maintaining efficient performance. An optional heat kit is available for those who need additional heating. Complementing this, the MRCOOL® Smart Thermostat ensures reliable and easy-to-use temperature control, making it simple to maintain your ideal home climate. Its compatibility with the MRCOOL® SmartHVAC app allows you to conveniently adjust your settings remotely for added comfort and control. Backed by a 10-year warranty, the 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient solution for improving your home’s comfort and performance.
| DIMENSIONS & WEIGHT | |
|---|---|
| Dimensions | 17.52" D x 45" H x 21.02" W |
| Net Weight (Lbs) | 105.82 |
| Gross Depth (In) | 20.87 |
| Gross Height (In) | 48.62 |
| Gross Width (In) | 26.57 |
| Gross Weight (Lbs) | 126.76 |
| GENERAL INFORMATION | |
| Color | gray |
| CAPACITY & PERFORMANCE | |
| CFM | 618.03/576.83/529.74/488.54 |
| Tonnage | 1.5 |
| Cooling Capacity (BTU) | 18000 |
| Heating Capacity (BTU) | 18000 |
| Cycle | 60 |
| COMPRESSOR & MOTORS | |
| Number of Speeds | 4 |
| NOISE LEVELS | |
| Decibel Rating Low (DBA) | 33 |
| Decibel Rating High (DBA) | 44 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 115/208-230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 5.5/4.0 |
| REFRIGERANT & PIPING | |
| Max Lineset Length (FT) | 98.4 ft |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| FILTER & HEATING | |
| Filter Type | Replaceable |
| Filter Size | 16x20x1 |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 5kW/8kW/10kW |
| CONTROLS & CONNECTIVITY | |
| Adjustable Thermostat | Yes |
| WIFI Compatibility | Yes |
| APP Compatibility | Yes |
| SAFETY | |
| ETL Certified | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| WARRANTY | |
| Base Parts Warranty | 10 Years |
| Base Compressor Warranty | 10 Years |

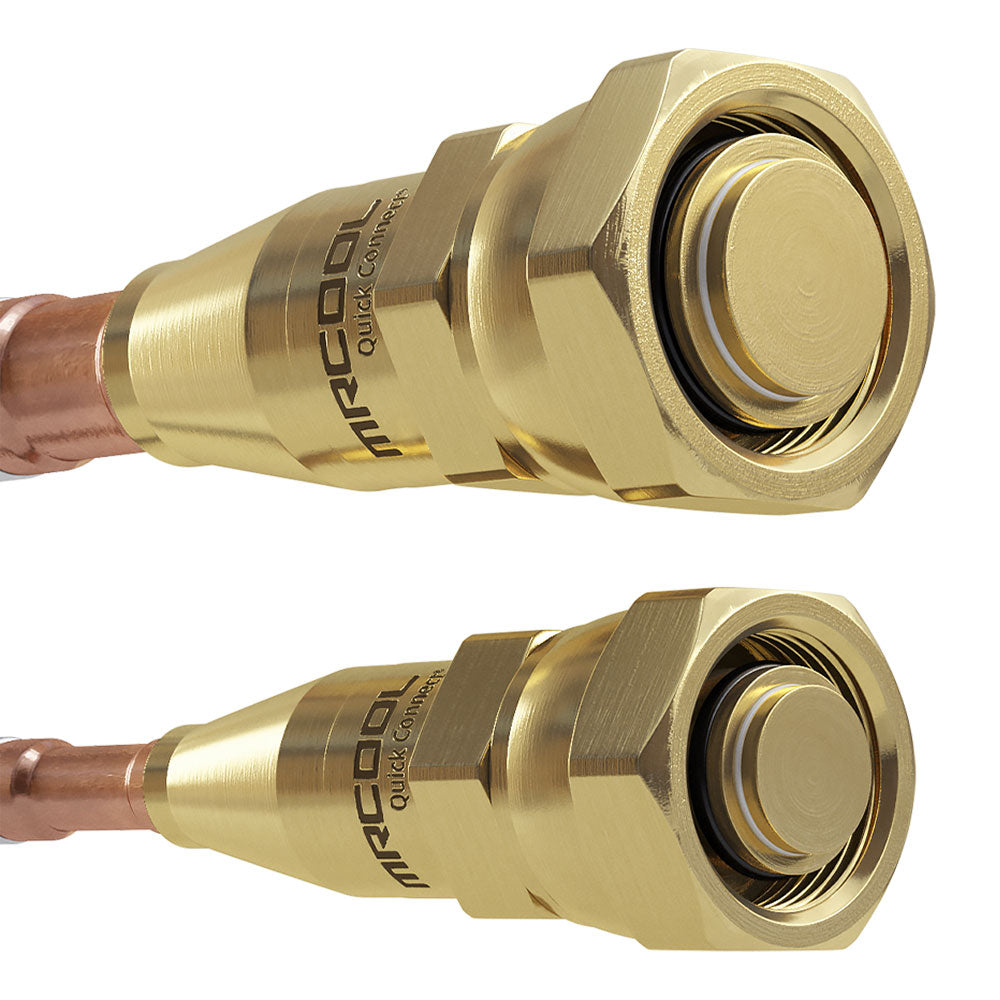

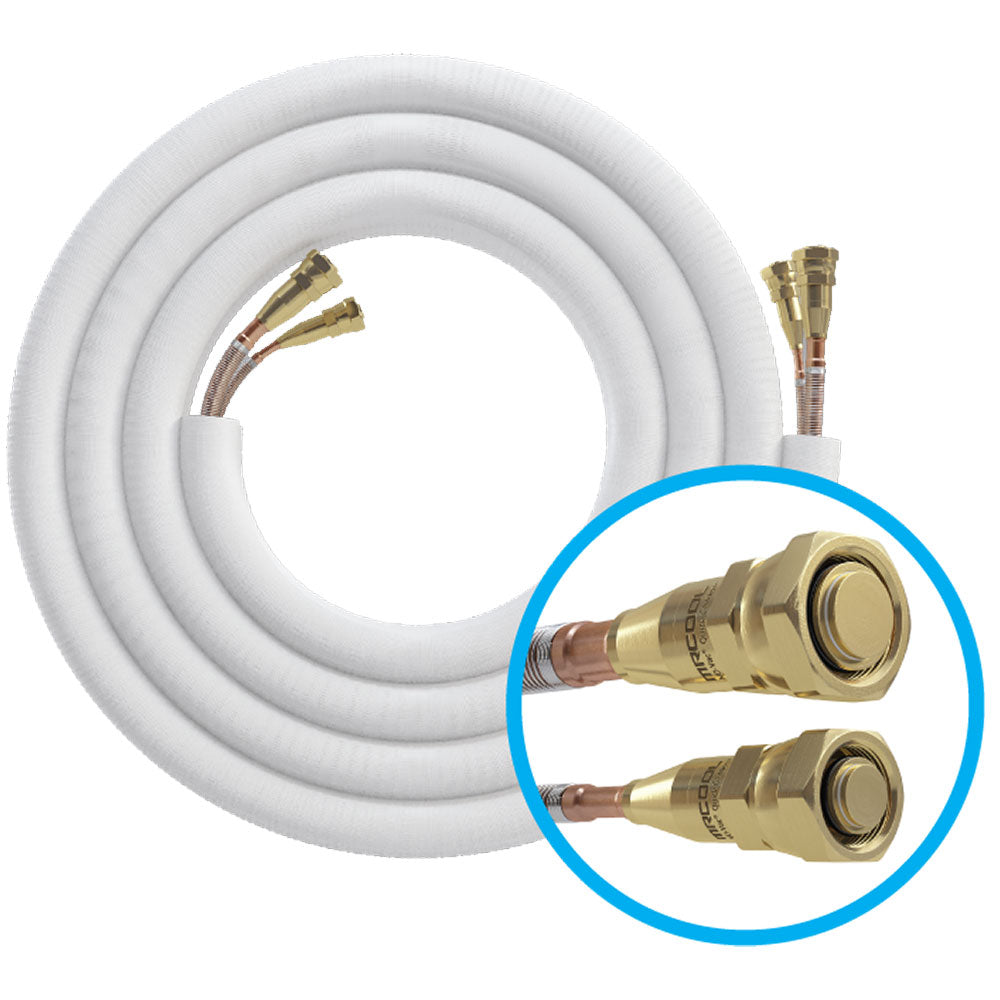

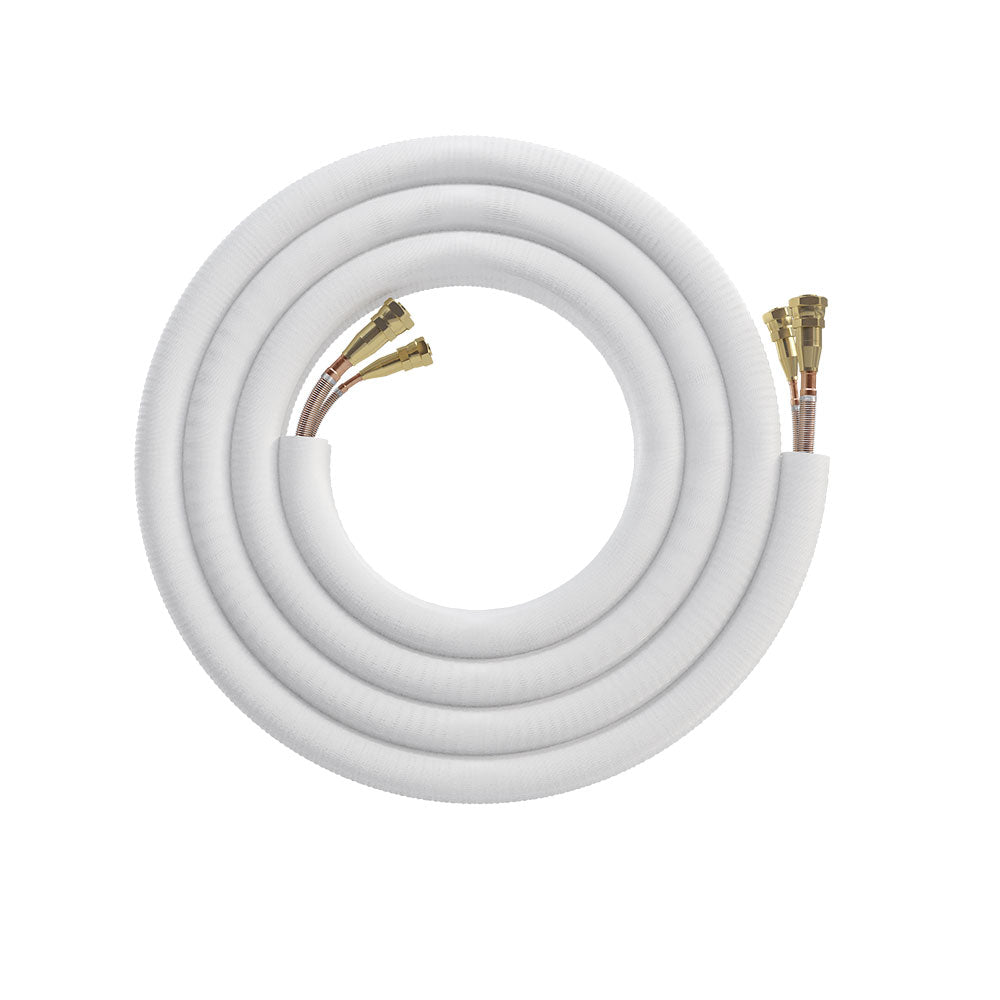

15 Ft. R-454B No-Vac Line Set
| DIMENSIONS | |
|---|---|
| Dimensions | 30" D x 30" H x 5" W |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Net Weight (Lbs) | 14 |
| Gross Weight (Lbs) | 17 |
| GENERAL INFORMATION | |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 2.11 |
| Line Set Length | 15ft |
| Lineset Fitting Type | Quick-Connect |
| Contains Chemicals | Yes |

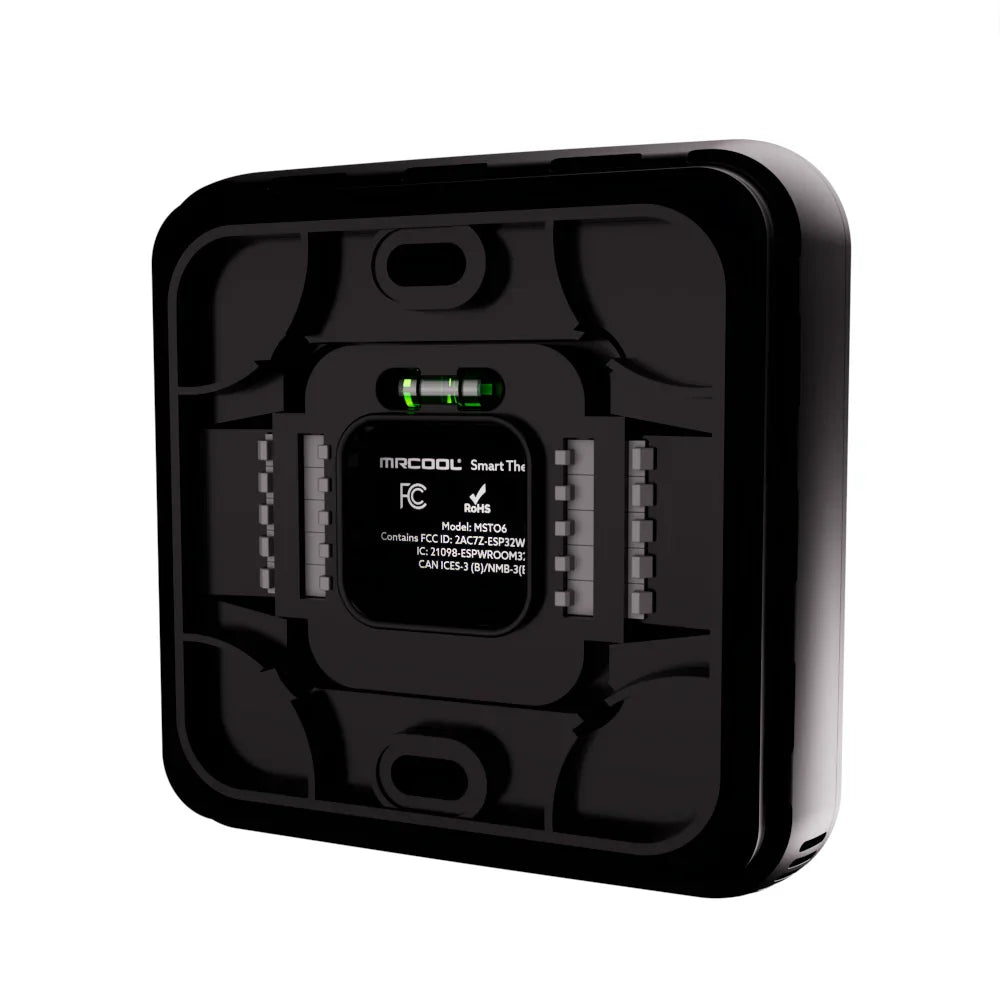

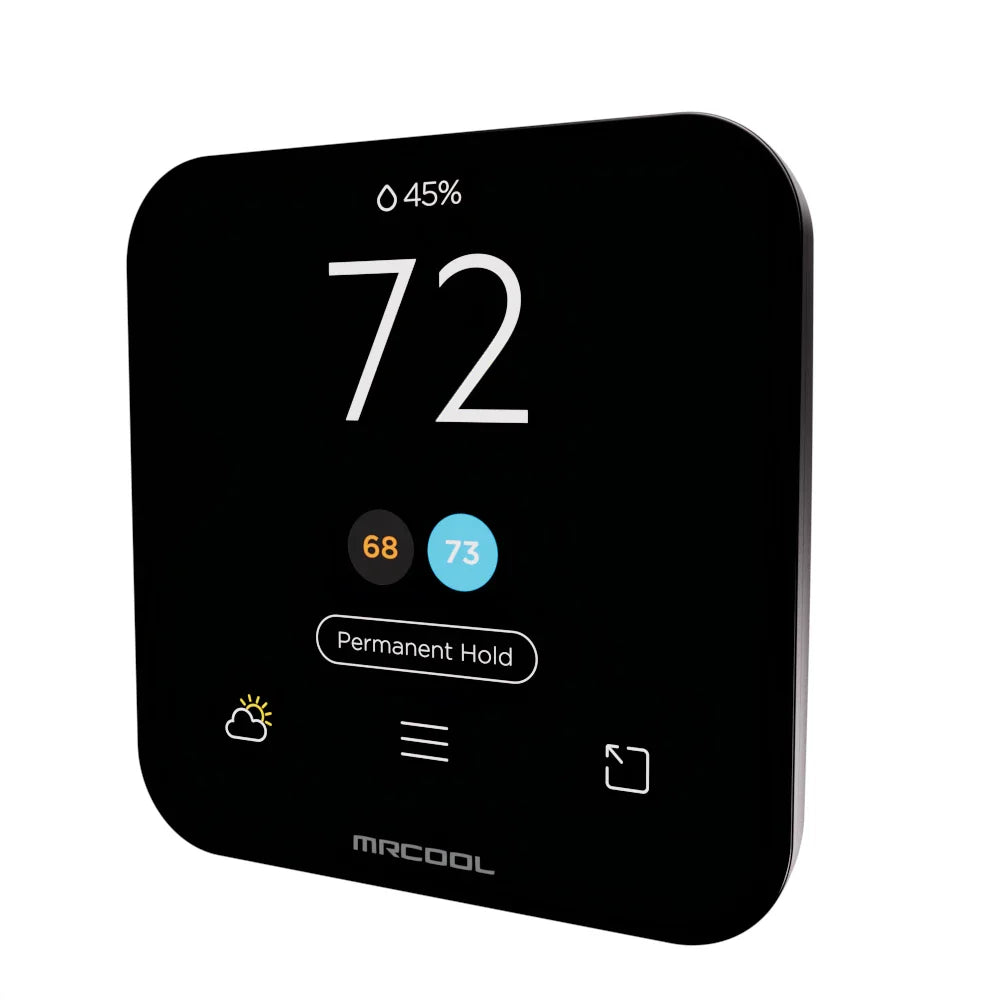

The MRCOOL® Smart Thermostat is designed to fit seamlessly into any home, delivering the perfect balance of comfort, convenience, and energy efficiency. Upgrade your heating and cooling system into a smarter, more responsive solution that gives you complete control right from your phone.
Getting started is simple with the MRCOOL® SmartHVAC app. Guided registration and an intuitive interface makes setup fast and frustration-free, while DIY-friendly installation gets your system running in no time—no professional install required. Fine-tune your home environment with personalized temperature thresholds and smart templates designed for comfort and efficiency. Create schedules that complement your lifestyle using presets like Home, Away, and Sleep, or build a fully customized routine that is personalized just for you.
Monitor real-time heating and cooling usage to better understand your energy consumption and maximize savings. Smart automation reduces unnecessary runtime, helping lower utility costs while maintaining ideal indoor comfort. Enjoy the ease of voice-controlled convenience with the MRCOOL® Smart Thermostat, compatible with Amazon Alexa, Google Assistant, and Siri. Location-based geofencing automatically adjusts your home’s temperature as you come and go, delivering comfort when you need it and savings when you don’t. Track, adjust, and optimize energy usage with precision to create a smarter, more efficient home.
Backed by a 3-year warranty, the MRCOOL® Smart Thermostat delivers reliable performance, advanced technology, and long-term confidence—making efficient, intelligent comfort easier than ever.
| DIMENSIONS | |
|---|---|
| Net Dimensions (In) | 3.9" D x 0.9" H x 3.9" W |
| Net Weight (Lbs) | 5.6 oz |
| Gross Depth (In) | 6.5 |
| Gross Height (In) | 2.04 |
| Gross Width (In) | 5.4 |
| Gross Weight (Lbs) | 14.1 oz |
| GENERAL INFORMATION | |
| Voltage (V) | 24 |
| Color | Black |
| Works With Ios | Yes |
| Works With Android | Yes |
| Base Warranty | 3 Year Limited |
| Contains Electronics | Yes |
| FEATURES | |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
