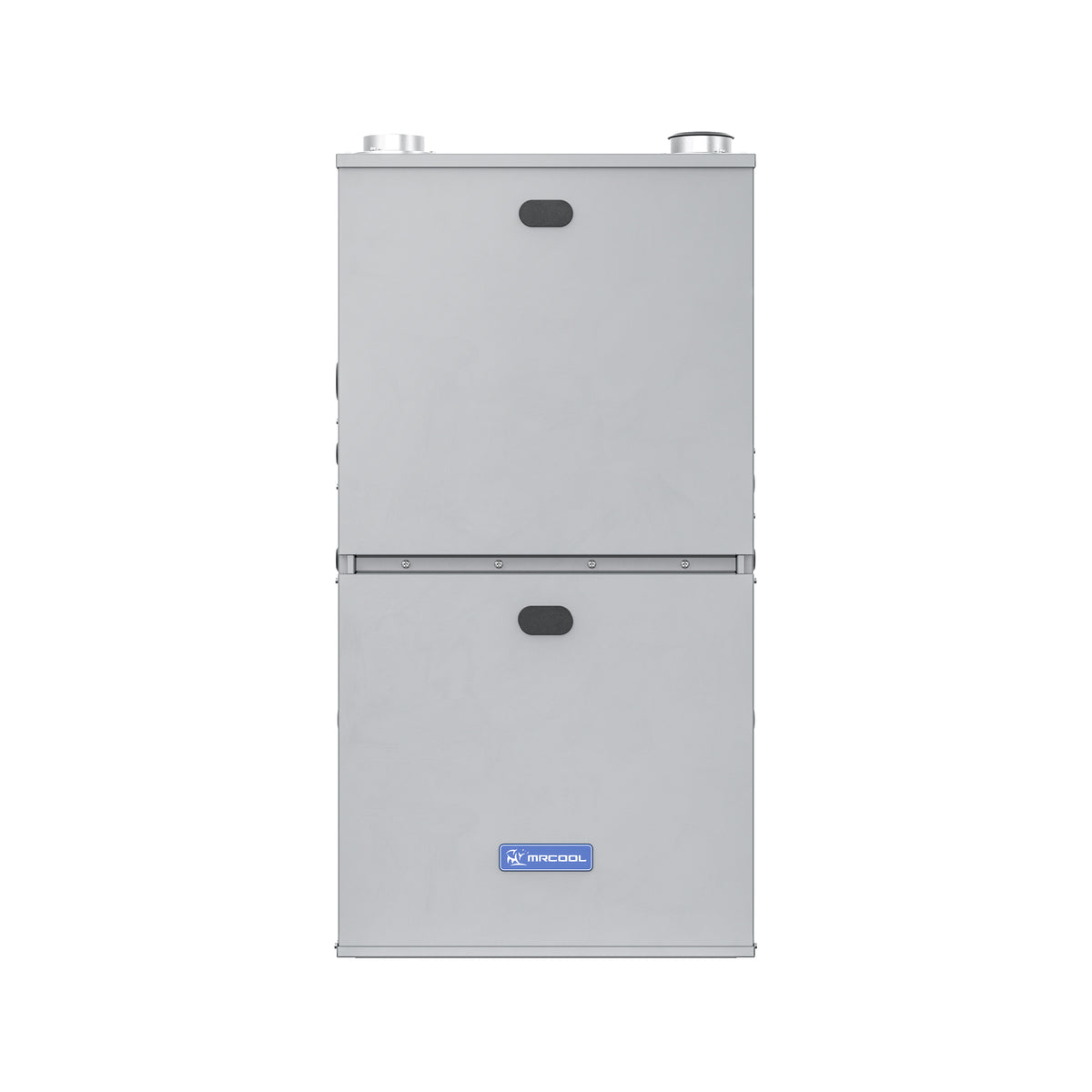

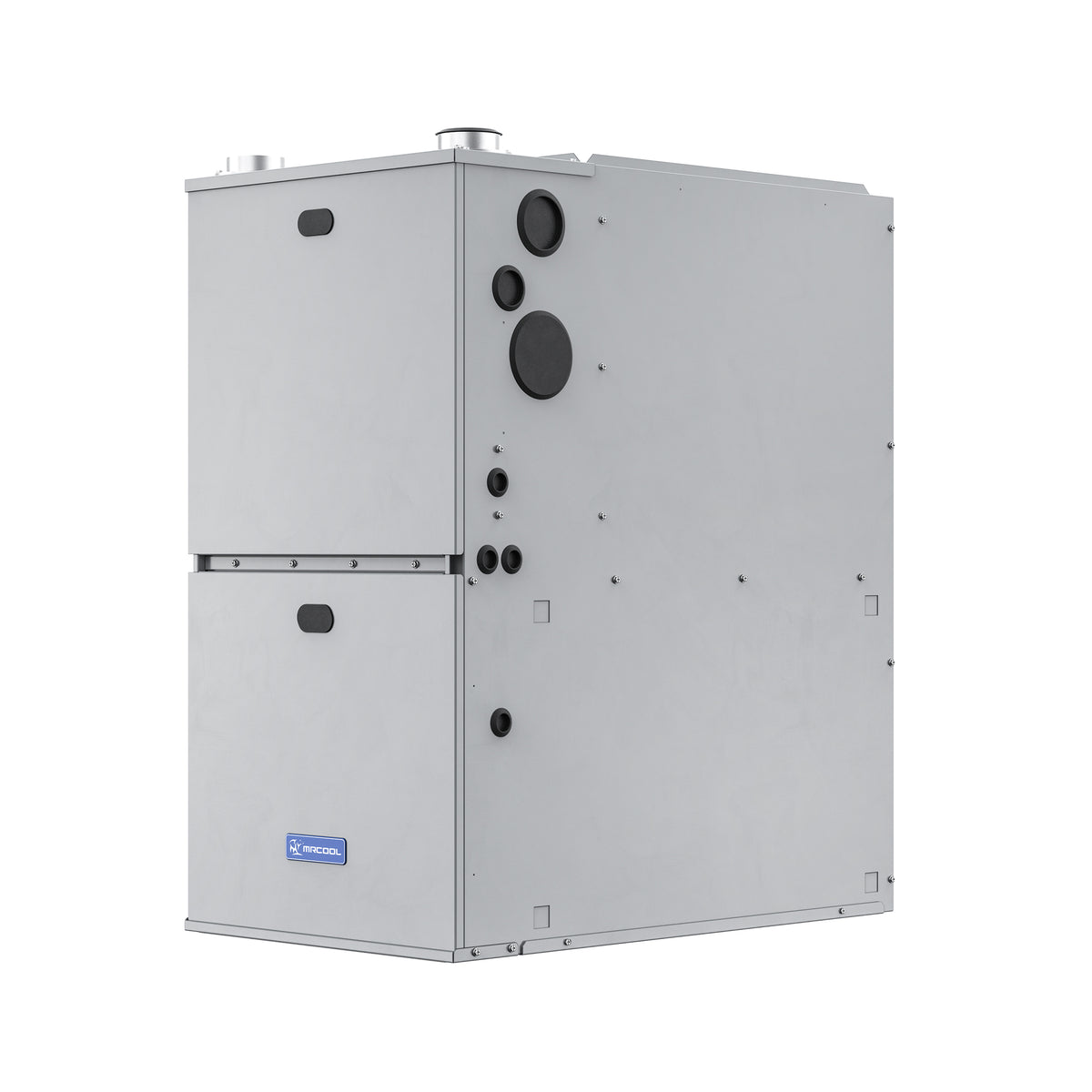

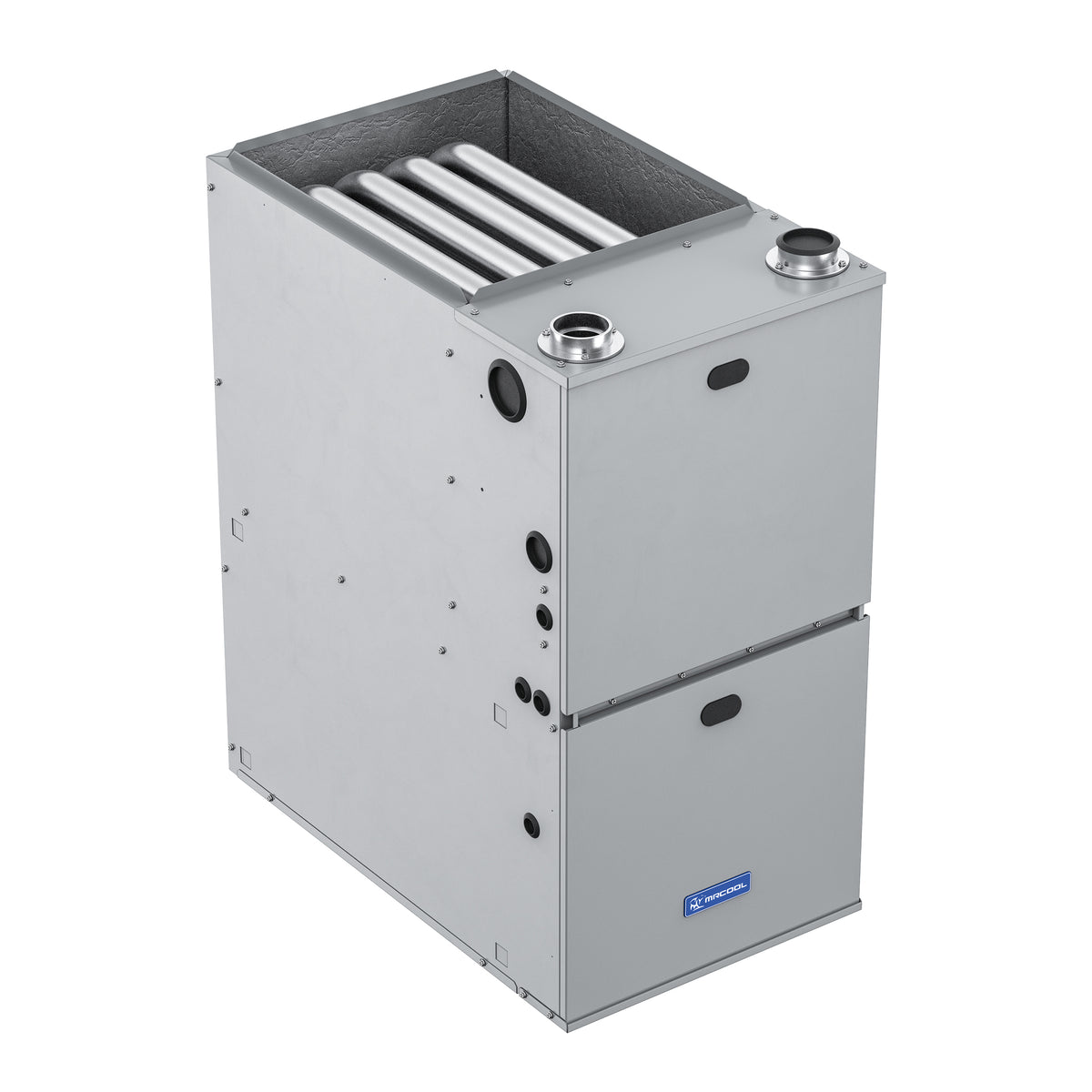

When faced with the fiercest and most unforgiving winters, the MRCOOL® VersaPro™ 120k BTU 96% AFUE Gas Furnace rises to the challenge as a quiet, high-performance solution. You can rest assured that it not only provides warmth but also saves you money on utility bills, courtesy of its two-stage, consistent torque DC motor and impressive 96% AFUE efficiency rating. Constructed with an aluminized steel tubular heat exchanger and a stainless steel secondary heat exchanger, this furnace epitomizes durability and reliability. Installation is a breeze, even in cramped spaces, thanks to its adaptable design, capable of multi-position installation in both upflow and horizontal configurations. Its removable bottom panel accommodates side or bottom return applications, and it offers convenient left or right connections for gas or electric service. Moreover, converting it to propane is a hassle-free process with an optional LP kit.
Being AHRI certified and ETL listed, this furnace has undergone rigorous testing, ensuring it meets the highest HVAC standards. Registering the furnace within 90 days unlocks added peace of mind, providing a 10-year parts warranty and a lifetime warranty on the heat exchanger. Even without registration, you're covered by a 5-year parts warranty and a 20-year heat exchanger warranty, offering long-term comfort and protection.
|
Dimensions |
28.74" D x 33.74" H x 20.98" W |
|
Afue |
96 |
|
Fuel Type |
Natural/Propane Gas |
|
BTU Input |
120000 |
|
BTU Output |
115000 |
|
Voltage (V) |
115 |
|
Phase |
1 |
|
Cycle |
60 |
|
Stage |
Two |
|
Max Fuse Breaker (A) |
20 |
|
Min Circuit Ampacity (A) |
10.5 |
|
Color |
Gray |
|
Full Load |
10.5 |
|
Condenser Fan Motor Type |
ECM |
|
Condenser Fan Motor HP |
1 |
|
Condenser Fan Motor RPM |
1050 |
|
Filter Type |
replaceable |
|
ETL Listed |
yes |
|
AHRI CERTIFIED |
yes |
|
Registered Parts Warranty |
10 Years |
|
Base Parts Warranty |
5 Years |
|
Registered Heat Exchanger Warranty |
Lifetime |
|
Base Heat Exchanger Warranty |
20 Years |
|
Contains Electronics |
Yes |
|
Proposition 65 Warning |
Yes |
|
Net Weight (lbs) |
169 |
*Shipping Policy
I ordered a HVAC system and it arrived in a timely manner and with no apparent issues. I thought the system was defective once installed but it was the installers fault who wired it wrong. My only issue would be the fee (30% I believe) to return a defective item within the 30 day return policy. If it is defective the customer shouldn't have to pay a fee to return an item that is not operating as designed. Other than that this is a good company.
Installed my own central HP system. It was a bit of work but nothing beyond a person with basic mechanical and electrical skills. It took me a while because I had to remove the existing electric forced air furnace from a pretty tight place. Some custom sheet metal work and a bit of custom electrical too. Worked perfectly when powered up and I actually like the thermostat provided, although I wish it was clearer how to set up a temperature set-back schedule. Pre-charged refrigerant piping was something new and I liked that too. The best thing is that my electric utility forked out $4,000 and that paid for the unit!
Installed with ceiling cassettes... Quiet and keeping us cool so far !
In the last few years I have installed four 12000 btu Mr Cool units and one of the 27000 btu units with two 12000 btu air handlers. I am happy with the performance of all of them, but if I had it to do over again, I would install two of the 12000 btu units instead of the 27000 btu unit. The price would be approximately the same, but the smaller units are much easier to deal with. The fact that the 12000 btu units require only 120 v power means that you can often make use of existing wiring rather than run a new line. The 27000 unit is quite heavy. It is much more difficult to move around . I didn't realize that fluid is pumped to both units even if only one of them is turned on. This results in confusing readings on the app and it probably results in reduced efficiency. I many cases using two smaller units rather than a large one would allow use of shorter lines. I appreciate that fact that HOD makes it easy to order units with appropriate line lengths rather than being forced to use standard sizes that may be longer than necessary.
Instead of waiting for my 18-year-old heat pump to stop operating in the middle of summer here in Florida, I decided to get the McCool 4 ton Versa before my old system got me. So, my Mr Cool arrived a few days after I ordered it and kept it in the garage until the weather cooled off since the Versa air handler was to be installed in the garage attic. However in the meantime, I ran the pressurized line set, purchased a few additional tools needed for the installation and hit the ground running when we got our first cool days. I took the old system offline by capturing the r22 freon in the old heat pump condenser, cut the lines and first installed with a little help, the Mr Cool outside condenser, the only thing that really required help. The attic air handler required me to pull the fan and the coil that lightened up the unit considerably, also allowing me to navigate it into the attic where I reinstalled both the fan and coil. Since the infrastructure was there from the old unit, it just required me to look up the existing AC and thermostat, mate the ductwork to the air handler and hook up the line set. I just followed the instructions and it all went very smoothly.
Finally, I hit the thermostat on switch and within a few minutes, had heat just in time for a 40° evening. Woke up to a cozy warm house for a change. Am very satisfied with my ducted Versa system and just in time because pulling apart the old system, it was very clear it wasn't going to make it another year or a week and feel great for saving thousands of dollars that I would have spent for a lesser system than this high-tech heat pump inverter system from MrCool.
