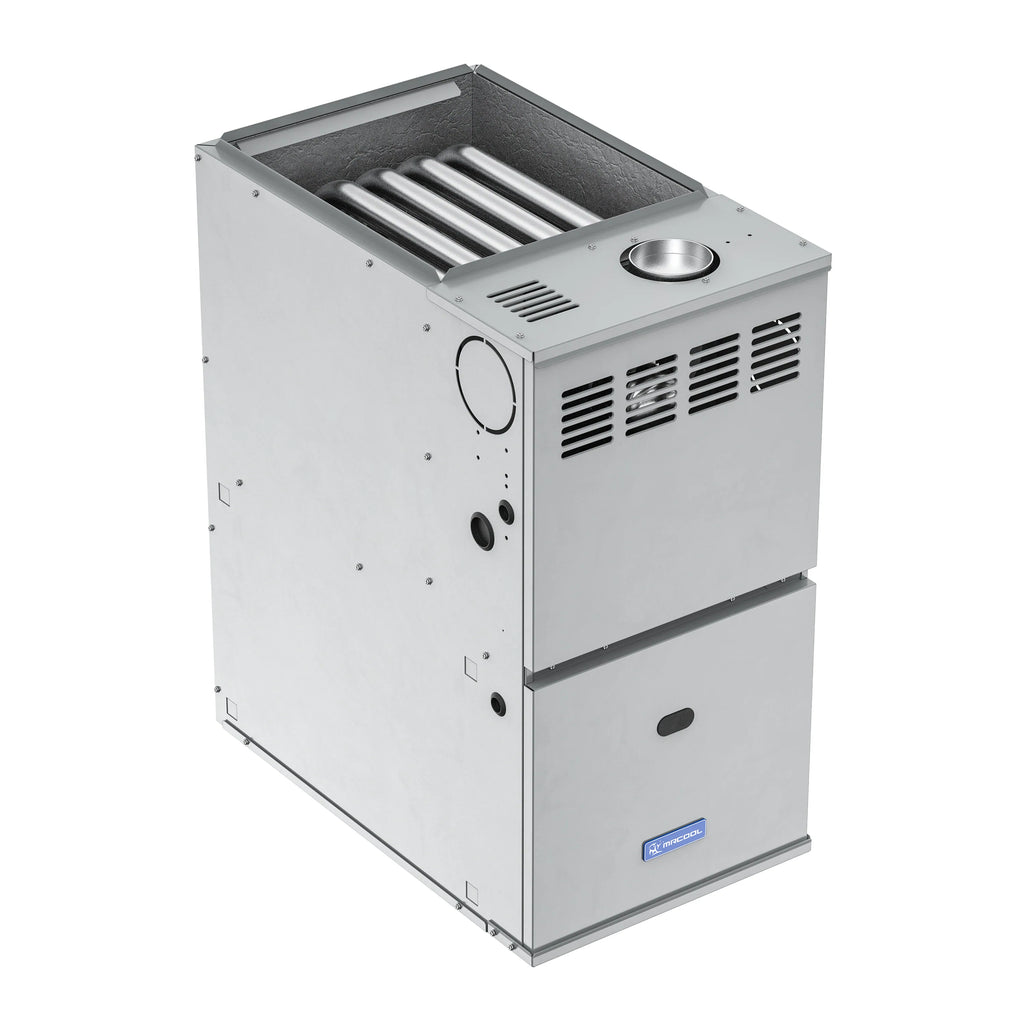

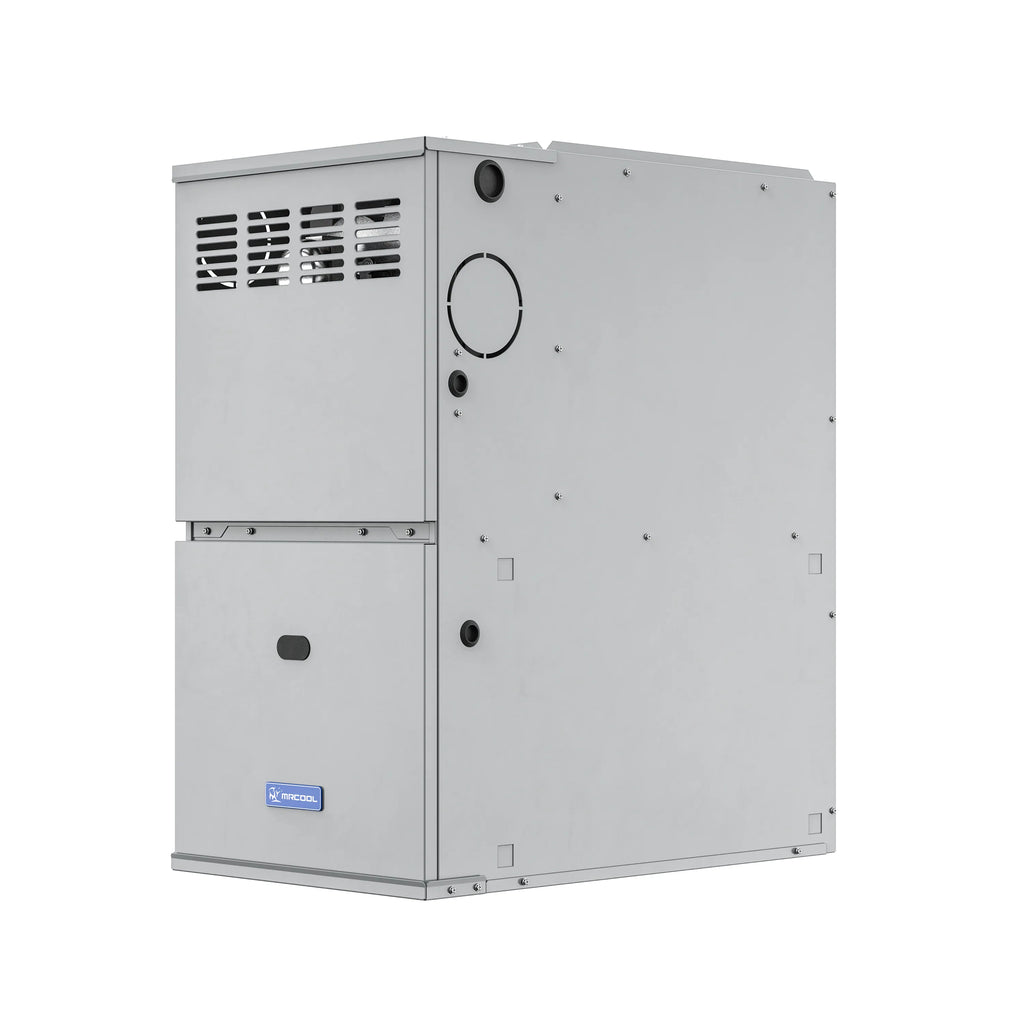

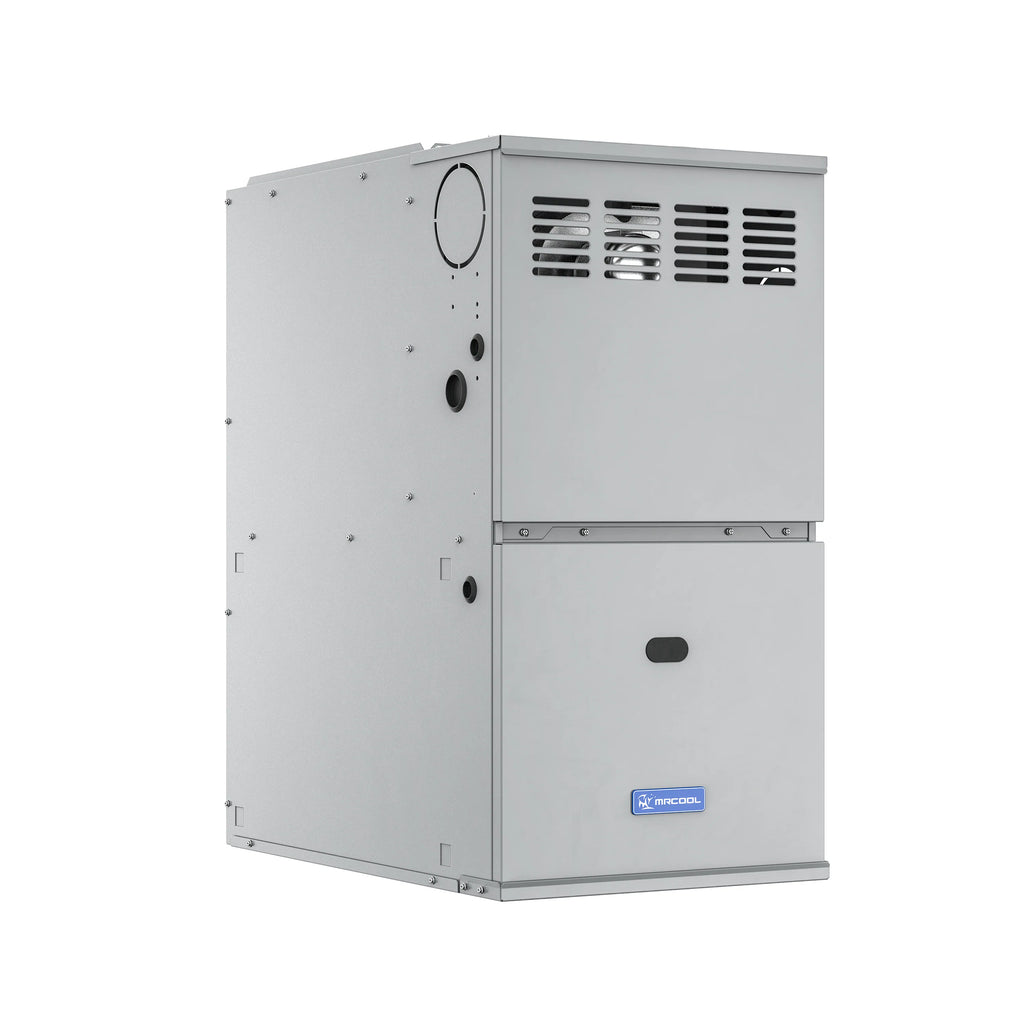

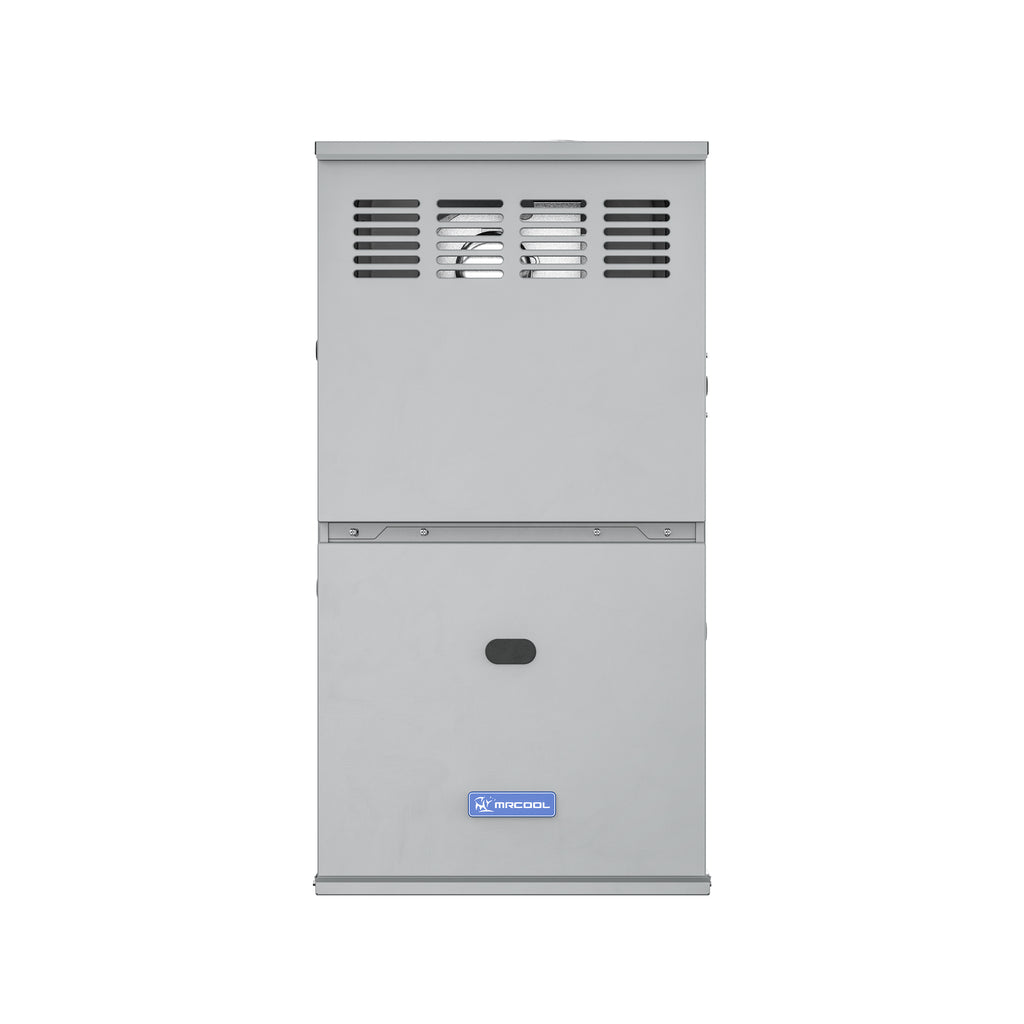

80% AFUE 120K BTU Upflow/Horizontal/Downflow Single-Stage DC Motor VersaPro Natural Gas Furnace with D Cabinet
For reliable heating all winter long, the MRCOOL® VersaPro® 120K BTU 80% AFUE Gas Furnace is designed to provide dependable warmth and comfort for your home throughout the colder months. With an 80% AFUE rating, this energy-efficient furnace ensures that most of the fuel is converted into usable heat, delivering reliable warmth while helping to lower your energy bills. Crafted for durability and top-notch performance, the VersaPro® features a high-performance ECM blower motor that maximizes airflow efficiency, allows for easy speed adjustments, and reduces overall utility costs. Its compact design allows for versatile installation, making it an excellent choice for homes with limited space. Offering multi-position installation options for upflow, downflow, or horizontal applications, this furnace adapts to a wide variety of layouts. It also includes convenient left or right gas and electric service connections, and with the optional LP conversion kit, you can easily switch from natural gas to propane when necessary.
Compatible with most 24V thermostats, this furnace ensures precise temperature control for your home. For added peace of mind, it comes with a 10-year parts warranty and a lifetime heat exchanger warranty when registered within 90 days of installation. If not registered, it still offers a 5-year parts warranty and a 20-year heat exchanger warranty, ensuring long-term performance and comfort in your home.
| General Information | |
|---|---|
| Brand | MRCOOL |
| Series | Versapro R-454B 80% AFUE Gas Furnace |
| Model | MGA80SE120D5C |
| Unit Type | Gas Furnace |
| Configuration | Multi-Position |
| AFUE | 80% |
| Fuel Type | Natural/Propane Gas |
| Stage | Single |
| Voltage | 115V |
| Phase | 1 |
| Cycle | 60 Hz |
| Works With | R-410A & R-454B Refrigerants |
| UL Listed | Yes |
| ETL Listed | Yes |
| Contains Electronics | Yes |
| Proposition 65 Warning | Yes |
| Performance | |
| BTU Input | 120,000 BTU |
| BTU Output | 96,000 BTU |
| CFM | 1,950 |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 14A |
| Full Load | 14A |
| Burners | |
| Number of Burners | 7 |
| Ignition Type | Hot Surface |
| Gas Connection Size | 3/4in |
| LP Kit Included | Yes |
| LP Kit Available | Yes |
| Blower Motor | |
| Blower Motor Type | ECM |
| Blower Motor HP | 1 |
| Blower Motor Speeds | 5 |
| Blower Motor RPM | 1,050 |
| Number of Speeds | 5 |
| Heat Exchanger | |
| Heat Exchanger Type | Aluminized Tubular Steel |
| Dimensions | |
| Net Width | 24.5in |
| Net Height | 33.75in |
| Net Depth | 28.5in |
| Net Weight | 152 lbs |
| Gross Width | 26.77in |
| Gross Height | 41in |
| Gross Depth | 31.02in |
| Gross Weight | 190 lbs |
| Warranty | |
| Registered Parts Warranty | 10 Years |
| Base Parts Warranty | 5 Years |
| Registered Heat Exchanger Warranty | Lifetime* |
| Base Heat Exchanger Warranty | 20 Years |
