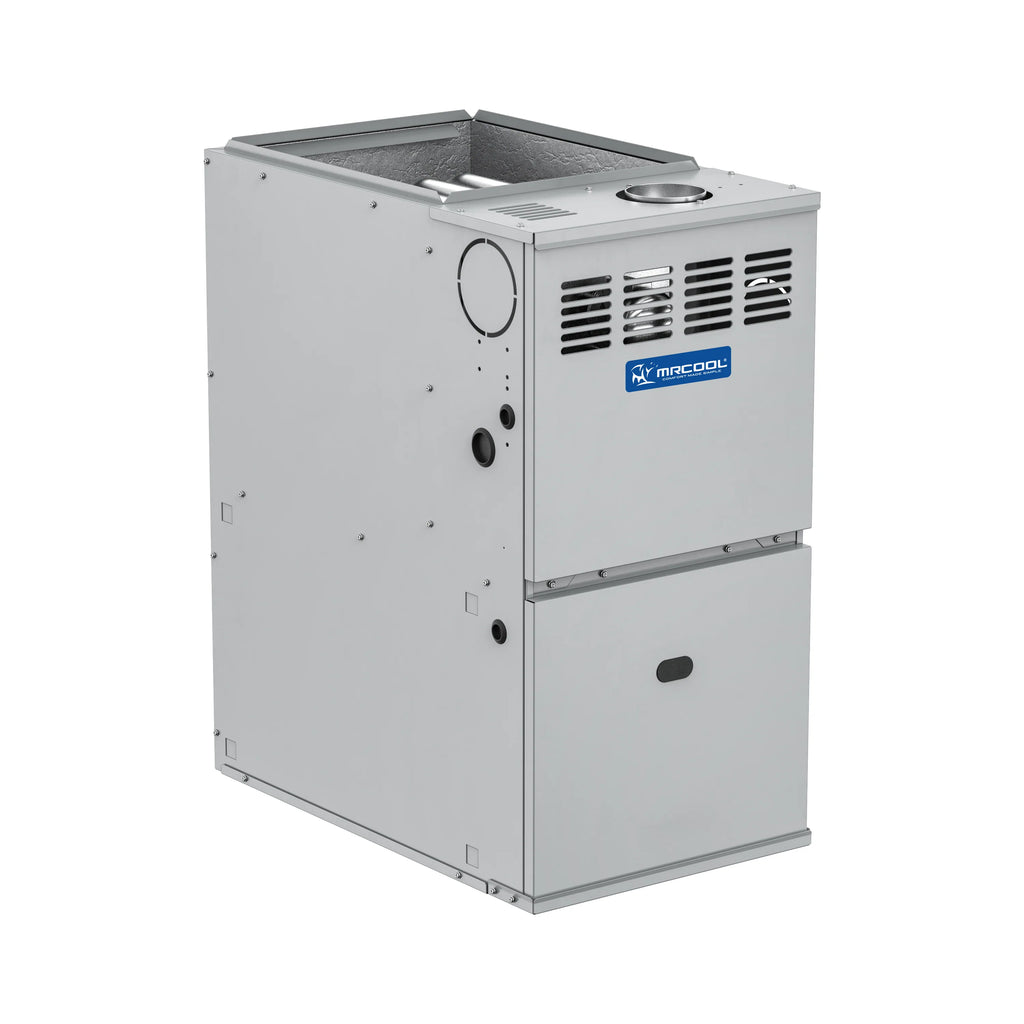

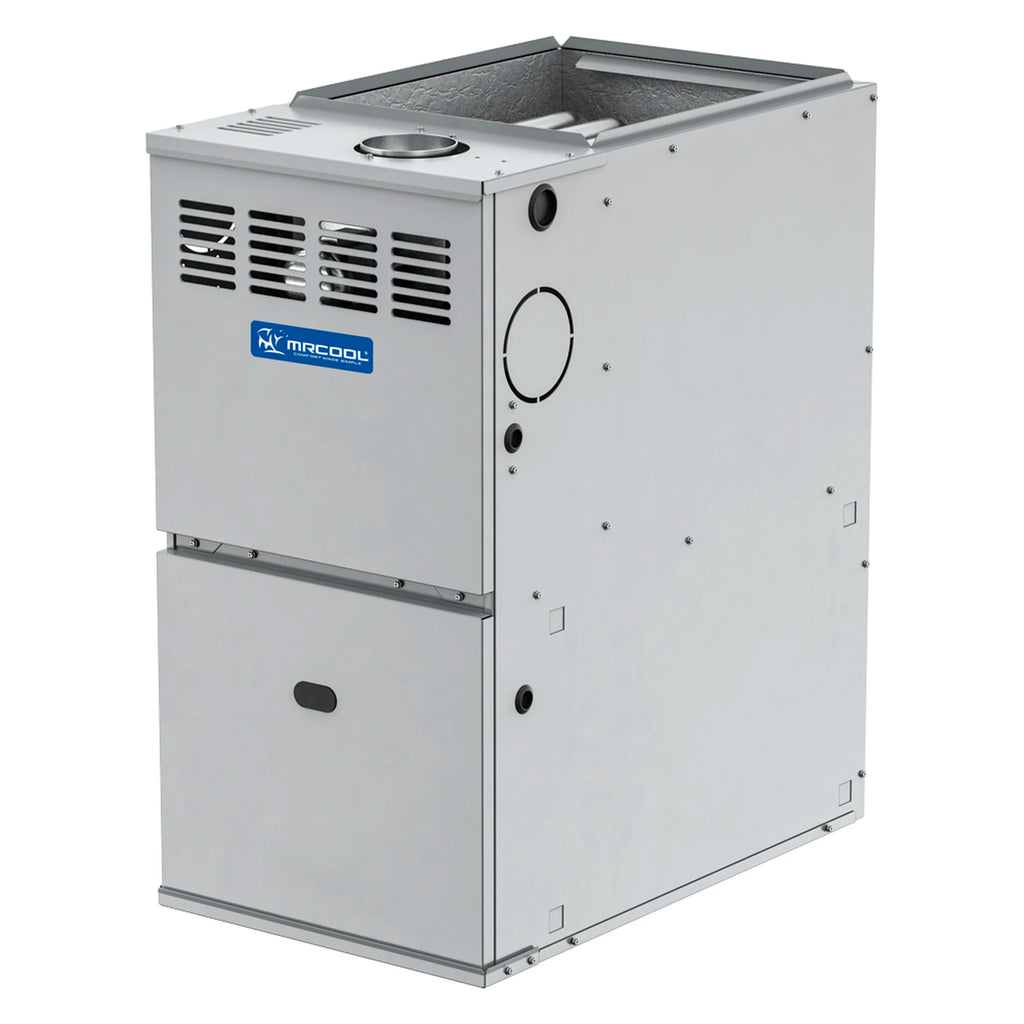

80% AFUE 100K BTU Upflow/Horizontal/Downflow Single-Stage DC Motor VersaPro Natural Gas Furnace with C Cabinet
The MRCOOL® VersaPro® 100K BTU 80% AFUE Gas Furnace is here to provide your home with consistent warmth and comfort throughout the winter season. With an 80% AFUE rating, this highly efficient furnace ensures that most of the fuel is turned into usable heat, delivering dependable warmth while helping to reduce your energy costs. Built to last and perform, the VersaPro® is equipped with a robust ECM blower motor that optimizes airflow, allows for adjustable speed settings, and reduces utility bills. Its compact design makes it easy to install, even in homes with limited space. Whether you need upflow, downflow, or horizontal configurations, this furnace offers flexible installation options to suit various layouts. Additionally, it includes convenient left or right gas and electric service connections, and with the optional LP conversion kit, you can easily switch from natural gas to propane.
This furnace is compatible with most 24V thermostats, ensuring easy and efficient temperature control. For added peace of mind, it comes with a 10-year parts warranty and a lifetime heat exchanger warranty when registered within 90 days of installation. Even without registration, it still provides a 5-year parts warranty and a 20-year heat exchanger warranty, offering long-term reliability and comfort for your home.
| General Information | |
|---|---|
| AFUE | 80% |
| Fuel Type | Natural/Propane Gas |
| Stage | Single |
| Voltage | 115V |
| Phase | 1 |
| Cycle | 60 Hz |
| UL Listed | Yes |
| ETL Listed | Yes |
| Contains Electronics | Yes |
| Proposition 65 Warning | Yes |
| Performance | |
| BTU Input | 100,000 BTU |
| BTU Output | 80,000 BTU |
| CFM | 1,750 |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 14A |
| Full Load | 14A |
| Burners | |
| Number of Burners | 6 |
| Ignition Type | Hot Surface |
| Gas Connection Size | 3/4in |
| LP Kit Included | Yes |
| LP Kit Available | Yes |
| Blower Motor | |
| Blower Motor Type | ECM |
| Blower Motor HP | 1 |
| Blower Motor Speeds | 5 |
| Blower Motor RPM | 1,050 |
| Number of Speeds | 5 |
| Heat Exchanger | |
| Heat Exchanger Type | Aluminized Tubular Steel |
| Dimensions | |
| Net Width | 21in |
| Net Height | 33.75in |
| Net Depth | 28.5in |
| Net Weight | 146 lbs |
| Gross Width | 23.5in |
| Gross Height | 41in |
| Gross Depth | 31.02in |
| Gross Weight | 177 lbs |
| Warranty | |
| Registered Parts Warranty | 10 Years |
| Base Parts Warranty | 5 Years |
| Registered Heat Exchanger Warranty | Lifetime* |
| Base Heat Exchanger Warranty | 20 Years |
