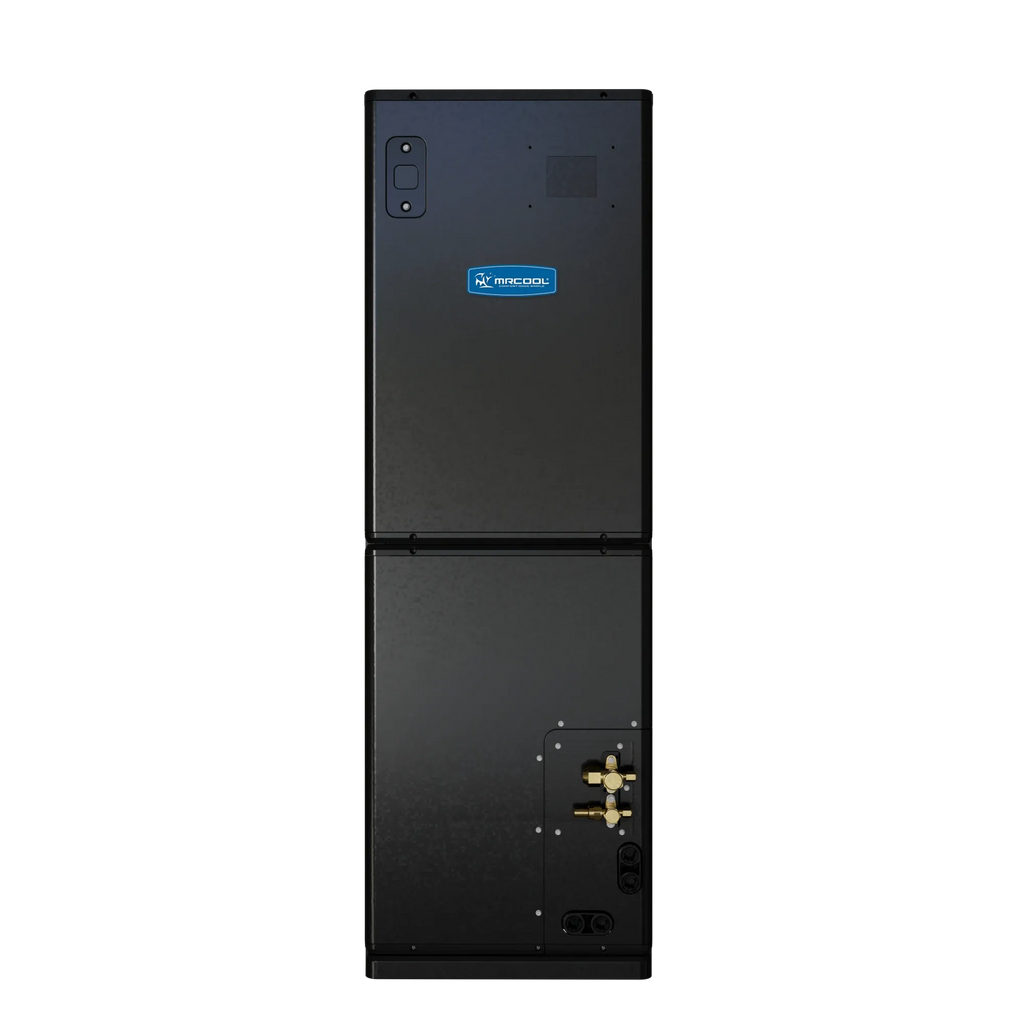

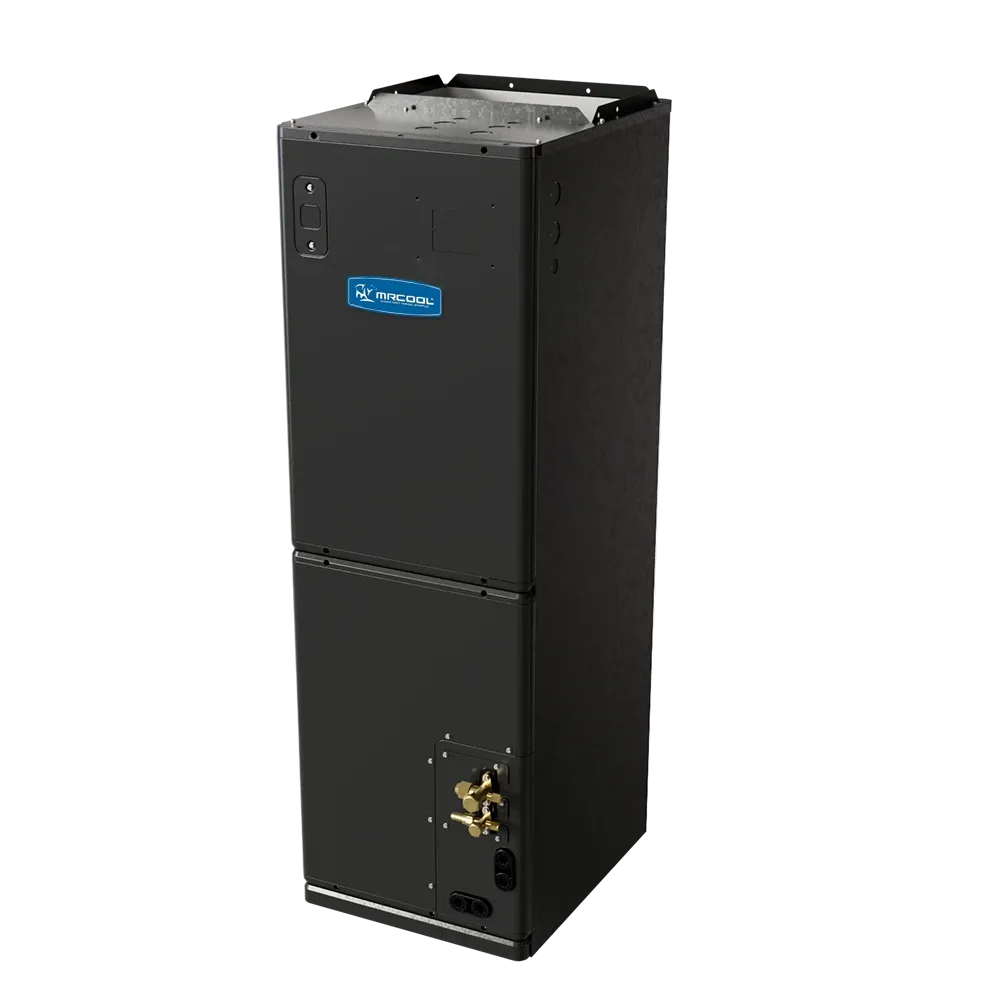

The MRCOOL® Universal® Series 30K Air Handler is designed to deliver dependable comfort and energy-saving performance for homes that demand efficient climate control. Whether you're upgrading from an outdated system or installing new HVAC equipment, this air handler offers a perfect balance of reliability, versatility, and long-term value. Its flexible multi-position design supports upflow, downflow, and horizontal installations, making it ideal for a wide range of applications and layout configurations. The compact footprint allows the unit to fit easily into tight or unconventional spaces such as closets, attics, or mechanical rooms—perfect for maximizing usable space in modern homes. For a streamlined and efficient installation process, the 30K Air Handler is fully compatible with the optional MRCOOL® NO-VAC® Quick Connect® line set. This pre-charged system eliminates the need for vacuuming or flaring, saving time and labor while reducing the chance of installation error.
The unit is also designed to work with MRCOOL® Universal® Series Heat Kits, which enhance heating output in colder climates and provide emergency backup heating when needed. Inside, a space-saving M-shaped evaporator coil increases the surface area for improved heat exchange and airflow. Constructed entirely from 100% aluminum, the coil is corrosion-resistant and built for long-term durability. Quiet operation ensures minimal disruption, making the unit suitable for installation near bedrooms and living spaces. For added peace of mind, MRCOOL® includes a 10-year parts warranty and a 2-year limited labor warranty—offering lasting protection for your investment.
| DIMENSIONS & WEIGHT | |
|---|---|
| Net Dimensions (In) | 21.5 D x 53.98 H x17.52 W |
| Net Weight (Lbs) | 149.25 |
| Gross Depth (In) | 31.1 |
| Gross Height (In) | 20.47 |
| Gross Width (In) | 57.09 |
| Gross Weight (Lbs) | 182.1 |
| GENERAL INFORMATION | |
| Mount Type | Multi-Position |
| Color | Dark Grey |
| Metering Device | EXV |
| CAPACITY & PERFORMANCE | |
| CFM | 998.8/894.7/806.4/712.2/N\A |
| Tonnage | 2.5 |
| Cycle | 60 |
| COMPRESSOR & MOTORS | |
| Number Of Speeds | 4 |
| NOISE LEVELS | |
| Decibel Rating (Dba) | 49/47/45.5/31.5/N\A |
| Decibel Rating Low (Dba) | 31.5 |
| Decibel Rating High (Dba) | 49 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 115/208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 6-Aug |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Max Lineset Length (Ft) | 164 |
| Liquid Line Size | 8-Mar |
| Suction Line Size | 4-Mar |
| FILTER & HEATING | |
| Filter Type | Replaceable |
| Filter Size | 16 x 20 x 1 |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes |
|
| SAFETY | |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Base Warranty | 10 Year Parts |
| Base Parts Warranty | 10 Years |
| Base Labor Warranty | 2 Year |
