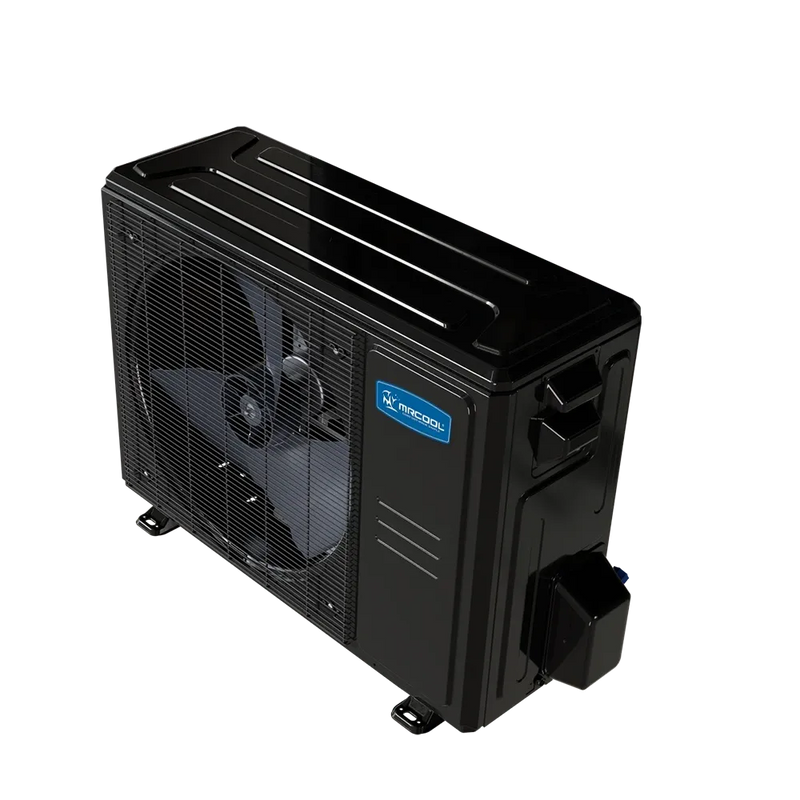

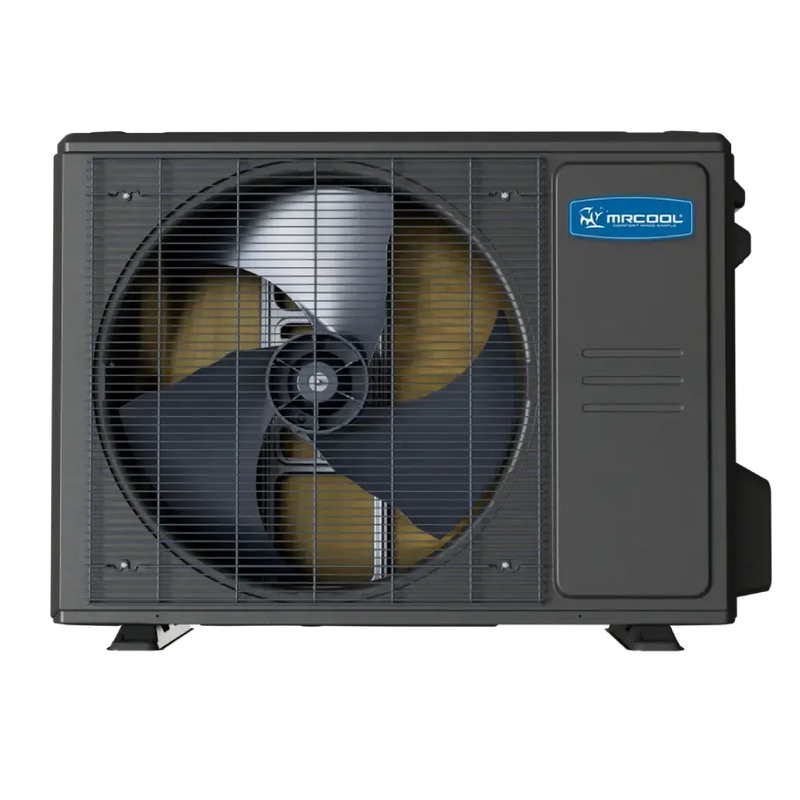

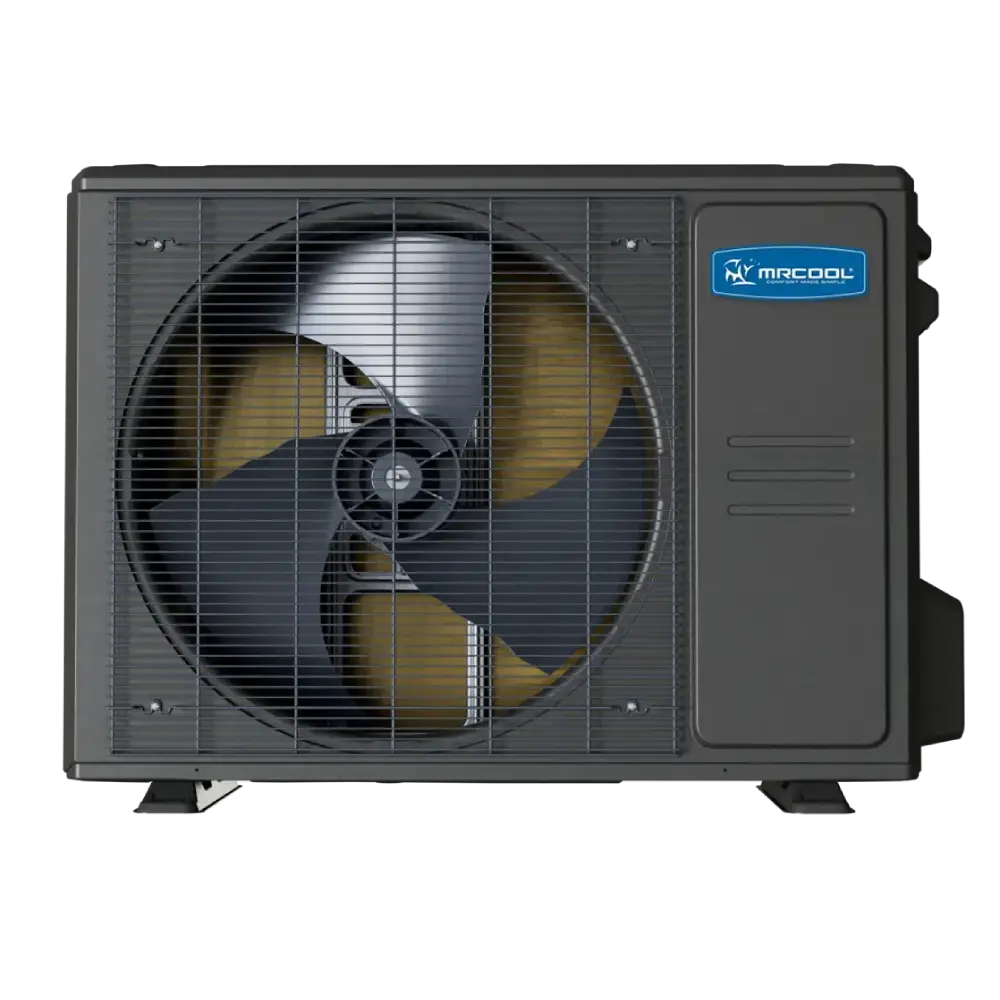

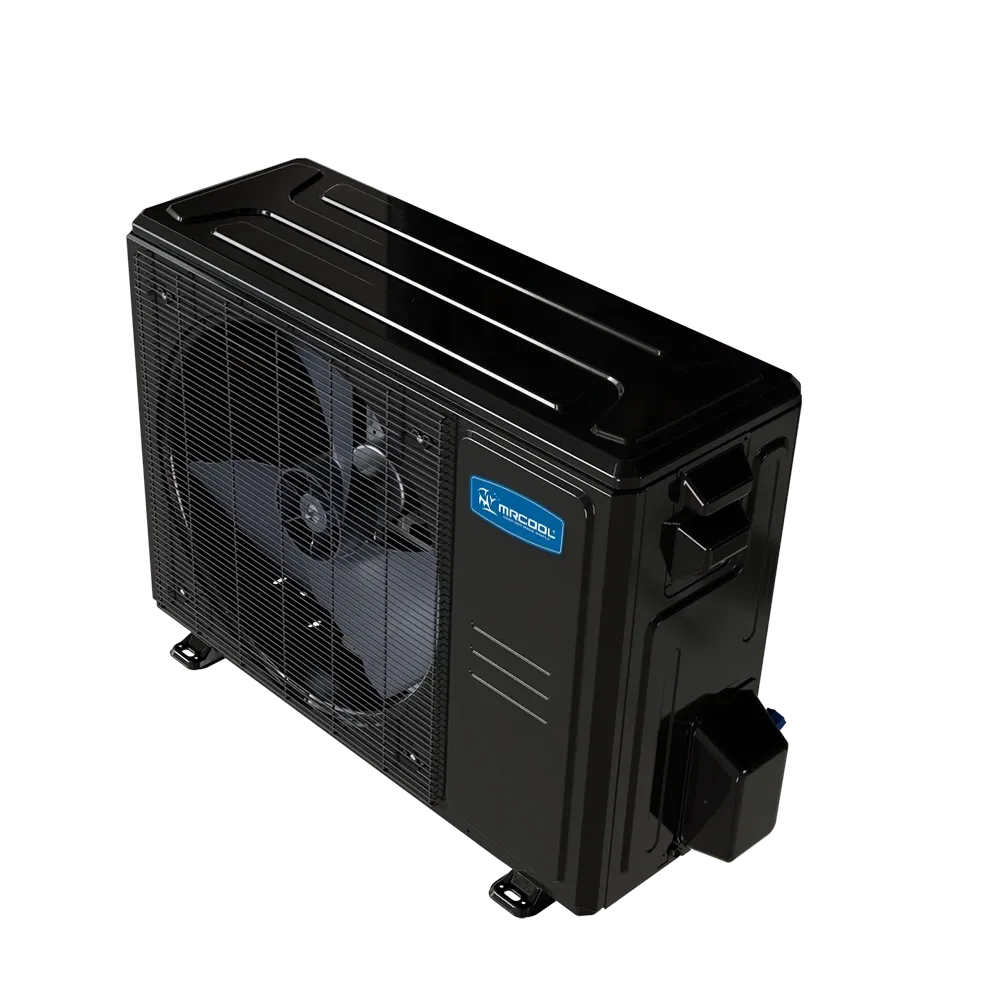

The MRCOOL® Universal® Series 24K DC Inverter Heat Pump Condenser is built to deliver dependable, high-efficiency heating and cooling—even in extreme outdoor conditions. Whether you're facing frigid winters or sweltering summer heat, this powerful unit ensures consistent indoor comfort without compromise.
With an impressive 18.6 SEER2 rating, it offers energy-saving performance that helps reduce utility costs while keeping your home comfortable year-round. This condenser is an ideal solution for homeowners who need reliable performance in smaller or space-restricted areas. Its sleek, compact design makes it easy to install in smaller spaces—without sacrificing power or performance.
At the heart of the system is advanced DC inverter technology, which allows the unit to operate at variable speeds, maintaining a steady indoor temperature with minimal energy use. Unlike traditional systems that frequently cycle on and off, this technology improves efficiency, reduces wear on components, and delivers quieter, smoother operation. Installation is made even easier with compatibility for the MRCOOL® NO-VAC® Quick Connect® line set (sold separately). This pre-charged, sealed line set eliminates the need for vacuuming or flaring, significantly reducing installation time, complexity, and cost. It’s the perfect solution for homeowners and contractors looking for a faster, more reliable setup.
For added peace of mind, MRCOOL® backs the Universal® Series 24K DC Inverter Heat Pump Condenser with a 10-year parts warranty and a 2-year limited labor warranty, ensuring your investment is protected well into the future.
| DIMENSIONS & WEIGHT | |
|---|---|
| Net Dimensions (In) | 13.46 D x 26.5 H x35.04 W |
| Net Weight (Lbs) | 102.29 |
| Gross Depth (In) | 15.67 |
| Gross Height (In) | 29.13 |
| Gross Width (In) | 39.17 |
| Gross Weight (Lbs) | 109.13 |
| GENERAL INFORMATION | |
| Color | Dark Grey |
| Inverter | DC |
| Metering Device | EXV |
| CAPACITY & PERFORMANCE | |
| SEER2 | Up to 18.6 |
| EER2 | Up to 12 |
| HSPF2-4 | 10 |
| HSPF2-5 | 8.1 |
| Tonnage | 2 |
| Cooling Capacity (Btu) | 24000 |
| Heating Capacity (Btu) | 24000 |
| Cycle | 60 |
| COMPRESSOR & MOTORS | |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor Rpm | 810/700/450 |
| NOISE LEVELS | |
| Decibel Rating (Dba) | 59 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 20 |
| Min Circuit Ampacity (A) | 19 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 74.08 |
| Max Lineset Length (Ft) | 164 |
| Liquid Line Size | 8-Mar |
| Suction Line Size | 4-Mar |
| SAFETY | |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Base Warranty | 10 Year Parts |
| Base Parts Warranty | 10 Years |
| Base Labor Warranty | 2 Year |
