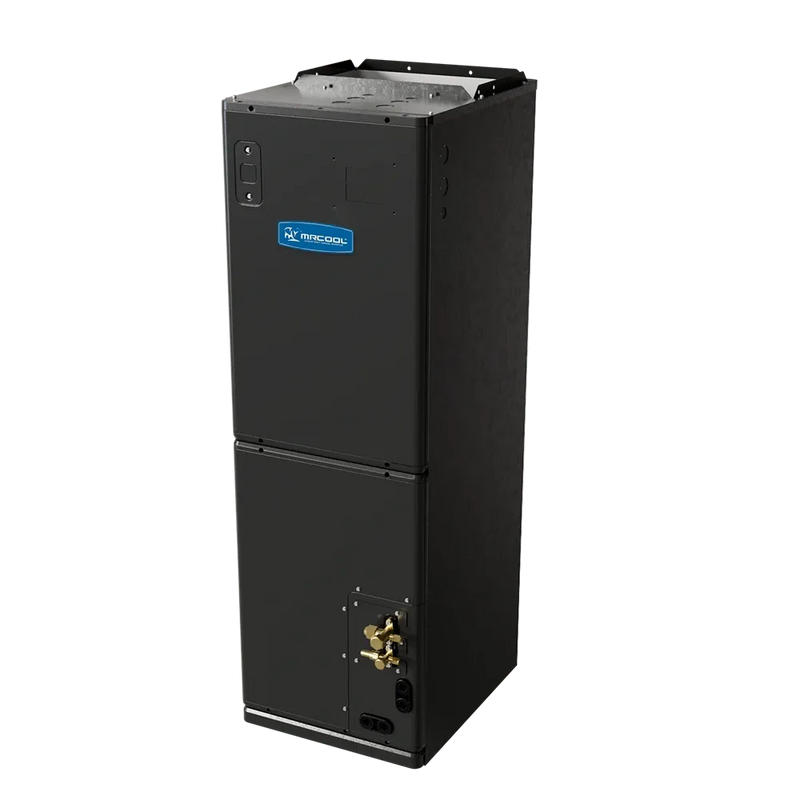

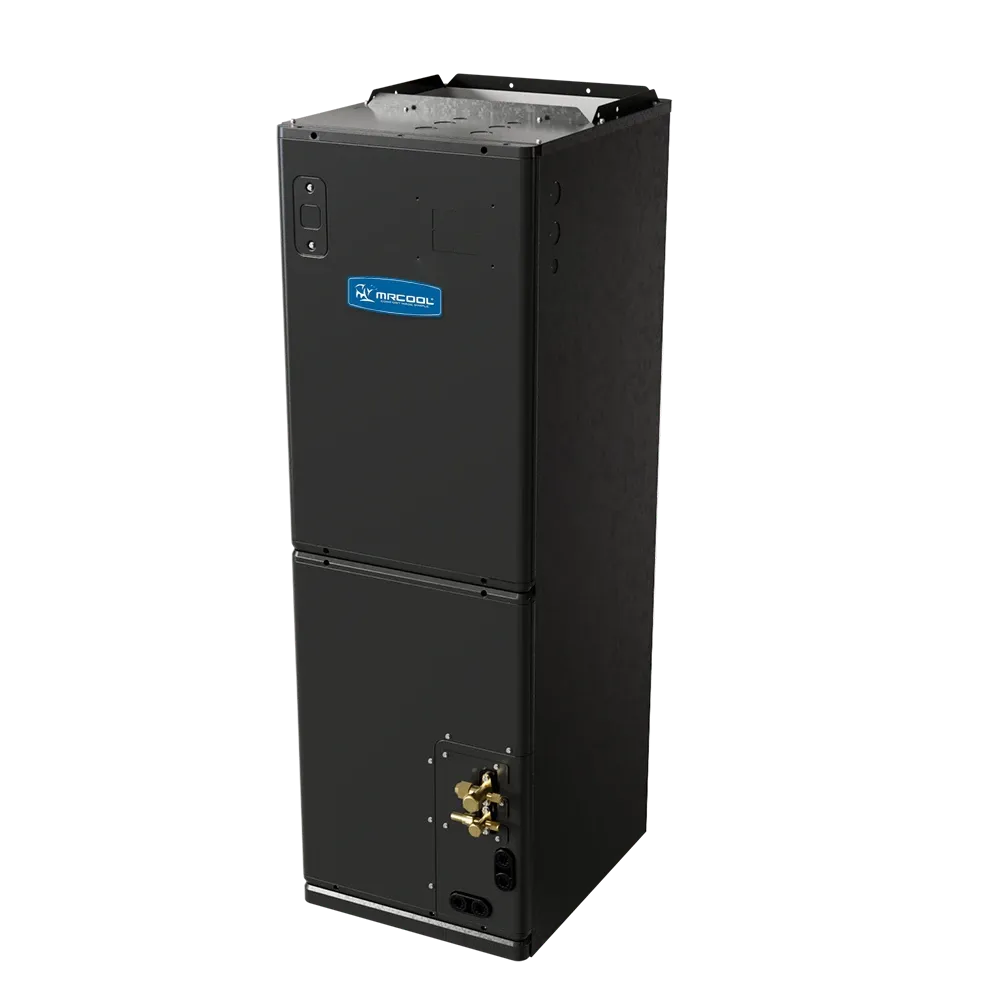

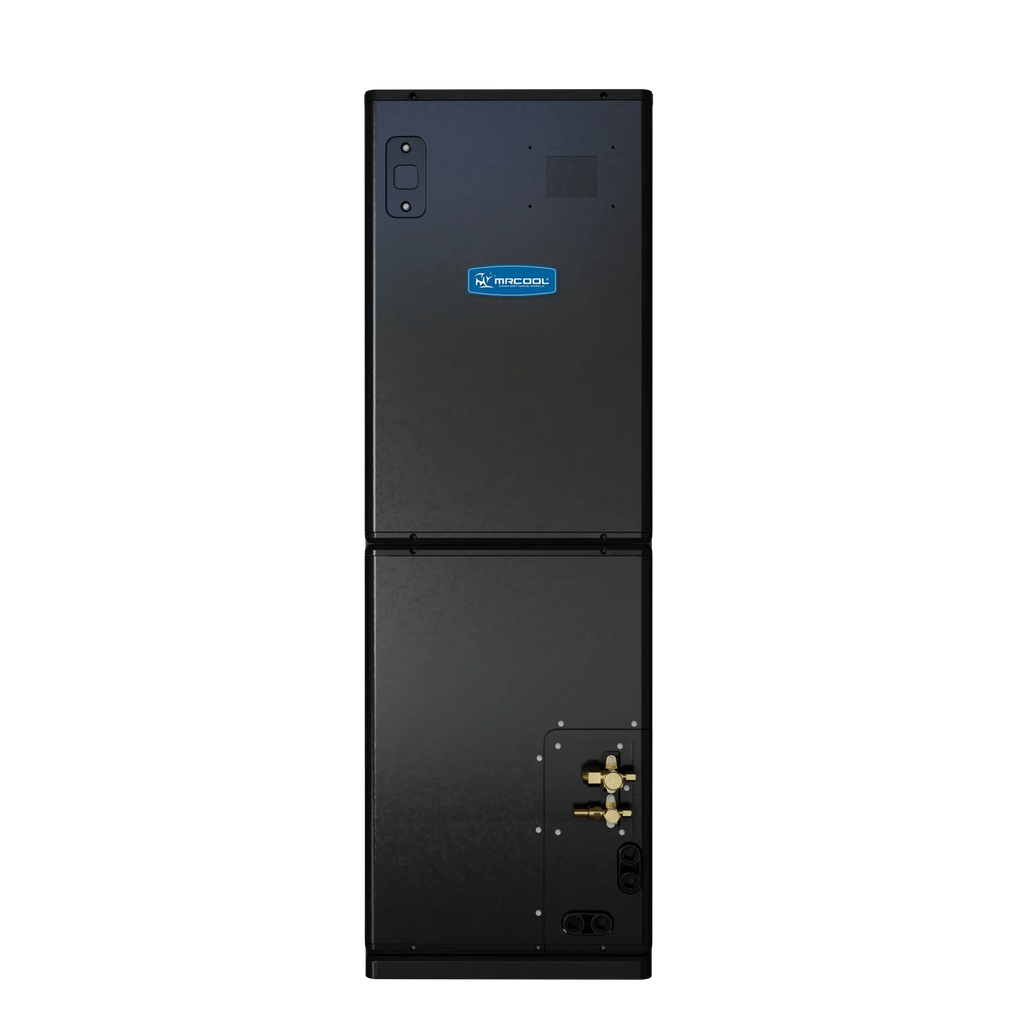

The MRCOOL® Universal® Series 24K Air Handler is built to deliver powerful, reliable, and energy-efficient comfort all year long. Whether you’re facing freezing winters or scorching summers, this compact unit works hard to maintain your ideal indoor temperature while reducing overall energy consumption—helping to lower monthly utility bills.
Designed with flexibility in mind, the 24K Air Handler supports upflow, downflow, and horizontal installations. Its slim profile makes it easy to install in a variety of spaces, including attics, closets, and crawlspaces. For added convenience, it’s compatible with the MRCOOL® NO-VAC® Quick Connect® line set (sold separately), which eliminates the need for vacuuming or flaring—streamlining installation and saving time. To enhance performance during colder months, the unit also supports optional Universal® Series Heat Kits. These kits provide additional heating capacity and emergency backup heat when needed, boosting efficiency in extreme climates. At the heart of the air handler is an M-shaped evaporator coil with a large surface area that improves airflow and maximizes heat exchange. Made from 100% aluminum, the coil is corrosion-resistant for long-lasting durability. Despite its powerful performance, the unit operates at whisper-quiet sound levels, ensuring comfort without disruption.
Backed by a 10-year parts warranty and a 2-year limited labor warranty, the MRCOOL® Universal® 24K Air Handler is a smart, dependable choice for homeowners looking to upgrade to efficient, long-lasting HVAC technology.
| DIMENSIONS & WEIGHT | |
|---|---|
| Net Dimensions (In) | 21.5 D x 49.72 H x14.49 W |
| Net Weight (Lbs) | 123.02 |
| Gross Depth (In) | 31.1 |
| Gross Height (In) | 17.52 |
| Gross Width (In) | 52.95 |
| Gross Weight (Lbs) | 154.76 |
| GENERAL INFORMATION | |
| Mount Type | Multi-Position |
| Color | Dark Grey |
| Metering Device | EXV |
| CAPACITY & PERFORMANCE | |
| CFM | 824/759.3/694.5/629.8/N\A |
| Tonnage | 2 |
| Cycle | 60 |
| COMPRESSOR & MOTORS | |
| Number Of Speeds | 4 |
| NOISE LEVELS | |
| Decibel Rating (Dba) | N\A/47.5/44/33/N\A |
| Decibel Rating Low (Dba) | 33 |
| Decibel Rating High (Dba) | 47.5 |
| ELECTRICAL REQUIREMENTS | |
| Voltage (V) | 115/208/230 |
| Phase | 1 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 5.5/3.5 |
| REFRIGERANT & PIPING | |
| Refrigerant Type | R-454B |
| Max Lineset Length (Ft) | 164 |
| Liquid Line Size | 8-Mar |
| Suction Line Size | 4-Mar |
| FILTER & HEATING | |
| Filter Type | Replaceable |
| Filter Size | 12 x 20 x 1 |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes |
|
| SAFETY | |
| Ul Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| WARRANTY | |
| Base Warranty | 10 Year Parts |
| Base Parts Warranty | 10 Years |
| Base Labor Warranty | 2 Year |
