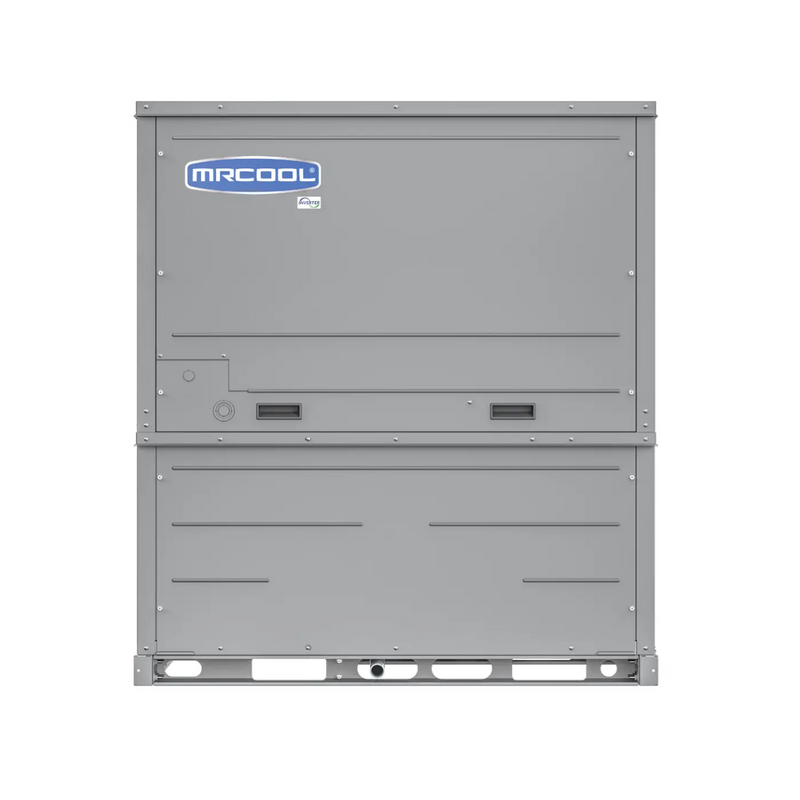

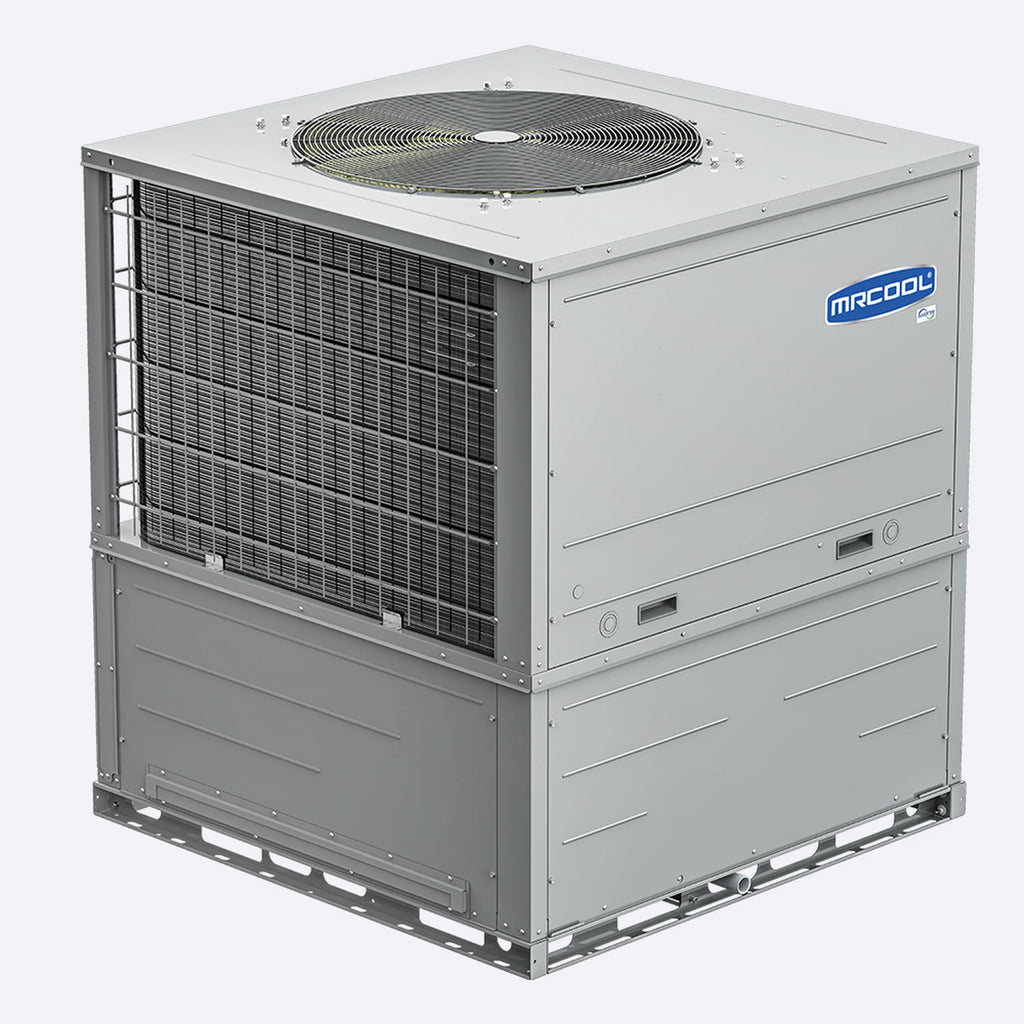

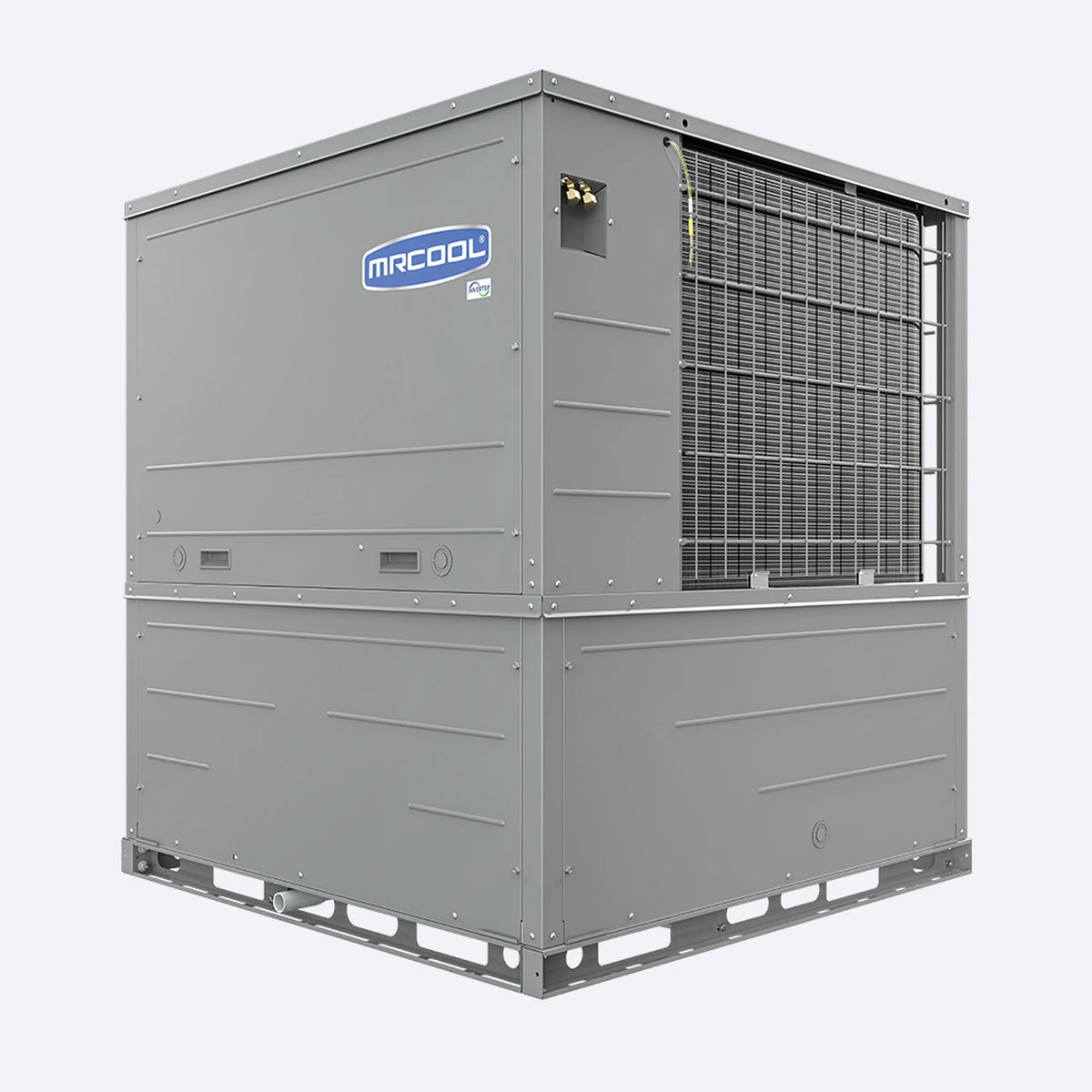

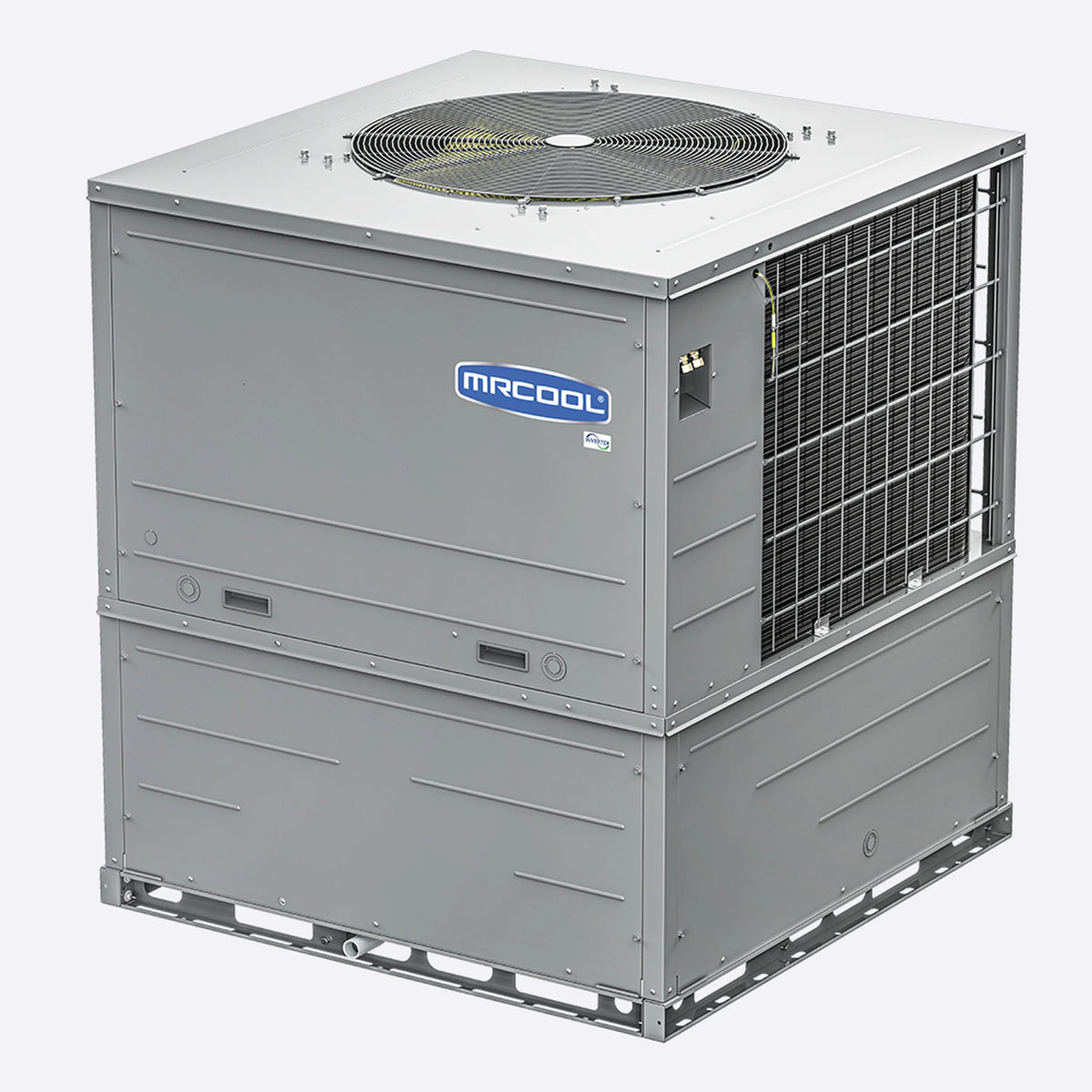

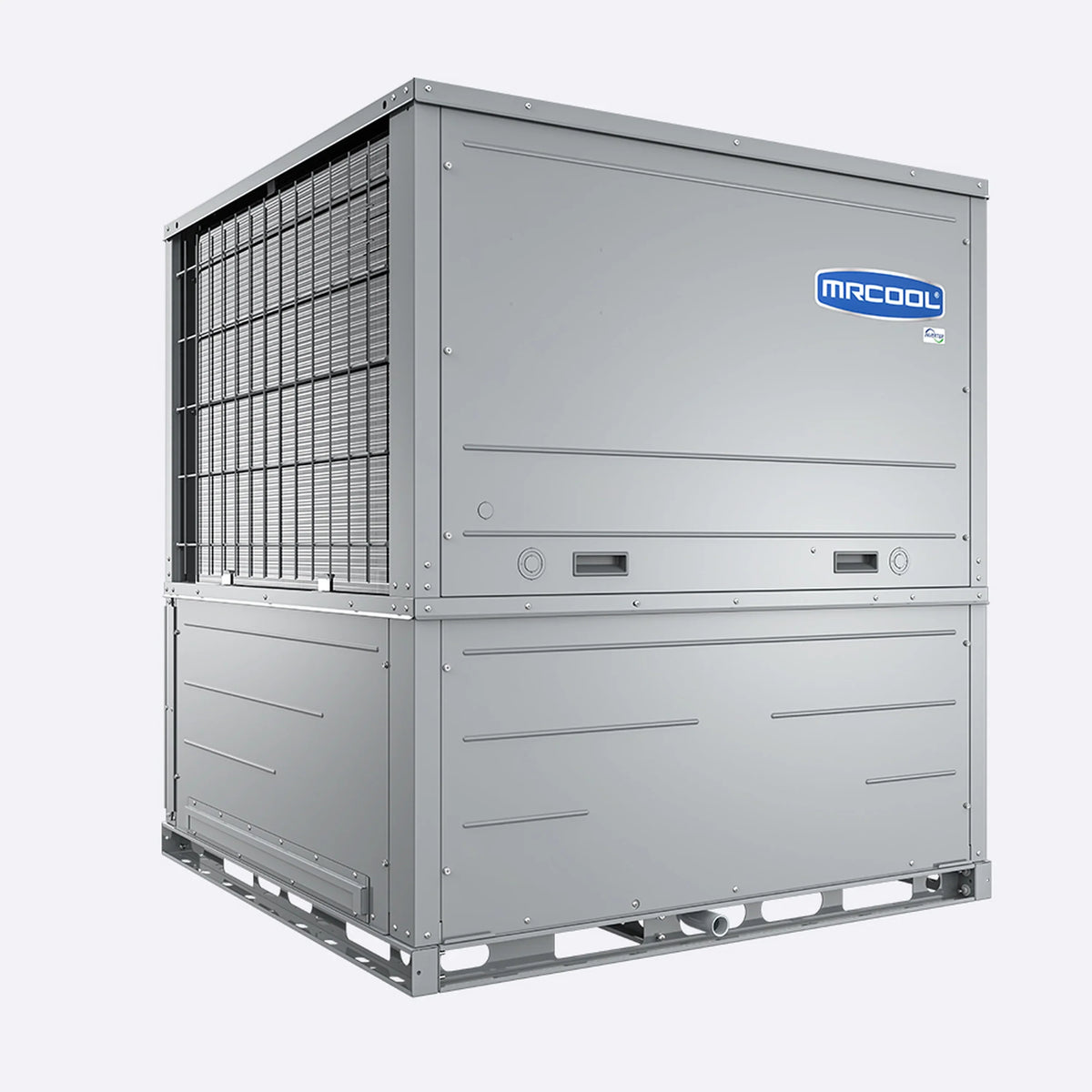

The MRCOOL® Universal® Series 60K DC Inverter Heat Pump Condenser delivers powerful, energy-efficient performance in all climates. Whether you’re facing sub-zero winter temperatures or peak summer heat, this high-capacity unit maintains strong, consistent airflow and dependable comfort throughout the year.
With an impressive 17.5 SEER2 efficiency rating, it’s designed to reduce energy usage without sacrificing performance—making it an excellent choice for large residential spaces or demanding HVAC applications. Designed with flexibility and ease in mind, installation is fast and streamlined—especially when paired with the optional MRCOOL® NO-VAC® Quick Connect® line set (sold separately). This pre-charged, sealed line set eliminates the need for vacuuming or flaring, cutting installation time, labor costs, and the risk of error. Its compact footprint also allows for flexible placement in areas with limited outdoor clearance, making it ideal for both new builds and retrofit projects.
At the core of this system is advanced DC inverter technology, which enables the condenser to adjust its output continuously based on your home’s heating or cooling needs. This eliminates the frequent cycling common with traditional systems, resulting in quieter operation, greater energy efficiency, and less wear on components—helping extend the lifespan of the unit. Whether you’re upgrading from an outdated system or planning a new installation, the MRCOOL® Universal® Series 60K Condenser offers exceptional performance, energy savings, and dependable comfort. It’s backed by a 10-year parts warranty and a 2-year limited labor warranty for added peace of mind.
| Net Dimensions (In) | 16.34 D x 38.39 H x38.58 W |
| Net Weight (Lbs) | 201.5 |
| SEER2 | Up to 17.5 |
| EER2 | Up to 12 |
| HSPF2-4 | 9.5 |
| HSPF2-5 | 7.7 |
| Tonnage | 5 |
| Cooling Capacity (Btu) | 54000 |
| Heating Capacity (Btu) | 55000 |
| Voltage (V) | 208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 40 |
| Min Circuit Ampacity (A) | 40 |
| Color | Dark Grey |
| Refrigerant Type | R-454B |
| Refrigerant Volume (Oz) | 183.42 |
| Decibel Rating (Dba) | 64.5 |
| Inverter | DC |
| Max Lineset Length (Ft) | 246 |
| Liquid Line Size | 8-Mar |
| Suction Line Size | 4-Mar |
| Compressor Motor Type | Twin-Rotary |
| Condenser Fan Motor Rpm | 1000/900/750/650 |
| Metering Device | EXV |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Base Warranty | 10 Year Parts |
| Base Parts Warranty | 10 Years |
| Base Labor Warranty | 2 Year |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Gross Depth (In) | 19.49 |
| Gross Height (In) | 58.27 |
| Gross Width (In) | 43.11 |
| Gross Weight (Lbs) | 275.13 |
The MRCOOL® Universal® Series 60K Air Handler is built to deliver powerful, energy-efficient climate control for large residential spaces. No matter the season, it ensures consistent airflow and dependable indoor comfort—making it an ideal solution for homeowners seeking high-capacity performance without sacrificing efficiency.
Designed with installation versatility in mind, this air handler supports vertical, horizontal, and downflow configurations. Its compact footprint allows for easier placement in tight mechanical spaces, closets, attics, or basements—giving homeowners and contractors more flexibility during setup. To further simplify installation, the unit is fully compatible with the MRCOOL® NO-VAC® Quick Connect® line set (sold separately). This pre-charged, sealed line set eliminates the need for vacuuming or flaring, saving time, reducing labor, and minimizing the chance of installation error. For enhanced performance in colder climates, the system also supports optional Universal® Series Heat Kits. These kits provide additional heating output when temperatures drop and serve as an emergency backup source of heat. Engineered for durability and quiet operation, the 60K Air Handler features an M-shaped evaporator coil that increases the heat exchange surface area, boosts airflow, and helps maintain system efficiency. Constructed from 100% aluminum, the coil is corrosion-resistant, providing long-term reliability and reducing maintenance needs. Despite its power, the unit runs quietly—producing sound levels similar to a standard dishwasher or everyday conversation.
The MRCOOL® Universal® Series 60K Air Handler is backed by a 10-year parts warranty and a 2-year limited labor warranty, offering peace of mind and long-lasting value for your home.
| Net Dimensions (In) | 21.5 D x 55.94 H x21.5 W |
| Net Weight (Lbs) | 188.05 |
| CFM | 1801.1/1648.1/1500.9/1236.1/N\A |
| Tonnage | 5 |
| Voltage (V) | 115/208/230 |
| Phase | 1 |
| Cycle | 60 |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 14.5/10 |
| Mount Type | Multi-Position |
| Color | Dark Grey |
| Refrigerant Type | R-454B |
| Decibel Rating (Dba) | 60/57/54.5/37/N\A |
| Decibel Rating Low (Dba) | 37 |
| Decibel Rating High (Dba) | 60 |
| Number Of Speeds | 4 |
| Max Lineset Length (Ft) | 246 |
| Liquid Line Size | 8-Mar |
| Suction Line Size | 4-Mar |
| Filter Type | Replaceable |
| Filter Size | 20 x 20 x 1 |
| Metering Device | EXV |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 5 KW / 8 KW / 10 KW / 15 KW / 20 KW |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Base Warranty | 10 Year Parts |
| Base Parts Warranty | 10 Years |
| Base Labor Warranty | 2 Year |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Gross Depth (In) | 31.1 |
| Gross Height (In) | 25 |
| Gross Width (In) | 59.84 |
| Gross Weight (Lbs) | 238.32 |
Experience unparalleled comfort and energy efficiency with the MRCOOL Smart Thermostat, which boasts personalized heating and cooling options alongside a straightforward DIY installation process. This thermostat empowers you to customize settings effortlessly, enhancing your comfort while simultaneously reducing energy consumption. Choose from a plethora of modes and options to curate your ideal environment, including the convenient vacation mode, ensuring home safety during your absence without unnecessarily inflating energy bills.
Control lies at the heart of this Smart Thermostat, providing multiple avenues such as the intuitive touch-screen display, voice commands via popular virtual assistants like Google Assistant, Siri, or Amazon Alexa, or the innovative Smart HVAC app. The app offers a range of useful features, from an air filter cleaning monitor to a timeline displaying recent system adjustments, allowing you to track usage levels and fine-tune temperature and fan speed settings.
With its unique location-based services, the thermostat automatically adjusts settings based on your proximity to home, ensuring you always return to the perfect temperature. Even in the event of an internet outage, you can maintain control using the thermostat directly, adjusting temperature and settings as needed. With the added reassurance of a 3-year warranty, the MRCOOL Smart Thermostat provides peace of mind alongside unparalleled technology, comfort, and efficiency.
|
Dimensions |
3.9" D x 1" H x 3.9" W |
|
Voltage (V) |
24 |
| Sleep Mode | Yes |
| Base Parts Warranty | 3 Years |
| Gross Dimensions | 6.5" D x 2.12" H x 5.37" W |
| Gross Weight (lbs) | 0.95 |
