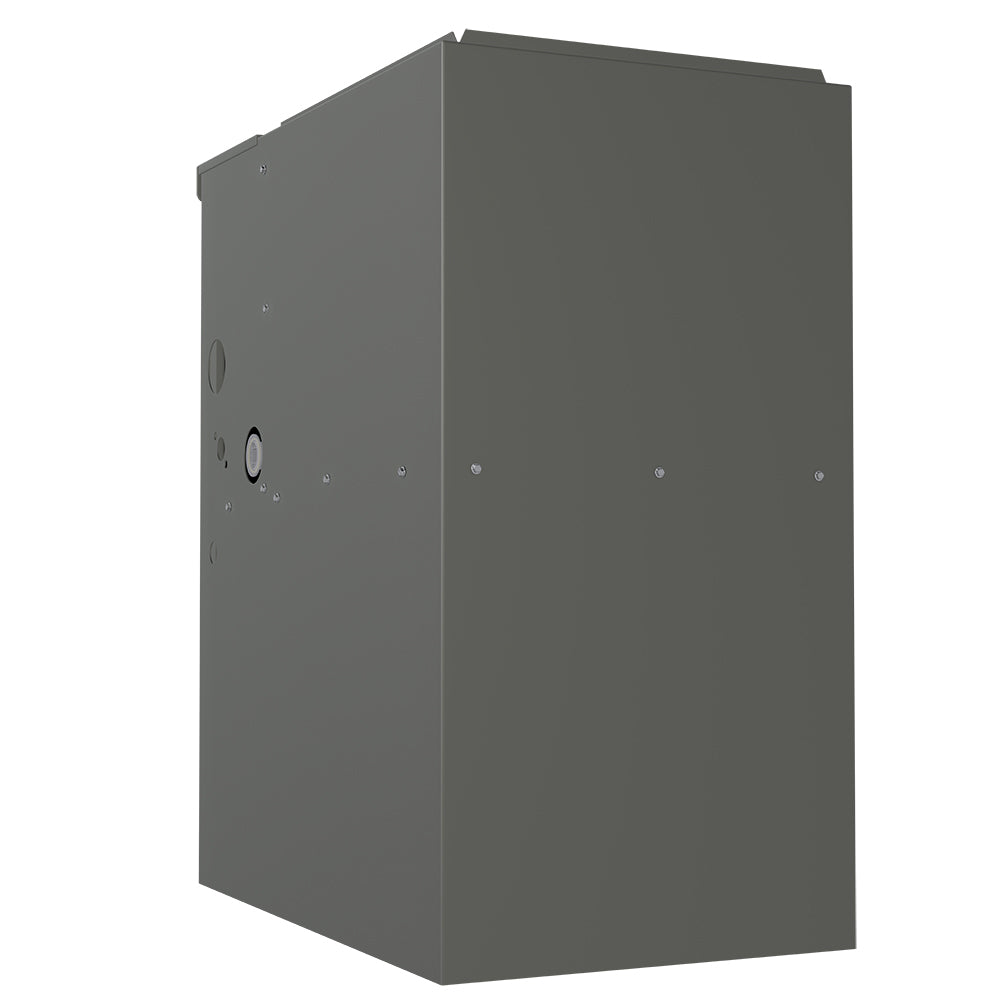

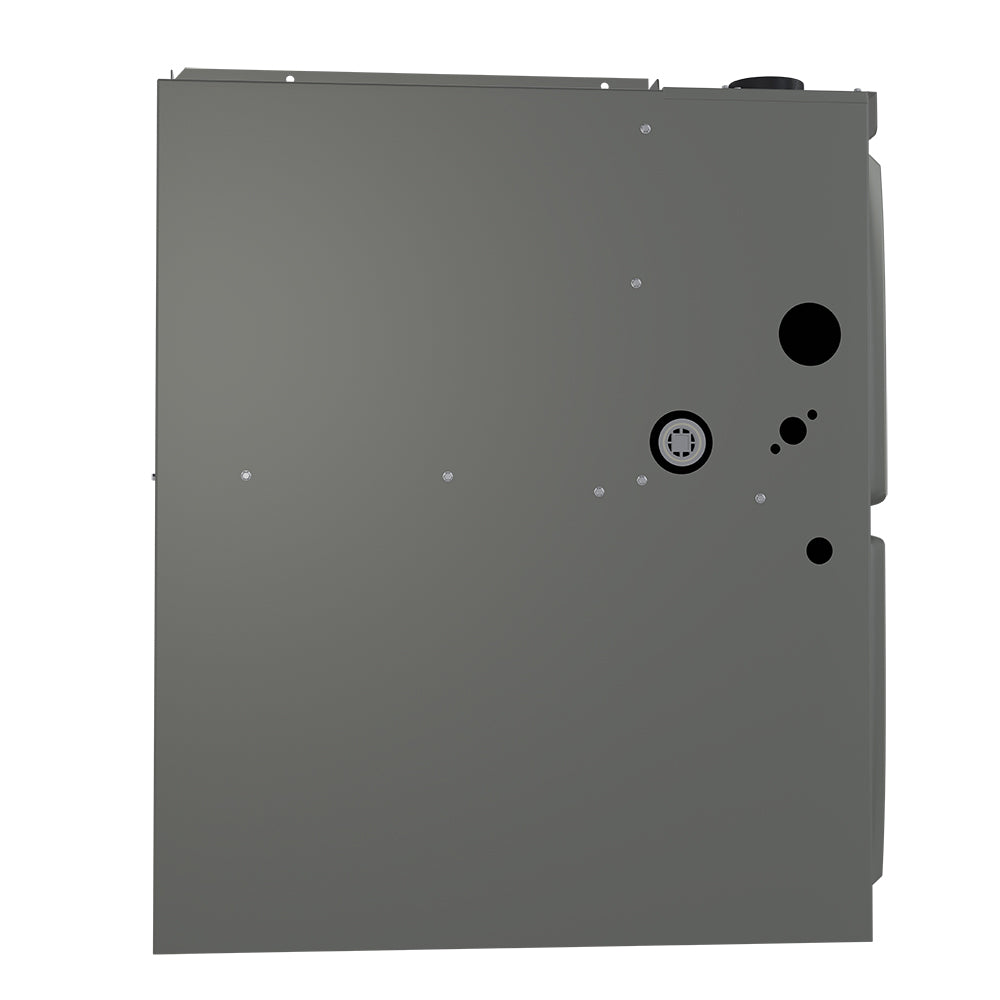

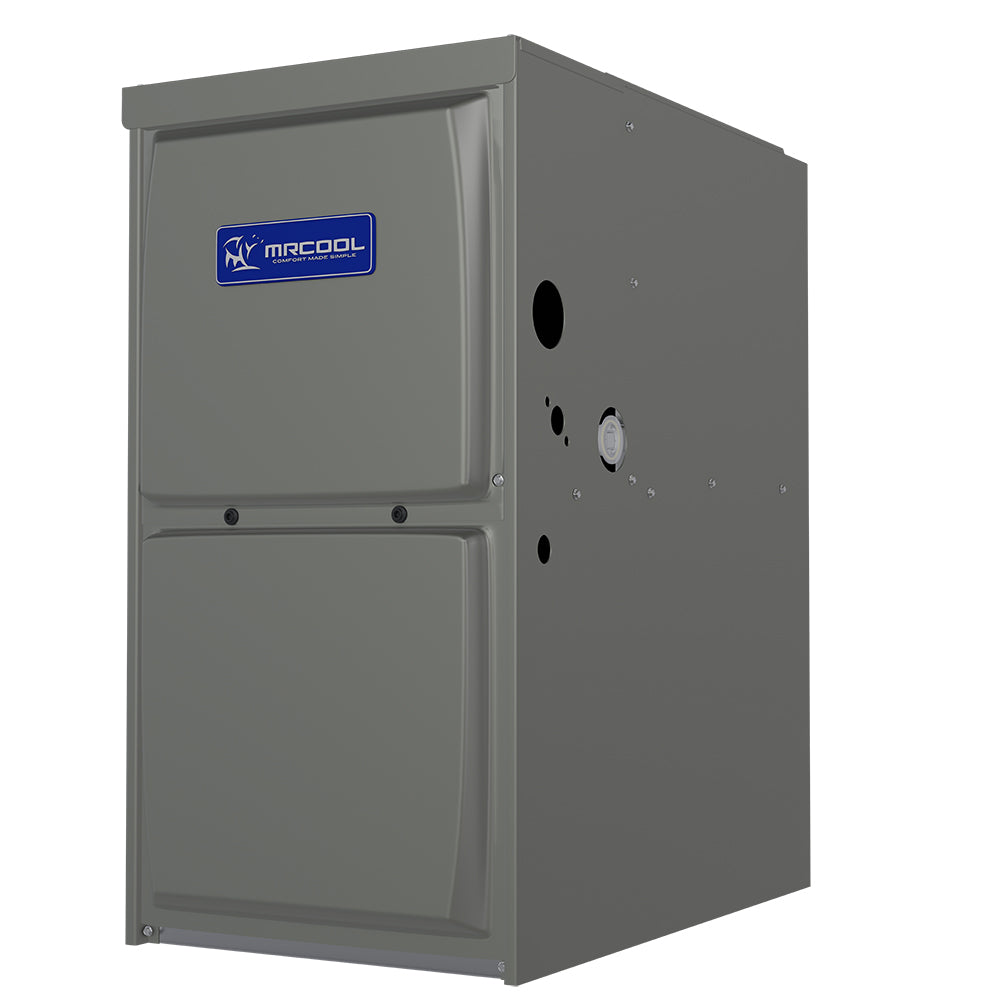

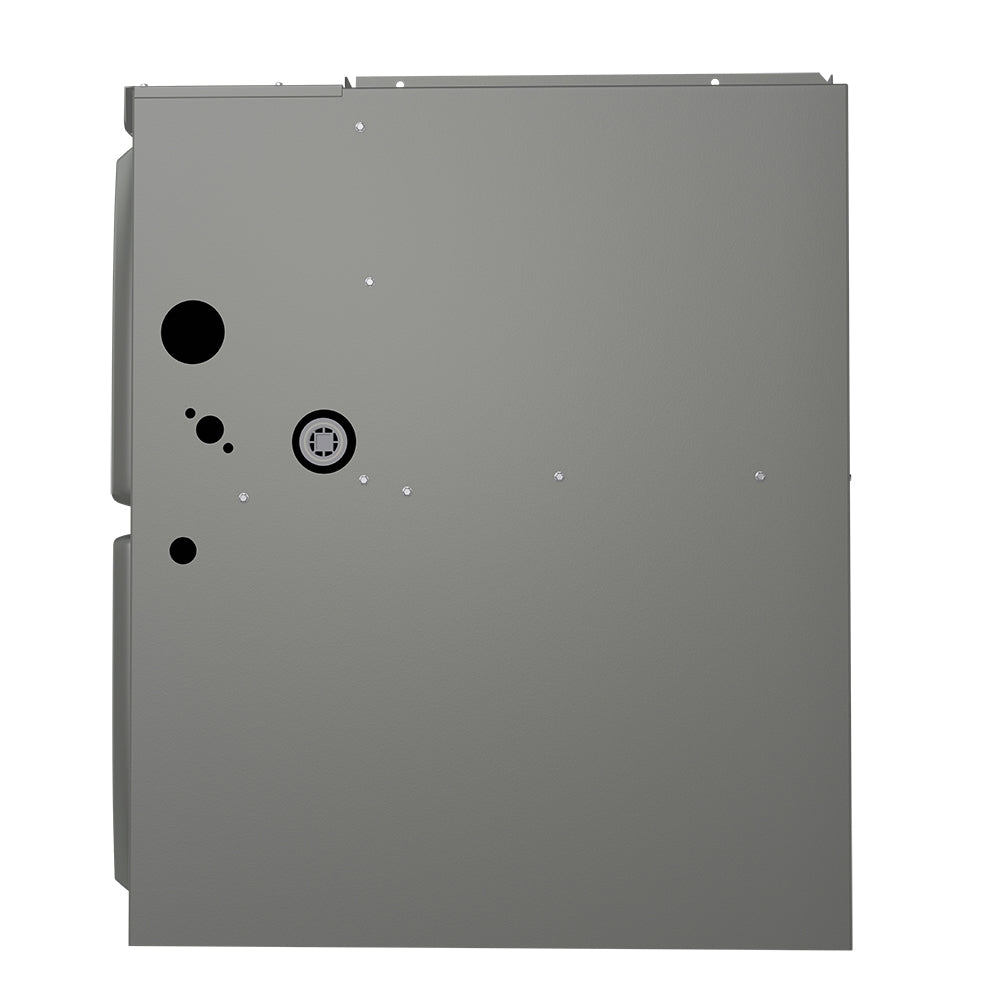

The MRCOOL® Signature Series Single-Stage 96% AFUE 70k BTU gas furnace is the perfect option to experly warm your home no matter how harsh the weather conditions. This quiet running, energy efficient unit is designed to be used in an upflow or horizontal configuration and offers low NOx. With a 96% AFUE, this furnace will save on utility costs thanks to the multi-speed high efficiency blower motor. When matched with the proper cooling equipment, you can experience enhanced cooling SEER ratings as well. It features a durable build and finish with an aluminized steel primary heat exchanger with crimped non-welded construction.
For optimal operation, the furnace offers aluminized steel inshot burners for a smooth ignition process and a durable silicon nitride ignitor. The single stage gas valve delivers heating to your home quickly. The 33 inch compact design, left or right utility connection, and zero step horizontal conversion make this furnace easy to install.
It features standardized widths for easy coil fit and is design certified for direct and non-direct applications. It is easily vented with PVC pipe and features a removable floor base for bottom return air. The optional LP kit allows for an easy conversion to use liquid propane. For easy maintenance, the furnace has an easily removable slide-out blower. For peace of mind, MRCOOL® offers a 10-year parts warranty and a lifetime heat exchanger warranty on this furnace.
|
Dimensions |
29" D x 33" H x 17.5" W |
|
AFUE |
96% |
|
CFM |
1200 |
|
Tonnage |
3 Ton |
|
Fuel Type |
Gas |
|
BTU Input |
66,000 |
|
BTU Output |
63,900 |
|
Voltage |
120V |
|
Phase |
1 |
|
Cycle |
60Hz |
|
Max Fuse Breaker |
15 |
|
Full Load |
6.8 |
|
GAS Connection Size |
1/2" |
|
AHRI Certified |
Yes |
|
Gross Weight |
129 lbs |
What BTU rating should I choose for my air handler?
| Air Handler BTU | Coverage Area/Room Size (Sq Ft.)* |
| 9K BTU | Up to 375 Sq. ft |
| 12K BTU | Up to 500 Sq. ft |
| 18K BTU | Up to 750 Sq. ft |
| 24k BTU | Up to 1000 Sq. ft |
| 36k BTU | Up to 1500 Sq. ft |
*Ceiling height, insulation, and local climate may impact the coverage area. For example, an uninsulated room will require more power than a well insulated room.
*Shipping Policy
Installed with ceiling cassettes... Quiet and keeping us cool so far !
I had purchase a 2 zone/ 2 head Mr.cool unit.
Installed to manufacture specs and instructions.
One machine lasted 30 days before an internal fan motor- bearing broke and caused product failure.
A week after that, the interior -second head unit failed. Completely iced up internally.
I put a complaint in as soon as each issue presented itself.
I have yet to receive compensation, a replacement part or acknowledgement of the second unit failing.
I do not recommend Mr. Cool products to anyone. They are cheaply made and the customer support is extremely poor.
Not worth DIY savings (pre charged units)
Very good delivery service installed and works like a Should
Product came packaged well, undamaged. Installation was difficult, followed instructions for suction line above coil on bilevel installation with coil above condenser. 108 inside house on startup, 103 ambient. First start, high pressure 500, low pressure 170, supply air temp 66 degrees. Very worried at first, but after house cooed down, everything within parameters. Researched 410a refrigerant, found out it looses efficiency exponentially during temperature extremes. My old r22 unit would supply 54 degree supply air in comparable operating conditions. EPA, government, a/c manufactures all lying to American public
First time ever installing Mr cool unit was built very good it has a dc converted fan motor,came with a salt shelf type coating om inside of unit over all very impressed 5star system
